Kenmore 911.41785 User manual

OWNER'S MANUAL
SINGLE 30" ELECTRIC
CONVECTION SELF-
CLEANING BUILT-IN
WALL OVEN
MODEL NO.
911.41785
911.41789
(- 1
I
--_'_
CAUTION:
Before using this oven,
read this manual and
follow all its Safety Rules
and Operating
Instructions.
• Safety instructions
•Operation
• Care and Cleaning
• Problem Solving
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
229C4020P196-1 (SR-10405)

Table of Contents
SELF-CLEANING
CONVECTIONOVEN
Oven Safety ........................... 3-4
Features of Your Oven .............. 5
Removal of Packaging Tape ..., 5
Oven Control, Clock, Timer ...... 6
Control Display ......................... 7

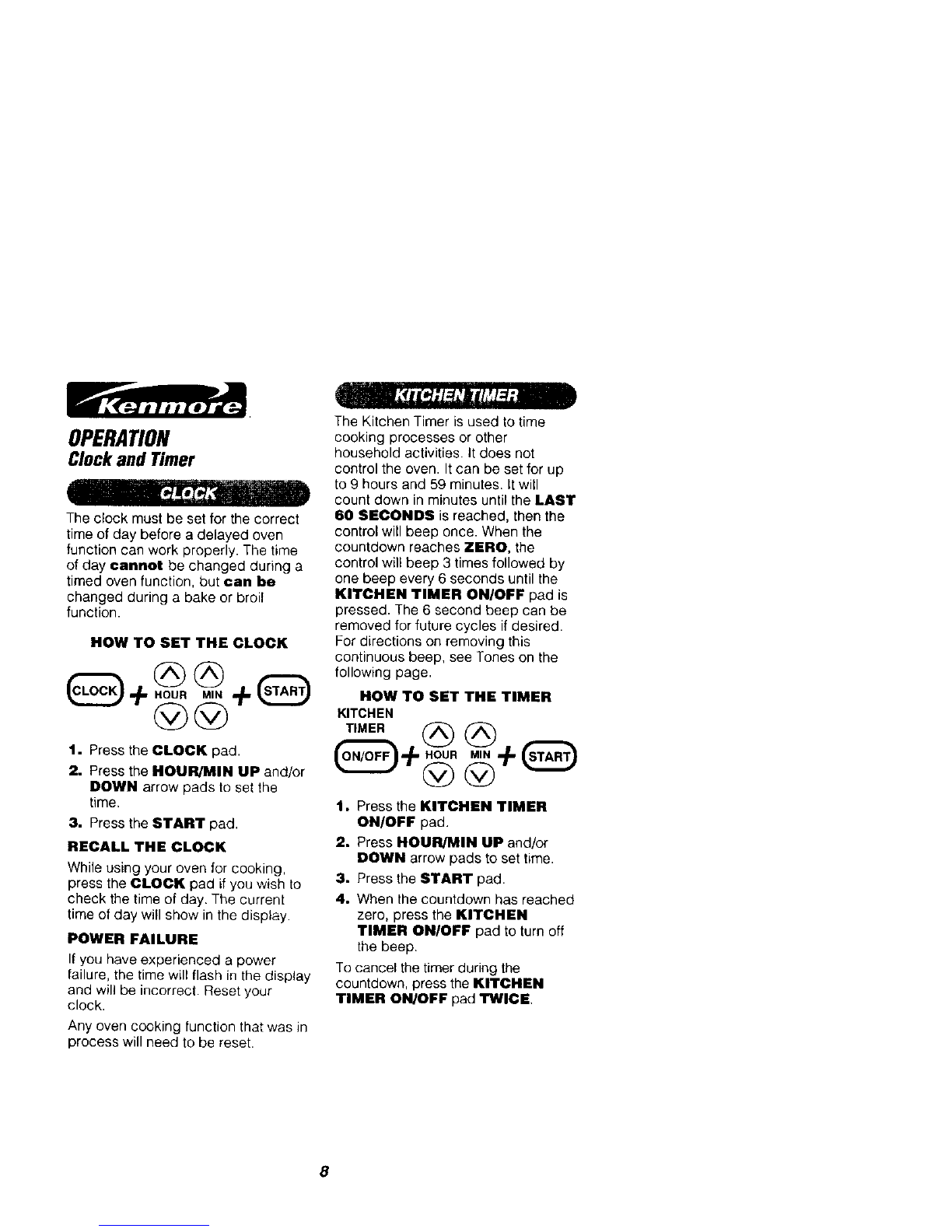

Clock ........................................ 8
Kitchen Timer ........................... 8
Tones ........................................ 9
F Code ...................................... 9
Convection Raking Tips ......... 10

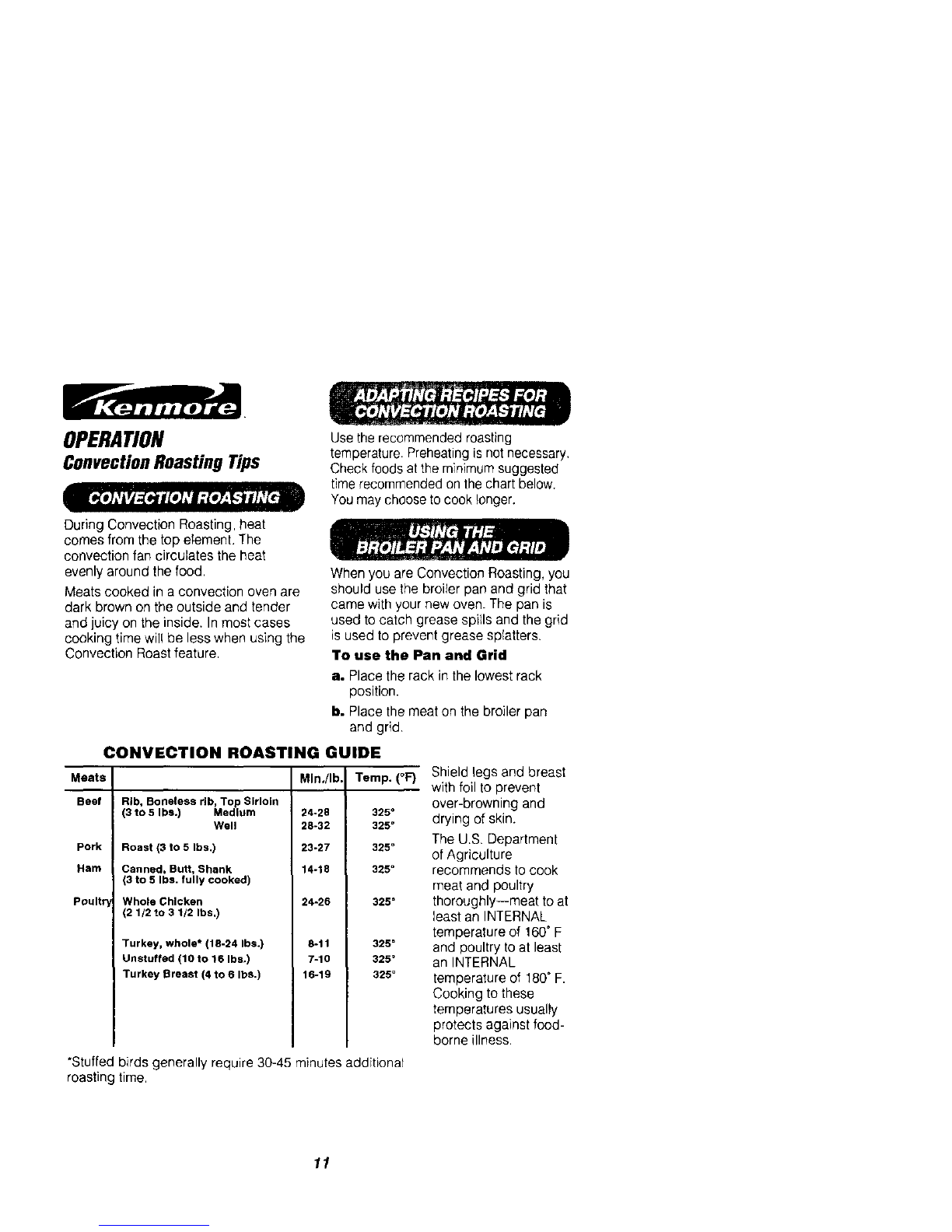

Convection Roasting Tips ...... 11

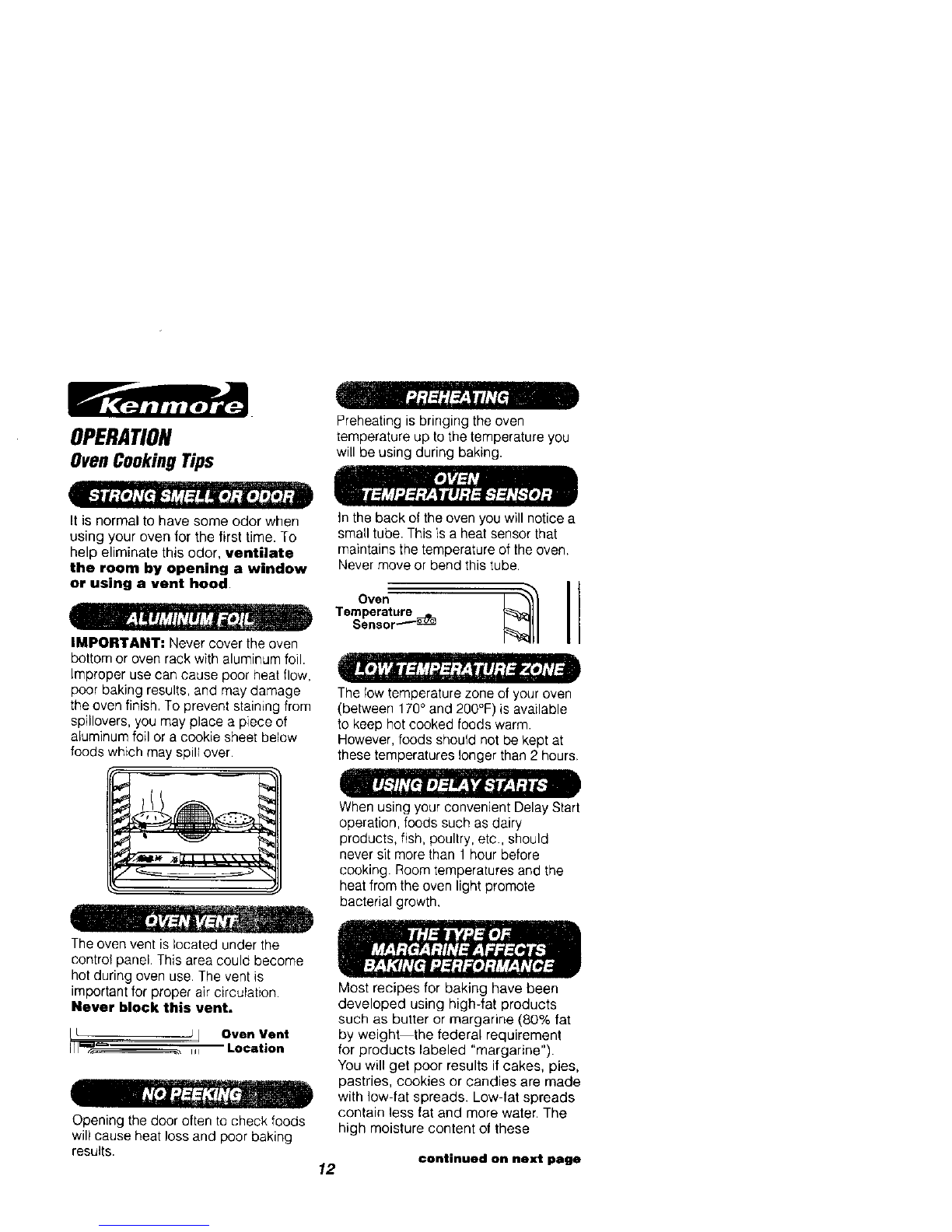

Oven Cooking Tips ............ 12-13

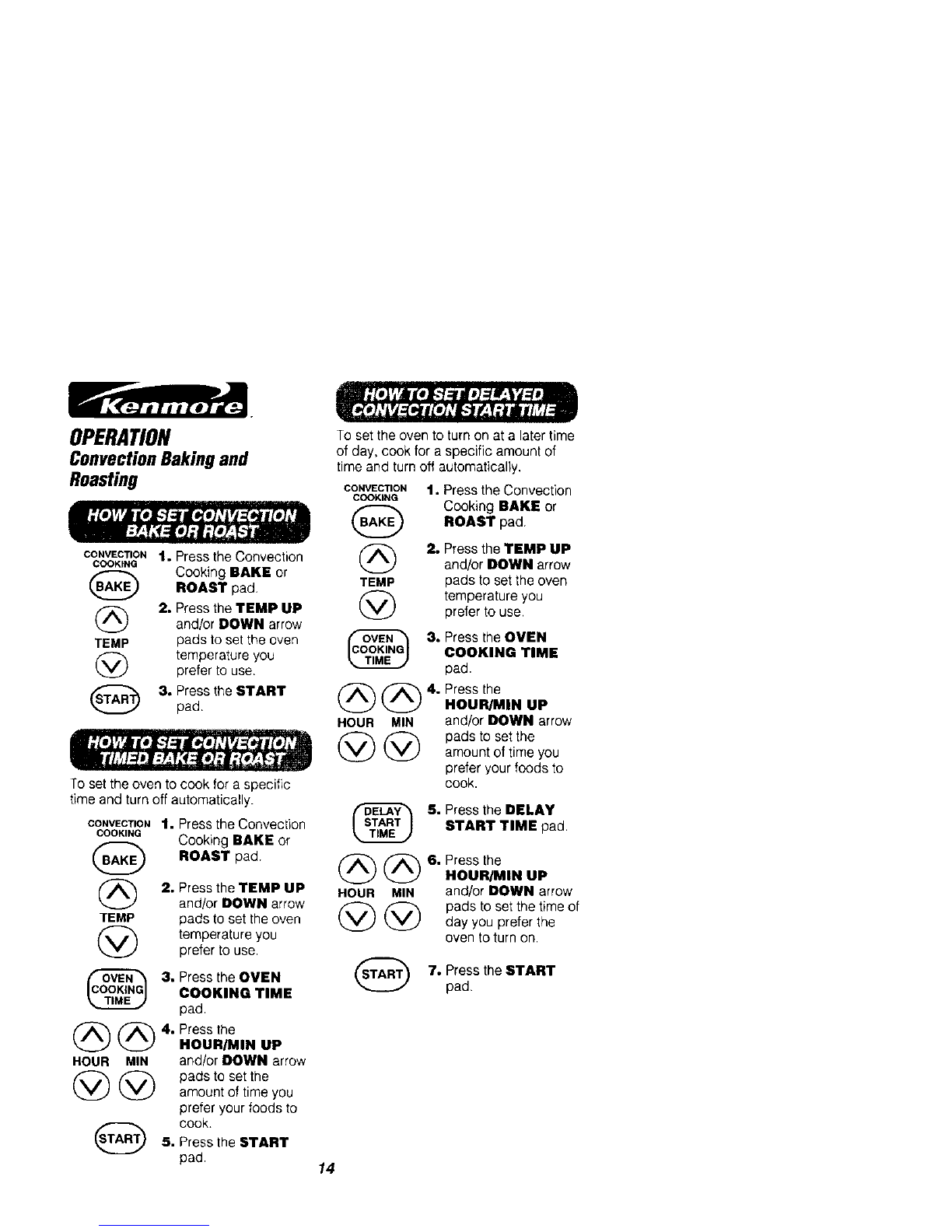

Setting Convection Bake and
Roasting ................................. 14

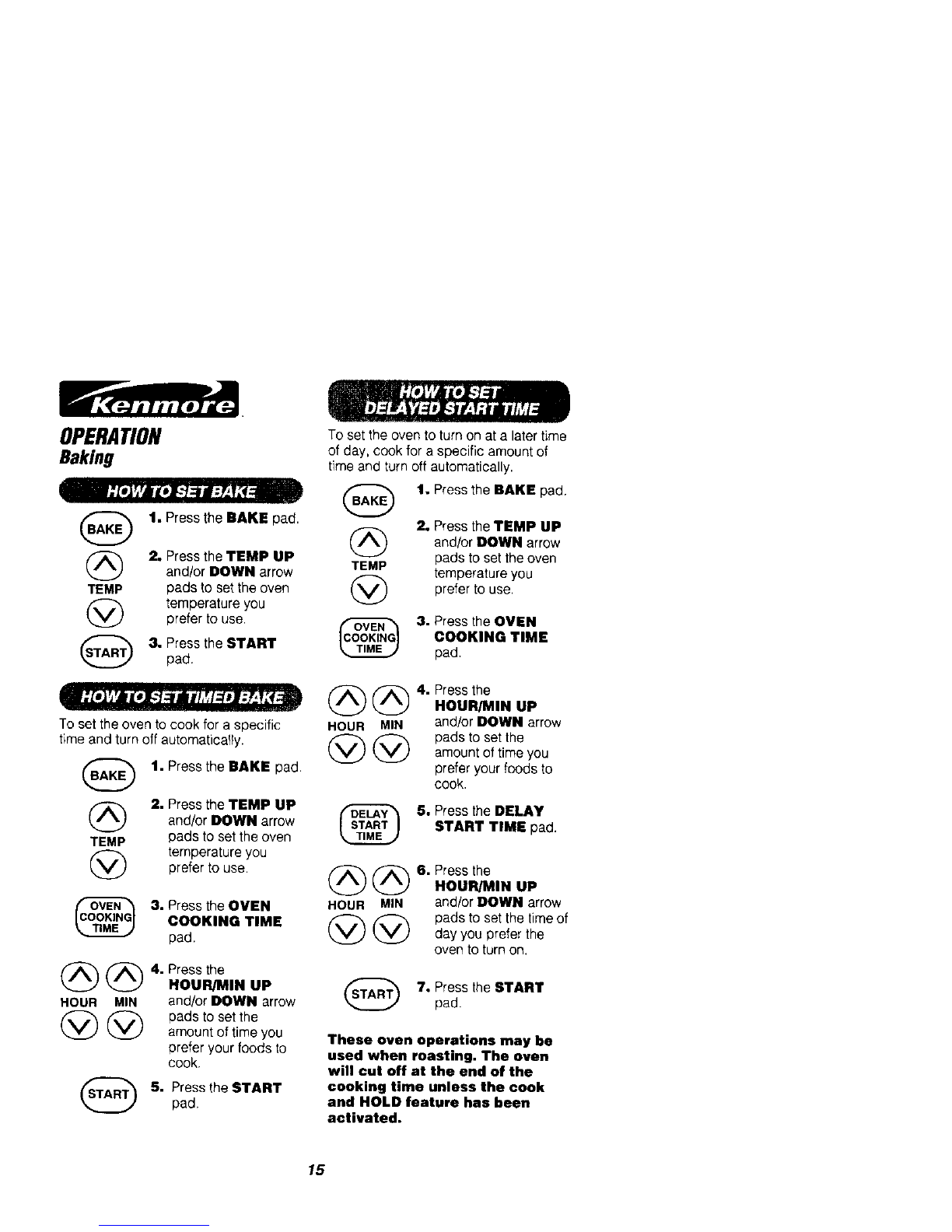

Setting Bake ........................... 15
Broiling ................................... 16

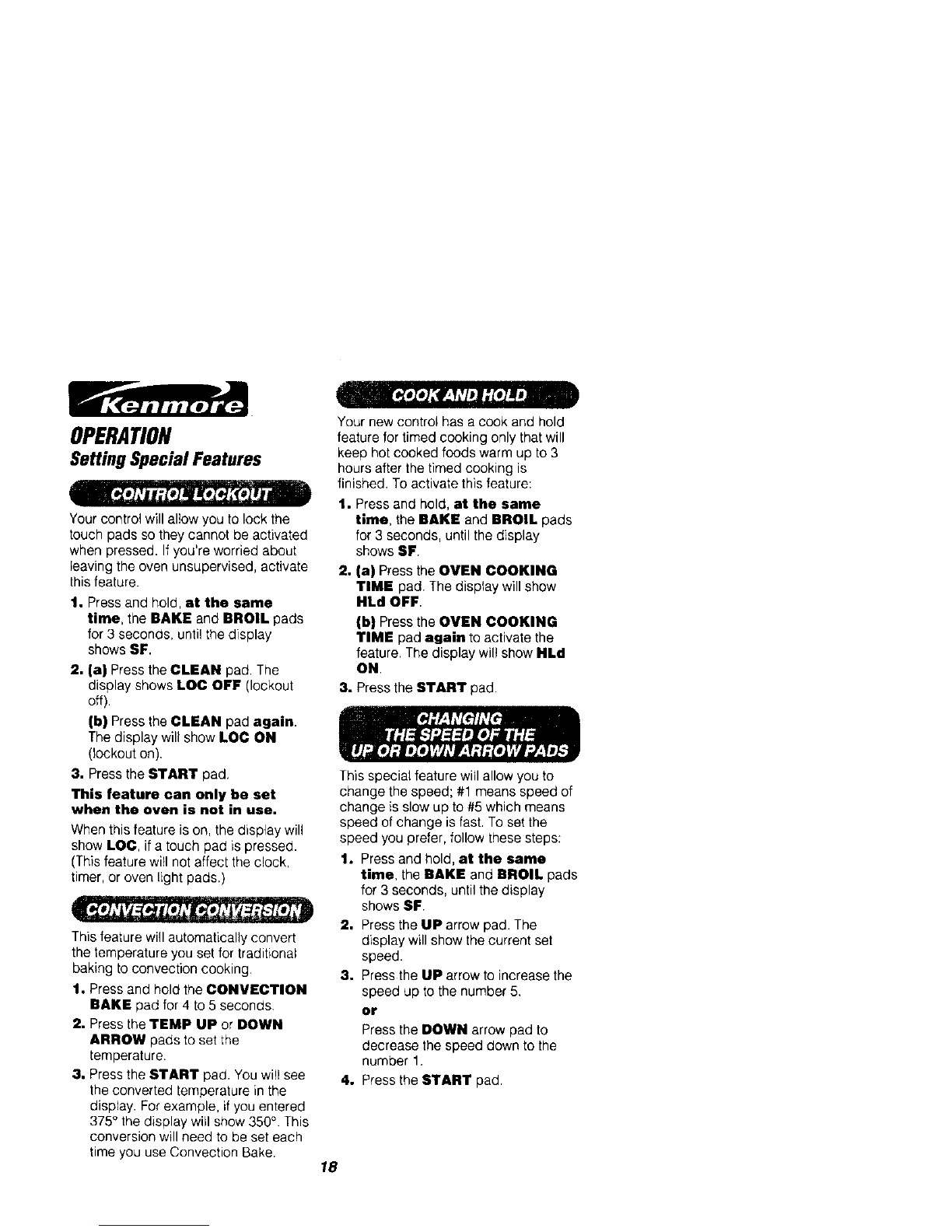

Setting Special Features 17-18
Self-Cleaning Cycle ........... 19-20
Control Panel .......................... 21
Broiler Pan and Grid ............... 21
Removable Floor .................... 21
Oven Light Bulb ...................... 22
Oven Racks ............................ 23
Oven Door .............................. 23
Before Calling for
Service ............................... 24-25
Temperature Adjustment ....... 26
Warranty ................................. 27
Consumer Service Numbers ,.. 28
For your convenience and future reference, please write down
your model and serial numbers in the space provided. They are
located on the front frame behind the oven door.
MODELNUMBER: SERIAL NUMBER:

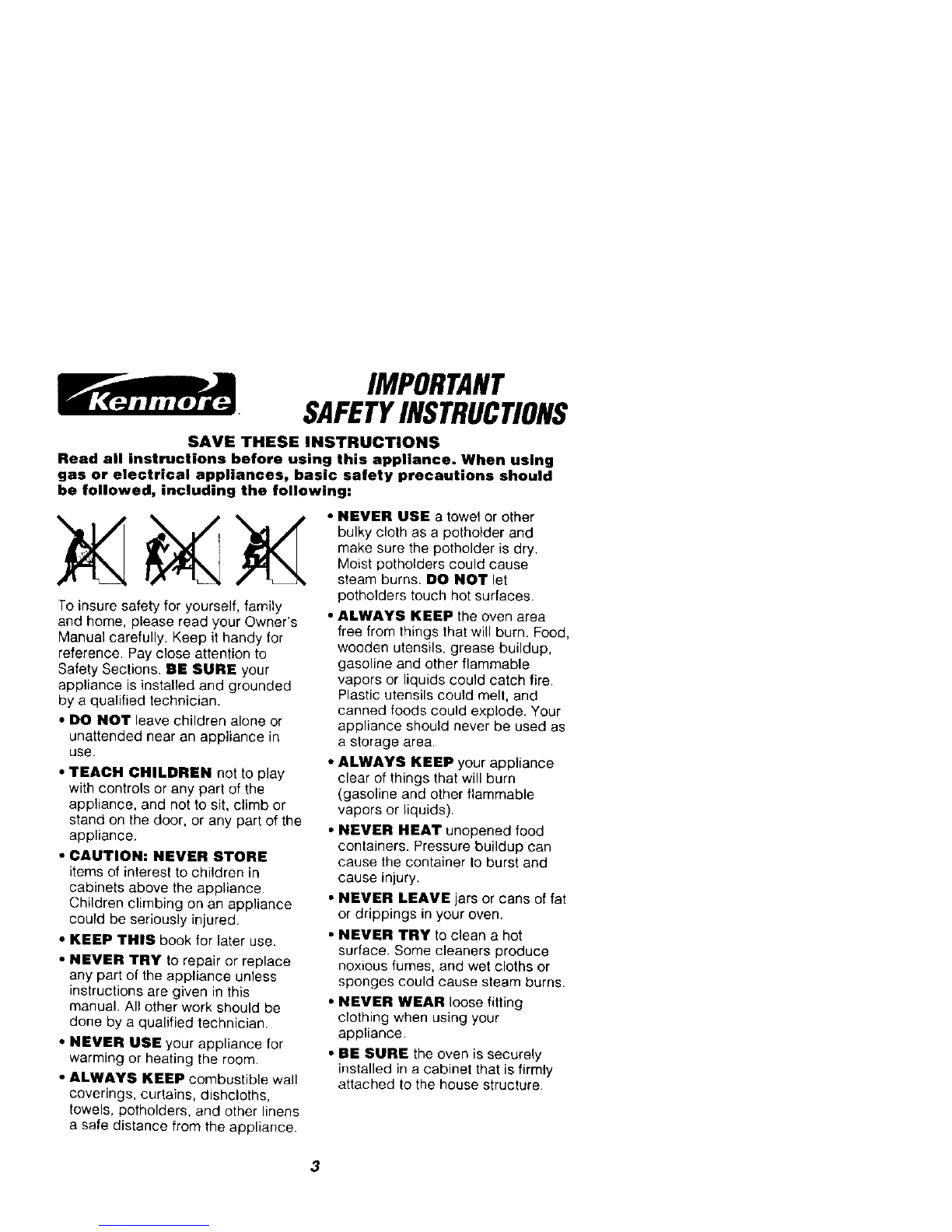

IMPORTANT
SAFETYINSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before using this appliance. When using
gas or electrical appliances, basic safety precautions should
be followed, including the following:
To insure safety for yourself, family
and home, please read your Owner's
Manual carefully, Keep it handy for
reference. Pay close attention to
Safety Sections. DE SURIE your
appliance is installed and grounded
by a qualified technician.
• DO NOT leave children alone or
unattended near an appliance in
use.
•TEACH CHILDREN not to play
with controls or any part of the
appliance, and not to sit, climb or
stand on the door, or any part of the
appliance.
• CAUTION: NEVER STORE
items of interest to children in
cabinets above the appliance.
Children climbing on an appliance
could be seriously injured.
•KEEP THIS book for later use.
•NEVER TRY to repair or replace
any part of the appliance unless
instructions are given in this
manual. All other work should be
done by a qualified technician.
•NEVER USE your appliance for
warming or heating the room.
• ALWAYS KEEP combustible wall
coverings, curtains, dishcloths,
towels, pothotders, and other linens
a safe distance from the appliance.
•NEVER USE atowel or other
bulky cloth as a potholder and
make sure the potholder is dry.
Moist potholders could cause
steam burns. DO NOT let
potholders touch hot surfaces.
•ALWAYS KEEP the oven area
free from things that will burn. Food,
wooden utensils, grease buildup,
gasoline and other flammable
vapors or liquids could catch fire,
Plastic utensils could melt, and
canned foods could explode. Your
appliance should never be used as
a storage area,
•ALWAYS KEEP your appliance
clear of things that will burn
(gasoline and other flammable
vapors or liquids).
•NEVER HEAT unopened food
containers. Pressure buildup can
cause the container to burst and
cause injury.
•NEVER LEAVE jars or cans of fat
or drippings in your oven.
•NEVER TRY to clean a hot
surface. Some cleaners produce
noxious fumes, and wet cloths or
sponges could cause steam burns.
•NEVER WEAR loose fitting
clothing when using your
appliance,
•BE SURE the oven is securely
installed in a cabinet that is firmly
attached to the house structure,
3

IMPORTANTSAFETY
INSTRUCTIONS
•DO NOT touch heating elements,
surfaces near them, or intedor oven
surfaces. These may be hot enough to
cause burns even though they are
dark in color. During and after use, do
not touch or let clothing or flammable
material contact the elements or hot
surfaces until they have had time to
cool. Other surfaces near the oven
vent openings, oven door, and
window may also be hot enough to
cause burns.
• PLACE OVEN RACKS in the
desired position while the oven is
cool. If racks must be moved while
oven is hot, do not let potholder
contact the hot oven element.
• AFTER BROILING, always take the
broiler pan and grid out of the oven
and clean them. Leftover grease in the
broiler pan could catch fire the next
time you use your oven
•ALWAYS USE care when opening
the oven door. Let hot air and steam
escape before moving foods.
•NEVER USE aluminum foil to line the
oven bottom. Improper use of foil
could start a fire, or electrical shock
could result.
• NEVER BLOCK the oven vent
opening.
•CLEAN ONLY the parts listed in this
manual. Follow all cleaning
instructions.
•NEVER RUB, move or damage the
door gasket on self-cleaning ranges.
•NEVER TRY to c_eanutensils,
cookware, removable parts or broiler
pan and grid in the self-clean cycle.
•DO NOT USE oven cleaners -No
commercial oven cleaner or protective
coating of any kind, should be used in
or around any part of the oven.
IMPORTANT SAFETY
NOTICE!
The Califomia Sale Drinking
Water and Toxic Enforcement
Act requires the governor of
California to publish a list el
substances known to the state
to cause birth defects or other
reproductive harm and requires
businesses to warn their
customers of potenUal
exposure to such substances.
The fiberglass insulation in a
self-cleaning oven will give off
a very small amount of carbon
monoxide during the cleaning
cycle. Exposure can be
minimized by venting with an
open door or window or using a
ventilation fan or hood.
IMPORTANT: The health of
some birds is extremely
sensitive to the fumes given off
during the self-cleaning cycle
of any range. Move birds to
another well-ventilated room.
4
READ AND UNDERSTAND
THIS INFORMATION
NOWl
Be sure everyone in your home
knows what to do in case of
fire. Never use water on a
grease fire; it will only spread
the flames.
OVEN FIRE:
Do not try to move the pan!
1. Close the oven door and turn
controls off.
2. If fire continues carefully open the
door, throw baking soda on the
fire, or use a dry chemical, foam,
or halon type extinguisher.

OPERATION
FEATURESOF YOUROVEN
Self-Clean
Automatic
Door Latch
Oven Vent
Oven
Temperature
Oven Control
Clock Pad
Oven Light
Switch
I
Sensor _. t -- Broil Element
Convection Fan_ _--_----_11
ll_ _Oven Light
Self-Cleaning _
Oven Interior- Ill_-,,,, I_1 _Oven Rack
_'Guides
Model & Serial _-_Rem°vableNumber Location .--'-'-"
(behind door) _ _ "_-'Oven Rack
\ \Removable Oven
\"Door
Hidden Bake Broiler Pan & Self-Cleaning
Element Grid Oven Door
Gasket
To remove the adhesive left from packaging tape, use household dishwashing
liquid, mineral oil or cooking oil. With a soft cloth rub into the area and allow to
soak, Rinse and dry well. Repeat procedure using an appliance polish to insure
no damage is done. This should be done before the oven is turned on
for the first time. The tape cannot be removed once the oven has
heated. Packaging tape may be found in the following areas: Door handle,
control panel area, door trim and oven area
5
