Kenmore 66513206K902 User manual

®
Installation instructions
ndercounter Panel Ready ishwasher
(Stainless Steel Giant Tub IVIodels)
Instrucciones de instalacion
Lavavaj las para debajo mostrador
con panel opcional
(Modelos con tina gigante de acero ino×idable)
instructions d'installation
Lave-vaisselle bpanneau sous comptoir
(Modeles acuve geante en acier ino×ydable)
Table of Contents............................................................................. 2
fndice .............................................................................................. 18
Table des matieres ......................................................................... 33
W10253529A

Table of Contents
Dishwasher Safety ................................. 2
installation Requirements ........................... 3
Tools and parts ................................. 3
Location Requirements .......................... 3
Drain Requirements ............................. 5
Water Supply Requirements ...................... 5
Electrical Requirements .......................... 5
Installation instructions ............................. 6
Prepare cabinet opening
using existing utility hookups ..................... 6
Prepare cabinet opening
where there are no existing utility hookups .......... 7
Prepare dishwasher ............................. 9
Install custom panel ............................ 11
Make electrical connection ...................... 13
Connect to water supply ........................ 14
Connect to drain ............................... 15
Secure dishwasher in cabinet opening ............ 15
Dishwasher Safety
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
You need to:
Slowly open dishwasher door while someone grasps the
rear of the dishwasher. Remove shipping materials, drain
hose and lower rack. Close dishwasher door until latched.
Observe all governing codes and ordinances.
Install this dishwasher as specified in these instructions.
Installation should be performed by a qualified service
technician. The dishwasher must be installed to meet all
electrical and plumbing national and local codes and
ordinances.

Installation Requirements
Tools and Parts
Gather the required tools and parts before starting
installation.
All installations
Tools needed:
.Pliers
.Phillips screwdriver
.sA_"and 1/4"nut drivers or
hex sockets
.Measuring tape or ruler
.10" adjustable wrench that
opens to 11/8'' (2.9 cm)
.Flat-blade screwdriver
.Utility knife
.2 twist-on wire connectors
which are the proper size
to connect your household
wiring to 16-gauge wiring
in dishwasher
.Small level
.Flashlight
.Shallow pan
, %" open-end wrench
, Bath towel
, Wood block
, Torx®t T15 screwdriver
3/32"drill bit
3A6"hex-head socket
Parts needed:
90° elbow with 3/s"N.RT.
external threads on one
end. (The other end must
fit your water supply line.)
Teflon ®tape or pipe joint
compound
Shims (if installed with
built-up floor)
Handle (not included)
Custom front panel
In addition, for new installations
Tools needed:
.Cordless drill with 1/2",3/4"
and 11/2'' hole saw bits
.Small tubing cutter
.Wire stripper
.11/2"-2'' (6- 8 cm) screw-
type clamp if connecting
to waste-tee
Parts needed:
* Copper tubing (3/8"
recommended) or flexible
stainless steel braided fill
line
* Clamp connector or strain
relief to fit a 7/8"(2.2 cm)
diameter hole
Parts supplied:
A. Drain hose clamps (2), 1 large and 1small
B. # 10 x 1/2"Phillips-head screws (2)
C. Drain hose
C B
Make sure all these parts are included. If not included, call
1-800-4MY-HOME.
See separate parts list for accessories available for your
dishwasher.
Location Requirements
Do not run drain lines, water lines or electrical wiring
where they can interfere with or contact dishwasher motor
or legs.
The location where the dishwasher will be installed must
provide cJearance between motor and flooring. Motor
should not touch the floor.
Do not install dishwasher over carpeted flooring.
Shelter dishwasher and water lines leading to dishwasher
against freezing. Damage from freezing is not covered by
the warranty.
A side panel kit is available from your dealer for installing
your dishwasher at the end of your cabinetry.
A moisture barrier accessory (Part Number 4396277) is
available from your dealer for installing underneath the
countertop. This may also be obtained by calling
1-800-4MY-HOME.
Check location where dishwasher will be installed. The
location must provide:
easy access to water, electricity and drain.
convenient access for loading and unloading dishes.
Corner locations require a 2" (5.1 cm) minimum clearance
between the side of the dishwasher door and the wall or
cabinet.
square opening for proper operation and appearance.
cabinet front perpendicular to floor.
level floor. (If floor at front of opening is not level with
floor at rear of opening, shims may be needed to level
dishwasher.)
NOTE: To avoid shifting during dishwasher operation,
shims must be securely attached to the floor.
If dishwasher will be left unused for a period of time or in
a location where it may be subject to freezing, have it
winterized by authorized service personnel.
Make sure pipes, wires and drain hose are within the
shaded area shown in the "Cutout dimensions" section.
Helpful Tip: If the floor in the dishwasher opening is
uneven (example: tile flooring only partway into
opening) you will need to pay attention to measuring
dimensions and leveling the dishwasher.
t® TORX is a registered trademark of Acument Intellectual
Properties, LLC 3

Product dimensions
3/4"(1.9 cm)
insulation -
may be
compressed
(not used on all
models)
Dimension varies
with thickness of
custom front panel:
241/2"(62.2 cm)
without panel
installed
_,_---_ 21" (53.3 cm)-_
SIDE VIEW
REAR VIEW
33%"
(86 cm) min.
with wheels
removed
1
Cutout dimensions
,i
34"
(86.4 cm)
min. <-
(5.1 cm) 10"
(25.4
23/4" 31/4"
(7 cm) (8.3 cm) (8.3 cm) (7 cm)
Cut holes in shaded area of cabinet walls or floor as specified below:
water line - 1/2" (1.3 cm)
drain line - 11/2`` (3.8 cm)
direct wire -3/4" (1.9 cm)
power supply cord - 11/2`` (3.8 cm)
<Measured from the lowest point on the underside of countertop. May be
reduced to 33%" (86 cm) by removing wheels from dishwasher.
*<Minimum, measured from narrowest point of opening.
*<*May be increased to 6%" (16.6 cm) if height of opening is 341/2"
(87.6 cm) at its lowest point.

Drain Requirements
Use the new drain hose supplied with your dishwasher.
If this is not long enough, use a new drain hose with a
maximum length of 12 ft (3.7 m) that meets all current
AHAM/IAPMO test standards, is resistant to heat and
detergent, and fits the 1" (2.5 cm) drain connector of
the dishwasher.
Connect drain hose to waste tee or disposer inlet
above drain trap in house plumbing and 20" (50.8 cm)
minimum above the floor. It is recommended that the
drain hose either be looped up and securely fastened
to the underside of the counter, or be connected to an
Air gap.
,Use an Air gap if the drain hose is connected to house
plumbing lower than 20" (50.8 cm) above subfloor or
floor.
Use 1/2"minimum I.D. drain line fittings.
Water Supply Requirements
A hot water line with 20-120 psi (138-862 kPa) water
pressure.
120°F (49°C) water at dishwasher.
3/8"O.D. copper tubing with compression fitting or
flexible stainless steel braided fill line (W' minimum
plastic tubing is not recommended).
A 90° elbow with 3/8"N.RT. external pipe threads on
one end.
Do not solder within 6" (15.2 cm) from water inlet
valve.
Electrical Requirements
Contact a qualified electrician.
Assure that the electrical installation is adequate and in
conformance with all national and local codes and
ordinances.
You must have:
120-volt, 60 Hz, AC-only, 15- or 20-amp, fused electrical
supply.
Copper wire only.
We recommend:
A time-delay fuse or circuit breaker.
A separate circuit.
If direct wiring dishwasher:
Use flexible, armored or nonmetallic sheathed, copper
wire with grounding wire that meets the wiring
requirements for your home and local codes and
ordinances.
Use strain relief method provided with house wiring
junction box or install a UL Listed/CSA Approved clamp
connector to the house wiring junction box. If using
conduit, use a UL Listed/CSA Approved strain relief.
If connecting dishwasher with a power supply cord:
.Use Power Supply Cord Kit (Part Number 4317824)
marked for use with dishwashers. Kit contents include:
- Volex, Inc., UL Listed 16 gauge 3 wire power supply
cord with 3 prong grounding plug.
- Neer C-500 7/8"strain relief.
- 3 wire connectors.
- Part Number 302797 grommet
Follow the kit instructions for installing the power
supply cord.
.Power supply cord must plug into a mating three prong,
grounded outlet, located in the cabinet next to the
dishwasher opening. Outlet must meet all local codes and
ordinances.

installation instructions
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
1. Disconnect power.
2. Turn off water supply.
Prepare cabinet opening using
existing utility hookups
Follow the steps in this section if you are installing the
dishwasher in an existing cabinet opening with utility
hookups.
If you are installing the dishwasher in a cabinet opening
that does not have hookups, follow the steps under
"Prepare cabinet opening where there are no existing
utility hookups" section.
1. Check that the water II
line reaches to the
front left of opening
where the water water
connection will be line
made. I / _
2. Check that the direct I. ,_
wire reaches to the --
front right of opening
where the electrical
connection will be made.
If the water line and the direct wire reach far enough into
the opening, proceed to the next section "Install the drain
hose." If they do not reach far enough, follow the steps
under "Prepare cabinet opening where there are no
existing utility hookups."
Install the drain hose
IMPORTANT: Always use a new drain hose even when
installing a new replacement dishwasher.
1. Drill a 11/2.' (3.8 cm) diameter hole in cabinet wall or
floor on the side of the opening closest to the sink.
L
2. Connect drain hose to waste tee or waste disposer
using one of the following methods:
,Option 1, Waste disposer - with Air gap
,Option 2, No waste disposer - with Air gap
,Option 3, Waste disposer - no Air gap*
,Option 4, No waste disposer- no Air gap*
*AnAir gapisrecommended.
Helpful Tip: To reduce the vibration of the hose, keep
the hose away from the floor and the edge of the hole
where it passes through the cabinet.
Option 1, Waste disposer - with Air gap:
1. Remove the disposer knockout plug. Cut end of drain
hose if needed (do not cut ribbed section).
2. Attach drain hose to Air gap with large spring-type
clamp. If the drain hose was cut, use a 11/2'' to 2"
(3.8 to 5 cm) screw-type clamp*.
3. Use a rubber hose connector* with spring or screw-
type clamps* to connect Air gap to disposer inlet.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed.
drain hose-
cut here if needed rubber hose
connector
spring-type
clamp
hose
drain trap
4. Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
drain hose
*Parts available from local plumbing supply stores

Option 2, No waste disposer -with Air gap:
1. Cut end of drain hose if needed (do not cut ribbed
section).
2. Attach drain hose to Air gap with large spring-type
clamp. If the drain hose was cut, use a11/2'' to 2"
(3.8 to 5 cm) screw-type clamp*.
3. Use arubber hose connector* with spring or screw-
type clamps* to connect Air gap to waste tee.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed.
drain hose-
cut here if needed
rubber hose
connector
large
spring-type
drain
drain trap _ hose
4, Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
*Parts available from local plumbing supply stores
drain hose
Option 3, Waste disposer -no Air gap:
1. Remove the disposer knockout plug. Do not cut end of
drain hose.
2. Attach drain hose to disposer inlet with large spring-
type clamp.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed. It is recommended that the drain hose
be looped up and securely fastened to the underside of
the counter.
large spring-type
clamp
_ain hose
3, Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
drain hose
Option 4, No waste disposer - no Air gap:
1. Cut end of drain hose if needed (do not cut ribbed
section).
2. Attach drain hose to waste tee with 11/2'' to 2"
(3.8 to 5 cm) screw-type clamp *.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed. It is recommended that the drain hose
be looped up and securely fastened to the underside of
the counter.
drain hose-
==_ cuthereif needed
tee #r LJq I
I _1 I I E_ drain
[ _ ]_ _ hose
dra'ntr°p--- : 1 I N
3, Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
drain hose
*Parts available from local plumbing supply stores
Prepare cabinet opening where there
are no existing utility hookups
Electrical connection
Option1,
1,
2,
3,
4.
5,
Direct wire method:
Helpful Tip: Wiring the dishwasher will be easier if you
route wire into the cabinet opening from the right side.
Drill a 3/4"(1.9 cm) hole
in right-hand cabinet
side, rear or floor.
Preferred and optional
locations are shown.
Wood cabinet: Sand
hole until smooth.
Metal cabinet: Cover
hole with grommet,
(Part Number 302797 - not provided).
Run wire into house wiring junction box.
Install a UL Listed/CSA Approved clamp connector
(strain relief) for flexible-type wire. If installing conduit,
attach a UL Listed!CSA Approved strain relief to the
junction box.
Run other end of wire
through cabinet hole.
Cable must extend to the
right front of cabinet
opening.
m

Option 2, Power supply cord method:
NOTE: A mating, three prong, ground-type wall receptacle
is required in a cabinet next to the dishwasher opening.
1. Drill a 11/2"
(3.8 cm) hole in
the cabinet rear
or side. Preferred
and optional
locations are
shown.
2. Wood cabinet:
Sand hole until
smooth.
optional preferred I
locations locations
Metal cabinet: Cover hole with grommet (Part Number
302797) included with power supply cord kit.
Install the water line
1,
Helpful Tip: Routing the water line through the left side
of cabinet opening will make water connection easier.
Drill a minimum 1/2"(1.3 cm) hole in the cabinet side,
rear or floor. Preferred and optional locations are
shown.
2,
3,
4,
5,
Measure overall length
of copper tubing
requi red.
Attach copper tubing
to the water line with a
manual shutoff valve.
copper
tubing
Slowly feed copper
tubing through hole in
cabinet. Copper tubing will bend and kink easily, so be
gentle. The copper tubing should be far enough into
the cabinet opening to connect it to dishwasher inlet on
the front left of the dishwasher.
Turn water shutoff valve to "ON" position. Flush water
into a shallow pan to get rid of particles that may clog
the inlet valve.
6. Turn shutoff valve to "OFF" position.
Install the drain hose
iMPORTANT: Always use a new drain hose.
1. Drill a 11/2.' (3.8 cm)
diameter hole in
cabinet wall or floor on
the side of the opening
closest to the sink.
2. Connect drain hose to waste tee or waste disposer
using one of the following methods:
Option 1, Waste disposer - with Air gap
Option 2, No waste disposer - with Air gap
Option 3, Waste disposer - no Air gap*
Option 4, No waste disposer- no Air gap*
*AnAir gapisrecommended
Helpful Tip: To reduce the vibration of the hose, keep
the hose away from the floor and the edge of the hole
where it passes through the cabinet.
Option 1, Waste disposer - with Air gap:
1. Remove the disposer knockout plug. Cut end of drain
hose if needed (do not cut ribbed section).
2,
3,
Attach drain hose to Air gap with large spring-type
clamp. If the drain hose was cut, use a 11/2'' to 2"
(3.8 to 5 cm) screw-type clamp*.
Use a rubber hose connector* with spring or screw-
type clamps* to connect Air gap to disposer inlet.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed.
drain hose-
cut here if needed rubber hose
connector
spring-type
clamp
hose
drain trap
4, Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
drain hose
*Parts available from local plumbing supply stores

Option 2, No waste disposer -with Air gap:
1. Cut end of drain hose if needed (do not cut ribbed
section).
2. Attach drain hose to Air gap with large spring-type
clamp. If the drain hose was cut, use a11/2'' to 2"
(3.8 to 5 cm) screw-type clamp*.
3. Use arubber hose connector* with spring or screw-
type clamps* to connect Air gap to waste tee.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed.
drain hose-
cut here if needed
rubber hose
connector
drain trap_
large
spring-type
drain
hose
4. Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
_Parts available from local plumbing supply stores
drain hose
Option 3, Waste disposer - no Air gap:
1. Remove the disposer knockout plug. Do not cut end of
drain hose.
2. Attach drain hose to disposer inlet with large spring-
type clamp.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed. It is recommended that the drain hose
be looped up and securely fastened to the underside of
the counter.
large spring-type
r _ drain hose
._r (J[dlrl
3. Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
drain hose
Option 4, No waste disposer - no Air gap:
1. Cut end of drain hose if needed (do not cut ribbed
section).
2. Attach drain hose to waste tee with 11/2'' to 2"
(3.8 to 5 cm) screw-type clamp *.
This connection must be before the drain trap and at
least 20" (50.8 cm) above the floor where dishwasher
will be installed. It is recommended that the drain hose
be looped up and securely fastened to the underside of
the counter.
drain hose-
_ cut here if needed
waster ! f_ '_
= tee LJq I
[ _ ]_ _ hose
dra'ntrap-----_ _-_/ I J N
3. Insert drain hose
through hole cut in
cabinet to the front
center of opening where
drain connection will be
made.
drain hose
*Parts available from local plumbing supply stores
Prepare dishwasher
Tip Over Hazard
Do not use dishwasher until completely installed,
Do not push down on open door.
Doing so can result in serious injury or cuts.
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
1. Using 2 or more people, grasp the sides of dishwasher
door frame and put the dishwasher on its back, resting
on top of the corner posts.

2. Remove2screwsattachingaccesspanelandlower
paneltodishwasherusinga1/4"hexsocket,nutdriver
orPhillipsscrewdriver.
3. Removepanelsandsetpanelsasideonacleansurface.
4. Checkthatgroundingclipisattachedtothelower
panel.
lower
panel
clip
5.
6.
7.
water inlet valve
Apply Teflon ®tape or pipe
joint compound to 90° elbow
fitting and connect fitting to
water inlet valve.
Tighten elbow until snug, and
be sure that it faces to the
rear.
Remove terminal box cover.
- If you are direct wiring: install a UL Listed/CSA
Approved clamp connector to the terminal box. If
using conduit, use a UL Listed!CSA Approved strain
relief
- If you are installing a power supply cord kit, do so
now, following kit instructions.
terminal
__ box cover
_ <_ cable clamp
4_ _ _ connector
dishwasher wires
Helpful Tip: Put cardboard under dishwasher until it is
installed in cabinet opening. The cardboard will help
cover floor covering during installation.
8. Measure height of cabinet opening
from underside of countertop to
floor where dishwasher will be
installed (you need the lowest
point). Check chart for that height
opening. Put wheels in the required
position.
wheel _ 3
Number of
Minimum Wheel turns on
cutout height position front leg
34" (86.4 cm) 1 10
341/4"(87 cm) 2 5
341/2"(87.6 cm) 3 0
9. Turn both front leveler legs to the same
height.
If the minimum cutout height is less than
34" (86.4 cm), the rear wheels can be
removed for additional clearance. This will
allow the dishwasher to fit into a 337/8`'
(86 cm) high cutout, but the dishwasher
will be more difficult to move into position. front leg
If the wheels are removed, cover the floor when
moving the dishwasher.
If you have built-up
floors
1. Measure height of opening
from underside of
countertop to built-up
floor. If the height is at
least 333/4" (85.7 cm), the
dishwasher will fit into the
opening without
modification to the
countertop or flooring.
j countertop
333A,,
(85.7 cm)
min.
• / /b lilto?
2.
3.
Put wheels in Position 1 and turn the front leveler legs
up all the way.
Add shims as needed in the area shown to bring
dishwasher up to proper height.
NOTE: Shims must be securely attached to floor to
keep them from moving when the dishwasher is
operated.
2"
(5.1 cm)
6"
PA" (15.2 cm) 23/4"
(7.0 cm) (7.0 cm)
10

Install custom panel
Model 665.1320
NOTE: The handle for the custom panel is not included.
IMPORTANT: If the handle is attached from the back of
the custom panel, the screw holes should be countersunk
for the screws heads to be flush with the panel. If the
handle is attached to the front of the custom panel, the
screw lengths cannot exceed the panel thickness.
NOTE: A customer-supplied full front panel must weigh
no more than 16 Ibs (7.3 kg) and must be made to
specific dimensions. It is recommended that a
cabinetmaker cut the custom panel because of the
precise dimensions needed.
NOTE: All mounting hardware supplied is for a 3/4"
(19.1 mm) thick wood panel. If a thinner wood panel, or
materials other than wood are used, it is the consumer's
responsibility to obtain the proper length screws and
adjust the pilot holes accordingly.
IMPORTANT: Use a moisture-resistant sealer on both
sides and all edges of the panel to avoid damage from
humidity.
231/2" "_'_'_,30sA ,, (76.7 c m)
7 cm/
*This dimension is for 4" (10.2 cm) toe kick as measured
on cabinetry. If the installation needs a higher toe kick,
adjust the height of the wood panel accordingly. Not
recommended for toe kicks greater than 6" (15.2 cm). ,J
With a TORX ®screwdriver, remove three screws from both
sides, as shown; hold the outer panel up while removing
the screws. Save screws for reinstallation.
ii
....i i
3 screws
per side
outer
Gently set outer panel aside. Lay the customer-supplied
custom panel face down on a covered, non-scratching
surface.
929/32 't
(25.2 cm)
p edge
Measure 92%2"(25.2 cm) from top edge and mark a line on
the back of customer-supplied custom panel. Position the
outer panel on the back of the customer-supplied custom
panel as shown, so that the top holes in the outer panel are
on the line, and both panels are centered side to side. The
top edge of the panel has folded corners as shown in Step 4.
Mark pilot
holes
Top
edge
NOTE: Pilot hole depth is given for a 3/4"(15 mm) thick
panel. Thinner panels require shallower pilot holes.
Mark all 4 hole locations; remove outer panel. Drill 3/32"pilot
holes 1/2"(13 mm) deep in customer-supplied custom panel.
Place the outer panel on the back of the customer-supplied
custom panel; align holes. Attach outer panel to back of
customer-supplied custom panel with the four
#10-16 x 3/8"hex-head screws supplied in the literature
package.
NOTE: Handle is not included with this model.
Attach the handle. The handle should be centered on the
front of the customer-supplied custom panel in the area
shown.
IMPORTANT: Screw heads must be flush with back of
customer-supplied custom panel.
11

?
R edges
3 screws
each side Customer-supplied
panel
J
Attach the panel assembly to the door by reinstalling the 3
screws on each side; do not tighten completely. This
reinstallation of the three screws will hold the panel
assembly in place on the door frame.
top
edges
Drillthrough
theseholes
Customer-supplied
panel
Align the top edge of the customer-supplied custom
panel with the top of the console.
Drill two 3/32"pilot holes 1/2"(13 mm) deep, into the
customer-supplied custom panel, through the holes in the
top corners on the inner panel, as shown.
NOTE: Pilot hole depths are given for a 3/4"(15 mm) thick
panel. Thinner panels require shallower pilot holes.
top
edges
:)rill through
these holes
Customer-supplied
panel
\13A'!Screw
Install the two #8-18 x 13/8"screws from
the literature package in the top corners of the inner
panel. Tighten the six side screws reinstalled in Step 6.
12
Choose attachment option
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
The dishwasher must be
secured to the cabinet. There
are two brackets that can be /
attached to the countertop if it /J
is wood, laminate or another "_//
similar surface. If your _ _/
countertop is marble, granite
or other hard surface, the
brackets may be moved to the
sides of the dishwasher.
NOTE: Do not attach the
dishwasher. This will be done
Using two or more people, stand the dishwasher up.
Option 1, Countertop attachment
brackets__
later.
Option 2,
front vent
model shown
Dishwasher side attachment
(for marble, granite or other hard surface
countertop)
1. To remove the brackets from the top, flatten tab at back
of brackets with pliers, and pull the brackets out of the
slots.
2.
J)S
Break off the end of the bracket along the scored line.
score
line
3. With another person holding the dishwasher to avoid it
from tipping, open dishwasher door, and place towel
over pump assembly and spray arm of dishwasher.
This will stop screws from falling into pump area when
securing dishwasher to cabinet.
4. Push the plastic buttons out of the side of the tub.
NOTE: Save the buttons to cover the holes after
dishwasher is installed.
5. Push bracket into slot on the side of dishwasher, and
bend tab in toward the side of the dishwasher so that it
keeps the bracket in place.
NOTE: Do not attach the dishwasher. This will be done
later. I
2/

Check door spring tension
1,
2,
3.
4.
5,
With another person holding the dishwasher to keep it
from tipping, open and close the door a few times. If
the door closes or falls open under its own weight, the
door tension will need to be adjusted.
To adjust the door spring tension, unhook the spring
from the rear leg of dishwasher.
With a s/16"nut driver or hex socket, remove the screw
from the tensioner.
The screw can be put into one of three holes B, I_, []
in front leg of dishwasher. If the door closes by itself,
move the tensioner to a higher number hole and
replace screw. When door is unlatched, if it opens by
itself, move tensioner to a lower numbered hole and
replace screw.
Reattach door spring to rear leg. Tensioners on both
sides of dishwasher should be secured at same holes.
screw [] []
Move dishwasher into cabinet opening
1,
2.
3,
4,
5.
Grasp the sides of the dishwasher
at the edges of the door panel.
Tilt dishwasher backwards on
wheels and move dishwasher close
to cabinet opening. Do not push on
the front of the panel or on the
console--they may dent.
If dishwasher has a power supply cord, insert power
supply cord into hole cut into cabinet.
If using direct wire, check that it is on the right front
side of opening.
Check that water line is on the left side of opening and
drain hose is near the center of the hole in the cabinet.
Slowly move dishwasher completely into cabinet
opening. Do not kink or pinch copper tubing, drain
hose, power supply cord or direct wire between
dishwasher and cabinet.
6=
Helpful Tip: Once the dishwasher is in position, you
may have to support the front of the dishwasher by
raising, lowering or shimming front feet.
Remove cardboard from under dishwasher.
NOTE: It is all right if dishwasher fits tightly into cabinet
opening. Do not remove insulation blanket--the blanket
reduces the sound level.
Level the dishwasher
Align front of dishwasher door panel with cabinet
doors. You may need to adjust alignment to be even
with your cabinets.
Helpful Tip: Prop up one side of frame to hold
dishwasher up off floor when adjusting front legs.
With some installations, it may be easier to adjust the
front leg using the 3/le" hex-head socket.
2,
3. Check that leveling legs are firmly against the floor.
Close and latch the door, and place level against the
front panel. Check that dishwasher is plumb. If needed,
adjust leveling leg or add shims under rear wheel until
dishwasher is plumb.
J
4. Repeat for other side of dishwasher.
NOTE: Shims must be securely attached to floor to keep
them from moving when the dishwasher is operated.
5, Place level against top front
opening of tub. Check that
dishwasher is level from side to
side. If dishwasher is not level,
adjust front legs up or down until
dishwasher is level.
.......... __'1- = ..... ......
Make electrical connection
Check "Electrical requirements" section.
You need to:
have the correct electrical supply and recommended
grounding method.
If you are:
direct wiring, use Option 1
using a power supply cord, use Option 2
Option 1, Direct wire method
1. Route direct wire so that it does not touch dishwasher
motor or lower part of dishwasher tub.
2. Pull direct wire through hole in terminal box.
13

3.
Helpful Tips:
Select the proper size twist-on
connectors to connect your household ....., . _
wiring to 16-gauge dishwasher wiring. ........ _"_ ......
* Insert wire ends into twist-on _-
/_, _,
connector. Do not pre-twist bare wire. :......................_ =,
* Twist connector.
Gently tug on wires to be sure both
are secured.
Connect the wires as follows using twist-on connectors
sized to connect direct wire to 16-gauge dishwasher
wi re:
Power supply wire: Terminal box wire:
wh ite_---_w hite
black_--_black
ground wire_e-_ground connector
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
4. Form bare ground wire into a U-shaped hook. Wrap
ground wire hook clockwise around ground connector
and under the washer.
5. Securely tighten ground connector.
ground wire washer
ground
connector
6.
ground wire
Tighten clamp connector or strain
relief screws.
screws
7. Reinstall terminal box cover with
wires inside terminal box.
The cover must be outside the box
on the left side. [........... E.........
8. Make sure no wires are pinched by cover.
Option 2, Power supply cord method
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong,
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Check that power supply cord does not touch
dishwasher motor or lower part of dishwasher tub.
Connect to water supply
Helpful Tip:
Compression fittings:
a. Slide nut onto copper tubing about 1" (2.5 cm).
b. Slide ferrule onto the tubing. Do not position ferrule
on the end of the tubing.
c. Put the tubing into the elbow as far as it will go.
d. Slide the nut and ferrule forward and start the nut
onto the elbow threads. Be gentle when handling
and positioning the copper tubing, it bends and kinks
easily.
ferrule
elbow _nut
1.
2.
3.
To avoid vibration during operation, route the water
supply line so that it does not touch the dishwasher
base, frame or motor.
With copper tubing pushed
into compression fitting as
far as it will go, use a
wrench and tighten
compression fitting nut to
elbow on water inlet valve.
Place paper towel under elbow. Turn on water supply
and check for leaks.
14

Connect to drain
1. To help minimize
vibration, route drain
hose to avoid contact
with motor, door springs,
water line, cabinet,
flooring or the edge of
the hole where it passes
through the cabinet.
2. Do not remove drain
loop from side of
dishwasher.
3.
4.
Place pan under end of drain hose. Pan will collect any
water in drain hose.
Place the smaller drain hose clamp onto the small end
of the drain hose. /hose clamp
5. Push the drain hose into the connector up to the stop
on the drain hose.
connector stop
6. Use pliers to open clamp and slide clamp onto
connector between stops on connector as shown.
stops
Secure dishwasher in cabinet
opening
Tip Over Hazard
Do not use dishwasher until completely installed,
Do not push down on open door.
Doing so can result in serious injury or cuts.
1. If you have not already done so, open dishwasher door
and place towel over pump assembly and spray arm of
dishwasher. This will keep screws from falling into
pump area if you unintentionally drop them when
securing dishwasher to countertop.
2. Check that dishwasher is still level and centered side to
side in the opening.
3. Secure dishwasher to countertop or sides of cabinet
with two, #10 x 1/2"Phillips-head screws. The
dishwasher must be secured to keep it from tipping
when door is opened.
4.
5.
Open door about 3" (7.6 cm) and check that space
between inner door and tub is equal on both sides. If
spacing is not equal, loosen bracket screws and shift
tub. Tighten bracket screws.
Check that top of door does not contact screws,
brackets, or countertop. If it does, dishwasher must be
lowered and re-leveled.
6. If securing to sides of cabinet, replace the plastic
buttons.
button
7. Remove towel from dishwasher.
8. Reinstall the lower dish rack.
Bottom sound pad installation (on some models)
1.
2.
3.
Remove the bottom sound pad from inside the
dishwasher and take it out of the plastic bag.
Place pad on the floor in front of the dishwasher,
making sure lettering is facing up and vinyl pad faces
down.
Fold up and hold the side panels down. Slowly slide the
pad toward the back of the dishwasher as far as it will
go, making sure not to push or pull any wires or hoses.
(Do not force.) Side panels will open to proper position.
NOTE: If there are pipes or other obstructions coming
up through the floor, you will need to cut a slit in the
pad to fit around the obstacle.
15

4. Foldthefrontendofthepadupintoposition.Make
surethevinylpadistuckedupbehindthedoorandthe
dishwasherfrontlegs,asshown.
Complete installation
1. Check that grounding clip is attached to the lower
panel.
2. Place the lower panel behind the access panel. Some
models have insulation on the access panel which must
fall behind the insulation on the lower panel.
grounding
clip
3. Hold the 2 panels together and place them against
dishwasher leg.
4. Reinstall the screws through the holes in the access
panel and the slots in the lower panel. Install right side
screw first.
5.
6.
/
/
J
Check that the lower edge of the lower panel contacts
the floor.
Tighten the screws.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Power supply cord method:
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong,
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
7. Reconnect power or plug in dishwasher.
16

Check operation
1=
2.
3.
4.
5=
6=
Read the Use and Care Guide that came with your
dishwasher.
Check that all parts have been installed and no steps
were skipped.
Check that you have all the tools you used.
Start dishwasher and allow it to complete the shortest
wash cycle. After the first two minutes, unlatch door,
wait 5 seconds, then open door.
Check to see that there is water in the bottom of the
dishwasher tub. Check that dishwasher is working
properly.
If not, disconnect power or unplug dishwasher and see
"If dishwasher does not operate" section.
If dishwasher does not operate
First try the solutions suggested here to possibly avoid the
cost of a service call.
Has the circuit breaker tripped or the house fuse blown?
Is the door closed tightly and latched?
Has the cycle been set correctly to start the dishwasher?
Is the water turned on?
If none of these work, call 1-800-4MY-HOME.
17

indice
Seguridad de la lavavajillas ......................... 18
Requisitos de instalaci6n .......................... 19
Herramientas y piezas .......................... 19
Requisitos de ubicaci6n ......................... 19
Requisitos de desagL_e .......................... 21
Requisitos del suministro de agua ................ 21
Requisitos electricos ............................ 21
Instrucciones de instalacibn ........................ 22
Prepare la abertura del armario usando
las conexiones de servicio existentes .............. 22
Prepare la abertura del armario donde
no existen conexiones de servicio ................ 23
Prepare la lavavajillas .......................... 25
Instalaci6n del panel a la medida ................ 26
Conexi6n electrica ............................. 29
Conexi6n al suministro de agua .................. 30
Conexi6n al desagL_e ........................... 31
Asegure la lavavajillas en la abertura del armario ... 31
Seguridad de la lavavajillas
Su seguridad y la seguridad de los demos es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesion grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesion grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran c6mo reducir las posibilidades de sufrir una lesi6n y Io que
puede suceder si no se siguen las instrucciones.
Peligro de Vuetco
No use la lavavajillas antes de estar completamente
instalada.
No se apoye en la puerta abierta.
No seguir estas instrucciones puede ocasionar heridas
serias o cortaduras.
Usted necesita:
Abrir lentamente la puerta de la lavavajillas mientras
alguien sujeta la parte trasera de la lavavajillas. Quite
todos los materiales de env[o, la manguera de desagL_e y
el sif6n de desagL_e inferior. Cierre y asegure con el
pestillo la puerta de la lavavajillas.
Cumplir con todos los c6digos y reglamentos vigentes.
Instalar la lavavajillas segOn se especifica en estas
instrucciones.
La instalaci6n debe ser hecha por un tecnico de servicio
calificado. La lavavajillas debe instalarse de acuerdo con
todos los c6digos y reglamentos electricos y de plomeria.
18

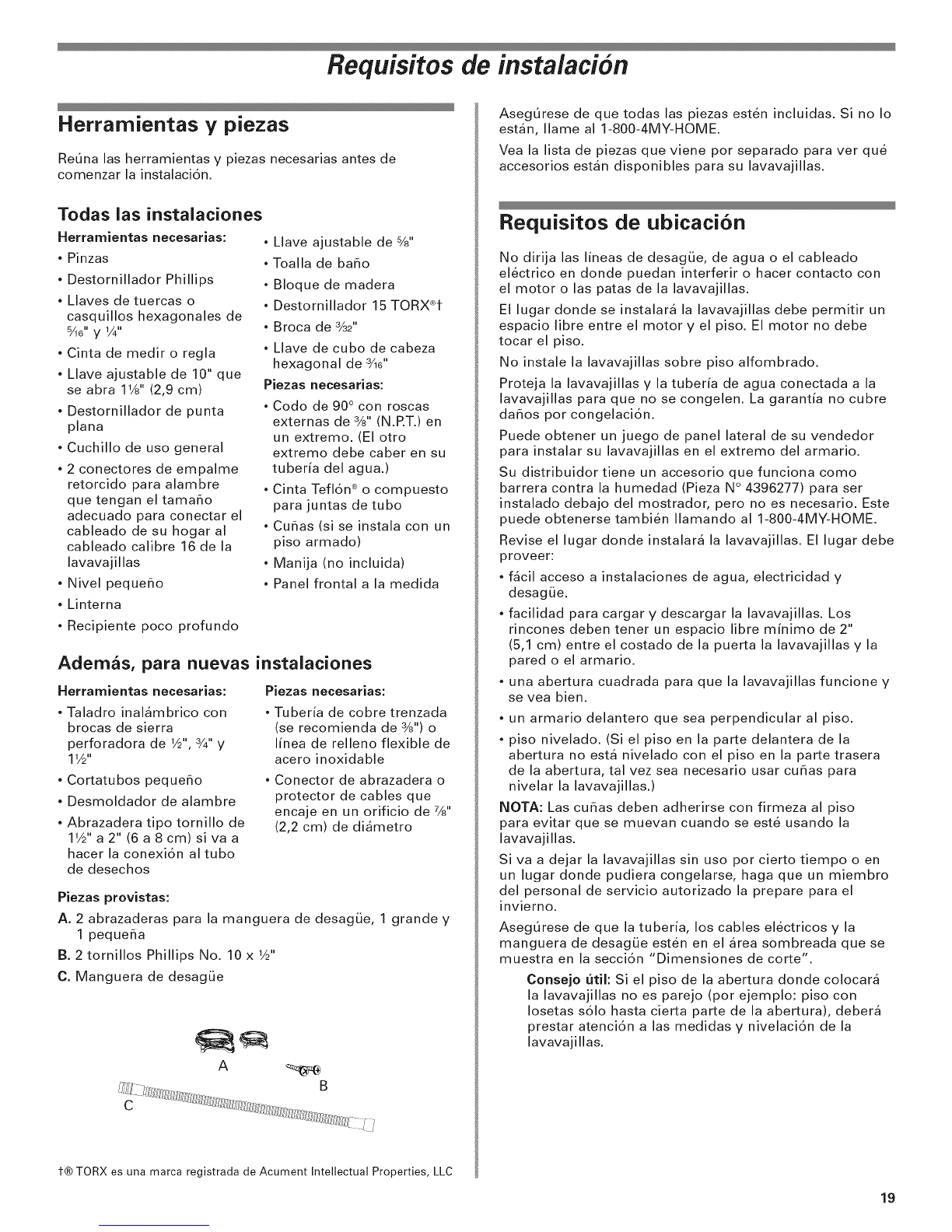

Requisitos de instalacion
Herramientas y piezas
Re0na las herramientas y piezas necesarias antes de
comenzar la instalaci6n.
Todas las instalaciones
Herramientas necesarias:
Pinzas
Destornillador Phillips
Llaves de tuercas o
casquillos hexagonales de
SAs"y ¼"
* Cinta de medir o regla
* Llave ajustable de 10" que
se abra 11/8'' (2,9 cm)
* Destornillador de punta
plana
* Cuchillo de uso general
* 2 conectores de empalme
retorcido para alambre
que tengan el tamaSo
adecuado para conectar el
cableado de su hogar al
cableado calibre 16 de la
lavavajillas
* Nivel pequeflo
* Linterna
,Llave ajustable de %"
,Toalla de baSo
,Bloque de madera
,Destornillador 15 TORX®f
,Broca de 3/32"
,Llave de cubo de cabeza
hexagonal de 3/16"
Piezas necesarias:
* Codo de 90 ° con roscas
externas de 3/8"(N.P.T.) en
un extremo. (El otro
extremo debe caber en su
tuberia del agua.)
,Cinta TeflSn ®o compuesto
para juntas de tubo
CuSas (si se instala con un
piso armado)
* Manija (no incluida)
Panel frontal a la medida
Recipiente poco profundo
Ademas, para nuevas instalaciones
Herramientas necesarias:
* Taladro inal_mbrico con
brocas de sierra
perforadora de 1/2",3/4"y
11/2"
Cortatubos pequeflo
Desmoldador de alambre
Abrazadera tipo tornillo de
11/2"a2"(6a8cm) sivaa
hacer la conexi6n al tubo
de desechos
Piezas necesarias:
Tuberia de cobre trenzada
(se recomienda de 3/8")o
linea de relleno flexible de
acero inoxidable
Conector de abrazadera o
protector de cables que
encaje en un orificio de 7/8"
(2,2 cm) de di_metro
Piezas provistas:
A. 2 abrazaderas para la manguera de desagL_e, 1 grande y
1 pequefla
B. 2 tornillos Phillips No. 10 x 1/2"
C. Manguera de desagL_e
A _ B
t® TORX es una marca registrada de Acument Intellectual Properties, LLC
Aseg0rese de que todas las piezas esten incluidas. Si no Io
est_n, Ilame al 1-800-4MY-HOME.
Yea la lista de piezas que viene por separado para ver que
accesorios est_n disponibles para su lavavajillas.
Requisitos de ubicaciSn
No dirija las lineas de desagL_e, de agua o el cableado
electrico en donde puedan interferir o hacer contacto con
el motor o las patas de la lavavajillas.
El lugar donde se instalar_ la lavavajillas debe permitir un
espacio libre entre el motor y el piso. El motor no debe
tocar el piso.
No instale la lavavajillas sobre piso alfombrado.
Proteja la lavavajillas y la tuberia de agua conectada a la
lavavajillas para que no se congelen. La garantfa no cubre
da_os por congelaci6n.
Puede obtener un juego de panel lateral de su vendedor
para instalar su lavavajillas en el extremo del armario.
Su distribuidor tiene un accesorio que funciona como
barrera contra la humedad (Pieza N° 4396277) para ser
instalado debajo del mostrador, pero no es necesario. Este
puede obtenerse tambien Ilamando al 1-800-4MY-HOME.
Revise el lugar donde instalar_ la lavavajillas. El lugar debe
proveer:
f_cil acceso a instalaciones de agua, electricidad y
desag(Je.
facilidad para cargar y descargar la lavavajillas. Los
rincones deben tener un espacio libre minimo de 2"
(5,1 cm) entre el costado de la puerta la lavavajillas y la
pared o el armario.
una abertura cuadrada para que la lavavajillas funcione y
se vea bien.
,un armario delantero que sea perpendicular al piso.
,piso nivelado. (Si el piso en la parte delantera de la
abertura no est_ nivelado con el piso en la parte trasera
de la abertura, tal vez sea necesario usar cuSas para
nivelar la lavavajillas.)
NOTA: Las cuSas deben adherirse con firmeza al piso
para evitar que se muevan cuando se este usando la
lavavajillas.
Siva a dejar la lavavajillas sin uso por cierto tiempo o en
un lugar donde pudiera congelarse, haga que un miembro
del personal de servicio autorizado la prepare para el
invierno.
AsegOrese de que la tubefia, los cables electricos y la
manguera de desagL_e esten en el _rea sombreada que se
muestra en la secci6n "Dimensiones de corte".
Consejo util: Si el piso de la abertura donde colocar_
la lavavajillas no es parejo (por ejemplo: piso con
Iosetas s61o hasta cierta parte de la abertura), deber_
prestar atenci6n a las medidas y nivelaci6n de la
lavavajillas.
19

Dimensiones del producto
El aislamiento --_
de 3A" (1,9 cm)
puede
comprimirse
(no se usa eR
todos los
modelos)
La dimension varia
segt]n el espesor del
panel frontal a la
medida: 241/2"
(62,2 cm) sin haber
instalado el panel
/
21" (53,3 cm)
VISTA LATERAL
VISTA POSTERIOR
33%"(86 cm)
min. cuando se
hayan quitado
las ruedas
1
Dimensiones de corte
(7 cm) (8,3 cm) (8,3 cm) (7 cm)
Corte orificios en el _rea sombreada de las paredes del armario o del piso,
como se especifica a continuacion:
tuberia de agua -W' (1,3 cm)
tuberia de desagLie - 11/2"(3,8 cm)
cable directo -3/4" (1,9 cm)
cable de suministro de energia - 11/2"(3,8 cm)
<Medidas tomadas desde el punto m_s bajo debajo del mostrador. Pueden
reducirse a 33%" (86 cm) quitando las ruedas de la lavavajillas.
HMinimo, medidas tomadas desde el punto m_s angosto de la abertura.
H-*Pueden incrementarse a 6%" (16,6 cm) si la altura de la abertura es 341/2"
(87,6 cm) en su punto m_s bajo.
20
