Kenmore 26-81272 Manual

26-81272, 26-91272
Page 1 of 2
03612
Due to Sears policy of continuous improvement on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
26-81272.PDF
Effective 05/14/12
Shown with washer 26-41272 and optional drawer pedestals 26-51022
DRYER SELECTION
Electric Dryers:
White 26-81272
Gas Dryers:
White 26-91272
DRYER FEATURES
Capacity (cu. ft.) 7.3
Temperature Selections 5
Sensor Drying System Dual Sensor Technology
CYCLES AND OPTIONS 8 / 7
Specialty Cycles and Options
Heavy Duty, Casual,
Bulky / Bedding, Delicates,
Small Load, Normal,
Touch-up, Sanitize
Timed Drying •
Express Dry •
Wrinkle Guard®•
More Time / Less Time •
Custom Program My Cycle
CONVENIENCE FEATURES
Kenmore Connect™•
Check Vent •
Time Remaining Display •
Status Indicator(s) •
Damp Dry Signal •
Drum Light •
Control Lock •
Venting Electric / Gas
4-Way Electric
(Rear, Bottom, Right, Left)
3-Way Gas
(Rear, Bottom, Left)
Bottom / Side Venting 26-49670
Rear Venting
Order #49608 and
Duct Elbow #49609
GENERAL FEATURES
Controls
Electronic Green
LED / Hard Button
Stainless Steel Drum w/Painted Back (Alcosta)
Door Configuration Reversible
See-Through Window •
Optional Pedestals 26-51022
Stackable Installation Kit 26-17013
Electric Volts / Hz / Amps 120V / 60 / 10
Electric Dryer Circuit
Requirements (60Hz)
30 Amp Circuit Breaker
Time Delay Fuse
Gas Dryer Rating: Volts / Hz / Amps 120 / 60 / 15
Gas Burner BTU / Hour 20,000
LP Gas Conversion Kit 26-17025
Gas Pipe Size (O.D. Inches) 3/8
DIMENSIONS / WEIGHT
Product Dimensions (Inches)
(H x W x D x D with Door Open) 39 x 27 x 29 9/10 x 49 4/5
Item Weight (Approx. Lbs.) 126
Shipping Weight (Approx. Lbs.)
Electric / Gas 146 / 149
WARRANTY
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only 90 days.
Kenmore Front-Load Dryer
Electric Gas
White 26-81272 White 26-91272
• 7.3 cu. ft. capacity
• Electronic green LED controls
• 8 drying cycles and 7 drying options
• Dual sensor technology stops the cycle when clothes are dry to
reduce wear and tear caused by over-drying
• Express Dry cycle
• Delicate cycle
• My Cycle custom program
• Wrinkle Guard®
• Stainless steel drum with alcosta painted back
• Check vent sensor
• Drum light
• Reversible side-swing door with see-through window
• Kenmore Connect™
• 4-way electric venting (rear, bottom, right, left)
• 3-way gas venting (rear, bottom, left)

26-81272, 26-91272
Page 2 of 2
03612
Due to Sears policy of continuous improvement on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
26-81272.PDF
Effective 05/14/12

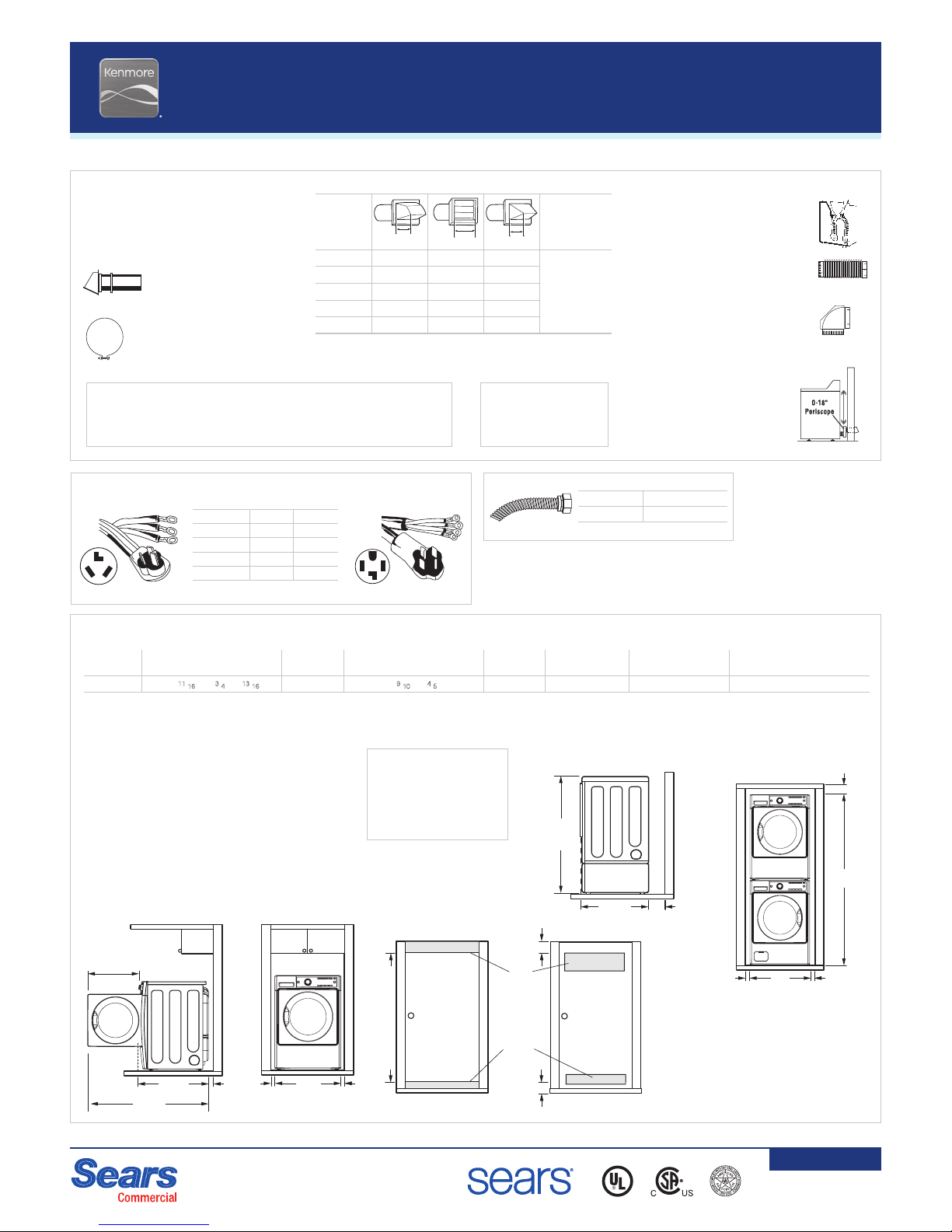

DRYER VENTING RECOMMENDATIONS
Washer
Washer Dimensions W x H x D
(Depth with Door Open) Dryer
Dryer Dimensions W x H x D
(Depth with Door Open) Color Stacking Kit Pedestal Pedestal Dimensions W x H x D
26-41272 27 x 38 11/16 x 29 3/4(50 13/16)26-8/91272 27 x 39 x 29 9/10 (49 4/5) White 26-17013 26-51022 (with Drawer) 27 x 13.6 x 28.4
INSTALLATION OPTIONS
WASHER AND DRYER DIMENSIONS / OPTIONAL PEDESTALS / STACKING KITS
CLEARANCES
Most installations require a minimum 5 1/2in. clearance behind
the dryer for the exhaust ducting. Allow minimum clearances of
at least 1 in. on the sides and back to minimize vibration and
noise. Allowing additional clearance for installation and servicing
is recommended. Be sure to allow for wall, door, or floor moldings
that may increase the required clearances. Allow at least 21" in
front of the dryer to open the door.
IMPORTANT NOTE:
If you are installing your dryer
using an optional pedestal
base or stacking kit, please
refer to the instructions for your
pedestal or stacking kit before
proceeding with the installation.
INSTALLATION WITH PEDESTAL
52 1/2"
30 1/4" 4"
INSTALLATION WITH
STACKING KIT
76"
6"
1"1" 27"
VENT HOOD TYPE
Number of
90° Elbows
065 ft. 65 ft. 55 ft.
Max. Length
of 4" Dia.
Rigid Heavy
Metal Vent
155 ft. 55 ft. 47 ft.
247 ft. 47 ft. 41 ft.
336 ft. 36 ft. 30 ft.
428 ft. 28 ft. 22 ft.
4-WAY VENTING KIT
Call Sears Parts 1–800-225-2864
38020
26-98379 — Vent Hood
Aluminum body and plastic
molded hood with a 4" opening.
4" Clearance Behind the Dryer is Preferred for Best Airflow.
2" Clearance is Achieved With Periscopes.
Clamps are recommended for wall
and dryer connections. Steel clamps
designed to resist stretching, with
phillips/hex head screw are included
one each on elbows and periscopes.
4" CLEARANCE BEHIND DRYER
26-49900 — Over-The-Top™Kit
Universal solution, 8 foot length. Kit includes
two 4 ft. pipe sections with attached elbows,
two close elbows, clamps and wall plate.
26-49608 — Flexible Pipe
4" x 6' with snap-lock fittings, 90˚ turn takes
1 foot length and 6 inch clearance.
26-49609 — Close Elbow
Turns 90˚ within 4", rotating collars and
snap-lock fittings.
IMPORTANT NOTE:
Do not use non-metal flexible duct. Also, when installing the venting system, do not exceed
the specified length for the vent duct. Venting systems which are longer than specified will
accumulate lint, increase drying time and energy use and shorten the life of the dryer.
BOTTOM / SIDE
VENTING KIT 26-49670
LP DRYER KIT 26-17025
2" CLEARANCE BEHIND DRYER
26-49908 — Periscope 0-18"
For outlets that overlap or are very close
26-49904 — Periscope 18-29"
Reaches side of most dryers
26-49905 — Periscope 29-50"
Reaches top of most dryers
26-49387, 26-49787 26-49388, 26-49788
*Complies with 1/1/96 NEC code revision for new construction and remodeling
All Electric Dryers Require Cord
Order Wire Length
26-49387 3 4 ft.
26-49787 3 6 ft.
26-49388* 4 4 ft.
26-49788* 4 6 ft.
POWER CORDS FOR ELECTRIC DRYERS ONLY Gas Dryer Connector – Stainless Steel
26-49590 1/2" - 3/8" Flex, 5 ft.
26-49585* 3/8" - 3/8" Flex, 5 ft.
*Los Angeles only
4" 2 1/2"4"
CLOSET INSTALLATION
The closet door must allow for sufficient airflow. Refer to the
diagram for minimum vent opening requirements. A louvered
door is also acceptable.
27"
1" 1"
20 1/4"
50 1/2"
301/4"4"
Closet Door Vent Requirements
Vent
24 sq. in.
Vent
48 sq. in.
3"
3"
