Kenmore 41798022000 User manual

Installation instructions
instructions d'lnstallation
English /Franc;ais
Kenmore
P/N 137453800 (1105)
Sears Brands Management Corporation
Hoffman Estates, IL60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
www.sears.¢a

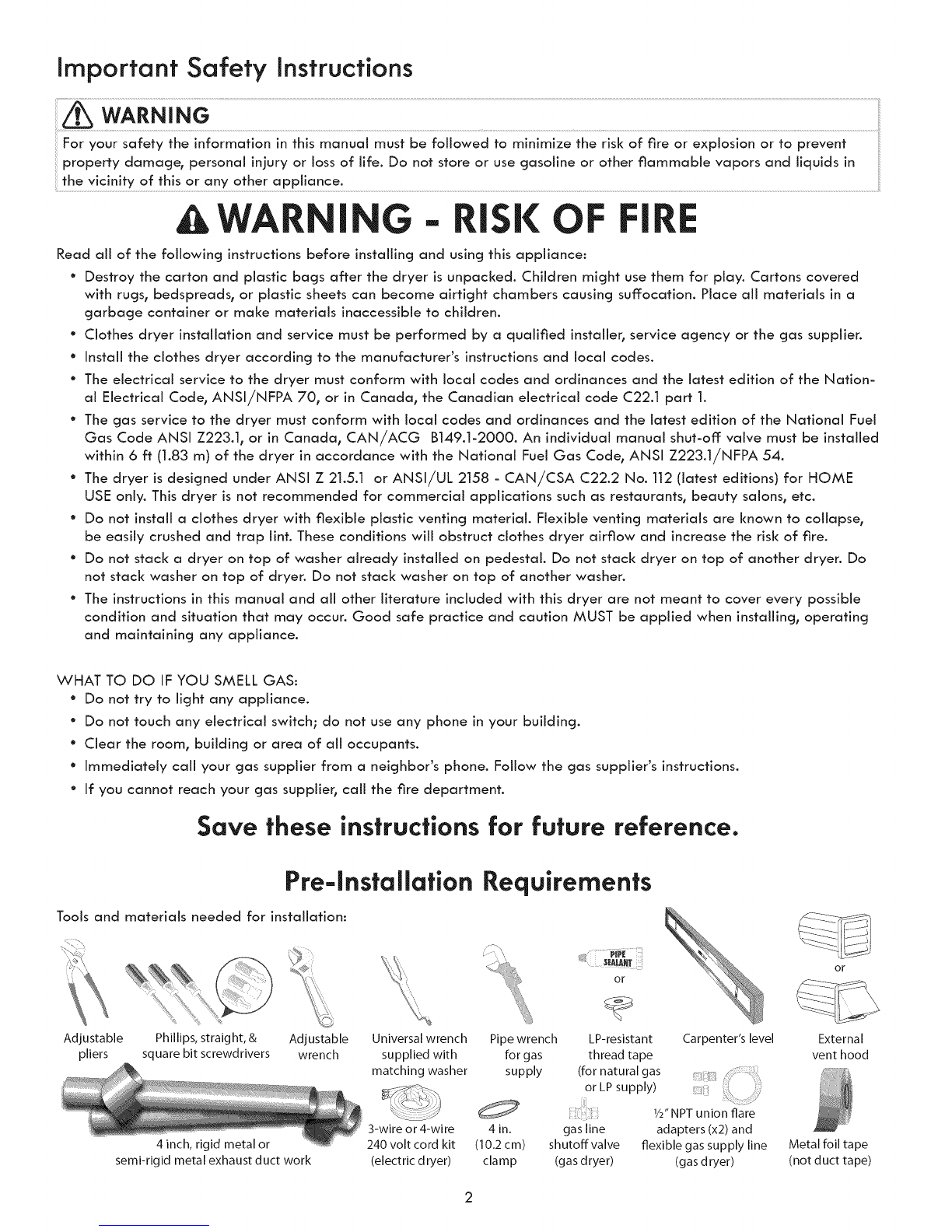

important Safety instructions
For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent
property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
AWARNING- RiSK OF FiRE
Read all of the following instructions before installing and using this appliance:
°Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered
with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a
garbage container or make materials inaccessible to children.
°Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
°Install the clothes dryer according to the manufacturer's instructions and local codes.
°The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the Nation-
ai Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
°The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel
Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. An individual manual shut-off valve must be installed
within 6 ft (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
°The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME
USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
°Do not install a clothes dryer with flexible plastic venting material. Flexible venting materials are known to collapse,
be easily crushed and trap lint. These conditions wiii obstruct clothes dryer airflow and increase the risk of fire.
°Do not stack a dryer on top of washer already installed on pedestal. Do not stack dryer on top of another dryer. Do
not stack washer on top of dryer. Do not stack washer on top of another washer.
°The instructions in this manual and aii other literature included with this dryer are not meant to cover every possible
condition and situation that may occur. Good safe practice and caution MUST be applied when installing, operating
and maintaining any appliance.
WHAT TO DO IF YOU SMELL GAS:
°Do not try to light any appliance.
°Do not touch any electrical switch; do not use any phone in your building.
°Clear the room, building or area of aii occupants.
°Immediately caii your gas supplier from a neighbor's phone. Follow the gas suppiier's instructions.
°If you cannot reach your gas supplier, caii the fire department.
Save these instructions for future reference.
Pre-lnstallafion Requirements
Tools and materials needed for installation:
or
Adjustable Phillips, straight, & Adjustable Universal wrench Pipe wrench LP-resistant Carpenter's level
pliers square bit screwdrivers wrench supplied with for gas thread tape
matching washer supply (for natural gas
or LPsupply)
1/2"NPT union flare
3-wire or 4-wire 4 in. gas line adapters (x2) and
240 volt cord kit (10.2 cm) shutoff valve flexible gas supply line
(electric dryer) clamp (gas dryer) (gas dryer)
4 inch, rigid metal or
semi-rigid metal exhaust duct work
or
External
vent hood
Metal foil tape
(not duct tape)

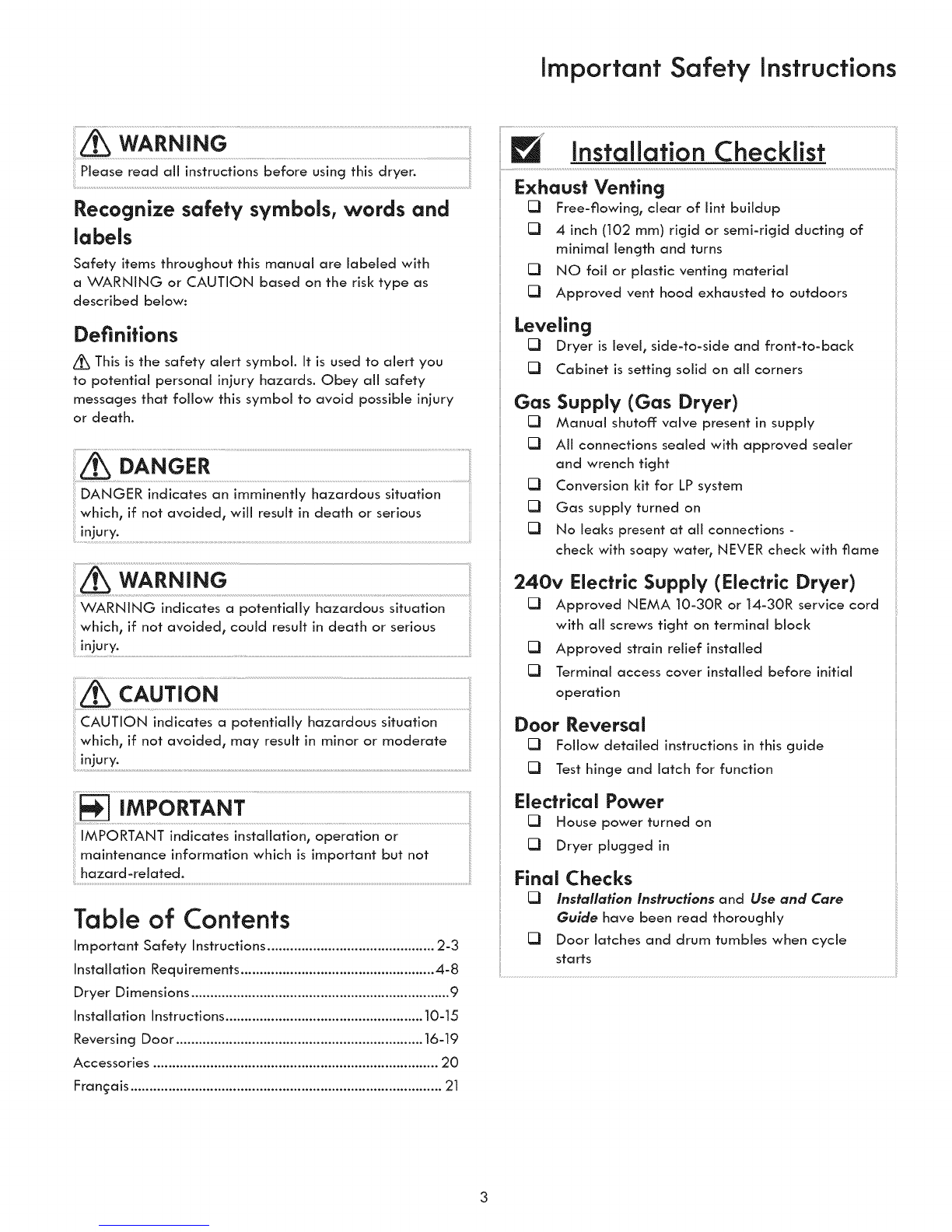

Important Safety Instructions
Please read all instructions before using this dryer.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
Z_ This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
ii • *
injury.
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
Table of Contents
Important Safety Instructions ............................................ 2-3
Installation Requirements ................................................... 4-8
Dryer Dimensions .................................................................... 9
Installation Instructions .................................................... 10-15
Reversing Door ................................................................. 16-19
Accessories ........................................................................... 20
Francois .................................................................................. 21
Installation Checklist
Exhaust Venting
[] Free-flowing, clear of lint buildup
[] 4 inch (102 mm) rigid or semi-rigid ducting of
minimal length and turns
[] NO foil or plastic venting material
[] Approved vent hood exhausted to outdoors
Leveling
[] Dryer is level, side-to-side and front-to-back
[] Cabinet is setting solid on all corners
GaS
[]
[]
[]
[]
[]
Supply (Gas Dryer)
Manual shutoff valve present in supply
All connections sealed with approved sealer
and wrench tight
Conversion kit for LP system
Gas supply turned on
No leaks present at all connections -
check with soapy water, NEVER check with flame
240v Electric Supply (Electric Dryer)
[] Approved NEMA 10-30R or 14-30R service cord
with all screws tight on terminal block
[] Approved strain relief installed
[] Terminal access cover installed before initial
operation
Door Reversal
[] Follow detailed instructions in this guide
[] Test hinge and latch for function
Electrical Power
[] House power turned on
[] Dryer plugged in
Final Checks
[] Installation Instructions and Use and Care
Guide have been read thoroughly
[] Door latches and drum tumbles when cycle
starts

Installation Requirements
Because of potentially inconsistent voltage capabilities,
the use of this dryer with power created by gas powered
generators, solar powered generators, wind powered
generators or any other generator other than the local
utility company is not recommended.
Electrical requirements for electric dryer
CIRCUIT - Individual 30 amp. branch circuit fused with
30 amp. time delay fuses or circuit breakers. Use
separately fused circuits for washer and dryer. DO
NOT operate a washer and a dryer on the same circuit.
POWER SUPPLY - 3-wire or 4-wire, 240 volt, single phase,
60 Hz, Alternating Current.
iMPORTANT
This dryer is internally grounded to neutral unless it was
manufactured for sale in Canada.
Only a 4-conductor cord shall be used when the
appliance is installed in a location where grounding
through the neutral conductor is prohibited. Grounding
through the neutral link is prohibited for: (1) new branch
circuit installations, (2) mobile homes, (3) recreational
vehicles, and (4) areas where local codes do not permit
grounding through the neutra L.......................................................................................................................................................................
3-WIRE POWER SUPPLY CORD KIT (not supplied)
3=wire receptacle
(NEMA type 10-30R)
The dryer MUST employ a 3-conductor power
supply cord NEMA 10-30 type SRDT rated at 240
volt AC minimum, 30 amp, with 3 open end spade
lug connectors with upturned ends or closed loop
connectors and marked for use with clothes dryers. For
3-wire cord connection instructions see ELECTRICAL
CONNECTIONS FOR A 3-WIRE SYSTEM.
4-WIRE POWER SUPPLY CORD KIT (not supplied)
4=wire receptacle
(NEMA type 14=30R)
The dryer MUST employ a 4-conductor power supply
cord NEMA 14-30 type SRDT or ST (as required) rated
at 240 volt AC minimum, 30 amp, with 4 open end
spade lug connectors with upturned ends or closed loop
connectors and marked for use with clothes dryers. For
4-wire cord connection instructions see ELECTRICAL
CONNECTIONS FOR A 4-WIRE SYSTEM.
NOTE.................
Dryers manufactured for sale in Canada have factory-
installed, 4-wire power supply cord (NEMA 14-30R).
OUTLET RECEPTACLE - NEMA 10-30R or NEMA 14-30R
receptacle to be located so the power supply cord is
accessible when the dryer is in the installed position.
GROUNDING CONNECTION - See "Grounding
requirements" in Electrical Installation section.
Electrical requirements for gas dryer
CIRCUIT - Individual, properly polarized and grounded 15
amp. branch circuit fused with 15 amp. time delay fuse
or circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current.
POWER SUPPLY CORD - The dryer is equipped with a 120
volt 3-wire power cord.
GROUNDING CONNECTION - See "Grounding
requirements" in Electrical Installation section.
Grounding type
wall receptaclefDo not, under
any circumstances,
cut, remove,
or bypassthe
prong. 1
Powercordwith
3-prong grounded plug
4

Installation Requirements
Gas supply requirements
WARNING
Uncoated copper tubing will corrode when subjected
to natural gas, causing gas leaks. Use ONLY black iron,
stainless steel, or plastic-coated brass piping for gas
supply.
1 Installation MUST conform with local codes, or in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1 (latest edition).
2 The gas supply line should be 1/2 inch (1.27 cm)
pipe.
3If codes allow, flexible metal tubing may be used to
connect your dryer to the gas supply line. The tubing
MUST be constructed of stainless steel or plastic-
coated brass.
4 The gas supply line MUST have an individual shutoff:
valve installed in accordance with the B149.1,
Natural Gas and Propane Installation Code.
5 A 1/8 inch (0.32 cm) N.P.T. plugged tapping,
accessible for test gauge connection, MUST be
installed immediately upstream of the gas supply
connection to the dryer.
6The dryer MUST be disconnected from the gas
supply piping system during any pressure testing
of the gas supply piping system at test pressures in
excess of 1/2 psig (3.45 kPa).
7 The dryer MUST be isolated from the gas supply
piping system during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psig (3.45 kPa).
8 Connections for the gas supply must comply with the
Standard for Connectors for Gas Appliances, ANSI
Z21.24.
Exhaust system requirements
Use only 4 inch (102 mm) diameter rigid or flexible
metal duct and approved vent hood which has a swing-
out damper(s) that open when the dryer is in operation.
When the dryer stops, the dampers automatically close
to prevent drafts and the entrance of insects and rodents.
To avoid restricting the outlet, maintain a minimum of 12
inches (30.5 cm) clearance between the vent hood and the
ground or any other obstruction.
f
Correct incorrect
The following are specific requirements for
proper and safe operation of your dryer.
Do not install a clothes dryer with flexible plastic or
metal foil venting materials. Flexible venting materials
are known to collapse, be easily crushed and trap lint.
These conditions wiii obstruct clothes dryer airflow and
increase the risk of fire.
lii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸i¸iiiill¸ii!iiii!iill¸iii¸iii¸iii¸iii¸iii¸iii¸iii¸iii¸iii¸iii¸iiii!¸i!i;iiii¸iiiii!iiiiiiiiiiiii;
Correct
If your present system is made up of plastic duct or metal
foil duct° replace it with a rigid or semi-rigid metal duct.
Also, ensure the present duct is free of any lint prior to
installing dryer duct.
5

Installation Requirements
Exhaust system requirements, continued
¸RNI .............................................................................................................................................................
FIREHAZARD.....
A clothes dryer must be exhausted outdoors. Do not
exhaust dryer into a chimney, a wail, a ceiling, an attic,
a crawl space or any concealed space of a building. A
clothes dryer produces combustible lint. If the dryer is
not exhausted outdoors, some fine lint will be expelled
into the laundry area. An accumulation of lint in any
area of the home can create a health and fire hazard.
ii
The dryer must be connected to an exhaust outdoors.
Regularly inspect the outdoor exhaust opening and remove
any accumulation of lint around the outdoor exhaust
opening and in the surrounding area.
FIRE HAZARD
*Do not allow combustible materials (for example:
clothing, draperies/curtains, paper) to come in
contact with exhaust system. The dryer MUST NOT
be exhausted into a chimney, a wall, a ceiling, or any
concealed space of a building which can accumulate
: lint, resulting in a fire hazard.
*Do not screen the exhaust ends of the vent system, or
ii use any screws, rivets or other fasteners that extend
ii into the duct to assemble the exhaust system. Lint can
: become caught in the screen, on the screws or rivets,
clogging the duct work and creating a fire hazard
: as weii as increasing drying times. Use an approved
vent hood to terminate the duct outdoors, and seal
ii aii joints with metal foil duct tape. Aii male duct pipe
ii fittings MUST be installed downstream with the flow
of air.
RNING ..............................................................................................................................................................
FIREHAZARD.....
Exceeding the length of duct pipe or number of elbows
allowed in the "MAXIMUM LENGTH" charts can cause
an accumulation of lint in the exhaust system. Plugging
the system could create a fire hazard, as well as
MAXIMUM LENGTH
of 4" (102 ram) Rigid Metal Duct
ZVENT HOOD TYPE
(Preferred)
0-
/0
0
4 _
(10.2cm) Iouvered
0 64 ft. (19.5 m)
1 52 ft. (15.9 m)
2 44 ft. (13.5 m)
3 32 ft. (9.8 m)
4 28 ft. (9.5 m)
2.5"
(6.35cm)
48 ft. (14.6 m)
40 ft. (12.2 m)
32 ft. (9.8 m)
24 ft. (7.3 m)
16 ft. (4.9 m)
WA.N NG....................................................................
FIRE HAZARD
*Do not install flexible plastic or flexible foil venting
material.
*If installing semi-rigid venting, do not exceed 8 ft.
Exhaust direction
Directional exhausting can be accomplished by installing
a quick-turn 90 ° dryer vent elbow directly to the exhaust
outlet of dryer. Dryer vent elbows are available through
your local parts distributor or hardware store.
See also Clearance Requirements on the next page.
......_-_ NOTE ......................
Use of 90 ° quick-turn elbow
is required to meet minimum
installation depth of free-
standing dryer.

Installation Requirements
Exhaust system requirements, continued
RNI ............................................................................................................................................................................
...............EXPLSS SN ....
Do not instafl the dryer where gasoline or other
flammables are kept or stored. If the dryer is installed
in a garage, it must be a minimum of 18 inches (45.7
] cm) above the floor. Failure to do so can result in death,
INCORRECT
In installations where the exhaust system has not described
in the previous pages, the following method must be used
to determine if the exhaust system is acceptable:
1 Connect an inclined or digital manometer between
the dryer and the point the exhaust connects to the
dryer.
2 Set the dryer timer and temperature to air fluff (cool
down) and start the dryer.
3 Read the measurement on the manometer.
4 The system back pressure MUST NOT be higher than
0.75 inches of water column. If the system back
pressure is less than 0.75 inches of water column, the
system is acceptable. If the manometer reading is
higher than 0.75 inches of water column, the system
is too restrictive and the installation is unacceptable.
Although vertical orientation of the exhaust system is
acceptable, the performance of this dryer could be
adversely affected by the following conditions:
* The use of non-rigid metal duct work.
* Venting vertically through a roof may expose the
exhaust system to down drafts causing an increase in
vent restriction.
* Running the exhaust system through an uninsulated
area may cause condensation and faster
accumulation of lint.
* Accelerated accumulation of lint buildup in dryer
exhaust system, compression or crimping of the
exhaust system will cause an increase in vent
restriction.
° The exhaust system should be inspected and cleaned
a minimum of every 18 months with normal usage.
The more the dryer is used, the more often you should
check the exhaust system and vent hood for proper
operation.
Manufactured or mobile home installation
1 Installation MUST conform to current Manufactured
Home Construction & Safety Standard, Title 24
CFR, Part 32-80 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD
Part 280) or Standard CAN/CSAZ240 MH.
2 Dryer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducting that
will not support combustion. Metal ducting must be
4 inches (10.16 cm) in diameter with no obstructions.
Rigid metal duct is preferred.
3 If dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the exhaust
system MUST terminate outside the enclosure with
the termination securely fastened to the mobile
home structure.
4 Refer to previous sections in this guide for other
important exhaust venting system requirements.
5When installing a gas dryer into a mobile home, a
provision must be made for outside make up air. This
provision is to be not less than twice the area of the
dryer exhaust outlet.
6Installer MUST anchor this (1) dryer or (2) dryer
mounted on pedestal to the floor with approved
Mobile Home Installation Kit - P/N 137067200.
7

Installation Requirements
Clearance requirements
DO NOT INSTALL YOUR DRYER:
weather conditions.
2 In an area where it will come in contact with
curtains, drapes, or anything that will obstruct the
flow of combustion and ventilation air.
3 On carpet. Floor MUST be solid with a maximum
slope of] inch (2.5 cm).
Installation in aRecess or Closet
|A dryer installed in a bedroom, bathroom, recess or
closet, MUST be exhausted outdoors.
2 No other fuel burning appliance shall be installed in
the same closet as the gas dryer.
3 Your dryer needs the space around it for proper
ventilation.
DO NOT install your dryer in a closet with a solid door.
4 Closet door ventilation required: A minimum of
120 square inches (774.2 cm 2) of opening, equally
divided at the top and bottom of the door, is
required. Openings should be located 3 inches (7.6
cm) from bottom and top of door. Openings are
required to be unobstructed when a door is installed.
A Iouvered door with equivalent air openings for the
full length of the door is acceptable.
_3"
_,(7.6crn]
closet door
-1--
60 sq. in.
(387.1 cm 2)
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0" (0 cm) 3" (0 cm) _" 0" (0 cm) n/a
Under- 0" (0 cm) O" (0 cm) _ 0" (0 cm) n/a
Counter
Closet 0" (0 cm) O" (0 cm) _" 0" (0 cm) 1" (2.5 cm)
Dryer must be vented straight back to achieve
0" (0 cm) rear installation.
iI
ii
II
0" ------€_11-_--.._
©
_
0" t
(0cm)

/
i
\
50.8" (129 cm) I_
to clear open door .._.__ 29.75" (75.5 cm)
to front of closed door
r
freestanc L
dryer on floor __ __ __
floor line
dry ...... tedon __
optional pedestal
floor llne
T
36.0"
(91.5 cm)
5t.25"
(130 cm)
gas supply
pipe on rear
of gas unit
1ZO"
(43 cm)
Dryer Dimensions
27.0"
(68.5 cm)
0
J (4 cm)
÷
3.75"
(9.5 cm)
_...._ 13.50,, .....-....1_
(34.5 cm)
to center of rear vent
31:
electrical
supply on
rear of unit 1
centerllne height
for rear vent
3.7"
(9.5 cm)
t9.0"
(48 cm)
/
\
50.8" (129 cm)
to clear open door _1
r
floor llne
L
r
29.75" (75.5 cm)
to front of closed door
m l
.,,,,J
J
T
71.5"
(182 cm)
_Power supply cord length on gas dryer approximately 60 inches (t52.5 cm).
2Hot and cold inlet hose length on washer approximately 43 inches (t09 cm).
3Power supply cord length on washer approximately 60 inches (152.5 cm).
4Drain hose length on washer approximately 52 inches (132 cm).
water supply
connection on
rear of unit 2
gas supply
pipe on rear
of gas unit
37"
(94 cm)
27.0"
(68.5 cm)
0
electrical
supply on
rear of unit _
/centerline
height for
rear vent
drain hose on
rear of unit 4
39"
(99 cm)
9

Installation instructions
Electrical installation
The following are specific requirements for proper and
safe electrical installation of your dryer. Failure to follow
these instructions can create electrical shock and/or a fire
hazard.
z%RNI ..............................................................................................................................................................
ELEC?RICALSH6aZHAZARD
* This appliance MUST be properly grounded.
Electrical shock can result if the dryer is not properly
grounded. Follow the instructions in this manual for
proper grounding.
* Do not use an extension cord with this dryer. Some
extension cords are not designed to withstand the
amounts of electrical current this dryer utilizes
and can melt, creating electrical shock and/
or fire hazard. Locate the dryer within reach of
the receptacle for the length power cord to be
purchased, allowing some slack in the cord. Refer to
the pre-instailation requirements in this manual for
the proper power cord to be purchased.
ELECTRICAL SHOCK HAZARD
*A U.L.-approved strain relief must be installed onto
power cord. If the strain relief is not attached, the
cord can be pulled out of the dryer and can be cut
by any movement of the cord, resulting in electrical
shock.
*Do not use an aluminum wired receptacle with a
copper wired power cord and plug (or vice versa).
A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The proper
wiring and receptacle is a copper wired power cord
with a copper wired receptacle.
.oTE..........................................................................................................................................................................
Dryers operating on 208 volt power supply will have
longer drying times than dryers operating on 240 volt
power supply.
Grounding requirements - Electric dryer (USA)
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check
with a licensed electrician if you are in doubt as to
whether the appliance is properly grounded.
For a grounded, cord-connected dryer:
I The dryer MUST be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electrical shock by a path of least
resistance for electrical current.
2 After you purchase and install a 3 wire or 4 wire
power supply cord having an equipment-grounding
conductor and a grounding plug that matches your
3
For a
1
wiring system, the plug MUST be plugged into
an appropriate, copper wired receptacle that is
properly installed and grounded in accordance with
aii local codes and ordinances. If in doubh caii a
licensed electrician.
DO NOT modify the plug you've installed on this
appliance. If it wiii not fit the outlet, have a proper
outlet installed by a qualified electrician.
permanently connected dryer:
The dryer MUST be connected to a grounded
metal, permanent wiring system; or an equipment
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
10

Installation instructions
Grounding requirements - Electric dryer (Canada)
ELECTRICALSH6a HAZARD
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check
with a licensed electrician if you are in doubt as to
whether the appliance is proper!y grounded. ................................................................................
For a grounded_ cord-connected dryer:
I The dryer MUST be grounded. In the event of a
malfunction or breakdown° grounding will reduce
the risk of electrical shock by providing a path of
least resistance for electrical current.
2Since your dryer is equipped with a power supply
cord having an equipment-grounding conductor and
a grounding plug, the plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. If in doubh carl a licensed electrician.
3DO NOT modify the plug provided with this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Grounding requirements - Gas dryer (USA and Canada)
1 The dryer is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a
properly grounded three-prong receptacle.
2 The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with aii local codes and ordinances. If
in doubh caiia licensed electrician.
3DO NOT modify the plug provided with this
appliance. If it wiii not fit the outlet, have a proper
outlet installed by a qualified electrician.
Grounding type
wall receptaclefDo not, under _'_
any circumstances,
cut, remove,
or bypass the
grounding prong. /
11

Installation instructions
Gas connection
1 Remove the shipping cap from gas pipe at the rear
of the dryer.
IMPORTANT ..................................................................
DO NOT connect the dryer to L.P. gas service without
converting the gas valve. An L.P. conversion kit must be
installed by a qualified gas technician.
Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or
approved pipe from gas supply line to the 3/8 inch
(0.96 cm) pipe located on the back of the dryer. Use
a 1/2 inch to 3/8 inch (1.27 cm to 0.96 cm) reducer
for the connection. Apply an approved thread sealer
that is resistant to the corrosive action of liquefied
gases on allpipe connections.
3Open the shutoff valve in the gas supply line to
allow gas to flow through the pipe. Wait a few
minutes for gas to move through the gas line.
Shutoff Valve-
Open position
FManual GASFLOW
Shutoff Flare _ Flare
Valve Union Union
closea__ t ...... t t
Nipple Flexible Inlet Pipeon
Open Connector Backof Dryer
All connections must be wrench-tightened
_--7 IMPOI_TANT ..............................................................................................
The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in the
same room as the dryer and should be in a location that
allows ease of opening and closing. Do not block access
4 Check for gas system leaks with a manometer. If a
manometer is not available, test all connections by
brushing on a soapy water solution.
wA,NI,G
EXPLOSION HAZARD
NEV tesfog_ _eakw!ta ope, ame".............................................................................
12

Installation instructions
Electrical connection (non-Canada) - 3 wire cord
3-wire receptacle
(NEMA type 10-30R)
wA,,, ...........................................................................................................................................................
ELECTe CALSHOaHAZARD ....
Failureto disconnectpowersourcebeforeservicing
could result in personal injury or even death.
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal block access
cover in the lower corner on the back of the dryer.
3Install a UL-approved strain relief according to the
power cord/strain relief manufacturer's instructions
in the power cord entry hole below the access panel.
At this time, the strain relief should be loosely in
place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 10-30 type SRDT, through the
strain relief.
,5 Attach the power cord neutral (center wire)
conductor to the SILVER colored center terminal on
the terminal block. Tighten the screw securely.
6Attach the remaining two power cord outer
conductors to the outer, BRASS colored terminals on
the terminal block. Tighten both screws securely.
,, ELECT" CALSH6ciHAZARD
*Do not make a sharp bend or crimp wiring/conductor
at connections.
*DO NOT remove the internal ground from the GREEN
screw next to the terminal block.
7Follow manufacturer's guidelines for firmly securing
the strain relief and power cord.
8 Reinstall the terminal block cover.
iMPORTANT
If moving dryer from a 4-wire system and installing it
in a 3-wire system, move the internal ground from the
center terminal back to the GREEN screw next to the
terminalblock.
_ _ Access cover
_zj/ screw
___S Tblm icrk1
Line 2
__---_- _ (BRASSterminal)
_Line1
..... (BRASSterminal)
_ Internalground
(GREEN screw)
Terminal screw
recovery slot
....NOTE.......
If a terminal screw falls during cord installation, it can
be retrieved in the terminal screw recovery slot below
the access panel.
DO NOTremove Neutral
internal ground in terminal
a 3-wire system!!
13

Installation instructions
Electrical connection (non-Canada) - 4 wire cord
4-wire receptacle
(NEMA type 14-30R)
| Turn off power supply to outlet.
2 Remove the screw securing the terminal block access
cover in the lower corner on the back of the dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer's instructions
in the power cord entry hole below the access panel.
At this time, the strain relief should be loosely in
place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 14-30 type ST or SRDT, through
the strain relief.
5Disconnect the dryer internal ground wire (WHITE)
from the ground screw (GREEN) next to the terminal
block.
6Attach the power cord ground wire (GREEN) to the
ground screw (GREEN) next to the terminal block.
Tighten the screw securely.
7 Move the dryer internal ground wire (WHITE) to the
terminal block and attach it along with the neutral
(WHITE) power cord wire conductor to the center,
SILVER colored terminal on the terminal block.
Tighten the screw securely.
8 Attach the RED and BLACK power cord conductors
to the outer, BRASS colored terminals on the terminal
block. Tighten both screws securely.
Neutral
WHITE wire)
I _ _ _ Access cover
_j/ screw
Line 2
_:___A___ _--__ _ (BRASSterm na )
[_b___ (SILVERterminal)
\b ___ (BRASSterminal)
Internal ground
(GREEN screw)
........... _ Install
UL-approved
strain relief here
Terminal screw
recovery slot
If a terminal screw falls during cord installation, it can
be retrieved in the terminal screw recovery slot below
the access panel.
Moveinternalground(WHITE)
wireto neutral(SILVER)
terminalfor4-wiresystem."_
GREEN
ground screw
Neutral
terminal
WHITE
neutral wire
9 Follow manufacturer's guidelines for firmly securing
the strain relief and power cord.
|0 Reinstall the terminal block cover. GREEN
ground win
BLACKor
REDpower wire
BLACK
or RED
power wire
14

Installation Instructions
General installation
1 Connect the exhaust duct to the outside exhaust
system (see pages 6 through 8). Use of a 4" (102
mm) clamp (item A) is recommended to connect the
dryer to the exhaust vent system. Use metal foil tape
to seal all other joints.
2 Carefully slide the dryer to its final position. Adjust
one or more of the legs until the dryer is resting
solidly on all four legs. Place a level on top of the
dryer, The dryer MUST be level and resting solidly
on all four legs. Rock alternating corners to check
for stability. Remove and discard door tape.
Be sure the power is off: at a circuit breaker/fuse box
before pluggMg the power cord into an outlet.
3Plug the power cord into a grounded outlet.
4 Turn on the power at the circuit breaker/fuse box.
5 Read the Use & Care Guide provided with the dryer.
It contains valuable and helpful information that will
save you time and money.
6If you have any questions during initial operation,
please review the "Avoid Service Checklist" in your
Use & Care Guide before calling for service.
7 Place these instructions in a location near the dryer
for future reference.
A wiring diagram and technical data sheet are located
Gro
walll
grounding prong,
Powercc
3_
15

Reversing Door Swing
1. Be sure you have adequate swing area before
reversing door.
2. You wiii need a screw driver with a #2 square
and straight bit.
3. Protect flat work surface, such as top of dryer or
floor near dryer, with a soft cloth or towel.
wA,,, ..............................................................................
ELECTRICALsH0cKHAZARD"
Failure to disconnect power source
before servicing could result in personal
injury or even death.
Tools needed:
Screwdrivers with
#2 square &
4. Be sure dryer is unplugged from power source! straight bit
Removing fhe door
1. Protect flat work surface, such as top of dryer or floor 4.
near dryer, with a soft cloth or towel.
2. Open dryer door and remove the two hinge screws. 5.
Remove lower screw first, then upper screw.
Gently place dryer door face down on fla hcovered
work surface.
Locate the 5indented head screws (no. 1-5) in the
small, circular recesses (at 11, 1, 4, 6, and 8 o'clock
positions) of the inner door. Remove and save these 5
screws.
2
7
.Supporting door with both hands, squarely lift door and
hinge upward approximately 3/8" (10 mm) so "T" post
on back of hinge can slide out through "T" slot on front
panel.
"T" SLOT IN
FRONT PANEL
"T" POST ON
DOOR HINGE
i i
i ,
5 4
.......................................................................................................ii.................................
Do not attempt to remove the 2 tamper-resistant
screws that hold the inner glass in place.
6.
7.
Locate the 2 pan head screws (no. 6-7) on the inner
door nearest the metal strike and center of hinge (9
and 3 o'clock positions). Remove and save these 2
screws.
Separate inner door assembly from outer door
assembly.
16

Reversing Door Swing
Reversing fhe hinge
.Carefully pull out the 2 small round hole plugs from the
front panel and save. Remove and save the square "T"
slot cover by sliding it up and pulling it out. Move all 3
plugs to the opposite side of the front panel and insert.
4. From the back side of the inner door, pinch the
retaining tabs of the plastic square plug to release it.
Save square plug for reinstallation.
\
ROUND PLUG
SQUARE PLUG
ROUND PLUG ._
2. Turn inner door assembly over to expose retaining tabs
of metal strike. Grip tabs fully with pliers to remove.
Discard old metal strike.
.Carefully remove the 2 round plugs from the inner door
and move them to the opposite holes and reinstall.
OUT
IN
3. Turn the inner door assembly back over and locate
the 2 pan head hinge screws. Remove and save the
2 screws and separate the hinge from inner door
assembly.
6. Rotate the hinge and move it to the opposite side of
the inner door. Attach it with the 2 pan head screws
removed previously. Reinstall plastic plug in the square
hole next to the hinge.
HINGE SCREWS
17

Reversing Door Swing
Reassembling fhe door
1. Locate and remove the hinge cutout gate from the
outer door assembly. Rotate and move it to the
opposite hole in the outer door.
3. Replace indented head screws (no. 1-5) removed earlier.
Take care not to strip out the plastic holes.
4. Replace pan head screws (no. 6-7) removed earlien
Take care not to strip out the plastic holes.
°\ 2
.Rest the opening of the inner door at a 90 degree
angle on the "shoulders" of the hinge cutout gate.
Pivot the inner door down onto the outer door.
5. Locate new metal strike supplied with dryer manuals.
Grip new strike with pliers as shown below. Firmly insert
the strike so it is oriented vertically.
18

Reversing Door Swing
Reaffaching the door
1. Holding the door in both hands, squarely insert the '%"
post on the back of the hinge into the "T" slot on the
front panel and lower it to align the mounting holes.
.Close the door and test operation of hinge, strike and
latch.
"T" POST ON
DOOR HINGE
"T" SLOT IN
FRONT PANEL
2. While supporting the door, install the upper pan head
screw first and then the lower one.
Correctly installed hinge screws will press hinge flush to
front panel. Any gap between hinge and front panel will
19

Accessories
MATCHING STORAGE PEDESTAL _
White Pedestal - P/N CFPWD15W
Black Pedestal - P/N CFPWD15B
Blue Pedestal - P/N CFPWD15N
Silver Pedestal - P/N CFPWD15A
Astorage pedestal accessory, specifically designed for this dryer
may be used to elevate the washer for ease of use. This pedestal
will add about 15.25" (39 cm) to the height of your unit for a total
height of 51.25" (130 cm).
_Other colors may be available, Contact the source where you
purchased your dryer,
DRYER STACKING KIT
P/N STACKIT4X
Depending on the model you purchased, a kit for stacking this
dryer on top of matching washer may have been included in the
initial purchase of your dryer. If your model did not include a
stacking kit or you desire another stacking kit, you may order one.
Failure to use accessories manufactured by (or
approved by) the manufacturer could result in
personal injury, property damage or damage to
the dryen ......................................................................................................................................................................................................................................................
LP CONVERSION KIT
P/N PCK4200
Gas dryers intended for use in a location supplied with LP must use
a conversion kit prior to installation.
MOBILE HOME iNSTALLATION KIT
P/N 137067200
Installation in a mobile home requires the use of a MOBILE HOME
INSTALLATION KIT.
DRYING RACK
P/N 137067300
Depending on the model you purchased, an expandable drying
rack may have been included in the initial purchase of your dryer.
If your model did not include a drying rack or you desire another
drying rack, you may order one.
UNIVERSAL APPLIANCE WRENCH
P/N 137019200
A UNIVERSAL APPLIANCE WRENCH is available to aid in dryer/
washer/pedestal feet adjustment.
TOUCH UP PAINT PENS_
White Touch Up Pen - P/N 5304468812
Black Touch Up Pen - P/N 5304458932
Blue Touch Up Pen - P/N 5304471229
Silver Touch Up Pen -P/N 5304471228
_Other colors may be available. Contact the source where you
purchased your dryer.
Replacement parts:
If replacements parts are needed for your dryer,
contact the source where you purchased your washer or
refer to your Use and Care Guide for more information.
RNING ...............................................................................................................................................................................
ELEC?R CALSH6aHAZARD
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
20
