Kenmore 25370413411 User manual

Use & Care Guide
Manual de Uso y Cuidado
Guide d_utilisafion et d_entrefien
English /Espa_ol /Fran_ais
Models/Modelos/Mod_les: 253.7041 _, 7042 _
Ke
F ncn
Congelador
®
Inferior de
L®Por't'eofe t're Cong6 cur Inf eur
::::::::::Coot i_urnli>e_sn6rnero de co/oFoHeI_urr_n@rode couleur
P/N A01649901 (1405)
Sears Brands Management Corporation
HofFman Estates, IL 60179 U.S.A.
www. ken more.corn
www.sears.com
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
www.sears.ca

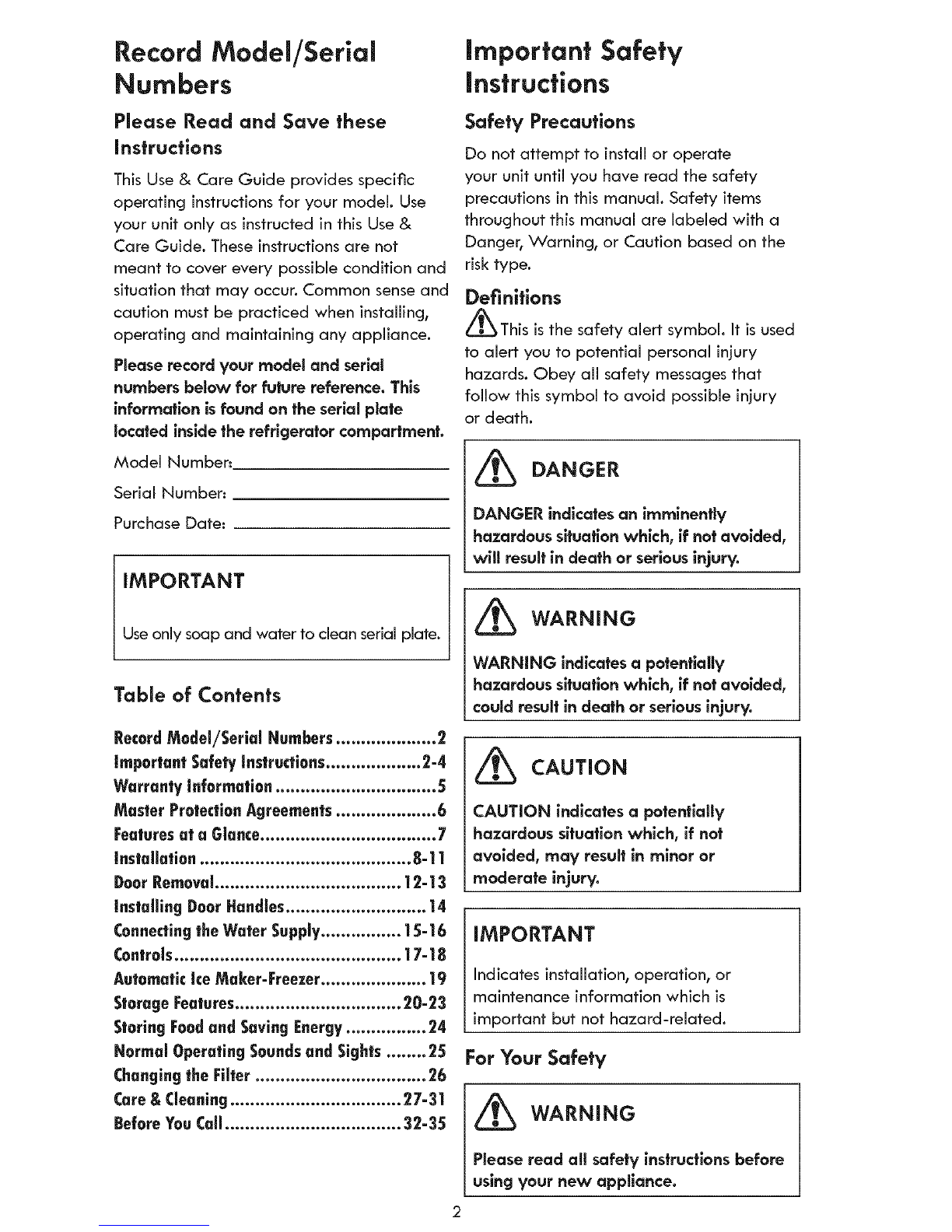

Record Model/Serial
Numbers
Please Read and Save these
Instructions
This Use & Care Guide provides specific
operating instructions for your model. Use
your unit only as instructed in this Use &
Care Guide. These instructions are not
meant to cover every possible condition and
situation that may occur. Common sense and
caution must be practiced when installing,
operating and maintaining any appliance.
Please record your model and serial
numbers below for future reference. This
information is found on the serial plate
located inside the refrigerator compartment.
Model Number:
Serial Number:
Purchase Date:
IMPORTANT
Use only soap and water to clean serial plate.
Table of Contents
RecordModel/Serial Numbers.................... 2
Important SafetyInstructions................... 2-4
WarrantyInformation................................ 5
Master Protection Agreements.................... 6

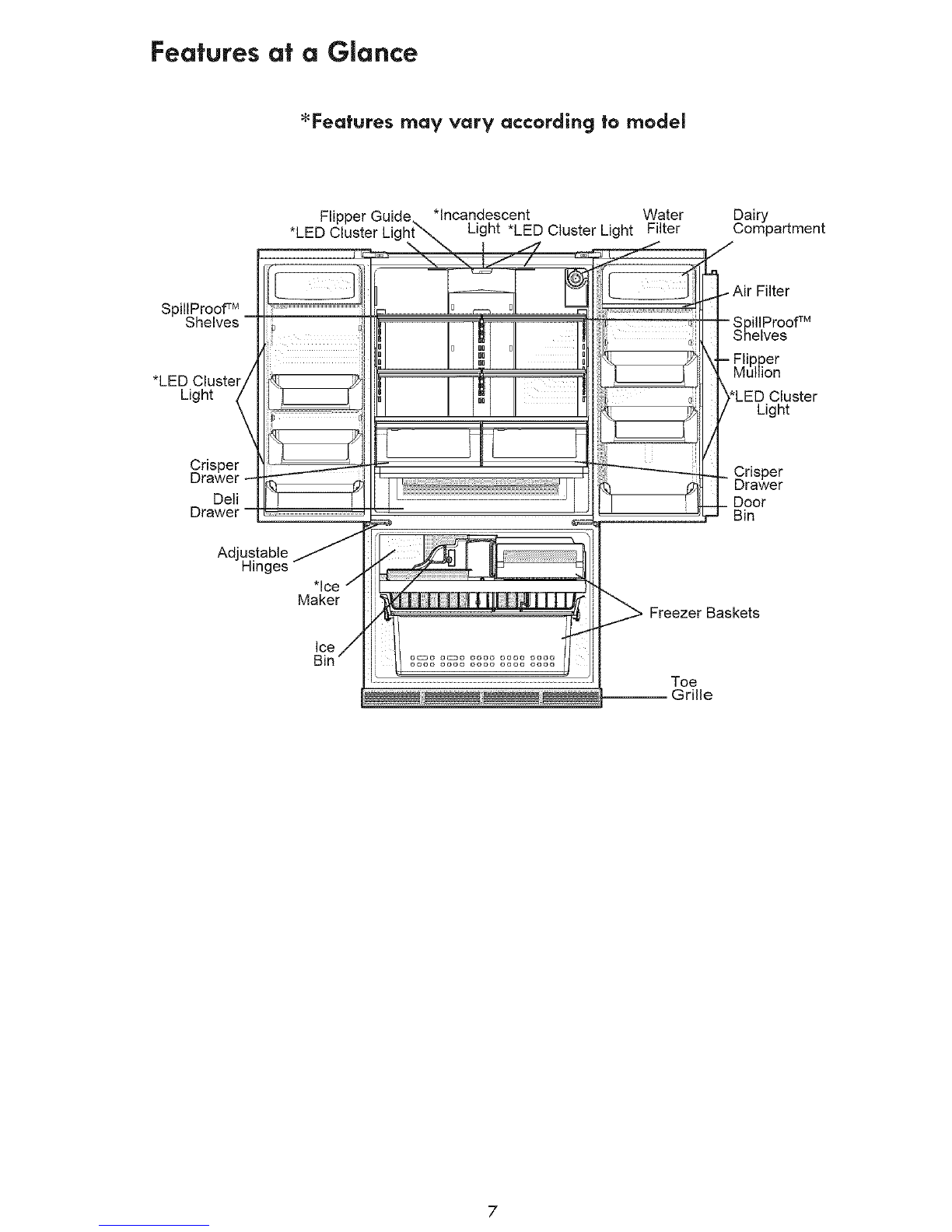

Featuresat a Glance................................... 7

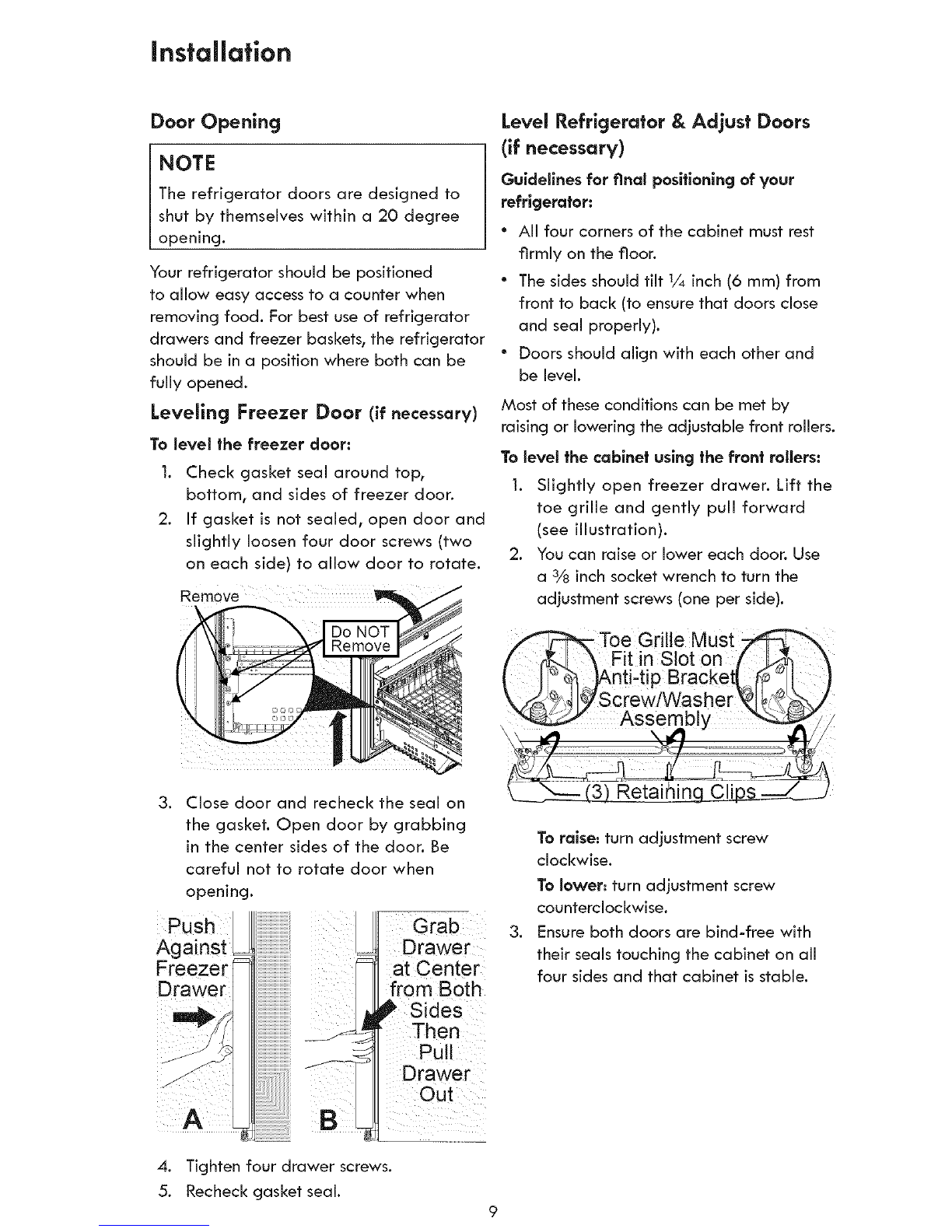

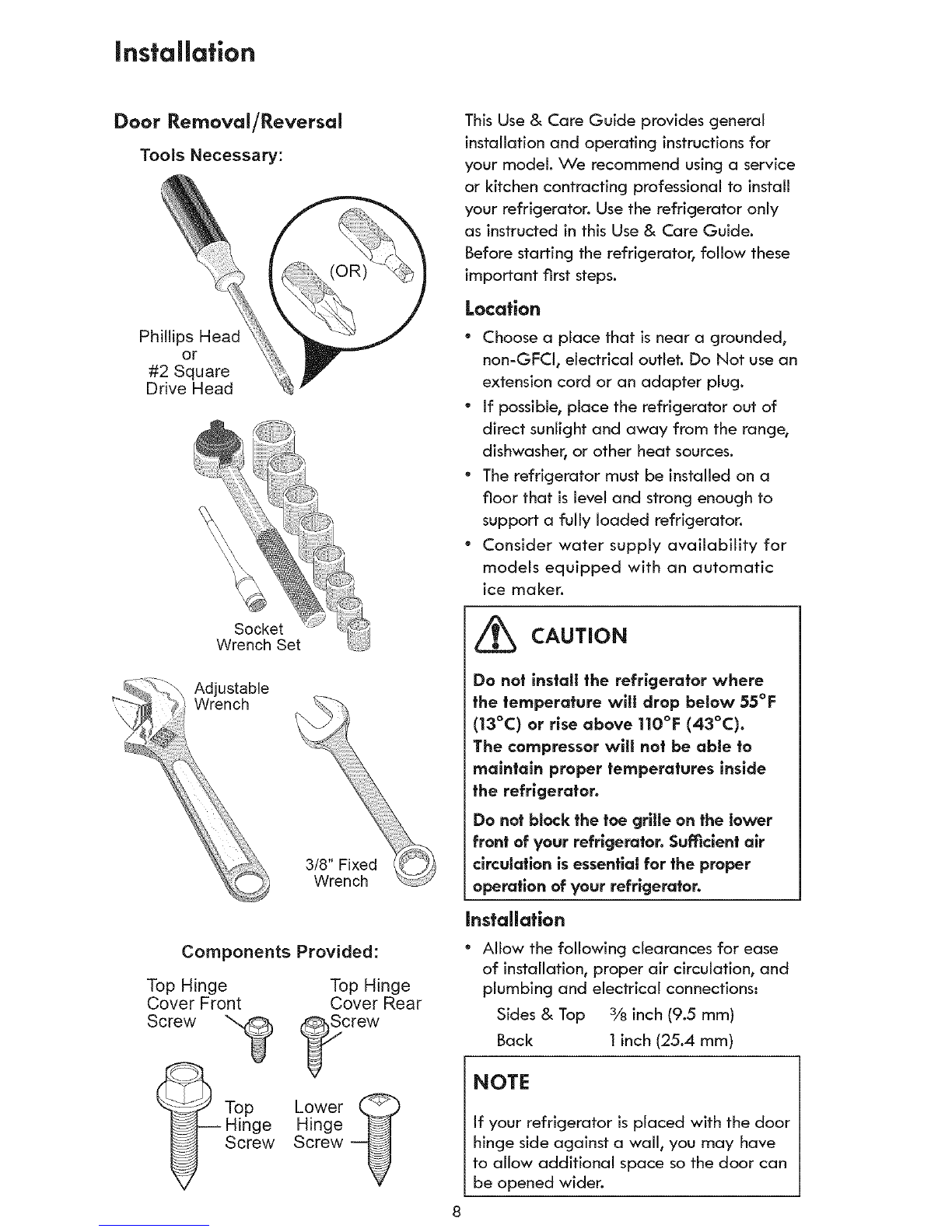

Installation.......................................... 8-| |

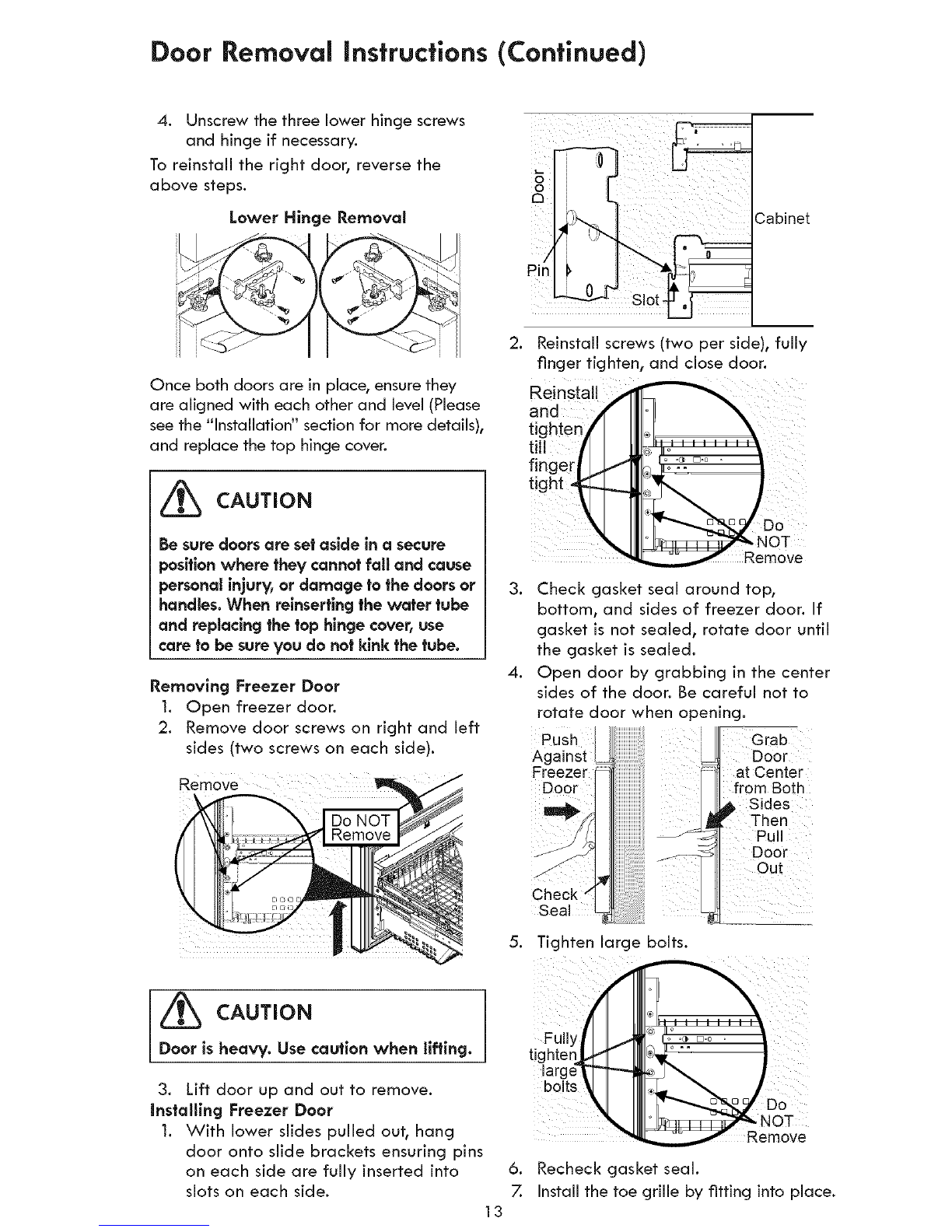

DoorRemoval..................................... 12-| 3
Installing DoorHandles............................ 14

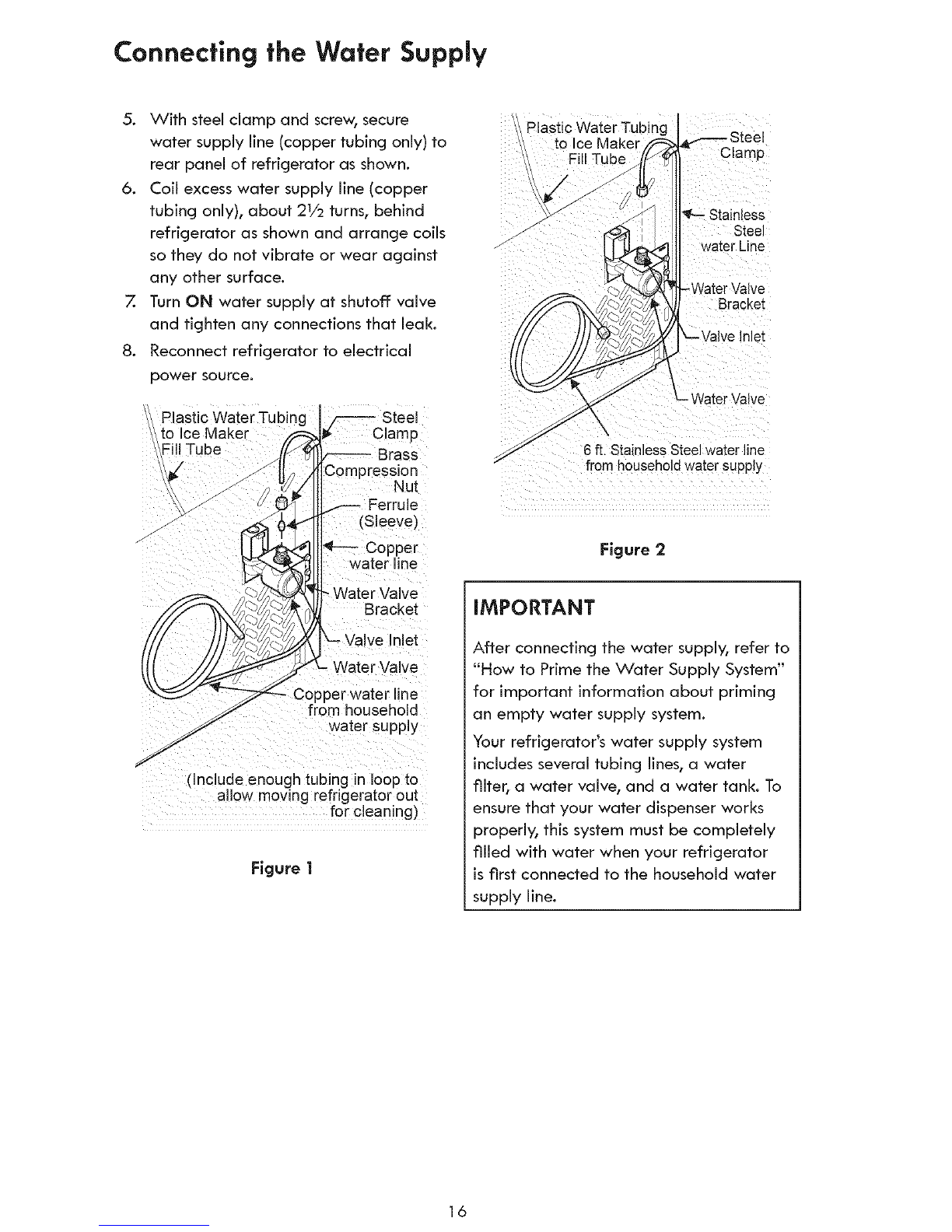

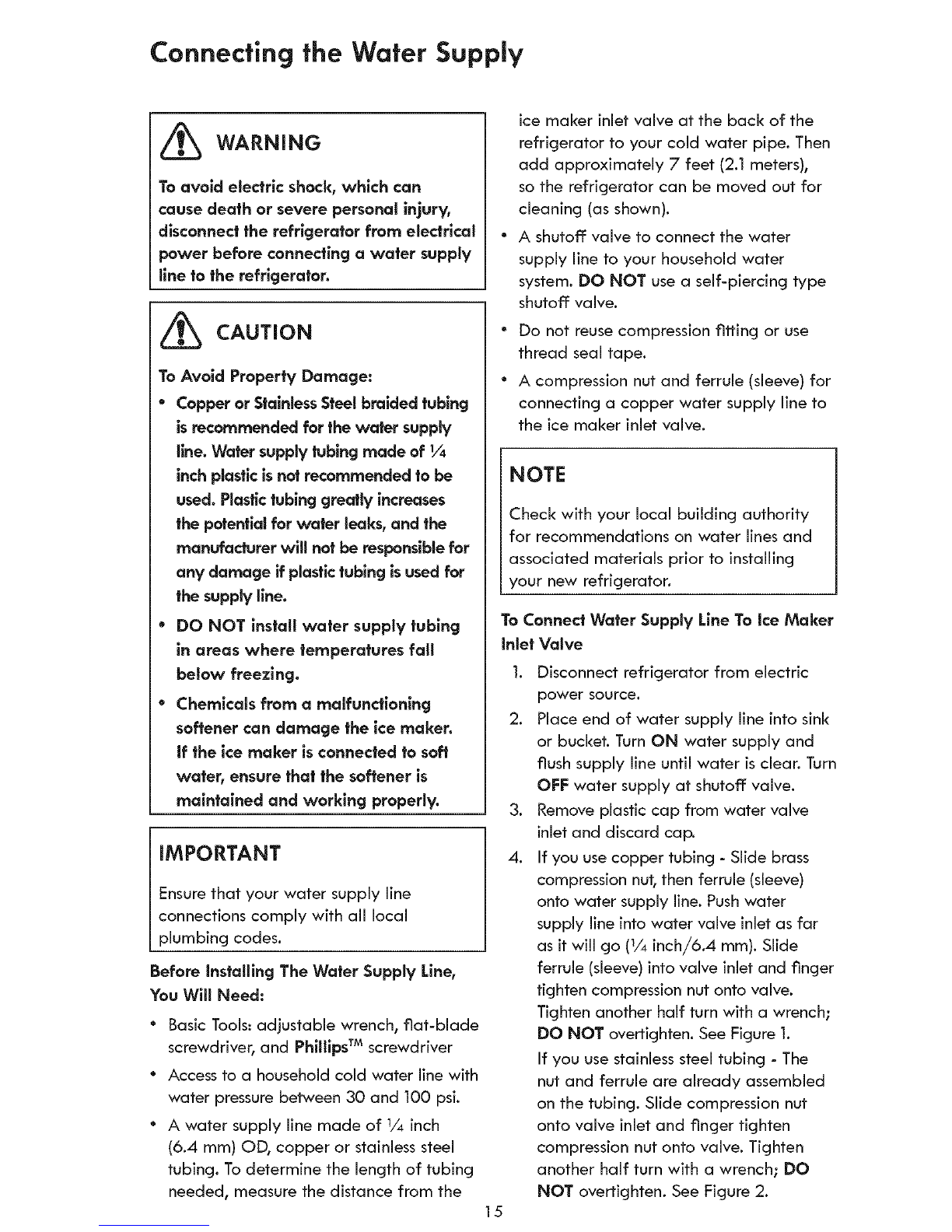

Connectingthe Water Supply................ | 5-16

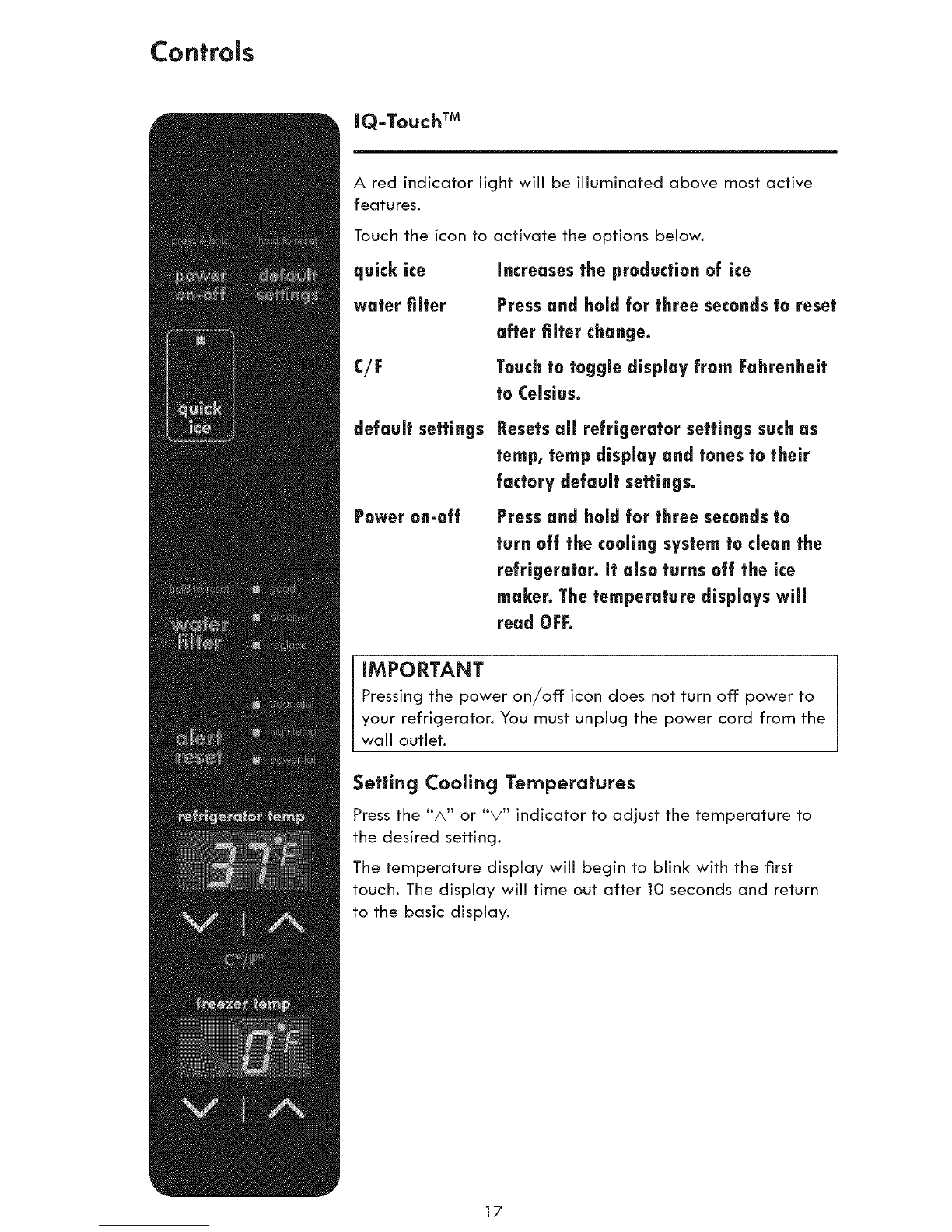

Controls............................................. 17-| 8
AutomaticIceMaker-Freezer..................... | 9
StorageFeatures................................. 20-23
StoringFoodand SavingEnergy................ 24
Normal OperatingSoundsand Sights ........ 25
Changing the Filter .................................. 26
CaregCleaning.................................. 27-31
BeforeYouCall................................... 32-35
Important Safety
Instructions
Safety Precautions
Do not attempt to install or operate
your unit until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
Danger, Warning, or Caution based on the
risk type.
Definitions
_This isthe safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
_WARNING
WARNING indicatesapotentially
hazardous situationwhich, if notavoided,
could resultin death or seriousinjury.
CAUTION
CAUTION indicatesapotentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard=related.
Far Your Safety
_WARNING
Please read all safety instructions before
using your new appliance.

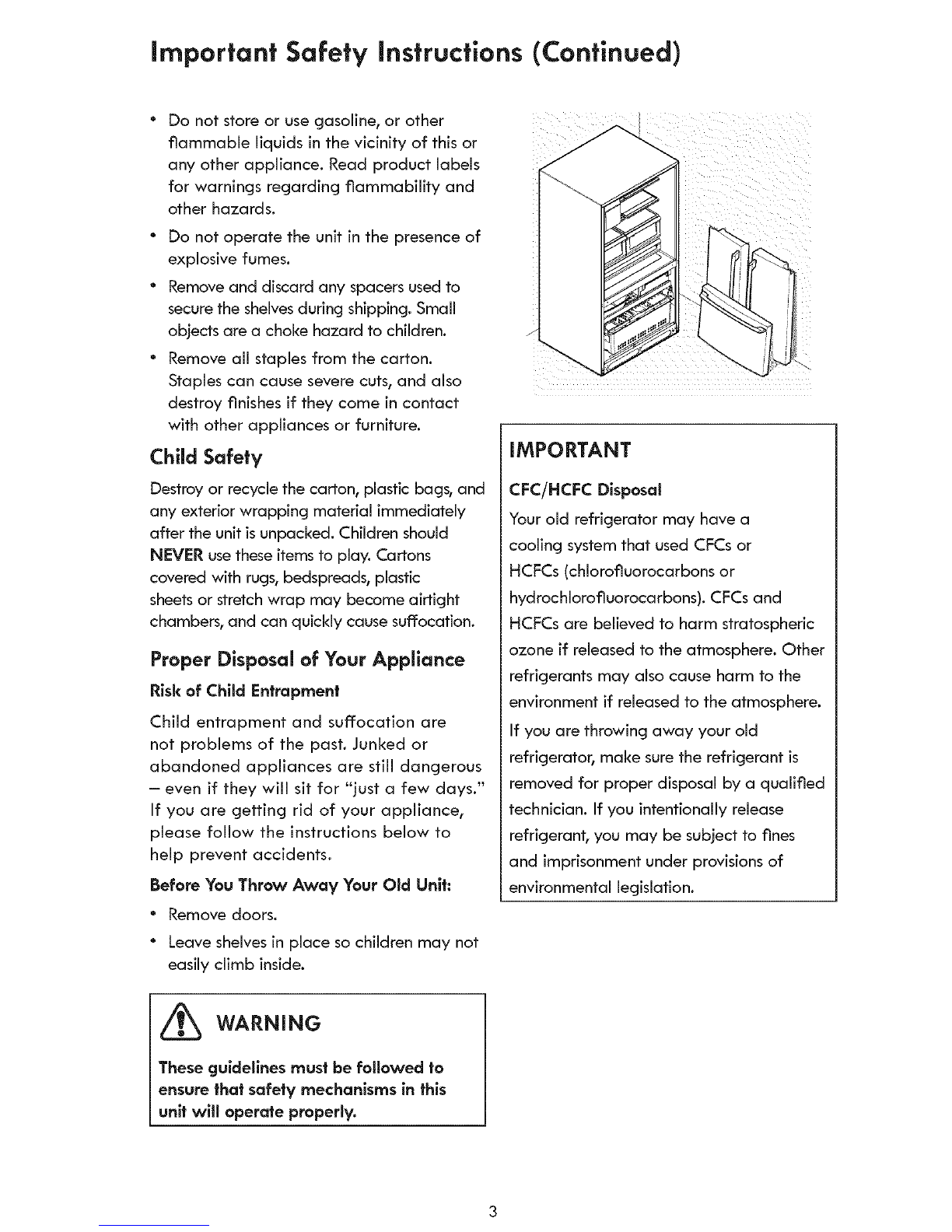

Important Safety Instructions (Continued)
* Do not store or use gasoline, or other
flammable liquids in the vicinity of this or
any other appliance. Read product labels
for warnings regarding flammability and
other hazards.
*Do not operate the unit in the presence of
explosive fumes.
*Remove and discard any spacers used to
secure the shelves during shipping. Small
objects are a choke hazard to children.
*Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy finishes if they come in contact
with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the unit isunpacked. Children should
NEVER use these items to play. Cartons
covered with rugs, bedspreads, plastic
sheets or stretch wrap may become airtight
chambers, and can quickly cause suffocation.
Proper Disposal of Your Appliance
RiskofChildEntrapment
Child entrapment and suffocation are
not problems of the past. Junked or
abandoned appliances are still dangerous
-even if they will sit for "just a few days."
If you are getting rid of your appliance,
please follow the instructions below to
help prevent accidents.
Before You Throw Away Your Old Unit:
*Remove doors.
*Leave shelves in place so children may not
easily climb inside.
_WARNING
These guidelines must be followed to
ensure that safety mechanisms in this
unit will operate properly.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs or
HCFCs(chlorofiuorocarbons or
hydrochlorofiuorocarbons). CFCs and
HCFCs are believed to harm stratospheric
ozone if released to the atmosphere. Other
refrigerants may also cause harm to the
environment if released to the atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant is
removed for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines
and imprisonment under provisions of
environmental legislation.

Important Safety Instructions (Continued)
Electrical information
*The appliance must be plugged into
its own dedicated 115 Volt, 60 Hz., AC
only electric outlet. The power cord
of the appliance is equipped with a
three-prong grounding plug for your
protection against electrical shock
hazards. It must be plugged directly
into a properly grounded three-prong
receptacle.Thereceptaclemustbe
installed_naccordancewithlocalcodes
and ordinances. Consult a qualified Power cord with
electrician. Do not use an extension cord 3-prong grounded plug
or adapter plug.
"If the power cord is damaged, it should
be replaced by the manufacturer, service
technician, or a qualified person.
"Never unplug the unit by pulling on the
power cord. Always grip the plug firmly,
and pull straight out from the receptacle
to prevent damaging the power cord.
"Unplug the unit before cleaning and
before replacing a light bulb to avoid
electrical shock.
Grounding type wa!l receptacle
Do not, under
any circumstances, I
cut, remove, |
or bypass the |
grounding prong.j)
*Performance may be affected if the
voltage varies by 10% or more. Operating
the unit with insufficient power can
damage the compressor. Such damage is
not covered under your warranty.
"Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the unit from being turned
off accidentally.
"Avoid connecting unit to a Ground Fault
Interrupter (GFI) circuit.

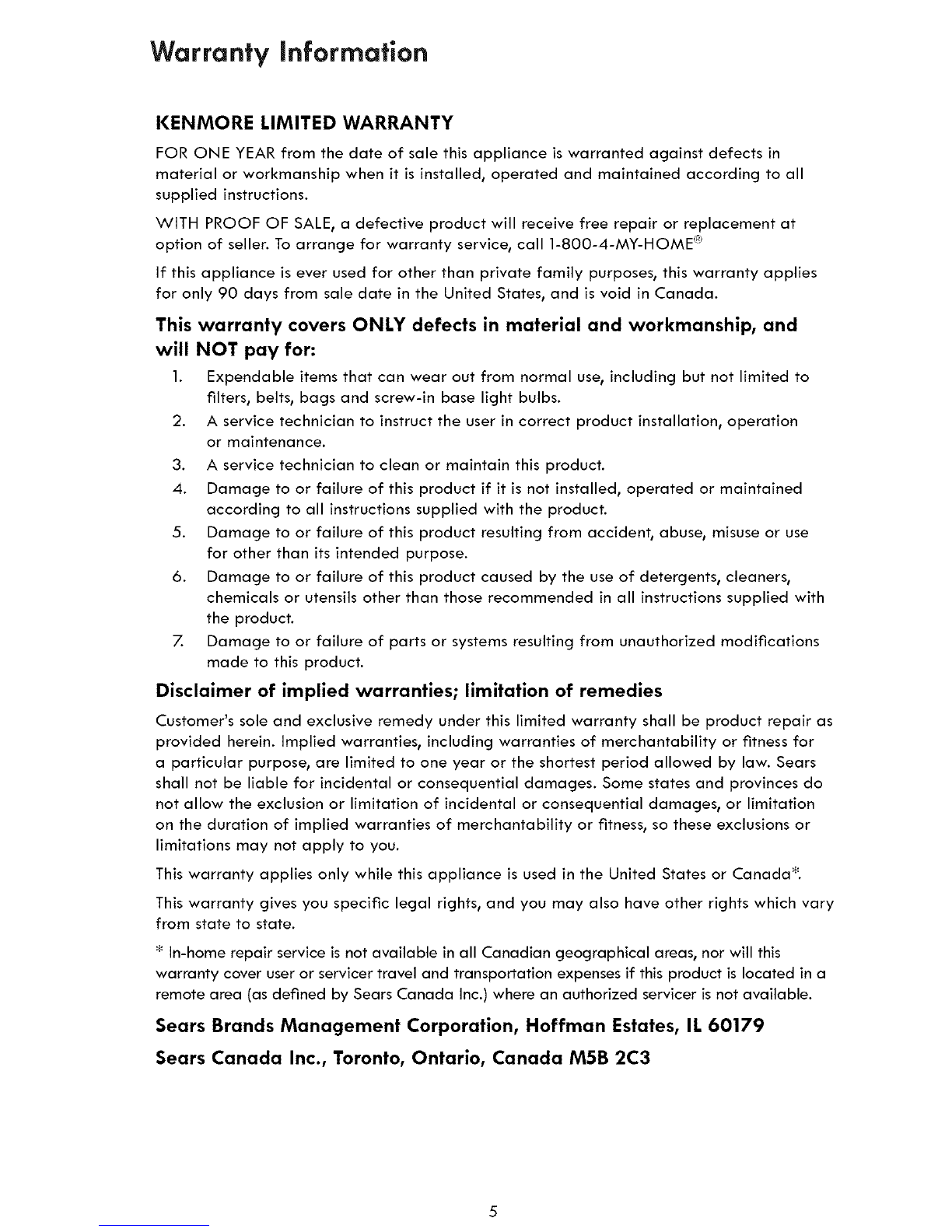

Warranty Information
I(ENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in
material or workmanship when it is installed, operated and maintained according to all
supplied instructions.
WITH PROOF OF SALE, a defective product will receive free repair or replacement at
option of seller. To arrange for warranty service, call 1-800-4-MY-HOME _
If this appliance is ever used for other than private family purposes, this warranty applies
for only 90 days from sale date in the United States, and is void in Canada.
This warranty covers ONLY defects in material and workmanship, and
will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to
filters, belts, bags and screw-in base light bulbs.
2. A service technician to instruct the user in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained
according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use
for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with
the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications
made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as
provided herein. Implied warranties, including warranties of merchantability or fitness for
a particular purpose, are limited to one year or the shortest period allowed by law. Sears
shall not be liable for incidental or consequential damages. Some states and provinces do
not allow the exclusion or limitation of incidental or consequential damages, or limitation
on the duration of implied warranties of merchantability or fitness, so these exclusions or
limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada _.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
In-home repair service is not available in all Canadian geographical areas, nor will this
warranty cover user or servicer travel and transportation expenses if this product is located in a
remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3

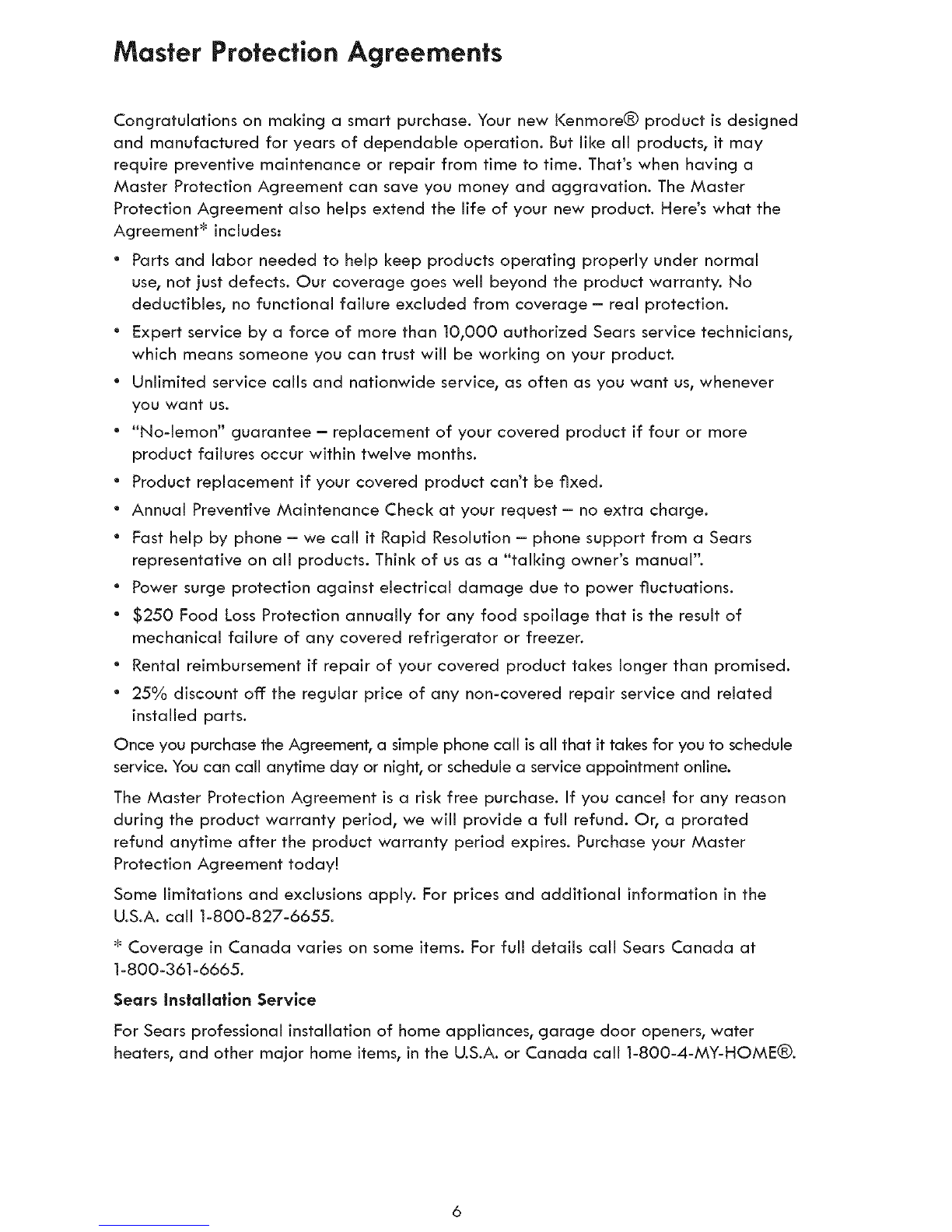

Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore® product is designed
and manufactured for years of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time. That's when having a
Master Protection Agreement can save you money and aggravation. The Master
Protection Agreement also helps extend the life of your new product. Here's what the
Agreement _ includes:
*Parts and labor needed to help keep products operating properly under normal
use, not just defects. Our coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from coverage - real protection.
*Expert service by a force of more than 10,000 authorized Sears service technicians,
which means someone you can trust will be working on your product.
*Unlimited service calls and nationwide service, as often as you want us, whenever
you want us.
*"No-lemon" guarantee - replacement of your covered product if four or more
product failures occur within twelve months.
*Product replacement if your covered product can't be fixed.
*Annual Preventive Maintenance Check at your request - no extra charge.
*Fast help by phone - we call it Rapid Resolution - phone support from a Sears
representative on all products. Think of us as a °'talking owner's manual".
*Power surge protection against electrical damage due to power fluctuations.
*$250 Food Loss Protection annually for any food spoilage that is the result of
mechanical failure of any covered refrigerator or freezer.
*Rental reimbursement if repair of your covered product takes longer than promised.
*25% discount off: the regular price of any non-covered repair service and related
installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule
service. You can call anytime day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel for any reason
during the product warranty period, we will provide a full refund. Or, a prorated
refund anytime after the product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information in the
U.S.A. call 1-800-827-6655.
Coverage in Canada varies on some items. For full details call Sears Canada at
1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water
heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.

Features at a Glance
_Features may vary according to model
SpillProoF M
Shelves
*LED Cluster/
Light
Crisper
Drawer
Dell
Drawer -
Flipper Guide *Incandescent Water
*LED ClusterLJght'_-_. Light *LED Cluster Light Filter
D
Dairy
Compartment
Air Filter
fillProof TM
Flipper
Mullion
*LED Cluster
Light
Crisper
Drawer
Door
Bin
Adjustable
Hinges *Ice
Maker Freezer Baskets
Toe
-- Grille

Installation
Door Removal/Reversal
Tools Necessary:
Phillips Head
or
#2 Square
Drive Head
__ Awd_UStc_ble
Components Provided:
Top Hinge Top Hinge
Cover Front Cover Rear
Screw "-.._ _crew
_ Top Lower
Hinge Hinge _
Screw Screw
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only
as instructed in this Use & Care Guide.
Before starting the refrigerator, follow these
important first steps.
Location
* Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
"If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher, or other heat sources.
"The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
"Consider water supply availability for
models equipped with an automatic
ice maker.
CAUTION
Do not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above IIO°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
Do not block the toe grille on the lower
front of your refrigerator. Sufficient air
circulation is essential for the proper
operation of your refrigerator.
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top 3/8inch (9.5 mm)
Back 1inch (25.4 mm)
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have
to allow additional space so the door can
be opened wider.

Installation
Door Opening
NOTE
The refrigerator doors are designed to
shut by themselves within a 20 degree
opening.
Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of refrigerator
drawers and freezer baskets, the refrigerator
should be in a position where both can be
fully opened.
Levellng Freezer Door (if necessary)
To level the freezer door:
1. Check gasket seal around top,
bottom, and sides of freezer door.
2. If gasket is not sealed, open door and
slightly loosen four door screws (two
on each side) to allow door to rotate.
Remove
3.
Push
Against
Freezer
Drawer
/
A
4.
5.
Close door and recheck the seal on
the gasket. Open door by grabbing
in the center sides of the door. Be
careful not to rotate door when
opening.
Grab
Drawer
at Center
from Both
iI_ Sides
Then
Pult
Drawer
Out
Tighten four drawer screws.
Recheck gasket seal.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your
refrigerator:
*All four corners of the cabinet must rest
firmly on the floor.
*The sides should tilt t/4 inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
*Doors should align with each other and
be level.
Most of these conditions can be met by
raising or lowering the adjustable front rollers.
TO level the cabinet using the front rollers:
1. Slightly open freezer drawer. Lift the
toe grille and gently pull forward
(see illustration).
2. You can raise or lower each door. Use
a 3/8 inch socket wrench to turn the
adjustment screws (one per side).
_Toe Grille Must_
/_ "_ Fit inSloton /_ \
\\__4 I_yScrew/Washer __
%
L__ (3) Retaithin_
3.
To raise= turn adjustment screw
clockwise.
To lower= turn adjustment screw
counterclockwise,
Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.

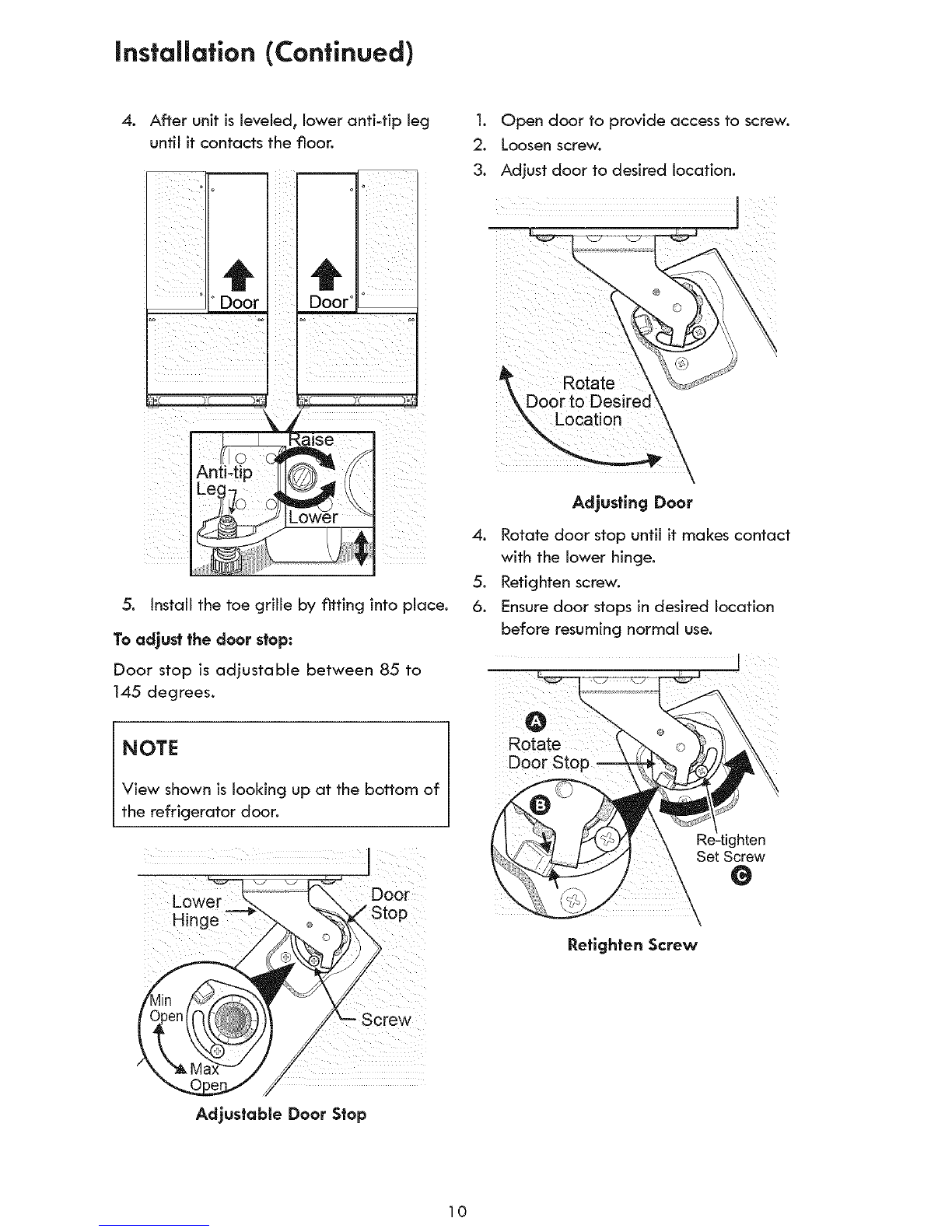

Installation (Continued)
4. After unit is leveled, lower anti-tip leg
until it contacts the floor.
[ Anti-tip
Leg
S. Install the toe grille by fitting into place.
To adjust the door stop:
Door stop is adjustable between 85 to
145 degrees.
NOTE
View shown is looking up at the bottom of
the refrigerator door.
Adjustable Door Stop
1. Open door to provide access to screw.
2. Loosen screw.
3. Adjust door to desired location.
Adjusting Door
4. Rotate door stop until it makes contact
with the lower hinge.
5. Retighten screw.
6. Ensure door stops in desired location
before resuming normal use.
Door St(
Re-tighten
Set Screw
0
Retighten Screw
I0

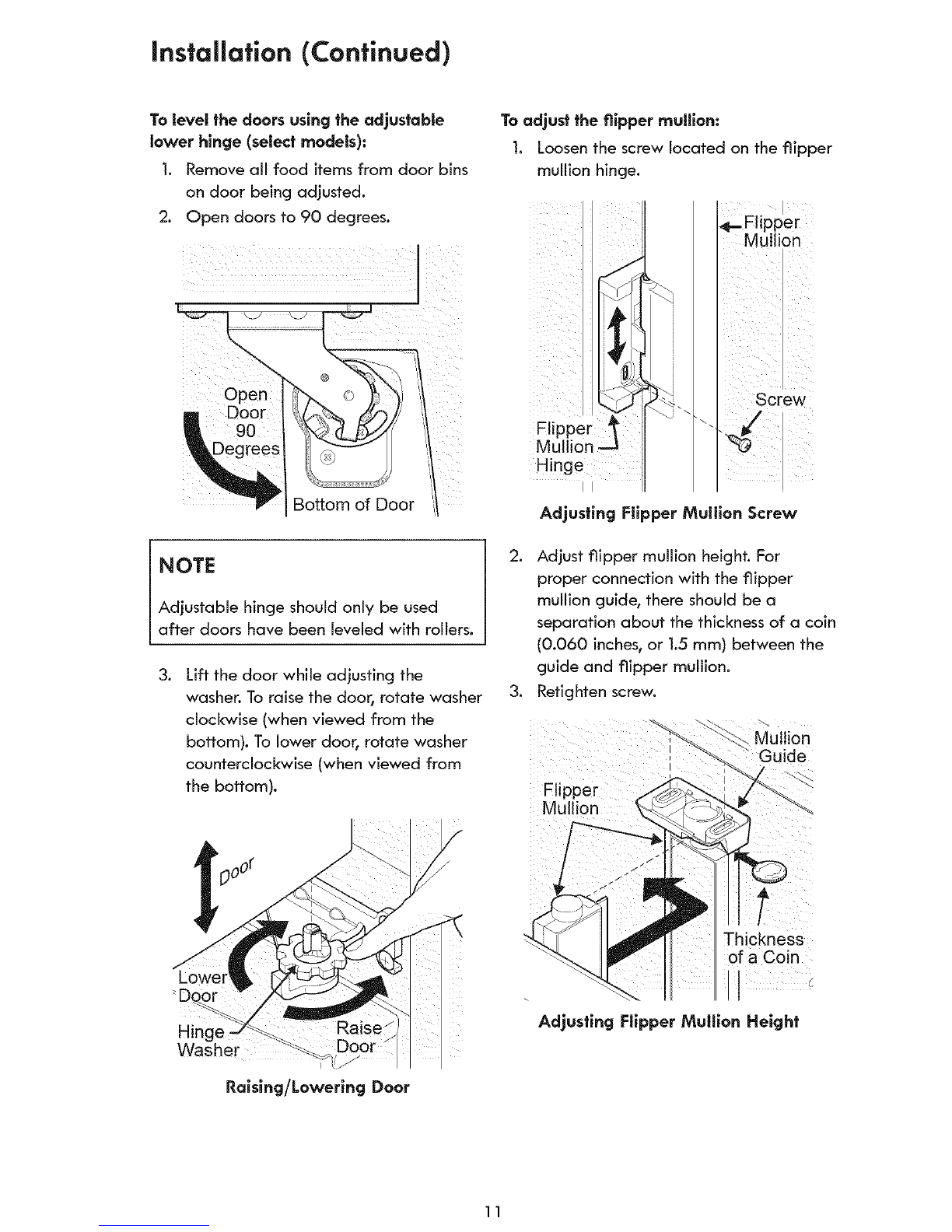

Installation (Continued)
To level the doors using the adjustal01e
lower hinge (select models):
1. Remove all food items from door bins
on door being adjusted.
2. Open doors to 90 degrees.
NOTE
Adjustable hinge should only be used
after doors have been leveled with rollers.
3. Lift the door while adjusting the
washer. To raise the door, rotate washer
clockwise (when viewed from the
bottom). To lower door, rotate washer
counterclockwise (when viewed from
the bottom).
To adjust the flipper mullion:
1. Loosen the screw located on the flipper
mullion hinge.
.Flipper
Screw
Adjusting Flipper Mullion Screw
2. Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of a coin
(0.060 inches, or 1.5 mm) between the
guide and flipper mullion.
3. Retighten screw.
Flipper
ML
Thickness
of a Coin
d
Adjusting Flipper Mullion Height
11

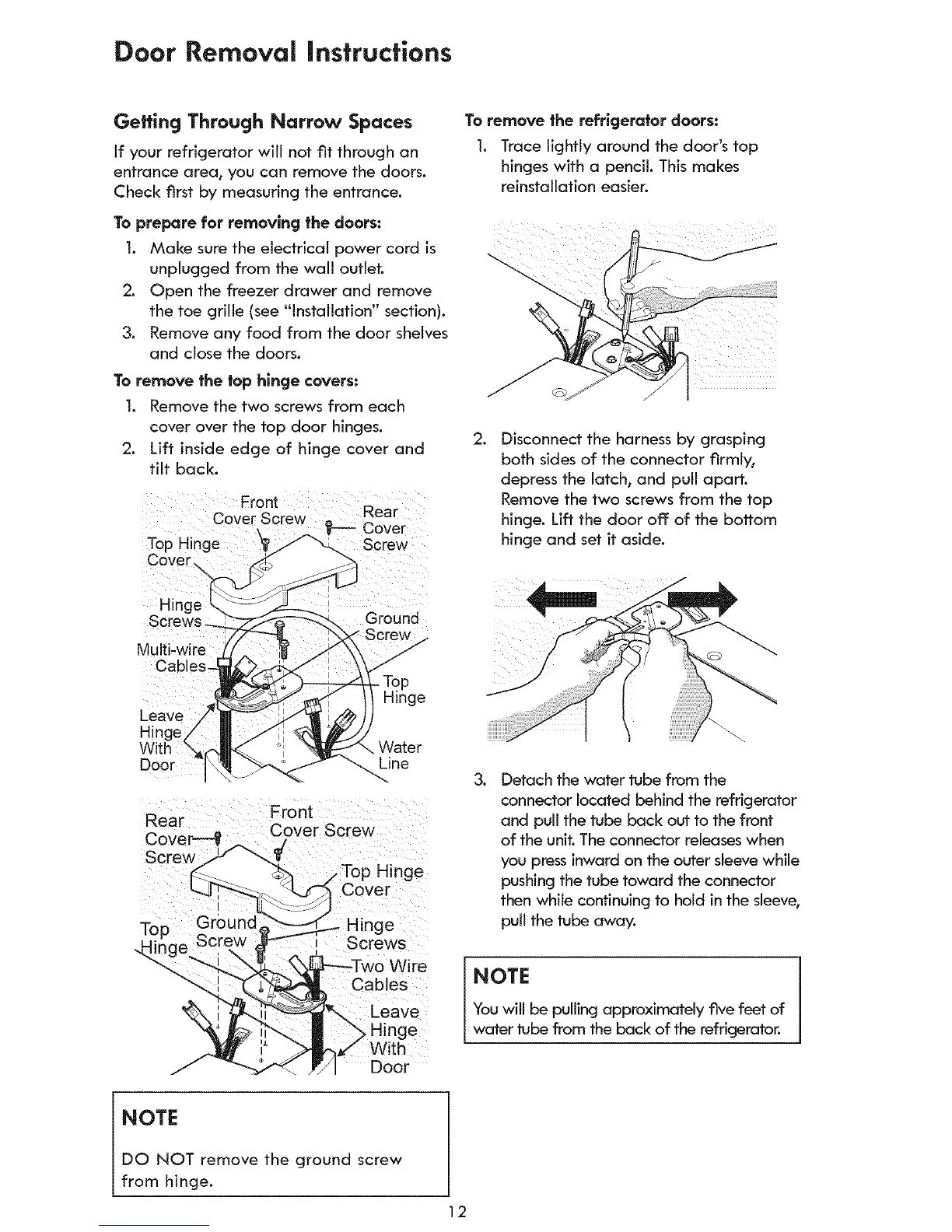

Door Rernoval Instructions
Getting Through Narrow Spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord is
unplugged from the wall outlet.
2. Open the freezer drawer and remove
the toe grille (see "Installation" section).
3. Remove any food from the door shelves
and close the doors.
To remove the tap hinge covers:
1. Remove the two screws from each
cover over the top door hinges.
2. Lift inside edge of hinge cover and
tilt back.
Front
Cover Screw ,, Rear
_-- hover
Top Hinge _"_ Screw
Cover
Hinge L,,"_> "'___
Screws _"__-""_ Ground
_ Screw
Multi-wi
Cables --_l_,._/?<_// \_-/
I/ Hinge
Leave f-Rl_ _ __ ]]
Hinge/ |ll/_'JJ
With & IIK "_----J'_,Water
Door -I\!l '_C_,._'_ "--,,_ Line
Rear Front
Cove_ Cover Screw
Screw
Cover
To remove the refrigerator doors:
1. Trace lightly around the door's top
hinges with a pencil. This makes
reinstallafion easier.
2.
3.
Disconnect the harness by grasping
both sides of the connector firml%
depress the latch, and pull apart.
Remove the two screws from the top
hinge. Lift the door off of the boffom
hinge and set it aside.
Detach the water tube from the
connector located behind the refrigerator
and pull the tube back out to the front
of the unit. The connector releases when
you press inward on the outer sleeve while
pushing the tube toward the connector
then while continuing to hold in the sleeve,
pull the tube away.
NOTE
You will be pulling approximately five feet of
water tube from the back of the refrigerator.
NOTE
DO NOT remove the ground screw
from hinge.
12

Door Removal Instructions (Continued)
4.
and hinge if necessary.
To reinstall the right door, reverse the
above steps.
Lower Hinge Removal
Unscrew the three lower hinge screws
O
D
Cabinet
Once both doors are in place, ensure they
are aligned with each other and level (Please
see the "Installation" section for more details),
and replace the top hinge cover.
Pin
2.
CAUTION
Be sure doors are set aside in a secure
position where they cannot fatl and cause
personal injury, or damage to the doors or
handles. When reinserting the water tube
and replacing the top hinge cover, use
care to be sure you do not kink the tube.
Removing Freezer Door
1. Open freezer door.
2. Remove door screws on right and left
sides (two screws on each side).
Remove
Reinstall screws (two per side), fully
finger tighten, and close door.
CAUTION
Door is heavy. Use caution when lifting.
Reinstall
and I1" IIq
tighten/ I1,,_
finger| J.._-"_lt._
tight "1_1"_,,,__ _ _) Do
Remove
3. Check gasket seal around top,
bottom, and sides of freezer door. If
gasket is not sealed, rotate door until
the gasket is sealed.
4. Open door by grabbing in the center
sides of the door. Be careful not to
rotate door when opening.
5.
3. Lift door up and out to remove.
Installing Freezer Door
1. With lower slides pulled out, hang
door onto slide brackets ensuring pins
on each side are fully inserted into 6.
slots on each side. 7.
13
Push /
Against !
Freezer
Door
Check /
Seal
Tighten large bolts.
Grab
Door
at Center
from Both
6 Sides
,P" Then
Pull
Door
Out
Fully_
tighten_ III_'_U=_i
large__ I
\ II1 Remove
Recheck gasket seal.
Install the toe grille by fitting into place.

Installing Door Handles
Door Handle Mounting instructions
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these
handles. The rounded end of the handles may be sharp.
]. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-installed shoulder bolts
(A) that are fastened into the doors ensuring the holes for the set screws are facing
towards the opposite door.
3. While holding handle firmly against door, fasten upper and lower Allen set screws (B)
with supplied Allen wrench.
4. Repeat steps two and three to install opposite handle. Ensure the holes for the set
screws are facing towards the first door.
5. Position freezer handle end over left and right pre-installed handle mounts that are
fastened to the door, ensuring the holes for the set screws are facing down.
6. While holding handle firmly against door, loosely tighten far right Allen set screw (B)
with supplied Allen wrench until there is no gap between handle and door.
7. Still holding the handle firmly to the door, firmly tighten far left Allen set screw (B) with
supplied Allen wrench.
8. Return to the far right Allen set screw (B) and firmly tighten with supplied Allen wrench.
NOTE
All set screws should be tightened so that the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time. If this happens, tighten the set screws on
the handles.
Mounting Refrigerator Handles Mounting Freezer Handles
14

Connecting the Water Supply
_WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from electrical
power before connecting awater supply
line to the refrigerator.
_CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of 1¼
inch plastic isnat recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible far
any damage if plastic tubing isused far
the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
softener can damage the ice maker.
If the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
Before InstallingThe Water Supply Line,
YouWill Need:
*Basic Tools: adjustable wrench, fiat-blade
screwdriver, and Phillips TM screwdriver
*Access to a household cold water line with
water pressure between 30 and 100 psi.
*A water supply line made of t/4 inch
(6.4 ram) OD_ copper or stainless steel
tubing. To determine the length of tubing
needed, measure the distance from the
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
A shutoff valve to connect the water
supply line to your household water
system. DO NO]" use a self-piercing type
shutoff valve.
*Do not reuse compression fitting or use
thread seal tape.
*A compression nut and ferrule (sleeve) for
connecting a copper water supply line to
the ice maker inlet valve.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator.
To Connect Water Supply Line To Ice Maker
Inlet Valve
1.
2.
3.
4.
Disconnect refrigerator from electric
power source.
Place end of water supply line into sink
or bucket. Turn ON water supply and
flush supply line until water is clear. Turn
OFF water supply at shutoff valve.
Remove plastic cap from water valve
inlet and discard cap.
If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (1/4inch/6.4 ram). Slide
ferrule (sleeve) into valve inlet and finger
tighten compression nut onto valve.
Tighten another half turn with a wrench;
DO NOT overtighten. See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled
on the tubing. Slide compression nut
onto valve inlet and finger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO
NOT overtighten. See Figure 2.
15

Connecting the Water Supply
5. With steel clamp and screw, secure Plastic Water Tubing Stee
water supply line (copper tubing only) to \ to Ice Maker_ t_/-'-'^, 1
rear panel of refrigerator as shown. \ Fill Tube /f_{ ulamp
6. Coil excess water supply line (copper \
tubing only), about 21/2 turns, behind _-- Stainless
refrigerator as shown and arrange coils _ wateSiteneeI
so they do not vibrate or wear against
any other surface. _ -Water Vave
7. Turn ON water supply at shuto_ valve __L_b_ Bracket
and tighten any connections that leak. X--Valve Inlet
Z2 2 :
8. Reconnect refrigerator to eiectdcal c,-
power source.
Plastic Water Tubing /_ Steel
to Ice Maker _ Clamp
Tube )ression from householdwater supply
Nut
waterline
Bracket
ive Inlet
water line
(Include enough tubing in loop to
allow moving refrigerator out
for cleaning)
Figure I
Figure 2
IMPORTANT
After connecting the water supply, refer to
"How to Prime the Water Supply System"
for important information about priming
an empty water supply system.
Your refrigerator's water supply system
includes several tubing lines, a water
filter, a water valve, and a water tank. To
ensure that your water dispenser works
properly, this system must be completely
filled with water when your refrigerator
is first connected to the household water
supply line.
16

Controls
IQ-Touch TM
A red indicator light will be illuminated above most active
features.
Touch the icon to
quickice
water filter
C/F
activate the options below,
increasesthe productionof ice
Pressand hold far three secondsto reset
after filter change.
Touchto toggle display from Fahrenheit
to Celsius.
default settings
Poweron-off
Resetsall refrigerator settingssuchas
temp, temp display and tonesto their
factory default settings.
Pressand hold for three secondsto
turn off the coolingsystemto clean the
refrigerator, it also turnsoff the ice
maker. Thetemperaturedisplays will
read OFF.
IMPORTANT
Pressing the power on/o_ icon does not turn off: power to
your refrigerator. You must unplug the power cord from the
wall outlet.
Setting Cooling Temperatures
Press the _/_" or _v" indicator to adjust the temperature to
the desired setting.
The temperature display will begin to blink with the first
touch. The display will time out after 10 seconds and return
to the basic display.
17

Controls (Continued)
High Tamp
PowerFail
If thedoorhasbeenleftopen
foran extendedperiodof time,
an alarmwiffsoundand the
doorajar indicatorwilldisplay
anthebottomdisplayof the
controlpanel.Thealarm is
turnedoff byclosingthe door.
Themutesoundskeywifl blink
to promptthe resetofany
activealarms.Pressthiskeyto
resetany systemalarms.
Inthe eventofahightem-
peraturecondition,the
temperaturedisplaywill blink
and display"HI". After20
minutes, thealarm will sound
and the high tampindicator
wffl bered onthe bottomof
the controlpanel.Themute
soundsiconwill illuminate
until pressed,acknowledging
thealarm, at whichtimethe
highesttemperaturereached
will bedisplayedand there-
frigeratorwill resumenormal
operation.In casethehigh
temp alarm isnotacknowl-
edgedat thefirstalarm sound
timeout,whenthedooris
firstopened,the alarm sound
wUIberepeated.
In the event of apower
failure, the powerfail alert
will be displayedand the
temperature display will
blink until the mutesounds
iconispressed,acknowledg-
ing the alarm. Other modes
may be turnedoff until the
alarm isacknowledged.The
powerfail alert isturned off
and the refrigerator will re-
sumenormaloperation. The
high tempalarm may also
be illuminated until a safe
operating range temperature
has beenreached.
18
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator and its
controls in accordance with observance of
the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF
by pressing and holding both the freezer
"v"and refrigerator " A " indicators for
five seconds. The display shows "Sb" while
in Sabbath mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. If
a high temperature alarm is activated
during this time, for example due to
a door left ajar, the alarm will sound
intermittently for about 10 minutes. The
alarm will then silence on its own and a
red high temperature icon will display.
The high temp icon will continue to
display, even if the door is closed, until
the Sabbath mode is exited and the
icon reset. The refrigerator will function
normally once the door is closed, without
any violation of the Sabbath/Holidays.
For further assistance, guidelines
for proper usage and a
complete list of models with the
Sabbath feature, please visit the
web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the
lights, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must
be deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.

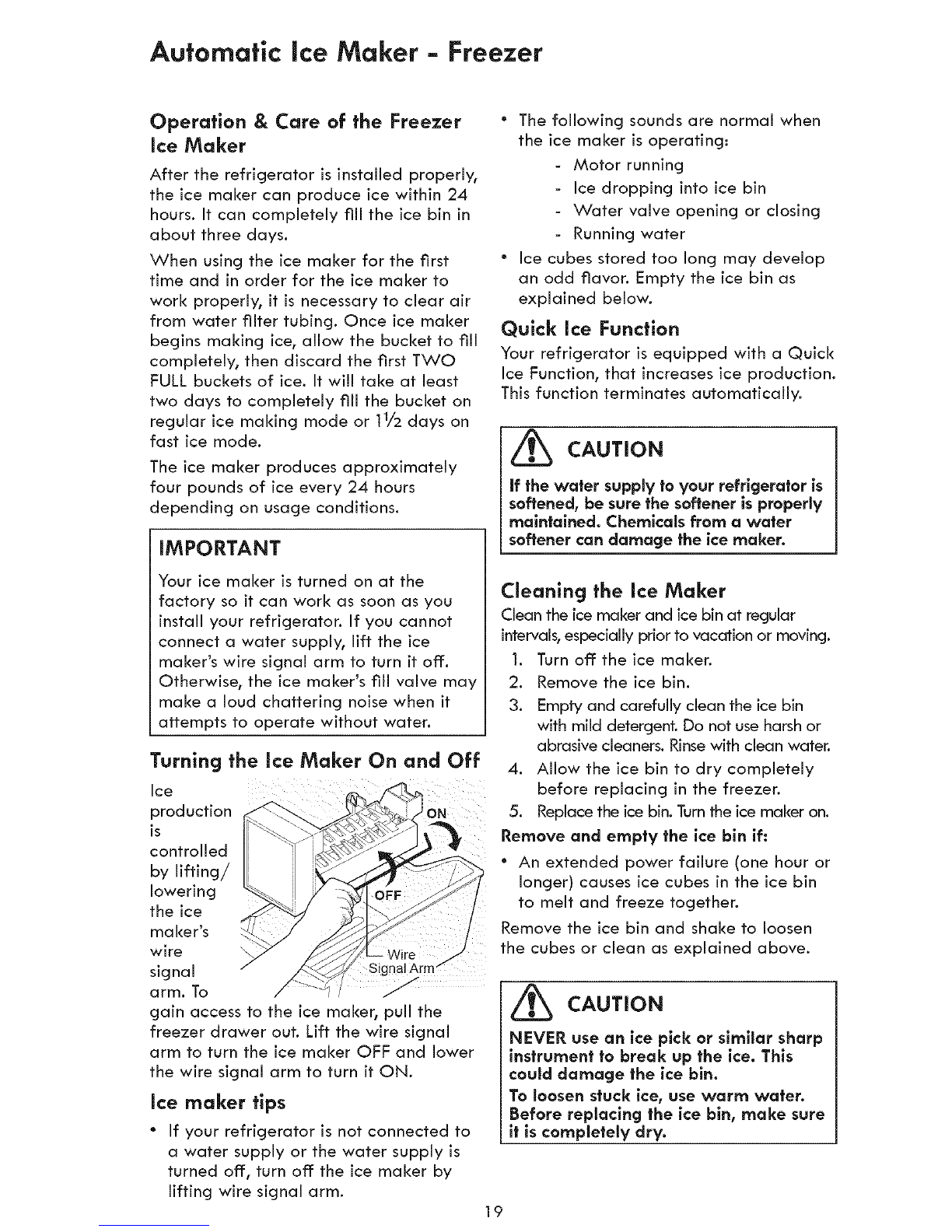

Automatic Ice Maker - Freezer
Operation & Care of the Freezer
Ice Maker
After the refrigerator is installed properly,
the ice maker can produce ice within 24
hours. It can completely fill the ice bin in
about three days.
When using the ice maker for the first
time and in order for the ice maker to
work properly, it is necessary to clear air
from water filter tubing. Once ice maker
begins making ice, allow the bucket to fill
completely, then discard the first TWO
FULL buckets of ice. It will take at least
two days to completely fill the bucket on
regular ice making mode or 11/2 days on
fast ice mode.
The ice maker produces approximately
four pounds of ice every 24 hours
depending on usage conditions.
IMPORTANT
Your ice maker is turned on at the
factory so it can work as soon as you
install your refrigerator. If you cannot
connect a water supply, lift the ice
maker's wire signal arm to turn it off.
Otherwise, the ice maker's fill valve may
make a loud chattering noise when it
attempts to operate without water.
Turning the ice Maker On and Off
Ice
production
is
controlled
by lifting/
lowering
the ice
ma ker_s
wire \
signal 9!gnalA!m
arm. To
gain access to the ice maker, pull the
freezer drawer out. Lift the wire signal
arm to turn the ice maker OFF and lower
the wire signal arm to turn it ON.
Ice maker tips
*If your refrigerator is not connected to
a water supply or the water supply is
turned off, turn off the ice maker by
lifting wire signal arm.
*The following sounds are normal when
the ice maker is operating:
- Motor running
Ice dropping into ice bin
- Water valve opening or closing
- Running water
*Ice cubes stored too long may develop
an odd flavor. Empty the ice bin as
explained below.
Quick ice Function
Your refrigerator is equipped with a Quick
Ice Function, that increases ice production.
This function terminates automatically.
CAUTION
if the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
Cieonlncj the Ice Maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1. Turn off the ice maker.
2. Remove the ice bin.
3. Empty and carefully clean the ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clean water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
*An extended power failure (one hour or
longer) causes ice cubes in the ice bin
to melt and freeze together.
Remove the ice bin and shake to loosen
the cubes or clean as explained above.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
19

Storage Features
_CAUTION
To avoid personal injury or property
damage, handle tempered glassshelves
carefulh/. Shelves may break suddenb/if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass
chelves to stabilize to room temperature
before cleaning. Do not wash in dishwasher.
NOTE
Features may vary according to model.
Your refrigerator includes Spill-Praof TM glass
shelves that are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
To Change the Position of a Shelf:
l. Remove all food from shelf.
2. Lift the front edge up and pull the
shelf out.
3. Replace by inserting the mounting
bracket hooks into the desired
support slots.
4. Lower the shelf and lock into position.
Shelf features
TM
Full Spill=Proof Shelf
Half Spill=Proof TM Shelf
Drawers
Your refrigerator includes a variety of
storage drawers. These drawers are located
in fixed positions at the bottom of the fresh
food compartment.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Opening Crisper Drawer
Crisper Humidity Control
Crisper drawers include a sliding control
for adjusting the humidity inside the crisper.
Leafy vegetables keep best when stored
with the Humidity Control set on Higher
Humidity. Fresh fruits keep best when
stored with the Humidity Control set on
Lower Humidity.
2O
