Kenmore 146. 33577410 User manual

Use & Care Guide
Manual de Uso y Cuidado
English /Espafiol
more Elite°
@ @
??il
Items /Arficulos:
@
gas d_ prop® ° °
146. 33577410- Maroon/Granate
146. 33578410- Carbon Grey Metallic/Carbono gris met61ico
146. 33579410- Stainless Steel/Acero inoxidabie
146. 30210510- Blue Metailic,/Azul met61ico
146. 30211510- Espresso Metallic/Espresso met61ico
640-06201779-3- Maroon/Granate
640-06201792-6-Carbon Grey Metallic/Carbono gris met61ico
640-06201815-5- Stainless Steel/Acero
640-03165404-9- Blue Metallic/Azul met61ico
640-03165405-6- Espresso Metallic/Espresso met61ico
P/N 41500319A
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.ken more_com
www.sears.com
www.kmart.com
®

Dear New Kenmore Owner,
Congratulations on the purchase your new Kenmore Elite 600 Series Gas Grill! Kenmore Elite
Series Grills have been designed and engineered from the bottom up, with focus on even the
smallest detail. This grill has been designed to provide you with even cooking results, fast
performance, and precise control so you have complete confidence every time you grill.
The Kenmore brand has over a lO0-year history of providing innovative solutions that enable
our members and customers to get more out of their lives. During this time, the Kenmore brand
has evolved through technology, style and the specific needs of every generation. Yet, one
constant remains - all Kenmore products offer keys to more living such as greater convenience,
better performance and time saved. Your new Kenmore Elite gas grill is another example of
this great Kenmore legacy.
Of course, if you should have any issues with your new grill, please contact us at 1-800-4-MY-
HOME, or through Sears.com. We also hope you will share your grill recipes and stories with us
and others. You can do this by visiting the Kenmore cookmore.com or grillingishappiness.com
Wt
Thank you for allowing us to make this amazing product a part of your life. We hope you
enjoy many great meals with your family and friends creating many happy memories.
Kenmore. for living
If you smell ga_:
1, Sh_Jt off gas to the appl_anceo
2_E×finguish any o_n flame,
3 Open _id_
4, tf _Or ¢onfinues_ keep away from the
appliance and [mm_diateJy coil your gas
supplier or your fire @partmemt,
1. Do not store o_ use gasoline or other
flammable [iqoids or vapors in the virility of
this or any other appliance.
2, An LP ¢yjln@r not connected for use shall r_ot
be stored in the vidrtity of this or any other
appliance°
2" 33577-41500319
20t4 @ Sears Brands_ LLC

Call Grill Service Center For Help And Parts
If you have questionsor need assistanceduring assembly,
please call 1-888-287-0735. You will be speaking to a
representative of the grill manufacturer and not a Sears
employee. To order new parts call Sears at
Product Record
IMPORTANT: Fill out the product record informationbelow.
Model Number
Serial Number
Date Purchased
See rating label on grill for serial number.
CAUTION
For residential use only. Do not use for commercial
cooking.
Installation Safety Precautions
•Please read this User's Manual in its entirety before using
the grill.
• Failure to follow the provided instruction can result in
seriously bodily injury and/or property damage.
° Some parts of this grill may have sharp edges. Please
wear suitable protective gloves.
•Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied.
•Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A I]9.2/NFPA 1192, and CSA Z240 RV
Series, Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI /NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords
and!or fuel supply hoses away from any hot surfaces.
° This grill is safety certified for use in the United States
and//or Canada only. Do not modify for use in any other
location. Modification will result in a safety hazard.
IMPORTANT: This grill is intended for outdoor use only and is
not intended to be installed in or on recreational vehicles or
boats.
NOTE TO INSTALLER:Leave this User's Manual with the
customer after delivery and/or installation.
NOTE TO CONSUMER: Leave this User's Manual in a
convenient place for future reference.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER: indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION: indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor or
moderate injury.
33577-41500319 -3

For Your Safety...
Grill Service Center,..
Product Record Information ,..
Installation Safety Precautions...
Safety Symbols .,,
Kenmore Grill Warranty,..
Use and Care...
Parts List...
Parts Diagram ...
Before Assembly.
Assembly..
Troubleshooting ...
3
3
3
3
3
5
. .. 6-14
.15-16
..17
. .. 18-21
...22-33
...34-38
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in
the U.S.A. cal! 1-800-4-MY-HOME @
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This Product contains chemicals, including lead and
leacl compounds, known to the State of California to
cause cancer, birth defects or other reproductive
harm.
Wash _your hands after usina this oroduct.
RepairProtectionAgreements
Congratulationson makinga smartpurchase."fournew Kenmor__
product isdesignedand manufacturedfor years of dependable
operation. Butlikeall products,it may require repair from timeto time
That'swhen havinga RepairProtectionAgreement cansave you
moneyandaggravation,
Purchase a Pepa/r Protection Agreement now and protect your.self
from unexpected _§oss/e and expense.
Here'swhat the RepairProtectionAgreement_includes:
Expertservice by our 10,000professionalrepair specialists
Unlimitedservice and nocharge for partsand labor onall
covered repairs
Productreplacementup to $1500if yourcovered product
can't be fixed
Discountof 25% from regular price of serviceand related
installedparts notcovered by theagreement;also,25% off
regular price of preventivemaintenancecheck
Fasthelp by phone - we call it RapidResolution-
phonesupport froma Searsrepresentative.Thinkof us
asa "talking owner'smanual."
Once you purchase the Repair Protection Agreement, a simple phone
call isall that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment online.
TheRepairProtectionAgreementisa dsbfree purchase.If you
cancel for any reasonduringthe product warranty period,we will
providea fullrefund.Or:,a prorated refundanytimeafter the
product warranty period expires.Purchaseyour Repair
ProtectionAgreementtoday!
Somelimitationsandexclusionsapply. Forprices and
additional informationintheU.&A.call 1-800-827-6655.
4 " 33577-41500319

KENMORE ELITE LIMITED "WARRANTY
WiTH PROOF OF SALE,the following warranty coverage applies when this appliance is corredly installed, operated and
maintained according to all supplied instructions+ To arrange for in-home warranty service,
call 1-800+4-MY+HOME® (!-800-469-4663)
FORTWO YEARSfrom the date of sale this appliance iswarranted against defects in material or workmanship. A defective
appliance will receive free repair or replacement at option of seller.
For the time periods from the sale date listed below, the named part will be replaced free of charge if it ruststhrough or burns
through, After the second year from the sale date you are responsible for the labor cost of
part installation.
TWO YEARS- Heat Diffusers THREEYEARS- Cooking Grates FIFTEENYEARS-- Burners
TWENTY+HVE YEARS-oFirebox Cast Aluminum Sidewalls or Lid Porcelain Coated Shroud
All warranty coverage excludes ignitor bafferies and griil part paint loss,discoloration or surface rusting, which are either
expendable parts that can wear out from normal usewithin the warranty period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage applies isvoid if this appliance is ever used for other than private household purposes.
Thiswarranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use vdthin the warranty period, including but not limited to
batteries, screwdn base light bulbs and surface coatings or finishes.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation
and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems
with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents,
including installation that was not in accord with electrical, gas or plumbing codes,
5. Damage to or failure of this appliance, including discoloration or surface rust,if it is not correctty operated and
maintained according to all supplied instructions.
& Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse,
misuseor usefor other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust,caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with the product
8+ Damage to or failure of this appliance resulting from natural or other catastrophe, such as flood, fire or storm.
9 Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
10. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the
appropriate certification logo.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein.
Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to two years on the
appliance, five years on heat diffusers, fifteen years on burners, and twent_,,-five years on sidewalls, lid shroud and grates, or
the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages+ Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you
This warranty applies only while this appliance is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state
Sears Brands Management Corporation, Hoffman Estates, IL 60179
33577+4T500319 ° 5

"NEVER store a spare LPcylinder under or near the
appliance or in an encJosedarea.
" Never fill a cylinder beyond 80% full.
• if the information in the two points above isnot
followed exactly, a fire causing death or serious
injury may occur.
• An overfilled or improperly stored cylinder isa
hazard due to possible gas release from the safety
relief valve. Thiscould cause an intense fire with
risk of property damage, serious injury or death.
oIf you see, smell or hear gas escaping, immediately
get away from the LPcylinder and appliance and
call your fire department.
LP Tank Removal, Transport And Storage
*TurnOFF all control knobs and LPtank vdve_ Turn couphng nut
counterclockwise by hand only - do not use tools to
disconnect. Lift LPtank wire upward off of LPtank collar, then lift
LPtank up and off of support brackeL lnstaJnsafety cap onto LP
tank valve. Always use cap and strap supplied with vaJve_
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LPTank Va v_
Safety Cap
Retainer Strap
•A disconnected LPtank in storage or being transported must
have a safety cap installed (as shown)_ Do not store an LPtank
in enclosed spaces such as a carport, garage, porch, covered
patio or other buiNdin%Never leave an LPtank inside a vehicle
which may become overheated by the sun
• Do not store an LPtank in an area where children play.
LPCylinder
• The LPcylinder usedwith your grill must meet the following
requirements:
°Use LPcyhnders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (4&7 cm) (tail) with 20 lb. (9 kg.)
Capacity maximum.
• LPcylinders must be constructed and marked in accordance
with specifications for LPcylinders of the U.& Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods_ Transport Canada (TC) See LPcylinder collar for
marking.
• LPcylinder valve must have:
• Type 1outlet compatible with
regulator or grinl
• Safety relief valve.
• UL listed Overfill Protection
Device (OPD}, This OPD safety OPD Hand Wheel
feature is identified by a unique triangular hand wheel Use
only LPcylinders equipped with thistype of valve.
° LPcylinder must be arranged for vapor withdrawal and
include collar to protect LPcyninder valve. Always keep LP
cyninders in upright position during use, transit or storage.
LPcylinder in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
•LPgas is nontoxic, odorless and colorless when produced. For
Your Safety, LPgas has been given an odor (simiUarto rotten
cabbage) so that it can be smelled.
• LPgas is higNy flammaNe and may ignite unexpectedly when
mixed with air.
LPCylinder Filling
•Useonnylicensedand experienced deders_
• LPdealer mustpurgenew cylinder before tilting.
• Dealer shouldNEVERfill LPcylinder morethan80% of LP
cylinder volume,Volumeof propane incylinder wilt vary by
temperature_
• A frosty regulator indicatesgasoverfill Immediatelyclose LP
cylinder valveand call local LPgasdealer for assistance.
• Do notreleaseliquid propane (LP)gas into the atmosphere_This
isa hazardouspractice
• To removegasfrom LPcylinder, contact an LPdealer or caiia
local firedepartment forassistance,Checkthetelephone
directory under "Gas Companies"for nearestcertified LP
dealers_
6 - 33577-41500319

LPTank Exchange Connecting Regulator To The LP Tank
• Many retailers that sellgrillsoffer you theoption of replacing
,/our empty LPtank throughan exchange service.Useonly those
reputable exchange companiesthat inspect,precision fill, test
and certify theircylinders Exchange-,/ourtank only for anOPD
safel-,yfeature-equipped tank asdescribedin the "LPTank"
section ofthismanual.
• Always keep new and exchanged LPtanksinupright position
during use,transitor storage.
•Leaktest newand exchanged LPtanksBEFOREconnecting to
grill.
!. LPtank mustbe properly secured onto grill (Referto
assemblysection.)
2_Turnall control knobs to the OFFposition.
3.TurnLPtank OFFby turning OPDhand wheel clockwise to a
ful! stop.
4. Removetheprotective cap from LPtank valve Always use
cap and strap suppliedwith valve.
LPTank Leak Test
For your safety
* Leaktest mustbe repeated each time LPtank isexchanged or
refilled
*Do not smokeduring leaktest.
*Do not usean open flame to check for gas leaks
* Grill mustbe leaktested outdoors in a well-ventilated area,
away from ignition sourcessuchasgas fired or electrical
appliances Duringleaktest, keep grill away from open flames
or sparks_
*Usea clean paintbrushand a 50/50 mild soapand water
solution.Brushsoap,/solution onto areas indicated by arrows
infigure below. Leaksare indicated by growing bubbles
Safety Relief
/
Strap and Cap
OPD Hand Wheel
/pe 1 outlet with
thread on outside
If "growing" bubbles appear do not use or move the LP
tank. Contact an LPgas supplier or your fire department!
A Do not usehouseholdcleaning agents.Damage to the gas
train components (valve/hose/regulator) can result.
Do not insert a POL transport plug
(plastic part with external
threads) into the type 1 valve
outlet. It will defeat the Safety
Relief Valve feature.
5Hold regulator and insertnipple into LP
tank valve. Hand-tighten the coupling
nut,holding regulator in a straight line
with LPtank valve soas notto crossth-
thread the connection.
Nipple has to be
centered into the LP
tank va
33577-41500319 " 7

Hold coupling nut and regulator
as shown for proper connection
to LPtank valve.
Leak Testing Valves, Hose and Regulator
1Turnall grill control knobsto OFF.
2.Be sure regulator istightly connected to LPtank,
3.Completely open LP tank valve by turning OPD hand wheel
counterclockwise, If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection Correct
before proceeding by calling Sears for replacement parts at
1-800-4-MY-HOME C_.
4Brush soapy solution onto areas where bubblesare shown in
picture below:
6.Turnthe coupling nutclockwise and tighten to a futlstop The
regulator "willsealon the bacbcheck feature inthe LPtank
valve,resulting insome resistance.An additional one-half to
three-quarters turnisrequired to complete theconnection.
Tightenby hand only - do not usetools.
NOTE:
if you cannot complete theconnection, disconnect regulator
and repeat steps5and 6. if you are still unable to complete the
connection, do not usethis regulator!
Call 1-800-4-MY-HOME ®for an identical replacement part.
ANever remove threaded
orifice_t;nd of valve.
" Do not insert any tool or foreign object into the valve
outlet or safety relief vaMve.You may damage the valve
and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
, Outdoor gas appliance is not intended to be installed
in or on a boat.
, Outdoor gas appUiance is not intended to be installed
in or on an RV.
, Never attempt to attach this grill to the self-contained
LPgas system of a camper trailer or motor home.
• Do not use grill until Jeak4ested.
, If a leak isdetected at any time, STOP and call the fire
departmenL
• If you cannot stop a gas leak, immediatdy close
LPcylinder valve and call LPgas supplier or your fire
department!
5_If _'growing_ bubblesappear, there isa leak. Close LPtank
valve immediately and retighten connections if leakscannot be
stopped do not try to repair. Call for replacement
parts at 1-800-4oMY-HOME®_
6.Always close LPtankvalve after performing leak test by
turninghand wheel clockwise.
8"33577-41500319

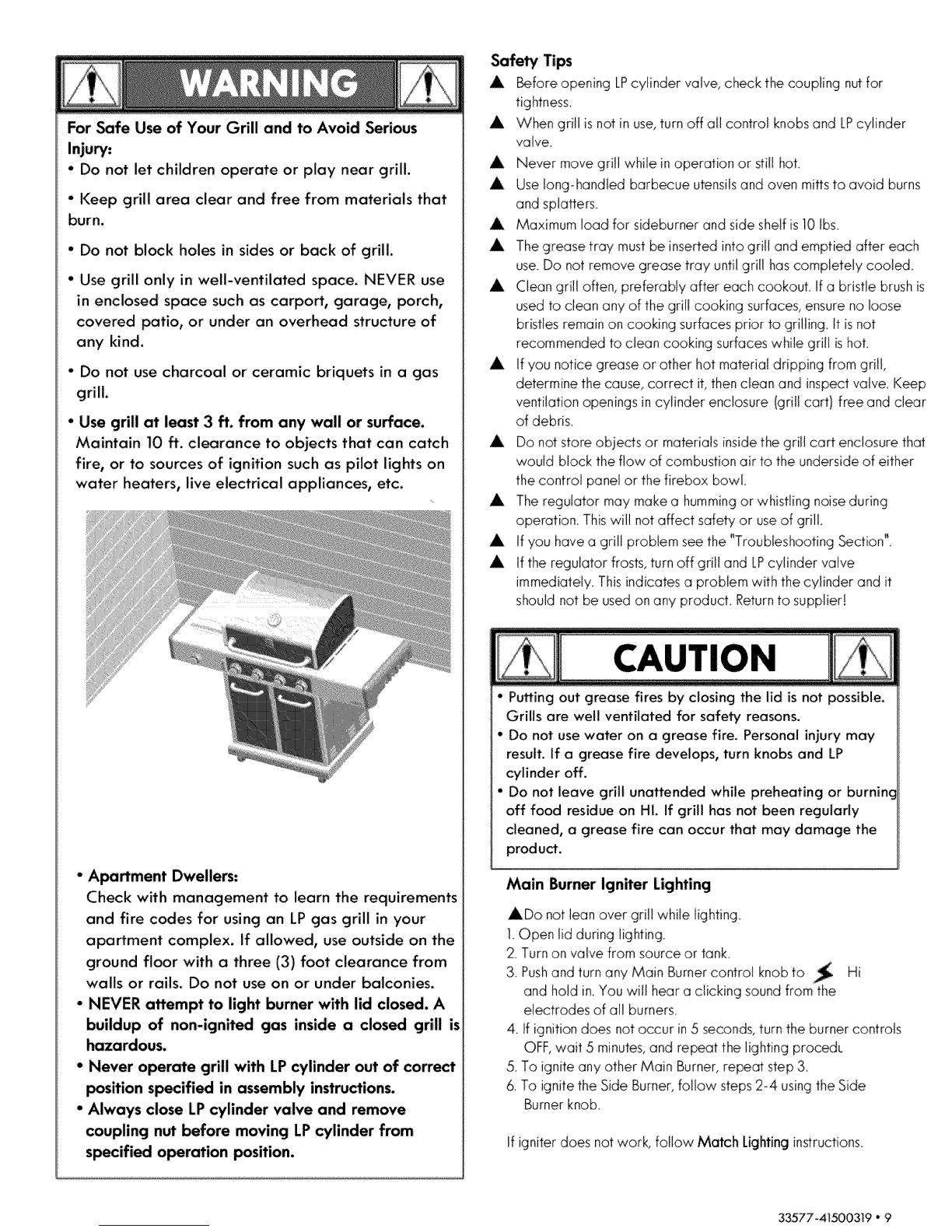

For Safe Use of Your Grill and to Avoid Serious
Injury:
-Do not let children operate or play near grill.
°Keep grill area clear and free from materials that
burn.
°Do not block holes in sides or back of grill.
° Use grill only in well-ventilated space. NEVER use
in enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of
any kind.
* Do not use charcoal or ceramic briquets in a gas
grill.
• Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch
fire, or to sources of ignition such as pilot lights on
water heaters, live electrical appliances, etc.
•Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from
walls or rails. Do not use on or under balconies.
•NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
° Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
°Always close LPcylinder valve and remove
coupling nut before moving LPcylinder from
specified operation position.
Safety Tips
A Before opening LPcylinder valve, check the coupling nutfor
tightness.
A When griil is not in use,turnoff all control knobsand LPcylinder
valve.
A Never movegrill while inoperation or still hot
A Use Iongohandledbarbecue utensilsand oven mittsto avoid burns
and splatters.
A Maximum load for sideburnerand side shelfis10Ibs.
A Thegrease tray mustbe inserted into grill and emptied after each
use_Do not remove grease tray untilgrill hascompletely cooled_
A Clean grill often, preferably after each cookout Ifa bristle brushis
usedto clean anyof the grili cooking surfaces,ensureno bose
bristlesremainon cooking surfaces prior to grilling, tt isnot
recommended to clean cooking surfaceswhib grill ishot.
A If you notice grease or other hot material dripping from grill,
determine the cause,correct it,thendean and inspectvalve. Keep
ventilation openingsincylinder enclosure (grill cart) free and dear
of debris.
A Do not store objects or materialsinsidethe grifl cart enclosure that
would block theflow of combustion air to the undersideof either
thecontrol panel or thefirebox bowl
A Theregulator may makea hummingor whistlingnoiseduring
operation Thiswill notaffect safety or useof grilk
A If you havea grill problem seethe"Troubleshooting Section".
A If theregulator frosts,turnoff grill and LPcylinder vatve
immediately. Thisindicatesa problem with the cylinder and it
shouldnot be usedonany producL Returnto supplier!
ON
•Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
•Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP
cylinder off.
•Do not leave grill unattended while preheating or burninc
off food residue on HI. if grill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
Main Burner Igniter Lighting
ADo not deanover grill while lighting.
t Open lid during lighting_
2. Turnon valve from source or tank_
3. Pushand turnany Main Burnercontrol knobto _ Hi
and hold in You will hear a clicking soundfrom the
electrodes of a!l burners.
4. If ignitiondoes not occur in5 seconds,turnthe burner controls
OFF,wait 5 minutes,and repeat the lighting procedt
5.To ignite any other Main Burner,repeat step 3_
6 To ignite the Side Burner,follow steps2-4 usingtheSide
Burnerknob.
If igniter does notwork, follow Match Lightinginstructions.
33577-41500319 *9

Turn controls and gas source or tank OFF when not
in use.
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure° If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could ignite with risk of injury.
Match Lighting
ADo not lean over grill while lighting_
1,Open lid during lighting.
2. Placematch into matchholder (hangingon back of left door).
Lightmatch,place intolighting holeon left side of firebox.
3. Turnright knob to Hi position Besureburnerlightsand stay lit.
4. Lightother burnersfollow with step 3
Side burner Match Lighting
1.Open sideburnerlid.
Turnon gasat LPcylinder.
2. Place lit match near burner
3.Turnsideburner knobto HI
Besureburner lightsand stays lit
Burner Flame Check
* Removecooking grates and heatdiffusers Lightburners,turn
knobsfrom HI to LO You shouldseea smaller flame in
LO positionthan seenon HI.Perform burner flame check
on sideburner,also. Always checkflame prior to each use.If
only low flame isseenrefer to "Suddenflame drop or low flame" in
the TroubleshootingSection. --HI
LO
Turning Grill Off
•Turnall knobsto OFFposition_TurnLPcytinder off by turning
Igniter Check
•Turngas off at LPcylinder. Pressand hold electronic igniter
button."Clicking" shouldbe heard and spark seeneach time
between collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
• Important: Make suregas isoff at LPcylinder before
checking valves. Knobslock in OFFposition.To check
valves, first pushinknobs and release, knobsshouldspring
back. If knobsdo notspring back, replace valve assembly
before usinggrill. Turnknobsto LOW position thenturnback to
OFFposition Valves shouldturnsmoothly.
Hose Check
•Beforeeach use,check to seeif hosesare cut or worn.
Replace damaged hosesbefore usinggrill. Useonly
valve/hose/regulator as specified inthe parts list d thisUse & Care
Guide.
General Grill Cleaning
• Do notmistake brown or black accumulation of grease and
smokefor paint.Interiorsof gas grills are not painted at the
factory (and shouldnever be painted)_Apply a strongsolution
of detergent and water or usea grill cleaner with scrub brush
on insidesof grill lid and bottom. Rinseand al!ow to completely
air dry Do not apply a caustic grill/oven cleaner to painted
surfaces,
° Porcelainsurfaces: Becauseof giassdike composition,most
residuecan be wiped away with baking soda/water solution or
specially formulated cleaner. Usenonabrasive scouringpowder
for stubborn stains.
• Paintedsurfaces:Wash with mild detergent or nonabrasive
cleaner and warm soapy water Wipe dry with a soft
npnabrasivecloth.
• Stainlesssteel surfaces:To maintainyour grill's high quality
appearance, wash with milddetergent and warm soapy water
and wipe dry "witha salt cloth after each use Baked-on grease
deposits may require the useof an abrasive plastic cieaning
pad_Useonly indirection of brushedfinishto avoid damage.
Do not useabrasive pad on areas with graphics
•Cooking surfaces:If a bristle brushisusedto clean any of
the grilt cooking surfaces,ensureno loose bristlesremainon
cooking surfaces prior to grilling It isnot recommendedto
clean cooking surfaceswhile grill ishot.
10- 33577_415003t9

SPIDER ALERI":
IMPORTANT:Always ensurethat theventuri burnertubes
are clean. A venturi burnertube hasa narrow area in
which spiders tend to build nests.
If you notice that your grill isgetting hard to lightor that the
flameisn't asstrong asitshouldbe, take the time to check and
clean the venturi's.
Spiders or small insectshave been known to create "flashback_'
problems. Thespiders spinwebs, build nestsand lay eggs in the grill's
venturi tube(s) obstructing the flow of gas to the burner The
backe&up gas can ignite in the venturi behindthe control panel This
is known asa flashback and it can damage your grill and even cause
injury.
To prevent flashbacks and ensure good performance the burner and
venturi assembly shoutdbe removed from the gritl and cieaned
k_fore usewhenever the gri!Jhas been idle for an extended perio
Storing Your Grill
•Clean cooking grates
• Storein dry Iocatiom
•When LPcylinder isconnected to grill, store outdoors ina
welhventilated space and out of reach of chitdrem
•Cover grill if stored outdoors Choosefrom a variety of grill
covers offered by manufacturer once available
•Storegrill indoorsONLY if LPcylinder isturnedoff and
Disconnected,remove from grill and stored outdoors
• When removinggriii from storage, follow "Cleaning the Burner
Assembl_' instructionsbefore startinggrill_
Cleaning the Burner Assembly
Follow theseinstructionsto clean and/or replace parts of burner
assemblyor if you havetrouble ignitinggrill
1. Turngasoff at control knobsand LPcylinder
2 Removecooking grates and heatdiffusers
3 Removecotter pin from rear of burners
4 Carefully lift each burner up and away from valve openings.
We s,,_ggestthree ways to clean the burner tubes Usetheone
easiestfor you
(A} Benda stiff wire (a light weight coat hanger works well}
intoa small hook Runthe hookthrough each burner
tube several times
(B) Usea narrow bottle brushwith a flexible handle (do notuse
a brasswire brush},runthe brushthrough each burnertube
several times
(C) Wear eye protection: Usean air hoseto force air into
theburner tube and out theburner ports Checkeach
port to make sureair comes outeach hole
5Wire brushentire outer surface of burnerto remove
food residueand dirt
6 Cleanany blocked ports with a stiff wire suchasan
open paper clip.
7 Check burner for damage, due to normalwear and
corrosion some holesmay become enlarged If any large
cracks or holesare found replace burner
VERYIMPORTANT: Burnertubesmustreengage valve
openings.See illustrationsbelow.
8 Carefully replace burners
9 Attach burnersto brackets with cotter pin
10 Replace heatdiffusers and cooking grates
33577-41500319 -tl

Indirect Cooking
Poultryand large cutsof meat cook slowly to perfection on thegrill
by indirect heat. Placefood over unlitburner(s);the heat from lit
burnerscirculates gently throughout the grill, cooking meat or
poultry without the touch of a direct flame_Thismethod greathi
reduces flareoupswhen cooking extra fatty cutsbecause there isno
direct flame to ignitethe fatsand juices that drip during cooking.
1 Burner Cooking
Cook vdth direct or indirect heat.
Best for smaJnermeals or foods.
Consumes less fuel,
Indirect Cooking Instructions
•Always cook with the lid closed_
• Dueto weather conditions, cooking timesmay vary. During
cold and windy conditions thetemperature settingmay
needto be increased to insuresufficientcooking
temperature.
•Placefood over over unlitburner(s)_
2 Burner Cooking
Great indirect cooking on low.
Produces slow, even heating.
Ideal for slow roasting and baking.
Food Safe_¢
Foodsafety isa very important part of enjoying theoutdoor
cooking experience_To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands,utensils,and surfaceswith hotsoapy water
before and after handling raw meat and poultry.
Separate: Separate raw meatsand poultry from ready4o eat
foods to avoid crosscontamination_Usea clean platter and
utensilswhen removing cooked foods
Cook: Cook meat and poultry thoroughly to kill bacteria. Usea
thermometer to ensureproper internalfood temperatures.
Chill: Refrigerate prepared foods and leftovers promptly. For
more informationcall: USDAMeat and PoultryHotline at
1-800-535-455.5finWashington, DC (202) 720_3333,10:00am
4:00 pm EST).
How To Tell If Meat Is Grilled Thoroughly
*Meat and poultry cooked on a grill often browns very fast
on the outside. Usea meat thermometer to be surefood has
reached a safe internal temperature, and cut into food to
check for visualsignsof doneness
*Whole poultry should reach 180° F;breasts, 170° F.Juices
should runclear and fleshshould not be pink.
*Hamburgers made of any ground meat or poultry should
reach 160° F,and be brown in the middle with no pinkjuices
Beef, veal and lamb steaks, roasts and chops can be
cooked to 145° F All cutsof pork shouldreach 160° F.
" NEVERpartially grill meat or poultry and finishcooking
latch Cook food completely to destroy harmful bacteria.
*When reheatingtakeout foods or fully cooked meatslike
hotdogs, grill to 165° F,or untilsteaminghot.
"WARNING: To ensurethat it issafe to eat, food mustbe cooked
to theminimuminternaltemperatures listed inthe table beJow_
USDA* Recommended Safe Minimum Internal Temperatures
Beef, Veal, Lamb and Pork- Whole Cuts_ 145° F
Fish 145° F
Beef, Vea!, Lamb and Pork- Ground 160° F
Egg Dishes 160° F
Turkey, Chicken & Duck - Whole, Pieces & 165°F
Ground
_'United States Department of Agriculture
_AJtow meat to rest three minutes before carving or consuming.
]2 -33577_415OO319

To purchase Natural Gas Conversion Parts call sears at
1-800-4-MY-HOME ®
Natural gas conversion kit
(Manufacturer Part NO.- 30800339
Your grill can be converted to natural gas with this
conversion kit by a qualified gas technician only. In order
to convert this grill the technician will need this
conversion kit.
Natural gas 12' hose
If converting the grill to natural gas, the technicianin
most cases will need this 12' extension hose with 1/2" ID
(inner diameter), which isincluded in the natural gas
conversion kit.
33577-41500319 - 13

Gas Requirements
For Natural Gas Connection
Preparing:
1. Turnoff gas supply, and then remove cap on gas
Supply side.
2. Recommended: Install a shut-offvalve on
gas supply side before installing the socket.
Socket should be installed by an authorized
technician in accordance with the national fuel gas
code (NFPA 54/ANSI223.1)
4. Before inserting plug, turn on gas supply and leak
test all connections including the stem of the shut-off
valve and the opening of the socket. For best results,
use and ammonia-free soap & water solution.
Operating Instructions:
1.To connect, push back socket sleeve.
Socket - Plug
LP Gas
If your grill is for LPGas, the regulator supplied is set for
an 11-in.Water column (WC) and is for use with LPgas
only. The factory-supplied regulator and hose must be
used with a 20-lb. LPgas tank.
Natural Gas
If your grill is for Natural Gas, it isset for a7-in. water
column (WC) and isfor usewith Natural Gas only. Gas
pressure isaffected by gas line size and the length of
gas line run from house gas line. Follow the
recommendations in the chart below.
From House to Grill
Distance Tubing Size
Up to 25 ft. 3/8 in. diameter
26-50 ft. 1/2 in. diameter
51-1_ fro 2/3 of me run:3/4 in. diameter
1/L3of the _n: 1/'2 in, diameter
Over 101 ft. 3/4 in. diameter
2. Insert plug and release sleeve.
3. Pushplug until sleeve snaps forward. (Gas will flow
automatically. Failure to connect plug properly to
socket will inhibit gas flow to the appliance.)
To disconnect
1. Pull Sleeve back. Pull plug out socket. (Gas is
automatically shut off.}
2. Close shut-off valve and replace dust caps on socket
and plug.
_4 " 33577-41500319

K_
2
3
4
5
6
7
8
9
10
1t
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
DescSpfion
EndCap, RightSide Shelf
RightSide Shelf
Fascia,RightSide Shelf
Side ShelfBadge
Controi PanelGlass
Switch Base
Control Panei
Waterproof Switch
Ground Wire
Controt PanelInnerPanet
PulseControl Line
Gas Valve, Side Burner
Gas Hose L220
Gas Valve, Main Burner
Manifold
Gas Hose L520
Regulator RetentionBracket
Connector B
Manifold, Side Burner
ReguJa_or
Regulator Hose Hanger Ctip
LEDLight Strip
Bezel, Control Knob
Control Knob
BottomShelf
Top Magnet Box
BottomMagnet Box
Magnet
Swivel Caster
Qty
1
!
1
1
!
1
1
2
!
1
1
1
!
4
1
1
!
1
1
1
!
1
5
5
1
1
1
4
2
Paff Number
30800206
30800041
30800044
41500201
41500202
41500221
41500024
41500220
30800244
41500026
41500215
41500208
40900228
4_500207
41500027
30800217
30800054
30800218
41500042
40800115
30800226
41500222
40900036
30800219
41500071
41500059
40200072
40200094
30800238
30
31
32
33
34-1
34-2
34-3
34-4
34-5
35
36
37
38
39
40
41
42
43
44
45-1
45-2
45-3
45-4
45-5
46-!
46-2
46-3
46-4
46-5
Desc_pfion
Swivel Caster With Brake
Cart Support Angel Bar
Tank PositioningPin
FuelGauge
RightSide Panel (Maroon}
RightSide Panel (Carbon Grey Metallic!
RightSide Panel (Stainless Steel/
RightSide Panel ( BlueMetallic)
RightSide Panel (Espresso Metallic/
Door Bracket
Grease Box
TankBaffle
Battery Box
Battery Module
Door Handle
Door Hinge
Match Holder
_atch Holder Bracket
Match Holder Chain
RightDoor (Maroon)
RightDoor (Carbon Grey Metallic/
RightDoor (Stainless Stedl
RightDoor ('BlueMetallic/
RightDoor (Espresso Metallic/
LeftDoor (Maroon}
eft Door (Carbon Grey Metallic/
°eft Door (Stainless Steel)
_eftDoor ( Blue Metallic)
.tit Door (Espresso Metallic)
Qty PaffNumber
2 30800237
2 40900060
2 30800229
1 30800087
1 30800051
1 30800051-A
1 30800051-B
1 30800051-L
1 30800051-E
1 41500058
1 30800082A
2 30800099
1 41500054
1 41500223
2 30800068
4 30800236
1 40800128
1 40800129
1 41500227
1 41500066
l 4t500066-A
1 41500066-B
1 415000664
1 4150006&E
1 41500061
1 41500061-A
1 41500061-B
1 415000614
1 41500061-E
33577_41500319 • 15

Key
47-1
47-2
47-3
47-4
47-5
48
49
5O
51
52
53
54
55
56
57
58
59
_0
52
53
_4
55
56
57
58
Des_ipfio. Qty
LeftSide Panel (Maroon) 1
Ldt Side Panet (Carbon Grey Metallic} 1
LeftSide Panei (Stainless Steel/ 1
LeftSide Panel (Blue Metallic/ 1
LeftSide PaneI (Espresso Metallic) 1
Transformer l
Wire S_otC 1
Back Panel t
LampsPower Cord 1
Hole Bushing 2
Pa_Number
41500050
4!500050-A
41500050-B
415000504
41500050-E
41500216
41500053
41500056
41500217
30800245
Key Descripfion Qty
69 LeftSide Sheif ]
70 Side BurnerLid t
7I Lid RubberBumper, Front 2
72 Lid RubberBumper, Back 2
73 Temperature Gauge 1
74 Temp Gauge Bezel 1
75 Logo t
76 RotateRod,Lid 2
77 Lid Handle Spacer 2
78 Bezel, Lid Handle 2
79 Cotter Pin 6
80 Lid Handle 1
8t-1 Lid (Maroon} t
81-2 LidCarbon (Carbon Grey Metallic} 1
81-3 Lid (Stainless Steel} 1
81-4 Lid (Biue MetalJic} 1
8t-5 Lid (Espresso Metallic) t
82 Warming Rack 1
83 Cooking Grate 3
84 Heat Diffuser 4
85 Lamp 2
86 Wire Slot A 1
87 Wire Slot B 1
88 firebox 1
89 Wire Clamp 1
90 Decorative Box t
Eiedronic ignition Module
Main BurnerElectrode L_0
Main BurnerElectrode L760
Main Burner Electrode L590
Main Burner Electrode L420
Grease Tray
LampSeat
Main Burner
Fascia,Left Side Shelf
Igniter Wire, Side Burner
Side Burner Bracket C
EndCap ,Ldt Side Shelf
Side Burner
Side BurnerBase
RotateRod,Side BurnerLid
Cooking Grid ,Side Burner
1 41500214
t 41500212
41500211
1 41500210
1 41500209
1 41500016
2 41500021
4 30800086
1 41500044
1 41500213
I 41.500040
1 30800205
l 41500224
1 41500036
1 41500205
1 41500203
PartNumber
41500030
41500041
30800233
40800107
30800207
30800208
30800209
40800108
30800231
30800011
110050
41500006
41500002
41500002-A
41500002-B
415000024
41500002-E
41500204
41500206
41500013
41500218
41500014
41500015
41500008
30800105
30800246
Not Pictured
Hardware Pack
Manual
I 41500330
1 41500319A
If you are missing hardware or have
damaged parts after unpacking grill,
call 1-888-287-0735 for replacement.
To order replacement parts after usinggrill,
call 1-800-4-MY-HOME ®
16" 33577-41500319

® @® ® ® ® @ ® ®
@ , ®
@
®
®
@
®
@
@ @ @
,®
,lli
h
@ @©@ ® ®@®® @®
33577_41500319 . 17

NOTICE: Once you have unpacked the grill according to the STOP SHEET instructions, check all
grill parts against the pictures on this and the following two pages. If any parts are missing or
damaged, call 1-888-287-0735
18 - 33577-41500319

33577-415003_9"i9

20- 33577-41500319
