Kenmore 565.60382 User manual

®
Countertop
Microwave Oven
Models 565.60382, 60389
m
Sears, Roebuck and Co.,
PartNo.16636 Hoffman Estates, IL 60179 U.S.A www.sears.com

PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soi! or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the
oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
SPECIFICATIONS
Model: 565. 60382/565. 60389
Power Source: AC 120V, 60 Hz
Power Consumption: 1650W, 14 Amps
Maximum Output: 1100W*
Oven Capacity: 1.4 cu. ft.
Turntable Diameter: 12-5/8''
Dimensions: (w x h x d) 21-5/8..x 12-1/2"x 18"
Weight: Approx. 39 Ibs.
*According to IEC-705 test procedure.
Specifications subject to change without notice.
FOR YOUR ASSISTANCE...
To make a request for service, information or replacement of parts, Sears will
require the complete Model number and Serial number of your oven.
Copy your Model and Serial numbers.
Model No.
(Located on the inner left side of control panel)
Serial No.
(Located on the inner left side of control panel)
© Sears, Roebuck and Co.

SAFETY
Proper and safe use of your oven 4
Important Safety Instructions. 5
Grounding Instructions ...... 6
Utensils ................. 6
ASSEMBLY
Names of Oven Parts and
Accessories .............. 8
Turntable Installation ....... 8
Installation ............... 9
OPERATION
Basic Features
Control Panel and Features.. 10
Setting Clock ............. 12
Child Lock-Out ............ 12
Kitchen Timer ............. 13
Time Cooking ............. 13
Special Features
Optional Settings .......... 15
Add Minute ............... 15
Sensor Cooking ........... 16
Automatic Defrost by Weight. 17
COOKING GUIDE

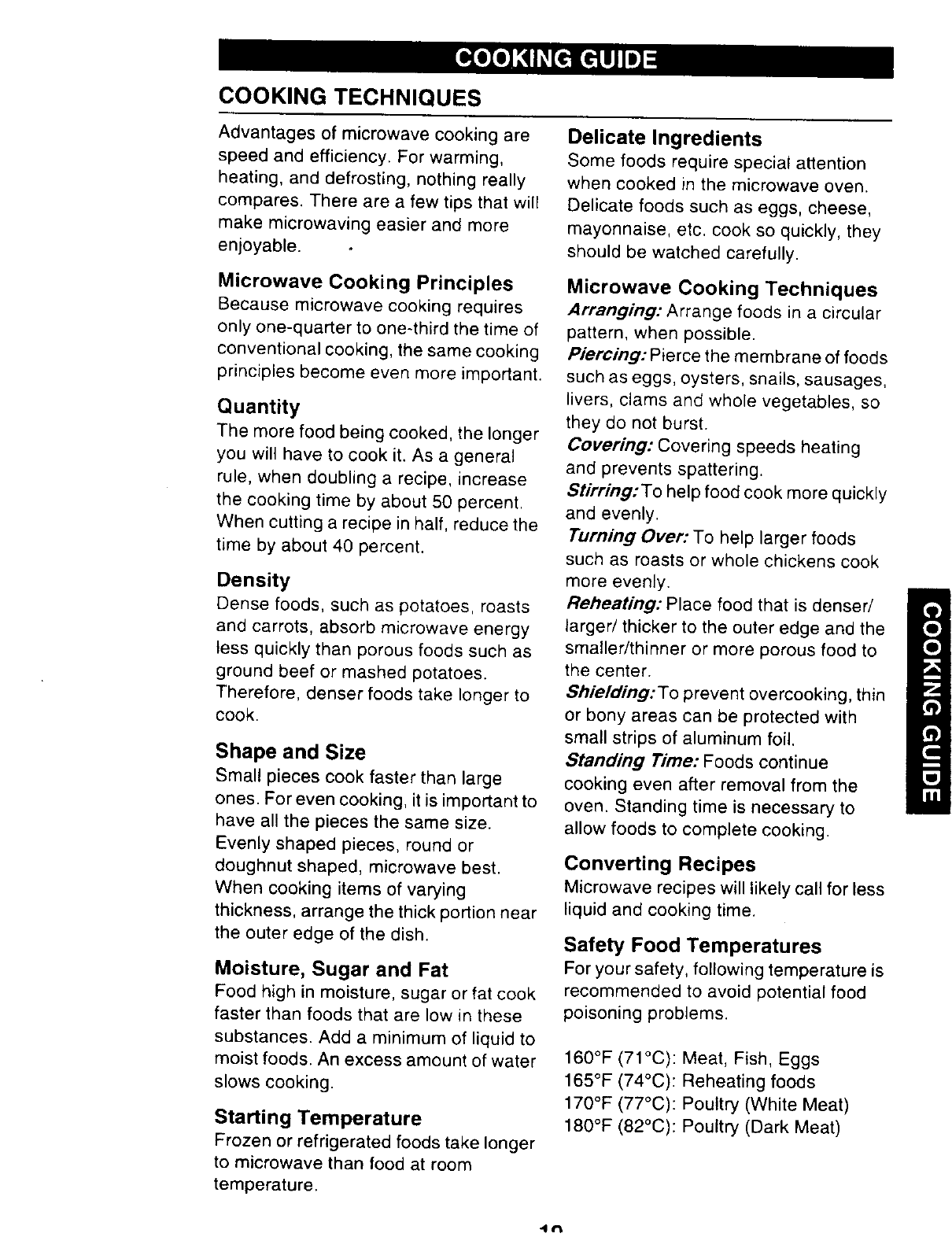

Cooking Techniques ....... 19
Sensor Cooking ........... 20
Sensor Cooking Recipes .... 23
Appetizers ............... 25
Meats, Poultry and Fish ..... 26
Eggs .................... 28
Baked Goods and Desserts.. 29
MAINTENANCE
Cleaning ................. 30
Sears Service ............ 30
Troubleshooting ........... 31
KENMORE ® MICROWAVE OVEN
FULL ONE YEAR WARRANTY
For one year from the date of purchase,
if this Kenmore ® Microwave Oven fails
due to a defect in material or
workmanship, Sears will repair it, free of
charge.
KENMORE ® MAGNETRON
FULL FIVE YEAR WARRANTY
For five years from the date of purchase,
if the magnetron in this Kenmore ®
Microwave Oven fails due to a defect in
material or workmanship, Sears will
repair it, free of charge.
The above warranty coverage applies
only to microwave ovens which are used
for private household purposes.
Warranty service is available by simply
CONTACTING THE NEAREST SEARS
STORE OR SERVICE CENTER in the
United States.
This Warranty applies only while this
product is in use in the United States.
The Warranty give you specific legal
rights, and you may also have other
rights which vary from state to state.
SEARS, ROEBUCK AND CO.,
D/817 WA,
HOFFMAN ESTATES, IL. 60179
For Service Call:
1 - 800 - 4 - REPAIR
1 - 800 - 473 - 7247

PROPER AND SAFE USE OF YOUR OVEN
The oven must be level.
The turntable and turntable roller
rest must be in the oven during
cooking, See page 8.
Place the cookware gently on the
turntable and handle it carefully to
avoid possible breakage.
Incorrect use of browning dish may
cause the turntable to break. See
page 7.
When using the popcorn feature of
this microwave oven, use only the
bag sizes specified in this Manual.
The oven has several built-in safety
switches to ensure that the power
remains off when the door is open.
Do not tamper with these switches.
Do not operate the microwave oven
when empty. Operating the oven
with no food or food that is extremely
low in moisture can cause fire,
charring or sparking.
Do not cook bacon directly on the
turntable. Excessive local heating of
the turntable may cause it to break.
Do not heat baby bottles or baby
food in the microwave oven. Uneven
heating may occur and could cause
physical injury.
Do not heat narrow-necked
containers, such as syrup bottles.
Do not attempt to deep-fry in your
microwave oven.
Do not do home canning in this
microwave oven as it is impossible to
be sure all conte,nts of the jar have
reached boiling temperature.
Do not use this microwave oven for
commercial purposes. This
microwave oven is made for
household use only.
To prevent delayed eruptive boiling
of hot liquids and beverages or
scalding, stir liquid before placing the
container in the oven and again
halfway through cooking time. Let
stand in the oven for a short time and
stir again before removing the
container.

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions
should be followed, including the following:
_, WARNING -To reduce the risk of burns, electric shock, fire, injury to
persons or exposure to excessive microwave energy:
Read all instructions before use.
Read and follow the specific
"PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
• Install or locate this oven only in
accordance with the provided
installation instructions.
•Use this appliance only for its
intended use as described in this
ENERGY" on page 2.
• As with most cooking appliances,
close supervision is necessary to
reduce the risk of a fire in the oven
cavity.
If afire should start:
• Keep the oven door closed
• Turn the oven off, and
• Disconnect the power cord or shut off
power at the fuse or circuit breaker
panel.
Keep in mind the following rules at all
times:
a) Do not overcook foods. Carefully
attend the appliance if paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
b) Do not use the cavity for storage
purposes. Do not store combustible
items such as bread, cookies, paper
products, etc. inside the oven.
If lightning strikes the power line, the
oven may turn on by itself.
c) Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
This oven must be grounded.
Connect only to properly grounded
outlet. See page 6.
Some products such as whole eggs,
water with oil or fat, sealed containers
and closed glass jars may explode
and therefore should not be heated in
this oven.
manual. Do not use corrosive
chemicals or vapors in this appliance.
This oven is specifically designed to
heat or cook food. It is not designed
for industrial or laboratory use.
• As with any appliance, close
supervision is necessary when used
by children.
• Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
•This appliance should be
serviced only by qualified
service technicians. Contact the
nearest authorized service facility for
examination, repair or adjustment.
•Do not cover or block any vents on
the oven.
•Do not store or use this appliance
outdoors.
•Do not use this oven near water,
near a kitchen sink, in a wet
basement or near a swimming pool,
and the like.
• Do not immerse cord or plug in
water.
•Keep cord away from heated
surfaces.
•Do not let cord hang over edge of
table or counter.
•When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth. See page 30.
SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS
'_ DANGER
Electric Shock Hazard
•Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble
this appliance.
,_ WARNING
Electric Shock Hazard
• Improper use of the
grounding can result in a
risk of electric shock.
Do not plug into an outlet
until appliance is
properly installed and
grounded.
Properly polarized and
grounded outlet
Three-pronged
(grounding) plug
UTENSILS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if |he
grounding instructions are not comptetely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-blade grounding plug, and a 3-slot receptacle
that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or
greater than the electrical rating of the appliance.
A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or
tripping over a longer cord.
Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
If a long cord or extension cord is used: 1) The
marked electrical rating of the cord set or extension
cord should be at least as great as the electrical
rating of the appliance. 2) The extension cord must
be a grounding-type 3- wire cord, and 3) The longer
cord should be arranged so that it will not drape
over the counter top or tabletop where it can be
pulled on by children or tripped over unintentionally.
_CAUTION
Personal Injury Hazard
•Tightly-closed utensils
could explode. Closed
containers are opened
and plastic pouches
pierced before cooking.
See following page for further instructions "Materials
you can use in microwave oven or to be avoided in
microwave oven."
Utensil Test:
1. Fill a microwave-safe container with 1cup of cold
water (250 mL) along with the utensil in question.
2. Cook on maximum power (P100) for 1 minute.
3. Carefully feel the utensil.
If the empty utensil is warm,
Do not use them for Microwave Cooking.
Do not exceed 1 minute testing time.
CAUTION:
1. Do not use plastic containers for testing.
2. Some containers and dishware may be warm (or
hot) in only one area. Do not use a container
that becomes warm anywhere.

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin
parts of meat or poultry to prevent overcooking. Arcing can
occur if foil is too close to oven walls. The foil should be at
least 1 inch away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish
must be at least 3/16inch above the turntable. Incorrect usage
may cause the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not
use cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Follow manufacturer's instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Use for short-term cooking/warming only. Do not leave oven
unattended while cooking.
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Use as acover to prevent spattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer's instructions.
Should be labeled "Microwave Safe" Some plastic containers
soften as the food inside gets hot. "Boiling bags" and tightly
closed plastic bags should be slit, pierced or vented as directed
by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent spattering and to retain moisture.
Dinnerware
Glass jars
Glassware
Oven cooking bags
Paper plates and cups
Paper towels
Parchment paper
Plastic
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with May cause arcing. Transfer food into microwave-safe dish.
metal handle
Metal or metal- Metal shields the food from microwave energy. Metal trim may
trimmed utensils cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam cups Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may
split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES
Remove the oven and all materials from the carton.
Your oven comes with the following accessories:
Turntable/Turntable roller rest/Use and Care Guide
Super EvenWave ®System
The microwaves reach the embossments on the interior walls
and then bounce in every direction. As a result, microwave
energy will be reflected from many angles to cook and defrost
more evenly and results in improved performance,
Safety interlock system
Shuts off oven power if
door is opened
during operation.
Door
Door Handle
When you open the
door during cooking process,
the cooking stops but the
program willnot be
canceled. Close door end
press START to resume
cooking.
,nter,or,,O°ntr°lL anei
TURNTABLE INSTALLATION
• Place the roller rest on the cavity
bottom.
•Turntable hub should securelylocked
in the receptacle. Never place the
turntable upside down,
• The turntable rotation should never
be restricted.
• Place the turntable on top of the roller
rest as shown in the diagram.
• Both turntable and roller rest must
always be used during cooking.
• All food and containers of food are
always placed on this turntable for
cooking.
• This turntable rotates clockwise or
counterclockwise; this is normal.
CAUTION: The inside of the oven an(
turntable get very hot, so do not touch
them immediately after use.
Turntable Hub (underside)
Roller rest _Receptacle
O

INSTALLATION
This oven is designed for Countertop or Built-in installation. Before you begin
installation, you need to decide how you install your oven.
Remove all packing material and accessories. Examine the oven for any damage
such as dents or broken door. Do not install ifoven is damaged.
Countertop Installation
1. Select a level surface that provides
enough open space for the intake
and/or outlet vents.
I% jJ t\ j
__----_. -__PEN
A m_nimum clearance of 3 inches is
required between the oven and any
adjacent wall. One side must be open.
IBuilt-In Installation
It is necessary for you to purchase an
Optional Kit for Built-in Installation.
Contact the store where you purchased
your oven for an optional Built-in Kit.
Model No. Built-in Kit Stock No.
565.60389 (27inch) 20-69920
565. 60382 (27 inch) 20-69921/20-6921
When installing in a Built-in situation,
the oven requires an opening for
installation.
(27 inch): 25"(w) x 17"(h) x 21"(d)
•Do not remove the legs from the
bottom of the oven.
•Leave a minimum clearance of
3 inches above the oven.
• Do not remove the legs from the
bottom of the oven.
• Blocking the intake and/or outlet
openings can damage the oven.
2, Plug your oven into a standard 120-
volt /60-Hz household outlet. Be
sure the electricat circuit is at least
15 amperes and that your
microwave oven is the only
appliance on the circuit.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
• Plug your oven into a standard 120-
volt /60-Hz household outlet. Be sure
the electrical circuit is at least 15
amperes and that your microwave
oven is the only appliance on the
circuit.
WARNING: If installing the microwave
oven over an electric oven, it must only
be installed over the following Kenmore
Electric Ovens, Stock No.:
(27 inch) 47485, 47486, 47489, 47189
If installed over any other than the listed
Electric ovens, the microwave could be
damaged and the warranty would be
void.
• Blocking the intake and/or outlet
openings can damage the oven.
The trim must not interfere with
adjacent appliance or cabinet
surfaces. To prevent interference,
leave the clearances listed below at
the tront ot the microwave opening.
Left and Right sides: 1 inch
Top and Bottom sides: 2 inches

CONTROLPANELAND FEATURES
(2)
(3) -
/
(5)--
(lO)-
(12)--
K P
Sensor
COOK
ADD KITCHEN-
--_ D_T QUICK
D_ST
4 5 6
7 8 9-
-- CLOCK 0 POWER--
STOP
CLEAR ®
-(1)
- (8)
(6)
- (4)
-(9)
(7)
(11)
4f_

(1) Display Window
Upper line: Counts down cooking
time in seconds. Shows clock time
when oven is not in use. The Word
prompt scrolls to guide you when
setting the clock and at every
operation stage.
Lower line: Shows power level
when using Time cooking. Shows
kitchen timer time.
(2) Indicators
Indicators light or flash in the display
window.
1/2/3: Indicate current cooking
stage
DEF: Lights during Auto DefrosL
LOCK: Lights to indicate the child
lock feature is set.
DEMO: Lights to indicate the demo
mode is set.
SENSOR: Flashes during Sensor
cooking.
START: Flashes to prompt you to
press START.
K" Flashes to prompt you to clear
Timer setting while using Kitchen
Timer and Cooking.
P: Flashes when you recall power
level and/or change power level
while cooking.
(3) Auto Sensor keypads (page 16)
REHEAT
COOK
These 2 keys are used to select the
desired food category for Sensor
Cooking.
POPCORN
Used to pop prepackaged
microwave-ready popcorn only.
Bag sizes: 1.75 oz.- 3.5 oz.
(4) Auto Defrost by Weight (page 17)
The feature provides two options:
FINE DEFROST: Provides
thorough defrosting results.
QUICK DEFROST: Provides faster
defrosting results. This option is
excellent for thawing items such as
ground meat for use in spaghetti
sauce or for taco meat.
(5) OPTION (page 15)
Allows you to customize the
following oven feature settings:
Clock display on/off, Beep sound
on/off, and Language selection.
(6) ADD MINUTE (page !5)
This feature allows immediate start
for 1minute cooking time without
pressing START.
(7) POWER (page 13)
To set power level or used to adjust
cooking time for sensor cooking.
(8) KITCHEN TIMER (page 13)
(9) Number keys
(10)CLOCK (page 12)
(11 ) START
•To start cooking.
•To set and cancel child lock-out.
(12) STOP/CLEAR
• Clears all previous setting if pressed
before cooking starts.
• Press once to stop oven during
cooking.
• Press twice to stop and clear all
entries.
• To set and cancel demo mode
feature.
Beep Sound
Abeep sounds when a keypad is
pressed, to confirm your key
entry.
44

SETTING CLOCK
To set the correct time of day, follow the steps as below.
Example: To set 3:15:
Procedure Keypad
Touch CLOCK.
Step
1
2
3
Touch 3, 1, 5 to enter time of
day.
Touch CLOCK.
The clock starts counting.
CLOCK
3 1 5
CLOCK
Display
FI rift1
LL uLr*
-3:15
-3:15
Note: • If the clock (or display) shows any abnormality, unplug the oven from the A(
outlet. Plug it in again and then reset the clock.
•When your oven is plugged in for the first time or when power resumes after a
power interruption, reset the clock.
•This is a 12 hour clock.
• The clock display can be turned off. See page 15 (Optional settings) for more
details.
CHILD LOCK-OUT
The oven has a safety feature which prevents use by children. The feature locks the
operation of the oven until canceled.
To set:
Keypad
Step Procedure
Touch START and hold for
14seconds. LOCK lights in the
display,
Display
;2:34
w_
Note: •If any key is touched exceptSTOP/CLEAR, START KITCHEN TIMER,
CLOCK, ERROR appears for 2seconds and a bee _ sounds.
To cancel:
Keypad
Step Procedure
Touch START and hold for
14 seconds. LOCK disappears
from the display.
Display
12:34
Demo mode setting: Touch STOP/CLEAR and hold for 4 seconds. DEMO lights in
the display. Microwave energy will not be produced while DEMO indicator appears
in the display.
To cancel Demo mode, touch STOP/CLEAR and hold for 4seconds. DEMO
disappears from the display.

KITCHEN TIMER
You can use the Kitchen Timer function independently, even while a cooking
program is going on in the oven. The Kitchen Timer will be displayed on the lower
line of the display.
Example: To set timer for 3 minutes:
Step Procedure
Touch KITCHEN TIMER.
1
2
3
_Touch 3, 0 and 0to set 3
minutes.
[(up to 99 minutes 99 seconds
Touch START.
The timer starts counting and
beeps sound for 7 seconds at
the end.
Keypad
KITCHEN
TIMER
3 0 0
Display
TI tfEP
U
Note: •To clear a Kitchen Timer setting, touch STOP/CLEAR. If you are using both
Kitchen Timer and cooking, touch KITCHEN TIMER Indicator K flashes in the
display for 5 seconds. Touch STOP/CLEARwhile the Kflashes. The Kitchen
Timer will be clear but the oven continues cooking to the end.
• To stop beeps of Kitchen Timer, touch KITCHEN TIMER.
• Kitchen Timer will not beep if the oven beeps at the same time to indicate
another oven operation (the end of a cooking, for example).
•If you do not enter atimer time for 10 seconds after step 1, the setting is
cleared with a beep.
• If a cooking completes while you are setting the Kitchen Timer, all settings are
cleared. Restart from step 1.
• If no key is touched for 5 seconds after the last key entry at step 2 above, the
timer automatically starts.
TIME COOKING
This basic microwave cooking method allows you to cook food for a desired time.
In addition to the Pl00 (maximum) power level, you can select different microwave
power from 11 levels, P 0 to P100 (0-100% of total power level).
Manual Defrosting (Without using Auto Defrost feature):
Use power level P 30. To speed up the defrosting of dense foods over 1Ib (450 g),
you may start on P100 for 2 minutes, then reduce to the level P 30.
Delay Start Cooking:
Use power level P 0 for the first stage of multistage cooking. You can delay cooking
start time by up to 99 minutes 99 seconds.
Multistage Cooking
You can program up to 3 stages of cooking in sequence. Each stage can be
programmed with a different power and time setting. To program 2-stage or 3-stage
cooking, repeat the Time Cooking steps 1 to 3 and touch START. The oven
automatically proceeds to the end of cooking.
• When you cook on P100 power for 1-stage, you must enter POWER, 1 and O.
You can not skip step 2, 3 when setting multistage cooking.

Example: To cook at power level P 80 for 40 seconds:
Step Procedure
Enter 40 seconds by touching
14 and 0.
2
3
Touch POWER. Display
prompt you to enter power
level.
Touch 8 to enter power level
P80.
4
Power level Press
P100(100%) 1,0
P90 (90%) 9
P80 (80%) 8
P 70 (70%) 7
P 60 (60%) 6
P 50 (50%) 5
P 40 (40%) 4
P 30 (30%) 3
P20 (20%) 2
P 10 (10%) 1
Po (0%) o
Touch START.
Keypad
4 0
POWER
8
Display
:40
',,,_P'DO
5E TPO
Ip
Note: • Cooking time can be set up to 99 minutes 99 seconds.
• When you cook on P100 power, skip step 2 and 3.
• Foods with high moisture content should be cooked on P100 power.
• To check the power level while Kitchen Timer is operating, touch POWER.
• Power level can also be entered by touching POWER keypad repeatedly until
your desired power appears in the display.
• To change power level during cooking, touch POWER. Indicator Pflashes in
the display. Touch POWER repeatedly until your desired power appears or
touch POWER and number keypads while indicator Pflashes.
POWER LEVEL SEI"rlNG GUIDE
P100 •Cooking poultry, vegetables, P 50 •Cooking custards and pasta.
and most casseroles. Boiling •Cooking rump roast, ham, veal,
water, lamb.
•Preheating a browning dish.
P 90 •Reheating rice and pasta. P 40 °Cooking less tender cuts of meat in
liquid or slow-cooking dishes.
•Completing the cooking cycle of
less tender roasts.
P 80 • Reheating precooked or P 30 • Completing the cooking cycle of
prepared food quickly, casseroles, stews, sauces.
•Cooking fish. •Manual defrosting.
P 70 °Cooking cheese dishes. P 20 • Softening chocolate.
•Clarifying butter.
•Heating breads, rolls, pancakes,
tacos, tortillas, French toast.
P 60 •Cooking scrambled eggs. P 10 • Softening cream cheese, butter.
• Baking cakes. • Keeping casseroles warm.

OPTIONAL SETTINGS
The OPTION key allows you to customize the following oven feature settings as
shown below:
Example: To select Spanish for Interactive display:
Procedure
Step
1
2
Press the OPTION key 3 times
until language choice prompt
appears:
1-ENGLISH
2-ESPANOL
Press 2to select Spanish.
Keypad
2
Display
'Rt'SL,'R
L
Li
Jlt3
E5 PR,,u
Optional Features:
Features Press OPTION Press number
Clock on/off 1-ON
The clock display can be turned once 2-OFF
off and back on.
Beep sound on/off 1-ON
The beep sound may be turned twice 2-OFF
off and back on.
Language selection 1-ENGLISH
You can select from English or 3 times 2-ESPAI_IOL
Spanish for display.
NOTE: When first plugged in, the oven will automatically display English in the
Interactive display.
ADD MINUTE
This feature allows you to cook at maximum power level for 1 minute without
pressing the START to start cooking.
You can also extend the cooking time up to 90 minutes by repeatedly pushing this
keypad during Time Cooking.
Example: To set ADD MINUTE for 2 minutes:
Keypad DisplayStep Procedure
Touch ADD MINUTE twice. The
1 oven automatically start and
cooking time count down in the
display.
Am
MINUTE 2:0B
pt nn
uU
NOTE: This feature cannot be used during Sensor Cooking or Auto Defrost by
weight cycle.
"44"

SENSOR COOKING
Sensor Cooking menu allow you to reheat or cook food automatically.
This feature provides accurate and fast microwaving for a variety of popular foods.
Example: To reheat 2 servings of soup:
Step Procedure
Touch REHEAT. Food
1category numbers and names
will scroll across the display.
Touch 3 to select SOUP.
2
3
Touch START. After oven
sensor measures the amount
of steam present, cooking time
appears, and then the time
counts clown in the display.
DO NOT OPEN THE DOOR
UNTIL THE TIME COUNTS
DOWN IN THE DISPLAY.
Keypad
3
Display
JI-
5E LE- T
52,UP
5E ;:5,.qP
Auto Sensor Cooking/Reheating Selections:
REHEAT category
FROZEN ENTREE
PIZZA SLICE
SOUP
PLATE OF FOOD
BEVERAGE
Press
REHEAT,1
REHEAT,2
REHEAT,3
REHEAT,4
REHEAT,5
COOKcatego_
POTATO
FRESH VEGETABLE SOFT
FRESH VEGETABLE HARD
FROZEN VEGETABLE
CHICKEN PIECES
RICE
POPCORN
Press
COOK,1
COOK,2
COOK,3
COOK,4
COOK,5
COOK,6
POPCORN
Note: • Error messages
ERROR 1: The door is opened before the oven has measured the amount of
steam in the oven and before time countdown starts. Press STOP/CLEAR and
use Time cooking to finish. (Partially-cooked foods are no longer suitable for
Auto Sensor Cooking.)
ERROR 2: Auto Sensor Cooking was attempted within 5 minutes after
plugging in the oven. Press STOP/CLEAR and wait for 5 minutes before using
the Auto Sensor Cooking feature.
About halfway through the cooking process, five beeps sound to remind
you to stir or rearrange the food. Ifyou do not open the door at the reminder,
the oven continues to complete cooking. The Pause prompt scrolls across the
display.
MORE/LESS TIME ADJUSTMENT
The POWER key allows fine adjustments in Sensor Cooking selections by either
increasing or decreasing the preprogrammed cooking time.
Touch POWER keypad before touching START.
• Touch keypad once: MORE cooking (longer cooking time: 5 - 20%)
• Touch keypad twice: LESS cooking (shorter cooking time: 5 - 20%)
• The oven automatically sets to medium doneness if no selection is made and/or
by touching keypad three times.
Note: Time depends on each food.

AUTOMATIC DEFROST BY WEIGHT
The best defrosting time and power levels are automatically determined depending on
the food weight you enter. The feature provides two options:
FINE DEFROST: Use for thorough defrosting of frozen foods, when it is important to
have the center section defrosted as well as the outside. Examples for recommended use
are: whole chicken, roasts and steak.
QUICK DEFROST: Use to assist separation of frozen pieces of chicken or fish that need
preparation prior to cooking. Also, this defrost option is excellent for thawing items such
asfrozen ground meat for use in spaghetti sauce or for taco meat.
Example: To thoroughly defrost 1.2 Ib of chicken pieces
Step l Procedure Keypad Display
I
11T°uch FINE DEFROST. RNE FL
DEFROST "
Enter the weight of food.
2Weight must be programmed "tl t,_ 1.2 L._
in pounds and tenth of a _ ='- "L
pound.
Conversion Chart
Convert oz. into tenths of alb.
e.g. 1 lb. 4 oz., program, 1.2 Ibs
Ounces Tenths of
a Pound
1-2 0.1
3-4 0.2
5 0.3
6-7 0.4
8 0.5
9- 10 0.6
1 1 - 12 0.7
13 0.8
14- 15 0.9
Touch START. I _n._3n
3Total defrost time appears in _,,!u-r.u
L
the display.
Defrosting Techniques:
•Remove food from wrapper to prevent holding steam and juice and place in a
microwave-safe baking dish or aroasting rack to catch drippings.
• Cover thin parts with aluminum foil to prevent overdefrosting.
• Because some foods will still be icy in the center, it is necessary to have a standing
time after defrosting the food in the oven. Food should be taken out of the oven to
complete defrosting. A longer standing time might be required for denser foods such
as roasts.
Note: • Weight can be entered up to 5.9 Ibs. If weight is entered more than 5.9 Ibs and
press START, a beep sounds to alert you to enter correct weight.
• The oven selects lib if a weight is not entered.
•Beep tone sounds 5 seconds during the defrosting cycle to signal that
food should be rearranged to improve defrosting performance.Open the
door and rearrange the food. The oven continues the defrosting cycle to the
end if you do not open the door.
• Food can be defrosted in a styrofoam package.

DEFROSTING CHART
It is necessary to have standing time after defrosting food in the oven to complete
defrosting. Following are standing time for each food for your reference.
Item During Defrosting Standing time
Beef
Ground beef Turn over. Remove defrosted portion. 5 - 10 min.
Liver Drain liquid. Separate pieces. 10 - 15 min.
Roasts Turn over. Cover ends with foil. 20 - 40 min.
Sirloin steak Turn over. 5 - 10 min.
Rib or T-bone Turn over. 10 -20 min.
Flank steak Turn over. 5 - 10 min.
Stewing meat Break apart, 5 - 10 rain.
Pork
Ground pork Turn over. Remove defrosted portion. 5 - 10 min.
Bacon Defrost in original wrapper. Turn over, 3 - 5 min.
Chops Separate and turn over, 5 - 10 min.
Ribs Turn over. 10 - 20 min.
Roasts Turn over. Cover ends with foil. 20 - 40 min.
Lamb
Ground lamb Turn over. Remove defrosted portion. 5 - 10 min.
Chops Separate. Turn over. 5 - 10 min.
Ribs Turn over. 10 - 20 min,
Roasts Turn over. Cover end with foil. 20 - 40 min.
Poultry
Chicken, whole Turn over. Cover ends with foil. Rinse 15 - 30 min.
under cold water after defrosting.
Pieces Separate. Turn over. 10 - 15 rain.
Cornish hens Turn over. Cover ends with foil. Rinse 15 - 30 min.
under cold water after defrosting.
Fish and Seafood
Crabmeat, Shrimp
Fish fillets
5 - 10 min.
5 - 10 min.
Break apart.
Turn over. Rearrange. Rinse under cold
water to separate after defrosting.
Fish whole Turn over. Cover head and tail with foil. 5 - 10 min.
Steaks Turn over. 5 - 10 min.
Scallops Break apart. Remove defrosted seafood. 5 - 10 min.

COOKING TECHNIQUES
Advantages of microwave cooking are
speed and efficiency. For warming,
heating, and defrosting, nothing really
compares. There are a few tips that will
make microwaving easier and more
enjoyable.
Microwave Cooking Principles
Because microwave cooking requires
only one-quarter to one-third the time of
conventional cooking, the same cooking
principles become even more important.
Quantity
The more food being cooked, the longer
you will have to cook it. As a general
rule, when doubling a recipe, increase
the cooking time by about 50 percent.
When cutting a recipe in half, reduce the
time by about 40 percent.
Density
Dense foods, such as potatoes, roasts
and carrots, absorb microwave energy
tess quickly than porous foods such as
ground beef or mashed potatoes.
Therefore, denser foods take longer to
cook.
Shape and Size
Small pieces cook faster than large
ones. For even cooking, it is important to
have all the pieces the same size.
Evenly shaped pieces, round or
doughnut shaped, microwave best.
When cooking items of varying
thickness, arrange the thick portion near
the outer edge of the dish.
Moisture, Sugar and Fat
Food high in moisture, sugar or fat cook
faster than foods that are low in these
substances. Add a minimum of liquid to
moist foods. An excess amount of water
slows cooking.
Starting Temperature
Frozen or refrigerated foods take longer
to microwave than food at room
temperature.
Delicate Ingredients
Some foods require special attention
when cooked in the microwave oven.
Delicate foods such as eggs, cheese,
mayonnaise, etc. cook so quickly, they
should be watched carefully.
Microwave Cooking Techniques
Arranging: Arrange foods in a circular
pattern, when possible.
Piercing: Pierce the membrane of foods
such as eggs, oysters, snails, sausages,
livers, clams and whole vegetables, so
they do not burst.
Covering: Covering speeds heating
and prevents spattering.
Stirring:To help food cook more quickly
and evenly.
Turning Over: To help larger foods
such as roasts or whole chickens cook
more evenly.
Reheating: Place food that is denser/
larger/thicker to the outer edge and the
smalledthinner or more porous food to
the center.
Shielding:To prevent overcooking, thin
or bony areas can be protected with
small strips of aluminum foil.
Standing Time: Foods continue
cooking even after removal from the
oven. Standing time is necessary to
allow foods to complete cooking.
Converting Recipes
Microwave recipes will likely call for less
liquid and cooking time.
Safety Food Temperatures
For your safety, following temperature is
recommended to avoid potential food
poisoning problems.
160°F (71°C): Meat, Fish, Eggs
165°F (74°C): Reheating foods
170°F (77°C): Poultry (White Meat)
180°F (82°C): Poultry (Dark Meat)
4#I=

SENSOR COOKING
General Sensor Cooking Tips:
• For Foods not listed in the Sensor
Reheating/Cooking Guide, use Time
cooking.
• After START is pressed, do not
open the door while the words
SENSOR COOKING scrolls
across the display. During this
time, the oven is measuring the
amount of steam generated from the
food during the heating process.
The oven then determines the
heating or cooking time for the food.
•Room temperature should be below
95 °F (35 °C).
• Keep the inside of oven, the
turntable and the outside of cooking
containers dry. Wipe off all
spillovers. Excessive humidity in the
oven may result in an incorrect
cooking time.
• Always cover food completely (but
not too tightly) with wax paper,
plastic wrap or casserole lids.
Loose-fitting covers may cause the
oven to miscalculate time. Never use
tightly sealed plastic containers
such as those with plastic snap
closing lids.
Sensor Reheating Tips:
FROZEN ENTREE
PLATE OF FOOD
•Auto Sensor Reheat is best used for
1- 2 servings.
•Very dense foods (e.g. frozen
lasagna) should be allowed to stand
covered after reheating.
The following foods are not
recommended: Boil-in-the-bag
entrees or vegetables, raw or
uncooked food, food that must be
reheated uncovered, foods needing
a dry look or crisp surface after
reheating, frozen cheesecake, dried
foods, bread or pastry, beverages.
Do not reheat in foil containers.
When reheating delicate sauces/
dips that contain sour cream, eggs
or cream cheese, use Time cooking
on power level P30.
SOUP
• When reheating canned soups,
remove from can. Add milk or water
as directed on can. Place in a
microwave-safe bowl or dish.
• Liquid must be room or refrigeration
temperature.
BEVERAGE
• Liquid must be room or refrigeration
temperature.
