Kenmore 721.86012 User manual

Microwave Hood Combination
Combinación Microondas Campana
Part No. MFL57652402 Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A www.sears.com.
R
INSTALLATION INSTRUCTIONS
INSTRUCCIONES DE INSTALACIÓN
721.86012
721.86013
721.86019
Models/Modelos
Read and save these
installation instructions.
Lea y guarde estas
instrucciones de
instalación

2
YOUR SAFETY FIRST
BEFORE YOU START
• Proper installation is the installer's responsibility!
– Read the entire manual before you begin.
– The model number label is located on the oven front. See Figure 1.
– Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
FOR YOUR SAFETY:
•You will need TWO people to install this oven. It is heavy and could cause personal injury if not
handled properly. The dimensions of the oven are as follows:
Height : 16-7/16 inches
Width : 29-15/16 inches
Depth : 15-3/8 inches
•AVOID ELECTRICAL SHOCK!
– Before you drill into the wall, note where electrical outlets are and where electrical wires might
be concealed behind the wall.
YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires with your drill bit.
– Locate and disconnect the power of any electrical circuits that could be affected by installing this
oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
•ELECTRICAL RATING OF THIS OVEN : 120V, 60Hz.
– You need a 120V, 60Hz, AC only, 20A, fused electrical supply (located in the cabinet above the
microwave as close as possible to the microwave circuit) serving only the microwave.
Mounting Plate
Mounting Plate
Model and Serial
Number Plate
or
Figure 1 Figure 2
WARNING

3
YOUR SAFETY FIRST
If you use the grounding plug improperly, you risk electric shock!
– Check with a qualified electrician if you are not sure whether the oven is properly grounded or if
you do not completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
WARNING
If you do not use the microwave oven as instructed, you could be exposed
to excessive microwave energy.
WARNING
Improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
•DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
– DO NOT try to operate the microwave oven with the door open.
– DO NOT tamper with or defeat the safety interlocks.
– DO NOT place objects between the microwave oven front face and the door.
–
DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
– DO NOT operate the microwave oven if it is damaged.
– The microwave oven door must close properly to operate safely.
– DO NOT use the microwave oven:
• If the door is bent.
• If the hinges or latches are broken or loose.
• If the door seals, sealing surfaces or glass is broken.
– DO NOT attempt to adjust or repair the oven yourself!
It should be adjusted and repaired by a qualified technician who can check for microwave
leakage after repairing the oven.
WARNING
• THIS APPLIANCE MUST BE GROUNDED!
– If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing
an escape wire for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug.
• Place the plug into a properly installed and grounded
outlet. See Figure 3.
• Do not use an extension cord.
• Keep the power cord dry and do not pinch or crush it.
•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE
THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
For best operation, plug this appliance into its
own electrical outlet to prevent flickering of lights,
blowing of fuse or tripping of circuit breaker.
PROPERLY POLARIZED AND
GROUNDED OUTLET
Three-Pronged (Grounding) plug
Figure 3

4
YOUR SAFETY FIRST

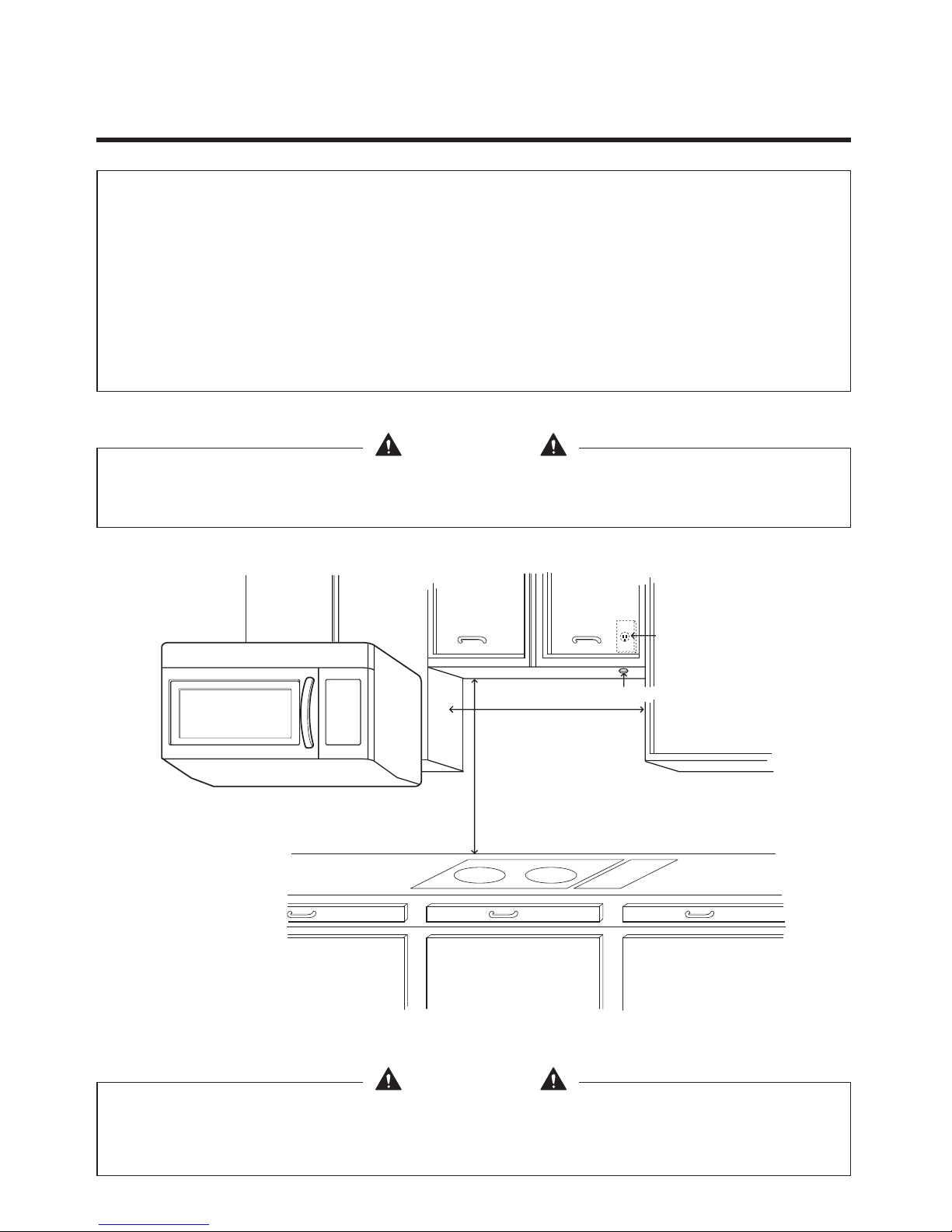

•MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
– Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should
be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
– ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
– DO NOT mount the microwave oven to an island or peninsula cabinet.
– BE SURE the upper cabinet and rear wall structures are able to support 150 lbs., plus the weight
of any items you place inside the oven or upper cabinet.
– Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
–
BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.
If you do not mount the oven as instructed, you risk personal injury and/or
property damage.
WARNING
30" min. cabinet opening width
30" min. clearance from bottom
of cabinet to cooking surface
or countertop before installation.
Grounded Outlet
(inside upper cabinet)
Power Supply Cord Hole
(Use templates included
with installation instructions)
Figure 4
• Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL
(a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.
Failure to protect these surfaces could result inproperty damage.
CAUTION

5
PARTS, TOOLS, MATERIALS

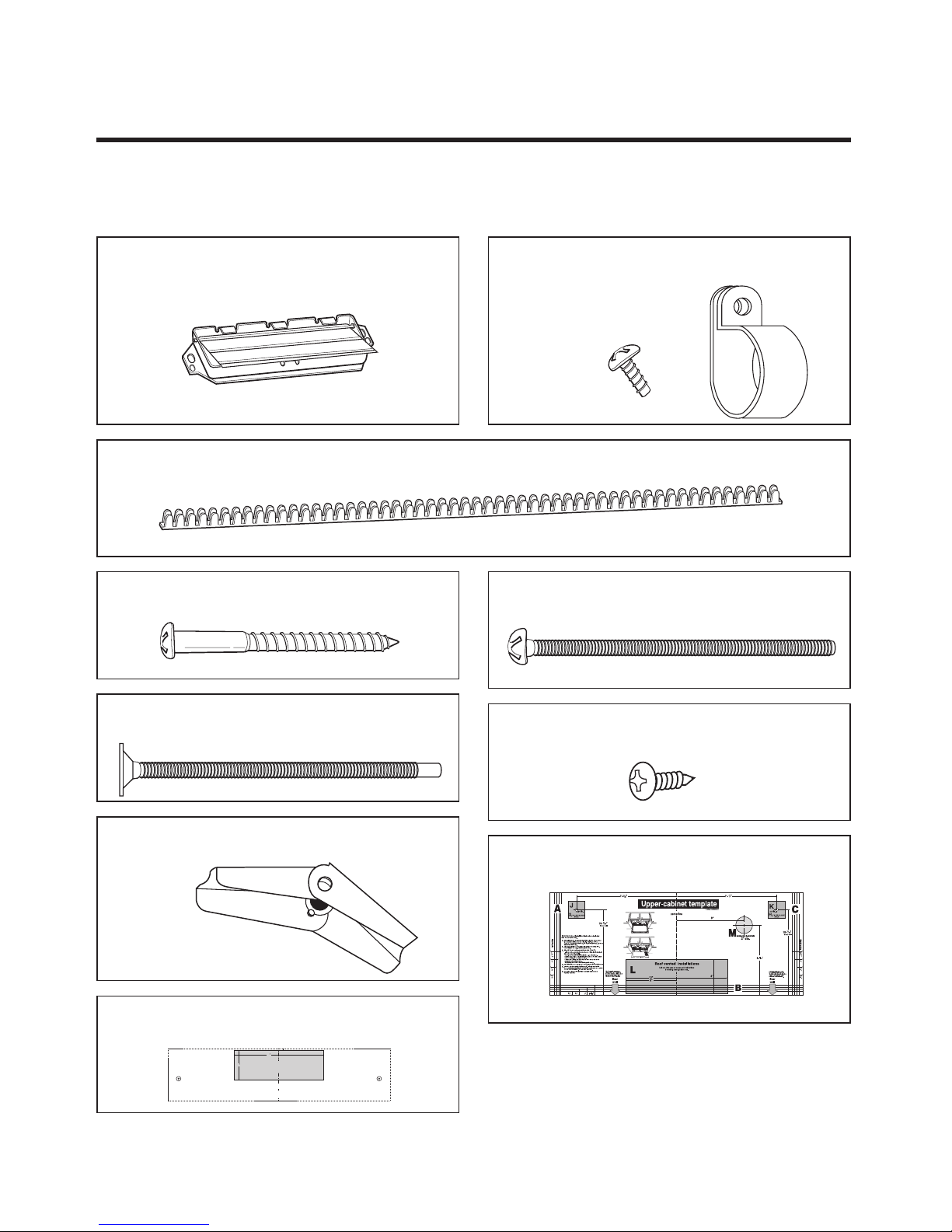

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
Damper/duct connector
(for roof vented or wall vented installation)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
Four 1/4" x 2" lag screws
(for wall stud holes)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
Two 1/4" x 3" bolts
(for securing to the upper cabinet)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
One rear wall template
(3 pieces mounting plate only)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
Four spring toggle heads
(for the toggle bolts)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
Two tapping screws
(for attaching the damper duct connector)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
Four 1/4" x 3" toggle bolts
(for drywall holes)
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
One upper cabinet template
12
4
REAR WALL TEMPLATE
B.
A.
F. CUT OUT FOR WALL
VENTED ONLY
One power cord clamp bushing (for the cord hole in a metal upper cabinet)
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall,
and the mounting area must meet the 150 lbs. weight requirement.

6

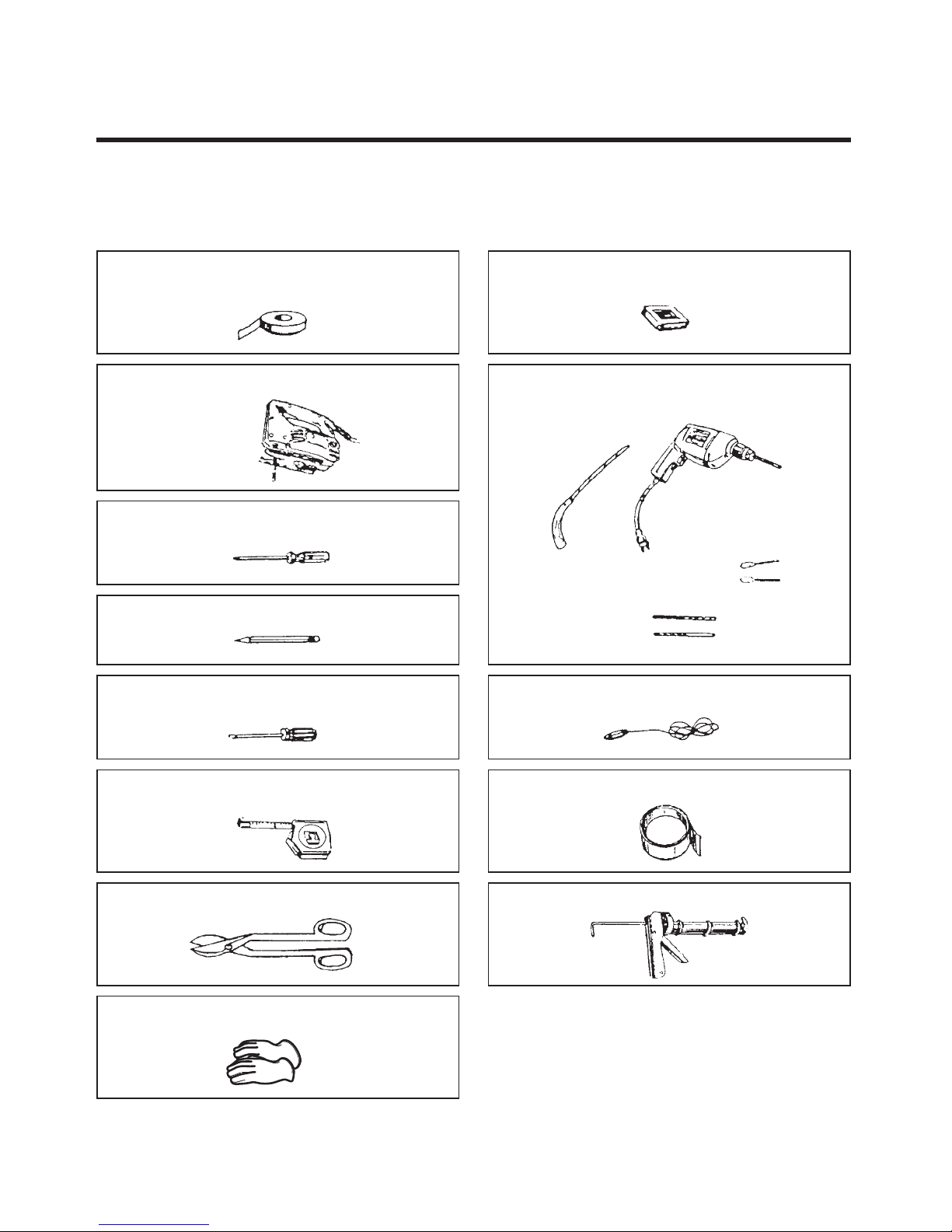

PARTS, TOOLS, MATERIALS
Clear Tape
(for taping the templates to the wall)
Phillips Screwdriver (for the screws)
Pencil
Flat Blade Screwdriver (for the bolts) Plumb Line
Measuring Tape (metal preferred) Duct Tape
Small Side Cutters or Tin Snips
Gloves
Caulking gun
Stud Finder or Thin Nail
Saber Saw (for cutting vent holes for roof
or wall vending)
Keyhole Saw (for the power cord hole)
YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE
INSTALLATION:
Carton or other heavy material for covering the counter top.
3/8" and 3/4" wood drill bits
1/2" and 3/16"
drill bits
Electric drill
• If you have brick or masonry walls, you need special hardware and tools.
• The ductwork you need for the installation is not included. All wall and roof caps must have a back-
draft damper.

7
STEP 1: PREPARE THE
ELECTRICAL CONNECTIONS
Grounded Outlet
(Inside Cabinet)
Upper
Cabinet
Power-Supply-Cord Hole
AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!
1. Locate the grounded electric outlet for this oven in the
cabinet above the oven, as shown in Figure 4 Detail.
NOTE: The outlet should be on a circuit dedicated to the
microwave oven 120V, 60Hz., AC only, with a
20ampere fused electrical supply.
IMPORTANT: If you do not have the proper wall outlet,
you MUST have one installed by a qualified
electrician.
2. You will cut the power-supply-cord hole (shown in
Figure 4 Detail) later when you prepare the wall and
upper cabinet in Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
WARNING
Improper grounding could result in electric shock or other personal injury.
•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY
CORD GROUNDING PRONG!
• This appliance MUST be grounded!
WARNING
Figure 4 Detail

8
STEP 2:
PREPARE THE VENTING SYSYTEM
NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard
ductwork fittings and length are shown in Figure 9, page 9.
You may vent your oven in one of three ways:
Roof Venting If your oven is located on an outside wall near the roof, as in Figure 6 (3-1/4" x 10"
duct) and Figure 8 (6" round duct.)
Wall Venting If your oven is located on an outside wall on the first floor of your house, as in
Figure 5 (3-1/4" x 10" duct) and Figure 8 (6" round duct.)
Room Venting If your oven is located on an inside wall of your house, as in Figure 7.
NOTE: If you choose the rear exhaust method (roof or wall venting), be sure there is enough
clearance within the wall for the exhaust duct.
REMEMBER AS YOU INSTALL THE VENTING:
• Keep the length of the ductwork and
the number of elbows to a minimum to
ventilate your oven efficiently.
See examples on page 9.
• Keep the size of the ductwork the same.
• Do not install two elbows together.
• Use duct tape to seal all joints in the
ductsystem.
• Use caulking to seal the exterior wall
or roof opening around the cap.
Wall venting
through-the-wall
wall cap
3-1/4"x10"
duct
cabinet
oven through-the-roof
3-1/4"x10"
duct
roof cap
Roof venting
cabinet
oven
6" min.
diameter
round duct
3-1/4" to round
duct transition
3-1/4" to round
ductwork transition
roof cap
wall cap
elbow
cabinet
oven
Wall venting
through-the-wall
wall cap
3-1/4"x10"
duct
cabinet
oven through-the-roof
3-1/4"x10"
duct
roof cap
Roof venting
cabinet
oven
6" min.
diameter
round duct
3-1/4" to round
duct transition
3-1/4" to round
ductwork transition
roof cap
wall cap
elbow
cabinet
oven
Figure 5
Wall Venting
Wall venting
through-the-wall
wall cap
3-1/4"x10"
duct
cabinet
oven through-the-roof
3-1/4"x10"
duct
roof cap
Roof venting
cabinet
oven
6" min.
diameter
round duct
3-1/4" to round
duct transition
3-1/4" to round
ductwork transition
roof cap
wall cap
elbow
cabinet
oven
Figure 6
Roof Venting
Figure 7
Room Venting
Wall venting
through-the-wall
wall cap
3-1/4"x10"
duct
cabinet
oven through-the-roof
3-1/4"x10"
duct
roof cap
Roof venting
cabinet
oven
6" min.
diameter
round duct
3-1/4" to round
duct transition
3-1/4" to round
ductwork transition
roof cap
wall cap
elbow
cabinet
oven
Figure 8
THIS OVEN MUST BE PROPERLY VENTED!
WARNING - FIRE HAZARD

9
STEP 2:
PREPARE THE VENTING SYSYTEM

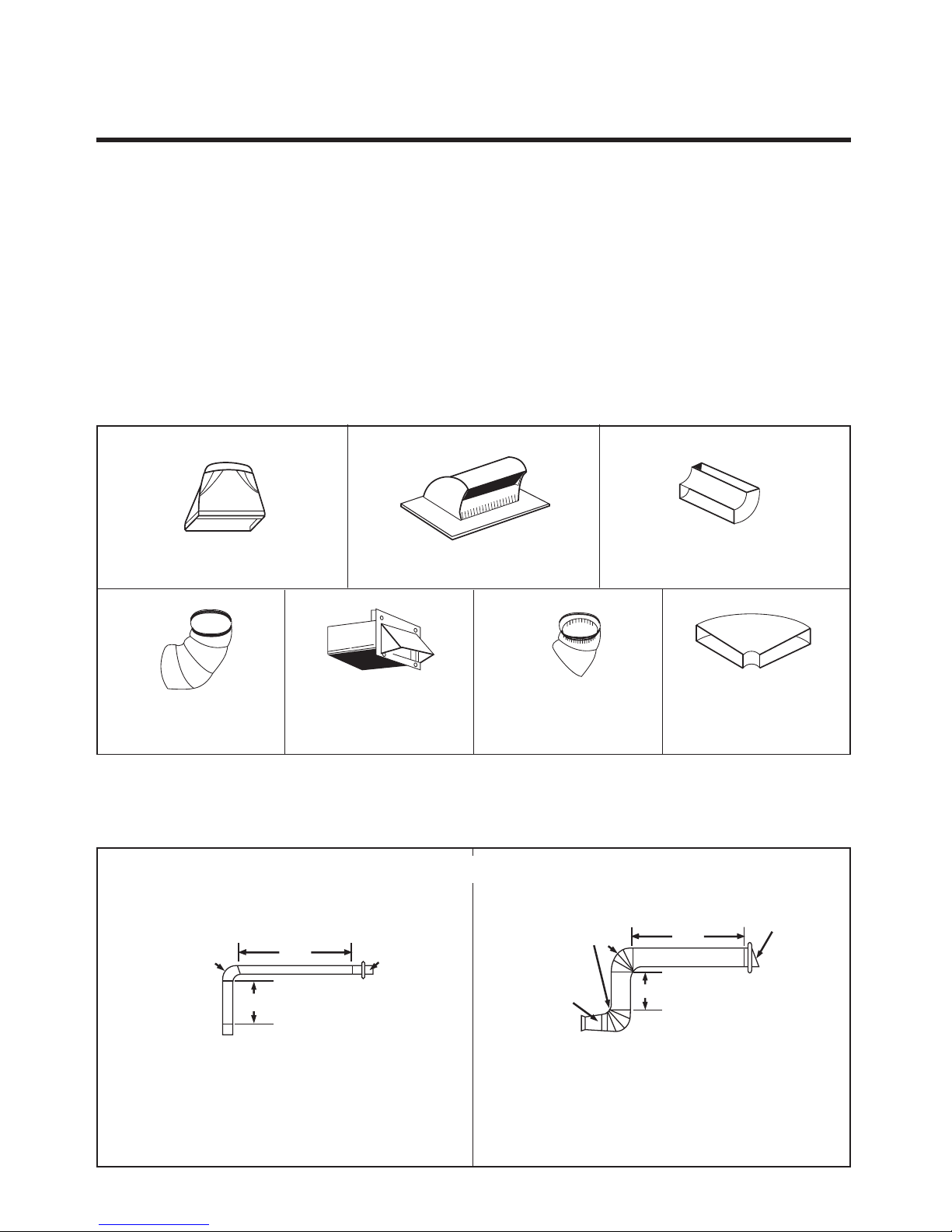

STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"
extension duct installed between the damper assembly and the adapter to prevent the exhaust
damper sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
Below are the standard fittings and their equivalent length in feet.
To calculate the equivalent length of each duct piece used, see the examples below.
Figure 9
3-1/4”x10”
90˚ elbow
90˚ elbows
transition
6ft. wall cap
2ft.
6ft. wall cap
2ft.
3-1/4”x10”
90˚ elbow
90˚ elbows
transition
6ft. wall cap
2ft.
6ft. wall cap
2ft.
For 3-1/4" x 10" SYSTEMS
1 3-1/4” x 10” 90° elbow = 25 ft.
1 Wall Cap = 40 ft.
8 feet straight duct = 8 ft.
TOTAL LENGTH = 73 ft.
1 transition = 5 ft.
2 90º elbows = 20 ft.
1 Wall Cap = 40 ft.
8 feet straight = 8 ft.
TOTAL LENGTH = 73 ft.
For 6" ROUND SYSTEMS
3 1/4” x 10” to 6" = 5 ft.
90˚elbow = 10 ft 45˚elbow = 5 ft 3 1/4” x 10” wall cap
= 40 ft
3-1/4” x 10” flat elbow
= 10 ft
3 1/4” x 10” roof cap = 24 ft 3 1/4” x 10” 90˚ elbow = 25 ft
Examples

10
STEP 3:
PREPARE THE VENTING BLOWER
Your microwave oven is shipped with the blower assembled for room venting (recirculating). You need to
adjust the blower if you want wall vented or roof vented installation.
REMOVE THE MOUNTING PLATE:
1. Remove any shipping materials and parts from inside
the microwave oven.
2.
Cover the counter top or cooktop with a thick, protective
covering to protect it from damage and dirt.
See Figure 10.
NOTE: If you have a free-standing range, disconnect
it, move it onto a piece of cardboard or
hardboard and pull it away from the wall, so
that you can get closer to the upper cabinet
and back wall for easier measuring and
drilling.
3. Remove mounting plate 2 screws from the mounting
plate as shown and discard them.
(See Figure 11.)
4. The mounting plate will also be used to locate and
mark the mounting holes on the rear wall.
5. Locate exhaust adaptor, grease filters and hardware
packet.
6. At this point, remove any adhesive tape (if there is
any), on the exhaust adaptor, the grease filters and
the power supply cord.
ROOM VENTED INSTALLATION:
Go to STEP 4, PREPARE THE WALL AND UPPER
CABINET FOR INSTALLATION located on page 13.
Control panel side
Mounting
plate
Mounting
plate
Control panel side
Mounting
plate screws
Mounting Plate
Screws
A thick, protective
covering
ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.
• DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could
result in electrical shock.
WARNING
Figure 10
Figure 11

11
Parts "B"
Knockouts Parts "B"
blower plate
mounting screw(s)
(option)
blower plateblower unit
mounting screw(s)
(option)
blower unit
Knockouts "B"
back plate
exhaust
ports
blower plate
mounting
screw(s) (option)
blower unit
mounting screw(s) (option)
blower unit
exhaust ports
blower wire
connector
exhaust
ports
blower
unit
STEP 3:
PREPARE THE VENTING BLOWER

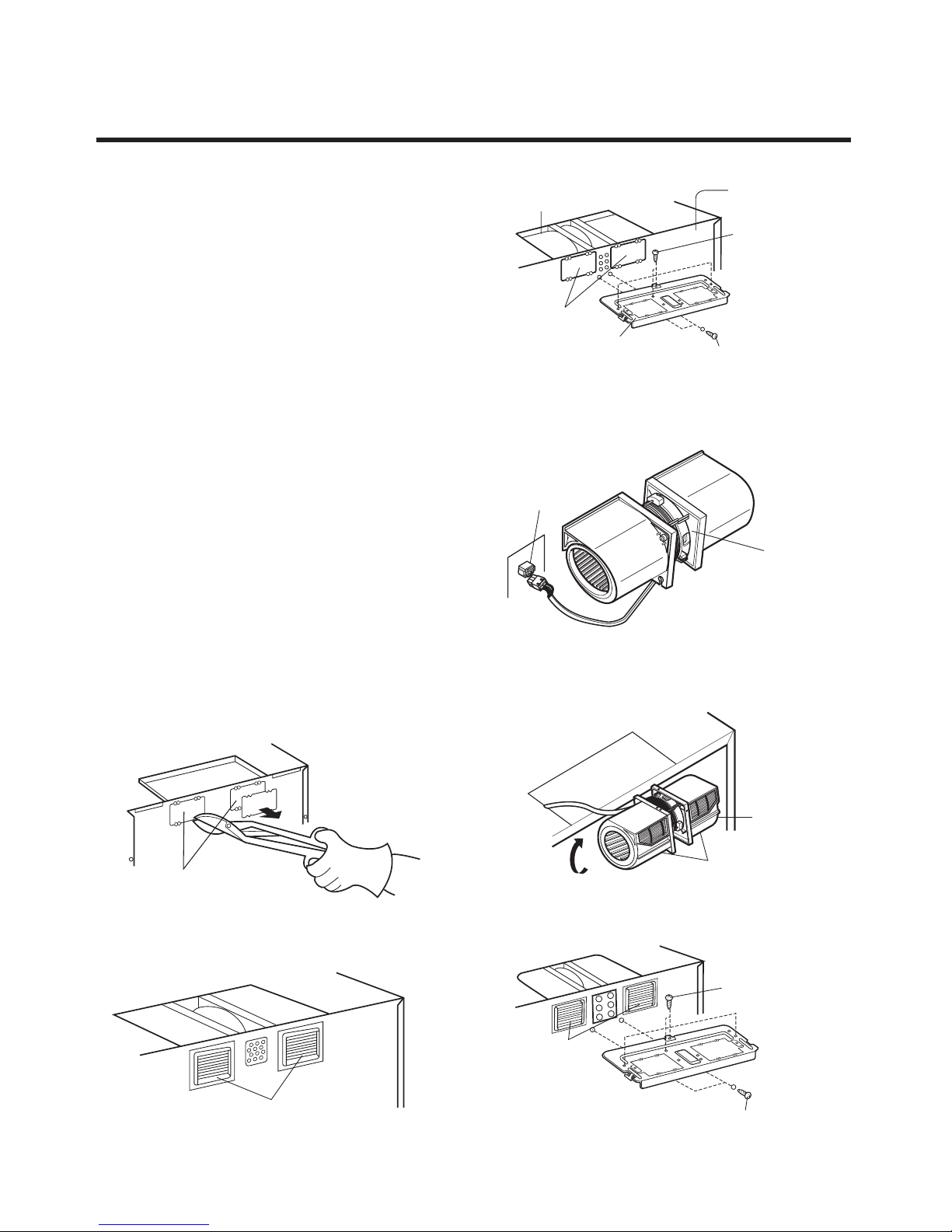

WALL VENTED INSTALLATION:
1. Remove blower unit mounting screw(s) and blower
plate screw(s). Remove the blower plate from cabinet.
See Figure 12.
2. Carefully lift the blower unit out of the microwave
oven. Disconnect the blower wire from connector.
See Figure 13.
3. Use side cutters or tin snips to cut and remove
knockouts "B" from Back plate. Discard knockouts.
Be careful not to distort the plate. See Figure 14.
4.
Rotate the unit so that the exhaust ports face the
rear of the cabinet. See Figure 15. Before you insert
blower unit, blower wire must be like Figure 15.
5. Reassemble the blower wire into the connector.
6. Place blower unit back into cabinet. Check that the
exhaust ports face towards the rear of the cabinet.
See Figure 16.
7. Reattach the blower plate to the top of the cabinet
as it was originally assembled. Attach with blower
unit mounting screw(s) and then blower plate
mounting screw(s). See Figure 17.
8. Go to STEP 4, PREPARE THE WALL AND UPPER
CABINET FOR INSTALLATION located on page 13.
Figure 12
Figure 13
Figure 14
Figure 16 Figure 17
Figure 15

12
STEP 3:
PREPARE THE VENTING BLOWER
ROOF VENTED INSTALLATION:
1. Remove blower unit mounting screw(s) and blower
plate screw(s). Remove the blower plate from
cabinet. See Figure 18.
2. Carefully lift the blower unit out of the microwave
oven.
3. Rotate blower unit 90º so the exhaust ports face
the top of the cabinet. See Figure 19.
4. Place blower unit back into microwave oven.
5. Use side cutters or tin snips to cut and remove
knockouts "A" from blower plate. Discard
knockouts. Be careful not to distort the plate.
See Figure 20.
6. Reattach blower plate to microwave oven. Attach
with the blower unit mounting screw(s) and then
the blower plate mounting screw(s). See Figure 21.
blower
unit
blower plate
Knockouts "A"
blower plate
mounting
screw(s) (option)
blower unit
mounting screw(s) (option)
blower plate
blower unit
mounting screw(s) (option)
blower unit
blower plate
blower plate
mounting
screw(s) (option)
exhaust
ports
Figure 18
Figure 19
Figure 20
Figure 21

13
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
MEASURE AND TACK / TAPE UP THE
TEMPLATE
1. Using a plumb line and (metal) measuring tape, find
and mark the vertical center line V on the back
wall, as in Figure 22.
2. Find and mark one or two points where the studs
are on the wall (Studs are normally 16 inches apart.)
and then measure and mark the stud locations. If
you cannot find any wall stud, consult a local
building contractor.
3. Line up the plumb line on the wall with the center
line on the mounting plate.
NOTE: Be sure the minimum width is 30 inches and
the distance from the top of the mounting
plate to the range or counter top is at least
30 inches. See Figure 4 on page 4.
4. Center mounting plate in opening by lining up the
plumb line on wall with centerline on mounting plate.
Make sure the minimum width is 30 inches and that
the top of the mounting plate is located a minimum
of 30 inches above the cooking surface.
See Figure 23.
NOTE: If the front edge of the cabinet is lower than
the back edge, adjust the mounting plate to
be level with the cabinet front.
5. Measure the bottom of the upper cabinet frame.
Trim the edges "A", "B" and "C" on the upper
cabinet template so that the template will fit on the
bottom of the upper cabinet. If upper cabinet has a
recessed frame, trim template so that it fits inside
the recessed area. Align the centerline of the upper
cabinet template with the centerline of the mounting
plate; then securely tape or tack the upper cabinet
template in place. See Figure 23.
V
Upper Cabinet Template
Mounting Plate
(1-piece Mounting Plate)
(3-piece Mounting Plate)
Upper Cabinet Template
Mounting Plate
Figure 22
Figure 23
DO NOT ATTEMPT TO INSTALL THE
MICROWAVE OVEN IF YOU CANNOT FIND A
WALL STUD.
CAUTION

14
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION

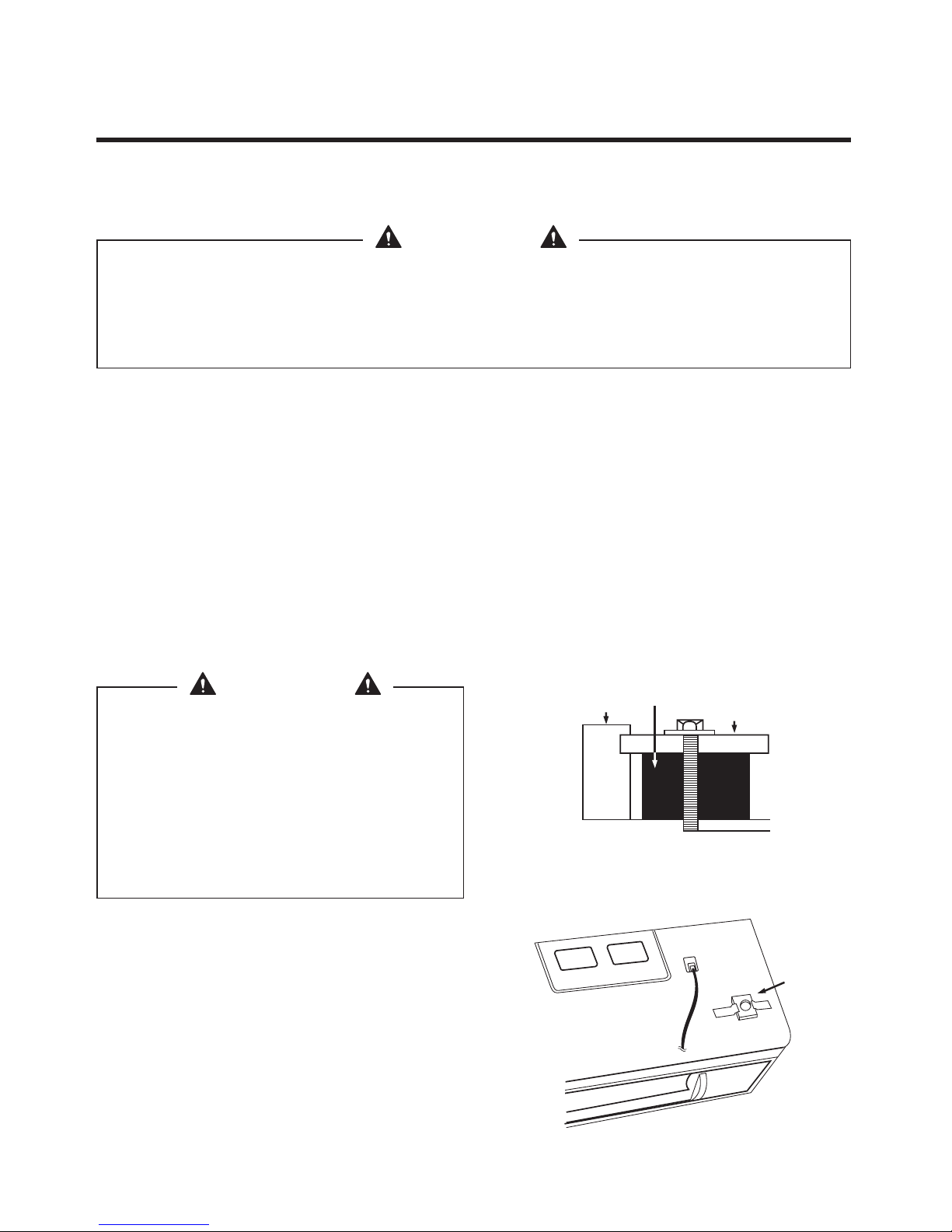

DRILL THE HOLES IN THE WALL AND UPPER CABINET.
1. Find the points on the mounting plate labeled "A", "B", "C" and "D". Drill a 3/16" diameter hole at
any of these points that are in front of a wall stud. Drill a 3/4" diameter hole at any of these points
that are over drywall.
2. Drill a 3/8" hole at points "J" and "K" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you will need 2"x2" filler blocks
(not included) to provide additional support for the bolts. See Figure 24.
•Mark the center of each filler block and drill a 3/8" diameter hole at the mark.
•Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to
cabinet with masking tape. See Figure 25.
3. Cut or drill a 2" diameter hole at the area marked "M", "power supply cord hole" on the upper
cabinet template. If the upper cabinet is metal, you will need to cover the edge of the hole with the
power supply cord bushing (supplied) to prevent damage to the cord from the rough metal edge.
4. Cut out the venting areas (with the saber saw):
•Roof Venting: cut out the shaded area marked "L"
on the upper cabinet template.
•Wall or Room Venting (Recirculating): go to STEP
5, INSTALL THE MOUNTING PLATE, located on
page 15.
5. Use caulking compound to seal the exterior wall or
roof opening around the wall cap or roof cap.
BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL.
Electrical wires could be concealed behind the wall covering and if the drill hits them you
could get an electric shock.
WARNING
YOU MUST COVER THE EDGE OF
THE POWER SUPPLY CORD HOLE
IN A METAL CABINET WITH THE
POWER SUPPLY CORD BUSHING.
FAILURE TO DO SO COULD
RESULT IN DAMAGE TO THE CORD
AND ELECTRIC SHOCK.
WARNING
cabinet front filler block cabinet
bottom shelf
filler
block
Figure 24
Figure 25

15
STEP 5: INSTALL THE MOUNTING
PLATE TO THE WALL
Wall
Mounting
Plate
Space MoreThan Wall Thickness
Bolt
End
Toggle Bolt
Toggle Wings
Center Line
A
C
B
Draw
Center Line
Draw Lines
on Studs
For Wall-
Vented Only
Minimum 66"
From the Floor
Support Tab Support Tab
E
Mounting
Plate
D
3/16" Hole on Studs
5/8" Hole on Drywall Only
3/16" Hole on Studs
5/8" Hole on Drywall Only
Center Line
Draw
Center Line
Draw Lines
on Studs
For Wall-
Vented Only
Minimum 66"
From the Floor
Support Tab Support Tab
E
Mounting
Plate
CD
AB
(1-piece Mounting Plate)
(3-piece Mounting Plate)
THE OVEN MUST BE CONNECTED
TO AT LEAST ONE WALL STUD.
1. Draw a vertical line on the wall at the center of the
30" wide space.
Use the mounting plate as the template for the
rear wall. Place the mounting plate on the wall,
making sure that the tabs are against the bottom
of the cabinet. Line up the notch and center line
on the mounting plate to the center line on the
wall.
2. While holding the mounting plate with one hand,
draw circles on the wall at holes "A","B","C"
and "D". Four holes must be used for mounting. If
the holes are not used, the installation will not be
secure. Installer must use these holes for proper
installation. Use toggle bolts through these holes
unless one of them lines up with a stud. Use a lag
screw for studs. See Figure 26.
NOTE: Draw a fifth circle inside area "E", through
one of the holes to match the location of a
stud.
For wall vented: The oven requires a rear wall
cutout opening for the rear wall duct and the
exhaust adaptor must be attached to the mounting
plate. See the next page on how to prepare the rear
wall cutout opening and the exhaust
adaptor/mounting plate for wall vented.
3. Drill holes through the circles. If there is a stud,
drill a 3/16" hole for lag screws. Two or preferably
four lag screws at holes "A" and "C", or "B" and
"D" must be used to secure mounting plate to
wall. If there is no stud, drill a 3/4" hole for toggle
bolts. Make sure to use at least 1 lag screw at
holes of area "E" in a stud, and 4 toggle bolts at
holes "A","B","C" and "D" in the drywall or the
plaster.
4. Attach the plate to the wall. To use spring toggle
head bolts: Remove the toggle wings from the
bolts. Insert the bolts into the mounting plate and
replace the spring toggle heads to 3/4" past the
bolt ends. Insert the spring toggle heads into the
holes in the wall to mount the bracket. You may
pull forward on the bracket to help in tightening
the toggle bolts. Tighten all bolts. See Figure 27.
Figure 27
Figure 26

16
STEP 5: INSTALL THE MOUNTING
PLATE TO THE WALL
F
I
H
G
Slide exhaust
adaptor into
guides on
rear panel.
Exhaust Adaptor Damper
(hinge side up)
Locking
Tabs Guides
Mounting Plate
Back Plate
(1 piece
mounting plate)
(3 pieces
mounting plate)

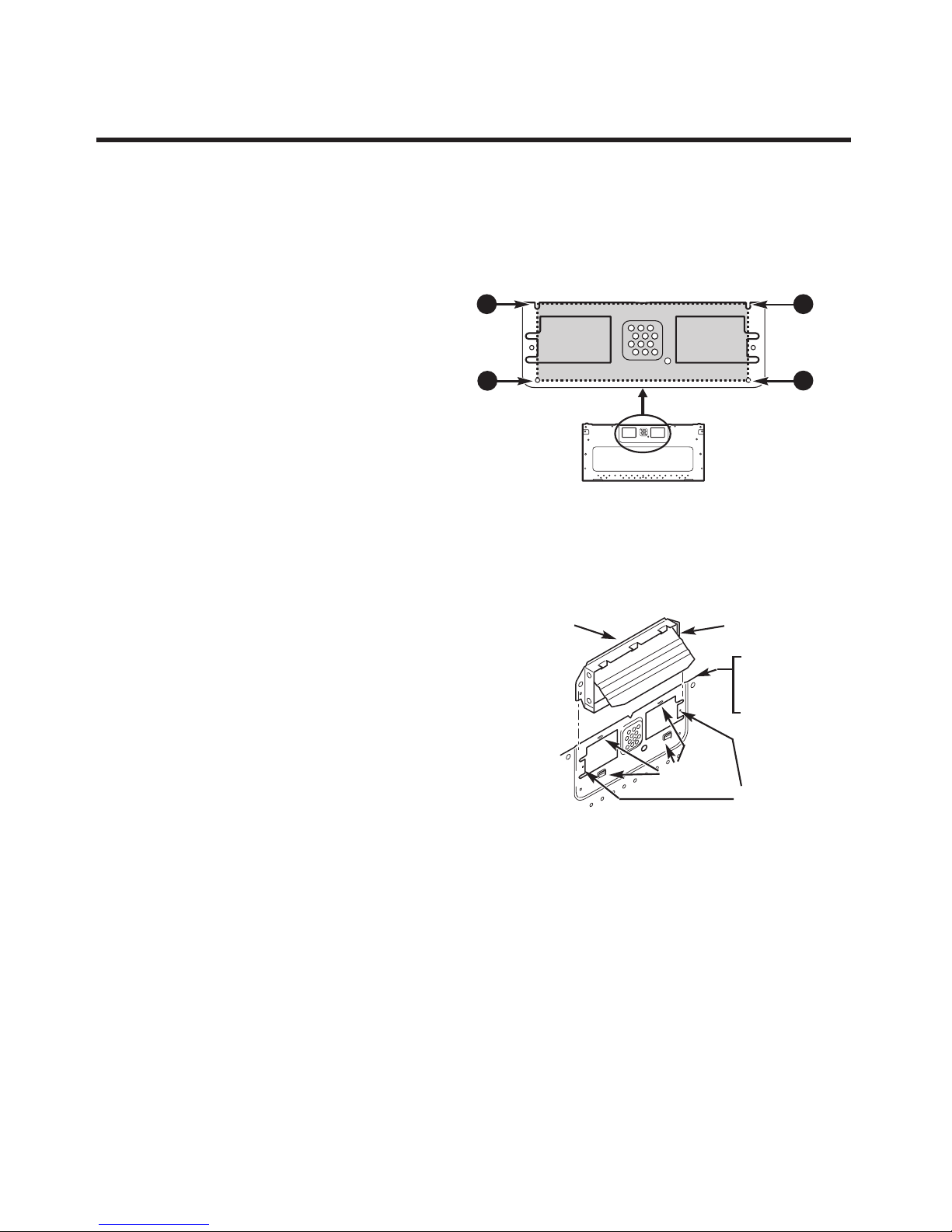

TO PREPARE THE REAR WALL
CUTOUT OPENING AND EXHAUST
ADAPTOR/MOUNTING PLATE FOR
WALL VENTING AND ROOF
VENTING:
• Make the box cutout for the rear wall duct.
– 1 piece mounting plate:
Using a pencil, put dots through slots F and
G, and through holes H and I. Remove the
mounting plate and draw lines extending
through the points. This will give the location
and size of the box cutout for the rear wall
duct. (Figure 28)
– 3 pieces mounting plate:
Use the wall template to determine the
location and size of the box cutout for the
rear wall duct.
• Attach the exhaust adaptor to the rear
mounting plate by sliding it into the guides at
the top center of the plate on the wall side.
Push in securely until it is past the top locking
tabs and in the lower locking tabs. Take care to
assure the damper hinge is installed so that it is
at the top and that the damper swings freely.
• Carefully guide the exhaust adaptor, now
attached to the mounting plate, into the house
duct, before using the screws to attach the
plate to the wall.
This will assure proper alignment for installation.
See Figure 29.
•Return to step 5, item 3 (page 15) to continue.
After completing the installation of the mounting
plate, again check the rear damper for free
movement to assure it will operate properly.
Figure 28
Figure 29

17
STEP 6:
ATTACH THE OVEN TO THE WALL
power cord
hole
power cord

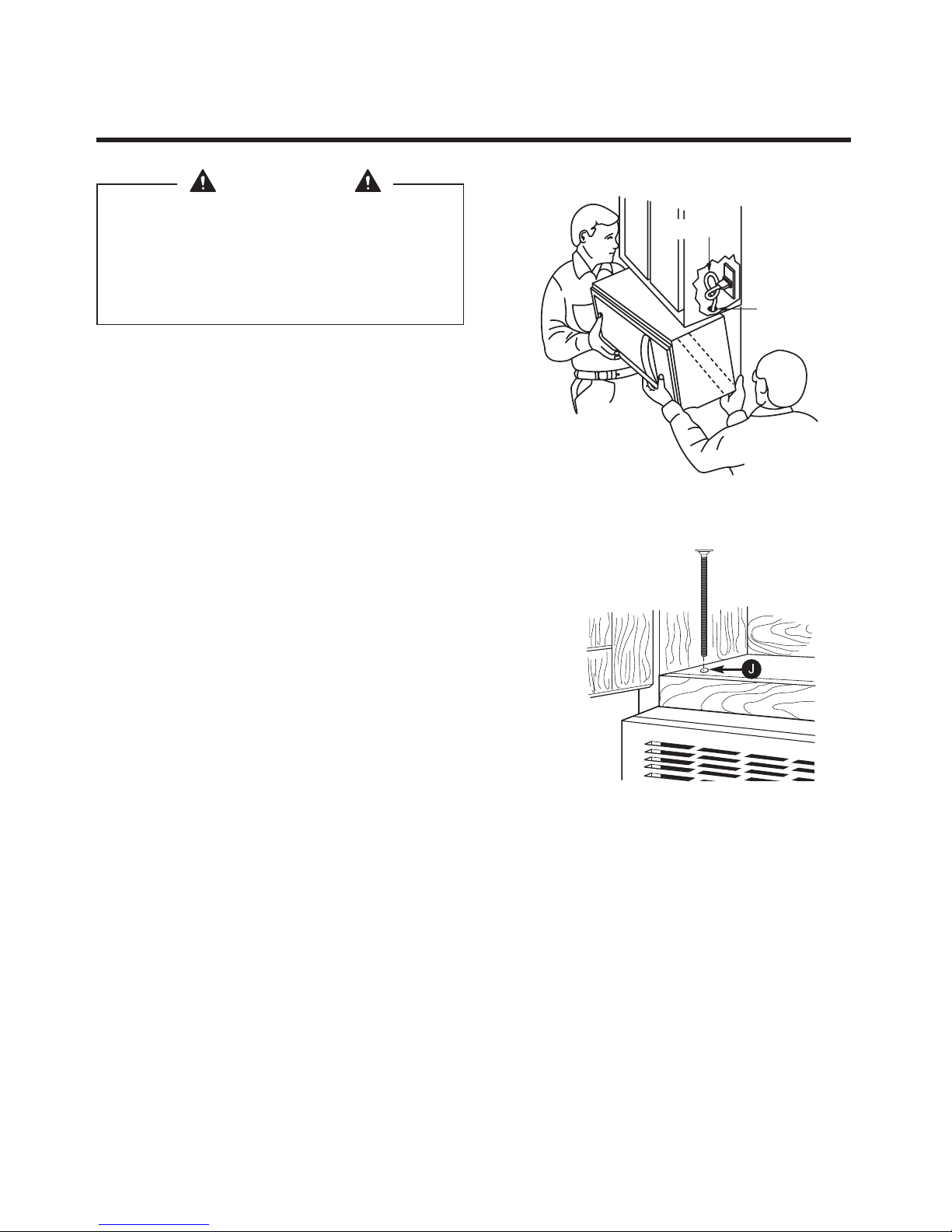

1. Carefully lift microwave oven and hang it on
support tabs (See Figure 26) at the bottom of
the mounting plate. Reaching through upper
cabinet, thread power supply cord through the
power supply cord hole in the bottom of the
upper cabinet.
See Figure 30.
2. Rotate the microwave oven upward so the top
of oven is against the bottom of the upper
cabinet or cabinet frame.
3. Then insert a bolt down through each hole in the
upper cabinet bottom. See Figure 31.
Tighten the bolts until the gap between the
upper cabinet and microwave oven is closed.
4. If wall vented or room vented installation is
used, go to No. 7 on the next page.
You will need two people to lift this
microwave. Failure to use more
than one person could result in
personal injury.
WARNING
Figure 30
Figure 31

18
STEP 6:
ATTACH THE OVEN TO THE WALL
damper
duct power
supply
cord
clamp

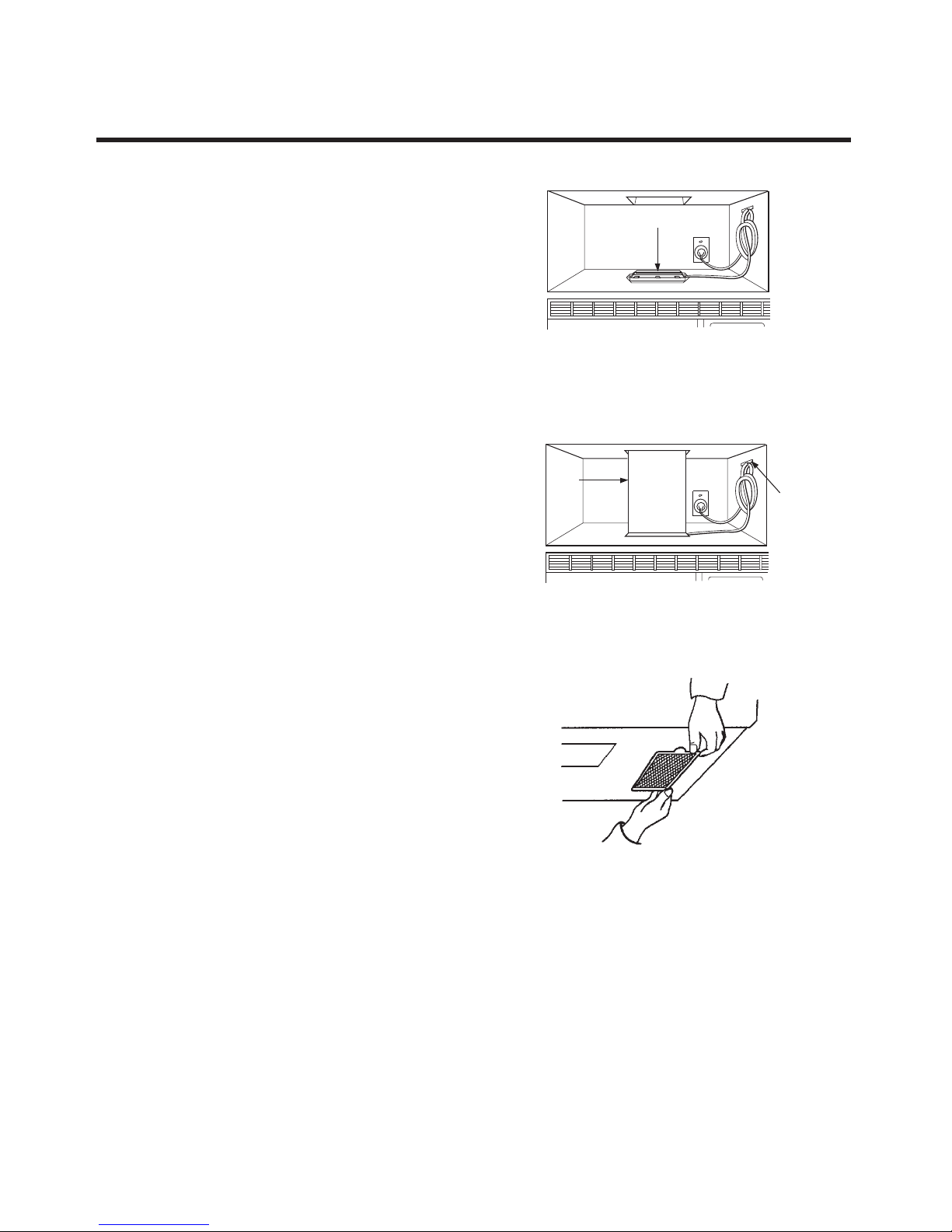

5. Roof vented installation: See Figure 32.
Install ductwork through the vent opening in the
upper cabinet. Complete the venting system
through the roof according to the method
needed. See “PREPARE THE VENTING
SYSTEM,” STEP 2 on the page 8. Use caulking
to seal exterior roof opening around the
exhaust cap. See Figure 6 on page 8.
6. Use power supply cord clamp to bundle the
power supply cord. Install the power supply
cord clamp, using a screw as shown in
Figure 33, to inside of the cabinet.
7. To install the grease filter: Slide it into the slide
slot, then push up and toward oven center to
lock. See Figure 34.
8. Plug in the power supply cord.
9. Read your Owner’s Manual, then check the
operation of your microwave oven.
Figure 32
Figure 33
Figure 34

19
MEMO

Printed in Korea
