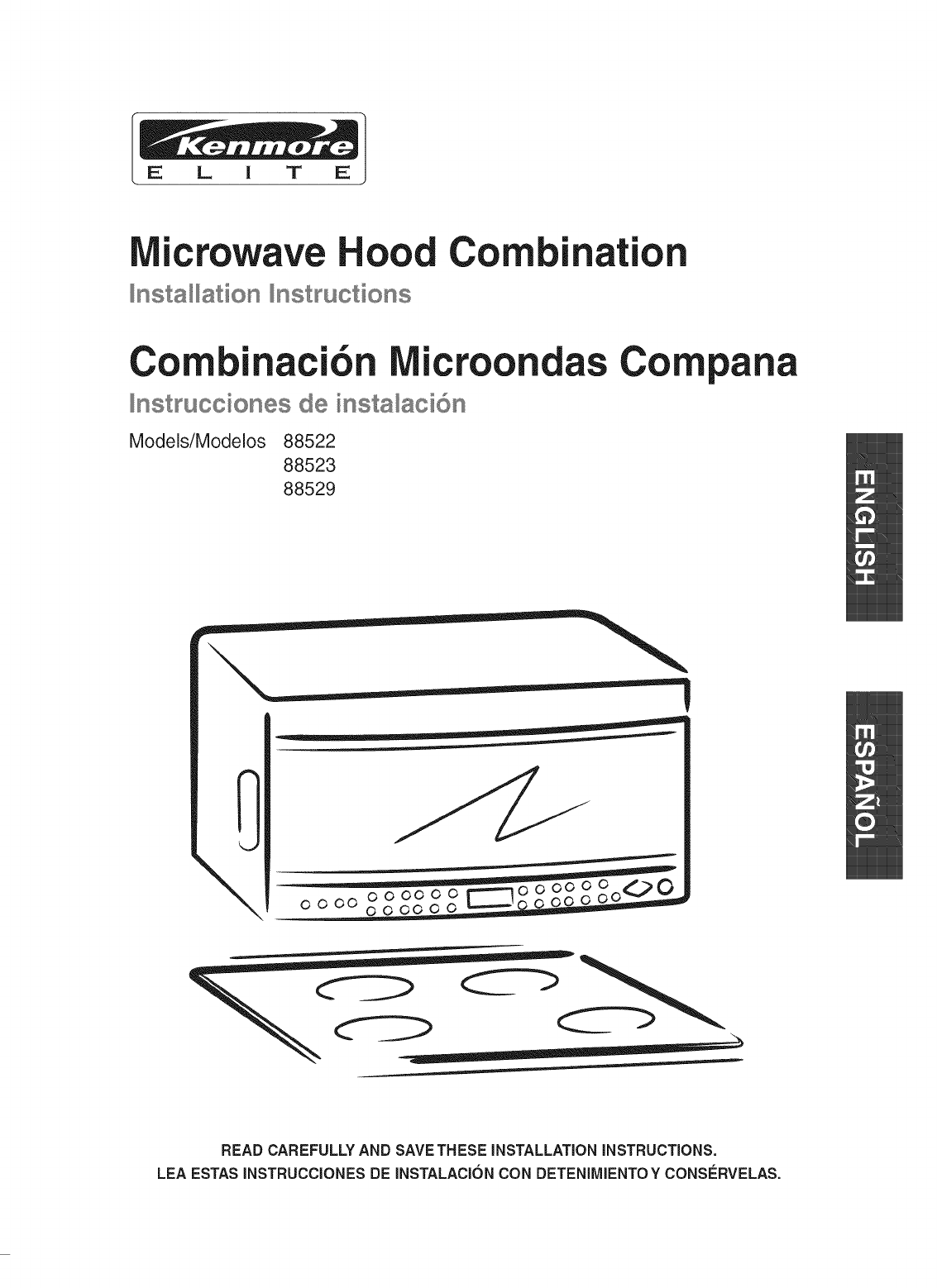

Kenmore 88522 User manual

Kenmore
E tL It TF €E
Microwave Hood Combination
Installation Instructions
Combinacion Microondas Compana
Instrucciones de instalacién
Models/Modelos 88522
88523
uy
88529 rad
@)
i
2)
fa ©
iu
a
Pa
a
Oo
ES
READ CAREFULLY AND SAVE THESE INSTALLATION INSTRUCTIONS.
LEA ESTAS INSTRUCCIONES DE INSTALACION CON DETENIMIENTO Y CONSERVELAS.

ENGLISH

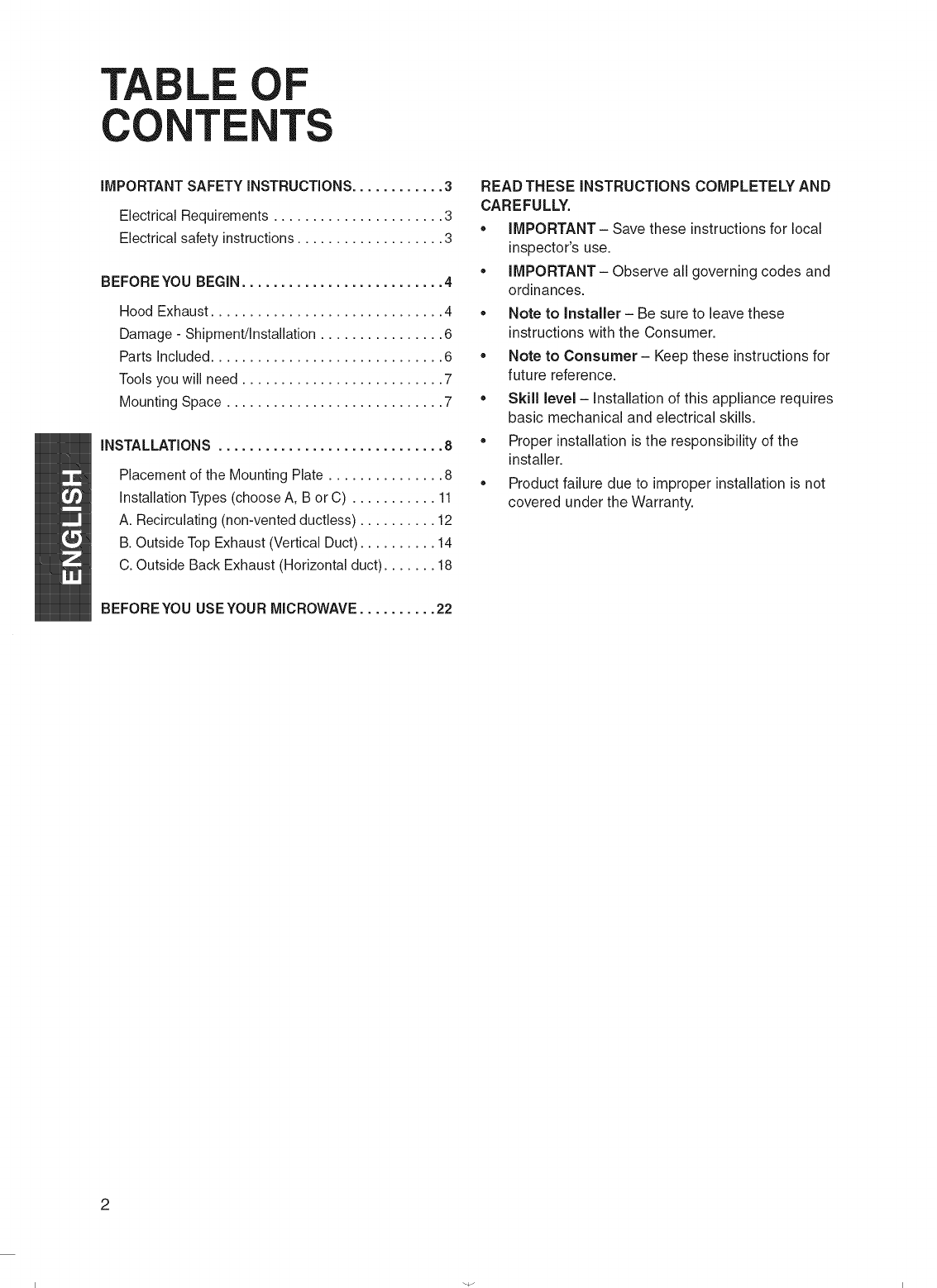

TABLE OF
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS............ 3 READ THESE INSTRUCTIONS COMPLETELY AND
. . CAREFULLY.
Electrical Requirements ..................005- 3
. . . e [IMPORTANT — Save these instructions for local
Electrical safety instructions. .................. 3
inspector’s use.
BEFORE YOU BEGIN................000cceeeee 4° IMPORTANT — Observe all governing codes and
ordinances.
Hood Exhaust...... 0.0.0... 0... e eee eee eee 4 ® Note to Installer —Be sure to leave these
Damage - Shipmenit/installation................ 6 instructions with the Consumer.
Parts Included... 6... cc cee cee ene ee 6 ¢ Note to Consumer — Keep these instructions for
Tools you willneed oo... eee ee 7 future reference.
Mounting Space ........ 0.06. .c cece cece eee 7° Skill level — Installation of this appliance requires
basic mechanical and electrical skills.
INSTALLATIONS ...........222.0000eee cece eee 8 ° Proper installation is the responsibility of the
installer.
Placement of the Mounting Plate ............... 8 Product failure due to improper installation is not
Installation Types (choose A, BorC) ........... 11 covered under the Warranty.
A. Recirculating (non-vented ductless).......... 12
B. Outside Top Exhaust (Vertical Duct).......... 14
C. Outside Back Exhaust (Horizontal duct)....... 18
BEFORE YOU USE YOUR MICROWAVE.......... 22
Nye

IMPORTANT SAFETY
INSTRUCTIONS
This product requires a three-prong grounded outlet.
The installer must perform a ground continuity check on
the power outlet box before beginning the installation
to insure that the outlet box is properly grounded. If not
properly grounded, or if the outlet box does not meet
electrical requirements noted (under ELECTRICAL
REQUIREMENTS), a qualified electrician should be
employed to correct any deficiencies.
CAUTION: For personal
safety, remove
house fuse or open
circuit breaker before
beginning installation
to avoid severe or fatal
shock injury.
IMPORTANT-PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this
appliance is equipped
with a three-prong
(grounding) plug which
mates with a standard
three-prong (grounding)
wall receptacle to
minimize the possibility
of electric shock hazard
from this appliance.
ground exists
before use
You should have the wall receptacle and circuit
checked by a qualified electrician to make sure the
receptacle is properly grounded.
Where a standard two-prong wall receptacle
is encountered, it is very important to have it
replaced with a properly grounded three-prong
wall receptacle, installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH AN
EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz,
* 88522, 88523, 88529: 14.0 amps and 1.65 kilowatts.
This product must be connected to a supply circuit
of the proper voltage and frequency. Wire size must
conform to the requirements of the National Electrical
Code or the prevailing local code for this kilowatt rating.
The power supply cord and plug should be brought to
a separate 20 ampere branch circuit single grounded
outlet. The outlet box should be located in the cabinet
above the microwave oven. The outlet box and supply
circuit should be installed by a qualified electrician
and conform to the National Electrical Code or the
prevailing local code.
ELECTRICAL SAFETY
INSTRUCTIONS
CAUTION: For personal safety, the mounting
surface must be capable of supporting the cabinet
load, in addition to the added weight of this 59
pound product, plus additional oven loads of up to
50 pounds or a total weight of 109 pounds.
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an
island or a peninsula. It must be mounted to BOTH
a top cabinet AND a wall.
NOTE: For easier installation and personal safety,
it is recommended that two people install this
product.
ate]

ENGLISH

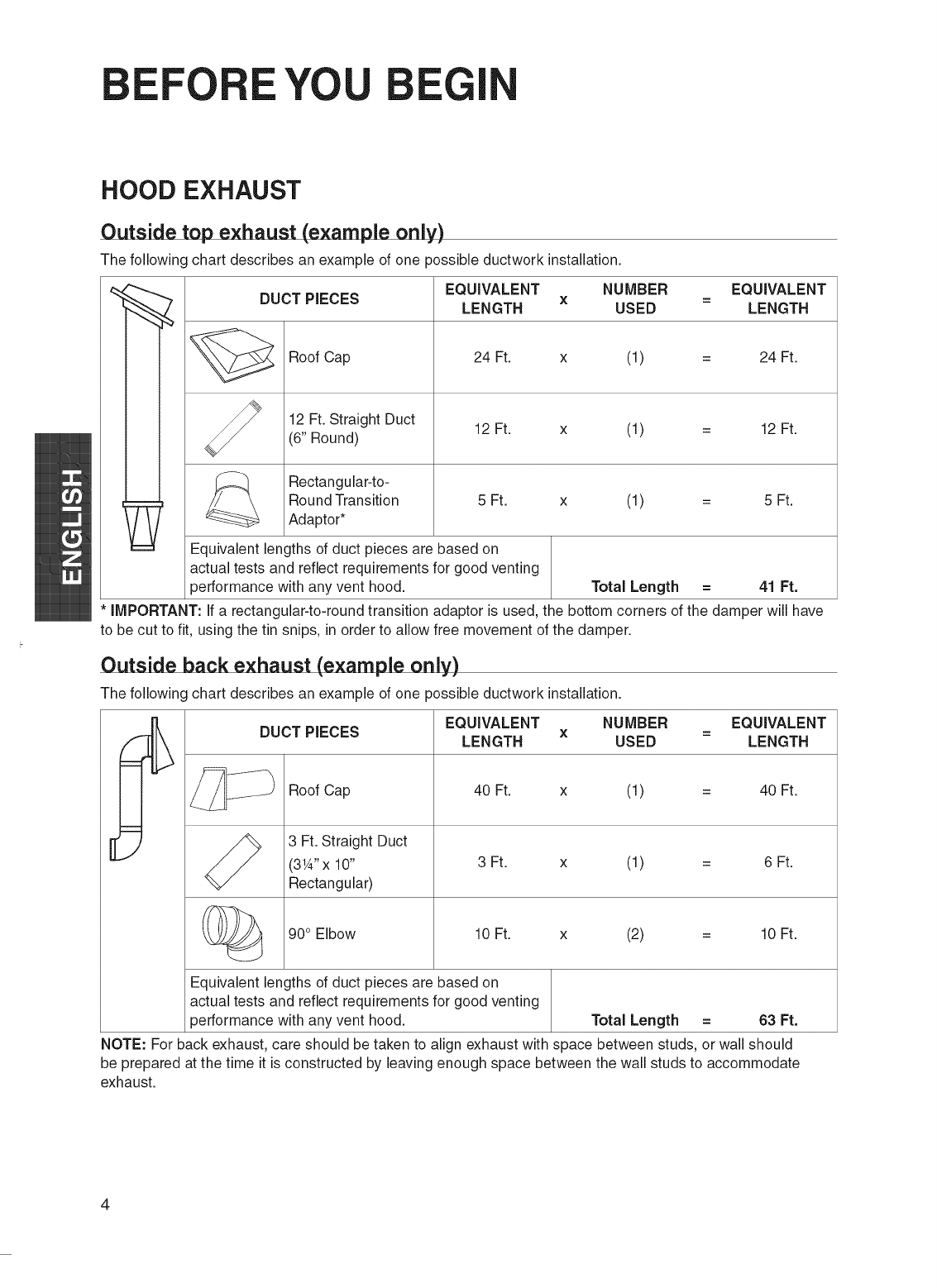

BEFORE YOU BEGIN
HOOD EXHAUST
The following chart describes an example of one possible ductwork installation.
|
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH USED ~ LENGTH
Cs
Roof
Cap
24
Ft,
(1)
=
24
Ft.
12 Ft. Straight Duct _
LZ (6” Round) 12 Ft. (1) = 12 Ft.
Rectangular-to-
Round Transition 5 Ft. (1) = 5 Ft.
Adaptor*
Equivalent lengths of duct pieces are based on
actual tests and reflect requirements for good venting
performance with any vent hood. TotalLength = 47 Ft.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have
to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible ductwork installation.
f
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH USED LENGTH
[> Roof Cap 40 Ft. (1) = 40 Ft.
3 Ft. Straight Duct
(3%” x 10” 3 Ft. (1) = 6 Ft.
Rectangular)
OD 90° Elbow 10 Ft. (2) = 10 Ft.
Equivalent lengths of duct pieces are based on
actual tests and reflect requirements for good venting
performance with any vent hood. TotalLength = 63 Ft.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should
be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate
exhaust.

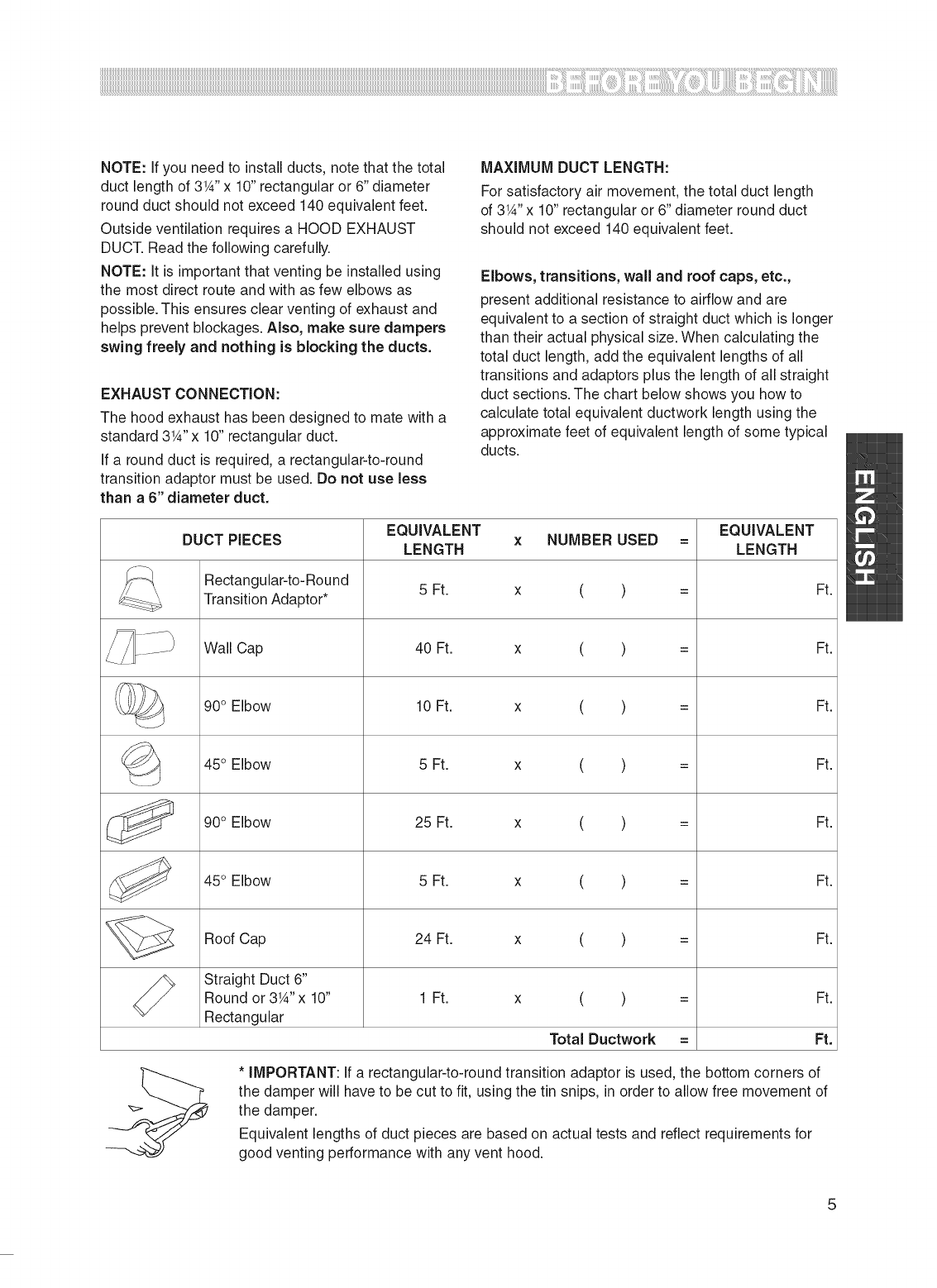

NOTE: If you need to install ducts, note that the total
duct length of 344” x 10” rectangular or 6” diameter
round duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST
DUCT. Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as
possible. This ensures clear venting of exhaust and
helps prevent blockages. Also, make sure dampers
swing freely and nothing is blocking the ducts.
EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a
standard 314” x 10” rectangular duct.
If a round duct is required, a rectangular-to-round
MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length
of 3%” x 10” rectangular or 6” diameter round duct
should not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the
total duct length, add the equivalent lengths of all
transitions and adaptors plus the length of all straight
duct sections. The chart below shows you how to
calculate total equivalent ductwork length using the
approximate feet of equivalent length of some typical
ducts.
transition adaptor must be used. Do not use less
than a 6” diameter duct.
EQUIVALENT EQUIVALENT
DUCT PIECES LENGTH NUMBER USED = LENGTH
~ Rectan gular-to-Round _
EA Transition Adaptor* 5 Ft. x ( ) ~ Ft
[> Wall Cap 40 Ft. x () - Ft
OD 90° Elbow 10 Ft. Xx ( ) = Ft
Q 45° Elbow 5 Ft. Xx ( } = Ft
EF
90°
Elbow
25
Ft.
x
( )
=
Ft
ZB 45° Elbow 5 Ft. x () = Ft
Cs
Roof
Cap
24
Ft.
Xx
( )
=
Ft
Straight Duct 6”
LP Round or 3%” x 10” 1 Ft. Xx ( } = Ft.
Rectangular
Total Ductwork = Ft.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of
the damper will have to be cut to fit, using the tin snips, in order to allow free movement of
ad the damper.
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for
good venting performance with any vent hood.
ate]

ENGLISH

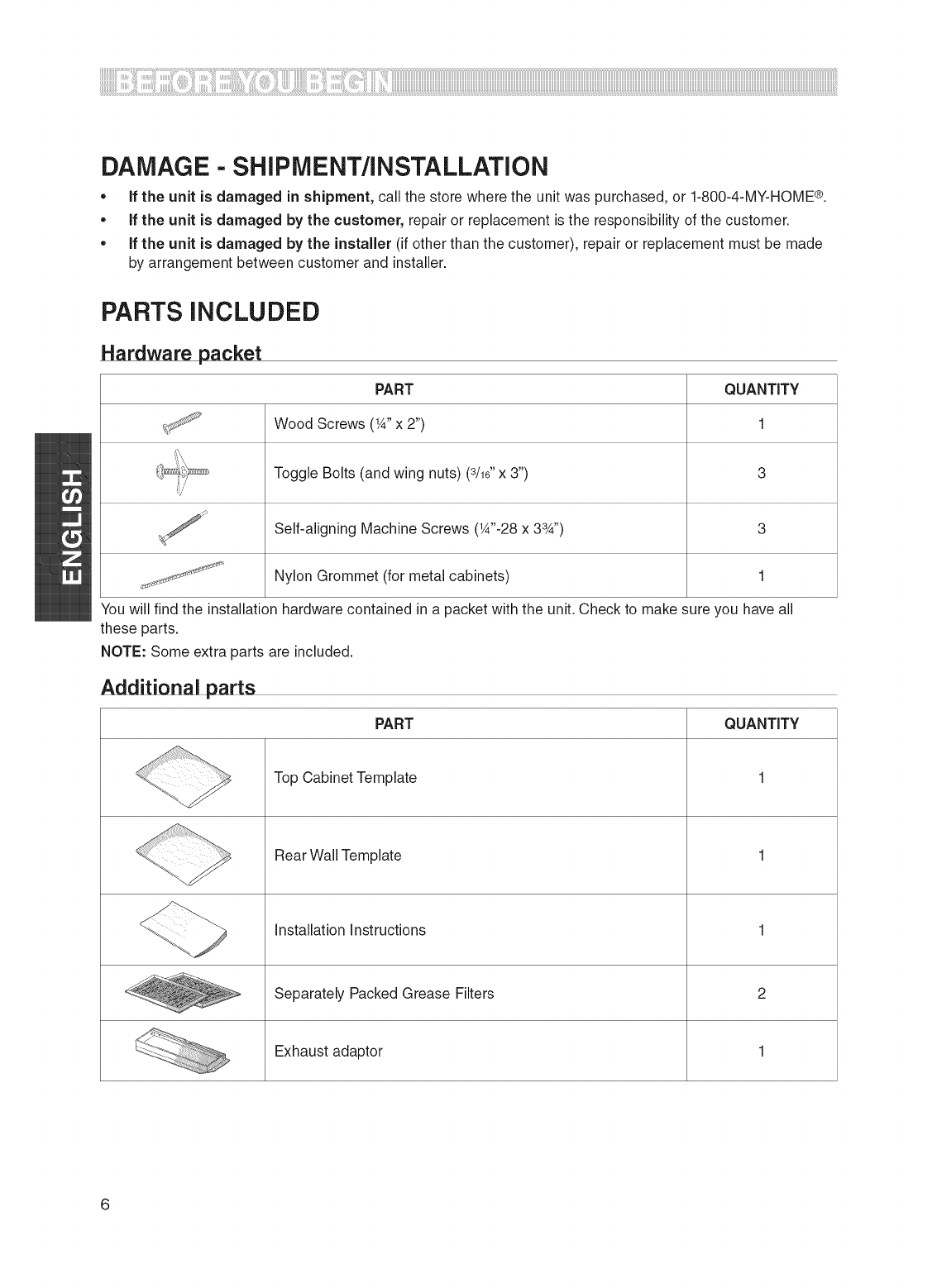

DAMAGE - SHIPMENT/INSTALLATION
® if the unit is damaged in shipment, call the store where the unit was purchased, or 1-800-4-MY-HOME®.
* If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
® If the unit is damaged by the installer (if other than the customer), repair or replacement must be made
by arrangement between customer and installer.
PARTS INCLUDED
Hardware packet
ag
PART QUANTITY
eo Wood Screws (%” x 2”) {
Toggle Bolts (and wing nuts) (8/16” x 3”) 3
Self-aligning Machine Screws (14”-28 x 354”) 3
oe
ce =
Nylon Grommet (for metal cabinets) 1
You will find the installation hardware contained in a packet with the unit. Check to make sure you have all
these parts.
NOTE: Some extra parts are included.
Additional parts
PART QUANTITY
Top Cabinet Template 1
Rear Wall Template 1
installation Instructions 1
Separately Packed Grease Filters 2
Exhaust adaptor

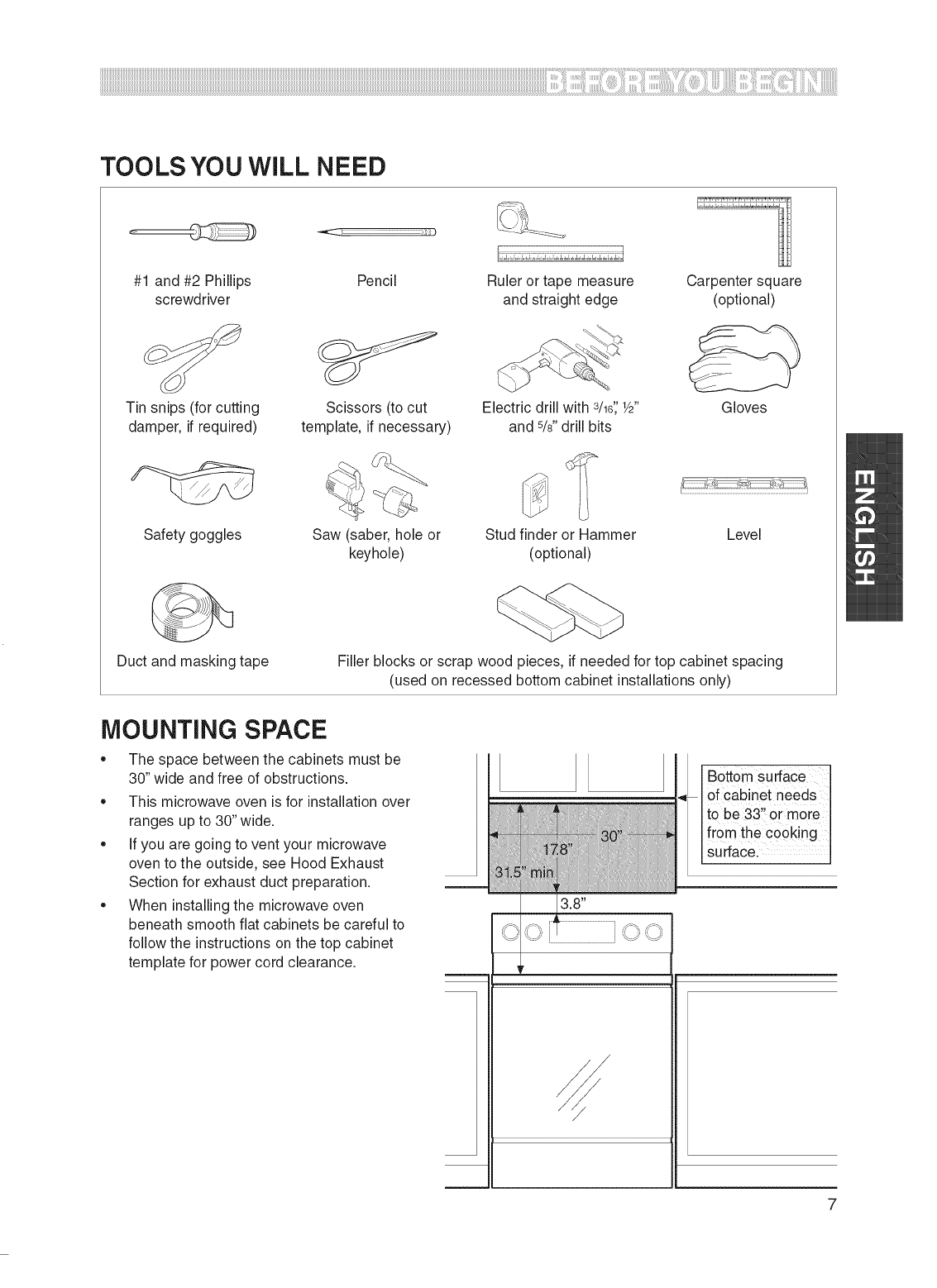

TOOLS YOU WILL NEED
#1 and #2 Phillips Pencil Ruler or tape measure Carpenter square
screwdriver and straight edge (optional)
Tin snips (for cutting Scissors (to cut Electric drill with 9/167 %” Gloves
damper, if required) template, if necessary) and 5/e” drill bits
a
Ea
fi
Safety goggles Saw (saber, hole or Stud finder or Hammer Level
keyhole) (optional)
Duct and masking tape Filler blocks or scrap wood pieces, if needed for top cabinet spacing
(used on recessed bottom cabinet installations only)
MOUNTING SPACE
The space between the cabinets must be
30” wide and free of obstructions. Bottom surface
* This microwave oven is for installation over of cabinet needs
ranges
up
to
30”
wide.
to
be
33”
or
more
. . from the cooking
® if you are going to vent your microwave surface
oven to the outside, see Hood Exhaust -
Section for exhaust duct preparation.
*® When installing the microwave oven
beneath smooth flat cabinets be careful to
follow the instructions on the top cabinet
template for power cord clearance.
ate]

ENGLISH

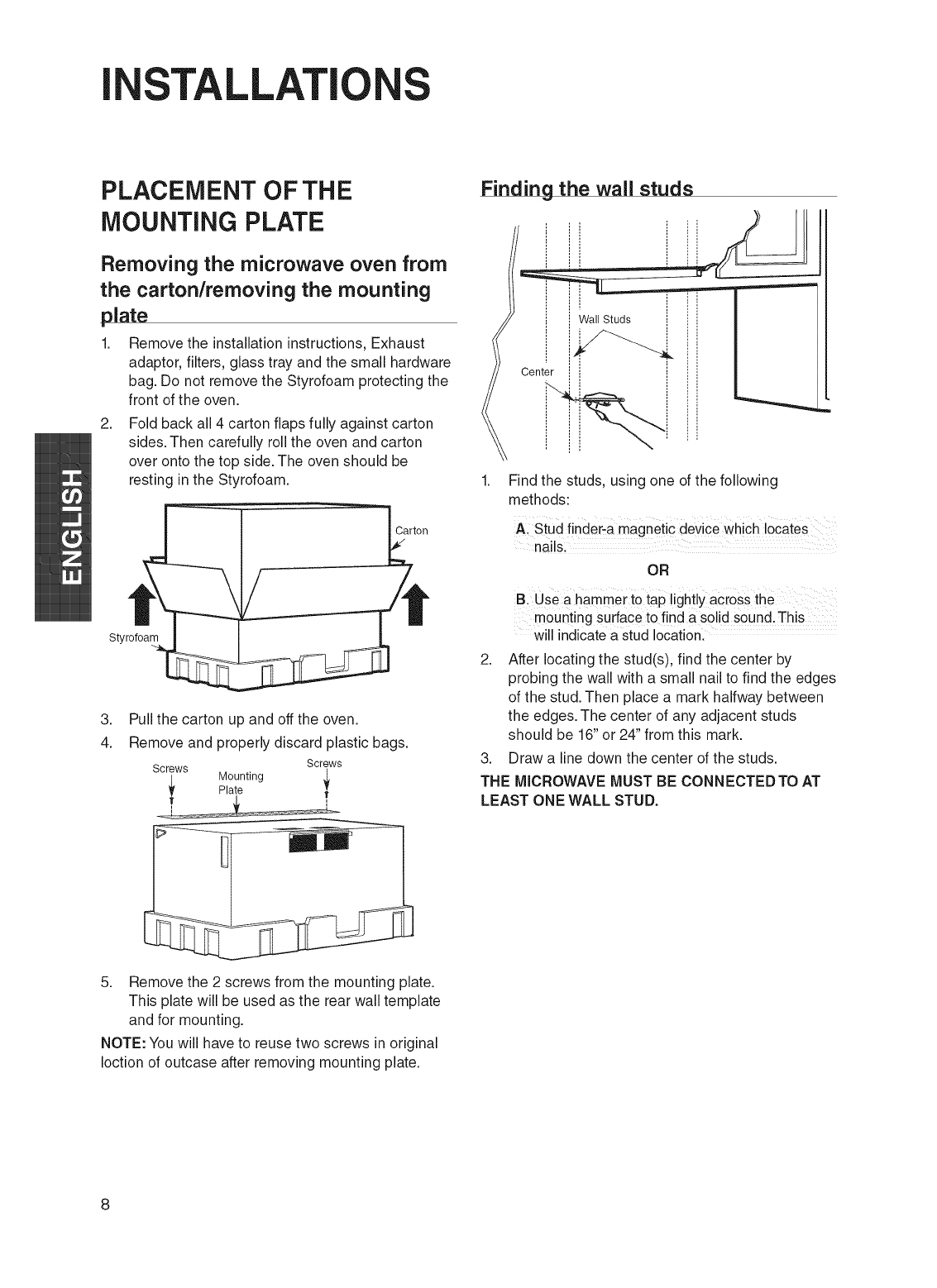

INSTALLATIONS
PLACEMENT OF THE
MOUNTING PLATE
Removing the microwave oven from
the carton/removing the mounting
plate
1. Remove the installation instructions, Exhaust
adaptor, filters, glass tray and the small hardware
bag. Do not remove the Styrofoam protecting the
front of the oven.
2. Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton
over onto the top side. The oven should be
resting in the Styrofoam.
Carton
a
A ft
Styrofoam
3. Pull the carton up and off the oven.
4. Remove and properly discard plastic bags.
Screws Screws
Mounting
Plate t
5. Remove the 2 screws from the mounting plate.
This plate will be used as the rear wall template
and for mounting.
NOTE: You will have to reuse two screws in original
loction of outcase after removing mounting plate.
—j ee
Wall Studs
5
Center
Te
1.
Find
the
studs,
using
one
of
the
following
methods:
A. Stud finder-a magnetic device which locates
nails.
OR
B..Use a hammer to tap lightly across the
mounting surface to find a solid sound. This
will indicate a stud location.
2. After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs
should be 16” or 24” from this mark.
3. Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO AT
LEAST ONE WALL STUD.

Plate position - beneath flat bottom cabinet
At least 30” ——.
Draw a vertical line on the wall at the center of the
30” wide space.
Tape the Rear Wall Template onto the wall matching
the centerline and touching the bottom of the cabinet.
Plate position - beneath framed recessed cabinet
bottom
& 30” to Cooktop
Draw a vertical line on the wall at the center of the
30” space.
Tape the Rear Wall Template onto the wall
matching the centerline and touching the bottom
cabinet frame.
ate]
Plate position — beneath recessed bottom cabinet
with front overhang
Draw a line on the back
=, wall equal to the depth
a of the front overhang.
a
30” to Cooktop
y
Your cabinets may have decorative trim that
interferes with the microwave installation. Remove
the decorative trim to install the microwave properly
and to make it level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
1. Measure the inside depth of the front overhang.
2. Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
3. For this type of installation with front overhang
only, align the mounting tabs with this horizontal
line, not touching the cabinet bottom as
described in Step D.

ENGLISH
Aligning the wall plate
il | \\
i
:
REAR WALL TEMPLATE
i
t
i
t
'
i
' Draw a Vertical Line on
Area A ; ‘
Centerline Wall from Center of Top
vofececeneed notches Sy |g — Cabine! ene ;
i
¥
(J Ig @ 0.0.6.0.060000 0000000600006 0!
jo O,0 © 6 0 9.9.9 0 0 G@ 0 0° ga 9 0 0 00 a,a-In g
A
soisstegessszse
v
\
Horizontal Line Area E Hole'C Hole B Horizontal Line
Draw a Horizontal line on wall from bottom
of “Rear Wall Template’
CAUTION: Wear gloves to avoid cutting fingers on sharp edges.
Draw a Vertical line on the wall at the center of the 30” wide space.
2. Draw a Horizontal line on the wall along the bottom of “Rear Wall Template?
3. Drill 5/8” holes for toggle bolts on 3 locations (Hole A, Hole B, Hole C) but if the location of hole is same as
that of stud, drill a 3/16” hole for wood screw. In other words, toggle bolt can not be used at the location of
stud.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
NOTE: Holes A, B and C are inside area E. If none of A, B and C is in a stud, find a stud somewhere in area E
and draw a forth circle to line up with the stud. It is important to use at least one wood screw mounted firmly
in a stud to support the weight of the microwave. Set the mounting plate aside.
10

INSTALLATION TYPES (CHOOSE A, B OR C)
This microwave oven is designed for adaptation to the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped after being assembled for “Recirculating? And exhaust adaptor is shipped
assembled to the filler-upper. Select the type of ventilation required for your installation and proceed to that
section.
A. RECIRCULATING (NON-VENTED DUCTLESS)
See page 12
ate]
B. OUTSIDE TOP EXHAUST (VERTICAL DUCT)
See page 14
C. OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)
See page 18
11

ENGLISH
A. RECIRCULATING (NON-VENTED DUCTLESS)
INSTALLATION OVERVIEW
Ai. Attach mounting plate to wall
A2. Prepare top cabinet
A3. Mount the microwave oven
A1. Attach the mounting plate to the
wall
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a
wail stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to 34” onto each bolt.
To use toggle bolts:
Spacing for Toggles More Than
Wall Thickness
cand
i
i Toggle Wings
Mounting ay Toggle
Plate Aa a Bolt
aa a
-—1\
ly co
“1 Bolt End
12
3. Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to line up bottom line of the
Mounting plate with Horizontal line of “Rear wall
Template’ and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.
A2. Use top cabinet template for
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
ae
* Read the instructions on the TOP CABINET
TEMPLATE.
* Tape it underneath the top cabinet.
* Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in
the cabinet bottom.

FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your wall cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet has a front overhang.
IMPORTANT: If filler blocks are not used, case
damage may occur from over tightening screws.
NOTE: When mounting the microwave oven,
thread power cord through hole in bottom of
top cabinet. Keep it tight throughout Steps
1-3. Do not pinch
cord or lift oven
by pulling cord.
1. Lift microwave,
tilt it forward, and
hook slots at back
bottom edge onto
four lower tabs of
mounting plate.
Y
2. Rotate front of oven
up against cabinet
bottom.
3. Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the
screw at least two full turns after the threads have
engaged. (It will be completely tightened later.) Be
sure to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush to
bottom of cabinet.
4. Attach the microwave oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
| / Filler Block
| Equivalent to
Depth of Cabinet
Recess
~@—— Self-Aligning Screw
FH,
CTI
Microwave Oven Top
§. Insert 2 self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw.
ate]
6. Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold the
microwave oven in place against the wall and the top
cabinet.)
:
7. Install grease filters. See the Owner's Manual packed
with the microwave.
13

ENGLISH

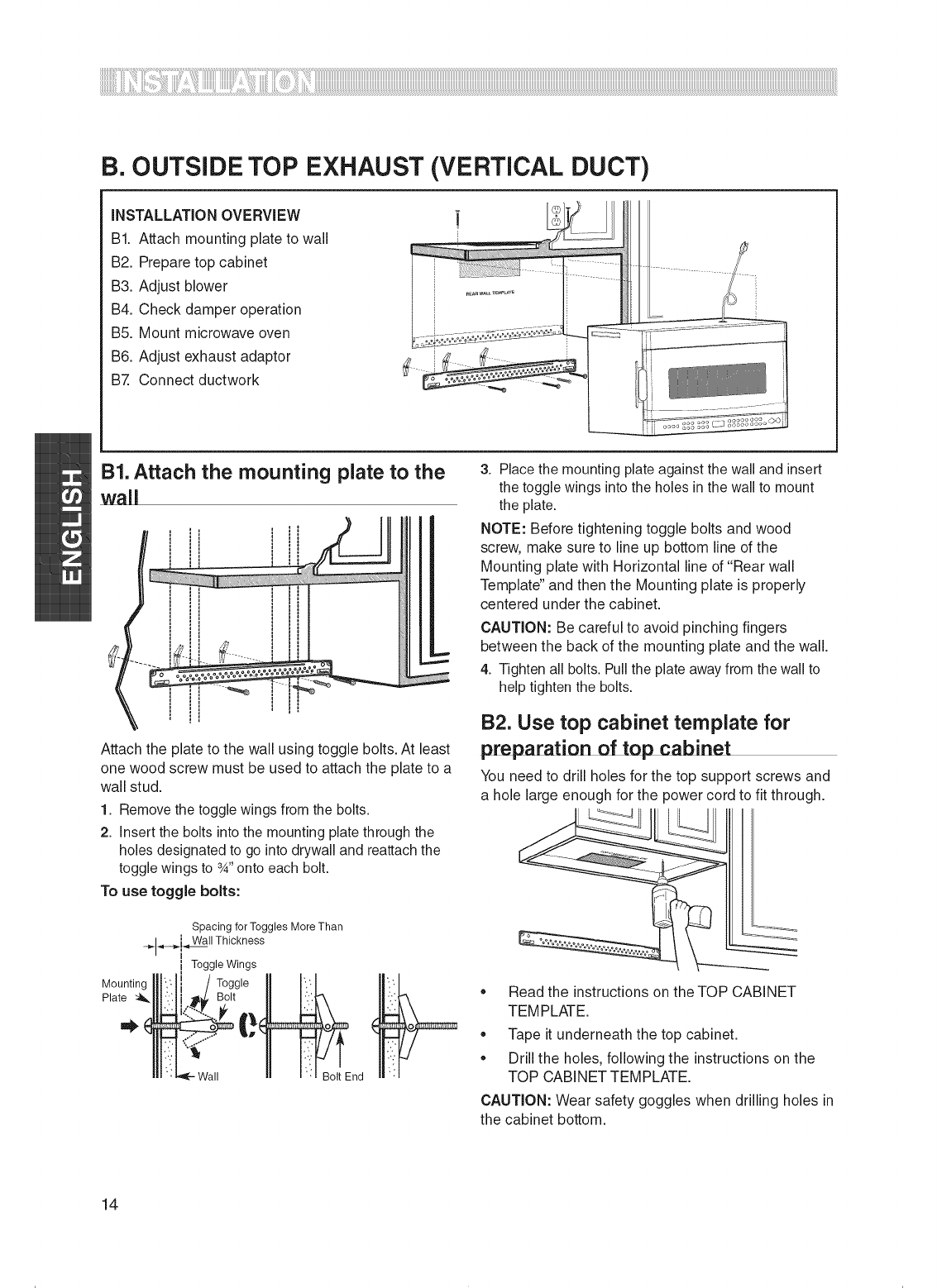

B. OUTSIDE TOP EXHAUST (VERTICAL DUCT)
INSTALLATION OVERVIEW
Bi. Attach mounting plate to wall
B2. Prepare top cabinet
B3. Adjust blower
B4. Check damper operation
B5. Mount microwave oven
Bé. Adjust exhaust adaptor
B7 Connect ductwork
B1. Attach the mounting plate to the
wall
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a
wail stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to 34” onto each bolt.
To use toggle bolts:
Spacing for Toggles More Than
Wall Thickness
i Toggle Wings
Mounting |: joa
Plate aay: ix Bolt
-—1\
ly co
“1 Bolt End
14
3. Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to line up bottom line of the
Mounting plate with Horizontal line of “Rear wall
Template’ and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.
B2. Use top cabinet template for
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
* Read the instructions on the TOP CABINET
TEMPLATE.
* Tape it underneath the top cabinet.
* Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in
the cabinet bottom.

B3. Adapting microwave blower for
outside topexhaust
4. Remove and save
screw that holds blower
plate to microwave.
Blower Plate =
Screw
2. Lift up the
blower plate.
‘o
eo,
a
Pe,
to,
a,
Fe, Fe,
2, fe
Back of
Microwave
3. Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the blower
unit.
CAUTION: Do not touch blade of blower to prevent
cracking and breaking. Hold outer case when the
blower is removed and re-installed.
4. Roll the blower unit 90° so that fan blade openings
are facing toward the top of the microwave.
BEFORE: Fan Blade
Openings Facing
Forward
AFTER: Fan Blade
Openings Facing
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
6. Lower the blower plate into original position and
secure blower unit to microwave with the screw.
ate]
B4. Installation procedure for
exhaust adaptor and proper damper
operationcheck
1. Remove and save screw from the panel-outer
Exhaust Adaptor and Damper is
shipped after being assembled to
the filler-upper.
2. Slide exhaust adaptor following the instructions show
in diagram.
3. Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
4. Lift damper and Re-screw at same location as (1).
« You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
15

ENGLISH

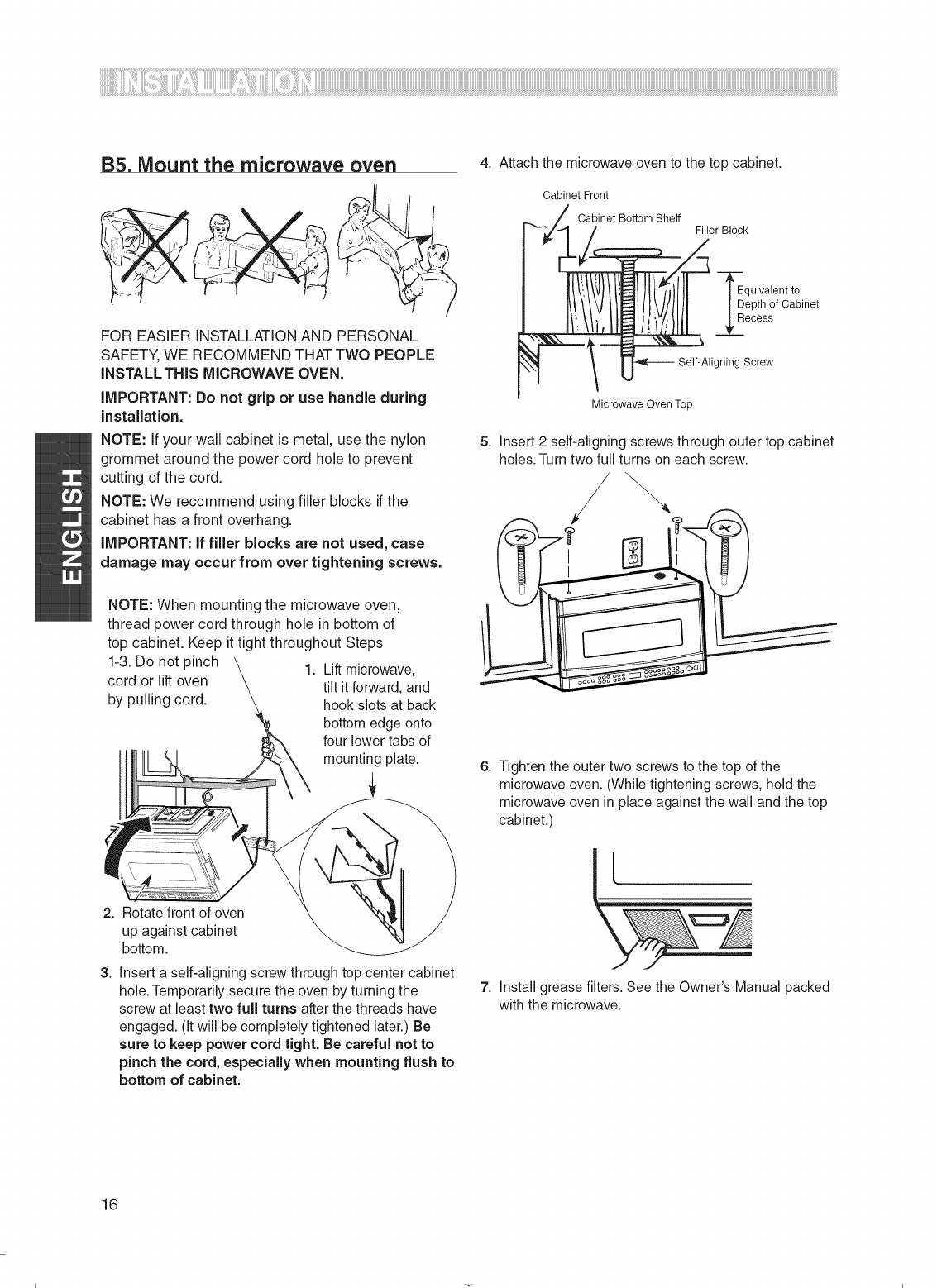

4. Attach the microwave oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
| / Filler Block
ant
Wa
Equivalent
to
| Depth of Cabinet
Recess
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
~@—— Self-Aligning Screw
CTI
FOR EASIER INSTALLATION AND PERSONAL
S \
IMPORTANT: Do not grip or use handle during Microwave Oven Top
installation.
NOTE: if your wall cabinet is metal, use the nylon 5. Insert 2 self-aligning screws through outer top cabinet
grommet around the power cord hole to prevent holes. Turn two full turns on each screw.
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet has a front overhang.
IMPORTANT: If filler blocks are not used, case
damage may occur from over tightening screws.
NOTE: When mounting the microwave oven,
thread power cord through hole in bottom of
top cabinet. Keep it tight throughout Steps
1-3.
Do
not
pinch
1.
Lift
microwave,
Be
cord
or
lift
oven
tilt
it
forward,
and
—_———L
neeSog
935
(8
by
pulling
cord.
hook
slots
at
back
bottom
edge
onto
four
lower
tabs
of
mounting
plate.
6.
Tighten
the
outer
two
screws
to
the
top
of
the
4
microwave
oven.
(While
tightening
screws,
hold
the
microwave
oven
in
place
against
the
wall
and
the
top
cabinet.)
: = . Cas
:
7. Install grease filters. See the Owner's Manual packed
with the microwave.
2. Rotate front of oven
up against cabinet
bottom.
3. Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the
screw at least two full turns after the threads have
engaged. (It will be completely tightened later.) Be
sure to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush to
bottom of cabinet.
16

Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Blower-Plate Damper Microwave
a
For Front-to-Back
Adjustment, Slide the
Exhaust Adaptor as
Needed
House Duct
eQo00
898,00
O00
9000 288 880 (77 66509000
4. Extend the house duct down to connect to the
exhaust adaptor.
2. Seal exhaust duct joints using duct tape.
17
ate]

ENGLISH
C. OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)
INSTALLATION OVERVIEW
C1. Prepare Rear Wall
C2. Attach Mounting Plate to Wall
C3. Prepare Top Cabinet
C4. Adjust Blower
C5. Mount the Microwave Oven
REAR WALL TEMPLATE
C1. Preparing the rear wall for
outside back exhaust =
You need to cut an opening in the rear wall for
outside exhaust.
* Read the instructions on the REAR WALL
TEMPLATE.
* ‘Tape it to the rear wall.
* Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
C2. Attach the mounting plate to the
wall
18
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a
wall stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to 34” onto each bolt.
To use toggle bolts:
Spacing for Toggles More Than
Wall Thickness
Toggle Wings
: Toggle ws
" Ay Bolt m
y y¥ dts.
-
N
t/
“oT Bolt End
Plate wa
“eet
3. Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to coincide bottom line of the
Mounting plate with Horizontal line of “Rear wall
Template” and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall to
help tighten the bolts.

C3. Use top cabinet template for
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
* Read the instructions on the TOP CABINET
TEMPLATE.
* ‘Tape it underneath the top cabinet.
* Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in
the cabinet bottom.
C4. Adapting microwave blower for
outside back exhaust =
4. Remove and save screw that holds blower Plate to
microwave.
Blower motor screw
2. Lift up the Blower Plate.
Blower motor
Back of
Microwave
Blower motor screw
3. Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the blower
unit.
BEFORE: Fan Blade Openings
Facing Forward
CAUTION: Do not touch blade of blower to prevent
cracking and breaking. Hold outer case when the
blower is removed and re-installed.
4. Remove “Parts ‘A’ with tin snips or pliers
Knockouts
Parts ‘A’
CAUTION: After removing Parts ‘A’ Surely remove the
cutting sharp edge for safety. And Please be careful not
to be injured by sharp edge when working.
5. Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
ate]
Back of Microwave
Back of Microwave
6. Place the blower unit back into the opening.
AFTER: Fan Blade Openings
Facing Back
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of microwave
oven.
7. Secure the blower unit to the microwave with the
screw.
E Blower-Plate
Back of
Microwave ————"
From the Mounting
Plate screw
19

ENGLISH
8. Attach the exhaust adaptor to the rear of the oven by
sliding it into the guides at the top center of the back
of the oven.
Adaptor
Back of
2
ay a Microwave
From Blower motor screw (after attached
the exhaust adaptor)
Push in securely until it is in the lower locking tabs.
Take care to assure that the damper hinge is installed
so that it is at the top and that the damper swings
freely.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your wall cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet has a front overhang.
IMPORTANT: If filler blocks are not used, case
damage may occur from over tightening screws.
20
NOTE: When mounting the microwave oven,
thread power cord through hole in bottom of
top cabinet. Keep it tight throughout Steps
1-3. Do not pinch
cord or lift oven
by pulling cord.
1. Lift microwave,
tilt it forward, and
hook slots at back
bottom edge onto
four lower tabs of
mounting plate.
2. Rotate front of oven
up against cabinet
bottom.
3. Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the
screw at least two full turns after the threads have
engaged. (It will be completely tightened later.) Be
sure to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush to
bottom of cabinet.
4. Attach the microwave oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf /
\ Filler Block
7
5
Equivalent
to
Ee Depth of Cabinet
= ; Recess
|
— c=
\ Self-Aligning Screw
Microwave Oven Top
