Kenmore 59671003100 User manual

E L ! T E®
Bottom-Mount Refrigerator
Use & Care Guide
Refrigerador con montaje inferior
Manual de uso y cuidado
R_frig_rateur & compartiment inf_rieur
Guide d'utilisation et d'entretien
\
Ili
¢1
I11
10937057 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 Au Canada, www.sears.ca

_lbRecognize this symbol as a safety precaution.
Electrical Requirements
IAWARNING I
To avoid electrical shock which can cause severe personal injury or death, do not cut or remove the round
grounding prong from the plug. Refrigerator must be grounded at all times. Do not remove warning tag from cord.
Do not use a two-prong adaptor. Do not use an extension cord.
Electrical Grounding Instructions --This refrigerator is equipped with a three-prong (grounding) plug
for protection against possible shock hazards. If you encounter a two-prong receptacle, contact a
qualified electrician and have the two-prong wall receptacle replaced with a properly grounded
three-prong wall receptacle inaccordance with the National Electrical Code.
Refrigerator is designed to operate on a separate 103 to 126 volt, 15 amp., 60 cycle line. i
DANGER
Proper Disposal of Your Refrigerator
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or
abandoned refrigerators are still dangerous--even if they will sit for "just a few days". If
you discard an old refrigerator, please follow the instructions below to help prevent
accidents.
BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR
FREEZER:
•Take offthe doors.
•Leave the shelves in place so children may not easily climb inside.
Warranty
Full One Year Warranty on Refrigerator
For one year from the date of purchase, when this refrigerator is operated and maintained according to
instructions attached to or furnished with it, Sears wilt repair it, free of charge, if defective in material or workmanship.
Full Five Year Warranty on Sealed Refrigeration System
For five years from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair the sealed system (consisting of refrigerator, connecting tubing and
compressor motor) free of charge, if defective in material or workmanship.
The above warranty coverage applies only to refrigerators which are used for storage of food for private household
purposes. Excludes original and replacement Kenmore Filtered Ice & Water filter cartriges and Kenmore Air Filtration
cartridges. Original and replacement cartridges are warranted for 30 days, parts only, against defects of material and
workmanship.
Warranty Service is available by contacting 1-800-4-MY-HOME (1-800-469-4663).
This warranty applies only while this product is in use in the United States.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Sears, Roebuck and Co, Dept 817WA, Hoffman Estates, IL 60179
Read and Save These Instructions
Record in the space provided below the model and serial numbers found on the serial plate located on the top left wall
of the refrigerator compartment.
Model Number: 596.
Serial Number:
Purchase Date:

Contents
Electrical Requirements ..................................................... 2
Proper Disposal of Your Refrigerator .................................. 2
Warranty ............................................................................. 2
Read and Save These Instructions .................................... 2
Space Requirements ......................................................... 3
Installation Instructions ....................................................... 3
To Remove Doors ....................................................... 3
To Reverse Doors ....................................................... 4
To Replace Doors ....................................................... 4
Connect Ice Maker Supply Line .................................. 4
Leveling Refrigerator .................................................. 5
Controls .............................................................................. 6
Refrigerator and Freezer Controls ............................... 6
Setting Controls .......................................................... 6
Refrigerator Features ......................................................... 6
Refrigerator Shelves ................................................... 6
Deli Center .................................................................. 7
Drawers ....................................................................... 7
Bottle Rack .................................................................. 7
Dairy Compartment ..................................................... 7
Door Buckets ............................................................... 7
Door Shelf ................................................................... 8
Water Filtration System ............................................... 8
Air Filtration Cartridge ................................................. 8
Freezer Features ................................................................ 9
Automatic Ice Maker .................................................... 9
Slideout Shelf .............................................................. 9
Vertical Shelf Divider ................................................... 9
Tilt-Out Bin .................................................................. 9
Care and Cleaning ........................................................... 10
General Cleaning ...................................................... 10
Stainless Steel Cleaning ........................................... 10
Adhesives ................................................................. 10
Door Gaskets ............................................................ 10
Condenser Coil ......................................................... 10
Glass Shelves ........................................................... 10
Odor Removal ........................................................... 10
Light Bulbs ................................................................ 11
Energy Tips ...................................................................... 11
Vacation Tips .................................................................... 11
Normal Operating Sounds ............................................... 12
Before Calling For Service ............................................... 13

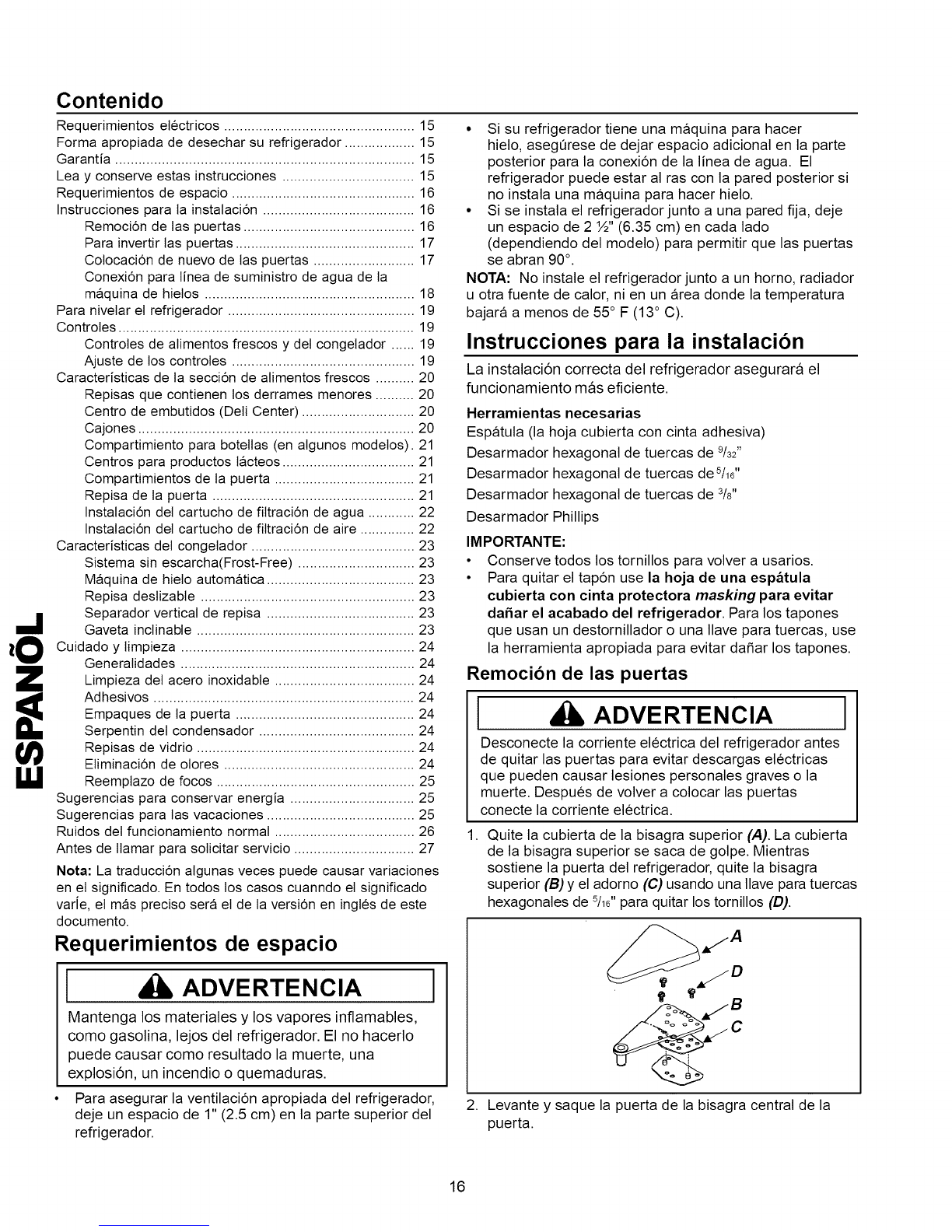

Espafiol ............................................................................ 15
Frangais ............................................................................ 29
Note: Translation may sometimes cause variations in mean-
ing. In all cases where meaning varies, the most accurate
meaning will be the English version of this document.
Space Requirements
IWARNING II
Keep flammable materialsand vapors,such as
gasoline,away from refrigerator.Failuretodo so can
resultindeath, explosion,fire,orburns.
To ensure proper ventilationforyour refrigerator,allow
fora I"(2.5cm) space at the top of your refrigerator.
Make sure you leave some extraspace at the back to
allowforthe water lineconnection.
3
NOTE: Do not install the refrigerator near an oven,
radiator, or other heat source. Do not install the
refrigerator in a location where the temperature will fall
below 55°F (13°C).
Installation Instructions
Proper installation will ensure that this refrigerator
operates most efficiently.
Tools Required
Putty knife (blade covered with masking tape)
5/le" hex nut driver
3/8" hex nut driver
9//32"hex nut driver
Phillips screwdriver
IMPORTANT:
• Save all screws for reuse.
• For plug removal use a putty knife blade covered with
masking tape to avoid damage to refrigerator finish.
For plugs using a screwdriver or nut driver style head,
use appropriate tool to avoid damage to plugs.
To Remove Doors
IWARNING I
.
To avoid electrical shock, which can cause severe
personal injury or death, disconnect power to
refrigerator before removing doors. After replacing
doors, connect power.
Remove top hinge cover(A). Top hinge cover snaps off.
While supporting refrigerator door, remove top hinge(B)
and shim(C) using _/16"hex nut driver to remove
screws (D). J .S;
t
2. Lift refrigerator door off center hinge.
IMPORTANT: To avoid damage to interior finish, remove
buckets and shelves from freezer and refrigerator door
before continuing door reversal. Lay door interior-side
down on carpet, or a table or floor protected with blankets
or towels.
3. While supporting freezer door, remove center hinge
pin(A) from center hinge bracket(B with 9/32"hex nut
driver. Remove and retain all round washer shims(C), if
present.
I'll

4. Remove freezer door by lifting door off bottom hinge.
• Models have an internal support rod(A) installed in
the hinge socket of door. Remove and retain for
later replacement.
5. Remove center hinge bracket(A) and shim(B) by
removing screws(C) using Phillips screwdriver.
A--_ ( *--B
6. Remove toe grille and bottom hinge cover. Both snap
7. Remove bottom hinge(A) and shim(B) with 3/8" hex nut
driver. Remove hinge pin(C). Remove and retain all
round washer shims(D), if present.
B
To Reverse Doors
If you wish to reverse doors on unit, call 1-800-4-MY-
HOME sm(1-800-469-4663), to schedule a service
appointment. This visit will be free of charge if
appointment is made within three months of purchase
date.
To Replace Doors
1. Replace bottom hinge and shims. Replace bottom
hinge pin in bottom hinge bracket in hole outside of
cabinet, along with all washer shims retained from
hinge removal.
2. Replace center hinge bracket, and shims.
3. Assemble top hinge, hinge shim(s), and positioning
shim together. Attach loosely to cabinet to allow for
door clearance.
4. Place freezer door on bottom hinge pin.
5. Replace center hinge pin with hex nut driver. Make
sure fit is tight. Replace round shims and door
closure.
6. Tighten down top hinge. Use a dime at top to space
door W16"(18 mm) from cabinet.
7. Handle side of door should be approximately Vs"
(3 mm) higher than hinge side. Door will become
level when it is loaded with food.
Note: If not proceeding with Connect Ice Maker Water
Supply Line, continue with section entitled
Leveling Refrigerator.
1/8" _,
(3 mm)----
1/16"
(18 mm)
Connect Ice Maker Supply Line
1WARNING
To avoid electricalshock which can cause severe
personal injuryor death,disconnect power to
refrigeratorbeforeconnecting water supply.After
connecting water supply,connect power.
CAUTION
Observe the following to avoid property damage:
• Verify that bypass cartridge has been removed and
replaced with water filter in water filter assembly.
• Make sure water pressure to water valve is
between 20 and 100 pounds per square inch.
• Tighten adapter fitting and nuts with pliers and
wrenches. Do not overtighten.
• Check for water leaks and correct if necessary
before returning refrigerator to normal location.
After 24 hours check again for leaks.
IMPORTANT
• Before connecting water supply, contact a plumber to
connect copper tubing to household plumbing in
compliance with local codes and ordinances.
•Do not use a piercing-type or 3/16"saddle valve!
Both reduce water flow, become clogged with time and
in addition, may cause leaks if repair is attempted. The
correct type of shut-off valve requires a ¼" hole to be
drilled in the water supply pipe before valve
attachment.
• Do not install copper tubing in area where temperatures
drop below 32°F (0°C).

Leveling Refrigerator
Materials Required Ii
¼" O.D. (6 mm) flexible copper tubing is required. Length
of copper tubing must reach from water supply
connection to water valve inlet port on back of
refrigerator, plus additional 8' (2 m) of tubing for a service
loop. A service loop will allow refrigerator to be pulled 1.
away from the wall without disconnecting tubing. 2.
Procedure 3.
1. Remove plastic cap(A) from water valve inlet port(B).
2. Place brass nut(A) and brass sleeve(B) on copper
tubing(C) (Brass nut and sleeve are found in your
literature packet). Insert copper tubing into water
valve inlet port(D). Connect brass nut(A) on copper
tubing(C) to water valve inlet port(D). Make sure
copper tubing is secure by pulling on copper tubing.
3. Create a service loop using extreme care to avoid
kinks. Secure copper tubing to refrigerator cabinet
with a "P" clamp(E). It is important to secure copper
tubing to refrigerator to avoid leaks when pushing
refrigerator back into opening.
.
CAUTION iI
Protect soft vinyl or other flooring with cardboard, rugs
or other protective material to avoid property damage.
Plug in power cord.
Move refrigerator into final location.
Level refrigerator using a level placed on top of the
refrigerator.
•Remove toe grille(A). Remove bottom hinge
cover(B).
• Turn roller adjustment screws(C) to the right to
raise cabinet, or to the left to lower cabinet. Front
of refrigerator must be ¼" (6 mm), or ½ bubble
on your level, higher than the back of your
refrigerator.
• Make sure refrigerator cabinet is level from side
to side by adjusting left and right roller
adjustment screw.
• Turn stabilizing leg(D) clockwise until firmly
against floor.
Replace toe grille(A) and bottom hinge cover(B). See
markings on inside of toe grille to insure proper
placement.
•Snap top portion into place first. Press down
on lower part of grille until bottom portion snaps
into place.
ABD
4. Turn on water supply to refrigerator and check for
leaks. Correct any leaks at connection. Be careful not
to overtighten connection.
I11
5

Controls
This refrigerator is designed to operate at normal
household temperatures of 55° to 110°F (13 ° to 43°C).
Refrigerator and Freezer Controls
Refrigerator control is located on upper rear wall of
refrigerator section.
3 5
Freezer control is located on left front ceiling of freezer
section.
cold
Freezer Control
4 _ coldest
IIII
Setting Controls
When freezer control is set to OFF, neither refrigerator nor
freezer sections will cool. Initially, set both controls to 4.
Wait 24 hours for refrigerator and freezer sections to
stabilize temperatures. After 24 hours, adjust controls,
one number at a time, as desired. 1 is warmest setting
and 7 is coldest.
Set controls precisely using a household thermometer
with a temperature range between -5°to 50°F
(-21° to 10°C).
Put thermometer snugly between frozen packages in
freezer section. Wait 5-8 hours. If freezer temperature is
not 0° to 2°F (-17° to -16°C), adjust freezer control 1
number at a time. Check again after 5-8 hours.
Put thermometer in aglass of water in middle of
refrigerator section. Wait 5-8 hours. If refrigerator
temperature is not 38° to 40°F (3° to 4°C), adjust
refrigerator control 1 number at a time. Check again after
5-8 hours.
Refrigerator Features
Refrigerator Shelves
Shelves adjust to meet individual storage needs. Models
feature spillproof shelves and slide out shelves. Spillproof
shelves hold minor spills for easier cleaning.
CAUTION I
Make sureshelfissecurebeforereplacingitemson
shelf to avoid property damage.
CAUTION
Handle tempered glass shelves carefully to avoid
personal injury or property damage. Shelves may
break suddenly if nicked, scratched, or exposed to
sudden temperature change.
• Remove shelves(A)by lifting up shelf front, releasing
hooks(B)from metal track(C), then pulling out.
• Replace shelves by inserting hooks(B)into metal
track(C) and lowering front of shelf.
A\C
B
Slide out shelves pull forward for easy access of items in
back.

Deli Center
The Deli Center provides space saving storage
underneath spillproofshelf and pulls forward for easy
access.
• Remove drawer by pulling forward until drawer stops.
Push tabs(A) on sides of drawer in and pull drawer
forward.
• Replace drawer by inserting drawer into track and
sliding back.
Drawers
Humidity Controlled Crisper Drawer
The right drawer is humidity controlled. This drawer keeps
produce fresh longer. Wrap produce tightly. Do not wash
produce before placing in drawer. Excess moisture could
cause produce to spoil prematurely. Do not line drawer
with paper towels. Paper towels will retain moisture.
Humidity control is located below front shelf trim. Control
adjusts humidity in drawer. Slide control to right for
produce with leaves such as lettuce, spinach or cabbage.
Slide control to left for produce with skins such as
cauliflower, corn or tomatoes.
Temperature Controlled Drawer
The left drawer is temperature controlled. This drawer
keeps food fresh longer and up to 5°F (3°C) colder than
refrigerator temperature. Use this drawer for deli storage
or additional produce storage.
Temperature control is located below front shelf trim.
Control adjusts amount of air circulating around drawer.
Slide control left for normal refrigerator temperature and
right for colder temperature. Ice crystals may form on
drawer or food on coldest setting. Cold air can decrease
refrigerator temperature. Refrigerator control may need to
be adjusted.
Remove shelf and drawers by completing the following
steps.
1. Open left* drawer.
*For doors hinged on left, open right drawer.
CAUTION
To avoid personal injury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change.
2. Remove glass crisper top by gently pushing up from
underneath. Tilt one end up then pull out.
3. Remove left* drawer by lifting front while supporting
underneath then pulling out.
*For doors hinged on left, remove right drawer.
4. Remove support post at recess in bottom center of
refrigerator section by lifting.
5. Remove other drawer by sliding to opposite wall. Lift
front while supporting underneath then pull out.
6. Replace drawers and shelf by reversing steps 1-5.
Bottle Rack
Bottle rack(A) provides convenient storage for a large
bottle, eggs, etc.
A
Dairy Compartment
Dairy compartment provide convenient storage for items
such as butter, cheese, etc.
• Remove dairy compartment by lifting door(A), pushing
tabs(B) toward center and pulling out.
• Replace dairy compartment by sliding in until tabs(B)
lock into place and lowering door.
• I
B
Door Buckets
Door buckets adjust to meet individual storage needs.
• Remove door buckets by pushing tabs(A) toward
center and pulling out.
• Replace door buckets by sliding in until tabs(A)lock
into place.
7

Door Shelf
•Remove door shelf by lifting ends and pulling out.
• Replace door shelf by placing shelf on glides(A) and
sliding down.
Water Filtration System
Bypass cartridge must be removed before
connecting water to unit.
Remove bypass cartridge from water filter head in rear
right corner of refrigerator section. Twist cartridge left
1¼turn and pull down to remove. Save bypass for use
at a later date.
See Water Filtration System Installation and Operation
Instructions provided with water filter cartridge for filter
installation and operation.
Air Filtration Cartridge
Cartridge should be replaced every three months. Strong
food odors (i.e. unwrapped onions, garlic, etc.) will
shorten life of cartridge.
1. Locate air filtration assembly at air return of
refrigeration cabinet. Filter holder(A)is attached to
cabinet by Velcro ®strip. Pull holder off cabinet wall.
2. Insert filter by sliding into grooves(B).
\

Freezer Features
Frost-Free System
The refrigerator and freezer sections are completely frost-
free. Defrosting is automatic under normal conditions.
Refrigerator and freezer sections never have to be
defrosted.
Automatic Ice Maker
•Make sure ice bucket is in place and ice maker arm(A)
is down(B).
%
• After freezer section reaches normal temperature, the
ice maker fills with water and begins operating. Allow
24-48 hours after installation before first harvest of ice.
Ice maker produces 7 to 9 harvests of ice in a 24-hour
period under ideal conditions.
• After ice is formed, ice maker drops ice cubes into ice
storage bucket. During ice production, ice maker arm
raises and lowers. When ice storage bucket is full, ice
maker arm(A) turns ice maker off(C).
Note: Discard first 3 harvests of ice so any impurities left
in the water line after installation are not consumed.
If you wish to stop automatic ice production lift ice
maker arm(A). A definite click is heard when proper
position is reached. Ice maker arm will remain in that
position until pushed down.
CAUTION
Make sure shelf is secure before placing items on
shelf to avoid property damage.
Slideout Shelf
Slide out shelf pulls forward for easy access to items in
back.
• Remove slideout shelf by sliding forward until ball
point(A) beneath center rail (B) catches in molding
groove.
• Grasp shelf by center rail(B), pull up, and remove.
• Slide in until ball point(A)falls into molding groove.
B
Vertical Shelf Divider
Install vertical shelf divider by completing the following
steps:
1. Slide prongs of shelf divider beneath desired grill
work, slightly off-center from center rail.
2. Press top of divider down and slide hook assembly
beneath center rail.
To remove divider:
• Press top of divider down and slide hook out from
under center rail.
• Pull back on divider to release prongs from grill work.
2
Tilt-Out Bin
The tilt-out bin provides convenient storage for frozen
food items in freezer door and tilts forward for easy
access of those items.
9

e}
Care and Cleaning
I
uJ
WARNING I
Disconnect power to refrigerator before cleaning to
avoid electrical shock which can cause severe
personal injury or death. After cleaning, restore power.
CAUTION
Read and follow all manufacturer's cleaning directions
to avoid personal injury or property damage.
General Cleaning
See section on Stainless Steel Cleaning if doors are
stainless steel.
1. Wash surfaces with 4 tablespoons baking soda
dissolved in 1 quart warm water and a soft, clean
cloth.
• To clean Velcro ® strips, use warm soapy water and
a soft clean cloth or brush.
Rinse surfaces with warm water. Dry surfaces with a
soft, clean cloth.
• Do not use the following items:
abrasive or harsh cleaners, ammonia,
chlorine bleach, etc.
concentrated detergents or solvents
metal scouring pads
These items can scratch, crack and discolor
surfaces.
• Do not place buckets, shelves, etc. in dishwasher.
Stainless Steel Cleaning
Damage to stainless steel finish due to improper use
of cleaning products, or using non-recommended
cleaning products, is not covered under warranty,
1. Wash surfaces with warm soapy water and a soft,
clean cloth or sponge.
2. Rinse surfaces with warm water. Dry surfaces with a
soft, clean cloth.
• Do not use the following harsh cleaners:
abrasive or acidic cleaners (ammonia, chlorine
bleach, vinegar-based product, etc.
citrus-based cleaners
scouring pads (metal, textured plastic, etc.)
These items can scratch, discolor, or permanently
tarnish surfaces.
3. Follow up rinsing by immediately drying with a soft,
clean cloth. This will avoid water spotting on
stainless steel finish.
Adhesives
1. Remove adhesive residue from refrigerator surfaces
by rubbing toothpaste into adhesive with fingers until
adhesive loosens.
2. Rinse surface with warm water. Dry surface with a
soft, clean cloth.
Door Gaskets
1. Clean door gaskets every 3 months according to
General Cleaning instructions. Clean any spills
immediately.
Condenser Coil
Clean condenser coil behind toe grille every 3 months to
ensure maximum performance of refrigerator.
Accumulated dust and lint may cause the following:
• reduced cooling performance
• increased energy usage
• premature part failure
1. Remove toe grille by holding ends and pulling away
from refrigerator.
2. Clean front surface of condenser coil with a vacuum
cleaner hose nozzle.
3. Replace toe grille by inserting clips in holes and
snapping in.
4. Raise stabilizing legs by turning counterclockwise.
Glass Shelves
CAUTION J
Handle tempered glass shelves carefullyto avoid
personal injuryor propertydamage. Shelves may
break suddenly ifnicked,scratched,or exposed to
sudden temperature change.
Remove shelf by lifting front, releasing hooks from metal
track then pulling out. Place shelf on a towel. Allow shelf
to adjust to room temperature before cleaning.
Clean crevices by completing the following:
1. Dilute mild detergent and brush solution into crevices
using a plastic bristle brush. Let sit for 5 minutes.
2. Spray warm water into crevices using faucet spray
attachment.
3. Dry shelf thoroughly and replace shelf by inserting
hooks into metal track and lowering it from the front.
Odor Removal
1. Remove all food and disconnect power to refrigerator.
2. Clean all interior surfaces including ceiling, floor, and
walls according to General Cleaning instructions. Pay
special attention to corners, crevices, and grooves.
Include all drawers, shelves, and gaskets.
3. Connect power to refrigerator and return food to
refrigerator. Wash and dry all containers. Wrap foods
in tightly sealed containers to prevent further odor.
After 24 hours, check if odor has been eliminated.
Complete steps 4-9 if odor has not been eliminated.
4. Place crispers on top shelf of refrigerator section.
Pack refrigerator and freezer sections, including
doors, with crumpled sheets of newspaper.
5. Place charcoal briquettes randomly throughout
newspaper.
6. Close doors and let stand 24-48 hours.
7. Remove charcoal briquettes and newspapers.
8. Complete steps 2-3.
If odor is still not eliminated, contact a Sears Service
Center.
10
