Kenmore 596.72282200 User manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
ENGLISH FRANÇAIS ESPAÑOL
Part No. 12642729
Form A/04/03
www.sears.com
Au Canada, www.sears.ca
Bottom Freezer Refrigerator
Use & Care Guide
Refrigerador con montaje inferior
Manual de uso y cuidado
Réfrigérateur à compartiment inférieur
Guide d’utilisation et d’entretien
Models:
596.72282200, 596.72283200, 596.72284200, 596.72289200,
596.72282201, 596.72283201, 596.72284201, 596.72289201,
596.72282202, 596.72283202, 596.72284202, 596.72289202

2
Important safety information
What you need to know
about safety
instructions
Warning and Important Safety
Instructions appearing in this manual are
not meant to cover all possible
conditions and situations that may occur.
Common sense, caution, and care must
be exercised when installing,
maintaining, or operating refrigerator.
Always contact your dealer, distributor,
service agent, or manufacturer about
problems or conditions you do not
understand.
Save these instructions
DANGER – Immediate hazards
which WILL result in severe personal
injury or death.
DANGER
WARNING – Hazards or unsafe
practices which COULD result in
severe personal injury or death.
WARNING
CAUTION – Hazards or unsafe
practices which COULD result in
minor personal injury.
CAUTION
To reduce risk of fire, electric shock, serious injury or death when using your refrigerator, follow these basic
precautions, including the following:
WARNING
To reduce risk of injury or death,
follow basic precautions, including
the following:
IMPORTANT: Child entrapment and
suffocation are not problems of the
past. Junked or abandoned
refrigerators are still dangerous –
even if they sit out for “just a few
days.” If you are getting rid of your
old refrigerator, please follow the
instructions below to help prevent
accidents.
Before you throw away your old
refrigerator or freezer:
➢Take off the doors.
➢Leave the shelves in
place so children
may not easily climb
inside.
DANGER
RECOGNIZE SAFETY
SYMBOLS, WORDS,
LABELS
1. Read all instructions before using the refrigerator.
2. Observe all local codes and ordinances.
3. Be sure to follow grounding instructions.
4. Check with a qualified electrician if you are not sure this
appliance is properly grounded.
5. DO NOT ground to a gas line.
6. DO NOT ground to a cold-water pipe.
7. Refrigerator is designed to operate on a separate 103 to
126 volt, 15 amp., 60 cycle line. DO NOT modify plug on
power cord. If plug does not fit electrical outlet, have
proper outlet installed by a qualified electrician.
8. DO NOT use a two-prong adapter, extension cord or
power strip.
9. DO NOT remove warning tag from power cord.
10. DO NOT tamper with refrigerator controls.
11. DO NOT service or replace any part of refrigerator unless
specifically recommended in Use & Care or published
user-repair instructions. DO NOT attempt service if
instructions are not understood or if they are beyond
personal skill level.
12. Always disconnect refrigerator from electrical supply
before attempting any service. Disconnect power cord by
grasping the plug, not the cord.
13. Install refrigerator according to Installation Instructions. All
connections for water, electrical power and grounding
must comply with local codes and be made by licensed
personnel when required.
14. Keep your refrigerator in good condition. Bumping or
dropping refrigerator can damage unit or cause unit to
malfunction or leak. If damage occurs, have refrigerator
checked by qualified service technician.
15. Replace worn power cords and/or loose plugs.
16. Always read and follow manufacturer’s storage and ideal
environment instructions for items being stored in
refrigerator.

ENGLISH FRANÇAIS ESPAÑOL
3
Protection agreements
Master protection
agreements
IN THE U.S.A.
Congratulations on making a smart
purchase. Your new Kenmore®
appliance is designed and manufactured
for years of dependable operation. But
like all products, it may require
preventive maintenance or repair from
time to time. That is when having a
Master Protection Agreement can save
you money and aggravation.
Purchase a Master Protection
Agreement now and protect yourself
from unexpected hassle and expense.
The Master Protection Agreement also
helps extend the life of your new
appliance. Here is what is included in
the agreement:
➢Expert service by our 12,000
professional repair specialists.
➢Unlimited service and no charge for
parts and labor on all covered
repairs.
➢“No-lemon” guarantee – replacement
of your covered product if more than
three product failures occur within
twelve months.
➢Product replacement if your covered
product cannot be fixed.
➢Annual Preventive Maintenance
Check at your request – no extra
charge.
➢Fast help by phone – non-technical
and instructional assistance on
products repaired in your home, plus
convenient repair scheduling.
➢Power surge protection against
electrical damage due to power
fluctuations.
➢Rental reimbursement if repair of
your covered product takes longer
than promised.
Once you purchase the Agreement, a
simple phone call is all that it takes for
you to schedule service. You can call
anytime day or night, or schedule a
service appointment online.
Sears has over 12,000 professional
repair specialists, who have access to
over 4.5 million quality parts and
accessories. That is the kind of
professionalism you can count on to
help prolong the life of your new
purchase for years to come. Purchase
your Master Protection Agreement
today!
Some limitations and exclusions apply.
For prices and additional information,
call 1-800-827-6655.
Sears Installation Service
For Sears guaranteed professional
installation of home appliances and
items like garage door openers and
water heaters, in the U.S.A. call
1-800-MY-HOME®.
Maintenance agreements
IN CANADA
Your purchase has added value because
you can depend on Sears HomeCentral®
for service. With over 2,400 service
technicians and access to over 900,000
parts and accessories, we have the
tools, parts, knowledge and skills to
ensure our pledge: We Service What
We Sell.
Your Kenmore®appliance is designed,
manufactured and tested to provide
years of dependable operation. Yet any
major appliance may require service
from time to time. The Sears
Maintenance Agreement offers you an
outstanding service program, affordably
priced.
Sears Maintenance Agreement
➢Is your way to buy tomorrow’s service
at today’s price.
➢Eliminates repair bills resulting from
normal wear and tear.
➢Provides for non-technical and
instructional assistance.
➢Even if you don’t need repairs,
provides an annual Preventive
Maintenance Check, at your request,
to ensure that your appliance is in
proper running condition.
Some limitations apply. For information
concerning Sears Canada Maintenance
Agreements, call 1-800-361-6665.

4
Warranty
Full One Year Warranty on
Refrigerator
For one year from the date of purchase,
when this refrigerator is operated and
maintained according to instructions
attached to or furnished with it, Sears
will repair it, free of charge, if defective
in material or workmanship.
Full Five Year Warranty on Sealed
Refrigeration System
For five years from the date of purchase,
when this refrigerator is operated and
maintained according to instructions
attached to or furnished with it, Sears
will repair the sealed system (consisting
of refrigerant, connecting tubing and
compressor motor) free of charge, if
defective in material or workmanship.
The above warranty coverage applies
only to refrigerators which are used for
storage of food for private household
purposes. It excludes original and
replacement Kenmore ice & water filter
cartridges. Original and replacement
cartridges are warranted for 30 days,
parts only, against defects in material or
workmanship.
Warranty service is available by
contacting 1-800-4-MY-HOME®
(1-800-469-4663).
This warranty applies only while this
product is in use in the United States
and Canada.
This warranty gives you specific legal
rights, and you may also have other
rights, which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179
NOTE: Some Reverse Osmosis home
water systems cause low water
pressure. Low water pressure can affect
the water and ice dispensing system by
causing small or hollow ice cubes and
slow water flow from the dispenser.
Service problems related to the home’s
Reverse Osmosis water system are not
covered by the warranty.
Product record
In the space below record the model
and serial numbers and purchase date
of your refrigerator. You will find the
model and serial number sticker inside
the refrigerator section on the left wall.
Model Number: 596. _______________
Serial Number: ____________________
Purchase Date: ____________________
Keep this booklet and your Sears
sales receipt in a safe place for future
reference.

ENGLISH FRANÇAIS ESPAÑOL
5
Contents
Important Safety Information ......................................................................................2
What You Need to Know About Safety Instructions...................................................2
Protection Agreements ................................................................................................3
Master Protection Agreements – U.S.A. ....................................................................3
Maintenance Agreements – Canada .........................................................................3
Warranty ........................................................................................................................4
Product Record.............................................................................................................4
Installing Your Refrigerator ....................................................................................6-11
Measuring the Opening .............................................................................................6
Transporting Your Refrigerator...................................................................................6
Selecting the Best Location .......................................................................................6
Removing and Replacing Handles ............................................................................6

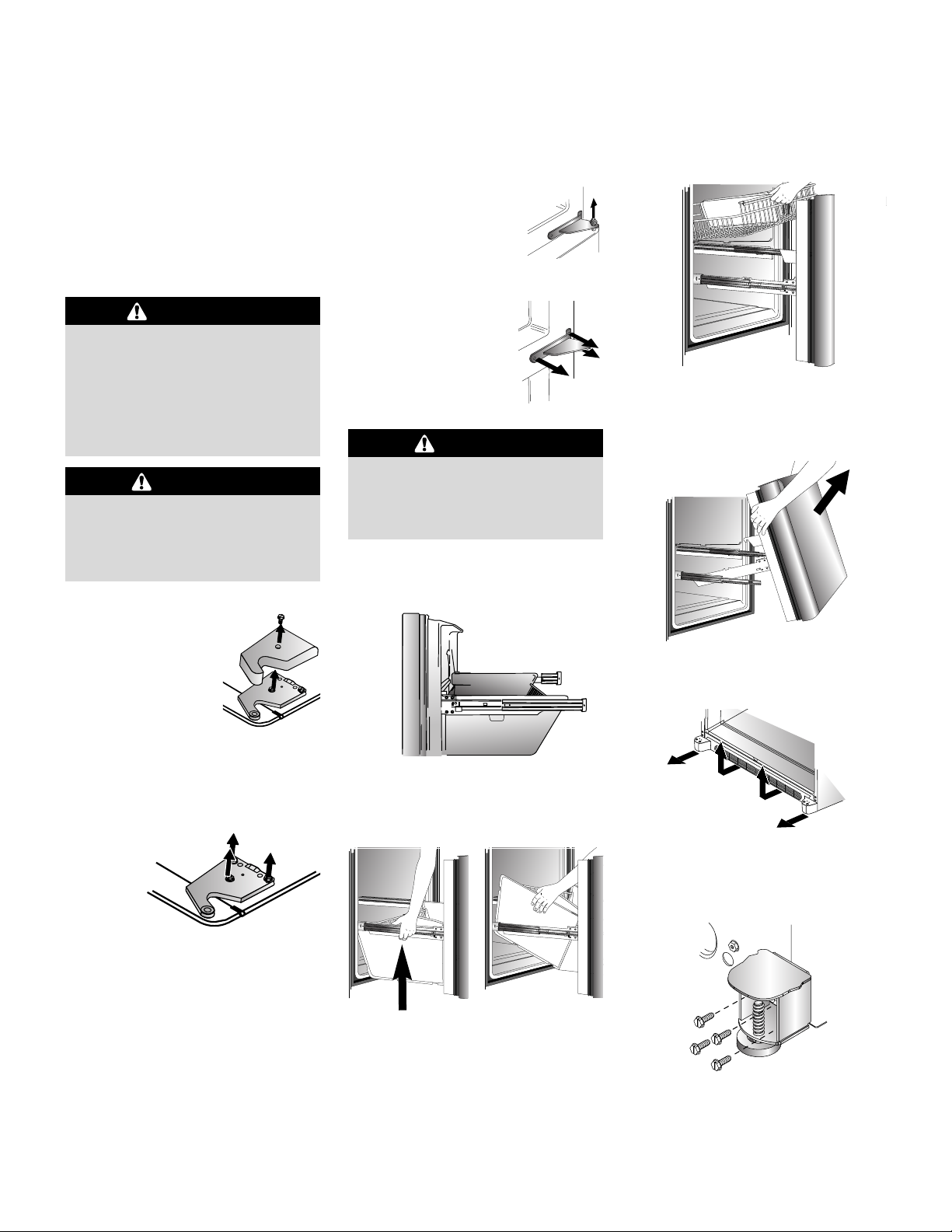

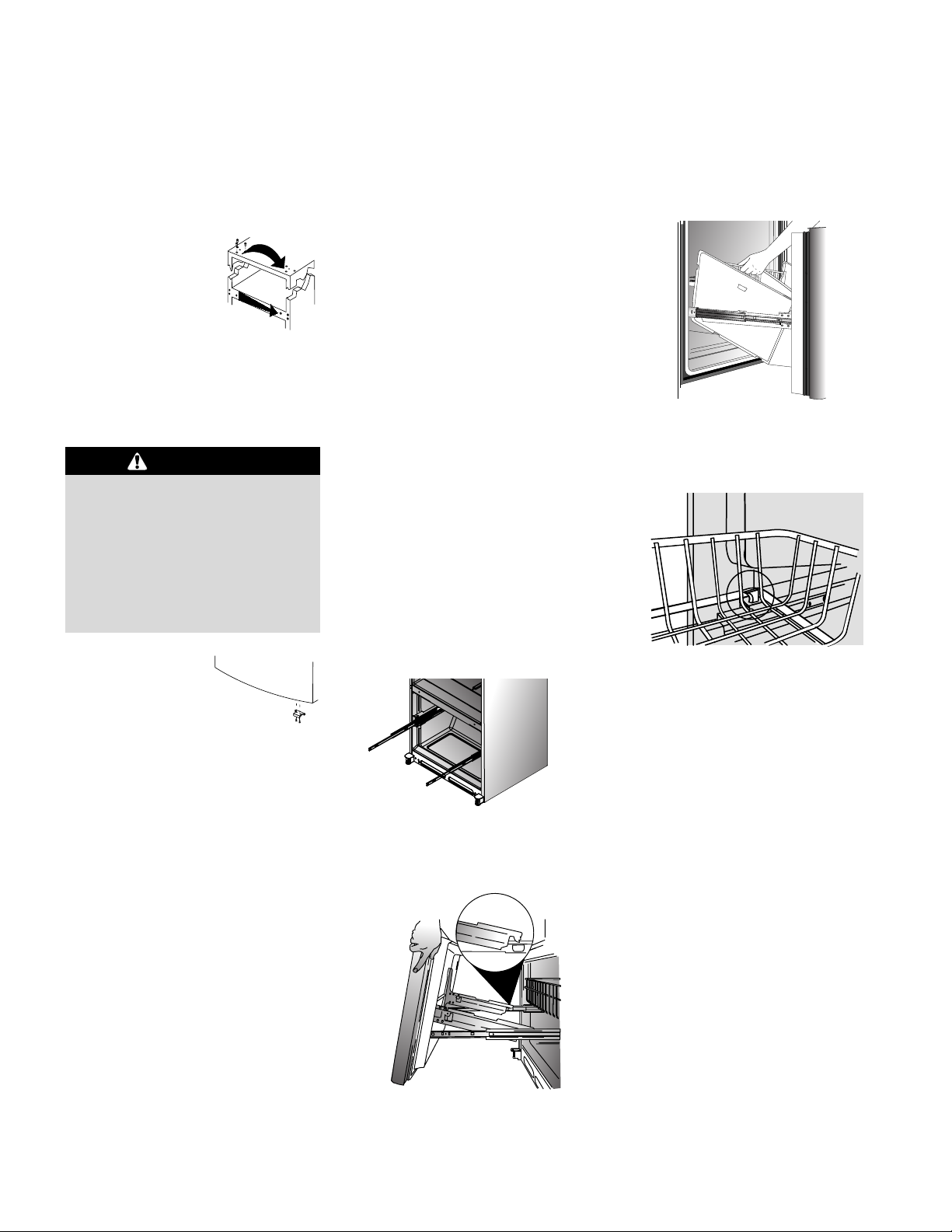

How to Remove the Hinges, Door and Drawer .........................................................7
How to Reverse the Door ..........................................................................................8
How to Replace the Hinges, Door and Drawer .........................................................8
How to Connect the Water Supply.............................................................................9
How to Level Your Refrigerator................................................................................10
Setting and Maintaining Proper Temperatures........................................................11
Initial Control Settings ..............................................................................................11
Adjusting the Controls ..............................................................................................11
Fresh Food Storage .................................................................................................11
Frozen Food Storage ...............................................................................................11

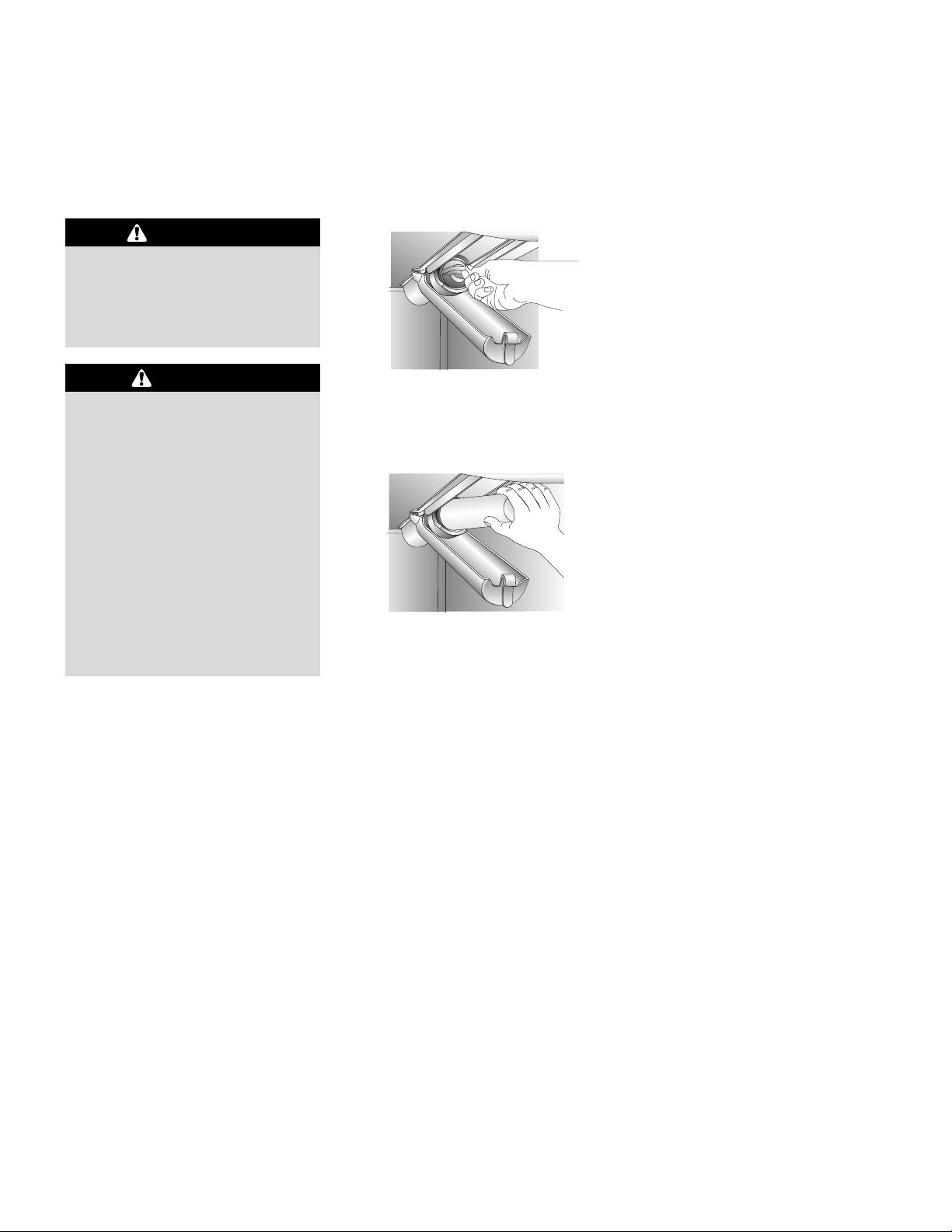

About Your Water Filter ........................................................................................12-13
Water Filter Installation and Removal......................................................................12
Water Filter Data......................................................................................................13
Fresh Food Features.............................................................................................14-15
Water Dispenser ......................................................................................................14
Interior Shelves ........................................................................................................14
Door Storage............................................................................................................14
Climate-Controlled Drawers.....................................................................................15
Freezer Features.........................................................................................................16
Automatic Ice Maker ................................................................................................16
Drawers....................................................................................................................16
Hints and Care.......................................................................................................17-18
How to Clean Your Refrigerator...............................................................................17
How to Remove Odors from Refrigerator ................................................................18
Energy Saving Ideas................................................................................................18
How to Remove and Replace Light Bulbs...............................................................18
Normal Operating Sounds.........................................................................................19
Troubleshooting ....................................................................................................20-21
Operation ............................................................................................................20-21
Ice and Water...........................................................................................................21
Français.......................................................................................................................23
Español........................................................................................................................44
Service ..........................................................................................................Back Cover

6
Installing your refrigerator
These instructions were provided to aid
you in the installation of your
refrigerator.
Measuring the opening
Aone-half inch (1⁄2") of air space must be
provided for the top and the back of the
refrigerator. When installing your
refrigerator, measure carefully.
Subflooring or floor coverings (i.e.
carpet, tile, wood floors, rugs) may make
your opening smaller than anticipated.
Some clearance may be gained by
using the leveling procedure under
How to Level Your Refrigerator
(page 10).
IMPORTANT: If refrigerator is to be
installed into a recess where top of
refrigerator is completely covered, use
dimensions from floor to top of hinge
cap to verify proper clearance.
Transporting your
refrigerator
Follow these tips when moving the
refrigerator to final location:
➢NEVER transport refrigerator on its
side. If an upright position is not
possible, lay refrigerator on its back.
Allow refrigerator to sit upright for
approximately 30 minutes prior to
plugging refrigerator in to assure oil
returns to the compressor. Plugging
refrigerator in immediately may cause
damage to internal parts.
➢Use an appliance dolly when moving
refrigerator. ALWAYS truck
refrigerator from its side or
back–NEVER from its front.
➢Protect outside finish of refrigerator
during transport by wrapping cabinet
in blankets or inserting padding
between the refrigerator and dolly.
➢Secure refrigerator to dolly firmly with
straps or bungee cords. Thread
straps through handles when
possible. DO NOT overtighten. Over-
tightening restraints may dent or
damage outside finish.
Selecting the best
location
Observe these points when choosing the
final location for your refrigerator:
➢DO NOT install refrigerator near
oven, radiator or other heat source. If
not possible, shield refrigerator with
cabinet material.
➢DO NOT install where temperature
falls below 55° F (13° C). Malfunction
may occur at this temperature.
➢To assure proper door closure, follow
the leveling instructions in the
section, How to Level Your
Refrigerator (page 10).
Removing and replacing
handles
1. Remove top and bottom door trim by
removing 4 screws*. Lift handle
corner of trim and slide toward hinge
edge of door.
➢Retain all screws for later use.
2. Remove handle by removing 2
screws* from top and bottom edge of
handle.
➢Retain all screws for later use.
Removing Freezer Handle
1. Remove handle by removing 3
screws* from handle.
➢Retain all screws for later use.
Replacing Fresh Food Handle
1. Install handle by fastening with
screws* from previous removal.
2. Install top and bottom door trim.
➢Locate hinge hole corner of trim.
Install hinge hole corner of trim,
then install handle edge of trim.
Replacing Freezer Handle
1. Install handle by fastening with
screws* from previous removal.
*Fasteners may require either a T-15 Torx®driver or a Phillips screwdriver.
Torx®is a registered trademark of Textron Inc.
To avoid possible injury and damage
to property:
➢DO NOT remove secondary cap
when removing door trim.
➢Place doors on nonabrasive
surface protected by towels or
rugs while working directly on
door.
CAUTION
Removing Fresh Food Handle
NOTE: These instructions are best
followed with the fresh food door
removed. See How to Remove the
Hinges, Door and Drawer for
instructions.

ENGLISH ESPAÑOL FRANÇAIS
7
To avoid electrical shock, which can
cause severe personal injury or
death, observe the following:
➢Disconnect power to refrigerator
before removing doors. Connect
power only after replacing doors.
WARNING
To avoid damage to walls and
flooring, protect soft vinyl or other
flooring with cardboard, rugs, or other
protective material.
CAUTION
How to remove the
hinges, door and
drawer
Some installations require door removal
to get refrigerator into final location.
1. Unplug power cord
from power source.
2. Remove top hinge
covers by removing
Phillips screws.
➢Retain screw and
cover for replacement.
3. Unscrew 5⁄16" hex head screws from
top hinge to remove hinge.
➢Retain all screws for later use.
4. Lift refrigerator door from center
hinge pin.
5. Remove center hinge
pin with a 5⁄16"hex head
driver.
➢Retain hinge pin for
later use.
6. Remove Phillips
screws to remove
center hinge.
➢Retain all screws
for later use.
To avoid possible injury, product, or
property damage, you will need two
people to perform the following
instructions.
CAUTION
10. Lift top of door to unhook door
supports from rail system. Lift door
out to remove.
11. Remove toe grille and bottom
bracket covers.

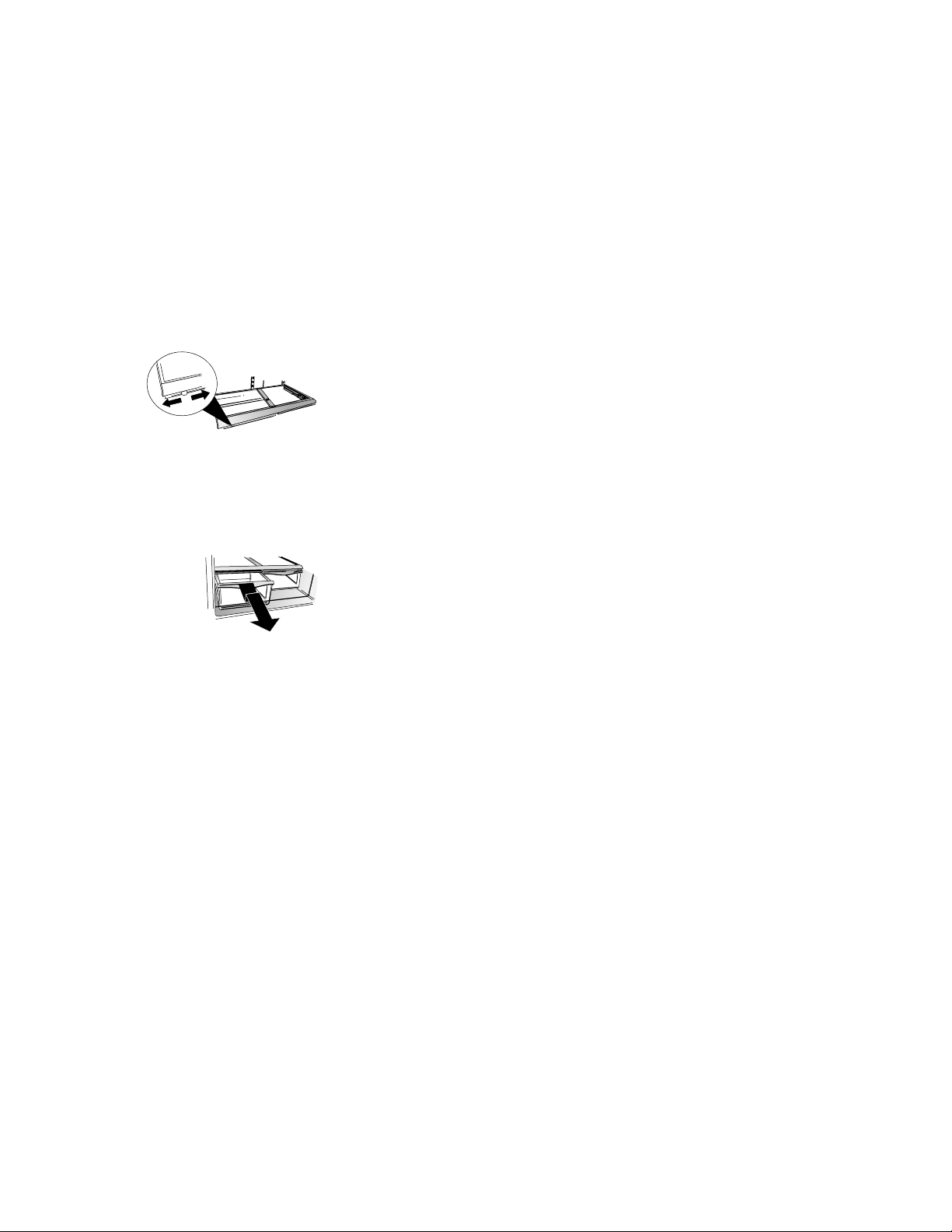

7. Pull drawer open to full extension.
8. Remove lower basket by pressing
inward on basket sides, then lift
basket.
9. Pull upper basket out to full
extension, and lift out to remove.
12. Remove both stabilizing brackets
with 3⁄8" hex head driver.
➢Retain screws for later use.
Press Tab Here

8
How to replace the
hinges, door and
drawer
1. Install stabilizing brackets with 3⁄8" hex
head driver.
2. Replace toe grille and bottom bracket
covers.
➢Snap bottom portion into place
first. Press down on top part of
grille until top portion snaps into
place.
3. Pull both rails out to full extension.
Installing your refrigerator, cont.
7. Install center hinge with Phillips
screws.
8. Install center hinge pin with 5⁄16" hex
head driver.
➢Replace any applicable door
shims.
➢Make sure the hinge pin is
installed tightly.
9. Install top hinge loosely with 5⁄16" hex
head screws.
10. Place hinge side of refrigerator door
on center hinge pin.
11. While holding refrigerator door
upright, tighten door top hinge with
5⁄16" hex head driver.
12. Replace top hinge cover on hinge.
4. Hook door supports into rail tabs, as
illustrated, and lower door into final
position.
5. With drawer pulled out to full
extension, insert lower basket by
aligning tabs on both side of lower
basket with notches in rail assembly.
6. Slide upper basket into refrigerator.
Make sure that rear of basket hooks
behind rail catch.
To avoid possible injury and damage
to property:
➢DO NOT remove sub cap when
removing door trim.
➢Place doors on nonabrasive
surface protected by towels or rugs
while working directly on door.
CAUTION
*Fasteners may require either a T-15 Torx®driver or a Phillips screwdriver.
Torx®is a registered trademark of Textron Inc.
How to reverse the door
1. Perform all steps listed in How to
Replace the Hinges, Door and
Drawer (page 8).
2. Transfer cabinet
plugs and screws to
opposite side of
cabinet.
➢Remove plugs with flat blade of
screwdriver wrapped in masking
tape.
➢Remove center mullion screws
with 5⁄16" hex head driver.
3. Remove door stop
from fresh food
door with Phillips
screwdriver.
4. Remove bottom door trim by
removing 4 Phillips screws. Lift
handle corner of trim and slide
toward hinge edge of door.
5. Remove top door trim by removing 4
screws*. Lift handle corner of trim
and slide toward hinge edge of door.
➢Retain all screws for later use.
6. Reverse handle by removing two
screws* from top and bottom edge of
handle and reattaching handle on
opposite side of door.
7. Install top door trim on bottom side
of door, and bottom trim on top side
of door.
➢Locate hinge hole corner of trim.
Install hinge hole corner of trim on
hinge side first, then install handle
edge of trim.
8. Proceed to How to Replace the
Hinges, Door and Drawer.

ENGLISH FRANÇAIS ESPAÑOL
9
How to connect the
water supply
To reduce the risk of injury or
death, follow basic precautions,
including the following:
➢Read all instructions before
installing device.
➢DO NOT attempt installation if
instructions are not understood or
if they are beyond personal skill
level.
➢Observe all local codes and
ordinances.
➢DO NOT service device unless
specifically recommended in Use
and Care Guice or published
user-repair instructions.
➢Disconnect power to refrigerator
prior to installing device.
WARNING
To avoid property damage or
possible injury, follow basic
precautions, including the
following:
➢Consult a plumber to connect
copper tubing to household
plumbing to assure compliance
with local codes and ordinances.
➢Confirm water pressure to water
valve is between 20 and 100
pounds per square inch. If water
filter is installed, water pressure to
water valve must be a minimum of
35 pounds per square inch.
➢DO NOT use a self-piercing, or 3⁄16"
saddle valve! Both reduce water
flow, become clogged with time,
and may cause leaks if repair is
attempted.
➢Tighten nuts by hand to prevent
cross threading. Finish tightening
nuts with pliers and wrenches. Do
not overtighten.
➢Wait 24 hours before placing
refrigerator into final position to
check and correct any water leaks.
CAUTION
MATERIALS NEEDED
➢1⁄4" outer diameter flexible copper
tubing
➢Brass compression nut and sleeve for
1⁄4" outer diameter copper tubing.
➢Shut-off valve (requires a 1⁄4" hole to
be drilled into water supply before
valve attachment)
➢Adjustable wrench
➢1⁄4" hex nut driver
NOTE: Add 8' to tubing length needed to
reach water supply for creation of
service loop.
1. Create service loop with tubing using
care to avoid kinks in tubing.
2. Remove plastic cap from water valve
inlet port.
3. Place brass nut (A) and sleeve (B) on
copper tube end as illustrated.
AB
4. Place end of copper tubing into water
valve inlet port. Shape tubing slightly –
DO NOT KINK – so that tubing feeds
straight into inlet port.
5. Slide brass nut over sleeve and
screw nut into inlet port. Tighten nut
with wrench.
IMPORTANT: DO NOT overtighten.
Cross threading may occur.
6. Pull on tubing to confirm connection
is secure. Connect tubing to frame
with water tubing clamp (C) and turn
on water supply. Check for leaks and
correct, if present.
7. Monitor water connection for 24
hours. Correct leaks, if necessary.
C

10
Installing your refrigerator, cont.
How to level your
refrigerator
If your refrigerator requires an ice maker
water supply connection, proceed to
How to Connect the Water Supply
section (page 9) before leveling your
refrigerator.
To protect personal property or
refrigerator from damage, observe the
following:
➢Protect soft vinyl or other flooring
with cardboard, rugs, or other
protective material.
➢Do not use power tools when
performing leveling procedure.
CAUTION
MATERIALS NEEDED
➢3⁄8" hex head driver
➢Level
1. Remove toe grille and bottom bracket
covers.
2. Turn left and right
adjustment screws
(A) to raise or
lower front of
refrigerator.
➢Make sure
refrigerator
cabinet is level from side to side
by adjusting left and right roller
adjustment screws.
➢Turn stabilizing leg clockwise until
firmly against floor.
3. After completing the above listed
steps, turn roller adjustment screws
(A) 2 to 3 times counterclockwise, so
that full weight of refrigerator rests on
stabilizing legs.
4. Using a level, make sure front of
refrigerator is 1⁄4" (6 mm) or 1⁄2bubble
higher than back of refrigerator.
➢See step 3 for assistance.
5. Replace toe grille and bracket covers.
See markings on inside of toe grille to
insure proper placement.
➢Snap bottom portion into place
first. Press down on top part of
grille until top portion snaps into
place.
A

ENGLISH FRANÇAIS ESPAÑOL
11

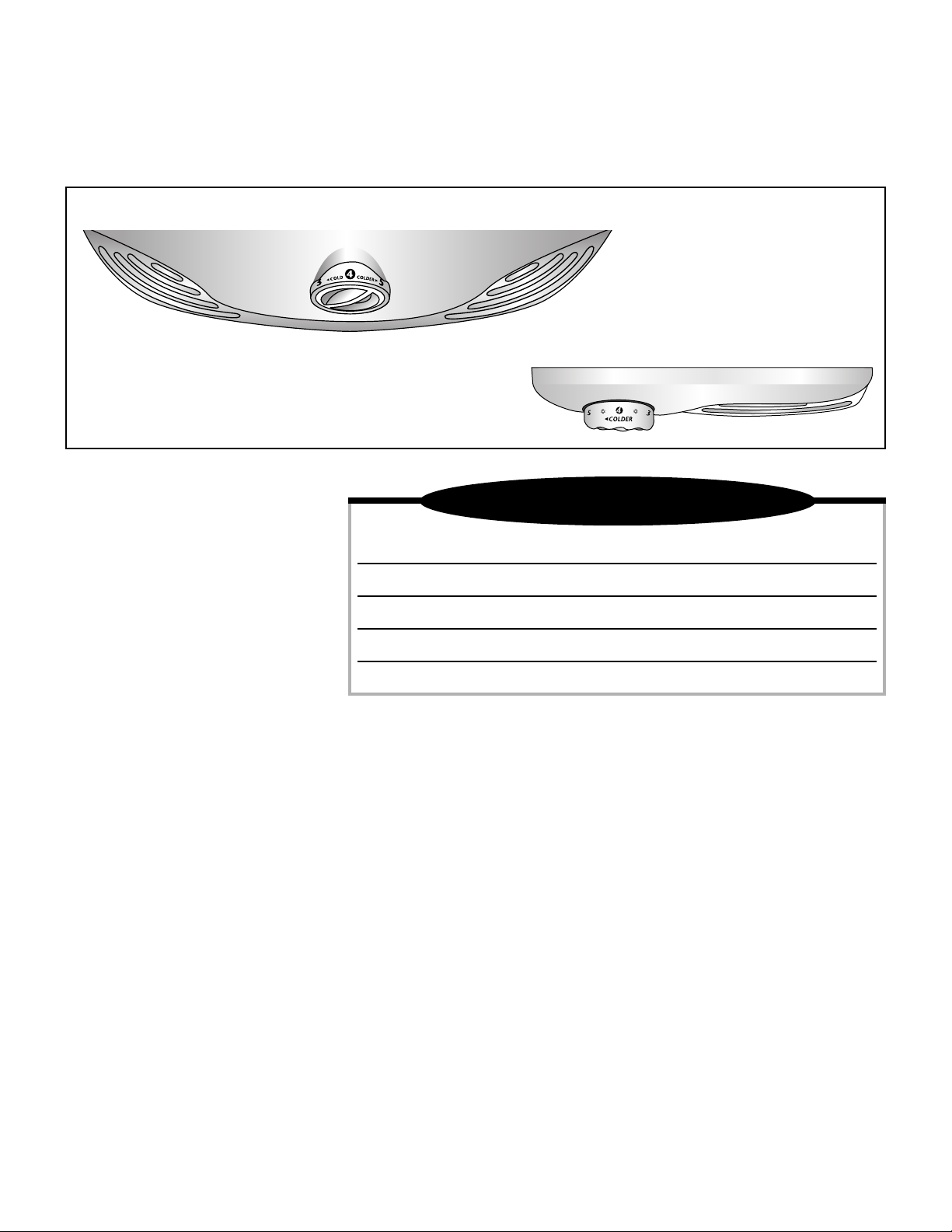

Setting and maintaining proper temperatures
The controls are located at the top front of the refrigerator and freezer compartments. NOTE: The freezer control turns the cooling
system on. Neither section will cool if freezer control is set to OFF.
Refrigerator Control
Freezer Control
Initial control settings
1. Locate refrigerator control at the top
of fresh food compartment and
freezer control at top of freezer
section.
2. The manufacturer’s recommended
setting for both compartments is 4.
3. Let the refrigerator run at least 8 to
12 hours before adding food.
4. Allow 24 hours for temperature to
stabilize.
Adjusting the controls
➢24 hours after adding food, you may
decide that one or both
compartments should be colder or
warmer. If so, adjust the control(s) as
indicated in the Temperature Control
Guide.
➢Do not change either control more
than one number at a time.
➢Allow 5-8 hours for temperatures to
stabilize.
➢Changing either control will have
some effect on the temperature of the
other compartment.
TEMPERATURE CONTROL GUIDE
Refrigerator too warm Turn the refrigerator control to next higher number.
Refrigerator too cold Turn the refrigerator control to next lower number.
Freezer too warm Turn the freezer control to next higher number.
Freezer too cold Turn the freezer control to next lower number.
To turn refrigerator OFF Turn the freezer control to OFF.
NOTE: Turning freezer control to OFF stops cooling in both compartments. It does
not shut off power to the refrigerator.
Fresh food storage
➢The fresh food compartment of a
refrigerator should be kept between
34° F and 40° F with an optimum
temperature of 37° F. To check the
temperature, place an appliance
thermometer in a glass of water and
place in the center of the refrigerator.
Check after 24 hours. If the
temperature is above 40° F adjust the
control as explained above.
Frozen food storage
➢The freezer compartment of a
refrigerator should be kept at
approximately 0° F. To check the
temperature, place an appliance
thermometer between the frozen
packages and check after 24 hours. If
the temperature is above 0° F, adjust
the control as described above.

12
About your water filter…
Water filter installation
and removal
To avoid serious illness or death, do
not use refrigerator where water is
unsafe or of unknown quality without
adequate disinfection before or after
use of filter.
WARNING
➢Bypass cartridge DOES NOT filter
water. Be sure to have
replacement cartridge available
when filter change is required.
➢If water filtration system has been
allowed to freeze, replace filter
cartridge.
➢If system has not been used for
several months, and water has an
unpleasant taste or odor, flush
system by dispensing 2–3 glasses
of water. If unpleasant taste or
odor persists, change filter
cartridge.
CAUTION
INSTALLING
WATER FILTER
1. Remove blue bypass cap and retain
for possible later use.
2. Remove sealing label from end of
filter and insert into filter head.
3. Rotate gently clockwise until filter
stops, and snap filter cover closed.
4. Reduce water spurts by flushing air
from system. Run water continuously
for 2 minutes through dispenser until
water runs steady.
➢Additional flushing may be
required in some households
where water is of poor quality.
REPLACING
WATER FILTER
IMPORTANT: Air trapped in system
may cause water and cartridge to eject.
Use caution when removing.
1. Turn filter counterclockwise until it
releases from filter head.
2. Drain water from filter into sink, and
dispose in normal household
garbage.
3. Wipe up excess water in filter cover
and continue with Installing Water
Filter, steps 2 and 3.
WHEN DO I CHANGE THE
WATER FILTER?
The filter should be changed
approximately every 6 months.
IMPORTANT: Condition of water and
amount used determines life span of
water filter cartridge. If water use is
high, or if water is of poor quality,
replacement may need to take place
more often.
HOW DO I ORDER A
REPLACEMENT FILTER
CARTRIDGE?
Kenmore®replacement water filter
cartridge model 9005 is available
through Sears dealers and servicers.
You may also order through Sears by
using the information on the back cover.
I'M TRYING TO DISPENSE
WATER TO FLUSH THE
SYSTEM. WHERE'S THE
WATER?
During initial use, allow about a 1 to 2
minute delay in water dispersal to allow
internal water tank to fill.
WHAT IF I CHOOSE NOT
TO USE THE WATER
FILTRATION SYSTEM?
Dispenser feature may be used without
water filter cartridge. If you choose this
option, replace filter with blue bypass
cap.

ENGLISH FRANÇAIS ESPAÑOL
13
GENERAL USE
CONDITIONS
Read this Performance Data Sheet and
compare the capabilities of this
refrigerator with your actual water
treatment needs.
DO NOT use this product where water
is microbiologically unsafe or of
unknown quality without adequate
disinfection installed before or after
filtration system. Systems certified
for cyst reduction may be used on
disinfected water that may contain
filterable cysts.
Use only with cold water supply.
Check for compliance with the state
and local laws and regulations.
The retractable water filtration system
uses a 9005 replacement cartridge (see
Sears contact information at the back of
your Use and Care Guide to order).
Timely replacement of filter cartridge is
essential for performance satisfaction
from this filtration system. Please refer
to the applicable section in this Use and
Care Guide for general operation,
maintenance requirements and
troubleshooting.
This system has been tested according
to ANSI/NSF 42 and 53 for reduction of
the substances listed below. The
concentration of the indicated
substances in water entering the system
was reduced to a concentration less than
or equal to the permissible limit for water
leaving the system, as specified in
ANSI/NSF 42 and 53.
*Tested using a flow rate of 0.75 GPM (2.83 L/min.) and a maximum pressure of 120 psi (827 kPa)
under standard laboratory conditions, however, actual performance may vary. Health Claim
Performance tested and certified by NSF International
** Particle size range classification of test. Particles used were 0.5 –1 microns.
Influent Challenge Effluent Average % Maximum Min. Required Inlet
Substance Concentration Average Reduction Effluent Reduction pH
Lead 0.15 mg/L +/- 10% 0.001 mg/L 99.33% 0.001 mg/L 0.010 mg/L 6.5
Lead 0.15 mg/L +/- 10% 0.002 mg/L 98.66% 0.003 mg/L 0.010 mg/L 8.5
Cyst Minimum 50,000/L 1count/mL 99.99% 3 count/mL > 99.95% NA
Turbidity 11+/-1 NTU 0.12 NTU 98.98% 0.18 NTU 0.5 NTU NA
Lindane 0.002 mg/L +/- 10% 0.00005 mg/L 97.62% 0.00005 mg/L 0.00002 mg/L NA
Atrazine 0.009 mg/L +/- 10% 0.0002 mg/L 97.93% 0.0006 mg/L 0.003 mg/L NA
Chlorine 2.0 mg/L +/- 10% 0.09 mg/L 95.26% 0.17 mg/L ≥75% NA
Particulate** at least 10,000 900 count/mL 99.68% 2400 count/mL ≥85% NA
particles/mL
2,4-D 0.210 mg/L +/- 10% 45.45 ug/L 84.42% 100 ug/L 0.0017 mg/L NA
Asbestos 107to 108fibers/L; fibers greater 0.16 MFL/mL 99.96% 0.16 MFL/mL 99% NA
than 10 micrometers in length
PERFORMANCE DATA
Water filter data
SYSTEM SPECIFICATION AND PERFORMANCE DATA
SHEET REFRIGERATOR WATER FILTER CARTRIDGE
MODEL 9005
Specifications
Service Flow Rate (maximum) ...............................................0.75 GPM (2.83 L/min)
Rated Service Life Model 9005 (maximum)...........................500 gallons/1892 liters
Maximum Operating Temperature..........................................100° F/38° C
Minimum Operating Temperature...........................................33° F/1° C
Minimum Pressure Requirement............................................35 psi/138 kPa
Maximum Operating Pressure ...............................................120 psi/827 kPa
1000 Apollo Road
Eagan, Minnesota U.S.A.
EPA EST #35917-MN-1
Standard No. 53: Health Effects
Chemical Reduction Unit
Lead, Atrazine, Lindane and 2, 4-D Reduction
Mechanical Filtration Unit
Cyst, Turbidity and Asbestos Reduction
Tested and certified by NSF International against ANSI/NSF Standards 42 and 53 in
models WF50-KNI300 and WF50-KWI500 for the reduction of:
Standard No. 42: Aesthetic Effects
Taste and Odor Reduction
Chlorine Reduction
Mechanical Filtration Unit
Particulate Reduction Class 1

14

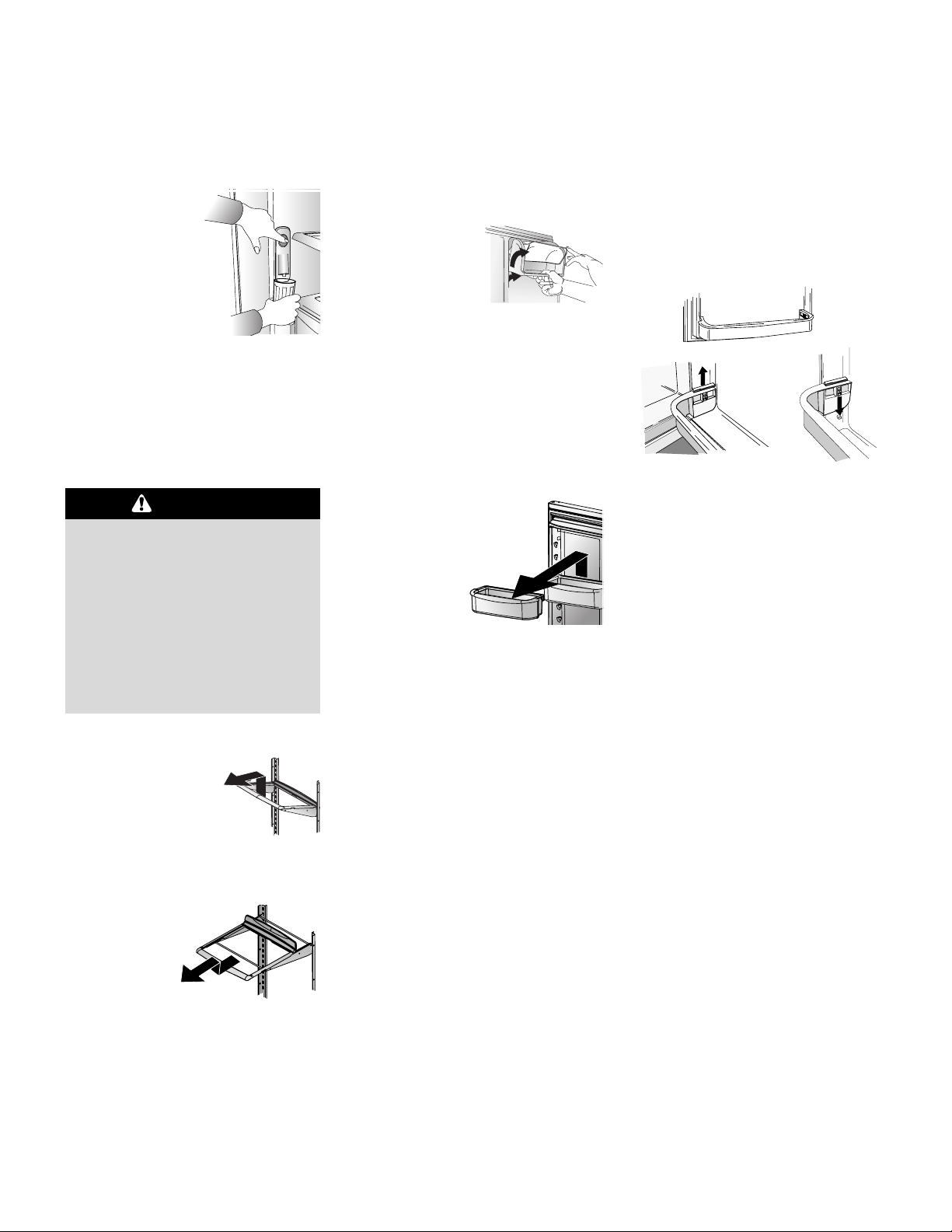

Door storage
DAIRY CENTER
The Dairy Center
provides convenient
storage for items
such as butter,
yogurt, cheese, etc.
This compartment is an adjustable
feature located in the door. It can be
moved to several different locations to
accommodate storage needs.
➢To remove, open dairy door, pull
upward and tilt out.
➢To install, reverse above procedure.
DOOR BUCKETS
Door Buckets adjust to
meet individual storage
needs.
➢To remove,
slide bucket up
and pull
straight out.
➢To install, reverse above procedure.
Fresh food features
Water dispenser
AWater Dispenser
is located on the
left side wall of the
fresh food section.
This design is for
cold water
dispensing only.
To dispense
water:
➢Hold container under spout and press
dispenser pad, as illustrated.
Interior shelves
To avoid personal injury or property
damage, observe the following:
➢Confirm shelf is secure before
placing items on shelf.
➢Handle tempered glass shelves
carefully. Shelves may break
suddenly if nicked, scratched, or
exposed to sudden temperature
change.
CAUTION
SPILLPROOF SHELVES
Spillproof Shelves hold
simple spills for easier
cleaning.
➢To remove shelves, lift
up and out.
➢To install shelves, reverse above
procedure.
Spillproof Slide-out
Shelves feature
the convenience
of easy cleaning
with a pullout
design to reach items in the back. For
ease of cleaning, glass shelf may be
removed by pulling to full extension and
lifting out of frame.
DOOR RETAINER
Door Retainers remove for easy
cleaning.
➢To remove, slide retainer up and pull
straight out.
➢To install, reverse above procedure.

ENGLISH FRANÇAIS ESPAÑOL
15
Climate-controlled
drawers
HUMIDITY-CONTROLLED
CRISPER DRAWERS
The Crisper Drawer keeps produce
fresh longer by providing an
environment with adjustable humidity.
Controls
The
crisper
controls
regulate
the amount of humidity in the crisper
drawer. Use the low setting for produce
with outer skins. Use the high setting for
leafy produce.
To remove and install crisper
drawers:
➢To remove
drawer, pull
drawer out to full
extension. Tilt up
front of drawer and pull straight out.
➢To install, insert drawer into frame
rails and push back into place.
WHAT CAN I DO TO PROLONG
THE LIFE OF MY PRODUCE?
Please observe the following rules when
storing produce in humidity-controlled
crisper drawers:
➢DO NOT wash produce before
placing in crispers. Any additional
moisture added to the drawers may
cause produce to prematurely spoil.
➢DO NOT line crispers with paper
towels. Towels will retain moisture.
➢Follow control instructions carefully.
Not setting controls correctly may
damage produce.
See below for correct humidity drawer
control settings:
LOW •cauliflower • apples
•corn • oranges
•zucchini • grapes
•cucumbers
HIGH •lettuce • asparagus
•spinach • cabbage
•celery • broccoli
•fresh sprouts • fresh herbs
HOW DO I REMOVE THE GLASS
AND CRISPER FRAME IF I WANT
TO CLEAN IT?
➢Remove the drawers as instructed.
➢Place hand beneath frame to push up
glass from underneath. Lift glass out.
➢Lift frame from refrigerator liner rails.
➢To install, replace frame on liner rails
and insert glass into grooves on top
of frame.
STORAGE DRAWER
The Storage Drawer can be used for
large party trays, deli items or
beverages.
To remove and install drawer:
➢To remove drawer, pull drawer out to
full extension. Tilt up front of drawer
and pull straight out.
➢To install, insert drawer into frame
rails and push back into place.

16

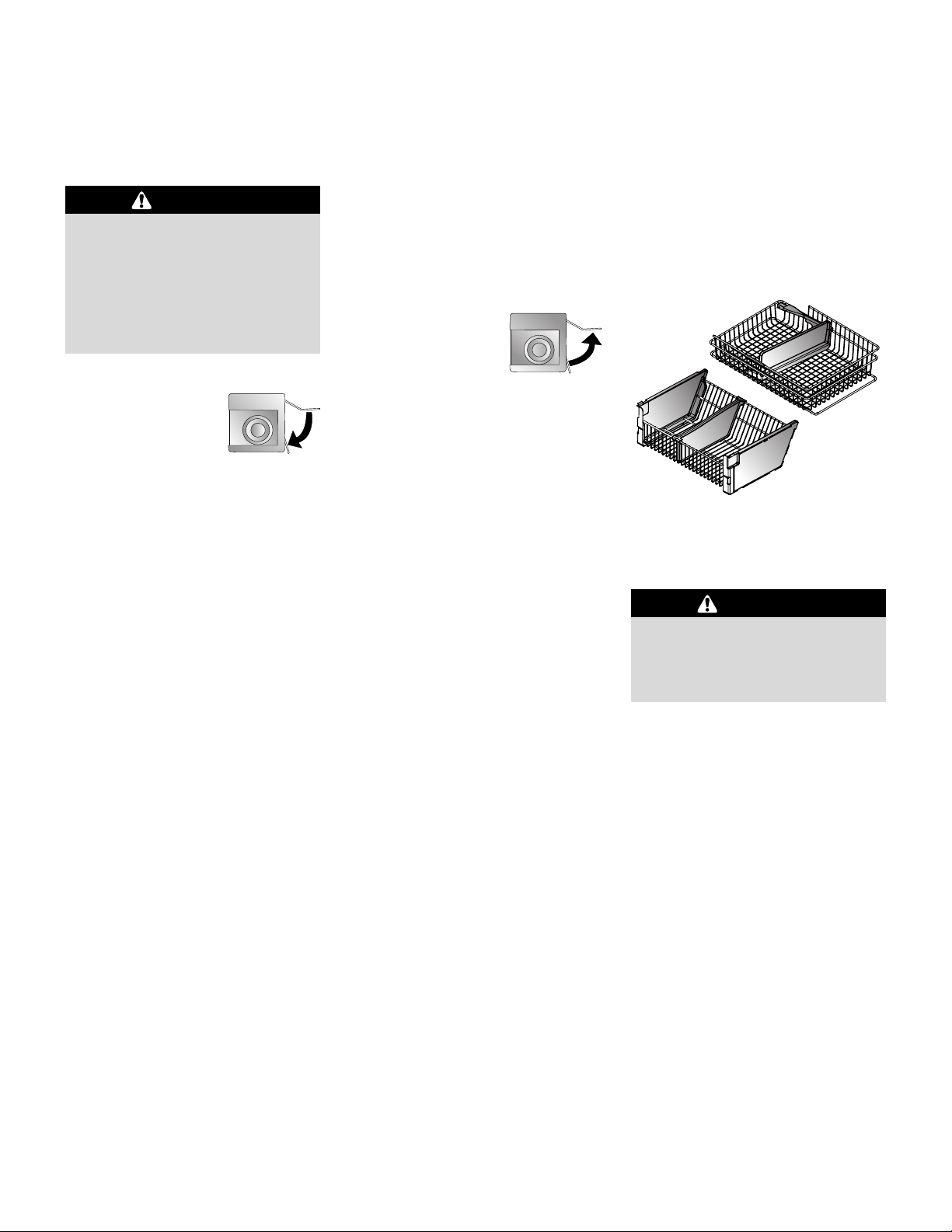

Freezer features
Automatic ice maker
Using Ice Maker for the First Time
1. Confirm ice bin is in
place and ice maker
arm is down.
2. After freezer section reaches
between 0° to 2° F (-18° to -17° C),
ice maker fills with water and begins
operating.
3. Allow approximately 24 hours after
installation to receive first harvest of
ice.
4. Discard ice created within first 12
hours of operation to verify system is
flushed of impurities.
To avoid property damage, observe
the following:
➢Do not force ice maker arm down
or up.
➢Do not place or store anything in
ice storage bin.
CAUTION
To prevent accidental child
entrapment or suffocation risk, DO
NOT remove the divider in the top
freezer basket.
DANGER
Drawers
PULLOUT DRAWER
BASKETS
(Door assembly of drawer removed from
illustration for visual clarity)
To remove and replace baskets:
➢See page 7 for basket removal and
page 8 for replacement instructions.
Operating Instructions
1. Confirm ice bin is in place and ice
maker arm is down.
2. After freezer section reaches 0° to 2° F
(-18° to -17° C), ice maker fills with
water and begins operating. You will
have a complete harvest of ice
approximately every 3 hours.
3. Stop ice production
by raising ice maker
arm until click is
heard.
4. Ice maker will remain in the off
position until arm is pushed down.

ENGLISH FRANÇAIS ESPAÑOL
17
Hints and care
PART DO
➢Use 4 tablespoons of baking soda dissolved in 1 quart
(1 liter) warm soapy water.
➢Rinse surfaces with clean warm water and dry immediately
to avoid water spots.
➢Use warm, soapy water and a soft, clean cloth or sponge.
➢Rinse surfaces with clean warm water and dry immediately
to avoid water spots.
➢Use a vacuum cleaner hose nozzle.
➢Use a vacuum cleaner hose nozzle with brush attachment.
➢Follow removal and installation instructions from appropriate
feature section.
➢Allow items to adjust to room temperature.
➢Dilute mild detergent and use a soft clean cloth or sponge
for cleaning.
➢Use a plastic bristle brush to get into crevices.
➢Rinse surfaces with clean warm water.
➢Dry glass and clear items immediately to avoid spots.
DO NOT USE
➢Abrasive or harsh cleaners
➢Ammonia
➢Chlorine bleach
➢Concentrated detergents or
solvents
➢Metal or plastic-textured
scouring pads
➢Abrasive or harsh cleaners
➢Ammonia
➢Chlorine bleach
➢Concentrated detergents or
solvents
➢Metal or plastic-textured
scouring pads
➢Vinegar-based products
➢Citrus-based cleaners
➢Abrasive or harsh cleaners
➢Metal or plastic-textured
scouring pads
➢Adishwasher
Textured Doors
and Exterior
Cabinet Interior
Stainless Steel Doors
and Exterior*
IMPORTANT: Damage
to stainless steel finish
due to improper use of
cleaning products or
non-recommended
products is not covered
under this product’s
warranty.
Door Gaskets
Condenser Coil
Remove base grille to
access
Condenser Fan Outlet
Grille
See back of refrigerator
Accessories Shelves,
buckets, drawers, etc.
To avoid personal injury or property damage, observe the following:
➢Read and follow manufacturer’s directions for all cleaning products.
➢DO NOT place buckets, shelves or accessories in dishwasher. Cracking or
warping of accessories may result.
CAUTION
To avoid electrical shock which can
cause severe personal injury or
death, disconnect power to
refrigerator before cleaning. After
cleaning, connect power.
WARNING
How to clean your refrigerator
*Astainless steel cleaner has been included inside the refrigerator for your use. To purchase additional cleaner, please contact
Sears using the information on the back of your guide.

18
How to remove odors
from refrigerator
1. Remove all food.
2. Disconnect refrigerator.
3. Clean the following items–paying
special attention to crevices–using
the appropriate instructions in How to
Clean Your Refrigerator:
•Walls, floor and ceiling of cabinet
interior.
•Drawers, shelves and gaskets.
4. Wash and dry all bottles, containers
and jars. Discard spoiled or expired
items.
5. Wrap or store odor-causing foods in
tightly-sealed containers to prevent
reoccurring odors.
6. Connect power to refrigerator and
return food.
7. After 24 hours, check if odor has
been eliminated.
If odor is still present...
1. Remove drawers and place on top
shelf of refrigerator.
2. Pack refrigerator and freezer
sections–including doors–with
crumpled sheets of black and white
newspaper.
3. Place charcoal briquettes randomly
on crumpled newspaper in both
freezer and refrigerator
compartments.
4. Close doors and let stand 24–48 hours.
5. Repeat steps 5 through 7 above.
If odor was not eliminated, contact
Sears Service Center. Refer to back of
manual for phone number.
Energy saving ideas
➢Avoid overcrowding refrigerator
shelves. This reduces effectivity of air
circulation around food and causes
refrigerator to run longer.
➢Avoid adding too much warm food to
refrigerator at one time. This
overloads compartments and slows
rate of cooling.
➢Do not use aluminum foil, wax paper,
or paper toweling as shelf liners. This
decreases air flow and causes
refrigerator to run less efficiently.
➢Afreezer that is 2⁄3full runs most
efficiently.
➢Locate refrigerator in coolest part of
room. Avoid areas of direct sunlight,
or near heating ducts, registers, or
other heat producing appliances. If
this is not possible, isolate exterior by
using a section of cabinet or an
added layer of insulation.
➢Refer to section in Use and Care
Guide on temperature controls for
recommended control settings.
➢Clean door gaskets every three
months according to Use and Care
Guide instructions. This will assure
that door seals properly and
refrigerator runs efficiently.
➢Take time to organize items in
refrigerator to reduce time that door
is open.
➢Be sure your doors are closing
securely by leveling refrigerator as
instructed in your Use and Care
Guide.
➢Clean condenser coils off as
indicated in the Use and Care Guide
every 3 months. This will increase
energy efficiency and cooling
performance.
To avoid personal injury or property
damage, observe the following:
➢Allow light bulb to cool.
➢Wear gloves when replacing light
bulb.
CAUTION
To avoid electrical shock which can
cause severe personal injury or
death, disconnect power to
refrigerator before replacing light
bulb. After replacing light bulb,
connect power.
WARNING

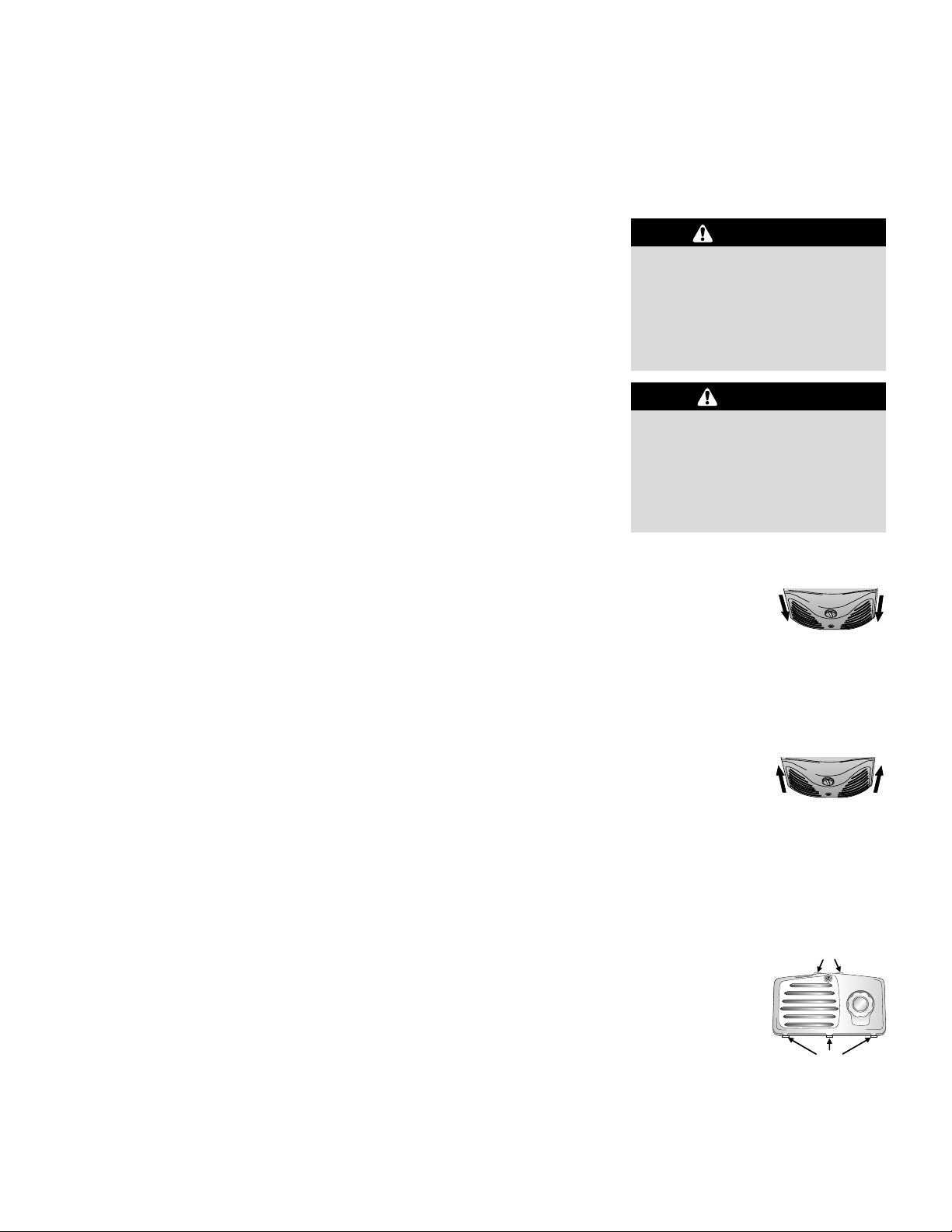

How to remove and
replace light bulbs
FRESH FOOD
1. Slide shield toward
back of
compartment to
release from light
assembly.
2. Remove light bulbs.
3. Replace with appliance bulbs no
greater than 40 watts.
4. Replace light bulb
cover by inserting
tabs on light shield
into liner holes on
each side of light assembly. Slide
shield toward front of refrigerator until
it locks into place. DO NOT force
shield beyond locking point. Doing so
may damage light shield.
FREEZER
1. Pinch rear tabs on
light cover and pull
straight down.
2. Remove light
bulb.
3. Replace bulb with
appliance bulb no greater than 40
watts.
4. Insert front tabs of light cover into
freezer liner and snap rear portion
over light assembly until rear tabs
engage.
A
B
Hints and care, cont.

ENGLISH FRANÇAIS ESPAÑOL
19

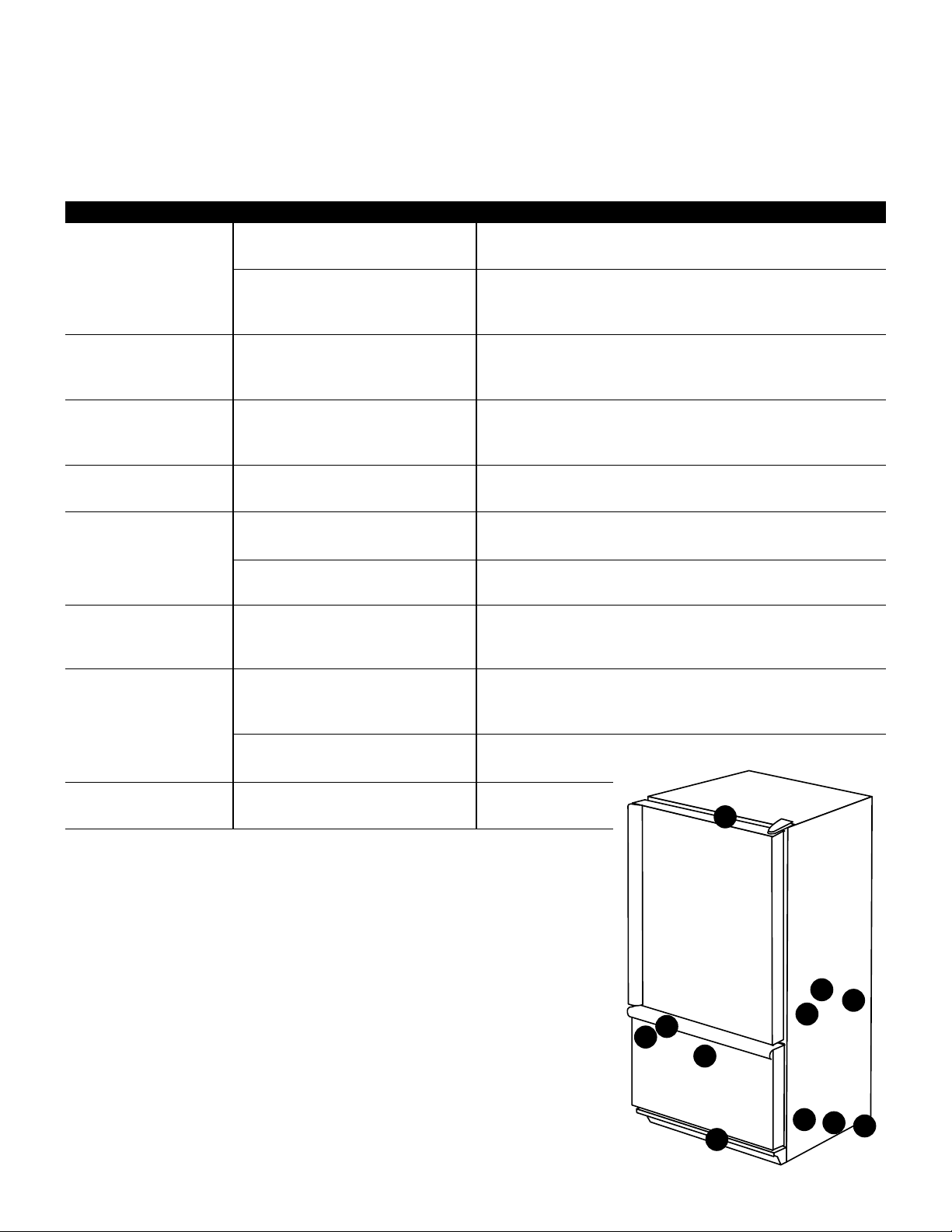

Normal operating sounds
Today’s refrigerators use foam insulation and are more energy efficient than refrigerators of the past. However, foam insulation is
not as sound absorbent as former insulated models. As a result, certain sounds may be unfamiliar. In time, these sounds will
become familiar. Please refer to this information before calling service.
B
J
GA
F
C
IE
K
D
H
SOLUTION
➢Normal operation
➢Normal operation
➢Normal operation
➢Normal operation
➢Normal operation
➢Normal operation
➢See Installation Instructions for details on how to level your
refrigerator.
➢Normal operation
➢Stop sound by raising ice maker arm to ‘off’ position. See
Automatic Ice Maker section in your Use and Care Guide
for details.
➢Normal operation
➢Normal operation
POSSIBLE CAUSE
➢Freezer control (A) clicks when
starting or stopping compressor.
➢Defrost timer (B) sounds like an
electric clock and snaps in and
out of defrost cycle.
➢Freezer fan (C) and condenser
fan (D) make this noise while
operating.
➢Evaporator (E) and heat
exchanger (F) refrigerant makes
this noise when flowing.
➢Ice cubes from ice maker (select
models) drop into ice bucket (G).
➢Compressor (H) makes a
pulsating sound while running.
➢Refrigerator is not level.
➢Ice maker water valve (I)
hookup (select models) buzzes
when ice maker fills with water.
➢Ice maker (J) is in the ‘on’
position without water
connection.
➢Compressor (H) can make a high-
pitched hum while operating.
➢Defrost heater (K) hisses, sizzles
or pops when operational.
TOPIC
Clicking
Air rushing or whirring
Gurgling or boiling
sound
Thumping
Vibrating noise
Buzzing
Humming
Hissing or
popping

20
PROBLEM
Food temperature
appears too warm
Refrigerator has an odor
Water droplets form on
outside of refrigerator
Water droplets form on
inside of refrigerator
Refrigerator or ice maker
make unfamiliar sounds
or seems too loud
Crisper drawers do not
close freely
Refrigerator runs too
frequently
Operation
POSSIBLE CAUSE
Door is not closing properly.
Controls need to be adjusted.
Condenser coils are dirty.
Rear air grille is blocked.
Door has been opened frequently, or has
been opened for long periods.
Food has recently been added.
Compartment is dirty or has odor-causing
food.
Check gaskets for proper seal.
Humidity levels are high.
Controls require adjustment.
Humidity levels are high or door has been
opened frequently.
Check gaskets for proper seal.
Normal operation.
Contents of drawer, or positioning of items in
the surrounding compartment could be
obstructing drawer.
Drawer is not in proper position.
Refrigerator is not level.
Drawer channels are dirty or need treatment.
Doors have been opened frequently or have
been opened for long periods of time.
Humidity or heat in surrounding area is high.
Food has recently been added.
Refrigerator is exposed to heat by
environment or by appliances nearby.
Condenser coils are dirty.
SOLUTION
See Installing Your Refrigerator–How to Level Your
Refrigerator section on how to properly level refrigerator.
Check gaskets for proper seal. Clean, if necessary, according
to cleaning instructions.
Check for internal obstructions that are keeping door from
closing properly (i.e. improperly closed drawers, ice buckets,
oversized or improperly stored containers or foodstuffs, etc.)
See Setting and Maintaining Proper Temperatures–
Adjusting the Controls section on how to adjust your controls.
See section on Hints and Care–How to Clean Your
Refrigerator for instructions.
Check the positioning of food items in refrigerator to make
sure grille is not blocked. Rear air grilles are located under
crisper drawers.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Allow interior environment to adjust for period the door has
been open.
Allow time for recently added food to reach refrigerator or
freezer temperature.
See section on Hints and Care for instructions.
See section on Hints and Care–How to Clean Your
Refrigerator for instructions.
See Setting and Maintaining Proper Temperatures–
Adjusting the Controls section on how to adjust your controls.
See Setting and Maintaining Proper Temperatures–
Adjusting the Controls section on how to adjust your controls.
See Setting and Maintaining Proper Temperatures–
Adjusting the Controls section on how to adjust your controls.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
See section on Hints and Care–How to Clean Your
Refrigerator for instructions.
Refer to Normal Operating Sounds.
Reposition food items and containers to avoid interference
with the drawers.
See section on Fresh Food Features–Climate-Controlled
Drawers to verify drawer positioning.
See Installing Your Refrigerator–How to Level Your
Refrigerator section on how to properly level refrigerator.
Clean drawer channels with warm, soapy water. Rinse and
dry thoroughly. Apply a thin layer of petroleum jelly to drawer
channels.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Allow interior environment to adjust for period the door has
been open.
Normal operation.
Allow time for recently-added food to reach refrigerator or
freezer temperature.
Evaluate your refrigerator’s environment. Refrigerator may
need to be moved to run more efficiently.
See section on Hints and Care–How to Clean Your
Refrigerator for instructions.
Troubleshooting
