Kenmore 795.7032 series User manual

Use & Care Guide
Manual de Uso y Cuidado
Guide d'Utilisation et d'Entretien
English /Espafiol /French
Models/Modelos/Mod_les: 795.7032 _
I< enmore,
@
P/N MFL63264261
Sears Brands Management Corporation
Hoffman Estates, _L 60|79 U.S.A.
www.kenmore.¢om
www.sear s.¢om
Sears Canada Iffc.
Toron_'o, On_arlo, Canada M5B 2C3
www.sears.¢a

Warranty .............................................................................3
Protection Agreements ..............................................4
important Safety instructions ...........................5-7
Electrical & Grounding Requirements ..............7

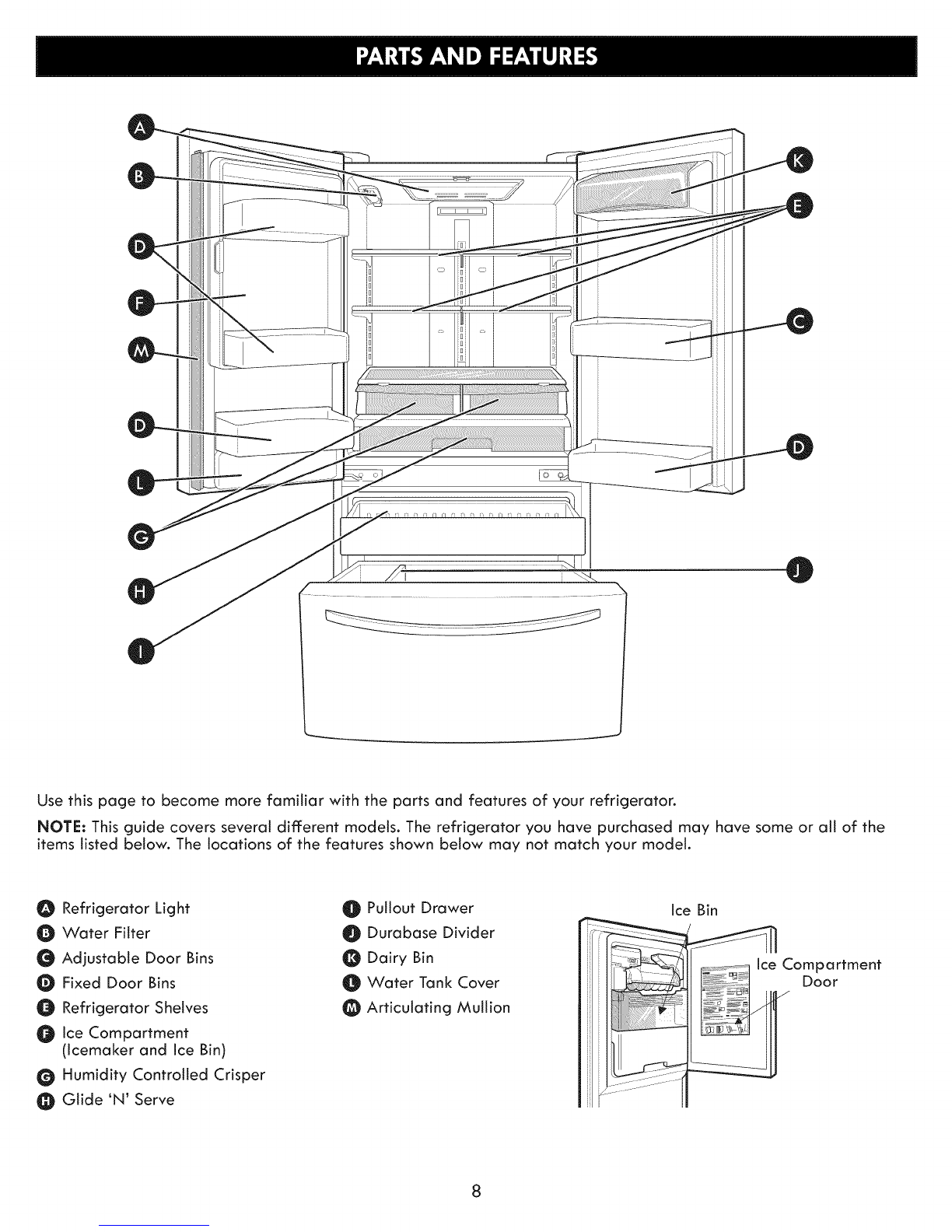

Parts and Features .......................................................8
Refrigerator Installation .....................................9-17
Unpacking Your Refrigerator ...............................9
Installation ....................................................................10
Removing/Replacing Your Refrigerator and
Freezer Handles, Doors and Drawers .......11-16
Leveling and Door Alignment ............................17
Using Your Refrigerator ....................................18-28
Setting the Controls ...........................................18-19
In-Door Ice Bin ..........................................................20
Automatic Icemaker .........................................21-22
Food Storage Guide ...............................................23
Refrigerator Section
Water Dispenser ......................................................24
Refrigerator Shelves ................................................25
Humidity Controlled Crisper ...............................25
Door Bin.............................................................................26
Freezer Section
Durabase .......................................................................26
Durabase Divider ......................................................26
Water Filter .............................................................27-30
Care and Cleaning ..............................................31-32
General Cleaning Tips ............................................31
Exterior ............................................................................31
Inside Walls ..................................................................31
Door Liner And Gaskets .........................................31
Plastic Parts...................................................................31
Condenser Coils ..........................................................31
Light Bulb Replacement ........................................32
Power Interruptions ..................................................32
When You Go On Vacation ...............................32
When You Move ........................................................32
Connecting the Water Line ............................33-35
Troubleshooting Guide .....................................36-43
Service ...........................................................Back Cover

f

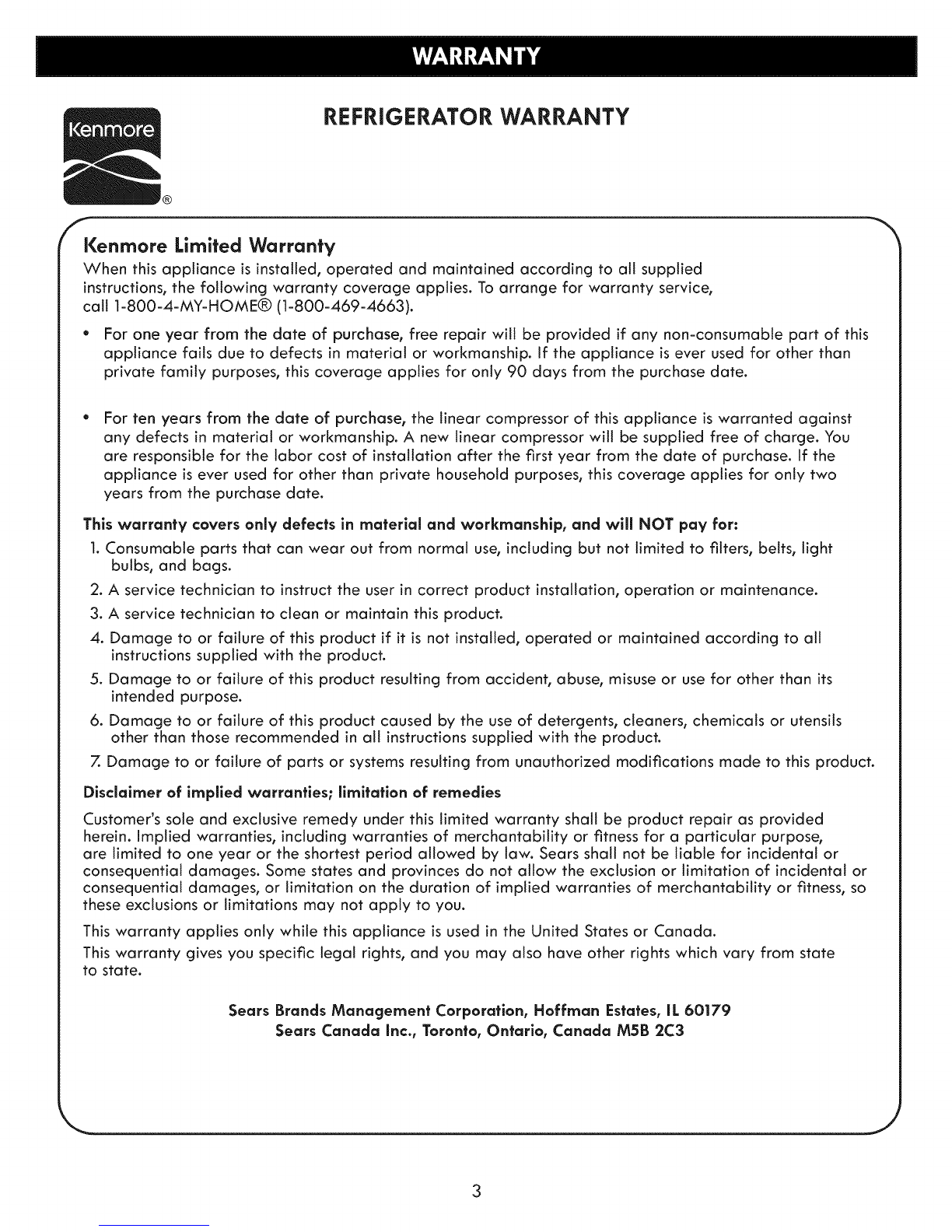

REFRIGERATOR WARRANTY
Kenmore Limited Warranty
When this appliance isinstalled, operated and maintained according to all supplied
instructions, the following warranty coverage applies. To arrange for warranty service,
call 1-800-4-MY-HOME® (1-800-469-4663).
*For one year from the date of purchase, free repair will be provided if any non=consumable part of this
appliance fails due to defects in material or workmanship. If the appliance is ever used for other than
private family purposes, this coverage applies for only 90 days from the purchase date.
For ten years from the date of purchase, the linear compressor of this appliance is warranted against
any defects in material or workmanship. A new linear compressor will be supplied free of charge. You
are responsible for the labor cost of installation after the first year from the date of purchase. If the
appliance is ever used for other than private household purposes, this coverage applies for only two
years from the purchase date.
This warranty covers only defects in maferlal and workmanship, and wlll NOT pay for:
1.Consumable parts that can wear out from normal use, including but not limited to filters, belts, light
bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all
instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its
intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
Z Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Discialmer of impiled warranties; llmlfatian of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided
herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by taw. Sears shall not be liable for incidental or
consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada inc., Toronto, Ontario, Canada MSB 2C3

Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ® product is designed and manufactured for
years of dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here's what the
Agreement* includes:
Parts and labor needed to help keep products
operating properly under normal use, not just defects.
Our coverage goes well beyond the product warranty.
No deductibles, no functional failure excluded from
coverage--real protection.
• Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
• Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
• "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within
twelve months.
• Product replacement if your covered product can't be
fixed.
•Annual Preventive Maintenance Check at your request
-no extra charge.
•Fast help by phone =we call it Rapid Resolution
- phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
Power surge protection against electrical damage due
to power fluctuations.
$250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
Rental reimbursement if repair of your covered
product takes longer than promised.
25% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call
is all that it takes to schedute service. You can catt at
any time day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices and addltlonal information in the
U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6665.
Sears Installatlon Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOME ®.
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these
items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No.
Save these instructions and attach your sales receipt for future reference.
4

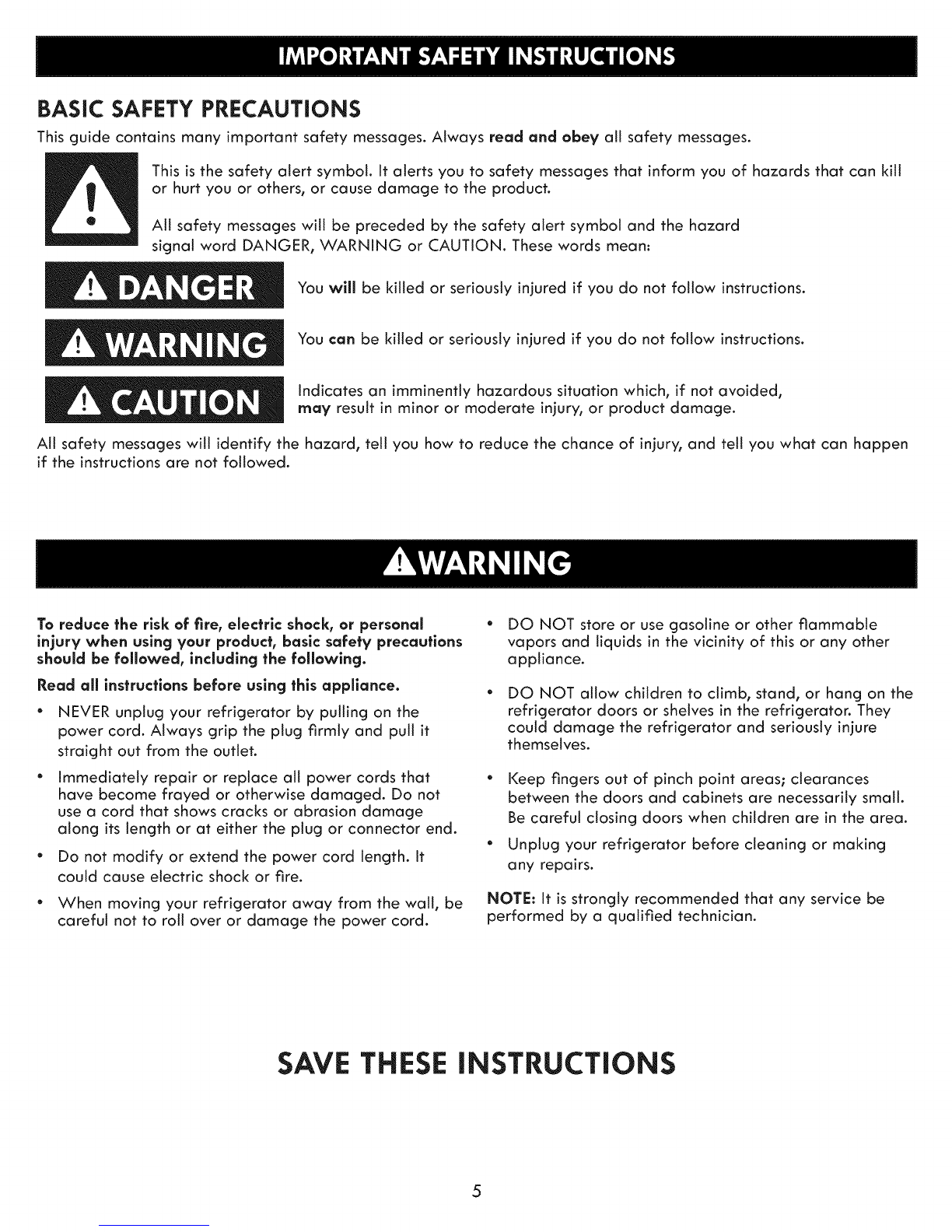

BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill
or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING or CAUTION. These words mean:
You will be killed or seriously injured if you do not follow instructions.
You can be killed or seriously injured if you do not follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
To reduce the risk of fire, electrlc shock, or personal
injury when using your product, basic safety precautions
should be foffowed, includlncj the foffowincj.
Read aft instructions before using this appffance.
*NEVER unptug your refrigerator by putting on the
power cord. Always grip the plug firmly and putt it
straight out from the outlet.
Immediately repair or replace att power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either the plug or connector end.
*Do not modify or extend the power cord length. It
could cause electric shock or fire.
*When moving your refrigerator away from the wall, be
careful not to rotl over or damage the power cord.
*DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
DO NOT allow children to climb, stand, or hang on the
refrigerator doors or shetves in the refrigerator. They
could damage the refrigerator and seriously injure
themselves.
*Keep fingers out of pinch point areas; clearances
between the doors and cabinets are necessarily small.
Be careful closing doors when children are in the area.
*Unplug your refrigerator before cleaning or making
any repairs.
NOTE: It is strongly recommended that any service be
performed by a qualified technician.
SAVE THESEINSTRUCTIONS
5

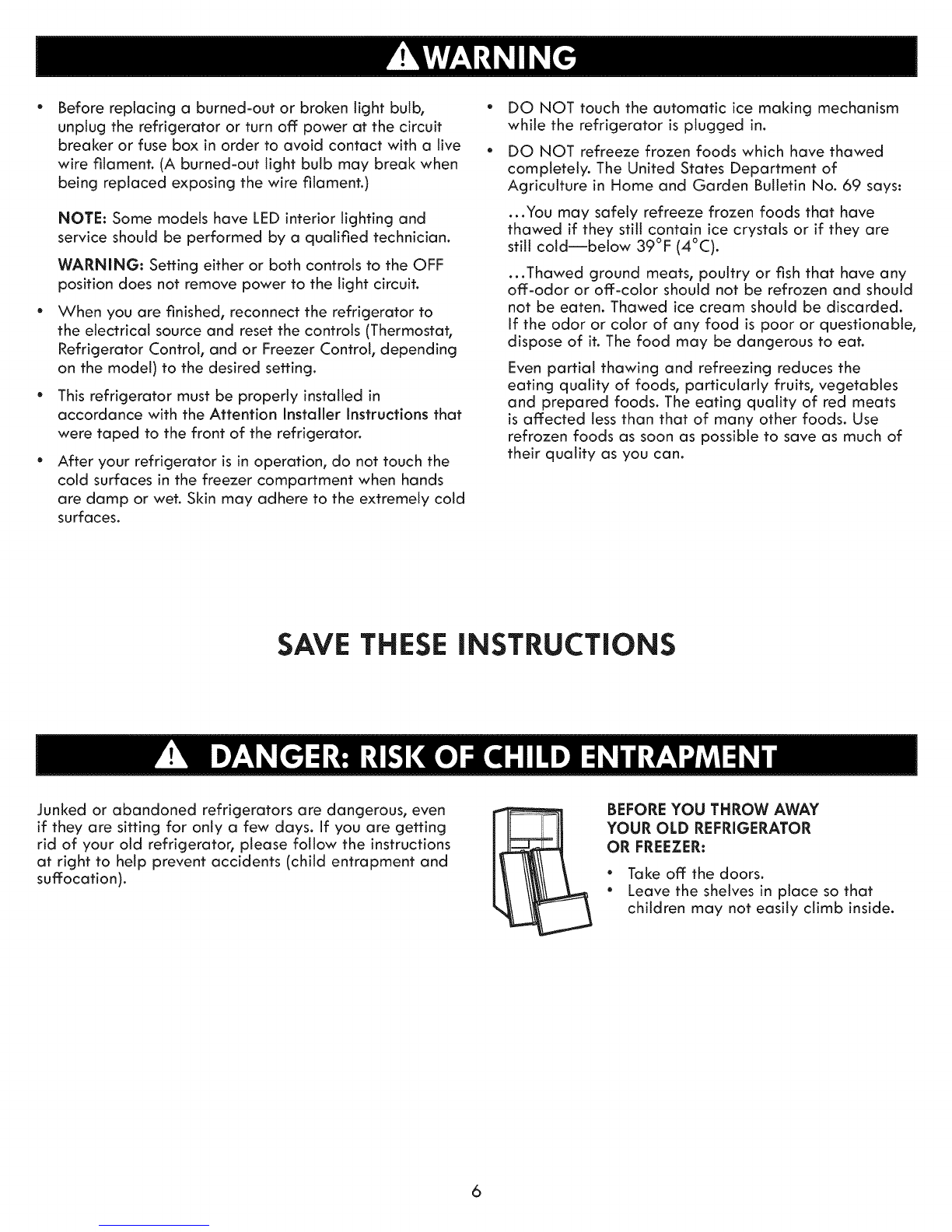

Before replacing a burned-out or broken light bulb,
unplug the refrigerator or turn off power at the circuit
breaker or fuse box in order to avoid contact with a live
wire filament. (A burned-out light bulb may break when
being replaced exposing the wire filament.)
NOTE: Some models have LED interior lighting and
service should be performed by a qualified technician.
WARNING: Setting either or both controls to the OFF
position does not remove power to the light circuit.
When you are finished, reconnect the refrigerator to
the electrical source and reset the controls (Thermostat,
Refrigerator Control, and or Freezer Control, depending
on the model) to the desired setting.
This refrigerator must be properly installed in
accordance with the Attention Installer Instructions that
were taped to the front of the refrigerator.
After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely cold
surfaces.
DO NOT touch the automatic ice making mechanism
while the refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69 says:
...You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold--below 39°F (4°C).
...Thawed ground meats, poultry or fish that have any
off-odor or off-color should not be refrozen and should
not be eaten. Thawed ice cream should be discarded.
If the odor or color of any food is poor or questionable,
dispose of it. The food may be dangerous to eat.
Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits, vegetables
and prepared foods. The eating quality of red meats
is affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of
their quality as you can.
SAVE THESE iNSTRUCTiONS
Junked or abandoned refrigerators are dangerous, even
if they are sitting for only a few days. If you are getting
rid of your old refrigerator, please follow the instructions
at right to help prevent accidents (child entrapment and
suffocation).
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER:
*Take off the doors.
"Leave the shelves in place so that
children may not easily climb inside.
6

Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofluorocarbons or
hydrochtorofluorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone if released to the
atmosphere. Other refrigerants may also cause harm to
the environment if released to the atmosphere.
if you are throwing away your old refrigerator, make
sure the refrigerant is removed for proper disposal
by a qualified technician. If you intentionally release
refrigerant, you may be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.

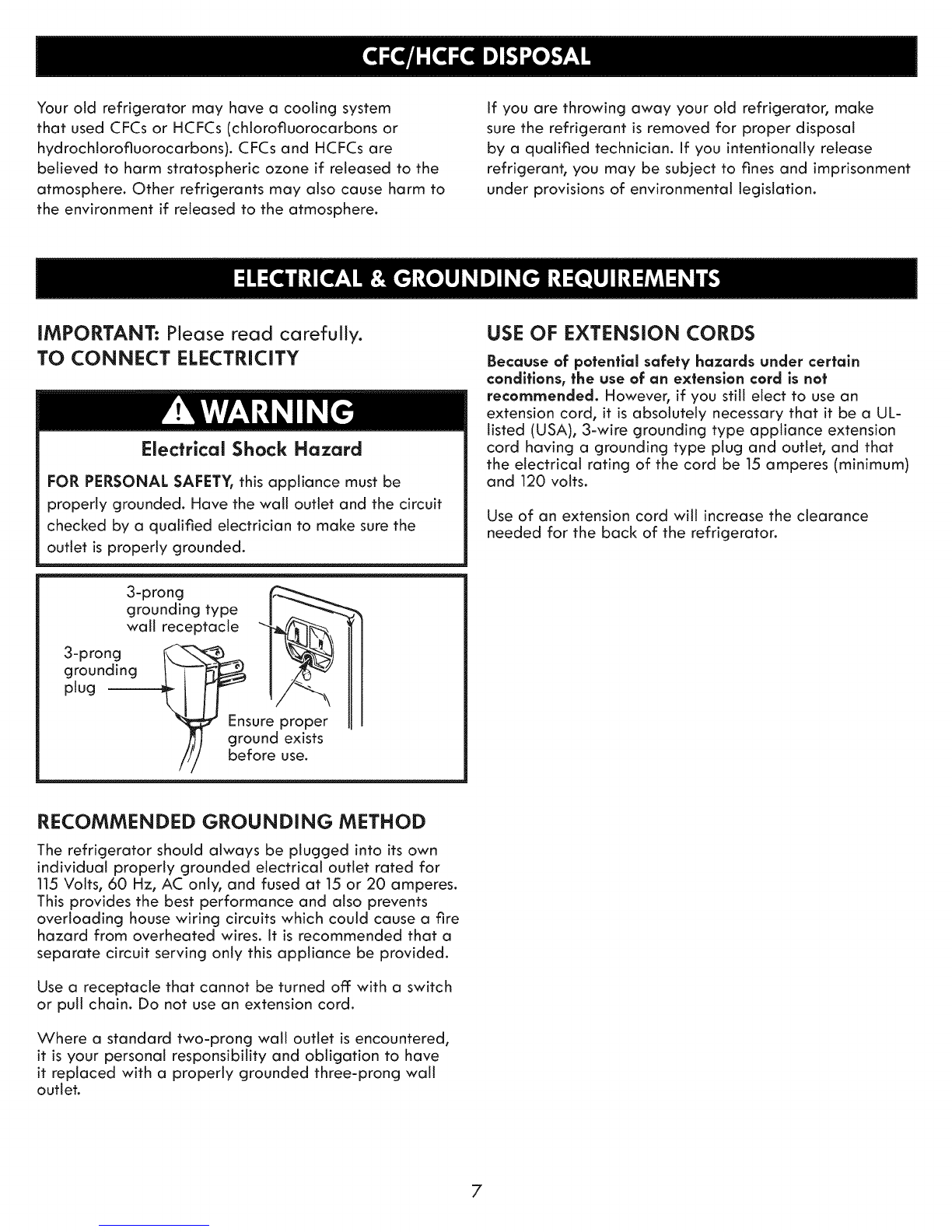

TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the
outlet is properly grounded.
3-prong
grounding type I
wall receptacle _-'_
3-prong _------_-_-, I _
grounding I-q---T_ I _
VV
Ensure proper
_ ground exists
/// before use.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, the use of an extension cord is nat
recommended. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL-
listed (USA), 3-wire grounding type appliance extension
cord having a grounding type plug and outlet, and that
the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle that cannot be turned off with a switch
or putt chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet.
7

Use this page to become more familiar with the parts and features of your refrigerator.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the
items listed below. The locations of the features shown below may not match your model.
O Refrigerator Light
Water Filter
Adjustable Door Bins
O Fixed Door Bins
O Refrigerator Shelves
Ice Compartment
(Icemaker and Ice Bin)
O Humidity Controlled Crisper
Q Glide 'N' Serve
Pullout Drawer
O Durabase Divider
Dairy Bin
O Water Tank Cover
Articulating Mullion
ice Bin
_s,_q Ice Compartment
Door
8

Excessive Weight Hazard:
Use two or more people to move and install the
refrigerator. Failure to do so can result in back or
other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or
the Tech Sheet that is located under the front of the
refrigerator, behind the base grille.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can atso be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
Excessive Weight Hazard:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always putt the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
Explosion Hazard:
Keep flammable materials and vapors, such as
gasoline, away from the refrigeraton Failure to do so
can result in fire, explosion, or death.
9

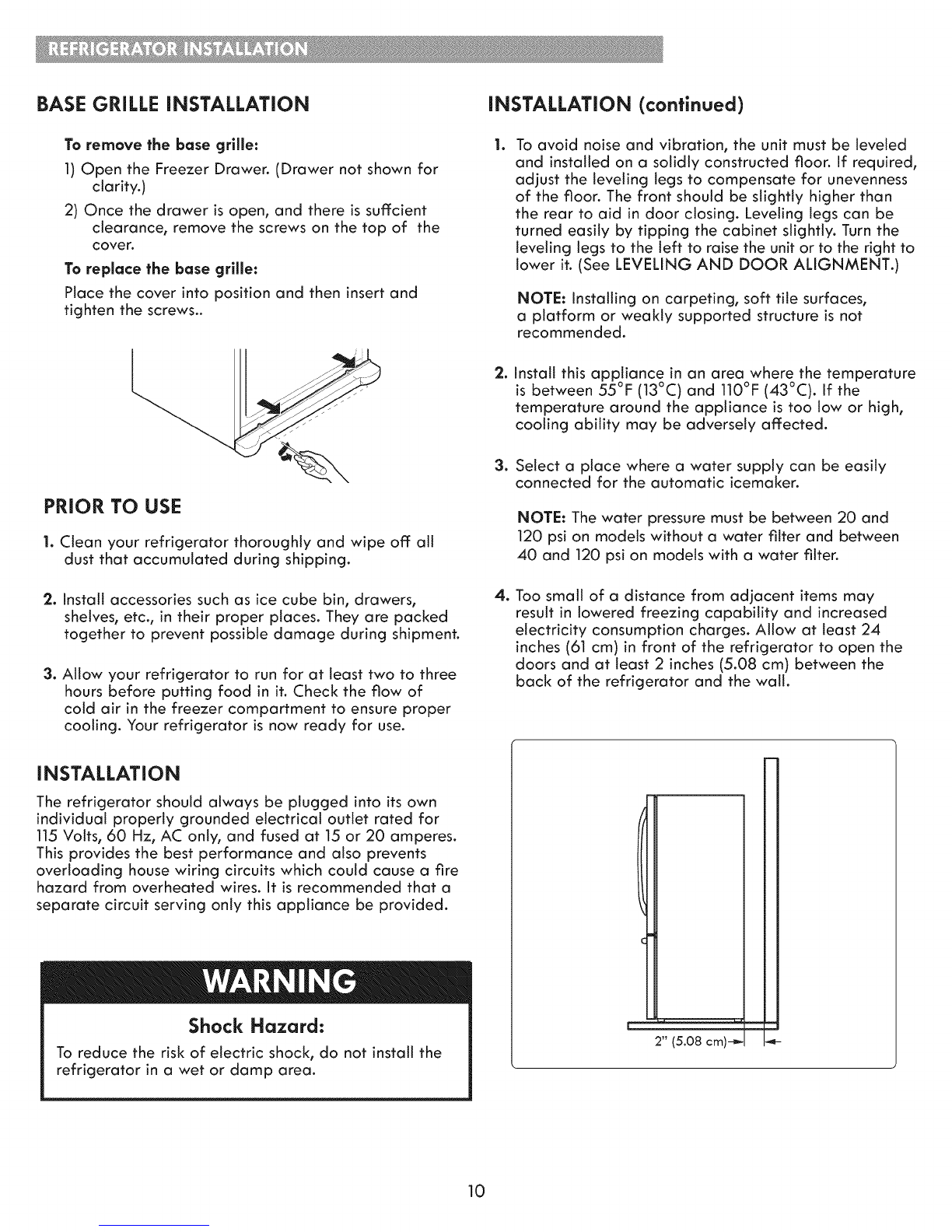

BASE GRILLE INSTALLATION INSTALLATION (continued)
To remove the base grille:
1) Open the Freezer Drawer. (Drawer not shown for
clarity.)
2) Once the drawer is open, and there is suffcient
clearance, remove the screws on the top of the
cover.
To replace the base grille:
Place the cover into position and then insert and
tighten the screws..
lo To avoid noise and vibration, the unit must be leveled
and installed on a solidly constructed floor. If required,
adjust the leveling legs to compensate for unevenness
of the floor. The front should be slightly higher than
the rear to aid in door closing. Leveling legs can be
turned easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to the right to
lower it. (See LEVELING AND DOOR ALIGNMENT.)
NOTE: Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure is not
recommended.
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off all
dust that accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Allow your refrigerator to run for at least two to three
hours before putting food in it. Check the flow of
cold air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
oInstall this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C). If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
3. Select a place where a water supply can be easily
connected for the automatic icemaker.
NOTE: The water pressure must be between 20 and
120 psi on models without a water filter and between
40 and 120 psi on models with a water filter.
oToo small of a distance from adjacent items may
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24
inches (61 cm) in front of the refrigerator to open the
doors and at least 2 inches (5.08 cm) between the
back of the refrigerator and the wall.
INSTALLATION
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Shock Hazard:
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
2" (5.08 cm)--_ -_-
10

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow
opening, if it is necessary to remove the handles, follow the directions below.

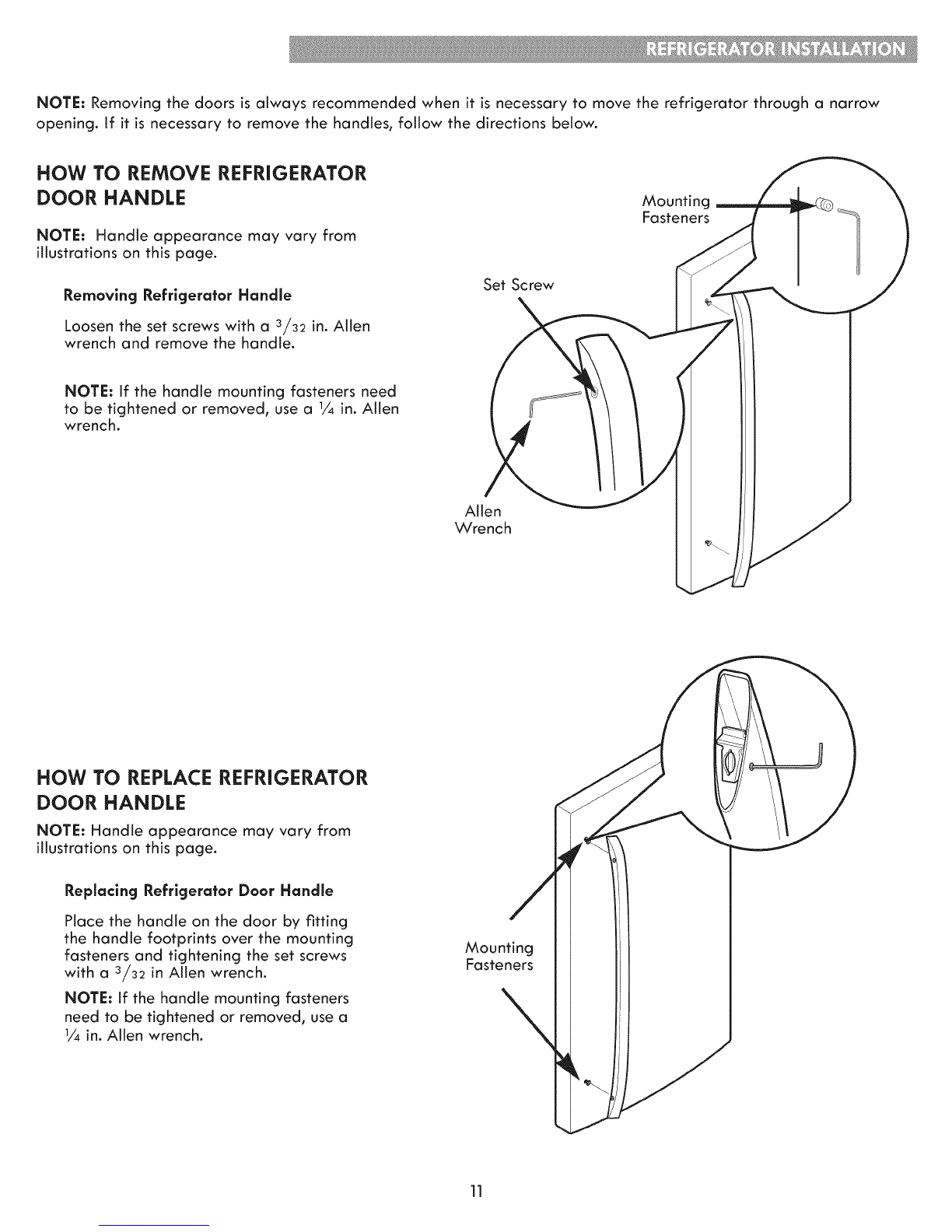

HOW TO REMOVE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
illustrations on this page.
Removing Refrigerator Handle
Loosen the set screws with a3/32 in. Allen
wrench and remove the handle.
Set Screw
Mounting
Fasteners
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 1/4in. Allen
wrench.
Allen
Wrench
HOW TO REPLACE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
illustrations on this page.
Replaclng Refrigerator Door Handle
Place the handle on the door by @ring
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32 in Allen wrench.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a
1/4in. Allen wrench.
Mounting
Fasteners
11

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow
opening, if it is necessary to remove the handles, follow the directions below.

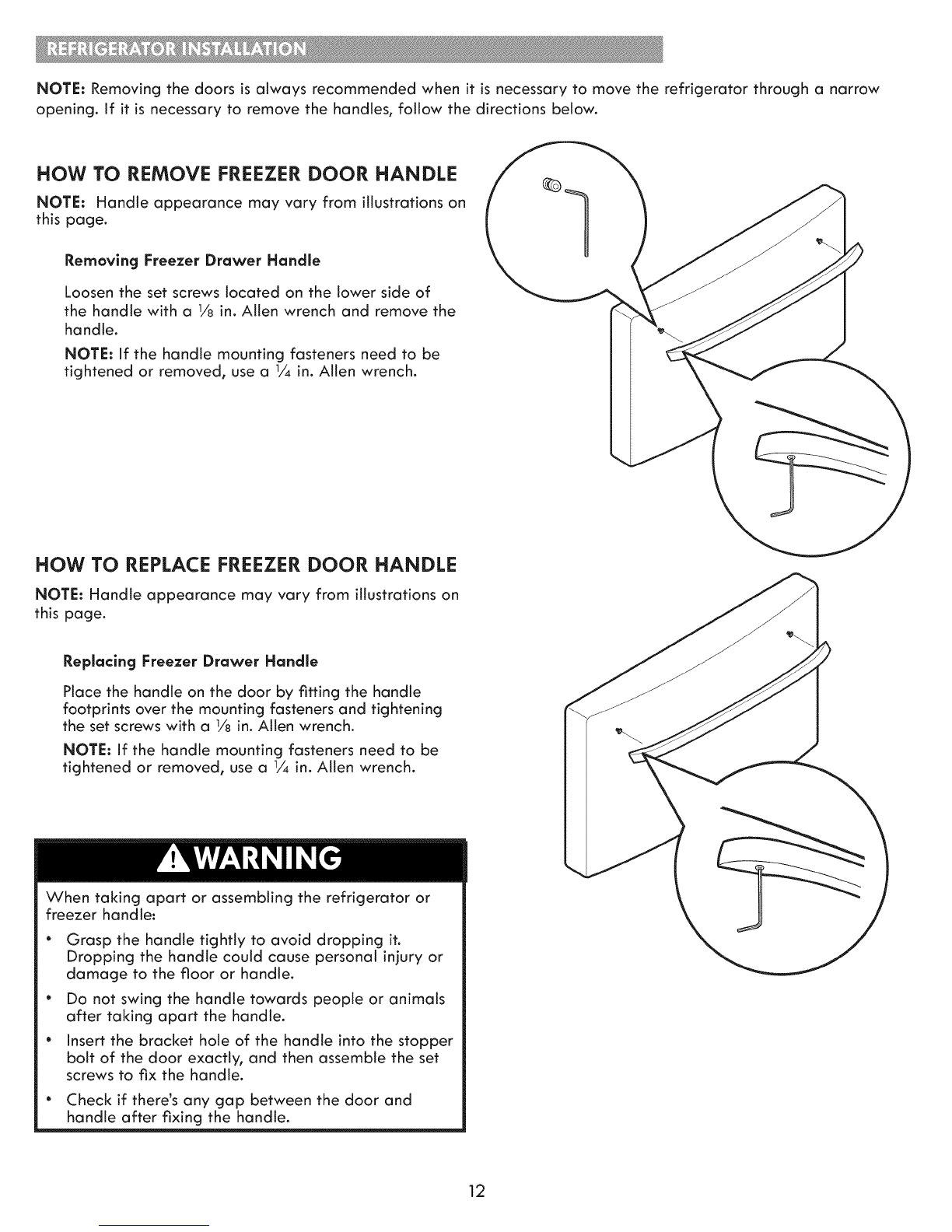

HOW TO REMOVE FREEZER DOOR HANDLE
NOTE: Handle appearance may vary from illustrations on
this page.
Removing Freezer Drawer Handle
Loosen the set screws located on the lower side of
the handle with a 1/8in. Alien wrench and remove the
handle.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4in. Alien wrench.
HOW TO REPLACE FREEZERDOOR HANDLE
NOTE: Handle appearance may vary from illustrations on
this page.
Replacing Freezer Drawer Handle
Place the handle on the door by fitting the handle
footprints over the mounting fasteners and tightening
the set screws with a 1/8in. Alien wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4in. Alien wrench.
When taking apart or assembling the refrigerator or
freezer handle:
Grasp the handle tightly to avoid dropping it.
Dropping the handle could cause personal injury or
damage to the floor or handle.
Do not swing the handle towards people or animals
after taking apart the handle.
insert the bracket hole of the handle into the stopper
bolt of the door exactly, and then assemble the set
screws to fix the handle.
•Check if there's any gap between the door and
handle after fixing the handle.
12

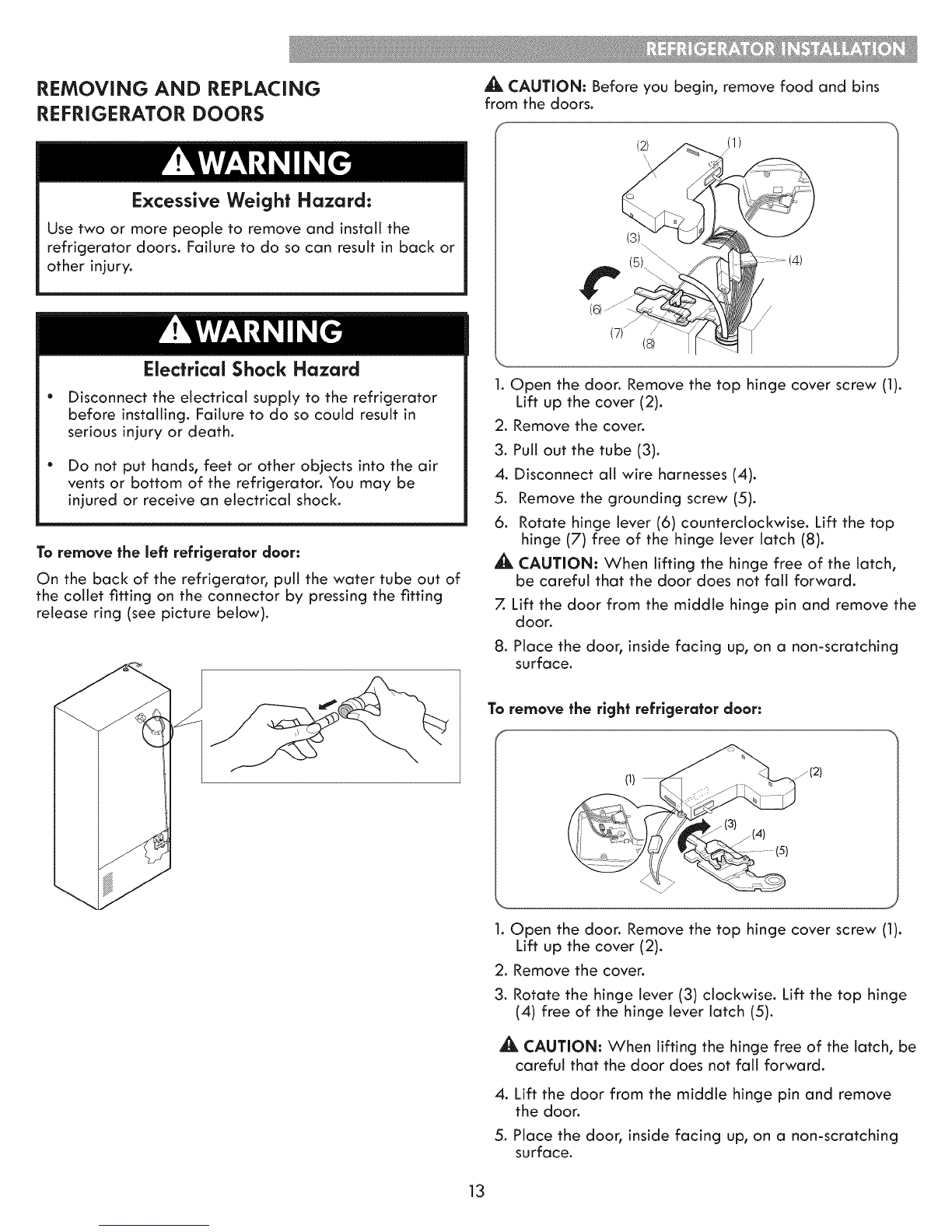

REMOVING AND REPLACING
REFRIGERATOR DOORS
Excessive Weight Hazard:
Use two or more people to remove and install the
refrigerator doors. Failure to do so can result in back or
other injury.
Electrical Shock Hazard
Disconnect the electrical supply to the refrigerator
before installing. Failure to do so could result in
serious injury or death.
Do not put hands, feet or other objects into the air
vents or bottom of the refrigerator. You may be
injured or receive an electrical shock.
To remove the left refrigerator door:
On the back of the refrigerator, pull the water tube out of
the cotlet fitting on the connector by pressing the fitting
release ring (see picture below).
,_, CAUTION: Before you begin, remove food and bins
from the doors.
(2) (1)
(3), (4)
(7)_ (8)
/
/
1.Open the door. Remove the top hinge cover screw (1).
Lift up the cover (2).
2. Remove the cover.
3. Pull out the tube (3).
4. Disconnect all wire harnesses (4).
5. Remove the grounding screw (5).
6. Rotate hinge lever (6) counterclockwise. Lift the top
hinge (7) free of the hinge lever latch (8).
_, CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
Z Lift the door from the middle hinge pin and remove the
door.
8. Place the door, inside facing up, on a non-scratching
surface.
To remove the right refrigerator door:
f
/(2)
1.Open the door. Remove the top hinge cover screw (1).
Lift up the cover (2).
2. Remove the cover.
3. Rotate the hinge lever (3) clockwise. Lift the top hinge
(4) free of the hinge lever latch (5).
,& CAUTION: When lifting the hinge free of the latch, be
careful that the door does not fall forward.
4. Lift the door from the middle hinge pin and remove
the door.
5. Place the door, inside facing up, on a non-scratching
surface.
13

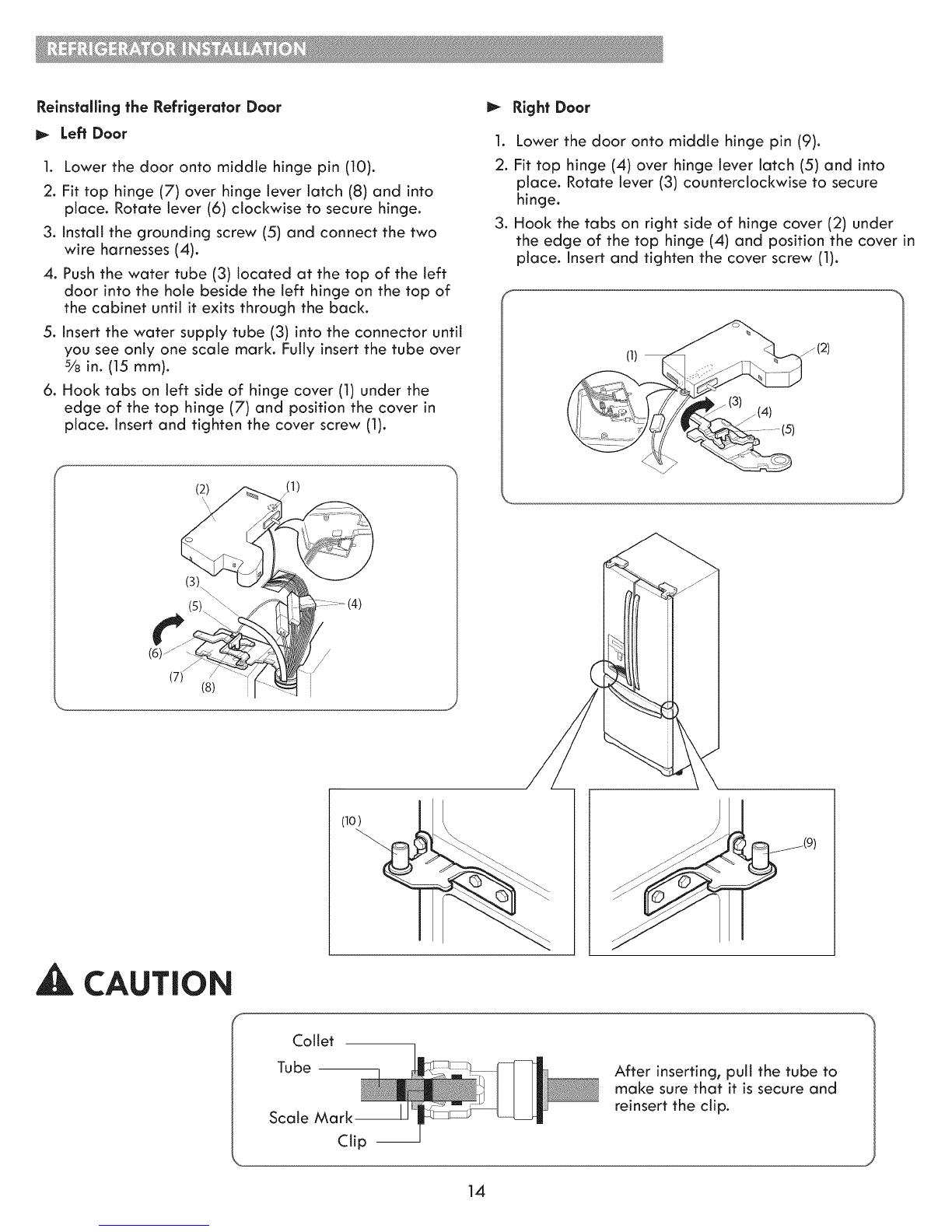

Relnstaillng the Refrigerator Door
Left Door
1. Lower the door onto middle hinge pin (10).
2. Fit top hinge (7) over hinge lever latch (8) and into
place. Rotate lever (6) clockwise to secure hinge.
3. Install the grounding screw (5) and connect the two
wire harnesses (4).
4. Push the water tube (3) located at the top of the left
door into the hole beside the left hinge on the top of
the cabinet until it exits through the back.
5. Insert the water supply tube (3) into the connector until
you see only one scale mark. Fully insert the tube over
5/8in. (15 mm).
6. Hook tabs on left side of hinge cover (1) under the
edge of the top hinge (7) and position the cover in
place. Insert and tighten the cover screw (1).
(2)
(3)_
(6)-f
(7)/(8)
/
/
Right Door
1. Lower the door onto middle hinge pin (9).
2. Fit top hinge (4) over hinge lever latch (5) and into
place. Rotate lever (3) counterclockwise to secure
hinge.
3. Hook the tabs on right side of hinge cover (2) under
the edge of the top hinge (4) and position the cover in
place. Insert and tighten the cover screw (1).
(1)
<
_(4)
/(2)
(lO) JI
CAUTION
Cotlet
Tube
Scale Mark
Ctip --
After inserting, pull the tube to
make sure that it is secure and
reinsert the clip.
14

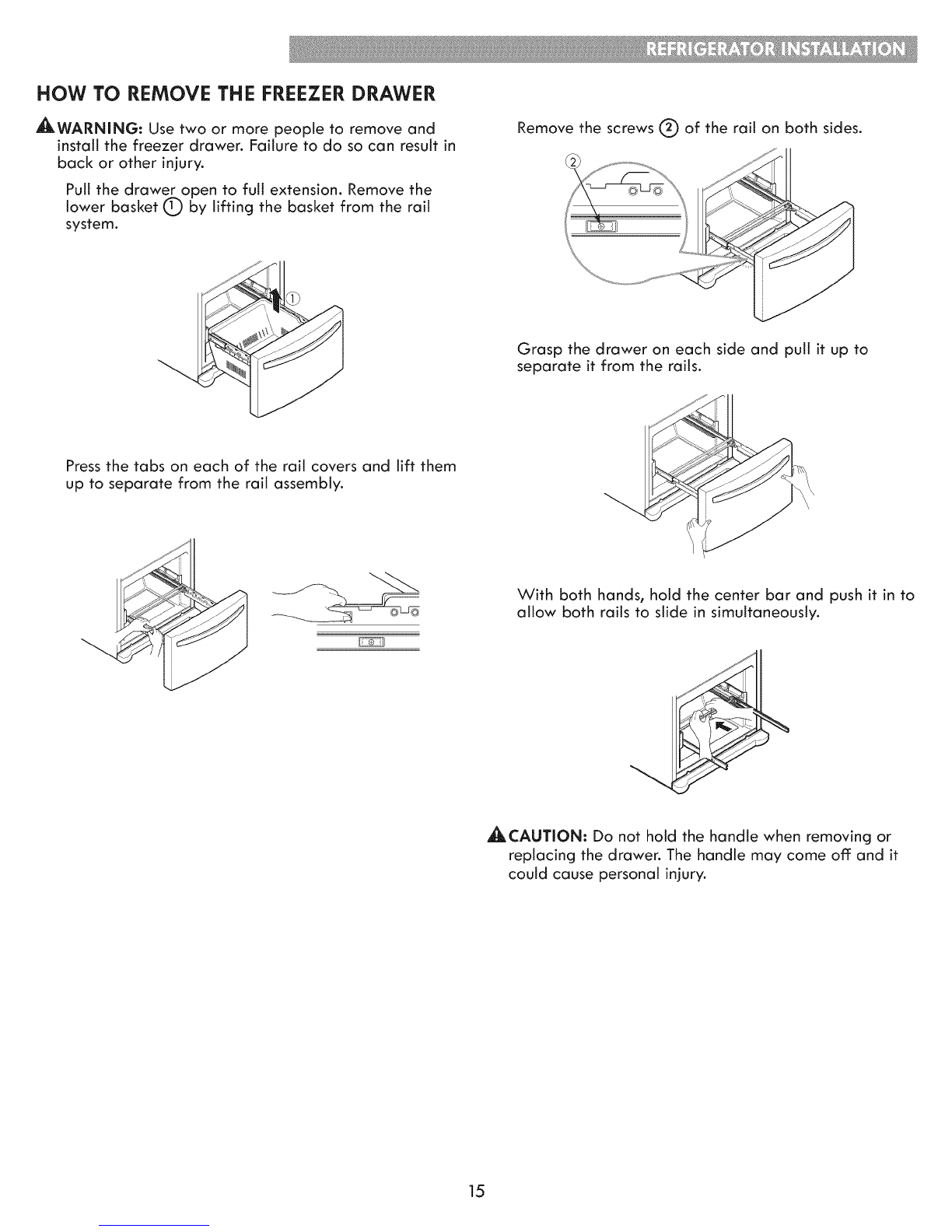

HOW TO REMOVE THE FREEZER DRAWER
_WARNING: Use two or more people to remove and
install the freezer drawer. Failure to do so can result in
back or other injury.
Pull the drawe open to futt extension. Remove the
lower basket C) by lifting the basket from the rail
system.
Remove the screws (_ of the rait on both sides.
Grasp the drawer on each side and putt it up to
separate it from the rails.
Press the tabs on each of the rail covers and lift them
up to separate from the rail assembly.
With both hands, hold the center bar and push it in to
allow both rails to slide in simultaneously.
_,CAUTION: Do not hold the handle when removing or
replacing the drawer. The handle may come off and it
could cause personal injury.
15

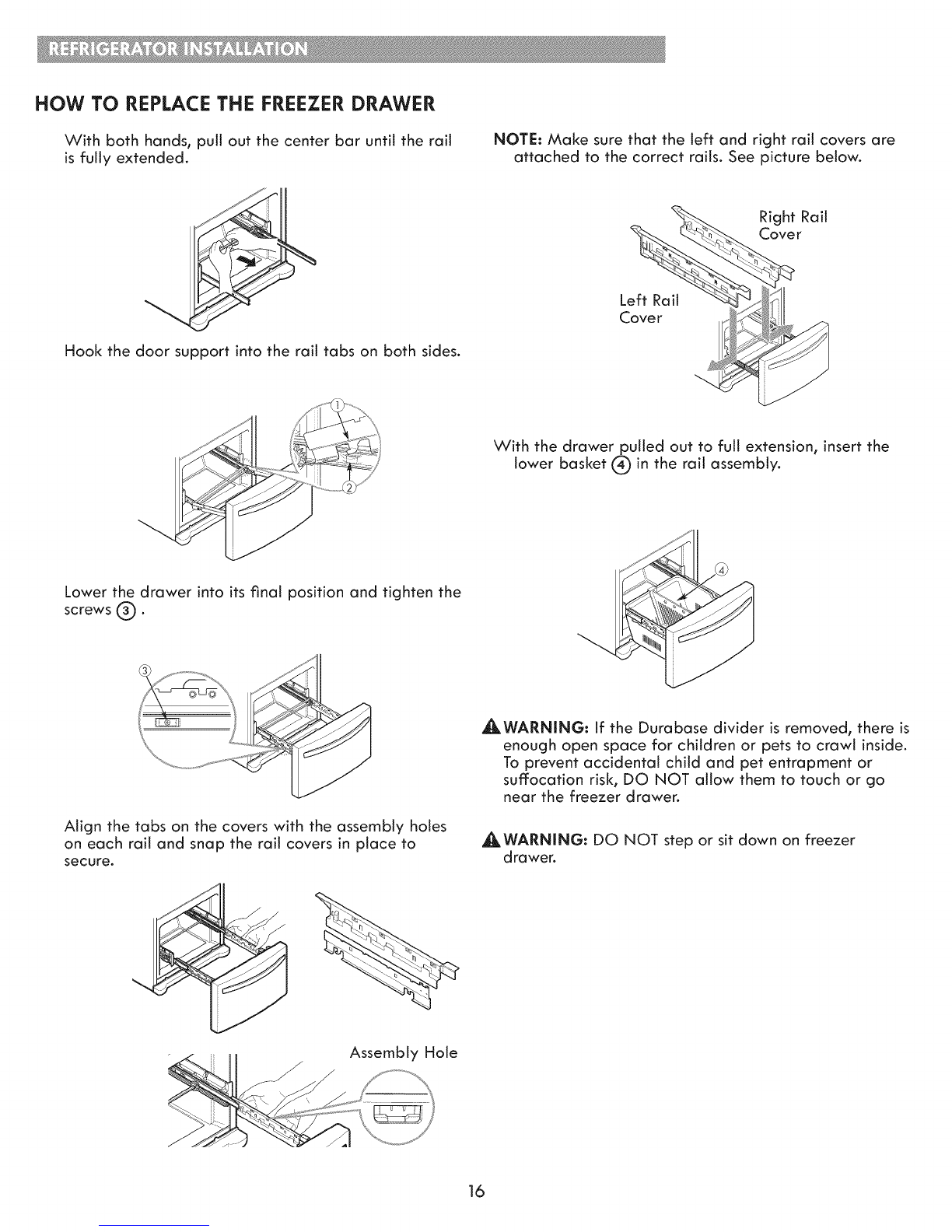

HOW TO REPLACE THE FREEZER DRAWER
With both hands, putt out the center bar until the rait
is fully extended.
Hook the door support into the rail tabs on both sides.
NOTE: Make sure that the left and right rail covers are
attached to the correct rails. See picture below.
Right Rail
Cover
Left Rait
Cover
Lower the drawer into its final position and tighten the
screws Q.
With the drawer pulled out to futl extension, insert the
lower basket (_) in the rail assembly.
Align the tabs on the covers with the assembly holes
on each rail and snap the rail covers in place to
secure.
Assembly Hole
_,WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suffocation risk, DO NOT allow them to touch or go
near the freezer drawer.
_ILWARNING: DO NOT step or sit down on freezer
drawer.
16

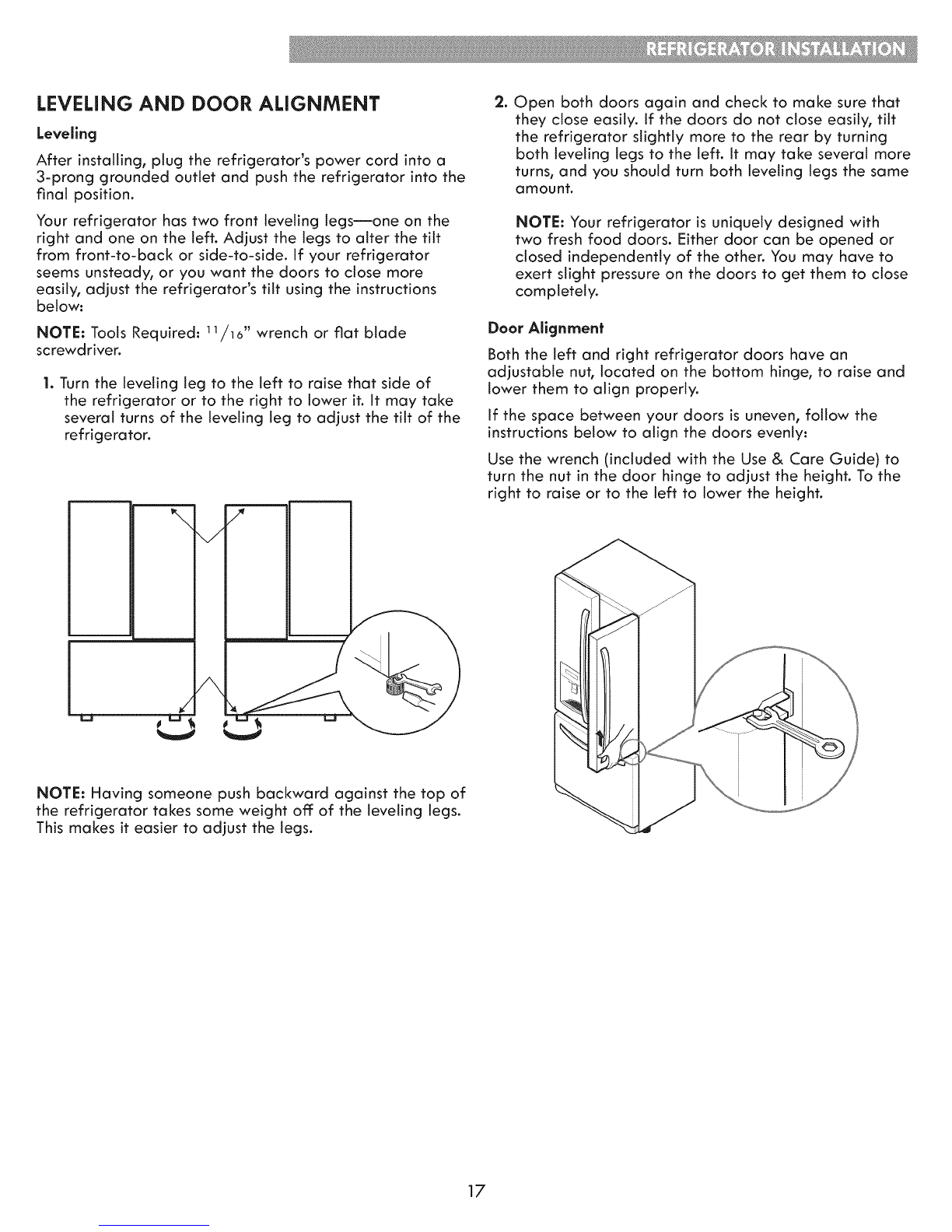

LEVELING AND DOOR ALIGNMENT
Leveling
After installing, plug the refrigerator's power cord into a
3-prong grounded outlet and push the refrigerator into the
final position.
Your refrigerator has two front leveling legs--one on the
right and one on the left. Adjust the legs to alter the tilt
from front-to-back or side-to-side. If your refrigerator
seems unsteady, or you want the doors to close more
easily, adjust the refrigerator's tilt using the instructions
below:
NOTE: Tools Required: 11/16" wrench or fiat blade
screwdriver.
1. Turn the leveling teg to the left to raise that side of
the refrigerator or to the right to lower it. it may take
several turns of the leveling leg to adjust the tilt of the
refrJgeraton
\
m
//X
oOpen both doors again and check to make sure that
they close easily. If the doors do not close easily, tilt
the refrigerator slightly more to the rear by turning
both leveling legs to the left. It may take several more
turns, and you should turn both leveling legs the same
amount.
NOTE: Your refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of the other. You may have to
exert slight pressure on the doors to get them to close
completely.
Door Alignment
Both the teft and right refrigerator doors have an
adjustable nut, located on the bottom hinge, to raise and
lower them to align properly.
If the space between your doors is uneven, follow the
instructions below to align the doors evenly:
Use the wrench (included with the Use & Care Guide) to
turn the nut in the door hinge to adjust the height. To the
right to raise or to the left to lower the height.
NOTE: Having someone push backward against the top of
the refrigerator takes some weight off: of the leveling legs.
This makes it easier to adjust the legs.
17

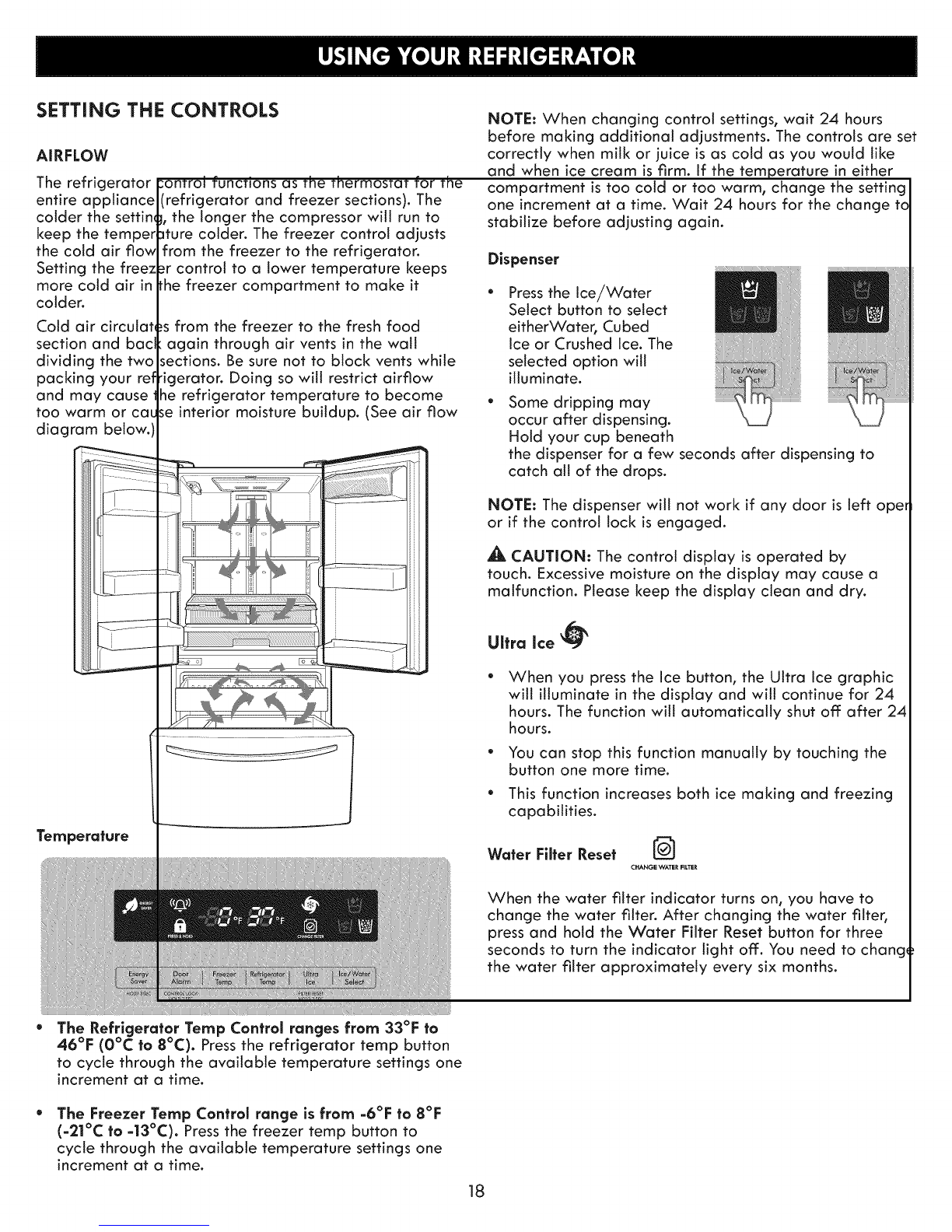

SETTING THE CONTROLS
AIRFLOW
The refrigerator
entire appliance
colder the settim
keep the temper
the cold air flow
Setting the freez
more cold air in
colder.
Cold air circular,
section and bacl
dividing the two
packing your ref
and may cause 1
too warm or cac
diagram below.
Temperature
:ontrot functions as the thermostat for the
(refrigerator and freezer sections). The
;j,the longer the compressor will run to
_ture colder. The freezer control adjusts
from the freezer to the refrigerator.
er control to a lower temperature keeps
the freezer compartment to make it
._sfrom the freezer to the fresh food
:again through air vents in the walt
sections. Be sure not to block vents while
rigeratoro Doing so will restrict airflow
he refrigerator temperature to become
se interior moisture buildup. (See air flow
NOTE: When changing control settings, wait 24 hours
before making additional adjustments. The controls are set
correctly when milk or juice is as cold as you woutd like
and when ice cream is firm. If the temperature in either
compartment is too cold or too warm, change the setting
one increment at a time. Wait 24 hours for the change to
stabilize before adjusting again.
Dispenser
Press the Ice/Water
Select button to select
eitherWater, Cubed
Ice or Crushed Ice. The
selected option will
illuminate.
Some dripping may
occur after dispensing.
Hold your cup beneath
the dispenser for a few seconds after dispensing to
catch all of the drops.
NOTE: The dispenser will not work if any door is left oper
or if the control lock is engaged.
CAUTION: The control display is operated by
touch. Excessive moisture on the display may cause a
malfunction. Please keep the display clean and dry.
Ultra ice
When you press the ice button, the Ultra ice graphic
will illuminate in the display and will continue for 24
hours. The function will automatically shut off after 24
hours.
You can stop this function manually by touching the
button one more time.
This function increases both ice making and freezing
capabilities.
Water Filter Reset
CHANGE WATER FILTER
When the water filter indicator turns on, you have to
change the water fitter. After changing the water filter,
press and hold the Water Filter Reset button for three
seconds to turn the indicator light off:. You need to chang_
the water filter approximately every six months.
The Refrigerator Temp Control ranges from 33°F to
46°F (0°C to 8°C). Press the refrigerator temp button
to cycle through the available temperature settings one
increment at a time.
The Freezer Temp Control range is from =6°F to 8°F
(=21°C to =13°C). Press the freezer temp button to
cycle through the available temperature settings one
increment at a time.
18

Articulating Mullion
This feature is a metal strip attached to the left door that
articulates (rotates) 90 degrees as the door isclosed,
forming a mullion (base) for the left and right door
gaskets to seal against.
_, CAUTION: To reduce the risk of scratching the door
or breaking the door mullion, please make sure that the
refrigerator door mullion is always folded in.
Door Alarm ((_))
When power is connected to the refrigerator, the door
alarm is initially set to ON. When you press the Door
Alarm button, the display will change to OFF and the
Door Alarm function will deactivate.
When either the refrigerator or the freezer door is left
open for more than 60 seconds, the alarm tone will
sound to let you know that the door is open.
When you close the door, the door alarm witl stop.
Energy Saver
The Energy Saver function disables the mullion heater
located on the refrigerator door in order to conserve
electricity. Press and hold the Energy Saver button for 3
seconds to activate or deactivate this function.
NOTE: Discontinue using the Energy Saver function if
excessive moisture begins to collect on the door mullion.
Control Lock PRESS& HOLD
When power is initially connected to the refrigerator,
th_ Lock function is off.
*If you want to activate the Lock function to lock oth]r
bLttons, press and hold the Control Lock button for |
thee seconds or more. The Control Lock icon will |
di ;play and the Lock function is now enabled. |
.V_ hen the Lock function is activated, no other buttorls
/
will work. The dispenser pad is also deactivated. /
.To disable the Lock function, press and hold the ConJrc
Lcck button for approximately three seconds. /
/
TemF,erature Mode Switch Function (°F <->°C) J
/
If yo_Jwant to convert °F to °C or vice versa, press andJ
hold the Freezer Temp and Refrigerator Temp buttons _t
the s,_me time for approximately five seconds. /
/
Dem ) Mode (For Store Use Only) |
/
The [)emo Mode disables all cooling in the refrigeratorJ
and :reezer sections to conserve energy while on displaJy
in a metail store. When activated, OFF will display on tt_e
control panel.
To d_a . i
With either refrigerator door opened, press and hold |
the Refrigerator Temp and Ultra Ice buttons at the samJe
time Fcr five scccnJs. Thc ccntrc! pcnc! v:!!! 5ccp end th_
temperature settings witl display to confirm that Demo
Mode is deactivated. Use the same procedure to activate
the Demo Mode.
19

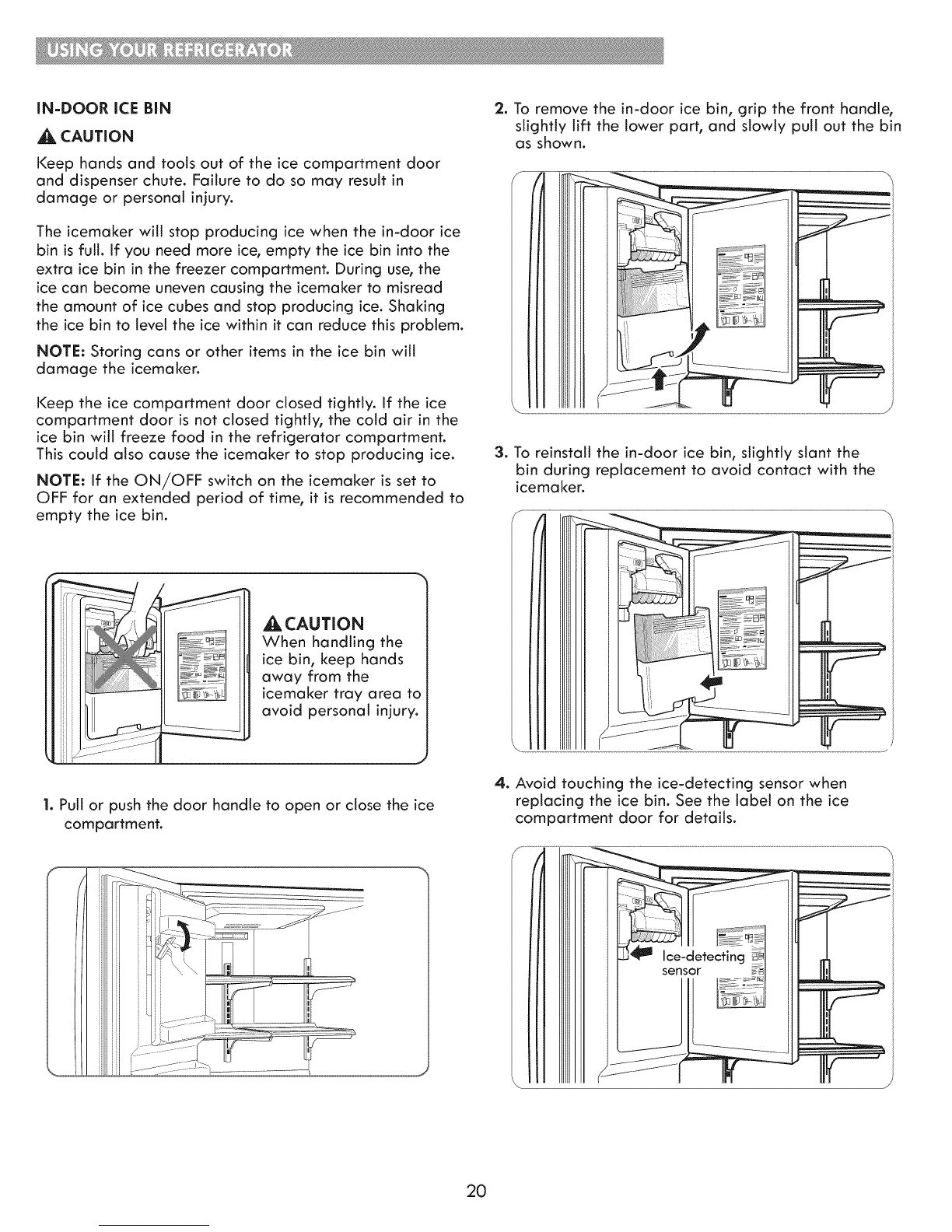

IN-DOOR iCE BiN
,A. CAUTION
Keep hands and tools out of the ice compartment door
and dispenser chute. Failure to do so may result in
damage or personal injury.
The icemaker will stop producing ice when the in-door ice
bin isfull. if you need more ice, empty the ice bin into the
extra ice bin in the freezer compartment. During use, the
ice can become uneven causing the icemaker to misread
the amount of ice cubes and stop producing ice. Shaking
the ice bin to level the ice within it can reduce this problem.
NOTE: Storing cans or other items in the ice bin will
damage the icemaker.
Keep the ice compartment door closed tightly, if the ice
compartment door is not closed tightly, the cold air in the
ice bin will freeze food in the refrigerator compartment.
This could also cause the icemaker to stop producing ice.
NOTE: If the ON/OFF switch on the icemaker is set to
OFF for an extended period of time, it is recommended to
empty the ice bin.
2. To remove the in-door ice bin, grip the front handle,
slightly lift the lower part, and slowly putt out the bin
as shown.
3. To reinstall the in-door ice bin, slightly slant the
bin during replacement to avoid contact with the
icemaker.
,A CAUTION
When handling the
ice bin, keep hands
away from the
icemaker tray area to
avoid personal injury.
1. Putt or push the door handle to open or close the ice
compartment.
4. Avoid touching the ice-detecting sensor when
replacing the ice bin. See the labet on the ice
compartment door for details.
2O
