Kenmore Kenmore Bottom-Mount Refrigerator User manual

®
12642703 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 Au Canada, www.sears.ca
ENGLISH
Bottom-Mount Refrigerator*
Use & Care Guide
Refrigerador con montaje inferior*
Manual de uso y cuidado
Réfrigérateur à compartiment inférieur*
Guide d’utilisation et d’entretien
* See model numbers on inside back
cover for models referenced.

2
!
Recognize this symbol as a safety alert indicator.
WARNING
!
To avoid electrical shock which can cause severe personal injury or death, do not cut or remove the round
grounding prong from the plug. Refrigerator must be grounded at all times. Do not remove warning tag from cord.
Do not use a two-prong adaptor. Do not use an extension cord.
Electrical Grounding InstructionsThis refrigerator is equipped with a three-prong (grounding) plug for protection
against possible shock hazards. If you encounter a two-prong receptacle, contact a qualified electrician and ha e
the two-prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the
National Electrical Code. Refrigerator is designed to operate on a separate 103 to 126 olt, 15 amp., 60 cycle line.
DANGER
!
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or
abandoned refrigerators are still dangerous even if they will sit for just a few days. If you
discard an old refrigerator, please follow the instructions below to help prevent accidents.
BEFORE YOU THROWAWAYYOUR OLD REFRIGERATOR OR FREEZER:
• Take off the doors.
• Leave the shelves in place so children may not easily climb inside.
Maintenance Agreement
We Service What We Sell
Your purchase has added alue because you can depend on Sears HomeCentral® for ser ice. With o er 12,000 trained
repair specialists and access to o er 4.2 million parts and accessories, we ha e the tools, parts, and knowledge and skills
to ensure our pledge: We Ser ice What We Sell.
Sears Maintenance Agreements
Your Kenmore appliance is designed, manufactured and tested to pro ide years of dependable operation. Yet any major
appliance may require ser ice from time to time. The Sears Maintenance Agreement offers you an outstanding ser ice
program, affordably priced.
The Sears Maintenance Agreement
 Is your way to buy tomorrow's ser ice at today's price.
 Eliminates repair bills resulting from normal wear and tear.
 Pro ides for nontechnical and instructional assistance.
 E en if you don't need repairs, pro ides an annual Pre entati e
Maintenance Check, at your request, to ensure that your appliance
is in proper running condition.
Full One Year arranty on Refrigerator
For one year from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair it, free of charge, if defecti e in material or workmanship.
Full Five Year arranty on Sealed Refrigeration System
For fi e years from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair the sealed system (consisting of refrigerator, connecting tubing and
compressor motor) free of charge, if defecti e in material or workmanship.
The abo e warranty co erage applies only to refrigerators which are used for storage of food for pri ate household
purposes. It excludes original and replacement Kenmore ice & water filter cartridges (if equipped with the filter system).
Original and replacement cartridges are warranted for 30 days, parts only, against defects of material or workmanship.
Warranty ser ice is a ailable by contacting 1-800-4-MY-HOME (1-800-469-5811).
This warranty applies only while this product is in use in the United States.
This warranty gi es you specific legal rights, and you may also ha e other rights, which ary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Electrical Requirements
Warranty United States
Some limitations apply. For more information ,
call 1- 00-361-6665.
For information concerning Sears Canada
Maintenance Agreements, call 1- 00-361-6665.

3
ENGLISH
Warranty CanadaLimited Warranty
Full One Year arranty on Refrigerator
For one year from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair it, free of charge, if defecti e in material or workmanship.
Full Five Year arranty on Sealed Refrigeration System
For fi e years from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair the sealed system (consisting of refrigerant, e aporator, and condenser)
free of charge, if defecti e in material or workmanship.
Ten Year Parts arranty on Compressor
For ten years from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will replace any compressor part, if defecti e in material or workmanship.
The abo e warranty co erage applies only to refrigerators which are used for storage of food for pri ate household
purposes. It excludes original and replacement Kenmore filtered ice & water filter cartridges (if equipped with the filter
system). Original and replacement cartridges are warranted for 30 days, parts only, against defects of material or
workmanship.
Warranty ser ice is a ailable by contacting 1-800-4-MY-HOME or (1-800-469-5811).
Sears Canada, Inc., Toronto, Canada, M5B 2B8
In the space below record the model and serial numbers and
purchase date of your refrigerator. You will find the model and
serial number sticker inside the unit on the left wall of
refrigerator section.
Model Number: ___________________________________
Serial Number: ___________________________________
Purchase Date: ___________________________________
Keep this booklet and your Sears sales receipt in a safe place
for future reference.
Product Record
Important Safety Information
Recognize Safety Symbols, Words, Labels
DANGER
!
DANGERImmediate hazards which WILL result in se ere personal injury or
death.
WARNING
!
WARNINGHazards or unsafe practices which COULD result in se ere personal
injury or death.
CAUTION
!
CAUTIONHazards or unsafe practices which COULD result in minor personal
injury or product or property damage.
What You Need to Know
about Safety Instructions
Warning and Important Safety
Instructions appearing in this manual
are not meant to co er all possible
conditions and situations that may
occur. Common sense, caution, and
care must be exercised when installing,
maintaining, or operating refrigerator.
Always contact your dealer, distributor,
ser ice agent, or manufacturer about
problems or conditions you do not
understand.
WARNING
!
To reduce the risk of injury or death, follow basic precautions, including the following:
 Read all instructions before
installing de ice.
 DO NOT attempt installation if
instructions are not understood
or if they are beyond personal
skill le el.
 DO NOT ser ice de ice unless
specifically recommended in
owners manual or published user-
repair instructions.
 Obser e all local codes and
ordinances.
 Disconnect power to unit prior to
installing de ice.

4
Electrical Requirements .......................................... 2
Maintenance Agreement .......................................... 2
Warranty .................................................................... 2
WarrantyCanada .................................................... 3
Product Record ......................................................... 3
Important Safety Information .................................... 3
Installing Your Refrigerator ....................................... 5
How to Transport Your Unit .................................. 5
How to Select the Best Location .......................... 5
How to Remo e the Doors and Hinges ............... 6
How to Re erse the Doors ................................... 6
How to Install and Remo e Handles ................... 7
How to Replace the Doors and Hinges ............... 8
How to Remo e and Install the Pullout Drawer ... 9
How to Connect the Water Supply ...................... 10
How to Le el Your Refrigerator ............................ 11
How to Adjust the Temperature Controls ............ 11
Refrigerator Features ............................................. 12
Interior Shel es ................................................... 12
Storage Drawers ................................................. 12
Freezer Features .................................................... 13
Primary Features ................................................ 13
Shel es ............................................................... 13
Drawers .............................................................. 13
Door Storage ....................................................... 13
Hints and Care ....................................................... 14
How to Clean Your Unit ...................................... 14
How to Remo e and Replace Light Bulbs ......... 15
Troubleshooting ..................................................... 16
Español .................................................................. 20
Français .................................................................. 38
Ser ice ...................................................... Back Co er
Contents

5
ENGLISH
These instructions were pro ided to aid you in the installation of your unit. Sears cannot be responsible for improper
installation.
Follow these tips when mo ing the unit to final location:
 NEVER transport unit on its side. If an upright position is not possible, lay unit on its
back. Allow unit to sit upright for approximately 30 minutes prior to plugging unit in
to assure oil return to the compressor. Plugging unit in immediately may cause
damage to internal parts.
 Use an appliance dolly when mo ing unit. ALWAYS truck unit from its sideNEVER
from its front or back.
 Protect outside finish of unit during transport by wrapping cabinet in blankets or
inserting padding between the unit and dolly.
Secure unit to dolly firmly with straps. Thread straps through handles when
possible. DO NOT o ertighten. O ertightening restraints may
dent or damage outside finish.
Obser e these points when choosing the final location for your unit:
 DO NOT install refrigerator near o en, radiator, or other heat source. If not possible,
shield unit with cabinet material.
 DO NOT install where temperature falls below 55°F (13°C). Malfunction may occur
at this temperature.
 Make sure floor is le el. If floor is not le el, shim rear wheels of unit with a piece of
plywood or other shim material.
 To assure proper door closure, erify that the unit is le eled with a ¼" tilt to the back.
How to Transport Your Unit
How to Select the Best Location
A ½" of air space should be
pro ided for the top and back of the
unit to allow for proper air
circulation. When installing your
unit, measure carefully.
Subflooring or floor co erings (i.e.
carpet, tile, wood floors, rugs) may
make your opening smaller than
anticipated.
Some clearance may be gained by
using the le eling procedure under
"How to Le el Your Refrigerator".
How do I measure an
o ening to insure
ro er fit?
Installing Your Refrigerator
IMPORTANT: If unit is to be installed
into a recess where top of unit is
completely co ered, use
dimensions from floor to top of
hinge cap to erify proper
clearance.

6
How to Reverse the Doors
Perform all steps listed in How to
Remove the Doors and Hinges.
1
Transfer cabinet plugs and
cabinet screws to opposite
side of cabinet.
 Remo e cabinet plugs with flat
blade screwdri er tip wrapped
in masking tape.
 Remo e center mullion screws
with 5/16" hex head dri er.
For swing doors only
Remo e bottom mullion screws
with 3/8" hex head dri er.
2
Transfer door stops from
bottom edge of refrigerator
and freezer door to opposite
side of door edge.
 Use a Phillips screwdri er for remo al and
installation.
3
See How to Install and Remove
Handles to remove and reinstall
handles.
4
IMPORTANT: When working directly on doors, place doors
on a nonabrasi e surface protected by towels or rugs to
a oid damage to door finish.
Proceed to How to Replace the
Doors and Hinges to mount doors.
5
How to Remove the Doors and Hinges
Some installations require door remo al to get refrigerator to final location. If remo al of the pullout drawer is required, see
section entitled How to Remove and Install the Pullout Drawer.
WARNING
!
To a oid electrical shock which can cause se ere personal injury or death, obser e the following:
 Disconnect power to refrigerator before remo ing doors. Connect power only after replacing doors.
CAUTION
!
To a oid damage to walls and flooring, protect soft inyl or other flooring with cardboard, rugs, or other protecti e material.
Remove toe grille and bottom
bracket cover(s).
 Open freezer door as wide as
possible.
 Depending on the model of
your unit, you may ha e one
or two bracket co ers.
2
3
5
Unscrew 516" hex head
screws from top hinge to
remove hinge.
 Retain all screws for later use.
Remove top hinge cover by
removing Phillips screw.
 Retain screw and co er for
replacement.
4
Lift refrigerator door from
center hinge pin.
6Hold freezer door in place
while removing center hinge
pin with a 516" hex nut driver.
Remove freezer door.
 Retain hinge pin for later use.
7Remove Phillips screws to
remove center hinge.
 Retain all screws for later use.
Remove bottom hinge or stabilizing
bracket with 38" hex head
driver.
 Lift out bottom hinge pin (some
models).
 Retain hinge pin and screws for
later use.
8
1Unplug power cord from power source.
Installing Your Refrigerator

7
ENGLISH
Installing Your Refrigerator
How to Install and Remove Handles
1Remove top handle trim by
removing top handle screw.
 Retain trim and screw for later
replacement.
Removing Refrigerator Front-Mounted Handles
Remo ing handles may be necessary when transporting unit
through tight spaces, or when re ersing the door.
Installing Refrigerator Front-Mounted Handles
If installing handles for the first time, the refrigerator handles
can be located within the refrigerator section. The handle trim
will be located in the literature pack.
1Remove ¼" hex nut screws
from door face with hex nut
driver.
 If re ersing door, remo e door
plugs from opposite side of door
and insert
Align handle holes with screw
holes on door face and secure
with 2 door face screws from
step 1.
2
3Locate handle trim in literature
pack and install over top and
bottom of handle, as illustrated.
 Secure top handle trim with remaining
screw remo ed in step 1.
 Snap bottom trim o er bottom portion of
handle.
2Pry bottom handle trim from
handle with screwdriver flat blade
wrapped in masking tape.
 Retain trim for later replacement.
3Remove two remaining
handle screws and
remove handle.
 Retain screws for later
replacement.
Installing Freezer Handles
If installing handles for the first time, the freezer handles can
be located within the freezer section.
Install handle by fastening with
screws removed from edge of
door.
 If re ersing freezer door, remo e
door plugs from top edge of door
and insert into screw holes.
Removing Freezer Handles
Remo ing handles may be necessary when transporting
unit through tight spaces, or when re ersing the door.
Remove handle screws with
Phillips screwdriver.
 Retain screws for later replacement.
Removing Refrigerator Side-Mounted Handles
Removing handles may be necessary when transporting
unit through tight spaces, or when reversing the door.
Installing Refrigerator Side-Mounted Handles
If installing handles for the first time, the refrigerator
handles can be located on the back of the refrigerator.
Install handle by fastening
with screws (T-15 Torx®*)
removed from edge of door.
Remove handle by removing
three screws (T-15 Torx®*) from
side of door.
 Retain screws for later replacement.
 If re ersing freezer door, remo e door
plugs from top edge of door and insert
into screw holes.
Installing Freezer Handles
If installing handles for the first time, the freezer handles
can be located on the back of the refrigerator.
Remove handle by removing
three screws (T-15 Torx®*) from
handle.
 Retain screws for later replacement.
Install handle by fastening with
screws (T-15 Torx®*) removed
from edge of door.
Removing Freezer Handles
Removing handles may be necessary when transporting
unit through tight spaces.
* Torx® is a registered trademark of Textron Inc.

8
Installing Your Refrigerator
How to Replace the Doors and Hinges
1Install hinge assemblies.
 Install top hinge loosely with 5/16" hex head
screws.
 Install center hinge with Phillips screws.
 Install bottom hinge with 3/8" hex head screws.
4Place hinge side of refrigerator door on
center hinge pin.
2Insert bottom hinge pin
(some models).
 Locate bottom hinge hole closest
to outside edge of cabinet, and
insert bottom hinge pin. Replace
any door shims, if present.
3Place hinge side of freezer
door on bottom hinge pin and
hold freezer door upright
while installing center hinge
pin with 516" hex head driver.
 Replace any applicable door shims.
Make sure the hinge pin is installed tight.
5While holding refrigerator
door upright, tighten
down top hinge with 516"
hex head driver and
replace hinge cover.

9
ENGLISH
Installing Your Refrigerator
How to Remove and Install the Pullout Drawer
WARNING
!
To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before
removing doors. After replacing doors, connect power.
CAUTION
!
To avoid possible injury, product, or property damage, you will need two people to perform the following instructions.
1Pull drawer open to full
extension. Remove
Phillips screw from each
side of rail system.
 Retain screws for later
replacement
2Remove lower basket by
lifting basket from rail
system.
4Lift top of door to
unhook door supports
from rail system. Lift
door out to remove.
1Pull both rails out to full
extension.
Hook door supports into rail
tabs, as illustrated, and
lower door into final
position.
 Install Phillips screws
retained from removal
step 1.
2
3Pull upper basket out to
full extension, and lift
out to remove.
3With drawer pulled out to
full extension, insert lower
basket by aligning tabs
on both side of lower
basket with notches in
rail assembly.
4Slide upper basket into
unit. Make sure that
rear of basket hooks
behind rail catch.
Removing Pullout Drawer Installing Pullout Drawer

10
Installing Your Refrigerator
How to onnect the Water Supply
Remove plastic cap (A) from
water valve inlet port (B).
2
Place brass nut (D) and
sleeve (E) on copper
tube end as illustrated.
Place end of copper tubing into
water valve inlet port. Shape
tubing slightlyDO NOT
KINKso that tubing
feeds straight into inlet port.
4
Create service loop with
tubing using care to avoid
kinks in tubing.
1
3
5Slide brass nut over sleeve and
screw nut into inlet port.
Tighten nut with wrench.
6Pull on tubing to confirm
connection is secure.
Connect tubing to frame with
water tubing clamp (F) and turn
on water supply. Check for
leaks and correct, if present.
7Monitor water connection for 24 hours.
Correct leaks, if necessary.
IMPORTANT: DO NOT o ertighten.
Cross threading may occur.
WARNING
!
To reduce the risk of in ury or death, follow basic precautions, including the following:
 Read all instructions before installing device.
 DO NOT attempt installation if instructions are not understood or if they are beyond personal skill level.
 Observe all local codes and ordinances.
 DO NOT service device unless specifically recommended in owners manual or published user-repair
instructions.
 Disconnect power to unit prior to installing device.
CAUTION
!
To avoid property damage or possible in ury, follow basic precautions, including the
following:
 Consult a plumber to connect copper tubing to household plumbing to assure compliance with local codes and
ordinances.
 Confirm water pressure to water valve is between 20 and 100 pounds per square inch. If water filter is installed,
water pressure to water valve must be a minimum of 35 pounds per square inch.
DO NOT use a self-piercing, or 3/16" saddle valve! Both reduce water flow, become clogged with time, and
may cause leaks if repair is attempted.
 Tighten nuts by hand to prevent cross threading. Finish tightening nuts with pliers and wrenches. Do not
overtighten.
 Wait 24 hours before placing unit into final position to check and correct any water leaks.
Materials Needed
1/4" outer diameter
flexible copper tubing
NOTE: Add 8' to tubing length needed to reach
water supply for creation of ser ice loop.
 Adjustable wrench
 ¼ hex nut dri er
F
AB
'(
 Shut-off al e (requires a 1/4" hole
to be drilled into water supply
before al e attachment)

11
ENGLISH
CAUTION
!
To protect personal property or unit from damage, obser e the following:
 Protect soft inyl or other flooring with cardboard, rugs, or other protecti e material.
 Do not use power tools when performing le eling procedure.
How to Level Your Refrigerator
If your refrigerator requires an ice maker water supply connection, proceed to How to connect the water supply
section before leveling your refrigerator.
Materials Needed
1Move refrigerator to final location
and plug in power cord.
2Remove toe grille
and bottom cover(s)
3Turn left and right adjustment
screws (A) to raise or lower
front of refrigerator.
 Make sure refrigerator cabinet is le el
from side to side by adjusting left and
right roller adjustment screws.
 Turn stabilizing leg clockwise until firmly against
floor.
4Using a level, make sure front of
refrigerator is ¼" (6 mm) or ½ bubble
higher than back of refrigerator.
 See le eling step 3 for assistance.
5Replace toe grille and bracket cover(s).
See markings on inside of toe grille to
insure proper placement.
Snap bottom portion into place first. Press
down on top part of grille until top portion snaps
into place.
For Pullout Drawer Models: After completing
the abo e listed steps, turn roller adjustment
screws (A) 2 to 3 times counterclockwise, so
that full weight of unit rests on stabilizing legs.
3/8" hex head dri er  Le el
Installing Your Refrigerator
A
How to Adjust the Temperature ontrols
This refrigerator is designed to operate at a household temperature of 55° to 110°F (13° to 43° C). For initial temperature
setting, follow all fi e steps listed below. If doing a simple temperature modification for an operational unit, only steps 3
through 5 are required.
IMPORTANT: Always start temperature
adjustments with freezer section.
Allow 24 hours for temperatures to stabilize.
2
Check to see if freezer temperature is 0° to 2° F (-17° to -16° C).
3 Turn control to next highest number if too warm.
 Turn control to next lowest number if too cold.
Allow 5 to 8 hours for adjustments to take effect.
Locate refrigerator controls at the top of refrigerator
compartment and freezer controls at top of freezer section.
Set both controls to 4.
1
Check to see that refrigerator section is 38° to 40° F (3° to 4° C).
4
Repeat steps 3 & 4, as necessary.
5
IMPORTANT: Neither section will cool if freezer control is set to Off. Materials needed
 2 thermometers measuring -5°
to 50°F (-21° to 10°C)
 2 drinking glasses
For Freezer
 Place thermometer in glass of
egetable oil in middle of freezer
and continue with step 3 of
Temperature Adjustment section.
How do I erform
a tem erature test?
 Turn control to next highest number if too warm.
 Turn control to next lowest number if too cold.
 Allow 5 to 8 hours for adjustments to take effect. For Refrigerator
 Place thermometer in glass of
water in middle of unit and
continue with step 3 of
Temperature Adjustment section.

12
Humidity-Controlled Crisper Drawers
The crisper drawer keeps produce fresh
longer by pro iding an en ironment with
adjustable humidity.
Controls
The crisper controls
regulate the amount
of humidity in the crisper drawer. Use the low setting for
non-leafy produce. Use the high setting for leafy produce.
Snack Drawer
This drawer can be used for storage
of food items or extra produce.
Can Rack some models
The can rack slides out from underneath
the spillproof stationary shelf. The can
rack holds up to twel e 12-ounce
be erage cans.
To remove and install drawers:
 To remo e drawer, pull drawer out to full extension. Tilt
up front of drawer and pull straight out.
 To install, insert drawer into frame rails
and push back into place.
To remove and install glass and frame:
 Remo e drawers as instructed abo e.
 Place hand beneath frame to
push up glass from underneath.
Lift glass out.
 Lift frame from refrigerator liner rails.
 To install, repeat abo e instructions in re erse order.
How can I rolong the life of my roduce?
Please obser e the following rules when storing produce in
humidity-controlled crisper drawers:
 DO NOT wash produce before placing in crispers. Any
additional moisture added to the drawers may cause
produce to prematurely spoil.
 DO NOT line crispers with paper towels. Towels will retain
moisture.
 Follow control instructions carefully. Not setting controls
correctly may damage produce. See chart for assistance
with controls:
What if I can't o en my door wide
enough to remove the drawers?
 Remo e drawer furthest from
hinge side of cabinet.
 Remo e glass as instructed in
bottom of drawer section.
 Lift center di ider from frame. Slide existing drawer away
from hinge side of cabinet and remo e.
Storage Drawers
 cauliflower
 apples
 corn
 oranges
 lettuce
 asparagus
 spinach
 cabbage
 celery
 broccoli
 fresh sprouts
 fresh herbs
LOW HIGH
 zucchini
 grapes
 cucumbers

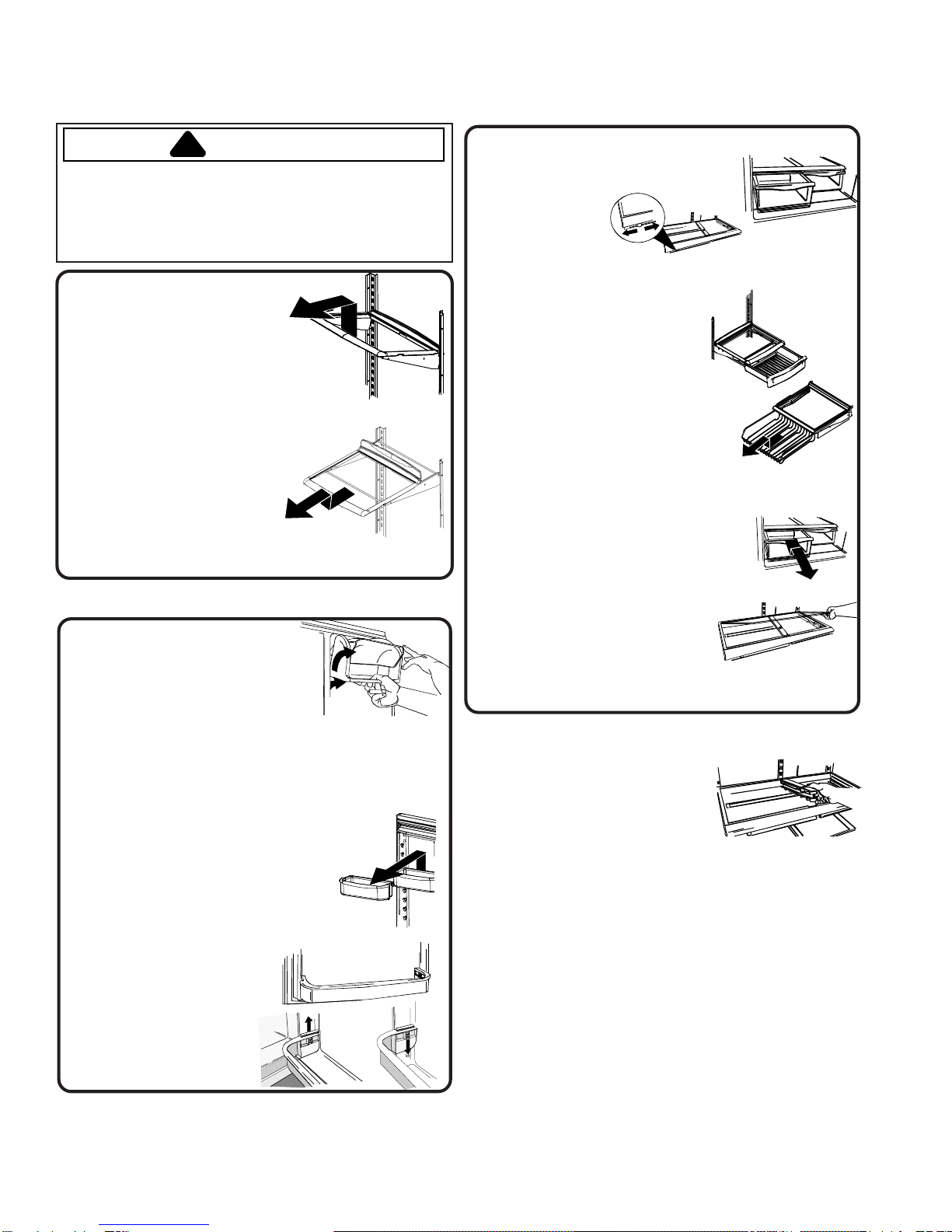

Refrigerator Features
Interior Shelves
CAUTION
!
To a oid personal injury or property damage, obser e the
following:
 Confirm shelf is secure before placing items on shelf.
 Handle tempered glass shel es carefully. Shel es may
break suddenly if nicked, scratched, or exposed to
sudden temperature change.
Door Storage
Door Buckets
Door buckets adjust to meet indi idual storage
needs.
 To remo e, slide bucket up and pull
straight out.
 To install, re erse abo e procedure.
Dairy Center
The dairy center pro ides con enient
storage for items such as butter,
yogurt, cheese, etc. This compartment
is an adjustable feature located in the
door. It can be mo ed to se eral
different locations to accommodate
storage needs.
 To remo e, open dairy door, pull upward and tilt out.
 To install, re erse abo e procedure.
Spillproof some models
Spillproof stationary shel es
hold simple spills for easier
cleaning.
 To remo e shel es, lift up and out.
 To install shel es, re erse abo e
procedure.
Spillproof Slide Out some models
Spillproof slide out shel es feature
the con enience of easy cleaning
with a pullout design to reach
items in the back. For ease of
cleaning, glass shelf may be
remo ed by pulling to full
extension and lifting out of frame.
 To remo e shelf and frame, see instructions for
spillproof stationary shel es.
Door Retainer
Door retainer remo es for easy
cleaning.
 To remo e, slide retainer
up and pull straight out.
 To install, re erse abo e
procedure.

13
ENGLISH
reezer Shelf
To remove and install shelves:
 Remo e shelf by pulling
out to full extension. Tilt up
front of shelf and pull
straight out.
 To install, insert shelf into
refrigerator liner rails and
push to back of compartment.
Freezer Features
Automatic Ice Maker some models
Using Ice Maker for the First Time
 Confirm ice bin is in place and ice
maker arm is down.
 After freezer section reaches between
0° to 2°F (-18° to -17° C), ice maker fills with water
and begins operating.
Allow approximately 24 hours after installation to
recei e first har est of ice.
 Discard ice created within first 12 hours of operation
to erify system is flushed of impurities.
Operating Instructions
 Confirm ice bin is in place and ice maker arm is
down.
 After freezer section reaches 0° to 2°F (-18° to -17° C),
ice maker fills with water and begins operating. You
will ha e a complete har est of ice approximately
e ery 3 hours.
 Stop ice production by raising ice
maker arm until click is heard.
 Ice maker will remain in the off
position until arm is pushed down.
Primary Features
CAUTION
!
To a oid property damage, obser e the following:
 Do not force ice maker arm down or up.
 Do not place or store anything in ice storage bin.
Door Shelf
The fixed door shelf pro ides
con enient storage for frozen
food items in freezer door.
To remove and install door shelf:
 To remo e shelf, lift assembly
from side liner tabs and pull
out.
 To install, fit ends of shelf assembly on
liner tabs and slide down.
Door Storage
Wire Basket
To remove and install basket:
 To remo e basket, pull basket
out to full extension. Tilt up front
of basket and pull straight out.
 To install, insert basket into refrigerator liner rails and
push back into place
Shelves
Ice Service Rack
To install and remove rack:
 To install, slide L-shaped groo e
of shelf down o er back wall screw.
Push rack back until screw is stopped
in L-shaped groo e (1) . Slide front
portion of shelf o er front wall screw (2).
 To remo e, perform abo e steps in re erse order.
1
2
Pullout Drawer Baskets some models
(Door assembly of drawer remo ed from illustration for
isual clarity)
To remove and replace top basket:
 Remo e basket by pulling
basket out to its full extension
and lift out.
 Replace basket by
sliding into upper
compartment of
freezer.
To remove and replace bottom
basket:
 Remo e basket by lifting basket from rail guides.
 Replace basket by placing into rail guides.
Drawers
DANGER
!
To pre ent accidental child entrapment or suffocation
risk,DO NOT remo e the di ider in the top freezer
basket.

14
ints and Care
WARNING
!
To a oid electrical shock which can cause se ere personal injury or death,
disconnect power to refrigerator before cleaning. After cleaning, connect power.
CAUTION
!
To a oid personal injury or property damage:
 Read and follow manufacturer's directions for all cleaning products.
 Do not place buckets, shel es, or accessories in dishwasher. Cracking or
warping of accessories may result
How do I remove an
odor from my
refrigerator?
1. Remo e all food.
2. Disconnect refrigerator.
3. Clean the following items
using the appropriate instructions in
"How to Clean Your Unit" :
 Walls, floor, and ceiling of
cabinet interior.
 Drawers, shel es, and gaskets
according to the instructions in
this section.
4. Pay special attention to all cre ices
by completing the following steps:
 Dilute mild detergent and brush
solution into cre ices using a
plastic bristle brush.
 Let stand for 5 minutes.
 Rinse surfaces with warm
water. Dry surfaces with a soft,
clean cloth.
5. Wash and dry all bottles,
containers, and jars. Discard
spoiled or expired items.
6. Wrap or store odor-causing foods in
tightly-sealed containers to pre ent
reoccurring odors.
7. Connect power to refrigerator and
return food to unit.
8. After 24 hours, check if odor has
been eliminated.
If odor is still present...
1. Remo e drawers and place on top
shelf of refrigerator.
2. Pack refrigerator and freezer
sectionsincluding doorswith
crumpled sheets of black and white
newspaper.
3. Place charcoal briquettes randomly
on crumpled newspaper in both
freezer and refrigerator
compartments.
4. Close doors and let stand 2448
hours.
5. Repeat steps 5 through 7.
If odor was not eliminated, contact
Sears Ser ice Center. Refer to back of
manual for phone number.
How to lean Your Unit
* A stainless steel cleaner has been included inside the refrigerator for your use. To purchase
additional cleaner, please contact Sears using the information on the back of your manual.
$5($ '212786( '2«
Textured Doors
and Exterior
Cabinet Interior
• Abrasive or harsh cleaners
• Ammonia
• Chlorine bleach
• Concentrated detergents or
solvents
• Metal or plastic-textured
scouring pads
• Use 4 tablespoons (60
milliliters) of baking soda
dissolved in 1 quart (1
liter) warm soapy water.
• Rinse surfaces with clean
warm water and dry
immediately to avoid
water spots.
Stainless Steel Doors
and Exterior*
IMPORTANT:
Damage to stainless steel
finish due to improper use
of cleaning products or
non-recommended
products is not covered
under any warranty
• Abrasive or harsh cleaners
• Ammonia
• Chlorine bleach
• Concentrated detergents or
solvents
• Metal or plastic-textured
scouring pads
• Vinegar-based product
• Citrus-based cleaners
Dispenser Controls • Abrasive or harsh cleaners
• Ammonia
• Chlorine bleach
• Concentrated detergents or
solvents
• Metal or plastic-textured
scouring pads
Door Gaskets • Abrasive or harsh cleaners
• Metal or plastic-textured
scouring pads
• Use warm, soapy water
and a soft, clean cloth or
sponge.
• Rinse surfaces with clean
warm water and dry
immediately to avoid
water spots.
Condenser Coil
Remove toe grille to
access
• Use a vacuum cleaner
hose nozzle.
Condenser Fan Outlet
Grille
See back of refrigerator
N/A
• Use a vacuum cleaner
hose nozzle with brush
attachment.
Accessories
Shelves, buckets,
drawers, etc
• A Dishwasher • Follow removal and
installation instructions
from appropriate feature
section.
• Allow items to adjust to
room temperature.
• Dilute mild detergent and
use a soft clean cloth or
sponge for cleaning.
• Use a plastic bristle brush
to get into crevices.
• Rinse surfaces with clean
warm mater.
• Dry glass and clear items
immediately to avoid
spots.

15
ENGLISH
WARNING
!
To a oid electrical shock which can cause se ere personal injury or death,
disconnect power to refrigerator before replacing light bulb. After replacing light
bulb, connect power.
CAUTION
!
To a oid personal injury or property damage, obser e the following:
 Allow light bulb to cool.
 Wear glo es when replacing light bulb.
How to Remove and Replace Light Bulbs
Refrigerator Section
1. Remo e screw from light shield. Retain for
replacement.
1. Slide shield toward back of compartment to
release from light assembly.
2. Remo e light bulbs.
3. Replace with appliance bulbs no greater than
40 watts.
4. Replace light bulb co er by inserting
tabs on light shield into liner holes on
each side of light assembly. Slide shield
toward front of unit until it locks into place.
DO NOT force shield beyond locking point.
Doing so may damage light shield.
5. Replace screw remo ed in step 1.
Freezer Section
1. Pinch rear tabs (A) on light co er and pull straight
out.
2. Remo e light bulb.
3. Replace bulb with appliance bulb no greater
than 40 watts.
4. Insert top tabs (B) of light co er into refrigerator
liner and snap back portion o er light assembly.
How to Get the
Most Out of
Your Energy
Dollar
• When placing refrigerator into final
position, allow for 1" clearance
around the top and sides of unit to
supply ample ventilation for
optimum energy efficiency.
• Avoid overcrowding refrigerator
shelves. This reduces effectivity of
air circulation around food and
causes refrigerator to run longer.
• Avoid adding too much warm food
to unit at one time. This overloads
compartments and slows rate of
cooling.
• Do not use aluminum foil, wax
paper, or paper toweling as shelf
liners. This decreases air flow and
causes unit to run less efficiently.
• A freezer that is 2/3full runs most
efficiently.
• Locate refrigerator in coolest part of
room. Avoid areas of direct sunlight,
or near heating ducts, registers, or
other heat producing appliances. If
this is not possible, isolate exterior
by using a section of cabinet or an
added layer of insulation.
• Refer to owner's manual section on
temperature controls for
recommended control settings.
• Clean door gaskets every three
months according to owner's
manual cleaning instructions. This
will assure that door seals properly
and unit runs efficiently.
• Take time to organize items in
refrigerator to reduce time that door
is open.
• Be sure your doors are closing
securely by leveling unit as
instructed in your owner's manual.
• Clean condenser coils of as
indicated in the owner's manual
every 3 months. This will increase
energy efficiency and cooling
performance.
$
$
%
ints and Care

16
Trouble Shooting
Todays refrigerators ha e new features and are more energy efficient. Foam insulation is ery energy
efficient and has excellent insulating capabilities, howe er, foam insulation is not as sound absorbent.
As a result, certain sounds may be unfamiliar. In time, these sounds will become familiar. Please refer to
this information before calling ser ice.
OPERATION
Freezer control
and lights are on,
but compressor
is not operating.
Refrigerator is in defrost mode. Normal operation. Wait 40 minutes to see if refrigerator
restarts.
Drawer control settings are too low. See section on “Refrigerator Features—Humidity-
Controlled Crisper Drawers” to adjust controls.
Freezer controls are set too low. See “Installation Instructions—How to Adjust the
Temperature Controls” section on how to adjust your
controls.
Crisper drawer
temperature is
too warm
Drawer is improperly positioned. See section on “Refrigerator Features—Humidity-
Controlled Crisper Drawers” to verify drawer positioning.
Refrigerator is not plugged in. Plug in unit.
Freezer control is not on. See section on “Refrigerator Features—Humidity-
Controlled Crisper Drawers” to adjust controls.
Fuse is blown, or circuit breaker needs
to be reset. Replace any blown fuses. Check circuit breaker and reset if necessary.
Refrigerator does
not operate
Power outage has occurred Call local power company listing to report outage.
Refrigerator still
won’t operate Unit is malfunctioning. Unplug refrigerator and transfer food to another unit. If
another unit is not available, place dry ice in freezer section
to preserve food. Warranty does not cover food loss.
Contact service for assistance.
Condenser coils are dirty. See section on “Hints and Care—How to Clean Your Unit”
for instructions.
Food temperature
is too cold Refrigerator or freezer controls are set
too high. See section on “Refrigerator Features—Humidity- Controlled Crisper Drawers” to adjust controls.
A
B
C
I
E
H
K
D
J
G
F
NOISE
723,&3266,%/(&$86(62/87,21
Freezer control (A) clicks when starting or
stopping compressor. Normal operation
Clicking
Defrost timer (B) sounds like an electric
clock and snaps in and out of defrost
cycle.
Normal operation
Air rushing or
whirring Freezer fan (C) and condenser fan (D)
make this noise while operating. Normal operation
Gurgling or
boiling sound Evaporator (E) and heat exchanger (F)
refrigerant makes this noise when flowing. Normal operation
Thumping Ice cubes from ice maker (some models)
drop into ice bucket (G). Normal operation
Compressor (H) makes a pulsating sound
while running. Normal operation
Vibrating noise
Refrigerator is not level. See “Installation
Instructions” for details on
how to level your unit.
Buzzing Ice maker water valve (I) hookup (some
models) buzzes when ice maker fills with
water.
Normal operation
Ice maker (J) is in the ‘on’ position without
water connection. Stop sound by raising ice maker arm to ‘off’ position.
See “Automatic Ice Maker”
section for details.
Humming
Compressor (H) can make a high-pitched
hum while operating. Normal operation
Hissing or
popping Defrost heater (K) hisses, sizzles, or pops
when operational. Normal operation

17
ENGLISH
OPERATION
723,& 3266,%/(&$86( 62/87,21
See “Installation Instructions—How to Level Your Refrigerator”
section on how to properly level unit.
Check gaskets for proper seal. Clean, if necessary, according to
cleaning instructions.
Door is not closing properly.
Check for internal obstructions that are keeping door from
closing properly (i.e. improperly closed drawers, ice buckets,
oversized or improperly stored containers or foodstuffs, etc.).
Controls need to be adjusted. See “Installation Instructions—How to Adjust the Temperature
Controls” section on how to adjust your controls.
Condenser coils are dirty. See section on “Hints and Care—How to Clean Your Unit” for
instructions.
Rear air grille is blocked. Check the positioning of food items in refrigerator to make sure
grille is not blocked. Rear air grilles are located under crisper
drawers.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Door has been opened frequently, or
has been opened for long periods of
time. Allow interior environment to adjust for period the door has been
open.
Food temperature
appears too warm
Food has recently been added. Allow time for recently-added food to reach refrigerator or
freezer temperature.
Refrigerator has an odor Compartment is dirty or has odor-
causing food. See section on “Hints and Care” for instructions.
Check gaskets for proper seal. See section on “Hints and Care—How to Clean Your Unit” for
instructions.
Humidity levels are high. Normal during times of high humidity.
Water droplets form on
outside of refrigerator
Controls require adjustment See “Installation Instructions—How to Adjust the Temperature
Controls” section on how to adjust your controls.
Humidity levels are high or door has
been opened frequently. See “Installation Instructions—How to Adjust the Temperature Controls” section on how to adjust your controls.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Water droplets form on
inside of refrigerator
Check gaskets for proper seal. See section on “Hints and Care—How to Clean Your Unit” for
instructions.
Refrigerator or ice maker
make unfamiliar sounds or
seems too loud
Normal operation Refer to noise section of troubleshooting guide.
Contents of drawer, or positioning of
items in the surrounding compartment
could be obstructing drawer
Reposition food items and containers to avoid interference with
the drawers.
Drawer is not in proper position See section on “Refrigerator Features—Humidity-Controlled
Crisper Drawers” to verify drawer positioning.
Refrigerator is not level. See “Installation Instructions—How to Level Your Refrigerator”
section on how to properly level unit.
Clean drawer channels with warm, soapy water. Rinse and dry
thoroughly.
Crisper drawers do not
close freely
Drawer channels are dirty or need
treatment. Apply a thin layer of petroleum jelly to drawer channels.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Doors have been opened frequently or
have been opened for long periods of
time. Allow interior environment to adjust for period the door has been
open.
Humidity or heat in surrounding area is
high. Normal operation
Food has recently been added. Allow time for recently-added food to reach refrigerator or
freezer temperature.
Unit is exposed to heat by
environment or by appliances nearby. Evaluate your unit’s environment. Unit may need to be moved to run more efficiently.
Refrigerator runs too
frequently
Condenser coils are dirty. See section on “Hints and Care—How to Clean Your Unit” for
instructions.
Trouble Shooting

18
OPERATION (continued)
723,& 3266,%/(&$86( 62/87,21
Controls need to be adjusted. See “Installation Instructions—How to Adjust the
Temperature Controls” section on how to adjust your
controls.
See “Installation Instructions—How to Level Your
Refrigerator” section on how to properly level unit.
Check gaskets for proper seal. Clean, if necessary. See
section on “Hints and Care—How to Clean Your Unit” for
instructions.
Refrigerator runs too
frequently (continued)
Door is not closing properly.
Check for internal obstructions that are keeping door from
closing properly (i.e. improperly closed drawers, ice
buckets, oversized or improperly stored containers or
foodstuffs, etc.).
ICE
Unit is leaking water Plastic tubing was used to complete water
connection. Sears recommends using copper tubing for installation.
Plastic is less durable and can cause leakage. Sears is
not responsible for property damage due to improper
installation or water connection.
Improper water valve was installed. See section on “Installation Instructions—How to Connect
the Water Supply” for instructions. Self-piercing and 3/16”
saddle valves cause low water pressure and may clog the
line over time. Sears is not responsible for property
damage due to improper installation or water
connection.
Ice forms in inlet tube to ice
maker
Water pressure is low. Water pressure must be between 20 to 100 pounds per
square inch to function properly. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Freezer temperature is too high. See “Installation Instructions—How to Adjust the
Temperature Controls” section on how to adjust your
controls. Freezer is recommended to be between 0 to 2°F
(-18 to –17°C).
Water pressure is low. Water pressure must be between 20 to 100 pounds per
square inch to function properly. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Water flow is slower than
normal
Improper water valve was installed. See section on “Installation Instructions—How to Connect
the Water Supply” for instructions. Self-piercing and 3/16”
saddle valves cause low water pressure and may clog the
line over time. Sears is not responsible for property
damage due to improper installation or water
connection.
Trouble Shooting

20
!
Reconozca este símbolo como un indicador de aviso de seguridad.
ADVERTENCIA
!
Para evitar descargas eléctricas que pueden causar lesiones personales graves o la muerte, no quite la punta redonda
de conexión a tierra de la clavija. El refrigerador debe estar conectado a tierra en todo momento. No quite la etiqueta de
advertencia del cordón. No use un adaptador de dos puntas. No use una extensión para el cordón eléctrico.
Instrucciones eléctricas de conexión a tierra  Este refrigerador está equipado con una clavija de tres puntas (con conexión a tierra) para
proteger contra posibles riesgos de descarga eléctrica. Si tiene un receptáculo de dos puntas, co uníquese con un electricista calificado y
haga que lo ca bie por uno adecuado de tres puntas con conexión a tierra de acuerdo con el Código Nacional Eléctrico. El refrigerador está
diseñado para funcionar en un cable independiente de 103 a 126 voltios, 15 a perios y 60 ciclos.
PELIGRO
!
IMPORTANTE: Los niños atrapados y asfixiados en refrigeradores no es cosa del pasado.
Los refrigeradores que se arrumban o abandonan; aun cuando sea “sólo por unos cuantos
días”, continúan representando un peligro. Si desecha un refrigerador viejo, sírvase seguir
las siguientes instrucciones para ayudar a prevenir un accidente.
ANTES DE TIRAR SU REFRIGERADOR O CONGELADOR VIEJO:
• Quítele las puertas.
• Déjele las repisas puestas para que los niños no puedan meterse con facilidad.
Contrato de mantenimiento
Prestamos servicio a lo que vendemos
Su co pra tiene ás valor porque puede depender de Sears Ho eCentral® para recibir servicio. Con ás de 12,000 especialistas
capacitados de servicio y acceso a 4,2 illones de piezas y accesorios, tene os las herra ientas, las piezas y el conoci iento y habilidades
para respaldar nuestro le a: Presta os servicio a lo que vende os.
Contratos de mantenimiento de Sears
Su electrodo éstico Ken ore está diseñado, fabricado y probado para proporcionarle años de servicio confiable. Aun así, cualquier
electrodo éstico grande podría necesitar servicio de vez en cuando. El Contrato de anteni iento de Sears le ofrece un excelente
progra a de servicio, a un precio accesible.
El contrato de mantenimiento de Sears
 Es la anera de co prar servicio para añana al precio de hoy.
 Eli ina las cuentas de reparación causadas por el uso y desgaste nor ales.
 Ofrece ayuda no técnica e instructiva.
 Incluso si no necesita reparaciones, le ofrece una Revisión preventiva de
anteni iento anual, a petición suya, para garantizar que el electrodo éstico
esté en condiciones ópti as de funciona iento.
Garantía del refrigerado por un año completo
Por un año a partir de la fecha de co pra, cuando este refrigerador se utilice y antenga de acuerdo a las instrucciones adjuntas a la
unidad o proporcionadas con la is a, Sears reparará, sin costo alguno, si están defectuosos los ateriales y la ano de obra.
Garantía del sistema sellado de refrigeración por cinco años completos
Por cinco años a partir de la fecha de co pra, cuando este refrigerador se utilice y antenga de acuerdo a las instrucciones adjuntas
a la unidad o proporcionadas con la is a, Sears reparará el siste a sellado (que consiste del refrigerador, las tuberías de conexión
y el otor del co presor) sin cargo alguno, si están defectuosos los ateriales y la ano de obra.
La cobertura anterior de garantía se aplica sola ente a los refrigeradores que se utilizan para el al acena iento de ali entos con fines
do ésticos privados. Excluye los cartuchos originales y de repuesto del filtro del surtidor de hielo y agua Ken ore (si está equipado con
siste a de filtrado). Los cartuchos originales y de repuesto están garantizados por 30 días, las piezas sola ente, contra defectos de
ateriales o ano de obra.
El servicio de garantía está disponible co unicándose al 1-800-4-MY-HOME (1-800-469-5811).
Esta garantía se aplica sola ente ientras este producto se use en Estados Unidos.
Esta garantía le otorga derechos legales específicos, y podría tener otros derechos, los cuales varían de un estado a otro.
Sears, Roebuck and Co., Dept. 817WA, Hoff an Estates, IL 60179
Requisitos eléctricos
Garantía Estados Unidos
Se aplican ciertas restricciones. Para obtener
ás infor ación, lla e al 1-800-361-6665.
Para obtener infor ación relacionada con los Contratos
de anteni iento de Sears Canadá,
lla e al 1-800-361-6665.
