Kenmore 796.3151 User manual

Use & Care Guide
ManuaJ de Uso Y Cuidado
English /Espa_ol
.... _ _ _ _ Hq_," _ q_ k _:_s ¸-_-_
,_/ ss c£ _ x s ,
i};_ ( S(
_t zase Idee(<:,'t:, ::_. ;:_.......:,is .........'_:.....
<' ' '' ......... t' '...............
Model/Modelo: 796.3151#21#
ore Elite.
oad
_C c
@
QU_£OmQ _CQ de ca a @
P/N MFL39760236
Sears Brand Management Corporation
Hoffman Estates, IL60179 U.S.A.
www.kenmore.com
www.sears.com

iMPORTANT SAFETY iNSTRUCTiONS ..................... 3-5
GROUNDING REQUIREMENTS .................................... 5
FEATURES AND BENEFITS
ey Parts and Components ......................................... 6
ptional Accessories .................................................... 6
Included Accessories .................................................... 6
INSTALLATION REQUIREMENTS
Key Dimensions and Specifications ........................... 7
Choose the Proper Location ....................................... 7
Flooring ......................................................................... 7
Clearances ................................................................... 7
INSTALLATION INSTRUCTIONS
npacking and Removing Shipping Material ..........8
onnecting the Water Lines ....................................... 9
onnecting the Drain Hose ....................................... 10
Connect to the Power Supply .................................... 10
Leveling the Washer ................................................... 11
HOW TO USE
Control Panel Features ................................................ 12
Operating the Washer ................................................. 13
Cycle Guide ............................................................ 14-15
borting Wash Loads ................................................... 16
About the Dispensers .................................................. 17
Detergent and Dispenser Use .................................... 18
Time and Status Disptay ............................................ 19
Cycle Modifier Buttons .............................................. 20
Option Buttons ....................................................... 21-23
Stain Boost ................................................................ 21
Save Energy .............................................................. 21
Extra Rinse ................................................................ 21
Water Plus................................................................ 21
Add a Garment ........................................................ 21
Chime ......................................................................... 21
Clean Washer .......................................................... 22
Fabric Softener ........................................................ 22
My Cycle ................................................................... 22
Soak ........................................................................... 22
Delay Wash .............................................................. 23
Drain & Spin ............................................................. 23
',_ontrot Lock ............................................................. 23
Special Drain Feature ................................................ 23
CARE AND CLEANING
Regular Cleaning ........................................................ 24
Maintenance ................................................................ 25
Cleaning the Washer ................................................ 26
KENMORE CONNECT TM SYSTEM .............................. 27
Using the Kenmore Connect TM System .................... 27
TROUBLESHOOTING GUIDE
Normal Sounds You May Hear ................................ 28
Before Calling for Service ................................... 28-33
Error Codes ............................................................ 32-33
WARRANTY ................................................................... 34
SERVICE ........................................................... Back Cover
In the space below, record the date of purchase, model,
and serial number of your product. You will find the
model and serial number printed on an identification
plate located inside the washer lid. Have these items of
information available whenever you contact Sears
concerning your product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for future
reference.
Master Protection Agreements
Congratulations on making asmart purchase. Your new
Kenmore ® product is designed and manufactured for
years of dependable operation. But like all products, it
may require preventive maintenance or repair from time
to time. That's when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend the
life of your new product. Here's what the
Agreement s includes:
* Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductible, no
functional failure excluded from coverage - real protection.
*Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can
trust will be working on your product.
*Unlimited service calls and nationwide service, as often as
you want us,whenever you want us.
" "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within twelve
months.
•Product replacement if your covered product can not
be fixed.
*Annual Preventive Maintenance Check at your request - no
extra charge.
*Fast help by phone = we call it Rapid Resolution. Phone
support from a Sears representative on all products. Think of us
as a "talking owner's manual."
*Power surge protection against electric damage due to
power fluctuations.
*$250 food loss protection annually for any food spoilage
that isthe result of mechanical failure of any covered
refrigerator or freezer.
*Rental reimbursement if repair of your covered product
takes longer than promised.
*10°/0 discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service. You
can call at any time day or night or schedule aservice
appointment online.
The Master Protection Agreement is a risk-free purchase.
If you cancel for any reason during the product
warranty period, we will provide a full refund, or a
prorated refund any time after the product warranty
period expires. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information in the U.S.A.
call 1-800-827-6655.
_Coverage in Canada varies on some items.
For full details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call:
1-800-4-MY-HOME ®.

Therearemanyimportantsafety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property
damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or
CAUTION. These words mean:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
To reduce the risk of fire, electrlc shock, or injury to
persons when using this appliance, follow basic
precautions, indudlng the followlng.
°Use this appliance only for its intended purpose as
described in this Use & Care Guide.
*Before use, the washer must be properly installed as
described in this manual.
•Do not wash articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry cleaning
solvents, or other flammable or explosive substances, as
they give of]: vapors that could
ignite or explode.
*Do not add gasoline, dry cleaning solvents, or other
flammable or explosive substances to the wash water. These
substances give off: vapors that could ignite
or explode.
*Under certain conditions, hydrogen gas may be produced in
a hot water system that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a period, before using
the washer, turn ON aii hot water faucets and let the water
flow from each for several minutes. This wiii release any
accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
*Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children.
*Before your washer is removed from service or
discarded, remove the lid to the washing compartment to
avoid the danger of children or small animals getting
trapped inside. Failure to do so can result in serious
personal injury or death.
*Do not install or store the washer where it wiii be exposed
to the weather or freezing temperatures.
*Do not tamper with controls.
*Keep the area underneath and around your appliance free
of combustible materials (lint, paper, rags, etc.), gasoline,
chemicals and other flammable vapors and liquids.
*Do not repair or replace any part of the washer or attempt
any servicing other than as described in this manual. We
strongly recommend that any service be performed by a
qualified technician.
*See Installation Instructions for grounding requirements.
*ALWAYS follow the fabric care instructions supplied by the
garment manufacturer.
*Do not place items exposed to cooking oil in your washer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
*Use fabric softeners or products to eliminate static only as
recommended by the manufacturer.
*This washer is not designed
installations such as in RVs,
°Turn OFF the water faucets
machine is to be left for an
as during vacations.
for maritime use or for mobile
aircraft, etc.
and unplug the washer if the
extended period of time, such
*Packaging material can be dangerous for children. There is
a risk of suffocation. Keep aii packaging
from children.
*Always check the inside of the washer for foreign objects
before loading laundry. Keep the lid closed when not in use.
* WARNING:This product contains chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

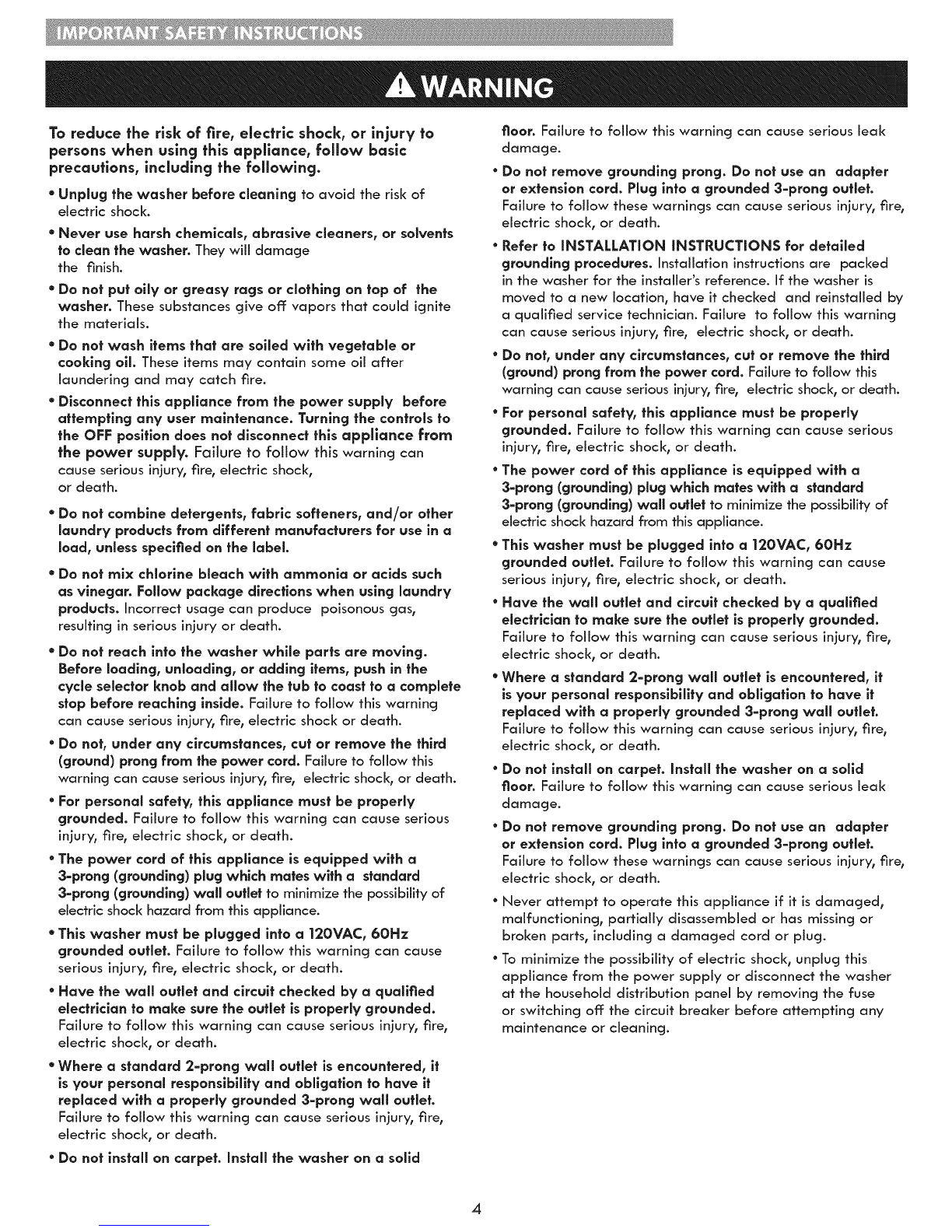

To reduce the risk of fire, electrlc shock, or injury to
persons when using this appllance, follow basic
precautions, including the following.
°Unplug the washer before cleaning to avoid the risk of
electric shock.
° Never use harsh chemicals, abrasive cleaners, or solvents
to clean the washer. They will damage
the finish.
° Do not put oily or greasy rags or clothlng on top of the
washer. These substances give off: vapors that could ignite
the materials.
° Do not wash items that are soiled with vegetable or
cooking oll. These items may contain some oil after
laundering and may catch fire.
°Disconnect this appliance from the power supply before
attempting any user maintenance. Turning the controls to
the OFF position does not disconnect this appllance from
the power supply. Failure to follow this warning can
cause serious injury, fire, electric shock,
or death.
*Do not combine detergents, fabric softeners, and/or other
laundry products from different manufacturers for use in a
load, unless specified on the label.
°Do not mix chlorine bleach with ammonia or acids such
as vinegar. Follow package directions when using laundry
products. Incorrect usage can produce poisonous gas,
resulting in serious injury or death.
°Do not reach into the washer while parts are moving.
Before Ioadlng, unloadlng, or adding items, push in the
cycle selector knob and allow the tub to coast to a complete
stop before reaching inside. Failure to follow this warning
can cause serious injury, fire, electric shock or death.
°Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
•For personal safety, this appfiance must be properly
grounded. Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
• The power cord of this appffance is equipped with a
3-prong (groundlng) plug which mates with a standard
3-prong (grounding) waft outlet to minimize the possibility of
electric shock hazard from this appliance.
°This washer must be plugged into a |20VAC, 60Hz
grounded outlet. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
°Have the wall outlet and circuit checked by a qualified
electrlclan to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
° Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
floor. Failure to follow this warning can cause serious leak
damage.
° Do not remove grounding prong. Do not use an adapter
or extension cord. Plug into a grounded 3-prong outlet.
Failure to follow these warnings can cause serious injury, fire,
electric shock, or death.
°Refer to INSTALLATUON INSTRUCTIONS for detailed
grounding procedures. Installation instructions are packed
in the washer for the installer's reference. If the washer is
moved to a new location, have it checked and reinstalled by
a qualified service technician. Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
•Do not, under any clrcumstances, cut or remove the third
(ground) prong from the power cord. Failure to follow this
warning can cause serious iniury, fire, electric shock, or death.
°For personal safety, this appffance must be properly
grounded. Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
°The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of
electric shock hazard from this appliance.
°This washer must be plugged into a |20VAC, 60Hz
grounded outlet. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
°Have the wall outlet and circuit checked by a quafffied
electrician to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
• Where astandard 2-prong waft outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
°Do not install on carpet. Instaff the washer on a solid
floor. Failure to follow this warning can cause serious leak
damage.
•Do not remove grounding prong. Do not use an adapter
or extension cord. Plug into a grounded 3-prong outlet.
Failure to follow these warnings can cause serious injury, fire,
electric shock, or death.
°Never attempt to operate this appliance if it isdamaged,
malfunctioning, partially disassembled or has missing or
broken parts, including a damaged cord or plug.
°To minimize the possibility of electric shock, unplug this
appliance from the power supply or disconnect the washer
at the household distribution panel by removing the fuse
or switching off: the circuit breaker before attempting any
maintenance or cleaning.
° Do not install on carpet. Install the washer on a solid
4

° Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children. As children grow, teach them the proper, safe
use of all appliances. Failure to comply with these warnings
could result in serious personal injury.
° Destroy the carton, plastic bag, and other packing materials
after the washer is unpacked. Children might use them for
play. Cartons covered with rugs, bedspreads, or plastic sheets
can become airtight chambers. Failure to comply with these
warnings could result in serious personal injury.
° Keep laundry products out of children's reach. To prevent
personal injury, observe all warnings on product labels.
Failure to comply with these warnings could result in serious
personal injury.
° Before your washer is removed from service or
discarded, remove the lid to the washing compartment to
avoid the danger of children or small animals getting
trapped inside. Failure to do so can result in serious
personal injury or death.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
improper connection of the equipment-grounding
conductor can result in risk of electric shock. Check
with a qualified electrician or service technician
if you are in doubt as to whether the appliance
is properly grounded. Do not modify the plug
provided with the appliance, if it does not fit the
outlet, have a proper outlet installed by a qualified
electrician. Failure to follow these warnings can
cause serious injury, fire, electric shock, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped
with a cord having an equipment-grounding conductor
and grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes
and ordinances.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensure proper
ground exists
before use.

KEY PARTS AND COMPONENTS
OLID LOCI(
The washer lid is locked during operation. The lid can
be unlocked by pressing the START/PAUSE button to
stop the washer.
OLTRA-CAPACITY STAINLESS STEEL TUB
The ultra-large stainless steel tub offers extreme
durability.
OSOFT CLOSE LID
The soft close lid is a safety device that closes the lid
slowly. The SOFT CLOSE hinges allow the lid to close
gently and quietly.
OONTROL PANEL WITH LED DISPLAY
The easy-to-read LED display shows cycle options,
settings, cycle status and estimated time remaining.
@
@
O
O
SMARTRINSE
This washer is designed to save rinse water by using
ajet spray rinse system in NORMAL/CASUAL and
HEAVY DUTY cycles.
I(ENMORE CONNECT TM
Should you experience any problems with your
washing machine, it has the capability of transmitting
data via your telephone to the l<enmore Connect
Team. This gives you the capability of speaking
directly to our specially trained technicians. The
technician records the data transmitted from your
machine and uses it to analyze the issue, providing a
fast and effective diagnosis.
BLEACH DISPENSER
The Bleach Dispenser compartment holds liquid
bleach, that is dispensed automatically at the proper
time during the wash cycle.
DISPENSER DRAWER
Add detergent or softener to the main wash
compartment of the dispenser drawer. Cleaning
products are dispensed automatically at the proper
time during the wash cycle.
Hot Water Cold Water
Inlet valve Inlet valve
fOptlonal Accessory
Hot and cold water hoses (with 2 seals per
hose, 1 at each end)
Included Accessory
Cable tie (for securing drain hose)
J

KEY DiMENSiONS AND SPECiFiCATiONS
Description Top-Loading Washer
Rated Voltage/Frequency 120VAC, 60Hz
Dimensions 27 in. (W) X 28 3/8in. (D) X 45 3/8in. (H), 55 3,4in. (H with lid open)
68.6 cm (W) X 72.1 cm (D) X 115.3 cm (H), 141.7 cm (H with lid open)
Net Weight 145.5 lb. (66 kg)
CHOOSE THE PROPER LOCATION CLEARANCES
WARNING
* Washer is heavy. Two or more people are required when
moving and unpacking the washer. Failure to do so may
result in damage to property or serious bodily harm.
* Store and install the washer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions. Failure to follow this warning can cause
serious injury, fire, electric shock,
or death.
* Properly ground washer to conform wlth all electric
governing codes and ordinances. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
* To reduce the risk of electric shock, do not install the
washer in humid spaces. Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
* To ensure proper air flow, do not block the large opening
on the bottom of the washer wlfh carpeting or other
materials.
* Do not remove ground prong. Do not use an adapter
or extension cord. Plug into agrounded 3=prong ouflefo
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
Power Outlet
°The power outlet must be within 60 in. (1.5 m) of either side
of the washer.
*The appliance and outlet must be positioned so that the
plug is easily accessible.
°Do not overload the outlet with more than
one appliance.
°The outlet must be grounded in accordance with current
wiring electric codes and regulations.
*Time-delay fuse or circuit breaker is recommended.
NOTE: It is the personal responsibility and obligation of
the product owner to have a proper outlet installed by a
qualified service technician.
4 5 3/8'
(115.3 cm)
(2.5cm) 27" 1"
cm)_ (2.5 cm)
To ensure sufficient clearance for water lines and airflow,
allow minimum clearances of at least 1 in. (2.5 cm) at the
sides and 4 in. (10 cm) behind the unit. Be sure to allow
for wall, door, or floor moldings that may increase the
required clearances.
55.3/4"
(444.7cm)
(with mid
open)
28.3/8.
_(72.1cm)_ 4 rr
(10cm)
Minimum vertical space from floor to overhead
shelves, cabinets, ceilings, etc., is 56 in.
FLOORING
°To minimize noise and vibration, the washer MUST be
installed on a solidly constructed floor. See the NOTE to
your right.
°Allowable slope under the entire washer is a maximum 1in.
difference from side to side or from front to back.
°Installing on carpeting and soft tile surfaces is
not recommended.
°Never install the washer on a platform or weakly supported
structure.
NOTE: The washer must be installed on firm flooring to
minimize vibration during the spin cycle. Concrete
flooring is best, but a wood floor is sufficient, provided
it is built to FHA standards. The washer should not be
installed on rugs or exposed to weather.
7

UNPACKING AND REMOVING SHiPPiNG MATERIAL
When removing the washer from the carton base, be sure
the plastic tub support comes off: with the base.
if you must lay the washer down to remove the base
packaging materials, always protect the side of the
washer and lay it carefully on its side. DO NOT lay the
washer on its front or back.
t t
Tub support Carton Base
lo After removing the carton and shipping material,
lift the washer off: the foam base. Make sure the
plastic tub support comes off: with the base and is
not stuck to the bottom of the washer.
f
J
2. Save the foam block for future use. If the washer
must be moved in the future, this will help prevent
damage to the washer during transportation.
NOTE: To prevent damage, do not remove the foam
block until the washer is at the final location.
f
\J
3. Unfasten the power cord from the back of the washer.
fTOOLS YOU WILL NEED
• Adjustable Pliers
• Carpenter's Level
J

CONNECTING THE WATER LINES
• IMPORTANT: Use new hoses when installing the washer. Do
NOT reuse old hoses.
*IMPORTANT: Use ONLY the inlet hoses provided by Kenmore.
Aftermarket hoses are not guaranteed to fit or function correctly.
Other hoses may not tighten correctly and could cause leaks.
Subsequent damage to product or property will not be covered
under the terms of the product warranty.
°Water supply pressure must be between 14.5 psi and 116 psi
(100-800 kPa). If the water supply pressure is more than 116 psi° a
pressure reducing valve must be installed.
°Periodically check the hose for cracks, leaks, and wea b and
replace the hose if necessary.
°Make sure that the water lines are not stretched_ pinched_
crushed_ or kinked.
°The washer should never be installed or stored in a location
subject to freezing temperatures. Damage to the water lines and
internal mechanisms of the washer can result. If the washer was
exposed to freezing temperatures prior to installation, allow it to
stand at room temperature for several hours before use and check
for leaks prior to operation.
f
Water Hose
(to water inlet
on washer)
Rubber Seal Rubber Seal
Water Hose
(to tap) J
1. Inspect the threaded fitting on each hose and make
sure there is a rubber seat in place in both ends.
Water
2° Connect the water supply hoses to the HOT and
COLD water faucets tightly by hand and then tighten
another 2/3turn with pliers.
3. Always run a gallon or two of water through each
inlet hose to flush dirt, scale and other debris out
of the water lines. Doing so will help prevent future
problems with clogged filter screens, and will also
allow you to verify which hose is hot and which
is cold.
f
Hot
4. Attach the (red) hot water line to the hot water inlet on
the back of the washer. Attach the (blue) cold water line
to the cold water inlet on the back of the washer.
Tighten the fittings securely. Turn ON both faucets all
the way and check for leaks at both ends of the hoses.
NOTE: Be careful not to cross-thread the hose fittings.
This will damage the valve and could result in property
damage from leaks.

CONNECTING THE DRAIN HOSE
° The drain hose should always be properly secured. Failure
to properly secure the drain hosecan result in flooding and
property damage.
° The drain must be installed in accordance with any
applicable local codes and regulations.
° Make surethat the drain hose is not stretched, pinched,
crushed, or kinked.
Option 1: Standpipe
f
Drain Line
I
I
Standpipe
35"_47"
(0.9_ 1.2 m)
Bend the outlet end of the drain hose to form a U
shape. Inset the end of the drain hose into the drain. If
the drain is large enough for the flange on the hose to
fit inside, then do not insert the flange more than 1-2
inches into the drain. Use the tie strap included with the
installation materials in the foam block in the tub to
secure the drain hose to the drain.
Option 2: Laundry Tub
Tie Strap
Drain Hose
Bend the end of the drain hose to the desired shape and
support it on the edge of the laundry tub. Use a tie strap
to secure the drain hose in place.
CONNECT TO THE POWER SUPPLY
Washer should be plugged into a 120-VAC, 60-Hz
grounded 3-prong outlet. Plug in the washer.
J
Cable Tie
If the water valves and drain are built into the walt,
fasten the drain hose to one of the water hoses with the
cable tie (ribbed side on inside).
35'~47"
(0,9~i2rn)t
Cable Tie
If your drain is a standpipe, fasten the drain hose to the
standpipe with the cable tie provided.
NOTE:
°Normal height of the end of the hose should be
approximately 35"-47" (0.9-1.2 m) from the floor.
° Do not install the end of the drain hose higher than 96 in.
(243.8 cm) above the bottom of the washer or more than 60
in. (152.4 cm) away from the washer.
°Never seal the drain hose to the drain. If no air gap is
present, water can be siphoned out of the tub resulting in
poor wash/rinse performance or clothing damage.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. Check
with a qualified electrician or service technician
if you are in doubt as to whether the appliance
is properly grounded. Do not modify the plug
provided with the appliance. If it does not fit the
outlet, have a proper outlet installed by a qualified
electrician. Failure to follow these warnings can
cause serious injury, fire, electrical shock, or death.
10

LEVELING THE WASHER
The tub of your new washer spins at very high speeds.
To minimize vibration, noise, and unwanted movement,
the floor must be a level, solid surface.
NOTE: Adjust the leveling feet only as far as necessary
to level the washer. Extending the leveling feet more
than necessary can cause the washer
to vibrate.
NOTE: Before installing the washer,
make sure that the floor is clean,
dry and free of dust, dirt, water and
oils so the washer feet cannot slide
easily. Leveling feet that move or
slide on the floor can contribute to
excess vibration and noise due to
poor contact with the floor.
Alt four leveling feet must rest solidly on the floor.
Attempt to rock the washer from corner to corner to
make sure that all four leveling feet are in firm contact
with the floor.
1. Position the washer in its final location, taking special
care not to pinch, strain, or crush the water and drain
lines. Place a level across the top of the washer.
2. Adjust the leveling feet. Turn clockwise to raise the
washer or counterclockwise to lower it.
f
° To check if the washer is level from side to side, place a
level on the back edge of the lid.
° To check if the washer is level front to back, place a level at
the side of the washer on the edge where the cabinet side
meets the top coven Do not place the level on the top or
the lid. Using these surfaces will result in the washer being
unievei.
side to side
front to back
_oLower I Raise
/J
\Right Wrong
3. To make sure that the washer is properly level, open
the lid and look from above to see if the tub is
centered. If the tub is NOT centered (as shown in
the drawing on the right), readjust the feet. If you
have a level, check your washer with the level.
11

WARNING: Toreducetheriskofnre,electrlcshack,oriniurytopersons,readandfollowthis
entire Use & Care Guide, including the Important Safety Instructions, before operating this washer.
CONTROL PANEL FEATURES
OPOWER (ON/OFF) BUTTON G
Press to turn the washer ON. Press again to turn
the washer OFF. Pressing the POWER button
during a cycte will cancel that cycle and any
load settings will be lost. The lid witl unlock after
a brief pause.
NOTE: If the washer remains idle for four
minutes after turning the washer off, any water
left in the tub wit] automatically be drained. An
alarm wit] sound one minute prior to draining,
and 'dr _will appear on the display. You may
restart the washer at this time. However, once
the washer initiates draining, at] functions wit]
be suspended and cycte settings tost, and 'dr _
wit] be displayed until draining is complete.
OCYCLE SELECTOR KNOB
Turnthis knob to select the desired cycle. Once the
desired cycle has been selected, the standard presets
witl appear in the display. These settings can be
adjusted using the cycle setting buttons anytime
before starting the cycle.
O
START/PAUSE BUTTON
Press this button to start the selected cycle.
If the washer is running, use this button to pause
the cycle without losing the current settings.
NOTE: if you do not press the START/PAUSE
button within four minutes of selecting a cycle,
the washer automatically turns OFF. if the
washer is paused during a cycle for more than
four minutes, the cycle will be cancelled and
any water remaining in the tub will be drained.
An alarm will sound at three minutes to warn
you that the tub is about to drain.
CYCLE MODIFIER BUTTONS
Use these buttons to adjust the settings for the
selected cycle. The settings light up above the
buttons to show the current selection.
OSPECIAL CYCLE AND OPTION BUTTONS
These buttons allow your to select special cycles
or options.
O TIME STATUS DISPLAY
AND
The display shows the cycle status and estimated
time remaining,
NOTE: To protect your clothing, not all settings are available on all cycle selections.
12

OPERATING THE WASHER
OORT LAUNDRY AND LOAD WASHER
Sort laundry by fabric type, soil level, color and load size, as
needed. Open the door and load the items into the washer.
Bleach
POWER
O
O
O
O
ADD CLEANING PRODUCT
Add High-Efficiency (HE) detergent to the detergent dispenser
drawer. For proper wash performance, always measure the
detergent using the measurements provided by the detergent
manufacturer.
TURN ON THE WASHER
Press the POWER button to turn ON the washer. The lights
around the cycle selector knob will illuminate and a chime will
sound.
SELECT ACYCLE
Turn the cycle selector knob in either direction to select the de=
sired cycle. The preset Wash Temp, Spin Speed, Soil Level, and
Option settings for that cycle will be shown.
SELECT CYCLE MODIFIERS &OPTIONS (optional)
Default settings for the selected cycle can now be changed if
desired. Use the cycle modifier buttons.
NOTE: To protect your fabrics, not all modifiers are available
on all cycles. A different chime will sound and the LED will not
come on if the selection is not allowed. Cycle options can also
be added by using the option buttons.
START IPAUSE
IAdd A Garment _Chime
START IPAUSE
O
@
BEGIN CYCLE
Press the START/PAUSE button to begin the cycle. The door will
lock, and the washer witl briefly tumble the toad without water
to measure its weight. Once the weight of the load is measure,
the washer will begin the selected wash cycle.
ADD A GARMENT LIGHT
The ADD A GARMENT light will illuminate near the beginning
of the wash cycle to indicate when it is safe to add items to
the load. Press the START/PAUSE button to pause the cycle and
add garments to the load.
NOTE: it is not recommended to add items unless the ADD A
GARMENT light is illuminated, as this could result in poor
performance.
ORESUME CYCLE
Press the START/PAUSE button to resume the wash cycle.
13

CYCLE GUIDE
The cycle guide below shows the default settings, available options and recommended fabric types
for each cycle. Allowable modifier adjustments are shown below the default setting for each cycle.
= Available Option
: Default Setting
Normal/
Casual
Bulky/
Bedding
Heavy
Duty
Cotton, shirts, jeans, Hot Extra High _ _
socks, pants EcoWarm No Spin Heavy
Cold Medium Light
TapCold
Large items such Hot Extra High
as blankets and Eco Warm High Heavy
comforters Cold No Spin Light
Tap Cold Low
Heavy soiled Hot Extra High
cotton fabrics Eco Warm Medium Light
Cold Low Normal
Tap Cold No Spin
NOTE:
To protect your garments, not every wash temperature, spin speed, soil level, or option is available with every
cycle. A chime will sound and the LED witl not light if the selection is not allowed.
_When a cycle is selected, the default time for that cycle is displayed. This time witl change as modifiers or options are
selected. Once the START/PAUSE button is pressed, the washer will measure the size of the load. The estimated time may
change once the toad size has been measured. The washer automatically adjusts the wash time for the amount of laundry,
water pressure, water and other operating conditions.
These cycles use various wash motions to enhance cleaning and/or fabric care performance. The wash motions may sound
different at different stages of the wash cycle. This is normal.
14

|CYCLE GUIDE
The cycle guide below shows the default settings, available options and recommended fabric types
for each cycle. Allowable modifler adjustments are shown below the default setting for each cycle.
= Available Option
: Default Setting
Whites
Express
Wash
Deiicates
Handwash/
Wool
Rinse/Spin
i!!!!!ii ii:!i !iiiiiiiii,ii,ii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii !ii!!! !i !i ! iiiiiii!i!i!i ! ! i i i i ii i i i iiii i iiiiii iiiiiiiiiiiiii iili!iii i!iiiiiiiiiiiiiili!i! ! ]! ii! !iiiii!ii!i!ii ii!ii!ii!iiiiii
Heavily to normally Extra High
soiled white cottons Warm High Light
Low Normal
No Spin
Extra High
Lightly soiled clothing Eco Warm Medium Normal
and small loads Cold Low Heavy
Tap Cold No Spin
Dress shirts/blouses,
nylons, sheer or lacy Warm High Heavy
garments Eco Warm Medium Normal
Cold No Spin
Items labeled Eco Warm Medium Normal
"hand washable" Cold No Spin Heavy
Tap Cold
Extra High
Rinse and Spin Medium
Low
No Spin
NOTE:
To protect your garments, not every wash temperature, spin speed, soil level, or option is available with every
cycle. A chime will sound and the LED will not light if the selection is not allowed.
_When a cycle is selected, the default time for that cycle is displayed. This time will change as modiflers or options are
selected. Once the START/PAUSE button is pressed, the washer will measure the size of the load. The estimated time may
change once the load size has been measured. The washer automatically adjusts the wash time for the amount of laundry,
water pressure, water and other operating conditions.
These cycles use various wash motions to enhance cleaning and/or fabric care performance. The wash motions may sound
different at different stages of the wash cycle. This is normal.
15

SORTING WASH LOADS
,_ CAUTION
°Do not load items higher than the top edge of the tub.
Failure to follow this caution can result in leakage or
damage to fabrics.
°Use the BULKY/BEDDING cycle for buoyant or
nonabsorbent items such as pillows or comforters. Failure to
follow this caution can result in leakage.
*Do not wash or spin any item labeled or known to be
water-proof or water-reslstant, even if the product care
label on the item permits machine washing. Failure to
follow these instructions could result in severe damage to
your laundry, your washer and/or property damage as a
result of abnormal vibration of the washer.
-Examples of water-proof or water-resistant items include
certain mattress pads, mattress covers, rain gear, camping
gear, skiing apparel, outdoor gear and similar items.
Grouping Similar Items
For the best washing results, and to reduce the possibility of
damage to clothing, care should be taken to sort the
clothing into loads that are made up of similar items.
Mixing different fabric types and/or soil levels can result
in poor wash performance, color transfer or discoloration,
fabric damage or linting. Fabrics should be sorted into
groups as described below.
Co_or$
Sort articles by colon Wash dark clothes together in a
separate load from light colors or whites. Mixing dark
clothes with light clothes can result in dye transfer or
discoloration of the lighter clothes.
Soll Level
Wash heavily soiled clothing together. Washing lightly
soiled clothing in the same toad with heavily soiled
clothing could result in poor wash performance for the
lightly soiled clothing.
Fabric Type
Delicate artictes should not be mixed with heavier or
sturdier fabric types. Washing delicates in a toad with
heavy fabrics can result in damage to the more delicate
fabrics. Washing heavier fabrics in a delicate load can
result in poor wash performance for the heavier fabrics
and possible damage to the delicates.
Lint Type
Some fabrics attract and bind tint to them while others
give off tint in the laundry process. Avoid mixing these
lint collectors and lint producers in the same load. Mixing
these fabrics will result in pilling and linting on the lint
collectors. (For example, lint collector - knit sweater; lint
producer - terrycloth towels.)
Sort Laundry...
by Colors
Whites
Lights
Darks
by Soil
Heavy
Normal
Light
by Fabric
Delicates
Easy Care
Sturdy
by Lint
Lint Producer
Lint Collector
Fabric Care Labels
Many articles of ctothing include a fabric care tabel.
Using the chart below, adjust the cycle and option
selections to care for your clothing according to the
manufacturer's recommendations.
fFabric Care Labels
Machine
wash_, _ _ _
cycle Normal Permanent 13ress/ Gentle/
wrinkle resFstant delicate
H h Do not wash Do not wring
Water • • • • 0 •
temperature Hot Warm Cold/cool
Bleach
symbo,s A _ -_
Any bleach Only non-chlorine bleach 0o not bleach
(when needed) (when needed)
Loading the Washer
°Check all pockets to make sure that they are empty. Items
such as clips, matches, pens, coins, and keys can damage
both your washer and your clothes.
°Close zippers, hooks, and drawstrings to prevent these items
from snagging or tangling on other clothes.
°Pretreat heavily stained areas for best results.
*Combine large and small items in a load. Load large items
first.
" Large items should not be more than half of the total wash
load.
• The washer can be fully loaded, but the tub should not be
tightly packed with items. The lid of the washer should close
easily.
°To prevent an out-of-balance load, do not wash single
items. Add one or two similar items to the load. Large, bulky
items, such as a blanket, comforter, or bedspread, should be
washed individually.
°The washer wiii not fiii or operate with the lid open.
NOT£: Use the BULl<Y/BEDDING cycle for large or
bulky items such as poly-fitted jackets, comforters,
pillows, etc. These items may not be as absorbent
as other laundry items and should be sorted into a
separate wash load for optimal results.
Bulky items should be placed as far down in the tub as
possible for optimal results. Always place buoyant items
at the bottom of the tub.
The washer will automatically detect the load size.
Because of the high-efficiency wash system, the water
level may not completely cover the load.
16

ABOUT THE DISPENSERS
The automatic dispenser consistsof two compartments
which hold:
°Liquid fabric softener.
°Liquid or powdered detergent for main wash.
Main Wash
Main Wash Liquid Detergent
Powder Detergent Compartment
Compartment
Liquid Fabric
Softener
Compartment
Insert
Dispenser Drawer
Main Wash Detergent Compartment
This compartment holds laundry detergent for the main
wash cycte. The detergent is added to the load at the
beginning of the cycle. Always use High-Efflciency (HE)
detergent with your washing machine. Either powdered
or liquid detergent may be used.
Never exceed the manufacturer's recommendations
when adding detergent. Using too much detergent can
result in detergent buildup in clothing and the washer.
When using liquid detergent, make sure the liquid
detergent cup and insert are in place. Do not exceed
the maximum fill line.
When using powdered detergent, remove the liquid
detergent cup from the compartment. Powdered
detergent will not dispense with the liquid detergent cup
in place.
Fabric Softener Compartment
This compartment holds liquid fabric softener, which is
automatically dispensed during the flnal rinse cycle.
Never exceed the manufacturer's recommendations when
adding softener. Using too much fabric softener can result
in buildup in clothing and the washer.
°Always follow the manufacturer's recommendations when
adding fabric softener. Do not exceed the maximum fill line.
Using too much fabric softener may stain clothes.
°Dilute concentrated fabric softeners with warm water. Do
not exceed the maximum fill line.
°Never pour fabric softener directly onto the load or into the
tub.
_ Liquid Bleach
Compartment
j_
Liquid Bleach Compartment
The bleach dispenser is a separate compartment at the
left front of the tub opening. This compartment holds
liquid bleach, which is dispensed automatically at the
proper time during the wash cycle. Any liquid remaining
in the dispenser at the end of the cycle is water, not
bleach.
°Do not add powdered bleach to this compartment. The
bleach compartment is designed to dispense liquid bleach
only. Powdered or liquid color-safe bleach will not dispense
properly.
°Always follow the manufacturer's recommendations when
adding bleach. Never add more than one cup and do not
exceed the maximum fili line since this can cause the bleach to
be dispensed immediately, resulting in damage to fabrics. Using
too much bleach can damage fabrics.
°Never pour undiluted liquid chlorine bleach directly onto
the load or into the tub. Fabric damage can occur.
°Do not use color-safe bleach or Oxi products in the same cycle
with liquid chlorine bleach.
Do NOT mix chlorine bleach with ammonia or
acids, such as vinegar or rust/scale remover.
Mixing chemicals tike these can produce a lethal
gas, resulting in severe injury or death.
17

DETERGENT AND DISPENSER USE
A Word About Detergents
High-Efficiency (HE) detergents produce fewer suds,
dissolve more efficiently to improve washing and rinsing
performance, and help to keep the interior of your
washer clean. Using detergent that is not HE may cause
oversudsing and unsatisfactory performance which
could result in error codes, cycle failure, and
machine damage.
Maximum __j[_N
ormal Load Amount_zZZ J
Liquid Powdered
Detergent Detergent
For proper wash performance, always measure the
detergent using the measurements provided by the
detergent manufacturer.
The normal amount of HE detergent needed, for average
loads, is tess than 1/2of the recommended maximum.
Use less detergent for soft water, light soil or smaller
loads. Never use more than the maximum amount
recommended by the detergent manufacturer.
Designed to use only
High-Emciencv (HE) detergent
IMPORTANT: Your washing machine isdesigned for use
with only High-Efficiency (HE) detergents. HE detergents
are formulated specifically for High-Efficiency washers
and contain suds-reducing agents. Always look for the
HE symbol when purchasing detergent.
IMPORTANT: Not all detergents are the same. Pay
careful attention to the amount of detergent used to avoid
overusing, poor rinsing and detergent buildup in clothing,
and residue buildup that can contribute to odors in the
machine. NEVER use a cup or scoop other than the one
supplied by the manufacturer of the detergent you
are using. Never use more than the maximum amount of
detergent recommended by the manufacturer.
Always measure the detergent amount. While HE
detergents are designed for this type of washing
machine, be careful when measuring the detergent. For
most normal loads, no more than 1/4to 1/2 of cap or
scoop of HE detergent should be used.
NOTE: Extra care must be exercised when using 2X and
3X concentrated detergents because even a little bit extra
can contribute to the problems mentioned above.
NOTE: Detergents designated as HE compatible may not
provide optimal results.
Using the Softener and Detergent Dispenser
To add detergent, bleach, and fabric softener to the
automatic dispenser:
OOpen the dispenser drawer.
O Load the laundry products into the
appropriate compartments.
O Close the drawer before starting the cycle.
NOTE: It is normal for a small amount of water to
remain in the bleach and softener compartments at the
end of the cycle.
IMPORTANT." Do not place or store laundry products,
such as detergent, bleach, or liquid fabric softener, on top
of your washer or dryer. Wipe up any spills immediately.
These products can damage the finish and controls.
Using the Liquid Bleach Dispenser
The bleach dispenser automatically dilutes and
dispenses liquid bleach at the proper time in the
wash cycle.
O
e
e
e
e
Check clothing care labels for special instructions.
Measure liquid bleach carefully, following
instructions on the bottle. High-efficiency washers
use less water, so less bleach is needed. One half
cup is enough for most loads.
Carefully pour the pre-measured amount of bleach
directly into the bleach dispenser. If you are using
powdered bleach of any kind, pour it directly into
the tub before adding the laundry. Never add
powdered bleach to the liquid bleach dispenser.
Never pour undiluted liquid chlorine bleach directly onto
clothes or into the tub.
Do not pour powdered bleach into bleach dispenser.
Do not place laundry items on top of the bleach
dispenser when Ioadincj and unloadincj the washer.
Always measure and pour bleach carefully. Avoid
overfillincj or splashincj when addincj bleach to the
dispenser. The maximum capacity of the bleach
dispenser is one cup of bleach per wash cycle.
Overfillincj could result in bleach beincj dispensed
immediately.
18

TIME AND STATUS DISPLAY
The time and status display shows the estimated time remaining and cycle progress.
O
OYCLE STATUS INDICATOR
These LEDs will illuminate when a cycle is selected
to indicate which stages will run. When a cycle is
running, the LED will blink for the active stage. Once
astage is complete, the LED will turn off. If a cycle is
paused, the active LED will stop bNnking.
OESTIMATED TIME REMAINING
When a cycle is selected, the default time for that
cycle is displayed. This time will change as modifiers
or options are selected. Once the START/PAUSE
button is pressed, the washer will measure the size
of the load. The estimated time may change once
the load size has been measured.
NOTE: The time shown is only an estimate. This time
is based on normal operating conditions. Several ex-
ternal factors (load size, room temperature, incoming
water temperature, etc.) can affect the actual time.
19

CYCLE MODiFiER BUTTONS
Each cycle has default settings that are selected
automatically. You may also customize these settings
using the cycle modifier buttons. Press the button for the
desired modifier until the indicator light for the desired
setting is lit. The washer automatically adjusts the water
level for the type and size of wash toad for best results
and maximum emciency. Due to the high-efficiency
nature of this product, water levels may be much lower
than expected. This is normal and cleaning/rinsing
performance will not be compromised.
NOTE: To protect your garments, not every wash/rinse
temperature, spin speed, soil level, or option is available
with every cycle. A chime will sound and the LED will not
light if a selection is not allowed.
OWASH TEMP
WASH TEMP selects the wash and rinse temperature
combination for the selected cycle. Press the WASH
TEMP button until the indicator light for the desired
setting is lit.
°Select the wash temperature suitable for the type of
load you are washing. Follow the garment fabric care
labels for best results.
°Colcl rinses use less energy. The actual cold rinse
temperature depends on the temperature of the cold
water at the faucet.
O SPIN SPEED
O
Higher spin speeds extract more water from clothes,
reducing drying time and saving energy.
Press the SPIN SPEED button until the desired speed
is selected. Some fabrics, such as delicates, require
aslower spin speed. To protect your clothing, not all
spin speeds are available for all cycles.
SOIL LEVEL
Adjusting the soil level setting witl modify the cycle
times and/or wash actions. Press the SOIL LEVEL
button until the desired soil level is selected.
2O
