Kenwood DDX5024 User manual

This product uses Lead Free solder.
This product complies with the RoHS directive for the European market.
© 2008-11 PRINTED IN JAPAN
B53-0693-00 (N)429
MONITOR WITH DVD RECEIVER / GPS NAVIGATION SYSTEM
DDX5024/5034/5034BT/5034M
/5054/514/54R
DNX5140/5240/5240BT/6000EX /6140

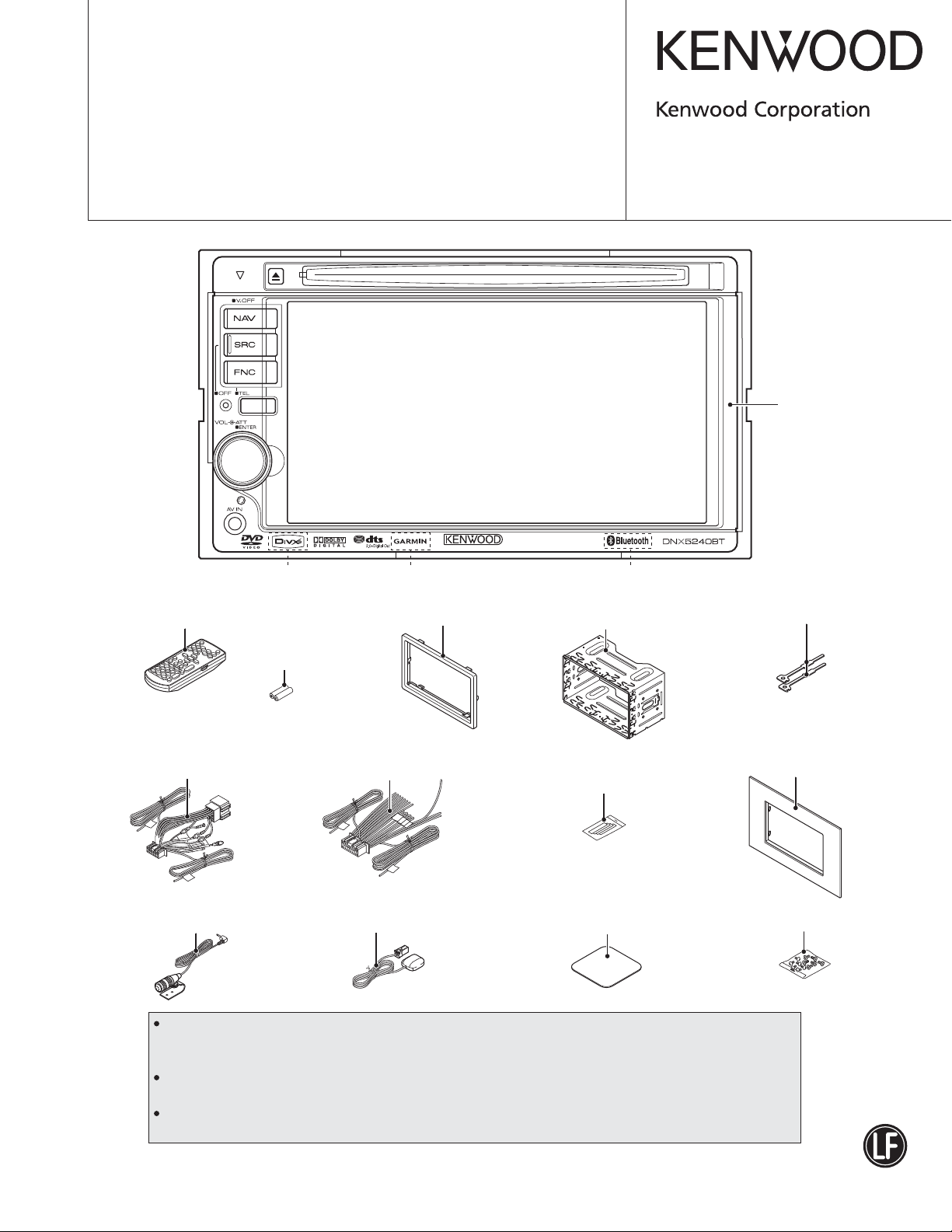

SERVICE MANUAL
*Depends on the models. Refer to the parts list.
Remote controller *
(A70-2083-15)
Size AAA battery
Not supplied
RC-DV340
Escutcheon
(B07-3165-02)
Mounting hardware assy
(J22-0657-03)
Lever
(D10-7012-04) x2
Escutcheon *
(B07-3172-12)
DC cord *
(E30-6796-05)
DC cord *
(E30-6881-05)
Screw set *
(N99-1779-15)
Adhesive double-
coated tape *
(H30-0595-04)
Antenna module(GPS-ANT) *
(W02-5305-05)
Mounting hardware *
(J21-9867-04)
Panel assy *
(A64-)
Illustrations is DNX5240BT
Except K,R type Only DNX DDX5034BT, DNX5240BT/6000EX/6140
Microphone *
(W01-1718-05)
Test Mode and Adjustment are the same as DDX5022’s.
Please refer to the service manual (DDX5022’s: B53-0620-00).
PCB extension JIGs is the same as DDX5022’s.
Please refer to STR_B250-08-010E.
The IC3, and IC11 in the DVD unit (X37-123-00/1250-00) are not replaceable components.
When these ICs are defective, replace the whole DVD mechanism assembly (X92-6380-00
/6400-00). You cannot replace only the board.

2
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
In assembling the Traverse UD arm, Drive cam assembly,
Drive gear 5 and Drive gear 4C, align register marks on
these components.
GEAR POSITION IN A DVD MECHANISM
BLOCK DIAGRAM
Drive gear 5
Drive cam assembly
Do not forcibly press gears to engage their teeth
but freely let the gears fall under their own weight
and engage their teeth.
Traverse UD arm
Drive gear 4C
Inscriptions
(register marks)
on gears
Align 6 marks
as shown in the
figure
U,V,W COIL
HALL BIAS
HALL SENSOR
DVD LD/CD LD
VREFH
IMON/VR DVD/VR CD
PDIC I/V OUT
FO+/-,TR+/-
THERMISTER
FO5,RO5
P5V
FO2,RO2
3
3
H1H,H1L,HB
A1,A2,A3
P5V
VHALF
FG
A5V
D5V
A3.3V
7
3
VHALF
VHALF(1.65V)
TRCRS
TE
SEN,SCK,STDI
FBAL,JLINE,
ARF,NARF
TSTSG
FG,EXCNT1 SDA,SCL DRV.MUTE,LO.MTE, FADR0-17, TRDRV,PWM8, BMS,STEP A,STEP B NCE,NWE,NOE FTD0-7
28
D5V A3.3V 1.5VD3.3V
16.897849MHz
NRST
D3.3V
ATAPI IF
D5V
P5V
DISC DET
A5V
LIM-SW
4
SEN,SCK,STDI
VREF,EC
RF,FE1,FE2
A,B,C,D,E,F,
9
3
FE,AS,RFENV,RFDIFO
OFTR,BDO,VREF2
21
D3.3VD3.3V
9
DVDON/
CDON
TEMP
DET(AD)
2
D3.3V
2
VR
SPDRV,FODRV,
LPC1,2
VREFH
4
FO3,RO3
FO4,RO4
FO6,RO6
BMS,MUTE
HFM3.3V
PDIC VCC
HFM
SW EJEND
STBY,SPIN,IN2-6
A5V
SW
4
SPINDLE
MOTOR
DISC
OPTICAL PICKUP
STEPPING
2 PHASE
CN1
30PIN
28PIN
CN3
MOTOR &
DRIVER
ACTUATOR
M
DC MOTOR
LO/EJ
PROCESSOR
FRONT-END
IC1
Q12,13
OPTICAL DISC
CONTROLLER
RESET IC CN2
50PIN
3.3V REG
IC14
D3.3V
A3.3V
A5V
D5V
1.5V REG
IC13
1.5V
to
MAIN
Tr
APC
IC10
Q16
IC4
IC3
FLASH ROMEEPROM
IC11
HALL
IC
D7
SW LOEND
SW LOST
UNIT
IC5
DVS-8220V/W BLOCK DIAGRAM (X37-123/125)

3
DDX5024/5034/5034BT/5034M/5054/514/54R DNX5140/5240/5240BT/6000E X /6140
BLOCK DIAGRAM
BU DET ACC DET PARKING REVERSE ILLUMI LINE MUTE ANT CON P CON
PWIC STBY
PWIC MUTE
BEEP
W REMO
WRT E2P
E2P SDA
ROM E2P SDA
E2P SCL
TYPE1
TYPE2
TYPE0
ROM E2P SCL
NAVI RX
NAVI TX
PON
PGOOD
P PWM
P START
BE SDATA
BE SREQ
BE STBY
DISCDET
BE CLK
BE MDATA
DISCDET
BE RESERVE1
BE RESERVE2
BE RESERVE3
BE MREQ
BE CON
BE BUDET
BE INI
ASEL1 2
ASEL2 1
ASEL2 2
R QUAL
R DATA
ASEL1 1
R CLK
TV COMP
TV MC DATA
TV BP CLK
TV JUDGE
TV SC DATA
TV SC REQ
TV SC CON
TV MC REQ
R NOISE
R AFS H
TUN SDA
TUN SCL
TUN SMET
TUN IFC
AM+B
PON
PARKUNG ACC RST
SW5V
(COMMON
TUN8V
A8V BU5V
MIX REMO
SW5V
BE RST
TV RST
i-POD L/R
VSYNC DET
i-POD L/R
TV L/R
SIR RST
SAT TX
SAT CON
SAT RX
SIR PON
A-IN L/R
TUN L/R
SAT L/R
A8V
BT L/R NAVI L/R
ISO SP
SIR PON
VMUTE VOL+ SRC KEY4 BL ENA INV PWM INV SW VD PWM HSY VOL- KEY ILL EJECT SI KEY ILLG1 KEY ILLR1 KEY ILLB1 Y0 X0 X1 NT PAL YDATA VCOM XDATA
SP-OUT R SP-OUT F
EVOL MUTE0
EVOL MUTE1
EVOL MUTE2
EVOL SCL
EVOL SDA
PWIC DCDET
PRE MUTESW
EVOL MUTEB
EVOL MUTEC
PRE MUTEF
BE/USB L/R
BE/USB L/R
EVOL MUTEB
PRE
MUTEF
MUTESW
PRE
PRE
FR
A-OUT
A-OUT L/R
PRE
R/SW
A-IN L/R
REMO
KEY RESET
F VIN
TP5V
ILL+B
SP-OUT F SP-OUT R
TV RST
SP-OUT F SP-OUT R
TV SERIAL)
FLASH MDATA
FLASH CLK
FLASH SDATA
A8V
A8V
SAT CON
SAT TX
SAT RX
SIR RST
(COMMON
EVOL)
A8V
DC CN
J1
BU5V
Q5
SW5V
Q12
SW3.3V
BU3.3V
Q22
IC2
ILL+B
Q802
TUN8V
A8V
Q502
Q1
POWER
IC600
IC
RE-WRITE CN TV I/F JACK
J400
SYSTEM
IC104
AMP
ISO
IC400
F/E
A500 SIRIUS/XM KAB IF JACK
J401
ANT
MAIN
AUDIO
SEL1
IC303
IC304
SEL2
SUB
AUDIO
VSYNC-
DET
IC401
INPUT
SEL SEL
OUT
E-VOL
IC302
J700
JACK
MUTE
MUTE
MUTE
u-COM
CN801
CN800
JACK
RST
IC
RDS
to (X15- ) CN301
to (X35- ) CN3
(X34-575)

4
DDX5024/5034/5034BT/5034M/5054/514/54R DNX5140/5240/5240BT/6000E X /6140
BLOCK DIAGRAM
(X15-124)
COMP
VIDEO SW
IC205
IC206
J203
J401
to GARMIN NAVI
IC207
RGB SW
IC804
USB H/C
IC801
USB IF CABLE
W801
CN701
VIDEO DRV
IC602
VIDEO DRV
IC601
IC701
B/E
X801 IC853
DVS-8220V or DVS-8220W
FAN CN
CN2
X701
FLASH 64Mb
IC702 IC704
IC703, AUTHENTI-
i-Pod
CATION
IC852
OVER CURRENT
PROTECTION
24MHz
X'TAL
27MHz
X'TAL
J681
SPD JACK MODULE
to BT
ONLY
MUTE/LPF
IC654
IC652,
2ch DAC
IC651
3.3V
IC301
IC501 MIX
5V
A501
MIC JACK
J501
A5V
IC101
DC/DC
A8V
V6V
V5V
D5V
D1.8V
D3.3V USB5V/P5V
DC/DC
IC102
USB1.8V USB3.3V
to (X35- ) J1
J301
J201
IC201
IC202 J202
DNX
ONLY
DDX
ONLY
A-JACK i-POD
V-JACK i-POD
DC CN
CN1 CN301
to (X34- ) CN801
JACK
SDRAM
128Mb∗2
DNX
CN401
to NAVI JACK
to DVD MECHA
BACK
VOUT
BC COMP
VOUT COMP
V5V
NAVI L/R
NAVI SYNC
NAVI R/G/B
MAPUP DET
MIX REMO
NAVI RX
NAVI TX
BU5V
D5V
PARKING
ACC RST
RGB MUTE
DM
DP
DM
DP
USB5V
USB5V
P5V
D5V
V5V
BE R/G/B BE COMP
V5V
MAPUP DET
MIX REMO
ATAPI(DATA)
USB RST
ATAPI
RESET
USB5V
DATA ADDRESS
D3.3V
D3.3V
SPI RDY
CP RDY
CP RST
SPI CLK
SPI DI
SPI DO
D3.3V
SPDIF O
BT TX
BT RX
BT RST
V5V
DISC DET TV COMP
BE RST
BE RESERVE3
BE RESERVE2
BE RESERVE1
BE BUDET
BE INI
BE CON
BE MREQ
BE SREQ
DISKDET
BE STBY
BE CLK
BE SDATA
BE MDATA
BE AMUTE A8V
MCLK
SDO0
SCLK
LRCLK A5V
BE/USB L/R
RGB SEL1
D5V
SIR RST
SAT TX
A8V
BT MIC IN
SAT TX
SIR RST
VMUTE
MST WAIT
MST WP
MST RST
MST SCL
MST SDA
MONI R/G/B
FRONT AUX COMP
MONI COMP
A8V
i-POD L/R
i-POD L/R
i-POD COMP
V5V
i-POD COMP
D3.3V
D5V
BL14V
V6V
V5V
AOUT SEL
P START
P PWM
PGOOD
PON
BU
BT L/R
BE COMP
VSEL SDA
VSEL SCL
AOUT SEL
D3.3V
D1.8V
BE R/G/BADDRESS
D3.3V
USB3.3V USB1.8V
D3.3V
D3.3V
BT L/R
CAM IN
SIR PON
SIR RST
SAT RX
SAT TX
SAT CON

5
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
(X35-489)
BACK LIGHT TOUCH PANEL LCD PANEL
D5V
DCDC
12.5V-12V 15V
-10V
SW2.5V
D3.3V
V5V
SW5.3V
V6V
CIRCUIT
INVERTER
IC1
CN5CN1
CONTROLLER
TIMING
IC203
J2
MINI
F AUX
JACK
CN4
AMP
VCOM
IC201
CN3
J1
CN7/CN6 FFC 20PIN
VOL
to (X15- ) J301
to (X34- ) CN800
MONI R/G/B
MONI COMP
PWM
INV SW
ENABLE
INV PWM
X1
XDATA
Y0
X0
YDATA
TP5V
BL 14V
MST SDA
MST SCL
MST WP
MST RST
VMUTE
MST WAIT
HSY
VD
NT PAL
VCOM
A-IN
V-IN
A-IN L/R
F VIN
VOL+
VOL-
REMO
SW
SILED
EJECT
VOL-
SI
KEY ILLG1
KEY ILLB1
KEY ILLR1
KEY ILL
REMO D5V
ILL+B
SW5.3V 15V V5V -10V
12.5V
-12V
KEY4
VOL+
SRC
SW2.5V
V5V
VCOM
BLOCK DIAGRAM

6
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
● VIDEO CONTROL UNIT (X15-124x-xx)
Ref. No. Application / Function Operation / Condition / Compatibility
IC100 DC/DC converter IC DC/DC control for USB5V/D5V
IC101 DC/DC converter IC DC/DC control for SW3.3V/V6V
IC201 AUDIO ISO AMP iPod audio signal
IC202 VIDEO ISO AMP iPod video signal
IC203 Regulator V6V→V5V regulator
IC205 Video selector 5IN 2OUT DVD-BE/NAVI/TV/Ipod/BackCamera COMPOSITE signal Select
IC206 Video selector Selector for selecting FRONT AUX output or IC205 output for external video output
IC207 Video selector DVD-BE and NAVI RGB selector
IC301 AND x 4 KAB IF 3.3V→5V LEVEL SHIFT
IC501 OP-AMP X 2 LPF for BT-AUDIO
IC502 BUS BUFFER X 2 BUFFER for BT control signal wave shaping
IC601 Video amplifier DVD-BE COMPOSITE SIGNAL LPF/BUFFER
IC602 Video amplifier DVD-BE RGB SIGNAL LPF/BUFFER
IC651 AUDIO DAC DVD-BE AUDIO D/A CONVERTER
IC652 OP-AMP X 2 DVD-BE AUDIO LPF
IC654 OP-AMP X 2 For AUDIO REFERENCE4V
IC701 MPEG DECODER DVD/USB MPEG DECODER
IC702 64M FLASH FLASH MEMORY(PMP 4Z3 / MP 4Z4) for MPEG DECODER
IC703,704 128M SDRAM SDRAM for MPEG DECODER
IC705 Regulator 3.3V→1.8V regulator for MPEG DECODER
IC801 USB HOST CONTROLLER 2 ports (For external and GARMIN NAVI) USB HOST CONTORLLER
IC804 Fixed Current Limit
Power Distribution Switch Large current distribution switch for USB
IC805 Regulator 5V→3.3V regulator for USB
IC806 Regulator SW3.3V→1.8V regulator for USB
IC852 iPod Authentication
Coprocessor iPod Authentication
IC853 D-TYPE LATCH X 8 Address latch for USB H/C
Q1~3 SW P-ON 14V control
Q4 SW FET P-ON 14V ON/OFF
Q100~103 SW DC/DC protection control
Q104 SW DC/DC SW FET (USB5V)
Q105 SW DC/DC SW FET (D5V)
Q106 SW DC/DC SW FET (SW3.3V)
Q107 SW DC/DC SW FET (V6V)
Q301,302 SW KAB_RX error connection protection
Q303 SW For KAB_TX control
Q651~653 SW A5V circuit
Q681,682 BUFFER SPDIF OUTPUT BUFFER
COMPONENTS DESCRIPTION

7
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
● ELECTRIC UNIT (X34-575x-xx)
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 3-terminal regulator For Audio8V
IC2 3.3V regulator BU_3.3V
IC100 Buffer for remote controller Remote controller signal waveform shaping
IC101 Voltage detector μ-com reset voltage (3.5V) monitoring
IC103 E2PROM For saving the settings
IC104 System μ-com IC System control
IC105 NAVI interface waveform conversion (3.3 →5V)
IC300 Logic IC (multiplexer) Audio signal selection (Main BT)
IC302 Electronic volume IC Audio volume control and audio signal selection
IC303 Logic IC (multiplexer) Audio signal selection (Main)
IC304 Logic IC (multiplexer) Audio signal selection (Sub)
IC400 AUDIO ISO AMP For TVBOX audio signal
IC401 AUDIO ISO AMP For KAB audio signal
IC402 Logic IC (inverter) TVBOX data signal waveform shaping
IC500 RDS decoder IC For RDS signal processing and demodulation
IC600 Power IC Power amplifier for speaker output
Q1,2 Transistor Audio8V
Q3,4 Transistor P_CON output circuit
Q5 Transistor BU5V
Q6 Transistor Reverse detection circuit
Q7 Transistor Audio8V
Q8 Transistor BU5V
Q9 Transistor P_CON output circuit
Q10 Transistor Parking detection circuit
Q11 Transistor P_CON output circuit
Q12 Transistor SW5V circuit
Q13 Transistor ILLUMI detection circuit
Q14 Transistor ANT_CON output circuit
Q15 Transistor SW5V circuit
Q16 Transistor ANT_CON output circuit
Q17 Transistor BU detection circuit
Q20 Transistor Surge detection circuit
Q21,22 Transistor SW3.3V circuit
Q23 Transistor ACC detection circuit
Q24,25 Transistor SW14V circuit
Q100~102 Transistor ACC detection/KEY RESET
Q103,104 Transistor DET MUTE circuit (Trigger Bu-DET)
Q105 Transistor DET MUTE circuit (Trigger Reset)
Q107 Transistor TVBOX RESET
Q108 Transistor DET MUTE circuit (Trigger Bu-DET)
COMPONENTS DESCRIPTION

8
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
Ref. No. Application / Function Operation / Condition / Compatibility
Q110 Transistor SI
Q111 Transistor Synchronizing separator circuit of FRONT VIDEO input
Q112 Transistor SI
Q113~118 Transistor Synchronizing separator circuit of FRONT VIDEO input
Q300 Transistor Electronic volume IC MUTE
Q301~305 Transistor For AUDIO selector
Q403 Transistor KAB power supply
Q406 FET KAB power supply
Q407 Transistor KAB detection
Q500~503 Transistor TUNER8V circuit
Q504,505 Transistor On when AM (Tuner 8V)
Q700 Transistor Pre-OutMute circuit (AV-OUT)
Q701 Transistor Pre-OutMute circuit (REAR, SUB)
Q702~705 Transistor Pre-OutMute circuit (FRONT)
Q706~708 Transistor Pre-OutMute circuit (REAR, SUB)
Q709~711 Transistor Pre-OutMute circuit (AV-OUT)
Q800,801 Transistor LED9V SW
Q802,803 Transistor LED9V
Q804 Transistor X15 SW-REG PSTART
● VIDEO UNIT (X35-4890-10)
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 Inverter control IC Control and drive of the inverter circuit for the back light
IC101 NOT Reverse
IC102 DC/DC converter IC +12.5V/-12.0V power supply for VCOM amplifier and +15.0V power supply for LCD
IC200 Regulator 2.5V regulator
IC201 Op-amp For VCOM amplifier
IC202 D flip flop LCD dot clock timing
IC203 γT/C Control of LCD module
IC204 OR For V_MUTE
IC205 Regulator 5.3V regulator
IC206 Buffer 5V→3.3V level conversion
IC207 FROM For Mstar FW
IC208 Regulator 5.3V regulator
IC501 AND 3.3V→5V level conversion
IC700 Remote controller photoreceptor Detection for remote controller
Q1 5V constant voltage 5V power supply for inverter control IC
Q2 Dimmer SW Turn on or off in response to the PWM control signal to dimmer the back light
Q3 SW SW to change the free run frequency for inverter control IC
Q4,5 Inverter Driver Drive of the inverter circuit
COMPONENTS DESCRIPTION

9
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
Ref. No. Application / Function Operation / Condition / Compatibility
Q100 -10V regulator LCD-10V regulator
Q101 -10V regulator control LCD-10V regulator
Q201,202 Buffer For VCOM current amplification
Q400 Buffer CVBS2
Q401 Buffer CVBS1
Q450 SW SW to be turned on or off by NTSC/PAL signal and to change the filter constants
Q451 Buffer For VCOM automatic adjustment
Q500 Touch panel X0 SW X0 SW: Turn on in response to X axis input and apply voltage
Q501 Touch panel Y0 SW Y0 SW: Turn on in response to Y axis input and apply voltage
Q502 Touch panel X1 SW X1 SW: Turn on in response to detection of the panel touch or X axis input and apply voltage
Q503 Touch panel Y0/Y1 SW Y0/Y1 SW: Turn on in response to Y axis input and turn off in response to X axis input
Q504 Touch panel Y0 SW Y0 SW: Turn on in response to Y axis input and apply voltage
Q600 SW RGB_LED SW (green)
Q601 SW RGB_LED SW (red)
Q602 Buffer AUX
Q603 SW RGB_LED SW (blue)
Q604 SW LED SW (EJECT,DISC)
Q606 SW 5V→3.3V level conversion
●DVD UNIT (X37-1230/1240/1250-00)
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 RF signal processing IC RF signal processing
IC3 FLASH ROM Maintain F/W for optical DISC control IC
IC4 Optical disc control IC in μ-com Optical DISC general control / ATAPI interface
IC5 Voltage detection IC For system resetting of optical DISC control IC
IC10 Driver IC Focus coil, Tracking coil, Spindle motor, Sled motor and Lo/Ej motor drive
IC11 EEPROM Maintain data for optical DISC control IC
IC13 1.5V power supply 5V→1.5V
IC14 3.3V power supply 5V→3.3V
Q1 Register integrated transistor SL. MUTE control
Q2 Register integrated transistor For FG signal
Q3 Register integrated transistor LO.MUTE control
Q4 Register integrated transistor DRMU control
Q12 Transistor for APC Laser diode brightness control for CD
Q13 Transistor for APC Laser diode brightness control for DVD
Q16 MOS-FET Laser diode ON/OFF control for DVD/CD
COMPONENTS DESCRIPTION

10
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
MICROCOMPUTER’S TERMINAL DESCRIPTION
●SYSTEM MICROCOMPUTER 30878MJBA31GP (X34-575: IC104)
Pin No. Pin Name I/O Application Processing / Operation / Description
1
EVOL_SDA/EVOL_SDA I/O Communication data with E-VOL
1 EVOL_SDA/E2P_SDA O Communication data with E2P
2 TV_MC_REQ O Request to TV μ-com
2 NC O Output from model without TV is fixed to “L”
3 TV_SC_CON O Request to start TV μ-com
3 NC O Output from model without TV is fixed to “L”
4 VSYNC_DET I Video external input detection Detects if there is VSYNC signal or not
5 VOL+ I Detects VOL key Detects pulse width
15 pulses/360°, 2 clicks, 1 pulse
6 VOL- I Detects VOL key Detects pulse width
15 pulses/360°, 2 clicks, 2 pulse
7 HSY I HD input Counts HD
8 VD I VD (VSYNC) input
9 SRC I Source key
10 TV_SC_REQ I Request from TV μ-com
10 NC O Output from model without TV is fixed to “L”
11 REVERSE I Reverse detection L: Detection, H: Normal
12 PWIC_STBY O Power IC standby H: ON, L: OFF
13 INV_PWM O Inverter frequency control (Output by timer)
14 PWIC_MUTE O Power IC output mute control H: OFF, L: ON
15 BYTE
16 CNVSS
17 XCIN
18 XCOUT
19 RESET
20 XOUT
21 VSS
22 XIN
23 VCC1
24 NMI
25 ACC_DET I ACC detection H: ACC reduced power detection
26 BU_DET I Backup power supply detection H: Backup reduced power detection
27 R_CLK I Clock input from RDS decoder
27 NC O Output from model without RDS is fixed to “L”
(To destination X and V)
28 NC O
29,30 NC O Not used. Output is fixed to “L”
31 PWM O LCD brightness control (PWM output) PWM output synchronized with VSY
32 PARKING I Parking detection (For all the destinations) H: Detection, L: When car is running
33 BEEP O BEEP PWM output

11
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
MICROCOMPUTER’S TERMINAL DESCRIPTION
Pin No. Pin Name I/O Application Processing / Operation / Description
34 NC O
35 POWER_PWM O Frequency control of DC-DC_IC (CLK output)
36 NAV_RX I Communication with navigation system
37 NAVI_TX O Communication with navigation system
38 TV_MC_DATA O Data output to TV μ-com
38 NC O Output from model without TV is fixed to “L”
39 VCC1
40 TV_SC_DATA I Data input from TV μ-com
40 NC O Output from model without TV is fixed to “L”
41 VSS
42 TV_BP_CLK O Communication clock with TV μ-com
42 NC O Output from model without TV is fixed to “L”
43 NC O
44 TUN_SDA I/O Communication data with tuner
45 TUN_SCL O Communication clock with tuner
46 R_DATA I “DATA” input from RDS decoder
46 NC O Output from model without RDS is fixed to “L”
47 R_QUAL I “QUAL” input from RDS decoder
47 NC O Output from model without RDS is fixed to “L”
48~51 NC O
52 SI O SI control H: ON, L: OFF
53,54 NC O
55 TYPE3 I Terminal for destination (BT is required or not) H: With BT, L: Without BT
56 VILL_R O Brightness control of “R” in variable illumination Operating frequency: 1kHz
57 VSS
58 VILL_G O Brightness control of “G” in variable illumination Operating frequency: 1kHz
59 VCC2
60 VILL_B O Brightness control of “B” in variable illumination Operating frequency: 1kHz
61 KEY_ILL O ON/OFF of other illumination than variable illumination H: ON, L: OFF
62 EJECT I Eject key input
63 Y0 O Touch panel control
64 X1 O Touch panel control
65 NC O
66 X0 O Touch panel control
67 INV_SW O Inverter free run frequency switching
68 BL_ENA O Back light ON/OFF control H: ON, L: OFF
69 VMUTE O Video MUTE terminal H: MUTE ON, L: MUTE OFF
70 NT_PAL I NTSC/PAL determination signal input H: NTSC, L: PAL
71 P_START O DC-DC power supply ON/OFF control
72 PGOOD I DC-DC power supply error detection H: Normal, L: Error

12
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
Pin No. Pin Name I/O Application Processing / Operation / Description
73 WRT_E2P I Used when writing into E2P L: Normal condition
H: When writing into E2P
74 VCC2
75 TYPE4 I Terminal for destination (5VPRE/2VPRE) H: 5V pre-out, L: 2V pre-out
76 VSS
77 NC O Not used. Output is fixed to “L”
78 DISKDET I
DVD mechanism function to detect if there is a disc or not H: Disc is not detected, L: Disc is detected
79 BE_MREQ O Request to back end
80 BE_STBY I Standby request from back end
81 BE_CON O Control request to back end
82 BE_INI O Initial request to back end
83 BE_BUDET O
Notification of momentary power down detection to back end
84 NC O
85 BE_RESERVE2 I Operation identification terminal from back end H: Valid, L: Invalid
86 BE_RESET O Reset request to back end L: Reset, H: Clear reset
87 NC O
88 BE_SDATA I Communication data from back end
89 BE_CLK I Communication clock with back end
90 BE_MDATA O Communication data to back end
91 VCC2
92 TYPE1 I Destination settings Refer to “Destination settings”
93 VSS
94 TYPE2 I Destination settings Refer to “Destination settings”
95 ASEL3_1 O
Dedicated audio switching with K and R BT (MAIN or BT) Refer to “ASEL settings”
96 ASEL2_2 O AVOUT source audio switching Refer to “ASEL settings”
97 ASEL2_1 O AVOUT source audio switching Refer to “ASEL settings”
98 ASEL1_2 O Main source audio switching Refer to “ASEL settings”
99 ASEL1_1 O Main source audio switching Refer to “ASEL settings”
100 EVOL_MUTE0 O E-VOL front mute L: ON, H: OFF
101 EVOL_MUTE1 O E-VOL rear mute L: ON, H: OFF
102 NC O
103 BE_RESERVE1 I CLK terminal for operation identification from back end CLK frequency: 1Hz
104 BE_SREQ I Request from back end
105 EVOL_MUTE2 O E-VOL R SW mute L: ON, H: OFF
106 EVOL_MUTEC O AF dedicated mute, Time constant 0.5mS
E-VOL_C mute L: ON, H: OFF
107 EVOL_MUTEB O E-VOL_B AVOUT mute L: ON, H: OFF
108 AM+B O Tuner AM power supply ON/OFF control L: ON, H: OFF
109 PRE_MUTEF O Pre-out mute (FRONT) L: ON, H: OFF
110 PRE_MUTESW O Pre-out mute (REAR/SW) L: ON, H: OFF
111 PON O SW power supply ON/OFF control L: ON, H: OFF
MICROCOMPUTER’S TERMINAL DESCRIPTION

13
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
Pin No. Pin Name I/O Application Processing / Operation / Description
112 SIR_DET I Sirius connection detection
113 SIR_PON O SAT power supply ON/OFF
114 NC O
115 TV_JUDGE I Determination of TV_BOX if it is old or new H: Old, L: New
115 NC O Output from model without TV is fixed to “L”
116 ANT_CON O Power antenna control H: UP, L: DOWN
117 P_CON O P-CON control L: STANDBY, POWER OFF, H: EXCEPT
118 ILLUMI I Illumination detection L: ON, H: OFF
119~121 NC O
122 TYPE0 I Destination settings Refer to “Destination settings”
123 KEY3 I Key3 input Refer to “KEY3 matrix”
124 TUN_IFC I F/E IFC input H: Station found, L: Station not found
125 TUN_SMET I S meter input
126 R_NOISE I FM noise input
127 R_AFS_H I/O Time constant switching when F/E noise is detected
128,129 NC O
130 VSS
131 NC O
132 VCC1
133,134 NC I Not used (Input)
135 VILL_DET I Variable illumination identification terminal L: F3, H: F4
136 VCOM I For VCOM level automatic adjustment
137 X_DATA I Touch data input
138 Y_DATA I Touch data input
139 LINE_MUTE I LINE-MUTE input detection
Normal: 1.6V
TEL MUTE: 1V or lower
NAVI MUTE: 2.5V or higher
140 AVSS
141 PWIC_DC_DET I SP output DC offset detection L: When detected
142 VREF
143 AVCC
144
EVOL_SCL/EVOL_SCL O Communication clock with E-VOL
144 EVOL_SCL/E2P_SCL O Communication clock with E2P
MICROCOMPUTER’S TERMINAL DESCRIPTION

14
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
TYPE0 Setup Voltage
Destination μ-com setup value Pull down resistor Pull up resistor
min Mid point voltage max
K 0.00 0.00 0.41 10 -
E 0.42 0.83 1.23 3.3 10
M 1.24 1.65 2.06 10 10
V/X 2.07 2.48 2.88 30 10
R 2.89 3.30 3.30 - 10
MICROCOMPUTER’S TERMINAL DESCRIPTION
Destination Settings
MODEL Destination TYPE2 (94) TYPE1 (92) TYPE0 (122) TYPE3 (55) Note
KVT
K00∗-
E00∗-
M0 0 ∗-
V/X 0 0 ∗-
R00∗-
DDX
K01∗0
E01∗0
M0 1 ∗0
V/X 0 1 ∗0
R01∗0
DNX
K11∗0
E11∗1 With BT
E2 1 1 ∗0 Without BT
TYPE0 is AD input
“∗” Refer to the next table (TYPE0 Setup Voltage)
E of TYPE0 should be same as E2 of TYPE0
TYPE4 (75)
5VPRE 1
2VPRE 0
ASEL Set Up
MAIN
ASEL1_1 (99) ASEL1_2 (98)
BE 0 0
(TV) 0 1 Models for destination K and R do not have TV
IPOD 1 0
KAB or BT 1 1 KAB except for E destination with BT
SUB
ASEL2_1 (97) ASEL2_2 (96)
BE 0 0
(TV) 0 1 Models for destination K and R do not have TV
IPOD 1 0
-11
In the model without TV, ASEL2_2 output is fixed to “L”

15
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
KEY3 matrix
MAX MIN
VCC 3.3 3.366 3.234 [V]
PULL UP in X34 15 15.75 14.25 [KΩ]
R1 in X35 0.01 0.0105 0.0095 [KΩ]
R2 in X35 6.8 7.14 6.46 [KΩ]
R3 in X35 18 18.9 17.1 [KΩ]
Calculated value MAX MIN
S601 ENTER∗Vs1= 0.002198534 0.002478384 0.001949491 [V]
S701 NAVI Vs2= 1.0303989 1.124673863 0.941621684 [V]
S702 FNC Vs3= 2.056593821 2.175803849 1.938574066 [V]
Do not press 3.3 3.366 3.234 [V]
Set up μ-com in the following range of the settings
MAX MIN
S601 ENTER∗0.5 0 [V]
S701 NAVI 1.5 0.51 [V]
S702 FNC 2.5 1.51 [V]
Do not press 3.3 2.51 [V]
∗ENTER KEY is the rotary VOL / Press KEY
KEY position
S701 NAVI
S703 SRC
S702 FNC
S601
ENTER
Liquid crystal
MICROCOMPUTER’S TERMINAL DESCRIPTION
MAIN or BT Only for K and R both with BT
ASEL3_1 (95) Hardware setup
BT 1 1
MAIN 0 1

16
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
ABCDE
1
2
3
4
5
6
7

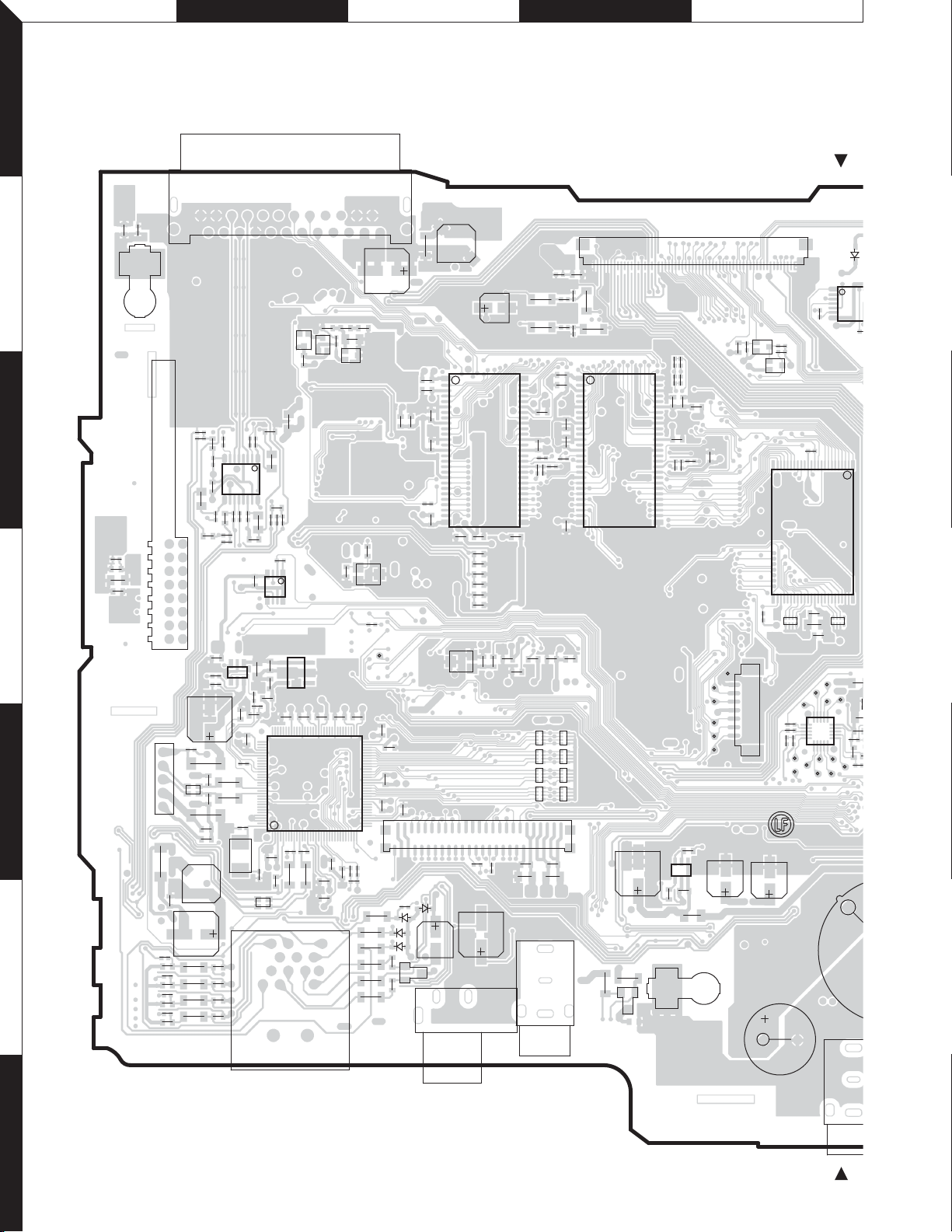

PC BOARD (COMPONENT SIDE VIEW)
DGND
TP791
C651
SCL
SDA
TC SCL
TC SDA
TC WP
8
7
6
9
10
19
18
17
16
20
1
15
CP RDY
IC801
IC804
IC852
IC703IC704
VR602
VR601
IC207
IC702
IC601
IC30
1
IC805
IC502
VIDEO CONTROL UNIT
X15-124x-xx A/2
(J76-0595-02)
J301
A501
W801
J401
J203
J681
J501
CN301
CN701
P3
CN703
D400
D401
D402
D403
D404
D405
D406
D407
D408
D501
D801
D802
Q653
Q652
Q651
Q301
D214
Q302
P1
C1
1
1
1
1
5
15
11
610
20
R8
9
C8
6
R894
R895
R89
0
R896
R899
R892
R898
R897
16
25 48
24 1
1
1
7
15
33
1
2
49
50
1
128
96
97
1
65
64
1
1
32
54
2827
154
27 28
60
R773 R774
R771
C309
C671
L302
R772
C761
C763
L401
C713
L501
L731
C762
C764
C807
C814
C815
C824
C508
C843
L741
R236
L203
L204
C724
C741
C742
C743
C744
C745
C746
C747
C748
C752
C753
C754
C755
C756
C757
C758
C250
C246
R255
C601
C244
R913
C509
C510
R509
C220
C413
C801
C812
C813
C818
C819
C821
L801
C816
C820
C822
C823
C817
C414
R814
R823
R904
C803
C638
C621
C624 C625C628
C635
C239
R655
1
2 1
16 15
23
224
R656 R657
R658
R669 R670
R311
R312
R313
C311
L751
C751
C731
C732
C811
C825
C841
C842
CP751 CP752
L805
R307
DIGITA
OUT
C834
C835
R812
R779 R778
R787 R786
C511
C235
C236
C629
R241
R265
R246
R247
R248
R249 R256
R412
15 9
1062
3
48 12
71113
R413
R414
R415
R826
R903
R613
R620
R621
R622
R623
R624
R625
R627
C241
C243
C248
C249
C408
C410
C412
C604
C667
R303
C668
C669
C670
L502
CP721
CP722
CP723
CP724
CP725
CP726
CP728
CP727
L804
L808
R243
R257
R258
R675
R696
R3
R305
R403
R404
VIDEO IN/OUT
MIC IN
R405
R406
R416
R417
R418
R419
R420
R421
R422
R423 R424
R425
R428
R512
R603
R614
R626
R667
R668
R710 R711
R882
R763
R764
R805
R813
R822
R806
R808
R809
C840
R883
R815
C865
R513
L806
L807
R821
R914
R284
C313
R286
R288
R285
R287
R289
R825
X801
R905
R906
C312 L303
R880
8
916
4
58
7
3
46
3
54
31
64
BE
BE
BE
BE
BE
BL14V
D5V
BLGND
P5V
ATARST
A8V

17
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
Refer to the schematic diagram for the values of resistors and capacitors.
JIHGF
1
2
3
4
5
6
7
X15-124x-xx
Ref. No. Address
IC207
IC301
IC502
IC601
IC702
IC703
IC704
IC705
IC801
IC804
IC805
IC852
Q1
Q2
Q3
Q4
Q104
Q105
Q106
Q107
Q301
Q302
Q651
Q652
Q653
3B
2F
4B
5E
4E
3D
3C
5F
5B
4B
4B
5E
5G
5G
5G
5G
4G
3G
3G
2G
3E
2E
3C
3B
2B
8
7
6
19 20
1
IC705
8
52
2
IC301
X15 B/2
J201
J202
J681
Q2
Q3
Q4
CN2
Q105
CN1
D202
Q1
Q104
Q106
Q107
D201
D701
D214
J502
P4
P2
L1
1
1
1
5
6
20
R891
C863
C861
C862
R894
R890
R899
R892
R893
1
48
1
1
L108
C4
R6
L702
R164
L300
R163
3
1
C9
R161
C10
C146
C147
C148
C149
C150
C151
C152
C153
L100
L101
L102
L103
R162
R165
C704
C190
C191
C192
R153
R154
C155
C159
C174
C175 C176
C177
R146
R213
R280
C12
C11
C300
C196
C197
C198
R158
R157
C193
C194
C195
R155
R156
C199
C200
C214
R159
R160
C206 C5
C8
R8
R10
C154
C156
C157
C158
C160
C161
C170
C171
C172
C173
C178
C179
C180
C181
C182
C183
C184
C185
C186
C187
C188
C189
C215
C216
C217
C265
C702
1
2
CP752
DIGITAL
OUT
iPod
VIDEO
iPod
AUDIO
C162
C163 C164
C165
C166 C167 C168
C169
L104
L105
L106
L107
R7
R9
R145
R147
R148
R149 R150 R151
R152
R209
R304
C703
C20
L503
R769
R770
78
14
5
2
6
S
G
S
G
D
D
D
D
S
G
S
G
D
D
D
D
S
G
S
G
D
D
D
D
S
G
S
G
D
D
D
D
S S S G
D D D D
BE
BE
BE
RED
USB5V
D5V
+B
V6V
P5V
D3.3V
V3.3V
GND

18
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
KLMNO
1
2
3
4
5
6
7
PC BOARD (FOIL SIDE VIEW)
VIDEO CONTROL UNIT X15-124x-xx A/2 (J76-0595-02)
X15 B/2
D682
D100 D101 D102 D103
D301
D203
D204
D205
D206
D207
Q681
Q682
D681
Q100
Q101
Q102
Q103
Q303
IC701
IC203
IC851
IC791
IC100
IC101
IC201 IC205
IC206
IC202
1
1
1
1
1
4
8
5
1
O
1
60
3
40
121
120
61
I
C229
L201
L851
L701
R857
R858
C701
C707
C709
C710
C712
C714
C716
C718
C720
R854
R855
R856
R859
R860
R863
R865
R
8
R
7
R143
R144
L602
C219
R228
C218
R671
R321 R322 R323
R672
C851
C852
R840
R845
R847
C791
C125
C114
R119
C134
C136
C142
C144
C129
R122
C123
C127 R120
C115
C135
C137
C143
C145
C708
C711
C715
C717
L703
C719
C122
C128
R121
R848
C130
C132
C232
C245
C247
R229
R278
R239
R244
R250
R253 R259
C131
C133
C627
R
6
R
6
R659
C
C622
C623
C631
R201
R202
C100
C101
C102
C103
C104
C105
C106
C107
C108
C109
C110
C111
C112
C113
C124
C126
R101
R102
R103
R104
R105
R106
R107
R108
R109
R111
C201
C213
L704
C853
C854
R849
R862
R861
R832
R833
R834
R835
R836
R841
R839
R842
R844
R798
R799
R864 R866
C211
R237
R281
R254
R205
R206
R210
R211
C116 C117
C118
C119 C120
C121
C138 C139 C140 C141
C204
C205
C207
C209
C210
C212
C208
C225 C226
C227
C233
C234
C240
C242
C6
6
C691
C
P
CP703
CP704
CP705
CP706
CP707
CP708
CP709
CP710
CP731
CP732
CP733
CP734
CP735CP737
CP736
CP711
CP712
CP713
CP714
CP715
R110 R112
R113 R114
R115 R116 R117 R118
R135
R136
R137 R139 R142
R203
R204
R207
R208
R212
R215R214
R238
R245
R6
6
R698
R697
R712
R713
R796
R795
R732
R733
R734
R735
R761
R797
R283
R838
R846
R310
C310
X851
R776 R775
R629
R630
C314
R314
14
28
15
G
BBE
CC
28
15 14
1
45
5
610
16
17 32
3 46
31
10
2011
30
21
BEB E
BE BE
BE
BE
VL
R SPDIF
A8V
D5V V3.3V
D3.3V
USB5V
V6V
AGND
A8V
1.8V
P5V
D3.3V
D5V
TP373
TP305
TP7
TP751
TP4
TP747
TP749
TP19
TP207
TP101
TP3
TP104
TP103
TP102
TP304
TP2
TP767
TP743
TP745
TP318
TP204
TP206
TP370
TP371
TP380
TP100
TP201
TP202
TP205
TP300
TP301
TP302
TP303
TP306
TP307
TP308
TP309
TP310
TP311
TP312
TP313
TP314
TP316
TP319
TP320
TP321
TP322
TP325
TP326
TP333
TP336
TP340
TP341
TP344
TP345
TP372
TP375
TP376
TP518
TP519
TP701
TP723
TP730
TP737
TP738
TP752
TP753
TP776
TP779
TP951
TP956 TP957
TP958
TP959

19
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
Refer to the schematic diagram for the values of resistors and capacitors.
TSRQP
1
2
3
4
5
6
7
CN401
D212
D213
D210
D208
P5
D211
D209
IC501
IC652 IC654
C
701
IC651
IC602
IC806
IC853
1
1
1
2
1
30
1
240
1
29
1
181
1
9
1
C229
C501
C673
R674
C301
C302
R887
C303
C304
C706
C707
0
9
C723
C725
R681
R687
R851
R867
R868 R869 R784 R783 R782
R737 R738 R870 R871 R872
R874
R875
R876
R877
R878
R879
C828
L803
L811
C836 C837
L601
L602
C307
C308
C663 C664
R505 R506
C655
C657
C708
C721
C722
C728
C838C839
R886
C602 C603
R608 R607
R609
C802
C808
C809
C827
C830
L402
R612
R611
C630
R659
C626
C622
C623
C631
C632
C633
C634
C637
C656
C658
C672
R673
R660
C705
C726 C727
C826
C804
C829
C833
R853
6
6
R881
R785
C636
L705
L706
R270
C502
C503
C504
C505
C506
C507
C605
C606
C607
C661 C662
C665
C666
CP701
CP702
CP703
P
704
R266
R271
R272
R501
R502
R503
R504
R507
R508
R604
R605
R606
R682
R757
R651 R652
R653
R654
R661 R662
R663 R664
R665
R666
R683 R684
R685
R686
R688 R689
CP738
R703
R704
R709
3
5
R736
R740 R742 R743
R744
R745 R746
R748
R749
R747
R750
R751 R752
R753
R754
R755 R756
R758
R759
C729
R739
R918 R917 R916
X701
R786
C730
R777
C864
R900
R768 R741
CP754 CP753
R873
180
85
485
4
8
16
7
814
85
4
3
54
20
1110
BL14V
IN OUT
A8V
D-
D+
A5V
USB3.3V
USB1.8V
TP305
TP442
TP741
4
7
4
9
TP651
TP512
TP443 TP433
TP437
TP514
TP703
TP722
TP739
TP743
TP745
TP212
TP422
TP438
TP211
TP213
TP377
TP415
TP416
TP417
TP418
TP419
TP420
TP421
TP423
TP424
TP425
TP426
TP428
TP429
TP430
TP431
TP435
TP436
TP501 TP502
TP504
TP506
TP507 TP508
TP509 TP510
TP511
TP513
TP515
TP706
TP707
TP708
TP709
TP710
TP711
TP712
TP713
TP714
TP715
TP716
TP717
TP718
TP719
TP720
TP721
TP723
TP725
TP727
TP728
TP729
TP730
TP731 TP732
TP733
TP734
TP735
TP736
TP737
TP778
7
9
TP780
TP786
TP789
TP790
TP601
TP819
TP818
TP792
X15-124x-xx
Ref. No. Address
IC100
IC101
IC201
IC202
IC203
IC205
IC206
IC501
IC602
IC651
IC652
IC654
IC701
IC806
IC853
Q100
Q101
Q102
Q103
Q303
Q681
Q682
4M
2M
6L
6M
2N
6N
6O
4Q
3Q
3Q
2P
2P
4O
4Q
5P
4M
3M
3L
2L
2M
6N
6N

20
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/5240BT/6000E X /6140
UVWXY
1
2
3
4
5
6
7
ELECTRIC UNIT
X34-575x-xx (J76-0480-12)
C47
L1
1
18
1
1
4
1
1
1
12 22
111
1
5
4
19 1 10
20 2
144
1
127
226
1
C4
C29
C34
C114
C302
C810
C400
C619
C620
C621
C600
C602
C623
C624
C14
W105
R44
C33
R23
C41
C110
R52
R180
R182
R202
R224
R236
R259
C35
L101
R21
C100
C124
R222
R227
C101
C123
X101
R3
R15
R29
R50
R119
R126 R127
R158
R159
R166
R170
R173
R183
F2
C
R
C16
C20
C30
C32
C37
C38
C43
C44
C46
C15
R8
R10
R12
R14
R24
R26
R31
R38
R48
R49
R51
R57
C31
R607
C102
C105
C106 C113
C120
C122
C125
C127
C800
R109
R121
R130
R131
R133
R153
R161
R174
R175
R177
R184
R185
R187
R189
R197
R237
R255
R258
W4
R56
R59 R458
C807
C808
X100
C700
R6
R11
R16
R17
R18
R19
R20
R22
R25
R27
R30
R36
R37
R46
R54
R100
R107
R110
R114
R115
R120
R122
R136
R139
R140 R141
R143
R146
R147
R148
R149
R152
R154
R156
R157
R160
R164
R165
R168
R169
R172
R181
R186
R188
R190
R191 R192
R194
R198
R200
R203
R223
R225
R226 R228
R229 R230
R231
R232
R233
R234
R235
R238
R239
R240
R241
R242
R243
R244
R245
R246
R247
R248
R249
R250
R251
R252
R253
R819
R820
R400
R401
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413
R417
R600
R601
R603
R604
R605
R608
R609
R7
0
R800
R801
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
W802
R113
R210
R211
W800
R216
R215
C430
C335
W103
R813
R818
R208
C336
C334
R814
R212
R213
W104
R264
R821
R263
D
S
D
SGS
DD
85
5
610
6
O
G
I
3 45
2
59
60
4
3
31
54
2
3
109
36 73
108
37 72
250
49
BE
BE
BEBE
B
EB
EBEBE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
B
E
B
E
BE
B
EB EB
E
BE
BE
BE
EB
J400
Q1
Q5
Q802
J1
D17
P800
D425
D1
D13
Q3
Q406
Q502
CN801
Q22
Q110
Q12
CN100
Q101
Q102
Q107
CN800
Q10
Q111
Q113
Q115
Q116
Q118
Q407
Q703
Q804
CN1
D4
D7
D10
D11
D12
D18
D20
P1
Q6
Q11
Q13
Q15
Q17
Q20
Q23
Q100
Q112
Q117
D402
D403
D404
D405
D409
D410
D417
D431
D6
D8
D9
D15
D19
D600
D601
D802
D803
D804
D805
D806
D808
D809
D810
D811
D812
D302
D303
Q14
D411
D412
D413
IC600
IC2
IC400
IC104
IC101
IC1
IC105
IC100
IC402
PC BOARD (COMPONENT SIDE VIEW)
