Kenwood K-CD01 User manual

K-CD01
CD-RECEIVER
INSTRUCTION MANUAL
© B64-2923-00/00 (M) (TKR)
B64-2923-00U.S.Indd1 04.9.3,4:23:34PM

2|English
Contents
Safety precautions 3
WARNING
CAUTION
NOTE
Notes 5
About CDs 6
General features 7
Power
Selecting the Source
Volume
Audio Control
Defeat Setting
Switching Display
Subwoofer Output
Tuner/TV control features 9
Tuning
Direct Access Tuning
Station Preset Memory
Auto Memory Entry
Preset Tuning
CRSC (Clean Reception System Circuit)
Frequency Step Setting
TV Tuning
Preset TV Tuning
TV Preset Memory
Direct TV Tuning
CD/External disc control features 12
Playing CD
Playing External Disc
Fast Forwarding and Reversing
Track Search
Disc Search
Direct Track Search
Direct Disc Search
Track/Disc Repeat
Scan Play
Random Play
Magazine Random Play
Text/Title Scroll
Menu system 15

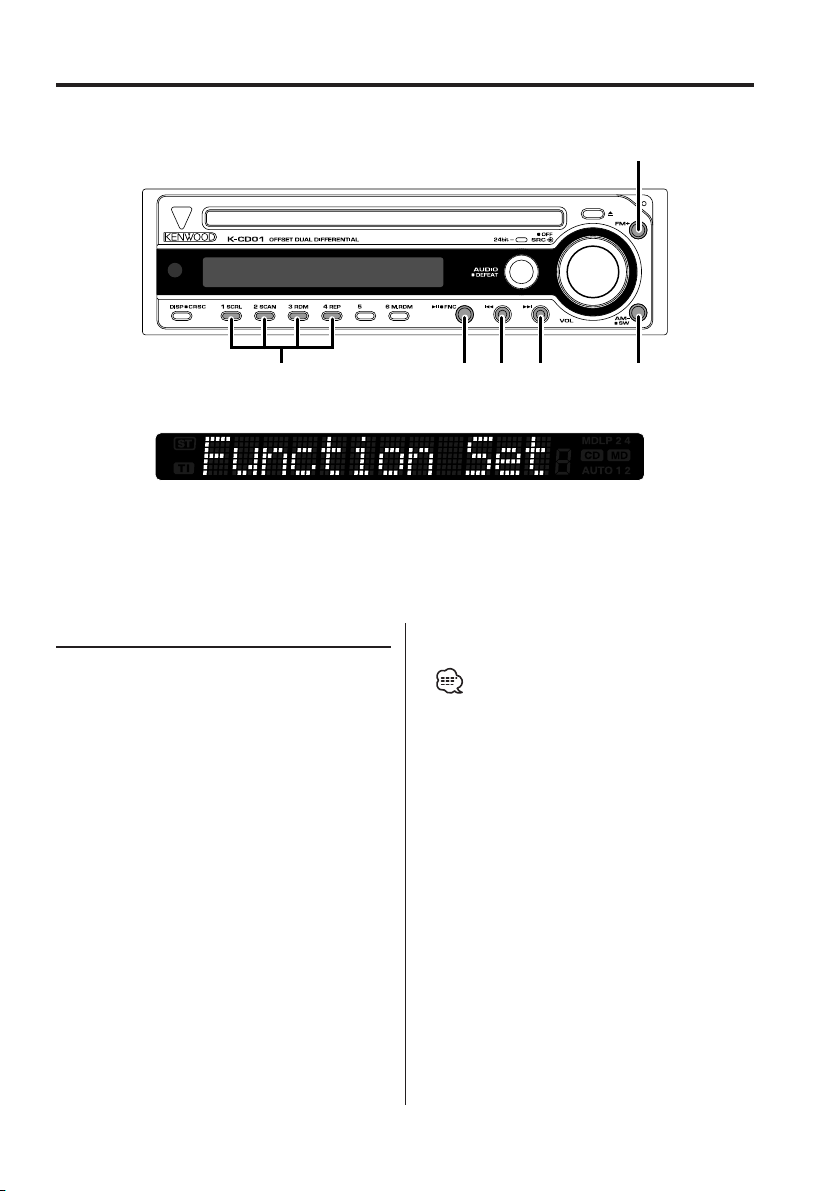

Function Set
Contrast Adjustment
Selecting display mode
Touch Sensor Tone
Security Code
Built-in Amp Mute Setting
Security Indicator
Manual Clock Adjustment
Tuning Mode
Auto Memory Entry
Text Scroll
B.M.S. (Bass Management System)
B.M.S. Frequency Offset
AMP Control
Basic Operations of remote 19
Accessories/ Installation Procedure 21
Connecting Wires to Terminals 22
Installation 23
Removing the Unit 24
Troubleshooting Guide 25
Specifications 27
B64-2923-00U.S.Indd2 04.9.3,4:23:35PM

English |3
Safety precautions
2CAUTION
To prevent damage to the machine, take
the following precautions:
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not open the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of
water splashing.
• When replacing a fuse, only use a new one with
the prescribed rating. Using a fuse with the wrong
rating may cause your unit to malfunction.
• To prevent a short circuit when replacing a fuse,
first disconnect the wiring harness.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
2WARNING
To prevent injury or fire, take the
following precautions:
• Insert the unit all the way in until it is fully locked
in place. Otherwise it may fall out of place when
jolted.
• When extending the ignition, battery, or ground
wires, make sure to use automotive-grade wires
or other wires with a 0.75mm² (AWG18) or more
to prevent wire deterioration and damage to the
wire coating.
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools)
inside the unit.
• If the unit starts to emit smoke or strange smells,
turn off the power immediately and consult your
Kenwood dealer.
• Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it contains
glass parts.
• Do not touch the liquid crystal fluid if the LCD
is damaged or broken due to shock. The liquid
crystal fluid may be dangerous to your health or
even fatal.
If the liquid crystal fluid from the LCD contacts
your body or clothing, wash it off with soap
immediately.
B64-2923-00U.S.Indd3 04.9.3,4:23:35PM

4|English
NOTE
• If you experience problems during installation,
consult your Kenwood dealer.
• If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when
the Reset button is pressed. If the unit still fails to
operate properly after the Reset button has been
pressed, contact your local KENWOOD dealer for
assistance.
• Press the reset button if the disc auto changer fails
to operate correctly. Normal operation should be
restored.
• Characters in the LCD may become difficult to
read in temperatures below 41 ˚F (5 ˚C).
• The illustrations of the display and the panel
appearing in this manual are examples used to
explain more clearly how the controls are used.
Therefore, what appears on the display in the
illustrations may differ from what appears on
the display on the actual equipment, and some
of the illustrations on the display may represent
something impossible in actual operation.
Lens Fogging
Right after you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the CD player of the unit. Called lens
fogging, CDs may be impossible to play. In such
a situation, remove the disc and wait for the
condensation to evaporate. If the unit still does
not operate normally after a while, consult your
Kenwood dealer.
Safety precautions
About CD players/disc changers
connected to this unit
KENWOOD disc changers/ CD players released in
1998 or later can be connected to this unit.
Refer to the catalog or consult your Kenwood
dealer for connectable models of disc changers/
CD players.
Note that any KENWOOD disc changers/ CD players
released in 1997 or earlier and disc changers made
by other makers cannot be connected to this unit.
Unsupported connection may result in damage.
Setting the "O-N" Switch to the "N" position for the
applicable KENWOOD disc changers/ CD players.
The functions that can be used and the information
that can be displayed will differ depending on the
models being connected.
• You can damage both your unit and the CD changer if
you connect them incorrectly.
LX-bus connection
The LX AMP and the sensor unit cannot be
connected simultaneously.
You must connect any of them at a time.
(The power supply does not turn ON if you have
connected both of them.)

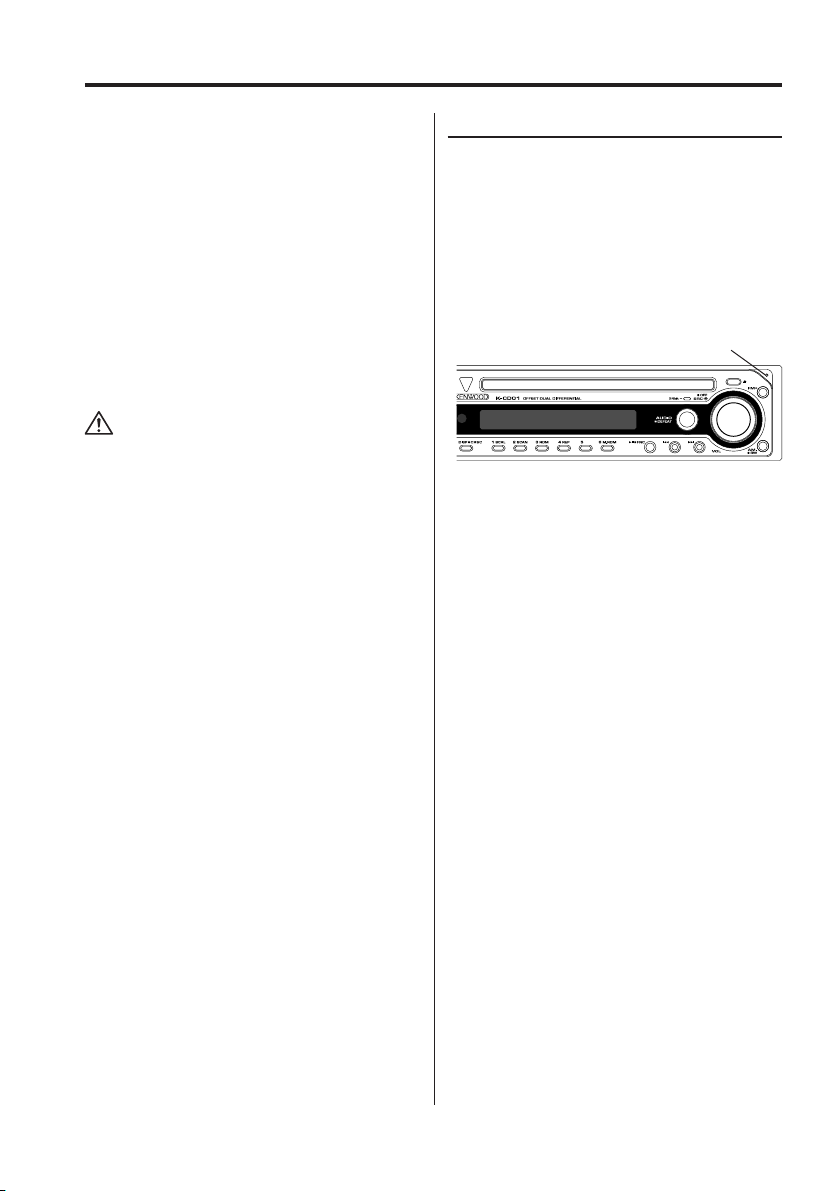

Reset button
B64-2923-00U.S.Indd4 04.9.3,4:23:36PM

English |5
Notes
Cleaning the Unit
If the faceplate of this unit is stained, wipe it with a
dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain off
with a cloth moistened with neutral cleaner, then
wipe neutral detergent off.
• Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with a hard cloth
or using a volatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Cleaning the CD Slot
As dust tends to accumulate in the CD slot, clean it
every once in a while. Your CDs can get scratched if
you put them in a dusty CD slot.
The marking of products using lasers
(Except for some areas)
CLASS 1
LASER PRODUCT
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit
is utilizing laser beams that are of a weaker class.
There is no danger of hazardous radiation outside
the unit.
B64-2923-00U.S.Indd5 04.9.3,4:23:36PM

6|English

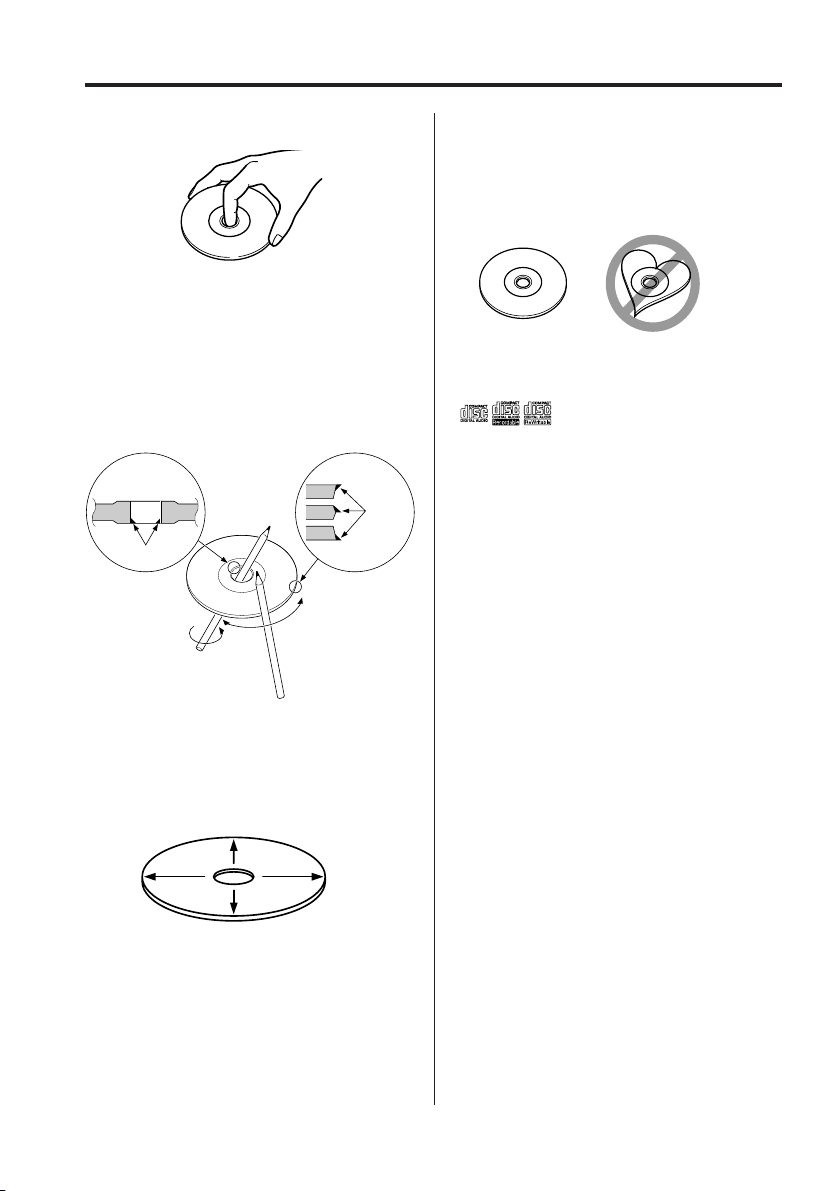

Handling CDs
• Don’t touch the recording surface of the CD.
• CD-R and CD-RW are easier to damage than a
normal music CD. Use a CD-R or a CD-RW after
reading the caution items on the package etc.
• Don’t stick tape etc. on the CD.
Also, don’t use a CD with tape stuck on it.
When using a new CD
If the CD center hole or outside rim has burrs, use it
after removing them with a ball pen etc.
CD accessories
Don’t use disc type accessories.
CD cleaning
Clean from the center of the disc and move
outward.
About CDs
Burrs
Burrs
Removing CDs
When removing CDs from this unit pull them out
horizontally.
CDs that can’t be used
• CDs that aren’t round can’t be used.
• CDs with coloring on the recording surface or that
are dirty can’t be used.
• This unit can only play the CDs with
.
It may not correctly play discs which do not have
the mark.
• A CD-R or CD-RW that hasn’t been finalized can’t
be played. (For the finalization process refer to
your CD-R/CD-RW writing software, and your CD-
R/CD-RW recorder instruction manual.)
CD storage
• Don’t place them in direct sunlight (On the seat
or dashboard etc.) and where the temperature is
high.
• Store CDs in their cases.
B64-2923-00U.S.Indd6 04.9.3,4:23:37PM

English |7
General features
Power
Turning ON the Power
Press the [SRC] button.
Turning OFF the Power
Press the [SRC] button for at least 1 second.
Selecting the Source
Press the [SRC] button.
Source required Display
Tuner "Tuner"
CD "Compact Disc"
External disc (Optional accessory) "CD CH"
TV (Optional accessory) "TV"
Auxiliary input (Optional accessory) "AUX EXT"
Standby (Illumination only mode) "Standby"
Volume
Increasing Volume
Turn the [VOL] knob clockwise.
Decreasing Volume
Turn the [VOL] knob counterclockwise.
¢4 DISP AM/SWSRC/VOL
FMAUDIO
B64-2923-00U.S.Indd7 04.9.3,4:23:37PM

8|English
General features
Audio Control
1Select the source for adjustment
Press the [SRC] button.
2Enter Audio Control mode
Press the [AUDIO] button.
"Audio CTRL" is displayed.
3Select the Audio item for adjustment
Press the [FM] or [AM] button.
Each time the button is pressed the items that
can be adjusted switch as shown below.
4Adjust the Audio item
Press the [4] or [¢] button.
Adjustment Item Display Range
Loudness "Loudness" ON/OFF
Bass level "Bass" –9 — +9
Middle level "Middle" –9 — +9
Treble level "Treble" –9 — +9
Balance "Balance" Left 15 — Right 15
Fader "Fader" Rear 15 — Front 15
Subwoofer level "SW-Level" –15 — +15
Volume offset "V-Offset" –8 — ±0
• Volume offset: Each source’s volume can be set as a
difference from the basic volume.
• Loudness: Compensating for low and high tones
during low volume.
• Subwoofer level: You can control this function when
'Subwoofer Output' (page 8) is set to
"S-Woofer On".
• Loudness, Bass level, Middle level and Treble level:
You can control this function when 'Defeat Setting'
(page 8) is set to "Defeat Off".
5Exit Audio Control mode
Press the [AUDIO] button.
Switching Display
Switching the information displayed.
Press the [DISP] button.
Each time the button is pressed the display
switches as shown below.
In Tuner source
Information Display
Frequency
Clock "Clock"
LX-AMP display "AMP Display"
In CD & External disc source
Information Display
Play time &Track number
Disc title "Disc Title"
Track title "Track Title"
Clock "Clock"
LX-AMP display "AMP Display"
In Auxiliary input source
Information Display
Auxiliary input
Clock "Clock"
LX-AMP display "AMP Display"
• If the Disc title, or Track title is selected when the disc
which does not have Disc title, or Track title is played,
track number and play time are displayed.
• LX-AMP display appears when LX-AMP is connected.
Refer to the user instruction of the LX-AMP for details.
• If 'Selecting display mode' (page 16) is set to "Display
Off", the display is disappeared and the sound quality
can be improved.
Subwoofer Output
Turning the Subwoofer output ON or OFF.
Press the [SW] button for at least 1 second.
Each time the button is pressed Subwoofer
output switches ON or OFF.
When it’s ON, "S-Woofer On" is displayed.
Defeat Setting
When Defeat is set to ON, loudness and tone
control circuit are to be by-passed, and then the
sound quality is improved.
Press the [AUDIO] button for at least 1
second.
Each time the button is pressed Defeat setting
turns ON or OFF.
When it’s ON, "Defeat On" is displayed.
B64-2923-00U.S.Indd8 04.9.3,4:23:38PM

English |9
Tuner/TV control features
¢4 CRSC 1 – 6 AMFNC
FMSRC
Frequency displayBand display
ST indicator
Preset station number
Tuning
Selecting the station.
1Select tuner source
Press the [SRC] button.
Select the "Tuner" display.
2Select the band
Press the [FM] or [AM] button.
Each time the [FM] button is pressed it switches
between the FM1, FM2, and FM3 bands.
3Tune up or down band
Press the [4] or [¢] button.
• During reception of stereo stations the "ST" indicator
is ON.
Function of remote
Direct Access Tuning
Entering the frequency and tuning.
1Select the band
Press the [FM] or [AM] button.
2Enter Direct Access Tuning mode
Press the [DIRECT] button on the remote.
"– – – –" is displayed.
3Enter the frequency
Press the number buttons on the remote.
Example:
Desired frequency Press button
92.1 MHz (FM) [0], [9], [2], [1]
810 kHz (AM) [0], [8], [1], [0]
Canceling Direct Access Tuning
Press the [DIRECT] button on the remote.
B64-2923-00U.S.Indd9 04.9.3,4:23:40PM

10 |English
Tuner/TV control features
Station Preset Memory
Putting the station in the memory.
1Select the band
Press the [FM] or [AM] button.
2Select the frequency to put in the memory
Press the [4] or [¢] button.
3Put the frequency in the memory
Press the desired [1] — [6] button for at least
2 seconds.
The preset number display blinks 1 time.
On each band, 1 station can be put in the
memory on each [1] — [6] button.
Auto Memory Entry
Putting a station with good reception in the
memory automatically.
1Select the band for Auto Memory Entry
Press the [FM] or [AM] button.
2Enter Function set mode
Press the [FNC] button for at least 1 second.
"Function Set" is displayed.
3Select the Auto Memory Entry mode
Press the [FM] or [AM] button.
Select the "AME Ready" display.
4Open Auto Memory Entry
Press the [FNC] button for at least 2 seconds.
When 6 stations that can be received are put in
the memory Auto Memory Entry closes.
Preset Tuning
Calling up the stations in the memory.
1Select the band
Press the [FM] or [AM] button.
2Call up the station
Press the desired [1] — [6] button.
Frequency Step Setting
Changing the tuning frequency step.
The original setting is FM band 50 kHz, and AM
band 9 kHz.
1Turn the power OFF
Press the [SRC] button for at least 1 second.
2Switch the frequency step
While pressing the [1] and [5] button, press
the [SRC] button. When the display turns on,
release [1] and [5] button.
The frequency step changes to FM band 200 kHz,
and AM band 10 kHz.
• When the same operation is repeated, it returns to the
original setting.
• When the frequency step is switched, the frequencies
in the memory are deleted.
CRSC (Clean Reception System
Circuit)
Temporarily have reception switched from
stereo to mono to reduce multi-path noise when
listening to the FM station.
Press the [CRSC] button for at least 1 second.
Each time the button is pressed CRSC turns ON
or OFF.
When it’s ON, "CRSC On" is displayed.
B64-2923-00U.S.Indd10 04.9.3,4:23:41PM

English |11
Function of LX BUS Television
TV Tuning
The TV channel of a connected LX BUS Television
(optional accessory) can be selected.
The action depends on the setting of the
connected LX BUS Television. Refer to the user
instruction of the LX BUS Television for details.
1Select TV source
Press the [SRC] button.
Select the "TV" display.
2Select the TV band and Video input
Press the [FM] button.
Each time the [FM] button is pressed TV bands
and Video input switch.
3Select the TV channel
Press the [4] or [¢] button.
Function of LX BUS Television
Preset TV Tuning
Calling up the TV channels in the memory.
1Select the TV band
Press the [FM] button.
2 Call up the TV channel
Press the desired [1] —[6] button.
Function of LX BUS Television
TV Preset Memory
Putting the TV channels in the memory.
1Select the TV band
Press the [FM] button.
2Select theTV channel to put in the memory
Press the [4] or [¢] button.
3Put the TV channel in the memory
Press the desired [1] — [6] button for at least
2 seconds.
The preset number display blinks 1 time.
On each band, 1 TV channel can be put in the
memory on each [1] — [6] button.
Function of LX BUS Television
Function of remote
Direct TV Tuning
Entering the TV channel and tuning.
1Select the TV band
Press the [FM] button.
2Enter Direct TV Tuning mode
Press the [DIRECT] button on the remote.
"– –" is displayed.
3Enter the TV channel
Press the number buttons on the remote.
Example:
Desired TV channel Press button
8 ch [0], [8]
Canceling Direct TV Tuning
Press the [DIRECT] button on the remote.
B64-2923-00U.S.Indd11 04.9.3,4:23:42PM

12 |English

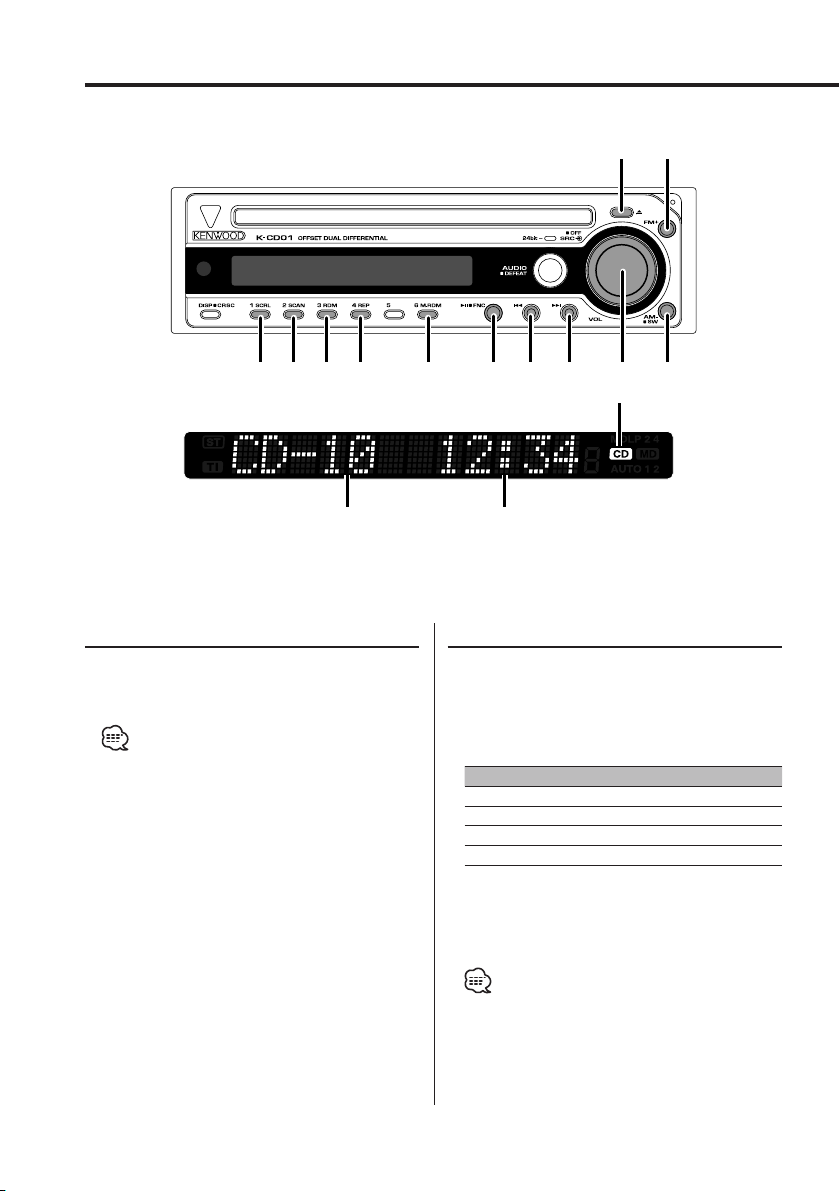

CD/External disc control features
Playing CD
When a CD is inserted
Press the [SRC] button.
Select the "Compact Disc" display.
• When a CD is inserted, the "CD" indicator is ON.
Pause and play
Press the [38] button.
Each time the button is pressed it pauses and
plays.
Eject the CD
Press the [0] button.
¢438 SCRL SCAN RDM REP M.RDM AMSRC
FM
0
CD indicator
Track number Track time
Playing External Disc
Playing discs set in the optional accessory disc
player connected to this unit.
Press the [SRC] button.
Select the display for the disc player you want.
Display examples:
Display Disc player
"CD2" CD player
"CD CH" CD changer
"MD CH" MD changer
"VCD CH" Video CD changer
Pause and play
Press the [38] button.
Each time the button is pressed it pauses and
plays.
• The functions that can be used and the information
that can be displayed will differ depending on the
external disc players being connected.
B64-2923-00U.S.Indd12 04.9.3,4:23:42PM

English |13
Fast Forwarding and Reversing
Fast Forwarding
Hold down on the [¢] button.
Release your finger to play the disc at that point.
Reversing
Hold down on the [4] button.
Release your finger to play the disc at that point.
Track Search
Selecting the song you want to hear.
Press the [4] or [¢] button.
Function of disc changer
Disc Search
Selecting the disc you want to hear.
Press the [AM] or [FM] button.
Track/Disc Repeat
Replaying the track/disc you’re listening to.
Press the [REP] button.
Each time the button is pressed the Repeat Play
switches as shown below.
Repeat play Display
Track Repeat "Repeat"
Disc Repeat (Function of disc changer) "Disc Repeat"
OFF "Repeat Off"
• During Repeat play, it switches to "REP"/"D.REP"
display if the play time is displayed.
Scan Play
Playing the first part of each song on the disc you
are listening to and searching for the song you
want to listen to.
1Start Scan Play
Press the [SCAN] button.
"Track Scan" is displayed.
2Release it when the song you want to listen
to is played
Press the [SCAN] button.
• During Scan play, it switches to "SCAN" display if the
play time is displayed.
Function of remote
Direct Track Search
Doing Track Search by entering the track number.
1Enter the track number
Press the number buttons on the remote.
2Do Track Search
Press the [4] or [¢] button.
Canceling Direct Track Search
Press the [38] button.
Function of disc changers with remote
Direct Disc Search
Doing Disc Search by entering the disc number.
1Enter the disc number
Press the number buttons on the remote.
2Do Disc Search
Press the [DISC+] or [DISC–] button.
Canceling Direct Disc Search
Press the [38] button.
• Input "0" to select disc 10.
B64-2923-00U.S.Indd13 04.9.3,4:23:43PM

14 |English
CD/External disc control features
Random Play
Playing all the songs on the disc in random order.
Press the [RDM] button.
Each time the button is pressed Random Play
turns ON or OFF.
When it’s ON, "Random" is displayed.
• When the [¢] button is pressed, the next song
select starts.
• During Random play, it switches to "RDM" display if
the play time is displayed.
Function of disc changer
Magazine Random Play
Play the songs on all the discs in the disc changer
in random order.
Press the [M.RDM] button.
Each time the button is pressed the Magazine
Random Play turns ON or OFF.
When it’s ON, "M-Random" is displayed.
• When the [¢] button is pressed, the next song
select starts.
• During Random play, it switches to "M.RDM" if the play
time is displayed.
Text/Title Scroll
Scrolling the displayed CD text or MD title.
Press the [SCRL] button.
• You can control this function when 'Selecting display
mode' (page 16) is set to "Display On".
B64-2923-00U.S.Indd14 04.9.3,4:23:44PM

English |15
Menu system
Function Set
Setting during operation beep sound etc.
functions.
The Function Set basic operation method is
explained here. The reference for the Function
items and their setting content is after this
operation explanation.
1Enter Function Set mode
Press the [FNC] button for at least 1 second.
"Function Set" is displayed.
2Select the Function Set item
Press the [FM] or [AM] button.
Example: When you want to set the beep sound
select the "Beep" display.
3Set the Function Set item
Press the [4] or [¢] button.
Example: When "Beep" is selected, each time the
button is pressed it switches "Beep On"
or "Beep Off". Select 1 of them as the
setting.
You can continue by returning to step 2 and
setting other items.
4Exit Function Set mode
Press the [FNC] button.
• When other items that are applicable to the basic
operation method above are displayed afterwards
their setting content chart is entered. (Normally the
uppermost setting in the chart is the original setting.)
Also, the explanation for items that aren’t applicable
('Manual Clock Adjustment' etc.) are entered step by
step.
¢4 FNC1–4 AM
FM
B64-2923-00U.S.Indd15 04.9.3,4:23:44PM

16 |English
Menu system
In Standby mode
Contrast Adjustment
Adjusting the display contrast.
Display and Setting
"Contrast 1"
…
"Contrast 7" (Original setting)
…
"Contrast 11"
In Standby mode
Selecting display mode
The sound quality can be improved by turning off
the regular displays.
Display Setting
"Display On" Display is turned on
"Display Off" Display is turned off
• Even though during Display off, the display appears if
you do an operation, or the track of CD is changed.
In Standby mode
Security Code
Because authorization by the Security Code is
required when it’s removed from the vehicle,
personalizing this unit is by using the Security
Code is a help in preventing theft.
• When the Security Code function is activated, the code
can’t be changed and the function can’t be released.
Note, the Security Code can be set as the 4 digit number
of your choice.
1Select the Security Code mode
Press the [FM] or [AM] button.
Select the "CODE STANDBY" display.
2Enter Security Code mode
Press the [FNC] button for at least 1 second.
"CODE ****" is displayed.
3Enter the Security Code
Press the [1] — [4] button.
Example: If the Security Code is "3510".
Step Button Times pressed Display
1 [1] 4 "3"
2 [2] 6 "5"
3 [3] 2 "1"
4 [4] 1 "0"
4Confirm the Security Code
Press the [FNC] button.
"CODE **** 1" is displayed.
5Do the steps 3 through 4, and reenter the
Security Code.
The Security Code function activates.
• When a Code different from step 3 is entered, repeat
from step 3.
Press the Reset button and when it’s removed
from the battery power source
1Turn the power ON.
2Do the step 3 through 4 operation, and enter
the Security Code.
"CODE OK!" is displayed.
The unit can be used.
In Standby mode
Touch Sensor Tone
Setting the operation check sound (beep sound)
ON/OFF.
Display Setting
"Beep On" Beep is heard.
"Beep Off" Beep canceled.
B64-2923-00U.S.Indd16 04.9.3,4:23:45PM

English |17
In Tuner mode
Tuning Mode
Sets the tuning mode.
Tuning mode Display Operation
Auto seek "AUTO 1" Automatic search for a station.
Preset station seek "AUTO 2" Search in order of the stations
in the Preset memory.
Manual "Manual" Normal manual tuning control.
In Tuner mode
Auto Memory Entry
For the operation method refer to 'Auto Memory
Entry' (page 10).
In CD/External disc control mode
Text Scroll
Setting the displayed text scroll.
Display Setting
"AT.SCRL On" Repeats scroll.
"AT.SCRL Off" Scrolls when the display changes.
• The text scrolled is shown below.
- CD text
- MD title
In Standby mode
Built-in Amp Mute Setting
Toggles ON or OFF the mute control on the built-
in amplifier.
Turning ON this control enhances the preout
quality.
Display Setting
"AMP Mute Off" The built-in amplifier activates.
"AMP Mute On" The built-in amplifier deactivates.
In Standby mode
Security Indicator
A red indicator will blink on the unit after the ACC
is set to OFF, warning potential thieves.
Display Setting
"S.I. Off" LED OFF.
"S.I. On" LED flashes.
In Standby mode
Manual Clock Adjustment
1Select Clock Adjustment mode
Press the [FM] or [AM] button.
Select the "Clock Adjust" display.
2Enter Clock Adjust mode
Press the [FNC] button for at least 1 second.
The "‡" indicator blinks.
3Adjust the hours
Press the [FM] or [AM] button.
Adjust the minutes
Press the [4] or [¢] button.
4Exit Clock adjustment mode
Press the [FNC] button.
B64-2923-00U.S.Indd17 04.9.3,4:23:47PM

18 |English
Menu system
In Tuner/CD/External disc control mode
B.M.S. (Bass Management System)
Adjust the bass boost level of the external
amplifier using the main unit.
Display Setting
"AMP Bass FLT" Bass boost level is flat.
"AMP Bass +6" Bass boost level is low (+6dB).
"AMP Bass +12" Bass boost level is mid (+12dB).
"AMP Bass +18" Bass boost level is high (+18dB).
• Refer to the catalog or instruction manual for power
amplifiers that can be controlled from this unit.
• For amplifiers there are the model that can be set
from Flat to +18 dB, and the model that can be set
from Flat to +12 dB.
When an amplifier that can only be set to +12 is
connected to the unit, "AMP Bass +18" won’t work
correctly even if it’s selected.
In Tuner/CD/External disc control mode
B.M.S. Frequency Offset
Setting the central frequency boosted by B.M.S.
Display Setting
"AMP Freq NML" Boost with the normal central frequency.
"AMP Freq Low" Drop the normal central frequency 20%.
When LX AMP unit connecting
AMP Control
You can control the LX AMP connected to the
unit.
1Select AMP Control mode
Press the [FM] or [AM] button.
Select the "AMP Control" display.
2Enter AMP Control mode
Press the [FNC] button for at least 1 second.
3Select the AMP Control item for adjustment
Press the [FM] or [AM] button.
• For the details of the AMP Control item, see the
Instruction manual attached to the LX AMP.
4Adjust the AMP Control item
Press the [4] or [¢] button.
5Exit AMP Control mode
Press the [FNC] button.
• You cannot use the LX AMP operation during standby
mode.
B64-2923-00U.S.Indd18 04.9.3,4:23:48PM

English |19
Basic Operations of remote
Loading and Replacing the battery
Use one lithium battery (CR2025).
Insert the batteries with the + and – poles aligned
properly, following the illustration inside the case.
Keep on slide
Pull out
2WARNING
• Store unused batteries out of the reach of children.
Contact a doctor immediately if the battery is
accidentally swallowed.
• Do not set the remote on hot places such as above
the dashboard.
Basic operations
[VOL.] buttons
Adjusting the volume.
[SRC] button
Each time the button is pressed the source
switches.
For the source switching order refer to 'Selecting
the Source' (page 7).
[ATT] button
Turning the volume down quickly.
When it is pressed again it returns to the previous
level.
[0] — [9]
FM/AM/DISC + /DISC–
ATT
38
4/¢
VOL.
DIRECT/OK
SRC
Not Used
B64-2923-00U.S.Indd19 04.9.3,4:23:48PM

20 |English
In Tuner source
[FM]/ [AM] buttons
Select the band.
Each time the [FM] button is pressed it switches
between the FM1, FM2, and FM3 bands.
[4]/ [¢] buttons
Tune up or down band.
[0] — [9] buttons
Press buttons [1] — [6] to recall preset stations.
[DIRECT]/ [OK] button
Enters and cancels the 'Direct Access Tuning'
(page 9) mode.
In Disc source
[4]/ [¢] buttons
Doing track forward and backward.
[DISC+]/ [DISC–] buttons
Doing disc forward and backward.
[38] button
Each time the button is pressed the song pauses
and plays.
[0] — [9] buttons
When in 'Direct Track Search' (page 13) and
'Direct Disc Search' (page 13), enter the track/disc
number.
In TV source
[FM] button
Select the TV band and Video input.
Each time the [FM] button is pressed TV bands
and Video input switch.
[4]/ [¢] buttons
Select the TV channel.
[0] — [9] buttons
Press buttons [1] — [6] to recall preset TV
channels.
[DIRECT]/ [OK] button
Enters and cancels the 'Direct TV Tuning' (page
11) mode.
Basic Operations of remote
B64-2923-00U.S.Indd20 04.9.3,4:23:49PM
