KDC-MP245U
CD-RECEIVER
INSTRUCTION MANUAL
AMPLI-TUNER LECTEUR DE CD
MODE D'EMPLOI
REPRODUCTOR DE DISCOS COMPACTOS RECEPTOR DE FM/AM
MANUAL DE INSTRUCCIONES
Kenwood Corporation
_. Designed for
•
r.-, Windows
_1M Media™
101 Made for
@J iPod
Take the time to read through this instruction manual.
Familiarity with installation
and operation procedures will help you obtain the best
performance from your new CD-receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever
you call upon your Kenwood dealer for information or service on the product.
Model
KOC-MP345U/ KOCMP245U Serial number _
US Residents Only
©864-4529-00/02 (KW/KO)

Contents
Before Use
Basic Operations
Before Using
Common Operation
Playing Music (CD/USB/iPod)
Listening Radio
General
3
4
6
Appendix 16

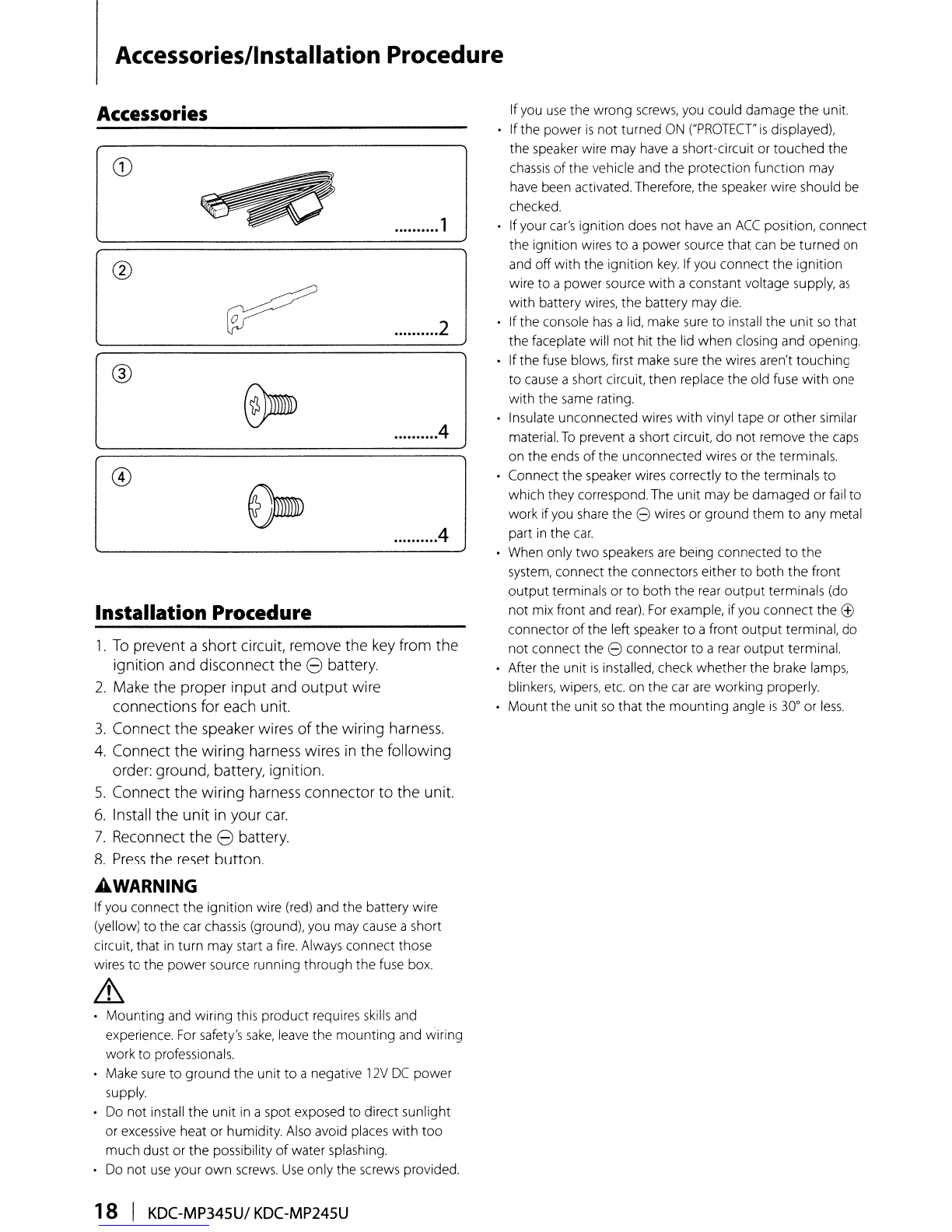

Accessories/Installation Procedure 18
Connecting Wires toTerminals 19
Installation/Removing the Unit 20
Troubleshooting Guide
21
Removing the Faceplate
Muting Volume upon Reception of Phone Call
Display Indicator
Text Display Selection
Function Setting 8
<SETIINGS>
<INITIAL
SET>
<DEMO MODE>
<AUDIO CONTROL>
Music Disc/Audio File Operation 12
Play Function
All Random
Music Search
Music Search for iPod
Alphabet Search
My Playlist for iPod
iPod Control by Hand
Mode
Direct Music Search
Basic Operations of remote control 15
Specifications 23
2IKDC-MP345UI KDC-MP245U
iPod is atrademark of Apple Inc., registered in the U.s.
and other countries.
iPhone
is atrademark of Apple Inc
"Made for iPod" means that an electronic accessory
has been designed to connect specifically to iPod and
has been certified by the developer to meet Apple
performance standards.
"Works
with iPhone"means that an electronic
accessory
has been designed to connect specifically
to iPhone and
has been certified by the developer to
meet Apple performance standards.
Apple
is not responsible for the operation of this
device or its compliance
with safety and regulatory
standards.

Before Use
AWARNING
To prevent injury or fire, take the following
precautions:
• To prevent ashort circuit, never put or leave any
metallic objects (such
as coins or metal tools) inside
the unit.
Before using this unitfor the first time
This unit is initially set on the Demonstration mode.
IA
/(..... . +-h' "t- .(: +-he +i ......... +·1 ............... ,.. ........... ,.. ...... 1
VVIlen USing lidS unll lor III III ~l l IIIC, 1..011l..Cl
the Demonstration mode. Refer to <Exit of the
Demonstration Mode> (page 4).
How to reset your unit
•Ifthe unit fails to operate properly, press the Reset
button.The unit returns to factory settings when the
Reset button is pressed.
1. Release the faceplate lock so that it can be
removed.
Refer to <Removing the Faceplate>
(page
6)
2. Press the Reset button and reattaching the
faceplate.
o
~cu!~~~ =r~===-==u
Reset button
Cleaning the Unit
Ifthe faceplate of this unit is stained, wipe it with a
dry soft cloth such
as asilicon cloth.
Ifthe faceplate
is stained badly, wipe the stain off with
acloth moistened with neutral cleaner, then wipe it
again
with aclean soft dry cloth.
~
•Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with ahard cloth or
using avolatile liquid such
as thinner or alcohol may scratch
the surface or
erases characters.
About the Terminals of the Unit and
Faceplate
• To prevent deterioration, do not touch the terminals of the
unit and faceplate with your fingers.
•Ifthe terminals on the unit or faceplate
get dirty, wipe them
with aclean soft dry cloth.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
CD player of the unit. Called lens fogging, this
condensation on the
lens may not allow CDs to play.
In such asituation, remove
the disc and wait for the
condensation to evaporate. If the unit still does not
operate normally after awhile, consult your Kenwood
dealer.
Notes
• If you experience problems during installation,
consult your Kenwood dealer.
•When you purchase optional accessories, check
with
your Ken\,AJood dealer to make sure that they vvork
with your model and in your area.
•The characters which can be displayed by this unit
are A-Z 0-9 @'" '%&*+- = ,./ \ < > [] () :; !\ - {} I
•The illustrations of the display and the panel
appearing in this manual are examples used
to
explain more clearly how the controls are used.
Therefore,
what appears on the display in the
illustrations may differ from
what appears on the
display on the actual equipment, and some of the
illustrations on the display
may be inapplicable.
Handling CDs
•Do not touch the recording surface of the CD.
•Do not stick tape etc. on the CD, or use a CD with
tape stuck on it.
•Do
not use disc type accessories.
•Clean from the center
of the disc and move
outward.
•When removing
CDs from this unit, pull them out
horizonta Ily.
•Ifthe CD center hole or outside rim has burrs,
use the CD only after removing the burrs with a
ballpoint pen etc.
CDs that cannot be used
• CDs that are not round cannot be used.
•
CDs with coloring on the recording surface or CDs
that are dirty cannot be used.
•This unit can only play the CDs with rlliDm rllim.
~".,_o ~
This unit may not correctly play discs which do not
have the mark.
•
You cannot playa CD-R or CD-RW that has not
been finalized. (For the finalization process refer to
your CD-R/CD-RW writing software, and your CD-R/
CD-RW recorder instruction manual.)
• 3 inch
CD cannot be used. Attempt to insert using
an adapter can cause malfunction.
English I3

Basic Operations
Auxiliary input
KENWOOD
[DISP]
Disc slot
-'--1-
[Q.]
Before Using Common Operation
Exit of the Demonstration Mode
Turn off the demonstration mode when you use it
for the first time after installation.
1 Press the [VOL] knob to quit the demonstration
mode when the messages "CANCEL DEMO';
"PRESS'; "VOLUME KNOB" are displayed (approx.
15 seconds).
2Select "YES" and press the [VOL] knob.
When "NO" is selected, turn the [VOL] knob.
fi?2
• Demonstration mode can also be cancelled in "DEMO
MODE" of <Function Setting> (page 8)
Adjusting the Clock
1 Press the [DISP] button several times until clock
display ("CLOCK") appears.
2Keep pressing the [DISP] button until the hour
display blinks.
3Turn the [VOL] knob to adjust the hour.
4 Press the [VOL] knob to finish the hour adjusting.
The minute display blinks.
5Turn the [VOL] knob to adjust the minute.
6 Press the [VOL] knob to finish the minute
adjusting.
Powerandsource select
Turns the power ON by pressing the [SRC]
button.
When power is ON, pressing the [SRC] button
switches among playable sources in the following
order:
Tuner ("TUNER") ~ USB ("USB") or iPod ("iPod")
~ CD ("CD") ~ Auxiliary Input ("AU X") ~ Standby
("STANDBY") ~ Tuner ("TUNER")
Keeping pressing the [SRC] button for at least 1
second turns the power OFF.
~
~
•The source "iPod" and "CD" can be selected when each
source is ready to play.
Volume
Turning the [VOL] knob adjusts the sound
volume.
Clock displayandDisplayscroll
Pressing the [DISP] button selects the display
mode.
Refer to <Text Display Selection> (page 7).
Keeping pressing the [DISPj button scrolls the
display.
Auxiliary input
Portable audio device can be connected with the
stereo mini-plug (3.5 mm 0).
4IKDC-MP345U1 KDC-MP245U

Playing Music (CD/USB/iPod)
Playing Disc
Insert adisc into the disc slot.
When inserted, the source is switched
automatically and asong starts playing.
Playing USB device
Connect a USB device or iPod to the USB
terminal.
When connected, the source is switched
automatically and asong is starts playing.
Folderselect
Pressing the [BAND] button switches afolder.
The iPod can be operated only when acategory
has been selected in the search mode.
Song select
Pressing the [~] or [~] button selects asong
(track or file).
Fast reverses or forwards the music while
pressing the [~] or [~] button.
(No sound is output while playing audio file.)
Pause and play
Pressing the [6] button pauses or resumes
playing asong (track or file).
RemovingDisc and USB device
Pressing the [~] button ejects adisc.
Keeping pressing for at least 2seconds can
be entered to the USB Remove mode ("USB
REMOVE" is displayed.) and the USB device can
be removed safely.
b\
~
• CA-Ul EX (optional accessory) is required to connect a USB
device
Listening Radio
Select Tunersource
Pressing the [SRC] button several times switches
the source to "TUNER':
Bandselect
Pressing the [BAND] button switches the
receiving band (FM1, FM2, FM3, AM).
Stationselect
Pressing the [~] or [~] button selects the
station.
Stationmemory
Pressing the [1] -[6] button recalls the
memorized station.
Keeping pressing the [1] -[6] button for at
least 2seconds memorizes the station currently
selected.
~
~
• Details ofthe station selecting in operation are set in the
"SEEK MODE" of <Function Setting> (page 8).
• Receivable stations can be automatically memorized. See
"AUTO MEMORY" of <Function Setting> (page 8).
Up to 6 each stations can be memorized to the [1] - [6]
button in each band (FM 1, FM2, FM3, AM).
Up to 6stations with adifferent band (FM/ AM) can be
memorized to the [1] - [6] button according to the setting
of"PRESETTYPE" of <Function Setting> (page 8).
CA-U1EX
• KCA-iPlOl (optional accessory) is required to connect an
iPod.
• For the playable audio files, devices, iPod, see <About Audio
file>
(page 16).
English I5

General
Removing the Faceplate
The faceplate of the unit can be detached and taken
with you, helping to deter theft.
Detach the faceplate
Press the Release button.
Reattaching the Faceplate
Refer to the following diagram when
reattaching
the faceplate.
~
After pressing the Release button. detach the faceplate
immediately.
If the faceplate is left attached. it can fall
due to vibration and so on.
•The faceplate
is aprecision piece of equipment and can
be damaged
by shocks orjolts.
Keep the faceplate
in its faceplate case while detached.
Do
not place the faceplate (and the faceplate case)
in areas exposed to direct sunlight excessive heat or
humidity. Also avoid places with too much dust or the
possibility
of water splashing.
6I KDC-MP345U1 KDC-MP245U
Muting Volume upon Reception of
Phone Call
The audio system automatically mutes when a call
comes in.
When acall comes in
"CALL" is displayed.
The audio system pauses.
Listening to theaudio during acall
Press the [SRC] button.
The "CALL" display disappears and the audio system
comes back ON.
When the call ends
Hang up the phone.
The "CALL" display disappears and the audio system
comes back ON.
~
• To use the TEL Mute feature, you need to hook up the MUTE
wire to your telephone using acommercial telephone
accessory.
Refer to <Connecting Wires to Terminals> (page
19).

Music title & Artist name
Display Indicator
KDC-MP245U
@(])
I-I~-"-I -I'-I"-I~I-'I-'-'I'-' -"-"-1 -1'-1'1-1'1-"-1-'1'-' -1'-1'-' '-I~-I"-'-'I-" ~~l
INt INI INI INt INI INI INI INt INt- INI INt TiJ
®
KDC-MP345U
CD "ATT" indicator: Blinks when the attenuator
function is on. Use the remote control to turn
on/off the attenuator function (page 15).
@ "ST" indicator: Lights when astereo broadcast is
received.
@"EQ" indicator: Lights when System Q(page 9) is
set to an EQ mode other than "NATURAL':
@"B.BOOST" indicator: Lights when Bass Boost
(page
9) is set to "1" or "2':
® "0.." indicator: Lights in the Search mode or when
aPlaylist is displayed.
®"IN" indicator: Lights when adisc is in the unit.
(j) "e" indicator: Shows the image indicating the
operating state of each source or the setting of
Audio Control.
Text Display Selection
Changing displayed information on each source
following;
In Tuner source
Frequency
Clock
In CD source
In Audio file/ iPod source
"TITLE"/
"TITLE! ARTIST"
-'-A"'--Ib-um-n-a-m-e &~Ar-tis-t n-a-m-e ----- "ALBUM"/
"ALBUM/ARTIST"
------------
Folder name "FOLDER NAME"
------------
File name "FILE NAME"
-::-:----,---------,-------
Play time & Music number "P-TlME"
-::CI--'-oc"---k --------- "CLOCK"
In Standby/Auxiliary input source
Source name
Clock
Select the text
Press the [DISP] button.
~
~
•When you select the clock display, the display setting of
each source will be changed to the clock display.
•If the selected display item does not have any
information, alternative information is displayed.
•When selecting "FOLDER NAME"while playing with
iPod, names will be displayed depending on currently
selected browsing items.
•If the iPod Control by Hand Mode is set to on while
playing the iPod, "iPod MODE" is displayed.
•If all characters cannot be displayed while playing with
iPod, the file number in the list is
Music title
Folder name
File name
English I7

Function Setting
Perform configuration for this unit. You can set up
the following functions.
1Select asource
Press the [SRC] button.
Items to be displayed vary depending on the selected
source.
Refer to the function list shown later.
2Enter Function Setting mode
Press the [VOL] knob.
"FUNCTION" is displayed.
3Select the Function item
Turn the [VOL] knob to display your desired
item, and then press
the [VOL] knob.
Repeat
the above operation to select the
function item to set.
Pressing the [
~ ]button allows you to go back
to the previous item.
4Set the Function item
Turn the [VOL] knob to select your desired
setting, and
then press the [VOL] knob.
SExit Function Setting mode
Press the [ ~ ]button for at least 1second.
Function item
----
Legend:
II Function name: "Function name displayed on
this unit"
~ "Setting 1"*, "Setting 2" ...
The function related to the selected function item is
described. For where it appears, refer to the. given in
the function list.
~
~
•The setting marked with * is afactory setting.
•The function marked
with *1 is supported only by the
KDC-MP345U.
<SETTINGS>
•Clock Adjust: "CLOCK ADJ"I"CLOCK ADJUST"
Sets the clock
1. Turn the [VOL] knob to adjust the hour.
2. Press the [VOL] knob to finish the hour
adjusting. The minute display blinks.
3. Turn the [VOL] knob to adjust the minute.
4. Press the [VOL] knob to finish the minute
adjusting.
.. Dimmer: "DIMMER SET" ~ "ON","OFF"*
Adjusts the brightness
of the display according to
the surrounding illumination.
8IKDC-MP345U1 KDC-MP245U
•Text Scroll: "TEXT
SCROLL" ~ "AU TO"*,
"MANUAL"
Scrolls
the CD and audio file text display.
Selecting
AUTO scrolls them automatically.
.. Seek Mode: "SEEK MODE" ~ "AUT01"*, "AU TO 2",
"MANUAL"
Selects
the tuning mode of the radio.
Auto seek
Preset station seek
Manual
II Auto Memory: "AUTO MEMORY"
Memorizes six stations with good reception
automatically.
Selecting
"YES" and then pressing the [VOL] knob
starts
the auto memory operation.
b).,
~
• This setting can be made when "TYPE NORM"I"TYPE
NORMAL:' is selected for the <Mixed Preset Memory
Switching> item.
II Monaural Reception: "MONO SET" ~
"ON","OFF"*
You can reduce the noise when stereo broadcasts
are received
as monaural. (FM only)
•Skip Search: "SKIP SEARCH" ~
"0.50/0"*,"10/0","50/0","10%"
Sets the ratio of skip performed with <Music
Search for iPod> (p.l3) and <Music Search>
(p.12).
II My Playlist Delete'
l:"MPLIST DEL"I"MPLIST
DELETE"
Deletes the saved My Playlist.
Selecting
"YES" and then pressing the [VOL] knob
deletes
the My Playlist.
II Name Set: "AUX NAME"/ "AUX NAME SET" ~
"AUX"*, "DVD", "PORTABLE", "GAME", "VIDEO", "TV"
Sets the display when switched to AUX source.
<INITIAL SET>
II Mixed Preset Memory Switching: "PRESET
TYPE" ~ "TYPE NORM"I"TYPE NORMAL"*,"TYPE
MIX"
"TYPE NORM"I"TYPE NORMAL":
1station can be assigned to 1preset button in
each
of 4bands (FM1, FM2, FM3, and AM), i.e.,
atotal of 24 stations (6 stations x 4 bands) can
be preset.
"TYPE MIX":
Atotal of 6stations can be assigned to atotal
of 6preset buttons regardless of band (FM1,

FM2, FM3, and AM). You can recall apreset
station without switching between
bands.
m Beep: "KEY BEEP" ~ "ON"*,"OFF"
Setting the operation check sound (beep sound)
ON/OFF.
iii Buiit in AUX: "BUiLTiN AUX"rBUiLT-iN AUX" ~
"ON 1 "*,"ON2","OFF"
When this is set to ON, AUX source can be
selected.
ON1: Outputs the sound of external unit
connected to the AUX terminal when
switched to
AUX source.
ON2: Activates the attenuator function when
turning on the power with
AUX source
selected.
Turn off the attenuator function when
listening to output from external unit.
This
prevents the noise when no external unit is
connected to AUX terminal.
OFF: Disables the selection of AUX source.
Set to OFF when not using the AUX terminal.
II] CD READ: "CD READ" ~ "1 "*, "2"
Sets the method for reading CD.
When unable to play special format CD, set this
function to
"2" to force playing. Note that some
music
CD may be unplayable even when set to
In addition, audio files cannot be played when set
to "2". Normally, keep this set to ''1''.
1:Automatically distinguishes between audio file
disc and music CD when playing disc.
2 : Forces playing as music CD.
II Switching Preout: "SWITCH PRE"I"SWITCH
PREOUT" ~ "REAR"*,"SUB-W"
Switches the preout between rear output ("REAR")
and subwoofer output ("SUB-W").
1m Speaker Select: "SP SELECT" ~ "OFF"*, "5/4",
"6*9/6", "OEM"
Fine-tuning so that the System Qvalue is optimal
when setting the
speaker type as follows;
OFF
For 5&4 in. speaker
For 6& 6x9 in. speaker
For the OEM speaker
III Firmware Upgrade: "F/W UP xx.xx" ~ "MEDIA
USB"*, "MEDIA CD"
Upgrades the firmware.
Selecting
"YES" and then pressing [VOL] knob
starts upgrading the firmware.
Q
~
• For how to update the firmware, access our web site.
http://www.kenwood.com/cs/ce/
<DEMO MODE>
.. Demo Mode: "DEMO MODE" ~ "ON"*, "OFF"
Specifies whether to enable demonstration.
<AUDIO CONTROL>
II Subwoofer output: "SUB-W SET"I
"SUBWOOFER SET" ~ "ON"*, "OFF"
Q
~
•This setting can be made when "SUB-W" is selected for
the <Switching Preout> item.
II Bass Boost: "BASS BOOST" ~ "LV1"*, "LV2", "OFF"
PI System Q: "SYSTEM Q" ~ "NATURAt..:'*, "ROCK",
"POPS", "EASY", "TOP 40", "JAZZ", "GAME", "USER"
Switches between the following preset equalizer
curves;
Natural, Rock, Pops, Easy, Top 40, Jazz, Game, User
setting
b\
~
• "USER": This appears when Bass level, Middle level, and
Treble level are adjusted. When the System Qsetting
is
changed, the Bass, Middle, and Treble set replace the
System Qvalues.
II Bass level adjust: "BASS LEVEL" ~ "-8" - "+ 8"
PI Middle level adjust: "MID LEVEL" ~ "-8" - "+ 8"
PI Treble level adjust: "TRE LEVEL" ~ "-8" - "+ 8"
b\
~
·II- PI :Source tone memory: Puts the set up value in
the
memory per source.
II Balance: "BALANCE" ~ "L 15" - "R 15"
1m Fader: '/FADER" ~ "R 15" - "F 15"
PI Subwoofer level adjust: "SUB-W LEVEL" ~
"- 15" - "+ 15"
PI Subwoofer Low Pass Filter: "LPF SUB-W"/
"LPF SUBWOOFER" ~ "85", "120", "160",
"THROUGH"(OFF)*
PI Subwoofer Phase: "SUB-W PHASE" ~ "REV"/
"REVERSE"(1800), "NORM'/, "NORMAt..:'(OO)*
Q
~
· PI- PI: These adjustments can be made when "ON" is
selected for the <Subwoofer output> item.
· PI: This adjustment can be made when asetting other
than "THROUGH" is selected for the <Subwoofer Low
Pass Filter> item.
Nextpage~
English I9

Function Setting
PI Supreme: "SUPREME SET" ~ "ON"*, "OFF"
Technology to extrapolate and supplement with
proprietary algorithm, the high-frequency range
that
is cut off when encoding at low bit rate (less
than 128Kbps, Sampling frequency is 44.1 kHz).
Supplementing is optimized by compression
format (MP3 or WMA) and processed according
to bit rate.
The effect is negligible with music that is encoded
at high bit rate, variable bit rate or has minimal
high frequency range.
Can be set while Audio file source of CD/USB
(excluding iPod).
II Volume offset: "VOL OFFSET"I"VOLUME
OFFSET" ~ "- 8" - "±O" (When in AUX source: "-8"
-"+8")
Sets each source's volume as adifference from
the basic volume.
10 I KDC-MP345U1 KDC-MP245U
Function List
----
Function items appearingduring standby
"SETIINGS" "CLOCK" "CLOCK ADJ"j
I "CLOCK ADJUsrD
L"DISPLAY''------J''DIMMER SET".
L"TEXT SCROLL'.
"INITIAL SET" "PRESETTYPE"II
"KEY BEEP"II
"BUILTIN AUX"j"BUILT-IN Aux"l1
"CD READ".
"SWITCH PRE"j"SWITCH PREOUT"II
"SP SELECT"II
"FIW up"llI
"DEMO MODE" II
Function itemsappearing when the tuner
source is selected
"AUDIO "SUB-W SET"/"SUBWOOFER SET"II
CONTROL'/ "BASS BOOST"11
"AUDIO "SYSTEM Q"III
CTRL' "BASS LEVEL'II
"MID
LEVEL'.
"TRE LEVEL'.
"BALANCE"PI
"FADER"II
"SUB-W LEVEL'II
"DETAIL SET"/ "LPF SUB-W"/
"DETAILED SET1' "LPF SUBWOOFER"PI
"SUB-W PHASE"II
"VOL OFFSET"I
"VOLUME OFFSET" II
"SETIINGS" "SEEK MODE"II
1
"AUTO MEMORY"II
"MONO
SET" II
"CLOCK" "CLOCK ADJ"I
"CLOCK ADJUST"D
"DISPLAY" [DIMMER SET"B
"TEXT SCROLL'.
"DEMO MODE" II

Function items appeal'ing when the CD &audio
file source
is selected
i
"AUDIO ~"SUB-W SEr!"SUBWOOFER sErll
CONTROL'! "BASS BOOSr III
"AUDIO "SYSTEM Q"PJ
ORI" "BASS LEVEL" iii
~
"MID LEVEL'II
"TRE LEVEL'II
"BALANCE"II
"FADER"PIl
t
"SUB-W LEVEL"PI
"DETAIL SErf "LPF SUB-W"!
"DETAILED SET1' "LPF SUBWOOFER"III
"SUB-W PHASE"II
"SUPREME sErPi
"VOL OFFSET"!
"VOLUME oFFsErml
"SETIINGS"1"SKIP SEARCH" (USB source only).
"CLOCK" "CLOCK ADJ"I
"CLOCK ADJUsrB
"DISPLAY" ["DIMMER sErB
"TEXT SCROLL".
"DEMO MODE"II
Function items appearing when the iPodsource
is selected
"AUDIO --'-"SUB-W SErl"SUBWOOFER sErlI
CONTROL'! "BASS Boosr III
"AUDIO "SYSTEM Q"III
CTRL" "BASS LEVEL" II
"MID LEVEL".
"TRE LEVEL" II
"BALANCE" II
"FADER"PJ
"SUB-W LEVEL'PI
"DETAIL SErf "LPF SUB-W"!
"DETAILED SET1' "LPF SUBWOOFER"PI
"SUB-W PHASE"II
"VOL OFFSEr!
"VOLUME OFFSErIII
"SETIINGS" "SKIP SEARCH".
1
"MPLIST DEL'!"MPLIST DELETE".
"CLOCK" "CLOCK ADJ"I
"CLOCK ADJUsrB
"DISPLAY" ["DIMMER SErB
"TEXT SCROLL'.
"DEMO MODE"II
Function items appearing when an AUX source
is selected
i
"AUDIO ~"SUB-W SErl"SUBWOOFER sErll
CONTROL'! "BASS Boosrl1
"AUDIO "SYSTEM Q"PJ
rTRI"
_
.. - ~"tlA~~ u::vI::L'1I
"MID LEVEL'II
"TRE LEVEL" II
"BALANCE".
"FADER"fI
t
"SUB-W LEVEL'II
"DETAIL SErf ~"LPF SUB-W"!
"DETAILED SET" t"LPF SUBWOOFER".
"SUB-W PHASE".
"VOL OFFSEr!
"VOLUME OFFSErll
"SETIINGS"1"AUX NAME"!"AUX NAME SErB
"CLOCK" "CLOCK AD)"!
"CLOCK ADJUsrB
"DISPLAY"--T"DIMMER SErB
L"TEXT SCROLL.
"DEMO MODE" II
English I 11

Music Disc/Audio File Operation
Play function
Repeat play
Press the [4] button.
Switches between Track Repeat ("TRAC REPEAr/
"TRACK REPEAr) and OFF ("REPEAT OFF") when
pressed while playing aCD
Switches
between File Repeat ("FILE REPEAr),
Folder Repeat ("FOLD REPEArl"FOLDER REPEAr),
and
OFF ("REPEAT OFF") when pressed while
playing an audio file.
Random play
Press the [3] button.
Randomly plays the music in the disc or folder.
When Random
Play is turned on, "DISC RANDOM"/
"FOLD RANDOM"/
"FOLDER RANDOM" is displayed.
Pressing this
button again cancels the Random
play.
Scan play
Press the [2] button.
Successively plays the intro of the music in the disc
or folder.
When
Scan Play is turned on, "TRAC SCAN"/ "TRACK
SCAN"I"FILE SCAN" is displayed.
Pressing this
button again plays songs in the
normal mode starting with the song being played
now.
Function of KDC-MP345U with iPod
All Random
All songs in iPod are played at random.
Press the [3] button for at least 1seconds.
Pressing the button toggles the setting between
All random play on ("ALL RANDOM") and off
("RANDOM OFF").
~
~
•The time required to turn on the all random function
may become longer depending on the number
of songs
in iPod.
.Turning on the
all random function changes the iPod
browse item to "songs': This browse item will not change
even if the
all random function is turned off.
Ifthe browse item
is changed to search for music while
the
all random function is on, the all random function is
turned off and the songs in the browse item are played
at random.
12 IKDC-MP345U/ KDC-MP245U
Function of Audio file/ CD source
Music Search
Selecting the music you want to listen to from the
device or media being played now.
1Enter Music Search mode
Press the [Q ]button.
"SEARCH" is displayed
Displays
the current Audio file name.
2Search for music
Audio file
_~~~;';~"I'~1",: _$lli.t:it:~;:'i:.:'f};~,';~:'J::!:~::i\·!ff;!:~,!,:i:I0:·:~·~,;r:i·:~i~~~:,~:::~,:::i
Movement between Turn the [VOL] knob.
folders/files
~Sk....!ip:.....:S--=-ea=--rc=--h* Press the [~] or [~] bunon.
Selection of folder/flie Press the [VOL] knob.
Return to previous folder Press the [~I button.
Return to root folder Press the [BAND] bunon.
"<"or ">" beside the displayed folder name
indicates
that this folder is preceded or followed by
another folder.
CD source
'QPijilfOftitYi~:£~~A;:~'<~ ~~ -~: ~.'~ t~':::~-E'i?J-!-fJ::~ ~. '~ i~~'~: -$", :/1;
Movement between track Turn the [VOL] knob.
------,-----'-..:--'-'-~~-----
Selection of track Press the [VOL] knob.
"..--:-,------':-~-------
Return to first track Press the [BAND] button before selecting
a track.
Cancelling the MusicSearch mode
Press the [ ~] button for at least 1second.
~
~
• Skip Search: The number of songs to be skipped is
determined by the ratio of the total number of songs in
the list which is selected. Set the ratio with "SKIP SEARCH"
in <Function Setting> (page 8). Keep pushing the [i+Il]
or [~] button for 3seconds or longer skips songs at
10% regardless of the setting.
. * This operation is effective only for the files registered in
the database created with KENWOOD Music Editor.

Function of KDC-MP345U with iPod
Music Search for iPod
Searches for the song (in iPod) you want to play.
1Enter Music Search mode
Press the [Q]button.
"SEARCH" is displayed.
2 Search for music
_.1'I-..ilil.liIIBr,.
Movement between items Turn the [VOL] knob .
.,-----,--'-:c--'-,.----,-----,----,- _
Skip Search Press the [1+11] or [t+I] button.
Selection of item Press the [VOL] knob.
---'---'-----------
Return to previous item Press the [~] button.
Return to Top menu Press the [BAND] knob.
Search by Alphabet Press the [ 0. ] button. Refer to the next
section <Alphabet Search>.
Cancelling theMusic Search mode
Press the [ ~] button for at least 1 second.
~
~
•Skip Search: The number of songs to be skipped is
determined by the ratio of the total number of songs in
the list which
is selected. Set the ratio with "SKIP SEARCH"
in <Function Setting> (page 8). Keep pushing the [i+ll]
or [~] button for 3seconds or longer skips songs at
10% regardless of the setting.
. •
If no characters included in asong name can be
displayed, the browse item name and digits
are
displayed.
... 11'11111_ 1 ••• 11_
Playlists "PLlST***" Podcasts "PDCT***"
Artists "ART***" Genres "GEN"**"
Albums "ALB"**" Composers "COM***"
Songs "PRGM***"
Function of KDC-MP345U with iPod
Alphabet Search
You can select a song by alphabet. This function
searches songs whose name contain the specified
character(s) in the list of the selected browse item
(artist, album, etc).
1Enter Music Search mode
Press the [ 0. ]button.
"SEARCH" is displayed.
2Enter Alphabet Search mode
Press the [ 0. ]button.
"SEARCH < >" is displayed.
3 Select the character to be searched for
'_1lIII_-
Select the characters Turn the [VOL] knob .
.,-----,--'-:c--'-,.--.,----,,---,- _
Move the cursor to the enter Press the [1+11] or [t+I] button.
character position
You can enter up to 3 characters.
4Determine the selected character
Press the [VOL] knob.
Start search. When search is completed, the music
search mode is selected again at the selected
character position.
Cancelling the Alphabet Search mode
Press the [ ~] button for at least 1 second.
~
•The time of Alphabet search may become long
depending on the
number of songs or number of
playlists in iPod.
• To search for acharacter other than A to Zand 0 to 9,
enter"*" at the first character position. In this case, you
cannot enter any character at the second and third
character positions.
•Ifthe first character string begins
with an article "a'; "an';
or "the" in the alphabet search mode, it is searched for in
defiance of the article.
English I13

Music Disc/Audio File Operation
Function of KDC-MP345U with iPod
My Playlist for iPod
Allows you to register your favorite songs in the
Playlist of this unit. You can register up to 10 songs
in the Playlist.
Registering Songs in the Playlist
1Play the song you want to register
Press the [BAND], [~], and [~] button.
You can select the song to play by referring to
<Music Search for iPod>.
2Register the song
Press the [5] button for at least 2 seconds.
"## STORED (Registration number)" is displayed.
You can register up to 10 songs.
f@2
•Make aPlaylist from the songs stored in one iPod. Ifyou
attempt to register asong stored in adifferent iPod, "NO
INFO" appears and then
"MPLIST DELETE" appears. To
delete the Playl ist, tu rn the [VOL] knob to select "YES"
and then press the [VOL] knob.
•The song displayed in the Music Search
mode can be
registered in the same manner.
For how to use the music
search function, refer
to <Music Search for iPod> (page
13).
If you attempt to register the eleventh song, "MEMORY
FULL' appears and you cannot register it accordingly.
To
register the song, delete an unnecessary song.
Do
not register Pod casts. Songs you do not want to
register may be registered, or playback may not be
carried
out correctly.
Playing the Song in the Playlist
1Display the Playlist
Press the [5] button.
"MY PLAYLISr is displayed.
2Play the song in the Playlist
Turn the [VOL] knob to select the song you
want to play, and then press the [VOL] knob.
f@2
•Turning the power OFF stops playing the song in the
Playlist.
•The
ending of asong without one second or longer
silent may
not be played.
•Random play cannot be performed during playback
of a
song in the Playlist.
Deleting aSong from the Playlist
1 Turn the [VOL] knob to display the song you
want to delete, and then press the [VOL] knob
for at least 2 seconds.
14 IKDC-MP34SU/ KDC-MP245U
2 Turn the [VOL] knob to select "ONE" or "ALL'~
and then press the [VOL] knob.
Selecting "DELETE ALL:' allows you to delete all
songs.
3 Turn the [VOL] knob to select "YES'~ and then
press the [VOL] knob.
"COMPLETED" is displayed.
~
~
• You can also delete all songs from the Playlist by
selecting
"MPLIST DEL'/ "MPLIST DELETE" described in the
section <Function Setting> (page
8).
Function of KDC-MP345U with iPod
iPod Control by Hand Mode
Allows you to operate iPod with the control on the
iPod.
Press the [1] button.
Pressing the button toggles the setting between
iPod control by hand mode on ("HANDS ON") and
off ("HANDS OFF").
f@2
• In the iPod Control by hand mode, iPod cannot be
operated using this unit.
•This
mode is not compatible with music information
display. The display will show "iPod
MODE':
•iPod can be operated when it conforms to the iPod
control function.
Function of remote control
Direct Music Search
Searches the music by entering the track number.
1Enter Direct Music Search mode
Press the [DIRECT] button on the remote
control.
"- - -" is displayed.
2Enter the music number
Press the number buttons on the remote
control.
3Search the music
Press the [~] or [~] button.
Cancelling DirectMusic Search
Press the [ ~ ]button on the remote control.
f@2
•Direct Music Search cannot be performed during playing
of iPod, Random play, or scan play.

Basic Operations of Remote Control
In iPod/CD/Audio file source
Vot-nlr -_,-:-! _::
~ II ~)<2.'(.) I
~ ENT/~II
A/T---p1 __ ~ ~ ! __
EXIT I ~ ~ @-+-I-
AUD
AM- I _ I FM+
I :~.--.. I
0-9 ---i-
I
-: ... cit:
l ~~ .•. -~j
Not used. ----.;':""""'- ~~~~ ~_:::;;.~:~~---: /:...-- DIRECT
~ (page 14)
General control
Volume control: [VOL]
Source select:
[SRC]
Volume reduce: [ATT]
When the button is pressed again, the volume returns
to the previous level.
Return to previous item: [~]
Exit from mode: [EXIT]
Selection
of item: [.]I[~]
Determination:[ENT]
Enter
Audio Control mode: [AUD]
In Tuner source
Band select: [FM+]/[AM-]
Station select: [~]I[~]
Recall presetstations: [1] -[6]
Music select:
[~]/[~]
Folder select: [FM+]/[AM-]
Movement between folders/files: [.]/[~]
Return to previous folder: [~]
Preparing the remote control unit
Pull the battery sheet out from the remote control
unit to the direction
of the arrow.
Changing the battery of the remote control
unit
Use acommercially available button battery (CR2025).
Insert something narrow like apaperclip into the hole
1and
pullout the battery tray.
Insert the battery with the +and -poles aligned
properly, following the illustration inside the
case.
Keep on slide
..... ':1)
(:1
I
,~
(2~p II .-::;..-' CR2025(+side)
.~ uout
~CAUTION
Do not set the remote control in hot places such
as on the dashboard.
Lithium battery.
Danger
of explosion if the battery is incorrectly
replaced.
Replace only with the same or equivalent type.
The battery pack or batteries shall not be
exposed
to excessive heat such sunshine, fire or
the
like.
Keep battery out of reach of children and in
original package until ready to use. Dispose of
used batteries promptly. Ifswallowed contact
physician immediately.
English I15

Appendix
~
~
•If you start playback after connecting the iPod, the
music that
has been played by the iPod is played
fi rst.
In this case, "RESUMING" is displayed without
displaying afolder
name, etc. Changing the browse
item will display acorrect title,
etc.
• You cannot operate iPod if "KENWOOD" or ",/"
displayed on iPod.
iPod/iPhone that can be connected to this
unit
Made for
•
iPod nanG (1st generation) • iPod nanG (2nd generation)
· iPod nanG (3rd generation) • iPod nanG (4th generation)
• iPod with video • iPod classic
• iPod touch (1st generation) • iPod touch (2nd generation)
Works with
•
iPhone • iPhone 3G
• iPhone 3GS
iPhone3GS
16GB 32GB
iPhone iPhone 3G
4GB 8GB 16GB 8GB 16GB
•Update iPod/iPhone software to the latest version.
•
Type of control available varies depending on the
type
of connected iPod. See www.kenwood.com/
cs/ce/ipod for further details.
•
The word "iPod" appearing in this manual indicates
the
iPod or the iPhone connected with the iPod
connection cable* (optional accessory).
*Not supported model KCA-iP500.
Refer to the web site for connectable iPod and iPod
connection cable.
www.kenwood.com/(s/ ce/ipodl
About Audio file
• Playable Audio file
MP3 (.mp3), WMA (.wma)
• Playable disc media
CD-R/RW/ROM
• Playable disc file format
ISO 9660 Levell/2, Joliet, Romeo, Long file name.
• Playable USB device
USB mass storage class
• Playable USB device file system
FAT16, FAT32
• iPod Playable Model
KDC-MP345U
Although the audio files are complied with the
standards listed
above, the play maybe impossible
depending on the types or conditions
of media or
device.
• Playing order ofthe Audio file
In the example of folder/file tree shown below, the
files are played in the order from CD to @.
oCD (OJ) D : Folder
J>CD J> : Audio file
OJ
L-Q]f-J>@
OJ LJ>@
t=J>@
OJtJ>®
.1@)
An online manual about audio files is put on the site,
www.kenwood.com/csice/audiofilel. On this online
manual, detailed information
and notes which are not
written
in this manual are provided. Make sure to read
through the online manual as well.
16 I KDC-MP345U1 KDC-MP245U

About USB device
• In this manual, the word "USB device" is used for
flash memories and digital audio players which have
USB terminals.
•
When the USB device is connected to this unit,
it
can be charged up provideo that this unit is
powered.
•
Install the USB device in the place where it will not
prevent you from driving your vehicle properly.
•
You cannot connect a USB device via a USB hub and
Multi Card Reader.
• Take backups ofthe audio files used with this unit.
The files can be erased depending on the operating
conditions ofthe
USB device.
We shall have no compensation for any damage
arising out of erasure ofthe stored data.
• No USB device comes with this unit. You need to
purchase acommercially available USB device.
• When connecting the USB device, usage ofthe CA-
Ul EX (option) is recommended.
Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
Connecting a cable whose total length is longer
than 5 m can result in abnormal playback.
About IIKENWOOD Music Editor"
• This unit supports the PC application "KENWOOD
Music Editor Lite verl.0" or later.
• When you use the audio file with database
information added by the "KENWOOD Music Editor
Lite verl.0'; you can search a file by title, album or
artist name using the <Music Search> (page 12).
• In the Instruction manual, the term "Music Editor
media" is used to mean the device that contains
audio files with database information added with
KENWOOD Music Editor.
• "KENWOOD Music Editor Lite verl.0" is available from
the following web site:
www.kenwood.com/cs/ce/
•
For further information on "KENWOOD Music Editor
Lite verl.O'; refer to the site above or the application
help.
ACAUTION
Use ofcontrols or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to
laser product safety.
Kenwood Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI
TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO.21 CFR
1040. 10, CHAPTER 1, SUBCHAPTER J.
Location: Top Panel
FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment
may cause harmful interference unless
the modifications are expressly approved in the
instruction
manual. The user could lose the authority
to operate this equipment if
an unauthorized change
or modification is made.
FCC NOTE
This equipment has been tested and found to
comply with the limits for a
Class Bdigital device,
pursuant to Part 15 ofthe FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference
in aresidential installation. This
equipment may cause harmful interference to radio
communications, if it is not installed and used in
accordance with the instructions. However, there
is no guarantee that interference will not occur in a
particular installation. Ifthis equipment
does cause
harmful interference to radio or television reception,
which
can be determined by turning the equipment
off
and on, the user is encouraged to try to correct
the interference
by one or more ofthe following
measures:
• Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment
and receiver.
•Connect the equipment into an outlet on a
circuit different
from that to which the receiver is
connected.
•Consult the
dealer or an experienced radiolTV
technician for
help.
CALIFORNIA, USA ONLY
This perchlorate WARNING applies only to the product
sold or distributed in California USA "Perchlorate
Material-special handling
may apply, See www.dtsc.
ca.gov/hazardouswaste/perchlorate."
English I17

Accessories/Installation Procedure
Installation Procedure
Accessories Ifyou
use the wrong screws, you could damage the unit.
Ifthe power
is not turned ON ("PROTECT" is displayed),
the speaker wire may have ashort-circuit or touched the
chassis of the vehicle and the protection function may
have been activated. Therefore, the speaker wire should be
checked.
Ifyour car's ignition does not have an ACC position, connect
the ignition wires
to apower source that can be turned on
and
off with the ignition key. Ifyou connect the ignition
wire
to apower source with aconstant voltage supply, as
with battery wires, the battery may die.
Ifthe console
has alid, make sure to install the unit so that
the faceplate will
not hit the lid when closing and opening.
Ifthe fuse blows, first make
sure the wires aren't touching
to cause ashort circuit, then replace the old fuse
with one
with the
same rating.
Insulate unconnected wires with vinyl tape or
other similar
material.
To prevent ashort circuit, do not remove the caps
on the ends of the unconnected wires or the terminals.
Connect the speaker wires correctly
to the terminals to
which they correspond. The unit may be damaged or fail to
work if you share the ewires or ground them to any metal
part in the
car.
When only two speakers are being connected to the
system, connect the connectors either to both the front
output terminals or to both the rear output terminals (do
not mix front and
rear). For example, if you connect the ffi
connector of the left speaker to afront output terminal, do
not connect the econnector to a rear output terminal.
After the unit
is installed, check whether the brake lamps,
blinkers,
Wipers, etc. on the car are working properly.
Mount the unit
so that the mounting angle is 30° or less.
.......... 1
.......... 2
.......... 4
.......... 4
®
1. To prevent ashort circuit, remove the key from the
ignition and disconnect the 8battery.
2. Make the proper input and output wire
connections for each unit.
3. Connect the speaker wires of the wiring harness.
4. Connect the wiring harness wires in the following
order: ground, battery, ignition.
5. Connect the wiring harness connector to the unit.
6. Install the unit in your car.
1. Reconnect the 8battery.
8. Press the reset button.
AWARNING
Ifyou connect the ignition wire (red) and the battery wire
(yellow)
to the car chassis (ground), you may cause ashort
circuit, that
in turn may start a fire. Always connect those
wires
to the power source running through the fuse box.
~
Mounting and wiring this product requires skills and
experience.
For safety's sake, leave the mounting and wiring
work
to professionals.
Make
sure to ground the unit to anegative 12V DC power
supply.
Do
not install the unit in aspot exposed to direct sunlight
or excessive heat or humidity. Also avoid places with
too
much dust or the possibility of water splashing.
Do
not use your own screws. Use only the screws provided.
CD
18 I KDC-MP345U1 KDC-MP245U

Connecting Wires to Terminals
CA-U1EX
(Optional accessory)
AUX input (Stereo)
Use the mini-plug cable which is stereo type and
l Joe, not have any resistance. JI-M/AM antenna input
'-------'-----------::=::::::.Mc(--rL..:..........:,I .. -= II '>
Rear outputl Sub Woofer output
I P I!I· N_OON '-00:
L-...:I ------::'-:..::..:- r-I
Fuse (lOA)
_Wiring harness
(AccessoryG))
White
'-------{JW~hi~tei/§jBI~ac~k=====~ To front left speaker
Gray
'-------{=G~ra;/~B~la~c~k ===== ~ To front right speaker
Green
'-------{jG~re~e~n~/B~la~c}k===== ~ To rear left speaker
Pur
Ie
'------~...JP:luWr 2!le~/1jB:@la!fckL ~ To rear right speaker
If
no connections are made, do not let the wire come out from the tab.
Power
control/Motor antenna control wire
(BluelWhite) 0 • Connect either to
the power control terminal when using the optional
e~":'::":"'~:"'--------r-r+' : power amplifier, or to the antenna control terminal in the vehicle.
·.
'-----': :
·.
·.
1I1\,.:.:.M:::u~te::...:c::::o::.:.n~tr..:::o.:...;1 w:.:::..:ire:..(~B::..::ro::.:w.:.:.n:..!..) ....,--~: :Connect to the terminal that is grounded when either the telephone rings
~-'or during conversation.
'-----' Q- To connect the Kenwood navigation system, consult your navigation
~ manual.
Not Used (Blue)
Car fuse box
Ignition wire
(Red) ACC
11'-...::..--------- ... --+-<n.P-lI-+-o ~"O-h ___
Battery wire (Yellow)
1'-----"------- ... --+<r\.P-if------'
Ground wire (Black) 8 (To car chassis)
Car fuse box
(Main fuse)
English I19

Installation/Removing the Unit
Non-Japanese Cars Removing
the Hard Rubber Frame
Bend the tabs of the mounting
sleeve with ascrewdriver or similar
utensil and attach it
in place.
~
~
1Engage the catch pins on the removal tool and
remove the two locks on the upper level.
Upper the frame and pull it forward as shown in
the figure.
AccessorY0
Removal tool
Japanese Cars •The frame can be removed from the
bottom side in the
same manner.
~
~
Removing the Unit
1 Refer to the section <Removing the Hard Rubber
Frame> and then remove the hard rubber frame.
2Detach the faceplate.
3Insert the two removal tools deeply into the slots
on each side, as shown.
4Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
2When the upper level is removed, remove the
lower two locations.
Accessory0
TToyota cars
N: Nissan cars
il:A~
f---10
05mm
)i/ __ ]8M~~
I I@
I---i
05mm
Make sure that the unit is installed securely in place. Ifthe
unit is unstable, it may malfunction (for example, the sound
may skip).
Accessory@
.. .for Nissan car
Accessory0 .. .for Toyota car
1 Refer to the section <Removing the Hard Rubber
Frame> and then remove the hard rubber frame.
2Align the holes in the unit (two locations on each
side) with the vehicle mounting bracket and secure
the unit with the accessory screws.
&CAUTION
Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during and
shortly after the use of the unit. Metal part such as
the heat sink and enclosure become hot.
&
• Be careful to avoid injury from the catch pins on the
removal tool.
S Pull the unit all the way out with your hands, being
careful not to drop it.
20 IKDC-MP345U/ KDC-MP245U
