Kenwood KDC-U453 User manual

KDC-U453
KDC-U3053
KDC-U353
KDC-3054UM
CD-RECEIVER
INSTRUCTION MANUAL
GET0747-001A (MW/M2W/M0/M20)© 2011 JVC KENWOOD Corporation
Cover_KDC-U453[M]2.indd 1Cover_KDC-U453[M]2.indd 1 9/6/11 5:43:52 PM9/6/11 5:43:52 PM

2
Safety 3
Preparation 4
How to attach/detach the faceplate
How to reset your unit
Basic operations 4
Getting started 6
Canceling the display demonstration
Setting the demonstration mode
Adjusting the clock
Initial settings before operations
Listening to the radio 7
Changing the frequency steps (for
)
Adjust [SETTINGS] mode settings
Listening to the other external
components 9
Listening to a disc/ USB device/ iPod 10
Start playing a disc

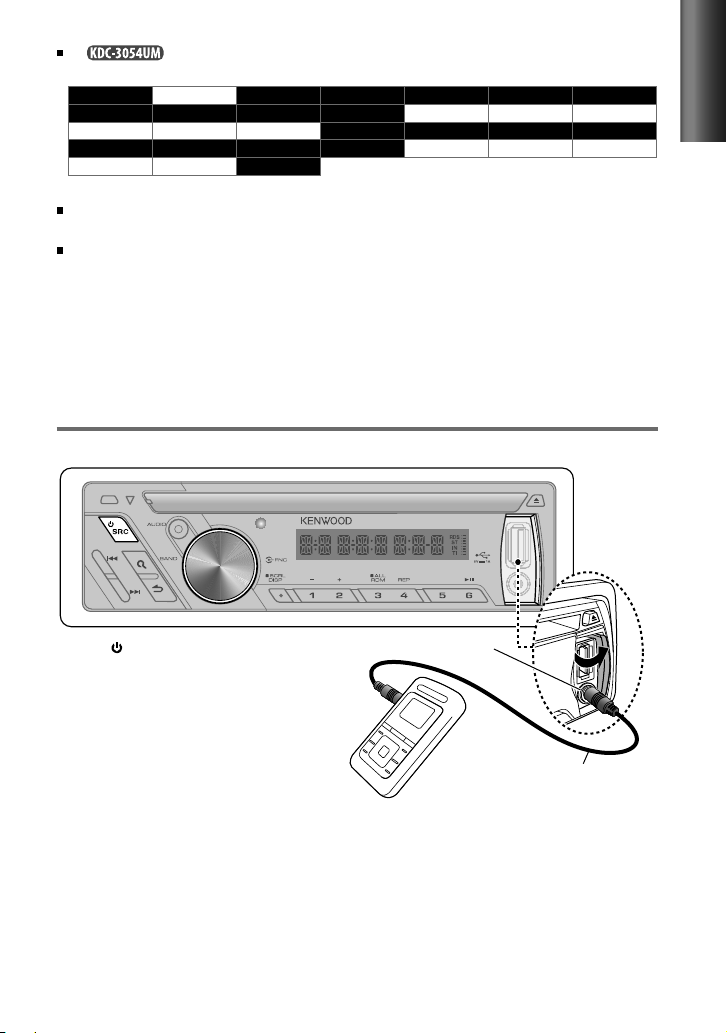

Connecting a USB device
Connecting an iPod (for )
Selecting a folder/track/file
Selecting Repeat Play
Selecting Random Play
Functions of with iPod
Selecting a song by alphabet
Selecting App & iPod Control Mode
Adjust [SETTINGS] mode settings
Using the remote controller (RC-405) 12
Equipped for
Basic operations
Direct Access Tuning
Direct Music Search
Function settings 13
Troubleshooting 15
Installation/connection 17
Basic procedure
Warning
Caution

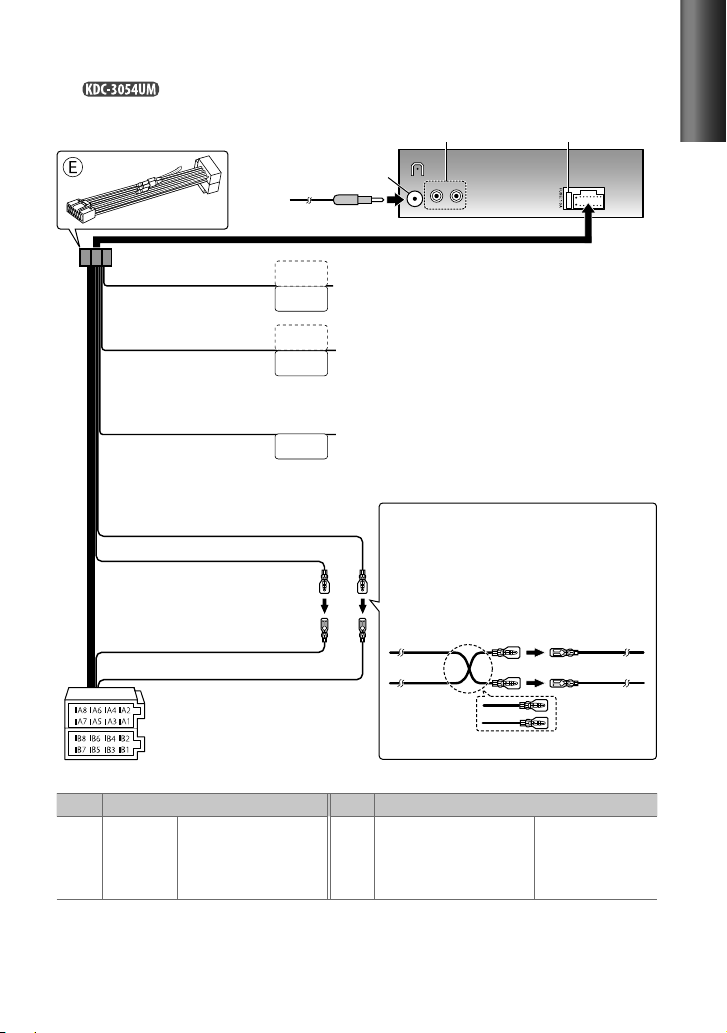

Wiring connection
Installing the unit
Removing the unit
Specifications 21
CONTENTS
Discs that cannot be used
Discs that are not round.
Discs with coloring on the recording surface or discs
that are dirty.
You cannot play a Recordable/ReWritable disc that has
not been finalized. (For the finalization process refer
to your disc writing software, and your disc recorder
instruction manual.)
8 cm CD cannot be used. Attempt to insert using an
adapter can cause malfunction.
About compatible iPod/iPhone
Made for
– iPod touch (1st, 2nd, 3rd, and 4th generation)
– iPod classic
– iPod with video
– iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation)
– iPhone 4
– iPhone 3GS
– iPhone 3G
– iPhone
For the latest compatible list and software version of
iPod/iPhone, see: www.kenwood.com/cs/ce/ipod
If you start playback after connecting the iPod, the
music that has been played by the iPod is played first.
In this case, “RESUMING” is displayed without
displaying a folder name, etc. Changing the browse
item will display a correct title, etc.
You cannot operate iPod if “KENWOOD” or “✓”
displayed on iPod.
EN_KDC-U453[M]2.indd 2EN_KDC-U453[M]2.indd 2 9/6/11 5:42:55 PM9/6/11 5:42:55 PM

3
ENGLISH
Safety
WARNING
Stop the car before operating the unit.
Important to know...
To prevent a short circuit, never put or
leave any metallic objects (such as coins or
metal tools) inside the unit.
Caution: Adjust the volume so that you
can hear sounds outside the car. Driving
with the volume too high may cause an
accident.
Condensation: When the car is air-
conditioned, moisture may collect on the
laser lens. This may cause disc read errors.
In this case, remove the disc and wait for
the moisture to evaporate.
This unit can only play the CDs with:
The illustrations in this manual are
examples used to explain more clearly
how the controls are used. Therefore, what
appears on the illustrations may differ from
what appears on the actual equipment.
A USB connection cable, CA-U1EX
(max.: 500 mA) (optional accessory) is
required for connecting a USB device.
You can connect an Apple iPod/iPhone
with .
The word“iPod” appearing in this manual
indicates the iPod or iPhone connected
to this unit with a connection cable,
KCA-iP102 (optional accessory).
If you experience problems during
installation, consult your Kenwood dealer.
When you purchase external components,
check with your Kenwood dealer to make
sure that they work with your model and in
your area.
Detailed information and notes about the
playable audio files are stated in an online
manual on the following site:
www.kenwood.com/cs/ce/audiofile/
Remote controller (RC-405) is equipped
for .
can also be remotely
controlled with an optionally purchased
remote controller.
Maintenance
Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to
observe this precaution may result in damage to the monitor or unit.
Cleaning the connector: The unit may not function
properly if the connectors between the unit and faceplate
are dirty. Detach the faceplate and clean the connector
with a cotton swab gently, being careful not to damage
the connector.
Handling discs
Do not touch the recording surface of the disc.
Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
Do not use any accessories for the disc.
Clean from the center of the disc and move outward.
Clean the disc with a dry silicon or soft cloth. Do not use any solvents.
When removing discs from this unit, pull them out horizontally.
Remove the rims from the center hole and disc edge before inserting a disc.
Connector (on the reverse
side of the faceplate)
EN_KDC-U453[M]2.indd 3EN_KDC-U453[M]2.indd 3 9/6/11 5:42:56 PM9/6/11 5:42:56 PM

4
Preparation

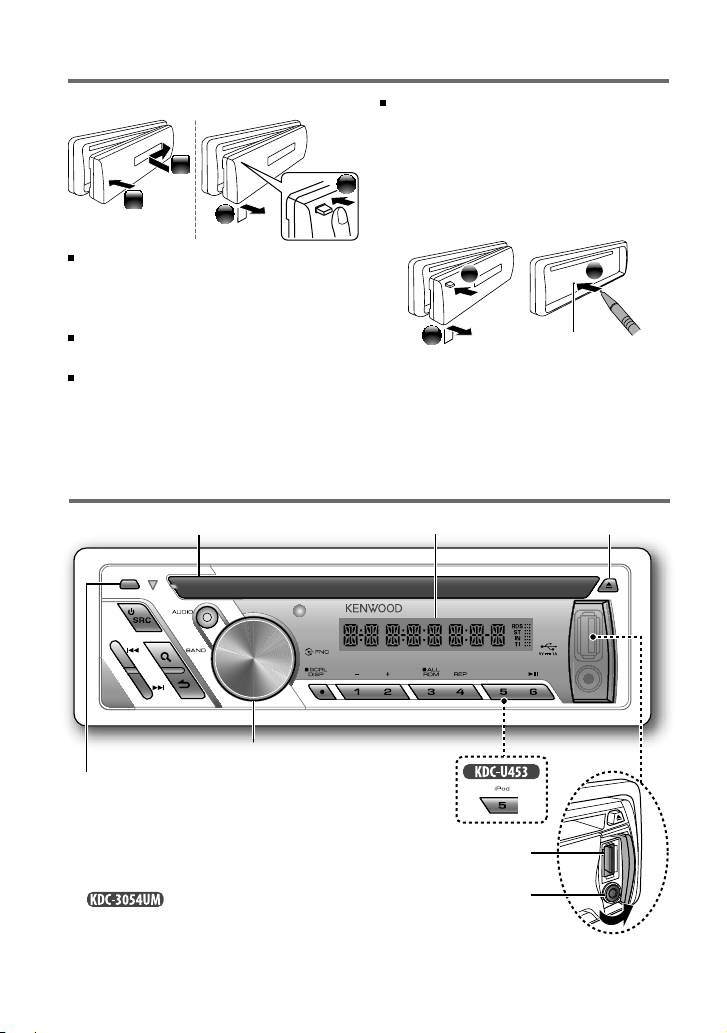

How to attach/detach the faceplate
2
1
1
2
Do not expose the faceplate to direct
sunlight, excessive heat, or humidity. Also
avoid places with too much dust or the
possibility of water splashing.
Keep the faceplate in its casing while
detached.
The faceplate is a precision piece of
equipment and can be damaged by shocks
or jolts.
To prevent deterioration, do not touch the
terminals of the unit and faceplate with
your fingers.
How to reset your unit
If this unit fails to operate properly, press the
reset button.
2
13
The unit returns to factory settings when the
reset button is pressed.
Reset button
The following indicator lights up when...
ST : A stereo broadcast is received (FM).
IN : A disc is in the unit.
For :
RDS : Radio Data System service is available.
TI : Traffic Information function is turned on.
Basic operations
Volume knob
Loading slot Ejects the disc
Detaches the faceplate
Display window
Auxiliary input jack
USB terminal
EN_KDC-U453[M]2.indd 4EN_KDC-U453[M]2.indd 4 9/6/11 5:42:56 PM9/6/11 5:42:56 PM

5
ENGLISH
When you press or hold the following button(s)...
Button General operation
SRC
Turns on.
Turns off if pressed and held.
Selects the available sources (TUNER, USB/ iPod, CD, AUX, STANDBY), if the
power is turned on.
• If the source is ready, playback also starts.
• “iPod” or “CD” is selectable only when an iPod is connected or a disc is loaded.
Volume knob
(turn)
Adjusts the volume level.
Selects items.
Volume knob
(press)
Confirms selection.
Enters [FUNCTION] settings.
(BAND)
Selects the FM bands (FM1/ FM2/ FM3), MW/ SW1/ SW2, or MW/LW when
“TUNER” is selected as the source.
Enters Music Search mode.
1 (–) / 2 (+) Selects the previous/next folder.
6 ( ) Pauses/resumes playback of a disc/ USB device/ iPod.
4
/ ¢
Searches for radio station.
Selects track/file.
Fast-forwards/reverses tracks if pressed and held.
SCRL DISP
Changes the display information.
Scrolls the display information if pressed and held.
Enters clock adjustment mode directly (page 6) if pressed and held while
in clock display screen.
AUDIO Enters [AUD CTRL] settings directly. (page 13)
Returns to the previous item.
Exit from setting mode if pressed and held.
5 (iPod)
For :
Enters the controlling mode (MODE ON/ MODE OFF) for iPod playback.
(page 11)
Muting upon the reception of a phone call
To use this feature, connect the MUTE lead to your telephone using a commercial telephone
accessory. (page 18, 19)
When a call comes in, “CALL” appears.
The audio system pauses.
To continue listen to the audio system during a call, press
SRC. “CALL” disappear and the audio system resumes.
When a call ends, “CALL”
disappear.
The audio system resumes.
EN_KDC-U453[M]2.indd 5EN_KDC-U453[M]2.indd 5 9/6/11 5:42:57 PM9/6/11 5:42:57 PM

6
Getting started
Canceling the display demonstration
The display demonstration is always turned on unless you cancel it.
When you turn on the power (or after you reset the unit), the display shows:
[CANCEL] \ [ DEMO] \[PRESS] \[VOLUME] \[KNOB]
1 Press the volume knob.
[<Y>/ N] is selected as the initial setup.
2 Press the volume knob again to confirm.
[DEMO OFF] appears.
If no operation is done for about 15 seconds or if you turn the volume knob to select
[Y/ <N>] in step 2 , [DEMOMODE] appears and the display demonstration starts.
Setting the demonstration mode
1 Press the volume knob to enter [FUNCTION] mode.
2 Turn the volume knob to select [DEMO], then press to enter.
3 Turn the volume knob to select [DEMO ON] or [DEMO OFF].
If [DEMO ON] is selected, display demonstration starts if no operation is done for about
20 seconds.
4 Hold to finish the procedure.
Adjusting the clock
1 Press the volume knob to enter [FUNCTION] mode.
2 Turn the volume knob to select [SETTINGS], then press to enter.
3 Turn the volume knob to select [CLOCK], then press to enter.
4 Turn the volume knob to select [CLK ADJ], then press to enter.
Clock hour flashes on the display.
5 Turn the volume knob to adjust the hour, then press to enter minute adjustment.
Clock minutes flashes on the display.
6 Turn the volume knob to adjust the minute, then press to confirm.
Press 4 / ¢to move between the hour and minute adjustment.
7 Hold to finish the procedure.
Initial settings before operations
1 Press SRC to enter [STANDBY] mode.
2 Press the volume knob to enter [FUNCTION] mode.
3 Turn the volume knob to select [INITIAL], then press to enter.
4 Turn the volume knob to make a selection, then press to confirm.
See table on page 7 for selection.
5 Hold to finish the procedure.
EN_KDC-U453[M]f.indd 6EN_KDC-U453[M]f.indd 6 9/13/11 12:08:03 PM9/13/11 12:08:03 PM

7
ENGLISH
Continued...
Item Selectable setting (Preset: *)
PRESET TYPE NML*: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ MW/ LW/ SW1/
SW2). ; TYPE MIX: Memorizes one station for each preset button regardless of the selected band (FM1/ FM2/
FM3/ MW/ LW/ SW1/ SW2).
KEY BEEP BEEP ON*/ BEEP OFF: Activates/deactivates the keypress tone.
TDF-ALARM ALRM ON: Activates the alarm if you forgot to detach the faceplate when ACC is set to OFF. ;
ALRM OFF*: Cancels.
RUSSIAN RUS ON: Folder name, file name, song title, artist name, album name are displayed in Russian (if applicable). ;
RUS OFF*: Cancels.
OFF WAIT Sets the duration when the unit will automatically turns off (while in standby mode) to save the battery.
OFF –––: Cancels ; OFF 20M*: 20 minutes ; OFF 40M: 40 minutes ; OFF 60M: 60 minutes
AUX SET AUX ON*: Enables “AUX” in source selection. Sound of the connected external component is produce through
the car speakers. ; AUX OFF: Disables “AUX” in source selection.
CD READ CD READ1*: Automatically distinguishes between audio file disc and music CD. ; CD READ2:
Forces to play as
a music CD. No sound can be heard if an audio file disc is played.
SWPRE SWPRE R*/ SWPRE SW: Selects whether rear speakers or a subwoofer are connected to the line out
terminals on the rear of the unit (through an external amplifier).
SPEAKER SP OFF*/ SP 5/4/ SP 6 × 9/6/ SP OEM: Selects the speaker size for optimum performance.
F/W xx.xx <Y>/ N*: Starts upgrading the firmware. ; Y/<N>:
Cancels (upgrading is not activated).
For details on how to update the firmware, see: www.kenwood.com/cs/ce/
[TDF-ALARM] is selectable only for .
[RUSSIAN/ OFF WAIT] is selectable only for .
[SWPRE] is selectable only for .
Listening to the radio
1 Press SRC to select “TUNER.”
2 Press (BAND) repeatedly to select a band (FM1/ FM2/ FM3/ MW/ LW/ SW1/ SW2).
“F1” / “F2” / “F3” / “MW” / “LW” / “S1” / “S2” appears on the display.
3 Press 4 / ¢to search for a station.
Hold for about 2 seconds to memorize the current station.
Press briefly to recall memorized station.
EN_KDC-U453[M]f.indd 7EN_KDC-U453[M]f.indd 7 9/9/11 5:48:58 PM9/9/11 5:48:58 PM

8
Changing the frequency steps (for )
You can change the frequency step of FM/ MW:
FM : 50 kHz to 200 kHz
MW : 9 kHz to 10 kHz
1 Press and hold SRC to turn off the power.
2 While pressing number buttons 1(–) and 5 (iPod) or 5, press SRC.
Release your fingers from the buttons after the display appears.
To restore the initial setting, repeat the same procedure.
When the frequency step is changed, the frequencies in the memory are deleted.
Adjust [SETTINGS] mode settings
While listening to the radio...
1 Press the volume knob to enter [FUNCTION] mode.
2 Turn the volume knob to select [SETTINGS], then press to enter.
3 Turn the volume knob to make a selection, then press to confirm.
See table below for selection.
4 Hold to finish the procedure.
Item Selectable setting (Preset: *)
LO.SEEK LO.S ON: Searches only stations with good reception. (For
: MW/SW1/ SW2 stations only ; For : FM stations only.) ; LO.S OFF*: Cancels.
SEEKMODE Selects the tuning mode for
4 / ¢ buttons.
AUTO1*: Automatically search for a station. ; AUTO2: Search in the order of the stations in the preset
memory. ; MANUAL: Manually search for a station.
A-MEMORY <Y>/ N*: Automatically starts memorizing 6 stations with good reception. ; Y/<N>:
Cancels (automatic
memorizing is not activated). (Selectable only if [TYPE NML] is selected for [PRESET].) (page 6, 7)
MONO SET MONO ON: Improve the FM reception (but the stereo effect may be lost). ; MONO OFF*: Cancels (stereo
effect resumes).
PTY SRCH Selects the available Program Type (see table on page 9). Then, press
4 / ¢ to start searching.
Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY language
(ENGLISH*/ FRENCH/ GERMAN), then press to confirm.
TI TI ON: Allows the unit to temporarily switch to Traffic Information. ; TI OFF*: Cancels.
NEWS SET NEWS 00M – NEWS 90M: Sets the time for receiving the next news bulletin. ; NEWS OFF*: Cancels.
AF SET AF ON*: Automatically searches for another station broadcasting the same program in the same Radio Data
System network with better reception when the current reception is poor. ; AF OFF:
Cancels.
REGIONAL REG ON*: Switches to another station only in the specific region using the “AF” control. ; REG OFF: Cancels.
ATP SEEK ATPS ON*: Automatically searches for a station with better reception when the traffic information‘s
reception is poor. ; ATPS OFF: Cancels.
[PTY SRCH/ TI/ NEWS SET/ AF SET/ REGIONAL/ ATP SEEK] is selectable only for .
[MONO SET/ PTY SRCH] is selectable only when the source is “FM.”
[TI/ NEWS SET/ AF SET/ REGIONAL/ ATP SEEK] is selectable only when the source is “FM.” If other playback source is
selected, these settings are selectable under [TUNERSET] item. (page 15)
EN_KDC-U453[M]2.indd 8EN_KDC-U453[M]2.indd 8 9/6/11 5:42:59 PM9/6/11 5:42:59 PM

9
ENGLISH
For :
Available Program Type ( [SPEECH] : White character item. ; [MUSIC] : Black character item) :
SPEECH MUSIC NEWS AFFAIRS INFO SPORT EDUCATE
DRAMA CULTURE SCIENCE VARIED POP M (music) ROCK M (music) EASY M (music)
LIGHT M (music) CLASSICS
OTHER M (music) WEATHER FINANCE CHILDREN SOCIAL
RELIGION PHONE IN TRAVEL LEISURE JAZZ COUNTRY
NATION M (music)
OLDIES FOLK M (music) DOCUMENT
The unit will search for the Program type categorized under [SPEECH] or [MUSIC] if selected.
The Radio Data System feature won't work where the service is not supported by any
broadcasting station.
If the volume is adjusted during reception of traffic information, the adjusted volume is
memorized automatically. It will be applied the next time Traffic Information function is
turned on.
Preparation : Make sure [AUX ON] is selected for [AUX SET]. (page 6, 7)
3.5 mm stereo mini plug
(commercially available)
Portable audio device
(commercially available)
Auxiliary input jack
Listening to the other external
components
1 Press SRC to select “AUX.”
2 Turn on the external component and
start playing.
3 Turn the volume knob to adjust the
volume.
EN_KDC-U453[M]2.indd 9EN_KDC-U453[M]2.indd 9 9/6/11 5:42:59 PM9/6/11 5:42:59 PM

10
Start playing a disc
1 Press SRC to turn on the power.
2 Insert a disc into the loading slot.
Playback starts automatically.
3 Press number button 6 ( )to resume/
pause playback (if necessary).
Selecting a folder/track/file
1 Press (BAND) to enter Music Search
mode.
“SEARCH” appears, then the current file
name appears on the display.
2 Turn the volume knob to select a folder/
track/file, then press to confirm.
To return to the root folder (or first track for
audio CD), press number button 5 (iPod)
or 5.
To return to the previous folder, press .
To cancel the Music Search mode, press
and hold .
< or > on the display indicates that
preceded/next item is available.
For USB device* and ipod: To skip search,
press 4/¢.
* This operation is effective only for the files
registered in the database created with
Kenwood Music Editor. (See the rear cover.)
Ejects the disc. (“NO DISC” appears and “IN” indicator goes off.)Loading slot
Press to select track/file.
Hold to fast-forwards/reverses.
Listening to a disc/ USB device/ iPod
Press to select previous/next folder.
• Not available if “ALL RDM” is selected.
USB device (commercially available)
USB terminal
Connecting a USB device
CA-U1EX (Max.: 500 mA)
(optional accessory)
Connecting an iPod (for )
Apple iPod
(commercially available)
Slide open the cover,
then make the following
connection.
The source automatically
switches, and playback
starts.
KCA-iP102
(optional accessory)
EN_KDC-U453[M]2.indd 10EN_KDC-U453[M]2.indd 10 9/6/11 5:43:00 PM9/6/11 5:43:00 PM

11
ENGLISH
Selecting Repeat Play
Press number button 4 (REP) repeatedly
to make a selection.
Audio CD : TRAC REP (track repeat), REP OFF
(repeat off)
AAC/MP3/WMA : FILE REP (file repeat),
FOLD REP (folder repeat), REP OFF
(repeat off)
iPod : FILE REP (file repeat), REP OFF
(repeat off)
Selecting Random Play
Press number button 3 (RDM)
repeatedly to make a selection.
Audio CD : DISC RDM (disc random),
RDM OFF (random off)
AAC/MP3/WMA/iPod : FOLD RDM (folder
random), RDM OFF (random off)
For AAC/MP3/WMA/iPod : Press and
hold number button 3 (RDM) to select
“ALL RDM” (all random).
– Applicable only if “RDM OFF” (random
off ) is selected initially.
– For : Changes the iPod
browsing item to“songs.”
Selecting a song by alphabet
1 Press (BAND) to enter Music Search
mode.
“SEARCH” appears.
2 Turn the volume knob to select a
category, then press to confirm.
3 Press (BAND) again to enter alphabet
search mode.
“SRCH
– – –” appears.
4 Turn the volume knob to select the
character to be searched for.
5 Press 4/ ¢to move to the entry
position.
You can enter up to three characters.
6 Press the volume knob to start
searching.
7 Turn the volume knob to select a folder/
track/file, then press to confirm.
To return to the previous folder, press .
To return to the top menu, press number
button 5 (iPod).
To cancel the Alphabet Search mode, press
and hold .
A longer searching time is required if there
are many songs or playlists in the iPod.
To search for a character other than A to Z
and 0 to 9, enter only “
*”.
The article (a, an, the) of songs name will
be skipped during search.
Selecting App & iPod Control Mode
Press 5 (iPod) to make a selection.
MODE ON: Control iPod from the iPod*.
“APP&iPod” appears.
MODE OFF: Control iPod from the unit.
* You can still control play/pause, select files,
fast-forward/reverse files from the unit.
Adjust [SETTINGS] mode settings
While listening to an iPod...
1 Press the volume knob to enter
[FUNCTION] mode.
2 Turn the volume knob to select
[SETTINGS], then press to enter.
3 Turn the volume knob to select
[SKIPSRCH], then press to enter.
4 Turn the volume knob to make a
selection, then press to confirm.
SKIP 0.5% (initial)/ SKIP 1%/ SKIP 5%/
SKIP 10% : Sets the ratio of skip when
searching for a song in Music Search
mode.
(Holding 4/ ¢skips songs at 10%
regardless of the setting made.)
5 Hold to finish the procedure.
Functions of with iPod
EN_KDC-U453[M]2.indd 11EN_KDC-U453[M]2.indd 11 9/6/11 5:57:50 PM9/6/11 5:57:50 PM

12
Preparation:
When you use the remote controller for the
first time, pull out the insulation sheet.
If the effectiveness of the remote
controller decreases, replace the battery.
2
3
4
1
Caution:
Do not set the remote control in hot places
such as on the dashboard.
Lithium battery.
Danger of explosion if the battery is
incorrectly replaced. Replace only with the
same or equivalent type.
The battery pack or batteries shall not be
exposed to excessive heat such sunshine,
fire or the like.
Keep battery out of reach of children and in
original package until ready to use. Dispose
of used batteries promptly. If swallowed
contact physician immediately.
Insulation sheet
Equipped for
Remote sensor
Do not expose to bright sunlight.
Using the remote controller (RC-405)
(Not used.)
Basic operations
SRC :Selects the available sources.
VOL : Adjusts the volume level.
5/ ∞: Selects folder/track/file (in Music
Search mode).
ENT : Pauses/resumes playback.
Confirms selection (in Music
Search mode).
*AM– / #FM+: Selects bands.
Selects folders.
4/ ¢(+):Searches for radio station.
Selects track/file.
Fast-forward/reverses track
if pressed and held.
1 – 6 : Selects preset station.
AUD : Enters [AUD CTRL] settings
directly.
ATT : Attenuates the sound. (To return
to the previous level, press the
button again.)
: Returns to the previous item (in
Music Search mode).
EXIT : Exit from setting mode.
RC-405
EN_KDC-U453[M]2.indd 12EN_KDC-U453[M]2.indd 12 9/6/11 5:43:02 PM9/6/11 5:43:02 PM

13
ENGLISH
Direct Access Tuning
1 Press *AM– / #FM+ to select a band.
2 Press DIRECT to enter Direct Access
Tuning mode.
“– – – –” appears on the display.
3 Press the number buttons to enter the
frequency.
4 Press 4/ ¢(+) to search for the
frequency.
To cancel Direct Access Tuning mode, press
or EXIT.
If no operations is done for 10 seconds
after step 3, Direct Access Tuning is
automatically canceled.
Direct Music Search
• Not available if Random Play is selected.
• Not applicable for iPod and Kenwood Music
Editor.
1 Press DIRECT to enter Direct Music
Search Mode.
“– – –” appears.
2 Press the number buttons to enter the
track number.
3 Press 4/ ¢(+) to search for the
music.
To cancel the Direct Music Search Mode,
press or EXIT.
1 To enter [AUD CTRL] menu (see table below): Press AUDIO.
To enter [SETTINGS] menu (page 15): Press the volume knob to enter [FUNCTION]
mode. Turn the volume knob to select [SETTINGS], then press to enter.
2 Turn the volume knob to make a selection, then press to confirm.
Repeat this step until the desired item is selected/activated.
Press to return to the previous item.
3 Hold to finish the procedure.
[AUD CTRL] : While listening to any source except in STANDBY state...
Item Selectable setting
Preset
SW LEVEL SW L –15 — SW L +15: Adjusts the subwoofer output level. SW L 0
BASS LVL –8 — +8:
Source tone memory: Adjusts the level to memorize in each
source. (Before making an adjustment, select the source you want to adjust.)
BAS L +8 BAS L 0
MID LVL MID L +2 MID L 0
TRE LVL TRE L +3 TRE L 0
EQ PRO
BASS ADJ BASS FRQ BAS F 60/ BAS F 80/ BAS F100/ BAS F200: Selects the center
frequency. BAS F100
BASS LVL BAS L –8 — BAS L +8: Adjusts the level. BAS L +8 BAS L 0
BASS Q BAS Q1.00/ BAS Q1.25/ BAS Q1.50/ BAS Q2.00: Adjusts the
quality factor. BAS Q1.00
BASS EXT B-EX ON: Turns on the extended bass. ; B-EX OFF: Cancels. B-EX ON B-EX OFF
Function settings
Continued...
EN_KDC-U453[M]f.indd 13EN_KDC-U453[M]f.indd 13 9/15/11 1:21:45 PM9/15/11 1:21:45 PM

14
Item Selectable setting
Preset
EQ PRO
MID ADJ MID FRQ MID F0.5K/ MID F1.0K/ MID F1.5K/ MID F2.5K: Selects the
center frequency. MID F2.5K MID F1.0K
MID LVL MID L –8 — MID L +8: Adjusts the level. MID L +2 MID L 0
MID Q MID Q0.75/ MID Q1.00/ MID Q1.25: Adjusts the quality factor. MID Q1.00
TRE ADJ TRE FRQ TRE 10.0K/ TRE 12.5K/ TRE 15.0K/ TRE 17.5K: Selects the
center frequency. TRE 12.5K
TRE LVL TRE L –8 — TRE L +8: Adjusts the level. TRE L +3 TRE L 0
EQ NATURAL/ USER/ ROCK/ POPS/ EASY/ TOP40/ JAZZ/ POWERFUL: Selects
a preset sound mode suitable to the music genre. (Selects [USER] to use the
customized bass, middle, and treble settings.)
POWERFUL NATURAL
B. BOOST BB-L LV1/ BB-L LV2/ BB-L LV3: Selects your preferred bass boost level. ;
BB-L OFF:
Cancels. BB-L LV1 BB-L OFF
LOUDNESS LOUD LV1/ LOUD LV2: Selects your preferred low and high frequencies boost to
produce a well-balanced sound at a low volume level. ; LOUD OFF:
Cancels. LOUD OFF LOUD LV1
BALANCE BAL L15 — BAL R15: Adjusts the left and right speaker output balance. BAL 0
FADER FAD R15 — FAD F15: Adjusts the rear and front speaker output balance. FAD 0
SW SET SW ON: Turns on the subwoofer output. ; SW OFF:
Cancels. SW ON
DTIL SET
HPF HPF THRU: All signals are sent to the speakers ; HPF 100H/ HPF 120H/
HPF 150H: Frequencies lower than 100 Hz/ 120 Hz/ 150 Hz are cut off. HPF THRU
LPF SW LPF THRU: All signals are sent to the subwoofer. ; LPF 85H/ LPF 120H/
LPF 160H: Frequencies higher than 85 Hz/ 120 Hz/ 160 Hz are cut off. LPF THRU
SW PHASE PHAS REV
(180°) / PHAS NML (0°) : Selects the phase angle of the subwoofer
output to be in line with the speaker output for optimum performance.
(Selectable only if a setting other than [LPF THRU] is selected for [LPF SW].)
PHAS NML
SPRM SET SPRM ON: Creates realistic sound by interpolating the high-frequency
components that are lost in AAC/MP3/WMA audio compression. ;
SPRM OFF: Cancels. (Selectable only when playback an AAC/MP3/WMA disc
or a USB device.)
SPRM ON
V-OFFSET V-OFF –8 — V-OFF +8 (for AUX) ; V-OFF –8 — V-OFF 0 (for other sources)
:
Presets the volume adjustment level of each source. The volume level will
automatically increase or decrease when you change the source. (Before making
an adjustment, select the source you want to adjust.)
V-OFF 0
[HPF] is selectable only for .
[SW LEVEL/ SW SET/ LPF SW/ SW PHASE] is selectable only if [SWPRE] is set to [SWPRE SW]. (page 6, 7)
[SW LEVEL/ LPF SW/ SW PHASE] is selectable only if [SW SET] is set to [SW ON].
EN_KDC-U453[M]2.indd 14EN_KDC-U453[M]2.indd 14 9/6/11 5:43:04 PM9/6/11 5:43:04 PM

15
ENGLISH
[SETTINGS]
Item Selectable setting
Preset
AUX NAME AUX/ DVD/ PORTABLE/ GAME/ VIDEO/ TV: Selects the desired name for the
connected component. (Selectable only if “AUX” is selected as the source.) AUX
CLOCK
CLK ADJ (For details, see page 6.) 0:00
TIMESYNC SYNC ON: Synchronizes the Radio Data System station time data and the unit’s
clock. ; SYNC OFF: Cancels. – SYNC ON
DISPLAY
DISP DIM DIM ON: Dims the display illumination. ; DIM OFF: Cancels. DIM OFF
TEXTSCRL SCL AUTO/ SCL ONCE: Selects to scroll the display information automatically,
or scroll only once. ; SCL OFF: Cancels. SCL AUTO
TUNERSET TI/ NEWS SET/ AF SET/ REGIONAL/ ATP SEEK: Selectable only if any source
other than tuner source is selected. (For details, see page 8.) (See page 8.)
[TIMESYNC/ TUNERSET] is selectable only for .
Troubleshooting
Symptom Remedy/Cause
Sound cannot be heard. Adjust the volume to the optimum level. / Check the cords and connections.
“PROTECT” appears and no
operations can be done.
Check to be sure the terminals of the speaker leads are covered with insulating tape
properly, then reset the unit. If “PROTECT” does not disappear, consult your nearest
service center.
Sound cannot be heard. / The unit
does not turn on. / Information
shown on the display is incorrect.
The connectors are dirty. Clean the connectors. (page 3)
The unit does not work at all. Reset the unit. (page 4)
[OFF WAIT]
does not work. Turn off the demonstration mode. (page 6)
Radio reception is poor. / Static
noise while listening to the radio.
Connect the antenna firmly. / Pull the antenna out all the way.
“IN” flashes. The CD player is not operating properly. Reinsert the disc properly. If the condition did not
improve, turn off the unit and consult your nearest service center.
CD-R/CD-RW cannot be played
back and tracks cannot be skipped.
Insert a finalized CD-R/CD-RW (finalize with the component which you used for
recording).
Disc sound is sometimes
interrupted.
Stop playback while driving on rough roads. / Change the disc. / Check the cords and
connections.
“NA FILE” appears. The unit is playing an unsupported audio file.
Continued...
EN_KDC-U453[M]2.indd 15EN_KDC-U453[M]2.indd 15 9/6/11 5:43:04 PM9/6/11 5:43:04 PM

16
Symptom Remedy/Cause
“NO DISC” appears. Insert a playable disc into the loading slot.
“TOC ERR” appears. The CD is quite dirty. / The CD is upside-down. / The CD is scratched a lot. Try another
disc instead.
“ERROR 99” appears. The unit is malfunctioning for some reason. Press the reset button on the unit. If the
“ERROR 99” code does not disappear, consult your nearest service center.
“COPY PRO” appears. A copy-protected file is played.
“READ ERR” appears. Copy the files and folders for the USB device again. If the error message is still
displayed, initialize the USB device or use other USB devices.
“NO DVICE” appears. No USB device is connected. Connect an USB device, and change the source to USB again.
“NO MUSIC” appears. The connected USB device contains no playable audio file.
“NA DVICE” appears. Connect a supported USB device, and check the connections.
“USB ERR” appears. Remove the USB device, turn the unit off, then turn it on again. If the unit still showing
the same display, try to connect another USB device.
“iPod ERR” appears. Reconnect the iPod. / Reset the iPod.
Noise is generated. Skip to another track or change the disc.
Tracks cannot play back as you have
intended them to play.
Playback order is determined when files are recorded.
“READING” keeps flashing. Longer readout time is required. Do not use too many hierarchies and folders.
Elapsed playing time is not correct. This is caused by how the tracks are recorded.
The number of songs contained
in “SONGS” category of this unit
is different from that contained in
“SONGS” category of iPod.
Podcast files are not counted in this unit as this unit does not support the playback of
podcast files.
Correct characters are not displayed
(e.g. album name).
This unit can only display letters (upper case), numbers, and a limited number of
symbols. For : Cyrillic alphabets (upper case) can also be displayed if
[RUSSIAN] is set to [RUS ON]. (page 6, 7)
About Audio file
Playable Audio file:
For :
AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)
For :
MP3 (.mp3), WMA (.wma)
Playable disc media: CD-R/RW/ROM
Playable disc file format: ISO 9660 Level 1/2, Joliet,
Romeo, Long file name.
Playable USB device file system: FAT16, FAT32
Although the audio files are complied with the standards
listed above, the play maybe impossible depending on the
types or conditions of media or device.
About USB device
This unit can play the following files stored on a USB
mass storage class device:
For :
AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)
For :
MP3 (.mp3), WMA (.wma)
Install the USB device in the place where it will not
prevent you from driving your vehicle properly.
You cannot connect a USB device via a USB hub and
Multi Card Reader.
Make sure all important data has been backed up to
avoid losing the data.
Connecting a cable whose total length is longer than 5 m
can result in abnormal playback.
EN_KDC-U453[M]2.indd 16EN_KDC-U453[M]2.indd 16 9/6/11 5:43:04 PM9/6/11 5:43:04 PM

17
ENGLISH
Installation/connection
Part list:
AFaceplate.............................................................. (×1)
BEscutcheon......................................................... (×1)
CMounting sleeve............................................. (×1)
DCasing for faceplate...................................... (×1)
EWiring harness.................................................. (×1)
FRemoval tool..................................................... (×2)
For :
GFlat head screw (for Nissan cars)........... (×4)
HRound head screw (for Toyota cars).... (×4)
Basic procedure
1 Remove the key from the ignition
switch, then disconnect the ·terminal
of the car battery.
2 Make proper input and output wire
connections.
\“Wiring connection” (page 18, 19)
3 Install the unit to your car.
\“Installing the unit” (page 20)
4 Reconnect the ·terminal of the car
battery.
5 Reset the unit. (page 4)
Warning
The unit can only be installed in a car with
a 12 V DC power supply, negative ground.
If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit,
that in turn may start a fire. Always connect
those wires to the power source running
through the fuse box.
Disconnect the battery’s negative terminal
and make all electrical connections before
installing the unit.
Insulate unconnected wires with vinyl tape
or other similar material. To prevent a short
circuit, do not remove the caps on the ends
of the unconnected wires or the terminals.
Be sure to ground this unit to the car’s
chassis again after installation.
Caution
If your car’s ignition does not have an ACC
position, connect the ignition wires to a
power source that can be turned on and
off with the ignition key. If you connect
the ignition wire to a power source with
a constant voltage supply, as with battery
wires, the battery may die.
Do not use your own screws. Use only the
screws provided.
Install this unit in the console of your
vehicle. Make sure the faceplate will not hit
the lid of the console (if any) when closing
and opening.
After the unit is installed, check whether
the brake lamps, blinkers, wipers, etc. on
the car are working properly.
Mount the unit so that the mounting angle
is 30° or less.
If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit,
then replace the old fuse with one with the
same rating.
Connect the speaker wires correctly to the
terminals to which they correspond. The
unit may be damaged or fail to work if you
share the ·wires or ground them to any
metal part in the car.
When only two speakers are being
connected to the system, connect the
connectors either to both the front output
terminals or to both the rear output
terminals (do not mix front and rear).
Do not touch the metal part of this unit
during and shortly after the use of the
unit. Metal part such as the heat sink and
enclosure become hot.
Mounting and wiring this product requires
skills and experience. For safety’s sake, leave
this work to professionals.
If you experience problems during
installation, consult your Kenwood dealer.
EN_KDC-U453[M]2.indd 17EN_KDC-U453[M]2.indd 17 9/6/11 5:43:05 PM9/6/11 5:43:05 PM

18
Wiring connection
MUTE
P. CONT
ANT CONT
SW FRONT
RL
REAR
RL
REAR/SW
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
Rear/subwoofer output
terminals
For :
Fuse (10 A)
Antenna terminal (JASO)
Blue/White
Brown
Blue
To the terminal that is grounded when either the telephone rings or
during conversation. (To connect the Kenwood navigation system,
consult your navigation manual.)
Car fuse box
Car fuse box
Battery
Ignition key switch
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
To the metallic body or chassis of the car
To front speaker (left)
To front speaker (right)
To rear speaker (left)
To rear speaker (right)
(Antenna control wire)
(Power control wire)
(Mute control wire)
To the power control terminal when using the optional power
amplifier.
To the antenna control terminal in the vehicle.
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
Light blue/yellow
(Steering remote control wire) To the steering wheel remote control adapter
Subwoofer output terminals
Front output terminals
Rear output terminals
EN_KDC-U453[M]2.indd 18EN_KDC-U453[M]2.indd 18 9/6/11 5:43:05 PM9/6/11 5:43:05 PM

19
ENGLISH
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
MUTE
P. CONT
ANT CONT
RL
REAR/SW
For :
Fuse (10 A)
Antenna terminal (JASO)
Light blue/yellow
(Steering remote control wire) To the steering wheel remote control adapter
Blue/White
(Power control wire/ Antenna
control wire)
Brown
(Mute control wire)
To the power control terminal when using the optional power
amplifier, or to the antenna control terminal in the vehicle.
To the terminal that is grounded when either the telephone rings
or during conversation. (To connect the Kenwood navigation
system, consult your navigation manual.)
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
Rear/subwoofer output terminals
Pin Color and function Pin Color and function
A4
A5
A7
A8
Yellow
Blue/White
Red
Black
Battery
Power control
Ignition (ACC)
Earth (ground) connection
B1 / B2
B3 / B4
B5 / B6
B7 / B8
Purple
ª / Purple/black ·
Gray ª / Gray/black ·
White ª / White/black ·
Green ª / Green/black ·
Rear speaker (right)
Front speaker (right)
Front speaker (left)
Rear speaker (left)
ISO connectors
Connecting the ISO connectors on some VW/Audi or
Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Unit Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
EN_KDC-U453[M]2.indd 19EN_KDC-U453[M]2.indd 19 9/6/11 5:43:05 PM9/6/11 5:43:05 PM

20
Installing the unit
Removing the unit
2
1Connect the wiring harness
to the unit. Other wiring
connection has been completed
earlier. (page 18, 19)
Before attaching, make
sure the direction of the
escutcheon is correct.
(Wider hooks on the
top side.)
Dashboard of your car
1 Detach the faceplate.
2 Engage the catch pin on the
removal tools into the holes on
both sides of the escutcheon, then
pull it out.
3 Insert the removal tools deeply into
the slots on each side, then follow
the arrows instructions as shown
on the right.
Bend the appropriate tabs
to hold the mounting
sleeve firmly in place.
Installing without using the mounting sleeve (Japanese car)
(For )
1 Remove the mounting sleeve and escutcheon from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure
the unit with the supplied screws.
T: Toyota cars ; N: Nissan cars
EN_KDC-U453[M]2.indd 20EN_KDC-U453[M]2.indd 20 9/6/11 5:43:05 PM9/6/11 5:43:05 PM
