Kenwood Kdc-bt510u User manual

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

KDC-BT510U

CD-RECEIVER

INSTRUCTION MANUAL

CD-RECEIVER

BEDIENUNGSANLEITUNG

SINTOLETTORE STEREO COMPACT DISC

ISTRUZIONI PER L’USO

CD-PECИBEP

ИHCTPУKЦИЯ ПO ЭKCПЛУATAЦИИ

JS_KWD_KDC_BT510U_EN_C_2.indd 1JS_KWD_KDC_BT510U_EN_C_2.indd 1 01-Sep-16 11:22:13 AM01-Sep-16 11:22:13 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

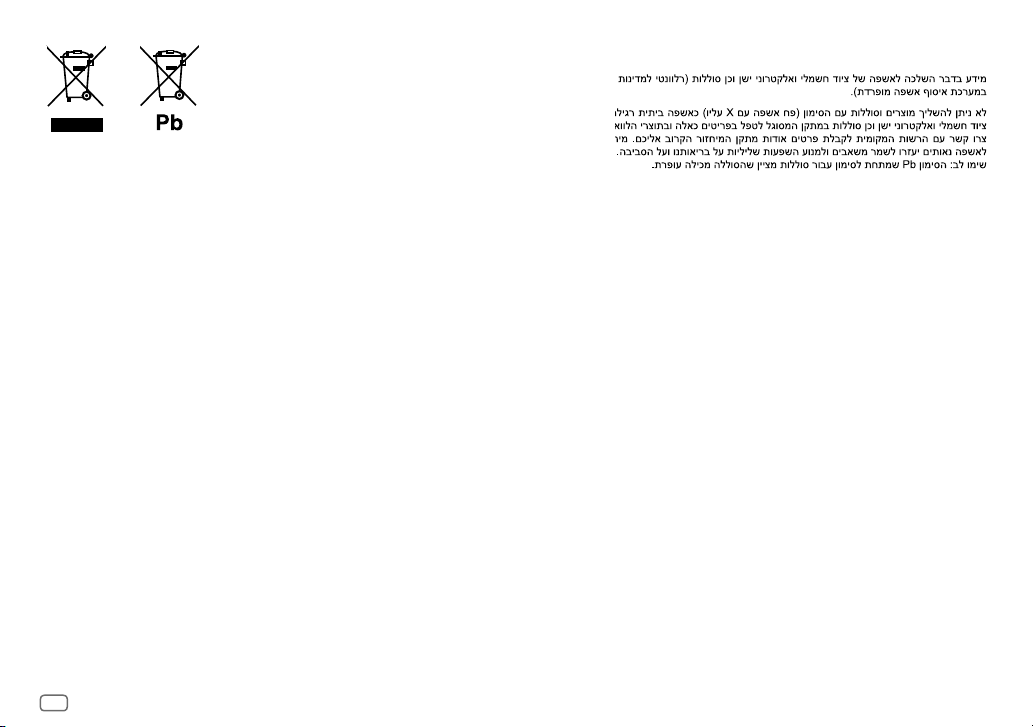

For Israel

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries

that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and

their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal

will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

Entsorgung von gebrauchten elektrischen und elektronischen Geräten und Batterien (anzuwenden in

Ländern mit einem separaten Sammelsystem für solche Geräte)

Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt

nicht als normaler Haushaltsabfall behandelt werden darf, sondern an einer Annahmestelle für das Recycling von

elektrischen und elektronischen Geräten und batterien abgegeben werden muss.

Durch Ihren Beitrag zur korrekten Entsorgung dieses Produktes schützen Sie die Umwelt und die Gesundheit Ihrer

Mitmenschen.

Unsachgemässe oder falsche Entsorgung gefährden Umwelt und Gesundheit. Weitere Informationen über das Recycling

dieses Produktes erhalten Sie von Ihrer Gemeinde oder den kommunalen Entsorgungsbetrieben.

Achtung: Das Zeichen „Pb“ unter dem Symbol fur Batterien zeigt an, dass diese Batterie Blei enthalt.

Informazioni sullo smaltimento delle vecchie apparecchiature elettriche ed elettroniche e delle batterie

(valide per i paesi che hanno adottato sistemi di raccolta differenziata)

I prodotti e le batterie recanti il simbolo di un cassonetto della spazzatura su ruote barrato non possono essere smaltiti

insieme ai normali rifiuti di casa.

I vecchi prodotti elettrici ed elettronici e le batterie devono essere riciclati presso un’apposita struttura in grado di trattare

questi prodotti e di smaltirne i loro componenti.

Per conoscere dove e come recapitare tali prodotti nel luogo a voi più vicino, contattare l’apposito ufficio comunale. Un

appropriato riciclo e smaltimento aiuta a conservare la natura e a prevenire effetti nocivi alla salute e all’ambiente.

Nota: Il simbolo “Pb” sotto al simbolo delle batterie indica che questa batteria contiene piombo.

JS_KWD_KDC_BT510U_EN_C_2.indd iJS_KWD_KDC_BT510U_EN_C_2.indd i 01-Sep-16 11:22:14 AM01-Sep-16 11:22:14 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Дата изготовления (месяц/год) находится на этикетке устройства.

В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы

(годности) данного товара “по истечении которого он может представлять опасность для жизни,

здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7)

лет со дня производства.

Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут

храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных косметических материалов,

упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в

частности, гарантийного обслуживания KENWOOD, которое он может получить в соответствии с

законом о правах потребителя или других законов, связанных с ним.

Условия хранения:

Температура : от -30°C до +85°C

Влажность : от 0% до 90%

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been

classified as Class1. It means that the unit is utilizing laser beams that are of a weaker class. There is no

danger of hazardous radiation outside the unit.

Kennzeichnung von Geräten mit Laser-Abtastern

Das Etikett ist am Chassis/Gehäuse angebracht und besagt, dass sich die Komponente Laserstrahlen

bedient, die als Laserstrahlen der Klasse 1 klassifiziert wurden. Dies weist darauf hin, dass sich das Gerät

Laserstrahlen bedient, die einer schwächeren Klasse angehören. Das bedeutet, dass durch den sehr

schwachen Laserstrahl keine Gefahr durch gefährliche Strahlungen außerhalb des Geräts besteht.

Etichetta per i prodotti che impiegano raggi laser

L’etichetta si trova sul rivestimento o sulla scatola e serve ad avvertire che il componente impiega raggi

laser che sono stati classificati come classe 1. Ciò significa che l’apparecchio utilizza raggi laser di una classe

inferiore. Non c’è alcun pericolo di radiazioni pericolose all’esterno dell’apparecchio

Маркировка изделий, использующих лазеры

К корпусу устройства прикреплена табличка, указывающая, что устройство использует лазерные

лучи класса 1. Это означает, что в устройстве используются лазерные лучи слабой интенсивности.

Они не представляют опасности и не распространяют опасную радиацию вне устройства.

JS_KWD_KDC_BT510U_EN_C_2.indd iiJS_KWD_KDC_BT510U_EN_C_2.indd ii 01-Sep-16 11:22:15 AM01-Sep-16 11:22:15 AM

iii

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Declaration of Conformity with regard to the RE Directive 2014/53/EU

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVCKENWOOD NEDERLAND B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

Konformitätserklärung in Bezug auf die RE-Vorschrift 2014/53/EU

Konformitätserklärung in Bezug auf die RoHS-Vorschrift 2011/65/EU

Hersteller:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU-Vertreter:

JVCKENWOOD NEDERLAND B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, Niederlande

Dichiarazione di conformità alla Direttiva RE 2014/53/EU

Dichiarazione di conformità relativa alla direttiva RoHS 2011/65/EU

Produttore:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

Rappresentante UE:

JVCKENWOOD NEDERLAND B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

Декларация соответствия относительно Директивы 2014/53/EU RE

Декларация соответствия относительно Директивы 2011/65/EU об

ограничении содержания вредных веществ

Производитель:

ДжейВиСи КЕНВУД Корпорейшн

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Япония

Представительство в EC:

ДжейВиСиКЕНВУД Нидерланд Би.Ви.

Amsterdamseweg 37, 1422 AC UITHOORN, Нидерланды

English

Hereby, JVCKENWOOD declares that the radio equipment

“KDC-BT510U” is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available

at the following internet address:

http://www.kenwood.com/cs/ce/eudoc/

Français

Par la présente, JVCKENWOOD déclare que l’équipement

radio « KDC-BT510U » est conforme à la directive

2014/53/UE.

L’intégralité de la déclaration de conformité UE est

disponible à l’adresse Internet suivante :

http://www.kenwood.com/cs/ce/eudoc/

Deutsch

Hiermit erklärt JVCKENWOOD, dass das Funkgerät

“KDC-BT510U” der Richtlinie 2014/53/EU entspricht.

Der volle Text der EU-Konformitätserklärung steht unter

der folgenden Internetadresse zur Verfügung:

http://www.kenwood.com/cs/ce/eudoc/

Nederlands

Hierbij verklaart JVCKENWOOD dat de radioapparatuur

“KDC-BT510U” in overeenstemming is met Richtlijn

2014/53/EU.

De volledige tekst van de EU-verklaring van

overeenstemming is te vinden op het volgende

internetadres:

http://www.kenwood.com/cs/ce/eudoc/

Italiano

Con la presente, JVCKENWOOD dichiara che l΄apparecchio

radio “KDC-BT510U” è conforme alla Direttiva

2014/53/UE.

Il testo integrale della dichiarazione di conformità UE è

disponibile al seguente indirizzo internet:

http://www.kenwood.com/cs/ce/eudoc/

Español

Por la presente, JVCKENWOOD declara que el equipo de

radio “KDC-BT510U” cumple la Directiva 2014/53/EU.

El texto completo de la declaración de conformidad con la

UE está disponible en la siguiente dirección de internet:

http://www.kenwood.com/cs/ce/eudoc/

Português

Deste modo, a JVCKENWOOD declara que o equipamento

de rádio “KDC-BT510U” está em conformidade com a

Diretiva 2014/53/UE.

O texto integral da declaração de conformidade da UE está

disponível no seguinte endereço de internet:

http://www.kenwood.com/cs/ce/eudoc/

Polska

Niniejszym, JVCKENWOOD deklaruje, że sprzęt radiowy

“KDC-BT510U” jest zgodny z dyrektywą 2014/53/UE.

Pełny tekst deklaracji zgodności EU jest dostępny pod

adresem:

http://www.kenwood.com/cs/ce/eudoc/

Český

Společnost JVCKENWOOD tímto prohlašuje, že rádiové

zařízení “KDC-BT510U” splňuje podmínky směrnice

2014/53/EU.

Plný text EU prohlášení o shodě je dostupný na následující

internetové adrese:

http://www.kenwood.com/cs/ce/eudoc/

Magyar

JVCKENWOOD ezennel kijelenti, hogy a „KDC-BT510U“

rádióberendezés megfelel a 2014/53/EU irányelvnek.

Az EU konformitási nyilatkozat teljes szövege az alábbi

weboldalon érhető el:

http://www.kenwood.com/cs/ce/eudoc/

JS_KWD_KDC_BT510U_EN_C_2.indd iiiJS_KWD_KDC_BT510U_EN_C_2.indd iii 01-Sep-16 11:22:15 AM01-Sep-16 11:22:15 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Svenska

Härmed försäkrar JVCKENWOOD att

radioutrustningen “KDC-BT510U” är i enlighet

med direktiv 2014/53/EU.

Den fullständiga texten av EU-försäkran

om överensstämmelse finns på följande

Internetadress:

http://www.kenwood.com/cs/ce/eudoc/

Suomi

JVCKENWOOD julistaa täten, että radiolaite

“KDC-BT510U” on direktiivin 2014/53/EU

mukainen.

EU-vaatimustenmukaisuusvakuutusvaatimus

löytyy kokonaisuudessaan seuraavasta internet-

osoitteesta:

http://www.kenwood.com/cs/ce/eudoc/

Slovensko

S tem JVCKENWOOD izjavlja, da je radijska oprema

»KDC-BT510U« v skladu z Direktivo 2014/53/EU.

Celotno besedilo direktive EU o skladnosti je

dostopno na tem spletnem naslovu:

http://www.kenwood.com/cs/ce/eudoc/

Slovensky

Spoločnosť JVCKENWOOD týmto vyhlasuje, že

rádiové zariadenie „KDC-BT510U“ vyhovuje

smernici 2014/53/EÚ.

Celý text EÚ vyhlásenia o zhode nájdete na

nasledovnej internetovej adrese:

http://www.kenwood.com/cs/ce/eudoc/

Dansk

Herved erklærer JVCKENWOOD, at radioudstyret

“KDC-BT510U” er i overensstemmelse med

Direktiv 2014/53/EU.

EU-overensstemmelseserklæringens fulde ordlyd

er tilgængelig på følgende internetadresse:

http://www.kenwood.com/cs/ce/eudoc/

Ελληνικά

Με το παρόν, η JVCKENWOOD δηλώνει ότι ο

ραδιοεξοπλισμός «KDC-BT510U» συμμορφώνεται

με την Οδηγία 2014/53/ΕΕ.

Το πλήρες κείμενο της δήλωσης συμμόρφωσης

της ΕΕ είναι διαθέσιμο στην ακόλουθη διεύθυνση

στο διαδίκτυο:

http://www.kenwood.com/cs/ce/eudoc/

Eesti

Käesolevaga JVCKENWOOD kinnitab, et

„KDC-BT510U“ raadiovarustus on vastavuses

direktiiviga 2014/53/EL.

ELi vastavusdeklaratsiooni terviktekst on

kättesaadav järgmisel internetiaadressil:

http://www.kenwood.com/cs/ce/eudoc/

Latviešu

JVCKENWOOD ar šo deklarē, ka radio aparatūra

„KDC-BT510U” atbilst direktīvas 2014/53/ES

prasībām.

Pilns ES atbilstības deklarācijas teksts ir pieejams

šādā tīmekļa adresē:

http://www.kenwood.com/cs/ce/eudoc/

Lietuviškai

Šiuo JVCKENWOOD pažymi, kad radijo įranga

„KDC-BT510U“ atitinka 2014/53/EB direktyvos

reikalavimus.

Visą EB direktyvos atitikties deklaracijos tekstą

galite rasti šiuo internetiniu adresu:

http://www.kenwood.com/cs/ce/eudoc/

Malti

B’dan, JVCKENWOOD jiddikjara li t-tagħmir tar-

radju “KDC-BT510U” huwa konformi

mad-Direttiva 2014/53/UE.

It-test kollu tad-dikjarazzjoni ta’ konformità huwa

disponibbli fl-indirizz intranet li ġej:

http://www.kenwood.com/cs/ce/eudoc/

HRVATSKI / SRPSKI JEZIK

JVCKENWOOD ovim izjavljuje da je radio oprema

“KDC-BT510U” u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst deklaracije Europske unije o

usklađenosti dostupan je na sljedećoj internet

adresi:

http://www.kenwood.com/cs/ce/eudoc/

ROMÂNĂ

Prin prezenta, JVCKENWOOD declară că

echipamentul radio “KDC-BT510U” este în

conformitate cu Directiva 2014/53/UE.

Textul integral al declarației de conformitate UE

este disponibil la urmatoarea adresă de internet:

http://www.kenwood.com/cs/ce/eudoc/

БЪЛГАРСКИ

С настоящото JVCKENWOOD декларира, че

радиооборудването на “KDC-BT510U” е в

съответствие с Директива 2014/53/ЕС.

Пълният текст на ЕС декларацията за

съответствие е достъпен на следния интернет

адрес:

http://www.kenwood.com/cs/ce/eudoc/

Turkish

Burada, JVCKENWOOD “KDC-BT510U” radyo

ekipmanının 2014/53/AB Direktifine uygun

olduğunu bildirir.

AB uyumluluk deklarasyonunun tam metni

aşağıdaki internet adresinde mevcuttur.

http://www.kenwood.com/cs/ce/eudoc/

Русский

JVCKENWOOD настоящим заявляет,

что радиооборудование «KDC-BT510U»

соответствует Директиве 2014/53/EU.

Полный текст декларации соответствия

ЕС доступен по следующему адресу в сети

Интернет:

http://www.kenwood.com/cs/ce/eudoc/

Українська

Таким чином, компанія JVCKENWOOD заявляє,

що радіообладнання «KDC-BT510U» відповідає

Директиві 2014/53/EU.

Повний текст декларації про відповідність ЄС

можна знайти в Інтернеті за такою адресою:

http://www.kenwood.com/cs/ce/eudoc/

JS_KWD_KDC_BT510U_EN_C_2.indd ivJS_KWD_KDC_BT510U_EN_C_2.indd iv 01-Sep-16 11:22:15 AM01-Sep-16 11:22:15 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

BEFORE USE

IMPORTANT

•

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe

Warning and Caution in this manual.

•

Please keep the manual in a safe and accessible place for future reference.

WARNING

•

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

•

Adjust the volume so that you can hear sounds outside the car to prevent accidents.

•

Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

•

Avoid using the external device if it might hinder safe driving.

•

Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

•

Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

•

If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

•

USB rating is indicated on the main unit. To view, detach the faceplate.

( 3)

•

Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected

( 27)

. Turn off the unit or change the source to STANDBY when parking at a low ceiling area.

How to read this manual

•

Operations are explained mainly using buttons on the faceplate.

•

English indications are used for the purpose of explanation. You can select the display language from the

[FUNCTION]

menu.

( 5)

•

[XX]

indicates the selected items.

•

( XX)

indicates references are available on the stated page.

CONTENTS

BEFORE USE 2

BASICS 3

GETTING STARTED 3

1 Select the display language

and cancel the demonstration

2 Set the clock and date

3 Set the initial settings

RADIO 5

CD/USB/iPod/ANDROID 7

AUX 9

BLUETOOTH® 10

AUDIO SETTINGS 16

DISPLAY SETTINGS 19

TROUBLESHOOTING 20

REFERENCES 22

Maintenance

More information

SPECIFICATIONS 24

INSTALLATION/

CONNECTION 26

ENGLISH

JS_KWD_KDC_BT510U_EN_EN_5.indd 2JS_KWD_KDC_BT510U_EN_EN_5.indd 2 01-Sep-16 11:23:09 AM01-Sep-16 11:23:09 AM

ENGLISH 3

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

BASICS

To On the faceplate

Turn on the power Press .

• Press and hold to turn off the power.

Adjust the volume Turn the volume knob.

Select a source Press repeatedly.

Change the display information Press DISP repeatedly.

( 24)

Faceplate

How to resetAttach Detach

Select the display language and cancel the

demonstration

When you turn on the power for the first time (or

[FACTORY RESET]

is set to

[YES]

), the display shows:

“SEL LANGUAGE” “PRESS” “VOLUME KNOB”

1 Turn the volume knob to select

[ENG]

(English),

[RUS]

(Russian) or

[SPA]

(Spanish), then press the knob.

[ENG]

is selected for the initial setup.

Then, the display shows: “CANCEL DEMO” “PRESS”

“VOLUME KNOB”.

2 Press the volume knob.

[YES]

is selected for the initial setup.

3 Press the volume knob again.

“DEMO OFF” appears.

Then, the display shows the selected crossover type:

“2-WAY X’OVER” or “3-WAY X’ OVER”

• To change the crossover type, see “Change the crossover

type”. ( 

)

GETTING STARTED

Volume knob

Detach button

Loading slot Display window

JS_KWD_KDC_BT510U_EN_EN_5.indd 3JS_KWD_KDC_BT510U_EN_EN_5.indd 3 01-Sep-16 11:23:10 AM01-Sep-16 11:23:10 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Set the clock and date

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select

[CLOCK]

, then press the knob.

To adjust the clock

3 Turn the volume knob to select

[CLOCK ADJUST]

, then press the knob.

4 Turn the volume knob to make the settings, then press the knob.

Hour Minute

5 Turn the volume knob to select

[CLOCK FORMAT]

, then press the knob.

6 Turn the volume knob to select

[12H]

[24H]

, then press the knob.

To set the date

7 Turn the volume knob to select

[DATE FORMAT]

, then press the knob.

8 Turn the volume knob to select

[DD/MM/YY]

[MM/DD/YY]

, then press

the knob.

9 Turn the volume knob to select

[DATE SET]

, then press the knob.

10 Turn the volume knob to make the settings, then press the knob.

Day Month Year or Month Day Year

11 Press and hold to exit.

To return to the previous setting item, press .

Set the initial settings

1 Press repeatedly to enter STANDBY.

2 Press the volume knob to enter

[FUNCTION]

3 Turn the volume knob to select an item (see the following table),

then press the knob.

4 Repeat step 3until the desired item is selected or activated.

5 Press and hold to exit.

To return to the previous setting item, press .

2Default:

AUDIO CONTROL

SWITCH

PREOUT

(Not applicable if 3-way crossover is selected.)

REAR

SUB-W

: Selects whether rear speakers or a subwoofer are

connected to the line out terminals on the rear (through an external

amplifier).

( 27)

TUNER SETTING

PRESET TYPE NORMAL

:Memorizes one station for each preset button in each band

(FM1/FM2/FM3/MW/LW).;

MIX

:Memorizes one station for each preset

button, regardless of the selected band.

SYSTEM

KEY BEEP

(Not applicable if 3-way crossover is selected.)

:Activates the keypress tone.;

OFF

:Deactivates.

SOURCE SELECT

BUILT-IN AUX ON

:Enables AUX in source selection.;

OFF

:Disables.

( 9)

P-OFF WAIT

Applicable only when the demonstration mode is turned off.

Sets the duration when the unit will automatically turn off (while in

standby mode) to save the battery.

20M

: 20minutes;

40M

: 40minutes;

60M

: 60minutes;

– – –

:Cancels

CD READ 1

:Automatically distinguishes between audio file disc and music CD.;

:Forces to play as a music CD. No sound can be heard if an audio file disc

is played.

F/W UPDATE

UPDATE SYSTEM

F/W UP xxxx YES

:Starts upgrading the firmware.;

:Cancels (upgrading is not

activated).

For details on how to update the firmware, visit

<www.kenwood.com/cs/ce/>.

GETTING STARTED

ENGLISH

JS_KWD_KDC_BT510U_EN_EN_5.indd 4JS_KWD_KDC_BT510U_EN_EN_5.indd 4 01-Sep-16 11:23:12 AM01-Sep-16 11:23:12 AM

ENGLISH 5

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

FACTORY RESET YES

:Resets the settings to default (except the stored

station).;

:Cancels

CLOCK

CLOCK DISPLAY ON

:The clock time is shown on the display even when the unit

is turned off.;

OFF

:Cancels.

ENGLISH

Select the display language for

[FUNCTION]

menu and music

information if applicable.

By default,

[ENGLISH]

is selected.

РУССКИЙ

ESPANOL

Change the crossover type

1 Press repeatedly to enter STANDBY.

2 Press and hold number buttons 4and 5to enter crossover

select.

The current crossover type appears.

3 Turn the volume knob to select “2WAY” or “3WAY”, then

press the knob.

4 Turn the volume knob to select “YES” or “NO”, then press

the knob.

The selected crossover type appears.

• To cancel, press and hold .

• To adjust the selected crossover settings,

( 17, 18)

Caution

Select a crossover type according to how the speakers are

connected.

( 27)

If you select a wrong type:

• The speakers may damage.

• The output sound level may be extremely high or low.

GETTING STARTED

Search for a station

1 Press repeatedly to select TUNER.

2 Press repeatedly to select FM1/FM2/FM3/MW/LW.

3 Press S/Tto search for a station.

• To change the searching method for S/T: Press repeatedly.

AUTO1 : Automatically search for a station.

AUTO2 : Search for a preset station.

MANUAL : Manually search for a station.

• To store a station: Press and hold one of the number buttons (1to6).

• To select a stored station: Press one of the number buttons (1to6).

Other settings

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select an item

( 6)

, then press the knob.

3 Repeat step 2until the desired item is selected/activated or follow the

instructions stated on the selected item.

4 Press and hold to exit.

To return to the previous setting item, press .

RADIO

JS_KWD_KDC_BT510U_EN_EN_5.indd 5JS_KWD_KDC_BT510U_EN_EN_5.indd 5 01-Sep-16 11:23:13 AM01-Sep-16 11:23:13 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Default:

TUNER SETTING

LOCAL SEEK ON

: Searches only stations with good reception. ;

OFF

: Cancels.

•

Settings made are applicable only to the selected source/station. Once

you change the source/station, you need to make the settings again.

AUTO

MEMORY

YES

:Automatically starts memorizing 6 stations with good reception.;

:Cancels.

•

Selectable only if

[NORMAL]

is selected for

[PRESET TYPE]

( 4)

MONO SET ON

:Improves the FM reception, but the stereo effect may be lost.;

OFF

:Cancels.

NEWS SET ON

: The unit will temporarily switch to News Programme if available. ;

OFF

:Cancels.

REGIONAL ON

: Switches to another station only in the specific region using the “AF”

control.;

OFF

:Cancels.

AF SET ON

: Automatically searches for another station broadcasting the same

program in the same Radio Data System network with better reception

when the current reception is poor.;

OFF

:Cancels.

TI ON

:Allows the unit to temporarily switch to Traffic Information if available

(“TI” lights up).;

OFF

:Cancels.

PTY SEARCH

Turn the volume knob to select the available Program Type, then press

the knob.

Turn the volume knob to select the PTY language (

ENGLISH

FRENCH

GERMAN

), then press the knob.

Press

/

to start searching.

CLOCK

TIME SYNC ON

:Synchronizes the unit’s time to the Radio Data System station time.;

OFF

:Cancels.

Available Program Type for

[PTY SEARCH]

SPEECH

NEWS

AFFAIRS

INFO

(information),

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

WEATHER

FINANCE

CHILDREN

SOCIAL

RELIGION

PHONE IN

TRAVEL

LEISURE

DOCUMENT

MUSIC

POP M

(music),

ROCK M

(music),

EASY M

(music),

LIGHT M

(music),

CLASSICS

OTHER M

(music),

JAZZ

COUNTRY

NATION M

(music),

OLDIES

FOLK M

(music)

The unit will search for the Program Type categorized under

[SPEECH]

[MUSIC]

if selected.

•

[LOCAL SEEK]

[MONO SET]

[NEWS SET]

[REGIONAL]

[AF SET]

[TI]

[PTY SEARCH]

selectable only when the band is FM1/FM2/FM3.

• If the volume is adjusted during reception of traffic information or news

bulletin, the adjusted volume is memorized automatically. It will be

applied the next time traffic information or news bulletin is turned on.

RADIO

ENGLISH

JS_KWD_KDC_BT510U_EN_EN_5.indd 6JS_KWD_KDC_BT510U_EN_EN_5.indd 6 01-Sep-16 11:23:14 AM01-Sep-16 11:23:14 AM

ENGLISH 7

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

CD/USB/iPod/ANDROID

Start playback

The source changes automatically and

playback starts.

KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type

Do not leave the cable inside the car when not using.

To On the faceplate

Playback/pause Press .

Reverse/Fast-forward*4Press and hold S/T.

Select a track/file Press S/T.

Select a folder*5Press J/K.

Repeat play*6Press repeatedly.

TRACK REPEAT

ALL REPEAT

: Audio CD

FILE REPEAT

FOLDER REPEAT

ALL REPEAT

: MP3/WMA/AAC/WAV/FLAC file

FILE REPEAT

FOLDER REPEAT

REPEAT OFF

: iPod or ANDROID

Random play*6Press repeatedly.

DISC RANDOM

RANDOM OFF

: Audio CD

FOLDER RANDOM

RANDOM OFF

: MP3/WMA/AAC/WAV/FLAC file, iPod or

ANDROID

Press and hold to select

ALL RANDOM

.*7

When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the instructions

to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device

before connecting. For more information, visit <www.kenwood.com/cs/ce/>.

For ANDROID: Applicable only when

[BROWSE MODE]

is selected.

( 8)

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID.

For iPod/ANDROID: Applicable only when

[MODE OFF]

[BROWSE MODE]

is selected.

( 8)

For CD: Only for MP3/WMA/AAC files.

Label side

Eject disc

USB input terminal

CA-U1EX (max.: 500mA)

(optional accessory)

Micro USB 2.0 cable

(commercially available)

KCA-iP102/KCA-iP103 (optional

accessory)

or accessory of the

iPod/iPhone

USB

iPod/iPhone

ANDROID*3

JS_KWD_KDC_BT510U_EN_EN_5.indd 7JS_KWD_KDC_BT510U_EN_EN_5.indd 7 01-Sep-16 11:23:14 AM01-Sep-16 11:23:14 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

CD/USB/iPod/ANDROID

Select control mode

While in iPod USB source, press 5repeatedly.

MODE ON

: Control iPod using the iPod itself. However, you can still play/

pause, file skip, fast-forward or reverse from this unit.

MODE OFF

: Control iPod from this unit.

While in ANDROID source, press 5 repeatedly.

BROWSE MODE

: Control Android device from this unit via KENWOOD

MUSIC PLAY application installed in the Android device.

HAND MODE

: Control Android device using the Android device itself via

other media player applications installed in the Android

device. However, you can still play/pause and file skip from

this unit.

Select music drive

While in USB source, press 5 repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage

Class).

• Selected drive of a multiple drives device.

Listen to TuneIn Radio/TuneIn Radio Pro/Aupeo

While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the

iPod/iPhone to the USB input terminal of the unit.

• The unit will output the sound from these applications.

Select a file from a folder/list

For iPod/ANDROID, applicable only when

[MODE OFF]

[BROWSE MODE]

selected.

1 Press .

2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob.

Quick Search

(applicable only for CD, USB and ANDROID source)

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Skip Search

(applicable only for iPod USB and ANDROID source)

Press S/Tto search at a preset skip search ratio.

( 9, [SKIP SEARCH])

• Pressing and holding S/Tsearches at a 10

ratio.

Alphabet search

(applicable only for iPod USB and ANDROID source)

You can search for a file according to the first character.

For iPod USB source

1 Turn the volume knob quickly to enter character search.

2 Turn the volume knob to select the character.

• Select “

*” to search for a character other than AtoZ, 0to9.

3 Press S/Tto move to the entry position.

• You can enter up to 3characters.

4 Press the volume knob to start searching.

For ANDROID source

1 Press J/Kto enter character search.

2 Turn the volume knob to select the character.

^A^: Upper case letters (A to Z)

_A_: Lower case letters (a to z)

-0-: Numbers (0 to 9)

***: Character other than AtoZ, 0to9

3 Press the volume knob to start searching.

• To return to the root folder/first file/top menu, press 5.

(Not applicable for

BT AUDIO source.)

• To return to the previous setting item, press .

• To cancel, press and hold .

ENGLISH

JS_KWD_KDC_BT510U_EN_EN_5.indd 8JS_KWD_KDC_BT510U_EN_EN_5.indd 8 01-Sep-16 11:23:15 AM01-Sep-16 11:23:15 AM

ENGLISH 9

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

CD/USB/iPod/ANDROID

Settings to use KENWOOD Remote application

KENWOOD Remote application is designed to control the KENWOOD car

receiver’s operations from the iPhone/iPod (via USB input terminal).

Preparation:

Install the latest version of KENWOOD Remote application on your device

before connecting. For more information, visit

<www.kenwood.com/cs/ce/>.

You can make the settings in the same way as connection via Bluetooth.

( 15)

Other settings

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2until the desired item is selected or activated.

4 Press and hold to exit.

To return to the previous setting item, press .

Default:

USB

MUSIC DRIVE DRIVE CHANGE

:The next drive (

[DRIVE 1]

[DRIVE 4]

) is selected

automatically and playback starts.

Repeat steps

to select the following drives.

SKIP SEARCH 0.5%

10%

: While listening to iPod USB or ANDROID source, selects

the skip search ratio over the total files.

Preparation:

Select

[ON]

for

[BUILT-IN AUX]

for

[SOURCE SELECT]

( 4)

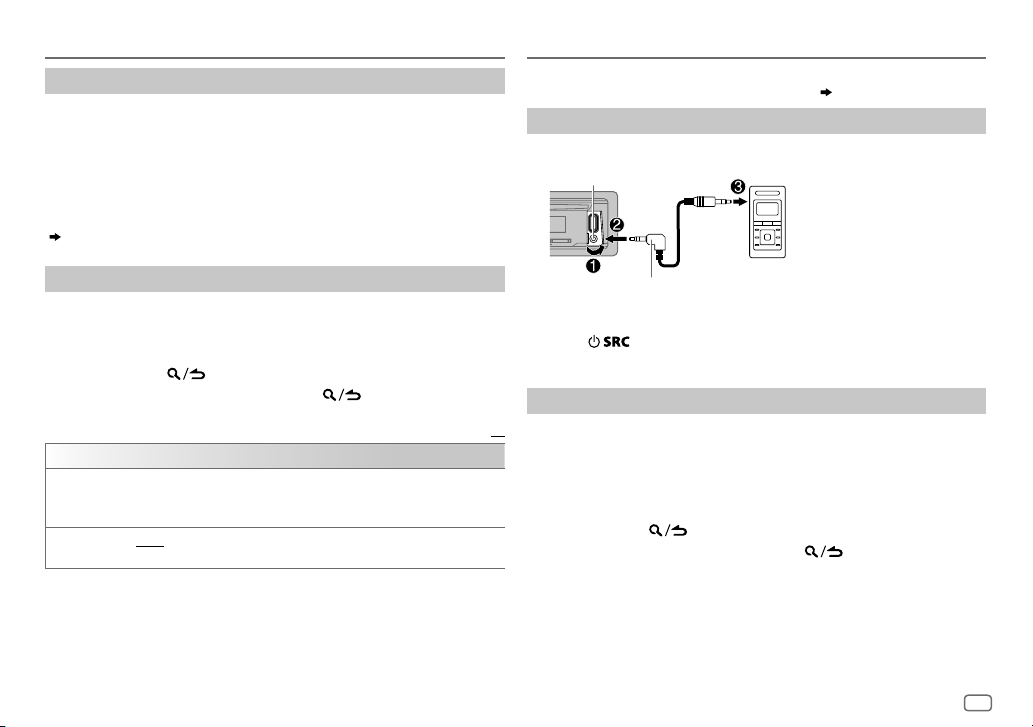

Start listening

1 Connect a portable audio player (commercially available).

2 Press repeatedly to select AUX.

3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select

[SYSTEM]

, then press the knob.

3 Turn the volume knob to select

[AUX NAME SET]

, then press the knob.

4 Turn the volume knob to select an item, then press the knob.

AUX

(default)/

DVD

PORTABLE

GAME

VIDEO

5 Press and hold to exit.

To return to the previous setting item, press .

AUX

Auxiliary input jack

Portable audio

player

3.5mm stereo mini plug with “L” shaped connector

(commercially available)

JS_KWD_KDC_BT510U_EN_EN_5.indd 9JS_KWD_KDC_BT510U_EN_EN_5.indd 9 01-Sep-16 11:23:15 AM01-Sep-16 11:23:15 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

ENGLISH

BLUETOOTH — Connection

Supported Bluetooth profiles

– Hands-Free Profile (HFP)

– Advanced Audio Distribution Profile (A2DP)

– Audio/Video Remote Control Profile (AVRCP)

– Serial Port Profile (SPP)

– Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

– Sub Band Codec (SBC)

– Advanced Audio Coding (AAC)

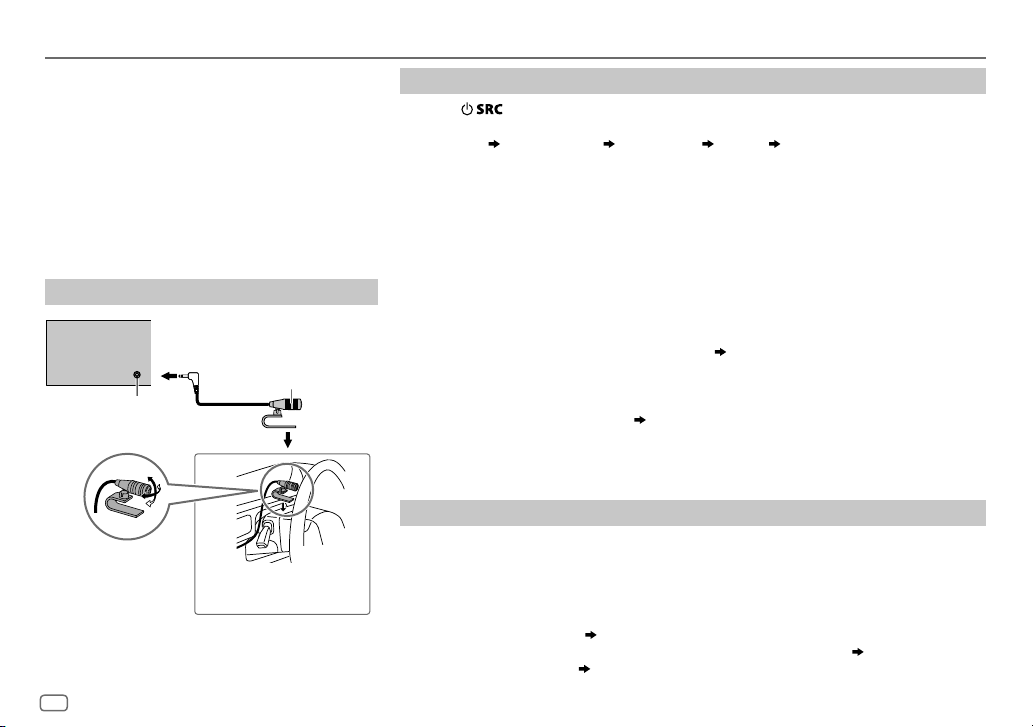

Connect the microphone

BLUETOOTH®

Adjust the microphone

angle Secure using cord clamps (not

supplied) if necessary.

Microphone input jack

Microphone

(supplied)

Rear panel

Pair and connect a Bluetooth device for the first time

1 Press to turn on the unit.

2 Search and select this unit model name (KDC-BT5**U) on the Bluetooth device.

“PAIRING” “PASS XXXXXX” Device name “PRESS” “VOLUME KNOB” appears on the

display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number

(PIN) code immediately after searching.

3 Press the volume knob to start pairing.

“PAIRING OK” appears when pairing is completed.

Once pairing is completed, Bluetooth connection is established automatically. “BT1” and/or

“BT2” on the display window lights up.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even

if you reset the unit. To delete the paired device,

13, [DEVICE DELETE]

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at

any time.

However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and

switch between these five devices.

( 14)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect

the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information.

Auto Pairing

When you connect iPhone/iPod touch/Android device to the USB input terminal, pairing

request (via Bluetooth) is automatically activated.

Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

– Bluetooth function of the connected device is turned on.

–

[AUTO PAIRING]

is set to

[ON]

( 14)

– KENWOOD MUSIC PLAY application is installed on the Android device

( 7)

and

[BROWSE MODE]

is selected.

( 8)

JS_KWD_KDC_BT510U_EN_EN_5.indd 10JS_KWD_KDC_BT510U_EN_EN_5.indd 10 01-Sep-16 11:23:16 AM01-Sep-16 11:23:16 AM

ENGLISH 11

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

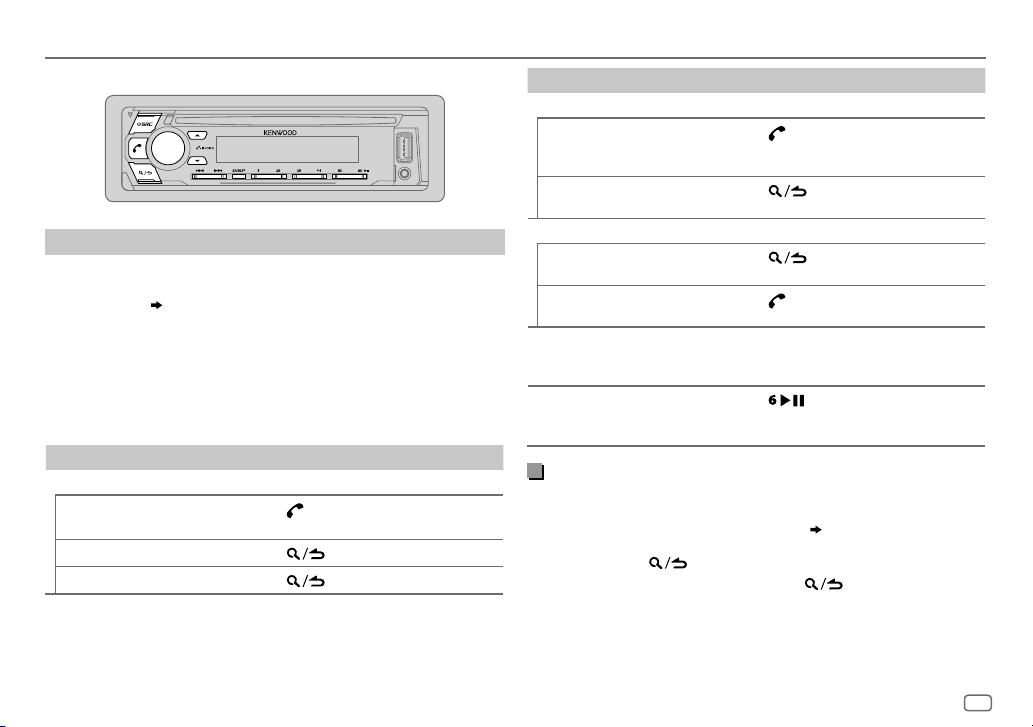

BLUETOOTH — Mobile phone

Receive a call

When there is an incoming call:

• The unit answers the call automatically if

[AUTO ANSWER]

is set to a

selected time.

( 12)

During a call:

• If you turn off the unit or detach the faceplate, the Bluetooth

connection is disconnected.

The following operations may differ or not available depending on the

connected phone.

To On the faceplate

First incoming call...

Answer a call Press or the volume knob or one of

the number buttons (1to 6).

Reject a call Press .

End a call Press .

BLUETOOTH®

To On the faceplate

While talking on the first incoming call...

Answer another incoming

call and hold the current

call

Press .

Reject another incoming

call Press .

While having two active calls...

End current call and

activate held call Press .

Swap between the

current call and held call Press .

Adjust the phone volume

[00]

[35]

(Default:

[15]

)

Turn the volume knob during a call.

• This adjustment will not affect the

volume of the other sources.

Switch between hands-free

and private talk modes

Press during a call.

• Operations may vary according to the

connected Bluetooth device.

Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select an item

( 12)

, then press the knob.

3 Repeat step 2until the desired item is selected or activated.

4 Press and hold to exit.

To return to the previous setting item, press .

JS_KWD_KDC_BT510U_EN_EN_5.indd 11JS_KWD_KDC_BT510U_EN_EN_5.indd 11 01-Sep-16 11:23:18 AM01-Sep-16 11:23:18 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

ENGLISH

CALL HISTORY

(Applicable only if the phone supports PBAP.)

Press the volume knob to select a name or a phone number.

• “I” indicates call received, “O” indicates call made, “M” indicates call

missed.

• Press

DISP

to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history.

Press the volume knob to call.

PHONE BOOK

(Applicable only if the phone supports PBAP.)

Turn the volume knob quickly to enter alphabet search mode (if the

phonebook contains many contacts).

The first menu (ABCDEFGHIJK) appears.

• To go to the other menu (LMNOPQRSTUV or WXYZ1

), press

J/ K

• To select the desired first letter, turn the volume knob or press

S/T

, then press the knob.

Select “1” to search with numbers and select “

” to search with

symbols.

Turn the volume knob to select a name, then press the knob.

Turn the volume knob to select a phone number, then press the knob

to call.

•

The phonebook of the connected phone is automatically transferred to

the unit when pairing.

•

Contacts are categorized as: HM (home), OF (office), MO (mobile), OT

(other), GE (general)

•

This unit can display only non-accent letters. (Accent letters such as “Ú”

is shown as “U”.)

NUMBER DIAL

Turn the volume knob to select a number (0 to 9) or character

(, #, +).

Press

S/T

to move the entry position.

Repeat steps

and

until you finish entering the phone number.

Press the volume knob to call.

BLUETOOTH®

Default:

MIC GAIN –10

to

+10

(

–4

):The sensitivity of the microphone increases as the

number increased.

NR LEVEL –5

to

(

):Adjust the noise reduction level until the least noise is

being heard during a phone conversation.

ECHO CANCEL –5

to

(

):Adjust the echo cancellation delay time until the least

echo is being heard during a phone conversation.

Answer incoming call automatically

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select

[SETTINGS]

, then press the knob.

3 Turn the volume knob to select

[AUTO ANSWER]

, then press the knob.

4 Turn the volume knob to select an item, then press the knob.

(in seconds)/

OFF

(default)

5 Press and hold to exit.

To return to the previous setting item, press .

Make a call

You can make a call from the call history, phonebook, or dialing the

number. Call by voice is also possible if your mobile phone has the

feature.

1 Press to enter Bluetooth mode.

“(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to

another phone.

“(Second device name)” appears.

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press and hold to exit.

To return to the previous setting item, press .

JS_KWD_KDC_BT510U_EN_EN_5.indd 12JS_KWD_KDC_BT510U_EN_EN_5.indd 12 01-Sep-16 11:23:19 AM01-Sep-16 11:23:19 AM

ENGLISH 13

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

BLUETOOTH®

VOICE

Speak the name of the contact you want to call or the voice command

to control the phone functions.

( Make a call using voice

recognition)

BATT LOW

MID

FULL

:Shows the strength of the battery.

NO SIGNAL

LOW

MID

MAX

:Shows the strength of the current received signal.

Functionality depends on the type of the phone used.

Make a call using voice recognition

1 Press and hold to activate the voice recognition of the

connected phone.

2 Speak the name of the contact you want to call or the voice

command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the

instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of

iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1to 6).

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select

[CALL HISTORY]

[PHONE BOOK]

, or

[NUMBER DIAL]

, then press the knob.

3 Turn the volume knob to select a contact or enter a phone number.

If a contact is selected, press the volume knob to show the phone

number.

4 Press and hold one of the number buttons (1to 6).

“STORED” appears when the contact is stored.

To erase a contact from the preset memory, select

[NUMBER DIAL]

in step 2

and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.

2 Press one of the number buttons (1to 6).

3 Press the volume knob to call.

“NO MEMORY” appears if there is no contacts stored.

Other settings

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press and hold to exit.

To return to the previous setting item, press .

Default:

BT MODE

PHONE SELECT

Selects the phone or audio device to connect or disconnect.

“

” appears in front of the device name when connected.

“” appears in front of the current playback audio device.

•

You can only connect a maximum of two Bluetooth phones and one

Bluetooth audio device at any time.

AUDIO SELECT

DEVICE DELETE

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select

[YES]

[NO]

, then press the knob.

PIN CODE EDIT

(0000)

Changes the PIN code (up to 6 digits).

Turn the volume knob to select a number.

Press

/

to move the entry position.

Repeat steps

and

until you finish entering the PIN code.

Press the volume knob to confirm.

JS_KWD_KDC_BT510U_EN_EN_5.indd 13JS_KWD_KDC_BT510U_EN_EN_5.indd 13 01-Sep-16 11:23:19 AM01-Sep-16 11:23:19 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

ENGLISH

BLUETOOTH®

RECONNECT ON

:The unit automatically reconnect when the last connected

Bluetooth device is within range.;

OFF

:Cancels.

AUTO PAIRING ON

:The unit automatically pair supported Bluetooth device

(iPhone/iPod touch/Android device) when it is connected

through USB input terminal.Depending on the operating

system of the connected device, this function may not work. ;

OFF

:Cancels.

INITIALIZE YES

:Initializes all the Bluetooth settings (including stored

pairing, phonebook, and etc.).;

:Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between

the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.

1 Press and hold .

“PLEASE PAIR YOUR PHONE PIN 0000” appears.

2 Search and select this unit model name (KDC-BT5**U) on

the Bluetooth device.

3 Operate the Bluetooth device to confirm pairing.

“TESTING” flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status

HF CNT: Hands-Free Profile (HFP) compatibility

AUD CNT: Advanced Audio Distribution Profile (A2DP)

compatibility

PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold to turn off the unit.

Audio player via Bluetooth

1 Press repeatedly to select BTAUDIO.

2 Operate the Bluetooth audio player to start playback.

To On the faceplate

Playback/pause Press .

Select group or folder Press J/K.

Reverse/Forward skip Press S/T.

Reverse/Fast-forward Press and hold S/T.

Repeat play Press repeatedly.

ALL REPEAT

FILE REPEAT

REPEAT OFF

Random play Press and hold to select

ALL RANDOM

• Press to select

RANDOM OFF

Select a file from a folder/list Refer to “Select a file from a folder/list” on

page 8.

Switch between connected

Bluetooth audio devices

Press 5.*

Pressing the “Play” key on the connected device itself also causes switching of sound output from the

device.

Operations and display indications may differ according to their availability on the

connected device.

BLUETOOTH — Audio

While in BT AUDIO

source, you can

connect to five

Bluetooth audio

devices and switch

between these five

devices.

JS_KWD_KDC_BT510U_EN_EN_5.indd 14JS_KWD_KDC_BT510U_EN_EN_5.indd 14 01-Sep-16 11:23:20 AM01-Sep-16 11:23:20 AM

ENGLISH 15

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

BLUETOOTH®

Settings to use KENWOOD Remote application

KENWOOD Remote application is designed to control the KENWOOD

car receiver’s operations from the iPhone/iPod (via Bluetooth or via USB

input terminal) or Android smartphone (via Bluetooth).

Preparation: Install the latest version of KENWOOD Remote application on your device before

connecting. For more information, visit <www.kenwood.com/cs/ce/>.

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2until the desired item is selected or activated.

4 Press and hold to exit.

To return to the previous setting item, press .

Default:

REMOTE APP

SELECT

Select the device (IOS or ANDROID) to use the application.

IOS YES

:Selects iPhone/iPod to use the application via Bluetooth or connected via

USB input terminal.;

:Cancels.

If IOS is selected, select iPod BT source (or iPod USB if your iPhone/iPod is

connected via USB input terminal) to activate the application.

•

The connectivity of the application will be interrupted or disconnected if:

– You change from iPod BT source to any playback source connected via the

USB input terminal.

– You change from iPod USB source to iPod BT source.

ANDROID YES

:Selects Android smartphone to use the application via Bluetooth.;

: Cancels.

ANDROID LIST

*:Selects the Android smartphone to use from the list.

Displayed only when

[ANDROID]

[SELECT]

is set to

[YES]

STATUS

Shows the status of the selected device.

IOS CONNECTED

: You are able to use the application using the iPhone/iPod

connected via Bluetooth or USB input terminal.

IOS NOT CONNECTED

: No IOS device is connected to use the application.

ANDROID CONNECTED

: You are able to use the application using the Android

smartphone connected via Bluetooth.

ANDROID NOT CONNECTED

: No Android device is connected to use the

application.

Listen to iPhone/iPod via Bluetooth

You can listen to the songs on the iPhone/iPod via Bluetooth on this unit.

Press repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via

USB input terminal.

( 7)

• If you plug in an iPhone/iPod to the USB input terminal while listening

to iPodBT source, the source automatically change to iPodUSB. Press

to select iPodBT if the device is still connected via Bluetooth.

JS_KWD_KDC_BT510U_EN_EN_5.indd 15JS_KWD_KDC_BT510U_EN_EN_5.indd 15 01-Sep-16 11:23:21 AM01-Sep-16 11:23:21 AM

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

AUDIO SETTINGS

While listening to any source...

1 Press the volume knob to enter

[FUNCTION]

2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2until the desired item is selected or activated.

4 Press and hold to exit.

To return to the previous setting item, press .

Default:

AUDIO CONTROL

SUB-W LEVEL LEVEL –50

LEVEL +10

(

LEVEL 0

): Adjusts the subwoofer output level.

MANUAL EQ

The sound elements (frequency level, tone level, Q factor) are preset into

each selection (

BAND1 LEVEL

BAND13 LEVEL

BAND1 LEVEL

LEVEL LEVEL–9

LEVEL +9

(

LEVEL 0

):Adjusts the level to memorize for

each source. (Before making an adjustment, select the source you want

to adjust.)

BASS EXTEND ON

:Turns on the extended bass.;

OFF

:Cancels.

BAND2 LEVEL

BAND13 LEVEL

LEVEL–9

LEVEL +9

(

LEVEL 0

):Adjusts the level to memorize for

each source. (Before making an adjustment, select the source you want

to adjust.)

Q FACTOR 1.35

1.50

2.00

:Adjust the quality factor.

PRESET EQ NATURAL

ROCK

POPS

EASY

TOP40

JAZZ

POWERFUL

USER

: Selects

a preset equalizer suitable to the music genre. (Select

[USER]

to use the

settings made in

[MANUAL EQ]

BASS BOOST LV1

LV2

LV3

LV4

LV5

:Selects your preferred bass boost level.;

OFF

:Cancels.

LOUDNESS LV1

LV2

:Selects your preferred low and high frequencies boost to

produce a well-balanced sound at a low volume level.;

OFF

:Cancels.

SUBWOOFER SET ON

:Turns on the subwoofer output.;

OFF

:Cancels.

FADER

(Not applicable if 3-way crossover is selected.)

R15

F15

(

):Adjusts the rear and front speaker output balance.

BALANCE L15

R15

(

):Adjusts the left and right speaker output balance.

VOLUME OFFSET –15

(

):Preset the initial volume level of each source. (Before

adjustment, select the source you want to adjust.)

SOUND EFFECT

SOUND RECNSTR

(Sound

reconstruction)

(Not applicable for TUNER source and AUX source.)

:Creates realistic sound by compensating the high-frequency

components and restoring the rise-time of the waveform that are lost

in audio data compression.;

OFF

:Cancels.

SPACE ENHANCE

(Not applicable for TUNER source.)

SML

MED

LRG

:Virtually enhances the sound space.;

OFF

:Cancels.

SND REALIZER LV1

LV2

LV3

:Virtually makes the sound more realistic.;

OFF

:Cancels.

STAGE EQ LOW

MID

:Virtually adjust the sound position heard from the

speakers.;

OFF

:Cancels.

DRIVE EQ ON

: Boosts the frequency to reduce the noise heard from outside the

car or running noise of the tyres.;

OFF

:Cancels.

SPEAKER SIZE

Depending on the crossover type you have selected

( 5)

, 2-way

crossover or 3-way crossover setting items will be shown.

( 17,18)

By default, 2-way crossover type is selected.

X’OVER

DTA SETTINGS

For settings,

18, 19, Digital Time Alignment settings

CAR SETTINGS

• For 2-way crossover:

[SUB-W LEVEL]

[SUBWOOFER SET]

is selectable only if

[SWITCH PREOUT]

is set to

[SUB-W]

( 4)

•

[SUB-W LEVEL]

is selectable only if

[SUBWOOFER SET]

is set to

[ON]

ENGLISH

JS_KWD_KDC_BT510U_EN_EN_5.indd 16JS_KWD_KDC_BT510U_EN_EN_5.indd 16 01-Sep-16 11:23:22 AM01-Sep-16 11:23:22 AM
