MOBILE DATA TERMINAL
KDS-100
SERVICE MANUAL
CONTENTS
OPERATING FEATURES .......................... 2
INSTALLATION ......................................... 2
REALIGNMENT ......................................... 3
ADJUSTMENT .......................................... 5
CIRCUIT DESCRIPTION ............................ 6
DESCRIPTION OF COMPONENTS .......... 9
SEMICONDUCTOR DATA ...................... 10

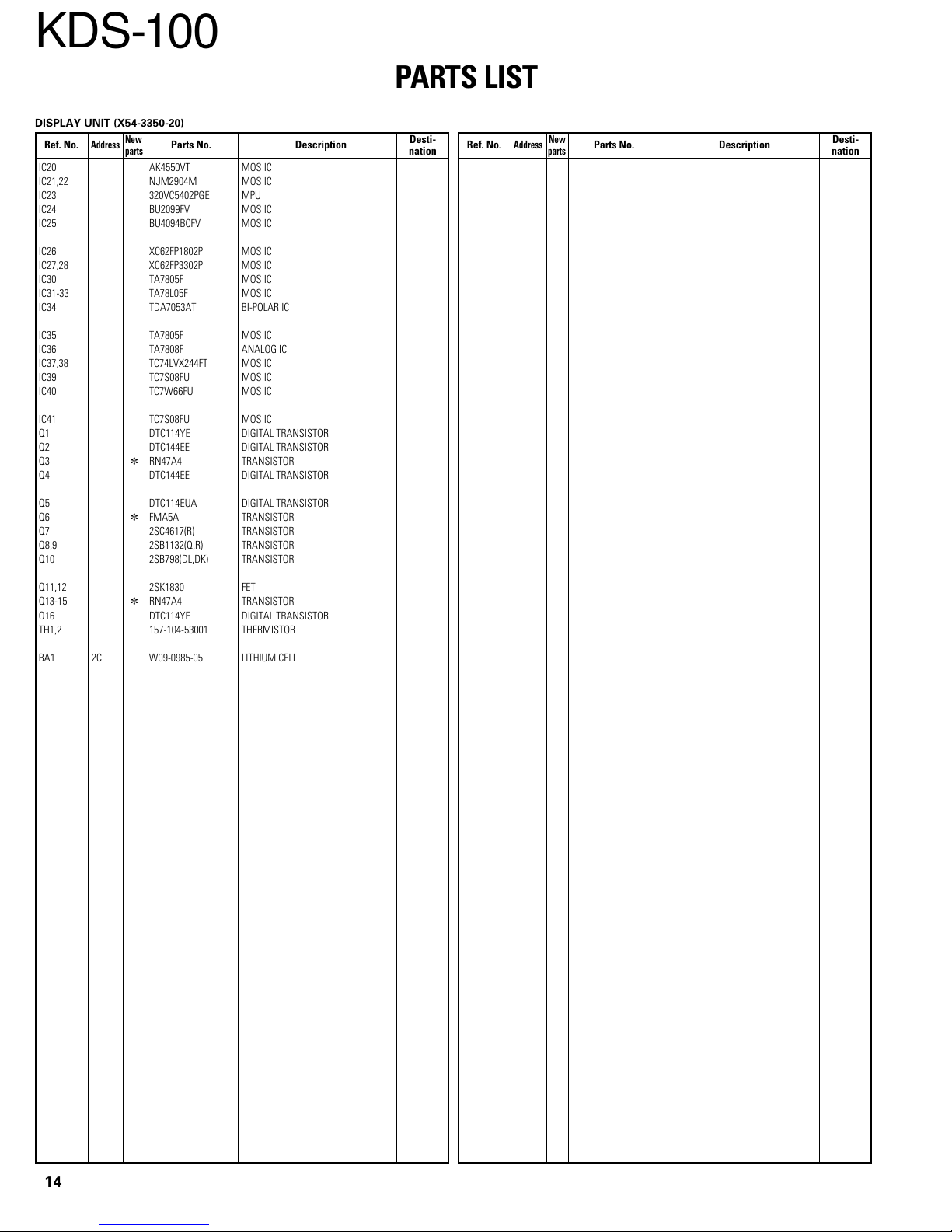

PARTS LIST ............................................. 11
EXPLODED VIEW.................................... 15
PACKING ................................................. 16
PC BOARD VIEWS
DISPLAY UNIT (X54-3350-20) ............ 17
SCHEMATIC DIAGRAM .......................... 23
BLOCK DIAGRAM ................................... 27
LEVEL DIAGRAM .................................... 29
TERMINAL FUNCTION ........................... 30
SPECIFICATIONS .................................... 31
Panel assy
(A62-0979-03)
Key top
(K29-9135-02)
LCD assy
(B38-0856-05)
Bracket
(J29-0689-03)

2
KDS-100
Display
Messages appear on this 240 x 64 dot LCD.
LED Indicator (default settings)
Lights red while “talking” to the mobile unit. Lights
green while “listening” to the mobile unit. Flashes orange
when a message is waiting.
MENU key
Press to enter the Menu mode, in order to select your
desired menu.
Keys 1 ~ 5
Press these function keys to perform the functions de-
scribed in the status bar on the display, directly above the
keys.
SEL (Select) key
Press to select the displayed item.
▲key
Press to scroll up the display.
▼key
Press to scroll down the display.
1
345
6
7
2
TK-780/880/980/981 Series (TK-
*
80 Series)

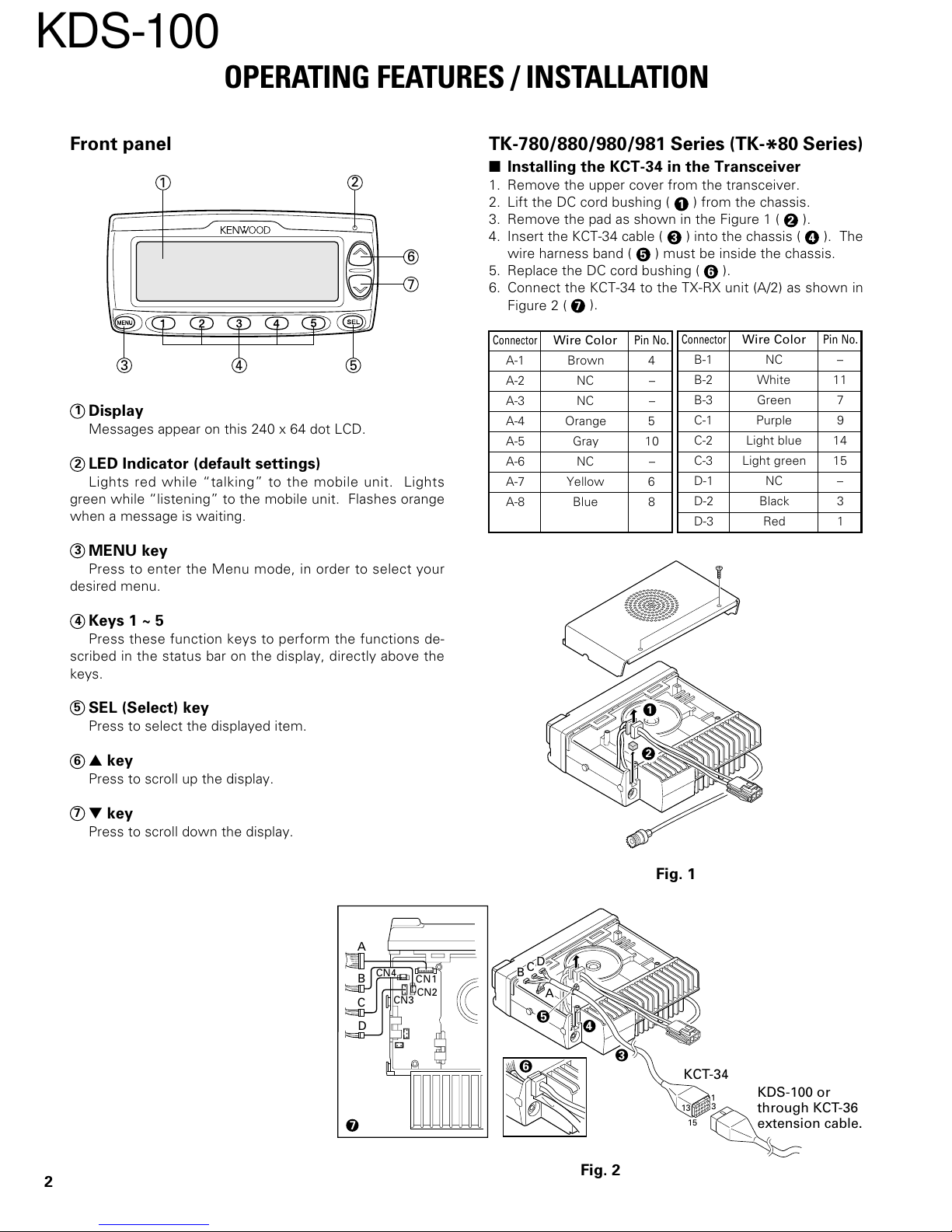

■Installing the KCT-34 in the Transceiver
1. Remove the upper cover from the transceiver.
2. Lift the DC cord bushing ( 1) from the chassis.
3. Remove the pad as shown in the Figure 1 ( 2).
4. Insert the KCT-34 cable ( 3) into the chassis ( 4). The
wire harness band ( 5) must be inside the chassis.
5. Replace the DC cord bushing ( 6).
6. Connect the KCT-34 to the TX-RX unit (A/2) as shown in
Figure 2 ( 7).
Fig. 1
1
2
D
C
B
A
1
3
13
15
KDS-100 or
through KCT-36
extension cable.
KCT-34
CN1
CN2
CN4
CN3
A
B
C
D
3
4
6
7
5
Fig. 2
Connector Wire Color Pin No.
A-1 Brown 4
A-2 NC –
A-3 NC –
A-4 Orange 5
A-5 Gray 10
A-6 NC –
A-7 Yellow 6
A-8 Blue 8
OPERATING FEATURES / INSTALLATION
Front panel
1
2
3
4
5
6
7
Connector Wire Color Pin No.
B-1 NC –
B-2 White 11
B-3 Green 7
C-1 Purple 9
C-2 Light blue 14
C-3 Light green 15
D-1 NC –
D-2 Black 3
D-3 Red 1

3
KDS-100
INSTALLATION / REALIGNMENT
TK-760G/762G/860G/862G/768G/868G Series
(TK-
*
60G Series)

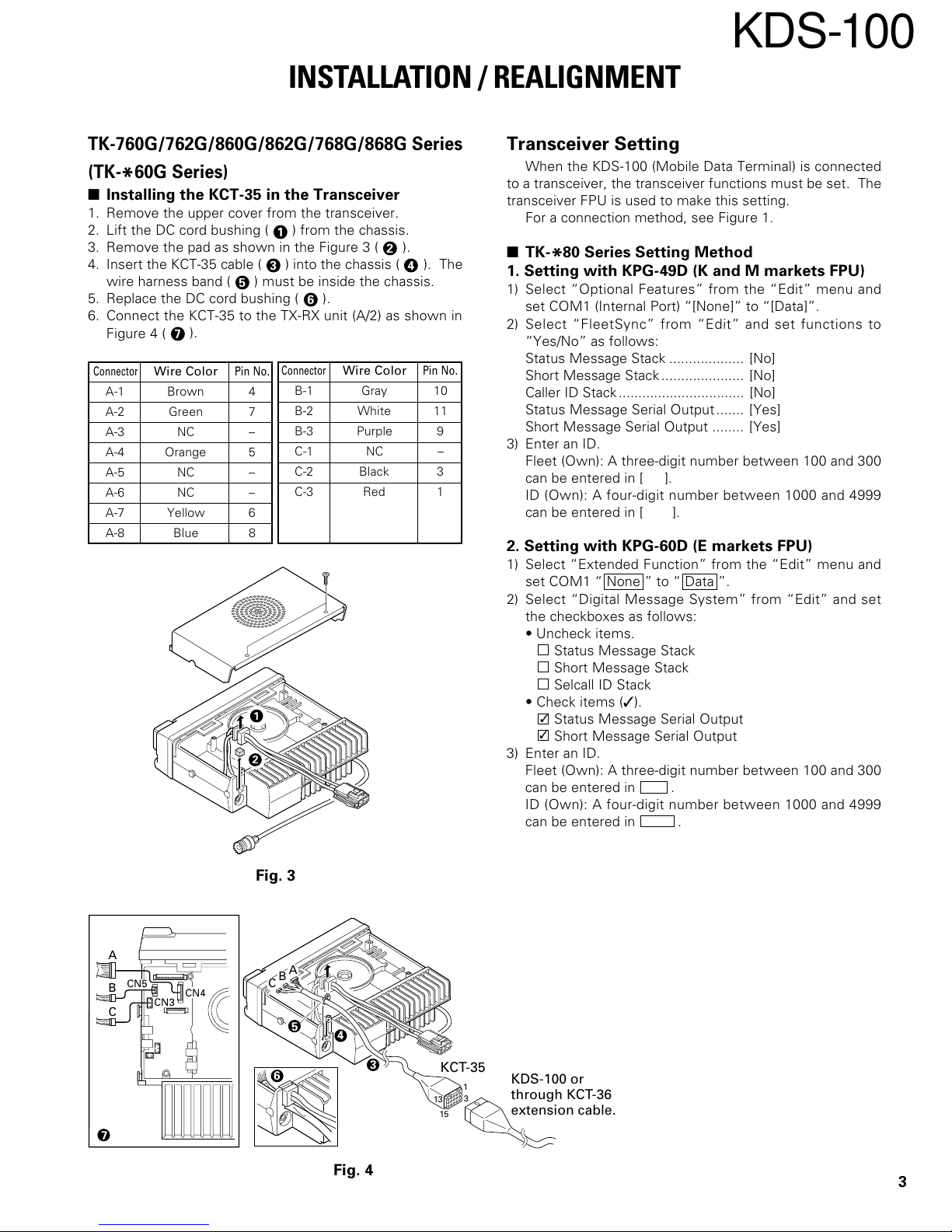

■Installing the KCT-35 in the Transceiver
1. Remove the upper cover from the transceiver.
2. Lift the DC cord bushing ( 1) from the chassis.
3. Remove the pad as shown in the Figure 3 (
2
).
4. Insert the KCT-35 cable ( 3) into the chassis ( 4). The
wire harness band ( 5) must be inside the chassis.
5. Replace the DC cord bushing ( 6).
6. Connect the KCT-35 to the TX-RX unit (A/2) as shown in
Figure 4 ( 7).
Fig. 3
1
2
Fig. 4
A
B
C
3
4
6
7
5
KDS-100 or
through KCT-36
extension cable.
KCT-35
1
13
15
3
CN5
A
B
C
CN4
CN3
Transceiver Setting
When the KDS-100 (Mobile Data Terminal) is connected
to a transceiver, the transceiver functions must be set. The
transceiver FPU is used to make this setting.
For a connection method, see Figure 1.
■TK-*80 Series Setting Method
1. Setting with KPG-49D (K and M markets FPU)
1) Select “Optional Features” from the “Edit” menu and
set COM1 (Internal Port) “[None]” to “[Data]”.
2) Select “FleetSync” from “Edit” and set functions to
“Yes/No” as follows:
Status Message Stack ................... [No]
Short Message Stack ..................... [No]
Caller ID Stack................................ [No]
Status Message Serial Output....... [Yes]
Short Message Serial Output ........ [Yes]
3) Enter an ID.
Fleet (Own): A three-digit number between 100 and 300
can be entered in [ ].
ID (Own): A four-digit number between 1000 and 4999
can be entered in [ ].
2. Setting with KPG-60D (E markets FPU)
1) Select “Extended Function” from the “Edit” menu and
set COM1 “ None ” to “ Data ”.
2) Select “Digital Message System” from “Edit” and set
the checkboxes as follows:
• Uncheck items.
Status Message Stack
Short Message Stack
Selcall ID Stack
• Check items (✓).
Status Message Serial Output
Short Message Serial Output
3) Enter an ID.
Fleet (Own): A three-digit number between 100 and 300
can be entered in .
ID (Own): A four-digit number between 1000 and 4999
can be entered in .
✓
✓
Connector Wire Color Pin No.
A-1 Brown 4
A-2 Green 7
A-3 NC –
A-4 Orange 5
A-5 NC –
A-6 NC –
A-7 Yellow 6
A-8 Blue 8
Connector Wire Color Pin No.
B-1 Gray 10
B-2 White 11
B-3 Purple 9
C-1 NC –
C-2 Black 3
C-3 Red 1

4
KDS-100
■TK-*60G Series Setting Method
Use the KPG-56D as the FPU.
1) Select “Key assignment” from “Edit” on the menu bar,
and set “FootSwitch” to “[None]”.
2) Select “Optional Features” from “Edit” and change
“ACC Hook/DTC” from “[ACC Hook]” to “[DTC]”.
3) Enter an ID with the FPU (KPG-71D) by connecting a
transceiver with the KDS-100.
For a connection method, see Figure 1.

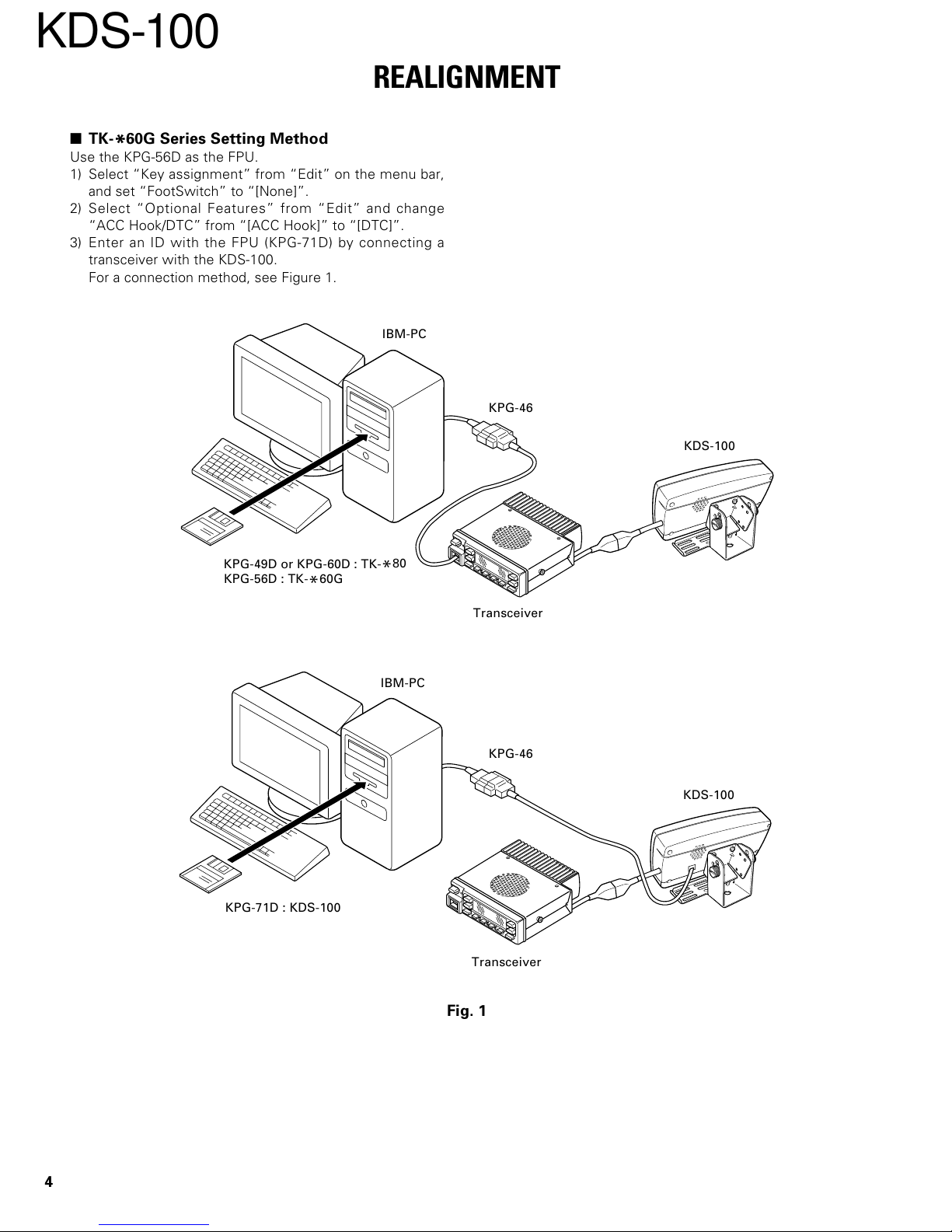

REALIGNMENT
Fig. 1
IBM-PC
Transceiver
KDS-100
KPG-49D or KPG-60D : TK-*80
KPG-56D : TK-*60G
IBM-PC
Transceiver
KDS-100
KPG-71D : KDS-100
KPG-46
KPG-46

5
KDS-100
DI input level Adjustment Codec IC (IC20)
(mVrms) digit input level (mVp-p)
50 129
100 64
200 33
300 21
400 16
500 13
600 11 1000
700 9
800 8
900 7
1000 6
1100 6
1200 6
Conversion table
ADJUSTMENT
DI input VS DIGIT
DIGIT
DI input level (mVrms)
50 200 400 600 800 1000 1200
129
64
33
21
16 13 11 987666
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140

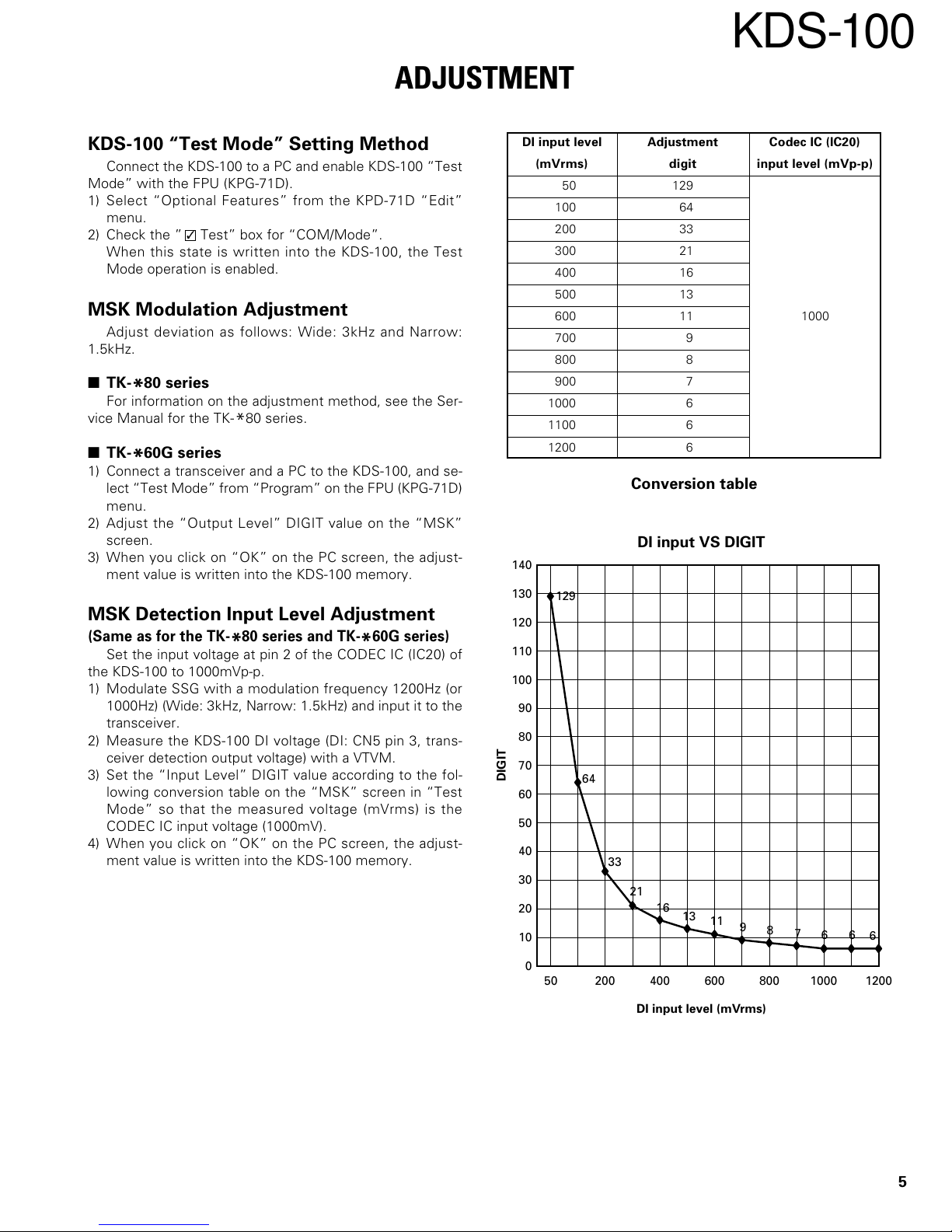

KDS-100 “Test Mode” Setting Method
Connect the KDS-100 to a PC and enable KDS-100 “Test
Mode” with the FPU (KPG-71D).
1) Select “Optional Features” from the KPD-71D “Edit”
menu.
2) Check the ” Test” box for “COM/Mode”.
When this state is written into the KDS-100, the Test
Mode operation is enabled.
MSK Modulation Adjustment
Adjust deviation as follows: Wide: 3kHz and Narrow:
1.5kHz.
TK-*80 series
For information on the adjustment method, see the Ser-
vice Manual for the TK-*80 series.
TK-*60G series
1) Connect a transceiver and a PC to the KDS-100, and se-
lect “Test Mode” from “Program” on the FPU (KPG-71D)
menu.
2) Adjust the “Output Level” DIGIT value on the “MSK”
screen.
3) When you click on “OK” on the PC screen, the adjust-
ment value is written into the KDS-100 memory.
MSK Detection Input Level Adjustment
(Same as for the TK-
*
80 series and TK-
*
60G series)
Set the input voltage at pin 2 of the CODEC IC (IC20) of
the KDS-100 to 1000mVp-p.
1) Modulate SSG with a modulation frequency 1200Hz (or
1000Hz) (Wide: 3kHz, Narrow: 1.5kHz) and input it to the
transceiver.
2) Measure the KDS-100 DI voltage (DI: CN5 pin 3, trans-
ceiver detection output voltage) with a VTVM.
3) Set the “Input Level” DIGIT value according to the fol-
lowing conversion table on the “MSK” screen in “Test
Mode” so that the measured voltage (mVrms) is the
CODEC IC input voltage (1000mV).
4) When you click on “OK” on the PC screen, the adjust-
ment value is written into the KDS-100 memory.


6
KDS-100

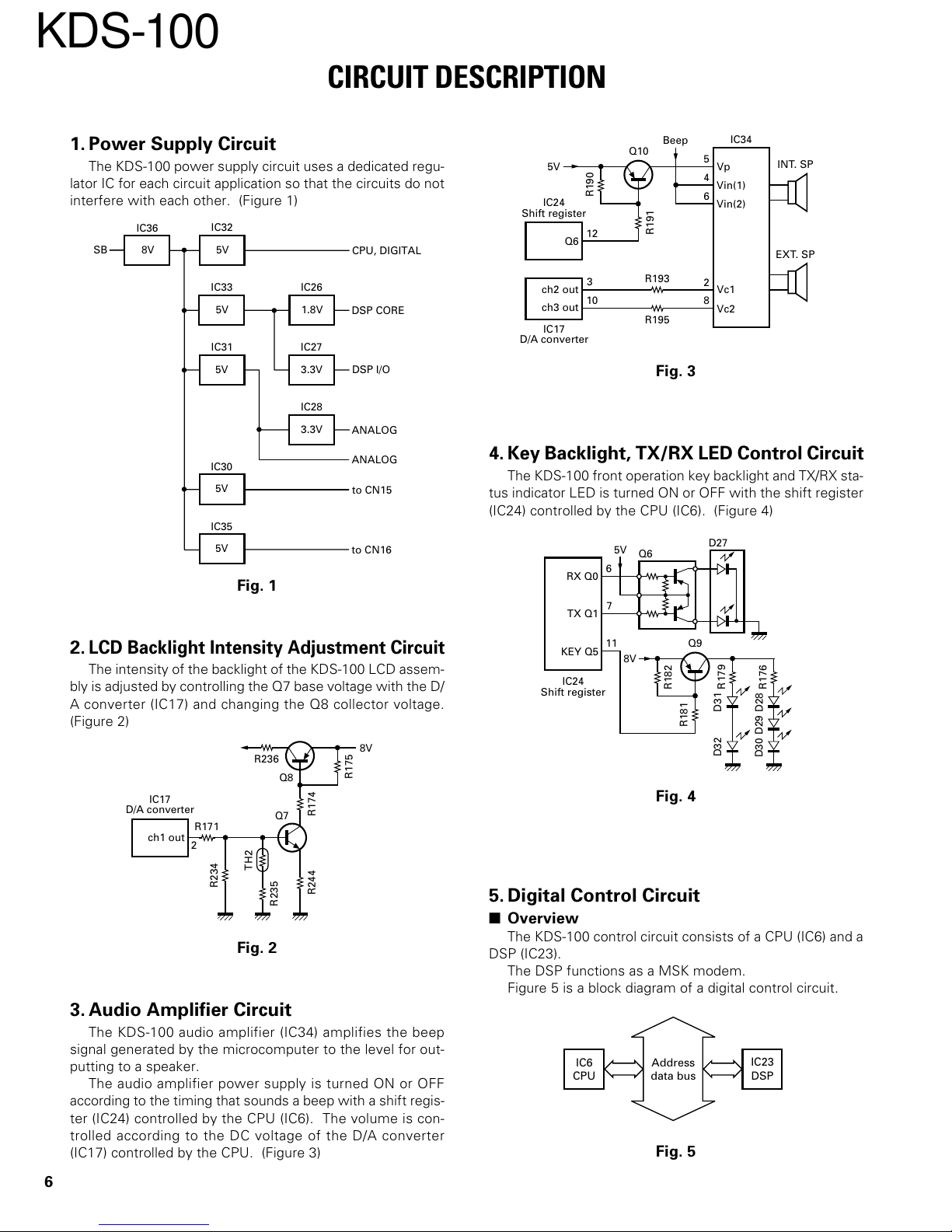

1. Power Supply Circuit
The KDS-100 power supply circuit uses a dedicated regu-
lator IC for each circuit application so that the circuits do not
interfere with each other. (Figure 1)
4. Key Backlight, TX/RX LED Control Circuit
The KDS-100 front operation key backlight and TX/RX sta-
tus indicator LED is turned ON or OFF with the shift register
(IC24) controlled by the CPU (IC6). (Figure 4)
IC36 IC32
IC33
IC31
IC26
1.8V
IC30
3.3V
3.3V
IC27
IC28
8V 5V
5V
5V
5V
IC35
5V
DSP CORE
CPU, DIGITAL
DSP I/O
ANALOG
ANALOG
to CN15
to CN16
SB
2. LCD Backlight Intensity Adjustment Circuit
The intensity of the backlight of the KDS-100 LCD assem-
bly is adjusted by controlling the Q7 base voltage with the D/
A converter (IC17) and changing the Q8 collector voltage.
(Figure 2)
R236
Q7
Q8
R175
8V
R174R244
TH2
R235
R234
R171
IC17
D/A converter
ch1 out 2
3. Audio Amplifier Circuit
The KDS-100 audio amplifier (IC34) amplifies the beep
signal generated by the microcomputer to the level for out-
putting to a speaker.
The audio amplifier power supply is turned ON or OFF
according to the timing that sounds a beep with a shift regis-
ter (IC24) controlled by the CPU (IC6). The volume is con-
trolled according to the DC voltage of the D/A converter
(IC17) controlled by the CPU. (Figure 3)
5V
Q10
R190
R191
12
3
10
IC24
Shift register
Q6
ch2 out
ch3 out
IC17
D/A converter
Beep IC34
Vin(1)
Vin(2)
Vc1
Vc2
R193
R195
INT. SP
EXT. SP
Vp
5
4
6
2
8
5. Digital Control Circuit
Overview
The KDS-100 control circuit consists of a CPU (IC6) and a
DSP (IC23).
The DSP functions as a MSK modem.
Figure 5 is a block diagram of a digital control circuit.
D31
R182
R181
R179
R176
D32
D28
D29
D30
Q6
D27
5V
8V
Q9
6
7
11
RX Q0
TX Q1
KEY Q5
IC24
Shift register
IC6
CPU
IC23
DSP
Address
data bus
Fig. 1
Fig. 2
Fig. 3
Fig. 5
Fig. 4
CIRCUIT DESCRIPTION

7
KDS-100
Address control circuit
The CPU operates in the single-chip mode using an inter-
nal ROM and RAM.
It communicates with the DSP through an external data
bus.
Since the CPU operates on 5V and the DSP and flash
ROM (IC13) operate on 3V, the address data bus is con-
nected through a 5V-3V level conversion IC (IC11, 11, 36,
37). (Figure 6)
Data bus
Address bus
Address bus
IC11
5V→3V
IC10
5V←→3V
IC36
5V→3V
IC37
5V→3V
IC6
CPU
IC23
DPS
IC13
Flash
ROM
Data bus
Real-time clock
The message transmission/reception time is controlled
by the dedicated real-time clock IC (IC2).
When the power supply is OFF, it is backed up by an in-
ternal secondary lithium battery (BA1).
System reset, RAM, real-time clock backup
The power supply voltage monitor IC (IC1) monitors
power supply voltage (8V). If the voltage falls, the PFO port
goes “LOW” level, the CPU PFint (INT0) port also goes
“LOW” level, and the CPU stops. If the 5V power supply
voltage (for the CPU, S-RAM, and real-time clock IC) drops,
the backup power supply for the S-RAM (IC12) and real-time
clock IC (IC2) is switched to the secondary lithium battery
(BA1).
When the power supply restores to its normal voltage,
the IC1 PF0 port goes “H” level and the CPU PFint (INT0)
port also goes “H” level. In addition, the RESET signal from
IC1 is sent to the CPU RESET port to initialize and start the
CPU.
CEOUT is obtained by gating CEIN (S-RAM CE) with CEIN
(S-RAM CE) output. When the VCC is equal to or higher
than the threshold, CEOUT tracks CEIN (S-RAM CS1). If the
VCC is lower than the threshold, CEOUT goes “High”. (Fig-
ure 7)
Note:
The backup lithium battery (BA1) is fully charged from the
empty state when the KDS-100 is turned on for about
150 hours.
Reset &
watchdog
time base
Reset
generator
Watchdog
transition detector
Watchdog
timer
4.65V –
+
1.3V –
+
–
+
CEIN
VBATT
S-RAM
CS1
VCC
5V
OSC IN
OSC SEL
WATCHDOG
INPUT (WDI)
POWER FAIL
INPUT (PFI)
VOUT
CEOUT
LOW LINE
RESET
RESET
WATCHDOG
OUTPUT (WDO)
POWER FAIL
OUTPUT (PFO)
IC6 pin18
PFint (INT0)
IC6 pin10
RESET
R250
BA1
R32
R33
C242
R31
8V
BATT ON
Serial ports
The KDS-100 CPU has three serial ports. Two RS232C
level lines with two-channel RS232C driver (IC3) and two 5V
logic level serial control lines with two types of analog
switches (IC40, IC5) are controlled, selected and used.
Analog SW
IC6
PORT0 33
34
TX0
TX1
RX0
RX1
TX2
RX2
29
30
PORT1
PORT2
IC5
IC3
2
12
1
2
Y0
X0
Y1
X1
Y
X
15
14
TX0 or TX1
RX0 or RX1
RADIO
MIC
CN5
J1
COM1
CN1
12
11
13
IC40 (2/2)
Analog SW
IC40 (2/2)
Analog SW
RS232C Driver
10
8
ch1
ch2
56
28
27
14
12
7
9
COM2
CN2
Fig. 6
Fig. 7
Fig. 8
CIRCUIT DESCRIPTION

8
KDS-100
6. Transmit/Receive Signal Flow
Receive data signal
The transceiver detection output passes through CN5
No. 3 pin and amplifier (IC15), and its level is adjusted by the
D/A converter (IC17). The resulting signal is amplified by the
amplifier (IC22), goes to the CODEC (IC20), and is converted
to digital data.
This data is transferred serially from the CODEC to the
DSP (IC23) and operated by the DSP.
IC15
NJM2904M
AMP
SB
SBO
DI
GND
DO
PTT
DTC
SQ
TXS
AM
MM
ID
DISPOFF
TXD
RXD
MIC
DI
CN5 1
15
IC21
NJM2904M
AMP
SP
CN17
IC34
TDA7053AT
AUDIO AMP
Q10
2SB798
(DL,DK)
5V
AMP SW
1
2
+
–
DO
IC17
M62364FP
ELE-VOL
DI
MIC
DO
BUZZER
IC20
AK4550VT
CODEC
IC22
NJM2904M
AMP
IC14
NJM2904M
AMP
BUZZER
Q7
2SC4617
Q8
2SB1132
LED
DIMMER
IC23
TMS320VC5402PGE
IC19
TC74VHC4040FT
COUNTER
DSP
X2
12.288MHz
DSPCLK
EXT SP
CN18
1
2
+
–
Transmit data signal
The digital data processed by the DSP is transferred seri-
ally from the DSP to the CODEC, and converted to an analog
signal. It is amplified by the amplifier (IC14), its level is ad-
justed by the D/A converter (IC17), the signal passes
through the buffer amplifier (IC21), passes through CN5
No.5 pin, and is output to the transceiver as a transmit data
signal.
Fig. 9
CIRCUIT DESCRIPTION

9
KDS-100
Display Unit (X54-3350-20)
Ref. No. Use/Function Operation/Condition
Q1,2 Switching Logic Inverter
Q3 Switching Level converter RS232C→TTL
Q4 Switching Level converter
Q5 Switching Logic Inverter
Q6 Switching LED switch
Q7,8 DC amp LCD backlight adjustment
Q9 Switching LED switch, Keyboard backlight
Q10 Switching AF amp power supply SW
Q11,12 Switching
Q13~16 Switching Level converter 3V→5V
IC1 Reset IC Reset backup
IC2 Real time clock Time management
IC3 Level shift Level converter RS232C→TTL
IC4 Extended I/O Serial/parallel conversion
IC5 Multiplexer Serial port SW
IC6 CPU 16 bit
IC7 Analog SW Serial/parallel conversion
IC8,9 Buffer Extended I/O
IC10 Level converter 5V←→3V
IC11 Level converter 5V→3V
IC12 Memory 5V S-RAM
IC13 Memory 3.3V Flash ROM
IC14 Amplifier Output data
IC15 Amplifier Input data
IC16 Gate IC Logic inverter
IC17 D/A converter
IC19 Clock demultiplier For DSP
IC20 A/D,D/A CODEC
IC21,22 Amplifier Output data
IC23 DSP IC
Ref. No. Use/Function Operation/Condition
IC24 Shift register LED, Audio amp SW
IC25 Shift register KEY Scan
IC26 Regulator 1.8V
IC27,28 Regulator 3.3V
IC30 Regulator 5V (1A)
IC31 Regulator 5V (150mA)
IC32,33 Regulator 5V (15mA)
IC34 AF amp
IC35 Regulator 5V (1A)
IC36 Regulator 8V (1A)
IC37,38 Level converter 5V→3V
IC39 Gate IC IC10 direction
IC40 Analog SW Serial/parallel conversion
IC41 Buffer Reset signal
D1 Over current 0.75A
protection
D2 Zener diode Connection detector
D3 Backward voltage
protection
D4,5 Reverse current
protection
D6~17 Surge absorption
D18 Level converter
D19~24 Surge absorption
D27 LED TX/RX
D28~32 LED KEY backlight
D34~39 Surge absorption
D40 Reverse current
protection
DESCRIPTION OF COMPONENTS

10
KDS-100
CPU : 30620M8A-2M6GP (IC6)
Pin No. Pin Name I/O Function
1 IOA1 I/O Common I/O 1 (A1)
2 VRLD O Electrolic VR LD
3 KBCLKO O PC/AT keyboard clock
4 KBDATI I PC/AT keyboard data
5 KBDATO O PC/AT keyboard data
6 BYTE I 5V (5C)
7 CNVSS I GND
8 ACCDET I Accessory power detect
9 FRBSY I Flash ROM busy detect
10 RESET I Reset
11 XOUT O System clock
12 VSS - GND
13 XIN I System clock
14 VCC - 5V Power supply
15 NMI I NC
16 SRCLK1 I Swipe reader clock 1
17 SRCLK2 I Swipe reader clock 2
18 PFINT I Low voltage detect
19 KEYSTB O Serial-parallel IC3 STB
20 BUZZER O Buzzer output
21 IOB4 I/O Common I/O 8 (B4)
22 IOB3 I/O Common I/O 7 (B3)
23 IOA4 I/O Common I/O 6 (A4)
24 IOA3 I/O Common I/O 5 (A3)
25 RADOE O Serial-parallel IC2 OE
26 RADST O Serial-parallel IC2 ST
27 RXD2 I Common serial input 2
28 TXD2 O Common serial output 2
29 TXD1 O Common serial output 1 or
GPS receiver
30 RXD1 I Common serial input 1 + L34 or
GPS receiver
31 CLK O Common CLOCK
32 DATA O Common DATA
33 TXD0 O Radio data output
34 RXD0 I Radio data input
35 RADSQ I Radio squelch input
36 RADTXS I Radio TXS input
Pin No. Pin Name I/O Function
37 RDY I Not used
38 ALE O Not used
39 HOLD I Not used
40 HLDA O Not used
41 BLCK O Not used
42 RD O Read signal
43 BHE O Not used
44 WR O Write signal
45 DSPCS O DSP chip select
46 SRAMCE O S-RAM CE1
47 LCDCS O LCD ASSY CS
48 FROMCE - Flash ROM CE
49~59 A19~A9 - Address bus 19~9
60 VCC - Power supply
61 A8 - Address bus 8
62 VSS - GND
63~70 A7~A0 - Address bus 7~0
71 KBCLK I PC/AT keyboard CLOCK
72 DSPRINT I DSP TX interrupt
73 DSPTINT I DSP RX interrupt
74 DSPRST O DSP reset output
75 SRSEL I Swipe reader select
76 SRDAT1 I Swipe reader data 1
77 SRDAT2 I Swipe reader data 2
78 LEDLCK O Serial-parallel IC1 LCK
79~86 D7~D0 - Data bus 7~0
87~90 KEY3~KEY0 I Key input 3~0
91 LCDRST O LCD ASSY reset
92 TEMP I Temperature detect
93 RTCCE O RTC CE0
94 AVSS - Analog power supply (GND)
95 MICCM I MIC CM terminal input
96 VREF - Reference voltage
97 AVCC - Analog power supply (5C)
98 IOB2 I/O Common I/O 4 (B2)
99 IOB1 I/O Common I/O 3 (B1)
100 IOA2 I/O Common I/O 2 (A2)
SEMICONDUCTOR DATA

KDS-100
PARTS LIST
11
New Parts. indicates safety critical components.
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L: Scandinavia K: USA P: Canada
Y: PX (Far East, Hawaii) T: England E: Europe
Y: AAFES (Europe) X: Australia M: Other Areas
KDS-100

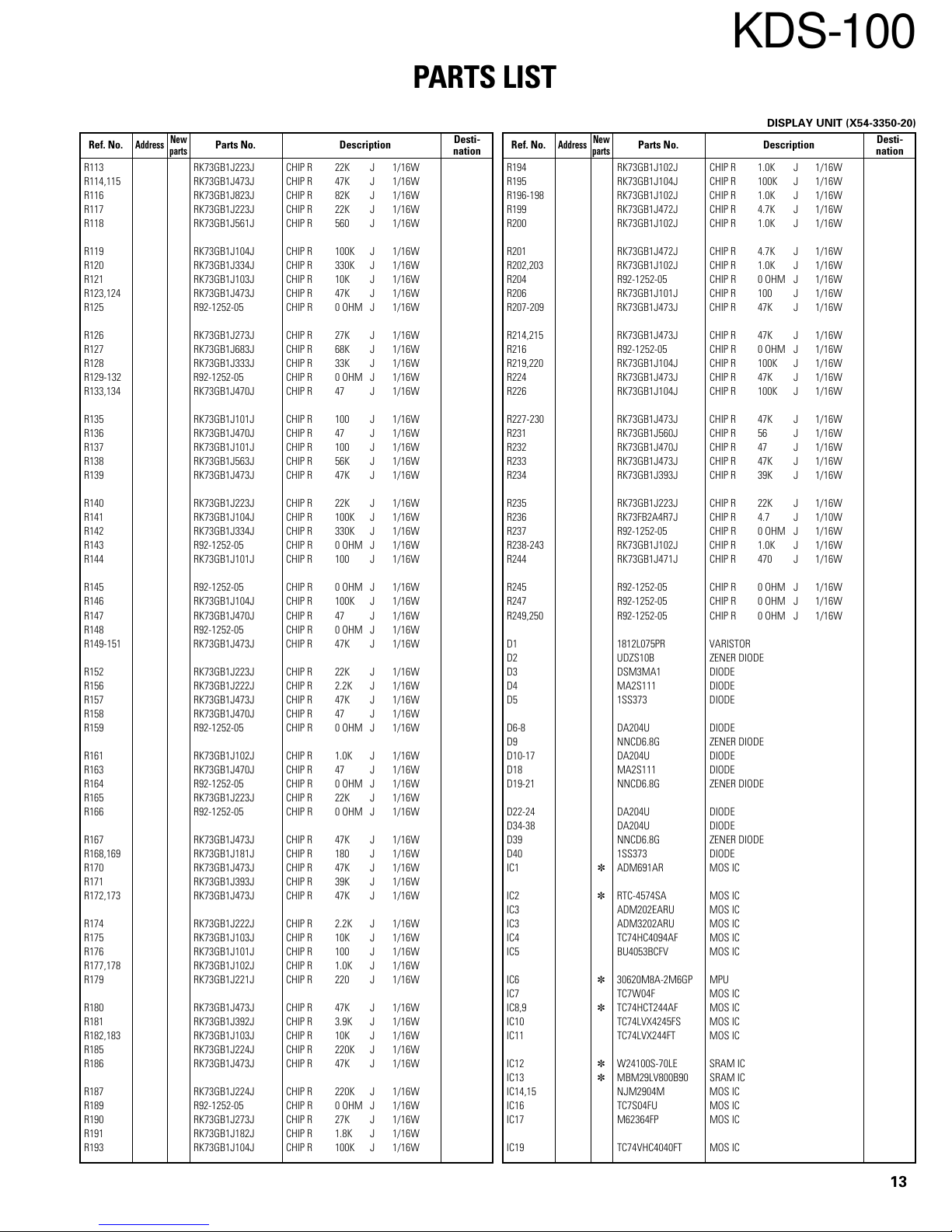

DISPLAY UNIT (X54-3350-20)
New Desti-
parts nation
Ref. No.
Address Parts No. Description
New Desti-
parts nation
Ref. No.
Address Parts No. Description
11AA62-0979-03 PANEL ASSY
21CA82-0047-01 REAR PANEL
41CB09-0624-13 CAP
52BB38-0856-05 LCD ASSY
63EB62-1480-10 INSTRUCTION MANUAL
82CE37-0980-15 CONNECTING CABLE (TO RADIO)
91BE37-0981-05 SPEAKER CORD
11 1C,2C F07-1853-03 MOLDING COVER
13 1B G10-1287-04 FIBROUS SHEET
14 1C G13-1906-04 CUSHION
16 2E H12-3115-02 PACKING FIXTURE
17 2D H12-3116-12 PACKING FIXTURE
18 1E H12-3117-03 PACKING FIXTURE
19 2E H12-3118-03 PACKING FIXTURE
20 2D H13-1177-14 CARTON BOARD
21 3E H25-0337-04 PROTECTION BAG (180/300/0.03)
22 1E H25-2342-04 PROTECTION BAG
23 2D H25-2343-04 PROTECTION BAG
24 3D H52-1846-02 ITEM CARTON CASE
26 1B J21-8425-04 HARDWARE FIXTURE (SP)
27 1D J29-0689-03 BRACKET (BASE) ACCESSORY
28 2D J29-0690-14 BRACKET (REAR) ACCESSORY
30 2A K29-9135-02 KEY TOP
A1DN08-0546-04 ADJUSTMENT SCREW ACCESSORY
B 1C N80-2608-45 PAN HEAD TAPTITE SCREW
C 1C,2C N82-2606-45 BINDING HEAD TAPTITE SCREW
D 1B N87-2606-46 BRAZIER HEAD TAPTITE SCREW
32 1D N99-2025-05 SCREW SET ACCESSORY
34 1B T07-0266-05 SPEAKER
D27 B30-2151-05 LED (RED/GREEN)
D28-32 B30-2254-05 LED
C1 CK73GB1H102K CHIP C 1000PF K
C2-24 CC73GCH1H101J CHIP C 100PF J
C27-33 CC73GCH1H101J CHIP C 100PF J
C34 C92-0519-05 CHIP-TAN 1.0UF 25WV
C35,36 CC73GCH1H101J CHIP C 100PF J
C37,38 CK73GB1C104K CHIP C 0.10UF K
C39-42 C92-0519-05 CHIP-TAN 1.0UF 25WV
C43 C92-0628-05 CHIP-TAN 10UF 10WV
C44 CK73GB1C104K CHIP C 0.10UF K
C45 C92-0519-05 CHIP-TAN 1.0UF 25WV
C46-49 CK73GB1E103K CHIP C 0.010UF K
C50-53 C92-0628-05 CHIP-TAN 10UF 10WV
C54 CK73GB1H471K CHIP C 470PF K
C55 C92-0628-05 CHIP-TAN 10UF 10WV
C56 CK73GB1H471K CHIP C 470PF K
C75 C92-0003-05 CHIP-TAN 0.47UF 25WV
C79 C92-0628-05 CHIP-TAN 10UF 10WV
C84,85 C92-0628-05 CHIP-TAN 10UF 10WV
C89 C92-0546-05 CHIP-TAN 68UF 6.3WV
C98 CC73GCH1H101J CHIP C 100PF J
C103 CK73GB1E103K CHIP C 0.010UF K
C104 CC73GCH1H101J CHIP C 100PF J
C113 CK73GB1E103K CHIP C 0.010UF K
C124-126 CK73GB1E103K CHIP C 0.010UF K
C127 C92-0628-05 CHIP-TAN 10UF 10WV
C128 CK73GB1E103K CHIP C 0.010UF K
C129 CC73GCH1H101J CHIP C 100PF J
C130,131 C92-0628-05 CHIP-TAN 10UF 10WV
C132 CK73GB1E103K CHIP C 0.010UF K
C133,134 CK73GB1H471K CHIP C 470PF K
C135-137 C92-0628-05 CHIP-TAN 10UF 10WV
C138 CK73GB1E103K CHIP C 0.010UF K
C139-141 CK73GB1C104K CHIP C 0.10UF K
C142-144 CK73GB1E103K CHIP C 0.010UF K
C145,146 C92-0628-05 CHIP-TAN 10UF 10WV
C147 CK73GB1H471K CHIP C 470PF K
C148 CK73GB1E103K CHIP C 0.010UF K
C149-152 C92-0628-05 CHIP-TAN 10UF 10WV
C153 CK73GB1H471K CHIP C 470PF K
C154 C92-0519-05 CHIP-TAN 1.0UF 25WV
C155 CK73GB1C104K CHIP C 0.10UF K
C156 CK73GB1H471K CHIP C 470PF K
C157 C92-0628-05 CHIP-TAN 10UF 10WV
C158,159 CK73GB1E103K CHIP C 0.010UF K
C160 CC73GCH1H101J CHIP C 100PF J
C161 CK73GB1E103K CHIP C 0.010UF K
C163 C92-0628-05 CHIP-TAN 10UF 10WV
C165 CC73GCH1H101J CHIP C 100PF J
C166 CK73GB1E103K CHIP C 0.010UF K
C168 CK73GB1E103K CHIP C 0.010UF K
C169 CK73GB1H471K CHIP C 470PF K
C170 C92-0628-05 CHIP-TAN 10UF 10WV
C171 CC73GCH1H270J CHIP C 27PF J
C172 CK73GB1H102K CHIP C 1000PF K
C173 CC73GCH1H270J CHIP C 27PF J
C174 CK73GB1E103K CHIP C 0.010UF K
C175 CK73GB1H471K CHIP C 470PF K
C176 C92-0628-05 CHIP-TAN 10UF 10WV
C177,178 CK73GB1E103K CHIP C 0.010UF K
C179 CK73GB1H471K CHIP C 470PF K
C180,181 CK73GB1E103K CHIP C 0.010UF K
C182 CK73GB1H471K CHIP C 470PF K
C183,184 C92-0628-05 CHIP-TAN 10UF 10WV
C185 CK73GB1H471K CHIP C 470PF K
C186,187 C92-0628-05 CHIP-TAN 10UF 10WV
C188 CK73GB1H471K CHIP C 470PF K
C189-191 CC73GCH1H101J CHIP C 100PF J
C192 CK73GB1C104K CHIP C 0.10UF K
C193-195 C92-0560-05 CHIP-TAN 10UF 6.3WV
C196 CK73GB1E153K CHIP C 0.015UF K
KDS-100
DISPLAY UNIT (X54-3350-20)

KDS-100
PARTS LIST
12
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
DISPLAY UNIT (X54-3350-20)
C197-199 CK73FB1C105K CHIP C 1.0UF K
C201 CC73GCH1H470J CHIP C 47PF J
C202 CK73GB1C104K CHIP C 0.10UF K
C203 CC73GCH1H101J CHIP C 100PF J
C204 C92-0721-05 ELECTRO 330UF 25WV
C205 C92-0560-05 CHIP-TAN 10UF 6.3WV
C206,207 CK73GB1C104K CHIP C 0.10UF K
C208-210 C92-0719-05 ELECTRO 47UF 25WV
C211,212 CK73GB1C104K CHIP C 0.10UF K
C213 C92-0721-05 ELECTRO 330OF 25WV
C214-216 CC73GCH1H101J CHIP C 100PF J
C217 CC73GCH1H470J CHIP C 47PF J
C218,219 CC73GCH1H101J CHIP C 100PF J
C221,222 CC73GCH1H101J CHIP C 100PF J
C223 CC73GCH1H470J CHIP C 47PF J
C224 CC73GCH1H101J CHIP C 100PF J
C225 CK73GB1C104K CHIP C 0.10UF K
C226,227 CK73GB1E103K CHIP C 0.010UF K
C229 CK73GB1E103K CHIP C 0.010UF K
C231 CK73GB1E103K CHIP C 0.010UF K
C233,234 CK73GB1E103K CHIP C 0.010UF K
C239 CK73GB1E103K CHIP C 0.010UF K
C240-242 CK73GB1C104K CHIP C 0.10UF K
C245-248 CK73GB1C104K CHIP C 0.10UF K
C249-254 CK73GB1H102K CHIP C 1000PF K
C255 CK73GB1C104K CHIP C 0.10UF K
CN1,2 E40-5887-05 PIN ASSY
CN3 E40-5737-05 PIN ASSY
CN5 E40-6047-05 PIN ASSY
CN6 E40-5702-05 PIN ASSY
CN15 E40-5751-05 PIN ASSY
CN16 E40-5752-05 PIN ASSY
CN17,18 E40-9449-05 PIN ASSY
CN31 E40-6169-05 FLAT CABLE CONNECTOR
CN33 E40-5738-05 PIN ASSY
J1 E08-0877-05 MODULAR JACK
101 2C F20-3332-04 INSULATING SHEET (LITHIUM CELL)
- J31-0543-05 COLLAR
L1-10 L92-0140-05 FERRITE CHIP
X1 L78-1401-05 RESONATOR (7.373MHZ)
X2 L77-1679-05 CRYSTAL RESONATOR (12.288MHZ)
CP1 RK75GA1J102J CHIP-COM 1.0K J 1/16W
CP2 RK75GB1J102J CHIP-COM 1.0K J 1/16W
CP3 RK75GA1J102J CHIP-COM 1.0K J 1/16W
CP4 R90-1019-05 MULTI-COMP 100 X2
CP5 RK75GA1J102J CHIP-COM 1.0K J 1/16W
CP6,7 R90-1019-05 MULTI-COMP 100 X2
CP8 RK75GA1J102J CHIP-COM 1.0K J 1/16W
CP9,10 RK75GB1J101J CHIP-COM 100 J 1/16W
CP11,12 RK75GA1J102J CHIP-COM 1.0K J 1/16W
CP13-17 RK75GB1J101J CHIP-COM 100 J 1/16W
CP18 R90-1019-05 MULTI-COMP 100 X2
R1 R92-1252-05 CHIP R 0 OHM J 1/16W
R2 RK73GB1J220J CHIP R 22 J 1/16W
R3 RK73GB1J332J CHIP R 3.3K J 1/16W
R4 RK73GB1J473J CHIP R 47K J 1/16W
R6 RK73GB1J102J CHIP R 1.0K J 1/16W
R7 RK73GB1J221J CHIP R 220 J 1/16W
R8,9 RK73GB1J102J CHIP R 1.0K J 1/16W
R10 RK73GB1J473J CHIP R 47K J 1/16W
R11-14 RK73GB1J102J CHIP R 1.0K J 1/16W
R15 RK73GB1J101J CHIP R 100 J 1/16W
R16-21 RK73GB1J102J CHIP R 1.0K J 1/16W
R22 R92-1252-05 CHIP R 0 OHM J 1/16W
R23-26 RK73GB1J102J CHIP R 1.0K J 1/16W
R27 RK73GB1J223J CHIP R 22K J 1/16W
R28,29 RK73GB1J102J CHIP R 1.0K J 1/16W
R30 RK73GB1J223J CHIP R 22K J 1/16W
R31 RK73GB1J183J CHIP R 18K J 1/16W
R32 RK73GB1J683J CHIP R 68K J 1/16W
R33 RK73GB1J223J CHIP R 22K J 1/16W
R34 RK73GB1J272J CHIP R 2.7K J 1/16W
R35 R92-1252-05 CHIP R 0 OHM J 1/16W
R36 RK73GB1J272J CHIP R 2.7K J 1/16W
R37-39 RK73GB1J101J CHIP R 100 J 1/16W
R40 RK73GB1J473J CHIP R 47K J 1/16W
R41 RK73GB1J101J CHIP R 100 J 1/16W
R42 RK73GB1J102J CHIP R 1.0K J 1/16W
R43 RK73GB1J473J CHIP R 47K J 1/16W
R44,45 RK73GB1J102J CHIP R 1.0K J 1/16W
R46,47 R92-1252-05 CHIP R 0 OHM J 1/16W
R48 RK73GB1J102J CHIP R 1.0K J 1/16W
R49 RK73GB1J101J CHIP R 100 J 1/16W
R50 R92-1252-05 CHIP R 0 OHM J 1/16W
R51 RK73GB1J103J CHIP R 10K J 1/16W
R52 RK73GB1J101J CHIP R 100 J 1/16W
R54 RK73GB1J101J CHIP R 100 J 1/16W
R56 RK73GB1J102J CHIP R 1.0K J 1/16W
R57 RK73GB1J101J CHIP R 100 J 1/16W
R60 RK73GB1J473J CHIP R 47K J 1/16W
R62 RK73GB1J223J CHIP R 22K J 1/16W
R63 RK73GB1J102J CHIP R 1.0K J 1/16W
R64,65 RK73GB1J473J CHIP R 47K J 1/16W
R68,69 RK73GB1J102J CHIP R 1.0K J 1/16W
R70 R92-1252-05 CHIP R 0 OHM J 1/16W
R71-73 RK73GB1J102J CHIP R 1.0K J 1/16W
R74,75 RK73GB1J473J CHIP R 47K J 1/16W
R78 RK73GB1J104J CHIP R 100K J 1/16W
R79 RK73GB1J473J CHIP R 47K J 1/16W
R81 RK73GB1J104J CHIP R 100K J 1/16W
R82 R92-1252-05 CHIP R 0 OHM J 1/16W
R84,85 RK73GB1J104J CHIP R 100K J 1/16W
R86 R92-1252-05 CHIP R 0 OHM J 1/16W
R87,88 RK73GB1J102J CHIP R 1.0K J 1/16W
R89 R92-1252-05 CHIP R 0 OHM J 1/16W
R90-94 RK73GB1J102J CHIP R 1.0K J 1/16W
R95,96 RK73GB1J473J CHIP R 47K J 1/16W
R97,98 RK73GB1J104J CHIP R 100K J 1/16W
R99-102 RK73GB1J122J CHIP R 1.2K J 1/16W
R103 R92-1252-05 CHIP R 0 OHM J 1/16W
R104 RK73GB1J472J CHIP R 4.7K J 1/16W
R106 RK73GB1J223J CHIP R 22K J 1/16W
R107 RK73GB1J103J CHIP R 10K J 1/16W
R108,109 R92-1252-05 CHIP R 0 OHM J 1/16W
R110 RK73GB1J123J CHIP R 12K J 1/16W
R111 RK73GB1J183J CHIP R 18K J 1/16W
R112 RK73GB1J473J CHIP R 47K J 1/16W

KDS-100
PARTS LIST
13
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
DISPLAY UNIT (X54-3350-20)
R113 RK73GB1J223J CHIP R 22K J 1/16W
R114,115 RK73GB1J473J CHIP R 47K J 1/16W
R116 RK73GB1J823J CHIP R 82K J 1/16W
R117 RK73GB1J223J CHIP R 22K J 1/16W
R118 RK73GB1J561J CHIP R 560 J 1/16W
R119 RK73GB1J104J CHIP R 100K J 1/16W
R120 RK73GB1J334J CHIP R 330K J 1/16W
R121 RK73GB1J103J CHIP R 10K J 1/16W
R123,124 RK73GB1J473J CHIP R 47K J 1/16W
R125 R92-1252-05 CHIP R 0 OHM J 1/16W
R126 RK73GB1J273J CHIP R 27K J 1/16W
R127 RK73GB1J683J CHIP R 68K J 1/16W
R128 RK73GB1J333J CHIP R 33K J 1/16W
R129-132 R92-1252-05 CHIP R 0 OHM J 1/16W
R133,134 RK73GB1J470J CHIP R 47 J 1/16W
R135 RK73GB1J101J CHIP R 100 J 1/16W
R136 RK73GB1J470J CHIP R 47 J 1/16W
R137 RK73GB1J101J CHIP R 100 J 1/16W
R138 RK73GB1J563J CHIP R 56K J 1/16W
R139 RK73GB1J473J CHIP R 47K J 1/16W
R140 RK73GB1J223J CHIP R 22K J 1/16W
R141 RK73GB1J104J CHIP R 100K J 1/16W
R142 RK73GB1J334J CHIP R 330K J 1/16W
R143 R92-1252-05 CHIP R 0 OHM J 1/16W
R144 RK73GB1J101J CHIP R 100 J 1/16W
R145 R92-1252-05 CHIP R 0 OHM J 1/16W
R146 RK73GB1J104J CHIP R 100K J 1/16W
R147 RK73GB1J470J CHIP R 47 J 1/16W
R148 R92-1252-05 CHIP R 0 OHM J 1/16W
R149-151 RK73GB1J473J CHIP R 47K J 1/16W
R152 RK73GB1J223J CHIP R 22K J 1/16W
R156 RK73GB1J222J CHIP R 2.2K J 1/16W
R157 RK73GB1J473J CHIP R 47K J 1/16W
R158 RK73GB1J470J CHIP R 47 J 1/16W
R159 R92-1252-05 CHIP R 0 OHM J 1/16W
R161 RK73GB1J102J CHIP R 1.0K J 1/16W
R163 RK73GB1J470J CHIP R 47 J 1/16W
R164 R92-1252-05 CHIP R 0 OHM J 1/16W
R165 RK73GB1J223J CHIP R 22K J 1/16W
R166 R92-1252-05 CHIP R 0 OHM J 1/16W
R167 RK73GB1J473J CHIP R 47K J 1/16W
R168,169 RK73GB1J181J CHIP R 180 J 1/16W
R170 RK73GB1J473J CHIP R 47K J 1/16W
R171 RK73GB1J393J CHIP R 39K J 1/16W
R172,173 RK73GB1J473J CHIP R 47K J 1/16W
R174 RK73GB1J222J CHIP R 2.2K J 1/16W
R175 RK73GB1J103J CHIP R 10K J 1/16W
R176 RK73GB1J101J CHIP R 100 J 1/16W
R177,178 RK73GB1J102J CHIP R 1.0K J 1/16W
R179 RK73GB1J221J CHIP R 220 J 1/16W
R180 RK73GB1J473J CHIP R 47K J 1/16W
R181 RK73GB1J392J CHIP R 3.9K J 1/16W
R182,183 RK73GB1J103J CHIP R 10K J 1/16W
R185 RK73GB1J224J CHIP R 220K J 1/16W
R186 RK73GB1J473J CHIP R 47K J 1/16W
R187 RK73GB1J224J CHIP R 220K J 1/16W
R189 R92-1252-05 CHIP R 0 OHM J 1/16W
R190 RK73GB1J273J CHIP R 27K J 1/16W
R191 RK73GB1J182J CHIP R 1.8K J 1/16W
R193 RK73GB1J104J CHIP R 100K J 1/16W
R194 RK73GB1J102J CHIP R 1.0K J 1/16W
R195 RK73GB1J104J CHIP R 100K J 1/16W
R196-198 RK73GB1J102J CHIP R 1.0K J 1/16W
R199 RK73GB1J472J CHIP R 4.7K J 1/16W
R200 RK73GB1J102J CHIP R 1.0K J 1/16W
R201 RK73GB1J472J CHIP R 4.7K J 1/16W
R202,203 RK73GB1J102J CHIP R 1.0K J 1/16W
R204 R92-1252-05 CHIP R 0 OHM J 1/16W
R206 RK73GB1J101J CHIP R 100 J 1/16W
R207-209 RK73GB1J473J CHIP R 47K J 1/16W
R214,215 RK73GB1J473J CHIP R 47K J 1/16W
R216 R92-1252-05 CHIP R 0 OHM J 1/16W
R219,220 RK73GB1J104J CHIP R 100K J 1/16W
R224 RK73GB1J473J CHIP R 47K J 1/16W
R226 RK73GB1J104J CHIP R 100K J 1/16W
R227-230 RK73GB1J473J CHIP R 47K J 1/16W
R231 RK73GB1J560J CHIP R 56 J 1/16W
R232 RK73GB1J470J CHIP R 47 J 1/16W
R233 RK73GB1J473J CHIP R 47K J 1/16W
R234 RK73GB1J393J CHIP R 39K J 1/16W
R235 RK73GB1J223J CHIP R 22K J 1/16W
R236 RK73FB2A4R7J CHIP R 4.7 J 1/10W
R237 R92-1252-05 CHIP R 0 OHM J 1/16W
R238-243 RK73GB1J102J CHIP R 1.0K J 1/16W
R244 RK73GB1J471J CHIP R 470 J 1/16W
R245 R92-1252-05 CHIP R 0 OHM J 1/16W
R247 R92-1252-05 CHIP R 0 OHM J 1/16W
R249,250 R92-1252-05 CHIP R 0 OHM J 1/16W
D1 1812L075PR VARISTOR
D2 UDZS10B ZENER DIODE
D3 DSM3MA1 DIODE
D4 MA2S111 DIODE
D5 1SS373 DIODE
D6-8 DA204U DIODE
D9 NNCD6.8G ZENER DIODE
D10-17 DA204U DIODE
D18 MA2S111 DIODE
D19-21 NNCD6.8G ZENER DIODE
D22-24 DA204U DIODE
D34-38 DA204U DIODE
D39 NNCD6.8G ZENER DIODE
D40 1SS373 DIODE
IC1 ADM691AR MOS IC
IC2 RTC-4574SA MOS IC
IC3 ADM202EARU MOS IC
IC3 ADM3202ARU MOS IC
IC4 TC74HC4094AF MOS IC
IC5 BU4053BCFV MOS IC
IC6 30620M8A-2M6GP MPU
IC7 TC7W04F MOS IC
IC8,9 TC74HCT244AF MOS IC
IC10 TC74LVX4245FS MOS IC
IC11 TC74LVX244FT MOS IC
IC12 W24100S-70LE SRAM IC
IC13 MBM29LV800B90 SRAM IC
IC14,15 NJM2904M MOS IC
IC16 TC7S04FU MOS IC
IC17 M62364FP MOS IC
IC19 TC74VHC4040FT MOS IC

KDS-100
PARTS LIST
14
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
DISPLAY UNIT (X54-3350-20)
IC20 AK4550VT MOS IC
IC21,22 NJM2904M MOS IC
IC23 320VC5402PGE MPU
IC24 BU2099FV MOS IC
IC25 BU4094BCFV MOS IC
IC26 XC62FP1802P MOS IC
IC27,28 XC62FP3302P MOS IC
IC30 TA7805F MOS IC
IC31-33 TA78L05F MOS IC
IC34 TDA7053AT BI-POLAR IC
IC35 TA7805F MOS IC
IC36 TA7808F ANALOG IC
IC37,38 TC74LVX244FT MOS IC
IC39 TC7S08FU MOS IC
IC40 TC7W66FU MOS IC
IC41 TC7S08FU MOS IC
Q1 DTC114YE DIGITAL TRANSISTOR
Q2 DTC144EE DIGITAL TRANSISTOR
Q3 RN47A4 TRANSISTOR
Q4 DTC144EE DIGITAL TRANSISTOR
Q5 DTC114EUA DIGITAL TRANSISTOR
Q6 FMA5A TRANSISTOR
Q7 2SC4617(R) TRANSISTOR
Q8,9 2SB1132(Q,R) TRANSISTOR
Q10 2SB798(DL,DK) TRANSISTOR
Q11,12 2SK1830 FET
Q13-15 RN47A4 TRANSISTOR
Q16 DTC114YE DIGITAL TRANSISTOR
TH1,2 157-104-53001 THERMISTOR
BA1 2C W09-0985-05 LITHIUM CELL

15
KDS-100

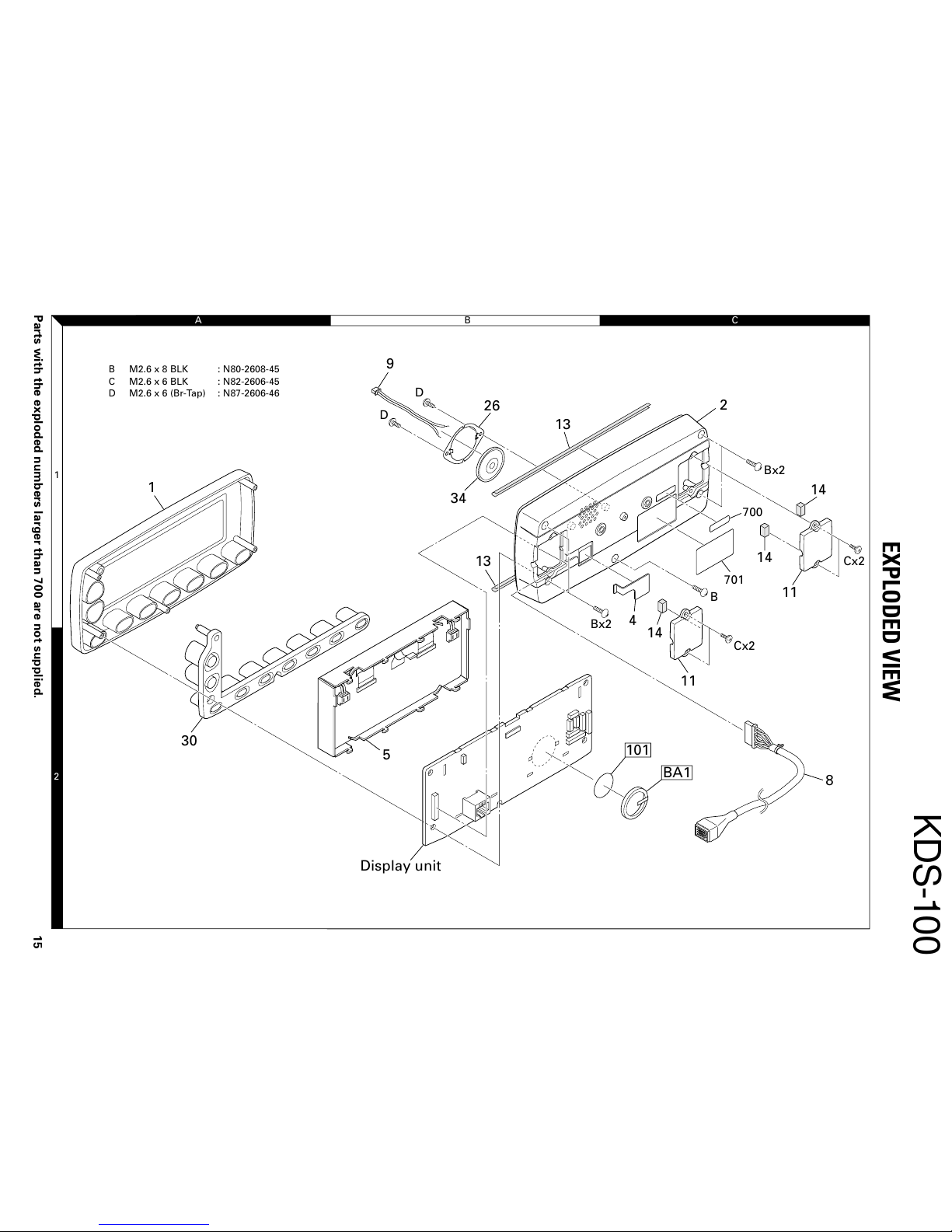

EXPLODED VIEW
1
2
ABC
1
30
5101
BA1
Display unit
8
9
26
D
D13
13
34
2
14
14
14
4
11
11
Cx2
Cx2
Bx2
700
701
Bx2
B
B M2.6 x 8 BLK : N80-2608-45
C M2.6 x 6 BLK : N82-2606-45
D M2.6 x 6 (Br-Tap) : N87-2606-46
Parts with the exploded numbers larger than 700 are not supplied.

16

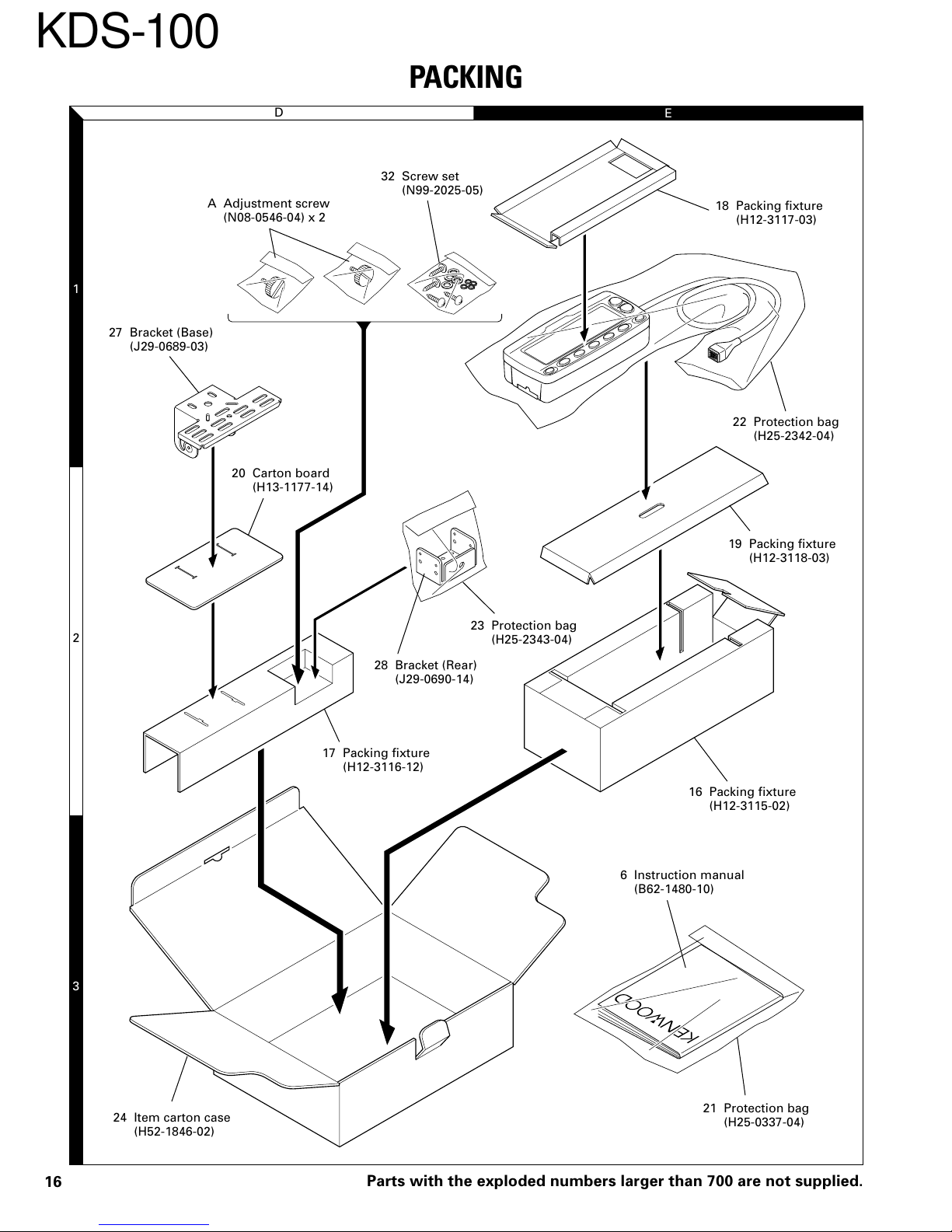

KDS-100
PACKING
DE
1
2
3
A Adjustment screw
(N08-0546-04) x 2
32 Screw set
(N99-2025-05)
18 Packing fixture
(H12-3117-03)
19 Packing fixture
(H12-3118-03)
22 Protection bag
(H25-2342-04)
27 Bracket (Base)
(J29-0689-03)
20 Carton board
(H13-1177-14)
23 Protection bag
(H25-2343-04)
28 Bracket (Rear)
(J29-0690-14)
17 Packing fixture
(H12-3116-12)
16 Packing fixture
(H12-3115-02)
6 Instruction manual
(B62-1480-10)
21 Protection bag
(H25-0337-04)
24 Item carton case
(H52-1846-02)
Parts with the exploded numbers larger than 700 are not supplied.

ABCD E F G H I J K L M N O P Q R S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Q1
TH1
R62
R196
R197
R233
R93
R92
R94
IC2
1 78
14
L8 L9
L7
L10
R203
D38
D36
D34
D37
D35
R202 R200 R198 R194
R204
R177 R178
R42
R35
R22
R43
R45
R46 R44
R51
C128
CP2
CP6 CP7
CP4
R209
CP18
CP3 CP5 CP8
CP9
CP11
CP10
C219
C222 C215
C15
C14
C11 C10
R119 C239
R27 R30
Q2
IC40
1
4
5
8
D24
R68
Q4
D39
D30
S5
MENU
S6
1
S7
2
S8
3
S3
4
S4
5
S9
SEL
S1
R215
R47
R63
R73
R90
R208
R207
C234
R69
R71
Q16
R201
R199
Q12
Q11
DS
G
DS
G
CP12
CP14
CP13 CP15
CP16
CP17
Q13
Q14
1
3 4
5
1
3 4
5
C248
IC12
132
C247
C226
16 17
IC6
1 25
26
100
50
51
75
76
CP1
R50
C37
R121 C140
C138
X1
R56
R72 R70
R74
R79
R86
R87
R89
R91
R75
R82
R88
R48
R60
R64
R65
R98
R97
R96
R95
HOLD
IC16
1 5
43
IC41
Q15
1
5
43
1
5
43
IC39
IC10
1
1213
C227
C229
C171C173
C172 C153 C159
C152
C148
IC19
1
89
16
C166
R166
R167 R165
R164 R149 R148 R145 R143
R123
R237
R243
R228
R140 R141 R142
IC21
1 45
8
C155
C192
C161
C132
IC17
1
1213
24
R193 R195
R191 C201
C246
Q10
B C
E
R135
C143 C134
C131
R150
X2
IC13
1
24
C176
C174 C175
C168
C169
C156
C158
D10
C21
C9 R4
D11
D13
D7
R21
C18 C17 C13
C6
R10
R8
R161
R159
R158 R151
R147 R144
48 25
24
1 5
43
C233
IC38
1
10 11
20
IC11
1
10 11
20
IC37
1
10 11
20
C231
D29
Vcc
GND
L4
C186
C183
C181
C185
C178
C182
C188
C171
C179
C180
+
+
C187 +
C184 +
+
C170
+
C151
+
R163
136
37
144
IC23
72
73
108
109
++C145
C144
C147
Q5
R136
R134
R232
R132
R124
R131
R130
R129
R206 R137
R133
+
+
C133
C130
C142
R15
D28
R20
R190
R189
C254
C125
C160
C154 +
R146
C157
+
D32
D31
D27
J72-0800-09
S2
KDS-100 PC BOARD VIEW
17 18
DISPLAY UNIT (X54-3350-20) Component side view
Component side
Foil side
Pattern 1
Pattern 2
Pattern 3
Pattern 4
Ref No. Address
 IC2 5C
 IC6 6E
 IC10 3H
 IC11 3I
 IC12 3E
 IC13 6I
 IC16 6G
 IC17 6P
 IC19 3M
 IC21 8Q
Ref No. Address
 IC23 6L
 IC37 6H
 IC38 4H
 IC39 3H
 IC40 3D
 IC41 8J
 Q1 3C
 Q2 3C
 Q4 5A
 Q5 4N
Ref No. Address
 Q10 3Q
 Q11 6C
 Q12 7C
 Q13 5D
 Q14 5D
 Q15 8J
 Q16 8D
 D7 7O
 D10 8M
 D11 8P
Ref No. Address
 D13 7N
 D24 5A
 D27 3R
 D28 10N
 D29 10I
 D30 10C
 D31 6S
 D32 10Q
 D34 8C
 D35 8C
Ref No. Address
 D36 8C
 D37 8C
 D38 8B
 D39 7C
DTC114YE
DTC144EE
2SC4617
2SB1132 2SB798 FMA5A DTC114EUA RN47A4 NJM 2904M
TC7W04F
TC74HC4094AF
TA78L05F DA204U 2SK1830 TC7S04FU
TC7S08FU
TC74HCT244AF ADM691AR ADM202EARU
AK4550VT
BU4053BCFV
VIN
VREF
GND
BU4094BCFV
TC74VHC4040FT

S
RQP
O
NMLK
J
IHGF
E
D
CB
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C204
C113
R183
IC34
IC24
R230 R229 R186
R181
R168 R169
R173 R172 R182
R234
R171 R175
R139
20
1
R224
C55
C126
C242
R7
D5
1 89
16
TH2
Q7
LED(A) LED(A) LED(K) LED(K) CS1 A1 RES A0 WR RD D0 D1 D2 D3 D4 D5 D6 D7 5V GND
CN17 (INT SP)
1
1
10 11
20
89
16
R106
IC14
1
4 5
8
IC22
IC20
1
4
1 8 9
16
5 8
IC15
1
4 5
8
R156
R125
R118
R109 R107 R102 R100
IC28
O
I
G
R110 R111
C75
C146
C84
C56
C137
C195
C141
C139
CN5 (RADIO)
D14 D15
C89
+
+
R231
C29
C27
C24
C22
C19
C16
C12
C7
C4
C2
D19
D9
D3
C213
IC36
I
O
C225
R101 R170
R117
R108 R112
R113
R99
C54 C127
IC4
1 89
16
C240
C103
G
IC30
I
O
C202
C212
C241
C207
C194
C190
C199
L6
R214
IC1
IC5
IC33
IC27
IC26
C210
IC32
O G
I
C245
R187
R185
R216
C249
C252C253
C250 C251
R240
R239
IC25
1
8 9
16
1
8 9
O
O
O G
I
I
G
G
I
16
G
IC35
C208
I
O
G
R6
R11
R13
R23
R14
R24
R28
R25
R29
R26
15
1
C104 C165
R116
R114
R157
RXD
TXD
DISP OFF
ID
MM
AM
TXS
SQ
DTC
PTT
DO
GND
DI
SBO
SB
D1
+
R103
C50
C79
+
+
+
C136
C85
+ + +
++
++
++
++
+
R152
C196
C223
C217
1
2
+
–
R180
Q6
1
34
5
C197
C149
C163
C129
C135
C51
C191
C150
R127
R120
R126 R128 R138
R104
C203
C205
IC31
R115
C98
C220
+
+
J1 (M IC)
1 4
8
5
CM MIC PSB
PTT/
TXD
HOOK/
RXD
ME EBKL
O
G
I
+
+
C209
+
+
Q9
B
C
E
R176
R179
3.3DL
1.8DL
R235
C198
C189
C193
L5
R31
R32
R33
R244
R174
R236
Q8
B
C
E
CN31 (LCD)
+
R249 R250
R245
C211
C255 C206
D40
RST
+
R238
R241
R242
CLK
L2
L3
WR
L1
R226
C124
C53
C42
C38
R19 R18
R3
DGPS
NC
GND
CN1 (COM1) 1
1 3
1
1
10 5
GND
NC
NCGND
R219 R220 C224
C46
C48
IC9
1
10 11
20
C32
R1
R49 R52 R54 R57 R41 R39 R38 R37
C33 C35 C36 C31 C30 C28 C23
C221 C218 C216 C214
CLOCK2 DATA2 NC GND CLOCK1 DATA1 SELECT 5V OUT
DATA CLOCK 5V OUT
+
–
2
R17 R16
R34
Q3
1 3 4
5
R227
C49
C52
DAT
RXD1
TXD1
+
C47
BA1
+
R247
CNVss
IC8
1
1011
20
C44
C43
+
R84
R85
R78
R81
C1
D2
D22
D23
D16
D17
C41 C40
+ +
+
C34
+
C39
D8 D6
D12
D4
R2
R9
C5 C8 R12
IC3
1 89
16
+
C45
+
Fout
CN18 (EXT SP) CN33 (DGPS)
4
1
GND
CTS1
RXD1
TXD1
CN2 (COM2)
CN3 (GPS UNIT)
CN6 (I/O)
4
1
1
1
12
8
GND
CTS2
RXD2
TXD2
GND
NC
DGPC
NC
RXD
TXD
BACK UP
VCC
GND
ACC DET
I/O B4
I/O B3
I/O B2
I/O B1
5V
GND
I/O A4
I/O A3
I/O A2
I/O A1
CN16 (PC/AT KEY BOARD)
CN15 (SWIPE READER)
IC7
1
45
8
D21 D20
R40
R36
C20
D18
C3
J72-0800-09
PC BOARD VIEW KDS-100
19 20
DISPLAY UNIT (X54-3350-20) Foil side view
Component side
Foil side
Pattern 1
Pattern 2
Pattern 3
Pattern 4
Ref No. Address
 IC1 6K
 IC3 3P
 IC4 7C
 IC5 8G
 IC7 9Q
 IC8 9O
 IC9 10Q
 IC14 5B
 IC15 7D
 IC20 5D
Ref No. Address
 IC22 5C
 IC24 4E
 IC25 9K
 IC26 8I
 IC27 8I
 IC28 6E
 IC30 9F
 IC31 6F
 IC32 8L
 IC33 8H
Ref No. Address
 IC34 3C
 IC35 9F
 IC36 9C
 Q3 4R
 Q6 4E
 Q7 4I
 Q8 4I
 Q9 4F
 D1 8B
 D2 5P
Ref No. Address
 D3 9A
 D4 4S
 D5 6K
 D6 4R
 D8 4Q
 D9 8A
 D12 4Q
 D14 4A
 D15 4A
 D16 3Q
Ref No. Address
 D17 3Q
 D18 4R
 D19 8A
 D20 10S
 D21 10R
 D22 2Q
 D23 3Q
 D40 7K
M62364FP
TC74LVX4245FS
320VC5402PGE TC7W66FU RTC-4574SA TDA7053AT W24100S-70LE
MBM 29LV800B90 ADM3202ARU TA7805F
TA7808F
BU2099FV
TC74LVX244FT
XC62FP1802P 30620M8A-2M 6GP

ABCD E F G H I J K L M N O P Q R S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C204
C113
R183
IC34
IC24
R230 R229 R186
R181
R168 R169
R173
R172
R182
R234
R171 R175
R139
20
1
R224
C55
C126
C242
R7
D5
1 89
16
TH2
Q7
LED(A) LED(A) LED(K) LED(K) CS1 A1 RES A0 WR RD D0 D1 D2 D3 D4 D5 D6 D7 5V GND
CN17 (INT SP)
1
1
10 11
20
89
16
R106
IC14
1
4 5
8
IC22
IC20
1
4
1
8 9
16
5 8
IC15
1
4 5
8
R156
R125
R118
R109 R107 R102 R100
IC28
O
I
G
R110 R111
C75
C146
C84
C56
C137
C195
C141
C139
CN5 (RADIO)
D14 D15
C89
+
+
R231
C29
C27
C24
C22
C19
C16
C12
C7
C4
C2
D19
D9
D3
C213
IC36
I
O
C225
R101 R170
R117
R108 R112
R113
R99
C54 C127
IC4
1 89
16
C240
C103
G
IC30
I
O
C202
C212
C241
C207
C194
C190
C199
L6
R214
IC1
IC5
IC33
IC27
IC26
C210
IC32
O G
I
C245
R187 R185
R216
C249
C252C253
C250 C251
R240
R239
IC25
1
8 9
16
1
8 9
O
O
O G
I
I
G
G
I
16
G
IC35
C208
I
O
G
R6
R11
R13
R23
R14
R24
R28
R25
R29
R26
15
1
C104
C165
R116
R114
R157
RXD
TXD
DISP OFF
ID
MM
AM
TXS
SQ
DTC
PTT
DO
GND
DI
SBO
SB
D1
+
R103
C50
C79
+
+
+
C136
C85
++
+
+
+
+
+
+
+
+
+
+
R152
C196
C223
C217
1
2
+
–
R180
Q6
1
3 4
5
C197
C149
C163
C129
C135
C51
C191
C150
R127
R120
R126R128R138
R104
C203
C205
IC31
R115
C98
C220 +
+
J1 (M IC)
1
4
85
CM
MIC
PSB
PTT/
TXD
HOOK/
RXD
ME
E
BKL
O
G
I
+
+
C209 +
+
Q9
B
C
E
R176
R179
3.3DL
1.8DL
R235
C198
C189
C193
L5
R31
R32
R33
R244
R174
R236
Q8
B
C
E
CN31 (LCD)
+
R249
R250
R245
C211
C255
C206
D40
RST
+
R238
R241
R242
CLK
L2
L3
WR
L1
R226
C124
C53
C42
C38
R19 R18
R3
DGPS
NC
GND
CN1
(COM1)
1
1 3
1
1
10 5
GND
NC
NCGND
R219
R220
C224
C46
C48
IC9
1
10 11
20
C32
R1
R49 R52 R54 R57 R41 R39 R38 R37
C33 C35 C36 C31 C30 C28 C23
C221
C218
C216
C214
CLOCK2 DATA2 NC GND CLOCK1 DATA1 SELECT 5V OUT
DATA CLOCK 5V OUT
+
–
2
R17 R16
R34
Q3
1 3 4
5
R227
C49
C52
DAT
RXD1
TXD1
+
C47
BA1
+
R247
CNVss
IC8
1
10 11
20
C44
C43 +
R84
R85
R78
R81
C1
D2
D22
D23
D16
D17
C41C40 ++
+
C34
+
C39
D8
D6
D12
D4
R2
R9
C5 C8 R12
IC3
1 89
16
+
C45
+
Fout
CN18 (EXT SP)
CN33 (DGPS)
4
1
GND
CTS1
RXD1
TXD1
CN2 (COM2)
CN3 (GPS UNIT)
CN6 (I/O)
4
1
1
1
12
8GND
CTS2
RXD2
TXD2
GND
NC
DGPC
NC
RXD
TXD
BACK UP
VCC
GND
ACC DET
I/O B4
I/O B3
I/O B2
I/O B1
5V
GND
I/O A4
I/O A3
I/O A2
I/O A1
CN16
CN15
(SWIPE READER)
IC7
1
4 5
8
D21D20
R40
R36
C20
D18
C3
Q1
TH1
R62
R196
R197
R233
R93
R92
R94
IC2
1 78
14
L8
L9
L7
L10
R203
D38
D36
D34
D37
D35
R202
R200
R198 R194
R204
R177 R178
R42
R35
R22
R43
R45
R46 R44
R51
C128
CP2
CP6 CP7
CP4
R209
CP18
CP3 CP5 CP8
CP9
CP11
CP10
C219
C222
C215
C15
C14
C11 C10
R119 C239
R27 R30 Q2
IC40
1
4
5
8
D24
R68
Q4
D39
D30
R215
R47
R63
R73
R90
R208
R207
C234
R69
R71
Q16
R201
R199
Q12
Q11
DS
G
DS
G
CP12
CP14
CP13 CP15
CP16
CP17
Q13
Q14
1
3 4
5
1
3 4
5
C248
IC12
132
C247
C226
16 17
IC6
1 25
26
100
50
51
75
76
CP1
R50
C37
R121 C140
C138
X1
R56
R72 R70
R74
R79
R86
R87
R89
R91
R75
R82
R88
R48
R60
R64
R65
R98
R97
R96
R95
HOLD
IC16
1 5
43
IC41
Q15
1
5
43
1
5
43
IC39
IC10
1
1213
C227
C229
C171C173
C172 C153 C159
C152
C148
IC19
1
89
16
C166
R166
R167 R165
R164 R149 R148 R145 R143
R123
R237
R243
R228
R140 R141 R142
IC21
1 45
8
C155
C192
C161
C132
IC17
1
1213
24
R193 R195
R191 C201
C246
Q10
B C
E
R135
C143 C134
C131
R150
X2
IC13
1
24
C176
C174 C175
C168
C169
C156
C158
D10
C21
C9 R4
D11
D13
D7
R21
C18 C17 C13
C6
R10
R8
R161
R159
R158 R151
R147 R144
48 25
24
1 5
43
C233
IC38
1
10 11
20
IC11
1
10 11
20
IC37
1
10 11
20
C231
D29
Vcc
GND
L4
C186
C183
C181
C185
C178
C182
C188
C171
C179
C180
+
+
C187 +
C184+
+
C170
+
C151
+
R163
136
37
144
IC23
72
73
108
109
++C145
C144
C147
Q5
R136
R134
R232
R132
R124
R131
R130
R129
R206 R137
R133
+
+
C133
C130
C142
R15
D28
R20
R190
R189
C254
C125
C160
C154 +
R146
C157
+
D32
D31
D27
J72-0800-09
S5
MENU
S6
1
S7
2
S8
3
S3
4
S4
5
S9
SEL
S1
S2
KDS-100 PC BOARD VIEW
21 22
DISPLAY UNIT (X54-3350-20) Component side view + Foil side
Component side
Foil side
Pattern 1
Pattern 2
Pattern 3
Pattern 4
Connect 1 and 4
Ref No. Address
 IC1 6I
 IC2 5C
 IC3 3D
 IC4 7Q
 IC5 8M
 IC6 6E
 IC7 9C
 IC8 9E
 IC9 10C
 IC10 3H
Ref No. Address
 IC11 3I
 IC12 3E
 IC13 6I
 IC14 5R
 IC15 7P
 IC16 6G
 IC17 6P
 IC19 3M
 IC20 5P
 IC21 8Q
Ref No. Address
 IC22 5Q
 IC23 6L
 IC24 4O
 IC25 9I
 IC26 8K
 IC27 8K
 IC28 6O
 IC30 9O
 IC31 6N
 IC32 8H
Ref No. Address
 IC33 8L
 IC34 3Q
 IC35 9N
 IC36 9Q
 IC37 6H
 IC38 4H
 IC39 3H
 IC40 3D
 IC41 8J
 Q1 3C
Ref No. Address
 Q2 3C
 Q3 4B
 Q4 5A
 Q5 4N
 Q6 4O
 Q7 4K
 Q8 4K
 Q9 4N
 Q10 3Q
 Q11 6C
Ref No. Address
 Q12 7C
 Q13 5D
 Q14 5D
 Q15 8J
 Q16 8D
 D1 8R
 D2 5D
 D3 9S
 D4 4A
 D5 6I
Ref No. Address
 D6 4B
 D7 7O
 D8 4C
 D9 8S
 D10 8M
 D11 8P
 D12 4C
 D13 7N
 D14 4S
 D15 4S
Ref No. Address
 D16 3C
 D17 3C
 D18 4B
 D19 8S
 D20 10A
 D21 10B
 D22 2C
 D23 3C
 D24 5A
 D27 3R
Ref No. Address
 D28 10N
 D29 10I
 D30 10C
 D31 6S
 D32 10Q
 D34 8C
 D35 8C
 D36 8C
 D37 8C
 D38 8B
Ref No. Address
 D39 7C
 D40 7I

TRPNLJHFDB SQOMKIGECA
1
3
5
7
2
4
6
SCHEMATIC DIAGRAM KDS-100
Note : Components marked with a dot (·) are parts of pattern 1.
26
