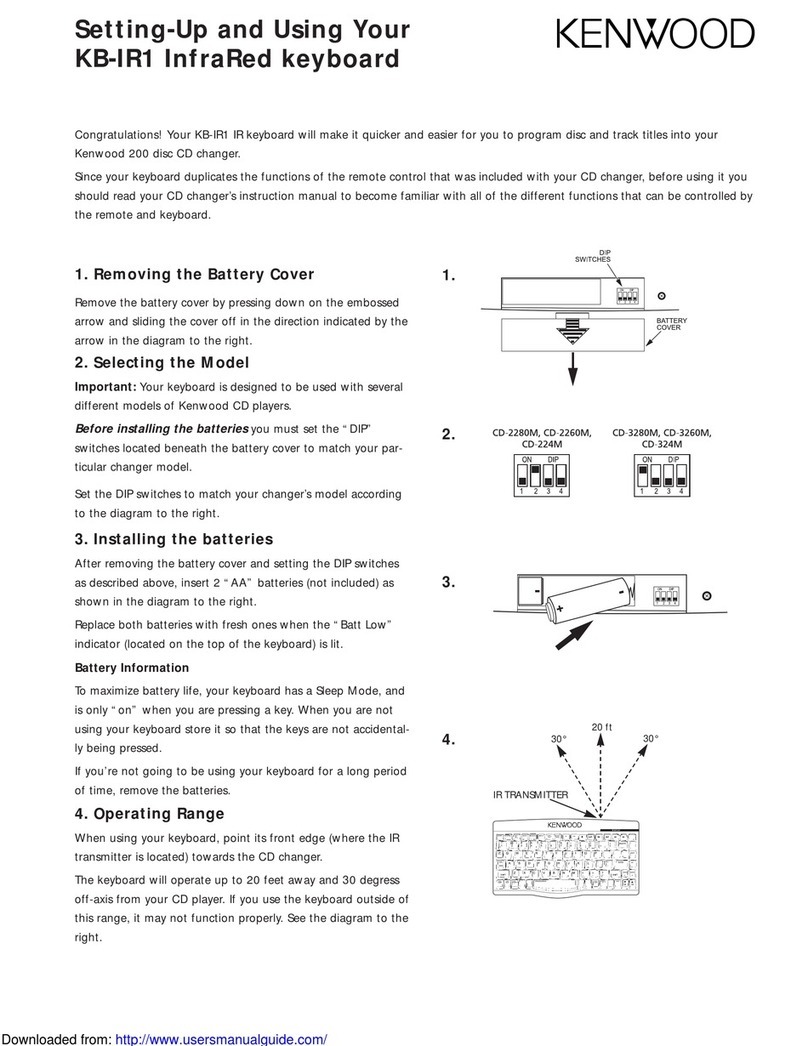

Kenwood KB-IR1 User manual

Setting-Up and Using Your
KB-IR1 InfraRed keyboard
1. Removing the Battery Cover
Remove the battery cover by pressing down on the embossed
arrow and sliding the cover off in the direction indicated by the
arrow in the diagram to the right.
2. Selecting the Model
Important: Your keyboard is designed to be used with several
different models of Kenwood CD players.
Before installing the batteries you must set the “DIP”
switches located beneath the battery cover to match your par-
ticular changer model.
Set the DIP switches to match your changer’s model according
to the diagram to the right.
3. Installing the batteries
After removing the battery cover and setting the DIP switches
as described above, insert 2 “AA” batteries (not included) as
shown in the diagram to the right.
Replace both batteries with fresh ones when the “Batt Low”
indicator (located on the top of the keyboard) is lit.
Battery Information
To maximize battery life, your keyboard has a Sleep Mode, and
is only “on” when you are pressing a key. When you are not
using your keyboard store it so that the keys are not accidental-
ly being pressed.
If you’re not going to be using your keyboard for a long period
of time, remove the batteries.
4. Operating Range
When using your keyboard, point its front edge (where the IR
transmitter is located) towards the CD changer.
The keyboard will operate up to 20 feet away and 30 degress
off-axis from your CD player. If you use the keyboard outside of
this range, it may not function properly. See the diagram to the
right.
Congratulations! Your KB-IR1 IR keyboard will make it quicker and easier for you to program disc and track titles into your
Kenwood 200 disc CD changer.
Since your keyboard duplicates the functions of the remote control that was included with your CD changer, before using it you
should read your CD changer’s instruction manual to become familiar with all of the different functions that can be controlled by
the remote and keyboard.
1.
2.
3.
4. 30° 30°
20 ft
IR TRANSMITTER

IMPORTANT NOTES A
1: Press the MODE key.
The display flashes:
TITLE INPUT
2: Press the SET
D--- T--
disc number
DXXX
A. Open the loading door and leave
it open for this entire operation
B. Select an empty disc slot
C. Insert a CD in the empty slot. Make sure
the label faces towards your right.
NAMING DISCS AND TRACKS D. Enter the Disc Name
All models:
• Instead of the SHIFT key, use
the CHARACTER/P.MODE key to
shift between capital letters,
lowercase letters and num-
bers/symbols.
• Use the SHIFT key to select
the secondary symbols on
the number and symbol
keys.
• Use the
enter sp
• If you m
the CURS
keys to h
rect char
DELETE ke
1. Press the DISK SEL.
key.
2. Use the number
keys to enter the
disc number.
3. Press the SET key.
4. The disc tray will
spin around until
the disc slot you’ve selected is
in the open loading doorway.
For other ways to select a disc slot, refer to the changer’s instruction manual.
Discs can be given names (up to 25 characters). On the CD-3280M,
CD-3260M, CD-2280M and CD-2260M, up to 20 tracks per disc can
also be named (up to 15 characters each).
Although the most convenient time to enter disc and track names is
when you insert the discs into the player for the first time, (that way
the player keeps track of the disc names for you as you insert the
discs), you can use this procedure to enter or change disc and track
names any time you want.
These instructions explain how to enter disc names when you insert
the discs into the player for the first time.

ABOUT TYPING (keys shown in dark gray)
Tkey. The display reads:
- SELECT, then the
r you selected will flash:
5: After you have typed-in the
entire title, press the ENTER
key. The display reads:
TITLE STORE!!
6: The display then switches to
show the disc number, and
the first track number flashes:
DXXX T01
7. Repeat steps 3 - 5 to enter a
title for the disc’s first track.
8. Repeat steps 3 - 5 for each
track title you want to enter.
3: Press the SET key again. The display
will stop flashing and will change
to the alphanumeric character dis-
play: ð <=ZABC
SPACE/CHECK key to
aces.
make a mistake, use
SOR L and CURSOR R
highlight the incor-
racter, then use the
ey to erase it.
• Additional symbols not
found on the keyboard can
be accessed by selecting the
number/symbol mode, and
then using the CHAR. SEARCH
UP/DOWN keys to scroll-
through the available sym-
bols.
4: Use the keyboard to type the disc name. Wait until you
see the alphanumeric character list on the changer’s dis-
play before typing. Typing too soon can cause undesired
operation of the changer.
For more information about typing, see the notes at the
bottom of the page.
CD-3280M, CD-3260M, CD-324M:
• You can also use the CHAR CAPITAL,
CHAR SMALL and CHAR SYMBOLS keys to
shift between capital letters, lower-
case letters and numbers/symbols.
CD-2280M, CD-2260M, CD-224M:
• To store a number as part of a title,
press the SET key after typing the num-
ber.
• You cannot access yellow-colored sec-
ondary symbols.
• Since the keyboard must transmit a
series of commands each time you
press a key, it may seem to respond a
bit more slowly than a typical wired
computer keyboard.
Discs with CD Text
Some record companies encode
CD Text information (titles, artists,
musical genre, etc.) onto their
CDs. Your Kenwood changer will
read this CD Text information and
it will overwrite any title or musi-
cal genre information that you
input into the changer.

Repetitive Stress Injury
Continuous use of a keyboard may cause Repetitive Stress injuries or related injuries. If you
feel any aching, numbing or tingling in your arms, wrists or hands, consult a qualified health
professional. To reduce your risk of repetitive stress injury:
• Take frequent breaks from typing
• Maintain a straight wrist position
• Avoid resting on your wrists while typing
• Use a light touch on the keys
• Maintain good health habits
Some studies suggest that long periods of repetitive motion coupled with an improper work
environment and incorrect work habits may be linked to certain types of physical discomfort
or injury. These include Carpal Tunnel Syndrome (CTS), Tendonitis, and Tenosynovitis. To help
avoid these conditions, follow the instructions above. These instructions may not only help
minimize your chances of experiencing one of these conditions, but will also help you work
more comfortably and effectively. It is very important that your chair, work surface, and key-
board are in the proper position.
