KERN YPS-01 Service manual

YPS-IA-defsi-0610
8
GB KERN YPS-01
Version 1.0 7/2006
Installation Information
Anti-Vibration table
Contents
1INTRODUCTION ________________________________________________ 9
2TECHNICAL SPECIFICATIONS ____________________________________ 9
3SETTING UP THE TABLE________________________________________ 10
3.1 PACKING LIST __________________________________________________ 10
3.2 INNER TABLE ASSEMBLY DIAGRAM _______________________________ 11
3.3 MAIN TABLE ASSEMBLY DIAGRAM ________________________________ 12
3.4 COMPLETED ANTI VIBRATION TABLE ______________________________ 13
4MAINTENANCE ________________________________________________ 13

YPS-IA-defsi-0610 9
1 INTRODUCTION
The KERN Anti-Vibration Table is designed for use in the laboratory or
metrology room to provide suitable working conditions for devices that
are sensitive to vibrations and shocks.
The table comprises two separate parts-
•An internal working surface consisting of a large marble slab
mounted on rubber shock absorbing mounts
•An external service table with steel frame and adjustable levelling
feet
2 TECHNICAL SPECIFICATIONS
Overall dimensions (w x d x h) 800 x 600 x 782 mm
Work Surface dimensions 400 x 450 mm
Weight of Work Surface 48 kg
Total weight 88 kg
400
800
600
450
782

YPS-IA-defsi-0610
10
3 SETTING UP THE TABLE
3.1 PACKING LIST
No.
(ASSEMBLY
DIAGRAM)
NAME QTY
1 MARBLE 1
2 RUBBER 4
3 INNER TABLE RAIL(SMALL) 3
16
INNER TABLE
4 M8×16 SCREW
12
MAIN TABLE
5 MARBLE SUPPORT RAIL 2
6 INNER TABLE SIDE ASSEMBLY(SMALL) 2
7 ADJUSTABLE FOOT 4
8 FRONT TRIM PANEL 1
9 Z-CLIP 4
10 M8×8 SCREW 4
11 TABLE TOP 1
12 MAIN TABLE RAIL (LARGE) 2
13 MAIN TABLE SIDE ASSEMBLY(LARGE) 2
14 HEXAGON SPANNER 1

YPS-IA-defsi-0610 11
3.2 INNER TABLE ASSEMBLY DIAGRAM
Assembly instructions:
1. Assemble the 3 x INNER TABLE RAILS using the HEXAGON SPAN-
NER with twelve M8 x 16 screws onto the 2 x INNER TABLE SIDE
ASSEMBLIES. Pay attention that the rails are assembled with the ho-
les facing downwards.
2. Assemble the MARBLE SUPPORT RAILS using four M8 x 16 screws
onto the INNER TABLE RAILS.
3. Assemble the four ADJUSTABLE FEET into the MARBLE SUPPORT
RAILS and then add the four RUBBERS to the ADJUSTABLE FEET.
4. Place the MARBLE onto the RUBBERS making sure that the marble
is centrally located.

YPS-IA-defsi-0610
12

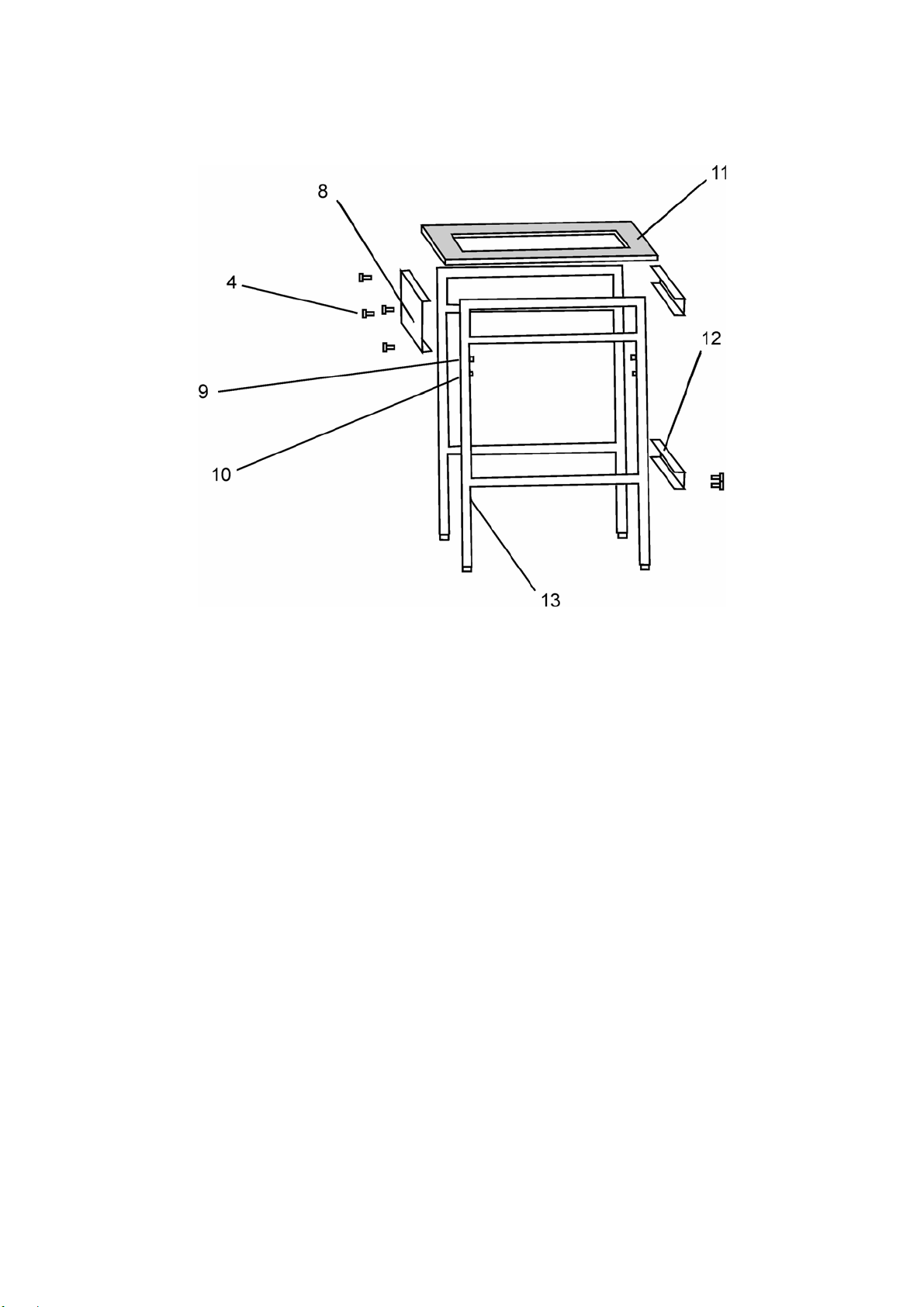

3.3 MAIN TABLE ASSEMBLY DIAGRAM
Assembly instructions:
1. Assemble the FRONT TRIM PANEL using four M8 x 16 screws onto
the 2 x MAIN TABLE SIDE ASSEMBLIES.
2. Fix the 2 x TABLE RAILS using eight M8 x 16 screws onto the MAIN
TABLE SIDE ASSEMBLIES.
3. Put the TABLE TOP onto the main frame using the four Z-CLIPS and
four M8 x 16 screws. Two Z-CLIPS should be fitted and secured first
and then the other two can be fitted when the table top is in place
from underneath. Make sure that the table top is fitted squarely.
4. Now place the MAIN TABLE over the top of the INNER TABLE mak-
ing sure that the marble is not touching the table top.
5. The feet can now be adjusted to make both tables level.

YPS-IA-defsi-0610 13
3.4 COMPLETED ANTI VIBRATION TABLE
4 MAINTENANCE
•Do not dismantle the Anti-Vibration table without following the
assembly instructions.
•Do not move the Anti-Vibration Table violently and abruptly. It is
recommended to move and put down the Table gently.
•It is suggested to wipe the stains with soft cloth soaked with de-
tergent. Do not use organic solutions and boiled water to wipe
the stains. Do not use water for cleaning.
•Keep the Anti-Vibration Table in a dry and clean environment.
Do not expose it outdoor or use it in locations near fire, under
direct sunshine or with high temperature..
