Key Curriculum Press fx-7400G Plus Quick start guide

©2003 Key Curriculum Press Discovering Algebra Calculator Notes for the Casio fx-7400G Plus 1
CHAPTER 0 Calculator Notes for the fx-7400G Plus
To display the Main Menu screen of this calculator while in any mode,
press . If the Main Menu screen is not immediately displayed, press
or . There are nine modes that can be accessed
from the Main Menu screen. To access a mode, use the arrow key to
highlight the icon you want, and press to display the first screen of
the mode you selected. You can also enter a mode without highlighting an
icon in the Main Menu by inputting the number marked in the lower-right
corner of the icon.
Many of the operations performed by this calculator can be executed by
pressing function keys through . Pressing sometimes shows more
options. The operation assigned to each function key changes according to
the mode. Function menus are at the bottom of the display in each mode.
This calculator has nine different modes or work areas depending on the
type of operation you wish to perform. When you first turn on your
calculator, you see the Main Menu, which is a screen containing icons for
the nine different modes. Pressing also displays the Main Menu.
You choose an icon from the Main Menu either by pressing its number
or by using the arrow keys to highlight its icon and pressing . Arithmetic
calculations including calculations using fractions are performed in
RUN mode.
Note 0A • Fractions
This calculator has two special keys to facilitate work with fractions. From
the Main Menu, select RUN and press . To ensure that the calculator has
the correct settings, press [SET UP] to display the setup screen. Make
sure that Simplify is set to Auto and that Frac is set to a˛b/c. The Frac setting is
below Simplify. Just arrow down and the screen will scroll. (See Note 1J for
an explanation of the setup options.)
a. is used to enter a number as a fraction or as a mixed number.
A mixed number contains two °symbols. The first °separates the
whole number and the fraction, and the second °separates the
numerator and denominator. To enter

3
4

, press . To enter
3

1
2

, press . Fractions are automatically displayed in
reduced form. (If you don’t want fractions to be automatically
reduced, see Note 1J.)
b. converts fractions to decimal numbers and vice versa. A
nonrepeating decimal number that has a fraction equivalent with
less than nine digits in the numerator and denominator combined
will convert. (If the number is a repeating decimal number, you can
use the RPT DEC program in Note 0H to find the equivalent
fraction.) To change a decimal to a fraction, enter the decimal and
press . The °symbol separates the numerator from the
F↔D
EXE
F↔D
EXE
2
ab
⁄c
1
ab
⁄c
3
EXE
4
ab
⁄c
3
ab
⁄c
SHIFT
EXE
EXE
MENU
˛
F4F1
EXE
MENU
AC/ON
MENUQUIT
MENU
(continued)

2Discovering Algebra Calculator Notes for the Casio fx-7400G Plus ©2003 Key Curriculum Press
Note 0A • Fractions (continued) fx-7400G Plus
denominator. is also used to send images to a computer, so if it
does not seem to work, select LINK from the Main Menu and press
(IMGE) (Off).
c. [d/c] converts mixed numbers to improper fractions, and
vice versa.
To enter and solve

2
3



1
2

, press . The answer to a
problem that involves only fractions will be in the form of a fraction or a
whole number. However, the answer to a problem that involves a decimal
will be in decimal form. To convert the terminal decimal answer to a
fraction, and vice versa, press .
As an alternative to using the special fraction keys, you can enter a fraction
as a division problem. To work with simple fractions like

4
7

and improper
fractions like

7
4

, simply enter them into your calculator as division problems.
To see the answer displayed as a fraction, you must press . Often you
don’t need to use parentheses around a fraction entered as a division, but
when in doubt, put in the parentheses.

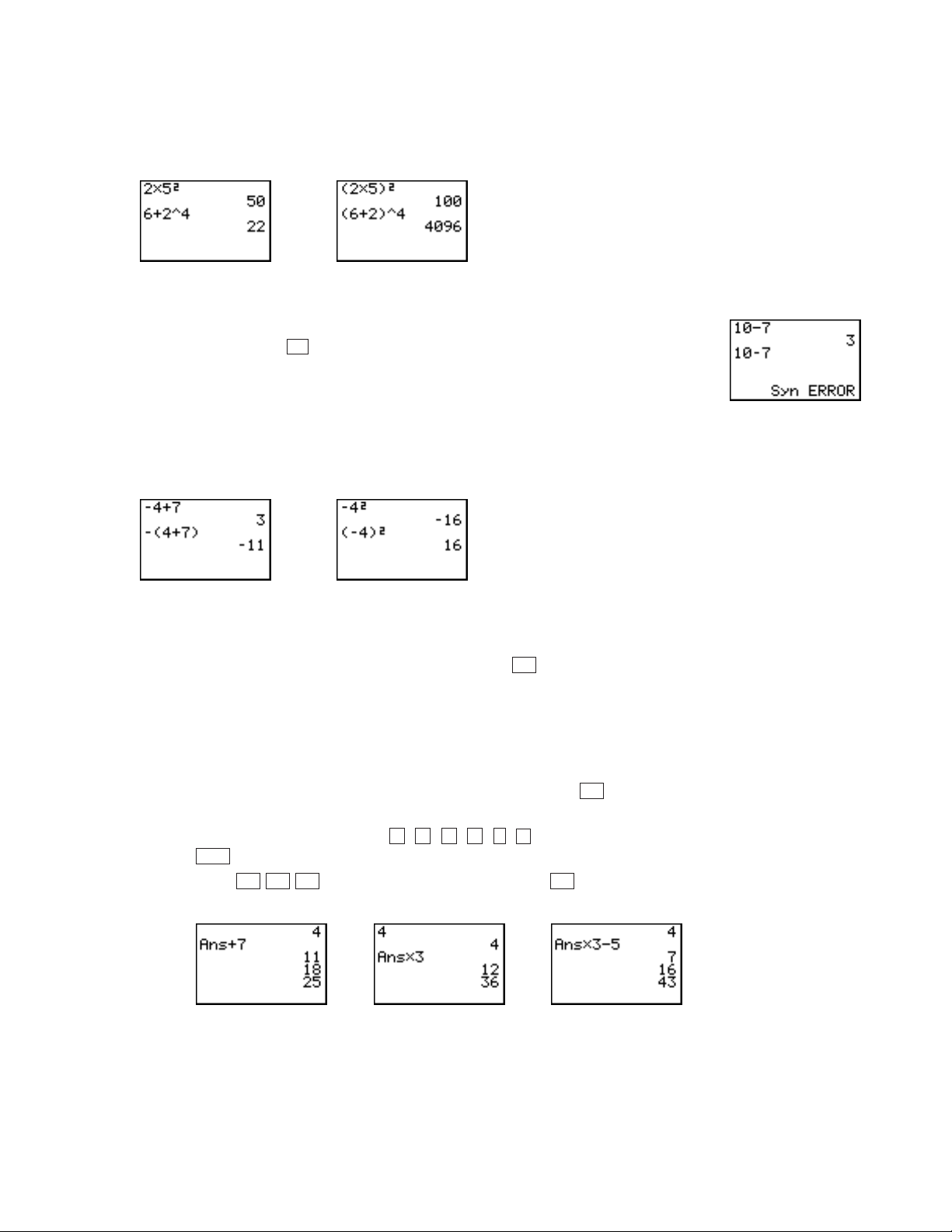

Note 0B • Exponents
There are several ways to raise a number to a power by using the calculator.
The simplest way to square a number (raise it to the second power) is to
use . Enter the number you want to square and then press . When you
press , the calculator will multiply the number by itself. For all powers
(including the second power), you can use .
^
EXE
X2 X2
F↔D
F↔D
EXE
2
ab
⁄c
1

3
ab
⁄c
2
SHIFT
F1F4EXE
F↔D
(continued)

©2003 Key Curriculum Press Discovering Algebra Calculator Notes for the Casio fx-7400G Plus 3
Order of operations requires that you do all operations within parentheses
first, evaluate all powers second, multiply and divide from left to right third,
and add and subtract from left to right last.
Note 0C • Negation and Subtraction
Negation and subtraction are performed with different keys on this
calculator. Negation, , changes the sign of a number or a variable. It is
slightly shorter than the subtraction symbol. If you enter the wrong symbol,
you may get an error message.
In the order of operations, negation is treated like “multiply by negative 1,”
so it is performed before addition and subtraction but after evaluation
of powers. Sometimes you may need to use parentheses to get the
correct result.
Note 0D • Recursion
The Ans command on the calculator allows you to use the result of your
last calculation in your next calculation. If you press without pressing
another key, the calculator will repeat the last operation on the previous
result. Combining these two features allows you to perform on-screen
recursion, calculating a new number by repeating the operation using the
result of the previous calculation. To create patterns of numbers (sequences),
follow this procedure:
a. Enter the starting number of your sequence and press .
b. Enter an expression using Ans. You can get Ans by pressing any of
theoperationkeys,suchas,,,,,,orbypressing
[Ans].
c. Press and so on. Each time you press , you will get
one more term in the sequence.
EXEEXEEXEEXE
SHIFT
X2
^

EXE
EXE
()
Note 0B • Exponents (continued) fx-7400G Plus

4Discovering Algebra Calculator Notes for the Casio fx-7400G Plus ©2003 Key Curriculum Press
fx-7400G Plus

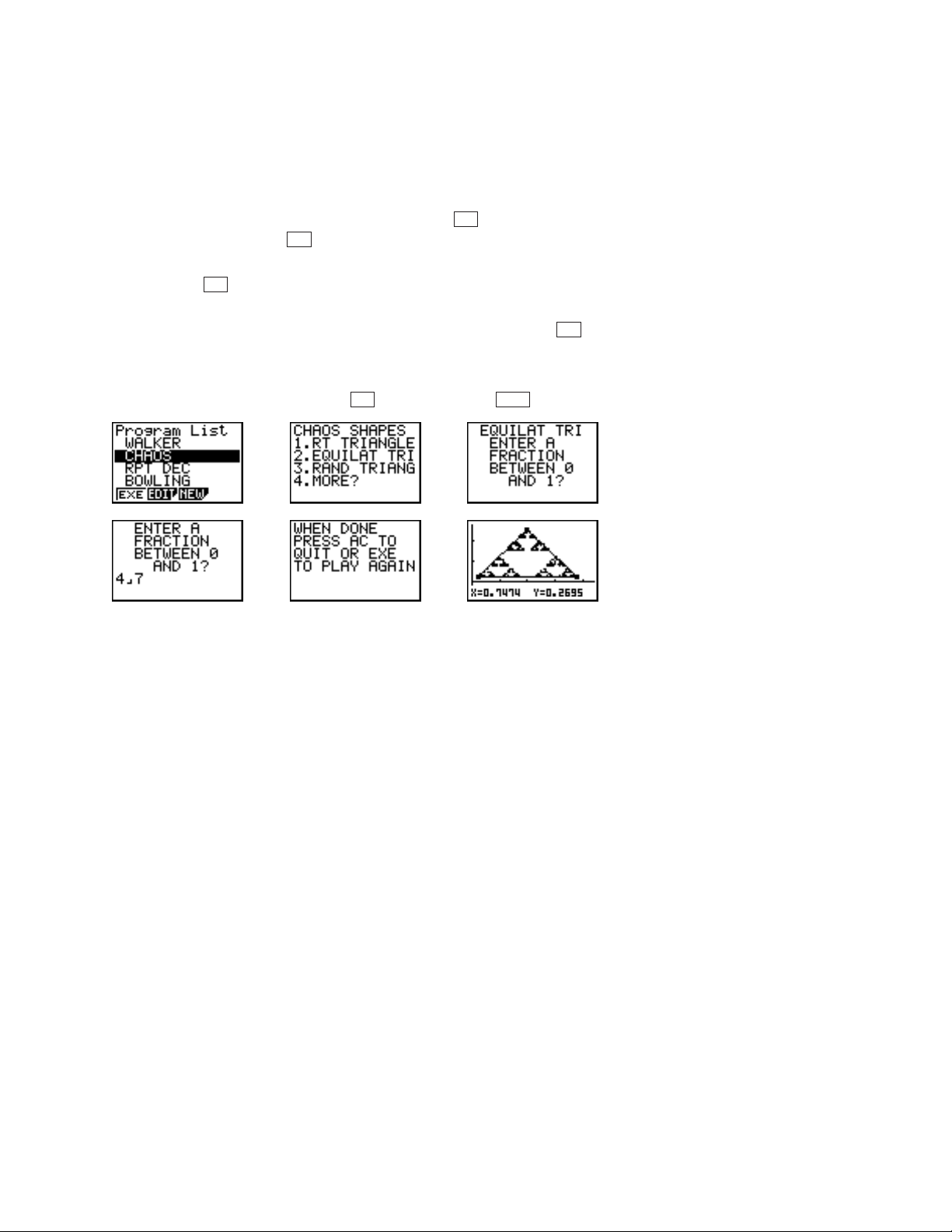

Note 0E • The Chaos Game
Follow the steps below:
a. Link or manually enter the CHAOS program into your calculator.
(See Note 0F and Note 0G.)
b. From the Main Menu, arrow to PRGM and press . Arrow down to
select CHAOS and press .
c. You are asked to choose a Chaos shape. Press the appropriate
number and to select the shape.
d. You are then asked to enter a fraction between 0 and 1. You can
enter this value either as a fraction or a decimal number. Press .
e. The calculator will plot 1000 points by following the Chaos rules to
plot a fractal.
f. When the program is done, press to play again or to quit.
File Name:CHAOS
ClrText∑
"CHAOS SHAPES"∑
Lbl 0∑
"1.RT TRIAN LE2.EQUILAT TRI3.RAND
TRIAN 4.MORE"?áA∑
A<4Ó oto 1∑
ClrText∑
"5.SQUARE"∑
"6.PENTA ON"∑
"7.HEXA ON"∑
"8. O BACK"∑
?áA∑
Lbl 1∑
A=1Ó oto 2∑
A=2Ó oto 3∑
A=3Ó oto 4∑
A=5Ó oto 5∑
A=6Ó oto 6∑
A=7Ó oto 7∑
A=8Ó oto 0∑
Lbl 2∑
" RT TRIAN LE"ÿ
{.05,.95,.05}áList 1∑
{.05,.05,.65}áList 2∑
AC/ON
EXE
EXE
EXE
EXE
EXE
oto 8∑
Lbl 3ÿ
" EQUILAT TRI"∑
{.05,.95,.5}áList 1∑
{.05,.05,.65}áList 2∑
oto 8∑
Lbl 4∑
" RANDOM TRI"∑
{Ran#,Ran#,Ran#}áList 1∑
{.7£Ran#,.7£Ran#,.7£Ran#}áList 2∑
oto 8∑
Lbl 5∑
" SQUARE"∑
{.2,.8,.8,.2}áList 1∑
{.05,.05,.65,.65}áList 2∑
oto 8∑
Lbl 6∑
" PENTA ON"∑
.5+.35sin (72Ü£{0,1,2,3,4})áList 1∑
.35+.35cos (72Ü£{0,1,2,3,4})áList 2∑
oto 8∑
Lbl 7∑
" HEXA ON"∑
.5+.35sin (60Ü£{0,1,2,3,4,5})áList 1∑
.35+.35cos (60Ü£{0,1,2,3,4,5})áList 2∑
(continued)

©2003 Key Curriculum Press Discovering Algebra Calculator Notes for the Casio fx-7400G Plus 5
Lbl 8∑
Clr raph∑
ViewWindow 0,1.1,.25,-.2,.7,.25∑
S- ph2 DrawOff∑
S- ph3 DrawOff∑
S-WindMan∑
S- ph1 DrawOn,xyLine,List 1,List 2,1,
Square∑
DrawStat∑
List 1[1]áX:List 2[1]áY∑
Dim List 1áN∑
F-Line X,Y,List 1[N],List 2[N]∑
" ENTER A "∑
" FRACTION"∑
Note 0E • The Chaos Game (continued) fx-7400G Plus
(continued)
" BETWEEN 0"∑
" AND 1"?áF∑
"WHEN DONE"∑
"PRESS AC TO"∑
"QUIT OR EXE"∑
"TO PLAY A AIN"∑
For 1áJ To 500∑
Next∑
For 1áJ To 1000∑
Int (N£Ran#+1)áP∑
X+(List 1[P]-X)£FáX∑
Y+(List 2[P]-Y)£FáY∑
Plot X,Y∑
Next
(File Name: CHAOS continued)

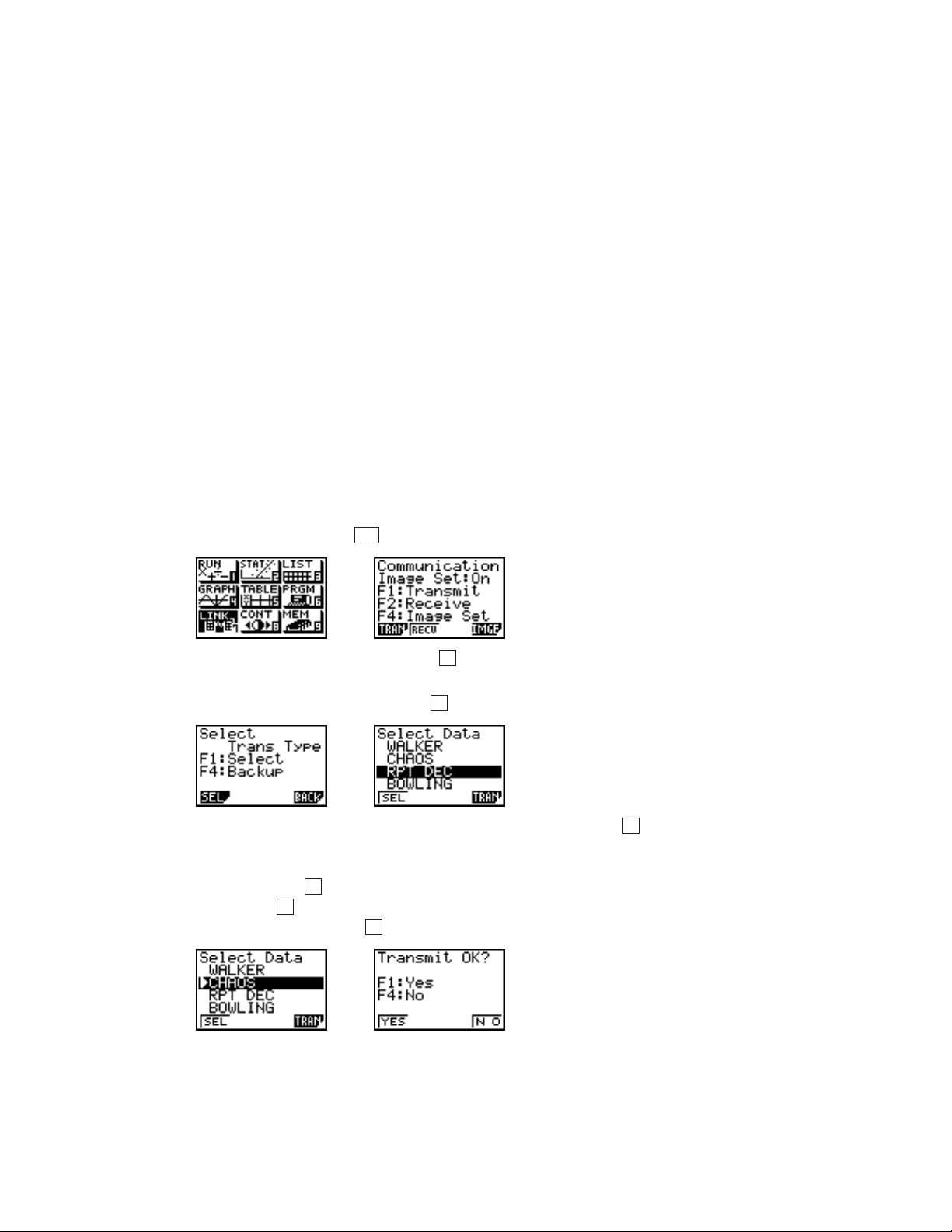

Note 0F • Linking Programs or Lists
a. Connect two calculators by using a link cable. Be sure that the
connection is tight on each unit.
b. Turn on both calculators, and on each one select LINK from the
Main Menu and press .
c. On the receiving calculator, press (RECV) so that the calculator
displays Receiving....
d. On the sending calculator, press (TRAN).
e. Arrow down to the program or data you wish to send. Press (SEL)
to select a program or list. You can select more than one program
and/or list and send them simultaneously. Just continue to arrow
down, pressing (SEL) at each program or list you want to transmit.
Then press (TRAN) to bring up the transmit menu. When you are
ready to transmit, press (YES).
f. When the transfer is complete, the screen will display Communication
Complete! on both calculators.
F1
F4
F1
F1
F1
F2
EXE

6Discovering Algebra Calculator Notes for the Casio fx-7400G Plus ©2003 Key Curriculum Press
Note 0F • Linking Programs or Lists (continued) fx-7400G Plus
Errors
If you get a Transmit ERROR! message, check each calculator to be sure the
link cable is pushed all the way in and try again. Remember that after you
arrow to the program or list you want to send, you must press (SEL) to
select it to transmit. Also, the receiving calculator must be Receiving before
the sending calculator transmits. If the receiving calculator already has
a program or list by the same name as the one you are sending, the
sending calculator will ask if you wish to overwrite the item on the other
calculator. Select (YES) to overwrite or (NO) to skip transferring
that item.

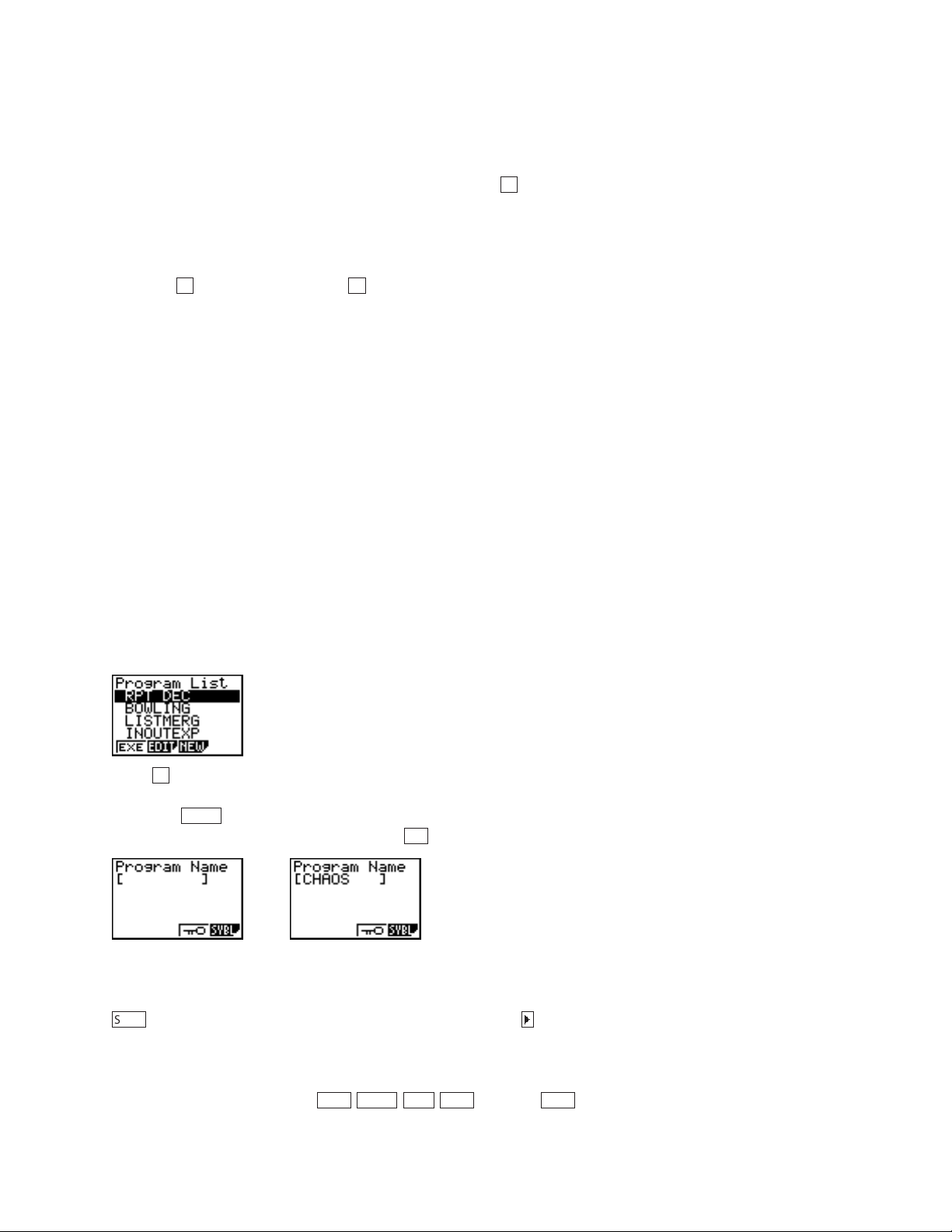

Note 0G • Entering a Program
Your calculator is like a small computer. You can instruct (or program) it to
do calculations or to communicate with other devices. What follows is not
instructions on how to write a program, but instructions on how to enter a
calculator program that has already been written. You must be very careful
to enter the commands exactly as they are written. Changing the program in
any way will alter how it runs and may cause an error.
There are three ways to enter a program into your calculator. Two easy ways
are to download a program from either a computer or another calculator. To
use a computer, download the program from a CD-ROM directly into your
calculator by using the Casio Program-Link™ software. To use another
calculator that has the program in its memory, link the two calculators with
a link cable and transfer the program. (See Note 0F.) The third way to enter
a program is to do it manually by following the steps below:
a. Select PRGM from the Main Menu.
b. Press (NEW) to name the program. (Use the red letters above the
number and operation keys.) You are already in Alpha Lock, so do
not press unless you want to enter a number in the program
name. When the name is complete, press .
c. Enter the program exactly as you see it. Lowercase letters in the
command indicate that you must find the command on the
calculator. You can find many programming commands by pressing
[PRGM] and looking under COM,CTL and JUMP. The key will
often give you more options. Use the function keys to access the
commands shown at the bottom of the screen. To find other
commands, press the appropriate function key or look at the
function options by pressing [SET UP] .
SHIFTSHIFTVARSALPHAOPTN
˛
SHIFT
EXE
ALPHA
F3
F2F1
F1
(continued)

©2003 Key Curriculum Press Discovering Algebra Calculator Notes for the Casio fx-7400G Plus 7
You can look in the back cover of your fx-7400G Plus User’s Guide
to determine which calculator key to press. If you enter a command
from the calculator text screen, all the letters will be uppercase. The
command won’t look the same, and it won’t work.
d. Use [INS] to insert a new line between two lines. Use
on a blank line to delete that line.
e. Press twice when you finish entering the program.
Errors
You can edit the program if there is an error or if you need to make
a change.
a. Select PRGM from the Main Menu. Arrow down to the program
name and press (EDIT).
b. Scroll down through the program to find the error. Studying the
entire program on paper is often easier than working from the
calculator screen where you can only see a small portion at one
time. Use [INS] or as needed to make changes. When you
are finished making corrections, press .
c. If you get an error message when you execute a program, press the
arrow key to the right. The calculator will automatically switch to
the EDIT mode and scroll to the line with the error. Then proceed
as in step b.
Note 0H • The Repeating Decimal Program
The RPT DEC program can be used to convert a repeating decimal to a
fraction. Follow the steps below:
a. Link or manually enter the program into your calculator. (See Note
0F and Note 0G.)
b. In the Main Menu, arrow to PRGM and press . Toggle the arrow
key down to select the program labeled RPT DEC and press .
c. You are asked to enter your decimal. Enter your decimal, including
at least one digit more than one repeating cycle, and press . For
example, if your number is .133333 . . . , you could enter .133, .1333,
or .13333, and so on.
d. You are then asked how many digits repeat. In our example, the 3 is
the only digit that repeats, so press .
EXE
1
EXE
EXE
EXE
QUIT
DELSHIFT
F2
QUIT
DELEXESHIFT
Note 0G • Entering a Program (continued) fx-7400G Plus
(continued)

8Discovering Algebra Calculator Notes for the Casio fx-7400G Plus ©2003 Key Curriculum Press
Note 0H • The Repeating Decimal Program (continued) fx-7400G Plus
e. You are next asked how many digits come before the repeating
digits. In our example, .133333 ...,thereisonedigit(the 1), so
press .
f. The equivalent fraction will be displayed on the screen. You can then
use to convert back and forth between fraction and decimal.
File Name:RPT DEC
"ENTER DECIMAL"∑
?áN∑
"HOW MANY "∑
"DI ITS "∑
"REPEAT"?áP∑
"HOW MANY "∑
"DI ITS COME"∑
"BEFORE THE"∑
F↔D
EXE
1
"REPEATIN "∑
"DI ITS"?áL∑
Int (10^L£N)áR∑
Frac (10^L£N)áS∑
Int (S£10^P)áC∑
(10^P-1)£10^LáB∑
10^LáA∑
R°A+C°B
