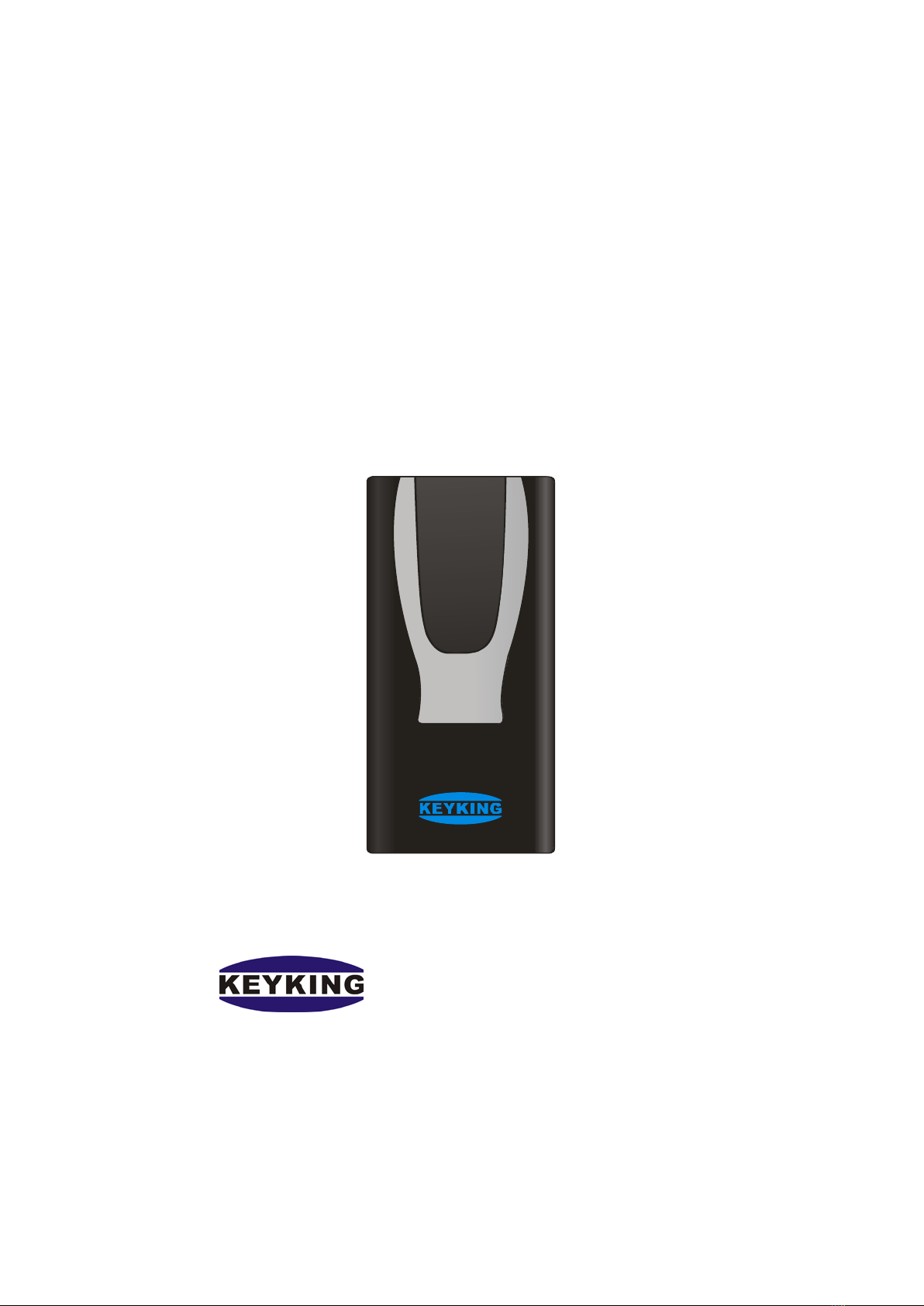

KEYKING 6610E User manual

Proximity/Smart Reader
Operation Manual
Model: 6610E/M
KEYKING GROUP LIMITED

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 1
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
Index
Chapter 1: Summarize.......................................................................................................................2
1.1 Summarize ..........................................................................................................................2
1.2 System Characteristics..................................................................................................3
Chapter 2: 6610 Reader Instructions:................................................................................................4
2.1 6610 surface:.................................................................................................................4
2.2 6610 Wiring: .................................................................................................................4
2.3 Mode setting:.................................................................................................................7
2.3.1 Wiegand 26 Bits................................................................................................7
2.3.2 Wiegand 34 Bits................................................................................................7
Chapter 4: Installation.......................................................................................................................8
4.1 Cable Notes.................................................................................................................10

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 2
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
Chapter 1: Summarize
1.1 Summarize
Reader Model Define:
66 1 0K E
Support Card Type:
E: EM; For example: EM4100, TK4100 series.
M: Mifare-; For example: Philips S50, S70 series smart cards.
RC: Mifare Sector; For example: Philips S50, S70 series smart cards.
H: HID Compatible; For example: 1326, 1386 and tags.
T: Temic, like E5557;
S: 15693; For example: Ti series cards.
B: TAP_B, For example: Chinese 2cd Identifitation;
C: TAP_C, Hongkong Metro;
E: EM;
M: Mifare-;
RC: Mifare Sector;
H: HID Compatible;
T: Temic, like E5557;
S: 15693;
B: TAP_B, 2cd Identifitation;
C: TAP_C, Hongkong Metro;
K: Keypads Reader;
10: Model;
66: Series;

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 3
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
1.2 System Characteristics
Technical Parameters:
Power: 12 VDC ± 10%, 200mA
Dimensions: 86mm (H) x 42mm (W) x 15mm (D)
Weight: 300 grams
Operating Frequency:
125KHZ:
E: EM;
H: HID;
T: Temic;
13.56MHZ:
B: TAP_B;
C: TAP_C;
M: Mifare;
RC: Mifare Sector;
S: 15693;
•Read Range: 5 to 15 cm
•LED indicators: Dual LEDs, Blue&Green.
Cover Back
86mm
Firmware
Update
Jumper
Connector
Installing
Hole

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 4
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
Chapter 2: 6610 Reader Instructions:
2.1 6610 surface:
LED:
Blue LED for power indication.
Green LED for card reading indication.
2.2 6610 Wiring:
Definition of wiring:
LED(Blue&Green)
Diagram

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 5
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
No. Mark Definition Note
1 +12V Power Supply
2 D1 Data 1
3 D0 Data 0
4 LED
LED control, when it was shorted with GND, then LED
will change the color.
5 GND GND, Ground Wire
6 BUZ
Buzzer control, when it was shorted with GND, then
Buzzer will beep.

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 6
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
LED8
LED7
LED6
LED5
LED4
LED3
LED2
LED1
D1
XJ1
-
BATT1
+
XJ1
XJ1
D2D3
G
B
S
D4
XJ1
D5
XJ1
D6
XJ1
D7
XJ1
D8
XJ1
S
S
S
G
B
B
B
G
G
复位按钮
Model:DPU3004/B
TC348NT
8
7
65432
1
INITAL
UNIT ID
SW1
JP1
Access Control
RJ45
6610 Reader

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 7
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
2.3 Mode setting:
Jumper Setting (JP1, valid for 6610E, 6610M only):
None: the reader will output Wiegand 26 bits format.
Short: the reader will output Wiegand 34 bits format.
2.3.1 Wiegand 26 Bits
Please keep nothing on the JP1, then the reader will output Wiegand 26 bits format.
2.3.2 Wiegand 34 Bits
Please keep a Jumper on the JP1 to short the 2 Pins, then the reader will output
Wiegand 34 bits format.

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 8
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
Chapter 4: Installation
Installation Procedure
Installation Procedure
1. Determine an appropriate mounting position for the reader. The reader drawing below is actual
size and may be used as a template. Install a single or double gang electrical box or drill the
appropriate mounting for #6 fasteners. If mounting to a metal surface, drill two 7/64 (.109) inch
holes and use the enclosed self tapping screws for mounting.
2. Route the interface cable from the reader and/or power supply to the Host.
3. Prepare the cable by cutting the cable jacket back 2 (two) inches and strip the wires 1/4 inch.
Tinning the wires is not required.
4. Pry off the center face plate by placing a thin blade into the grove that outlines the face of the
reader. Use care to avoid scratching the surface of the reader. The face plate is attached to the
reader by friction only. The screws that hold the enclosure pieces together will be exposed. Loosen
the four screws to open the enclosure (the enclosure screws are captive to the cover).
5. Install the cable fitting on the rear of the reader. Feed the cable through the cable fitting, tighten
the fitting nut so the cable jacket is flush with the printed circuit board. Dress the cable conductors
and connect the reader to the Host according to the terminal descriptions in the dimension diagram
and wiring table. The descriptions are on the PCB guard in the reader. Connect the drain line of the
shield to terminal 2 (Power Supply Ground). Terminal 5, Data Return, is to be connected to the
ground of the Host if the power supply ground is not common with the Host. The opposite end of the
drain line should be cut flush with the jacket and left disconnected.
6. Mount the base of the reader that holds the electronics to the gang box or surface using the two
holes located on the center axis of the reader. Two #6-32 x 1 inch screws are provided for mounting
to a gang box or metal surface.
7. Set the JUMPER switches according to the table in the section,Jumper Switch Settings.
8. After wiring the Reader and power supply, the Reader is ready to be tested. Power up the Reader
and the LED and Beeper will flash and beep 1 times. This indicates that the micro-controller unit is
working properly. If the switches have been set for external control only, the Reader will 3 shorts
and a long. Present an ID card to the Reader and the LED should momentarily turn green,
indicating a read of the card. If the Reader LED is controlled by the Host refer to the Host
description of the LED operation.
Replace the top cover and face plate.

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page 9
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com

KEYKING GROUP 6610Proximity/Smart Reader Manual (V2.0)
Page
10
Keyking Group Limited
33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel
Tel: [phone] Fax: [phone] Website: www.key-king.com
4.1 Cable Notes
Cable Notes:
1) When using 5 conductor cable, the power supply and Host must have a common ground common
(voltage reference).
2) 6 conductor cable is required when controlling the red and green LED. (Alpha 1296 C or equivalent).
3) 7 conductor cable is required when both green and red LED’s are controlled by the Host and the
power supply and Host "ground" are separate. (Alpha 1297 C or equivalent)
4) A 22 AWG twisted pair, shielded, stranded cable is often required for the tamper switch tamper
switch tamper switch tamper switch. Follow the recommendations of the manufacturer of the Host
system. If the tamper input is a supervised input the "end of line" resistors may be mounted in the
enclosure. Use extreme care and shield any bare wire from the printed circuit assembly and its
components.
5) The inner diameter of the cable fitting will accommodate a cable with an outer diameter of 300
inches (nominally).
6) Connect cable shield Connect cable shield Connect cable shield Connect cable shield by
connecting drain wire to TB1-5 ground. Leave foil and drain wire disconnected at host end of cable
by cutting them off at the end of the cable jacket.
7) When using the Buffered Direct Connect Proximity with a 20 conductor cable, DC+ and Power (Red
and White / Red wires) must have a common connection to the host +DC power supply. The two
ground wires (Black and White / Black) must have a common ground connection to the host +DC
power supply.
