Kidde Fire Systems SmartOne K-76-227 User manual

Effective: July 2021
K-76-227
SmartOne® Hand-held
Device Programmer
- For all generations of SmartOne devices
- For DS and KS series detectors

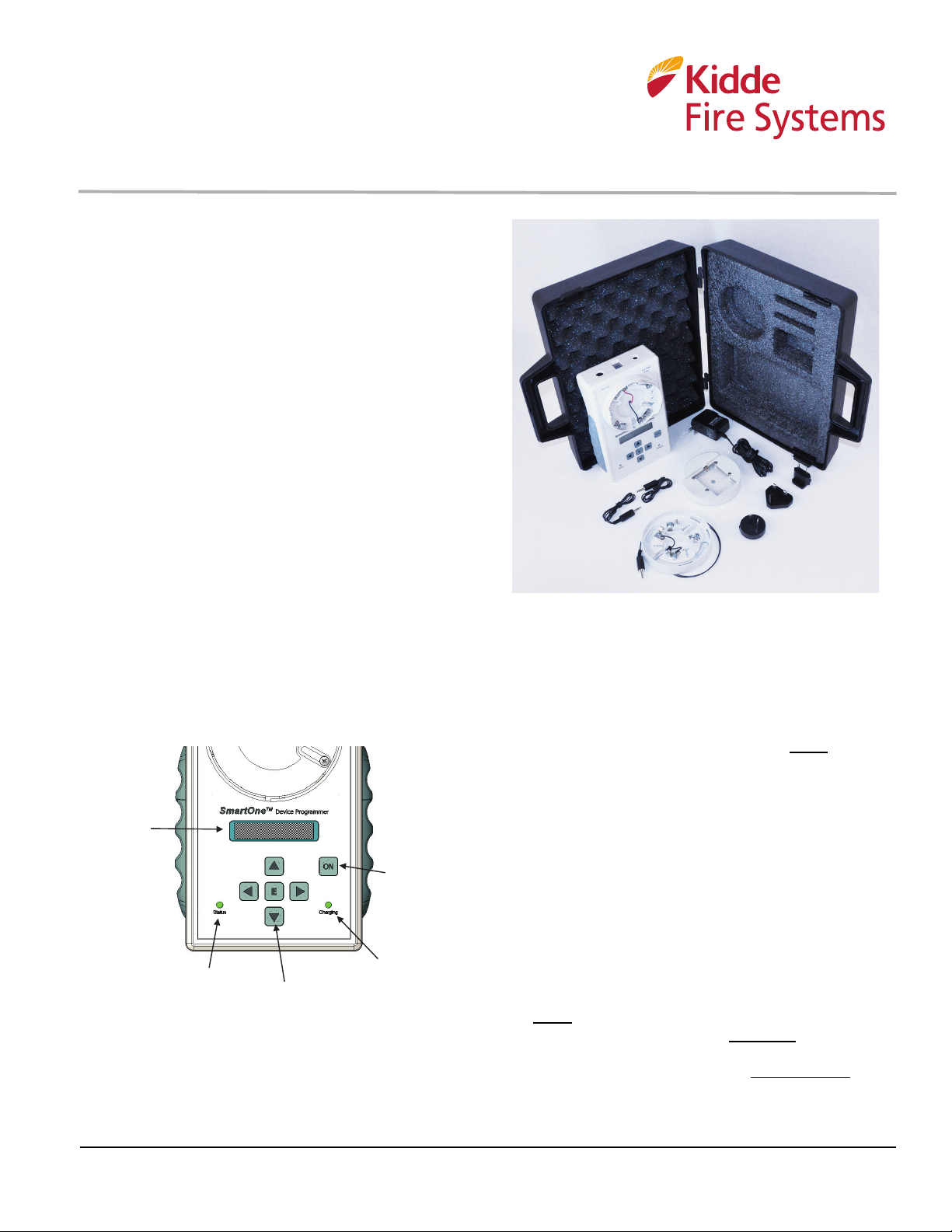

DESCRIPTION
The Hand-held Device Programmer provides a convenient
means to assign device address information and test device
operation. The Programmer is designed to support all
SmartOne intelligent and addressable devices, including DS/KS
Series Detectors. Programming adapters are provided in kit.
Note: Prior to using the Programmer, ensure that you have
the following accessories:
• SLC Interface Adapter
• AC Adapter (120V or 240V)
• AI/AO Module Programming Adapter for newer modules
• DS/KS Series Programming Adapter
• 4 NiMH Rechargeable AA Batteries
• Storage Case
MAIN MENU LEVEL SELECTIONS
To access Main Menu selections, press the <>and <>
buttons until the LCD display shows the desired selection, then
press <E>. There are four Main Menu selections:
•Single Addressing - Set an address for a single device at
a time.
•Sequential Addressing - Set an address range (with a
start address and end address), and give each device a
unique address within that range. Program multiple
devices quickly, and reduce the possibility of setting dupli-
cate addresses.
•Alarm Test - Test the alarm initiating responses of initiating
devices. A device that fails the Alarm Test should not be
installed.
•Options - Adjust LCD settings; show current firmware
version; adjust the Power-Off timer.
GENERAL MENU NAVIGATION
General menu navigation rules include the following keypad
instructions:
1. Press the <>and <>buttons to navigate the menu
levels.
2. Press <E> (Enter) to enter any sub-menu from any
higher level.
• Press the <>button to return to a previous menu.
FEATURES
• Single or sequential device addressing modes
• Compact design; user-friendly
• AC and battery power operation
• Adjustable LCD Contrast
• Integral detector base for older detectors
• Adapter Base for DS and KS Series Detectors included
• Adapter Base for AI and AO modules included
• SLC Interface Adapter Connector—no SLC wiring
• Less than 15 seconds addressing time per device
“ON”
Button
Status LED
“Charging”
LED
Keypad
Buttons
LCD
Display

- 2 -

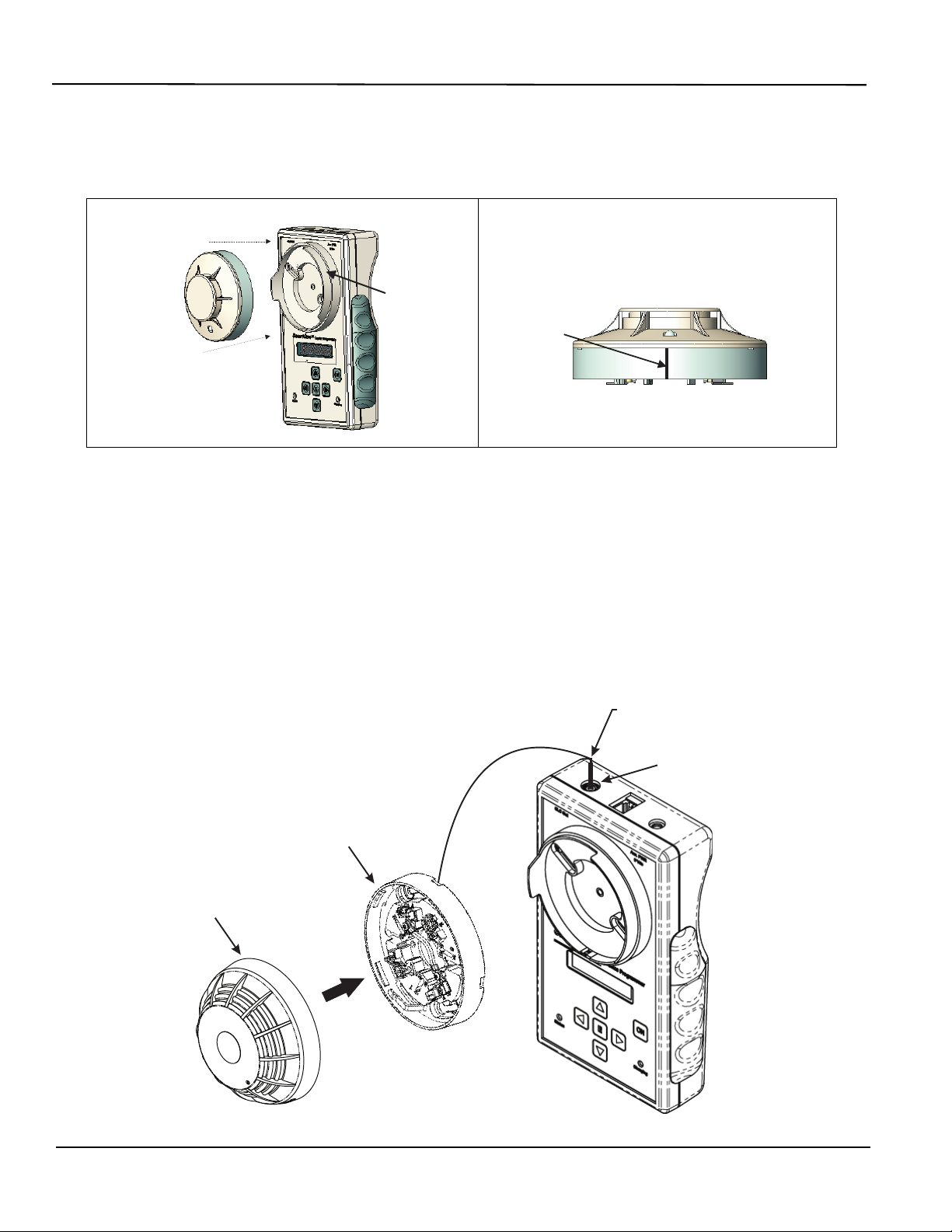

CONNECTING TO VARIOUS SMARTONE DEVICES
Note: The power may be ON or OFF when connecting a SmartOne device to the Hand-held Programmer.
Older Generation Smoke/Heat Detectors
Snap the detector into the detector base, orient the index marker on the device to the five o’clock position, then rotate clockwise.
DS and KS Series Detectors
A fixture that allows the DS and KS Series Detectors to be programmed via the SmartOne Hand-held Programmer is
included with the programmer and also available separately (P/N 70-600000-110). The adapter is a base with an
attached wire and jack which plugs directly into the programmer. It does not mount onto the programmer. The detector
head is then attached to the connected base for programming. The following detector heads fit onto the fixture:
• DS-PS Intelligent Photoelectric Detector • KS-PS Intelligent Photoelectric Detector
• DS-HFS Intelligent Fixed Temperature Thermal Detector • KS-HD Intelligent Heat Detector
• KS-PHD Intelligent Combination Photoelectric Heat
Detector
Detector
Base
Smoke
Detector
Index
Marker
SLC Out Adapter
Connector
SLC Adapter
Jack Plug
DS or KS Series
Detector Head
DS/KS Series Detector
Programming Adapter
(P/N 70-600000-110)
NOTE:
Lay flat. Adapter does
not fit on programmer.

- 3 -
Older Generation Addressable Input (AI) and Addressable Output (AO) Modules
Connect the legacy AI/AO Module Adapter to the detector base and rotate clockwise. Insert the AI or AO module into the adapter
with the terminal block facing left. Tilt the module into the recess of the adapter such that the terminal block screws make contact
with the spring-loaded probes; then snap the back of the module into the right half of the recess.
New Generation Addressable Input (AI) and Addressable Output (AO) Modules
A fixture that allows new generation AI and AO modules to be programmed via the SmartOne Hand-held Programmer
is included with the programmer and also available separately (P/N 06-220493-001). The adapter is a base with a
printed circuit board which fits directly onto the DS/KS Series Detector Programming Adapter (which then plugs directly
into the SLC Out port of the programmer.) It does not mount onto the programmer. An AI or AO module snaps into
place on the assembly, oriented with the 4-pin terminals at the top and 6-pin terminals at the bottom. The following
modules fit onto the fixture:
• Class A/2B Addressable Input Module • Single Addressable Output Module
• Class B Addressable Input Module • Dual Addressable Output Module
AI/AO
Module
Adapter
Recess of AI/AO
Module Adapter
Spring-Loaded
Probes
AI/AO Module Programming Adapter
(P/N 06-220493-001)
AI or AO Module
SLC Out Adapter
Connector
SLC Adapter
Jack Plug
DS/KS Series Detector
Programming Adapter
(P/N 70-600000-110)
NOTE:
Lay flat. Adapter does
not fit on programmer.

Kidde Fire Systems
400 Main Street
Ashland, MA 01721
Ph: 508.881.2000
Fax: [phone]
www.kiddefiresystems.com
SmartOne is a registered trademark of Kidde-Fenwal, Inc., or its parents, subsidiaries or affiliates.
This literature is provided for informational purposes only. KIDDE-FENWAL, INC. believes this data to be accurate, but it is published and presented without any
guarantee or warranty whatsoever. KIDDE-FENWAL, INC. assumes no responsibility for the product's suitability for a particular application. The fire suppression system
design, installation, maintenance, service and troubleshooting must be performed by trained, authorized Kidde Fire Systems distributors for the product to work correctly.
If you need more information on this product, or if you have a particular problem or question, contact:
KIDDE-FENWAL, INC., Ashland, MA 01721 USA, Telephone: [phone].
K-76-227 Rev AC
©2021 Carrier All rights reserved.
EXPORT INFORMATION (USA)
Jurisdiction: EAR
Classification: EAR99
This document contains technical data subject to the EAR.
Other Devices
Plug the SLC Interface Adapter jack into the Programmer Con-
nector marked “SLC OUT.” Locate terminal blocks on device
labeled “SLC” or “PC Line.” Connect one SLC Interface Adapter
wire to Terminal “A” on the device, and the other wire to
Terminal “B.”
SUPPORTED DEVICES
* Newer modules
ORDERING INFORMATION
SmartOne Device Part No.
Ionization Detectors
70-402001-100
70-401001-000
70-401002-000
70-401004-000
Photoelectric Detectors
71-402001-100
71-401001-000
71-401002-000
71-401004-000
KS-PS
DS-PS
Duct Detector DS-SD
Heat Detector
KS-HD
DS-HFS
70-404001-100
Combination Photo /Heat Detector KS-PHD
Addressable Contact Input Devices
70-417008-001
70-417018-001
70-417008-002
70-407008-001
70-407018-001
70-610001-001 *
70-620001-001 *
70-407008-002
Addressable Contact Output Devices 70-408004-001
70-518004-001 *
70-528004-001 *
70-408014-001
Addressable Signal/Sounder Module 70-200200-001
70-200200-002
Addressable AlarmLine Module 73-100001-003
Remote Releasing Module 70-600000-001
70-600000-002
Class A Power Module 70-210210-100
Part No. Description
70-600000-100 SmartOne Hand-held Device
Programmer (complete unit)
Contents include the following:
• SLC Interface Adapter
• AC Adapter (120/240V)
• AI/AO Module Adapter
(for newer modules)
• 4 NiMH Rechargeable
AA Batteries
• Storage Case
• Includes one (1) DS/KS Series
Detector Programming Adapter
70-600000-101 SmartOne Hand-held Device
Programmer—
only with SLC Interface Adapter
and Quick Reference Guide.
(Does NOT include other
Adapters, Batteries, or Storage
Case.)
06-220197-001 Accessory Kit—contents include the
following:
• SLC Interface Adapter
• AC Adapter (120/240V)
• AI/AO Module Adapter
(for newer modules)
70-600000-110 DS/KS Series Detector Programming
Adapter
06-220493-001 AI/AO Module Programming Adapter
(for newer modules)
