INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-1 / 22
TECHNICAL INFORMATION
ACTIVE ACOUSTIC SAIL SYSTEM
INDUSAIL SONIC

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-2
CONTENTS
PART I – TECHNICAL INFORMATION
INDUSAIL SYSTEM
One system – many possibilities 3
THE FLEXIBLE ACOUSTIC SAIL SYSTEM
INDUSAIL SONIC
Advantages, features, areas of application
Function description 4
ACOUSTIC SAIL SYSTEM INDUSAIL SONIC
Versions and designs 6
SYSTEM CONSTRUCTION / INSTALLATION
Dimensions, views, technical drawings 7
Exploded view 11
Technical data 12
CLIMATE AND ACOUSTICS PLANNING
Design example for an o󰀩ce 13
Technical data in detail for ventilation/cooling 14
Technical data in detail for acoustics 17
PART II – INSTALLATION INFORMATION
INSTALLATION INFORMATION
Application options and control 3
Technical drawings and installation information 4
Suspension 7
Installation 8
Installing the cooling unit 8
Cooling unit electrical connection 10
MAINTENANCE AND REPAIRS
Maintenance intervals 13
Regular technical maintenance work and repairs 14
SAFETY
Explanation of symbols and notes 16
Safety information 17
Intended use 18
TRANSPORT INSTRUCTIONS, DELIVERY
AND STORAGE
Transport instructions and delivery 19
Storage / inbound delivery 19
Disposal, environmental protection and recycling 19
EC declaration of conformity 19

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-3

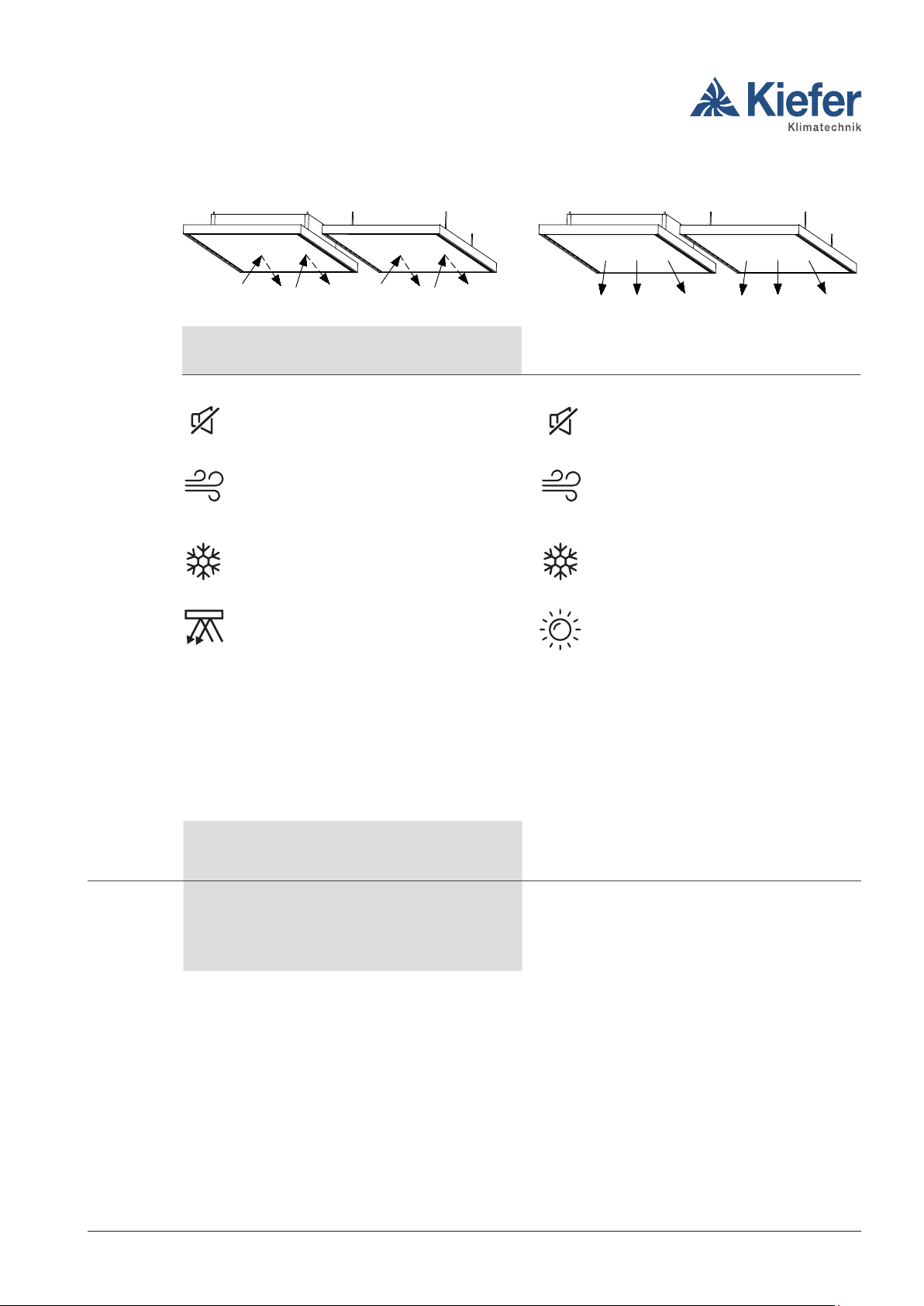

INDUSAIL SYSTEM
ONE SYSTEM – MANY POSSIBILITIES
The right option for every room – two INDUSAIL ranges in three designs
The intelligent combination of acoustics, ventilation, air conditioning and lighting for an optimal workplace design, all in one
unit. Flexible expansion and combination options.
INDUSAIL LUMINUS
INDUSAIL SONIC
INDUSAIL SONIC INDUSAIL LUMINOUS
plus air silent plus air silent
Lighting ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫
Ventilation ⚫ ⚫ ⚫ ⚫ -⚫ ⚫ ⚫ ⚫ -
Cooling ⚫ ⚫ ⚫ ⚫ -⚫ ⚫ ⚫ ⚫ -
Acoustics ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫
***
*No lighting; very good light reectance
AIR
Draught-free supply of fresh air
COOLING
Comfortable air conditioning
LIGHT REFLECTANCE
Supports the lighting
AIR
Draught-free supply of fresh air
COOLING
Comfortable air conditioning
LIGHT
Intelligent room lighting
INDUSAIL SONIC INDUSAIL LUMINOUS
ACOUSTICS
High sound absorption
ACOUSTICS
High sound absorption

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I - 4
THE FLEXIBLE ACOUSTIC SAIL SYSTEM
INDUSAIL SONIC
ACOUSTICS – COOLING – AIR – LIGHT REFLECTANCE
INDUSAIL SONIC plus function description
The fan draws ambient air into the unit via a lter cell and channels it through the heat exchanger. The air is cooled by the
cold water owing within the heat exchanger. The cooled secondary air is then introduced into the room from four sides,
in a highly inductive, draught-free manner, through Kiefer air di󰀨users, type INDUL P18. The lter cell protects the internal
components from soiling.
P The supply water temperature
must be calculated to ensure
that no condensation forms
during correct operation.
As an option, it is possible to feed preconditioned outdoor air into the sail via an air
connection (DN 125). This outdoor air is used to maintain the intended minimum outdoor
air ow rate for the room (DIN EN ISO 15251).
The air ow rate, sound power and caloric output are important considerations for the unit
design. The caloric output of the units is determined by the amount of water – controlled,
for example, by a water valve – and the speed of fan rotation. The fan speed is controlled
by regulating an EC motor with a 0 to 10 V (DC) signal from a controller or the building
management system. The sound power of the unit is determined by the speed of fan
rotation and the air ow rate.
INDUSAIL SONIC is a exible acoustic sail with
integral fan coil for ambient air conditioning. It
supports the most common types of lighting thanks
to its high light reectance value > 90 %. The recircu-
lation air or mixed air is induced via highly inductive
linear di󰀨users, with an optional fresh air intake to
improve the ambient air quality. By combining active
and inactive components, the requirements of di󰀨e-
rent o󰀩ce concepts can be fullled, even in the event
of future changes.

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-5

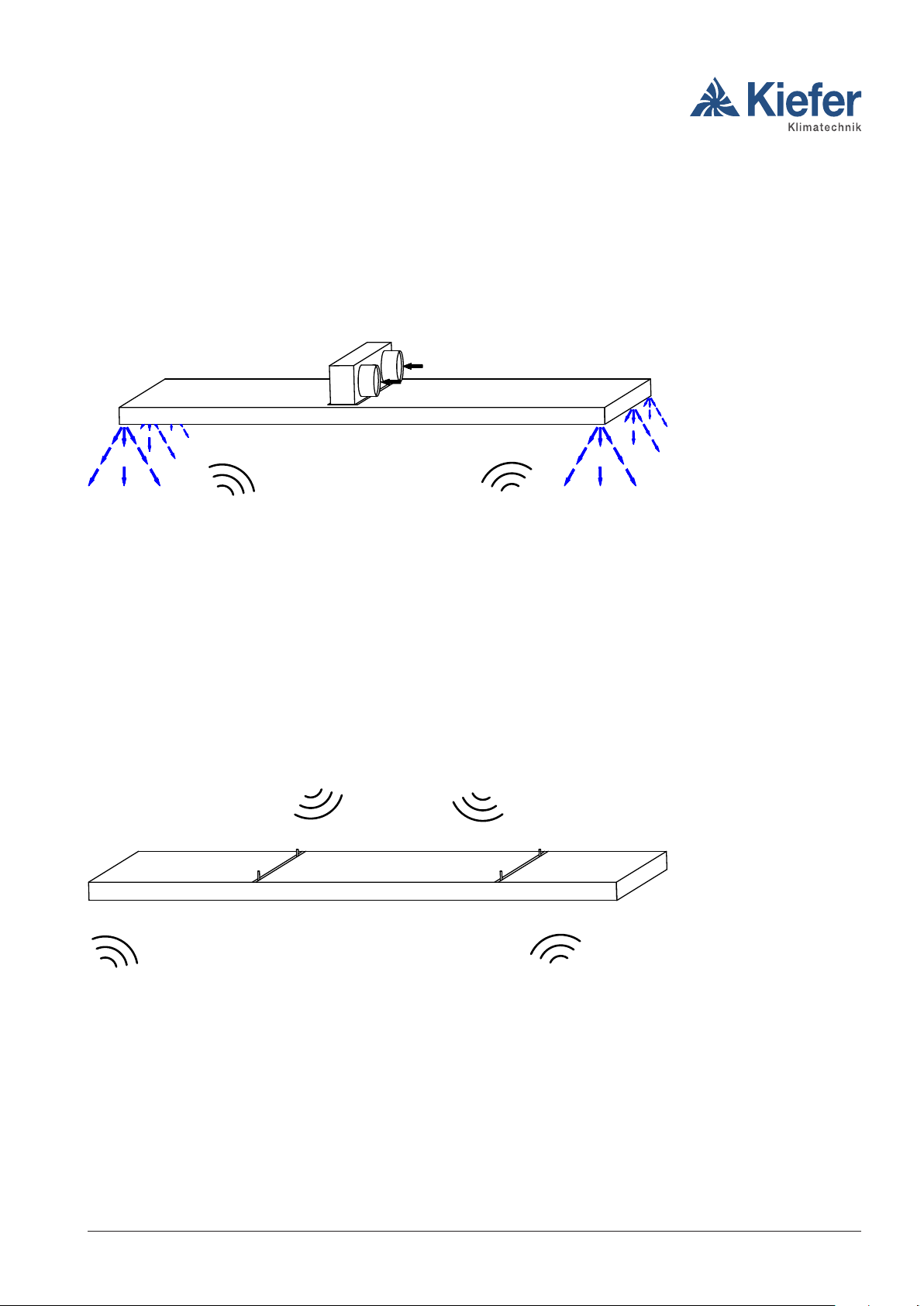

INDUSAIL SONIC air function description
INDUSAIL SONIC air works without an air cooler and has been designed to introduce preconditioned outdoor air only.
Thanks to the low supply air temperatures that can be achieved with this design, high cooling capacities are also possible
while maximising interior comfort.
INDUSAIL SONIC silent function description
Although this version does not have a ventilation function, its outer coating of highly absorbent insulating material achieves
very good sound absorption and therefore improved interior acoustics. It also serves as an additional design element.
THE FLEXIBLE ACOUSTIC SAIL SYSTEM
INDUSAIL SONIC
ACOUSTICS – COOLING – AIR – LIGHT REFLECTANCE

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-6
VERSIONS AND DESIGNS
INDUSAIL SONIC
plus air silent
Light reectance lll lll lll
Ventilation l lll -
Cooling lll l -
Sound absorption ll ll lll
Installation situation
Open ceiling layouts; with and without ceiling cavity depending on the design
plus
air
silent
silent

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-7

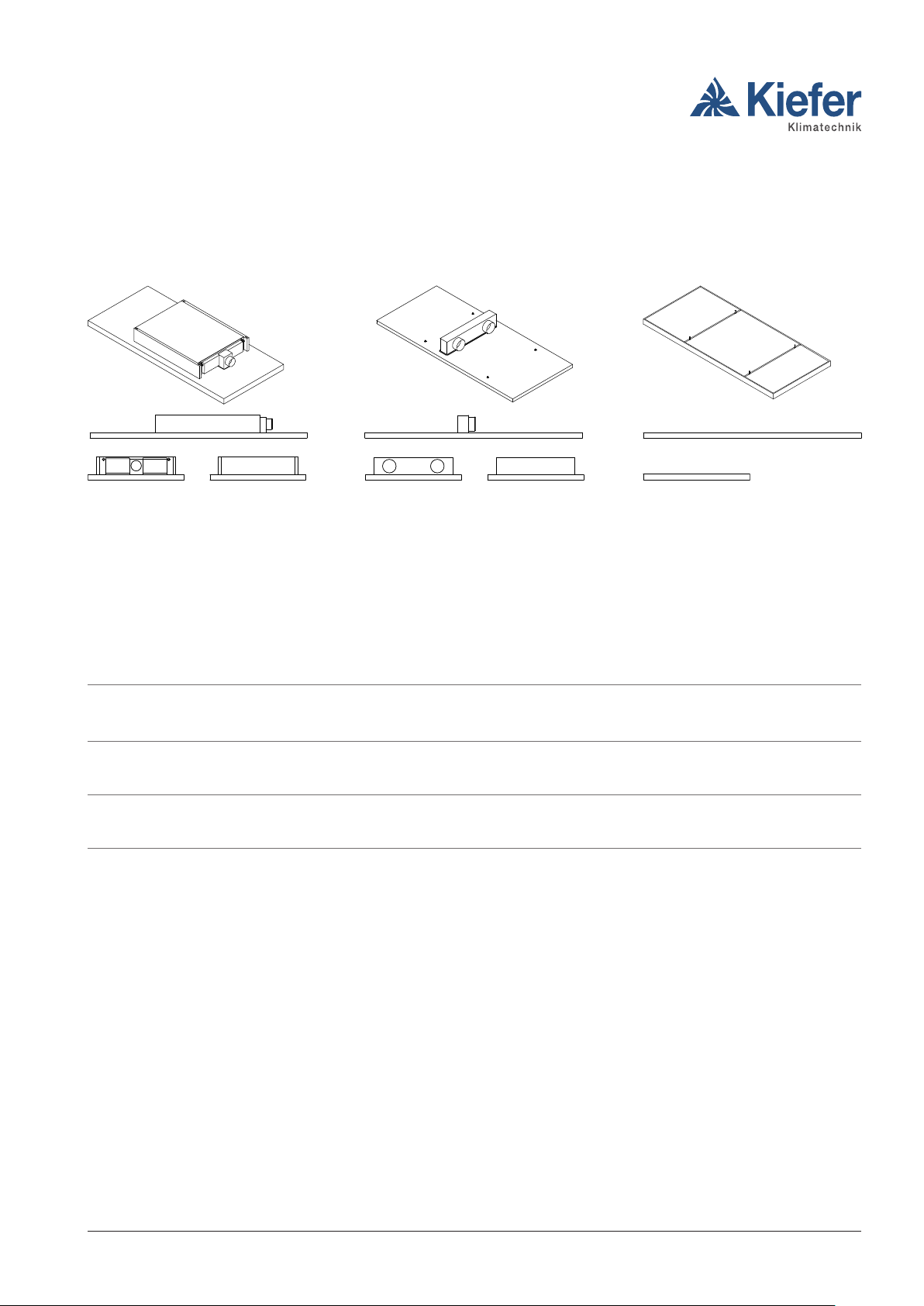

SYSTEM CONSTRUCTION / INSTALLATION
INDUSAIL SONIC
plus air silent
Dimensions L x W x H 2500 x 1100 x 255 2500 x 1100 x 250 2500 x 1100 x 50
Max. ventilation (outdoor air) m3/h 120 500 -
Max. total cooling capacity W 1600 1600 -
Assessed sound abs. αW- 0.6 0.6 0.9
INDUSAIL SONIC
plus air silent

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-8
INDUSAIL SONIC plus
Length Width Height
mm 2500 1100 255
Acoustic ceiling sail with a secondary air cooling
unit for comfortable ventilation and ambient air
conditioning.
Acoustic panel
Acoustic sail equipped with sound-absorbing
di󰀨user material
- Sound-absorbing material
(100 % polyester)
- Integrated inductive air di󰀨users
- Light reectance > 90%
Cooling unit
Modular secondary air cooling unit
- Electrical connection (230 V)
- Controllable EC fan with reliable start-up, stable
performance curve and low noise level
- Heat exchanger with cold water connection for
conditioning the ambient air
- Pleated lter for secondary air
- Plenum box with sound insulation
Ventilation
Outdoor air connection (DN125) and optimum air
distribution in the occupied zone through highly
inductive air di󰀨users (INDUL P18)
Suspension
Straightforward installation via 4-point suspension
with threaded rods
2500
1100
50 255
Bottom view
Top view
Side view – long side
Side view – R – broad side Side view – L – broad side

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-9

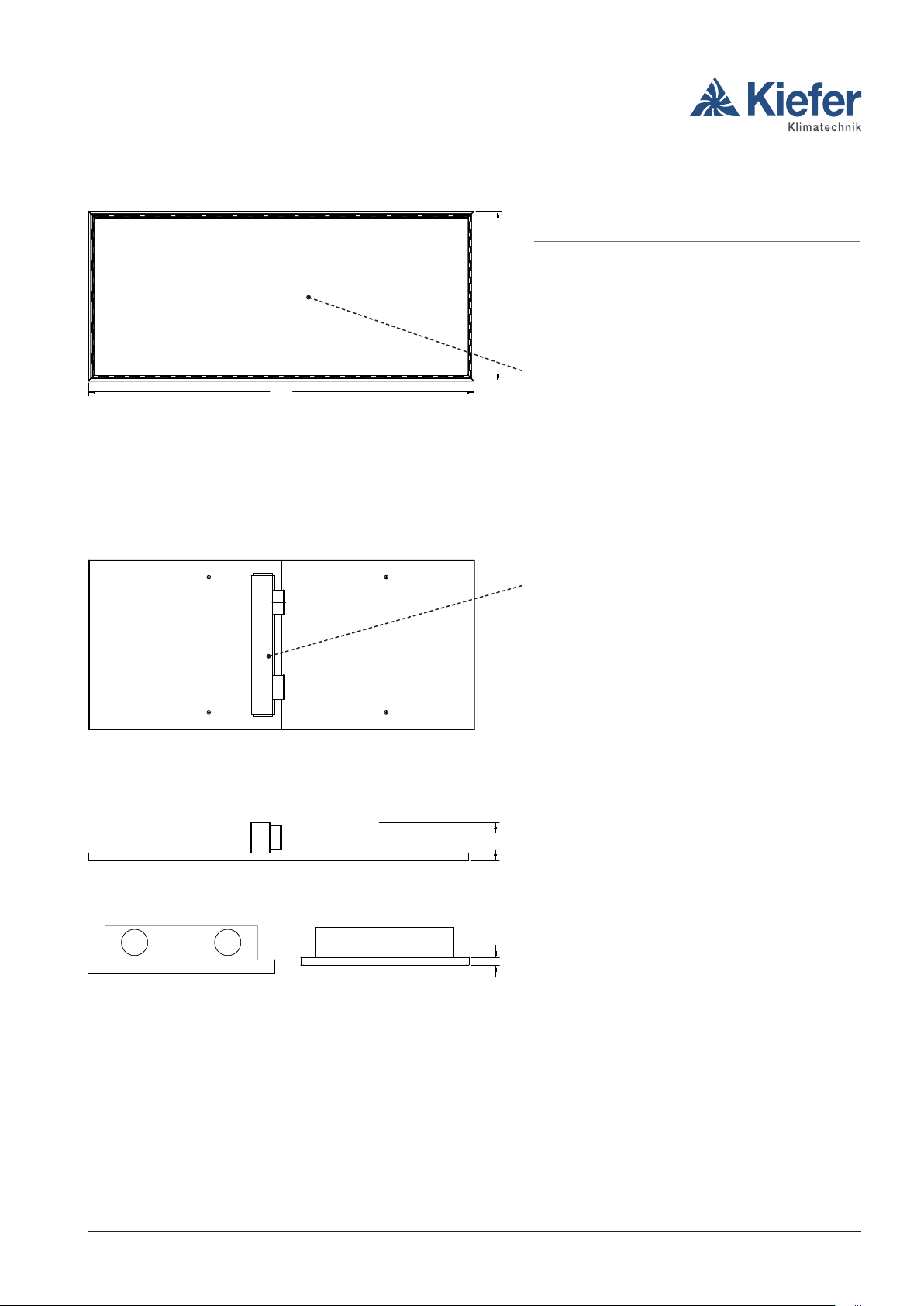

INDUSAIL SONIC air
Length Width Height
mm 2500 1100 250
Acoustic ceiling sail for comfortable ventilation and
air conditioning with outdoor air preconditioned
centrally in the building.
Acoustic panel
Acoustic sail equipped with sound-absorbing
di󰀨user material
- Sound-absorbing material
(100 % polyester)
- Integrated inductive air di󰀨users
- Light reectance > 90%
Ventilation
Outdoor air connection (2x DN160) and optimum
air distribution in the occupied zone through highly
inductive air di󰀨users (INDUL P18)
Suspension
Straightforward installation via 4-point suspension
with threaded rods
2500
1100
50 250
Bottom view
Top view
Side view – long side
Side view – R – broad side Side view – L – broad side

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-10
INDUSAIL SONIC silent
Length Width Height
mm 2500 1100 50
Acoustic ceiling sail without ventilation function for
improved acoustics of the room. Can be extended
or combined as required with the plus or air versi-
ons.
Acoustic panel
Acoustic sail equipped with sound-absorbing
di󰀨user material
- Sound-absorbing material (100% polyester)
- Frame proles have INDUL air di󰀨user proles
which are identical in appearance to the
INDUSAIL SONIC plus and INDUSAIL SONIC air
- Light reectance > 90%
Suspension
Straightforward installation via 4-point suspension
with threaded rods
2500
1100
50
Bottom view
Top view
Side view – long side
Side view – broad side

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I - 11
EXPLODED VIEW
INDUSAIL SONIC plus
INDUSAIL SONIC air
INDUSAIL SONIC silent
side panel
(covering)
secondary air cooling unit
(filter, heat exchanger,fan and sound absorber)
cover plate
electrical connection of
secondary air cooling unit
filter cell
air connection
cold water connection
linear diffuser INDUL P18
acoustic sail / air distribution sail
laminated acoustic mat
laminated acoustic mat
cover plate
air connection
plenum box
linear diffuser INDUL P18
acoustic sail / air distribution sail
acoustic mats
linear diffuser INDUL P18
acoustic sail
laminated acoustic mat

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-12

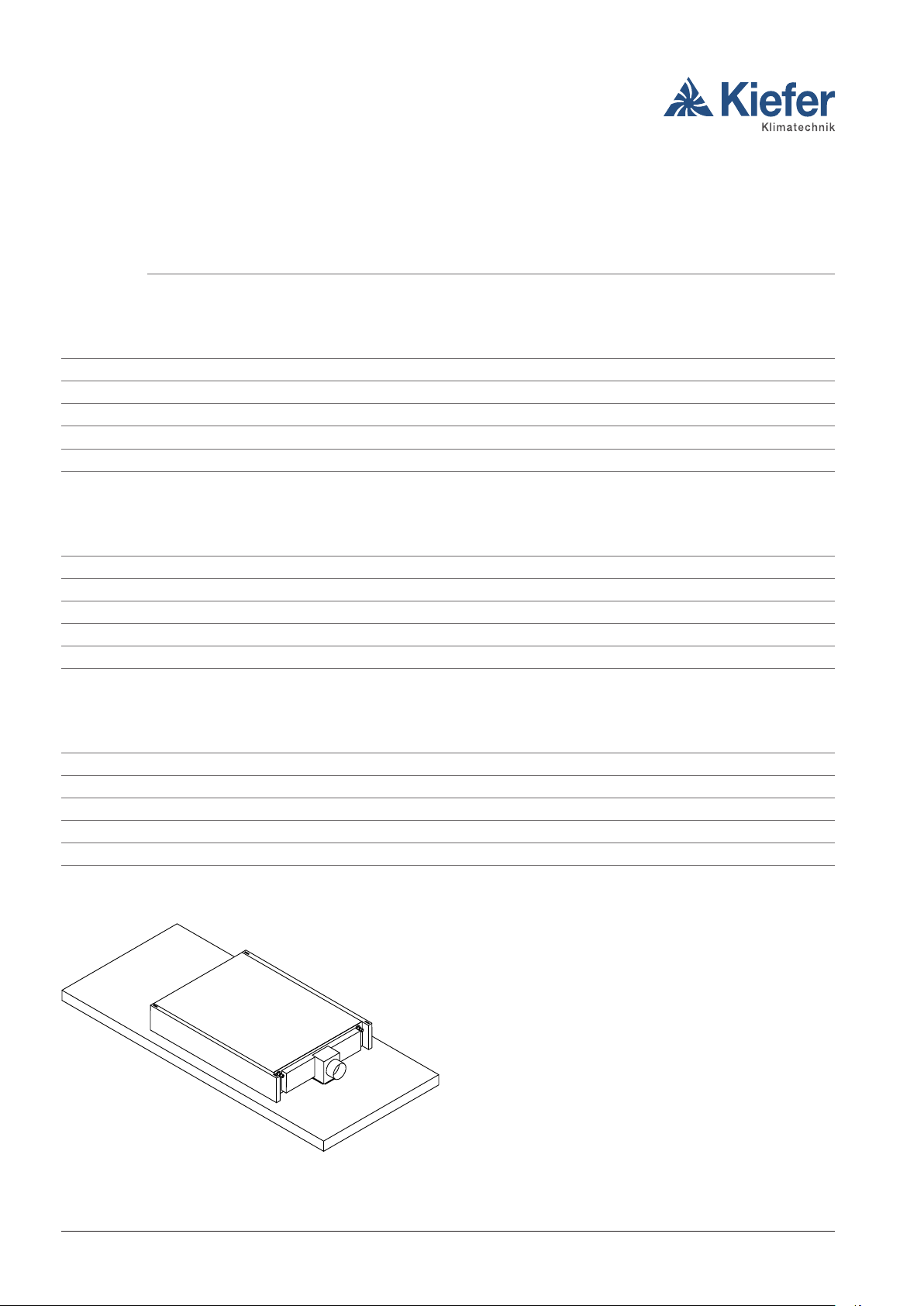

INDUSAIL SONIC TECHNICAL DATA
INDUSAIL SONIC - types plus air silent
DIMENSIONS
Standard - L x W x H mm 2500 x 1100 x 255 2500 x 1100 x 250 2500 x 1100 x 50
Total weight in operation kg 74 50 30
acoustic surface area mm 2400 x 1000 2400 x 1000 2400 x 1000
Connector diameter mm 1 x DN125 2 x DN160 -
SAIL
Acoustic mat - 100 % polyester 100 % polyester 100 % polyester
Building material class (DIN EN 13501) - B-s1, d0 B-s1, d0 B-s2, d0
Colour of the circumferential prole - Natural anodised
Air di󰀨user prole - Black powder coated
VENTILATION / AIR CONDITIONING
Secondary air – lter cell (DIN EN ISO 16890) -ISO Coarse 60% - -
Centrally preconditioned outdoor air ow rate m³/h 0 to 120 0 to 500 -
Max. primary cooling capacity W 400 1600 -
Max. secondary cooling capacity W 1250 - -
Max. total cooling capacity W 1600 1600 -
Nominal water ow rate; pressure drop kg/h;
kPa 300; 21 - -
Water connection inch ½’’ male thread - -
ACOUSTIC ABSORBER
Sound absorption class (DIN EN ISO 354; DIN EN ISO 11654) - C C A
Assessed sound absorption level αW(DIN EN ISO 354;
DIN EN ISO 11654)
-0.6 0.6 0.9
Recommended suspension height for optimum e󰀨ect mm 200 to 300 200 to 300 100 to 400
ELECTROTECHNICAL DATA
Mains connection V/Hz 230/50 - -
IP rating of secondary air cooling unit (motor/electronics) - IP 44/20 - -
Nominal power consumption of the fan at control voltage 10 V/6 V W 45 /22 - -
CONTROL
Control voltage of fan DC V 0–10 - -
Control voltage of optional actuator for heat exchanger DC V 0–10 - -

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-13
CLIMATE AND ACOUSTICS PLANNING
Design example, taking into account the minimum o󰀩ce space per person, minimum outdoor air
rate per person and room, cooling capacity and acoustics.
SINGLE OFFICE
2 axes; 15 m²; 1 person
OFFICE
3 axes; 22 m²; 2 people
MEETING ROOM
4 axes; 30 m²; 8 people
OPEN-PLAN OFFICE
4 axes; 41 m²; 3 people
5500
2700
5400
7500
4050
5500
5400
5500
SONIC plus
number of sails
Room
area (1) Outdoor air Sound pressure level
Cooling
capacity
m²/Person m³/h/m² dB(A) W/m²
Single o󰀩ce 1 15 (10) 4.3 (4.2) 35 (35) 69
O󰀩ce 1 11 (10) 6.3 (4.8) 35 (35) 55
Meeting room 2 4 (3) 9.4 (9.3) 40 (40) 91
Open-plan o󰀩ce 2 14 (12) 5.9 (4.4) 40 (40) 65
( ) Numerical values in brackets indicate the minimum requirement or the standard values for the selected room examples according to
DIN EN 16798-3:2017, DIN EN 16798-1:2021 and DIN EN 12464-1 calculated for the respective example.
(1) According to DIN EN 16798-3:2017
(2) Depending on the room area and number of people according to DIN EN 16798-1:2021 (cat. 2; low-polluting buildings)
(3) The following materials were assumed for calculating sound absorption (according to DIN 18041 Table B.1 and Table B.2)
Ceiling: stucco, unplastered concrete; oor: carpet (up to 6 mm pile height); walls: 9.5 mm thick plasterboard, 25 mm wall distance).
Additional surfaces: door (wood, painted), windows (insulated glass, box and composite windows), 6 m²/person (seated)
INDUSAIL (1, 3)
(2)

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-14
TECHNICAL DATA – DETAILS
Mass ow [kg/h] 50 100 150 200 250 300
∆pWater [kPa] 1 4 7 12 17 23
U
[V]
Pel
[W]
LWA
[dB(A)]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
2.0 4 < 28 210 346 400 411 426 439
4.0 10 37 344 565 676 720 747 769
6.0 22 45 442 726 891 973 1010 1039
8.0 37 50 485 798 1022 1164 1209 1244
10.0 45 54 518 852 1113 1289 1338 1377
Outdoor air ow rate: 0 m3/h
U
[V]
Pel
[W]
LWA
[dB(A)]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
2.0 4 < 28 358 468 521 539 546 555
4.0 10 37 490 688 793 837 852 881
6.0 22 45 586 856 1012 1090 1125 1153
8.0 37 51 616 931 1136 1256 1316 1342
10.0 45 55 645 992 1229 1376 1451 1476
Outdoor air ow rate: 50 m3/h
U
[V]
Pel
[W]
LWA
[dB(A)]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
2.0 4 < 28 449 554 604 621 628 636
4.0 10 37 580 772 874 917 932 960
6.0 22 46 679 945 1098 1175 1209 1237
8.0 37 51 715 1029 1234 1354 1414 1441
10.0 45 55 741 1086 1322 1467 1542 1567
Outdoor air ow rate: 80 m3/h
INDUSAIL SONIC plus

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-15
TECHNICAL DATA – DETAILS
Mass ow [kg/h] 50 100 150 200 250 300
∆pWater [kPa] 1 4 7 12 17 23
U
[V]
Pel
[W]
LWA
[dB(A)]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
2.0 4 < 28 503 600 647 663 669 677
4.0 10 37 640 828 927 969 984 1011
6.0 22 46 742 1004 1156 1232 1266 1294
8.0 37 52 781 1095 1299 1419 1479 1505
10.0 45 55 804 1146 1380 1524 1598 1623
Outdoor air ow rate: 100 m3/h
U
[V]
Pel
[W]
LWA
[dB(A)]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
Qk
[W]
2.0 4 30 568 665 712 728 734 742
4.0 10 38 706 893 992 1034 1048 1076
6.0 22 46 809 1073 1225 1301 1335 1362
8.0 37 52 843 1153 1356 1474 1533 1560
10.0 45 56 860 1194 1422 1563 1635 1659
Outdoor air ow rate: 120 m3/h
* The values apply to the unit at a supply water temperature of 16 °C, a supply air temperature (outdoor air) of 16 °C and
an intake temperature of 26 °C (this value can di󰀨er from the ambient air temperature) in non-condensing operation.
U – Control voltage (DC)
Qk– Total cooling capacity
LWA – A-sound power level (± 3 dB(A))
Pel – Fan power consumption
The cooling capacity largely depends on:
• The selected fan voltage
• The ambient air temperature
• The cold water supply temperature and the cold
water mass ow rate
O Secondary cooling capacity as a function of the
water ow rate; see graph to the left.
The caloric performance data was determined
on a performance test rig in the company's own
laboratory.
The data applies under the following conditions:
• Stationary state during measurements
• No heat exchanger condensation
• Cold water without additives
10 Volt
8 Volt
6 Volt
4 Volt
2 Volt
0
200
400
600
800
1000
1200
1400
050 100 150 200 250 300
Sekundärkühlleistung QK,sek. [W]
Wassermassenstrom [Kg/h]
Sekundärkühlleistung
Secondary cooling capacity
Water mass ow
Secondary cooling capacity QK,sec. [W]
INDUSAIL SONIC plus

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-16
TECHNICAL DATA – DETAILS
V [m3/h]
LWA
[dB(A)]
QK
[W]
∆P
[Pa]
250 25 833 10
300 30 1000 14
350 35 1167 18
400 39 1333 23
450 43 1500 29
500 46 1667 35
QkTotal cooling capacity
LWA A-sound power level (+ 3 dB(A))
V Air ow rate
∆p Pressure drop
Supply air temperature 16 °C
Intake temperature 26 °C
sound power level - LWA
A-sound power level LWA [dB(A)]
50
45
40
35
30
25
air flow rate V [m³/h]
250 300 350 400 500
25
30
35
40
45
50
15
20
10
5
6
7
8
9
250 300 350 400 500
pressure loss Δp [pa]
air flow rate V [m³/h]
pressure loss
200
cooling capacity
1000
1200
1400
1600
1800
600
800
200 250 300 350 400 450
air flow rate V [m³/h]
500 550
total cooling capacity Qc [w]
INDUSAIL SONIC air

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-17
ACOUSTIC SAIL SYSTEM COMPLEMENTED
BY COOLING AND VENTILATION
INDUSAIL SONIC acoustic absorption
The high sound absorption values of the sails are achieved thanks to especially e󰀨ective materials and their optimal
arrangement in the sail. All three sail types are equipped with sound-absorbing acoustic eece on the room side. The
specied sound absorption values were determined in accordance with DIN EN ISO 354 and DIN EN ISO 11654 by an
external institute for sound-related product optimisation. The INDUSAIL SONIC silent sail is additionally equipped with a
highly absorbent insulating material made of polyester, which achieves a particularly high sound absorption at di󰀨erent
ceiling distances.
P Flexible design of o󰀩ce spaces coupled with complex acoustic requirements can be
implemented using the SONIC range. Kiefer Klimatechnik supports you in producing an
optimal system design.

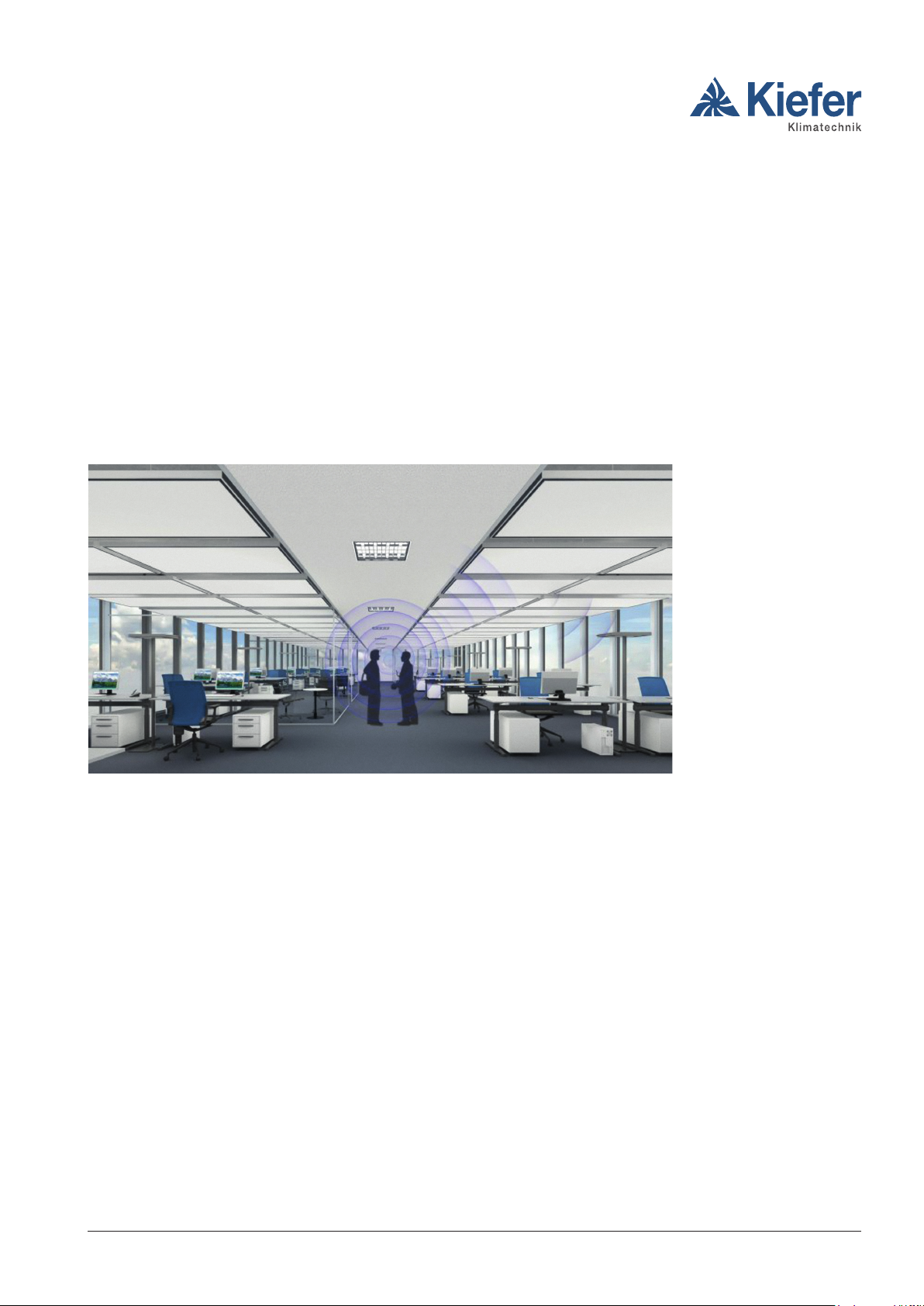

Optimising the interior acoustics
Acoustic sails can reduce nuisances such as noise in interiors. This improves working conditions and performance. In open-
plan o󰀩ces in particular, it can often be hard to concentrate when others are talking loudly. Audibility in the room, increased
speech intelligibility and low reverberation times are important room acoustic criteria that increase the acoustic quality of the
room and thus the productivity of the users. The ceiling is the largest continuous surface in a room and can reduce sound
propagation with sound-absorbing ceiling sails. This increases the wellbeing, satisfaction and performance of the people in
the room.

Kiefer Klimatechnik GmbH
www.kieferklima.de/en
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART I-18
ACOUSTIC ABSORPTION ACCORDING TO
DIN EN ISO 354
125 250 500 1000 2000 4000
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
Schallabsorptionsgrad αS
Frequenz f [Hz]
125 250 500 1000 2000 4000
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
äquivalente
Absorptionsfläche [m²]
Frequenz f [Hz]
silent (s = 100 mm)
silent (s = 200 mm)
air / plus (s = 200 mm)
125 250 500 1000 2000 4000
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
äquivalente
Absorptionsfläche [m²]
Frequenz f [Hz]
silent (s = 100 mm)
silent (s = 200 mm)
air / plus (s = 200 mm)
INDUSAIL SONIC air / plus
s = 200 mm
silent
s = 200 mm s = 100 mm
Frequency Absorption Area Absorption Area Absorption Area
[Hz] αS [-] Equivalent [m²] αS [-] Equivalent
[m²] αS [-] Equivalent [m²]
100 0.05 0.13 0.11 0.30 0.12 0.33
125 0.12 0.34 0.29 0.80 0.23 0.63
160 0.12 0.32 0.33 0.91 0.29 0.79
200 0.27 0.73 0.55 1.50 0.56 1.55
250 0.35 0.97 0.66 1.81 0.60 1.65
315 0.37 1.03 0.71 1.95 0.77 2.12
400 0.52 1.44 0.81 2.24 0.79 2.17
500 0.59 1.61 0.83 2.27 0.83 2.27
630 0.68 1.87 0.88 2.41 0.91 2.49
800 0.76 2.10 0.94 2.58 0.90 2.47
1000 0.76 2.08 0.98 2.71 0.87 2.40
1250 0.87 2.40 1.01 2.77 0.92 2.52
1600 0.85 2.35 1.04 2.86 0.96 2.65
2000 0.85 2.34 1.09 3.00 1,03 2.84
2500 0.83 2.27 1.15 3.15 1.12 3.07
3150 0.80 2.20 1.18 3.23 1.09 2.99
4000 0.73 2.02 1.09 3.00 1.01 2.79
5000 0.69 1.90 1.08 2.97 1.01 2.78
Assessed sound abs. αW 0.60 0.90 0.90
“Absorption class DIN EN
ISO 11654” C A A
"Fire protection class
of acoustic mat DIN EN
13501-01"
B-s1, d0 B-s2, d0 B-s2, d0
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
125 250 500 1000 2000
frequency f [Hz]
silent (s = 115 mm)
silent (s = 215 mm)
air / plus (s = 215 mm)
4000
equivalent
absorption area [m²] sound absorption level αS
frequency f [Hz]
INDUSAIL SONIC silent sails are additionally equipped with
a highly absorbent polyester insulating material on the back.
This results in particularly high sound absorption values. The
sound absorption of the “plus” and “air” sails is independent of
the distance to the ceiling, as there is no acoustically e󰀨ective
material on the back of these sails.
S
The INDUSAIL LUMINOUS “plus” and “air” achieve the same
sound absorption, as the surface area of the acoustically
e󰀨ective material is identical.

INSTALLATION INFORMATION
ACTIVE ACOUSTIC SAIL SYSTEM
INDUSAIL SONIC

Kiefer Klimatechnik GmbH
www.kieferklima.de
INDUSAIL SONIC active acoustic sail system
Technical modications reserved - E1909_08/21
PART II-2
CONTENT
PART I – TECHNICAL INFORMATION
INDUSAIL SYSTEM
One system – many possibilities 3
THE FLEXIBLE ACOUSTIC SAIL SYSTEM
INDUSAIL SONIC
Advantages, features, areas of application
Function description 4
ACOUSTIC SAIL SYSTEM INDUSAIL SONIC
Versions and designs 6
SYSTEM CONSTRUCTION / INSTALLATION
Dimensions, views, technical drawings 7
Exploded view 11
Technical data 12
CLIMATE AND ACOUSTICS PLANNING
Design example for an o󰀩ce 13
Technical data in detail for ventilation/cooling 14
Technical data in detail for acoustics 17
PART II – INSTALLATION INFORMATION
INSTALLATION INFORMATION
Application options and control 3
Technical drawings and installation information 4
Suspension 7
Installation 8
Installing the cooling unit 8
Cooling unit electrical connection 10
MAINTENANCE AND REPAIRS
Maintenance intervals 13
Regular technical maintenance work and repairs 14
SAFETY
Explanation of symbols and notes 16
Safety information 17
Intended use 18
TRANSPORT INSTRUCTIONS, DELIVERY
AND STORAGE
Transport instructions and delivery 19
Storage / inbound delivery 19
Disposal, environmental protection and recycling 19
EC declaration of conformity 19
