KILLABEE 8212 User manual

INSTRUCTION MANUAL
Model:8212

Congratulations, you are now the owner of a brand new KILLABEE chair!
Before enjoy the comfort chair, you have to put it together.This Assembly
Guide will take you through the basic assembly process. To make sure
your assembly goes smoothly, please follow the assembly instructions, and
especially the important safety information.
For more detailed and visual instructions, we have an Assembly Video that
will help you to understand the assembly process much better.
Also, while it is possible to assemble the chair on your own, having a
second person to help you makes it even easier.
Before you begin, please check if there are any missing parts from the
package. Should there be any issues, please don't hesitate to drop us an
email and we'll help you out ASAP.
If you run into any di󰀩culty during the assembly, remember to check out the
Assembly Video to see if you've missed anything. If you're unable to resolve
your problems, drop us an email as well and our support team will assist
you.
Scan it to see Installation Video
On YouTube: https://youtu.be/1S8DNoUOhKQ
E-mail: [email protected] Web: www.killabee-gaming.com
2
ASSEMBLY GUIDE

E-mail: [email protected] Web: www.killabee-gaming.com
3

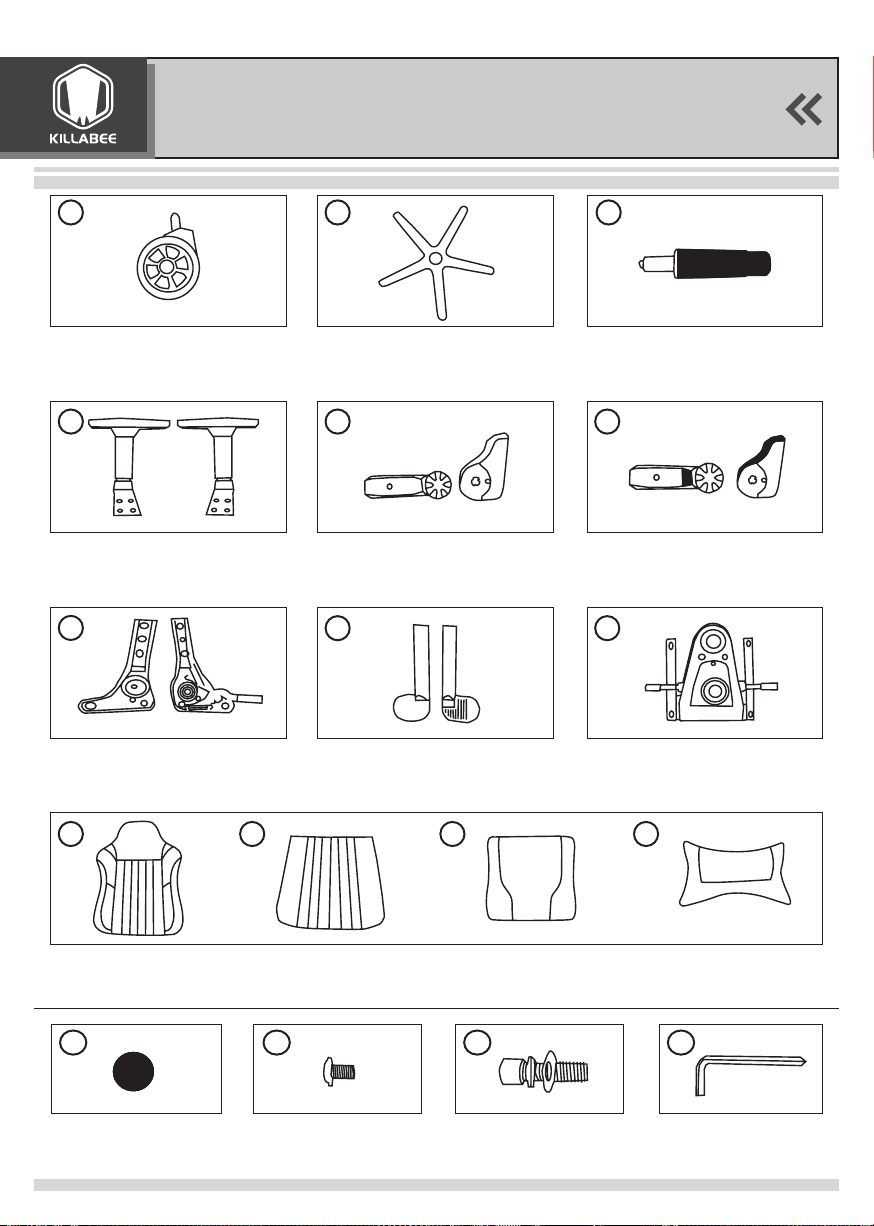

PACKAGE LIST
Quantity: 5
Quantity: 2
Quantity: 2
Left Right
Quantity: 1 Quantity: 1 Quantity: 1 Quantity: 1
Quantity: 1 Quantity: 1
Quantity: 4 Quantity: 4 Quantity: 20 Quantity: 1
Quantity: 1
Quantity: 1
Quantity: 1
Quantity: 1
Casters
Armrests
Angle Adjuster
Back Cushion Seat Cushion Back Pillow Head Pillow
Plastic Handle Seat Plate
Plastic Caps Bolts M5*8mm Bolts M8*25mm Wrench
Star Base
Left Plastic Cover Set
Gas Lift
Right Plastic Cover Set
A
D
G
J K L M
H I
1 2 3 4
B
E
C
F

E-mail: [email protected] Web: www.killabee-gaming.com
4
ASSEMBLY INSTRUCTIONS
STEP 1 : Turn the Star Base upside down, then press the Casters into
the holes at the end of each base leg.
STEP 2 : Turn the Star Base upright and insert the Lift into the center
hole of the Star Base.
A
C
B

D D
3
3
E-mail: [email protected] Web: www.killabee-gaming.com
5
ASSEMBLY INSTRUCTIONS

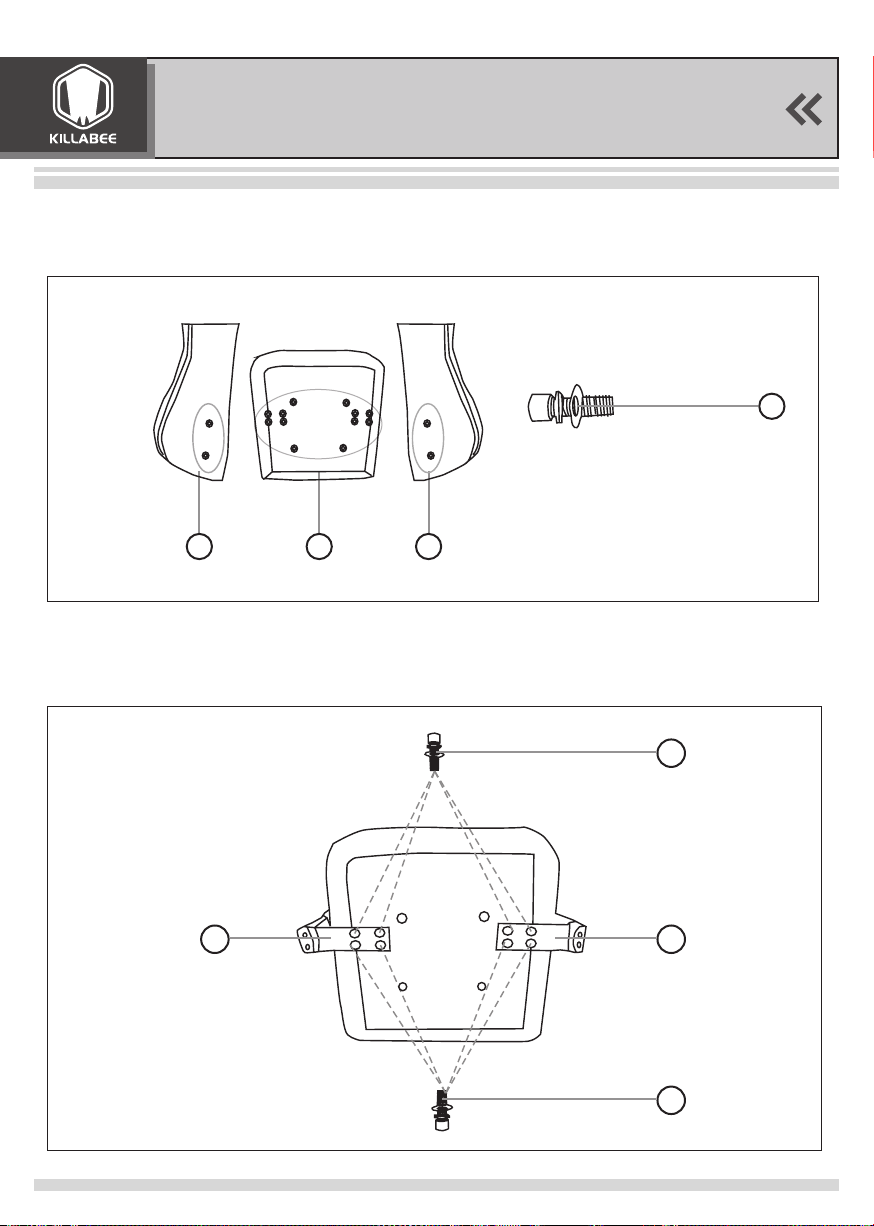

STEP 3 : Remove All M8x25mm Bolts from the seat and back.
STEP 4 : Attach the arms to the seat cushion with eight M8*25mm bolts,
using the Wrench.
3
JKJ
M8*25mm

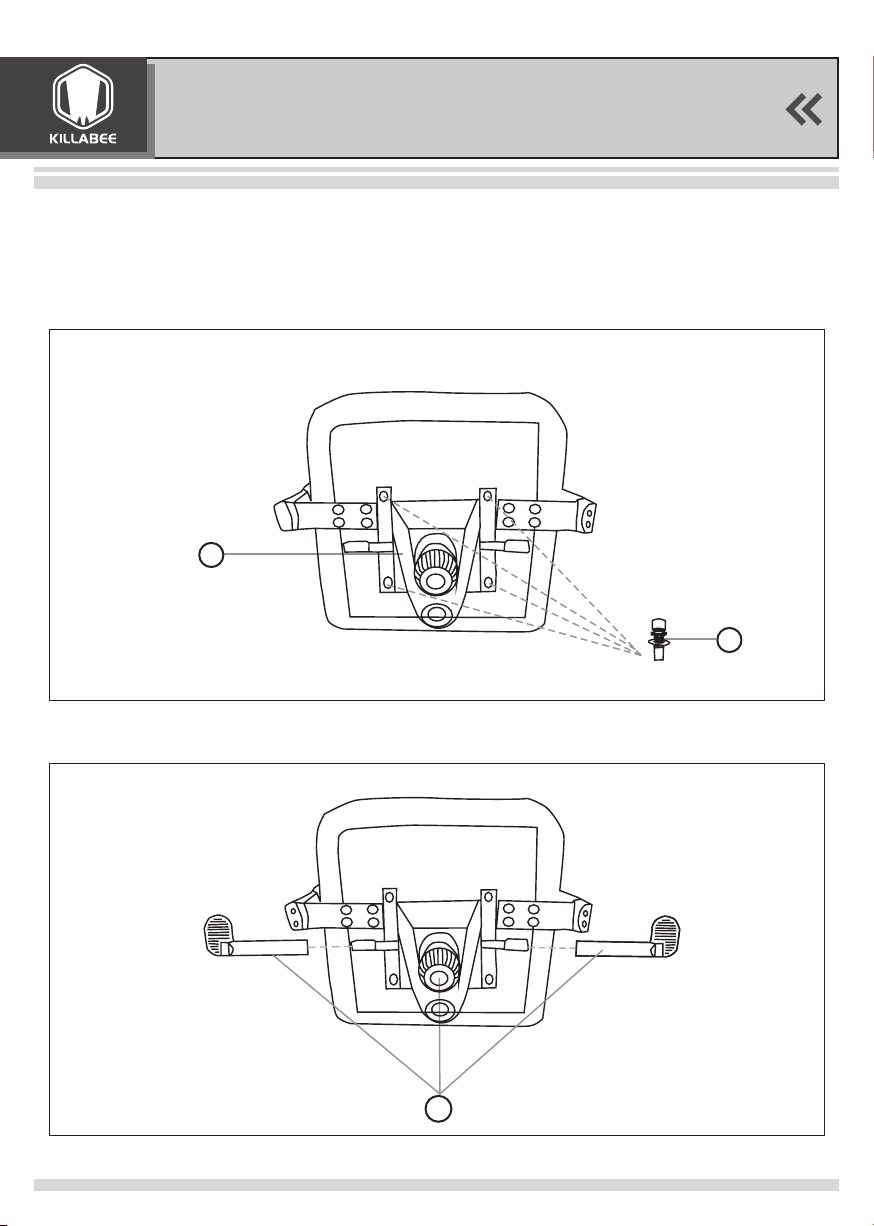

STEP 5 : Align the seat plate to the bottom of the seat cushion, make
sure that the front of the seat plate is facing the front of the seat cushion.
Attach the seat plate to the seat cushion using four M8X25mm bolts,
tighten all the bolts with the wrench.
I
3
front
STEP 6 : Insert two plastic handle to the seat plate.
H
E-mail: [email protected] Web: www.killabee-gaming.com
6
ASSEMBLY INSTRUCTIONS

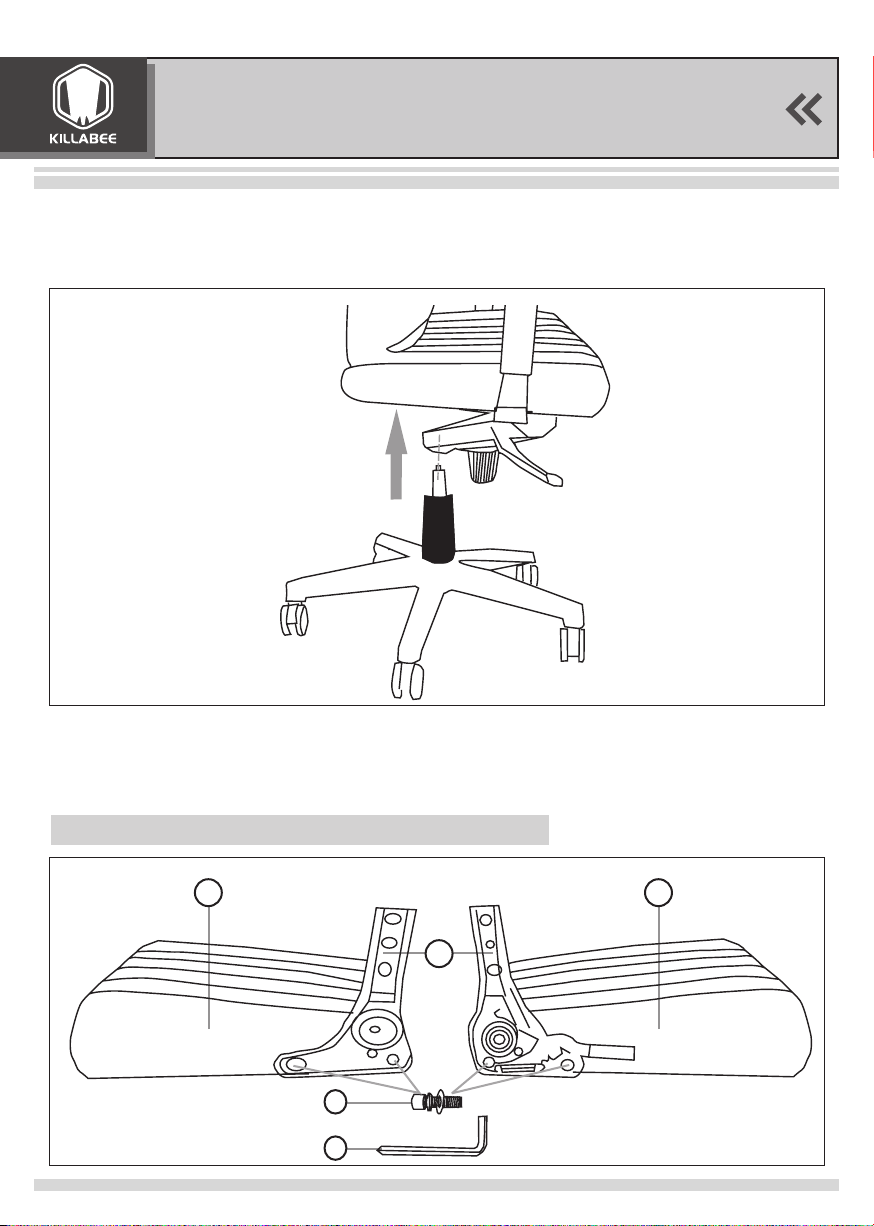

STEP 7: Turn the seat cushion upright and align the center hole of the
seat plate over the lift, then push the seat cushion down onto the lift
rmly until the connection is secure.
STEP 8: Using Adjusters to attach Seat Cushion, align the adjusters
over the pre-drilled holes underneath the seat cushion with M8*25mm
Bolts, tighten all the bolts with the wrench.
G
KK
3
4
Note: Do not tighten the bolts fully at this step.
RightLeft
E-mail: [email protected] Web: www.killabee-gaming.com
7
ASSEMBLY INSTRUCTIONS

EF2
4
3
4
KK J

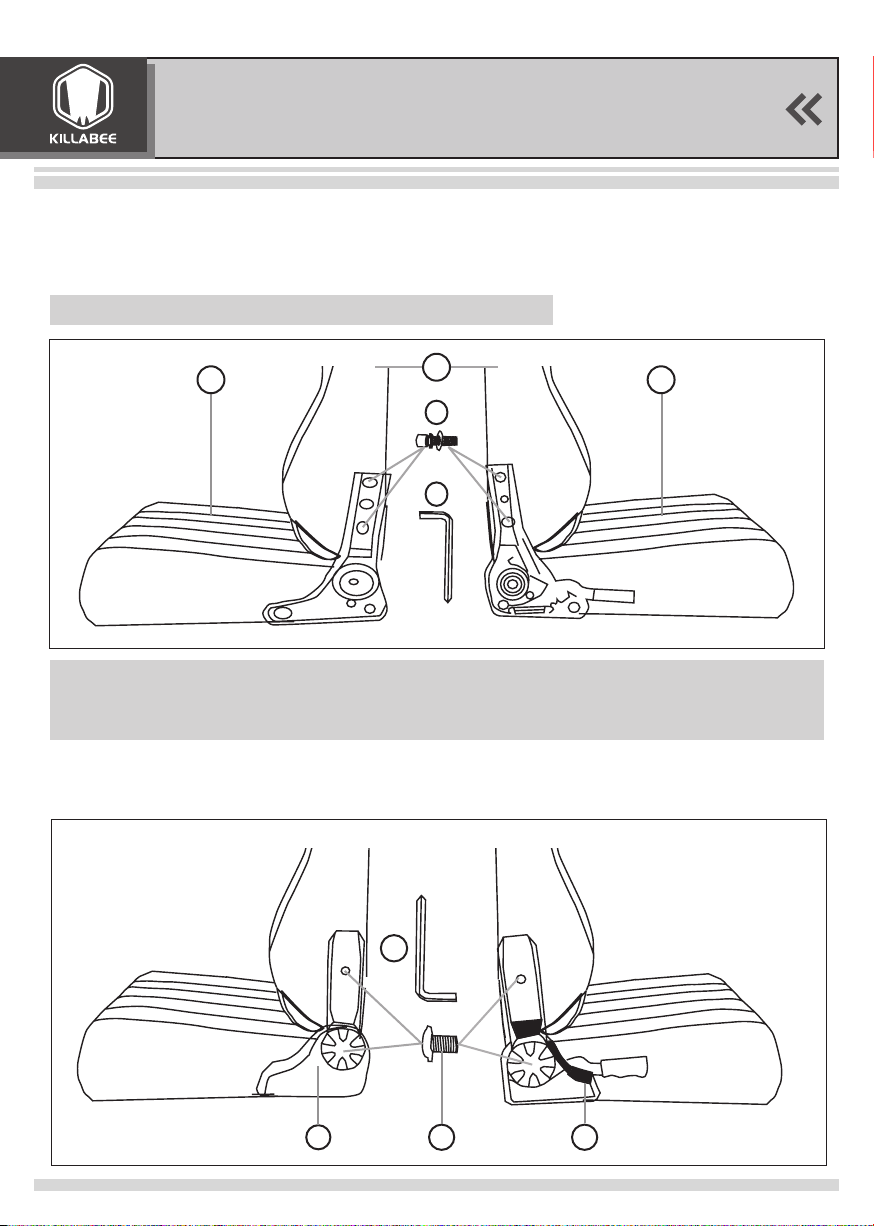

STEP 10: Adjust the balance rst, then fully tighten all the bolts on
each side of adjusters.
STEP 11: Attach the Plastic Cover on right and left side with four
M5*8mm bolts, using the wrench.
STEP 9 : Attach Seat Cushion and Back Cushion, align the adjusters
over the pre-drilled holes underneath the back cushion with M8*25mm
Bolts, tighten all the bolts with the wrench.
Note: Do not tighten the bolts fully at this step.
E-mail: [email protected] Web: www.killabee-gaming.com
8
ASSEMBLY INSTRUCTIONS

EF1
Congratulations!You’ve assembled your Killabee chair.
STEP 12: Press the plastic caps into the adjuster holes to cover the
bolts.
If you have any problems during installation or other issues, please contact us
[email protected], we will reply your email in 24 hours.
E-mail: [email protected] Web: www.killabee-gaming.com
9
ASSEMBLY INSTRUCTIONS

E-mail: [email protected] Web: www.killabee-gaming.com
10
FREQUENTLY ASKED QUESTIONS
1.How do I order replacement parts? When am going to
receive them?
2.How do I adjust the seat height?
3.How do I Tilt (Recline) in the chair?
4.How should the chair be cleaned?
For fastest service, please contact us directly form amazon.com or
[email protected] for further help. Covered under warranty, there is no
charge for replacement parts, we normally ship replacement parts within 48
hours.
While seated, learn forward, lifting you body weight from the seat, reach
underneath the right side of chair and locate the handle. Lift the handle
up slowly with a clockwise twisting motion to allow the chair to rise to the
desired height. To lower seat height, lift the handle slowly with a clockwise
twisting motion while seated.
While Seat, reach underneath the right side of chair and locate the handle.
Slide the handle all the way out towards the right (away from the seat).
when the handle is in this position, leaning back will cause the chair to
tilt backwards. To lock the chair in the upright (vertical) position, sit in the
chair, and push the handle in to the left (towards center of seat). if your
chair tilts forward instead of backward, then you may have the seat plate on
backward.
While we do not recommend a particular brand of cleaning product, you
can use a damp cloth to wipe down your chair. Or you can use an over-the-
counter cleaner made for the bonded leather upholstery on your chair. If you
would like to use a cleaning product, we suggest that you test the cleaner
on the bottom side of the chair rst to make sure the cleaner doesn’t alter
the material, before applying the product on the entire chair.
Please note that any type of discoloration or alteration made to the chair
from a cleaner will automatically void the warranty.

E-mail: [email protected] Web: www.killabee-gaming.com
11
5.The casters are difficult to install, how do I install the casters?
6.My Caster broke, how do I remove the metal stem form the
base?
7.The chair seems to wobble side-to-side, how can I fix it?
8.The chair Sinks or the gas lift (seat post) does not maintain
its pressure.
9.How do I remove/replave the seat plate and/or gas lift?
Step 1. The metal stem needs to be fully inserted into the bottom of the
star base in order for the caster to stay in. There are 2 options. One: lay the
base on the carpeted ground, with the bottom of the base facing upward.
Insert each caster into the hole by applying pressure with your thumb at the
base of caster. They should pop in easily. Two: hold the 5-star base in an
upright position (One leg is on push the caster in with a little force, twisting
or using a soft mallet to tap in).
You can use pliers to remove the metal pin, or you can contact us for
replacement parts.
Make sure all screws are properly tightened, especially the screws attaching
the seat plate to the seat cushion. If this does not solve the problem, you
may need a new seat plate, and gas lift for your chair. Please contact us at
[email protected].
Refer to question above, “ how do I adjust the seat height?” if the seat
will not maintain its height, order a new gas lift and seat plate service@
killabee.net, just provide the order number and tell us where your bought.
Refer to page 7 for images and links to video demonstrations. To remove
the seat plate from the gas lift: you will need to turn your chair over. Next,
get a rubber mallet. You will want to hit around the area that the gas lift
(Cylinder) goes inside the seat plate (The black metal plate attached to the
seat that has a handle). After you hit the seat plate, give the gas lift a pull
and see if it is coming loose.
FREQUENTLY ASKED QUESTIONS

E-mail: [email protected] Web: www.killabee-gaming.com
12
10.How do I remove/replace the base from the gas lift?
11.How do I remove the screw caps from my armrests?
12.The armrests seem loose, how can i fix them?
13.The parts don’t seem to align, what should I do?
There two items are locked together by pressure; the more you hit the seat
the more pressure will be released. Eventually the two items will separate.
To remove the gas lift from the ve star base: please turn the chair upside
down. There are about one to two inches where the gas lift (Cylinder) goes
through the 5 star base (The leg with wheels). Next, grab a rubber mallet.
Then, if you look in the center of the gas lift, there is a little clip. You do
not want to hit the clip in the middle as it will release the pressure needed
in order to raise or lower your chair. You will want to hit the outer edge or
the rim of the gas lift. The more you hit the gas lift the more pressure will
be released. After you give the gas lifts a few hits, it should come right out,
or give it a pull and see if its loose, if it still won’t budge, when visit www.
killabee-gaming.com or email us at [email protected] to order a new
seat plate and gas lift.
The chrome metal base is very difficult to remove from the metal gas lift
cylinder if the chair has been sat it. You may to use a rubber mallet and
hammer the post from the underside of the base. If you are still unable to
disengage the base, contact us at [email protected]
To remove the screw caps on the armrests to expose the screws, use a
ahead screwdriver and a small hammer to tap gently the edge of the screw
cap. This will help to pry the screw cap loose from the armrest.
Make sure all screws are properly tightened.
Do not tighten the hardware completely into the component you are
assembling.Tighten hardware a quarter of the way. When all components
are aligned, and the product is at sitting level, then you can tighten all the
screws.
FREQUENTLY ASKED QUESTIONS

E-mail: [email protected] Web: www.killabee-gaming.com
13
15.What is the warranty Length?
16.How is the warranty validated?
17.What is the weight limit on my chair?
The warranty for your specic chair or furniture item is based on the year
you item was purchased. Please not that proof of purchase is required
for validation of warranty. The current warranty of seating is: one year for
cushion and part (unless otherwise specied). you do not need to register
your warranty.
Your warranty time period is validated by the purchase date on your original
purchase receipt. (Please note that the warranty can not be validated
without your original purchase receipt).
The chair has been tasted to meet BIFMA standards, and has a weight limit
of up to 400 lbs.
SAFETY AND MAINTENANCE
Do not stand on the chair, Do Not use the chair as stepladder.
Use this product for seating one person at a time.
Do Not use the chair unless all bolts and screws are rmly secured.
Avoid contact with sharp objects to prevent puncturing the fabric.
Every 6 months, check all bolts and screws to ensure they are tight.
To clean, spot clean only using a damp towel and mild cleaner, rst test
on a small,, obscure area of fabric.
Chair weight limit not to exceed 400 lbs.
14.The screws wont thread into the holes, What should I do?
Be certain that you are aligned with the hole, sometimes holes in soft
upholstered areas are deep set, and you may not be making contact with
the female inset for the screw. Also, check that there is no debris on the
screw or in the inset for the screw, you can also try the spare screw.
FREQUENTLY ASKED QUESTIONS

E-mail: [email protected] Web: www.killabee-gaming.com
14
KILLABEE warrants this product to be free from defects in material and
workmanship for 1 year.
This warranty is made by KILLABEE only to the original end-user
customer acquiring the product directly from KILLABEE authorized
dealers as shown by the original sales receipt. The end-user customer
remedy pursuant to this warranty is limited to repair or replacement
of parts at KILLABEE option within a reasonable amount of time.
KILLABEE reserves the right to require damaged parts to be returned
to KILLABEE upon request. Natural markings such as scars, brands,
grain, variations, wrinkles, color variations, etc. Will be consider normal
characteristics, and not construed as defects. KILLABEE cannot warrant
leather against scratching or scuffing, as well leather is subject to
blemishes with use. Consent from KILLABEE must be obtained before
any warranty work is performed.
This warranty shall not apply to any products which must be replaced
because of normal wear and tear, negligence, abuse, or “accident”,
shipping damage or product use and installation other than in
accordance with written instructions or warnings. It will also not apply
when a product has been modied or altered, repaired, refurbished by
someone other than KILLABEE or because of natural variations over
which KILLABEE has no control. When repairing or replacing a defective
product, KILLABEE does not guarantee matching color, grain, texture or
dye lots. This warranty does not over the cost of transportation or labor,
in no event shall KILLABEE be liable in either tort or contact for any
loss or direct, special, incidental, consequential or exemplary damages.
This limited warranty is not applicable to end-user customers who use
KILLABEE for rental purposes.
LIMITED WARRANTY

E-mail: [email protected] Web: www.killabee-gaming.com
16
MONTAGEANLEITUNG
Herzlichen Glückwunsch!Sie sind jetzt Inhaber eines Markenstuhls
KILLABEE!
Bevor Sie den Komfortstuhl genießen, müssen Sie ihn zusammenbauen.
Diese Montageanleitung führt Sie durch den grundlegenden
Montageprozess. Um sicherzustellen, dass Ihre Montage reibungslos
funktioniert, bitte folgen Sie die Montageanweisungen und insbesondere
die wichtigen Sicherheitsinformationen.
Für mehr detailliertere und visuellere Anweisungen haben wir ein
Montagevideo, das Ihnen hilft, den Montageprozess viel besser zu
verstehen.
Obwohl es möglich ist, den Stuhl selbst zusammenzubauen, macht es
mit Hilfe einer zweiten Person den Zusammenbau noch einfacher.
Bevor Sie beginnen, prüfen Sie bitte, ob Teile der Verpackung fehlen. Bei
Problemen zögern Sie bitte nicht, uns eine E-Mail zu schreiben, damit wir
Ihnen so schnell wie möglich unterstützen können.
Wenn Sie während der Montage auf Schwierigkeiten stoßen, sollten Sie
das Montagevideo ansehen, um auszunden, ob Sie etwas verpasst haben.
Wenn Sie Ihre Probleme immer noch nicht lösen können, bitte senden
Sie uns auch eine E-Mail. Unser Support-Team steht Ihnen gerne zur
Verfügung.
Scannen Sie es bitte, um das Montagevideo zu sehen
Auf Youtube: https://youtu.be/1S8DNoUOhKQ

E-mail: [email protected] Web: www.killabee-gaming.com
17
VERPACKUNGSLISTE
quantität: 5
quantität: 2
quantität: 2
Left Right
quantität: 1 quantität: 1 quantität: 1 quantität: 1
quantität: 1 quantität: 1
quantität: 4 quantität: 4 quantität: 20 quantität: 1
quantität: 1
quantität: 1
quantität: 1
quantität: 1
Rollen
Armlehnen
Winkeleinsteller
Rückenkissen Sitzkissen Rückenkissen Kopfkissen
Kunststoff-Griff Sitzplatte
Kunststoffkappen Bolzen M5*8mm Bolzen M8*25mm Schlüssel
Sternbasis
Linke Kunststoffabdeckung
Gaslift
Rechte Plastikabdeckung
eingestellt
A
D
G
J K L M
H I
1 2 3 4
B
E
C
F

E-mail: [email protected] Web: www.killabee-gaming.com
18
MONTAGEANLEITUNGEN
Schritt 1 : Drehen Sie die Star Base um und drücken Sie die Rollen in
die Löcher am Ende jedes Basisbeines.
Schritt 2 : Drehen Sie die Star Base aufrecht und setzen Sie den Lifter
in das mittlere Loch der Star Base ein.
A
C
B

D D
3
3
E-mail: [email protected] Web: www.killabee-gaming.com
19
MONTAGEANLEITUNGEN
Schritt 3: Entfernen Sie alle M8x25mm Bolzen vom Sitz und von der
Rückseite.
Schritt 4: Befestigen Sie die Arme mit acht Schrauben M8X25mm mit
dem Schraubenschlüssel am Sitzkissen.
3
JKJ
M8*25mm

Schritt 5: Richten Sie die Sitzplatte an der Unterseite des Sitzkissens
aus und stellen Sie sicher, dass die Vorderseite der Sitzplatte zur
Vorderseite des Sitzkissens zeigt.
Befestigen Sie die Sitzplatte mit vier M8X25mm Schrauben am
Sitzkissen und ziehen Sie alle Schrauben mit dem Schlüssel fest.
I
3
front
Schritt 6 : Führen Sie zwei Kunststo󰀨gri󰀨e in die Sitzplatte einplate.
H
E-mail: [email protected] Web: www.killabee-gaming.com
20
MONTAGEANLEITUNGEN
