KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

The features found on these rugged, KHS100 / KHS500 / KHS503 hose saws series and the accessories included make it the

best value of any hose saw in its class.

KHS100 / KHS500 / KHS503 HOSE SAWS SERIES

OPERATORS MANUAL

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

SAFETY PRECAUTIONS

MODELS COVERED

This manual is applicable to di󰀨erent variations of the KHS Hose Saws Series.

• READ INSTRUCTIONS AND IDENTIFY ALL COMPONENT PARTS BEFORE USING HOSE SAW.

• MOUNT THE KHS100, KHS500, OR KHS503 HOSE SAW ON A STURDY WORKBENCH.

• ALLOW THE BLADE TO REACH FULL SPEED BEFORE STARTING A CUT.

• PERIODICALLY EXAMINE THE BLADE FOR CRACKS AND / OR BROKEN TEETH.

• REPLACE IF NECESSARY.

• KEEP BOTH HANDS AWAY FROM THE CUTTING BLADE.

• DO NOT REMOVE ANY OF THE GUARDS OR SAFETY FEATURES OF THE SAW.

• ALWAYS WEAR EYE PROTECTION, DUST MASK, AND PROTECTIVE GLOVES.

SAFETY PRECAUTIONS

! !

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

TABLE OF CONTENTS

SAFETY PRECAUTIONS------------------------------------------------------------------------------------------------------------------------2

KHS HOSE SAWS SERIES & TECHNICAL DATA-----------------------------------------------------------------------------------------------------4

INITIAL SET UP----------------------------------------------------------------------------------------------------------------------------------------------5

KHS100 / KHS500 / KHS503 INCLUDED TOOLING--------------------------------------------------------------------------------------------------6

KHS100 / KHS500 / KHS503 OPTIONAL PARTS------------------------------------------------------------------------------------------------------7

KHS100 / KHS500 / KHS503 BLADE AWARENESS-------------------------------------------------------------------------------------------------9

KHS100 / KHS500 / KHS503 HOSE BENDING PINS SET UP----------------------------------------------------------------------------------10

HOW TO CHANGE SAW BLADE-------------------------------------------------------------------------------------------------------------------------11

HOW TO INSERT THE VACUUM ATTACHMENT--------------------------------------------------------------------------------------------13

KHS100 / KHS500 / KHS503 REPLACEMENT ACCESSORIES----------------------------------------------------------------------------14

COMPONENT PARTS BREAKDOWN-------------------------------------------------------------------------------------------------------15

WARRANTY STATEMENT-------------------------------------------------------------------------------------------------------19

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

Technical Data KHS100 KHS500 KHS503

Capable of cutting: 1-¼" (4 wire) up to 1" (6 wire) 1-¼" (4 wire) up to 2" (6 wire) 1-¼" (4 wire) up to 2" (6 wire)

Dimensions: L: 28-¾" x W: 21" x H: 12-¼" L: 29-¾" x W: 26-¾" x H: 16" L: 29-¾" x W: 26-¾" x H: 16"

Weight: 70 lbs Weight: 120 lbs Weight: 120 lbs

Motor 1.5 HP 5 HP 5 HP

Voltage 110 V 230 V 230 V

Phase 1 1 3

Amp 15 30 20

KHS HOSE SAWS SERIES & TECHNICAL DATA

These rugged, KHS100 / KHS500 / KHS503 dependable saws o󰀨er features not found on other saws. Choose the one with

the capacity and features which meet your individual requirements.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS100 / KHS500 / KHS503 INITIAL SET UP

• Mount your KHS Series Hose Saw on a sturdy workbench in a

well-lit area. Workbench should be able to support the hose saw

weight.

• Check electrical circuit to be certain that it matches the hose

saw requirements shown on the tag attached to the hose saw

cord.

DO NOT USE AN EXTENSION CORD OR RUN FROM

PORTABLE POWER SOURCES AS LOW VOLTAGE CAN

DAMAGE THE MOTOR.

• Check to be certain that the blade rotates in the direction of

the arrow shown on the motor housing.

Note: Blade also has a rotation arrow.

Note: New blades must be properly conditioned to assure

long life and clean cuts. For the rst ten cuts, feed the blade

slowly through a medium size hose. This will properly break

in and condition the blade for long life.

FOLLOW THESE STEPS BEFORE YOU USE YOUR KHS

SERIES HOSE SAW FOR THE FIRST TIME.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS100 / KHS500 / KHS503 INCLUDED TOOLING

• Counter

Included only for KHS500 / KHS503 Series.

Not available for KHS100.

A resetable counter makes it easy to keep track of

the number of cuts made.

• 1 ¼" Vacuum Adapter

(For 2 ½” shop vac, or vacuum accessories).

Included for all KHS100 / KHS500 / KHS503 Series.

Vacuum port allow attachment of vacuum system to keep

saw and work space clean.

• Hose Bending Pins

Included for all KHS100 / KHS500 / KHS503 Series.

Hose Bending Pins prevent the blade from binding during

a cut.

• Serrated Blade (General Purpose)

Included for all KHS100 / KHS500 / KHS503 Series.

Is an aggressive, universal blade that cuts multi-spiral and

braided hose very well.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

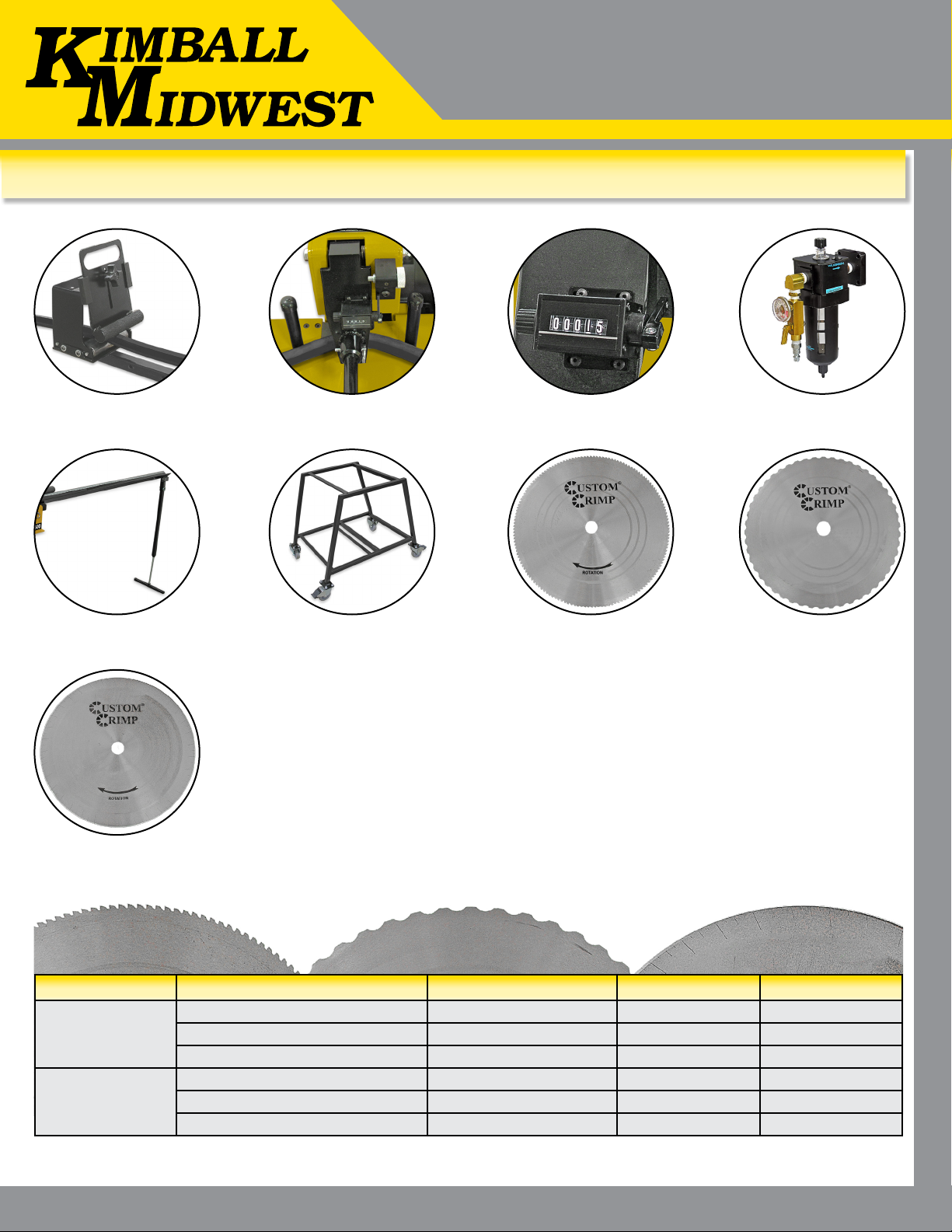

KHS100 / KHS500 / KHS503 OPTIONAL PARTS

• Mister Hose Assembly

Optional only for KHS500 / KHS503 Series.

Not available for KHS100.

The mister sprays a ne mist of air tool oil on the saw blade

for longer blade life and cleaner cuts.

• Hose Channel System

Available in 5 foot sections only for KHS500 / KHS503 Series.

The Hose Channel System both measures and supports the

hoses up to 2 inch diameter as they are being cut.

• Hose Helper

Optional only for KHS500 / KHS503 Series.

Not available for KHS100.

A “Hose Helper” attachment for the KHS500 & KHS503

prevents the hose from being drawn back during a cut and

gives the operator the ability to more precisely control the

cut length. The “Hose Helper” can be mounted on either

end of the saw.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS100 / KHS500 / KHS503 OPTIONAL PARTS

• Double Bevel Blade with SS Slots

Available for all KHS100 / KHS500 / KHS503 Series.

• Scalloped Blade (General Purpose)

Available for all KHS100 / KHS500 / KHS503 Series.

KHS Model Blade Type Blade Size Diameter Arbor Size Part Number

KHS100

Serrated (Included) 10 inch 1 inch 103502

Scalloped (Optional) 10 inch 1 inch 104034

Double Bevel w/ SS Slots (Optional) 10 inch 1 inch 104050

KHS500 & KHS503

Serrated (Included) 12 inch 1 inch 103187

Scalloped (Optional) 12 inch 1 inch 104033

Double Bevel w/ SS Slots (Optional) 12 inch 1 inch 102210

• Mobile Cart

Optional for all KHS100 / KHS500 / KHS503

Series.

KHS hose saw model, can be mounted on the

mobile cart for easy moving around the shop.

Mobile Cart comes with (2) lockable swivel casters.

The HS503 Series hose saw is shown, mounted on the mobile

cart with the optional hose helper and hose channel installed.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS100 / KHS500 / KHS503 BLADE AWARENESS

Note: New blades must be properly conditioned to

assure long life and clean cuts. For the rst ten cuts,

feed the blade slowly through a medium size hose.

this will properly break in and condition the blade for

long life.

Note: The hose should begin to bend before contacting

the blade. This will increase blade life and keep the

hose from tearing and deforming.

Note: Once the blade and motor reach full RPM apply

steady downward pressure on the handle in order to force

the hose into the blade. Do not apply enough force to stall

the blade, and ease up on the pressure before the blade

completes the cut. This will keep from separating the wires

as the blade exits the hose.

Note: The edges of the blade may appear to be dull.

This does not mean that the blade is not e󰀨ective.

As long as the blade is still giving clean cuts, do not

replace the blade.

NOTE: PAY CLOSE ATTENTION TO THE DIRECTION OF

ROTATION MARKED ON THE SERRATED BLADE.

IT IS THE OPPOSITE OF MOST BLADES OF THIS TYPE.

CAUTION: Cracks can cause extremely damage to the

blade, periodically examine the blade for cracks and / or

broken teeth.

Serrated Blade

Scalloped Blade

Double Bevel w/SS Slots Blade

Damaged Blade

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS100 / KHS500 / KHS503 HOSE BENDING PINS SET UP

Hose Bending Pins Set UP

All the KHS100 / KHS500 / KHS503 series hose saws have a

“Hose Bending Pins Position” decal placed on top of the hose

saw.

Step 1

Position the hose bending pins according to the hose size.

For example for a 1/2 inch hose, position the pins in the hole

closest to the blade.

Note: Pins MUST be positioned in the holes in the saw table

such that the hose opens slightly during the cut. Spread the pins

further apart for larger hoses.

Step 2

Turn on the hose saw, apply steady downward pressure on the

handle in order to force the hose into the blade.

As you making a cut, the hose bending pins will allow the hose

to bend as shown in the picture, this will minimize the friction

during the cut.

Step 3

For a (larger) 2 inch hose, position the pins further out as

shown in the picture.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

HOW TO CHANGE THE SAW BLADE

Tighten Rotation Arrow

Hex Jam Nut

Blade Grip

Step 2

Use a 5/32 inch Allen wrench to remove the 5 screws, and

the side access panel.

Step 3

Use 1/8 inch Allen wrench to remove the 2 screws,

and the Black Saw Blade Access Panel to

provide clearance to remove the blade.

Step 4

For KHS100 series, use a 1" wrench.

For KHS500 / KHS503 series, use a 1-1/4" wrench

to keep the Motor Shaft Arbor in place.

Note: there is a notched on the motor shaft arbor where the

wrench falls into place.

Step 5

Use a 1-1/2" wrench or an adjustable wrench to lose the

Hex Jam Nut, remove it and the Blade Grip as well.

Note: Pay close attention to the tighten rotation arrow on the

hex jam nut, this is a left handed hex jam nut.

Note: To lose the hex jam nut would be clockwise, and to

tighten it would be counter-clockwise.

Step 1

MAKE CERTAIN THAT THE HOSE SAW IS TURNED OFF AND UNPLUG IT.

WEAR SAFETY GLASSES AND PROTECTIVE GLOVES AT ALL TIMES

WHEN CHANGING SAW BLADE AND OPERATING THE HOSE SAW.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

HOW TO CHANGE THE SAW BLADE

Step 6

Remove the old blade.

Note: Be careful when removing the old blade.

Note: Always wear safety glasses and protective gloves when

changing blade and operating the hose saw.

Step 7

Use an air gun or a clean rag to clean the inside to remove any

debris.

Step 8

Make certain that the new blade does not have any broken teeth,

cracks or any other damage before installing.

Step 9

Before installing the new blade, if the blade has a rotation arrow

make certain that the blade is installed so that it rotates in the

direction of the arrow.

Note: Once the new blade is installed, repeat the process in

reverse order to install all the parts back on the hose saw.

Note: To lose the hex jam nut would be clockwise, and to tighten

it would be counter-clockwise.

DO NOT OPERATE THE SAW WITHOUT

ALL OF THE GUARDS IN PLACE

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

HOW TO INSERT THE VACUUM ATTACHMENT

Step 4

Run vacuum during cutting process.

Step 3

Insert supplied 1 ¼" Vacuum Attachment (B).

(For 2 ½" shop vac, or vacuum accessories).

• 1 ¼" Vacuum Port located on rear of hose saw.

Available in all KHS100 / KHS500 / KHS503 Series.

Note: Do not recommend using at the same time as Mister.

Step 2

Remove Plastic Plug (A).

Step 1

MAKE CERTAIN THAT THE HOSE SAW IS TURNED OFF AND UNPLUG IT.

WEAR SAFETY GLASSES AND PROTECTIVE GLOVES AT ALL TIMES

WHEN OPERATING THE HOSE SAW.

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS100 / KHS500 / KHS503 REPLACEMENT ACCESSORIES

Hose Saw Counter

P/N:1895T42

Hose Bending Pins

P/N:103665

Hose Channel System

P/N:103073

Serrated Blade Scalloped Blade

Double Bevel w/

SS Slots Blade

Mobile Cart

P/N:101956

KHS Model Blade Type Blade Size Diameter Arbor Size Part Number

KHS100

Serrated (Included) 10 inch 1 inch 103502

Scalloped (Optional) 10 inch 1 inch 104034

Double Bevel w/ SS Slots (Optional) 10 inch 1 inch 104050

KHS500 & KHS503

Serrated (Included) 12 inch 1 inch 103187

Scalloped (Optional) 12 inch 1 inch 104033

Double Bevel w/ SS Slots (Optional) 12 inch 1 inch 102210

Hose Helper

P/N:103297

Mister Hose Assembly

P/N:103172

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

COMPONENT PARTS BREAKDOWN

HS-150 ASSEMBLY (103734)

QTYDESCRIPTION

PART NUMBERITEM

HS150 BASE ASSEMBLY

1034541

1 HP 110V 3600RPM MOTOR

1038142

3/8-16 X 7/8 SHCS91251A6233

3/8 LOCK WASHER91101A031

11/4-20 X 1/2 HHS92620A537

11/4-20 X 1-1/2" HEX STANDOFF92230A3306

11/4-20 RUBBER VIBRATION FOOT103774

1HS-150 5/8" MOTOR SHAFT ARBOR1032998

1HS-300/500 5/8" MOTOR SHAFT ARBOR1031278

11/4-20 X 1 1/4 SHCS91251A5449

11/4-20 X 1/4 SET SCREW91375A53310

110 INCH SERRATED BLADE10350211

1HS-150/300/500 BLADE GRIP10239112

11/14 LEFT HAND JAM NUT90083A26013

HS-150/300/500 SAFETY GUARD ASSEMBLY

10270614

CCW TORSION SPRING - RIGHT SIDE9271K67-CCW

CW TORSION SPRING - LEFT SIDE9271K67-CW

HS-150/300/500 PUSHER BASE

10269916

HS-150/300/500 HANDLE

10269717

3/16 X 1.3 PULL PIN

98320A01318

1BLACK HAND GRIP10381519

13/8-16 X 4 1/2 SHOULDER SHCS91247A64420

13/8 NYLOC JAM NUT90566A03121

1HS-150/300/500 SAW BLADE ACCESS PANEL10292622

210-24 X 3/8 FHCS91253A24023

1HS150 ACCESS PANEL10347624

1/4-20 X 1/2 SHCS91306A37525

2HS-150/300/500 LOCATING PIN ASSEMBLY10366526

24 1

HS-150 ASSEMBLY (103734)

QTYDESCRIPTION

PART NUMBERITEM

HS150 BASE ASSEMBLY

1034541

1 HP 110V 3600RPM MOTOR

1038142

3/8-16 X 7/8 SHCS91251A6233

3/8 LOCK WASHER91101A031

11/4-20 X 1/2 HHS92620A537

11/4-20 X 1-1/2" HEX STANDOFF92230A3306

11/4-20 RUBBER VIBRATION FOOT103774

1HS-150 5/8" MOTOR SHAFT ARBOR1032998

1HS-300/500 5/8" MOTOR SHAFT ARBOR1031278

11/4-20 X 1 1/4 SHCS91251A5449

11/4-20 X 1/4 SET SCREW91375A53310

110 INCH SERRATED BLADE10350211

1HS-150/300/500 BLADE GRIP10239112

11/14 LEFT HAND JAM NUT90083A26013

HS-150/300/500 SAFETY GUARD ASSEMBLY

10270614

CCW TORSION SPRING - RIGHT SIDE9271K67-CCW

CW TORSION SPRING - LEFT SIDE9271K67-CW

HS-150/300/500 PUSHER BASE

10269916

HS-150/300/500 HANDLE

10269717

3/16 X 1.3 PULL PIN

98320A01318

1BLACK HAND GRIP10381519

13/8-16 X 4 1/2 SHOULDER SHCS91247A64420

13/8 NYLOC JAM NUT90566A03121

1HS-150/300/500 SAW BLADE ACCESS PANEL10292622

210-24 X 3/8 FHCS91253A24023

1HS150 ACCESS PANEL10347624

1/4-20 X 1/2 SHCS91306A37525

2HS-150/300/500 LOCATING PIN ASSEMBLY10366526

24 1

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

COMPONENT PARTS BREAKDOWN

HS 300/ HS 500 ASSEMBLY (103335)

QTYDESCRIPTIONPART NUMBERITEM

1HS 300/ HS 500 Base Assembly1027571

1Motor Assembly103335-12

43/8" Spring Lock Washer91101A0313

43/8"-16 X 7/8" SHCS90128A6234

112" Double Beveled Saw Blade1022105

112" Serated Saw Blade1031876

1Blade Grip Part 21023917

11" Hex Jam Nut95155A1198

1Removable Side Cover1026939

91/4"-20 X 1/2" BHCS91255A53710

1Saw Blade Access Panel10292611

210-24 X 1/4" FHCS91253A23812

1Handle Pusher10269913

1Pull Pin98320A01314

1Safety Guard10270615

1Handle10269716

1Black Hand Grip10381517

1Mist Cover Plate10306518

13/8"-16 X 5" HHCS91257A64419

13/8-16 Hex Nut94846A03120

2Spring9271K6721

1Fixed Bracket Assembly10315422

25/16"-18 X 5/8" FHCS91253A58023

2Locating Pin Assembly10366524

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

COMPONENT PARTS BREAKDOWN

Motor Assembly (103335-1)

QTYDESCRIPTIONPART NUMBERITEM

1HS 300 1 Phase1022561

HS 300 3 Phase

1019641

1HS 500 1 Phase1033411

HS 500 3 Phase

1033421

1HS-500 1 Ph/3 PH 5/8" Shaft Arbor1032992

1HS-300 1 PH/3 PH 7/8" Shaft Arbor1031272

1/4"-20 X 1 1/4" HHCS

91251A5443

11/4"-20 x 1/4" Set Screw91375A5334

HS 500 Electrical Box Bracket

1031515

1HS 300 Electrical Box Bracket1029205

1Electrical Box102919-016

1Electrical Enclosure Panel1029197

150 Amp Disconnect Switch1030508

1/4"-20 X 1/2" BHCS

91255A5379

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

COMPONENT PARTS BREAKDOWN

HS 300/ HS 500 Hose Feeding System (103297 REVA)

QTYDESCRIPTIONPART NUMBERITEM

1Welded Base Assembly1031531

4Rolling Pins1038242

1Hose Feeding Frame102965-013

1Spring Hinge15205A144

1Adjustable Stop Guide1030475

1Welded Stop Assembly1031526

1Tighting Knob5993K51

#8-32 x 1/4 BHCS91255A1908

4#10-24 x 3/8 BHCS91255A2409

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

KHS Hose Saws Series

KHS100 / KHS500 / KHS503

WARRANTY STATEMENT

Kimball Midwest’s “KHS” Series Hose Saws are warranted to be free of defects in workmanship and

materials for one year from the date of purchase. This warranty terminates if the product becomes

unusable for reasons other than defects in workmanship and material.

A “KHS” Series Hose Saws proven to be defective in workmanship or material will be repaired or replaced

at no charge. To obtain benets of this warranty, rst, contact your Kimball Midwest sales representative

or the Quality Assurance Department at (800) 233-1294.

This warranty does not cover any product or part which is worn out, abused, altered, used for a purpose

other than for which it was intended, or used in a manner which was inconsistent with any instructions

regarding its use.

This manual suits for next models

Table of contents

Popular Saw manuals by other brands

Parkside

Parkside PTS 480 A1 Operation and safety notes

RIDGID

RIDGID 32V Operator's manual

Grizzly

Grizzly G3619 parts list

Craftsman

Craftsman 315.10899 owner's manual

Meec tools

Meec tools 004665 operating instructions

Ryobi

Ryobi RTS1526RG Original instructions

TOUGH-WORKS

TOUGH-WORKS SSA16V instruction manual

Scheppach

Scheppach ts 25l instruction manual

Makita

Makita DSP601 instruction manual

Evolution

Evolution FURY62102 Original instructions

Bosch

Bosch TS0801 quick start guide

Kalamazoo

Kalamazoo K12-14B instruction manual

Festool

Festool TS 55 EQ instruction manual

Sealey

Sealey SM8 instructions

Diamond Products

Diamond Products CC2525H Operator's manual

Jet

Jet HVBS-7MW Operator's manual

Cosen

Cosen SH-5542 instruction manual

Hitachi

Hitachi C 18DMR Handling instructions

KIMBALL MIDWEST KHS Series User manual

Popular Saw manuals by other brands
