Kimo 7302 User manual

1
KIMO
INSTRUCTION MANUAL
7302
20V Max Cordless Angle Grinder
www.kimotool.com
If you have questions or comments, contact us.
[e-mail]

2
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY KIMO TOOL, EMAIL
US AT: [e-mail]
General Safty Rules - For All Tool
WARNING! Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
personal injury.
SAVE THESE INSTRUCTIONS!
WORK AREA
•Keep your work area clean and well lit. Cluttered benches
and dark areas invite accidents.
•Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases, or
dust. Power tools create sparks which may ignite the dust or
fumes.
•Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
•Don’t expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use tool while

3
tired or under the influence of drugs, alcohol, or medication. A
moment of inattention while operating power tools may result in
serious personal injury.
•Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothing, jewelry, or long hair
can be caught in moving parts. Air vents often cover moving parts
and should also be avoided.
•Avoid accidental starting. Be sure switch is off before
plugging in. Carrying tools with your finger on the switch or
plugging in tools that have the switch on invites accidents.
•Remove adjusting keys or wrenches before turning the
tool on. A wrench or a key that is left attached to a rotating part
of the tool may result in personal injury.
•Do not overreach. Keep proper footing and balance at all
times. Proper footing and balance enables better control of the
tool in unexpected situations.
•Use safety equipment. Always wear eye protection. Dust
mask, non-skid safety shoes, hard hat, or hearing protection
must be used for appropriate conditions.
•
TOOL USE AND CARE
•Use clamps or other practical way to secure and support
the work piece to a stable platform. Holding the work by hand
or against your body is unstable and may lead to loss of control.
•Do not force tool. Use the correct tool for your application.
The correct tool will do the job better and safer at the rate for
which it is designed.
•Do not use tool if switch does not turn it on or off. Any tool

4
that cannot be controlled with the switch is dangerous and must
be repaired.
•Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands of
untrained users.
•Maintain tools with care. Keep cutting tools sharp and clean.
Properly maintained tools, with sharp cutting edges are less likely
to bind and are easier to control.
•Check for misalignment or binding of moving parts, break-
age of parts, and any other condition that may affect the
tool’s operation. If damaged, have the tool serviced before
using. Many accidents are caused by poorly maintained tools.
•Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one tool, may become hazardous when used on
another tool.

5
ADDITIONAL SPECIFIC SAFETY INSTRUCTIONS
•Always use proper guard with grinding wheel. A guard
protects operator from broken wheel fragments and wheel
contact.
•Accessories must be rated for at least the speed recom-
mended on the tool warning label. Wheels and other
accessories running over rated speed can fly apart and cause
injury. Accessory ratings must be above listed minimum wheel
speed as shown on tool nameplate.
•ALWAYS WEAR EYE PROTECTION WHEN USING THIS
TOOL.
•Use of accessories not specified in this manual is not
recommended and may be hazardous. Use of power boosters
that would cause the tool to be driven at speeds greater than its
rated speed constitutes misuse.
•Do not use circular saw blades or any other toothed blades
with this tool. Serious injury may result.
•When starting the tool with a new or replacement wheel,
hold the tool in a well protected area and let it run for one
minute. If the wheel has an undetected crack or flaw, it should
burst in less than one minute. If the wire brush has loose wires,
they will be detected. Never start the tool with a person in line
with the wheel. This includes the operator.
•Avoid bouncing the wheel or giving it rough treatment. If
this occurs, stop the tool and inspect the wheel for cracks or
flaws.
•Direct sparks away from operator, bystanders or
flammable materials. Sparks may be produced while cutting
and/or grinding. Sparks may cause burns or start fires.

6
•Always use side handle. Tighten the handle securely. The side
handle should always be used to maintain control of the tool at all
times.
•Never cut into area that may contain electrical wiring or
piping. Serious injury may result.
•Clean out your tool often, especially after heavy use. Dust
and grit containing metal particles often accumulate on interior
surfaces and could create an electric shock hazard.
•Do not operate this tool for long periods of time. Vibration
caused by the operating action of this tool may cause permanent
injury to fingers, hands, and arms. Use gloves to provide extra
cushion, take frequent rest periods, and limit daily time of use.

7

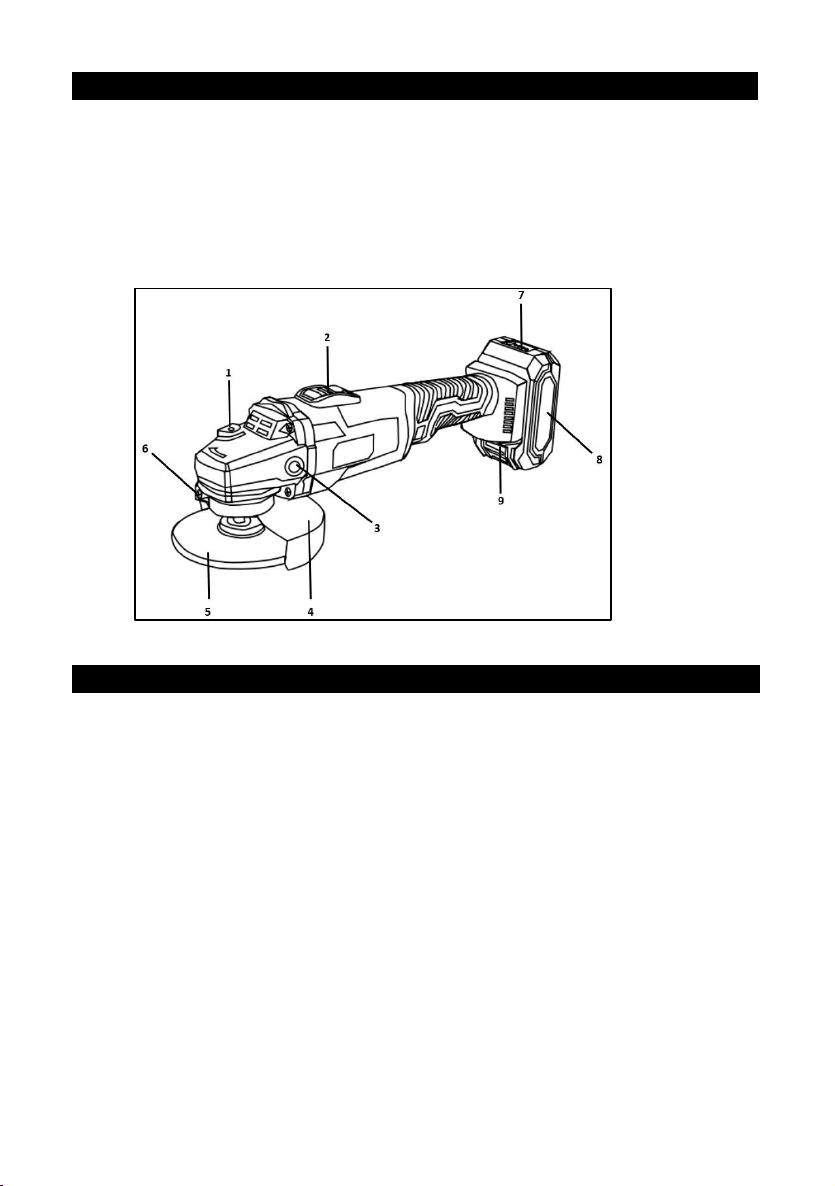

TOOL COMPONENTS
1. Shaft Lock
2. Slide Switch
3. Side Handle Mounting Place
4. Wheel Guard
5. Wheels
6. Screw
7. Charger Indicator Light
8. Lithium-Ion Battery
9. Battery Slide Button
ACCESSORIES
1. Cordless Angel Grinder
2. Two Cutting Wheels
3. One Grinding Wheels
4. KIMO Battery
5. 1-Hour Fast Charger
6. Side Handle
7. Lock Nut Wrench
8. KIMO Carrying Bag

8
SPECIFICATIONS
Model
7302
Wheel Diameter
4-1/2”(115 mm)
Rated Speed/No Load Speed
6700 Revolutions/Minute
Rated Battery Voltage
20V
Weight (Bare Tool)
3.9 lbs
Weight (Tool + Battery)
5.3 lbs
SLIDER SWITCH
WARNING: Before connecting the tool to a power supply,
make sure the slider switch(2) is in the off position by
pressing the rear part of the switch and releasing. Ensure the
switch is in the off position as described above after any interruption
in power supply to the tool, such as the activation of a ground fault
interrupter, throwing of a circuit breaker, accidental unplugging, or
power failure. If the switch is locked on when the power is connected,
the tool will start unexpectedly.
To start the tool, slide the slider switch(2) toward the front of the
tool. To stop the tool, release the slider switch.
For continuous operation, slide the slider switch toward the front
of the tool and press the forward part of the slider switch inward. To
stop the tool while operating in continuous mode, press the
rear part of the switch and release.
To stop the tool while operating in continuous mode, press the
rear part of the switch and release.

9
SPINDLE LOCK
The spindle lock is provided to prevent the spindle from rotating when
installing or removing wheels. Operate the spindle lock only when the
tool is turned off, unplugged from the power supply, and has come to
a complete stop. Do not engage the spindle lock while the tool is
operating because damage to the tool will result. To engage the lock,
depress the spindle lock button and rotate the spindle until you are
unable to rotate the spindle further.

10
INSTALLATION
INSTALLING SIDE HANDLE
WARNING: Always make sure that the side handle is installed
securely before operation.
INSTALLATION - Screw the side
handle securely. According to your
using habit, the handle could be
installed on the left or right side of
the tool as shown in the figure.
INSTALLING OR REMOVING WHEEL GUARD
WARNING:
•When using a depressed center grinding wheel/Multi-disc, wire
wheel brush, cut-off wheel or diamond wheel, the wheel guard
must be fitted on the tool so that the closed side of the guard
always points toward the operator.
•When using an abrasive cut-off / diamond wheel, be sure to use
only the special wheel guard designed for use with cut-off wheels.
INSTALLATION
A. Mount the wheel guard with the protrusions on the wheel guard
band aligned with the notches on the bearing box.
B. Rotate the wheel guard around 180°counterclockwise.
C. Tighten the screw securely.
D. To remove wheel guard, follow the installation procedure in
reverse.

11
1. Wheel Guard
2. Bearing Box
3. Screw
INSTALLING OR REMOVING WHEEL
WARNING:
•Always remove battery pack before changing or removing
accessories.
•Always use supplied guard when depressed center grinding
wheel/Multi-disc is on tool. Wheel can shatter during use and
guard helps to reduce chances of personal injury.
A. Remove the battery pack. WARNING! Always remove battery
pack before changing or removing accessories.
B. Properly position the guard.
C. Wipe the flange, flange nut and spindle to remove dust and debris.
Inspect the parts for damage. Replace if needed.
D. Mount the inner flange onto the spindle. Fit the selected wheel on
the spindle and align it with the flange.
E. Place the lock nut and screw it onto the the spindle.
1.Lock Nut
2. Wheel
3. Inner Spange
F. Press the shaft lock firmly so that the spindle cannot revolve, then

12
use the lock nut wrench and securely tighten clockwise.
WARNING: Only actuate the shaft lock when the spindle is not
moving.
1. Lock Nut Wrench 2. Shaft Lock
G. To remove wheel, remove the battery pack and reverse the
procedure.

13
OPERATION
WARNING:
•It should never be necessary to force the tool. The weight of the
tool applies adequate pressure. Forcing and excessive pressure
could cause dangerous wheel breakage.
•ALWAYS replace wheel if tool is dropped while grinding.
•NEVER bang or hit grinding disc or wheel onto work.
•Avoid bouncing and snagging the wheel, especially when working
corners, sharp edges etc. This can cause loss of control and
kickback.
•NEVER use tool with wood cutting blades and other sawblades.
Such blades when used on a grinder frequently kick and cause
loss of control leading to personal injury.
CAUTION:
•After operation, always switch off the tool and wait until the wheel
has come to a complete stop before putting the tool down.

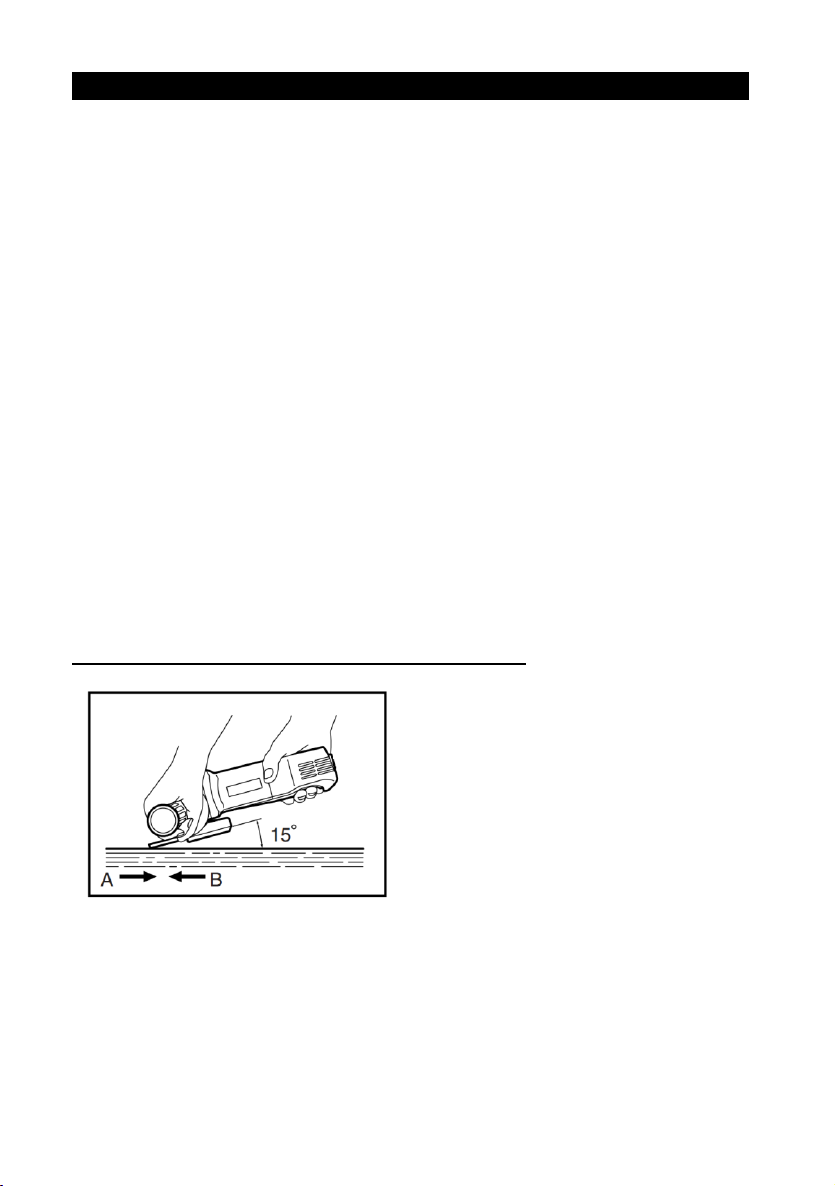

GRINDING AND SANDING OPERATION
ALWAYS hold the tool firmly with one hand on housing and the other
on the side handle. Turn the tool on and then apply the wheel or disc
to the workpiece. In general, keep the edge of the wheel or disc at an
angle of about 15 degrees to the workpiece surface. During the

14
break-in period with a new wheel, do not work the grinder in the B
direction or it will cut into the workpiece. Once the edge of the wheel
has been rounded off by use, the wheel may be worked in both A and
B direction.

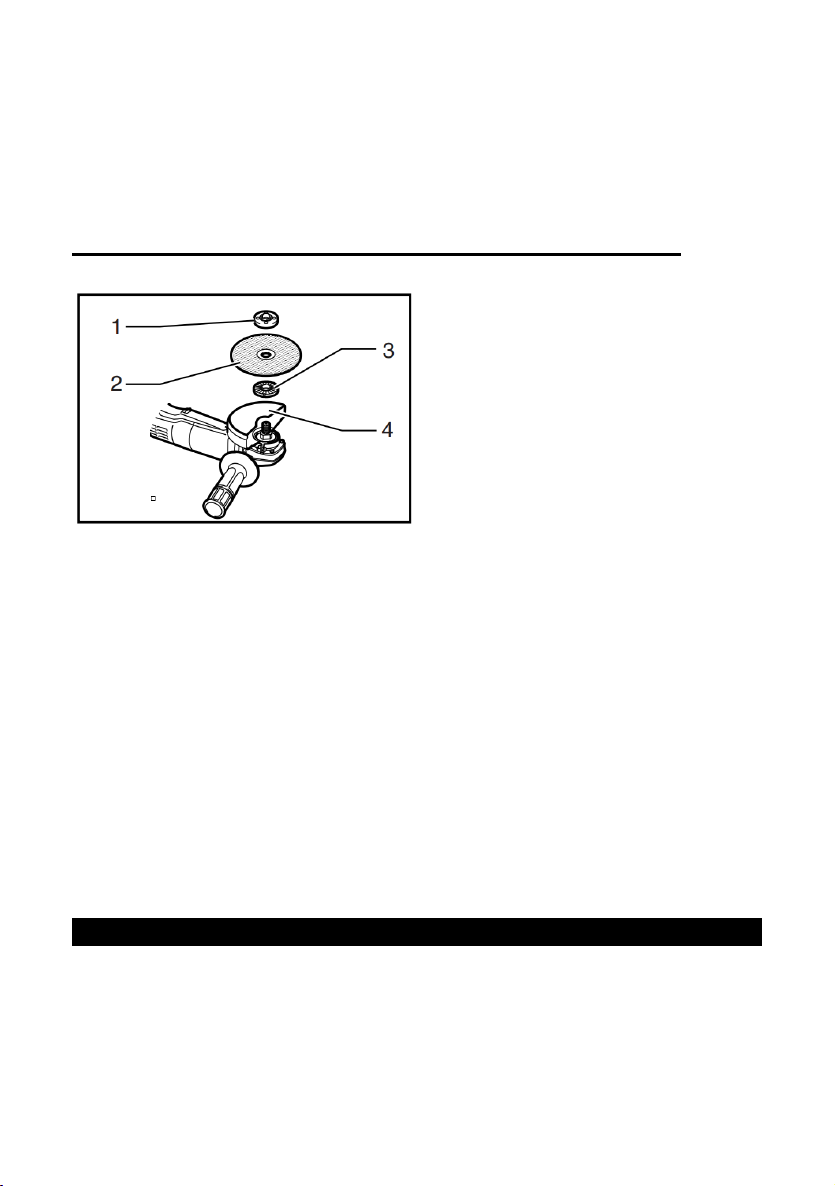

OPERATION WITH WHEEL (OPTIONAL ACCESSROY)
1. Lock nut 2. Abrasive cut-off wheel
3. Inner flange 4. Wheel guard for cut-off wheel
WARNING:
•When using an abrasive cut-off wheel, be sure to use only the
special wheel guard designed for use with cut-off wheels.
•NEVER use cut-off wheel for side grinding.
During cutting operations, never change the angle of the wheel.
Placing side pressure on the cut-off wheel (as in grinding) will cause
the wheel to crack and break, causing serious personal injury.
MAINTENANCE
CAUTION:
•Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.

15
To maintain product SAFETY and RELIABILITY, repairs, carbon brush
inspection and replacement, any other maintenance or adjustment
should be performed by KIMO Authorized or Factory Service Centers,
always using KIMO replacement parts.

16
BATTERY INSTRUCTIONS
CAUTION: Only use genuine KIMO batteries. Use of non-genuine KIMO
batteries, or batteries that have been altered, may result in the battery
bursting causing fires, personal injury and damage. It will also void the
KIMO warranty for the KIMO tool and charger.
MAINTAINING MAXIMUM BATTERY LIFE
1. Charge the battery cartridge before completely discharged.
Always stop tool operation and charge the battery cartridge when you
notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging
shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10 °C -
40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use it for a long period
(more than six months).
TOOL/BATTERY PROTECTION SYSTEM
The tool is equipped with a tool/battery protection system. This
system automatically cuts off power to the motor to extend tool and
battery life. The tool will automatically stop during operation if the
tool or battery is placed under one of the following conditions:
Overload protection
When the battery is operated in a manner that causes it to draw an
abnormally high current, the tool stops automatically. In this
situation, turn the tool off and stop the application that caused the
tool to become overloaded. Then turn the tool on to restart.

17
Overheat protection
When the tool/battery is overheated, the tool stops automatically. In
this situation, let the tool/battery cool before turning the tool on
again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the tool and
charge the battery.
INDICATING THE REMAINING BATTERY CAPACITY
Battery Pack LED Indicator
KIMO battery packs include a fuel gauge which consists of four LED
lights that indicate the level of charge remaining in the battery
pack.The fuel gauge is an indication of approximate levels of charge
remaining in the battery pack according to the following indicators:
NOTE: 1. Tap the battery indicator button to indicate the remaining
battery capacity and automatically turn off after 5 seconds. 2. When
charging, 4 LED Lights blink in sequence, and the LED lights are
completely off after being fully charged.

18

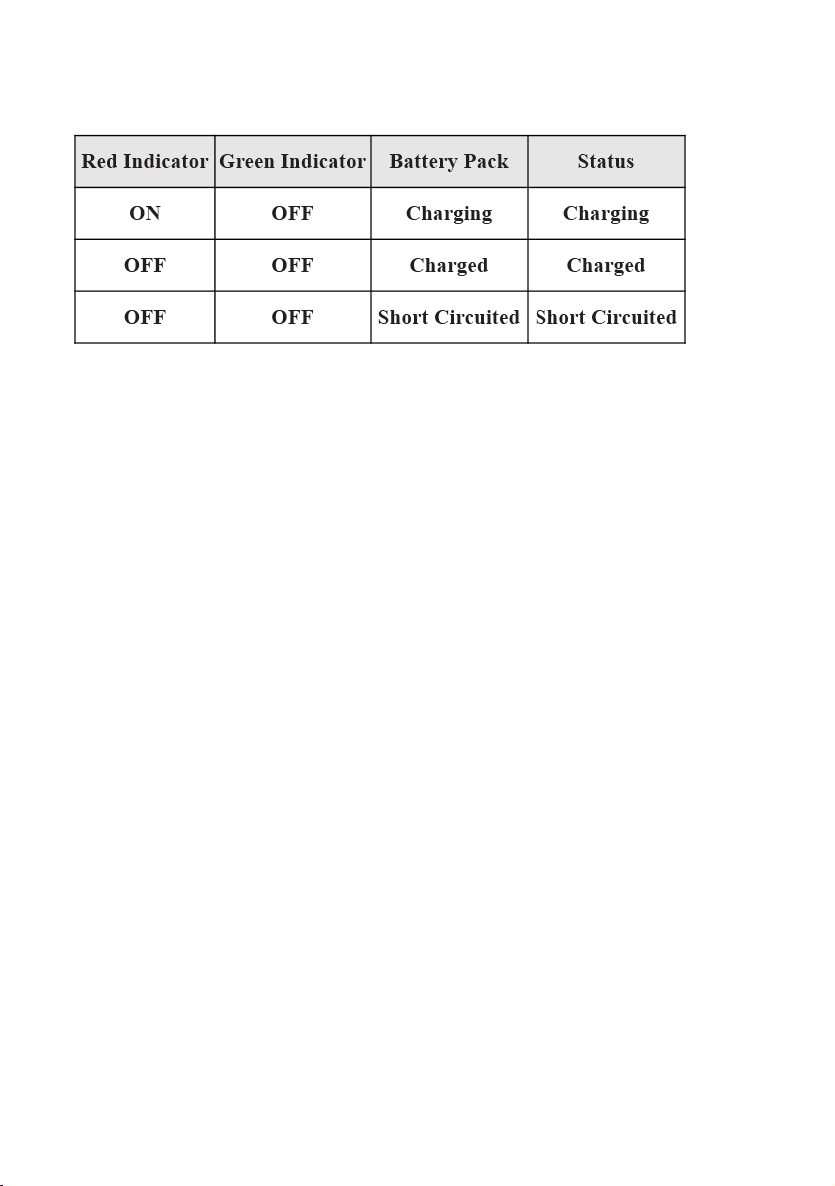

Charging Indicator
NOTE: It takes 1-2 hours to full charge KIMO battery.

19
WARRANTY
Every KIMO power tool is warranted to the original purchaser only
to be free from defects in material and workmanship. Subject to
certain exceptions, KIMO will replace any part on an electric power
tool that is defective in material or workmanship for a period of 2
years after the date of purchase unless otherwise noted. This
warranty does not apply to damage from repairs made or
attempted by anyone other than KIMO, misuse, alterations, abuse,
normal wear and tear, lack of maintenance, or accidents.
Normal Wear: Many power tools need periodic parts replacement
and service to achieve best performance. This warranty does not
cover repair when normal use has exhausted the life of a part
including, but not limited to, chucks, brushes, cords, saw shoes,
blade clamps, o-rings, seals and driver blades.
Warranty Registration is not necessary to obtain the applicable
warranty on a KIMO power tool product.
This warranty applies to product sold in the U.S.A. only.

20
EXTENDED WARRANTY REGISTRATION
Dear Customer,
Thank you very much for choosing KIMO. At KIMO, customer
satisfaction is our highest priority. In order to provide the best
services, we would like to offer you an extra 6-month limited
warranty. Below is the free registration process.
To register our extended warranty for your KIMO product, please
send your name, your email AND your Amazon order number to
kimo-suppo[email protected]m. Our customer services
representative will help you register within 24 hours.
Disclaimer: This policy is at the manufacturer's discretion.
Best Regards,
KIMO Customer Support
