kincrome KP1405 User manual

POWER PAK II
/ PLUS II
MULTI FUNCTION
JUMP STARTERS
KP1405 & KP1406
ED2 (December 17)

POWER PAK II / PLUS II
2
Table of Contents
Know Your Product................................................................................................................ 2
POWER PAK II Safety Instructions ....................................................................................... 3-4
POWER PAK II Care & Charging........................................................................................... 5-6
POWER PAK II Operation ...................................................................................................... 6-9
F.A.Q & Trouble Shooting ...................................................................................................... 10-11
Warranty................................................................................................................................. 11
Know Your Product
1. ON / OFF / TEST Button
2. Battery Charge LED Indicators
3. 12V DC 10A Output Port
4. 19V DC 3.5A Output Port
5. LED Torch / Emergency Light
6. 15V DC 1A Input Charging Port
7. USB 5V DC 2A Output Port
8. USB 5V DC 1A Output Port
9. Jump Start Cable Port
10. 240V AC Charger
11. 12V DC Car Charger
12. Positive Battery Clamp RED
13. Negative Battery Clamp BLACK
14. INTELLI-CHECK Jumper Cable
15. Laptop Charger Adaptors
16. Multi Purpose Accessory Cable
17. Electronic Device Charging Cable
18. 12V DC Female Adaptor
19. BOOST Button
20. Correct Polarity LED
21. Reverse Polarity LED
INTELLI-CHECK Jumper Cable
• Reverse Polarity Check
• Anti-recharge Protection
• Short Circuit Protection
• Over Discharge Protection
• Surge Protection
10
Specifications KP1405 - POWER PAK II KP1406 - POWER PAK PLUS II
Size : 176 x 93 x 38mm 227 x 93 x 38mm
Weight : 555g 750g
Battery Capacity : 14.8Wh (3700mAh) 22.2Wh (6100mAh)
Battery Cells : 3 3
Outputs : 5V 1A, 5V 2A , 12V 10A, 19V 3.5A 5V 1A, 5V 2A, 12V 10A, 19V 3.5A
Input : 15V 1A 15V 1A
Full Charging Time : Approx. 4 Hours Approx. 6 Hours
Starting Current : 200A 300A
Peak Current : 400A 600A
Operating Temperature : -20˚C ~ 60˚C (4˚F ~ 140˚F) -20˚C ~ 60˚C (4˚F ~ 140˚F)
Lifetime : >1000 cycles >1000 cycles
11 15
16
17
12
13
14
19
20
21
2
5
8
64
3
18
1
9
7

POWER PAK II / PLUS II
3
General Safety Warnings
Save all warnings and instructions for future reference.
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Electrical Safety
1. Charger plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs that are earthed
(grounded). Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose the POWER PAK II to rain or wet conditions. Water entering the POWER PAK II will increase the risk of
electric shock.
4. Do not abuse the cords. Never use the cord for carrying, pulling or unplugging the charger. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. If operating a charger in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
6. Do not operate powered products in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Powered products create sparks which may ignite the dust or fumes.
7. Keep children and bystanders away while operating any powered products. Distractions can lead to injury of yourself or
the bystanders.
8. When battery pack is not in use, keep it away from other metal object, like paper clips, coins, keys, nails, screws or
other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
9. This appliance is not intended for use by persons (including children) with reduced physical sensors or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning
use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure they do not play with the appliance.
11. Always take care when using this appliance.
Additional Safety Instructions for Batteries and Chargers
1. Do not modify or take the POWER PAK II apart, re-assemble, repair battery or charger to avoid breaking or damaging of
the components.
2. Do not place or allow the POWER PAK II to come into contact with water, fire or high-temperature environments.
3. Do not puncture, damage or deform the POWER PAK II.
4. Do not allow the + /- terminals of the battery to come in contact with each other. This could cause a short circuit
of the battery.
5. Do not store in locations where the temperature may exceed 60 °C.
6. Charge only at ambient temperatures between -20 °C and 60 °C.
7. Charge only using the charger provided with the product.
8. Do not attempt to charge damaged batteries.
9. Under abusive conditions, liquid may be ejected from the POWER PAK II; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, flush with water and seek medical attention. Liquid ejected from the battery
may cause irritation or burns.
10. Use powered products only with specifically designated POWER PAK II. Use of any other battery packs may create a
risk of injury and fire.
11. Dispose of batteries in accordance with your local council regulations.

POWER PAK II / PLUS II
4
General Safety Warning (Cont.)
Chargers
1. Use your Kincrome charger only to charge the battery in the POWER PAK II with which it was supplied. Using a charger
not designed for the battery it was intended for could cause battery failure, potentially leading to personal injury
and damage.
2. Never attempt to charge non-rechargeable batteries.
3. Have defective cords replaced immediately.
4. Do not expose the charger to water.
5. Do not open the charger.
Labels on Tool
The following symbols are shown on the tool:
Your charger is double insulated; therefore no earth wire is required. Always check that the
mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the
charger unit with a regular mains plug.
The Charger is intended for
indoor use only.
Dispose of battery as per local
government requirements.
Read the instruction manual
before use.
Risk of explosion
Warning Energy efficiency rating
EMC (Electromagnetic
Compliance) mark.
Always wear eye protection
Always wear safety gloves
mAh: milli Amp hour Wh: Watt-hour
V: Volt A: Amp
Note: This instruction manual refers to POWER PAK II throughout the instructions.
The POWER PAK II reference instructions within, cover both KP1405 POWER PAK II & KP1406 POWER PAK PLUS II products.

POWER PAK II / PLUS II
5
POWER PAK II Care and Charging
Important Notice
1. If the 240V AC Charger (10) supplied is damaged, it must be replaced by the manufacturer or an authorised Kincrome
service agent or similarly qualified persons in order to avoid a hazard.
2. When installing or removing the charger connector plugs, please hold the connectors firmly.
3. Don’t stretch the wire or damage can occur to the wire & plugs.
Note: For optimal performance, charge the POWER PAK II every 3-6 months and keep the POWER PAK II stored in a cool dry
environment to extend the life of your product.
1. Charging the POWER PAK II Battery
Note: Charge the POWER PAK II whenever the Battery Charge LED Indicators (2) are illuminated with 2 or less bars.
It is also recommended to charge the POWER PAK II periodically (approx. every 3-6 months) to keep the POWER PAK II
in optimal operating condition.
To check the batteries level of charge, press the ON/OFF/TEST Button (1) and refer to the below chart to confirm level of
charge of the POWER PAK II.
Battery
Charge
Indicator (2)
Unlit
LED’s
4 Flashing
LED’s
1
Illuminated
LED
2
Illuminated
LED’s
3
Illuminated
LED’s
4
Illuminated
LED’s
Battery
Charge
Condition 0% 10% 25% 50% 75% 100%
A. Charging with the 240V AC Charger
a. To charge the POWER PAK II with the 240V AC Charger (10) locate the charger plug/
adaptor on the end of the charging cable of the 240V AC Charger (10) and insert into the
POWER PAK II 15V DC 1A input Charging Port (6) (fig1).
b. Plug the 240V AC Charger (10) into your wall socket and turn ON the mains power. When
the POWER PAK II is charging the Battery Charge LED Indicators (2) will flash ON & OFF
until each level of charge has been reached and will illuminate continuously.
When finished charging, all Battery Charge LED Indicators (2) will turn OFF.
B. Charging with the 12V DC Car Charger
a. To charge the POWER PAK II with the 12V DC Car Charger (11) locate the 12V charger
lead/adaptor on the end of the 12V DC Car Charger (11) charging cable & plug into the
POWER PAK II 15V DC 1A Input Charging Port (6) (fig 2).
b. Plug the 12V DC Car Charger (11) into your 12V DC vehicle accessory socket located
within your vehicle (refer to your vehicles instruction manual for the location
of your 12V DC accessory sockets). When the POWER PAK II is is charging
the Battery Charge LED Indicators (2) will flash ON & OFF until each level of
charge has been reached and will illuminate continuously.
When finished charging, all Battery Charge LED Indicators (2) will turn OFF.
(fig 1)
(fig 2)

POWER PAK II / PLUS II
6
1. Charging the POWER PAK II Battery (Cont.)
a. 240V AC Charger (10) - Once fully charged the 240V AC Charger (10) can be left connected to the POWER PAK II as the
charger will perform a maintenance charge.
Caution: It is recommended that the 240V AC Charger (10) be turned OFF within 48 hours after charging has completed to
save electricity.
b. 12V DC Car Charger (11) - It is not recommended to leave the POWER PAK II connected to your vehicles 12V output
source for extended periods of time as this could potentially drain your vehicles battery.
Caution: If the POWER PAK II jump starter will not turn ON, the current overload or low voltage protection may have activated.
To reset the jump starter you must connect the supplied 240V AC Charger (10) to your mains power, then connect the
charger lead to the 15V DC 1A Input Charging Port (6) & turn ON the mains power. This will reset the POWER PAK II
jump starter and should now function as normal.
POWER PAK II Operation
2. POWER PAK II Pre-Operation Check
Caution: Before using the POWER PAK II ensure your vehicle battery has a CCA rating of 400CCA or less for KP1405 & 600CCA
or less for KP1406.
Trying to start any vehicle with a battery rated greater than 400CCA for KP1405 & 600CCA for KP1406 could trip the
current overload protection or cause damage to the POWER PAK II and void the product warranty.
Caution: Refer to your vehicles instruction manual for “connection of jumper cables” as some vehicles have specific
connection requirements.
3. Follow the below instructions when your vehicle will not start due to a low voltage, flat, damaged or low
temperature battery.
4. Ensure the Battery Charge LED Indicators (2) are illuminated, a minimum of 3 BLUE LED’s are illuminated before trying
to jumpstart your vehicle.
5. Do not attempt to jumpstart your vehicle if the Battery Charge LED Indicators (2) are illuminated with less than
3 BLUE LED’s.
6. If the Battery Charge LED Indicators (2) are showing 2 or less illuminated BLUE LED’s; recharge the POWER PAK II as
specified in “Charging the POWER PAK II Battery” on Pages 5 & 6.
7. Do not touch or connect the Positive Battery Clamp RED (12) to the Negative Battery Clamp BLACK (13)
at any stage. Connecting the Battery Clamps (12 & 13) together may lead to damage of the POWER PAK II, and/or
vehicles battery and could be dangerous.
8. Always ensure you connect the jump starter clamps to the correct battery terminals, connect the Positive Battery
Clamp RED (12) to the positive terminal (+ RED) of your vehicles battery and the Negative Battery Clamp BLACK (13) to
the negative terminal (- BLACK) of your vehicles battery otherwise you may cause damage to the POWER PAK II
or your vehicle.
9. Always check that the Battery Clamps (12 & 13) have a good connection to the vehicle battery terminals.
10. Check that the vehicle battery terminals are free of corrosion and are clean, to ensure a positive connection of the
POWER PAK II.
11. Do not try to restart the vehicle after 3 consecutive starting attempts, otherwise you may cause damage to the
POWER PAK II. Check your vehicle for other possible reasons prior to trying to start your vehicle again.

POWER PAK II / PLUS II
7
3. INTELLI-CHECK LED / Noise and Button Indicators
The POWER PAK II is fitted with INTELLI-CHECK Jumper Cables (14). Familiarize yourself with the features of the
INTELLI-CHECK as per below, prior to connecting to your vehicles battery.
Caution: Do Not press the “BOOST” Button (19) prior to connecting the jumper cables to your vehicle.
Note: Once the POWER PAK II is connected to your vehicles battery, the below indicators may be illuminated and function
buttons used when needed.
GREEN LED Illuminated (Correct Polarity LED) (20): Indicating that the jumper cable connections are correct and the circuit is
working and ready for use, you can turn the engine ignition key to jump-start the vehicle.
RED LED Illuminated (Reverse Polarity LED) (21) with buzzing: Indicating that the jumper cable connections are incorrect
(wrong) and buzzing to alarm the user to disconnect the battery clamps and re-correct the clamps correctly.
GREEN LED (Correct Polarity LED) (20) flashing with buzzing: Informing the user the vehicle battery is low, press the “BOOST
button (19), wait for the GREEN LED to illuminate then turn the engine ignition key within 30s.
NO LED’s Illuminated , No buzzing: Indicates the vehicle’s battery maybe damaged or the jumper cables may have a bad
connection to the vehicles battery terminals. Check the jumper cable connections to confirm a positive connection then, press
the “BOOST” Button (19), wait for the GREEN LED to illuminate.Then you can turn the engine ignition key to jump-start
the vehicle.
4. POWER PAK II Jump Starter Operation
WARNING! Do not leave your vehicle unattended at any time.
1. Press the ON/OFF/TEST Button (1) and ensure that the POWER PAK II Battery Charge LED Indicators (2) are illuminated
with a minimum of 3 BLUE LED’s.
2. Connect the BLUE connector plug located on the end of the INTELLI-CHECK Jumper Cable (14) into the
Jump Start Cable Port (9). Ensure that the BLUE connector plug is firmly pushed into the Jump Start Cable Port (9) for a
positive connection and ensure that the LED’s on the INTELLI-CHECK Jumper Cable (14) are NOT illuminated.
Note: Failing to securely locate the BLUE connector plug could result in a reduced electrical contact causing the plug
to melt or deform.
3. Connect the Jump Starter Battery Clamps (12 & 13) to the vehicles battery terminals correctly, connect the Positive
Battery Clamp RED (12) to the positive terminal (+ RED) of your vehicles battery and the Negative Battery Clamp BLACK
(13) to the negative terminal (- BLACK) of your vehicles battery.
4. Turn your ignition key to start the vehicle.
Note: If your vehicle does not start within 3 seconds wait for approx. 30 seconds and repeat steps 1-5.
5. When the vehicle has started, disconnect the POWER PAK II Jump Starter Battery Clamps (12 & 13) from the vehicle
battery within 30 seconds, starting with the Positive Battery Clamp RED (12) first and then the Negative Battery Clamp
BLACK (13).
6. After disconnecting the POWER PAK II Jumper Cables (12 & 13), leave the vehicle’s engine running to recharge
the battery.
20
19
21
14
(fig 3) (fig 4)

POWER PAK II / PLUS II
8
5. Charging your Electronic Devices (Phone, Tablet, iPod etc.)
1. Connect the Electronic Device Charging Cable (17) into the USB 5V DC 1A
or 2A Output Port (7 & 8).
2. Choose the correct electronic device adaptor located on the end of the
Electronic Device Charging Cable (17). Connect your chosen charging
device adaptor into the appropriate charging input of your electronic
device (fig 5).
3. Turn ON the POWER PAK II by pressing the ON / OFF / TEST Button (1).
Your device will begin charging. Once your device is fully charged remove
the charging adaptor or lead from your device and the POWER PAK II.
6. Charging your Laptop
Note: Ensure that the laptop is switched OFF and closed during the charging
process as sometimes the laptops current draw when in operation can trip
the 19V DC 3.5A Output Port (4) over current protection circuit.
Tripping the over current protection circuit will turn OFF the POWER PAK II
temporarily.
1. Connect the Multi Purpose Accessory Cable (16) into the 19V DC 3.5A
Output Port (4).
2. Choose the correct Laptop Charger Adaptor (15) from the choice of 8 available adaptors provided with your POWER PAK
II kit and plug the adaptor onto the end of the Multi Purpose Accessory Cable (16).
3. Connect your chosen charging adaptor into the appropriate charging input of your laptop (fig 6).
4. Turn the POWER PAK II ON by pressing the ON/OFF/TEST button (1). Your laptop will begin charging. Once your laptop is
charged remove the charging adaptor or lead from your laptop and the POWER PAK II.
Note: Depending on your laptop battery capacity the POWER PAK II may not fully charge your laptop.
Note: Please ensure your laptop charging current does not exceed the rated 3.5A. Please refer to your laptop power supply to
check and confirm wattage, voltage and current ratings are all correct before connecting the laptop to the POWER PAK
II for charging.

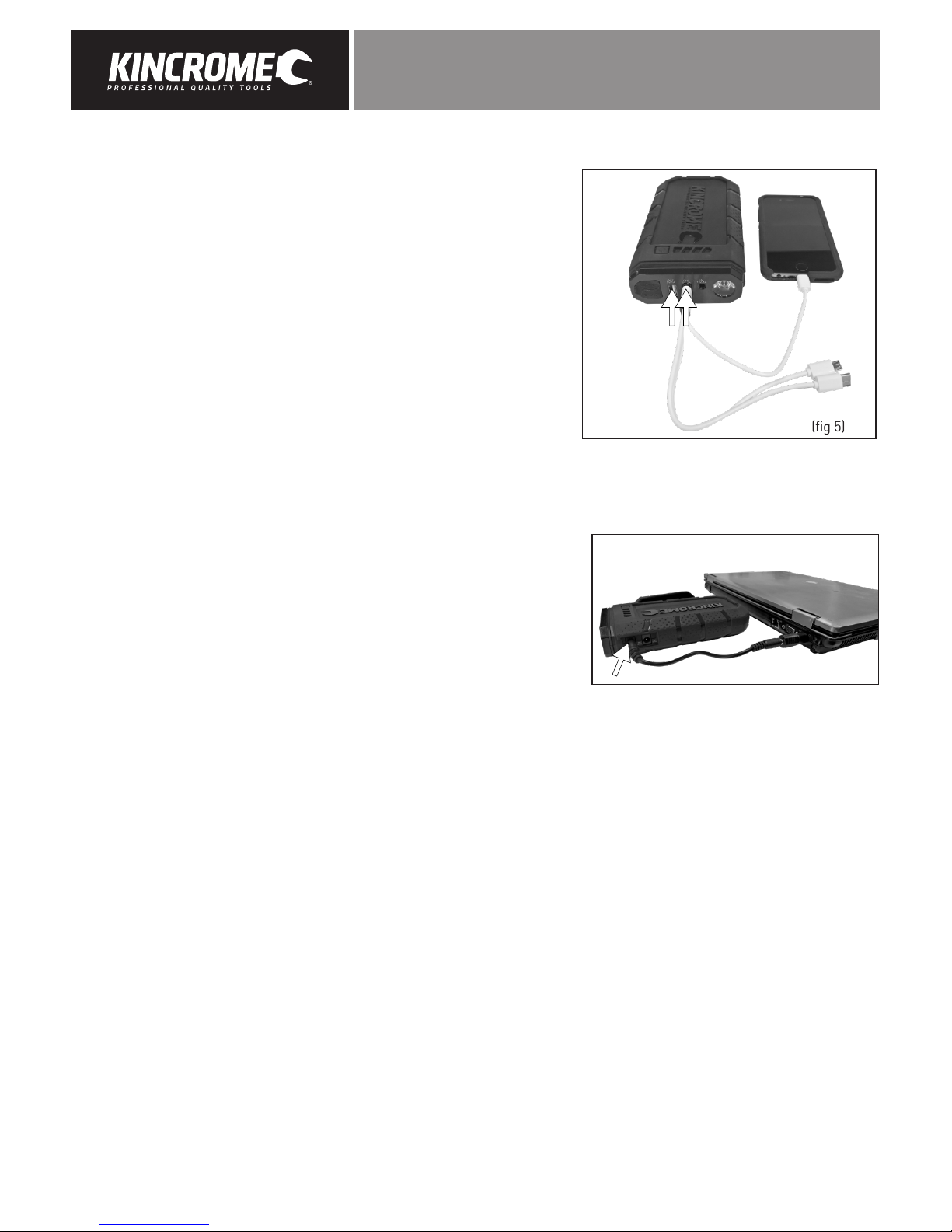

(fig 5)
(fig 6)

POWER PAK II / PLUS II
9
7. Power Supply for Your 12V DC Products
1. Connect the 12V DC Female Adaptor (18) into the 12V DC 10A Output Port (3).
2. Connect the other end of the 12V DC Female Adaptor (18) into your chosen 12V DC vehicle accessory (fig 7).
3. Turn the POWER PAK II ON the by pressing the ON/OFF/TEST button (1).
4. Once you have finished using your 12V DC accessory, remove the 12V DC Female Adaptor (18) from your accessory and
the POWER PAK II.
Note: Running time of the your device will vary depending on the devices input requirements & charge status of
the POWER PAK II.
Please note that the POWER PAK II is only meant to operate small low amperage accessories, not items such as in
vehicle refrigerators, winches etc.
8. LED Torch/Emergency Light
1. Press and hold the ON/OFF/TEST button (1) for approx. 3 seconds to turn ON the LED Torch/Emergency Light (5).
2. To change to the STROBE LED mode, press the ON/OFF/TEST Button (1) once.
3. To change to the SOS LED mode press the ON/OFF/TEST Button (1) once again.
4. Turn OFF the LED Torch/Emergency Light (5) feature by pressing the ON/OFF/TEST Button (1) again.
Composition and amount of toxic and harmful substance in POWER PAK II
O : Indicate all homogeneous materials hazardous substances content are below the MCV limit specified in the
Standard 2002/95/EC (RoHs).
Pb
O
Hg
O
Cd
O
Cr(Vi)
O
PBB
O
PBDE
O
(fig 7)

POWER PAK II / PLUS II
10
9. Frequently Asked Questions
Q. How do I turn ON the POWER PAK II?
A. Press the ON / OFF / TEST Button (1).
Q. How do I turn OFF the multi-function POWER PAK II?
A. The POWER PAK II will turn OFF automatically when not in use (approx. 1-2min), or when charging has completed.
Q. How many times can the POWER PAK II re-charge my mobile phone?
A. The POWER PAK II can recharge your mobile phone approx. 2 - 3 times for the KP1405 & approx. 2 - 4 times times for
the KP1406.The quantity of re-charges for mobile devices could vary depending on the product and its battery capacity,
also how charged the POWER PAK II is at the time.
Q. How long will the POWER PAK II take to re-charge my mobile phone?
A. The POWER PAK II can recharge your IPhone 4/5/6/7 mobile phone in approx. 1 hour. Other mobile devices could take
longer depending on the product and its battery capacity.
Q. How long will the POWER PAK II take to re-charge my laptop?
A. The POWER PAK II can recharge a laptop battery to approx. 45-100% in approx. 1 hour depending on the product and its
battery capacity.
Q. How many times can the POWER PAK II jump start my vehicle if the battery is fully charged?
A. The POWER PAK II can deliver approx. 20 starts for KP1405 & approx. 50 starts for KP1406 on a when fully charged but
varies depending on the vehicles starting power draw requirements.
Q. How long will a fully charged POWER PAK II remain charged sitting in my vehicle?
A. The POWER PAK II can remain up to 80% charge for up to 6-8 months. The internal temperature of your vehicle can
affect the battery charge time so it is recommended to check or recharge the POWER PAK II every 3-6 months to ensure
it is in optimal working condition.
10. Resetting The Current Overload
To reset the current overload feature you need to connect the 240V AC Charger (10) to the 15V DC 1A Input Charging Port (6)
and turn ON the mains power of your power socket. This will reset the current overload feature of your POWER PAK II and
you can continue using the POWER PAK II.
11. Troubleshooting
PROBLEM CAUSES SOLUTIONS
The POWER PAK II Battery Charge LED
Indicators (2) are showing 4 illuminated
LED’s , but will not start the vehicle or
charge any device.
During extended periods of non use or
extreme temperatures the POWER PAK II
could loose charge of up to 40%, but the
unit may still indicate full charge.
Recharge the POWER PAK II using the
240V AC Charger (10) or 12V DC
Car Charger (11).
No response when pressing the ON/
OFF/TEST Button (1) of the
POWER PAK II.
The low voltage/over current overload
circuit within the POWER PAK II has
initiated.
To reset the low voltage/over current
connect the POWER PAK II using the 240V
AC Charger (10).
The POWER PAK II is hot to touch when
charging laptop batteries.
The charging current of the laptop could
be above the maximum capacity (3.5A)
Disconnect the POWER PAK II and allow
to cool down first. Please check that the
laptop charging voltage and current are
correct. Reconnect the POWER PAK II and
recharge your laptop battery.

POWER PAK II / PLUS II
11
12. Spare Parts
1. Multi-Purpose Accessory Cable (16) KP1401-1
2. Electronic Device Adaptor Cable (17) KP1401-2
3. Laptop Charger Adaptors (8pce Set) (15) KP1401-3
4. 240V AC Charger (10) KP1402-1
5. 12V DC Car Charger (11) KP1401-5
6. INTELLI-CHECK Jumper Cable (14) KP1404-1
7. 12V DC Female Adaptor (18) KP1400-1
13. Office Contact Details
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.kincrome.com.au
14. Caring For The Environment
When a tool is no longer usable it should not be disposed of with household waste, but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.
Included Qty Included Qty
POWER PAK II 1240V AC Charger (10) 1
Multi Purpose Accessory Cable (16) 112V DC Car Charger (11) 1
Electronic Device Charging Cable (17) 1INTELLI-CHECK Jumper Cables (14) 1
Laptop Charger Adaptors 8pcs (15) 1Instruction Manual 1
12V DC Female Adaptor (18) 1POWER PAK II Carry Case 1
15. Warranty
Warranty given by Kincrome Australia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria (Tel [phone]). The
applicable warranty period (12 months) commences on the date that the product is purchased. If this product has materials or
workmanship defects (other than defects caused by abnormal or non warranted use) you can, at your cost, send the product
to place of purchase, an authorised Kincrome service agent or one of Kincromes addresses for repair or replacement. Your
rights under this warranty are in addition to any other rights you have under the Australian Consumer Law or other applicable
laws. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure. For further details please visit www.kincrome.com.au or call us. Due to minor changes in design or manufac-
ture, the product you purchase may sometimes differ from the one shown on the packaging.
IMPORTANT! If the tool fails to operate correctly, call customer service on 1800 657 528 for advice on the best resolution for
your situation. If a resolution cannot be achieved over the phone please take the tool and all related accessories to an autho-
rised service centre or place of purchase showing proof of purchase for assistance.

12
www.kincrome.com.au
