King-Griller 3008 User manual

OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Stealth Griller Model # 3008
!
OWNER’S MANUAL
LP Gas Grill
WARNING
For Outdoor Use Only
(outside any enclosure)
DANGER:
DO NOT use gas grill for indoor cook-
ing or heating. TOXIC fumes can accu-
mulate and cause asphyxiation. Do
not use in or on boats or recreational
vehicles.
PROP 65 WARNING:
Chemicals known to the state of Cali-
fornia to cause cancer, birth defects
or other reproductive harm are creat-
ed by the combustion of propane.
SAVE THESE INSTRUCTIONS FOR FU-
TURE REFERENCE. IF YOU ARE ASSEM-
BLING THIS UNIT FOR SOMEONE ELSE,
GIVE THIS MANUAL TO HIM OR HER TO
SAVE FOR FUTURE REFERENCE.
FOR CUSTOMER SERVICE, CALL 912-
638-4724
WARNING:
Improper installation, adjustment, al-
teration, service or maintenance could
cause injury or property damage Read
the installation, operation and mainte-
nance instructions thoroughly before
assembling or servicing this equip-
ment.
A propane gas cylinder is required for
operation. This gas grill is not intended
for commercial use. Keep your receipt with this manual

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 2
! Danger
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire depart-
ment.
! Warning
Do not store or use gasoline or other flammable liquids or va-
pors in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
For Your Safety
Stop! Call us first! Do Not return product to store. This grill has
been made to high quality standards. If you have any questions
not addressed in this manual or if you need parts please call our
customer service department at 1-912-638-4724 (USA), Mon-
day-Friday 8:30am-5pm (EST).
Have your grills serial number (located on the back of the grill
body or on the leg) when calling.

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 3
Important Safety Information .…………………page 4 - 5
Illustrated Parts List ……………………………..…page 6 – 7
Tools, Assembly Tips and Hardware List ….page 8
Assembly Instructions ……………………………..page 9 – 18
Operating Grill
Connecting Gas Cylinder…………………………..page 20
Cleaning and Care……………………………………page 21-22
Checking for Leaks………………………………..…page 23
Lighting Grill…...…………………………………….....page 24-26
Trouble Shooting……………………………………....page 27-28
Grill Preparation………………………………………..page 29
Recipes……………………………………………..…...…page 30 - 31
Accessories……………………………………………….page 32 - 33
Table of Contents

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 4
WARNING
FOR YOUR SAFETY
1.DO NOT store or use gasoline or any other flammable vapors and liquids within 25 feet
(8m) of this or any other appliance.
2. When cooking with oil/grease, do not allow the oil/grease to exceed 350°F (177°C).
Do not store or use extra cooking oil in the vicinity of this or any other appliance.
3. An LP Cylinder not connected for use should be stored a minimum of 10 feet (3m)
away from this or any other appliance. Never fill the cylinder beyond 80 percent
full. If the above information not followed exactly, a fire causing death or serious
injury may occur.
4. If you smell gas:
- Shut Off gas to the grill.
- Extinguish any open flame.
- Open Lid
For Your Safety
Stop! Call us first! Do Not return product to store. This grill has been made to high
quality standards. If you have any questions not addressed in this manual or if you
need parts please call our customer service department at 1-912-638-4724
(USA), Monday-Friday 9am-5pm (EST).
NOTE: The use and installation of this product must conform to local codes. In absence
of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA54.
IMPORTANT NOTICE: read all instructions prior to assembly and use.
Read and understand all warnings and precautions prior to operating your grill.
CAUTION
1.This grill is for use with propane gas only (propane gas cylinder not included).
2.Never attempt to attach this grill to the self-contained propane system of a camper
trailer, motor home or house.
3.Never use charcoal or lighter fluid with the gas grill.
4. Do not use gasoline, kerosene or alcohol for lighting. The LP-gas supply cylinder must
be constructed and marked in accordance with the specifications for propane gas
cylinders of the U.S. Department of Transportation (DOT) CFR 49. This grill is not
intended to be used in or installed on recreation vehicles and/or boats.
5.Do not attempt to move the grill while it is lit.
6.Do not use the grill unless it is completely assembled and all parts are securely fas-
tened and tightened.
7.Keep all combustible items and surfaces at least 36 inches (91.4cm) away from grill
at all times.
8. DO NOT use this grill or any gas product near unprotected combustible constructions.
9. Do not use in an explosive atmosphere. Keep grill area clear and free from combus-
tible materials, gasoline and other flammable vapors and liquids.

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 5
10. Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to
avoid burns, unless you are wearing protective gear (BBQ mittens, pot holders, etc.)
11. Do not alter this grill in any manner
12. Clean and inspect the hose before each use. If there is evidence of abrasion, wear,
cuts, or leaks, the hose must be replaced prior to operating the appliance. The re-
placement hose assembly will be that which is specified by the manufacturer.
13. Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
14. Never Keep a filled container in a hot car or car trunk. Heat will cause the gas pres-
sure to increase, which may open the relief valve and allow gas to escape.
15. Keep the grill’s valve compartment, burners and circulating air passages clean. In-
spect the grill before each use.
WARNING
1. This grill is for outside use only, and should not be used in a building, garage or any
other enclosed area.
2. The use of alcohol, prescription or non-prescription drugs may impair the operator’s
ability to properly assemble or safely operate the grill.
3. Always open grill lid slowly and carefully as heat and steam trapped within the grill
can burn you severely.
4. Always place your grill on a hard, level surface far away from combustibles. An as-
phalt or blacktop surface may not be acceptable for this purpose.
5. Do not leave a lit grill unattended. Keep children and pets away form the grill at all
times.
6. Do not place this grill on any type of tabletop surface.
7. Do not use the grill in high winds.
8. Disconnect the propane tank (LP tank) by first turning off valve on top of propane
tank, turn off burner valves, then disconnect regulator from valve on propane tank
by turning plastic connector counter clockwise. Unscrew wing-bolt in bottom shelf to
release the tank for removal.
DANGER
Liquid propane (LP) gas is flammable and hazardous if handled improperly. Know its
characteristics before using any propane product.
1. Propane Characteristics; Flammable, explosive under pressure, heavier that air and
settles in pools and low areas
2. In its natural state, propane has no odor. For your safety, an odorant has been add-
ed.
3. Contact with propane can cause freeze burns to skin.
4. This grill is shipped from the factory for propane gas use only.
5. Never use a propane cylinder with a damaged body, valve, collar or footing.
6. Dented or rusted propane cylinders may be hazardous and should be checked by
your propane gas supplier.

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 6
1
2
3
4
5
6 7
8
9
12
10
14
15
16
17
18
18
19
20
21
22
23
25
24 26
27
11
13
28
29

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 7
LINE ITEM QTY PART NAME PART NUMBER
1 1 HOOD 30-0001
2 1 GRILL BODY 30-0002
3 1 THERMOMETER 55-0001
4 1 HOOD HANDLE 55-0002
5 1 WARMING RACK 20-0001
6 2 BURNER (short wire) 80-0001
7 1 BURNER (long wire) 80-0002
8 1 BASE 20-0002
9 3 FLARE-UP SHIELD 10-0001
10 1 FRONT SHORT LEG 20-0020
11 1 BACK SHORT LEG 20-0021
12 1 FRONT LONG LEG 20-0022
13 1 BACK LONG LEG 20-0023
14 1 BEZEL 10-0004
15 2 LEG CROSS BAR 10-0005
16 3 COOKING GRATE 10-0006
17 2 WHEEL 55-0003
18 2 LEG BRACE 10-0007
19 1 AXLE 10-0008
20 1 LOWER FRONT PANEL 10-0009
21 1 UPPER FRONT PANEL 10-0010
22 1 SIDE BURNER/ CONTROL PANEL 80-0012
23 3 UTENSIL HOOK 50-0001
24 1 GREASE TRAY 10-0011
25 1 CATCH PAN 20-0003
26 1 SIDE SHELF 20-0004
27 1 POT STAND 20-0005
28 1 HEAT SHIELD 10-0015
29 2 HUB CAP 55-0007

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 8
¼-20 x 1 ½” BOLT……4 PCS
¼-20 x 1/2” BOLT….... 40 PCS
2/5” FLAT WASHER….2 PCS
¼” FLAT WASHER….8 PCS
¼-20 HEX NUT……..6 PCS
¼” LOCK WASHER…40 PCS
HINGE PINS………..2 PCS
LARGE HAIR COTTER PIN….2 PCS
SMALL HAIR COTTER PIN….5 PCS
Assembly: Requires 2 people. Get another person to help.
Tools Needed: Pliers, Phillips Head Screwdriver and a 7/16” Nut Driver.
NOTE: Do Not tighten any bolts unless instructed to do so. Tightening too soon may
prohibit parts from fitting together. All Hex Nuts should be on the inside of the grill
unless stated otherwise. Unpack all contents in a well cleared and padded area.
STOP! Do Not Return to Store. If you are missing parts or need assistance please
email us at [email protected] or call 912-638-4724. Do not attempt assembly if
you are missing parts.
Hardware:

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 9
Step 2
attach the leg assemblies from step 1 to the BASE, with (4) lock washers and (4)
1/2” Hex Bolts, see below.
Assembly Instructions
Step 1: Assemble SHORT BACK LEG, LONG BACK LEG, and LEG CROSS BAR togeth-
er. Then assemble SHORT FRONT LEG, LONG FRONT LEG, and LEG CROSS BAR to-
gether, see below.
Leg Cross Bars
Long Back Leg
Long Front Leg
Short Back Leg
Short Front Leg
Front Leg
Assembly
Back Leg
Assembly
Base
Bolts Lock Washers

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 10
Step 3
Install the two (2) LEG BRACES to the LEGS using (8) LOCK WASHERS and (8) ½”
BOLTS as shown.
Step 4
Install one WASHER, COTTER PIN and HUB CAP onto the AXLE then slide the AXLE
through WHEELS then insert the AXLE through the SHORT LEG, through the BASE,
and through the LONG LEG. Finish by attaching 2nd WASHER, COTTER PIN and HUB
CAP.
Axle
Wheel
Washer
Black Cotter Pin
Hub Cap
Short Leg
Lock Washers
Bolts
Leg Brace
Lock Washer Bolts
Leg Brace
Lock Washer

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 11
Step 5
Attach the UPPER FRONT PANEL to the inside of the front LEGS using (4) LOCK
WASHERS AND (4) 1/2” BOLTS. Then attach LOWER FRONT PANEL to the inside of
the front LEGS using (4) LOCK WASHERS and (4) 1/2” BOLTS as shown below.
Bolts Lock Washers
Upper Front
Panel
Bolts
Lock Washers
Lock Washers
Lower Front
Panel

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 12
Step 6
Attach the GRILL BODY to the CART using (8) LOCK WASHERS, (8) ½” BOLTS and
four (8) FLAT WASHERS. Make sure to insert the bolt first through the lock washer
then the flat washer then through the grill body. You may need to loosen other bolts
and move the GRILL BODY slightly to get the holes in the GRILL BODY to line up with
the holes in the LEGS.
Step 7
Attach the SIDE SHELF with (4) ½” BOLTS and (4) LOCK WASHERS.
Bolts
Flat Washers
Lock Washers
Bolts
Lock
Washers
Side Shelf

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 13
Step 8
Install the CATCH PAN to the underside of the GRILL BODY by sliding it into the two
slots on each end of the GRILL BODY. Make sure that the side of the CATCH PAN
with the label “Wheel Side” is on the side of the grill with the wheels. From the rear
of the grill, slide the GREASE TRAY into the guides/rails under the CATCH PAN.
Catch Pan
Step 9
Install the BURNERS into the GRILL BODY by inserting the IGNITER WIRES and
BURNERS through the open holes at the front of the GRILL BODY from inside of the
GRILL BODY. (NOTE: IGNITER MUST BE ON TOP SIDE OF BURNER). The BURNER
with the longer wire goes on the right side of the GAS GRILL BODY. Secure the
BURNERS to the GAS GRILL BODY with the SMALL STAINLESS HAIR COTTER PIN
provided.
Burners with Short
Igniter Wires
Burner with Long Igniter Wire
Small Stainless
Cotter Pin
Igniter Wire
Igniter Wires

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 14
Valve Tips
Step 10
Install the CONTROL PANEL to the firebox. First plug the IGNITER WIRES to the Sock-
ets on the back of the ELECTRONIC IGNITER, which is attached to the back side of
the CONTROL PANEL. Any wire can go into any of the three sockets on the Electronic
Igniter. Make sure the valve tips are completely inside the holes on the end of the
BURNERS, see below. Then Secure the CONTROL PANEL with four (4) ½” BOLTS
and four (4) LOCK WASHERS. The BOLTS will first go through LOCK WASHERS then
the GRILL BODY and then screw into the CONTROL PANEL from inside the GRILL
BODY. Then remove and re-install bolt in LEG BRACE to hold HOSE GUIDE in place.
INCORRET
CORRECT
Hose
Clip
Leg Brace
Burners
Igniter
Wire
Electronic Igniter

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 15
Step 11
Install the SIDE BURNER BODY to the firebox. Attach with four (4) ½” BOLTS and
four (4) LOCK WASHERS. The BOLTS will first go through LOCK WASHERS, the GRILL
BODY and then screw into the SIDE BURNER BODY.
Step 12
Attach the HOOD to the GRILL BODY using the HINGE PINS as shown below. First
place the HOOD onto the GRILL BODY then screw the HINGE PINS into place and
then insert COTTER PINS through the holes in the HINGE PINS on the inside of the
GRILL BODY.
Hinge Pin
Hinge Pin
Grill Body
Hood
Side Burner Body
Bolts
Lock Washers

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 16
Step 13
Attach the HOOD HANDLE to the HOOD by inserting the HANDLE POSTS on
each end of the HANDLE through the holes on the HOOD, the holes on the
heat shield, and the LOCK WASHERS then secure the HANDLE with (2) WING
NUTS as shown below. Attach THERMOMETER to the HOOD by inserting the
THERMOMETER through the BEZEL and HOOD then secure it with (1) WING
NUT as shown below. Tighten all bolts and nuts.
Thermometer
Bezel
Handle
Wing Nut
Hood
Heat Shield
Lock Washers

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 17
Step 15
Before attaching WARMING RACK you must attach the warming rack BOLTS to the
GRILL HOOD and BODY. Insert the 1½” BOLTS through the holes in the sides of the
HOOD from the outside and tighten the HEX NUTS on the inside of the HOOD. Insert
the 1½” BOLTS through the holes in the sides of the GRILL BODY from the outside
and tighten the HEX NUTS on the inside of the GRILL BODY. Now, you can attach the
warming rack to these bolts as shown above and secure with HEX NUTS only finger
tight. Now set the COOKING GRATES in place and the utensil hooks on the side
shelf.
Step 14
Place the POT STAND over the SIDE BURNER. Place the FLARE-UP SHIELDS over the
BURNER TUBES.
Pot Stand Flare-Up Shields
Warming Rack
Cooking Grates
Warming Rack Bolts
Hex Nut
Inside of
Hood

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 18
Step 16
1. Place a standard 20 lb. LP gas cylinder (not included) into the cart assembly and
connect the cylinder with the gas hose/regulator as shown. (See “Operating Grill” on
page for further instructions).
2. Turn the Screw on the left side of the base panel clockwise to secure the standard
20 lb. LP gas cylinder.
NOTE: Hoses must go under
and to the outside of the leg
brace.
Screw
Step 17
Install Igniter battery by turning the Igniter push button cap counter-clockwise until
the igniter button detaches, then install AA battery making sure the positive(+) end
is toward the push button. Then re-attach the igniter button by turning it clockwise.

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 19

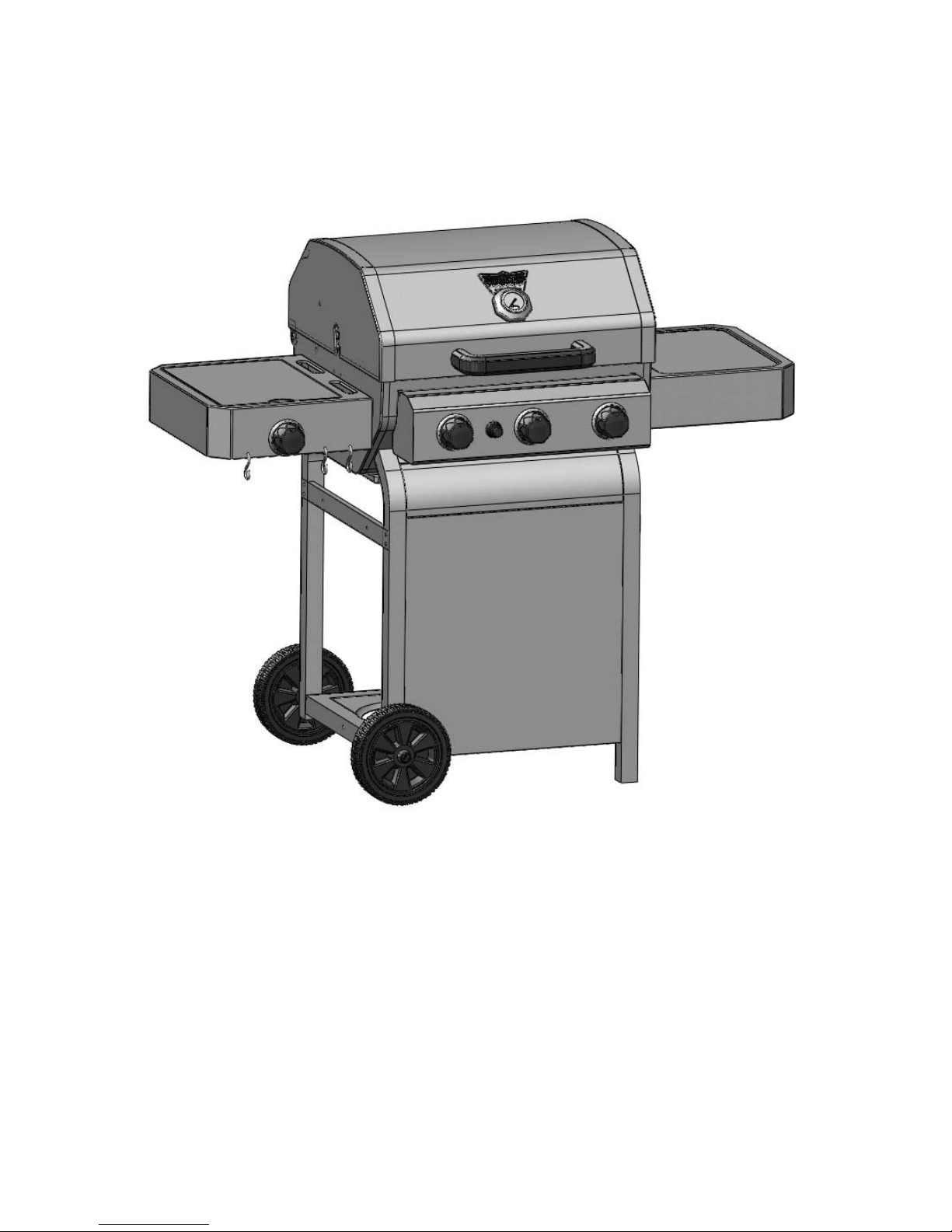

Fully Assembled
Caution: Use only the regulator provided!
If a replacement is necessary, please call our customer service department, 912-
638-4724. Do NOT use replacement parts that are not intended for this grill.
Hint: The paper label that is affixed to the hood is more easily removed when the
hood is warm. Any remaining glue residue can be cleaned off with a spray lubri-
cant like WD-40 . Do NOT use any other type of solvent or cleaner because this will
damage the finish/paint/coating on the grill.

OM3008 B.3 ™ & © Char-Griller / A&J Mfg. 20
Connecting Gas Cylinder:
The propane gas supply cylinder to be used must be constructed and marked in
accordance with the Specifications for propane gas Cylinders of the U.S. Depart-
ment of Transportation (DOT), or the National Standard of Canada, CAN/CSA
B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and
Commission, as applicable. Only cylinders with a listed overfill prevention device
(OPD) and marked “propane” may be used. Cylinders with an OPD will have valve
handles with three “lobes” (prongs). Only use 20-pound cylinders equipped with a
Type 1 cylinder connection device for outdoor cooking appliances. The cylinder
must include a collar to protect the cylinder valve. The gas cylinder should not be
dropped or handled roughly! If the appliance is not in use, the gas cylinder must
be disconnected. Storage of an appliance indoors is permissible ONLY if the cylin-
der is disconnected and removed from the appliance. Cylinders must be stored
outdoors out of the reach of children and must not be stored in a building, garage
or any other enclosed area. Your cylinder must never be stored where tempera-
tures can reach over 125 F. Before connection, be sure that there is no debris
caught in the head of the gas cylinder, head of the regulator valve or in the head of
the burner and burner ports. Connect regulator valve and hand-tighten firmly. Dis-
connect the propane cylinder from the regulator valve when the grill is not in use.
DO NOT obstruct the flow of combustion air and ventilation air to the grill. The pro-
pane cylinder must be arranged for vapor withdrawal and equipped with a listed
overfilling prevention device. For proper vapor withdrawal, the cylinder should be
used in the proper upright position (refer to illustration under step 22 of page 17).
DANGER:
Never store a spare propane cylinder near this grill.
A fire causing death or serious injury may occur if the above is not followed
exactly.
X
