King Industrial PDM-25 User manual

Service Manual / Manuel de Service
Milling & Drilling Machine
Perceuse et Fraiseuse
PDM-25
Revised/Revisé 08/2008 Head Diagram / Diagramme de la Tête

Service Manual / Manuel de Service
Milling & Drilling Machine
Perceuse et Fraiseuse
PDM-25

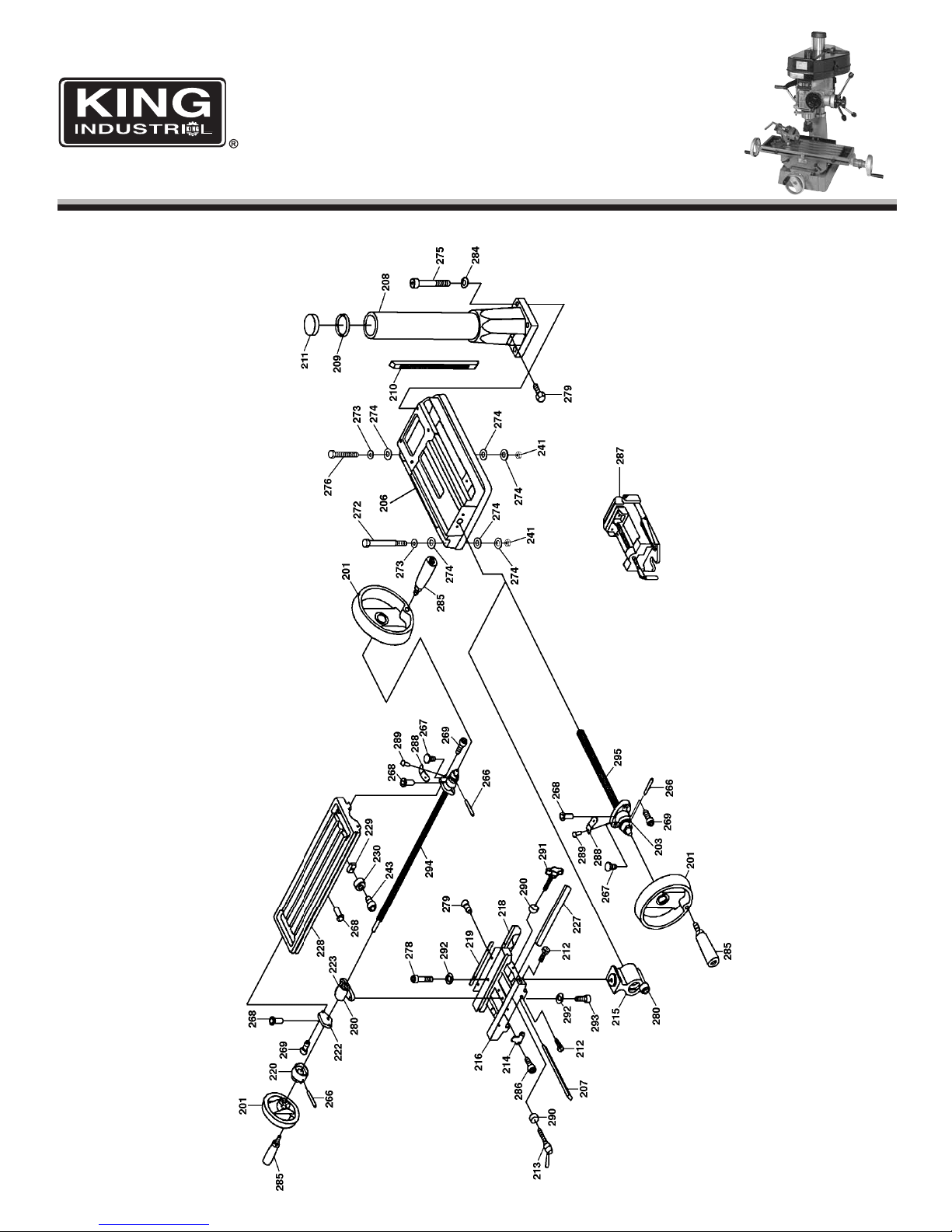

Revised/Revisé 08/2008 Table Diagram / Diagramme de la Table

Parts Pricing List / Liste de Prix des Pièces PDM-25
Diag.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
32
35
39
40
44
45
46
47
51
52
54
56
57
58
59
60
61
62
63
Order # Com.
1200255001
1200255002
1200255003
1200255004
1200255005
1200255006
1200255007
1200255008
1200255009
1200255010
1200255011
1200255012
1200255013
1200255014
1200255015
1200255016
1200255017
1200255018
1200255019
1200255020
1200255021
1200255022
1200255023
1200255024
1200255025
1200255026
1200255027
1200255028
1200255032
1200255035
1200255039
1200255040
1200255044
1200255045
1200255046
1200255047
1200255051
1200255052
1200255054
1200255056
1200255057
1200255058
1200255059
1200255060
1200255061
1200255062
1200255063
English Description
CHUCK ARBOR BOLT
SPINDLE LOCK NUT
SPINDLE PULLEY
BELT COVER
OUTER BEARING COVER
SPINDLE TAPER SLEEVE
BALL BEARING
BEARING SPACER
RETAINING RING/SHAFT
RETAINING RING/SHAFT
HEAD BODY
RUBBER FLANGE
FEED BASE
LOCK NUT
TAPER ROLLER BEARING
RACK SLEEVE
SPINDLE SHAFT
TAPER ROLLER BEARING
BEARING CAP
CUTTER ARBOR
CHUCK ARBOR
HANDLE KNOB
RETAINING RING
HANDLE ROD
FIXED TIGHT COLLAR
FIXED TIGHT COLLAR
SCREW KEY
SET SCREW
SPRING
BEARING SPACER
HANDLE ROD
KNOB
MICRO ADJUST. INDICATOR (INCH)
WORM COVER
BALL BEARING
WORM SHAFT
THUMB SCREW
HEAD BODY FIX BOLT
GRADUATED ROD
SWITCH (4 PRONG)
SWITCH PLATE
HEAD HANDLE
WORM SHAFT
WORM GEAR
SHAFT
COMPRESSION SPRING
PIN
Description Française
TIGE MAITRESSE
ECROU DE L'ARBRE
POULIE DE L'ARBRE
COUVERCLE DE LA COURROIE
PLAQUE DE ROULEMENT EXT.
MANCHON CONIQUE DE L'ARBRE
ROULEMENT A BILLES
BAGUE DE ROULEMENT
ANNEAU DE RETENU/TIGE
ANNEAU DE RETENU/TIGE
TETE MAITRESSE
BRIDE EN CAOUTCHOUC
BASE DE L'ALIMENTATION
ECROU DE RETENU
ROULEMENT CONIQUE
MANCHON
TIGE DE L'ARBRE
ROULEMENT CONIQUE
CAPUCHON DU ROULEMENT
ARBRE DE LA TETE DE COUPE
ARBRE DU MANDRIN
POIGNEE DE LA MANIVELLE
ANNEAU DE RETENU
POIGNEE
COLLET VISSE
COLLET VISSE
CLE D'ECROU
VIS SANS TETE
RESSORT
BAGUE DE ROULEMENT
TIGE DE POIGNEE
BOUTON
INDICATEUR D'AJUSTEMENT IMPER.
COUVERCLE DE L'ENGRENAGE
ROULEMENT A BILLES
TIGE D'ENGRENAGE
BOUTON DE VERROUILLAGE
BOULON DE LA TETE
TIGE GRADUEE
INTERRUPTEUR (4 PATTES)
PLAQUE DE L'INTERRUPTEUR
POIGNEE DE LA TETE
TIGE D'ENGRENAGE
ENGRENAGE SANS FIN
TIGE
RESSORT A COMPRESSION
GOUPILLE
Price/Prix
$52.84
$14.55
$132.19
$160.71
$11.33
$68.94
$20.41
$12.59
$3.74
$3.62
$454.25
$6.84
$40.08
$13.51
$68.94
$154.10
$275.71
$98.61
$10.87
$86.19
$65.49
$12.59
$2.59
$33.29
$10.29
$11.44
$4.31
$1.78
$7.99
$5.46
$13.74
$4.20
$52.84
$13.74
$11.44
$63.19
$8.68
$7.42
$45.71
$11.44
$14.89
$29.61
$45.83
$34.33
$7.88
$4.89
$8.80
Pricing subject to change without prior notice. / Prix sujet à changement sans préavis.
Qty./Qté.
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
3
3
1
1
2
1
1
2
1
1
1
1
1
1
1
1
1

Parts Pricing List / Liste de Prix des Pièces PDM-25
Diag.
66
67
68
70
71
72
74
76
79
85
86
87
104
105
106
107
108
110
131
132
133
134
135
136
137
139
140
141
142
143
145
146
147
148
150
151
152
153
154
155
156
157
158
159
160
161
164
Order # Com.
1200255066
1200255067
1200255068
1200255070
1200255071
1200255072
1200255074
1200255076
1200255079
1200255085
1200255086
KDC-12M
1200255104
1200255105
1200255106
1200255107
1200255108
1200255110
1200255131
1200255132
1200255133
1200255134
1200255135
1200255136
1200255137
1200255139
1200255140
1200255141
1200255142
1200255143
1200255145
1200255146
1200255147
1200255148
1200255150
1200255151
1200255152
1200255153
1200255154
1200255155
1200255156
1200255157
1200255158
1200255159
1200255160
1200255161
1200255164
English Description
MOTOR MOUNT
MOTOR
PUNCH KEY
MOTOR PULLEY
V-BELT
BALL BEARING
V-BELT
SPEED CH. INTER PULLEY BASE
RUBBER COLLAR
CAP SCREW
CUTTERHEAD (4 KNIVES)
DRILL CHUCK
COMPLETE SPRING AND COVER
SPRING BASE
PINION SHAFT
WORM GEAR
FEED COVER
SPRING BASE & TERMINAL ASS'Y
HEX. BOLT
WASHER
PAN HD SCREW
HEX. BOLT
HEX. NUT
HEX. NUT
TOOTHED WASHER
PAN HD SCREW
SPRING PIN
HEX. NUT
KEY
CAP SCREW
SET SCREW
SET SCREW
CAP SCREW
RETAINING RING/SHAFT
HEX. NUT
WASHER
PAN HD SCREW
SET SCREW
HEX. NUT
WASHER
HEX. BOLT
HEX. BOLT
HEX. NUT
KEY
HEX. BOLT
WASHER
PAN HD SCREW
Description Française
SUPPORT DU MOTEUR
MOTEUR
POINCON (CLAVETTE)
POULIE DU MOTEUR
COURROIE EN "V"
ROULEMENT A BILLES
COURROIE EN "V"
SUPPORT DE POULIE/CHANGEMENT
COLLIER DE CAOUTCHOUC
BOULON DU RESSORT
TETE DE COUPE (4 COUTEAUX)
MANDRIN
RESSORT ET COUVERCLE COMPLET
BASE DU RESSORT
TIGE DE PIGNON
ENGRENAGE
COUVERCLE DE L'ALIMENTATION
BASE DES TIGES COMPLETE
BOULON HEXAGONAL
RONDELLE
VIS A TETE BOMBEE
BOULON HEXAGONAL
ECROU HEXAGONAL
ECROU HEXAGONAL
RONDELLE DENTELLEE
VIS A TETE BOMBEE
GOUPILLE A RESSORT
ECROU HEXAGONAL
CLE DE RETENUE
BOULON A TETE CYLINDRIQUE
VIS SANS TETE
VIS SANS TETE
BOULON A TETE CYLINDRIQUE
ANNEAU DE RETENU/TIGE
ECROU HEXAGONAL
RONDELLE
VIS A TETE BOMBEE
VIS SANS TETE
ECROU HEXAGONAL
RONDELLE
BOULON HEXAGONAL
BOULON HEXAGONAL
ECROU HEXAGONAL
CLE DE RETENUE
BOULON HEXAGONAL
RONDELLE
VIS A TETE BOMBEE
Price/Prix
$51.69
$458.85
$13.74
$109.19
$12.48
$25.24
$13.40
$68.94
$4.20
$2.07
$137.94
-
$57.21
$29.84
$86.19
$74.69
$63.19
$73.31
$1.55
$2.24
$1.67
$1.84
$1.55
$2.24
$3.74
$1.67
$1.67
$1.61
$2.47
$2.07
$1.67
$2.24
$1.55
$1.55
$3.39
$2.24
$2.47
$1.67
$2.13
$1.78
$1.90
$2.47
$1.55
$2.82
$1.90
$1.73
$2.59
Pricing subject to change without prior notice. / Prix sujet à changement sans préavis.
Qty./Qté.
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
5
4
3
1
1
2
1
3
2
3
1
2
3
1
2
1
2
2
6
1
2
8
4
2
4
1
2
2
2

Parts Pricing List / Liste de Prix des Pièces PDM-25
Diag.
187
188
189
190
191
192
193
194
195
196
197
198
199
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
218
219
220
222
223
224
226
227
228
229
230
231
241
243
266
267
268
269
Order # Com.
1200255187
1200255188
1200255189
1200255190
1200255191
1200255192
1200255193
1200255194
1200255195
1200255196
1200255197
1200255198
1200255199
1200256001
1200256002
1200256003
1200256004
1200256005
1200256006
1200256007
1200256008
1200256009
1200256010
1200256011
1200256012
1200256013
1200256014
1200256015
1200256016
1200256018
1200256019
1200256020
1200256022
1200256023
1200256024
1200256026
1200256027
1200256028
1200256029
1200256030
SS-45
1200256141
1200256143
1200256166
1200256167
1200256168
1200256169
English Description
WASHER
COUNTERSUNK HD SCREW
CUTTERHEAD WASHER
CUTTERHEAD CAP SCREW
SHELF
COMPLETE INTERMEDIATE PULLEY
BUSHING
SPINDLE COVER
SCREW
CLIP PLATE
PULLEY SPEED CHART
FEED HANDLE WHEEL
LOCK BOLT WITH KNOB
TABLE HANDLE WHEEL
DIAL CLUTCH
THRUST BEARING
SQUARE FLANGE
TABLE SCREW
BASE
GIB STRIP
COLUMN BASE
COLUMN FLANGE RING
RACK
COLUMN HEAD
GIB STRIP BOLT
LEAF SCREW
MOVABLE FIXED BLOCK
TABLE BASE NUT
CENTER BASE
COMPLETE ANTIDUST APRON
PLATE FOR ANTIDUST APRON
TABLE CLUTCH
LEFT FLANGE
TABLE NUT
TABLE SCREW
RIGHT FLANGE
GIB STRIP
TABLE
FIXED BLOCK
MOVABLE FIXED RING
STAND ASS'Y
HEX. NUT
CAP SCREW
SPRING PIN
INDICATED ZERO WITH SCREW
OILER
CAP SCREW
Description Française
RONDELLE
VIS A TETE FRAISEE
RONDELLE SPECIALE
BOULON A TETE CYLINDRIQUE
TABLETTE
POULIE INTERMEDIAIRE COMPLETE
MANCHON
COUVERCLE DE L'ARBRE
VIS
ATTACHE DE PLAQUE
ECHELLE DES VITESSES
ROUE D'ENTRAINEMENT
BOUTON DE VERROUILLAGE
MANIVELLE DE LA TABLE
CADRAN D'ENGRENAGE
ROULEMENT A BUTEE
BRIDE CARRE
TIGE VISSEE DE LA TABLE
SOCLE
LISIERE
COLONNE
ANNEAU BRIDE DE COLONNE
CREMAILLERE
TETE DE LA COLONNE
BOULON DE LA LISIERE
BOULON A AILETTE
BLOC DE MOUVEMENT
ECROU DE LA TABLE
SOCLE DU CENTRE
TABLIER ANTI-MACHE-FER
PLAQUE/TABLIER ANTI-MACHE-FER
ENGRENAGE DE LA TABLE
BRIDE GAUCHE
ECROU DE TABLE
TIGE VISSEE DE LA TABLE
BRIDE DROITE
LISIERE DE TABLE
TABLE
BLOC DE FIXATION
ANNEAU DE MOUVEMENT
BASE COMPLETE
ECROU HEXAGONAL
BOULON A TETE CYLINDRIQUE
GOUPILLE A RESSORT
BOULON DE L'INDICATEUR
HUILIER
BOULON A TETE CYLINDRIQUE
Price/Prix
$2.59
$1.55
$3.16
$2.24
$26.39
$149.44
$2.59
$9.14
$2.01
$5.23
$20.64
$25.13
$9.72
$68.71
$68.83
$76.88
$40.19
$86.19
$385.25
$34.44
$362.25
$45.94
$68.83
$34.44
$4.54
$20.64
$11.44
$72.39
$327.75
$13.40
$29.61
$68.83
$26.39
$85.96
$91.94
$28.69
$34.33
$661.25
$6.04
$4.54
-
$1.96
$1.90
$2.24
$3.39
$2.47
$2.07
Pricing subject to change without prior notice. / Prix sujet à changement sans préavis.
Qty./Qté.
2
1
1
1
1
1
1
1
2
1
1
1
1
3
2
4
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
4
2
3
2
5
6

Parts Pricing List / Liste de Prix des Pièces PDM-25
Diag.
272
273
274
275
276
278
279
280
284
285
286
287
288
289
290
291
292
293
294
295
298
299
Order # Com.
1200256172
1200256173
1200256174
1200256175
1200256176
1200256178
1200256179
1200256180
1200256184
1200256185
1200256186
1200256187
1200256188
1200256189
1200256190
1200256191
1200256192
1200256193
1200256194
1200256195
1200256198
1200256199
120025MENG
English Description
HEX. BOLT
WASHER
WASHER
HEX. BOLT
HEX. BOLT
CAP SCREW
HEX. BOLT
CAP SCREW
SPRING WASHER
WHEEL HANDLE COMPLETE
CAP SCREW
3" ANGLE VISE
SCALE INDICATOR
RIVET
BRASS DISC
LOCK KNOB
SPRING WASHER
CAP SCREW
COMP. TABLE THREADED SHAFT
COMP. ACME THREADED SHAFT
WASHER
WASHER
ENGLISH MANUAL PDM-25
Description Française
BOULON HEXAGONALE
RONDELLE
RONDELLE
BOULON HEXAGONAL
BOULON HEXAGONAL
BOULON A TETE CYLINDRIQUE
BOULON HEXAGONAL
BOULON A TETE CYLINDRIQUE
RONDELLE RESSORT
POIGNEE DE LA MANIVELLE
BOULON A TETE CYLINDRIQUE
ETAU A ANGLE 3"
PLAQUE D'IDENTIFICATION ZERO
RIVET
DISQUE EN LAITON
BOUTON DE VERROUILLAGE
RONDELLE RESSORT
BOULON A TETE CYLINDRIQUE
TIGE FILETEE DE LA TABLE COMP.
TIGE FILETEE ACME COMPLETE
RONDELLE
RONDELLE
MANUEL ANGLAIS PDM-25
Price/Prix
$3.97
$2.01
$2.01
$2.24
$3.74
$2.07
$1.61
$2.24
$1.78
$12.59
$2.07
$133.34
$4.31
$1.55
$6.84
$6.73
$1.67
$1.67
$224.25
$281.75
$1.67
$3.16
$15.00
Pricing subject to change without prior notice. / Prix sujet à changement sans préavis.
Qty./Qté.
2
6
12
4
2
1
4
2
4
3
2
1
2
4
2
2
3
2
1
1
1
1
1
