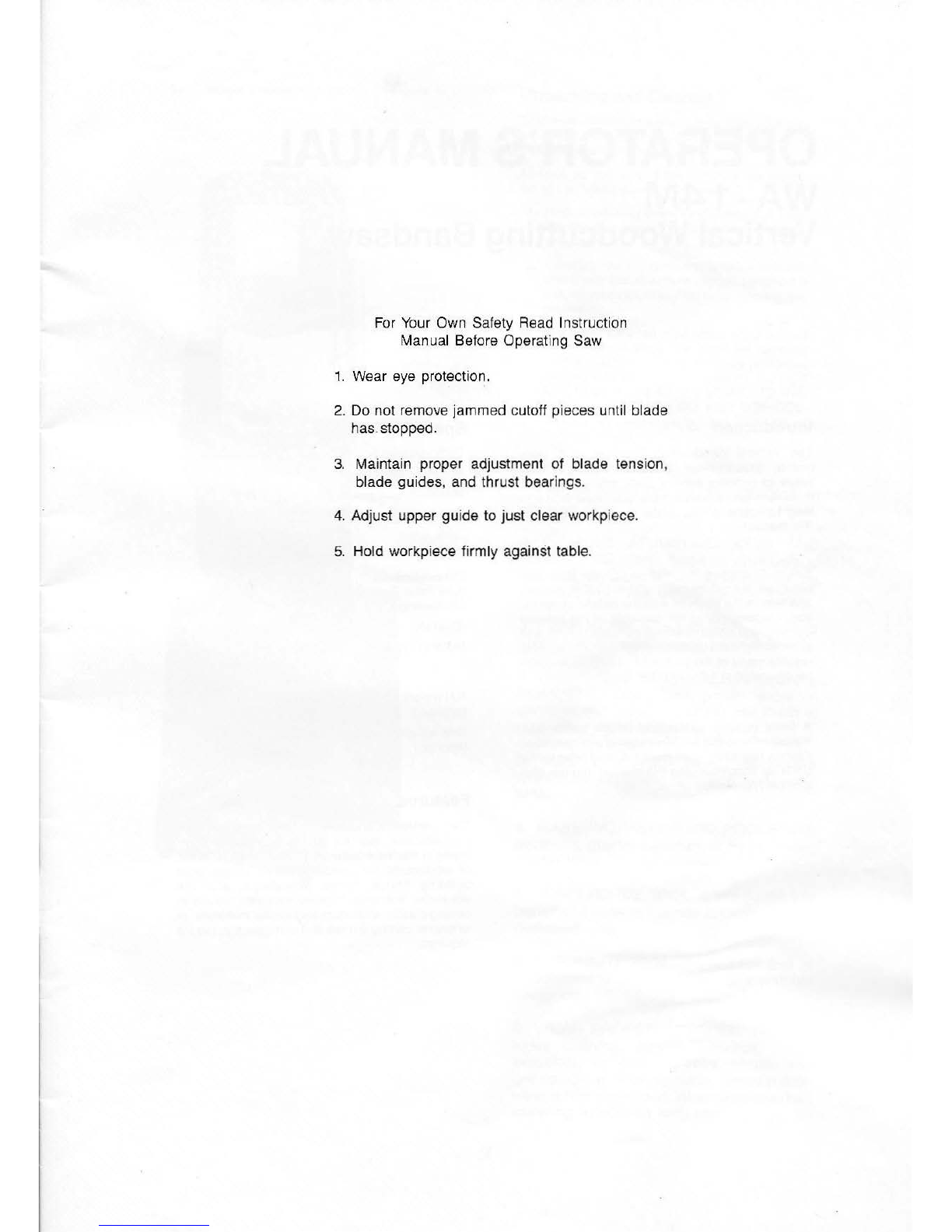

For Your Own Safety Read In struction
Manual Before Operating Saw
1. Wear eye protection.
2. Do not remove jammed cutoff pieces until blade
has. stopped.
3. Maintain proper adjustment of blade tension,
blade guides, and thrust bearings.
4. Ad just upper guide to just clear workpiece.
5. Ho ld workpiece firmly against table.

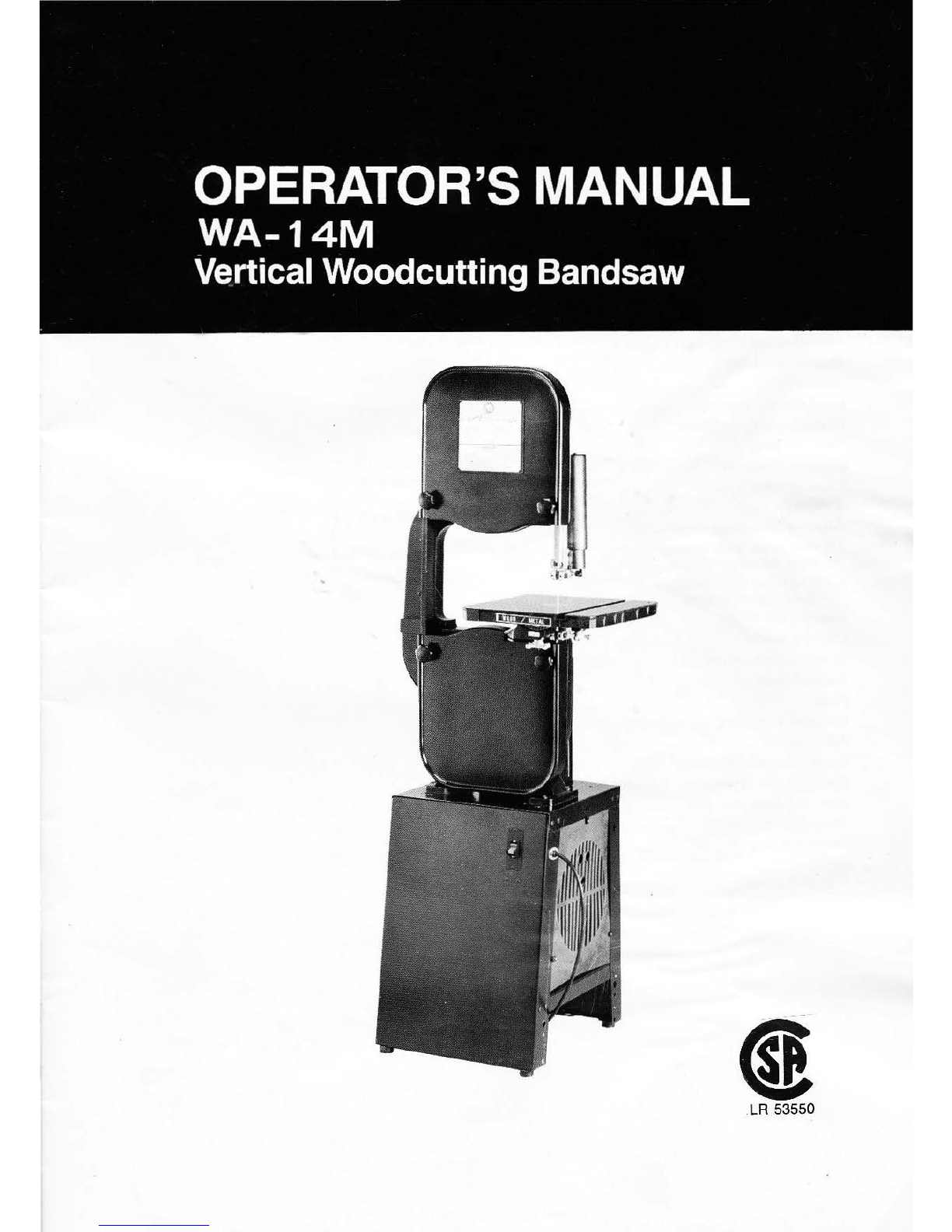

OPERATOR'S MANUAL
WA-14M
Vertical Woodcutting Bandsaw

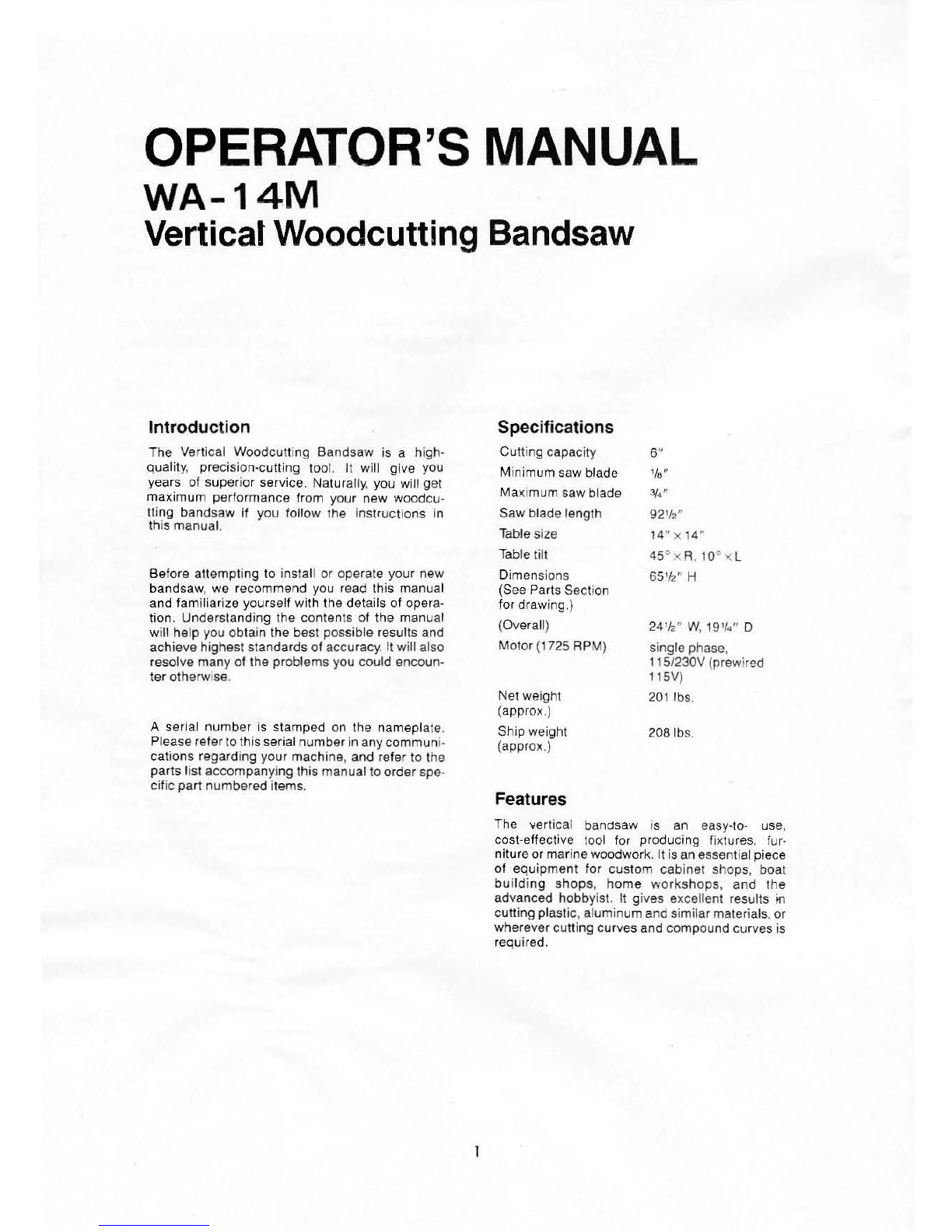

Introduction
The Vertical Woodcutting Bandsaw is a high-
quality, precision-cutting tool. It will give you
years of superior service. Naturally, you will get
maximum performance from your new woodcu-
tting bandsaw if you follow the instructions
in
this manual.
Before attempting to install or operate your new
bandsaw, we recommend you read this manual
and familiarize yourself with the details of opera-
tion. Understanding the contents of the manual
will help you obtain the best possible results and
achieve highest standards ofaccuracy. It will also
resolve many of the problems you could encoun-
terotherwise.
A serial number is stamped on the nameplate.
Please refer to this serial number
in any communi-
cations regardi ng your machine, and refer to the
parts list accompanyi
ng th is manu al to order spe-
cific part numbered items.
Specifications
Cutting capacity 6"
Minimum saw blade
1/a"
Maximum saw blade
3/ 4"
Saw blade length 921
/2 "
Table size
14 " X 14''
Table tilt 45
°X R, 10 °x l
Dimensions
65' k" H
(See Parts Section
for drawing .)
(Overall) 241
/
2" W, 19
1
/4 " D
Motor (1725 RPM) single phase.
115/230V (prewir ed
115V)
Net weight
201 lbs.
(approx.)
Ship weight 2081bs.
(approx.)
Features
The vertical banosaw is an easy-to- use,
cost-effective tool for producing fixtures, fur-
niture or marinewoodwork. It is an essential piece
of equipment for custom cabinet shops, boat
build in g shops, home workshops, and the
advanced hobbyist. It gives excellent results in
cutting plastic, aluminum and similar materials,or
wherever cutting curves and compound curves is
required.

The vertic al bandsaw is shown in Fi gu re 1.
WH EE L
COV ER
FIGURE 1
UPPER
RO LLER
BEARING
2
Unpacking and Cleanup
To ensure maximum performance from your wo-
o
dcuttin g bandsaw, clean it properly; a nd
install itaccurately before use.
As soon as you receive
th e bandsaw, we recom-
mend you follow these procedu res :
1. In spect packing crate for dama ge in transit.
Re cord damage, a nd report it im mediately to
shipper.
2. Carefully remove loose items, saw and st and,
and check that all arrived in good condition. If
not, let your industrial distributor know i mm e-
diately.
3. Machined surfaces of bandsaw are protected
by a heavy coating that
mu st be remo ved
before machi ne is us ed . Remove protective
coating
wi th kero se ne or diesel oil. DO NOT
USE CELLULOSE-BASED
SO LV ENTS; they
damage pain
t. Also DO NOT USE SOL-
VENTS on plastic parts; th ey dissolve or
damage plastic.
Safety Instructions
1. KEEP GUARDS IN PLACE and in
working order
2. REMO VE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and
ad just ing wrenche s are
removed from tool before
turning it on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DON'T USE IN DANGEROUS ENVI-
RONMENT. Don't use power tools in
damp or wet locations, or expose them to
rain, Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors
should be kept safe distance from work
area.
6. MAKE WORKSHOP KID PROOF with
padlocks , master sw itches, or by removing
starter keys.
7. DON'T FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. Don't force tool or
attachment to do a job for wh i ch it w as not
designed .
9.
'f'EAR PROPER APPAREL Wear no
loose clo th i ng , glov es , neckties, rings,
bracelets,
or ot her jewelry which may
get caught in moving parts. Nonslip foot-
wear is recommended. Wear protective hair
covering to
conta in long ha i r.

10. ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting operation
is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety
glasses
11. SECURE WORK . Use·clamps or a vise to hold work when practical. Jt's safer than
us i ng your hand and it frees both hands to operate tool.
12. DON'T OVERREACH. Keep proper footing and balance at all times.
13. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest
performance. Follow instructions for l ubricating and changing accessor ies.
14.
DISCONNECT TOOLS before seryicing ; when changing accessories, such as blades,
bits, cutters , and the like.
15. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in off
position before plugging in.
16. USE RECOMMENDED ACCESSORIES. Consult the owner's manual for recommended
accessories. The use of improper accessories may cause risk of injury to persons.
17.
NEVER STAND ON TOOL. Serious i njury could occur if the tool is tipped or if the
cutt i ng tool is unintent i onally contacted.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part
that is damaged should be carefully checked to detenmine that it will ope rate properly
and perform its intended function - check for ali gnment of moving parts , binding of
moving parts, breakage of parts, mounting, and any other cond i tions that may affect
its operation. A guard or other part that is damaged should be properly repaired or
rep l aced.
19. DIRECTION OF FEED. Feed work into a blade or cutter against the direct i on of
rotation of the blade or cutter only.
20. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't leave
tool
unti l it comes to a comp lete stop.
3

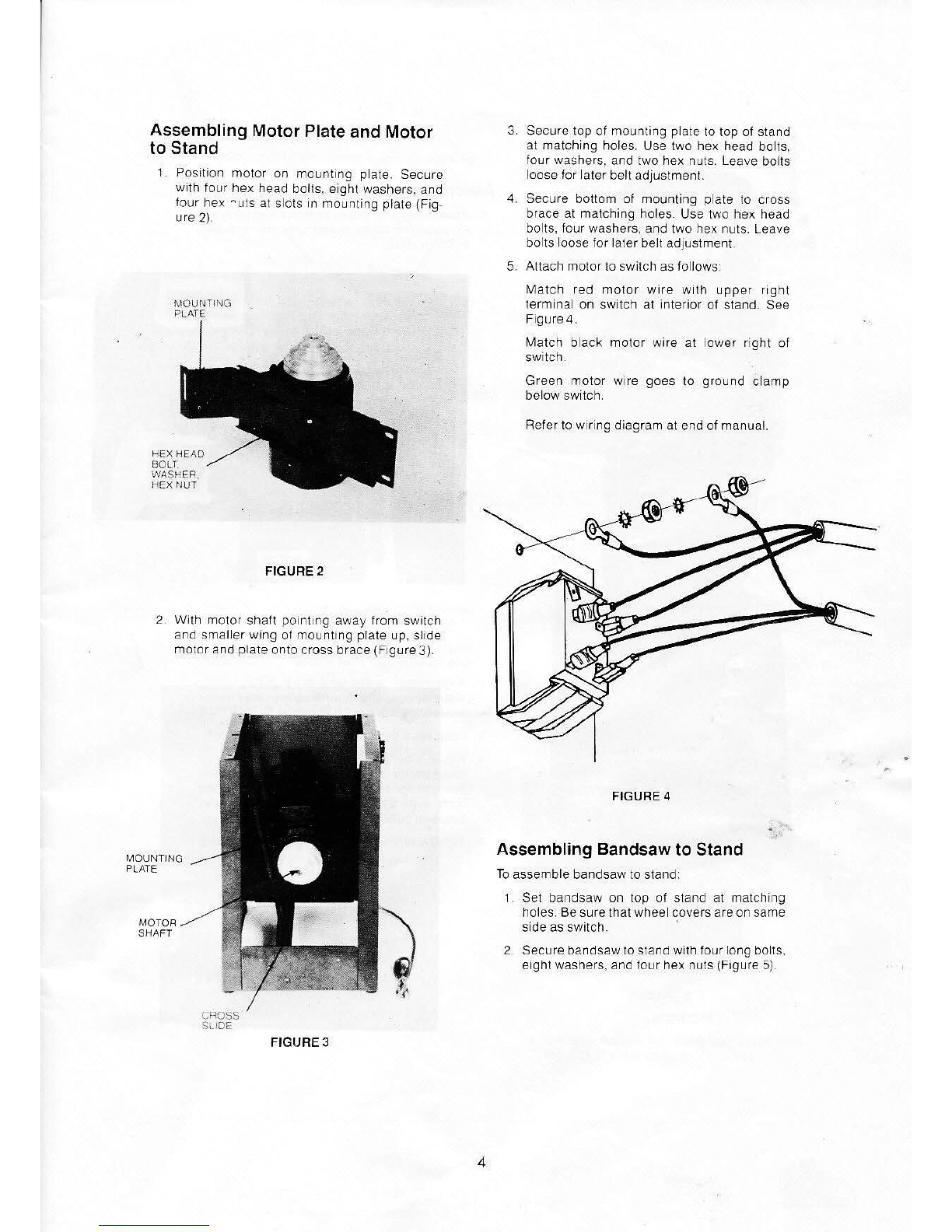

Assembling Motor Plate and Motor
to Stand
1. Position motor on mounting plate. Secure
with four hex head bolts, eight washers. and
four
he x ~ uts at slots in mounti ng plate (Fig-
ure 2}.
MOUNTiNG
PLATE
HEX HEAD
BOLT
WA SH ER.
HEX NUT
FIGURE2
2. With motor shaft pointing away from switch
and smaller wing of mounting pla
te up, slide
motor and plate onto cross brace (Figure3).
MOUNTING
PLATE
MO TOR
SHAFT
CROSS
SLIDE FIGURE3
4
3. Secu re top of moun ti ng plate to top of stand
at matching holes. Use two h
ex head bolts,
four washers, an d two hex nuts. Leave bolts
loose for later belt adjustment.
4. Secure bottom of mounting plate to cross
brace at matchi
ng holes. Use two hex head
bolts, four washers, and two he x nuts. Leave
bolts loose for later belt adjustment.
5. Attach motor to switch as follows:
Match red moto r wire with upper right
terminal on switch at interior of stand. See
Figure4.
Match black motor w
ir e at lower right of
switch.
Green motor wire goes to ground clamp
below switch.
Refer
to wiring diagram at end of manual.
FIGURE 4
Assembling Bandsaw to Stand
To assemble bandsaw to stand:
~ · -:. ..
•'
1. Set bandsaw on top of sta nd at matching
holes. Be su re that wheel covers are on sa me
side
as switch.
2. Secure bandsaw to stand with four long bolts.
eight washers, and four hex nu ts (F igure 5).

MOUNTING
HOLES
FIGURES
Assembling Motor Pulley and V-Belt
1. Assemble motor pulley to motor shaft (F igure
6) , engaging motor pu lley setscrew with key
in motor shaft.
FIGURES
2. Align motor pulley and drive pulley, using
straightedge. (Position
of pulleys and motor
mounting plate can be change
d. )
3. Loop the V-belt onto each pulley.
4.
Ad ju st V-belt for tension. To do so, raise or
lower motor
on motor plate whi le keeping
pulleys aligned. When belt deflectsabout one
inch with li
ght firrger pressure, midway
betwee11 pulleys, belt tension is correct.
5. Tighten all stand and motor mounti ng screws.
5

Assembling Belt/Pulley Guard
1. Position belt/pulley guard over belt opening
at top of stand (Figure 7
).
FIGURE 7
2. Match holes in guard flanges to holes in cabi-
net top.
3. Attach guard flanges to cabinet, using round
head screws. Secure with split washer and
wing nut under stand top.
Assembling the Table
1. Position table swivel bracke t' onto main
frame, mr,tching two locating pins to holes
(Figure 8 ). ·
6
TABLE
SWIVEL
BRACKET
FIGURE 8
2. Insert and secure two hexhead bolts with
washers into bracket holes and main frame
(F
ig u re 9 ).
HEXHEAD
BOLT
AND
WASHER
\
FIGURE 9
3. Set table on bracket, lining up degree mark-
ing with
0° mark on front of bracket.

4. Screw on handknob at back and front of
machine underswivel bracket.
5. I ns tall bla de (see "Changing Blades" in this
manual
).
Table Insert
Sl ip table insert (Figure 10) intohole on sawtable,
engaging table pin with one of indents in inser
t.
Insert table spreaderintoslit on right-hand side of
table.
FIGURE 10
Installation and Leveling
For best cutting performance, locate bandsaw on
solid, level foundation. Place metal
sh ims under
low corners. Check that all four corners are sup-
ported. Retest level of stand top in both direc-
tions; and adjust if necessary.
Connecting to Power Supply
The vertical bandsaw is prewired for 11 5
volts and comes fitted with a power cord. Simply
plug in your electric cordwhen readytoconnect to
power source.
Tilting the Table
The bandsaw table tilts up to 45° to the right or up
to 10° to the left.
To tilt the table:
1. Loos en both star wheels (Figure 11) under
table.
7
I
..
FIGURE 11
2. Tilt table to desired angle on degree gauge
undertable.
Adjusting Table to 90°
An ad justable stop (bolt) is provided to set t he
table 90 ° to the blade. To adjust:
1. Tilt table slightly to right.
2. Screw in adjustable stop (bolt) and nut (Fig-
. ure 12
).
FIGURE 12

3. Set table at 90 ° to the blade, us i ng a square
on table and against blade.
4. The adjustable bolt should touch the table. If
it doesn 't, loosen nut on bolt; and turn bolt
until it touches table.
NOTE: When tilting table to left, bolt must be
removed.
5. Ti ghten nut.
Adjusting Blade Tension
The slide bracket (at rear behi nd upper wheel)
allows
proper tension for various widths of blades.
With blade on wheels, turn star wheel (Figure 13),
raising or lowering blade wheel unt ildesired blade
2. If blade slides toward front edge, slightly turn
tracking hand knob (Figure 14) clockwise.
This tilts top ofwheel toward back of machine
and draws blade toward center of tire.
tension is obtained. BLADE
NOTE: Too much tension or strain could break
blade.
FIGURE 13
Tracking the Blade
I WARNING
NEVER trackblade when machine is
running. Manually turn wheels.
Remove motor drive belt.
1. When blade tension is properly Sf;lt, slowly
rotate wheels clockwise, checking that blade
travels in center of upper tire.
8
FIGURE14
3. If blade slides toward back edge, slightly turn
handknob counterclockwise.
Adjusting Upper Blade Guide
Assembly
1. Set upper blade guide assembly as closely as
possible to top of stock ~ To do so, swivel lock
hand , le (Figure 15), moving guide assembly
into position.

FIGURE 15
2. Adjust blade guides flat with blade (Figure
16).
FIGURE 16
9
Adjusting Upper Blade Guides and
Blade Support Bearing
After blade is tensioned and tracking, adjust
upperbladeguidesand bladesupport bearing.
To
adjust:
1. LoosenAllensetscrews(Figure1
7}) with Allen
wrench.
FIGURE 17
2. Move both gu id es within .002 inch to blade
using feeler gauge. DO NOT pinch blade.
3. Tighten setscrews.
4. Loosen u
pper tr iangle knobscrew:
5. Move blade support bearing shaft in
or out
untilbearing is~~ inch behind back of blade.
NOTE: The upperblade supportbearingpre-
vents blade from moving back too far and
damaging
saw teeth setting.
6. Tighten upper triangle kn obscrew.
7. Adjust blade support bearing so that blade
stands vertically 1/,s inch to l
ef t of rig ht edge
of bearing.

Adjusting Lower Blade Guides and
Blade Support Bearing
Adjust lower blade guides and blade support
bearing at same time as upperones.
To do so:
1. Loosen both setscrews (Figure 18), moving
both guides as closely to sides
of blade as
possible. DO NOT pinch blade.
I BLADE • TRIANGLE
SUPPORT . KNOB
BEARING
--....... ~ SCREW
BLADE ~~ _;:;,__ ~
GU IDE
~- " ..
FIGURE 18
2. Tighten setscrews.
3. To adjust lower blad~ support bearing, loosen
bearing setscrew.
4. Move blade support bearing shaft in or out
until support bearing is about 1
/6" inch behind
blade.
5. Tighten setscrew.
6. Ad just blade support bearing so that blade
stands vertically 1
11s inch to left of ri ght edge
of bearing.
Selecting Saw Blades
For longest blade wear and best cutting results,
use correct blade thickness, width and temper for
type
of material cut. When sawing small curves
and delicate work, use narrow blades. Otherwise,
use widest blade possible.
Saw blades may be purchased at any saw shop,
welded, set and shar.pened ready for use. For cut-
ting wood and similar materials, purchase blades
in widths
up to 3/4 inch.
Forlongestblade wear,avoid these mostcommon
causes
of blade breakage:
• Poor guide al ignmentand adjustment
• Forcing or twisting a wide blade around a
short radius
• Feeding too fast
• Dull teeth or not enough set
• Too much blade tension
• Setting top guide assembly too high
above workpiece
• Lumpy or im properly finished braze or
weld
on blade
• Continuous running of blade when not
cutting
The saw blade when new is
93
1
/z inches long.
Adjustments can be made on blades from
91
1
/2 to
94 inches.
Changing Blades
To change blades:
1. Remove upperand lower wheel guards.
2. Release blade tension. See "Adjusting Blade
Tension" in this manual.
3. Remove table insertand table spreader pin at
right edge of table.
4. Slip blade off wheel, guiding it through
ta ble
slot.
5. To install blade, reverse procedur e.
Operating the Bandsaw
Operation of power tools involves a cert ai n
amount of hazard. Before attempting regular
work, we recommend
you get the feel of ooera-
tions, usi ng scrap lumber to check settings. Read
entire instructions ·before cutting a workpiece.
Always pay attention to safety precautions to
avoid inj
ury.
Before turning on power, make all adjustments.
check th
at guard is in place. and turn pulley by
hand to make sure all parts work properly. ·
Always keep top guide assembly down close to
your work.
Do not force material against b la de:
light contact permits easier cutti ng and pre ve nts
unwanted friction, heating and work-hardening
on
back edge of b la de.
If you keep saw blade sharp. little pressu re is
needed for cutting. Steadily move stock against
blade without forci
ng it. To av oid twisting the
blade, do not turn sharp corners;
sa w arou nd cor-
ners.
10

Cutting Curves
When cutting curves,carefullyturn stock soblade
follows without twisting. If curve is so sharp that
you must repeatedly back
up and cut new kerf,
use narrow blade
or blade with more set. When
blade has more set, stock turns easier but cut is
rougher.
When changing a cut, avoid withdrawing work-
piece, as with
dra wing may drawblade off wheels.
Rath
er, turn st oc k; and saw out through waste
material.
PARTS
WA-14M
Vertical Woodcutting Bandsaw
Table of Contents
Bandsaw and Stand dimensions .. .................... 12
Assembly Diagram........ .. ......... .. ... .. ................. 13
Stand Assembly Diagram......... .. ............ .. ........ 14
Parts for 14" Wood/Metal Band Saw... .. ..... .. .... 15
How to Change The Belt....................... .. ........16
Gr ounding Instruction ........ .. ........ .... . .. ....... .. .... 17
Wi
ri ng Di ag ram..................................... .. ..... .... iS
11

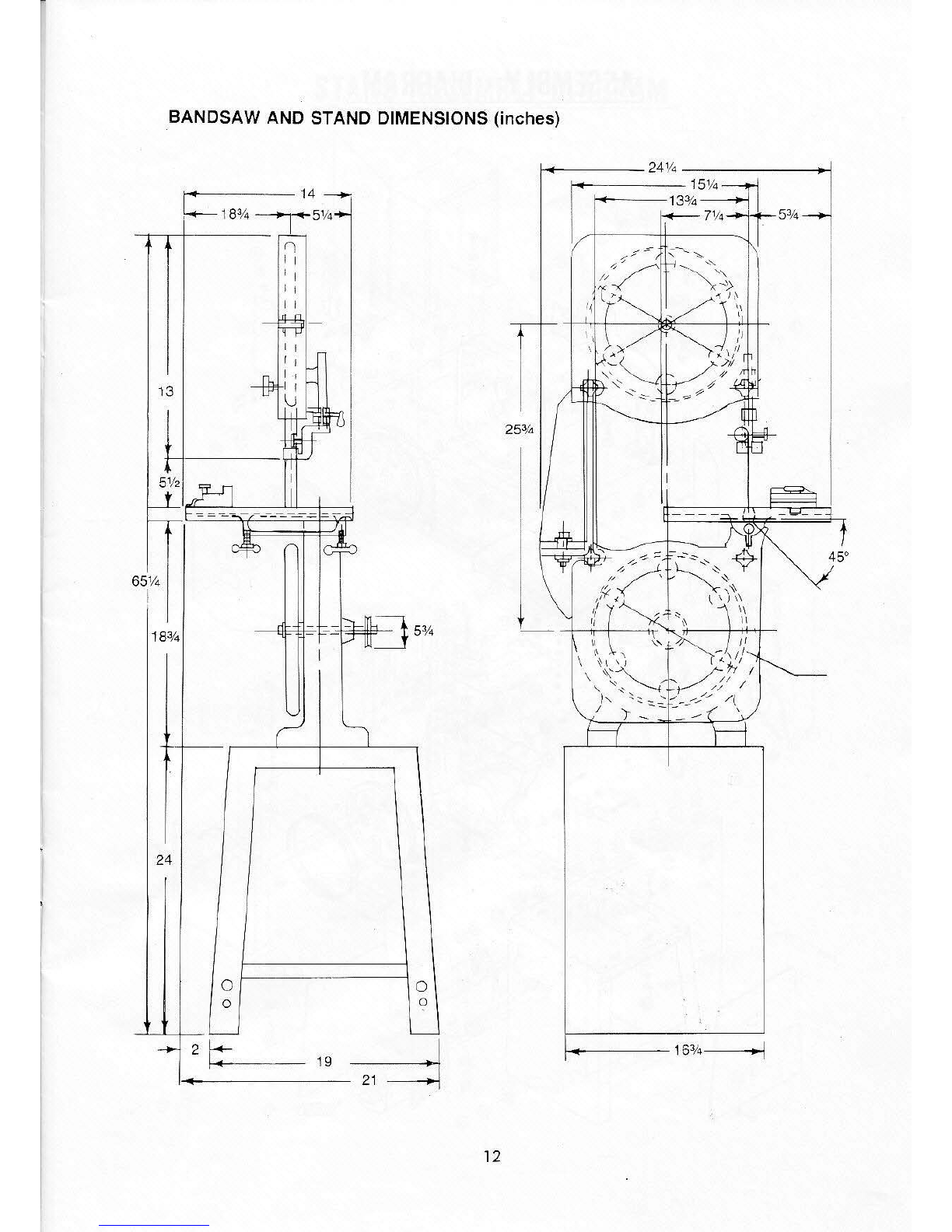

BANDSAW AND STAND DIMENSIONS (inches)
r--- 14 _.,
~ 183/4 - ~r .. 5114
~ ---+-------- - ~
13
65114
I
24
()
I I
I I
I I
I I
~
f- ':: = -:...-..... -,..-------=-=--= =- -...r;l
0
0
'-
(
J*l
0
0
L--
19 ___j
,....., ______________ . 21 ~
12
~-I ..... ------- 163/4-----~·~1

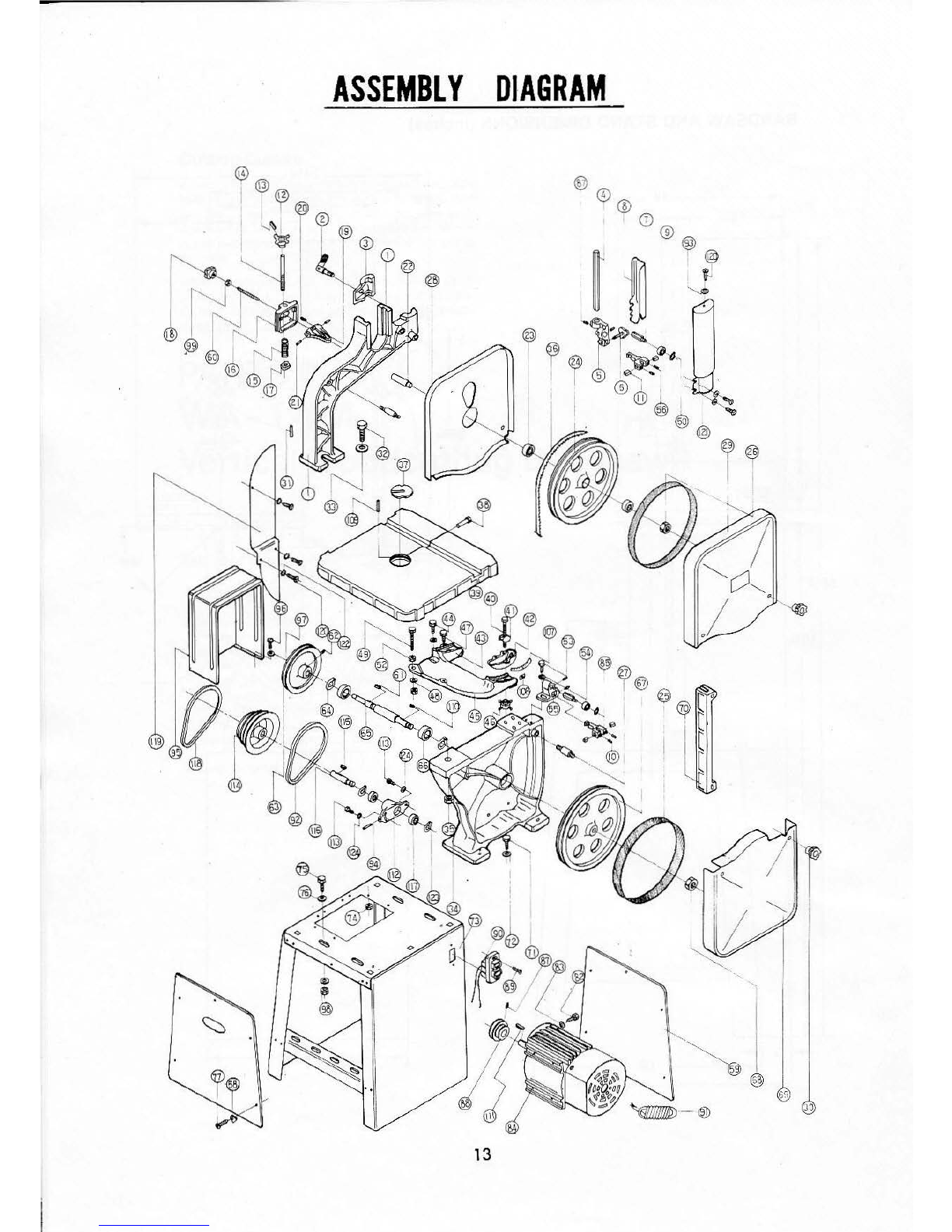

ASSEMBLY DlAGRAM
13

STAND ASSEMBLY DIAGRAM
14

P AR TS FOR 14" WOOD/ METAL B AN D SAW
WA-14M
Pan
Pans
.:'-Jo.
f---1.
Up per fram e ann
2. Lock H andle
1-·- -
Guide p ost bracket 3.
4. Guid e post
--
5. Support bracket for upper gui de
6.
Knob screw
7. Cpper spacing sleeve
8. C-clip
9. Bear~ (6200)
10. Screw
-11.
Blade guid e
12. Star wheel
~ -
-13.
Pin
14. Blade adjust er screw
--rs. - Coil spring
16. Upper wheel sliding b_:acker
!- 1
7. Square nut
-
18 . .
Upper wheel adjuster kn ob
,_ 19.
Upper wheel shaft hinge
20. Set screw
21. Steel pin
22. Upper wheel shaft
23 . Wheel bearing (6202)
~ 4 . Op per wheel
25. vVheel protector
-
£6. 1\ut
27. Stud
.......
28. Upper wheel guard (inner)
29. Upper wheel guard { outter)
30. Knob
31. Set pin
-
32.
Bolt
33 . Flat \Vas h er
34 . Base
1-- 3. S_
quare nut
-
:>.
36. Saw blade
37. Table insert
-
38. Table pin
r--s 9.
Table
--- -
-!0. Base
table stoe
-!1.
Trunnion clamp shoe
-1-2 . Trunnion
~ 1 .
- -
Steel washer
f- ·--
Hex. screw
- -- --
44.
-!5. T:·unnion supporr bracket
-- --
-- -
46 . Star wheel knob
47. Hex. screw
-
-t8. Steel washer
- -
-!9. Bolt
50. :\ tl t
51. Ti at washer
r-
52.
:\ ll { - -
53 . Hex. screvv -
5-1-. Stee l \·vash er
55. Support bracket for l ower guide -
56. Set screw
f-
57.
Flat \\·ash er
Part
No .
1-
58
::-:---
59 .
-
~ -
60.
61.
1-
G2 .
63.
6-1-.
65.
66.
t- Gf
1-- ·6 8:-
69.
- 70:
1-- "7 J
I •
72.
73.
-74.
75.
'-
76.
77.
82.
83.
84 .
85.
86.
87.
88.
89.
90.
91.
1-- 92.
1- 93.
94 .
- ---
95.
~)6.
1-97.
98 .
99.
_ 107~
'J 08.
-I09.
- 110.
111.
-
112.
113.
114.
115.
-116.
-117.
-ns.
1-. 119.
120.
-
121.
1 22 .
123.
12-l.
125.
15
Parts
Bot t om
1- - - -- - - ---
Pl astic cover
r-s
el screw
·--
Key
Set screw -
Pulley -
C-clip
Shaft
Bearing (6204)
L <)Wer wheel
I-;. -
l\'ut -
Lower wheel guard
Cycola c guarc_l __ _
Bo lt
flat washer
-
Stand
1\'"ut
Carriage bolt
· ~
Flat ,., · asher
Flat washer
Hex. screw
Flat washer
Motor
Flat wash er
Nut
Set sc r ew
~ ' l otor pulley
Switch screw
Switch
Electri c cord
--'-
V-belt A-36
Screw
·-
Lo\ ·ve r wheel shoe
-· -
Case - - -
Scr<':w ·-
Spring washer
-
Hex. nut
--
-
Hex. nut
_!)egrec plate 45 °
Turn to zero
-
Pin
--
- - - - - -
Key
Kev
~ lle y, bracket
-
Set screw
Pulley
Key
-
3 Speed shaft
-
Ball bearing G202
V belt A-2-l
-- - ---
Cpper fram ~n cover
--
Screv.,
CoY er for ~ide post
Teeth washer.
C -dip
Flat washer
- - - - --
- -
-- -- -- - -
Screw

a
---------... I
HOW TO CHANGE THE BELT
There are three speeds of saw blade, 700, 1230, 2420 FPM.
First, fix the short belt in A pulley and a of B pulley then
c
1. Put long belt in d of B pulley and d of C pulley, the Run-
ning speed of saw blade is 700 FPM.
2. Put long belt in c of B pulley and c of C pulley, Running
speed of saw blade is 1230 FPM.
3. Put long belt in b of B pulley and b of C pulley, the Run-
ning speed of saw blade is 2420 FPM.
16
BLADE SPEED
700 F.P.M.
1230 F.P.M.
L.._ ____ . 2420 F.P.M.

GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric
shock. This tool is equipped with an electric
cord having an equipmentgrounding conduc-
tor and a grounding plug. The plug must be
plugged into a matching outlet that is properly
installed and grounded in accordance with all
local codes and ordmances.
Do not modify the plug provided - if it will not
fit the outlet, have the proper outlet installed by
a qualified electrician.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. The conductor with insulation
having an outer surface that is green with or
without yellow stripes is the equipment-
grounding conductor. If re pair or replacement
of the electric cord or plug is necessary, do not
COJ1nect the equipmentgrounding conductor to
a live terminal.
Check with a qualified electrician or service
personnel if the grounding instructions are not
completely understood, or if in doubt as to
whether the tool is properly grounded.
Use only 3-wire extension cbrds that have
3-prong grounding plugs and 3-pole receptacles
that accept the tool's plug.
Repair or replace damage or worn cord
immediately.
Grounded, cord-connected tools intended for
use on a supplycircuit having a nominal rating
less than 150 volts: ·
17
This tool is intended for use on aci rcu itthat has
an outlet that looks like the one illustrated in
Sketch A in Figure 1. The tool has a ground-
ing plug that looks like the plug illustrated in
Sketch A in Figure 1. A temporary adapter,
which looks like the adapter illustrated in
Sketches 8 and C, may be used to connect this
plug to a 2-pole receptacle as shown in Sketch
8 if a properlygrounded outl et is not available.
The temporary adapter should be used only
until a properly grounded outlet can be installed
by a qualified electrician. The green-colored
rigid ear, lug, and the like, extending from the
adapter must be connected to a permanent
ground such as a properly grounded outlet box.
Grounded, cord-connected tools intended for
use on a supply circuit having a nominal rating
between 150-250 volts, inclusive:
This tool isintended for use on a circuitthat has
an outlet that looks like the one illustrated in
Sketch D in Figure 1.The tool has a ground-
ing plug that looks like the plug illustrated in
Sketch 0 i:l Figure 1. Make sure the tool
is connected to an outlet having the same
configuration as the plug. No adapter is availa-
ble or should be used with this tool. If the to ol
must be reconnected for use on a different type
of electric circuit, the reconnection should be
made byqualified service personnel; and after
reconnection, the tool should comply with all
local co des and ordinances.
ADAPTER NOT APPLICABLE IN CANADA!
FIGURE 1
GHO UN OING MErH OD S
•
~
