Kings Adventure YCD45K User manual

45L & 60L FRIDGE
USER MANUAL
YCD45K & YCD60K
Please read and understand this manual completely
before using this product.
YCD45K YCD60K

2
SAFETY INFORMATION:
Please read the user manual and safety instructions carefully before using the appliance.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• By ignoring the safety instructions 4WD Supacentre cannot be held responsible for the
damage.
• The use of accessories that are not recommended by 4WD Supacentre can cause
injuries and will invalidate any warranty that you may have.
• The appliance shall not be exposed to rain. Place the refrigerator on a dry, protected
surface, away from edges.
• Do not use the refrigerator in uncovered, outdoor areas exposed to the elements.
• Do not use this appliance near direct heat sources, for example, a cooker, radiator or
exposing it to direct sunlight.
• Do not place ice or liquids which are not sealed in containers within the refrigerator.
• Do not place hot products or hot food in the refrigerator.
• Place the products so that they do not knock against each other or break when the
appliance is in motion.
• The power cable must only be replaced by qualied technical personnel and by an
assistant body authorized by the manufacturer.
• Before carrying out any maintenance operations on the refrigerator, disconnect the
power cable from the plug.
• This appliance is suitable for camping use. In addition to this, it can also be used in households
and other residential environments.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction. Leave a space of at least 15cm across all its
sides.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by 4WD Supacentre.
WARNING: Do not store explosive substances such as aerosol cans with a ammable
propellant in this appliance
WARNING: Do not use an extension cord
DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
• Take off the doors
• Leave the shelves in place so that children may not easily climb inside.
FOR SAFE DISPOSAL: Dispose of appliance at a suitable resource and recovery centre.

3
1
1
2
INSTALLING THE HANDLES:
1. Adventure Kings YCD45K & YCD60K fridges are shipped with the handles unassembled.
2. To assemble, put together the two holders (1) with a handle (2).
3. Position the holders onto the side so that the handle folds out and up.
4. Screw in all four points using the included screws and hex key.
5. Repeat for the opposite side.

4

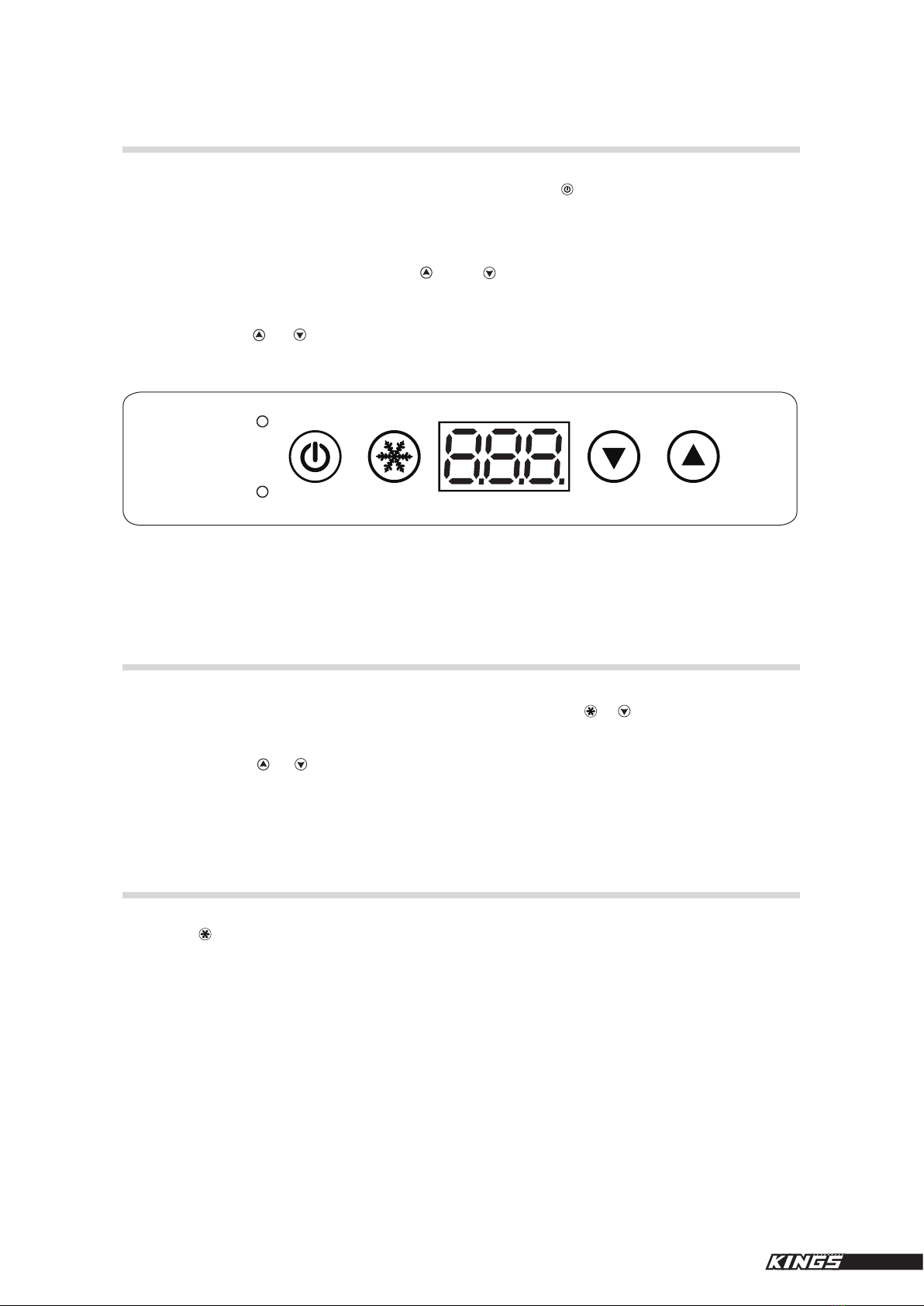

ADJUSTING THE TEMPERATURE:
1. Turn the fridge on by connecting to power and pressing the‘ ’button.
2. The display will show the fridge’s current internal temperature.
The fridge will start cooling to the last set temperature.
3. To adjust the set temperature, press the‘ ‘ or the‘ ‘arrow buttons until the desired set temperature
is displayed. Additionally, the set temperature can be adjusted in 4°C increments (per second) by
holding either ‘ ‘ or ‘ ‘ down.
SWAPPING BETWEEN
FAHRENHEIT °F & CELSIUS °C:
1. To choose between Fahrenheit and Celsius, hold down both the‘ ’&‘ ’arrow simultaneously
and the screen will begin to ash.
2. Press either the ‘ ‘ or ‘ ‘ arrow button to choose either Celsius (°C) & Fahrenheit (°F).
MAX
ECO
FASTER COOLING MAX &
EFFICIENT COOLING ECO SETTINGS:
• Press the ‘ ‘ to switch between the ECO and MAX settings. The indicator light will illuminate next to
the selected mode, red (MAX) or green (ECO).

5
ADJUSTING THE LOW VOLTAGE CUTOFF:
Adventure Kings Fridges come with three dierent settings for voltage cut-os:
Switch off Switch on
1
Switch off Switch on
11.1V 12.4V 22.3V
2
23.7V
11.5V 12.8V 24.3V
3
25.7V
9.6V 10.9V 21.3V 22.7V
Voltage
Option
12V24V
FUSE 15A
OFF ON
11.1 V 12.4 V
11.5 V 12.8 V
9.6 V 10.9 V
123
12/24V DC
BATTERY START PROTECTION:
1. The fridges comes with a 5-second start-up delay for the fan and a 20-second start-up delay for the
compressor.
This is used to not overload the battery of the vehicle when it is rst starting.
2. During the 20-second delay, the user can still adjust settings.
TECHNICAL INFORMATION
YCD45K YCD60K
Gross Capacity 45 litres 60 litres
Dimensions (HWL) 444 x 414 x 664 534 x 414 x 664
Voltages 12DC / 24DC / 240AC 12DC / 24DC / 240AC
Average Power Consumption ≤ 45W ≤ 55W
Temperature Range 10ºC to -18ºC 10ºC to -18ºC
Weight 17.8kg 19.8kg
Refrigerant Fluid R134a (50g) R134a (80g)

6
TROUBLESHOOTING:
Code Description Action
E1 Battery Voltage is low. Check battery voltage and adjust Low Voltage Cut-O
as required.
E2 Fan failure / Frequent start-stop. Contact point of sale to arrange further action.
E3 Compressor startup problems.
Check air vents are clear.
Move fridge to cooler location (ambient temperature
may be too high).
E4 Compressor’s running speed fails
to reach the requirements.
E5 The model is overloading.
E6 NTC failure(open circuit or short
circuit)

7
WARRANTY PERIOD:
Full 24 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to
perform substantially as described in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found
to have been caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure. The benefits provided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b. Faulty installation or modication made during installation
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather,
accidents and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
CALL 1800 88 39 64
OUTDOOR SUPACENTRE PTY LTD
2 Stanley St Silverwater NSW, 2128
PHONE: [phone]
www.4wdsupacentre.com.au
24 MONTH LIMITED
WARRANTY
PLEASE SEE WEBSITE FOR DETAILED INSTRUCTIONS ON
HOW TO SETUP & INSTALL YOUR 45L OR 60L FRIDGE
