KINGS YCD70K User manual

70L Fridge
USER MANUAL
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE USING THIS PRODUCT.
AKFR-FR70L_01
YCD70KV1.8

CONTENTS
1. SAFETY 3
2. OVERVIEW 4
3. INSTALLATION 5
4. POWER MANAGEMENT 5
4.1 POWER REQUIREMENTS 5
4.2 DISTANCE CABLE GAUGE FOR DC INPUT 5
5. CONNECTION INFORMATION 6
5.1 DC CONNECTION 6
5.2 AC CONNECTION 6
6. POWERING ON 7
7. ADJUSTING THE TEMPERATURE 7
8. MAX/MIN SETTING 7
9. BATTERY MONITOR/PROTECTION 8
10. ENERGY SAVINGS TIPS 8
11. SPECIFICATIONS 8
12. WARRANTY CARD 9
2

1. SAFETY
• Do not operate the fridge if it is visibly damaged.
• The fridge may only be repaired by qualied personnel. Inadequate repairs can lead to
considerable hazards.
• Should your fridge need to be repaired, please contact customer service.
• Do not open the circuitry under any circumstances.
• The fridge is not suitable for transporting caustic materials or materials containing solvents.
• Food may only be stored in its original packaging or in suitable containers.
• Do not touch exposed cables with your bare hands.
• Before starting the fridge, ensure that the power supply line and the plug are dry.
• Do not place any electrical devices inside of the fridge.
• Set up the fridge in a dry location where it is protected against splashing water.
• Protect the fridge and the cable against rain and moisture.
• Do not place the fridge near naked ames or other heat sources (heaters, direct sunlight,
gas ovens etc.)
• Never immerse the fridge in water.
• Do not ll the inner fridge with ice or uid.
• Ensure that the fridge has sufcient ventilation at all times and that nothing could cover or
hinder the ventilation slots.
• When using the fridge in a vehicle or boat ensure the circuit in use is fused and the wiring is
adequate to support the current draw.
• Ensure the source of power to which you are connecting the fridge is the correct voltage.
• If equipment has damaged power cable, the power cable must be replaced by a qualied
person. Unacceptable third party power cables may pose a risk and may void warranties.
3

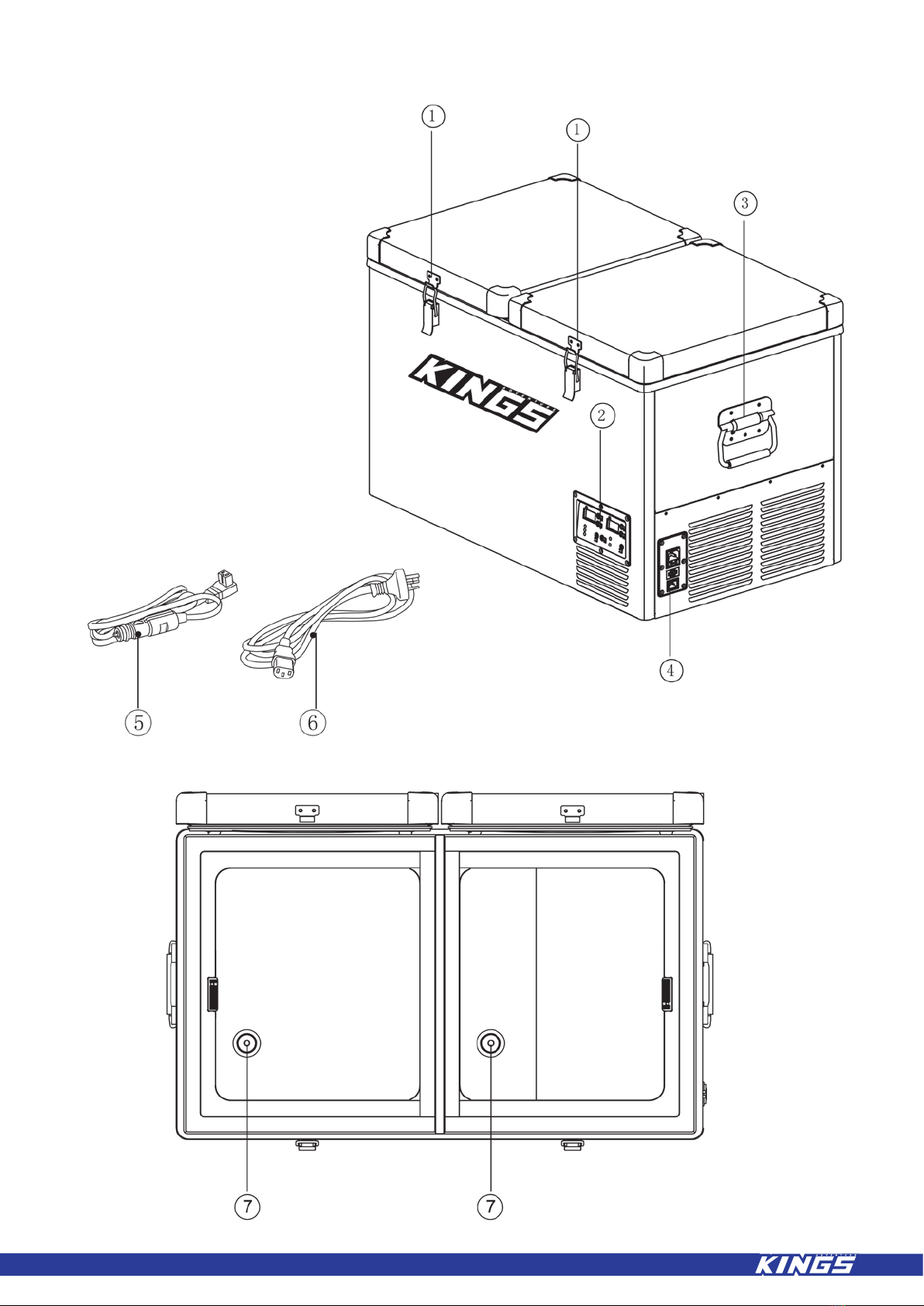

2. OVERVIEW
1. Lid latches
2. Control Panel
3. Carry Handle
4. Power Input Panel
5. 12V/24V DC power cable
6. 240V AC Power cable
7. Drain plug
4

3. INSTALLATION
It is important that your appliance is installed
and operated in accordance with the
manufacturers instructions to guarantee the
performance, efciency and operation.
• Position the appliance in a safe and secure
location. Limit exposure to heat sources or
direct sunlight which can affect the units’
performance and efciency.

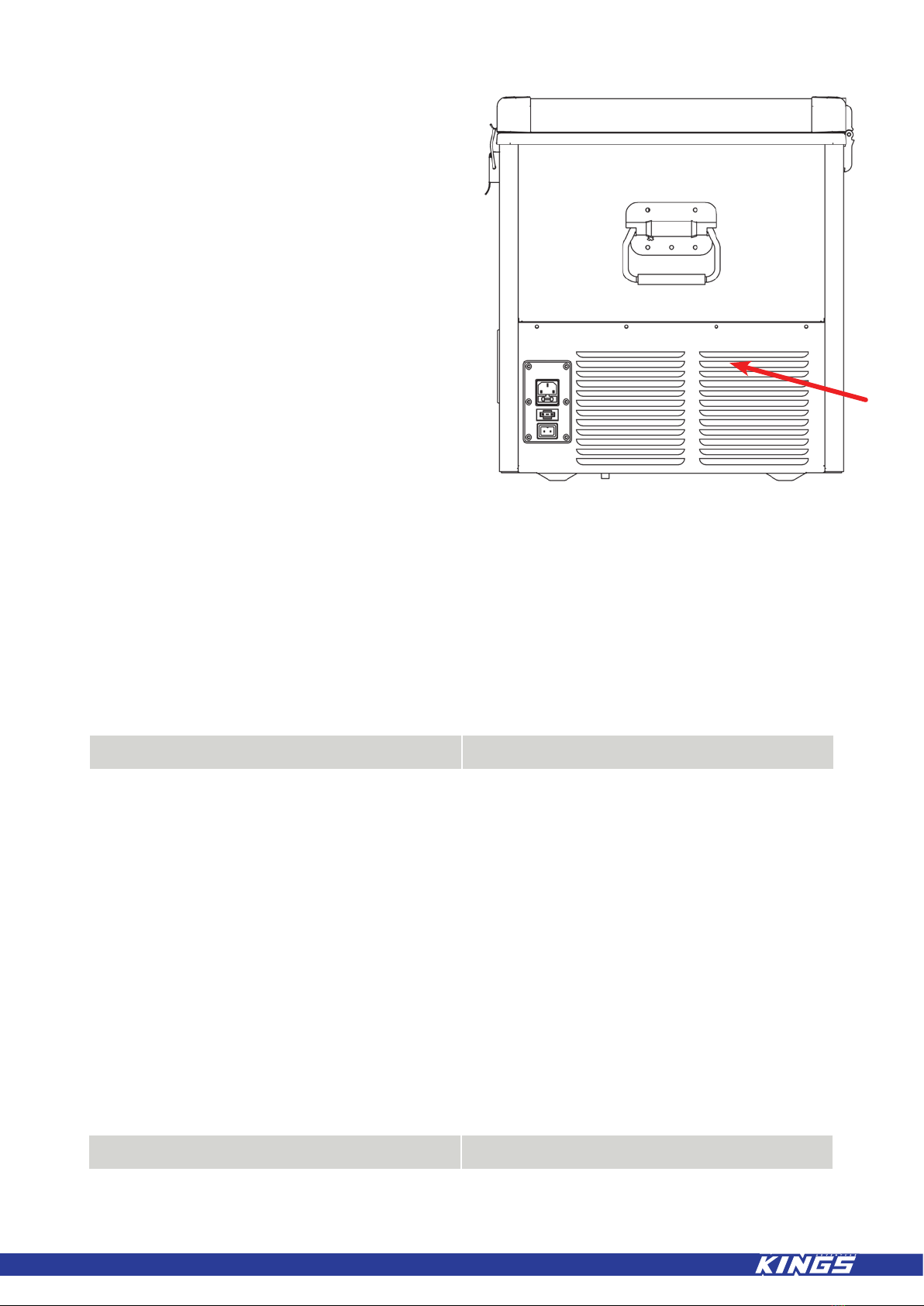

• The normal operation of the appliance
requires heat to be radiated away from
the condenser located in the rear end of
the unit. Adequate airow is required to
be available around the compressor at all
times.
AC INPUT 240V at 50Hz
DC INPUT 12V or 24V DC
4.5M OR LESS 2.1mm2 (AWG14)
4.6M AND OVER 3.3mm2 (AWG12)
For optimum performance and efciency, it is important that the appliance has a reliable 15A fuse
protected DC supply in good condition. Direct connection to the battery is recommended and
reduces the risk of voltage drop to the appliance.
It is recommended that the correct sized automotive electrical cable is used for direct connection
and ensure the cable is protected by a 15A fuse; do not use resettable circuit breakers. It is
important that the correct cable size is used for the installation of the DC supply as over distance
the voltage can decrease if the incorrect sized cable is being used.
Use cable sets supplied with fridge. Third party cabling may void your warranty.
4. POWER MANAGEMENT
4.1 POWER REQUIREMENTS
The appliance is designed to operate on AC and DC voltage inputs.
4.2 DISTANCE CABLE GAUGE FOR DC INPUT
5

5. CONNECTION INFORMATION
5.1 DC CONNECTION:
The unit is equipped with an electronic control system that will prevent polarity reversal. In the
event that the battery connection is reversed, the unit will not start or operate. The power inlet
socket is tted with a 15A fuse for protection.
Plug the 12/24V connection cable into the DC voltage socket on the rear and then connect it to
the cigarette lighter or a suitable 12V or 24V power source.
5.2 AC CONNECTION:
This unit is equipped with a multi-voltage power supply with a priority circuit for connecting to an
AC voltage source of 240V. The power supply automatically switches to mains operation if the
device is connected to 240V AC mains, even if the 12/24V connection cable is still attached. The
power inlet socket is tted with a fuse for protection.
Plug the 240V connection cable into the AC voltage socket on the rear and connect to a suitable
240V AC voltage.
6

6. POWERING ON
Connect to the desired input voltage and press
and hold the on/off button for 2-3 seconds to
turn the unit on, the display will show the current
internal fridge temperature.
7. ADJUSTING THE TEMPERATURE
The temperature controller provides the ability to set the desired temperature level and displays
information on the fridge and set temperature.
The controller has been programmed to maintain an average of the set temperature. The
compressor will start up when the internal temperature increases 0.5 to 1.5 degrees above
the selected temperature and will run until the temperature is 0.5 to 1.5 degrees below the set
temperature.
When your appliance is rst connected to the
AC or DC input the digital readout will show the
current temperature – the temperature shown
on the “LEFT ZONE TEMP” display corresponds
to the larger left zone compartment, the
temperature on the “RIGHT ZONE TEMP”display
corresponds to the stepped right zone
compartment.
To increase fridge temperature press “up”
▲ and to decrease press “down” ▼until the
desired temperature is achieved. Once selected
the display will ash a number of times before
returning to the current temperature.
NOTE: The left bin can only be set to an equal
or higher temperature than the right bin.
8. MAX/MIN SETTINGS
There are two modes of operation:
MAX = HIGH SPEED RUNNING
MIN = LOW SPEED RUNNING
To swap between these two settings press and hold the button
The fridge will display via an indicator light which mode has been selected.
7

9. BATTERY MONITOR/PROTECTION:
The fridge is equipped with a multi-level battery monitor that protects your vehicle battery against
excessive discharging when the appliance is connected to a 12/24V supply.
If the appliance is operated when the vehicle ignition is switched off, the appliance switches off
automatically as soon as the supply voltage falls below a set level.
The appliance will switch back on once the battery has been recharged to the cut in voltage level.
Push, hold and release button until the desired setting is reached.
10. ENERGY SAVINGS TIPS:
1. Choose a well-ventilated installation location which is protected from direct sunlight and
allows air to circulate around the unit.
2. Allow hot food to cool down before placing it in the fridge.
3. Do not open or leave the lid open more often than necessary.
4. If ice forms on the Internal walls or lid, defrost the appliance.
5. Select the desired temperature in relation to the intended use, avoid setting unnecessarily
low temperatures.
This appliance contains uorinated greenhouse gas R134a within a hermetically sealed system
and its operation depends on this gas.
Further information is provided on the technical data label attached to the appliance. This
appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with this appliance.
11. SPECIFICATIONS
MODEL:
YCD70K
GROSS CAPACITY:
70 Litres
EXTERNAL DIMENSIONS:
790 (H) x 465 (W) x 515 (D)
MAXIMUM POWER INPUT:
85 watts
VOLTAGES:
DC 12V/24V, AC 100 - 240V
REFRIGERANT:
R134a
8

WARRANTY PERIOD:
Full 24 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as described
in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have been
caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excludedunder the Australian ConsumerLaw. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a majorfailure. The benetsprovided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b.
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents
and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
1800 88 39 64
24 MONTH LIMITED
WARRANTY
OUTDOOR SUPACENTRE PTY LTD
2 Stanley St Silverwater NSW, 2128
PHONE: [phone]
www.4wdsupacentre.com.au
