Kingsman GLMVF38MVN Operation manual

1
VENTED & VENT-FREE GAS LOG
Owner’s Operation and Installation Manual
Listed Certified for USA and CANADA
GLMVF38MVN, GLMVF38MVP, GLMVF40MVN, GLMVF40MVP
Vent-free: Certified to USA standards: ANSI Z21.11.2 - 2007
Vented: Certified for USA and Canada: ANSI Z21.60/2003, ANSI Z21.60a/2003, ANSI Z21.60b/2004,
CSA 2.26/2004, CSA 2.26a/2003,CSA 2.26b/2004
Warning
If the information in this manual is not followed exactly, a fire or
explosion my result causing property damage, personal injury, or
loss of life.
– Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
Warning
This is an unvented gas-fired heater. It uses air (oxygen) from the room
in which it is installed. Provisions for adequate combustion and ventila-
tion air must be provided. Refer to “Air for Combustion and
Ventilation” section of this manual, page 7.)
Warning
Improper installation, adjustment,
alteration, service, or maintenance can
cause injury or property damage. Refer
to this manual for correct installation and
operational procedures. For assistance or
additional information consult a qualified
installer, service agency, or the gas supplier.
Warning
These gas logs sets are for installation in
a masonry solid fuel burning fireplace,
a U.L. listed manufactured solid fuel
burning fireplace. The vent free gas log
sets are also AGA design, certified for
vent free Universal Fireboxes.
•2340 Logan Ave., Winnipeg, MB, Canada, Phone: [phone] •Printed in Canada • July 27, 2009 • PART #38GL-MAN
Minimum Fireplace Dimensions:
see page 11
This appliance must be installed by a licensed plumber or gas
fitter in the Commonwealth of Massachusetts and meet the
requirements of 527 CMR 30 and 248 CMR.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

2

3
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries
quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone
components, the paint will cure when heat is applied to the appliance as it is first used.
The following information applies to the curing process to get the paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between
each. Be aware during log and firebox paint curing that a white deposit may be developing on the inside
of the glass doors. It is important to remove this white deposit from the glass doors with an appropriate
cleaner to prevent build-up (such as Windex or a commercial fireplace glass cleaner).
• Babies, small children, pregnant women and pets should leave the area during the cure phase.
• Ventilate well, open doors and windows.
• Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives,
silicones and any undetected oil from the manufacturing process as well as the finishing materials used
with the installations (e.g. marble, tile and the adhesives used to adhere this product to the walls can react
with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with
the fan off after the curing of the paint has been completed. These odours can last upward to 40 hours of
burn time, keep burning at a minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
• Noise caused by metal expanding and contracting as it heats up and cools down, similar to the sound
produced by a furnace or heating duct. This noise does not affect the operation or longevity of your
fireplace.
PRE-INSTALLATION QUESTIONS and ANSWERS

4
TABLE OF CONTENTS
SECTION PAGE
Gas Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Local Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Air for Combustion and Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Providing Adequate Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Determining Air Flow for Firebox Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Ventilation Air From Inside Building . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ventilation Air From Outdoors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Mantel Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installing Into Existing Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Installing Gas Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching Log Grate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing GLMVF38 Burner System and LOGF38 Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LOGF38 Placement Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17
Installing GLMVF40 Burner System and LOGC31 Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
LOGC31 Placement Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-20
Cleaning and Servicing of Burner / ODS Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Millivolt Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Illustrated Parts List for GLMVF38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Illustrated Parts List for GLMVF40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
GAS SPECIFICATIONS
VENT FREE - VENTED GAS LOG SETS
Burner Log Set Fuel BTU Manifold Orifice Primary Rate Min/Max
Model Required Type Input Pressure Size Air Screw Inlet Press.
GLMVF38MVN LOGF38 Natural Gas 23,300 - 38,000 1.6” - 3.5” 32 0.218” Open na 5.5/10”
GLMVF38MVP LOGF38 Liquid Propane 26,100 - 37,000 6.3” - 10” 50 3/8” Open na 11/13”
* The Burner and Log Set are ordered separately. Only the LOGF38 Log Set may be used with the GLMVF38MVN and
GLMVF38MVP
GLMVF40MVN LOGC31 Natural Gas 25,925 - 38,230 1.6” - 3.5” 32 1/8” Open na 5.5/10”
GLMVF40MVP LOGC31 Liquid Propane 24,215 - 30,500 6.3” - 10” 49 3/8” Open na 11/13”
* The Burner and Log Set are ordered separately. Only the LOGC31 Log Set may be used with the GLMVF40MVN
and GLMVF40MVP. Burner comes with 31C-B Log 2 or 31C-A only.

5
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
NOTE: It is recommended that a Carbon Monoxide
(CO) Detector be installed in or near bedrooms and on all
levels of your home. Place a detector about 15 feet (4.5
meters) outside the room that houses your gas appliance.
SAFETY INFORMATION WARNINGS
WARNINGS
Important: Read this owner’s manual carefully and com-
pletely before trying to assemble, operate, or service this
logset. Improper use of this logset can cause serious injury
or death from burns, fire, explosion, electrical shock, and
carbon monoxide poisoning.
Early signs of carbon monoxide poisoning resemble the
flu, with headaches, dizziness, and / or nausea. If you have
these signs, the heater may not be working properly. Get
fresh air at once! Turn off gas appliance. Have appliance
serviced. Some people (such as pregnant women, persons
with heart or lung disease, persons with anemia and those at
high altitudes) are more affected by carbon monoxide than
others. Make certain you read and understand all warnings.
1. Use correct gas type for your appliance. Do not convert
from one gas type to another.
2. If this appliance is for use with Propane gas, do not
place propane supply tank(s) inside any structure.
Locate propane supply tank(s) outdoors.
3. If you smell gas:
– Shut off gas supply.
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any
phone in your building.
– Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
– If you cannot reach your gas supplier, call the fire
department.
4. Do not use the appliance for burning trash or cooking.
Never place matches, paper, garbage, or any other
material on top of logs or logs into flame.
5. Warning: Always operate appliance with front fire-
place screens closed and glass doors open.
6. Make sure any safety screen or guard removed for ser-
vicing is in place before running appliance.
7. Never run appliance in a small, closed room. Open the
door into next room to help ventilate.
8. If appliance shuts off, do not relight until you provide
fresh outside air. If appliance keeps shutting off, have it
serviced.
9. Do not run appliance:
– where flammable liquids or vapors are used or stored.
– under dusty conditions.
10. Surface of appliance becomes very hot when operating.
Keep children and adults away from hot surface.
Appliance will remain hot for some time after shut-
down. Allow surface to cool before touching.
11. Do not use this appliance if any part has been sub-
merged under water. Immediately call a qualified tech-
nician to inspect the appliance and to replace any part
of the control system and gas control which has been
under water.
12. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1.
13. Never install the appliance:
– in a bedroom, bathroom, mobile home, or recreational
vehicle.
– where curtains, furniture, clothing, or other flammable
objects are less than forty-two inches (42”) from the
front
of the appliance.
– in high traffic areas.
– in windy or drafty areas.
14. Disconnect the appliance and its individual shut off
valve from the gas supply piping system during any
pressure testing of that system at test pressures in
excess of 1/2 psig, (3.5kPa).
Warning: Failure to position parts in accor-
dance with these diagrams or failure to use only
part specifically approved with this heater may
result in property damages or personal injury.
This appliance is equipped for
(Natural or Propane) Gas.
Field conversion is not permitted.

6
SAFETY INFORMATION WARNINGS Cont.
15. Isolate the appliance from the gas supply piping system by closing its individual manual shut off valve during any pres-
sure testing of the the gas supply piping system at test pressure equal or less than 1/2 psig.
16. Do not use any type of after-market blower that fits inside the fireplace. Drafts created by these type of blowers may
cause sooting.
17. Turn off appliance and let cool before servicing. Only a qualified service person should install, service and repair
appliance.
18. Inspect the appliance before use and at least annually by a professional service person. Frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is important that control compartment, burner and
circulating air passage of the appliance be kept open.
19. When operated for the first time, there will be some smell from the appliance. this will diminish and disappear after a
few hours of operation.
20. Keep burner and control compartment clean. See installation and operating instructions accompanying heater.
21. Children and adults should be alerted to the hazard of high surface temperature and should stay away to avoid burns or
clothing ignition.
22. Young children should be carefully supervised when they are in the same room with the appliance.
23. Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns.
24. Do not use a blower insert, heat exchanger or other accessory not approved for use with this heater.
25. Warning: Do not operate ceiling fans in same room as the vent free appliance.
26. Must be installed by a licensed gasfitter in the Commonwealth of Massachusetts. Complies to code 527CMR.
27. Unvented gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances
shall they provide a primary heat source.
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the
latest edition of The National Fuel Gas Code ANSI Z223.1, also known as NFPA 54*. Firebox must be electrically grounded
in accordance with the National Electrical Code, ANSI/NFPA 70 (latest edition).
*Available from:
American National Standards Institute, Inc. National Fire Protection Association, Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02260

7
AIR FOR COMBUSTION AND VENTILATION
Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods
help reduce heat loss in homes. Home owners weather strip and caulk around windows and door s to keep the cold air out
and the warm air in. During heating months, home owners want their homes as airtight as possible.
While it is good to make your home energy
efficient, your home needs to breathe. Fresh air must enter
your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireboxes, clothes dryers, and fuel burning
appliances draw air from the house to operate. You must
provide adequate fresh air for these appliances. This will
insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation:
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction 2. Unconfined Space 3. Confined Space.
The information on pages 8 through 10 will help you classify your space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in
building of usually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of one
perm (6 x 10-11 per pasec-m2) or less with openings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and
floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and
at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air.
See Ventilation Air From Outdoors, page 9.
If your home does not meet all of the three criteria above, proceed to page 11.
Confined and Unconfined Space
The National Fuel Gas Code (ANSI Z223.1, 1992 Section 5.3) defines a confined space as a space whose volume is less than
50 cubic feet per 1,000 btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with
doors, are considered a part of the unconfined space.
*Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.
DETERMINING AIR FLOW FOR FIREBOX LOCATION
Determining if You Have a Confined or Unconfined Space
Use the work sheet on the next page to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install logset plus any adjoining rooms with doorless
passageways or ventilation grills between the rooms.
WARNING
This firebox shall not be installed in a confined space
unless provisions are provided for adequate combustion
and ventilation air. Read the following instructions to
insure proper fresh air for this and other fuel-burning
appliances in your home.
IF INSTALLING IN CANADA OR AS A VENTED APPLIANCE PROCEED TO PAGE 12!

8
AIR FOR COMBUSTION AND VENTILATION Cont.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ______________ cu. ft. (volume of space)
Example: Space size 22ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total
volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.
______________ (volume of space) ÷ 50 cu. ft. = 63.3 or 63,300 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free logset __________________ Btu/Hr
Gas water heater* __________________ Btu/Hr
Gas furnace __________________ Btu/Hr
Vented gas heater __________________ Btu/Hr
Gas firebox logs __________________ Btu/Hr
Other gas appliances* + __________________ Btu/Hr
Total = __________________ Btu/Hr
Example: Gas water heater 40,000 Btu/Hr
Vent-free firebox with log heater + 39,000 Btu/Hr
Total = 79,000Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the
outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 63,300 Btu/Hr (maximum the space can support)
79,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the
space can support. You must provide additional fresh air. Your options are a follows:
A. Rework work sheet, adding the space of an adjoining room. If the extra space provides and unconfined space, remove
door to adjoining room or add ventilation grills between rooms, See Ventilation Air from Inside Building, page 9.
B. Vent room directly to the outdoors. See ventilation Air
from Outdoors, page 10.
C. Install a lower Btu/Hr logset, if lower Btu/Hr size makes
room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the
space can support, the space is an unconfined space.
You will need no additional fresh air ventilation.
WARNING
If the area in which the firebox and gas log heater may
be operated is smaller than that defined as an unconfined
space, provide adequate combustion and ventilation air
by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1, 1992, Section 5.3.

9
AIR FOR COMBUSTION AND VENTILATION Cont.
VENTILATION AIR FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space,
you must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor on the wall
connecting the two spaces (see options 1 and 2, Figure 4).
You can also remove door into adjoining room (see option
3, Figure 4). Follow the National Fuel Gas Code NFPA
54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
FIGURE 4 - Ventilation Air from Inside Building
WARNING
Rework worksheet, adding the space of the adjoining
unconfined space. The combined spaces must have
enough fresh air to supply all appliances in both spaces.

10
AIR FOR COMBUSTION AND VENTILATION Cont.
VENTILATION AIR FROM OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12” of the
ceiling and one within 12” of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermostat-controlled power vent.
Heated air entering the attic will activate the power vent.

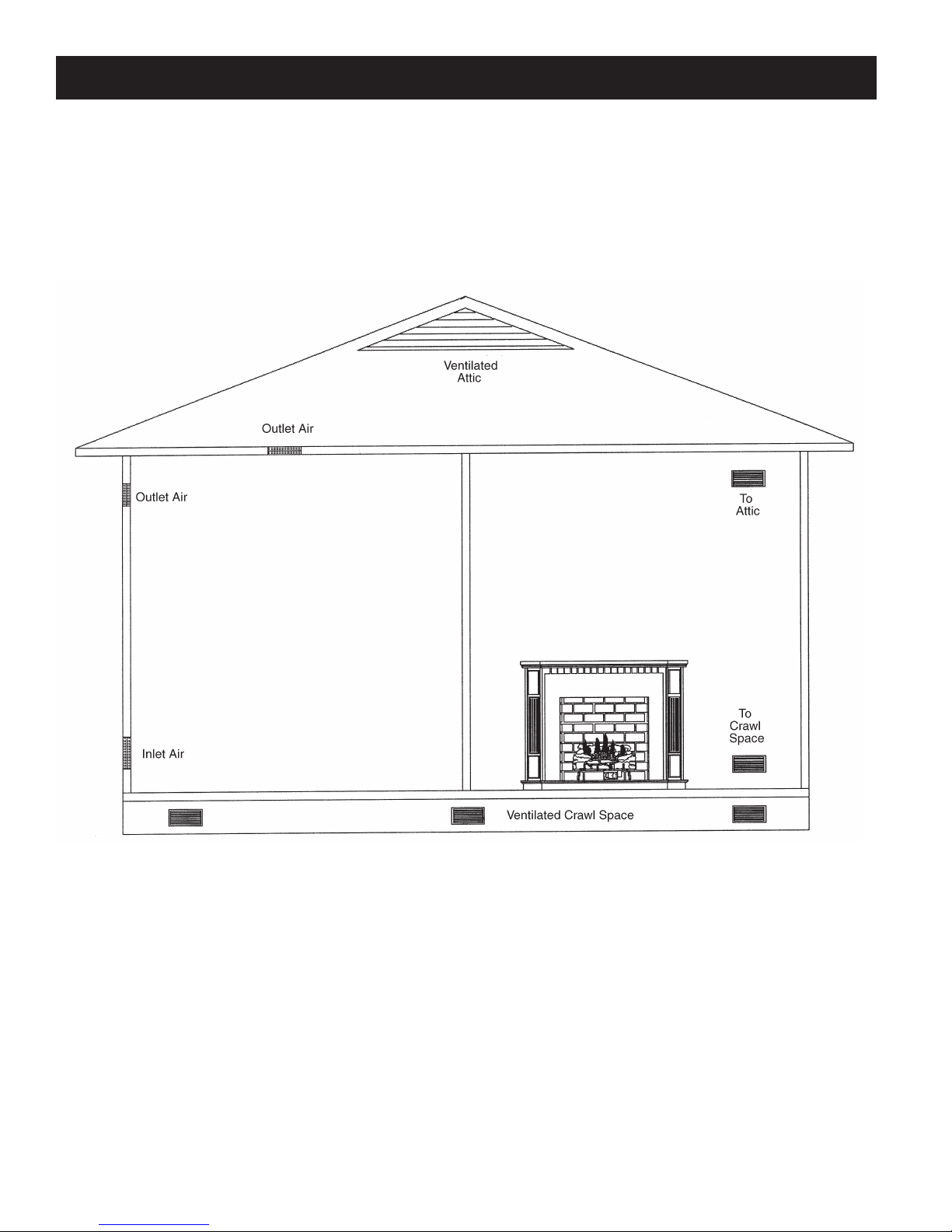

FIGURE 5 - Ventilation Air from Outdoors

11
INSTALLING – Clearances
INSTALLATION
CLEARANCES (VENT FREE
APPLICATION ONLY)
Minimum noncombustible material above fire-
place opening must be no less than shown in
the figures above. Noncombustible materials
(slate, marble, tile, etc.) must be at least 1/2”
thick, if sheet metal is used, you must have a
noncombustible material behind it.
IMPORTANT: If these minimum clearances
are not possible or if local codes do not permit
vent-free operation, you must operate the
heater with the damper open.
MANTEL m

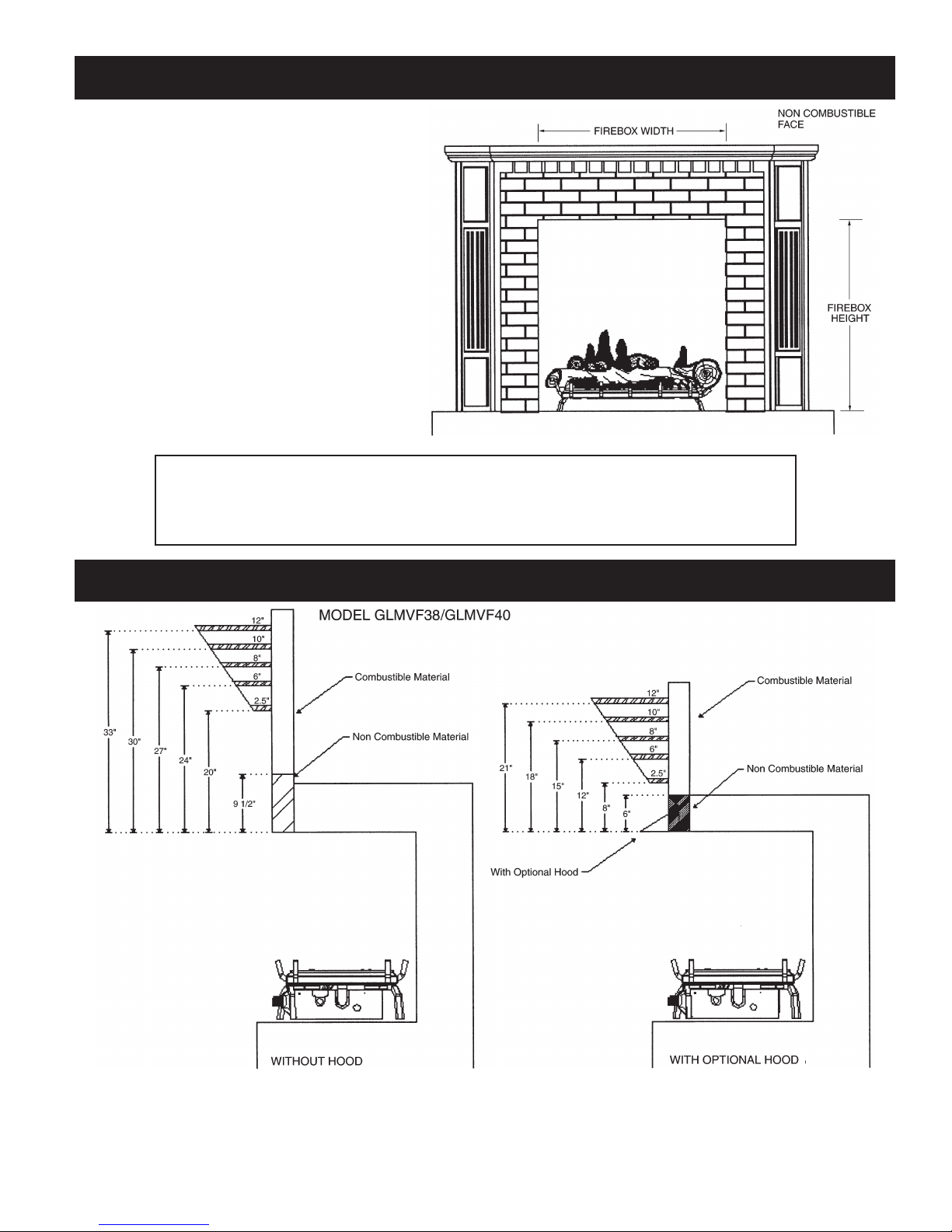

FIGURE 6 – Installation Clearances
Minimum Fireplace Dimensions
Front width Back Width Height Depth
For GLMVF38/GLMVF40 34” 34” 19 1/2” 19 1/2”
MANTEL CLEARANCES (Vent Free Operation Only)
Minimum non-combustible material above fireplace opening must be no less than shown in the figures above. Non-com-
bustible materials (slate, marble, tile, etc.) must be at least 1/2” thick. If sheet metal is used, you must have a non-com-
bustible material behind it.
IMPORTANT: If these minimum clearances are not possible or if local codes do not permit vent free operation, then you
must operate the heater with the damper open.

12
INSTALLING
INSTALLATION OF
GLMVF38/GLMVF40 INTO
EXISTING FIREPLACE
If installing in Canada or as a vented logset:
Appliance must be installed only in a solid fuel burning
fireplace with a working flue and constructed of non-
combustible material. See chart below for minimum per-
manent flue opening you must provide. The damper must
be secured so the minimum flue opening will be main-
tained at all times. This can be done by removing the
damper or welding the damper open.
Chimney Height Minimum Permanent Flue
Opening
(feet) (square inches)
6’ - 15’ 39 square inches
15’ - 30’ 29 square inches
Area of Various Standard Round Flues
Diameter (inside) Area (square inches)
5” 20 square inches
6” 29 square inches
7” 39 square inches
8” 51 square inches
The installation and the provisions for combustion and
ventilation air must conform with the National Fuel Gas
Code, ANSI Z223.1, or the CAN/CGA-B149, installation
codes
WARNING
Before installing in a solid fuel burning fireplace, the
chimney flue and firebox must be cleaned of soot,
creosote, ashes, and loose paint by a qualified chimney
cleaner. Creosote may ignite when heated to a high
temperature. Have chimney flue inspected for damage.
WARNING
Seal any fresh air vents or ash clean outdoors located
on the floor or wall of fireplace. If this is not done,
drafting may result causing pilot outage or sooting. Use
a heat-resistant sealant. Do not seal chimney flue
damper.
WARNING
This appliance is for installation in a solid-fuel burning
fireplace or approved ventless enclosure.

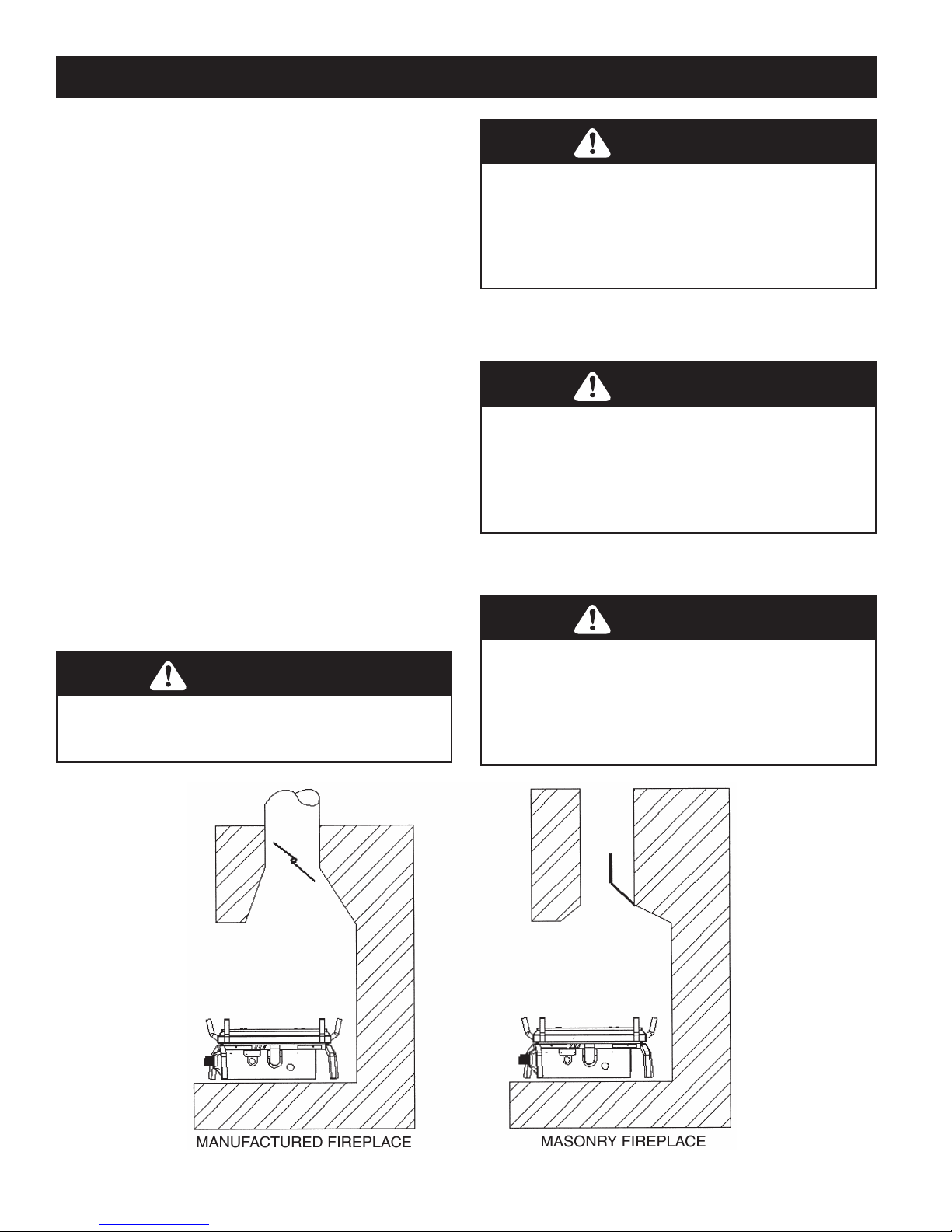

FIGURE 8 – Installing GLMVF38/GLMVF40 into existing fireplace.
WARNING
Installation of vented gas logs in the Commonwealth of
Massachusetts requires the vent damper be permanently
removed or welded in the full open position. Vented gas
logs can not be installed in a bedroom or bathroom in
the Commonwealth of Massachusetts.

13

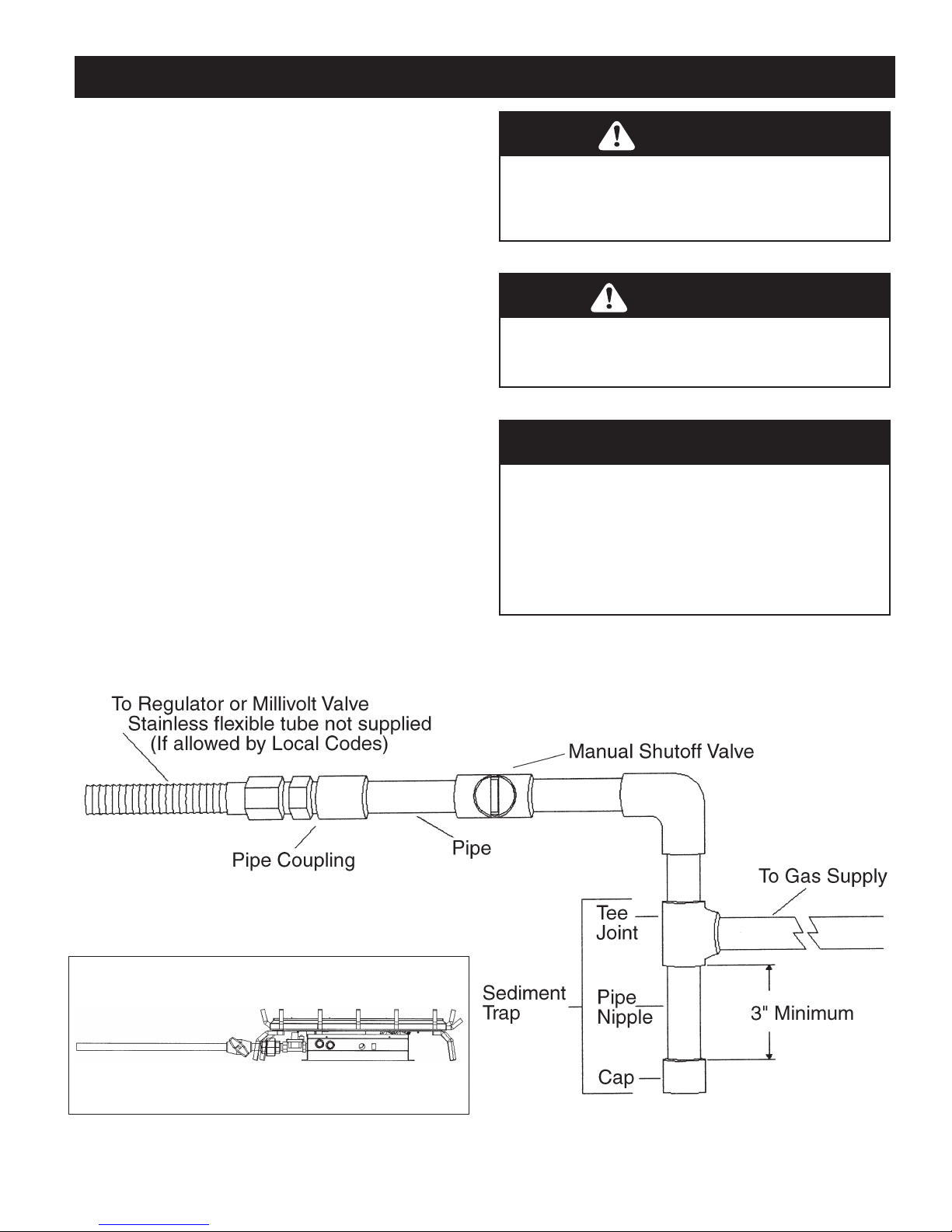

FIGURE 9, 9a – Gas line and manual shutoff valve
(cont’d. on page 14)
INSTALLING - Gas Line
INSTALLING GAS LINE
Early signs of carbon monoxide poisoning resemble the flu,
with headaches, dizziness, and / or nausea. If you have these
signs, the heater may not be working properly. Get fresh air
at once! Turn off gas appliance. Have appliance serviced.
Some people (such as pregnant women, persons with heart or
lung disease, persons with anemia and those at high altitudes)
are more affected by carbon monoxide than others. Make
certain you read and understand all warnings. Place Burner
Base / Grate Assembly in center of firebox and connect
flexible gas line to incoming black iron pipe gas line.
Do not connect appliance before pressure testing gas piping.
Damage to gas valve may result and an unsafe condition
may be caused.
Prepare incoming black iron gas line with Teflon tape or pipe
joint compound (check with local codes about the use of
Teflon tape). Compounds used on threaded joints of gas piping
shall be resistant to the action of Liquefied Petroleum (LP or
Propane) and should be applied lightly to ensure excess
sealant does not enter the gas line.
Complete your gas installation by connecting incoming gas
line to regulator. Secure all joints tightly with wrench but do
not over-tighten. If a flexible gas line is used, take care not
to kink connector. The burner pressure is controlled by the
NOTICE
Installation and repair should be done by a qualified
service person well trained in the installation of such
appliances. You will also need a building permit from
your local Building Commissioner before installing this
appliance, otherwise your insurance company may not
cover this appliance.
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
WARNING
Any changes to this heater or its controls can be
dangerous.

14
INSTALLING - Gas Line Cont.
regulator. Check pressure at the pressure test point, which is
located on the side of the gas control near the pilot outlet.
Make sure that the pressure tap is completely closed after
checking gas pressure. The pressure should be checked with
the appliance burning and the control set on high.
IMPORTANT: Loosen the pipe adapter on the flex tube
before installing to the system piping.
CHECK GAS TYPE: The gas supply must be the same as
stated on the heater’s rating plate. If the gas supply is
different, Do Not Install the heater. Contact your dealer for
the correct model.
CAUTION
All gas piping and connections must be tested for leaks
after installation is completed. To test, turn gas valve on,
then apply a soap and water solution to all connections
and joints. If bubbles appear, leak can be detected and
corrected. Never use an open flame for leak testing.
Never operate any appliance if a leak is detected!
CAUTION
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the heater.
NOTICE
A qualified gas appliance installer must connect the
fireplace to the gas supply. Consult all local codes.
CAUTION
Use new black pipe only. Internally tinned copper
tubing can be used in some areas when permitted by
local codes. Only use pipe of 1/2” or greater diameter
to allow full gas volume to heater. Excessive pressure
loss will occur if the pipe is too small.
A manual shutoff valve, union and plugged 1⁄8” NPT
pressure tap pointer must be installed upstream of the
heater.
A sediment trap must be installed upstream of the heater
to prevent moisture and contaminants from passing
through the pipe to the heater controls and burners. Failure
to do so could prevent the heater from operating
reliably.
For the state of Massachusetts a T-handle gas shut-off
valve must be used on a gas appliance. This T-handle gas
shut-off valve must be listed and approved by the state of
Massachusetts. This is in reference to the state of
Massachusetts state code CMR238.

15
INSTALLING - GLMVF38 Burner Systems and
LOGF38 Logs
Log Installation (Part # LOGF38)
The Kingsman log set has been numbered for ease of installation
1. Place log #1 onto plate with the ODS Pilot extending through the
notch area. Position holes on under side of Log #1 with the 2 vertical
tabs on the plate and lower onto the plate.
2. Place log #4 onto plate opposite of plate with the ODS Pilot.
3. Position Log #5 onto end Pin of Log #4 as shown in diagram.
4. Position Log #3 onto center Pin of Log #4 as shown in diagram.
5. Position Log #2 onto Pin of Log #1 and position Log #2 up against
Log #4.
NOTE: LOG #5 IS TO BE POSITIONED ON THE NON FLAME SIDE.
Crushed Rock Installation
Place crushed rock onto firebox bottom
making sure not to place any rock onto the
burner or burner ports, as this will cause
carboning, delayed ignition, and will raise
Carbon Monoxide to very dangerous lev-
els.
INSTALLING - Log Grate
ATTACHING LOG GRATE TO
FIREPLACE BASE
1. Position log grate into fireplace and mark screw loca-
tions on each side of mounting bracket.
2. Remove grate assembly, drill 2 holes at the marked
locations.
3. Attach grate assembly to fireplace base. (Screws not
provided.)
4. Connect to gas supply.
WARNING
You must secure this heater to fireplace base, or heater
will move when you adjust controls. Moving heater
may cause a gas leak and may result in property damage
or personal injury.
WARNING
Failure to position the parts in accordance with the dia-
grams or failure to use only parts specifically approved
with this heater may result in property damage or
personal injury.
WARNING
The positioning of the logs is critical for the safe and clean operation of this heater. Sooting and other problems can
occur if the logs are not properly and firmly positioned in the heater. Never add additional logs or embellishments
such
as pine cones,vermiculite, volcanic rock or rock wool to the heater.
FIGURE 10 – Log Placement

Log Tabs
Step (1) If using the MVF40 chassis, omit this step (go
to step 2). If using MDV30 or MDV38, break glowing
embers into thumbnail size and place along the perimeter
of the burner. Do not place on middle burner (as illustrat-
ed). Care should be taken not to block burner ports.
Step (2) Take Log #4 and place onto burner using the
two log tabs (located on burner pan) as a guide.
Log Pin Log Pin
Step (3) Take Log #1 and place onto burner using the
two log tabs (located on burner pan) as a guide.
LOGF38 PLACEMENT GUIDELINES
16

17
Step (4) Place Log #5 onto Log #4 using the log pin as a
guide. Ensure Log #5 rests on the shape of Log #4.
Log Pin
Step (5) Place Log #3 onto both Log #1 and Log #5
using the log pins as a guide.
Log Pin
Step (6) Place Log #2 onto both Log #1 and #4 using
the log pins as a guide. Ensure Log #2 does not cover
burner.
LOGF38 PLACEMENT GUIDELINES CONT.

18
INSTALLING - GLMVF40 Burner Systems and
LOGC31 Logs
ATTACHING LOG GRATE TO
FIREPLACE BASE
1.• Position Log Grate into fireplace and center. For metal
base fireplaces, use 2 self-tapping hex screws and attach at
the two attachment tabs located on two of the Log Grate
Legs.
2. For solid fuel burning fireplaces with masonry bases, mark
holes and drill. Attach with two concrete type screws no
supplied.
LOGC31 LOG PLACEMENT
GUIDELINES
Kingsman Log Set has been numbered for ease of installation.
Rock kit is for decoration only, DO NOT place rocks on any
burner tubes or gas ports of a burner tube. Rocks are to be
placed on the bottom base of the fireplace and not blocking the
1” diameter hole in the bottom of the burner. LOG31C A and B
are packaged with the GLMVF40 Burner.
WARNING
You must secure this heater to fireplace base, or heater
will move when you adjust controls. Moving heater
may cause a gas leak and may result in property damage
or personal injury.
WARNING
Failure to position the parts in accordance with the dia-
grams or failure to use only parts specifically approved
with this heater may result in property damage or
personal injury.
WARNING
The positioning of the logs is critical for the safe and clean operation of this heater. Sooting and other problems can
occur if the logs are not properly and firmly positioned in the heater. Never add additional logs or embellishments
such
as pine cones,vermiculite, volcanic rock or rock wool to the heater.

19
LOGC31 PLACEMENT for GLMVF40 BURNER GRATE
1. Place notched area of Log #1 against the O.D.S. Pilot
as shown. Place Log 31C-A and Log 31C-B along the
grate bar as shown.
2. Place flat area of Log #2 against Tab 2 and over top of
Log #1. Locate log mounting hole on Log #3. Position
hole on Tab 3 as shown. Do not place log over the center
burner tube.
3. Locate the 2 mounting holes on the bottom of Log #4
and position them onto Tabs 4A and 4B. Place V area of
Log #5 on the grate bar and then rest Log #5 on the flat
area of Log #2.
4. Place the flat area of Log #6 on the burner pan. Lean
against Logs #4 and #5. Locate flat notched areas of Log
#2 and Log #3. Place Log #7 onto these with charred
branch in the down position.

20
LOGC31 PLACEMENT for GLMVF40 BURNER GRATE
5. Place ember rocks on ember plates. (Warning: Do not place ember rocks on the burner tubes.
6. Place lava rock on the bottom of the fire box surrounding
the burner system. Sprinkle vermiculite over top of the
Lava Rock.
