Kingsman VFI25 User manual

WARNING: If the information in these instructions is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or loss of life.
Warning: Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury or loss of
life. Refer to this manual. Installation and service must be performed
by a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
What To Do If You Smell Gas
Do not try to light any appliance.
Extinguish any open flame.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbour's phone.
If you can not reach your gas supplier, call the fire department.
WARNING: The VFI25 Fireplace
Insert was designed for installation
in a solid fuel fireplace that has
been installed in accordance with
national, provincial/state and local
building codes and is constructed
of noncombustible materials. Do not
remove any refractory materials
from any masonry solid fuel
fireplace.
The VFI25 Fireplace Insert was
designed for installation in a zero
clearance type listed solid fuel burning
factory built fireplace. It may be
necessary to remove the damper plate,
refractory liners, log grates, glass door,
and screen rails/mesh. Removal of the
smoke baffle is necessary in most
cases.
Installation Instructions
Model Number VFI25
Gas Fired Room Heater
Insert
Model VFI25 Listed Certified for USA. and Canada
Minimum Fireplace Opening Required: 24”W x 17-1/2”H x 16”D
Certified to: ANSI Z21.88-2009, CSA 2.33-2009
Printed in Canada August 18, 2010 Part # 25VFI-MAN
FOR YOUR SAFETY
Read this complete manual before beginning installation.
These instructions must be kept with the unit for future reference.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for
use with other
g
ases
,
unless a certified kit is used.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: [phone]
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors with an appropriate cleaner to prevent build-up (such as Windex or a
commercial fireplace glass cleaner).
•Babies, small children, pregnant women and pets should leave the area during the cure phase.
•Ventilate well, open doors and windows.
•Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives, silicones and any
undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g. marble,
tile and the adhesives used to adhere this product to the walls can react with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off after the
curing of the paint has been completed. These odours can last upward to 40 hours of burn time; keep burning at a
minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
Cleaning the Glass
During the first few fires, a white film may develop on the glass front, as part of the curing process. The glass should be
cleaned after the unit has cooled down or the film can bake on and become very difficult to remove. Use a non-abrasive
cleaner. Do not attempt to clean the glass while it is hot.
Operating Instructions
1. Be sure to read and understand all the instructions in this manual before operation of appliance.
2. Ensure all wiring is correct and properly enclosed to prevent possible shock.
3. Check for gas leaks.
4. Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
5. Make sure venting and termination cap are installed and unobstructed.
6. If brick or porcelain liners are used, ensure they are installed.
7. Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
8. If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
2

Table of Contents
Pre-installation Questions and Answers………………………………….. 2
Operating Instructions………………………………………………………. 2
Table of Contents…………………………………………………………… 3
Mobile Home/Manufactured Housing Installation……………………...... 4
Warnings, Installations, and Operations………………………………….. 5
Warnings, Installations, and Operations………………………………….. 6
Installation Requirements for the Commonwealth of Massachusetts… 6
Unit Identification…………………………………………………………… 7
Heat Output………………………………………………………………….. 7
Unpacking the Insert………………………………………………………... 7
Clearances…………………………………………………………………… 7
Electrical Connections……………………………………………………… 7
Gas Piping…………………………………………………………………… 8
Venting……………………………………………………………………….. 8
Installation……………………………………………………………………. 10
LogC5 or LogF5 Placement Guide……………………………………….. 11
LogC6 Placement Guidelines……………………………………………… 12
Burner System Maintenance………………………………………………. 13
VFI25 Conversion Kit Instructions – Part A………………………………. 13
VFI25/VFI30 Conversion Kit Instructions – Part A………………………. 14
Gas Conversion for Top Convertible Pilot (Series 019065X) – Part B… 15
Gas Conversion for Modulator – Part C………………………………….. 16
Field Conversion for ZDV6000 - VFI25 - VFI30…………………………. 17
Combustion Air………………………………………………………………. 18
Unit Operation & Check-out………………………………………………... 18
Check-out…………………………………………………………………….. 19
Unit Adjustment……………………………………………………………… 19
Maintenance………………………………………………………………….. 20
Surround and Brass Trim Assembly Instructions………………………… 22
Surround Kit Parts List………………………………………………………. 23
Typical Venting Diagram……………………………………………………. 23
Wiring Diagram - for SIT Valve System…………………………………… 24
Accessory List………………………………………………………………... 25
Accessory List………………………………………………………………... 26
Replacement Parts………………………………………………………….. 27
Replacement Parts…………………………………………………………. 28
Lighting Instructions………………………………………………………… 29
Kingsman Industries Warranty…………………………………………….. 30
3

4
Mobile Home/Manufactured Housing Installation
THIS APPLIANCE MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian
National Electrical Code in Canada.

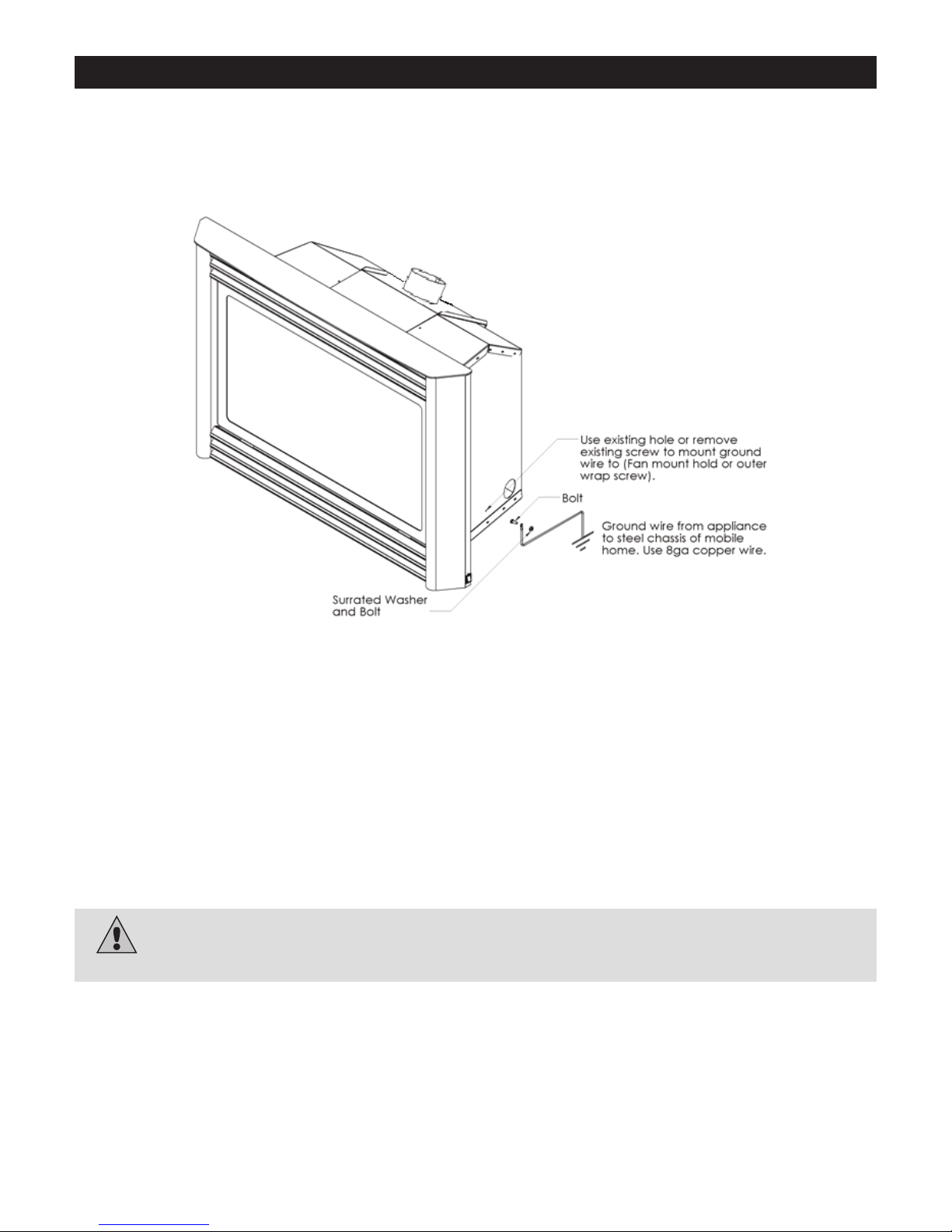

An appliance must be grounded to the steel chassis of the home with 8ga. copper wire using a serrated or star wash-
er to penetrate paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
Bedroom approved.
Warning: Do not compromise the structural integrity of the manufactured home wall, floor or ceiling,
during installation of appliance or venting.
For required venting components see venting installation in appropriate section of this manual.
This Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire
Safety Criteria for Manufactured Home Installation, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA
Z240 MH Mobile Home Standard in Canada.

Warnings, Installations, and Operations
Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current
CAN/CGA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1 when installed in the United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the
current CSA C22.1 Canadian Electrical Code or with the national Electrical Code; ANSI/NFPA 70-1987 when installed in the United States.
Thermostats are not permitted for vented (Decorative) gas fireplaces installed in the U.S.A.
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product
warranties.
4. For safe operation, glass doors must be
closed.
5. When purging the gas line, the glass front
must be removed.
6. Do not strike or abuse glass. Take care to
avoid breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other
than factory supplied components.
9. This appliance gives off high temperatures and should be located out of heavy traffic areas and away from furniture and
draperies.
10. Children and adults should be alerted to the hazards of the high surface temperatures of this appliance and should stay
away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children
and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood, paper) be used in this appliance.
13. Under no circumstances should this appliance be modified. Any parts that have to be removed for servicing should be
replaced prior to operating this appliance.
14. Any safety screen or guard removed for servicing an appliance must be replaced prior to operating the appliance.
15. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at
least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, et cetera. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean. Make sure that the gas valve and pilot light are turned off before you attempt to clean this unit.
16. Clothing or other flammable material should not be placed on or near the appliance. This appliance should not be used as a
drying rack for clothing nor should Christmas stockings or decorations be hung from it.
17. Do not use this heater if any part has been under water. Immediately call a qualified service technician to inspect the heater
and to replace any part of the control system and any gas control which has been under water.
18. Do not operate appliance unless completely installed as per installation instructions.
19. Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
20. Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass should be done by a
licensed or qualified service person.
21. The front of the fireplace gives off high temperatures that could ignite combustible material which is kept close to the front of
the unit.
22. Ensure that power to the Fireplace is turned off before servicing.
23. Do not operate this Fireplace without the glass front or with a broken glass.
24. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For assistance or additional information consult a qualified
installer, service agency, or the gas supplier.
25. Operation of this appliance when not connected to a properly installed and maintained venting system or tampering with the
blocked vent shutoff system can result in carbon monoxide (CO) poisoning and possible death.
26. This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
WARNING
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
5

•Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they
provide a primary heat source.
•If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5in [37.5mm] or less may be drilled through
the lower sides or bottom of the firebox in a proper workmanship like manner. This access hole must be plugged with non-
combustible insulation after the gas supply line has been installed.
•Cutting any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited.
•This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
•Installer must mechanically attach the supplied label to the inside of the fireplace into which the gas fireplace insert is installed.
Warning: This fireplace has been converted for use with a gas fireplace insert only and cannot be used for burning wood or solid
fuels unless all original parts have been replaced, and the fireplace re-approved by the authority having jurisdiction.
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home.
Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat (Thermostats are not
permitted for vented [Decorative] gas fireplaces installed in the U.S.A.). In USA see local codes.
Operations and Maintenance Instructions
For safe installation and operation note the following:
• The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
• Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner areas. See Log
Placement page to remove logs. Vacuum burner parts and replace logs.
• Never use your gas fireplace as a cooking device.
• Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify
proper operation after servicing.
Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the
Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO
detector per the requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the vent
terminal and the air intake is installed below four feet above grade the following requirements must be satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm
shall be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720
(2005 Edition).
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
•Be powered by the same electrical circuit as the appliance or equipment such that only one service switch services
both the appliance and the carbon monoxide detector;
•Have battery back-up power;
•Meet ANSI./UL 2034 Standards and comply with NFPA 720 (2005 Edition); and
•Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527 CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above the location of
vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet away, and read “Gas Vent
Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of the vent
terminal and the air intake is installed above four feet above grade the following requirements must be satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm
shall be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720
(2005 Edition).
B. A carbon monoxide detector shall:
•Be located in the room that houses the appliance or equipment;
•Be either hard-wired or battery powered or both; and
•Shall comply with NFPA 720 (2005 Edition).
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall be in
strict compliance with the manufacturer instructions. A copy of the installation instructions shall remain with the appliance or equipment
at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-off valve must be listed and
approved by the state of Massachusetts. This is in reference to the state of Massachusetts state code CMR238.
6

7
1. UNIT IDENTIFICATION
Vented Fireplace Insert (VFI30N or VFI30LP). This unit
is offered with variable speed fan and variable gas input.
2. HEAT OUTPUT
It must be remembered that both the units in this manu-
al produce significant amounts of heat within a varying
input range.
3. UNPACKING THE INSERT
The unit has been packaged to ensure that the fireplace
remains undamaged during regular handling.
It is important to inspect the packaging for signs of dam-
age that may have affected the unit.
Included with the fireplace is the following:
(1) fireplace insert
(1) ceramic glass panel (fragile)
(1) draft hood
(1) installation instructions
With each insert the following must be purchased:
(1) Log Set (4 pce) Cast or Fibre
(1) Standard Surround Kit
(1) Grill Kit
For a list of options please see page 18 and contact
your local dealer.
4. CLEARANCES
This fireplace was designed for installation in a solid fuel
fireplace that has been installed in
accordance with National, Provincial/State and Local
building codes and is constructed of non-combustible
materials. DO NOT remove any refractory materials from
any masonry solid fuel fireplace. For installation in zero
clearance type listed solid fuel burning factory built fire-
places, it may be necessary to remove the damper plate
and refractory liners. Removal of the smoke baffle is
necessary in most cases.
Clearance from the front of the unit to a
combustible floor is 0.15 metres (6 inches).
Clearance from adjacent side wall is 7 inches from
side of unit.

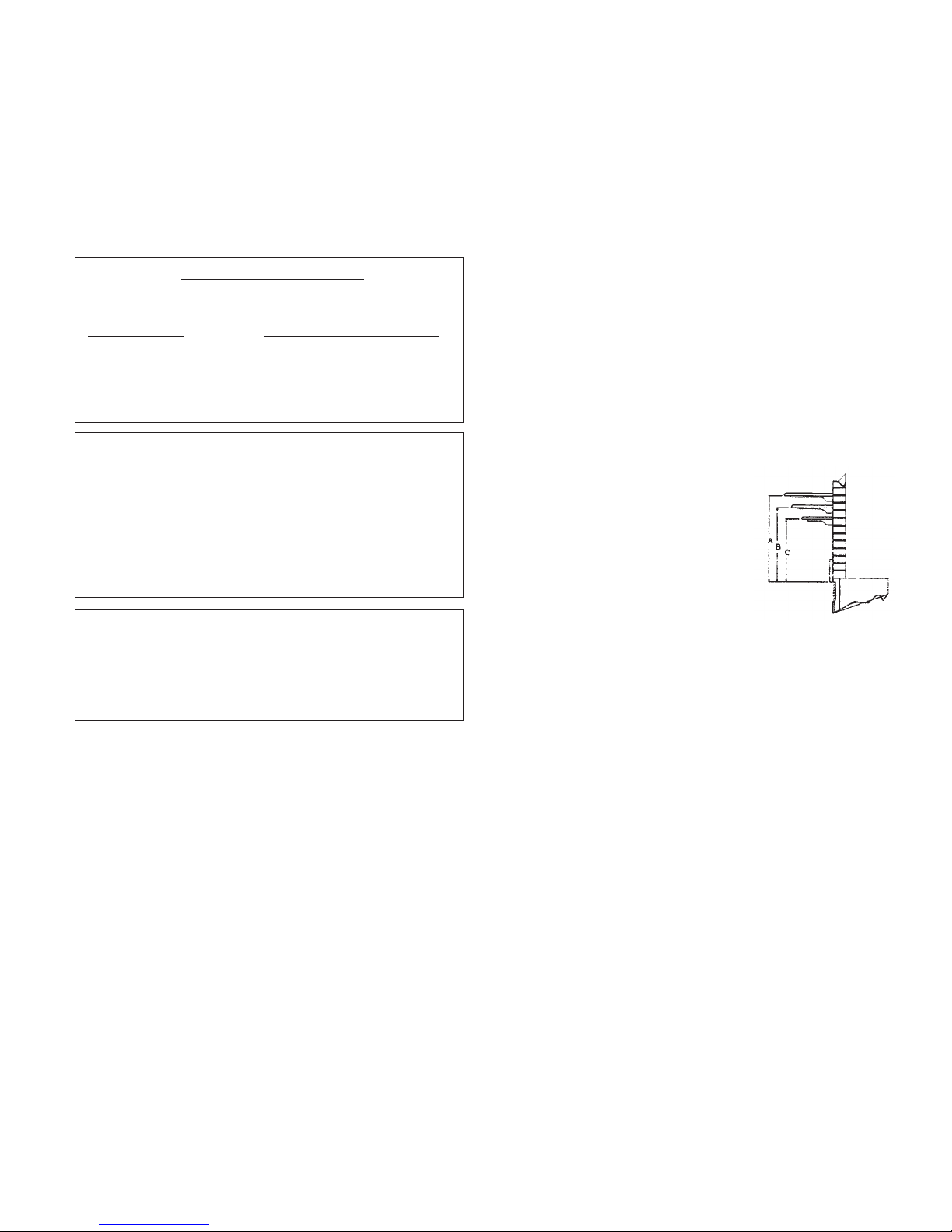

•Minimum clearances from the top of the grill to a mantel
and maximum mantel width are:
MANTEL HEIGHT ABOVE UPPER
WIDTH GRILL OPENING
A 7”(17.8cm) 13”(33.0cm)
B 6”(15.3cm) 12”(30.5cm)
C 5”( 12.7cm) 11”(27.9cm)
WARNING: The front of the fireplace gives
off high temperatures that could ignite
combustible material which is kept close
to the front of the unit.
5. ELECTRICAL CONNECTIONS
The blower for the fireplace insert comes
pre-wired from
the factory all that is needed is to plug in to 120 volt supply.
Fan Temperature Sensor
The wiring harness has two wire ends that must be
attached to the Temperature Sensor. The Temperature
Sensor is mounted underneath the burner, attached by
two screws securing the
thermodisc to the bottom of the burner.
(See page 18 for drawing assembly of SIT Wiring
Diagram).
NOTE: MAKE SURE THE WIRE HARNESS IS ROUT-
ED AGAINST THE SURROUND,
NOT THE SIDE OF THE FIREPLACE.
VFI25LP (PROPANE)
(0- 4500ft) Output BTU/HR
Input BTU/HR Fan “OFF” Fan “ON Hi”
Max 25,000 18,000 18,500
Min 17,000 12,240 12,580
Air Shutter .375 Orifice # 52
MINIMUM FIREPLACE OPENING
WIDTH 24” (61 cm)
HEIGHT 17 1/2” (44.5 cm)
DEPTH 16” (40.7 cm)
VFI25N (NATURAL GAS)
(0- 4500ft) Output BTU/HR
Input BTU/HR Fan “OFF” Fan “ON HI”
Max 25,000 18,000 18,500
Min 17,000 12,240 12,580
Air Shutter .093 Orifice #40

8
Thermostat Connection and On/Off Switch Millivolt
Thermostat ( optional but recommended). All controls
are connected directly to the gas valve and the circuit is
made between:
• SIT Valve TH and TP- TH,
See Section 19
6. GAS PIPING
All gas piping must be done in accordance with all
applicable codes CAN./CGA-BI49.1 or installation codes
or ANSI -Z223.1 as well as local codes.
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2
psig (3.5 kPa).
The gas line to the fireplace insert should be of
adequate size to minimize the pressure drop and should
never be smaller than that supplied with the valve. A
ground joint union should be used as close to the valve
as possible to facilitate removal of the gas valve and
burner base pan.
Check that the gas piping is not supported by the gas
valve. A manual shut-off valve should be installed in the
gas line, inside the fireplace. All piping joints must be
tight and an approved non-hardening sealing compound
shall be used ( one which is suitable for future service).
For the state of Massachusetts a T-handle gas shut-off
valve must be used on a gas appliance. This T-handle
gas shut-off valve must be listed and approved by the
state of Massachusetts. This is in reference to the state
of Massachusetts state code CMR238.
7. VENTING
Before any vent liner is run through a masonry chimney
or other approved venting system the chimney must be
inspected. cleaned and repaired if necessary . A
chimney which was used for a solid fuel fireplace must
be professionally cleaned in order to reduce corrosion of
the vent and other possible safety hazards.
CAUTION: Never use a flame to check for
leaks - use an approved leak test solution.
VENT LENGTH (4” Diameter Vent)
Vertical (rise) Horizontal (run)
Min l0 ft - 3.1m 0 ft - 0.0 m
Max 50 ft - 16.2 m 2 ft - 0.6 m
This fireplace insert is approved for use with a
4” inch diameter.
All venting lining products must be approved and
installed according to the vent manufactures installation
instructions. All vent liners must terminate in a rain cap
to prevent debris and rain from entering the vent and
possibly damaging the appliance or creating an unsafe
condition. The area between the existing chimney and
liner must be capped off for the same reasons as above
and to reduce the chances of venting problems and
corrosion of the vent.
It is strongly recommended that the area between the
damper and the liner be blocked to prevent the
possibility of flue products entering the area between
the chimney and the vent liner.
If this fireplace insert is to be used to replace an existing
fireplace insert the existing vent liner must be of the
proper size and if so it must be inspected for
obstructions, damage and/or corrosion. Replacement
must be done as necessary .
This heater must be properly connected to a
venting system. This heater is equipped with
a vent safety spill switch shutoff system.
WARNING
Operation of this heater when not connected to a
properly installed and maintained venting
system or tampering with the vent safety spill switch
shutoff system can result in carbon monoxide (CO)
poisoning and possible death.
NOTE: Follow vent manufacturerʼs
installation instructions.

9
When installing the venting please take note of the
following:
1. A masonry chimney or other approved
venting system must be clean and inspected
for any damage which might make it unsafe.
Chimney must be constructed of non
combustible material.
2. Any chimney clean-outs must be tight fitting
as to minimize air leaks into the chimney.
3. Any flue damper must be blocked open or
removed to provide a minimum opening of
13 square inches and must not distort the
liner.
4. The liner is to be inserted from the top of the
chimney and through the damper opening.
5. The draft hood is to be removed from the
fireplace insert and attached to the liner using
(4) sheet metal screws and a clamp (See
Figure 1). It may not be necessary to remove
the draft hood if there is sufficient space in
the solid fuel fireplace to attach the liner with
the draft hood in place 19” is required.
6. If the lintel is wider than 12” (305mm) then
the height of the solid fuel fireplace must be
at least 25” (63.5 cm) to allow for an offset
elbow. (See Figure 2). If providing an
offset, do not collapse the flex pipe. This
will restrict the vent and cause a red flame
which will produce soot on glass.
7. If however the draft hood must be removed
then it must first be attached to the liner using
three (3) sheet metal screws and a clamp. The
fireplace insert can then be slid into place and
the draft hood should be located so that the
screw on the locating bracket mates with the
hole on the top centre front of the insert. The
locating bracket should be pulled as far
forward as it will go and be bolted into place
(a flashlight should be used to confirm that
the draft hood is flat on the top of the unit.
Once the draft hood is in place a long screw
driver or piece of rod must be used to rotate
the locking brackets so that the lock over top
the flanges on the side of the draft hood.
(See Figure 3)
(Figure 1)
(Figure 2)
(Figure 3)

10
8. INSTALLATION
NOTE: INSTALLATION AND REPAIR SHOULD BE
PERFORMED BY A QUALIFIED SERVICE PERSON.
THE APPLIANCE SHOULD BE INSPECTED
BEFORE USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON. MORE
FREQUENT CLEANING MA Y BE REQUIRED DUE
TO EXCESSIVE LINT FROM CARPETING, ETC. IT IS
IMPERATIVE THAT THE CONTROL COMPARTMENT,
BURNING AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
Install the fireplace insert in the following order:
1. Make sure that the insert will fit into the fire place.
Most Zero Clearance wood fireplaces will need to
be modified. The refractory can be removed if
necessary and the front of the appliance can be
altered to allow the insert to fit into the cavity. Holes
will have to be made in the firebox for the entry of
gas and electrical but the chamber must not be
altered beyond this.
2. Clean and inspect chimney.
3. Plan layout of gas line.
4. Plan layout of electrical.
5. Install the chimney liner as instructed in SECTION 9.
6. Clean out and vacuum the solid fuel fireplace. Make
sure that the fireplace is completely cool and
has not been used for a few days.
7. Make sure that the solid fuel fireplace base is level
and if not make any necessary adjustments.
8. Slide unit into place attaching draft hood and or
chimney liner as required.
9. Hook up gas line.
10. Hook up electrical.
11. Remove glass by removing two screws behind
upper grill and lifting door off bottom door retainer
(glass is very fragile).
12. Log Installation:
- Remove logs from carton (4) and inspect.
- Install as per Log Placement set up.
- Purge lines and test pilot operation.
13. Ember Kit Instructions:
Spread supplied rock evenly on the bottom of
the fireplace around the log set (DO NOT
PLACE ROCK ON BURNERS), next tear ember
wool into small thin pieces and place evenly
over front burner .
14. Re-install the glass door.
15. Check for correct operation
(See SECTION 10)
16. Install Surround and Grills as per instructions.
17. Gas fired appliances may be used only for
supplemental heat and/or decorative purposes
and under no circumstances shall they provide
a primary heat source..
NOTE: DO NOT BLOCK THE SIDES OR
TOP OF THE APPLIANCE AS THIS WILL AFFECT
THE PROPER AND SAFE
OPERATION OF THE UNIT.

11
C5 or F5 Parts Burner
Step 1: Break ember wool into thumbnail
size pieces. Place glowing embers evenly on
to the front burner tube as shown.
Step 2: Place Log #1 on burner as shown
and pull forward to the grate bars. Place log
#2 on rear log holder and center it.
Step 3: Place Log #3 onto the notched areas
as shown. Place Log #4 onto the notched
areas as shown. (Refer to step 2 for notched
area locations).
Step 4: Place lava rock around the sides and
the front of the burner as shown. Sprinkle ver-
miculite over top of the lava rock as shown.
(Do not place lava rock or vermiculite on the
burner tube areas).
LOGC5 OR LOGF5 PLACEMENT GUIDE

12
Log C6 Parts List Burner
Step 1: Place Log #1 on rear log holder, cen-
ter it, and push back. Place Log #2 against
the left burner mount and back against the
ember plate log stop as shown. (Log must not
impinge on main flame pattern).
Step 3: Place Log #5 on the notched loca-
tions of Log #4. (Refer to step 2 for Log #5
notch locations). Fill the exposed areas of the
ember plates and front burner tube with
ember rocks. (Do not place ember rocks on
rear burner tube).
Step 4: Place lava rock around the sides and
front of the burner. Sprinkle the vermiculite
over top of the lava rock. (Do not place lava
rock and vermiculite on burner or ember
plates).
Step 2: Place Log #3 onto the left notch of
Log #1 and against the left grate bar as
shown. Place Log #4 onto the right notch of
Log #1 and against the right grate bar as
shown.
LOGC6 PLACEMENT GUIDELINES

Burner System Maintenance
It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This
operation should be performed by your dealer or a qualified technician.
-CAUTION-
Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all
electrical connections to the appliance. Allow the appliance to cool to room temperature. Note
that the pilot assembly may be hot in an intermittent or standing-pilot system—even if the main
burner was never on. Exercise caution when working within the area.
-ALL WORK SHOULD BE PERFORMED BY A QUALIFIED AND CERTIFIED TECHNICIAN-
Monthly Flame Inspection
It is recommended to turn on the unit at least once a month and inspect the flame pattern to ensure there are no problems
with the burner tube. The pilot flame should also be inspected monthly to ensure proper operation.
Flame should appear similar to the above picture.
VFI25 Conversion Kit Instructions – PART A
Kit Number Description Pilot Orifice Burner Orifice
Brass (1000-255) Brass Nipple Air Shutter Hi/Lo Regulator
25VFI-CKLP
LP Conversion -Millivolt- 1001-P167SI
#30 (977.167) #52
1000-253closed .375” 1001-P202SI (0.907.202)
25VFI -CKNG
NG Conversion -Millivolt- 1001-P165SI
#51 (977.165) #40
1000-253closed 1000-253closed .093” 1001-P201SI (0.907.201)
Refer to “Gas Specifications Chart” for inlet pressures and input ratings. Clock meter to verify input rate. Place conversion label
as close to converted gas control as possible. Refer to lighting instructions to verify the normal operating sequence of the ignition
system.
13

VFI25/VFI30 Conversion Kit Instructions – PART A
1. Lift ember plates out of burner area. Remove screws from burner hold downs. Slide main burner to the left, and lift out
of fireplace insert.
2. Adjust the Air Shutter to the correct Primary Air setting as specified in the manual or on the label plate. To adjust the
Primary Air setting, loosen screw on the side of the Air Shutter and rotate to the correct opening using a drill bit or
tape measure. Retighten screw.
3. Remove the Main Orifice using a ½” wrench and replace with the new Conversion Orifice which came with the
Conversion Kit.
4. Replace the Burner Tube. Install the new Pilot Orifice (See Pilot Conversion) and Hi/Lo valve regulator by following
instructions supplied with the Conversion Kit.
IMPORTANT: Always check for gas leaks with a soap and water solution. DO NOT USE OPEN FLAME FOR LEAK TESTING.
WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the
manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction.
If the information in these instructions is not followed exactly, a fire, explosion or production of carbon
monoxide may result causing property damage, personal injury or loss of life. The qualified service
agency is responsible for the proper installation of this kit. The installation is not proper and complete
until the operation of the converted appliance is checked as specified in the manufacturer's instructions
supplied with the kit.
Caution: The gas supply shall be shut off prior to disconnecting the electrical power, before proceeding
with the conversion.
14

Gas Conversion for Top Convertible Pilot (Series 019065X) – PART B
Instructions for converting SIT 190 series pilot burner injection from NG to LPG and from NG to LPG only. This
information should be considered as supplemental to the Appliance Manufacturer’s Instructions.
WARNING: The installation of this conversion kit must only be undertaken by a qualified and certified gas
appliance installer.
1. Shut off the gas supply to the appliance.
2. Allow the pilot burner to cool to room temperature.
WARNING: Touching a hot pilot burner can
result in injury.
3. The pilot hood is held in place by spring pressure.
Remove the hood by pulling it directly up from the
pilot bracket (a).
4. Insert a 5/32” or 4mm Allen wrench into the
hexagonal key-way of the injector (b), and rotate it
4counter-clockwise until it is free of the injector
journal (c).
5. Verify that the new injector is proper for the
application. The injector size is stamped on the
side of the injector near the top. LPG injectors have
a groove machined around their circumference
near the top, while NG injectors do not have a
groove (e). Refer to the Appliance Manufacturers
instruction sheet for the proper injector size.
6. Insert the Allen wrench into the end of the injector.
Then, insert into injector journal, and rotate the
injector clockwise until a torque of 9 in-lbs is
achieved.
7. Replace the pilot hood by aligning the tab on the
base of the hood with the slot in the side of the pilot
journal, and push the hood down, directly onto the
pilot bracket (d). The hood must sit squarely on the
bracket for proper operation. Check to insure that
the hood is properly seated onto the pilot bracket.
(a) (b)
(c) (d)
(e)
WARNING: This conversion kit must only be applied as part of a conversion kit supplied by the appliance
Manufacturer for the specific appliance, and type of gas being converted.
INSTALLER NOTICE: These instructions must be left with appliance.
15

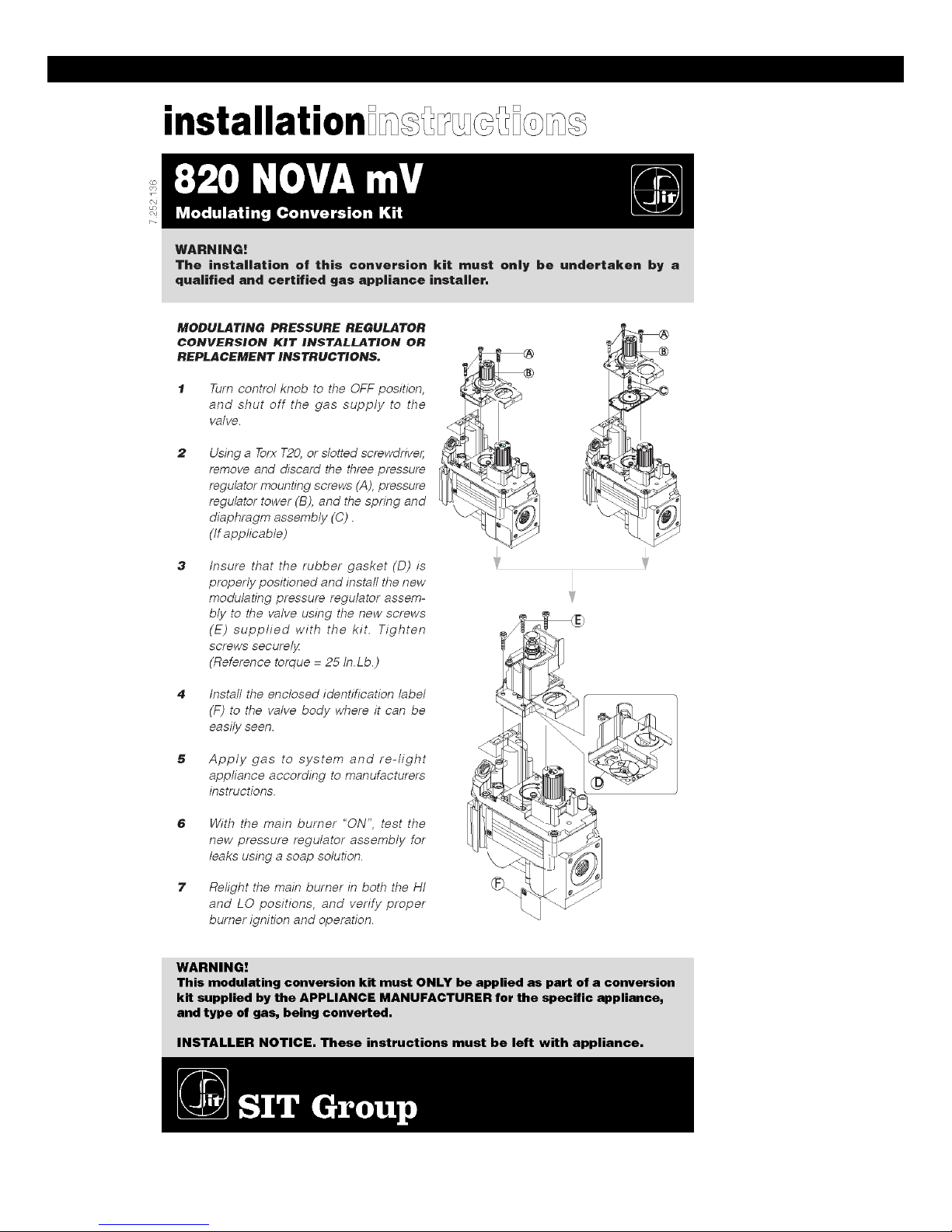

Gas Conversion for Modulator – PART C
16

17
Field Conversion for ZDV6000 - VFI25 - VFI30
C6GEK: ZDV6000 Conversion C30GEK: VFI25 & VFI30 Conversion
2 - Ember Plates 2 - Ember Plates
1 - Ember Plate Bridge 1 - Ember Plate Bridge
1 - Grate Assembly with 5/8” Bars 1 - Grate Assembly with 1/2” Bars
4 - 1/2” x 8-18 DT Screws 2 - 1/2” x 8-18 DT Screws
Tools Required: Drill, 1/8” Drill Bit, 1/4” Nut Driver Bit
Step 1: Remove existing grate bar by bending bar slightly forward and drill out rivets.
Step 2: Seal rivet holes with two supplied screws. (ZDV6000 ONLY)
Step 3: Center legs of Grate Bar on either side of burner support and fasten with supplied self drilling Screws. (Ref: 1)
Step 4: Place Ember Plates between burner tubes right and left of Burner.
NOTE: Raised flange of Ember Plates must be to back of Burner.
Step 5: Slide Ember Plate Bridge between Ember Plates. (Ref: 2)
Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.

18
9. COMBUSTION AIR
Indoor combustion air must conform to the requirements
of the applicable code: Canada Installation Code
CAN/CGA-B149.1 or (USA.) National Fuel Gas Code
ANSI-Z223.1
In homes of normal construction, sufficient combustion air
can usually be obtained by air infiltration. The fireplace
insert must be installed in area that is free of excessive
dust and dirt and where ventilation is sufficient to provide
proper combustion of gas, proper venting and the
maintenance of safe operating temperatures. When
infiltration does not provide adequate air for combustion,
outside air shall be introduced as specified in the
installation codes.
The draft hood must be installed so as to be in the same
atmospheric pressure zone as the combustion air inlet to
the appliance.

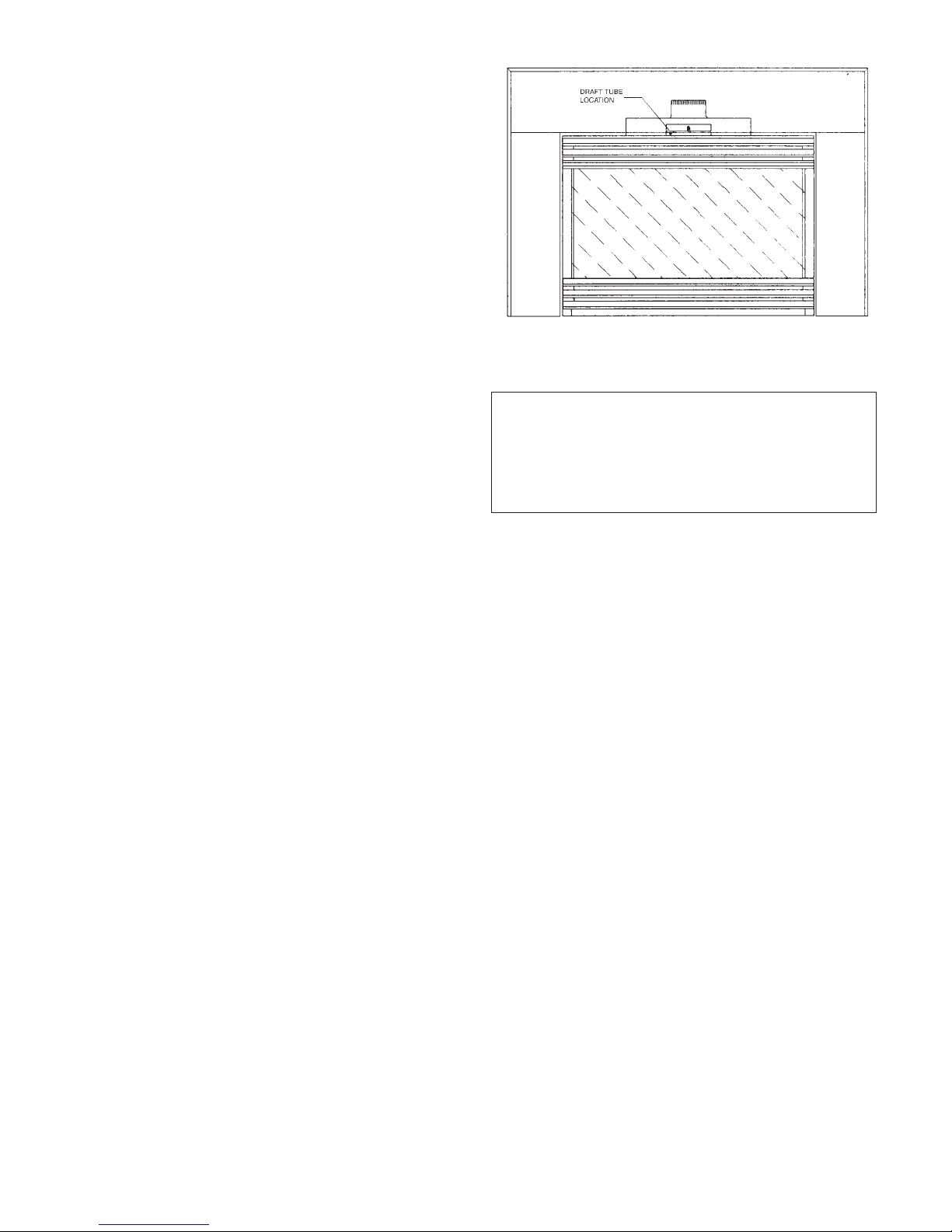

To check if there is adequate air for combustion perform
the following procedure: (See Figure 5)
I. Close all windows and doors.
2. Turn all exhaust fans on high.
3. Turn on fireplace insert.
4. To check for proper draft action a draft meter
with a minimum graduation of 0. 01 inches of
water column is required. The meter is to be
attached to the 1/4 inch aluminum tube
originating in the draft hood using high
temperature silicone (tubing should not be
allowed to contact glass and unit should be
allowed to run for a minimum of 10 minutes;
area of sensing tube will become quite hot).
A minimum draft pressure of. 02 inches of
water column is required to ensure that there
is no spillage at the draft diverter. This
number was arrived at through testing under
various severe conditions, actual vent
pressures under normal conditions will be
much higher. A draft pressure under. 02 will
indicate either a blocked vent, down draft,
adverse house de-pressurization or improper
venting.
•If there is not the proper draft then provide outside air
as instructed by the applicable code.
(Figure 5)
NOTE: DO NOT OBSTRUCT FLOW TO THE FRONT OF
THE FIREPLACE AS THIS COULD AFFECT
COMBUSTION AND BE A FIRE HAZARD. FAILURE TO
DO SO COULD RESULT IN PROPERTY DAMAGE,
INJURY AND/OR LOSS OF LIFE.
10. UNIT OPERATION & CHECK-OUT
Before trying to light the unit for the first time it is advisable
to purge the gas. Once the gas line is purged it is best to
wait a few minutes with a few open windows before trying
to light the fireplace. For detailed lighting instructions see
page 23.
Start-up Instructions:
1. Turn wall switch ( or thermostat) to the off
position.
2. Turn gas valve to “PILOT” and depress.
3. Press the red spark button repeatedly until a
steady pilot flame is present.
4. Keep the “PILOT” position on the gas valve
depressed for approximately 45 seconds.
5. Turn gas valve to the on position.

19
Sequence of operation:
1. Turn On/Off switch ( or thermostat) to the
on (call for heat) position.
2 Main burner lights.
3. If blower variable speed switch is in the
“On” position then the blower will turn on
automatically once the unit is hot enough.
4. Once the On/Off switch is turned off ( or
thermostat is satisfied) then the flame will
extinguish.
5. Blower will keep on running until the fire
place has cooled down.
Shut Down Instructions:
1. Turn On/Off switch ( or thermostat) to the
off position.
2. Depress gas valve and turn to “OFF”
position.
11. CHECK-OUT
Once installed, the unit should be operated at least
three (3) times to ensure that all is in working order.
NOTE: MANUFACTURING OILS AND PAINT WILL
SMOKE DURING INITIAL FIRING OF APPLIANCE.
OPEN WINDOWS FOR VENTILATION.
12. UNIT ADJUSTMENT
BEFORE LEAVING, THE INSTALLER SHOULD
MAKE THE FOLLOWING CHECKS:
(a) BTU/INPUT / GAS PRESSURE
The fireplace input is marked on the Rating Plate. The
gas valve comes factory pre-set to the proper rated
pressure and adjustment should not be necessary . If
there is any question of input then it may be necessary
to check manifold pressure.
Manifold pressure on the S.I.T. Nova valve can be
measured by loosening the slotted pressure taps on
the front bottom left of the valve. (‘E’ Inlet Pressure, and
‘A’ Manifold Pressure) and connecting a manometer.
(b) MAIN BURNER / PILOT
The pilot flame size is factory set. The pilot flame
should be at least 1.5 inches ( 4 cm) long. The flame
should be impinging on the pilot generator . Pilot size
can be adjusted through the pilot adjust screw. If the
pilot flame is too small and can not be adjusted through
the pilot adjust screw then there is the possibility of dirt
in the pilot orifice in which case the pilot orifice should
be cleaned or replaced.
Pressure ranges are as listed below:
Gas Supply Pressure (inches w.c.)
Min Normal Max
Natural Gas 4.5 7.0 9.0
L.P. (propane) 10.8 11.0 12.0
Manifold Pressure (inches w .c. )
Normal(HI) (LOW)
Natural Gas 3.5 1.6
L.P. (Propane) 10.0 6.3
The unit as shipped is equipped for operation for 0 to
4500 ft.
The main burner should be allowed to operate for 15 to
20 minutes before making any adjustment to the unit.
The air shutter should never be closed all the way. For
Natural Gas and Liquid Propane it is recommended
that the air shutter be set to Factory Specifications.
(See Page 4) .
If there is too much primary air then the flame will be
very blue with yellow tips and smaller flame height.
If there is too little primary air then the flame will be
yellow with orange/red tips on the back flames with dark
sooty elongated tips. In this condition the glass and logs
could show signs of soot accumulation within 10 to 20
minutes.
NOTE: With a properly burning flame there
will still be a certain level of sooting. It may be
necessary to clean the glass up to 3 times
during a cold season. The amount of cleaning
required depends on the amount that the fire
place is used.

13. MAINTENANCE
CAUTION: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper and dangerous
operation. Verify proper operation after
servicing.
(a) Blower
This motor has been factory oiled and under normal
operating conditions should not require oiling.
Replacement of Blower
Remove glass (two screws behind upper grill), and
remove logs. Blower access panel is visible after rear
log is removed. Remove the screws (five on top, one on
each side) and lift from tabs, blower is then assessable
for servicing. Before re-installing blower access panel,
apply a bead of sealant Millpac to the bottom edge of
panel, (this is to assure blower does not interfere with
combustion). and than secure with screws.
(b) Burner/Pilot
The burner should be periodically cleaned by removing
any ember material and wiping off and vacuuming the
burner pan. At this time it is also recommended to
check the burner for any signs of corrosion which might
impair its operation and replace it if necessary.
The pilot should also be checked for signs of proper
operation and flame.
If replacement of pilot, generator,
thermocouple is necessary replace from top and
bottom of firebox bottom.
(Reference lower diagram Page 20)
(d) Firebox and Heat Exchanger
To clean the firebox and heat exchanger use a vacuum.
For the firebox it is recommended to use a soft brush
on the end of the vacuum as not to damage any
painted surfaces. The heat exchanger may be more
difficult to clean but can still be cleaned with the
combination of a small brush and the vacuum.
(e) Glass Cleaning
It will be necessary to clean the glass periodically.
During start-up condensation will form, and cause dust
and lint to cling to the surface of the glass.
Furthermore, the initial burn cures the paint but also
leads to the deposit of a filmy residue. It is therfore rec-
ommended that the glass be cleaned two or three
times, initially, with non-abrasive common household
glass cleansers and warm water. After that, the glass
can be cleaned two or three times a season depending
on use.
Warning: INSURE THAT POWER IS
TURNED OFF TO THE FIREPLACE
BEFORE SERVICING.
WARNING Electrical Grounding Instructions
This appliance is equipped with a three prong
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this.
(c) Logs
CAUTION: The logs can stay hot for several
hours after the fireplace is shut off. Serious
burns could result. It is recommended that the
fireplace be turned off for several hours before
cleaning is attempted.
DO NOT wash the logs if they have any accumulation
of soot on them. Washing the logs in any sort of
solution will just cause the soot to become imbedded in
the logs surface.
The best way to clean the logs is to blow off the soot
using compressed air at high velocity. It is also effective
to use a clean soft brush in the area of soot
accumulation. Vacuuming the log with a soft brush will
also work but do not forget to carefully wash the brush
before using it on anything else. If at all possible clean
the logs outside the home away from areas you do not
wish the soot to mark.
Glass Replacement
REPLACEMENT GLASS
Only Robax ceramic or coated NeoCeram glass may be
used for replacement. The glass must be a minimum of
5mm thick.
Removal of the Glass Door
1. Remove the door by unscrewing the four (4) screws.
2. Once the top of the door is unlatched, pull it out-
wards and up to unlatch the bottom.
3. To re-install, place the door into the fireplace front
and insert four (4) screws and tighten to seal it
against the firebox cavity.
4. To replace the class, clean all gasket materials from
the door frame. Using a high heat silicone (resistant
to 500º [260ºC]) apply a bead of approximately
20
