Kingsman GLMVF40MVN Quick start guide

1
Owner’s Operation and Installation Manual
MVF40 certified as a Universal Firebox ANSI Z21.91-2007
Listed Certified for USA
UNVENTED (VENT-FREE) MULTI-SIDED FIREBOX
Enclosure For Gas-Fired Decorative Type Unvented Room Heaters
Vent Free: GLMVF40MVN, GLMVF40MVP
MVFBL4040MVN, MVFBL4040MVP, MVFBR4040MVN, MVFBR4040MVP
Vent-free: Certified to USA standards: ANSI Z21.11.2 - 2007
Warning
If the information in this manual is not followed
exactly, a fire or explosion my result causing property
damage, personal injury, or loss of life.
– Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
Warning
Improper installation, adjustment,
alteration, service, or maintenance
can cause injury or property
damage. Refer to this manual for
correct installation and operational
procedures. For assistance or
additional information consult a
qualified installer, service agency, or
the gas supplier.
Warning
This is an unvented gas-fired heater.
It uses air (oxygen) from the room in
which it is installed. Provisions for
adequate combustion and ventilation
air must be provided. Refer to section
Save this manual for future reference • 2340 Logan Ave., Winnipeg, MB, Canada, Phone: [phone] •Printed in Canada • PART #40VF-MAN
July 27, 2009
Warning
Carefully review the instructions
supplied with the decorative type
unvented log set room heater for the
minimum size requirement.
DO NOT INSTALL THE APPLIANCE
IN THIS FIREBOX UNLESS THIS
FIREBOX MEETS THE MINIMUM
DIMENSIONS REQUIRED FOR THE
INSTALLATION
Warning
FOR USE ONLY WITH
A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER
NOT TO EXCEED
40,000 BTU/H.
DO NOT BUILD A WOOD FIRE
This appliance must be
installed by a licensed
plumber or gas fitter in
the Commonwealth of
Massachusetts and meet
the requirements of 527
CMR 30 and 248 CMR.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

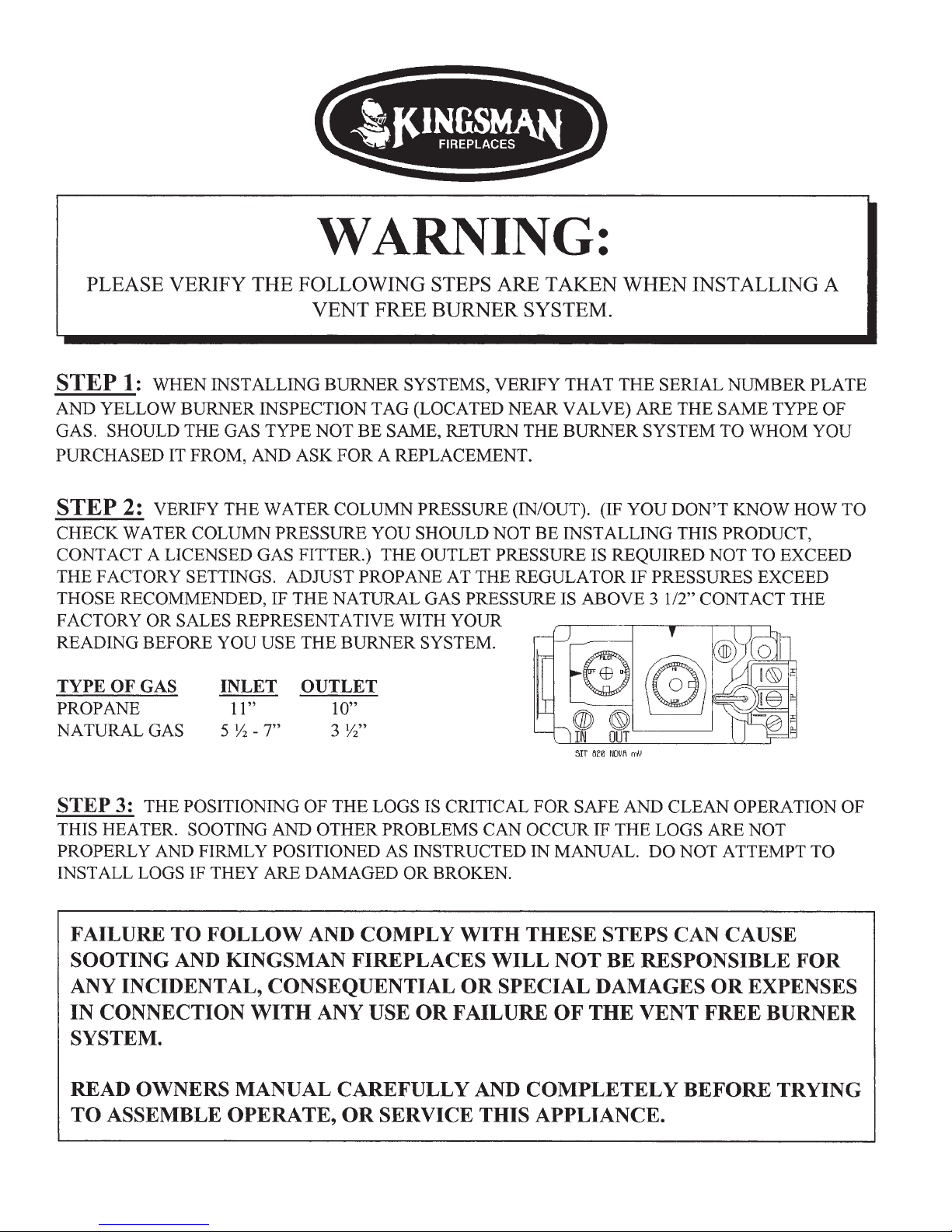

2

3
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives,
silicones and any undetected oil from the manufacturing process as well as the finishing materials used
with the installations (e.g. marble, tile and the adhesives used to adhere this product to the walls can react
with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with
the fan off after the curing of the paint has been completed. These odours can last upward to 40 hours of
burn time, keep burning at a minimum of four hours per use until odours dissipate.
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries
quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone
components, the paint will cure when heat is applied to the appliance as it is first used.
The following information applies to the curing process to get the paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between
each. Be aware during log and firebox paint curing that a white deposit may be developing on the inside
of the glass doors. It is important to remove this white deposit from the glass doors with an appropriate
cleaner to prevent build-up (such as Windex or a commercial fireplace glass cleaner).
• Babies, small children, pregnant women and pets should leave the area during the cure phase.
• Ventilate well, open doors and windows.
• Do not touch during curing.
Noise coming from the fireplace?
• Noise caused by metal expanding and contracting as it heats up and cools down, similar to the sound
produced by a furnace or heating duct. This noise does not affect the operation or longevity of your
fireplace.
• Different types and thicknesses of steel will expand and contract at different rates resulting in
“cracking” and “ticking” sounds throughout the heating and cooling periods.
• You should also be aware that as temperatures change within the unit these sounds will likely re-
occur. Again this is normal for steel fireboxes, and is not a defect.
Cleaning the Glass
During the first few fires, a white film may develop on the glass front, as part of the curing process. The
glass should be cleaned after the unit has cooled down or the film can bake on and become very difficult
to remove. Use a non-abrasive cleaner and do not attempt to clean the glass while it is hot.
PRE-INSTALLATION QUESTIONS and ANSWERS

4
TABLE OF CONTENTS
SECTION PAGE
Burner System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Local Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
For Your Safety Read Before Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Framing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Framing Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing by Framing Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Peninsula Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
See-Through Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Bay Peninsula Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Corner Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Universal Firebox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Air for Combustion and Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Providing Adequate Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Determining Air Flow for Firebox Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Ventilation Air from Inside Building . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Ventilation Air from Outdoors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Installing Gas Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Installing MVFB 4040 Burner System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Cleaning and Servicing of Burner /ODS Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installing MVFB4040 Burner System & LOGF38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
LOGF38 Log Placement for MVFB4040 Burner System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-29
Installing GLMVF40 Burner System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
LOGC31 Log Placement for GLMVF40 Burner Grate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-32
Millivolt System, Lighting Instructions & Burner Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

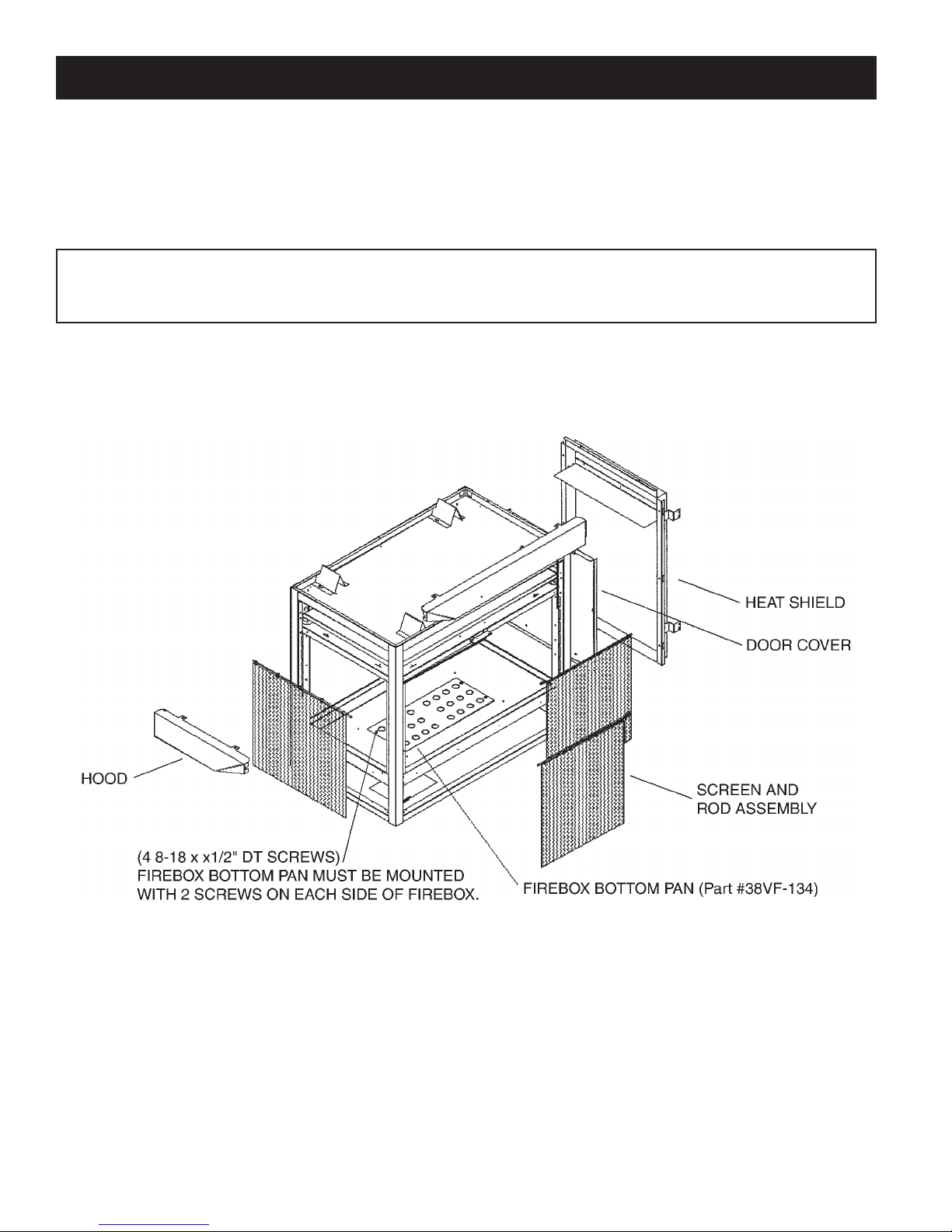

Installing Fan Kit, Screen Door, Shield + Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35
Illustrated Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-38
Accessory and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39-40
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41-42
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

5
BURNER SYSTEM OPTIONS
See chart below for required burner system:
TABLE 1 - The MVF40 is also approved as a Universal Vent Free Box. See page 20 for more information.
MVF40 Vent Free Firebox Required burner system: (Select from below to complete the fireplace)
OPTION 2
MVFBL/R 40 Burner Systems - control are hidden and accessed through bottom grill.
LOGF38 Log Set Fibre Five Piece - Required for MVFBL/R 4040 Burner Systems
Burner Model Valve Type Fuel Type BTU – Input Min/Max Inlet Manifold Pressure Orifice Size Primary Air
Left Hand Burner
MVFBL4040MVN Millivolt Natural Gas 26,000-38,000 5.5/10” 1.6-3.5” 32 0.25
MVFBL4040MVP Millivolt Liquid Propane 26,000-34,000 11/13” 6.3-10” 50 Full Open
Right Hand Burner
MVFBR4040MVN Millivolt Natural Gas 26,000-38,000 5.5/10” 1.6-3.5” 32 0.25
MVFBR4040MVP Millivolt Liquid Propane 26,000-34,000 11/13” 6.3-10” 50 Full Open
OPTION 1
GLMVF40 Log Grate Burner System - controls are accessed from firebox on raised grate. Pull screen are recommended.
LOGC31 Log Set 7 Piece required for GLMVF40 Burner Systems.
Burner Model Valve Type Fuel Type BTU – Input Min/Max Inlet Manifold Pressure Orifice Size Primary Air
GLMVF40MVN Millivolt Natural Gas 29,900-38,225 5.5/10” 1.6-3.5” 32 1/8” Open
GLMVF40MVP Millivolt Liquid Propane 24,200-30,500 11/13” 6.3-10” 49 1/2” Open
This appliance is equipped for (Natural or Propane) Gas.
Field conversion is not permitted.

SAFETY INFORMATION WARNINGS
6
WARNINGS
Important: Read this owner’s manual carefully and completely
before trying to assemble, operate, or service this firebox.
Improper use of this firebox can cause serious injury or death
from burns, fire, explosion, electrical shock, and carbon monoxide
poisoning.
Early signs of carbon monoxide poisoning resemble the
flu, with headaches, dizziness, and / or nausea. If you have these
signs, the heater may not be working properly. Get fresh air at
once! Turn off gas appliance. Have appliance serviced. Some
people (such as pregnant women, persons with heart or lung
disease, persons with anemia and those at high altitudes) are more
affected by carbon monoxide than others. Make certain you read
and understand all warnings.
1. Use correct gas type for your appliance. Do not convert from
one gas type to another.
2. If this appliance is for use with Propane gas, do not place
propane supply tank(s) inside any structure. Locate propane
supply tank(s) outdoors.
3. If you smell gas:
– Shut off gas supply.
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in
your building.
– Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
– If you cannot reach your gas supplier, call the fire
department.
4. Do not use this appliance for burning trash or cooking. Never
place matches, paper, garbage, or any other material on top
of logs or logs into flame.
5. Warning: Always operate appliance with front fireplace
screens closed.
6. Make sure any safety screen or guard removed for servicing
is in place before running appliance.
7. Never run appliance in a small, closed room. Open the door
into next room to help ventilate.
8. If appliance shuts off, do not relight until you provide fresh
outside air. If appliance keeps shutting off, have it serviced.
9. Do not run appliance:
– where flammable liquids or vapors are used or stored.
– under dusty conditions.
10. Surface of appliance becomes very hot when operating. Keep
children and adults away from hot surface. Appliance will
remain hot for some time after shutdown. Allow surface to
cool before touching.
11. Do not use this appliance if any part has been submerged
under water. Immediately call a qualified technician to
inspect the appliance and to replace any part of the control
system and gas control which has been under water.
12. The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1.
13. Never install the appliance:
– in a bedroom, bathroom, mobile home, or recreational
vehicle.
– where curtains, furniture, clothing, or other flammable
objects are less than forty-two inches (42”) from the front
of the appliance.
– in high traffic areas.
– in windy or drafty areas.
14. Disconnect the appliance and its individual shut off valve
from the gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig,
(3.5kPa).
15. Isolate the appliance from the gas supply piping system by
closing its individual manual shut off valve during any
pressure testing of the the gas supply piping system at test
pressure equal or less than 1/2 psig,(3.5kPa).
16. Do not use any type of after-market blower that fits inside the
fireplace. Drafts created by these type of blowers may cause
sooting.
17. Turn off appliance and let cool before servicing. Only a
qualified service person should install, service and repair
appliance
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
NOTE: It is recommended that a Carbon Monoxide (CO)
Detector be installed in or near bedrooms and on all levels of
your home. Place a detector about 15 feet (4.5 meters) outside
the room that houses your gas appliance.
This appliance is equipped for
(Natural or Propane) Gas.
Field conversion is not permitted.
Warning: Failure to position parts in accordance
with these diagrams or failure to use only part
specifically approved with this heater may result in
property damages or personal injury.

7
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
18. Inspect the appliance before use and at least annually by a professional service person. Frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is important that control compartment, burner and circulating air passage of
the appliance be kept open.
19. When operated for the first time, there will be some smell from the appliance. This will diminish and disappear after a few hours of
operation.
20. Warning: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter flame patterns.
21. Warning: Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.
22. The firebox canopy must not be replaced with a canopy which may be provided with the decorative type UNVENTED room heater.
23. Warning: Do not operate ceiling fans in same room as the vent free appliance.
24. Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
25. Children and adults should be alerted to the hazard of high surface temperature and should stay away to avoid burns or clothing
ignition.
26. Young children should be carefully supervised when they are in the same room with the appliance.
27. Do not place clothing or other flammable material on or near the appliance.
28. Any safety screen or guard removed for servicing an appliance must be replaced prior to operating the heater (see 1.2.3).
29. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least
annually by a professional service person. More frequent cleaning may be required due to excessive lint form carpeting, bedding
material, etc. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.
30. “Warning: Any change to this heater or its controls can be dangerous.”
31. Must be installed by a licensed gasfitter in the Commonwealth of Massachusetts. Complies to code 527 CMR
32. Unvented gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no
circumstances shall they provide a primary heat source.
33. Warning: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.
LOCAL CODES
Install and use fireplace with care. Follow all local codes.
In the absence of local codes, use the latest edition of
The National Fuel Gas Code ANSI Z223.1, also known as
NFPA 54*. Firebox must be electrically grounded in
accordance with the National Electrical Code,
ANSI/NFPA 70 (latest edition).
*Available from:
American National Standards Institute, Inc. National Fire Protection Association, Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02260
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.
B. Before lighting, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand,
don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.

8
FRAMING SPECIFICATIONS
See Page 9 for required parts for installation.
FIGURE 1
Framing Clearances to Fireplace:
Bottom – 0 / Sides – 0 to standoffs / Top – 0 to standoffs / Adjacent side wall – 2” / Front of fireplace to ceiling – 41”.
Right Corner Top View
Without 2 x 4 Framing
Left Corner Top View
using 2 x 4 Framing
See Thru top View
Without 2 x 4 Framing
See Thru Top View using
2 x 4 Framing
Island Top View
PLACEMENT AND FRAMING
Note: When not using nailing tabs
you may place Heatshield directly
against existing wall and screw
unit to the floor using holes located
in the bottom of unit
Bay Peninsula
without
2 x 4 Framing
Bay Peninsula
Using 2 x 4
Framing
Right Corner Top View
Using 2 x 4 Framing
Peninsula Top View
Using 2 x 4 Framing
Peninsula Top View
Without 2 x 4 Framing
Left Corner Top View
Without 2 x 4 Framing
4

9
FRAMING PARTS
REQUIRED PARTS FOR INSTALLATIONS OF MULTI-SIDED FIREPLACE
MVF40 Multi-Sided Vent Free Firebox
Choose Your installation (as shown on Page 8, and see below for required parts.)
1. RIGHT CORNER INSTALLATION
MVF40CK Corner Kit - One Large Side Open, One Small Side Open
Choose Natural Gas or Liquid Propane Burner:
Choose Grill Kits or Panel Kits:
MGCKBP Grill Kit Corner - Classic Polish Brass (Two Sets)
MGCKBA Grill Kit Corner - Classic Antique Brass (Two Sets)
MGCKBC Grill Kit Corner - Classic Chrome (Two Sets)
MGCKBL Grill Kit Corner - Black (Two Sets)
MGCKPB Grill Kit Corner - Polish Brass (Two Sets)
MGCKAB Grill Kit Corner - Antique Brass (Two Sets)
MGCKCR Grill Kit Corner - Chrome (Two Sets)
MVF40PCK Panel Kit for Corner Kit - Black (Two Sets)
2. LEFT CORNER INSTALLATION
MVF40CK Corner Kit - One Large Side Open, One Small Side Open
Choose Natural Gas or Liquid Propane Burner:
Choose Grill Kits or Panel Kits:
MGCKBP Grill Kit Corner - Classic Polish Brass (Two Sets)
MGCKBA Grill Kit Corner - Classic Antique Brass (Two Sets)
MGCKBC Grill Kit Corner - Classic Chrome (Two Sets)
MGCKBL Grill Kit Corner - Black (Two Sets)
MGCKPB Grill Kit Corner - Polish Brass (Two Sets)
MGCKAB Grill Kit Corner - Antique Brass (Two Sets)
MGCKCR Grill Kit Corner - Chrome (Two Sets)
MVF40PCK Panel Kit for Corner Kit - Black (Two Sets)
BURNER SYSTEM & LOG SET (REQUIRED FOR MVF40 FIREBOX)
OPTION 1
GLMVF40MVN Vent Free Multiview Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
GLMVF40MVP Vent Free Multiview Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGC31 Log Set LOGC31 required for GLMVF40 Burner System
OPTION 2
MVFBL4040MVN Vent Free Left Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
MVFBL4040MVP Vent Free Left Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGF38 Log Set required for MVFB40 R/L Burner System
This appliance is equipped for (Natural or Propane) Gas.
Field conversion is not permitted.
BURNER SYSTEM & LOG SET (REQUIRED FOR MVF40 FIREBOX)
OPTION 1
GLMVF40MVN Vent Free Multiview Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
GLMVF40MVP Vent Free Multiview Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGC31 Log Set LOGC31 required for GLMVF40 Burner System
OPTION 2
MVFBR4040MVN Vent Free Right Burner System – Millivolt Valve 25,900/38,225 Natural Gas
MVFBR4040MVP Vent Free Right Burner System – Millivolt Valve 24,200/30,500 Liquid Propane
LOGF38 Log Set required for MVFB40 R/L Burner System

10
FRAMING PARTS (continued)
3. BAY PENINSULA INSTALLATION
MVF40BK Bay Peninsula Kit - One Large Side Open, Two Small Sides Open
Choose Natural Gas or Liquid Propane Burner:
Choose Grill Kits or Panel Kits:
MGBKBP Grill Kit Bay Peninsula - Classic Polish Brass (Three Sets)
MGBKBA Grill Kit Bay Peninsula - Classic Antique Brass (Three Sets)
MGBKBC Grill Kit Bay Peninsula - Classic Chrome (Three Sets)
MGBKBL Grill Kit Bay Peninsula - Black (Three Sets)
MGBKPB Grill Kit Bay Peninsula - Polish Brass (Three Sets)
MGBKAB Grill Kit Bay Peninsula - Antique Brass (Three Sets)
MGBKCR Grill Kit Bay Peninsula - Chrome (Three Sets)
MVF40PBK Panel Kit Bay Peninsula Kit - Black (Three Sets)
4. SEE-THROUGH INSTALLATION
MVF40SK See Through Kit - Two Large Sides Open
Choose Natural Gas or Liquid Propane Burner:
Choose Grill Kits or Panel Kits:
MGSKBP Grill Kit See-Through - Classic Polish Brass (Two Sets)
MGSKBA Grill Kit See-Through - Classic Antique Brass (Two Sets)
MGSKBC Grill Kit See-Through - Classic Chrome (Two Sets)
MGSKBL Grill Kit See-Through - Black (Two Sets)
MGSKPB Grill Kit See-Through - Polish Brass (Two Sets)
MGSKAB Grill Kit See-Through - Antique Brass (Two Sets)
MGSKCR Grill Kit See-Through - Chrome (Two Sets)
MVF40PSK Panel Kit See-Through - Black (Two Sets)
BURNER SYSTEM & LOG SET (REQUIRED FOR MVF40 FIREBOX)
OPTION 1
GLMVF40MVN Vent Free Multiview Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
GLMVF40MVP Vent Free Multiview Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGC31 Log Set LOGC31 required for GLMVF40 Burner System
OPTION 2
MVFBR4040MVN Vent Free Right Burner System – Millivolt Valve 25,900/38,225 Natural Gas
MVFBR4040MVP Vent Free Right Burner System – Millivolt Valve 24,200/30,500 Liquid Propane
MVFBL4040MVN Vent Free Left Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
MVFBL4040MVP Vent Free Left Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGF38 Log Set required for MVFB40 R/L Burner System
BURNER SYSTEM & LOG SET (REQUIRED FOR MVF40 FIREBOX)
OPTION 1
GLMVF40MVN Vent Free Multiview Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
GLMVF40MVP Vent Free Multiview Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGC31 Log Set LOGC31 required for GLMVF40 Burner System
OPTION 2
MVFBR4040MVN Vent Free Right Burner System – Millivolt Valve 25,900/38,225 Natural Gas
MVFBR4040MVP Vent Free Right Burner System – Millivolt Valve 24,200/30,500 Liquid Propane
MVFBL4040MVN Vent Free Left Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
MVFBL4040MVP Vent Free Left Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGF38 Log Set required for MVFB40 R/L Burner System

11
5. PENINSULA INSTALLATION
MVF40PK Peninsula Kit - Two Large Sides Open, One Small Side Open
Choose Natural Gas or Liquid Propane Burner:
Choose Grill Kits or Panel Kits:
MGPKBP Grill Kit Peninsula - Classic Polish Brass (Three Sets)
MGPKBA Grill Kit Peninsula - Classic Antique Brass (Three Sets)
MGPKBC Grill Kit Peninsula - Classic Chrome (Three Sets)
MGPKBL Grill Kit Peninsula - Black (Three Sets)
MGPKPB Grill Kit Peninsula - Polish Brass (Three Sets)
MGPKAB Grill Kit Peninsula - Antique Brass (Three Sets)
MGPKCR Grill Kit Peninsula - Chrome (Three Sets)
MVF40PPK Panel Kit Peninsula - Black (Three Sets)
6. ISLAND INSTALLATION
MVF40IK Island Kit - Four Sides Open
Choose Natural Gas or Liquid Propane Burner:
Choose Grill Kits or Panel Kits:
MGIKBP Grill Kit Island - Classic Polish Brass (Four Sets)
MGIKBA Grill Kit Island - Classic Antique Brass (Four Sets)
MGIKBC Grill Kit Island - Classic Chrome (Four Sets)
MGIKBL Grill Kit Island - Black (Four Sets)
MGIKPB Grill Kit Island - Polish Brass (Four Sets)
MGIKAB Grill Kit Island - Antique Brass (Four Sets)
MGIKCR Grill Kit Island - Chrome (Four Sets)
MVF40PIK Panel Kit Island Kit - Black (Four Sets)
Required For all Burners
LOGF38 Log Set - Five Piece Fibre Split Oak - For MVFB40 Burners
LOGC31 Log Set - Seven Piece - For GLMVF40 Burners
*Note that we suggest Left Burner as your first choice, you can choose a Right Burner if a (*) is notated beside part number
FRAMING PARTS (continued)
BURNER SYSTEM & LOG SET (REQUIRED FOR MVF40 FIREBOX)
OPTION 1
GLMVF40MVN Vent Free Multiview Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
GLMVF40MVP Vent Free Multiview Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGC31 Log Set LOGC31 required for GLMVF40 Burner System
OPTION 2
MVFBR4040MVN Vent Free Right Burner System – Millivolt Valve 25,900/38,225 Natural Gas
MVFBR4040MVP Vent Free Right Burner System – Millivolt Valve 24,200/30,500 Liquid Propane
MVFBL4040MVN Vent Free Left Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
MVFBL4040MVP Vent Free Left Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGF38 Log Set required for MVFB40 R/L Burner System
BURNER SYSTEM & LOG SET (REQUIRED FOR MVF40 FIREBOX)
OPTION 1
GLMVF40MVN Vent Free Multiview Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
GLMVF40MVP Vent Free Multiview Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGC31 Log Set LOGC31 required for GLMVF40 Burner System
OPTION 2
MVFBR4040MVN Vent Free Right Burner System – Millivolt Valve 25,900/38,225 Natural Gas
MVFBR4040MVP Vent Free Right Burner System – Millivolt Valve 24,200/30,500 Liquid Propane
MVFBL4040MVN Vent Free Left Burner System – Millivolt Valve 38,000 BTU/HR Natural Gas
MVFBL4040MVP Vent Free Left Burner System – Millivolt Valve 35,000 BTU/HR Liquid Propane
LOGF38 Log Set required for MVFB40 R/L Burner System

12
NOTE: Non combustible materials such as tile, marble,
and brick may overlap any facing on the appliance, but
should never cover any necessary openings like
louvered grills.
WARNING: Do not allow any combustible materials
to overlap the firebox front facing.
DIMENSIONS
FIGURE 2

13
INSTALLING – Clearances
IMPORTANT: Vent-free gas log heaters add moisture to
the air. Although this is beneficial, installing firebox in
rooms without enough ventilation air may cause mildew to
form from too much moisture. See Air for Combustion and
Ventilation, pages 20 through 23.
IMPORTANT: Make sure the firebox is level.
If firebox is not level, log set will not work properly.
INSTALLATION CLEARANCES
Carefully follow the instructions below. This will
ensure safe installation.
Minimum Wall and Ceiling Clearances
A. Clearances from the firebox to
adjacent wall should not be less than
2 inches. (Ref. Page 8)
B. Clearance from the top of the
fireplace front to the ceiling should
not be less than 41 inches.
C. Clearance from the bottom of firebox
to the floor is 0 inches. Bottom of unit
must be flush with top of combustible
floor covering.
D. Clearance from side of fireplace to
enclosure is 0 inches.
E. Clearance from top of fireplace
standoffs is 0 inches.
F. Clearance from opens side of fireplace
is 36”.
These fireboxes can be installed as freestanding
units against a wall with the approved, optional
cabinet mantels or as a built-in unit. The
clearances are the same for either installation method.
NOTICE
A qualified service person must install firebox. Follow
all local codes.
WARNING
Never install the firebox
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other
flammable objects are less than 36 inches from the
front, top, or sides of the firebox
• in high traffic areas
• in windy or drafty areas
FIGURE 3 – Minimum Clearances - Top and Sides
of Room Heater to Ceiling and Walls.
FIGURE 4 – Mantel Clearances.

14
INSTALLING – Framing
INSTALLING BY FRAMING
FIREPLACE
Built-in installation of this firebox involves installing firebox
into a framed-in enclosure. Optional brass trim accessories are
available. The brass trim will extend past sides of firebox.
This will cover the rough edges of the wall opening. If
installing a mantel above the firebox, you must follow the
clearances shown in Figure 4, page 12. Follow the instructions
below to install the firebox in this manner.
1. Frame in rough opening. The firebox framing should be
constructed of 2 x 4 lumber or heavier. Use dimensions in
Figure 1, 2 ,3 and 4, pages 8, 10 and 11. Adjust framing
so that firebox is flush with finished wall surface.
2. Install gas piping to firebox location. See Installing Gas
Line on page 24 and Connecting to Gas Supply in log set
owners manual. IMPORTANT: If installing blower
accessory see page 31.
3. Carefully insert firebox into rough opening.
4. Attach firebox to wall studs using nails or wood screws
through holes in nailing flange.
5. If using optional Brass Surround Kit, install the trim after
final finishing and/or painting of wall. See instructions
included with brass trim accessory for attaching Surround.
6. Install and properly test gas log heater. Follow installation
instructions included with the vent-free gas log heater that
is being installed.
IMPORTANT: When finishing your firebox, combustible
materials such as wall board, gypsum board, sheet rock,
drywall, plywood, etc. may be butted up next to the sides and
top of the firebox. Combustible materials should never overlap
the firebox front facing.
IMPORTANT: Non-combustible materials such as brick, tile,
etc. may overlap the front facing, but should never cover any
necessary openings like louvered slots.
CAUTION
Log heaters installed in this firebox create warm air
currents. These currents move heat to wall surfaces next
to firebox. Installing firebox next to vinyl or cloth wall
coverings or operating firebox where impurities in the
air (such as tobacco smoke) exist, may discolor walls.
WARNING
Do not allow any materials to overlap the firebox front
facing.
WARNING
Never modify or cover the louvered slots on the front
of the firebox.
WARNING
Use only non-combustible mortar or adhesives when
overlapping the front facing with non-combustible
facing material.
WARNING
Do not allow non-combustible materials to cover any
necessary openings like louvered slots.
CAUTION
Do not install the firebox on carpet or vinyl.
WARNING
Maintain the minimum clearances. If you can, provide
greater clearances from floor, ceiling, and adjoining wall.
WARNING
Ensure the minimum clearances shown in Figures 3 and
4 on page 12 are maintained. Left and right clearances
are determined when facing the front of the heater.

15
INSTALLING – Mantel Cabinets
NOTICE
A qualified service person must install firebox. Follow
all local codes.
NOTICE
Installation and repair should be done by a qualified
service person well trained in the installation of such
appliances. You will also need a building permit from
your local Building Commissioner before installing this
appliance, otherwise your insurance company may not
cover this appliance.
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
WARNING
Any changes to this heater or its controls can be
dangerous.
CAUTION
Use new black pipe only. Internally tinned copper
tubing can be used in some areas when permitted by
local codes. Only use pipe of 1/2” or greater diameter
to allow full gas volume to heater. Excessive pressure
loss will occur if the pipe is too small.
A manual shutoff valve, union and plugged 1⁄8” NPT
pressure tap pointer must be installed upstream of the
heater.
A sediment trap must be installed upstream of the heater
to prevent moisture and contaminants from passing
through the pipe to the heater controls and burners. Failure
to do so could prevent the heater from operating
reliably.

16
PENINSULA FRAMING SPECIFICATIONS
FRAMING
Using 2x4s frame to local building codes.
DO NOT install against a vapour barrier or
exposed insulation.
Framing measurements have been adjusted to
accommodate a 1/2” thick finished wall.
FIGURE 5.
Combustible materials may be installed flush
with top and sides of fireplace.
It is not necessary to install a hearth with this
fireplace system. Objects placed in front of
the fireplace should be kept a minimum of
24” away from the front face.
Gas line installation should be performed
only after Fireplace installation. Fireplace
bottom supplies you with two 6”x8”
rectangular holes. The use of these holes
depends on valve and Fireplace location on
riser or upper floor.
NOTE
If the unit is installed in a non conventional manner not using
2x4 framing the nailing tabs may be removed and the heat
shields may be placed directly against a combustible wall or
partition.
When the unit is installed without nailing tabs the unit must
be secured to the floor using the holes located in the bottom
of the fireplace.
FIREPLACE ASSEMBLY
1. Mount Door Cover on one end. Figure #6.
Position Door Cover over opening as shown
in diagram and using 4 self tapping screws
secure onto fireplace. Check to see that door
cover is properly sealed.
2. Hang Heat Shield on top edge of
Fireplace and secure with self tapping
screws. Heat Shield must be centered
allowing a 1/2” clearance both sides of
Fireplace for finishing material.
3. The heat shield is equipped with nailing
tabs if 2x4 framing is used as shown in
diagram Level Fireplace and nail or screw
into place.
When not using 2x4 framing secure Unit
with screws at bottom (SEE ABOVE
NOTE:)
Note: Framing dimension shown is to accept
1/2” Facing Material. The dimension shown may
be reduced depending on the thickness of
facing material up to 1”
Figure 6
Figure 5
Screw Attachment
Points (4)
NOTE: The standoffs are non load bearing. When
installing a cabinet, a maximum weight of 250 lbs
can be installed on the 1/2” drywall lip (located
around the perimeter of the appliance).

17
SEE-THROUGH FRAMING SPECIFICATIONS
FRAMING
Using 2x4s frame to local building codes.
DO NOT install against a vapour barrier or exposed insulation.
Framing measurements have been adjusted to accommodate a
1/2” thick finished wall. FIGURE 7.
Combustible materials may be installed flush with top and sides
of fireplace.
It is not necessary to install a hearth with this fireplace system.
Objects placed in front of the fireplace should be kept a minimum
of 24” away from the front face.
Gas line installation should be performed only after Fireplace
installation. Fireplace bottom supplies you with two 6” x 8”
rectangular holes. The use of these holes depends on valve and
Fireplace location on riser or upper floor.
NOTE
If the unit is installed in a non conventional
manner not using 2x4 framing the nailing tabs
may be removed and the Heat Shields may be
placed directly against a combustible wall or
partition.
When the unit is installed without nailing tabs
the unit must be secured to the floor using the
holes located in the bottom of the fireplace.
FIREPLACE ASSEMBLY
1. Mount Door Cover on one end. Figure #8.
Position Door Cover over opening as shown in
diagram and using 4 self tapping screws secure onto
fireplace. Check to see that door cover is properly
sealed.
2. Hang Heat Shield on top edge of Fireplace and
secure with self tapping screws. Heat Shield must be
centered allowing a 1/2” clearance both sides of
Fireplace for finishing material.
3. The Heat Shield is equipped with nailing tabs if
2x4 framing is used as shown in diagram. Level
Fireplace and nail or screw into place.
When not using 2x4 framing secure Unit with screws
at bottom (SEE ABOVE NOTE:)
Figure 7
Figure 8

18
BAY PENINSULA FRAMING SPECIFICATIONS
FRAMING
Using 2x4s frame to local building codes.
DO NOT install against a vapour barrier or
exposed insulation.
Framing measurements have been adjusted to
accommodate a 1/2” thick finished wall.
FIGURE 9.
Combustible materials may be installed flush with
top and sides of fireplace.
It is not necessary to install a hearth with this
fireplace system. Objects placed in front of the
fireplace should be kept a minimum of 24” away
from the front face.
Fireplace bottom supplies you with two 6” x 8”
holes. The use of these holes depends on valve and
Fireplace location on riser or upper floor.
NOTE
If the unit is installed in a non conventional manner
not using 2x4 framing the nailing tabs may be
removed and the Heat Shields may be placed
directly against a combustible wall or partition.
When the unit is installed without nailing tabs the
unit must be secured to the floor using the holes
located in the bottom of the fireplace.
FIREPLACE ASSEMBLY
1. To mount Door Cover, Figure #10. Position Door Cover
over opening as shown in diagram and using 6 self tapping
screws secure onto fireplace. Check to see that door cover is
properly sealed.
2. Hang Heat Shield on top edge of Fireplace and secure with
self tapping screws. Heat Shield must be centered allowing a
1/2” clearance both sides of Fireplace for finishing material.
3. The Heat Shield is equipped with nailing tabs if 2x4
framing is used as shown in diagram. Level Fireplace and nail
or screw into place.
When not using 2x4 framing secure Unit with screws at
bottom (SEE ABOVE NOTE:)
NOTE: Use 8-18 x 3/4 DT screws for bottom of door cover.
NOTE: Holes for mounting sides of Heat Shield are not
pre-punched.
Note: Framing dimension shown is to
accept 1/2” facing material. The dimension
shown may be reduced depending on the
thickness of facing material up to 1”
Bay Peninsula Fireplace Shown
Figure 10
Figure 9
NOTE: The standoffs are non load bearing. When
installing a cabinet, a maximum weight of 250 lbs
can be installed on the 1/2” drywall lip (located
around the perimeter of the appliance).

19
CORNER FRAMING SPECIFICATIONS
FRAMING
Using 2x4s frame to local building codes.
DO NOT install against a vapour barrier or exposed insulation.
Framing measurements have been adjusted to accommodate a
1/2” thick finished wall. FIGURE 11.
Combustible materials may be installed flush with top and sides
of fireplace.
It is not necessary to install a hearth with this fireplace system.
Objects placed in front of the fireplace should be kept a
minimum of 24” away from the front face.
Fireplace bottom supplies you with two 6” x 8” rectangular
holes. The use of these holes depends on valve and Fireplace
location on riser or upper floor.
NOTE
If the unit is installed in a non conventional
manner not using 2x4 framing the nailing tabs
may be removed and the Heat shields may be
placed directly against a combustible wall or
partition.
When the unit is installed without nailing tabs the
unit must be secured to the floor using the holes
located in the bottom of the fireplace.
FIREPLACE ASSEMBLY
1. Mount Door Cover on one end. Figure #12. Position
Door Cover over opening as shown in diagram and using
4 self tapping screws secure onto fireplace. Check to see
that door cover is properly sealed.
2. Hang Heat Shield on top edge of Fireplace and secure
with self tapping screws. Heat Shield must be centered
allowing a 1/2” clearance both sides of Fireplace for
finishing material.
3. The Heat Shield is equipped with nailing tabs if 2x4
framing is used as shown in diagram. Level Fireplace and
nail or screw into place.
When not using 2x4 framing secure Unit with screws at
bottom (SEE ABOVE NOTE:)
NOTE: Use 8-18 x 3/4 DT screws for bottom of door cover
NOTE: Holes for mounting sides of heat shield are not
pre-punched.
Figure 12
Corner Fireplace Shown
Figure 11

20
UNIVERSAL FIREBOX
The MVF40 is approved as a Zero Clearance Universal Firebox, when using as a Universal Firebox the bottom burner pan
must be used. (Part # 38VF-134).
When installing another manufacturer’s log and burner system, follow the manufacturer’s assembly instructions.
For framing, see pages 12 through 18 depending on type of installation. (eg. SEE THRU, ISLAND, PENINSULA, CORNER,
AND BAY PENINSULA) Follow all clearances to combustibles in this manual and see below for installation of the Bottom
Firebox Pan (Part # 38VF-134) that must be used.
The Firebox canopy must not be replaced with a canopy which may be provided with the decorative type unvented room heater.
USE ONLY KINGSMAN DECORATIVE COMPONENT AND REPLACEMENT PARTS.
Figure 13
Warning: Fireplace screen must be closed
while appliance is in operation.
