Kingsman GLVF24MAN Quick start guide

1
VENTED & VENT-FREE GAS LOG
Owner’s Operation and Installation Manual
GLVF24MAN, GLVF24MAP, GLVF24MVN, GLVF24MVP
Vent-free: Certified to USA standards: ANSI Z21.11.2 - 2007
Vented: Certified for USA and Canada: ANSI Z21.60/2003, ANSI Z21.60a/2003, ANSI Z21.60b/2004,
CSA 2.26/2004, CSA 2.26a/2003,CSA 2.26b/2004
Warning
If the information in this manual is not followed exactly, a fire or
explosion my result causing property damage, personal injury, or
loss of life.
– Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
Warning
This is an unvented gas-fired heater. It uses air (oxygen) from the room
in which it is installed. Provisions for adequate combustion and ventila-
tion air must be provided. Refer to “Air for Combustion and
Ventilation” section of this manual, page 7.)
Warning
Improper installation, adjustment,
alteration, service, or maintenance can
cause injury or property damage. Refer
to this manual for correct installation and
operational procedures. For assistance or
additional information consult a qualified
installer, service agency, or the gas supplier.
Warning
These gas logs sets are for installation in
a masonry solid fuel burning fireplace, a
U.L. Listed manufactured solid fuel
burning fireplace. The vent free gas log
sets are also AGA design, certified for
vent free Universal Fireboxes.
Save this manual for future reference • 2340 Logan Ave., Winnipeg, MB, Canada, Phone: [phone] •Printed in Canada • June 18, 2009 • PART #24GL-MAN
Minimum Fireplace Dimensions:
see page 11
This appliance must be installed by a licensed plumber or
gas fitter in the Commonwealth of Massachusetts and meet
the requirements of 527 CMR 30 and 248 CMR.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

2

3
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives,
silicones and any undetected oil from the manufacturing process as well as the finishing materials used
with the installations (e.g. marble, tile and the adhesives used to adhere this product to the walls can react
with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with
the fan off after the curing of the paint has been completed. These odours can last upward to 40 hours of
burn time, keep burning at a minimum of four hours per use until odours dissipate.
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries
quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone
components, the paint will cure when heat is applied to the appliance as it is first used.
The following information applies to the curing process to get the paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between
each. Be aware during log and firebox paint curing that a white deposit may be developing on the inside
of the glass doors. It is important to remove this white deposit from the glass doors with an appropriate
cleaner to prevent build-up (such as Windex or a commercial fireplace glass cleaner).
• Babies, small children, pregnant women and pets should leave the area during the cure phase.
• Ventilate well, open doors and windows.
• Do not touch during curing.
Noise coming from the fireplace?
• Noise caused by metal expanding and contracting as it heats up and cools down, similar to the sound
produced by a furnace or heating duct. This noise does not affect the operation or longevity of your
fireplace.
• Different types and thicknesses of steel will expand and contract at different rates resulting in “crack-
ing” and “ticking” sounds throughout the heating and cooling periods.
• You should also be aware that as temperatures change within the unit these sounds will likely re-
occur. Again this is normal for steel fireboxes, and is not a defect.
Cleaning the Glass
During the first few fires, a white film may develop on the glass front, as part of the curing process. The
glass should be cleaned after the unit has cooled down or the film can bake on and become very difficult
to remove. Use a non-abrasive cleaner and do not attempt to clean the glass while it is hot.
PRE-INSTALLATION QUESTIONS and ANSWERS

4
TABLE OF CONTENTS
SECTION PAGE
Gas Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Local Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Air for Combustion and Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Providing Adequate Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Determining Air Flow for Firebox Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Ventilation Air From Inside Building . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ventilation Air From Outdoors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installing Into Existing Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

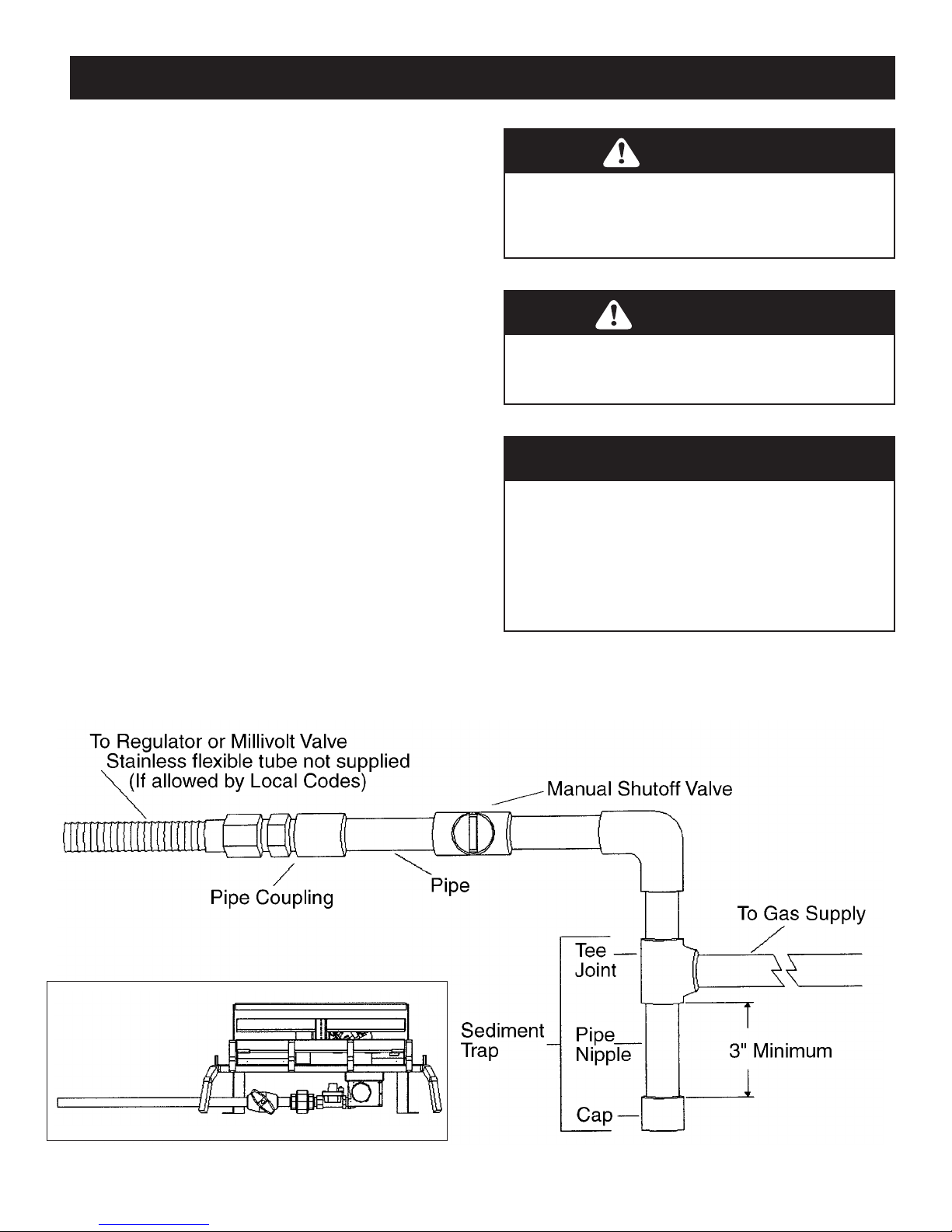

Installing Gas Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

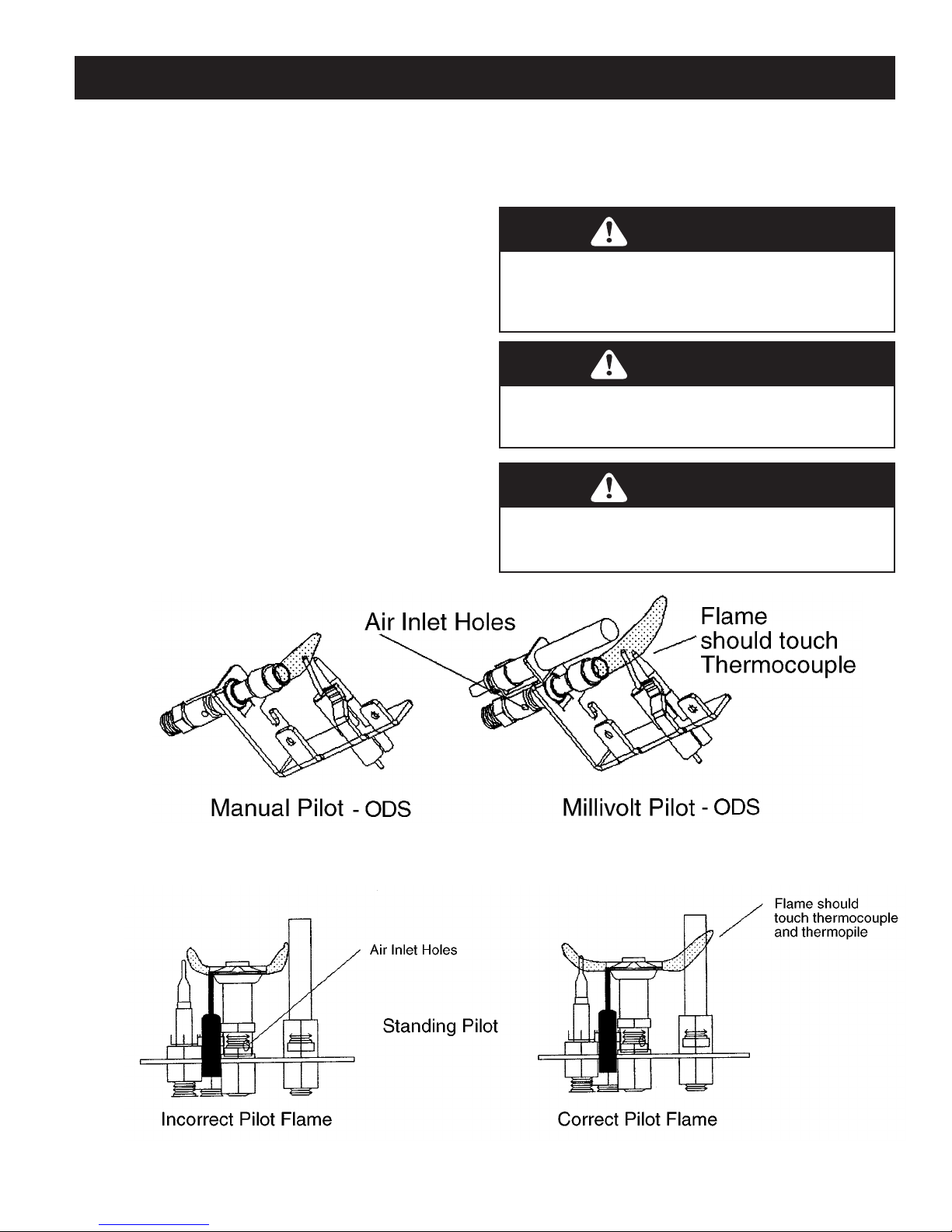

Cleaning and Servicing of Burner / ODS Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Attaching Log Grate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

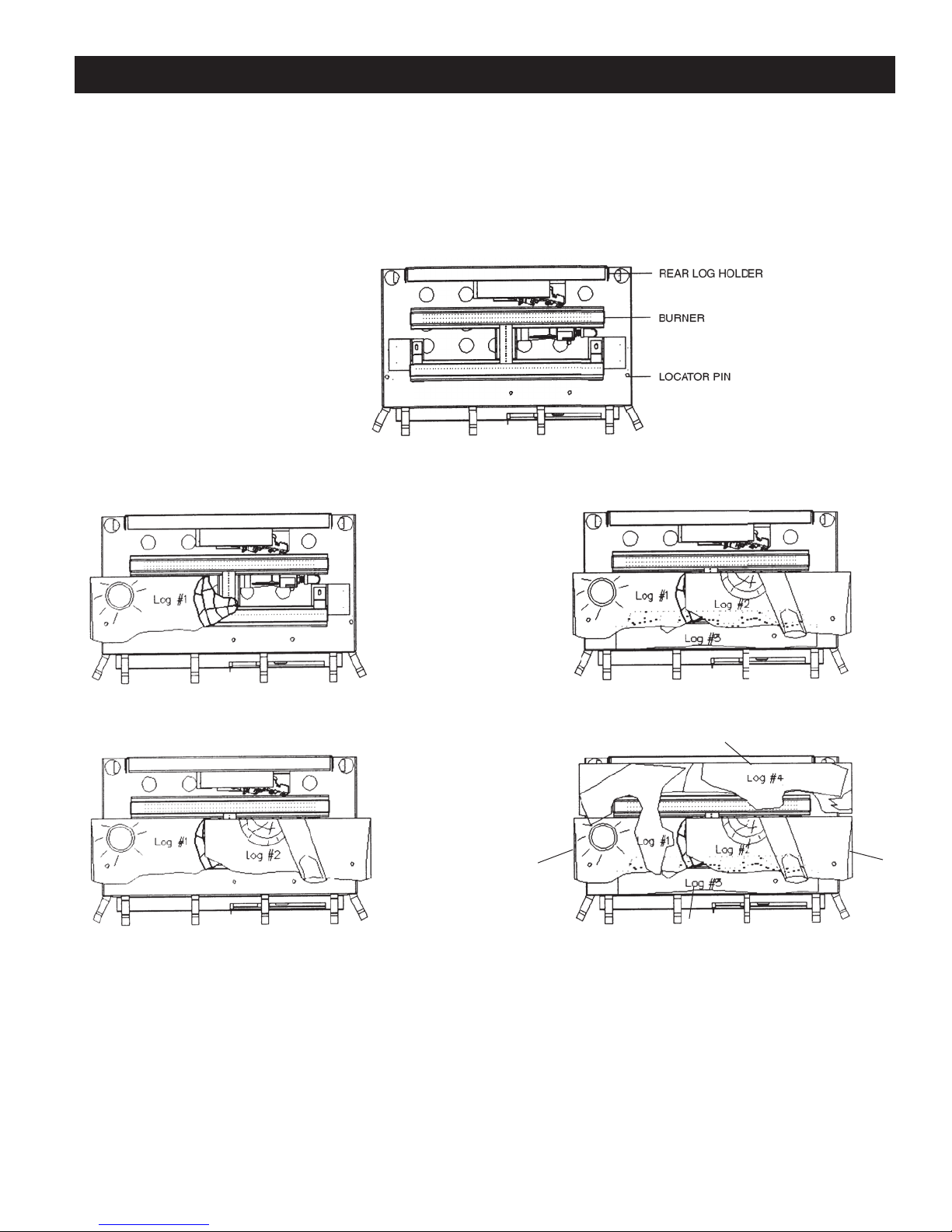

Installing Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19
Millivolt Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Illustrated Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-26
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
GAS SPECIFICATIONS
VENT FREE - VENTED GAS LOG SETS (Burner and Log Set are sold separately)
Burner Log Fuel BTU Manifold Orifice Primary Rate Min/Max
Model Size Type Input Pressure Size Air Screw Inlet Press.
GLVF24MAN 24” Natural Gas 20,000 - 35,000 1.5” - 4.4” 36 0.218 182 5.5/10”
GLVF24MAP 24” Liquid Propane 24,000 - 30,000 7” - 10” 50 Full Open 250 11/13”
GLVF24MVN 24” Natural Gas 20,000 - 35,000 1.6” - 3.5” 34 0.218 na 5.5/10”
GLVF24MVP 24” Liquid Propane 24,000 - 30,000 6.3” - 10” 51 Full Open na 11/13”
Log Set required for each burner (above)
LOGF18 Log Set – Fibre Split Oak 18”
LOGF24 Log Set – Fibre Split Oak 24”
LOGF30 Log Set – Fibre Split Oak 30”

SAFETY INFORMATION WARNINGS
5
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
NOTE: It is recommended that a Carbon Monoxide
(CO) Detector be installed in or near bedrooms and on all
levels of your home. Place a detector about 15 feet (4.5
meters) outside the room that houses your gas appliance.
WARNINGS
Important: Read this owner’s manual carefully and com-
pletely before trying to assemble, operate, or service this
logset. Improper use of this logset can cause serious injury
or death from burns, fire, explosion, electrical shock, and
carbon monoxide poisoning.
Early signs of carbon monoxide poisoning resemble the
flu, with headaches, dizziness, and / or nausea. If you have
these signs, the heater may not be working properly. Get
fresh air at once! Turn off gas appliance. Have appliance
serviced. Some people (such as pregnant women, persons
with heart or lung disease, persons with anemia and those at
high altitudes) are more affected by carbon monoxide than
others. Make certain you read and understand all warnings.
1. Use correct gas type for your appliance. Do not convert
from one gas type to another.
2. If this appliance is for use with Propane gas, do not
place propane supply tank(s) inside any structure.
Locate propane supply tank(s) outdoors.
3. If you smell gas:
– Shut off gas supply.
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any
phone in your building.
– Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
– If you cannot reach your gas supplier, call the fire
department.
4. Do not use the appliance for burning trash or cooking.
Never place matches, paper, garbage, or any other
material on top of logs or logs into flame.
5. Warning: Always operate appliance with front fire-
place screens closed and glass doors open.
6. Make sure any safety screen or guard removed for ser-
vicing is in place before running appliance.
7. Never run appliance in a small, closed room. Open the
door into next room to help ventilate.
8. If appliance shuts off, do not relight until you provide
fresh outside air. If appliance keeps shutting off, have it
serviced.
9. Do not run appliance:
– where flammable liquids or vapors are used or stored.
– under dusty conditions.
10. Surface of appliance becomes very hot when operating.
Keep children and adults away from hot surface.
Appliance will remain hot for some time after shut-
down. Allow surface to cool before touching.
11. Do not use this appliance if any part has been sub-
merged under water. Immediately call a qualified tech-
nician to inspect the appliance and to replace any part
of the control system and gas control which has been
under water.
12. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1.
13. Never install the appliance:
– in a bedroom, bathroom, mobile home, or recreational
vehicle.
– where curtains, furniture, clothing, or other flammable
objects are less than forty-two inches (42”) from the
front
of the appliance.
– in high traffic areas.
– in windy or drafty areas.
14. Disconnect the appliance and its individual shut off
valve from the gas supply piping system during any
pressure testing of that system at test pressures in
excess of 1/2 psig, (3.5kPa).
This appliance is equipped for (Natural or
Propane) Gas.
Field conversion is not permitted.
Warning: Failure to position parts in accor-
dance with these diagrams or failure to use only
part specifically approved with this heater may
result in property damages or personal injury.

6
SAFETY INFORMATION WARNINGS Cont.
15. Isolate the appliance from the gas supply piping system by closing its individual manual shut off valve during any
pressure testing of the the gas supply piping system at test pressure equal or less than 1/2 psig.
16. Do not use any type of after-market blower that fits inside the fireplace. Drafts created by these type of blowers may
cause sooting.
17. Turn off appliance and let cool before servicing. Only a qualified service person should install, service and repair
appliance.
18. Inspect the appliance before use and at least annually by a professional service person. Frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is important that control compartment, burner and
circulating air passage of the appliance be kept open.
19. When operated for the first time, there will be some smell from the appliance. this will diminish and disappear after a few
hours of operation.
20. Warning: Do not operate ceiling fans in same room as the vent free appliance.
21. Must be installed by a licensed gasfitter in the Commonwealth of Massachusetts. Complies to code 527CMR.
22. Unvented gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances
shall they provide a primary heat source.
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the
latest edition of The National Fuel Gas Code ANSI Z223.1, also known as NFPA 54*. Firebox must be electrically grounded
in accordance with the National Electrical Code, ANSI/NFPA 70 (latest edition).
*Available from:
American National Standards Institute, Inc. National Fire Protection Association, Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02260

7
AIR FOR COMBUSTION AND VENTILATION
Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods
help reduce heat loss in homes. Home owners weather strip and caulk around windows and door s to keep the cold air out
and the warm air in. During heating months, home owners want their homes as airtight as possible.
While it is good to make your home energy
efficient, your home needs to breathe. Fresh air must enter
your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireboxes, clothes dryers, and fuel burning
appliances draw air from the house to operate. You must
provide adequate fresh air for these appliances. This will
insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation:
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction 2. Unconfined Space 3. Confined Space.
The information on pages 7 through 10 will help you classify your space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in
building of usually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of one
perm (6 x 10-11 per pasec-m2) or less with openings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and
floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and
at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air.
See Ventilation Air From Outdoors, page 10.
If your home does not meet all of the three criteria above, proceed to page 11.
Confined and Unconfined Space
The National Fuel Gas Code (ANSI Z223.1, 1992 Section 5.3) defines a confined space as a space whose volume is less than
50 cubic feet per 1,000 btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with
doors, are considered a part of the unconfined space.
*Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.
DETERMINING AIR FLOW FOR FIREBOX LOCATION
Determining if You Have a Confined or Unconfined Space
Use the work sheet on the next page to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install logset plus any adjoining rooms with doorless
passageways or ventilation grills between the rooms.
WARNING
This firebox shall not be installed in a confined space
unless provisions are provided for adequate combustion
and ventilation air. Read the following instructions to
insure proper fresh air for this and other fuel-burning
appliances in your home.

8
AIR FOR COMBUSTION AND VENTILATION Cont.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ______________ cu. ft. (volume of space)
Example: Space size 22ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total
volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.
______________ (volume of space) ÷ 50 cu. ft. = 63.3 or 63,300 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free logset __________________ Btu/Hr
Gas water heater* __________________ Btu/Hr
Gas furnace __________________ Btu/Hr
Vented gas heater __________________ Btu/Hr
Gas firebox logs __________________ Btu/Hr
Other gas appliances* + __________________ Btu/Hr
Total = __________________ Btu/Hr
Example: Gas water heater 40,000 Btu/Hr
Vent-free firebox with log heater + 39,000 Btu/Hr
Total = 79,000Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the
outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 63,300 Btu/Hr (maximum the space can support)
79,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the
space can support. You must provide additional fresh air. Your options are a follows:
A. Rework work sheet, adding the space of an adjoining room. If the extra space provides and unconfined space, remove
door to adjoining room or add ventilation grills between rooms, See Ventilation Air from Inside Building, page 9.
B. Vent room directly to the outdoors. See ventilation Air
from Outdoors, page 10.
C. Install a lower Btu/Hr logset, if lower Btu/Hr size makes
room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the
space can support, the space is an unconfined space.
You will need no additional fresh air ventilation.
WARNING
If the area in which the firebox and gas log heater may
be operated is smaller than that defined as an unconfined
space, provide adequate combustion and ventilation air
by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1, 1992, Section 5.3.

9
AIR FOR COMBUSTION AND VENTILATION Cont.
VENTILATION AIR FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space,
you must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor on the wall
connecting the two spaces (see options 1 and 2, Figure 4).
You can also remove door into adjoining room (see option
3, Figure 4). Follow the National Fuel Gas Code NFPA
54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
FIGURE 4 - Ventilation Air from Inside Building
WARNING
Rework worksheet, adding the space of the adjoining
unconfined space. The combined spaces must have
enough fresh air to supply all appliances in both spaces.

10
AIR FOR COMBUSTION AND VENTILATION Cont.
VENTILATION AIR FROM OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12” of the
ceiling and one within 12” of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermostat-controlled power vent.
Heated air entering the attic will activate the power vent.
FIGURE 5 - Ventilation Air from Outdoors

11
INSTALLING – Clearances
INSTALLATION
CLEARANCES (VENT
FREE APPLICATION
ONLY)
Minimum noncombustible material above
fireplace opening must be no less than
shown in the figures above.
Noncombustible materials (slate, marble,
tile, etc.) must be at least 1/2” thick, if
sheet metal is used, you must have a non-
combustible material behind it.
IMPORTANT: If these minimum clear-
ances are not possible or if local codes do
not permit vent-free operation, you must
operate the heater with the damper open.
FIGURE 6 – Installation Clearances
FIGURE 7 – Mantel Clearances.
Minimum Fireplace Dimensions
Front width Back Width Height Depth
For 18” LOGS 19” 19” 18 3/4” 12 1/2”
For 24” LOGS 29” 22 1/2” 18 3/4” 12 1/2”
For 30” LOGS 38” 28” 18 3/4” 13 1/2”
Minimum Firebox
Width
Minimum Firebox
Depth

12
INSTALLING
INSTALLATION OF GLVF24 INTO
EXISTING FIREPLACE
If installing in Canada or as a vented logset:
NOTE: When used as a vented heater, appliance must be
installed only in a solid fuel burning fireplace with a working
flue and constructed of non-combustible material. See chart
below for minimum permanent flue opening you must
provide. The damper must be secured so the minimum flue
opening will be maintained at all times. This can be done
by removing the damper or welding the damper open.
Chimney Height Minimum Permanent Flue Opening
(feet) (square inches)
6’ - 15’ 39 square inches
15’ - 30’ 29 square inches
Area of Various Standard Round Flues
Diameter (inside) Area (square inches)
5” 20 square inches
6” 29 square inches
7” 39 square inches
8” 51 square inches
WARNING
Before installing in a solid fuel burning fireplace, the
chimney flue and firebox must be cleaned of soot,
creosote, ashes, and loose paint by a qualified chimney
cleaner. Creosote may ignite when heated to a high
temperature. Have chimney flue inspected for damage.
If flue system is damaged, you may close the damper if
using as a vent-free system. If you are using the burner
as a vented burner and the flue system is damaged, do
not install the unit.
WARNING
Seal any fresh air vents or ash cleanout doors located
on the floor or wall of fireplace. If this is not done,
drafting may result causing pilot outage or sooting. Use
a heat-resistant sealant. Do not seal chimney flue
damper.
FIGURE 8 – Installing GLVF24 into existing fireplace.

13
INSTALLING – Gas Line
INSTALLING GAS LINE
Early signs of carbon monoxide poisoning resemble the flu,
with headaches, dizziness, and / or nausea. If you have these
signs, the heater may not be working properly. Get fresh air at
once! Turn off gas appliance. Have appliance serviced. Some
people (such as pregnant women, persons with heart or lung
disease, persons with anemia and those at high altitudes) are
more affected by carbon monoxide than others. Make
certain you read and understand all warnings. Place Burner
Base / Grate Assembly in center of firebox and connect
flexible gas line to incoming black iron pipe gas line.
Do not connect appliance before pressure testing gas piping.
Damage to gas valve may result and an unsafe condition may
be caused.
Prepare incoming black iron gas line with Teflon tape or pipe
joint compound (check with local codes about the use of
Teflon tape). Compounds used on threaded joints of gas piping
shall be resistant to the action of Liquefied Petroleum (LP or
Propane) and should be applied lightly to ensure excess sealant
does not enter the gas line.
Complete your gas installation by connecting incoming gas line
to regulator. Secure all joints tightly with wrench but do not
over-tighten. If a flexible gas line is used, take care not to kink
connector. The burner pressure is controlled by the
FIGURE 9, 9a – Gas line and manual shutoff valve
NOTICE
Installation and repair should be done by a qualified
service person well trained in the installation of such
appliances. You will also need a building permit from
your local Building Commissioner before installing this
appliance, otherwise your insurance company may not
cover this appliance.
DANGER
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
WARNING
Any changes to this heater or its controls can be
dangerous.
(cont’d. on page 14)

14
INSTALLING – Gas Line Cont.
regulator. Check pressure at the pressure test point, which is
located on the side of the gas control near the pilot outlet.
Make sure that the pressure tap is completely closed after
checking gas pressure. The pressure should be checked with
the appliance burning and the control set on high.
IMPORTANT: Loosen the pipe adapter on the flex tube
before installing to the system piping.
CHECK GAS TYPE: The gas supply must be the same as
stated on the heater’s rating plate. If the gas supply is
different, Do Not Install the heater. Contact your dealer for
the correct model.
CAUTION
All gas piping and connections must be tested for leaks
after installation is completed. To test, turn gas valve on,
then apply a soap and water solution to all connections
and joints. If bubbles appear, leak can be detected and
corrected. Never use an open flame for leak testing.
Never operate any appliance if a leak is detected!
CAUTION
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the heater.
NOTICE
A qualified gas appliance installer must connect the
fireplace to the gas supply. Consult all local codes.
CAUTION
Use new black pipe only. Internally tinned copper
tubing can be used in some areas when permitted by
local codes. Only use pipe of 1/2” or greater diameter
to allow full gas volume to heater. Excessive pressure
loss will occur if the pipe is too small.
A manual shutoff valve, union and plugged 1⁄8” NPT
pressure tap pointer must be installed upstream of the
heater.
A sediment trap must be installed upstream of the heater
to prevent moisture and contaminants from passing
through the pipe to the heater controls and burners. Failure
to do so could prevent the heater from operating
reliably.
For the state of Massachusetts a T-handle gas shut-off
valve must be used on a gas appliance. This T-handle gas
shut-off valve must be listed and approved by the state of
Massachusetts. This is in reference to the state of
Massachusetts state code CMR238.

15
INSTALLING – Burner System
CLEANING AND SERVICING OF BURNER / ODS PILOT
It is recommended to annually inspect and clean the unit to prevent malfunction and / or sooting. This operation should
be performed by your dealer or a qualified technician.
Remove log set, handling carefully by holding gently at each
end. (Refer to Log Placement, page 16.) Gloves are
recommended to prevent skin irritation from ceramic.
Annual Cleaning / Inspection
• Do not use cleaning fluids to clean logs or any part of the
heater.
• Use a soft bristle brush or a vacuum with brush attachment.
• Vacuum loose particles and dust from burner ports, valve
and blower compartments.
• Vacuum any accumulation of lint from primary mixing
tube.
• Inspect ODS pilot for operation, accumulation of lint at the
air inlet holes.
• Verify flame pattern and log placement for proper
operation.
• Verify that all ports ignite and cross over smoothly from rear
to front burner.
FIGURE 10 – ODS Pilot, both manual and Millivolt pilot flames shown
FIGURE 11 – Standing Pilot
WARNING
Turn off heater and allow to cool before cleaning. Only
a qualified service technician should service and repair
appliance.
CAUTION
Never use a wire, needle, or similar object to clean
ODS / Pilot. This can damage ODS / Pilot.
WARNING
Failure to keep primary air openings clear, may result in
sooting and property damage.

16
INSTALLING – Log Grate
ATTACHING LOG GRATE TO
FIREPLACE BASE
1. Position log grate into fireplace and mark screw locations
on each side of mounting bracket.
2. Remove grate assembly, drill 2 holes at the marked
locations.
3. Attach grate assembly to fireplace base. (Screws not
provided.)
4. Connect to gas supply.
INSTALLATION OF LOGF24
LOGSET
1. Place main log on locating pins on burner grate bottom.
2. Place crossover log on locating pins on top of rear main
log.
3. Position front log flat surface up to main log.
WARNING
You must secure this heater to fireplace base, or heater
will move when you adjust controls. Moving heater
may cause a gas leak and may result in property dam-
age or personal injury.
WARNING
Failure to position the parts in accordance with the
diagrams or failure to use only parts specifically
approved with this heater may result in property
damage or personal injury.
WARNING
The positioning of the logs is critical for the safe and clean operation of this heater. Sooting and other problems can
occur if the logs are not properly and firmly positioned in the heater. Never add additional logs or embellishments such
as pine cones,vermiculite, volcanic rock or rock wool to the heater.
FIGURE 12 – Log Placement
➃
➂
➁
➀
Kingsman Replacement Log Listing
Reference Part
Number Number Description
1 24F-A Front Main Log A, LOGF24
2 24F-B Rear Main Log B, LOGF24
3 24F-C Front Log C, LOGF24
4 24F-D Crossover Log D, LOGF24

17
Log Placement for LOGF18
LOGF18 LOG SET PLACEMENT
STEP 1 Locate hole on underside of log and place log over burner and
Locator Pin and lower into position.
STEP 2 Locate hole on underside of log and place log over burner and
Locator Pin and lower into position.
STEP 3 Place flat surface of bottom of log onto burner assembly base and
push log up to logs 1 and 2
STEP 4 Position log #4 onto rear log holder and pull up to logs 1 and 2.
Kingsman Replacement Log Listing
Reference Part
Number Number Description
1 18F-C Left hand Main Log C, LOGF18
2 18F-D Right hand Main Log D, LOGF18
3 18F-B Front Log B, LOGF18
4 18F-A Rear Log A, LOGF18
➃
➀
➂
➁

18
LOGF30 LOG INSTALLATION
1) Align front hole of log support
plate with original log locator pin.
2) Slide log support over pin & using
two 10-24 DT screws, mount plate
to burner grate.
NOTE:
Make sure log support is tight
against side of burner grate before
fastening.
LOG LOCATOR TAB
LOG SUPPORT
ORIGINAL LOG
LOCATOR PIN

19
LOGF30 LOG PLACEMENT
TA B LEFT AND
RIGHT LOG
SUPPORTS
STEP #1. Locate Log #1 by positioning notches on under
side of front log with the front Grate bars (4) and pull
forward.
STEP #2. Locate left front Log by positioning slot on bottom
of log with Tab on support bracket and lower into position.
STEP #3. Locate right front Log by positioning slot on bottom
of log with Tab on support bracket and lower into position.
STEP #4. Place rear log onto rear log holder and pull up to
left and right front logs.
STEP #5 & 6. Line up holes on crossover logs with locator
pins on rear log #4 and lower into position.
Kingsman Replacement Log Listing
Reference Part
Number Number Description
1 30F-B Front Main Log B, LOGF30
2 30F-D Left hand Center Log D, LOGF30
3 30F-C Right hand Center Log C, LOGF30
4 30F-A Rear Main Log A, LOGF30
5 30F-E Left hand Crossover Log E, LOGF30
6 30F-F Right hand Crossover Log F, LOGF30
➃
➂
➁
➀
➅➄

20
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.
CAUTION
Do not wire 120 Volt power to Millivolt switches or
thermostats.
MILLIVOLT LIGHTING INSTRUCTIONS
FIGURE 12 – Millivolt Models
