Kingsman HBZDV4740 User manual

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
Installation Instructions
Model Number HBZDV4740
Zero Clearance Direct Vent Fireplace
Stock #’s: HBZDV4740N, HBZDV4740LP, HBZDV4740NE, HBZDV4740LPE are
Certified to: ANSI Z21.50-2014 • CSA 2.22-2014
ZERO CLEARANCE VENTED GAS FIREPLACE
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
Warning: Improper installation, adjustment, alteration, service or maintenance can cause property
damage, personal injury or loss of life. Refer to this manual. Installation and service must be performed by
a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
What To Do If You Smell Gas
Do not try to light any appliance.
Extinguish any open flame.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbour's phone.
If you can not reach your gas supplier, call the fire department.
For Propane Horizontal installations the venting must be a minimum of one foot vertical off the flue before
going horizontal.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: [phone]
Printed in Canada October 20, 2014
Part # 47HB-MAN14
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a commercial fireplace glass cleaner.
•Babies, small children, pregnant women and pets should leave the area during the cure phase.
•Ventilate well, open doors and windows.
•Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives, silicones and any
undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g. marble,
tile and the adhesives used to adhere this product to the walls can react with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off after the
curing of the paint has been completed. These odours can last upward to 40 hours of burn time; keep burning at a
minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
Operating Instructions
1. Be sure to read and understand all the instructions in this manual before operation of appliance.
2. Ensure all wiring is correct and properly enclosed to prevent possible shock.
3. Check for gas leaks.
4. Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
5. Make sure venting and termination cap are installed and unobstructed.
6. If brick or porcelain liners are used, ensure they are installed.
7. Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
8. If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
2

Table of Contents
Pre-installation Questions and Answers…………………………………..
2
Operating Instructions……………………………………………………….
2
Table of Contents…………………………………………………………….
3
Safety Screen Installation…………………………………………………...
4
Mobile Home/Manufactured Housing Installation………………………...
5
Warnings, Installations, and Operations…………………………………..
6-7
Installation Requirements for the Commonwealth of Massachusetts….
7
Locating your Appliance.........................................................................
8
Fireplace Dimensions.............................................................................
8
Framing for your Gas Fireplace..............................................................
9
How To Install Clean View Kit (CVCK)...................................................
10
Framing and Facing Requirements........................................................
11
Mantels & Surrounds..............................................................................
12
Mantel Leg Clearances……………………………………………………...
13

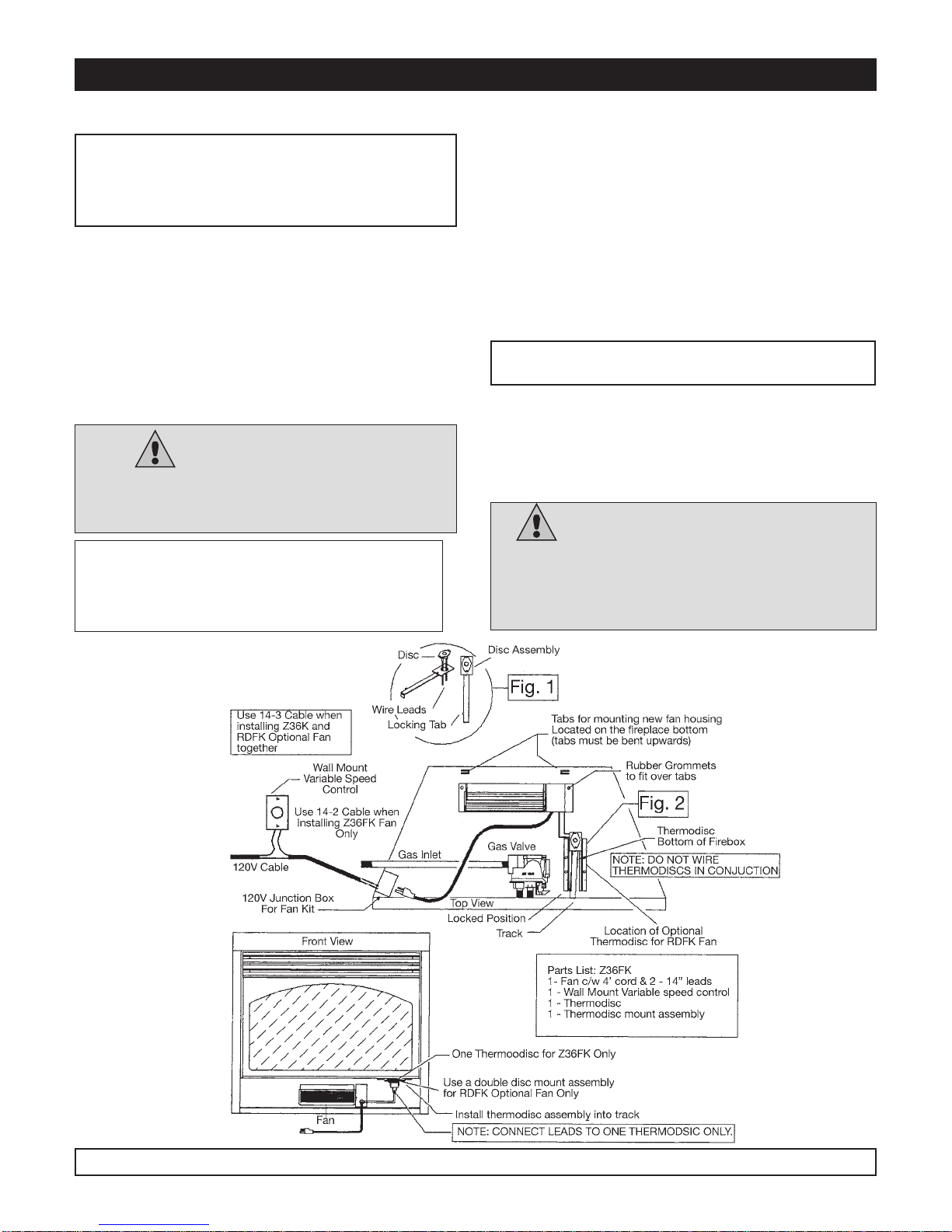

Fan Installation for HBZDV 36/42/47......................................................
14
Removing Burner System / Access Cover..............................................
15

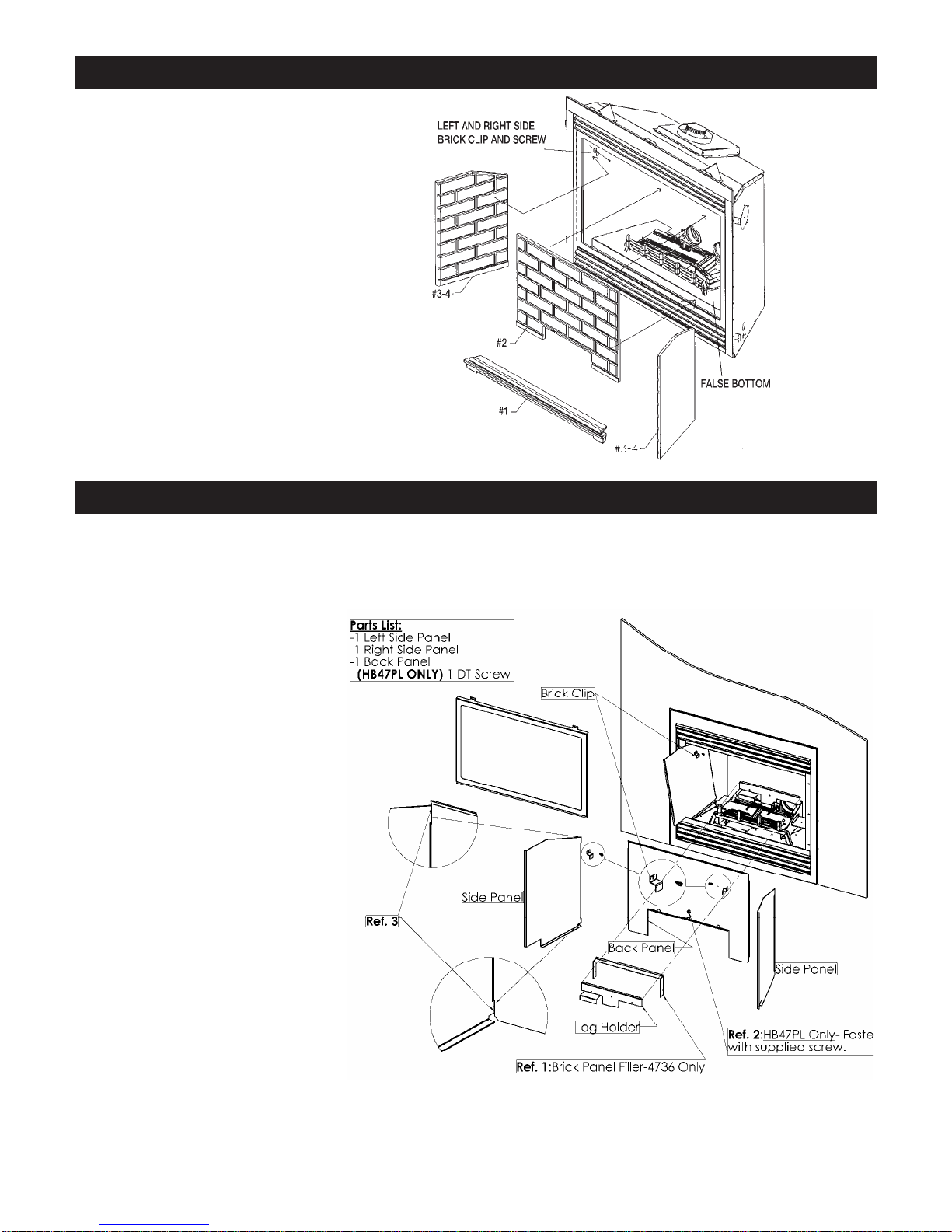

Brick Installation / Installation of HB Porcelain Liners - HB47PL............
16
Door and Glass Information....................................................................
17
Gas Line Installation…………………………………………………………
18
Millivolt System, Lighting, and Burner Control........................................
19
Burner System Maintenance..................................................................
20
Conversion Kit Instructions –Part A……………………………………….
20-21
Gas Conversion for Top Convertible Pilot –Part B..................................
22
Gas Conversion for Modulator –Part C..................................................
23
IPI Electronic Ignition System.................................................................
24-28
IPI Lighting Instructions...........................................................................
29
Instructions for installing Log Set C-60...................................................
30
Vent Termination.....................................................................................
31
General Vent Installation Information......................................................
32
Installation Of Side Wall Venting…………………………………………...
32
Horizontal Venting Table.........................................................................
33
Venting Straight Up Through Roof..........................................................
34
Glass Safety / Termination Cap Safety- All Units………………………...
35
Approved for Power Vent PVH58………………………………………….
36
PVH58 Power Vent Parts List………………………………………………
37
Parts List.................................................................................................
38-39
Trouble Shooting The Gas Control System............................................
40
Limited Lifetime Warranty.......................................................................
41
3

Safety Screen Installation Z Series
Screen with Side & Horizontal Angles
Hook Lower Clip onto glass door frame.
Press down and push upper clip under top glass door frame.
Contents of Kit:
[1] Safety Screen
[2] Side Angles
[2] Horizontal Angles
[12-16] DT Screws (Depending on screen size)
Assembly: Attach components with supplied
screws as shown.
⚠WARNING:
Wait until unit is COMPLETELY
cool before touching glass or
attempting to install or remove
Child Safety Screens.
To install screens
hook bottom clip
onto glass door
frame, then press
down and push
upper clip under
top glass door
frame, then
release. Clip will
hook onto frame.
To remove
Safety
Screens
WAIT UNTIL
FIREPLACE IS
COMPLETELY
COOL.
Press down on
upper clips and
remove screen
from fireplace
glass door.
TOP VIEW
Upper Clip
Lower Clip
Upper Clip
NOTE: Screens are symmetrical from top to bottom.
CLIPS
Upper Clip
SIDE VIEW
Fireplace with
Screen
4

Mobile Home/Manufactured Housing Installation
This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety StandardTitle 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in
Canada.
THE HBZDV4740N and HBZDV4740LP MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE IN THE
USA. IN CANADA THE HBZDV4740N and HBZDV4740LP MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in
Canada.

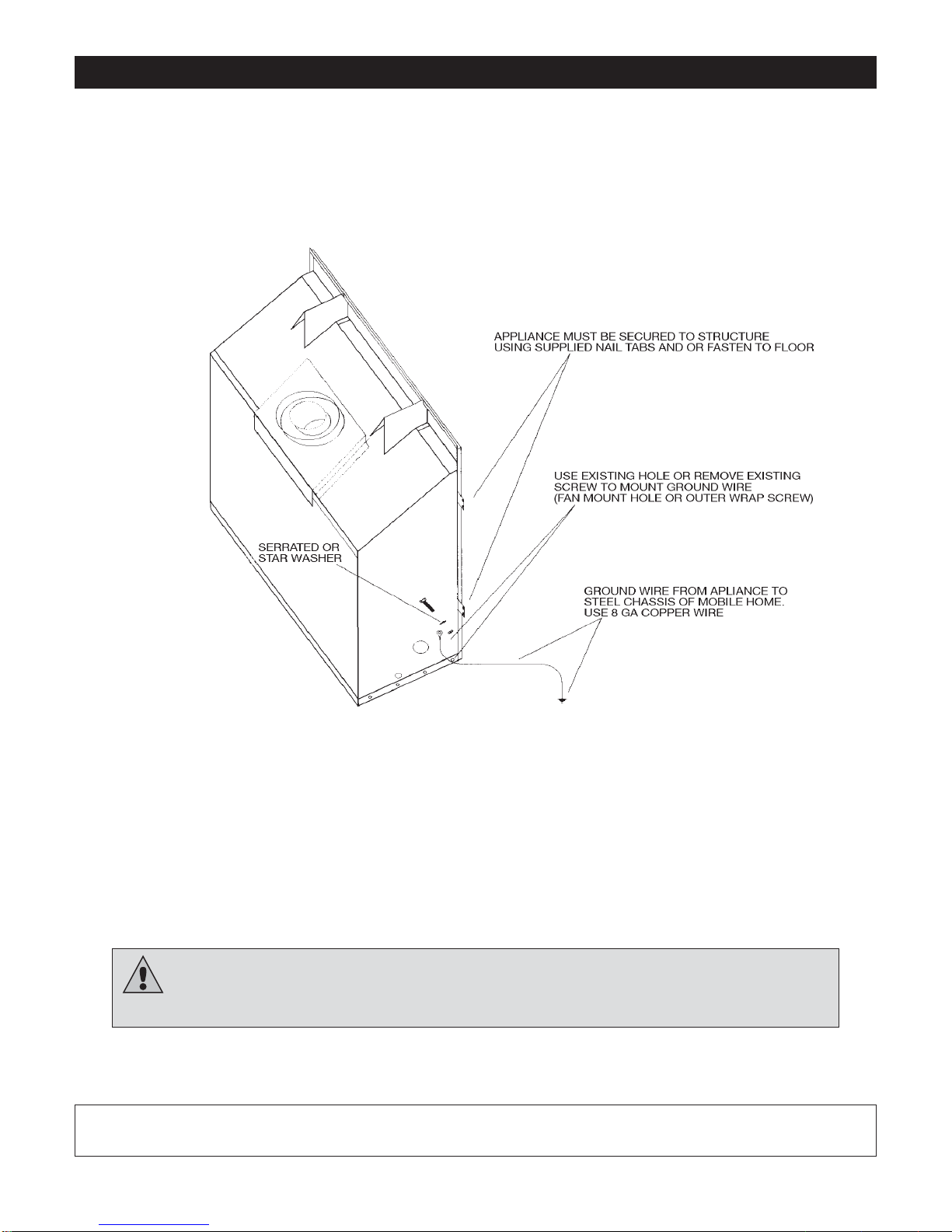

An appliance must be grounded to the steel chassis of the home with 8 ga.copper wire using a serrated or star washer to penetrate
paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
WARNING:
Do not compromise the structural integrity of the manufactured home
wall, floor or ceiling, during installation of appliance or venting.
For required venting components see venting installation in appropriate section of this manual.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed milli volt thermostat. In USA see
local codes.
5

Warnings, Installations and Operations
Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current
CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the
current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
In the U.S.A. Thermostats are not permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative).
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be removed.
6. Do not strike or abuse glass. Take care to avoid breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than factory
supplied components.
9. This appliance gives off high temperatures and should be
located out of heavy traffic areas and away from furniture and
draperies.
10. Children and adults should be alerted to the hazards of the high
surface temperatures of this appliance and should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children
and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood, paper) be used in this appliance.
13. Under no circumstances should this appliance be modified. Any parts that have to be removed for servicing should be
replaced prior to operating this appliance.
14. Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to operating the appliance.
15. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at
least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, et cetera. It is imperative that control compartments, burners and circulating air passageways
of the appliance be kept clean. Make sure that the gas valve and pilot light are turned off before you attempt to clean this
unit.
16. Clothing or other flammable material should not be placed on or near the appliance. This appliance should not be used as a
drying rack for clothing nor should Christmas stockings or decorations be hung from it.
17. Do not use this heater if any part has been under water. Immediately call a qualified service technician to inspect the heater
and to replace any part of the control system and any gas control which has been under water.
18. Do not operate appliance unless completely installed as per installation instructions.
19. Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
20. WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
21. The appliance area must be kept clear and free from combustible materials, gasoline, and other flammable vapors and
liquids.
22. The front of the fireplace gives off high temperatures that could ignite combustible material which is kept close to the front of
the unit.
23. Ensure that power to the Fireplace is turned off before servicing.
24. Do not operate this Fireplace without the glass front or with a broken glass.
25. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For assistance or additional information consult a qualified
installer, service agency, or the gas supplier.
26. Operation of this appliance when not connected to a properly installed and maintained venting system or tampering with the
blocked vent shutoff system can result in carbon monoxide (CO) poisoning and possible death.
27. This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
6

Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they
provide a primary heat source.
This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home.
Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
In the U.S.A. Thermostats are not permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative).
In USA see local codes.
Operations and Maintenance Instructions
For safe installation and operation note the following:
•Venting systems should be periodically examined by a qualified agency.
•The flow of combustion and ventilation air must not be obstructed.
•The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
•Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner areas. See Log
Placement page to remove logs. Vacuum burner parts and replace logs.
•Never use your gas fireplace as a cooking device.
•Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify
proper operation after servicing.
Installation Requirements for the Commonwealth of
Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the
requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the vent
terminal and the air intake is installed below four feet above grade the following requirements must be satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm
shall be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
Be powered by the same electrical circuit as the appliance or equipment such that only one service switch services
both the appliance and the carbon monoxide detector;
Have battery back-up power;
Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527 CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above the location of
vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet away, and read “Gas Vent
Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of the vent
terminal and the air intake is installed above four feet above grade the following requirements must be satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm
shall be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720.
B. A carbon monoxide detector shall:
Be located in the room that houses the appliance or equipment;
Be either hard-wired or battery powered or both; and
Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall be in
strict compliance with the manufacturer instructions. A copy of the installation instructions shall remain with the appliance or equipment
at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-off valve must be listed and
approved by the state of Massachusetts. This is in reference to the state of Massachusetts state code CMR238.
7

Locating Your Appliance
LOCATION KEY:
A. Flat on Wall
B. Across the Corner
C. As an Island
D. As a Room Divider
E. Flat on Wall Corner
F. Exterior Wall
See Mantel Leg Clearances Instruction for
the proper placement of fireplace.
Island installation with a top vent is
possible as long as the horizontal portion
of the vent system does not exceed 20
feet (6.1 m).
Fireplace Dimensions
HBZDV47
HBZDV47- CVCK
Non-Combustible
Header Attached
8

Framing for your Gas Fireplace
Framing Specifications
1. Cold climate installation recommendation:When installing this fire-
place against non insulated exterior wall or chase, it is recom-
mended that the outer walls be insulated to conform to applicable
insulation codes.Drywall must be installed over insulation to prevent
contact of insulation and unit.
2. Choose fireplace location and frame in accordance with the fireplace
framing dimensions specified (See Framing Diagrams).Bend nailing
tabs forward on left and right of unit and place fireplace into framed
enclosure.This allows for 1/2” in front of framing tabs for finishing
materials.
3. Drywall or other material can extend flush with the appliance on the
bottom, sides and top of fireplace.(louvered models only)
HBZDV47 Louvered HBZDV47 WITH CVCK (CLEAN VIEW CIRCULATING KIT)
4. When installing horizontal with a 90 degree bend maintain a mini-
mum of two and a half (2.5”) inches above the bend in enclo-
sures,insulation sleeve is required. If greater than six and a half (6.5”)
an insulation sleeve is not required.
5. For HBZDV with louvers combustible floor can raise 1” above the bot-
tom of the fireplace.For HBZDV with CVCK (Clean view Circulating
Kit) floor or hearth can raise 7” above the bottom of the fireplace
with portions being combustible and non combustible. See drawing
Below.
6. When installing MQHB47SWCC wall surround, the fireplace must be
raised a minimum of 3 1/2” above the finished floor, to accommodate
the wall surround.When installing MQHB47SWCV wall surround the
fireplace must be raised 2 3/4” above the finished floor.The fireplace
may be raised higher but the 60” clearance measured from the bot-
tom of the fireplace to the ceiling must be maintained at all times.(i.e.
For an 8 ft. ceiling the unit can be raised only 36 inches.)
8
21
⁄ 32 " DIA. 11"
11"
TOP VIEW
For Propane Horizontal Installations the venting must be a minimum of one foot vertical off the flue before the elbow on any
horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.
9

HB47 - HOW TO INSTALL CLEAN VIEW KIT (CVCK)
CAUTION: When using CVCK DO NOT INSTALL a Louver assembly.
1. Install optional fan kit (see Fan Instruction).
2. Fold two standoffs up into position and mount with supplied screws. (FIG 1)
3. Hang CVCK on top of fireplace retainer tabs and rotate down into position. (FIG 2)
4. Using the screws provided, fasten the non-combustible header onto the top of the CVCK assembly.
5. Using four supplied #6 screws, fasten CVCK kit to the inside frame of unit.
6. Kit is supplied with 2 valve extension knobs. Align the notches and slide the extensions onto valve knobs.
7. DO NOT brick or tile beyond the inside area of the CVCK kit to allow for removal of door.
8. Install optional pull screen system: First slide curtain onto rods and slide round end of rod into side post (REF A). Using 1/2” DT
screws, mount the flattened end of rod to bottom side of rod hanger bracket (REF B). Repeat this step for opposite side.
NOTE: ADDITIONAL ACCESS FOR GASLINE INSTALLATION AND FAN ELECTRICAL INSTALLATION! When CVCK is
installed in framing, remove 2 screws from the right and left side of the bottom panel (REF C). Once screws are removed,
bottom panel can be rotated forward for access to gas valve and fan system.
Clearance to Combustibles
Clearance to Combustibles
Back (from Standoffs) 0 inches/0 mm
Side (from standoffs) 0 inches/0 mm
Floor 0 inches/0 mm
Ceiling (from bottom of fireplace) 60 inches/150 cm
Top (from standoffs) 0 inches/0 mm
Top of 90 degree bend in Minimum with insulation sleeve
Enclosure of 50 1/2 to 56 1/2 inches 2 1/2 inches/64 mm / All Vent Systems
Top of 90 degree bend in without insulation sleeve
Enclosure over 56 1/2 to 60 inches 4 1/2 inches/114.75 mm / All Vent Systems
Top of 90 degree bend in without insulation sleeve
Enclosure over 60 inches 2 1/2 inches/64 mm / All Vent Systems
Side & Bottom of Horizontal Pipe 1 inch/25.5mm / All Vent Systems
Vertical Vent Pipe 1 inch/25.5mm / Kingsman Vent Systems
Vertical Vent Pipe 1 1/4 inch/32mm / Simpson/AmeriVent/Selkirk
Direct Temp Systems
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only parts
specifically approved with this
appliance may result in property
damage or personal injury.
NOTE: When using the Clean View
Kit (CVCK) and installing optional
electrical components (i.e. Remote
Controls, variable speed control, and
or fan modules) locate them in the
Clean View access area, unless other
shielding devices like our IPI
Component box is used.
(NOTE -Floor) if installing the
appliance directly on
carpeting or other combustible
materials other than wood
flooring, the appliance shall be
installed on a metal or wood
panel, the full width and depth
of the appliance. Carpet may
extend 1 inch above the floor
of appliance.
For units with CVCK (Clean
View Circulating Kit) see
framing with CVCK to
establish floor heights
10

Non Combustible Header
Attached
Non Combustible Header
Attached
Non Combustible Header
Attached
Non Combustible Header
Attached
11

Clearances –HB36 / HB42 / HB47 –Mantels & Surrounds
Warning: Combustible objects must not be placed on a non-combustible mantel unless the non-
combustible mantel meets the minimum height and width requirements for a combustible mantel.
Note For the installation of
the MQHBSW.
Maintain Minimum 1”
Clearance to Top & Sides of
the surround. Combustible or
non-combustible materials
can be placed up to 1” of the
sides and top of surround, but
not extending to or over the
face of surround.
*Caution: The CVCK must be flush with the wall.*
12

Mantels
Depending on the depth of the fireplace mantel, it may be installed higher or lower from the top of the fireplace opening. See drawings
for proper installation height of your combustible mantel. Non-combustible mantels may be installed at any height above the fireplace
opening.
Non combustible materials such as brick, tile, etc. can extend up to or over the front face of the fireplace (NO PORTION OF GRILL
AREA OR DOOR AREAS CAN BE COVERED) except where designer clean view kit is used.
Combustible material can extend flush to unit up to the top, bottom and sides of fireplace to stand-offs.
For COMBUSTIBLE materials extending in front of fireplace consult (Mantel and Mantel Leg Drawings).
Surrounds
If installing wide or slim line surrounds, the finish materials must be flush with the front facing of the fireplace. See page 6 figure ‘A’, the
floor should be built up 1” in front of the fireplace in order for the surrounds to sit flush to the floor.
Note: When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant (250˚F) to prevent
discoloration.
Warning: Combustible objects must not
be placed on a non-combustible mantel
unless the non-combustible mantel
meets the minimum height and width
requirements for a combustible mantel.
Mantel Leg Clearances
13

Fan Installation for HBZDV 36/42/47
Fan Installation instructions for HBZDV36/42/47
with or without CVCK (Clean View Circulating Kit)
1. Slide fan housing into unit and place over 2 Fan Retainer tabs.
Tabs are pre punched and bent up.Rubber grommets at the base
of the fan should fit snugly over the tabs.*Note:When installing fan,
lay the fan on its back and slide into the Fireplace lengthwise.Once
inside the fan can be stood upright and slid behind the valve for
placement.
2. Note: For Fan Disc installation HBZDV units have been installed
with a sliding track system.Install the Thermodisc provided with the
Fan Kit. Place thermodisc into sliding assembly, Fig 1, and attach 2
leads exiting right side of fan housing into thermodisc. Now slide
disc assembly into thermodisc track, Fig 2.Place swivel handle of
disc assembly on track to lock into position.To service disc simply
pull swivel handle slide towards you while rotating handle to access
disc.
3. Wire Junction Box to 120v and wall mounted variable speed con-
trol.Install a duplex outlet to junction box and plug fan into outlet.
4. Turn the wall switch on (clockwise).Turn fireplace on. Once the
sensor in unit reaches operating temperature (approximately 10 to
15 minutes) the fan will turn on.The fan can be switched off if
desired by turning the wall switch fully counter clockwise.
5. To set the minimum fan speed.Remove the variable switch from
the wall mount.Turn the variable speed wall controller to its mini-
mum setting (fully counter clockwise).Use the set screw on the
side of variable speed controller to increase or decrease the mini-
mum fan speed (lowering minimum fan speed will decrease sound
level created by fan)
Reinstall switch into wall mount and cover with face plate.
Parts List:
1 ea. fan comes with 4 ft cord. Two 14’ leads (female ends)
1 ea variable speed control (wall mount type)
1 ea thermodisc
1 thermodisc mount assembly
Electrical Services
All optional fan kits are equipped with a 120V, 60Hz, .4amp blower.
Note: All electric connections are to be made in accordance with
CSA Standard C22.1 - Canadian Electrical Code part I or with the
National Electrical Code, ANSI/NFPA 70 (latest edition) and/or in
accordance with local codes.
Note: INSTALL FAN KIT BEFORE INSTALLING OPTIONAL
CVCK (Clean View Circulating Kit).
If CVCK has been installed into Framing additional access is
provided by removing screws from bottom panel of CVCK.
See INSTALLING CLEAN VIEW KIT (CVCK).
CAUTION – DO NOT ATTACH 120V FAN ASSEMBLY TO MILLIVOLT GAS VALVE SYSTEM
Note:To service fan with CVCK kit installed see Removing Burner
System in manual.
WARNING: Label all wires prior to
disconnection when servicing controls. Wiring errors
can cause improper and dangerous operation.
Verify proper operation after servicing.
WARNING: Electrical Grounding Instructions.
This appliance is equipped with a three-pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove
the grounding prong from this plug.
14

Removing Burner System / Access Cover
If Fireplace has been installed with optional CVCK (Clean View
Circulating Kit) to service fan system or burner system controls,
the access cover and burner system will have to be removed
Access cover removal
1. Remove door, logs, brick panels, false bottom, burner grate
and burner from firebox.
2. Lift false bottom up (on applicable units only) from alignment
pins and remove.Burner grate (on applicable units only) is
fastened by 2 screws one right and left of grate, remove
screws and take out grate.Remove burner by loosening burn-
er retainer tab screws and slide burner left off orifice.Access
cover is now exposed for removal.
3. Remove 10 screws holding access cover in place. Push down
on one corner of access cover to break seal of cover, once
loose cover can be slid under firebox bottom to expose gas
connection.
Removing Burner System
1. Disconnect gas line connection at burner system through
access cover opening.
2. Remove extension knobs and wiring from face of gas valve.
3. Undo screws holding back log holder (on applicable units
only) and remove.Remove screws from perimeter of burner
system pan, lift pan at one back corner and rotate pan up
from back of firebox. Make sure when tilting up and removing
burner system, that all fan and valve control wiring is discon-
nected.To re-install access cover / burner system remove old
Mil Pac sealant and apply new sealant. After new sealant is
applied reverse removal procedure to re-install parts.
* Caution high temperature sealant has been applied to access
cover and burner system pan. New sealant will have to be
applied when re-installing access cover and burner stem to
maintain the integrity of sealed combustion chamber. Mil Pac
part #840099 or Kingsman part # 1000-150MP sealant can
be purchased from your Kingsman retailer or distributor.
Warning: Before starting removal of parts turn off
gas supply, disconnect 110 volts to fan system and
disconnect 110 volts to electronic ignition burner system
if applicable.
Warning: All work should be performed by a
qualified and certified technician.
Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
15

Brick Installation
INSTALLING BRICK PANELS FOR
MODEL HBZDV4740
1.Remove door glass from the unit by
unlatching the 2 latches on top of the unit..
2 Place optional front bridge ledge (#1) in the
area front of false bottom.
3.Place rear brick panel (#2) up against the
rear of the firebox.
4.Loosen screw holding brick clip in position,
move clip up out of the way and place side
brick (#3-4) up to rear brick and flush
against side wall of firebox.
5.Position clip over brick and tighten screw.
6.Install log set as per instructions and re-
install door.
Installation of HB Porcelain Liners - HB47PL
1.Remove Door from the fireplace by
unlatching the 2 latches on top of
unit.
2.Remove back Log H older by remov-
ing 3 screws from face of Log Holder.
The Log Holder will have to be rein-
stalled after the placement of the
Back Panel. For HB4736, remove
Brick Filler Panel (See Ref. 1).
3.Place Back Panel up against rear of
firebox by tilting top of Back Panel
towards you and sliding bottom of
Back Panel over burner system. For
HB47PL, use supplied screw to
attach Back Panel to firebox (See
Ref. 2).
4.Loosen screws holding Brick Clip in
place.Rotate Brick Clip out of the
way and slide Side Panel up against
Back Panel. Side Panel tabs should
engage top and bottom of Back
Panel (See Ref. 3).Rotate Brick Clip
down over Side Panel and tighten
screw.
5.Re-install Log Holder (and Brick Filler
Panel if applicable) removed in step
2. Install Log Set as per instruction
and re-install Door.
16

Door and Glass Information
Glass Cleaning
It will be necessary to clean the glass periodically. During start-up, condensation, which is normal, forms on the inside of the glass and
causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. It is therefore recom-
mended that initially the glass be cleaned two or three times with non-abrasive common household glass cleansers and warm water.
After that, the glass should be cleaned two or three times a season depending on the circumstances.
Glass Replacement
REPLACEMENT GLASS FOR DIRECT VENT UNIT
Model Series HBZDV4740 use Low E tempered glass. Must be 5mm thick.
To replace glass, clean all materials from door frame. Scrape off old silicone down to metal. Using a high heat silicone temperature-
resistant to 500°F (260°C) apply a continuous bead of approximately 1/32” to all four sides of frame and insert glass with new gasket.
Frame should be on flat surface, with a small amount of weight pressing glass into silicone.Let dry approximately 15 to 20 minutes. The
door can be re-installed by reversing Steps 1 & 2. Use caution when removing broken glass, wear gloves.
Removal of the Glass Door
1. Remove the door by unlatching the 2 top latches.Simply place 2 fingers in the grooves, pull towards you and lift upwards slightly.
2. Once the top of the door is unlatched, simply pull outwards and lift upwards to unlatch the bottom.
3. When re-installing the door place the bottom of the door in first and secure with Top Latch assembly to the door.
Spring Replacement:
*Over time, spring may need to be replaced if tension is lost.
1. To remove the top latch, remove the 2 hex screws that secure it in place.They are located in the firebox.
2. Once all the screws are removed the latches will slide out of place.
3. There is 1 lock nut per latch.When replacing a spring, tighten the lock nut until 2 threads are beyond the locknut.This is critical for
proper tension.
Warning and Cautions.
• Do not clean when the glass is hot.
• Do not use abrasive cleaners.
• Using a substitute glass will void all product
warranties.
• Do not strike or abuse glass. Care must be
taken to avoid breakage of the glass.
• Do not operate this fireplace without the glass
front or with a broken glass.
17

Gas Line Installation
This gas appliance should be installed by a qualified installer in accordance with
local building codes and with current CAN/CGA - B149.1 or .2 installation codes
for Gas Burning appliances and equipment in Canada and the National Fuel Gas
Code ANSI Z223 in the U.S.A.
1. The gas pipeline can be brought in through either the right or the left side of the
appliance.A knockout is provided at either location to allow for the gas pipe
installation and testing of any gas connection.
2. The gas control inlet is 3/8” NPT.Typical installation layout for rigid pipe is shown
at right.
3. When using copper or flex connector, use only approved fittings. Always pro-
vide a union so that gas line can be easily disconnected for burner or fan servic-
ing. See gas specification for pressure details and ratings.
4. When a vertical section of gas pipe is required for the installation, a condensa-
tion trap is needed.See CAN/CGA-B149.1 or .2 for code details.
5. For natural gas, a minimum of 3/8” iron pipe with gas minimum pressure of 4.5”
w.c. must be used for supply from the gas meter.Consult with the local gas utility
if any questions arise concerning pipe sizes.
6. A 1/8” NPT plugged tappings are accessible for test gauge connection both on
the inlet and outlet of the gas valve.
7. Turn the gas supply ON and check for leaks.DO NOT USE OPEN FLAME FOR
THIS PURPOSE.Use an approved leak testing solution.
8. The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test pres-
sures in excess of 1/2 PSIG (3.5 KPa).
9. The appliance must be isolated from the gas supply piping system by closing its
individual shutoff valve during any pressure testing of the gas supply piping sys-
tem at test pressures equal to or less than 1/2 PSIG (3.5 KPa).
Note: The gas line connection may be made of 1/2” rigid pipe or an
approved flex connector. Since some municipalities have additional
local codes, it is always best to consult your local authorities and
the current CAN/CGA - B149.1 or .2 installation code in Canada or
the National Fuel Gas code ANSI Z223.1 in the U.S.A.
Gas Specifications
Models HBZDV4740N HBZDV4740LP
Fuel Natural Propane
Gas Control Millivolt adjustable Millivolt adjustable
Maximum 40,000 BTU High 36,000 BTU High
Input 27,000 BTU Low 30,000 BTU Low
Maximum na na
Output
Orifice Size 31 49
(0 - 4500 ft)
Air Shutter 5/16/.312 Open Full Open
Gas Inlet Size S.I.T. 820 Nova, 3/8” NPT
Gas Supply Pressure Minimum Normal Maximum
Natural Gas 5.5” 7” 9”
Liquid Propane 11” 11” 12”
Manifold Pressure Natural Gas Liquid Propane
Manifold Pressure High 3.5 IN.W.C./.87 KPa 10 IN.W.C./2.61 KPa
Manifold Pressure Low 1.6 IN.W.C./.40 KPa 6.3 IN.W.C./1.57 KPa
Important: Always check for gas leaks with a soap and
water solution.Do not use open flame for leak testing.
For the state of Massachusetts a T-handle gas shut-off valve
must be used on a gas appliance. ThisT-handle gas shut-off valve
must be listed and approved by the state of Massachusetts. This is
in reference to the state of Massachusetts state code CMR238.
18

Millivolt System, Lighting, and Burner Control
FOR YOUR SAFETY READ BEFORE LIGHTING
BEFORE LIGHTING
A This appliance has a pilot which must be lighted by hand. When
lighting the pilot, follow these instructions exactly.
B Smell all around the appliance area for gas. Be sure to smell next
to the floor because some gas is heavier than air and will settle on
the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light an appliance.
•Do not touch any electrical switch; do not use any phone in your
building.
•Immediately call your gas supplier from a neighbour’s phone. Follow the
gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
C Use only your hand to push or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don’t try to repair it.
Call a qualified technician. Force or attempted repair may result in a fire
or explosion.
D Do not use the appliance if any part has been under water. Immediately
call a qualified service technician to inspect the appliance and to
replace any part of the control system which has been under water.
LIGHTING INSTRUCTIONS
1. Stop! Read the safety information above this label.
2. Set the thermostat to lowest setting.
3. Turn off all electrical power to the appliance.
4. Locate valve under the burner assembly.
5. If the control knob is not already in the off position, i.e. the word
“OFF” in the 9 o’clock position, then push in the gas control knob
slightly and turn 3clockwise to “OFF”. NOTE: Knob cannot be
turned from “PILOT” to “OFF” unless knob is pushed in slightly. Do
not use force.
6. Wait five [5] minutes to clear out any gas. If you then smell gas.
STOP! Follow “B” in the safety information above on this label. If
you don’t smell gas then go to the next step.
7. Now push in the control knob slightly and turn 4counter-clockwise
to the “PILOT” position.
8. Push in the control knob all the way and hold it. With the other hand
push in the red ignitor button until you hear a click. Now observe closely
the pilot burner located on the rear center-left hand side of the main
burner. If a flame has appeared then continue to depress the control
knob for 20 seconds. If the flame did not appear then continue to
depress the red ignitor button every 5 seconds until a flame is
established. NOTE: If after 30 seconds a flame has not yet been
established then turn the control knob back to the off position and
repeat steps 5, 6 & 7.
9. Once the pilot has been established hold the control knob in the
depressed position for approximately 25 seconds before releasing. If
the flame goes out then repeat steps 7 and 8.
10. Now turn the control knob to the “ON” position. The burner will not light
unless the wall switch thermostat or remote control is turned “ON” or in
the case of the thermostat there is a call for heat.
11. Close the access door and turn all electrical power back to the
appliance.
TO TURN OFF THE APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is to be
performed.
3. Open the control access door.
4. Push in the gas control knob slightly and turn 3clockwise to the “OFF”
position. Do not force.
5. Replace control access panel.
Recommended Maximum Lead Length (Double Wire)
When Using Wall Switch or Thermostat
Wire Size Max. Length
14ga 100ft [30.4m]
16ga 64ft [19.5m]
18ga 40ft [12.1m]
20ga 25ft [7.6m]
22ga 15ft [4.5m]
CAUTION: DO NOT WIRE 120V POWER TO
MILLIVOLT SWITCHES OR THERMOSTAT.
WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss
of life.
19

Burner System Maintenance
It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This
operation should be performed by your dealer or a qualified technician.
-CAUTION-
Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all
electrical connections to the appliance. Allow the appliance to cool to room temperature. Note
that the pilot assembly may be hot in an intermittent or standing-pilot system—even if the main
burner was never on. Exercise caution when working within the area.
-ALL WORK SHOULD BE PERFORMED BY A QUALIFIED AND CERTIFIED TECHNICIAN-
Monthly Flame Inspection
It is recommended to turn on the unit at least once a month and inspect the flame pattern to ensure there are no problems
with the burner tube. The pilot flame should also be inspected monthly to ensure proper operation.
Flame should appear similar to the above picture.
Conversion Kit Instructions – PART A
Kit Number Description Pilot Orifice Burner Orifice
Brass (1000-255) Brass Nipple Air Shutter Hi/Lo Regulator
4740HB -CKLP LP Conversion
-Millivolt-
1001-P167SI
#30 (977.167)
#49 1000-P201VE
HEX
Fully Open 1001-P202SI
(0.907.202)
4740HB -CKNG NG Conversion
-Millivolt-
1001-P165SI
#51 (977.165)
#31 1000-P201VE
HEX
5/16” 1001-P201SI
(0.907.201)
4740HB -CKLPI LP Conversion
-IPI -
1001-P168SI
#35 (977.168)
#49 1000-P201VE
HEX
Fully Open 1002-P014SI
(0.907.014)
4740HB -CKNGI NG Conversion
- IPI -
1001-P166SI
#62 (977.166)
#31 1000-P201VE
HEX
5/16” 1002-P016SI
(0.907.016)
Refer to “Gas Specifications Chart” for inlet pressures and input ratings. Clock meter to verify input rate. Place conversion label
as close to converted gas control as possible. Refer to lighting instructions to verify the normal operating sequence of the ignition
system. IMPORTANT: Always check for gas leaks with a soap and water solution. DO NOT USE OPEN FLAME FOR LEAK
TESTING.
20
