Kingston Technology IronKey Keypad 200 User manual

User Manual

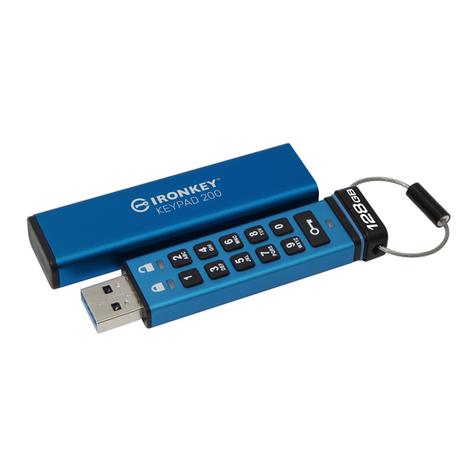

IronKey Keypad 200
Find the language and latest documentation here.
IronKey Keypad 200 User Manual
Simplied Chinese .....简体中文说明书
Traditional Chinese ....繁體中文說明
............For instructions in English
. . . . . . . . . . . . . . . . . . Para instrucciones en Español
.........Für Anleitungen in Deutsch
. . . . . . . . . . . . . . . . . . Pour des instructions en Français
. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano
............Por as instruções em Português
. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim
. . . . . . . . . . . . . . . . . .日本語マニュアル用

KEYPAD 200
fp
Remember to save your PIN in a safe place. If lost or forgotten, there is no way to access the Kingston®
IronKeyTM Keypad 200.
If you are having difficulty, please refer to this complete user manual loaded on your Keypad 200 (KP200)
which is also available at: www.kingston.com/IKKP200
KEYPAD 200
User Manual
www.kingston.com
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#2
www.kingston.com
Copyright © 2022 Kingston Technology Corporation, 17600 Newhope Street, Fountain Valley, CA 92708
USA. All rights reserved.
Kingston® IronKeyTM Keypad 200 incorporates DataLock® Secured Technology licensed from ClevX, LLC.
Windows is a registered trademark of Microsoft Corporation.
All other trademarks and copyrights referred to are the property of their respective owners.
Kingston is not liable for technical or editorial errors and/or omissions contained herein; nor for incidental
or consequential damages resulting from the furnishing or use of this material. The information provided
herein is subject to change without notice. Kingston cannot guarantee the accuracy of any information
presented after the date of publication. This document is for information purposes only. Kingston makes
no warranties, expressed or implied, in this document.
Distribution of the work or derivative work in any standard (paper) book form for commercial purposes is
prohibited unless prior permission is obtained from the copyright holder.
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#3
www.kingston.com
KEYPAD 200
Table of Contents
Introduction.................................................................................................................. 4
Box Contents ................................................................................................................ 4
1. KP200 layout........................................................................................................... 5
2. LED indicators and their actions ............................................................................. 5
3. How to use the KP200 for the first time................................................................. 6
4. How to change the User PIN in User mode............................................................ 7
5. How to access drive settings in User mode............................................................ 8
6. How to enable Read-Only as User .......................................................................... 8
7. How to enable Read/Write as User ........................................................................ 9
8. How to set the Timeout Lock in User mode ........................................................... 9
9. How to disable the Timeout Lock in User mode..................................................... 10
10. How to determine the device Version Number in User mode............................... 11
11. How to create an Admin PIN in User mode............................................................ 11
12. How to unlock the KP200 as Admin ....................................................................... 12
13. How to create a new User PIN in Admin mode...................................................... 13
14. How to change the User PIN in Admin mode......................................................... 13
15. How to verify whether an Admin/User PIN has been set up ................................. 14
16. How to change the Admin PIN ............................................................................... 14
17. How to enable Read-Only in Admin mode ............................................................. 15
18. How to enable Read/Write in Admin mode ........................................................... 15
19. How to determine the device Version Number in Admin mode............................ 16
20. How to set the Timeout Lock in Admin mode........................................................ 16
21. How to disable the Timeout Lock in Admin mode ................................................. 17
22. How to delete all data in Admin mode................................................................... 18
23. Brute Force hacking detection ............................................................................... 18
24. How to Reset the KP200......................................................................................... 19
25. How to create a User PIN after a Brute Force attack or Reset............................... 20
26. How to create an Admin PIN after a Brute Force attack or Reset.......................... 20
27. How to format KP200 for Windows ....................................................................... 22
28. How to format KP200 for macOS ........................................................................... 23
29. How to format KP200 for Linux .............................................................................. 24
30. Technical Support................................................................................................... 25
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#4
www.kingston.com
KEYPAD 200
Note: The KP200 rechargeable battery is not fully charged, we recommend the battery be charged prior to
first use. Please plug in the KP200 to a powered USB port for 30-60 minutes to fully charge the battery.
Thank you for purchasing the IronKey KP200, an ultra-secure and easy to use, hardware encrypted
USB 3.2 Gen 1 PIN activated flash drive.
The KP200 is designed to be FIPS 140-3 Level 3 (certification pending). This is a high-level US government
accreditation and means the product has passed numerous tests relating to the encryption algorithm and
tamper-evidence as well as to thwart attacks directed at the Critical Security Parameters.
The KP200 uses military grade AES-XTS 256-bit hardware encryption, which encrypts all data stored on the
drive in real-time. The KP200 requires no software and is OS and host independent.
The KP200 incorporates a rechargeable battery allowing the user to enter a 8-15 digit PIN (Personal
Identification Number) onto the on-board keypad before connecting the drive to a USB port.
Should the drive be lost or stolen, the user can rest assured that all data held on the KP200 is safe and
cannot be accessed by any unauthorized person.
The KP200 can be configured with both a User and Admin PIN, making it perfect for corporate and
government deployment. As the KP200 is unlocked via the onboard keypad and not a host computer, it is
not vulnerable to software/hardware based keyloggers or brute force attacks.
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Introduction

#5
www.kingston.com
2. LED Indicators and Their Actions
LED
LED State
Description
LED
LED State
Description
Solid RED and
blinking GREEN
and BLUE
Initial shipment state,
first time User PIN creation.
Locking down/incorrect PIN
entry
Solid RED and
blinking GREEN
Reset Drive awaiting User PIN
configuration
Factory reset/deleting files in
Admin mode
Red- fade Out
Red and Green
blinking alternately
Red blinking
Locked and awaiting User PIN
entry
Red and Green
flickering together
Awaiting Admin PIN entry
Green solid
Drive is unlocked in User mode
Green and Blue
blinking together
User settings mode
Green blinking
When connected to a USB port if
Green Led blinks every 2 seconds
this indicates the drive has been
set as ‘Read-Only’
Green and Blue
flickering together
Admin settings mode
Green flickering KP200 is unlocked in Admin
mode
Red and Blue
blinking together
When not connected to a USB
port indicates that both User
and Admin PINs have been set
on the KP200
BLUE blinking
every 5 seconds
Battery is charging when
drive is locked and connected to
a USB port
Red and Blue
flickering together
Awaiting Admin PIN change
Blue blinking
Data exchange with host or when
not connected to a USB port
indicates an Admin PIN exists
Blinking Blue
Awaiting User PIN change
1. Protective sleeve.
2.
Keyring- Unscrew to add to keyring.
3.
LED lights- RED- Locked. GREEN- Unlocked.
BLUE
- Connected to the computer/data transfer/
Admin
PIN indicator/User PIN change.
4.
Polymer coated, wear resistant, alphanumeric
keypad.
5.
Epoxy coated- All critical components are
covered
by a layer of super tough epoxy resin.
6.
On-device crypto chip.
7. Key button.
1. KP200 Layout
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#6
www.kingston.com
•Must not contain only repetitive numbers, e.g. (3-3-3-3-3-3-3-3)
•Must not contain only consecutive numbers, e.g. (1-2-3-4-5-6-7-8), (7-8-9-0-1-2-3-4), (8-7-6-5-4-3-2-1)
Examples of these types of Alphanumerical PINs are:
•For “Password” you would press the following keys:
7 (pqrs) 2 (abc) 7 (pqrs) 7 (pqrs) 9 (wxyz) 6 (mno) 7 (pqrs) 3 (def)
•For “IronKey1” you would press:
4 (ghi) 7 (pqrs) 6 (mno) 6 (mno) 5 (jkl) 3 (def) 9 (wxyx) and then 1
Using this method, long and easy to remember PIN’s can be created.
To create a User PIN, proceed with the following steps.
The KP200 is supplied in the ‘Initial Shipment State’ with no pre-set PIN. An 8-15 digit User PIN must be
configured before the drive can be used. Once a User PIN has been successfully configured, it will then not
be possible to revert the drive back to the ‘Initial Shipment State’.
PIN
requirements:
•Must be between 8-15 digits in length
3. How to Use the KP200 for The First Time
Note: Once the KP200 has been successfully unlocked, the Green LED will remain on and in a solid
state for 30 seconds only, during which time the KP200 needs to be connected to a powered USB port.
It can be locked down immediately (if not connected to a USB port) by pressing and holding down
the KEY button for 3 seconds, or by clicking the ‘Safely Remove Hardware/Eject’ icon within your
operating system when connected to a USB port. When the KP200 is unlocked and connected to a USB
port, it will not accept further instructions via the keypad.
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Instructions
LED
LED State
1. Press KEY button once
Red, Green & Blue LEDs will flash together
once and then switch to a solid Red LED and
blinking Green and Blue LEDs
2. Press the KEY button twice (double-click)
Solid Red LED and blinking Green and Blue
LEDs will switch to a blinking Blue LED
3. Enter your new 8-15 digit
User PIN
Blue LED will continue to blink
4. Press
KEY
button
twice
(double-click)
Blinking Blue LED will switch to a blinking
Green LED
5. Re-enter your new User PIN
Green LED continues to blink
6. Press KEY button twice (double-click)
Blinking Green LED will change to solid Red
LED and then switch to a solid Green LED
indicating that the User PIN was successfully
created
Password Tip: You can create a memorable word, name, phrase or any other Alphanumerical PIN
combination by simply pressing the key with the corresponding letters on it.

#7
www.kingston.com
Examples of these types of Alphanumerical PINs are:
•For “Password” you would press the following keys:
7 (pqrs) 2 (abc) 7 (pqrs) 7 (pqrs) 9 (wxyz) 6 (mno) 7 (pqrs) 3 (def)
•For “IronKey1” you would press:
4 (ghi) 7 (pqrs) 6 (mno) 6 (mno) 5 (jkl) 3 (def) 9 (wxyx) and then 1
Using this method, long and easy to remember PINs can be created.
To change the User PIN, proceed with the following steps.
Instructions
LED
LED State
1. Press KEY button once
Red,Green &Blue LEDs will flash togetheronce
and thenthe Red LED will continue to blink
2. Enter your current User PIN
Red LED will continue to blink
3. Press the KEY button once
Solid Red LED switches to a solid Green LED
indicating successful User PIN entry
4. Press
KEY
button
twice
(double-click)
Solid Green LED switches to a blinking Blue
LED
5. Enter your new User PIN
Blue LED continues to blink
6. Press
KEY
button
twice
(double-click)
Blinking Blue LED switches to a blinking
Green LED
7. Re-enter your new User PIN
Green LED continues to blink
8. Press
KEY
button
twice
(double-click)
Solid Red LED changing to Green solid LED
indicating successful User PIN change
Password Tip: You can create a memorable word, name, phrase or any other Alphanumerical PIN
combination by simply pressing the key with the corresponding letters on it.
PIN requirements:
•
Must be between 8-15 digits in length
•
Must not contain only repetitive numbers, e.g. (3-3-3-3-3-3-3-3)
•Must not contain only consecutive numbers, e.g. (1-2-3-4-5-6-7-8), (7-8-9-0-1-2-3-4), (8-7-6-5-4-3-2-1)
4. How to Change the User PIN in User Mode
Note: The User PIN can also be changed by the Administrator using the Admin PIN if one exists, refer
to section 14 ‘How to change the User PIN in Admin mode’. If a mistake was made while defining a new
User PIN or the procedure was not completed, the drive will retain the old User PIN.
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#8
www.kingston.com
The drive settings mode will allow the user to perform different functions such as creating an Admin PIN, enabling
and disabling the KP200 as Read-Only, setting a Timeout lock and determining the device version number.
The table below illustrates how to access the drive settings mode, sections 6-11 describe how to perform the
various functions.
5. How to Access Drive Settings in User Mode
Instructions
LED
LED State
1. Press KEY button once
Red, Green & Blue LEDs will flash together
once and then the Red LED will continue to
blink. (Note: Both RED and Blue LEDs will
blink together if an Admin PIN also exists.)
2. Enter your current User PIN
Red LED will continue to blink
3. Press the KEY button once
Solid Red LED switches to a solid Green
LED indicating successful User PIN entry
4. Press the KEY button three times- (triple-click)
Solid Green LED switches to blinking Green
and Blue LEDs, indicating the drive is awaiting
new user defined drive settings
6. How to Enable Read-Only as User
To set the KP200 to Read-Only in User mode, proceed with the following steps.
Instructions
LED
LED State
1. Unlock the KP200 with your User PIN
Green LED will be solid indicating successful
User PIN entry
2. Press the KEY button three times- (triple-click)
Solid Green LED switches to blinking
Green and Blue LEDs indicating the drive
is awaiting new user defined settings
3. Press button number
7
followed by the
number
6
button - (
76
)
Green and Blue LEDs will continue to blink
4. Press the KEY button once
Green and Blue LEDs will change to a solid
Red LED before switching to asolid Green LED
indicating successful Read-Only configuration
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Note: Once activated, drive access is limited to Read-Only. When KP200 is unlocked and inserted into a
USB port the Green LED blinks every two seconds indicating the drive is in Read-Only Mode. Admin can
override User Read/Write settings by enabling/disabling Read/Write in Admin mode.

#9
www.kingston.com
To set the KP200 to Read/Write in User mode, proceed with the following steps.
7. How to Enable Read/Write as User
Instructions
LED
LED State
1. Unlock the KP200 with your User PIN
Green LED will be solid indicating successful
User PIN entry
2. Press the KEY button three times- (triple-click)
Solid Green LED switches to blinking
Green and Blue LEDs indicating the drive
is awaiting new user defined settings
3. Press button number
7
followed by the
number
9
button - (
79
)
Green and Blue LEDs will continue to blink
4. Press the KEY button once
Green and Blue LEDs will change to asolid Red
LED before switching to a Green LED
indicating successful Read/Write configuration
8. How to Set the Timeout Lock in User Mode
To protect against unauthorized access in the event, the KP200 is connected to a host and left unattended,
the KP200 can be set to automatically lock after a pre-set duration of time.
In its default state, the KP200 Timeout Lock feature is turned off. The Timeout Lock feature can be set to
activate (lock) an idle drive anywhere between 1 and 99 minutes.
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Note: Once activated, drive access is restored to the default Read/Write state. Admin can override User
settings by enabling/disabling Read/Write in Admin mode.

#10
www.kingston.com
To set the Timeout Lock, please follow steps in the table below.
Instructions
LED
LED State
1. Unlock the KP200 with your User PIN
Green LED will be solid indicating
successful User PIN entry
2. Press the KEY button three times- (triple-click)
Solid Green LED switches to blinking
Green and Blue LEDs indicating the drive
is awaiting new user defined settings
3. Press button number
8
followed by the
number
5
button - (
85
)
Green and Blue LEDs will continue to blink
4. Press the KEY button once
Green and Blue LEDs will switch to a
blinking Green LED
5. Enter the length of User Timeout:
0 = 0 minutes (default)
5 = 5 minutes
15 = 15 minutes
99 = 99 minutes etc
Green LED continues to blink
6. Press the Key button once
Red solid LED will switch to a Green solid
LED indicating the Auto-Lock time out has
been successfully configured
9. How to Disable the Timeout Lock in User Mode
To disable the Timeout Lock, please follow steps in the table below.
Instructions
LED
LED State
1. Unlock the KP200 with your User PIN
Green LED will be solid indicating
successful User PIN entry
2. Press the KEY button three times- (triple-click)
Solid Green LED switches to blinking
Green and Blue LEDs indicating the drive
is awaiting new user defined settings
3. Press button number
8
followed by the
number 5 button - (85)
Green and Blue LEDs will continue to blink
4. Press the KEY button once
Green and Blue LEDs will switch to a
blinking Green LED
5. To disable the Timeout Lock, press button
number 0
Green LED continues to blink
6. Press the Key button once
Red solid LED will switch to a Green solid
LED indicating the Auto-Lock time out has
been successfully disabled
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Note: If the Timeout Lock feature has been set by the user in ‘User Mode’, the Administrator is able to
change the user setting in Admin mode. If the Administrator set the Timeout Lock feature in ‘Admin
Mode’, the user is disabled from making any change to the Timeout feature in User Mode.

#11
www.kingston.com
Note: If the Timeout Lock feature has been set by the user in ‘User Mode’, the Administrator is able to
change
the user setting in Admin mode. If the Administrator set the Timeout Lock feature in ‘Admin
Mode’, the user is disabled from making any change to the Timeout feature in User Mode.
10. How to Determine the Device Version Number in User Mode
To display the device Version Number of the KP200 do the following.
Instructions
LED
LED State
1. Unlock the KP200 your User PIN
Green LED will be solid indicating successful
User PIN entry
2. Press the
KEY
button
three
times- (triple-click)
Solid Green LED switches to blinking
Green and Blue LEDs indicating the drive
is awaiting new user defined settings
3. Press button number
8
followed by the
number
6
button - (
86
)
Green and Blue LEDs will continue to blink
4. Press the KEY ( ) button once and the following happens;
a. All LEDs (RED, GREEN & BLUE) will flash together once.
b. RED LED blinks indicating the integral part of the firmware revision number.
c. GREEN LED blinks indicating the fractional part.
d BLUE LED blinks indicating the last digit of the firmware revision number
e. All LEDs (RED, GREEN & BLUE) become solid for 1 second.
f. RED, GREEN & BLUE LEDs switch to a solid Green LED
For example, if the revision number is ‘
1.12.3
’, the Red LED will blink once (
1
) and the Green LED will blink
twelve (12) times and the Blue LED will blink three (3) times. Once the sequence has ended the Red, Green
& Blue LEDs will blink together once and then to solid Green.
11. How to Create an Admin PIN in User Mode
If no Admin PIN exists, the user is able to create an Admin PIN by following the instructions in the table below.
The Admin PIN is a useful feature for corporate deployment, for example:
•Recovering data from a drive and configuring a new User PIN in the event an employee has forgotten their PIN
•Retrieving data from a drive if an employee leaves the company
•Setting Admin defined user policies
•The Admin PIN can be used to override all user settings
PIN requirements:
•Must be between 8-15 digits in length
•Must not contain only repetitive numbers, e.g. (3-3-3-3-3-3-3-3)
•Must not contain only consecutive numbers, e.g. (1-2-3-4-5-6-7-8), (7-8-9-0-1-2-3-4), (8-7-6-5-4-3-2-1)
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#12
www.kingston.com
To create an Admin PIN in User mode, proceed with the following steps.
Instructions
LED
LED State
1. Unlock the KP200 with your User PIN
Green LED will be solid indicating
successful User PIN entry
2. Press and hold down the number
1
button
and press the KEY button twice (double click)
(
1
& )
Solid Green LED will switch to flickering
Red and Blue LEDs
3. Enter your new 8-15 digit Admin PIN
Red and Blue LEDs will continue to flicker
together
4. Press KEY button twice (double click)
Red and Blue LEDs will switch to a blinking
Green LED
5. Re-enter your new Admin PIN
Green LED will continue to blink
6. Press KEY button twice (double click)
Blinking Green LED will change to a solid
Red LED before switching to a solid Green
LED indicating the Admin PIN has been
successfully configured
12. How to Unlock the KP200 as Admin
Instructions
LED
LED State
1. Press and hold down the number
1
button
and press the
KEY
button once (
1
& )
Red,Green &Blue LEDs will flash togetheronce
and then Red and Green LEDs flicker together
2. Enter your Admin PIN Redand Green LEDscontinuetoflickertogether
3. Press the KEY button once
Flickering Red and Green LEDs will change
to a solid Red LED and then switch to a
flickering Green LED indicating successful
Admin PIN entry- drive unlocked as Admin
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.
Note: Once the KP200 has been successfully unlocked, the Green LED will remain on and blinking for 30
seconds only, during which time the KP200 needs to be connected to a powered USB port. It can be
locked down immediately (if not connected to a USB port) by pressing and holding down the KEY button
for 3 seconds, or by clicking the ‘Safely Remove Hardware/Eject’ icon within your operating system
when connected to a USB port.
When the KP200 is unlocked and connected to a USB port, it will not accept further instructions via the keypad.

#13
www.kingston.com
Creating a new User PIN in Admin mode will become necessary if the KP200 has been unlocked for any
reason
with the Admin PIN, as this will automatically clear (delete) the User PIN. To create a new User PIN in
Admin
mode please follow the instructions below.
Admin PIN requirements:
•Must be between 8-15 digits in length
13. How to Create a New User PIN in Admin Mode
•Must not contain only repetitive numbers, e.g. (3-3-3-3-3-3-3-3)
•Must not contain only consecutive numbers, e.g. (1-2-3-4-5-6-7-8), (7-8-9-0-1-2-3-4), (8-7-6-5-4-3-2-1)
Instructions
LED
LED State
1. Unlock the KP200 with your Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
twice
(double-click)
Flickering Green LED switches to a blinking
Blue LED ready to receive a new User PIN
3. Enter your new 8-15 digit User PIN
Blue LED continues to blink
4. Press
KEY
button
twice
(double-click)
Blinking Blue LED switches to a blinking
Green LED
5. Re-enter your new User PIN
Green LED continues to blink
6. Press KEY button twice (double-click)
OFF
Blinking Green LED switches to a Red LED
and then quickly fades out (off) to indicate
successful creation of a new User PIN
14. How to Change the User PIN in Admin Mode
To change the User PIN in Admin mode please follow the instructions below.
Instructions
LED
LED State
1. Unlock the KP200 with your Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
twice
(double-click)
Flickering Green LED switches to a blinking
Blue LED ready to receive a new User PIN
3. Enter your new 8-15 digit
User PIN
Blue LED continues to blink
4. Press
KEY
button
twice
(double-click)
Blinking Blue LED switches to a blinking
Green LED
5. Re-enter your new User PIN
Green LED continues to blink
6. Press KEY button twice (double-click)
OFF
Blinking Green LED switches to a Red LED
and then quickly fades out (off) to indicate
the User PIN was successfully changed
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#14
www.kingston.com
The following table illustrates how to determine which PINs, User and/or Admin, have been set up.
With the KP200 in a locked state (all LEDs off), press the KEY button once.
15. How to Verify Whether an Admin/User PIN Has Been Set Up
1. Press KEY button once Red, Green & Blue LEDs will flash together once, then one of the following
states occurs.
Only User PIN exists
Red LED blinks
Only Admin PIN exists
Blue LED blinks
Both User and Admin PINs exist
Red and Blue LEDs blink together
16. How to Change the Admin PIN
Once an Admin PIN has been created, the KP200 needs to be unlocked in Admin mode in order to change
the Admin PIN. The Admin PIN cannot be changed from the User mode.
Admin PIN requirements:
•Must be between 8-15 digits in length
•Must not contain only repetitive numbers, e.g. (3-3-3-3-3-3-3-3)
•Must not contain only consecutive numbers, e.g. (1-2-3-4-5-6-7-8), (7-8-9-0-1-2-3-4), (8-7-6-5-4-3-2-1)
Instructions
LED
LED State
1. Unlock the KP200 with existing
Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press and hold down the number
1
button
and press the KEY button twice (double-click)
(
1
& )
Flickering Green LED switches to Red and
Blue LEDs flickering together ready to
receive new Admin PIN
3. Enter your new 8-15 digit Admin PIN
Red and Blue LEDs continue to flicker together
4. Press
KEY
button
twice
(double-click)
Red and Blue LEDs switch to a blinking
Green LED
5. Re-enter your new Admin PIN
Green LED continues to blink
6. Press KEY button twice (double-click)
Solid Red LED switches to a flickering Green
LED indicating successful Admin PIN change
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.
Note: If a mistake was made while defining a new Admin PIN or the procedure was not completed, the
drive will retain the old Admin PIN.

#15
www.kingston.com
#15
www.kingston.com
Instructions
LED
LED State
1. Unlock the KP200 with your Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
three
times
(triple-click)
Green and Blue LEDs flicker together
3. Press the number
7
button followed by the
number 6 button (76)
Green and Blue LEDs continue to flicker
together
4. Press KEY button once
Green and Blue LEDs change to a solid
Red LED and then switches to a flickering
Green LED. When the KP200 is inserted
into a USB port the Green LED blinks
every two seconds indicating the KP200 is
in Read-Only mode
18. How to Enable Read/Write in Admin Mode
Admin can override User set Read-Only by enabling Read/Write using the Admin PIN.
To set the KP200 to Read/Write, please follow the steps below.
Instructions
LED
LED State
1. Unlock the KP200 with your Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
three
times
(triple-click)
Green and Blue LEDs flicker together
3. Press thenumber7buttonfollowedbythenumber
9
button (
79
)
Green and Blue LEDs continue to flicker
together
4. Press KEY button once
Green and Blue LEDs change to a solid Red
LED and then switches to a flickering Green
LED. When the KP200 is inserted into a USB
port the Green LED is solid indicating the
KP200 is Read/Write enabled
When Admin writes content to the KP200 and restricts access to read-only, the User cannot change this
setting
in User mode.
To set the KP200 to Read-Only, please follow the steps below.
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.
17. How to Enable Read-Only in Admin Mode
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.

#16 www.kingston.com
#16
www.kingston.com
To display the device Version Number of the KP200 do the following.
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.
19. How to Determine the Device Version Number in Admin Mode
Instructions
LED
LED State
1. Unlock the KP200 with Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
three
times- (triple-click)
Green and Blue LEDs flicker together
3. Press button number
8
followed by the
number 6 button - (86)
Green and Blue LEDs continue to flicker
together
4. Press the KEY ( ) button once and the following happens;
a. All LEDs (RED, GREEN & BLUE) will flash together once.
b. RED LED blinks indicating the integral part of the firmware revision number.
c. GREEN LED blinks indicating the fractional part.
d BLUE LED blinks indicating the last digit of the firmware revision number
e. All LEDs (RED, GREEN & BLUE) become solid for 1 second.
f. RED, GREEN & BLUE LEDs switch to a flickering Green LED
For example, if the revision number is ‘
1.12.3
’, the Red LED will blink once (
1
) and the Green LED will blink
twelve (12) times and the Blue LED will blink three (3) times. Once the sequence has ended the Red, Green
& Blue LEDs will blink together once and will then switch to a flickering Green LED.
20. How to Set the Timeout Lock in Admin Mode
To protect against unauthorized access in the event the KP200 is connected to a host and left unattended,
the KP200 can be set to automatically lock after a pre-set duration of time.
In its default state, the KP200 Timeout Lock feature is turned off. The Timeout Lock feature can be set to
activate (lock) an idle drive anywhere between 1 and 99 minutes. Admin Timeout Lock settings will override
User settings.
To set the Timeout Lock, please follow steps in the next table.
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.

#15
www.kingston.com
#17
www.kingston.com
Instructions
LED
LED State
1. Unlock the KP200 with the Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
three
times- (triple-click)
Green and Blue LEDs flicker together
3. Press button number
8
followed by the
number
5
button - (
85
)
Green and Blue LEDs continue to flicker
together
4. Press the KEY button once
Green and Blue LEDs will switch to a
blinking Green LED
5. Enter the length of User Timeout:
0 = 0 minutes (default)
5 = 5 minutes
15 = 15 minutes
99 = 99 minutes etc
Green LED continues to blink
6. Press the Key button once
Solid Red LED will switch to a flickering
Green LED indicating the Auto-Lock time
out has been successfully configured
21. How to Disable the Timeout Lock in Admin Mode
To disable the Timeout Lock, please follow steps in the table below.
Instructions
LED
LED State
1. Unlock the KP200 with the Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
three
times- (triple-click) Green and Blue LEDs flicker together
3. Press button number 8 followed by the
number
5
button - (
85
)
Green and Blue LEDs continue to flicker
together
4. Press the KEY button once
Green and Blue LEDs will switch to a
blinking Green LED
5. To disable the Timeout Lock, press button
number
0
Green LED continues to blink
6. Press the Key button once
Solid Red LED will switch to a flickering
Green LED indicating the Auto-Lock time
out has been successfully disabled
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#16 www.kingston.com
#18
www.kingston.com
Instructions
LED
LED State
1. Unlock the KP200 with the Admin PIN
Green LED will flicker indicating successful
Admin PIN entry
2. Press the
KEY
button
three
times- (triple-click) Green and Blue LEDs flicker together
3. Press button number
3
followed by the
number
2
button - (
32
)
Green and Blue LEDs continue to flicker
together
4. Press the KEY button once
Green and Blue LEDs will switch to Red
and Green LEDs alternating on and off
5. Enter your Admin PIN
Red and Green LED continue to alternate
on and off
6. Press the Key button once
Alternating Red and Green LEDs switch to
solid Red and Green LEDs and finally to
a flickering Green LED indicating that all
data has been deleted
23. Brute Force Hacking Detection
If both Admin and User PINs have been created and a User enters an incorrect User PIN ten (10) consecutive
times, the KP200’s brute force mechanism will trigger and the User PIN will be deleted. All data will remain
on the KP200 and can only be accessed by the Admin entering the correct Admin PIN.
If Admin enters an incorrect Admin PIN ten (10) consecutive times, then both the User and Admin PINs, the
encryption key and all data will be deleted and lost forever.
The table below illustrates the different PIN set-up states and what happens when entering an incorrect Ad-
min or User PIN incorrectly ten (10) consecutive times.
PINs Set-up on
KP200
PIN used to unlock
KP200
What happens after 10 consecutive incorrect PIN entries?
Admin & User
PINs
User PIN
The KP200’s brute force mechanism will trigger and the User PIN will
be deleted.
All data will remain on the KP200 and can only be accessed by the
Admin entering the correct Admin PIN.
Admin & User
PINs Admin PIN The KP200’s brute force mechanism will trigger and both the User and Admin PINs, the encryption key and all data will be deleted and lost forever.
User PIN Only User PIN The KP200’s brute force mechanism will trigger and the User PIN, the
encryption key along with all data will be deleted and lost forever.
Admin PIN Only Admin PIN The KP200’s brute force mechanism will trigger and the Admin PIN, the
encryption key along with all data will be deleted and lost forever.
To delete all data stored on the KP200, please follow the instructions below. All Admin settings will remain
on
the KP200 but all data will be deleted and cannot be retrieved and the KP200 will have to be reformatted
(see
sections 28, 29 or 30).
Caution: Entering the Admin PIN to access a locked drive will clear (delete) the User PIN.
22. How to Delete All Data in Admin Mode
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0

#19
www.kingston.com
24. How to Reset the KP200
In the event both the Admin and User PINs have been forgotten, the drive will need to be reset before
creating a new User/Admin PIN. To reset the KP200, please follow the instructions below.
Instructions
LED
LED State
1. Press and hold down number
7
(seven)
button and then press the KEY button and then
release buttons (
7
& )
Red and Green LEDs alternate on and off
2. Press the number
9
button
three
times
(triple-click) (
999
)
Red and Green LEDs continue to alternate
on and off
3. Press and hold down number 7 (seven)
button and then press the KEY button and then
release buttons (7 & )
OFF
Alternating Red and Green LEDs switch to
solid Red and Green LEDs, then the Green
LED switches off and the Red LED fades
out to complete the reset process
Note: To use the drive after a Brute Force attack, the user must create either a new User PIN or a new Admin
PIN
as described in sections:
25.
26.
The
KP200, unlike other similar drives, incorporates a random number generator, once the drive is reset a new
encryption key is randomly generated and the drive will need to be reformatted (see sections 28, 29 or 30).
Kingston® IronKey
TM
Keypad 200 Manual – v 1.0
Caution: Resetting the KP200 will delete all PINs, the encryption key and all data stored on the drive.
Note: The reset process will clear all cryptographic parameters including both User and Admin PINs. To use the
drive after a reset, the user must create either a new User PIN or a new Admin PIN as described in sections:
25. How to create a User PIN after a Brute Force attack or Reset.
26. How to create an Admin PIN after a Brute Force attack or Reset.
The KP200, unlike other similar drives, incorporates a random number generator, once the drive is reset a new
encryption key is randomly generated and the drive will need to be reformatted (see sections 28, 29 or 30).
