Kinivo HS120 User manual

HS120 HDMI Splitter
User Manual
© 2012 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered
trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media or form without the written consent of
Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Email : [e-mail]

Kinivo HS120 HDMI Splitter
2
Table of Contents
Important Safety Instructions............................................................................................ 3
Function............................................................................................................................... 3
Installation........................................................................................................................... 4
LED Indication ..................................................................................................................... 4
Specications ...................................................................................................................... 5
Charts................................................................................................................................... 6
Warranty .............................................................................................................................. 7
Online Support / Contact Us............................................................................................... 8

Kinivo HS120 HDMI Splitter 3
Important Safety Instructions
Please read instructions carefully before operation
1. To prevent risk of electric shock, do not remove cover of the unit. Refer all servicing to qualied
service personnel only.
2. Do not use the splitter near water or any other liquid.
3. Clean only with dry cloth.
4. Do not install or place this unit in a bookcase, built-in cabinet or in any other conned space.
Ensure the unit is well ventilated.
5. To prevent risk of electric shock or re hazard, do not block the unit’s ventilation openings.
6. Do not install near any heat sources such as radiators, stoves, heat registers etc.
7. Unplug during lightning storms or when unused for a long period of time.
8. Protect power cord from being pinched, particularly near plug points.
9. Only use attachments/accessories specied by manufacturer.
Function
Simultaneously distributes HDMI signal to multi display devices.
HS120 – HDMI 1*2 Splitter - Split one HDMI input signal to two HDMI output signals

Kinivo HS120 HDMI Splitter
4
Installation
How to connect the splitter to your devices
1. Connect the signal source from devices such as Blu-ray DVD players, Gaming consoles like PS3
and Xbox 360, Set top boxes, etc. into the HDMI Splitter input. (Use HDMI to HDMI cable for
HDMI Source or HDMI to DVI cable for DVI Source)
2. Connect cables from the HDMI Splitter output to your display devices such as HDTV’s or HD
projectors.
3. This device is powered by a 5v external power supply (included)
Note
Please insert or pull HDMI cable with caution. Do not exert force while inserting or removing cable.
LED Indication
1. Blue LED indicates “Active signal path”
2. No LED indicates “No input signal”

Kinivo HS120 HDMI Splitter 5
Specications
Standard Compliance HDCP 1.2
HDMI Output Port HS120 – 2
HDMI Input Ports 1
Signal Range Up to 1080p@60Hz with 36-bit color depth
Power Adapter Supply 5V, 1.4A (HS120)
Power Adapter Format Input: ~ 100V – 240V, 50/60Hz AC
Output: 5V DC
Support Video Color Format Deep Color 24bit/36bit
Operating Temperature -15°C to +55°C, 5°F to 131°F
Operating Humidity 5% - 90% RH (No condensation)
Product Dimension HS120 – 4.5” x 2.5” x 1.0”, 117mm x 64.8mm x 25mm
Supports Audio Format Supports LPCM 7.1, Dolby-AC3, DTS 7.1, DSD/Dolby True
HD, DTS-HD Master Audio
Max Working Current 700 mA
Data Transfer Speed 2.25Gbps/Channel

Kinivo HS120 HDMI Splitter
6

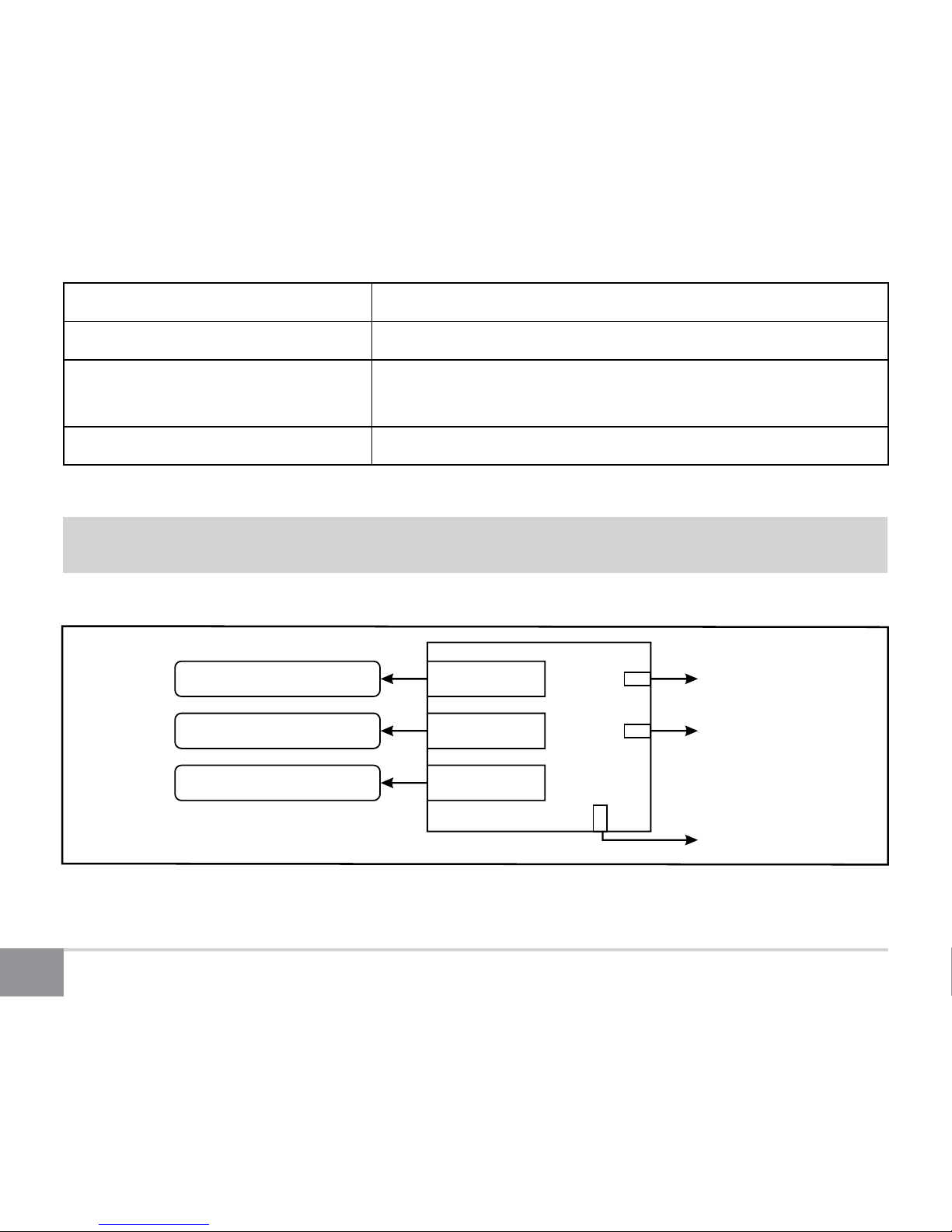

Charts
Input Video Signal 5 volts p-p
Full-HD Chain 1080p Cascade up to 3 Layers
HDMI Output Cable Distance <= 15m (If longer length is required, amplier must be
used)
Supports 3D Yes
HDMI In LED OUT 2
LED OUT 1
DC 5V
HDMI OUT 1
HDMI OUT 2
HDMI Display Device 1
HDMI Signal Source
HDMI Display Device 2
HS120

Kinivo HS120 HDMI Splitter 7
Warranty
1 Year Limited Hardware Warranty.
Kinivo hereby warrants to the customer of record that this product is in good-working condition
and free from defects in material or workmanship under normal use for a duration of 1 year after the
date of purchase. The product has been tested to meet the highest quality standards in each testing
category. In the unlikely event that the product proves to be defective, Kinivo will repair or replace
the product free of charge. If replacement is required and if Kinivo then no longer carries the same
product, then Kinivo reserves the right to substitute the product with a replacement product of like
quality and size, suitable for the intended use.
This warranty is limited to repair or replacement of the mentioned product only, is non-transferable
and does not extend to any product damaged by misuse, natural disasters or any other circumstances
beyond Kinivo’s control. The warranty does not cover or provide for the reimbursement or payment
of incidental or consequential damage resulting from breach of the limited warranty described
above. Except for the limited warranty described above we oer no other warranties expressed or
implied, and other than limited warranty expressly contained herein, we hereby disclaim any and
all warranties, including without limitation any implied warranties of merchantability, suitability or
tness for a particular purpose.
If your product is not functioning or you have any concerns please contact
Kinivo Support before returning the product.

Kinivo HS120 HDMI Splitter
8
Online Support / Contact Us
Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and
how-to’s. You may also reach us via email or live chat (details below).
Kinivo Product Support
Email : [e-mail]
Live chat : http://support.kinivo.com

This page intentionally
left blank

Made in china
Kinivo Product Support
Online : http://support.kinivo.com
Email : [e-mail]
year limited
hardware warranty
1
