Kino Flo Celeb 450 LED DMX User manual

Part No. 3100099 Rev D 05-01-2021
Quick Start Guide
Celeb 250/450/450Q
LED DMX
(True Match Firmware 5.0)
®
(RDM)

2
Celeb LED DMX Systems
Included w/ all Celeb Models
CEL-250CU Celeb 250 LED DMX Center, Univ
CEL-450CU Celeb 450 LED DMX Center, Univ
CEL-250YU Celeb 250 LED DMX Yoke, Univ
CEL-450YU Celeb 450 LED DMX Yoke, Univ
CEL-450QU Celeb 450Q LED DMX Yoke, Univ
CEL-250PU Celeb 250 LED DMX Pole-Op, Univ
CEL-450PU Celeb 450 LED DMX Pole-Op, Univ
CEL-450QPU Celeb 450Q LED DMX Pole-Op, Univ
LVR-CE290-P Celeb 250 Louver/HP, 90°
LVR-CE490-P Celeb 450 Louver/HP, 90°
LVR-CE490-QP Celeb 450Q Louver/HP, 90°
Center Mount
Yoke Mount
Pole-Op

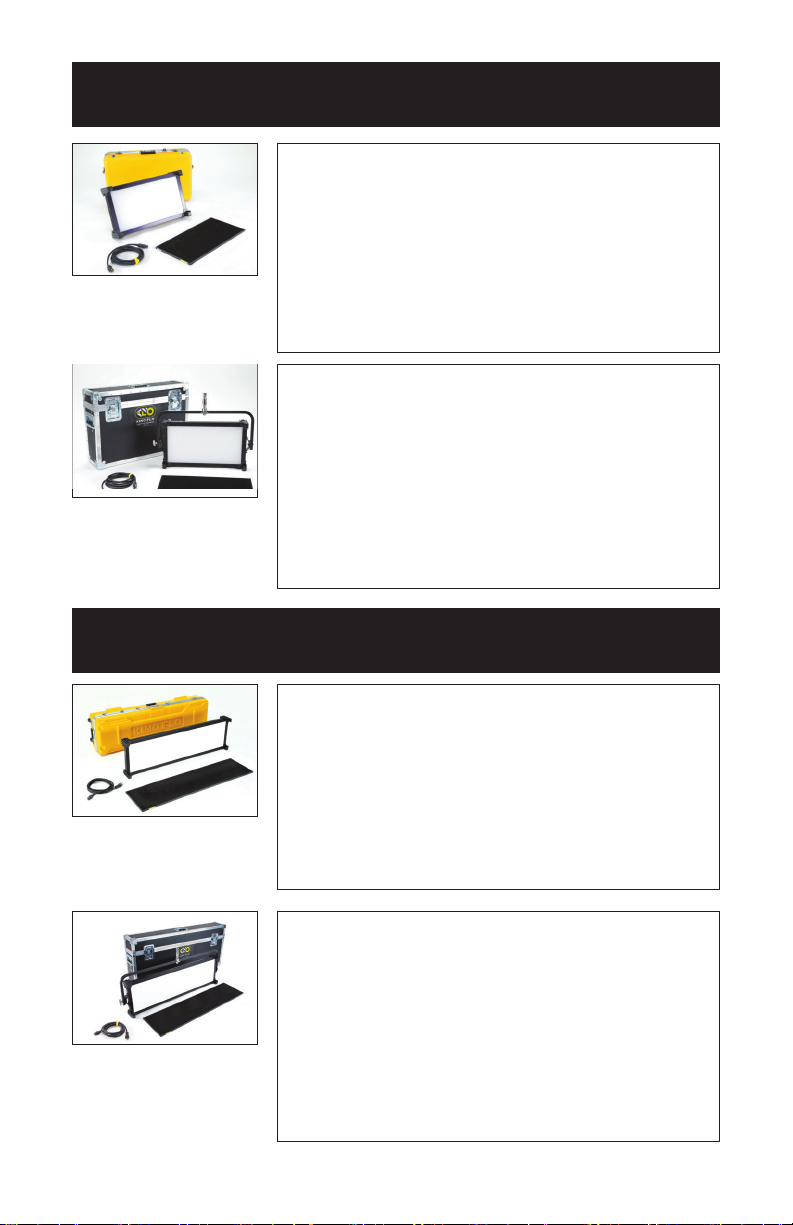

Celeb 250 LED DMX Kits
KIT-C250U
Celeb 250 LED DMX Center Mount Kit, Univ
Kit Contents:
1 Celeb 250 LED DMX Center Mount
1 Flight Case
Weight: 31 lb (14kg)
Dimensions: 29 x 10.5 x 17” (74 x 27 x 43cm)
KIT-C250YU
Celeb 250 LED DMX Yoke Mount Kit, Univ
Kit Contents:
1 Celeb 250 LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 37.5 lb (17kg)
Dimensions: 33 x 8.5 x 22.5” (84 x 22 x 57cm)
3
Celeb 450 LED DMX Kits
KIT-C450U
Celeb 450 LED DMX Center Mount Kit, Univ
Kit Contents:
1 Celeb 450 LED DMX Center Mount
1 Flight Case
Weight: 52.5 lb (24kg)
Dimensions: 53.5 x 11 x 16.5” (136 x 28 x 42cm)
KIT-C450YU
Celeb 450 LED DMX Yoke Mount Kit, Univ
Kit Contents:
1 Celeb 450 LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 57 lb (26kg)
Dimensions: 54.5 x 9.5 x 25” (138.5 x 24 x 63.5cm)

Celeb 450Q LED DMX Kit
KIT-C450QU
Celeb 450Q LED DMX Yoke Mount Kit, Univ
Kit Contents:
1 Celeb 450Q LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 52 lb (24kg)
Dimensions: 34.5 x 8.5 x 33” (88 x 22 x 84cm)
Fixture Power
DC Input
The Celeb 250 can also be operated
on 24VDC (input range 18-36VDC)
through a 3-Pin XLR. A low voltage
warning will display “LPWR” when the
battery is running low.
The pin polarity is:
Pin #1 – Ground
Pin #2 + 18-36VDC
Pin #3 not used
Note: DC input not available on
Celeb 450 or 450Q.
AC Input
The Celeb is powered AC and includes
an IEC connection. A locking power cord
is included with the ixture. To remove
the plug, move the red tab to release.
The ixture has a built-in power supply
with universal input from 100-240VAC.
Note: The Celeb 250 is shown for
example purposes only. The IEC power
cords for the Celeb 450 and 450Q are
in a different location.
Ambient Operating Temperature
The Celeb is designed to
operate at temperatures from
14°F to 104°F (-10°C to 40°C).
4

5
Control Panel - White Mode
ABCD E F G H
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls
the light source.
B) Menu: Provides access to menu options such as General settings, Reset,
DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and
6500K. G/M default value is 000. User can also use these preset buttons to
store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and Control knob.
Press for 3 seconds to restore displayed presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
G) Data Port: Mini B USB for irmware updates.
H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the Control knob to toggle between Fine and Coarse increments or
when selecting options within menus.
DMX Note: Each LED Fixture has an “AUTO TERMINATE” feature. The last
ixture that does not have an XLR cable attached to the DMX “Out” port will
automatically terminate.

6

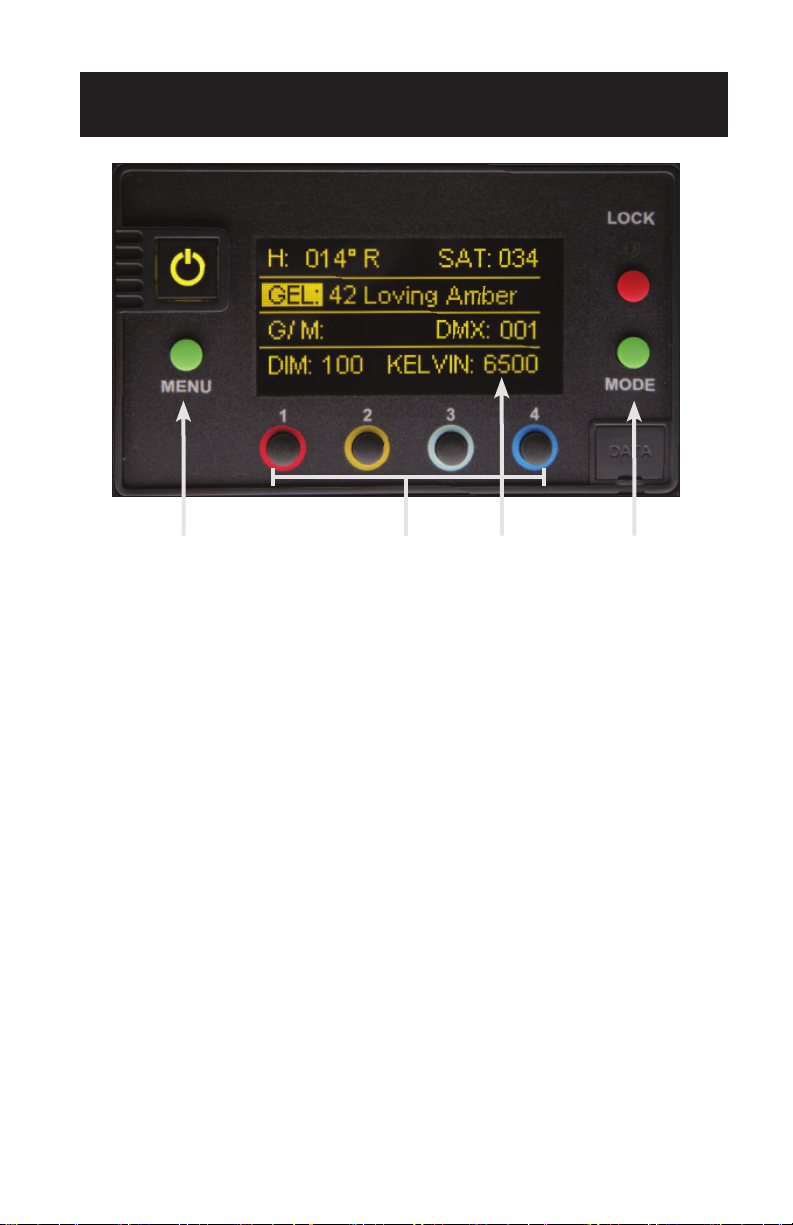

Control Panel - Gels/Hue Mode
A DCB
A) Menu:
Provides access to menu options such as General settings (Gels/Hue Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to store
custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and
Saturation settings.
C) Display:
Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and
DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K,
G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings.
When on the Gel function, pushing the Control knob in/out will apply the gel or
remove the gel. When in sub-menus, pressing Mode always returns you to
main display. When DMX is applied, use Mode to access DMX channel on
main display. Shortcut Tip: Long press will bring you back one step.
Gels/Hue Mode

7
A) Menu:
Provides access to menu options such as General settings (RGB Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to
store custom Kelvin between 2500K and 9900K and custom G/M, and
RGB settings.
C) Display:
Provides access to Dim, Kelvin, G/M, RGB and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, RGB settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
A DCB
Control Panel - RGB Mode
RGB Mode

CIE xy Mode
Control Panel - CIE xy
A) Menu:
Provides access to menu options such as General settings (CIE xy mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold or 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
User can also use these preset buttons to store custom xy settings.
C) Display:
Provides access to Dim, CIE xy coordinates and DMX Channel.
Factory reset will show: Dim = 10%, x = 0.460 , y = 0.411, G/M = 000,
DMX = 001.
D) Mode:
Press to navigate from Dim to xy settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied,
use Mode to access DMX channel on main display. Shortcut: Long press
will bring you back one step.
DA C
B
8

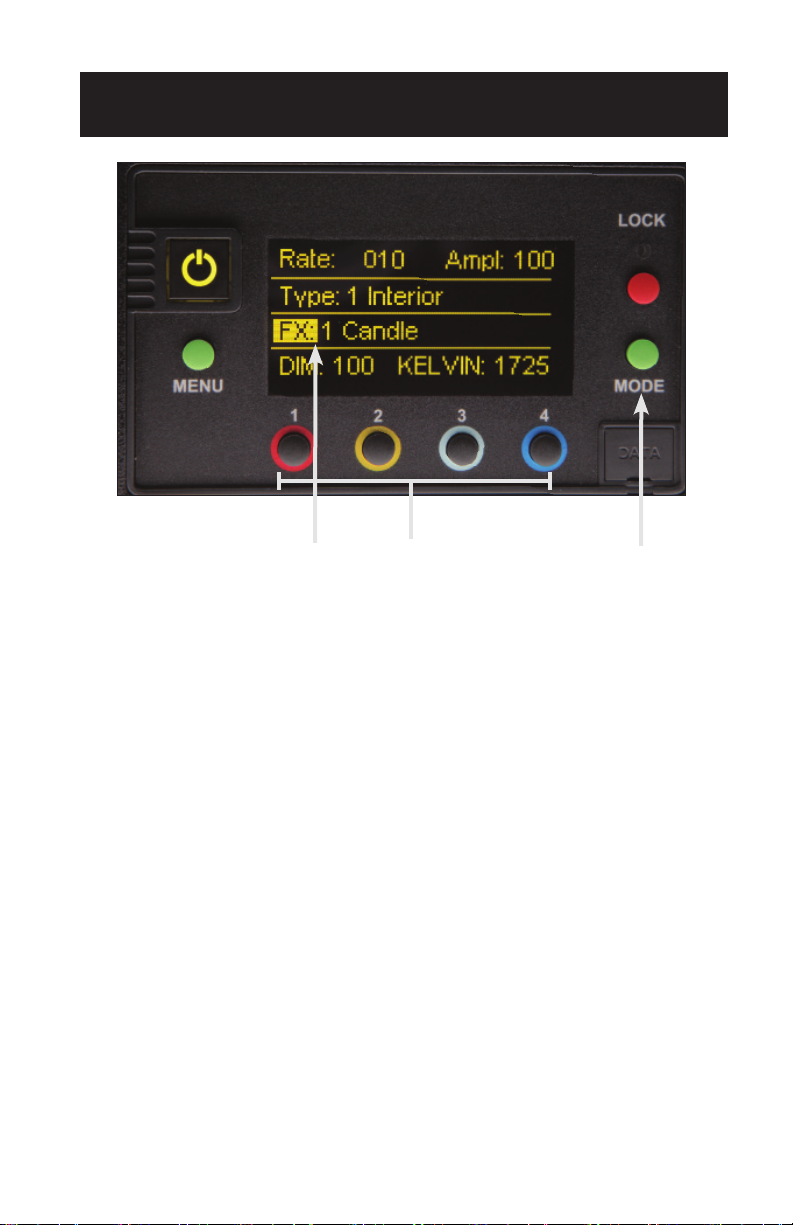

FX mode provides access to effects including Candle, Fire, TV, Police, Lightning,
Paparazzi, Pulse and Scroll. Candle mode used as an example:
A) FX Option:
Choose the desired FX Mode by rotating the control knob. When on the
desired effect, there will be several pre-programed effects as well as control
parameters that can be altered.
B) Preset Buttons:
In FX Mode, Kelvin custom settings and any control functions displayed such
as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can
be assigned to any preset button by holding down the desired button for
3 seconds. The Kelvin display will lash once the setting is registered.
To restore presets to default factory settings, choose Reset under General
settings and Clear Presets. This method will reset all buttons in all Modes.
Shortcut: If only want to clear presets for Candle Mode, hold Lock button
for 3 seconds while Candle mode is displayed.
C) Mode:
Press to navigate from Dim to Kelvin and FX settings.
Shortcut: Long press will bring you back one step.
FX (Effects) Mode
Control Panel - FX (Effects)
A C
B
9

The Camera LUT (Look-up Tables) feature harmonizes the Kino Flo light
sources to the camera. Depending on the camera and the Kelvin setting,
some differences are very subtle, while others can be more dramatic.
The corrections are applied as a CIE xy correction at each CCT (Kelvin) setting.
The default setting is targeting the CIE xyz response (human eye).
Press the green menu button to the left of the display screen and scroll down to
Camera LUT, then press the control knob. Menu with camera selection will be
displayed. Turn the control knob and press to select camera setting:
C1 Arri Alexa
C2 Sony Venice
C3 Panavision DXL
C4 Panasonic Varicam
The camera code (C1 for Arri Alexa), for example, will appear on the main menu
between DIM and CCT to designate that a camera setting is active.
Note: When the controller is reset, the camera settings will go to Kino Flo
Default mode.
Camera LUT
10

11

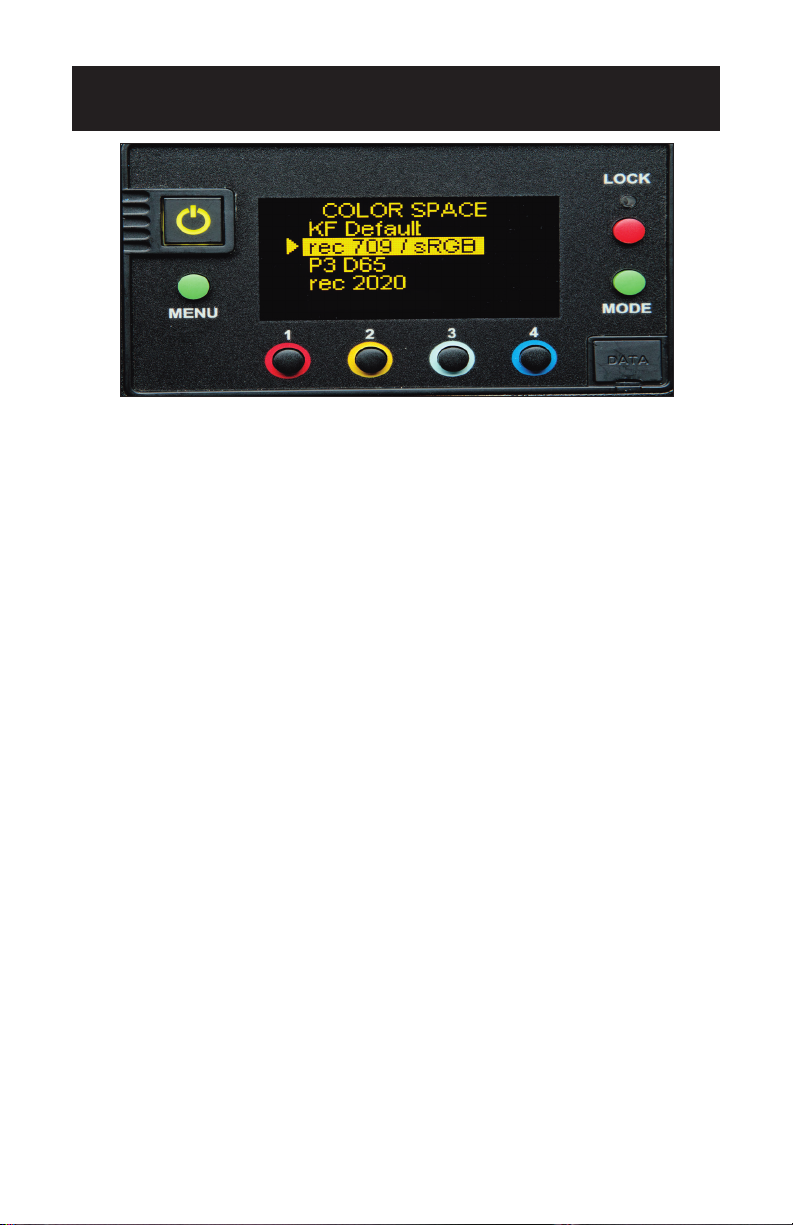

Color Space
Color Space deines the RGB color space used and only affects color – not Kelvin.
It is used in RGB mode and Hue Angle and Saturation. There are a few instances
in the FX (Effects) mode that are also affected when color is used. The RGB
color space deines the value of Red, Green, and Blue primaries (in CIE xy) and
the white point is ixed at 6500 Kelvin.
Press the green menu button to the left of the display screen and scroll down
to Color Space, then press the control knob. Menu with color selection will be
displayed. Turn the control knob and press to select Color Space options:
rec 709 / sRGB
P3 D65
rec 2020
The color space rec 709 / sRGB is commonly used on computer monitors, SDTV
and HDTV television. There are slight gamma variations between rec 709 / sRGB,
but not enough to separate into 2 color spaces.
The color space P3 D65 is a common color space for digital movie projection.
The color space rec 2020 is used in ultra high deinition television (UHDTV).
The color space is used when the controller is set to the RGB mode and when set to
the Hue Angle/ Saturation mode.
In RGB mode – the color space designation will be displayed at the top of the menu.
When changing the Red, Blue or Green values, the Kelvin will be locked in at 6500 for
all color spaces. When the Kelvin is locked in, CCT will be displayed as CCT*.
When using Green/Magenta the CCT value is unlocked and color space selection
has no impact.
In Hue Angle/Saturation mode – the color space designation will be displayed on
the Gel line and GEL will be displayed as GEL* and CCT will be displayed as CCT*.
The Color space will be displayed only when Hue Angle and Saturation are being
used. When using Green/Magenta or Gel, the CCT will be unlocked and color space
selection has no impact.

12
CEL-250CU Celeb 250 LED DMX Center Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 15 lb (6.8kg)
Dimensions: 24 x 5 x 14”
(61 x 12.7 x 35.5cm)
CEL-250YU Celeb 250 LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 16 lb (7.3kg)
Dimensions: 28.5 x 5 x 16.5”
(72.3 x 12.7 x 42cm)
Fixture Speciications
CEL-250PU Celeb 250 LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 17 lb (7.7kg)
Dimensions: 29 x 6 x 16.5”
(74 x 15.2 x 42cm)

13
CEL-450CU Celeb 450 LED DMX Center Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 45 x 5 x 14”
(114.5 x 13 x 36cm)
CEL-450YU Celeb 450 LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 50 x 5 x 16.5”
(127 x 13 x 42cm)
CEL-450PU Celeb 450 LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 50.5 x 5 x 16.5”
(128.5 x 13 x 42cm)

14
CEL-450QU Celeb 450Q LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 270W
Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 24 lb (11kg)
Dimensions: 30 x 5 x 26”
(72 x 13 x 66cm)
CEL-450QPU Celeb 450Q LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 270W
Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 30 x 5 x 30.5”
(76 x 13 x 77.5cm)

15
FCC Part 15 Veriication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
KINO FLO, INC
Celeb 250 LED, Celeb 450 LED, Celeb 450Q LED
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that
this product shall not be treated as household waste. This
product is made of recyclable materials and should be disposed
of in accordance with governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinolo.com
The light source of this luminaire is not replaceable; when the light source reaches
its end of life the whole luminaire shall be replaced. The luminaire is intended for
professional use only.
For full operation manual, latest Warranty information and Certiications,
see Kino Flo website at www.kinolo.com.
