Kino Flo Tegra 4Bank Universal User manual

Operation Manual
4Bank, Double & Single
Part No. 3100071 Rev C 08-29-2017

2
Systems
Each System consists of:
1 Fixture
1 Mounting Plate
1 Extension Cable
1 Ballast
4Bank Double Single
True Match Lamps
488-K32-S/6P 4ft Kino KF32 (1 x 6pk)
488-K55-S/6P 4ft Kino KF55 (1 x 6pk)
242-K32-S/6P 2ft Kino KF32 (1 x 6pk)
242-K55-S/6P 2ft Kino KF55 (1 x 6pk)
®

3
Lighting Kits
KIT-2GF-120U
Gaffer Kit, Univ 120U (2-Unit)
KIT-2GF-230U
Gaffer Kit, Univ 230U (2-Unit)
Kit Contents:
2 4ft 4Bank System
w/ MTP-BW41 Mount
2 Lamp Case
1 Gaffer Ship Case
Dimensions: Weight:
56.5 x 13 x 21.5” 72.5 lb
(143.5 x 33 x 55cm) (33kg)
KIT-484B-120U
4ft 4Bank Kit, Univ 120U (1-Unit)
w/ Soft Case
KIT-484B-230U
4ft 4Bank Kit, Univ 230U (1-Unit)
w/ Soft Case
Kit Contents:
1 4ft 4Bank System
w/ MTP-BW41 Mount
1 Lamp Case
1 Soft Case
Dimensions: Weight:
55 x 8 x 19.5” 25.5 lb
(140 x 20.5 x 49.5cm) (12kg)
Gaffer Kit
4ft 4Bank Kit

4
Lighting Kits
KIT-2NT-120U
Interview Kit, Univ 120U (2-Unit)
KIT-2NT-230U
Interview Kit, Univ 230U (2-Unit)
Kit Contents:
2 2ft 4Bank System w/
MTP-BW41 Mount
2 Lamp Case
1 Interview Ship Case
Dimensions: Weight:
35.5 x 13 x 22” 56.5 lb
(90 x 33 x 56cm) (26kg)
KIT-244B-120U
2ft 4Bank Kit, Univ 120U (1-Unit)
w/ Soft Case
KIT-244B-230U
2ft 4Bank Kit, Univ 230U (1-Unit)
w/ Soft Case
Kit Contents:
1 2ft 4Bank System w/
MTP-BW41 Mount
1 Lamp Case
1 Soft Case
Dimensions: Weight:
28.5 x 7.5 x 20” 20 lb
(72.5 x 19 x 51cm) (9kg)
KIT-3NT-120U
Interview Kit, Univ 120U (3-Unit)
KIT-3NT-230U
Interview Kit, Univ 230U (3-Unit)
Kit Contents:
1 2ft 4Bank System
w/ MTP-BW41 Mount
2 2ft Double System
w/ MTP-BW41 Mount
2 Lamp Case
1 Interview Ship Case
Dimensions: Weight:
35.5 x 13 x 23” 63 lb
(90 x 33 x 58.5cm) (29kg)
Interview Kit (2-Unit)
2ft 4Bank Kit
Interview Kit (3-Unit)

5
Fixture Assembly
The Harness wiring is color-coded. The same color-code must match at each end of
the lamp for proper operation.
To Release the Lamp Harness
Remove the harness from 2 clips located under the reector. Rotate the ¼ turn
fastener clockwise to release harness.
The lamps can operate independent of the xture
allowing them to be built into sets or custom soft boxes
or hand-held as a single tube for an eye-light.
WARNING: Always use safety-coated lamps to avoid
injury if lamp breaks.
4Bank Harness Double Harness
Lamp Harness Color Codes
White
Black
White
Black
White
Black
The 4Bank, Double and Single
xtures are comprised of a
removable Louver, Reector and
Lamp Harness.
The Louver and Reector are
held in place with Velcro
fasteners. The Lamp Harness
is secured by means of a ¼ turn
fastener and two clips.

6
Inserting Lamps
Gelling the Fixture
Locking Lamp Connector:
Depress both tabs on lamp connector and apply to lamp pins.
Match the Harness color-codes at each end of the lamp.
Push lamps into the xture’s Lamp Holder Clips.
Restricting the airow around the lamps can cause the lamps to
operate hotter. This increased heat will raise the lamp’s color
temperature and green spike. Therefore, it is recommended to
clip gels to the doors of the xture.
Remove Louver. Do Not clip gels to louver.
Do Not block the xture ends in a manner that restricts airow.

7
Mounting the Fixture
The standard mount (MTP-KW41) comes with a
3/8” Lollipop that clamps into a grip head. The ball
and socket mount allows the xture to be oriented in
a broad range of angles.
Align the center pin of the mounting plate to the
center hole on the mating plate.
Rotate plate clockwise until the four shoulder rivets
drop into the receptacle. A locking pin will snap into
place when the plate is properly seated.
The yellow wire loops provide attachment points for
a safety chain.
To remove the plate, pull up on the locking pin and
reverse the mounting procedure.
Lollipops are interchangeable.
MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm)
MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve
(16mm)
MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short
(16mm)
Turn the knob to loosen or tighten the mount.

Other Fixture Mounting Options
The grommet holes along
the edge of the xture are
designed to allow the xture
to be screwed onto set walls.
Ballast Operation
WARNING!
1) ALWAYS TURN OFF THE BALLAST BEFORE connecting or
disconnecting Lamps, Harnesses or Extension Cables.
2) Use only with Sine wave inverters. Do not operate on SCR dimmers.
3) If powering the ballasts through a Dimmer Pack, set the Dimmer to
Non-Dim mode.
The Ballast requires 100-240VAC 50/60 Hertz on an earth grounded circuit;
The electronic Ballast operates at a high frequency of 25kHz. It is
dead-quiet, instant-on and lightweight.
Cold Temperature Operation
The Ballast is designed to operate at temperatures from 14°F to 122°F
(-10°C to +50°C). In cold temperatures, the Ballast may not strike the
lamp(s) instantly. Switch the Ballast to OFF, wait seven seconds and
try again. If the Ballast does not strike after two or three attempts, turn off
the Ballast, check that the Extension and Harness connections are secure
and re-strike. Once operating for a few minutes, the lamps should re-strike
instantly.
8

9
Lamp Select Feature
The Ballasts have a 4ft/2ft switch. Set the selector switch to 4ft for 4ft lamps and 2ft
for 2ft lamps.
When operating 4ft lamps in high ambient temperature or where the units are rigged
into place with restricted airow, the 2ft setting can be used to lower the color tempera-
ture and remove any green spike. The light drops about a half an f-stop in exposure
when dropping from 4ft to 2ft.
It is not recommended to operate 2ft lamps in the 4ft setting. At the 4ft setting, the
color temperature of the 2ft lamps will rise dramatically and experience a high green
spike.
Extension Cable
To insert the cable, position the logo up to align the key ways
on the extension cable with the circular receptacle on the
ballast. Rotate the locking ring until it clicks into the lock
position.
Lamps can operate as far as 75 feet from the ballast.
(3 x 25ft extensions)
A Splitter can be used at the Ballast or on the end of an
Extension Cable to split a 4Bank run into either four Singles or
two Doubles. This allows for greater rigging exibility.
White
Black
White
Black
The Ballast operates remote from the xture. Connect the Extension cable to the
Ballast and the Lamp Harness. After the lamps are properly installed, the Ballast can
be turned on. Each switch controls one lamp. The color bands on the lamp harness
correspond to the switches as illustrated.

10

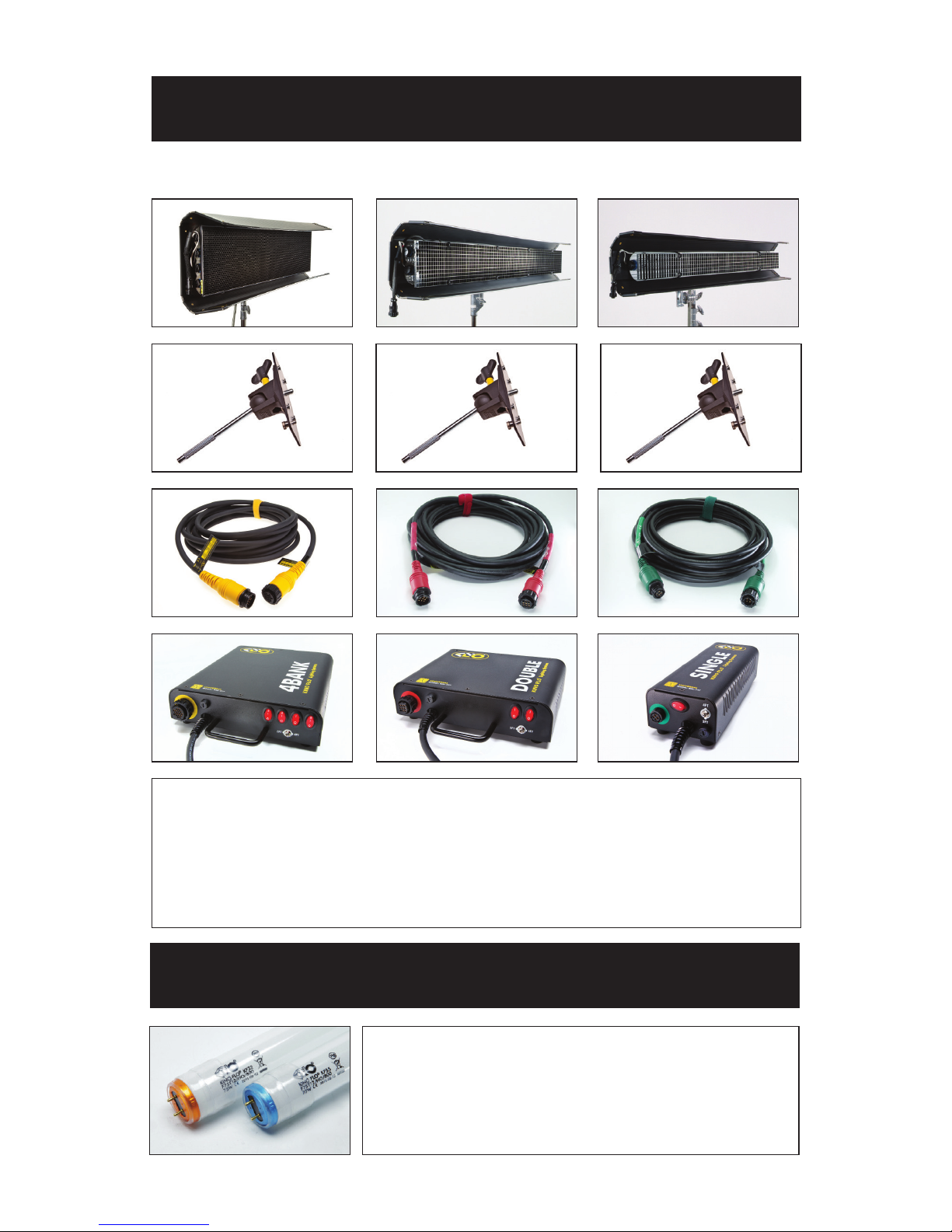

System Components
CFX-484 4ft 4Bank Fixture w/ Louver/HP, 90°
CFX-4802 4ft Double Fixture
CFX-4801 4ft Single Fixture
CFX-244 2ft 4Bank Fixture w/ Louver/HP, 90°
CFX-2402 2ft Double Fixture
CFX-2401 2ft Single Fixture
MTP-KW41 Kino 41K Mount Wing w/ 3/8” Pin
(10mm)
X16-25 4Bank Extension Cable, 25ft
X09-25 Double Extension Cable, 25ft
X04-25 Single Extension Cable, 25ft
True Match Lamps
488-K32-S/6P 4ft Kino KF32 (1 x 6pk)
488-K55-S/6P 4ft Kino KF55 (1 x 6pk)
242-K32-S/6P 2ft Kino KF32 (1 x 6pk)
242-K55-S/6P 2ft Kino KF55 (1 x 6pk)
®
®
BAL-427-120U 4Bank Ballast, Univ 120U
BAL-427-230U 4Bank Ballast, Univ 230U
BAL-227-120U Double Ballast, Univ 120U
BAL-227-230U Double Ballast, Univ 230U
BAL-127-120U Single Ballast, Univ 120U
BAL-127-230U Single Ballast, Univ 230U

11
Accessories and Parts
FIX-484 4ft 4Bank Fixture Shell
FIX-4802 4ft Double Fixture Shell
FIX-4801 4ft Single Fixture Shell
FIX-244 2ft 4Bank Fixture Shell
FIX-2402 2ft Double Fixture Shell
FIX-2401 2ft Single Fixture Shell
DFS-4804 4ft 4Bank Flozier, Full
DFS-4804-H 4ft 4Bank Flozier, Half
DFS-D4 2ft 4Bank Flozier, Full
DFS-SL20-H 2ft 4Bank Flozier, Half
LVR-K490-P 4ft 4Bank Louver/HP, 90°
LVR-K460-P 4ft 4Bank Louver/HP, 60°
LVR-K290-P 2ft 4Bank Louver/HP, 90°
LVR-4802-B 4ft Double Louver, Black
LVR-4801-B 4ft Single Louver, Black
LVR-2402-B 2ft Double Louver, Black
LVR-2401-B 2ft Single Louver, Black
HAR-4804 4ft 4Bank Harness
HAR-4802 4ft Double Harness
HAR-4801 4ft Single Harness
HAR-2404 2ft 4Bank Harness
HAR-2402 2ft Double Harness
HAR-2401 2ft Single Harness
MTP-BAL Kino Ballast Baby Mount (16mm)

12
REF-4804 4ft 4Bank Reector
REF-4802 4ft Double Reector
REF-4801 4ft Single Reector
REF-2404 2ft 4Bank Reector
REF-2402 2ft Double Reector
REF-2401 2ft Single Reector
MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm)
MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve
(16mm)
MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short
(16mm)
X16-A4 4Bank to Single Splitter
X16-A9 4Bank to Double Splitter
X09-A4 Double to Single Splitter
MTP-BW41 Kino 41K Mount Wing w/
Baby Receiver (16mm)
MTP-BW41S Kino 41K Mount Wing w/
Baby Receiver Short (16mm)
X16-12 4Bank Extension Cable, 12ft

13
Expendables
EXP-LHC-T12 Lamp Holder Clips, T12 (24pk)
EXP-FXR-S Fixture Wire Repair Kit (Silver)
EXP-M&T Adhesive Mounts & Releasable Ties
(25pk)
PRT-CR4 4Bank Connector Locking Ring (4pk)
PRT-CR2 Double Connector Locking Ring (4pk)
PRT-CR1 Single Connector Locking Ring (4pk)
PRT-HLC Kino Locking Lamp Connector
(1pk)
PRT-HLC/50PK Kino Locking Lamp Connector
(50pk)
See our website at www.kinoo.com for more repair parts.

14
Cases
KAS-C46 KAS-54L KAS-KFC BAG-201
Part Number Description Dimensions Weight
(Empty)
Holds
BAG-201 2ft 4Bank Soft Case 28 x 7.5 x 20”
(72.5 x 19 x 51cm)
3.5 lb
(2kg)
2ft 4Bank System (1),
Lamp Case
BAG-401 4ft 4Bank Soft Case 55 x 8 x 19.5”
(140 x 20.5 x 49.5cm)
6 lb
(3kg)
4ft 4Bank System (1),
Lamp Case
INS-L6 6-Lamp Foam Pad 24 x 13 x 1”
(61 x 33 x 2.5cm)
N/A Fits KAS-54S, 54L, 96L
KAS-54L 4ft Fixture Ship Case,
Large
57.5 x 15 x 17”
(146 x 38 x 43cm)
25.5 lb
(12kg)
4ft 4Bank Fixtures (5)
KAS-54S 4ft Fixture Ship Case,
Small
57.5 x 15 x 12”
(146 x 38 x 30.5cm)
21 lb
(9.5kg)
4ft 4Bank Fixtures (3)
KAS-C26 6-Lamp Carry Case (2ft) 26.5 x 6 x 4”
(67.5 x 15 x 10cm)
1 lb
(.5kg)
2ft Lamps (6)
KAS-C46 6-Lamp Carry Case (4ft) 50.5 x 6 x 4”
(128.5 x 15 x 10cm)
1.5 lb
(.7kg)
4ft Lamps (6)
KAS-GAF2 Gaffer Kit Ship Case 56.5 x 13 x 21.5”
(143.5 x 33 x 55cm)
32 lb
(14.5kg)
4ft 4Bank System (2),
Lamp Case (2)
KAS-INT2 Interview Kit Ship Case
(2)
35.5 x 13 x 22”
(90 x 33 x 56cm)
25 lb
(11.5kg)
2ft 4Bank System (2),
Lamp Case (2)
KAS-INT3 Interview Kit Ship Case
(3)
35.5 x 13 x 23”
(90 x 33 x 58.5cm)
26 lb
(12kg)
2ft 4Bank System, 2ft
Double System (2),
Lamp Case (2)
KAS-KFC Ballast & Cable Crate
w/ Lid
21.5 x 15 x 12”
(54.5 x 38 x 30.5cm)
6 lb
(3kg)
Ballasts, Cables,
Mounting Plates

15
Ballast Specications
4Bank
Double
BAL-427-120U 4Bank Ballast, Univ 120U
Input Voltage: 100~240VAC 50/60Hz
Output Frequency: 25kHz
Amperage: F75/2.6A, F40/2.5A,
F30/1.6A, F20/0.9A
Lamp Switching: 1~4
Output Switching: 4ft / 2ft
Ballast Size: 13 x 9.5 x 3”
(33 x 24 x 7.6cm)
Weight: 4.9lb (2.2kg)
BAL-427-230U 4Bank Ballast, Univ 230U
Input Voltage: 240~100VAC 50/60Hz
Output Frequency: 25kHz
Amperage: F75/1.4A, F40/1.3A,
F30/0.8A, F20/0.7A
Lamp Switching: 1~4
Output Switching: 4ft / 2ft
Ballast Size: 13 x 9.5 x 3”
(33 x 24 x 7.6cm)
Weight: 4.9lb (2.2kg)
BAL-227-120U Double Ballast, Univ 120U
Input Voltage: 100~240VAC 50/60Hz
Output Frequency: 25kHz
Amperage: F75/1.3A, F40/1.2A,
F30/0.7A, F20/0.5A
Lamp Switching: 1~2
Output Switching: 4ft / 2ft
Ballast Size: 9 x 9.5 x 3”
(23 x 24 x 7.6cm)
Weight: 3.3lb (1.5kg)
BAL-227-230U Double Ballast, Univ 230U
Input Voltage: 240~100VAC 50/60Hz
Output Frequency: 25kHz
Amperage: F75/0.7A, F40/0.7A,
F30/0.4A, F20/0.3A
Lamp Switching: 1~2
Output Switching: 4ft / 2ft
Ballast Size: 9 x 9.5 x 3”
(23 x 24 x 7.6cm)
Weight: 3.3lb (1.5kg)

16
BAL-127-120U Single Ballast, Univ 120U
Input Voltage: 100~240VAC 50/60Hz
Output Frequency: 25kHz
Amperage: F75/0.6A, F40/0.6A,
F30/0.4A, F20/0.2A
Lamp Switching: 1~off
Output Switching: 4ft / 2ft
Ballast Size: 9.5 x 4 x 3”
(24 x 10 x 7.6cm)
Weight: 2.1lb (1.0kg)
BAL-127-230U Single Ballast, Univ 230U
Input Voltage: 240~100VAC 50/60Hz
Output Frequency: 25kHz
Amperage: F75/0.3A, F40/0.3A,
F30/0.2A, F20/0.2A
Lamp Switching: 1~off
Output Switching: 4ft / 2ft
Ballast Size: 9.5 x 4 x 3”
(24 x 10 x 7.6cm)
Weight: 2.1lb (1.0kg)
Single
For latest Warranty information and Certications,
see Kino Flo website at www.kinoo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
local and state regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinoo.com
