Dear Customer
We are very grateful for your purchasing Kirisun DSJ-M9 Smart Device. We believe the product
can bring great convenience to your work.
This Smart Device applies advanced technology and sophisticated techniques. We believe the
quality and features can be satisfying to you.

User Manual
II
Notice
◆Please carefully read the user manual before using the product for your easy operation. We will
consider that you have read this manual when you use the product.
◆Please properly keep this manual for your future reference or for other users.
◆To prevent your legal rights from infringement, please carefully fill in the warranty card at your
purchase and claim valid receipt.
◆Relevant intellectual property rights of all parts including accessories of the product belongs to us
or its authorized parties. Any design or materials must not be copied, imitated, extracted or
translated without our authorization or our authorized parties.
◆Due to the update or modification of the product, we own the right to change the specifications of
software and hardware described in this manual without further notice. Specifications and
information contained in this manual are for reference only.
◆All the words are carefully proofread but mistake may be inevitable. We reserve the rights to final
interpretation.

DSJ-M9 Smart Device
III
Safety Precaution
◆To prevent damaging the device and to prevent injury to others or yourself, please carefully read the
notice below before using the product and put these safety instructions within reach of others or yourself.
◆Please do not try to disassemble or modify the product.
◆The operating temperature of the EUT can’t exceed 40℃ and shouldn’t be lower than 0℃.
◆Please do not use the product in the flammable or explosive atmosphere.
◆Please do not place the product anywhere near the heating device or at the place of extremely
abundant dust, damp or water splash. Pay attention to the notice below when charging with power
adaptor:
◆Please use the power adaptor offered or sold by us.
◆Please keep the metal part of the power adaptor plug dry and clean. Failure to comply may lead to fire
or electric shock.
◆Please do not use power adaptor in thunderstorm. Failure to comply may lead to electric shock.
◆Please do not try to damage, modify and repair the power adaptor, nor heat the BWC or place it
anywhere near open fire.
◆Please use the USB cable offered or sold by us.
◆Non-technician must not try to repair the product or its accessories

User Manual
IV
Contents
1 UNPACKING............................................................................................................................. 1
1.1 SUPPLIED ACCESSORIES.......................................................................................................... 1
1.2 OPTIONAL ACCESSORIES......................................................................................................... 2
2 INTRODUCTION........................................................................................................................3
3 BASIC OPERATION....................................................................................................................4
3.1 POWER KEY............................................................................................................................. 4
3.2 SCREEN ON/OFF...................................................................................................................... 5
3.3 TOUCH OPERATION.................................................................................................................6
3.4 OPERATION INDICATOR.......................................................................................................... 7
3.5 CHARGING INDICATOR............................................................................................................7
3.6 VOLUME UP/DOWN KEY.........................................................................................................7
3.7 BACK KEY................................................................................................................................. 8
3.8 VIDEO REC KEY........................................................................................................................ 8
3.9 AUDIO REC KEY........................................................................................................................9

DSJ-M9 Smart Device
V
3.10 ONE-SHOT/MULTI-SHOT KEY................................................................................................ 10
3.11 ALARM KEY............................................................................................................................10
3.12 MIC........................................................................................................................................ 11
3.13 CAMERAS...............................................................................................................................12
3.14 DUAL-SIM SOCKET.................................................................................................................13
3.15 USB PORT.............................................................................................................................. 14
3.16 EARPHONE JACK....................................................................................................................14
3.17 DISPLAY SCREEN....................................................................................................................14
3.18 FILE PLAYBACK.......................................................................................................................15
3.19 SETTINGS............................................................................................................................... 16
3.20 GPS/BDS POSITIONING......................................................................................................... 17
3.21 PTT KEY 1/2........................................................................................................................... 17
3.22 SHOULDER MIC (OPTIONAL)................................................................................................. 18
4 TROUBLESHOOTING.............................................................................................................. 19
5 MAINTENANCE AND CLEANING............................................................................................ 20

DSJ-M9 Smart Device
1
1 Unpacking
Please carefully open the package and check if the items listed below are included. Please contact
your local dealer for anything lost or damaged.
1.1 Supplied Accessories
Item
Quantity
Smart Device
1
Power Adaptor
1
USB Cable
1
Belt Clip
1
User Manual
1
Certificate of Approval
1

User Manual
2
1.2 Optional Accessories
Item
Quantity
Car Charger
1
Bracket
1
BT shoulder lamp
1

DSJ-M9 Smart Device
3
2 Introduction

User Manual
4
3 Basic Operation
3.1 Power Key
Power On
Press and hold the Power key to power on the
device, and the login interface will be displayed. Enter
a user name and a password, and then click Login.
After login, the main interface will be displayed.

DSJ-M9 Smart Device
5
3.2 Screen On/Off
Press the Power key to turn on/off the screen.
Power Off
To power off the device, press the Power key and hold for 2 seconds, and then tap the screen as
instructed.
Note:
The device has 2 sets multiple user management.
Administrator: No ID is set. The password is 456789 by default, which can be reset through the
DSJ-M9 PC software. After login with this account, the device time, passwords, department name,
user name, device no., loop video, GPS on/off and copy data can also be set through the software.
Normal user: The password is 123456 by default, which can be modified through the DSJ-M9 PC
software. Maximum 5 user IDs (ID1, ID2, ID3, ID4 and ID5) can share this account. Different users
have different passwords.

User Manual
6

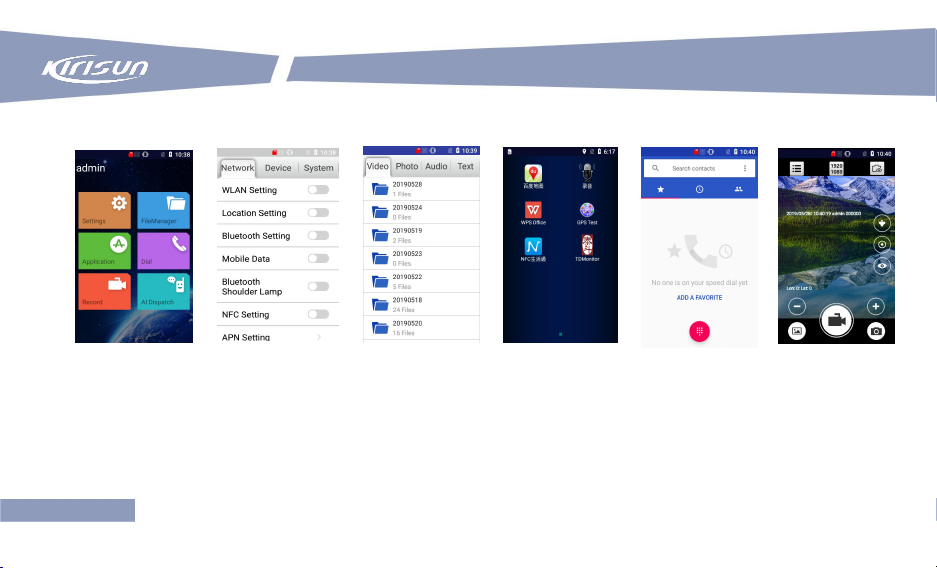

3.3 Touch Operation
Application
Interface
Playback
Interface
Media
Interface
Setting
Interface
Setting
Interface
Dial Interface

DSJ-M9 Smart Device
7
3.4 Operation Indicator
The green indicator glows after the device is powered on. The red indicator
flashes once when a photo is taken, and keeps flashing when a video is
taken.
3.5 Charging Indicator
The red indicator glows during charging, and the green indicator glows after
the battery is fully charged.
3.6 Volume Up/Down Key
Adjust the volume of media, ring tone and alarm clock by pressing the Volume Up and Volume Down
keys.

User Manual
8
3.7 Back Key
Return to the previous interface or quit the current application by pressing the Back key.
3.8 Video REC Key
In preview mode, press the Video REC key to start
recording video, and the red indicator light keeps flashing
during recording. To stop recording and save the video file,
press this key again.
Note:
To mark an important video, press the Video REC key
and hold for seconds.
Video Interface

DSJ-M9 Smart Device
9
In power-off state, press and hold the Video REC key to enter one-touch video mode. To stop
recording and save the file, press this key again.
In preview mode, you can set the followings.
Video Resolution: 1920*1080/1280*720/848*480 ppi
Video time: 5/10/30 min
One-Touch Video: On/off
Pre-Recording/Prolonged Recording: On/off
3.9 Audio REC Key
In preview mode, press the Audio REC key to start recording
voice. To stop recording and save the file, press the key again.

User Manual
10
3.10 One-Shot/Multi-Shot Key
In preview mode, press the One-Shot/Multi-Shot key to take and save a photo. The red indicator
light flashes once.
In preview mode, you can set the followings.
Image Resolution: 2560*1440/3264*2448/3968*2976/ 4736*3552/6528*4896 ppi
Photographing Mode: One-shot
Quick Multi-Shot: 5/10/20 shots
Shooting Interval: 2/3/5/10/20/30s
Timed Shooting: 5/10/15/30s
3.11 Alarm Key
When the smart dispatching software is running, press the Alarm key and hold
for seconds to send an alarm and real-time video.
When the smart dispatching software is not running, press the Alarm key and

DSJ-M9 Smart Device
11
hold for seconds to call SOS contact.
3.12 Mic
The microphone is for sound collection during voice communication.

User Manual
12
3.13 Cameras
a. Wide-angle starlight camera for low-illuminance environments.
b. 32 MP HD camera for taking macro photos, for example, certificate photos.
c. Front camera for taking real-time video during dispatching.

DSJ-M9 Smart Device
13
3.14 Dual-SIM Socket
The device supports Nano-SIM (4FF) cards, six-mode 4G capable (dual-SIM, dual-standby and
single-active)
Supported Networks: 2G, 3G and 4G (TDD-LTE/FDD-LTE) networks

User Manual
14
3.15 USB Port
Plug in USB cable to realize data exchange between the device and a computer and to charge the
battery.
3.16 Earphone Jack
The standard 3.5mm earphone jack is compatible with standard earphones.
3.17 Display Screen
The device applies a 3.5’’ 848*480 ppi HD touch screen. You can play back image, audio and video
files through touch.
