Kirisun DSJ-F9 Owner's manual

DSJ-F9 Law Enforcement Recorder User Manual
II

DSJ-F9 Law Enforcement Recorder User Manual
II
User Manual
DSJ-F9
Law Enforcement Recorder
We are very grateful for your purchasing Kirisun law enforcement recorder produced by
Kirisun Communications Co., Ltd. We believe the product can bring great convenience
to your work.
Kirisun law enforcement recorder applies advanced technology and sophisticated
techniques. We believe the quality and features can be satisfying to you.

DSJ-F9 Law Enforcement Recorder User Manual
-1-
Notice
◆Please carefully read the user manual before using the product for your easy operation. We
will consider that you have read this manual when you use Kirisun law enforcement recorder.
◆Please properly keep this manual for your future reference or for other users’.
◆To prevent your legal rights from infringement, please carefully fill in the warranty card at
your purchase and claim valid receipt.
◆Relevant intellectual property rights of all parts including accessories of Kirisun law
enforcement recorder belongs to Kirisun or its authorized parties. Any design or materials
must not be copied, imitated, extracted or translated without authorization of Kirisun or its
authorized parties.
◆Due to the update or modification of the product, Kirisun owns the right to change the
specifications of software and hardware described in this manual without further notice.
Specifications and information contained in this manual are for reference only.
◆All the words are carefully proofread but mistake may be inevitable. Kirisun reserves the
right to final interpretation.

DSJ-F9 Law Enforcement Recorder User Manual
-2-
Safety Precaution
To prevent damaging the law enforcement recorder and prevent injury to others or yourself,
please carefully read the notice below before using the product and put these safety
instructions within reachofothersoryourself.
◆Please do not try to disassemble or modify the product.
◆Please do not use the product in the flammable or explosive atmosphere.
◆Please do not place the product anywhere near the heating device or at the place of
extremely abundant dust, damp or water splash. Pay attention to the notice below when
charging with power adaptor:
◆Please use the power adaptor offered or sold by Kirisun.
◆Please keep the metal part of the power adaptor plug dry and clean. Failure to comply may
lead to fire or electric shock.
◆Please do not use power adaptor in thunderstorm. Failure to comply may lead to electric
shock.
◆Please do not try to damage, modify and repair the power adaptor, nor heat the radio or
place it anywhere near open fire.
◆Please use the USB cable offered or sold by Kirisun.
◆Non-technician must not try to repair the product or its accessories.

DSJ-F9 Law Enforcement Recorder User Manual
-3-
Content
1. Unpacking and Checking................................................................................................. -4-
2. Introduction..........................................................................................................................-6-
3. Basic Operation..................................................................................................................-8-
4. Management Procedure Installation and Directions......…………………………..- 16 -
5. Troubleshooting............................................................................................................... -18-
6. Maintenance and Cleaning............................................................................................-19-

DSJ-F9 Law Enforcement Recorder User Manual
-4-
1. Unpacking and Checking
Please carefully open the package and check if the items listed below are included. Please contact your
local dealer for anything lost or damaged.
1.1 Supplied Accessories

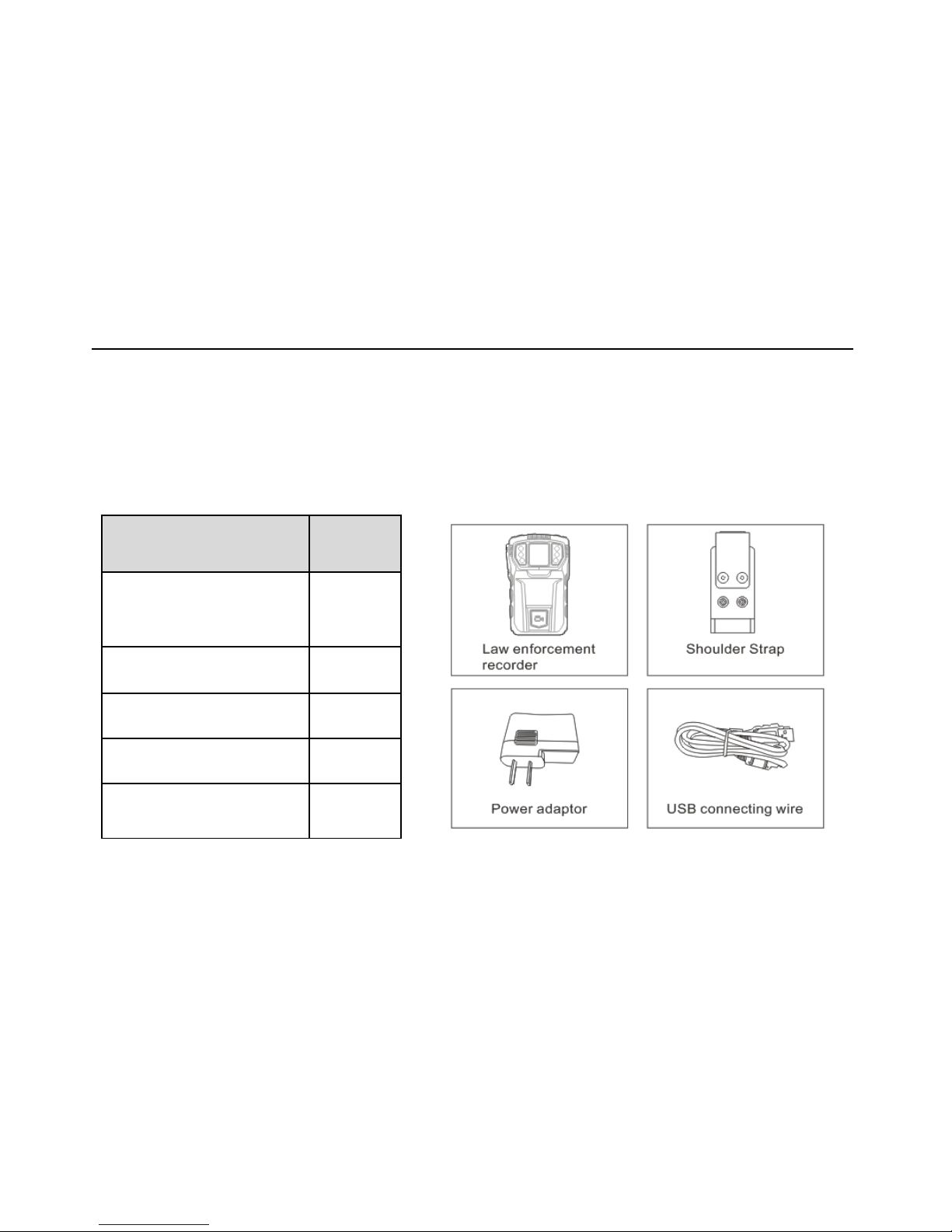

Material Quantity
Law Enforcement
Recorder
1
Power Adaptor 1
USB Cable 1
Shoulder Strap 1
User Manual 1

DSJ-F9 Law Enforcement Recorder User Manual
-5-

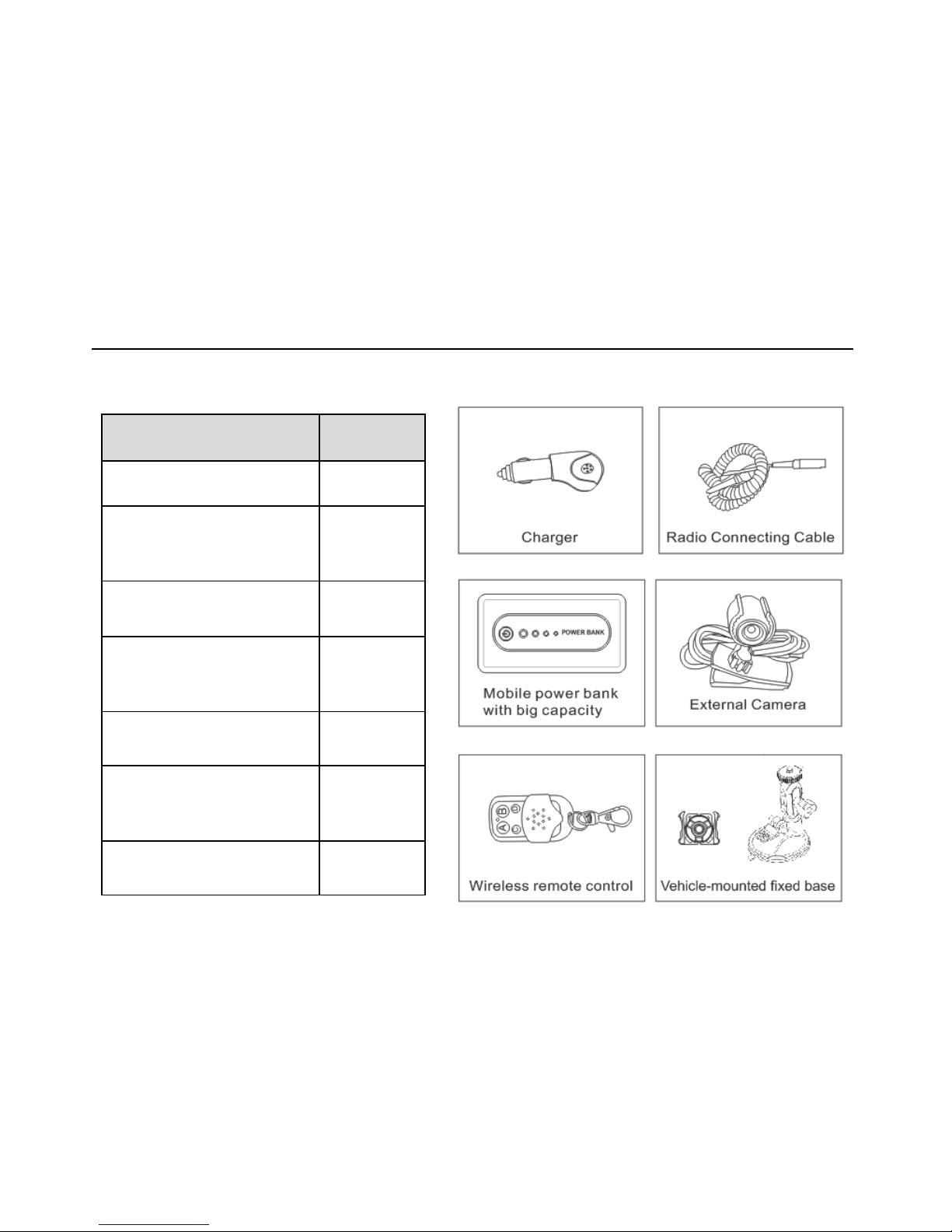

1.2 Optional Accessories
Material Quantity
Vehicle-mounted Charger 1
Mobile Power of Big
Capacity 1
Radio Connecting Cable 1
Vehicle-mounted Fixed
Bracket 1
External Camera 1
Vehicle-mounted Fixed
Base 1
Wireless Remote Control 1

DSJ-F9 Law Enforcement Recorder User Manual
-6-

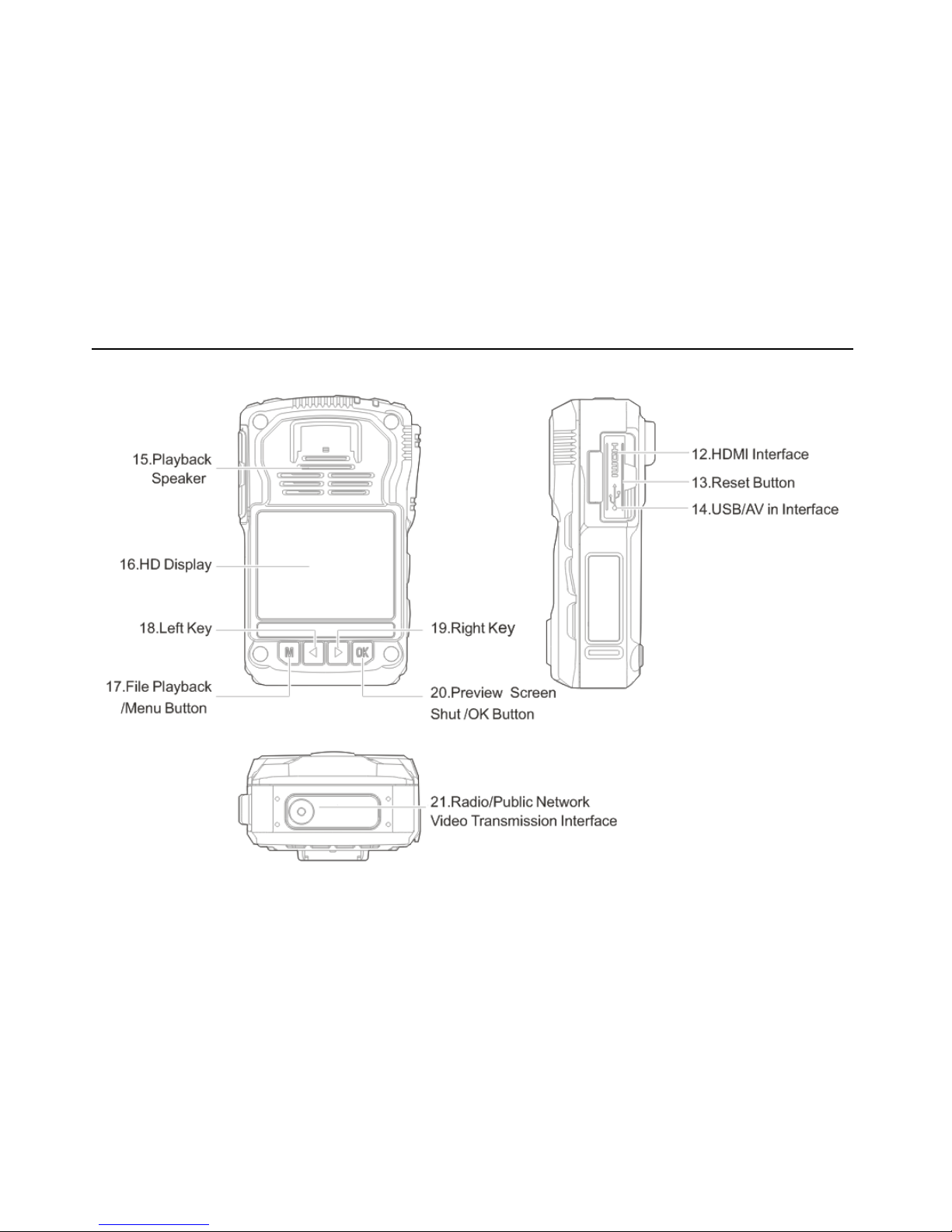

2. Introduction

DSJ-F9 Law Enforcement Recorder User Manual
-7-

DSJ-F9 Law Enforcement Recorder User Manual
-8-
3. Basic Operation
3.1 Power-on/off Button
◆Powering on
Press and hold the power-on button when the radio is off。
The radio enters pre-view mode after being powered-on, and the
green indicator keeps glowing.
◆Powering off
Press and hold for 3 seconds on pre-view mode, and the picture shown on the right appears, which
indicates the radio is being powered-off.
3.2 Operating Status Indicator
The green LED indicator glows after the radio is powered on; the red LED indicator flashes once when taking
photo and keeps flashing when videotaping.
3.3 Charging Indication
The red indicator glows when charging and the green indicator glows when the battery is full.
3.4 Video Positioning Light
By using PC software, the video positioning light can be powered on and the lighting time can be set.

DSJ-F9 Law Enforcement Recorder User Manual
-9-
(Powered-on option: OFF.5S.10S.15S).
3.5 LED Light
Press on the pre-view mode to power on/off the LED light.
3.6 Infrared Night Light
Press on the pre-view mode to power on/off the infrared night light, and the valid shooting distance is
≥10m.
3.7 Microphone
Used for communication and sound collection.
3.8 Video/One-touch Video
On the video pre-view mode, press to start shooting and activate the
picture at the same time; the red indicato
r
keeps flashin
g
durin
g
video
shootin
g
;press a
g
ain to stop shootin
g
and save the video file. In the
power-off status, press and hold to enter one-touch video mode; press
again to stop shooting and save the file.
3.9 PTT Button (Optional Feature)
You can use a specialized connecting cable to connect the product with a radio; press PTT button and speak
to transmit to the other party; release it to receive (This feature is optional and can be customized according to
requirements).

DSJ-F9 Law Enforcement Recorder User Manual
-10-
3.10 Sound Recording
Press on the video pre-view mode and start sound recording, during which the counting symbol shown on
the right appears. Press again to stop recording.
3.11 Photo Taking/Continuous Shooting Button
Press on the video pre-view mode to take photos and meanwhile the red
indicato
r
flashes. The photo will be saved automaticall
y
once taken. Press and
hold on the video pre-view mode to enter the 5 pictures continuous
shootin
g
mode, or
y
ou can press and keep holdin
g
to take pictures
continuousl
y
until the button is released. The picture will be saved
automatically once taken.
3.12HDMI Interface
This product can realize HD video output feature through the specialized connecting cable.
3.13Reset Key
When the reorder crashes out of different reasons, you can press this reset key to switch it off, and the
recorder will recover to normal when powered-on again.
3.14USB/AVin Interface
Plug in USB cable to realize data interaction between the recorder and computer and to charge the battery.
Use the specified external camera to realize features such as concealed sound recording, photo taking and

DSJ-F9 Law Enforcement Recorder User Manual
-11-
video shooting.
3.15Playback Speaker
Used for playback of audio files.
3.16HD Display Screen
The recorder applies HD display screen of 2 inches，which is used for playback of files such as photos, sound
recording, videos.

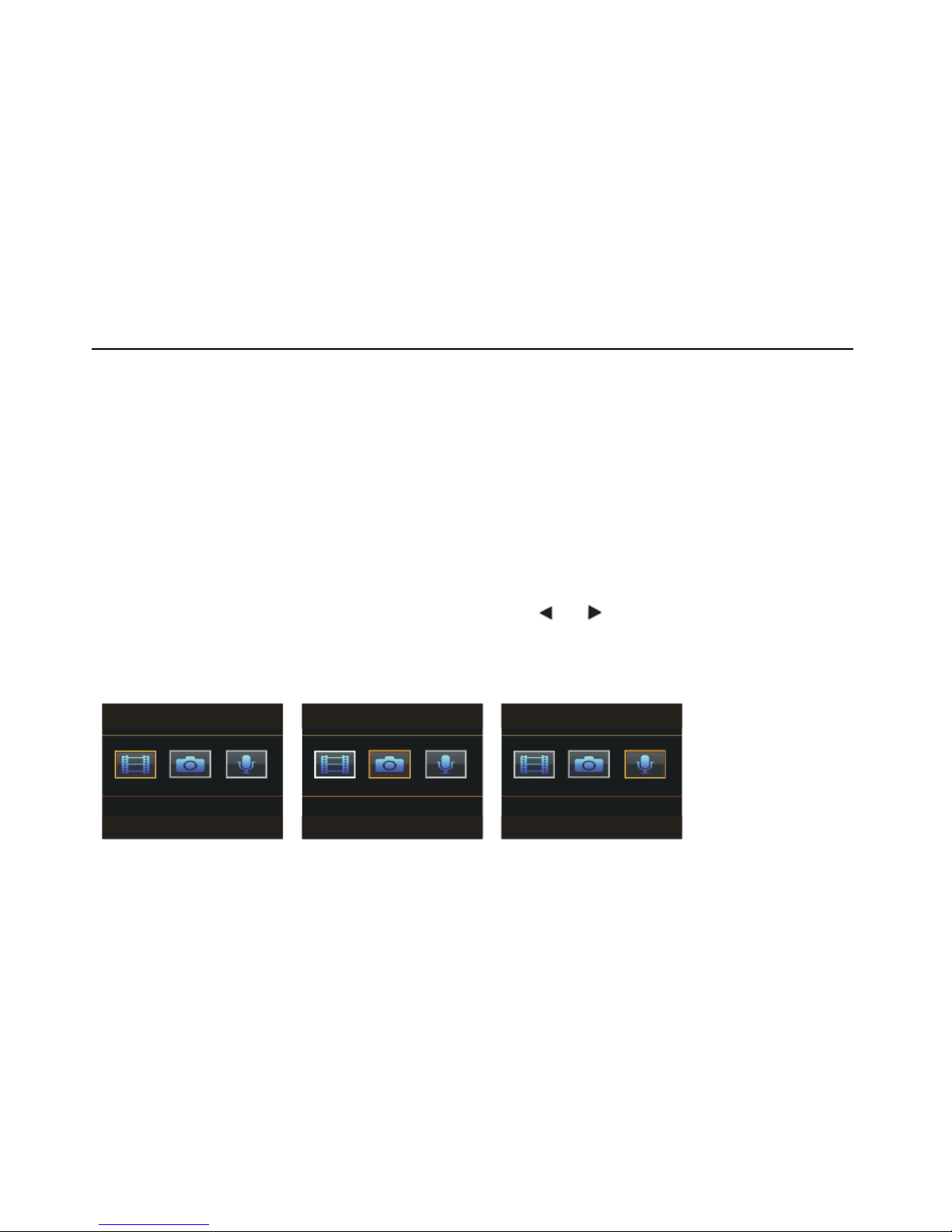

3.17File Playback/Menu Button (M Key)
Press M key in preview mode to enter file browse mode; press or to move the cursor for file selection
(selected if the icon changes its color); select the file of corresponding format and press OK key to open the
file; press M key to perform switch return feature; for video playback and slide play, press M key to quit play
and return to file browse mode.

DSJ-F9 Law Enforcement Recorder User Manual
-12-
Note:
JPG is image file, and on the video pre-view mode, there will be yellow indication on the top right icon;
WAV is audio file, and in the sound recording status, there will be yellow indication on the top right icon;
MP4 is video file, and in the shooting status, there will be yellow indication on the top right icon;
◆Video File Playback
Press M key to enter file browse mode, and press or to select a icon. Press OK key to enter the video
file picture frame; press or to move the cursor and select playback file （selected if the icon changed
its color）; after selecting the playback file, press OK to enter the video file playback. Press during the file
playback to play fast forwards by 1-64 times or press to play fast backwards by 1-1/64. Press and hold
or to adjust the playback volume. Press M key to perform switch return feature.
◆Photo File Playback
Press M key to enter file browse mode, and press or to select photo icon. Press OK key to enter photo
file box, and press or to move the cursor to select the playback file (selected when the icon changes
color); after playback file is selected, press OK key to play the photo file. Afterwards, press or to check
photos one by one. Press OK key to enter photo slide play mode. Press M
key to perform switch return feature.

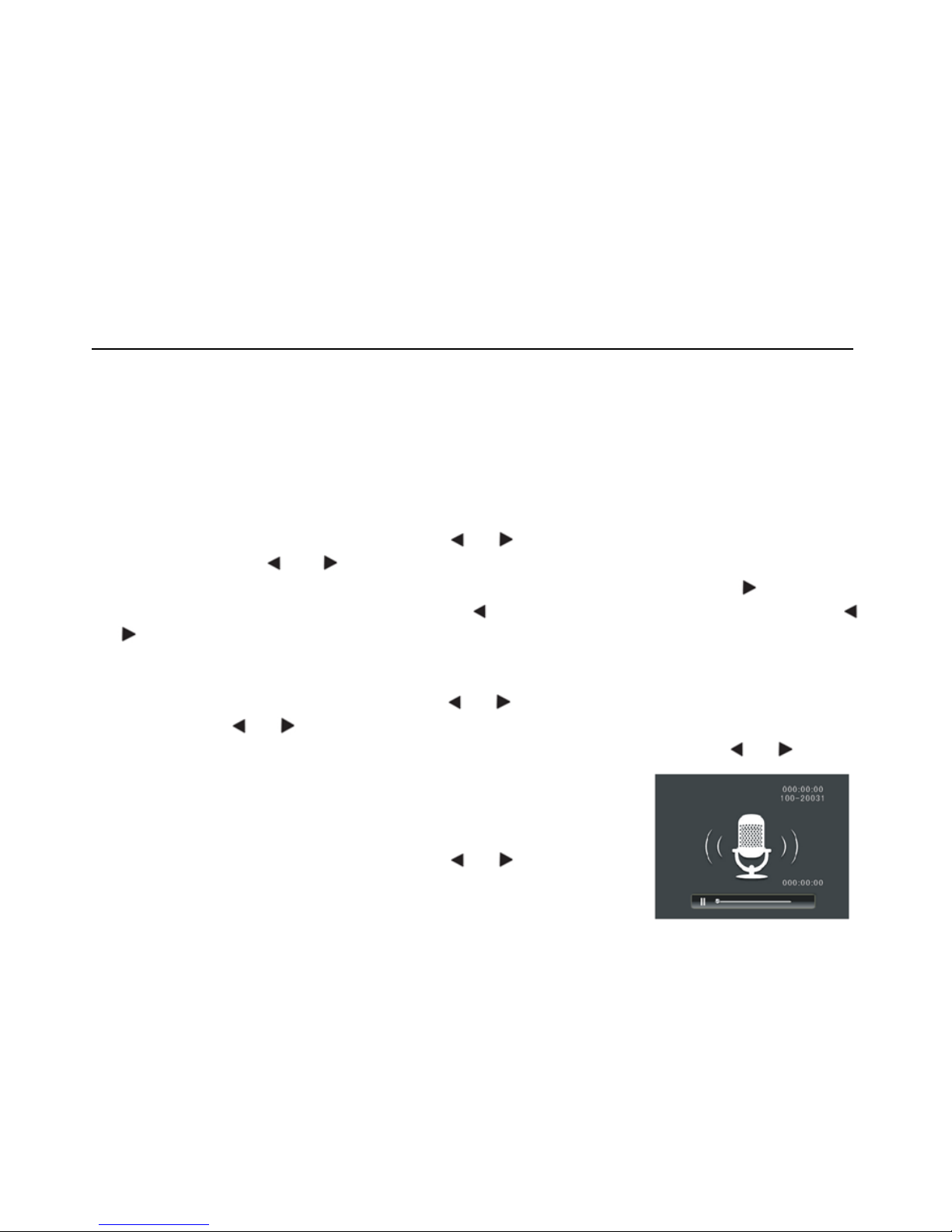

◆Sound Recording File Playback
Press M key to enter file browse mode, and press or to select sound

DSJ-F9 Law Enforcement Recorder User Manual
-13-
recording icon. Press OK key to enter sound recording file box; press or to move the cursor to select
the playback file(selected when the icon changes color); after the playback file is selected, press OK key to
play the sound recording file. Press Pause key during the playback and press or to adjust volume.
Press M key to perform switch return feature.
Press OK key on the pre-view mode to enter battery-saving mode. Press OK key and wait 10 seconds for
switching on WiFi intelligent remote feature(optional feature).
Notes:
A. WiFi intelligent remote control feature, and you need intelligent phone + APK software to use it. APK
supports Android and IOS phone.

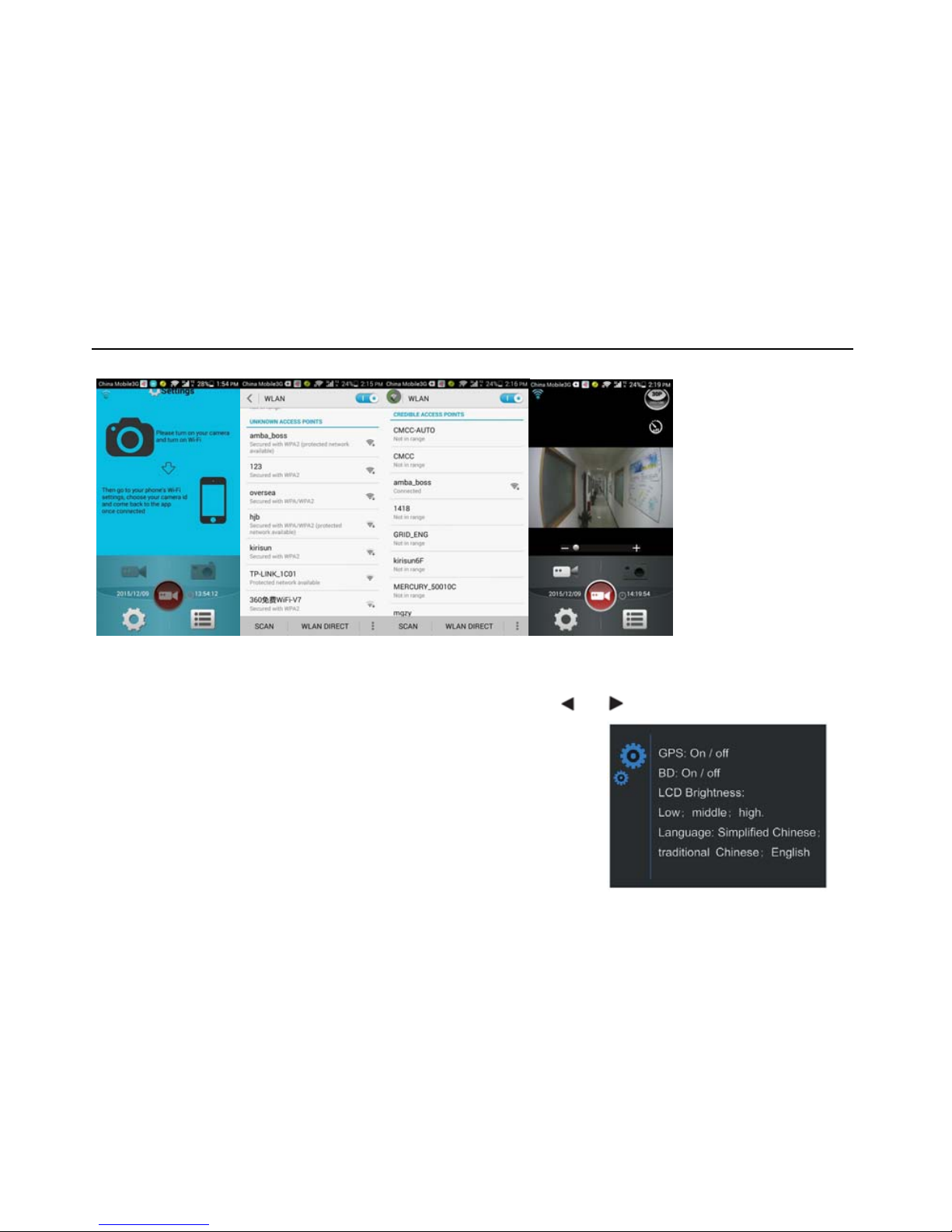

B. APK software (LinKlnEyes) can be downloaded on the phone App platform, e.g. 360 phone assistant, APP
STORE, etc.
C. Software. Press OK key on the recorder and wait 10 seconds for switching on WiFi; open APK
software on the phone, and open WLAN to search for network amba_boss for connection with pin
1234567890. The connection steps are as follows:

DSJ-F9 Law Enforcement Recorder User Manual
-14-
D. Features such as remote control photo taking, videotaping, and file playback can be realized though APK
software. The valid distance is 15-20 meters.
Press M key on the pre-view mode and enter menu setting; press or to move the cursor for setting
selection and press OK ke
y
to confirm; press M ke
y
to perform switch
return feature.
GPS: On / off
BD: On / off
LCD Brightness: Low; middle; high.
Language: Simplified Chinese; traditional Chinese; English

DSJ-F9 Law Enforcement Recorder User Manual
-15-
File Mark: On / off
Vehicle-mounted: On / off
Firmware Version Information
3.18Radio / Public Network Transmitting Interface (Optional Feature)
This product applies pin-type data interface, and it can be connected with any radios of major brands using a
specialized connecting cable. Public network video transmission and remote dispatch are available by
connecting a specialized external 3G/4G module.
3.19 Built-in GPS/BD Positioning (Optional Feature)
This product can realize global positioning and positioning trace playback
through built-in GPS/BD dual module (this feature is optional, and can be
customized according to requirements).
3.20 Manual Focus
This product supports manual focus of 1-64 times. Press or to
focally adjust on the pre-view mode.
Note: Invalid under resolution of 1920*1080 P30 (HDR).

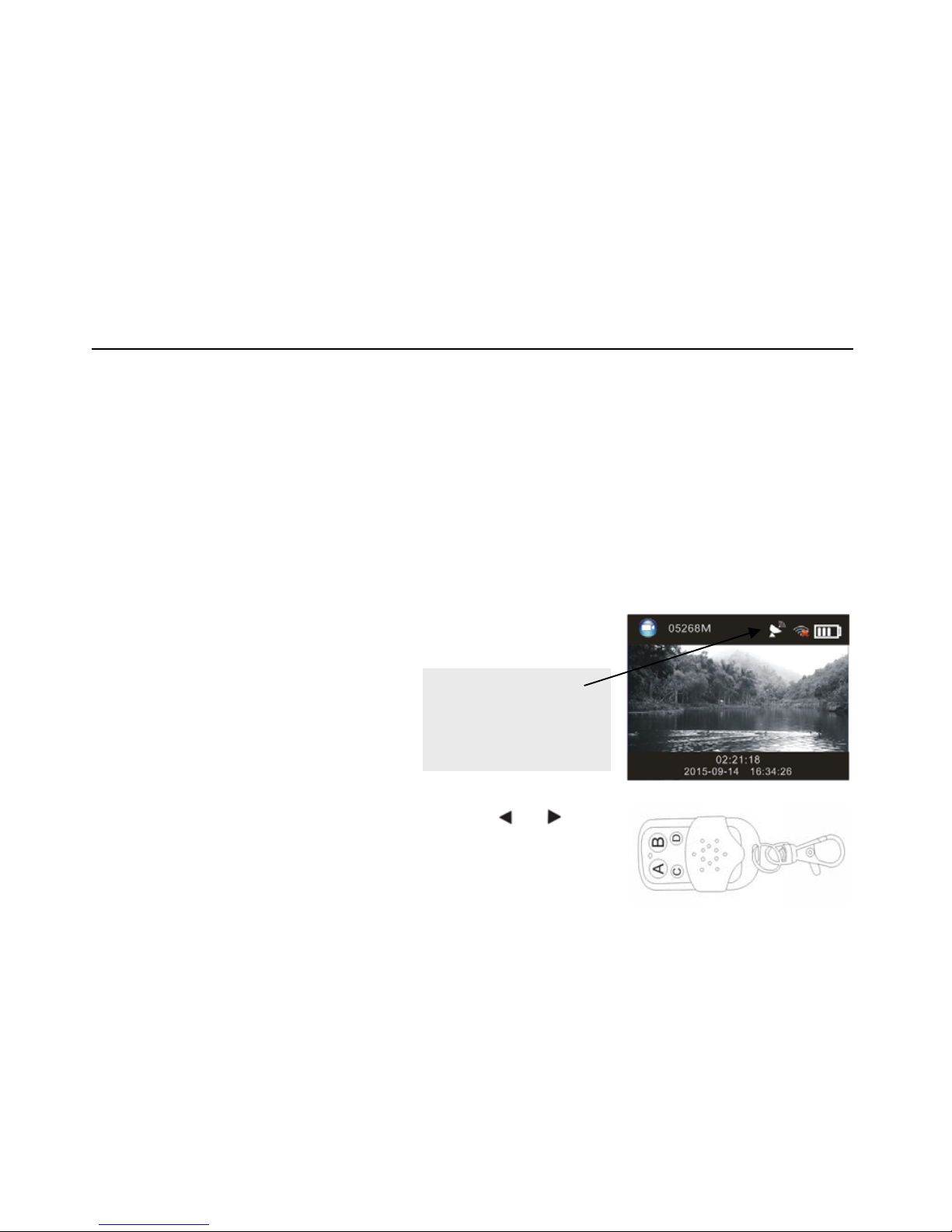

The satellite icon
will turn green when
GPS positioning
succeeds

DSJ-F9 Law Enforcement Recorder User Manual
-16-
3.21 Wireless Remote Control (Optional feature)
This product supports wireless remote control feature, and the valid distance is about 5-8 meters.
Note:
A key for remote control photo taking; B key for remote control videotaping; C key for remote control sound
recording; D key for remote control power-off.
4. Management Procedure Installation and Directions
4.1 Overview
The management procedure software is intended for DSJ-F9 law enforcement recorder development. By
using the software, relevant parameters of recorder can be set, and you can also upgrade its version, copy or
delete its data.
4.2 Access Method to Management Software
Please email to the address “marketing.[email protected]” with your product information and contact detail or
contact with your local dealer for accessing the management software.
4.3 Installation Environment
Hardware Environment: Intel platform.

DSJ-F9 Law Enforcement Recorder User Manual
-17-
System Environment: Windows xp sp3/Windows7 (32bit/64 bit).
Software Environment: Microsoft dotNetFx40, DirectUSB-Setup and Configuration Manager.
4.4 Software Update
1) At the interface “Law Enforcement Recorder Management Software —F9 PC Setting Software”, click
“Read/Write Mode”; “Set Removable Disk successful” will pop up and you will see a new disk icon in “My
Computer”. The new disk is where the recorder data are stored; Copy the upgrade file to the disk.
2) Detach the USB cable which is connected to the law enforcement recorder and the recorder will be
powered off; switch on the recorder again and “Firmware Upgrade” will pop up with default value of “No” ;
press “ ” to select “Yes” and press menu key “M” to finish software upgrade; after the upgrade, connect the
recorder back to PC software; format the recorder or delete the upgrade software in the content, otherwise
“Firmware Upgrade” will keep popping up.
