Kit-Form KA9164/02 User manual

TOOLS REQUIRED
IMPORTANT SPARE PARTS CANNOT BE SUPPLIED WITHOUT PANEL DESCRIPTION/FITTINGS REF. CODE AND FULL ASSEMBLY GUIDE TITLE
FITTINGS SUPPLIED
6 DOOR FITMENT KA9164/02
1712x485 1712x485
2066x495 1737x682
666x330
666x87
666x484 666x330
1369x330
1707x330
1401x686
2028x87
306x659x100
2028x485
662x157
645x306
This product contains a universal kit
therefore you may have surplus fittings
after assembly.
1814x485
1814x485
IMPORTANT NOTICE
To safeguard your own interests you are advised
to CHECK the contents of this kit thoroughly
BEFORE ASSEMBLY.
Commencement of assembly will be regarded by the
manufacturer that both panels and fittings were correct
and in good condition when you received them. Claims
against the manufacturer regarding quality or quantity of
parts will become invalid after the commencement of
assembly. This notice does not affect your statutory rights.
Our policy is of constant improvements to our furniture.
Components may occasionally differ slightly from diagrams
shown. Spare components can be disposed of once
assembly is complete.
Kit-form Furniture reserve the right to change specification
without prior notice.
T256 R112
C226
B054
L077
S070
X019
W008
S068
F005
C001
D209
D00R
C323 C226
S068
X019
X018 U108 V022
D00R
D00R
D00R
L077
T256
R112
C226
B054
S070
X019
W008
S068
F005
C001
D209
C323
S068
X018
U108 V022
D00R
X 24
K65
X 75
K24
K30
K46
30mm X 20
X 41
K16 X 1
K51
KA9164/02 PAGE 1 OF 12
K350 X 16 K343 AND
K344
X 4

2

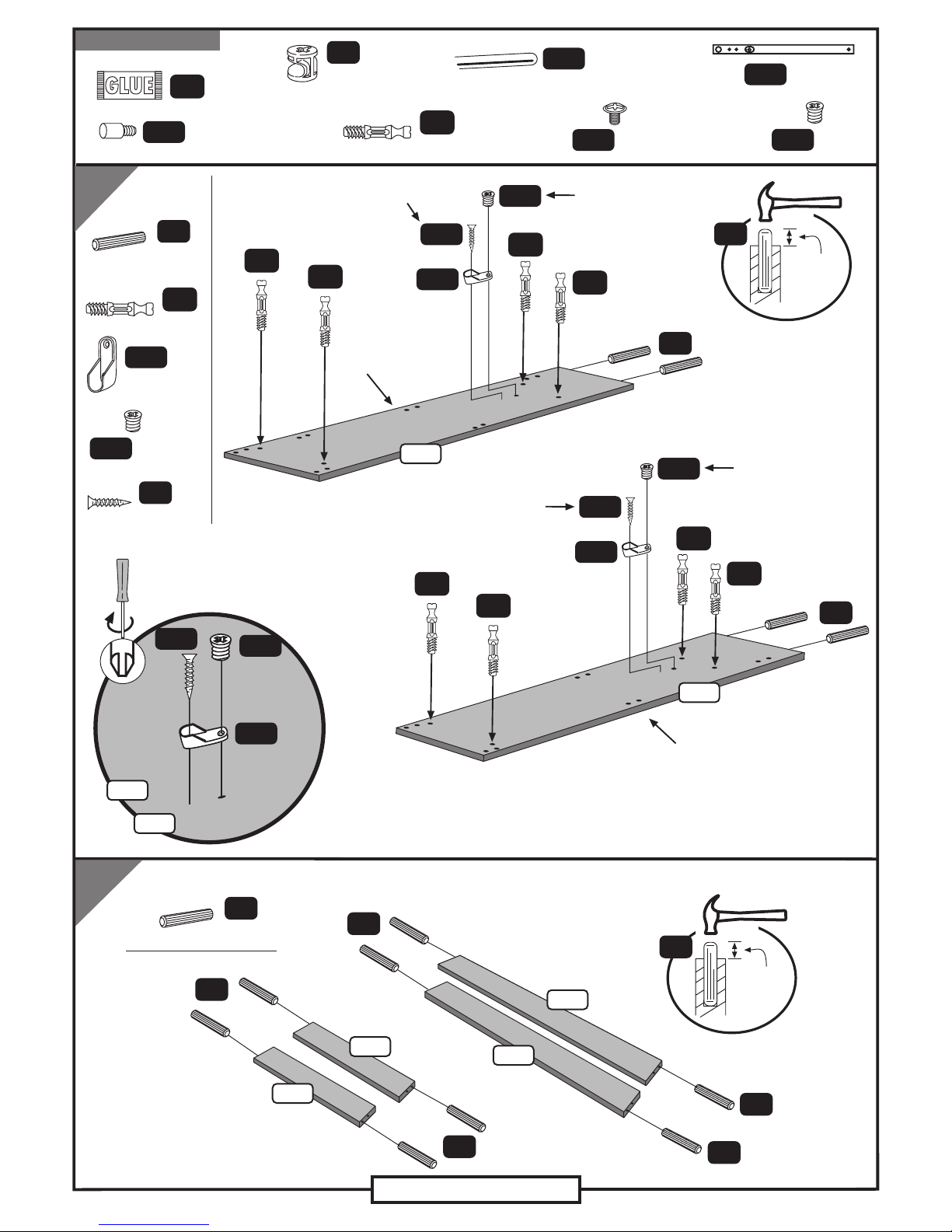

FITTINGS SUPPLIED
FITTINGS NEEDED
FITTINGS
NEEDED
1
X 12
K144
8 mm
FRONT
EDGE
X 2
K144
X 4
K145
X 6
K302 K58
X 28
X 28
K59
K25 X 1 X 4
K143
K279 X 2
X019
X018
L077
K58
X 8
K46
30mm X 4
K46
K58
K58
K58
K58
FRONT
EDGE
R112
K58
K58
K58
K58
K46
K46
30mm X 8
8 mm
K46
K46
K46
K46
K46
K46
X018
X019
KA9164/02 PAGE 2 OF 12
K46
DO FIRST
DO
SECOND
X 2
K16
DO FIRST
DO
SECOND
K16
K344
K16
K344
K144
R112
K144
K344
X 2
K16
K344
K144
L077

3
8 mm
FRONT
EDGE
FRONT
EDGE
4
U108
FRONT
EDGE
FRONT
EDGE
K143
FITTINGS NEEDED
X 8
K144
V022
K143
K143
X 2
X 2
BOTTOM SECTIONS OF
U108 V022
K143
FRONT
EDGE
REAR
EDGE
DRAWER RUNNER
REAR FIXING
3 2 1 REAR
EDGE
U108 V022
FRONT FIXING
1 2 3
FRONT
EDGE
U108 V022
U108
V022
FITTINGS
NEEDED
K46
30mm X 8
K46
X 4
K143
KA9164/02 PAGE 3 OF 12
K46
K46
K46
K46
K46 K46
8 mm
K46

7
6
FITTINGS
NEEDED
FITTINGS
NEEDED
5
FITTINGS
NEEDED
FRONT
EDGE
FRONT
EDGE
TURN U108 AND
V022 OVER
B054
S070 S068
K58 X 12
K58
K58
U108
V022
FRONT
EDGE
FRONT
EDGE
K58
X 4
K58
K58
U108 V022
X 24
K59
K59
X 4
KA9164/02 PAGE 4 OF 12
K59
K59
K59
K59
K59
K59
K59
K59
X 2
K144 X 2
K16
DO FIRST
DO
SECOND DO FIRST
DO
SECOND
K16
K344
K144
K59
K59
K344
X 2
K16
K344
K144
K16
K344
K144
U108
V022

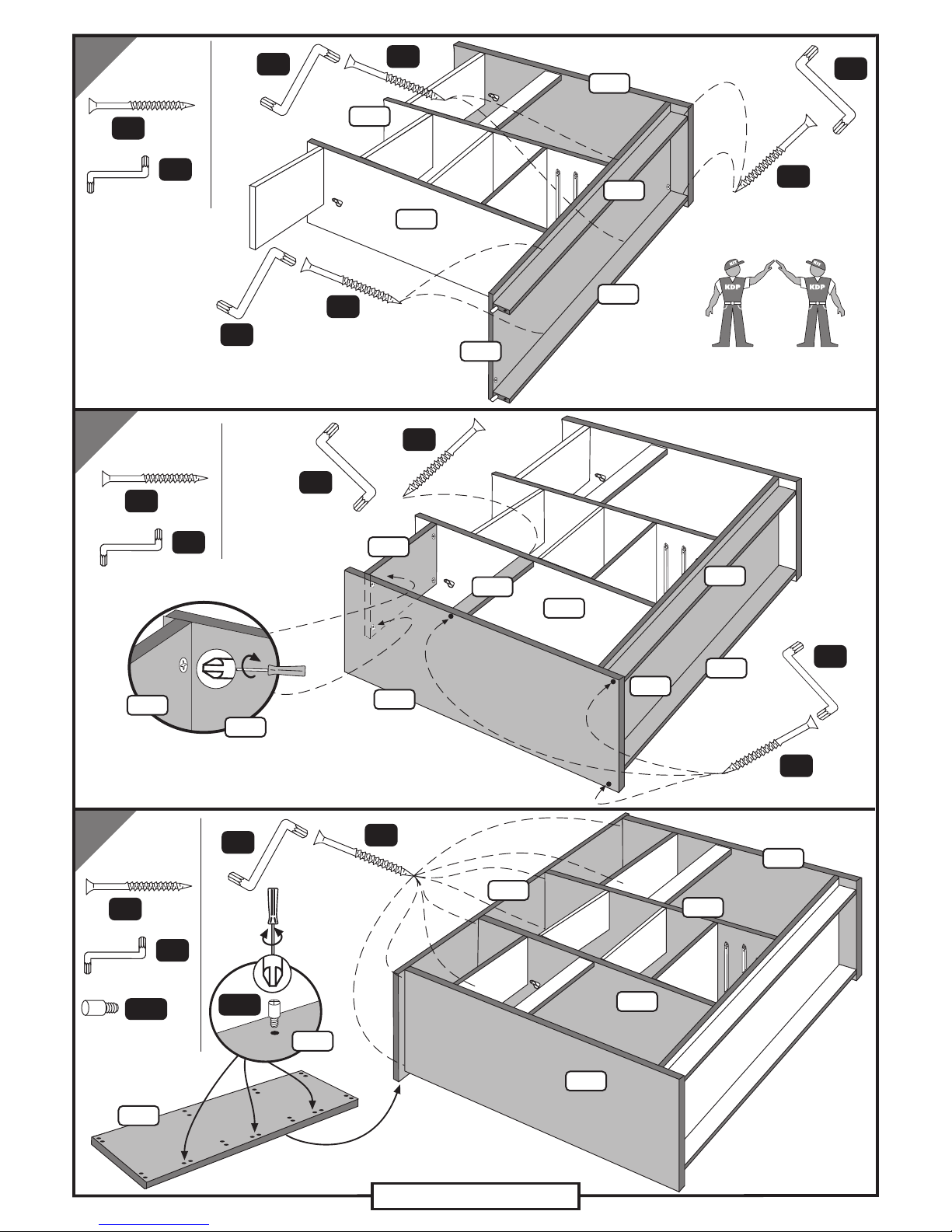

8
9
TWO PEOPLE REQUIRED
TO ROTATE UNIT
S007 S008
S068
S068 S070 V022
S068
S070
V022
S068
S068 S070
V022
U108
S068
S070 U108
V022
U108
V022
U108
KA9164/02 PAGE 5 OF 12

11
FITTINGS
NEEDED
10
FITTINGS
NEEDED
2’ 0"
(600mm)
B054
X 4
K65 K30
S068
U108
V022
S068
S068
U108
V022
K65
K30
B054
X 2
K65
K30
K65
K30
K65
K30
U108
V022
X019
L077
S068
B054
S068
B054
S068
L077
KA9164/02 PAGE 6 OF 12

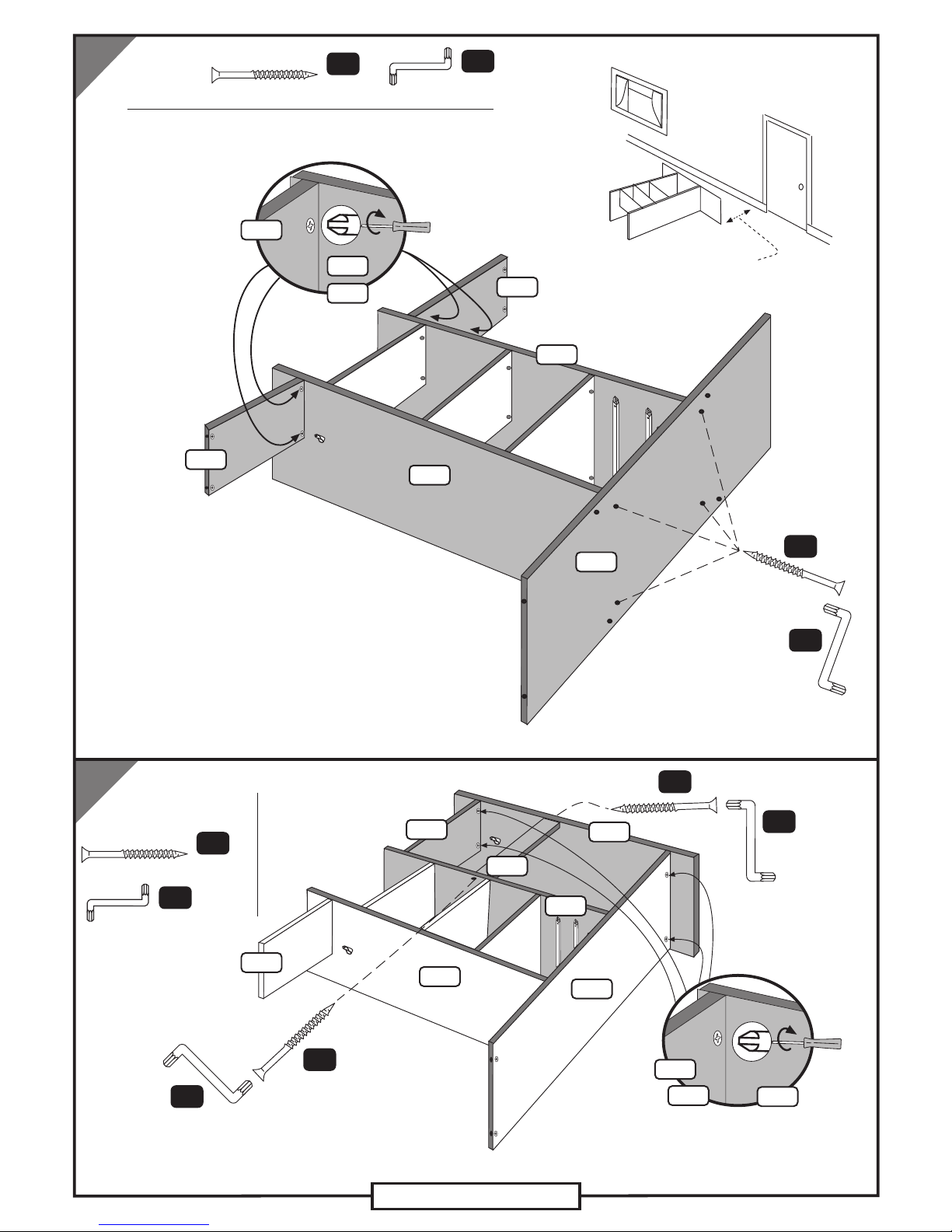

13
14
FITTINGS
NEEDED K65
K30
12
NOTE: SCREW IN ON THE SIDE
WHERE DOWEL HOLES ARE VISIBLE
FITTINGS
NEEDED
FITTINGS
NEEDED
TWO PEOPLE REQUIRED IN
THIS STAGE
X 6
K302
X 6
K65
K30
K65
K30
K65
K30
K65
K30
U108
V022
L077
X018
X018
B054
X 4
K65
K30 S068
S068
R112
R112
X018
X019 X018
B054
V022
K65
K30
K65
K30
L077
U108
T256
R112
V022
T256
T256
X 8
K65
K30
K302
KA9164/02 PAGE 7 OF 12

16
17
FITTINGS
NEEDED
C226
FITTINGS
NEEDED
FITTINGS
NEEDED

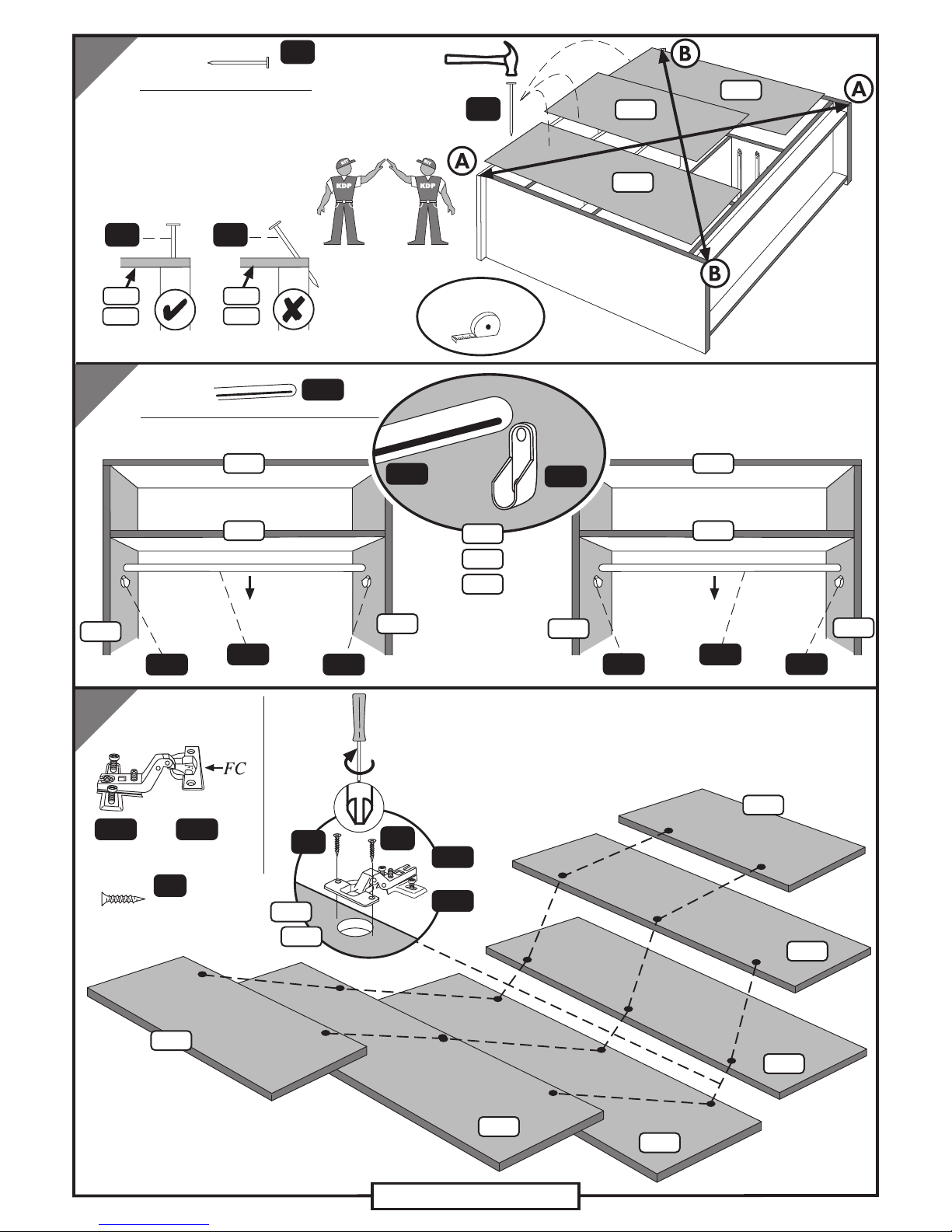

15
TWO PEOPLE REQUIRED TO
TURN UNIT OVER
AND LIFT UNIT UPRIGHT
BACK OF UNIT
IMPORTANT KIT TIP
C226C226
C323 C323
PLEASE ENSURE UNIT IS SQUARE
BEFORE NAILING BACKS IN PLACE.
A to A = B to B
X 75
K24
K24
K24 K24
C226
C226
C323
T256
K279 X 2
S068
L077 U108 V022 R112
T256
S068
K279
K344 K344 K279
K344 K344
X 32
K16
X 16
K16
D209
K16
K350
K343
D00R
D209
D00R
D00R
D00R
D00R
D209
KA9164/02 PAGE 8 OF 12
K279 K344
L077
U108
R112
K350
K343
AND
AND

19
18
D209
D209
D00R D00R D00R D00R
D209
D00R
R112
L077 U108 V022
U108 V022
R112
L077
U108
V022
ADJUST DOORS TO OBTAIN EVEN GAPS
UP
DOWN
K350
K343
LEFT
RIGHT
K350
K343
IN
OUT
K350
K343
KA9164/02 PAGE 9 OF 12
TWO PEOPLE REQUIRED TO
HANG DOORS
K350
K343
AND

20
K59
FITTINGS
NEEDED
1
2
3
X 2
X 2
K58
K59
W008
K58
X 4
X 4
K59 K25 X 1
K58
K58
K59
X 2
KA9164/02 PAGE 10 OF 12
9
F005
C001
W008
C001
W008
F005
K59
K59
C001
W008
F005
K59
K58

FITTINGS
NEEDED
X 4
K145
X 2
K145
K145
IMPORTANT
KIT TIP
USE THIS
HOLE
21
NOTE
IT IS ESSENTIAL
THAT THIS
PRODUCT
IS FIXED TO
A WALL
USING THE
BRACKET
SUPPLIED
FITTINGS
NEEDED
22
U108 V022
U108 V022
X 1
K16
X 1
K51
K16
K51
KA9164/02 PAGE 11 OF 12

CUSTOMER HELPLINE
Address: Support Desk, KD Products Ltd, Redwither Tower,
Wrexham Industrial Estate, Wrexham, LL13 9XT
Tel: [phone] e-mail: [email protected]
6 Door Fitment
Beech
Pack1: A9164C
A9165C
Pack2: A9264C
A9265C
Pack3: A9364C
A9365C
Pack4: A9064C
A9065C
6 DOOR FITMENT
KA9164/02
Thank you for your purchase!!!
In the unlikely event that this product has missing or damaged parts, please fill in the form below and send
it to the address above, fax it to 01978 661848, or e-mail it to [email protected].
The phone line is available for advice on assembly and is open between
8am and 5pm Monday to Thursday, 0844 880 6770.
Please tick either damaged or missing box and enter the quantity required. Thank you
SAFETY INFORMATION: This product complies with BS7449:1991
If this product contains glass it will be one of the following:
1. 4mm thick toughened glass door panel that comply with BS6206 class C.
2. 3mm thick mirrored annealed glass door panel that is safety - film backed.
3. 3mm thick mirrored annealed glass fixed to a door panel that is not required to comply with BS6206 class C
If a glass component is chipped or broken, replace with glass of the type described as above. Consult the manufacturer, retailer or agent
with regard to obtaining a manufacturing specification and shape for replacement glass quoting the model number as above .
WARNINGS:
(1). This product could be dangerous if incorrectly assembled.
(2). Assembly is only to be carried out be a competent person.
(3). It is essential that this product is fixed to a wall with fixings provided.
(4). Check the suitability of the wall and to check that the fastening devices will withstand the forces generated.
(5). Do not place very hot or very cold items against or in close proximity to glass surfaces unless an adequately thick insulating material is used to
prevent such items from coming into contact with glass.
(6). Do not sit or stand on horizontal glass surfaces.
(7). Do not strike the glass with hard or pointed items.
(8). When cleaning the glass panels or mirrors, use a damp cloth or leather with washing up liquid or soft soap, if necessary; do not use washing
powders or any other substances containing abrasives since these substances scratch glass.
Your details:
Name: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Address: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Postcode: _ _ _ _ _ _ _ _ _
Day Tel: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Eve Tel: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
e-mail: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date of purchase: _ _ _ _ _ _ Batch number: _ _ _ _ _ _ _ Stock Code : _ _ _ _ _ _ _ _
Catalogue no: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Colour: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
From which catalogue did you purchase this item: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
All the fields marked with * are essential to process your request correctly.
*
*
*
*
**
*
*
Code Product Quantity
Missing Quantity
8X30mm Wooden Dowels
5 X 8mm Euro Screw
K145
K144
M4 X 9mm Pan Head
B054
T256
S070
L077
R112
V022
U108
X019
Top
Base
Left Hand Side
Right Hand Side
Chest Top
Left Divider
Right Divider
Back Rail
Missing Damaged
Code
K30
K65
K58
K24
K16
K302
K59
K279
K143
K51
K46
K344
Product
50mm Hex Head Screws
3mm Allen Key
Panel Pin
15mm Screw
Metal Dowel
Metal Cam
Metal Door Stop
658mm Hanging Rail
Metal Drawer Runners
Angle Bracket
Hanging Rail Socket
Damaged
K25 Glue Bag
Assembly Guide
96mm Handle
KA9164/02
NOTE: PLEASE ALLOW 14 WORKING DAYS FOR DELIVERY OF REPLACEMENT PARTS
D209 Mirror Door
C001 Drawer Bottom
W008
F005
Drawer Wraps
Drawer Front
X018 Long Plinth
S068 Shelf
C226 Large Back
C323 Small Back
288mm Handle
K312
K309
Full cranked slide on hinge plate
Full cranked slide on hinge
K350
K343
▼ ASSEMBLED ▲
KA9164/02 PAGE 12 OF 12
