PRO LINE®FRONT-LOADING
ELECTRIC DRYER
Use & Care Guide
For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230
or visit our website at...
www.kitchenaid.com
Table of Contents............................................................................................................2
3957654

2
TABLE OF CONTENTS
DRYER SAFETY..............................................................................3
INSTALLATION INSTRUCTIONS..................................................4
Tools and Parts ............................................................................4
Options.........................................................................................4
Location Requirements................................................................5
Electrical Requirements ...............................................................6
Make Electrical Connection .........................................................8
Venting Requirements................................................................13
Plan Vent System.......................................................................14
Install Vent System.....................................................................15
Connect Vent..............................................................................15
Level Dryer .................................................................................15
Complete Installation .................................................................15
DRYER USE ..................................................................................16
Starting Your Dryer.....................................................................16
Stopping Your Dryer ..................................................................17
Pausing or Restarting.................................................................17
Control Locked...........................................................................17
Drying and Cycle Tips ................................................................17

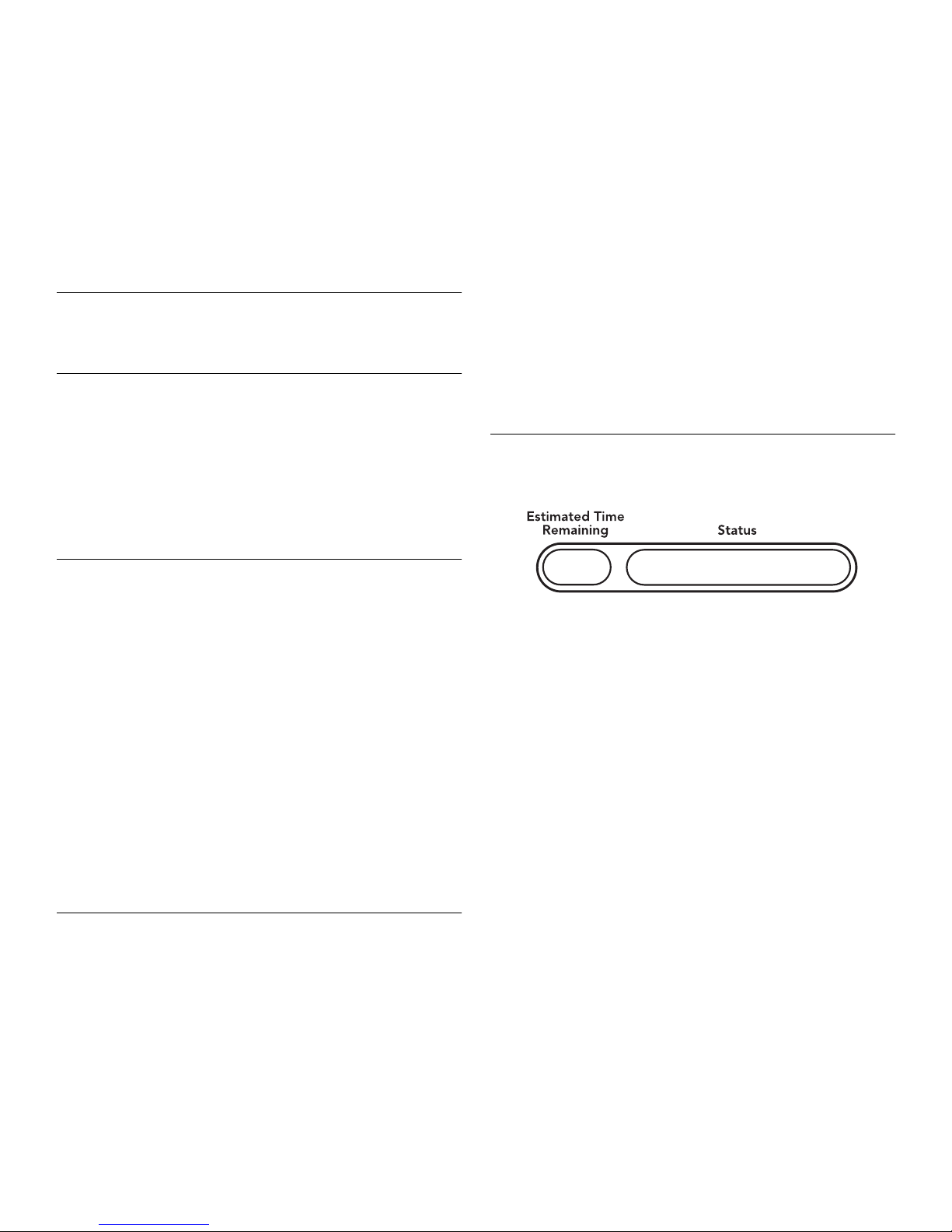

Status Display.............................................................................17
Cycles.........................................................................................18
Additional Features ....................................................................19
Temperature ...............................................................................19
Drying Rack ................................................................................19
DRYER CARE...............................................................................20
Cleaning the Dryer Location.......................................................20
Cleaning the Lint Screen............................................................20
Cleaning the Dryer Interior .........................................................21
Cleaning the Dryer Exterior ........................................................21
Removing Accumulated Lint......................................................21
Vacation and Moving Care.........................................................21
TROUBLESHOOTING ..................................................................22
ASSISTANCE OR SERVICE.........................................................23
WARRANTY ..................................................................................24

3
DRYER SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
WARNING:
■ Read all instructions before using the dryer.
■ Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
■ Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.
■ Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
■ Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
■ Do not reach into the dryer if the drum is moving.
■ Do not repair or replace any part of the dryer or attempt
any servicing unless specifically recommended in this
Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
■ Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
■ Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
■ Clean lint screen before or after each load.
■ Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
SAVE THESE INSTRUCTIONS
■ The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
■ Do not install or store the dryer where it will be exposed
to the weather.
■ Do not tamper with controls.
■ See installation instructions for grounding requirements.

4
INSTALLATION INSTRUCTIONS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Parts Supplied
Remove parts package from dryer drum. Check that all parts
were included.
Remove Decorative Mat
Remove the optional decorative mat (included) from the top of
the dryer and set aside.
Attach Door Handle
1. Insert the 2 screws through the holes in the door.
2. Place the plastic washers onto the screws.
3. Attach the handle by hand tightening the screws, first the top
then the bottom.
4. Push the handle against the door. Using a Phillips
screwdriver, tighten the screws.
NOTE: Do not overtighten.
Parts needed
Check local codes. Check existing electrical supply and venting.
See “Electrical Requirements” and “Venting Requirements”
before purchasing parts.
■For close-clearance installations between 33" (83.8 cm) and
38" (96.5 cm), see “Plan Vent System” section for venting
requirements.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the “Assistance
or Service” section of this manual.
Options
Pedestal
Are you placing the dryer on a pedestal? You may purchase a
pedestal separately for this dryer. This pedestal will add about
11" (27.9 cm) to the height of your dryer for a total height of
approximately 53" (134.6 cm).
For a garage installation, you will need to place the pedestal at
least 7" (17.8 cm) above the floor.
Optional pedestal
To order, call the dealer from whom you purchased your dryer or
refer to the “Assistance or Service” section of this manual. Ask
for Part Number LAV2701RSS.
Door Reversal Kit
Would you like to change your dryer door swing from a right-side
opening to a left-side opening? To do so, you will need to
purchase a Door Reversal Kit.
To order, call the dealer from whom you purchased your dryer or
refer to the “Assistance or Service” section of this manual. Ask
for Part Number 8182652.
■Flat-blade screwdriver
■#3 Phillips screwdriver
■⁹⁄₁₆" (14 mm) open-end
wrench (for adjusting dryer
feet)
■Level
■Wire stripper (direct wire
installations)
■Vent clamps
■Caulking gun and
compound (for installing
new exhaust vent)
■Tin snips (new vent
installations)
■¼" nut driver
(recommended)
■Tape measure
■Wood block (for adjusting
dryer feet)
A. Door handle
B. Plastic washers (2)
C. Screws (2)
A
C
B
38"
(96.5 cm)

5
Location Requirements
You will need
■A location that allows for proper exhaust installation. See
“Venting Requirements.”
■A separate 30 amp circuit.
■If you are using a power supply cord, a grounded electrical
outlet located within 2 ft (61 cm) of either side of the dryer.
See “Electrical Requirements.”
■A sturdy floor to support the total dryer weight of 250 lbs
(113.4 kg). The combined weight of accessories, clothes
loads and companion appliances should also be considered.
■A level floor with a maximum slope of 1" (2.5 cm) under entire
dryer. Clothes may not tumble properly and automatic sensor
cycles may not operate correctly if dryer is not level.
■For a garage installation, you will need to place the dryer at
least 18" (46 cm) above the floor. If using a pedestal, you will
need an additional 7" (17.8 cm).
Do not operate your dryer at temperatures below 45ºF (7ºC). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. This can result in longer drying times.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes or
sleeping quarters. Contact your local building inspector.
Installation spacing
The following spacing dimensions are recommended for this
dryer. This dryer has been tested for spacing of 0" (0 cm)
clearance on the sides, front and rear. Recommended spacing
should be considered for the following reasons:
■The location must be large enough to allow the dryer door to
open fully.
■Additional spacing should be considered for ease of
installation and servicing.
■Additional clearances might be required for wall, door and
floor moldings.
■Additional spacing should be considered on all sides of the
dryer to reduce noise transfer.
■Companion appliance spacing should also be considered.
NOTE: This dryer cannot be stacked on the washer.
Dryer Dimensions
*Includes the door handle.
**Includes the feet extended 1" (2.5 cm). The optional decorative
mat (included) will add approximately ½" (1.3 cm) to the height.
NOTE: Most installations require a minimum 5" (12.7 cm)
clearance behind the dryer for the exhaust vent with elbow.
See “Venting Requirements.”
Recommended installation spacing for custom
undercounter installation, dryer only
Recommended installation spacing for recessed or
closet installation, with or without a pedestal
■For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
*Required spacing
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
A. Front view
B. Side view - closet or confined area
C. Closet door with vents
57"
(144.8 cm)
27"
(68.6 cm)
33"*
(83.8 cm)
42"**
(106.7 cm)
1"
(2.5 cm) 1"
(2.5 cm)
42" min.
(106.7 cm)
27"
(68.6 cm)
1"
(2.5 cm)
AB
1"
(2.5 cm)
1"
(2.5 cm)
27"
(68.6 cm)
5"
(12.7 cm)
1"
(2.5 cm) 33"
(83.8 cm)
3"*
(7.6 cm)
3"*
(7.6 cm)
48 in.
2
*
(310 cm
2
)
24 in.
2
*
(155 cm
2
)
C

6
Recommended installation spacing for cabinet
installation, with or without a pedestal
■For cabinet installation, with a door, minimum ventilation
openings in the top of the cabinet are required.
*Required spacing
Mobile home - Additional installation requirements
This dryer is suitable for mobile home installations. The
installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280).
Mobile home installations require:
■Metal exhaust system hardware, which is available for
purchase from your dealer.
■Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
Electrical Requirements
It is your responsibility
■To contact a qualified electrical installer.
■To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and ordinances.
The National Electric Code requires a 4-wire supply
connection for homes built after 1996, dryer circuits involved
in remodeling after 1996, and all mobile home installations.
A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.
■To supply the required 3 or 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt
electrical supply, if specified on the serial/rating plate) on a
separate 30-amp circuit, fused on both sides of the line. A
time-delay fuse or circuit breaker is recommended. Connect
to an individual branch circuit. Do not have a fuse in the
neutral or grounding circuit.
■Do not use an extension cord.
■If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Electrical Connection
To properly install your dryer, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■This dryer is manufactured ready to install with a 3-wire
electrical supply connection. The neutral ground wire is
permanently connected to the neutral conductor (white wire)
within the dryer. If the dryer is installed with a 4-wire electrical
supply connection, the neutral ground wire must be removed
from the external ground conductor screw (green screw), and
secured under the neutral terminal (center or white wire) of
the terminal block. When the neutral ground wire is secured
under the neutral terminal (center or white wire) of the
terminal block, the dryer cabinet is isolated from the neutral
conductor.
■If local codes do not permit the connection of a neutral
ground wire to the neutral wire, see “Optional 3-wire
connection” section.
■A 4-wire power supply connection must be used when the
appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the neutral
conductors.
A. Front view
B. Side view
C. Cabinet with vents
7"* (17.8 cm)
7"* (17.8 cm)
(12.7 cm) 33"
(88.8 cm) 1"
(2.5 cm)
5"
27"
(68.6 cm)
1" (2.5 cm)
(2.5 cm) 1"
ABC

7
If using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
■A UL listed 30-amp power supply cord, rated
120/240 volt minimum. The cord should be type SRD or
SRDT and be at least 4 ft (1.22 m) long. The wires that
connect to the dryer must end in ring terminals or spade
terminals with upturned ends.
■A UL listed strain relief.
If your outlet looks like this:
4-wire receptacle (14-30R)
Then choose a 4-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 4-wire power supply
cord, at least 4 ft (1.22 m) long, must have four 10-gauge copper
wires and match a 4-wire receptacle of NEMA Type
14-30R. The ground wire (ground conductor) may be either green
or bare. The neutral conductor must be identified by a white
cover.
If your outlet looks like this:
3-wire receptacle (10-30R)
Then choose a 3-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 3-wire power supply
cord, at least 4 ft (1.22 m) long, must have three 10-gauge copper
wires and match a 3-wire receptacle of NEMA Type 10-30R.
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire)
and be:
■Flexible armored cable or nonmetallic sheathed copper cable
(with ground wire), protected with flexible metallic conduit. All
current-carrying wires must be insulated.
■10-gauge solid copper wire (do not use aluminum).
■At least 5 ft (1.52 m) long.
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■
For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
■
For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.

8
Make Electrical Connection
Power Supply Cord Direct Wire
1. Disconnect power.
2. Position the dryer so that the rear of the dryer is within 4 ft
(1.2 m) of its final location.
3. Remove the hold-down screws and terminal block cover.
4. Install strain relief.
Style 1: Power supply cord strain relief
■Remove the screws from a ³⁄₄" (1.9 cm) UL listed strain
relief (UL marking on strain relief). Put the tabs of the two
clamp sections into the hole below the terminal block
opening so that one tab is pointing toward you and the
other is pointing away from you, and hold in place.
Tighten strain relief screws just enough to hold the two
clamp sections together.
WARNING
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
WARNING
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
A. Neutral ground wire
B. External ground conductor screw
C. Center, silver-colored terminal block screw
D. Terminal block cover and hold-down screws
WARNING
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
D
B
C
A
A. Strain relief tab pointing up
B. Hole below terminal block opening
C. Clamp section
D. Strain relief tab pointing down
A
B
C
D

9
■Put power supply cord through the strain relief. Be sure
that the wire insulation on the power supply cord is inside
the strain relief. The strain relief should have a tight fit with
the dryer cabinet and be in a horizontal position. Do not
further tighten strain relief screws at this point.
Style 2: Direct wire strain relief
■Unscrew the removable conduit connector and any
screws from a ³⁄₄" (1.9 cm) UL listed strain relief (UL
marking on strain relief). Put the threaded section of the
strain relief through the hole below the terminal block
opening. Reaching inside the terminal block opening,
screw the removable conduit connector onto the strain
relief threads.
■Put direct wire cable through the strain relief. The strain
relief should have a tight fit with the dryer cabinet and be
in a horizontal position. Tighten strain relief screw against
the direct wire cable.
5. Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
Electrical Connection Options
*If local codes do not permit the connection of a cabinet-ground
conductor to the neutral wire, go to “Optional 3-wire
connection” section.
4-wire connection: Power supply cord
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
A. Removable conduit connector
B. Hole below terminal block opening
C. Strain relief threads
A
B
C
If your home has: And you will be
connecting to: Go to Section
4-wire receptacle
(NEMA Type 14-30R) A UL listed, 120/ 240 volt
minimum,
30-amp, dryer
power supply
cord*
4-wire connection:
Power supply cord
4-wire direct A fused
disconnect or
circuit breaker
box*
4-wire connection:
Direct Wire
3-wire receptacle
(NEMA type 10-30R) A UL listed, 120/ 240 volt
minimum,
30-amp, dryer
power supply
cord*
3-wire connection:
Power supply cord
3-wire direct A fused
disconnect or
circuit breaker
box*
3-wire connection:
Direct Wire
A. 4-wire receptacle (NEMA type 14-30R)
B. 4-prong plug
C. Ground prong
D. Neutral prong
E. Spade terminals with upturned ends
F. ¾" (1.9 cm) UL listed strain relief
G. Ring terminals
(12.7 cm)
5"
(8.9 cm)
3¹⁄₂"
ABF
E
G
D
C

10
1. Remove center silver-colored terminal block screw.
2. Remove neutral ground wire from external ground conductor
screw. Connect neutral ground wire and the neutral wire
(white or center wire) of power supply cord under center,
silver-colored terminal block screw. Tighten screw.
3. Connect ground wire (green or bare) of power supply cord to
external ground conductor screw. Tighten screw.
4. Connect the other wires to outer terminal block screws.
Tighten screws.
5. Tighten strain relief screws.
6. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
7. You have completed your electrical connection. Now go to
“Venting Requirements.”
4-wire connection: Direct wire
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5" (12.7 cm) of outer covering from end of cable, leaving
bare ground wire at 5" (12.7 cm). Cut 1¹⁄₂" (3.8 cm) from
3 remaining wires. Strip insulation back 1" (2.5 cm). Shape ends
of wires into a hook shape.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw, as shown.
1. Remove center silver-colored terminal block screw.
2. Remove neutral ground wire from external ground conductor
screw. Connect neutral ground wire and place the hooked
end (hook facing right) of the neutral wire (white or center
wire) of direct wire cable under the center screw of the
terminal block. Squeeze hooked ends together. Tighten
screw.
A. External ground conductor screw - Dotted line shows
position of NEUTRAL ground wire before being moved to
center silver-colored terminal block screw
B. Neutral ground wire
C. Center silver-colored terminal block screw
D. Neutral wire (white or center wire)
E. ¾" (1.9 cm) UL listed strain relief
A. External ground conductor screw
B. Ground wire (green or bare) of power supply cord
C. Neutral ground wire
D. Center silver-colored terminal block screw
E. Neutral wire (white or center wire)
F.
³⁄₄ " (1.9 cm) UL listed strain relief
A
B
C
D
E
A
B
C
D
E
F
A. External ground conductor screw - Dotted line shows
position of NEUTRAL ground wire before being moved to
center silver-colored terminal block screw
B. Neutral ground wire
C. Center silver-colored terminal block screw
D. Neutral wire (white or center wire)
E. ¾" (1.9 cm) UL listed strain relief
A
B
C
D
E
