KitchenAid KBMS1454S Series User manual

BUILT-IN MICROWAVE OVEN
INSTALLATION INSTRUCTIONS
24" (61.0 cm), 27" (68.6 cm), 30" (76.2 cm)
BUILT-IN MICROWAVE OVEN SAFETY
This product is suitable for use above electric or gas built-in ovens, and below non-vented electric or gas cooktops. This product is not
suitable for use below downdraft cooktops.
These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustrations in
these Installation Instructions.
Table of Contents
BUILT-IN MICROWAVE OVEN SAFETY.......................................... 1
INSTALLATION REQUIREMENTS ................................................... 2
Tools and Parts............................................................................... 2
Location Requirements................................................................... 2
Minimum Dimensions ..................................................................... 3
Product Dimensions ....................................................................... 4
Electrical Requirements.................................................................. 5
INSTALLATION INSTRUCTIONS ..................................................... 6
Install the Microwave Oven
(24" [61.0 cm] Installation Only)...................................................... 6
Install the Microwave Oven
(27" [68.6 cm] or 30" [76.2 cm] Installation Only)........................... 7
Complete Installation ...................................................................... 8
ASSISTANCE ..................................................................................... 8
W10111676
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

2
INSTALLATION REQUIREMENTS
Tools and Parts
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
Parts Supplied
All of the following parts are provided, but not all parts will be
used. The cutout opening size will determine which parts you will
use. See chart below parts list to see which parts are used for
each installation.
*Extension plate (B) will have to be removed from side bracket (A)
for this installation.
Location Requirements
The microwave oven may be located in a cabinet, and/or above a
built-in oven, or below the counter and/or below a non-vented
cooktop. Check the opening where the microwave oven will be
installed. The location must provide:
■Wood cabinetry.
■Cutout opening that is plumb and square. See “Minimum
Cutout Dimensions” in “Minimum Dimensions” section.
■Cutout floor that is solid, level and flush with bottom of
cabinet cutout.
■Support for weight of at least 150 lbs (68 kg), which includes
microwave oven and items placed inside.
■Grounded electrical outlet. See “Electrical Requirements”
section.
■Minimum installation clearances for installation location. See
“Minimum Dimensions” section.
We recommend:
■Complete enclosure around the recessed portion of the
microwave oven.
■Measuring tape
■Pencil
■T10 TORX®† screwdriver
■Electric drill
■5/64" (2 mm) drill bit
A. Side brackets (2)
B. Removable extension plates
(shaded piece, 2)
C. 1" T-10 screws (6)
D. Narrow side trim panels (2)
E. Wide side trim panels (2)
INSTALLATION PARTS USED
24" (61.0 cm) installation C
27" (68.6 cm) installation* A, C, D
30" (76.2 cm) installation A, B, C, E
A
B
C
DE
†®TORX is a registered trademark of Textron Innovations Inc.

3
Minimum Dimensions
Minimum Installation Clearances
For proper installation, the following minimum clearances must exist above and below the cutout opening.
NOTE: The bottom of the cooktop may be sunk into the counter and lower cabinet. The minimum 3" (7.6 cm) clearance must exist
below the lowest point of the cooktop, and there must be no interference between any part of the cooktop (including any gas fittings)
and the microwave oven.
Above Cabinet/Storage Drawer Installation Above Oven/Warming Drawer Installation
Below Counter Installation Below Built-in Cooktop Installation
A. Upper cabinet
B. Lower cabinet or storage drawer
C. Lower oven or warming drawer
D. Built-in cooktop (non-vented)
E. Storage drawer
F. Toe kick
1"
(2.5 cm)
1¹⁄₂"
(3.8 cm)
1"
(2.5 cm)
3"
(7.6 cm)
A
B
C
1¹⁄₂"
(3.8 cm)
1¹⁄₂"
(3.8 cm)
1"
(2.5 cm)
3"
(7.6 cm)
D
E
F
See note
below.

4

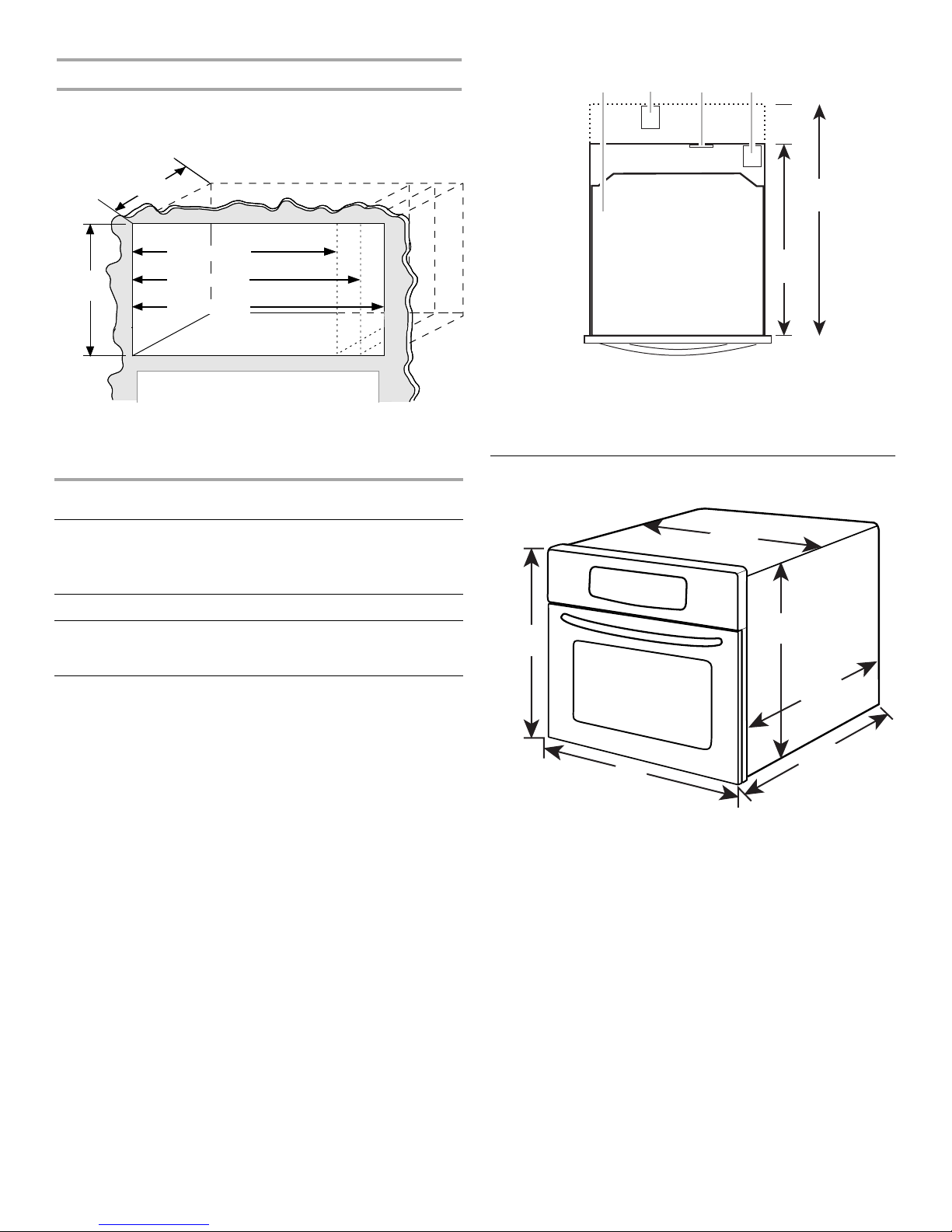

Minimum Cutout Dimensions
NOTE: Depth dimension may be 21³⁄₄" (55.2 cm) with non-flush
receptacle only if the receptacle is located in upper right or upper
left corner. See “Cutout Top View.”
*With flush receptacle, or with non-flush receptacle located in
upper right or upper left corner of cutout.
**With non-flush receptacle.
Cutout Top View
Product Dimensions
*Measurements include front facing of microwave oven. Depth
measurement also includes door handle.
DIM. 24" (61.0 CM)
INSTALLATION 27" (68.6 CM) INSTALLATION 30" (76.2 CM) INSTALLATION
Width 22¹⁄₄" (56.5 cm)
± 3/16" (4.8 mm) 25³⁄₄" (65.4 cm) ± 3/16" (4.8 mm) Min. 25³⁄₄" (65.4 cm)
Max. 28³⁄₄"
(73.0 cm)
Height 17⁵⁄₈" (44.8 cm) for all installations
Depth 21³⁄₄" (55.2 cm) with flush receptacle, or with non-flush
receptacle located in far corner;
26¹⁄₄" (66.7 cm) with non-flush receptacle
WidthWidth
17⁵⁄₈"
(44.8 cm)
21³⁄₄" (55.2 cm)*
26¹⁄₄" (66.7 cm)**
22¹⁄₄" (56.5 cm)
25³⁄₄" (65.4 cm)
28³⁄₄" (73.0 cm)
A. Microwave oven
B. Non-flush receptacle
C. Flush receptacle
D. Non-flush receptacle located in upper right
or upper left corner
21³⁄₄"
(55.2 cm)
26¹⁄₄"
(66.7 cm)
A B C D
21⁷⁄₈"
(55.6 cm)
17¹⁄₂"
(44.5 cm)
18¹⁄₄"
(46.4 cm)
21¹⁄₄"
(54.0 cm)*
23³⁄₄"
(60.3 cm)*
18"
(45.7 cm)*

5
Electrical Requirements
Observe all governing codes and ordinances.
Required:
■A 120 Volt, 60 Hz, AC only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
■A time-delay fuse or time-delay circuit breaker.
■A separate circuit serving only this microwave oven.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.

6
INSTALLATION INSTRUCTIONS
Install the Microwave Oven
(24" [61.0 cm] Installation Only)
NOTE: For this microwave oven, the door handle may be used for
lifting. Do not use any other portion of the control panel, side
brackets, front frame or trim for lifting.
1. Empty microwave oven of any loose items.
2. Using 2 or more people, slide the microwave oven all the way
into the opening.
3. Center the microwave oven within the opening. Open the
microwave oven door.
4. Mark 4 holes (2 on each side) in the door facing frame of the
microwave oven.
5. To avoid damage to the frame while drilling during the next
step, close the door and remove the microwave oven.
6. Drill the 4 holes using 5/64" (2 mm) drill.
7. With the microwave oven near the opening, plug the
microwave oven into the grounded 3-prong outlet.
8. Replace microwave oven in cutout opening.
9. Open the microwave oven door. The holes in the door facing
frame should align with the holes just drilled into the cabinet.
Fasten the microwave oven door facing to the cabinet using
four 1" T-10 screws.
10. Proceed to “Complete Installation” section.
A. Microwave oven door facing frame
B. Cabinet
C. 1" T-10 screws (4)
WARNING
Excessive Weight Hazard
Use two or more people to move and install
microwave oven.
Failure to do so can result in back or other injury.
A
B
C
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING

7
Install the Microwave Oven
(27" [68.6 cm] or 30" [76.2 cm] Installation Only)
1. Empty microwave oven of any loose contents.
2. For 30" installation, skip this step.
For 27" installation, remove the extension plate from each of
the side brackets by removing the 2 screws.
3. Loosen the middle and rear screws on each side of microwave
oven. The screws are located at the same height as the door
handle.
4. Place the side bracket over the 2 screws, fitting the screw
heads through the keyholes on the bracket. Then slide the
side bracket down so that the upper portions of the keyholes
rest on the screws.
5. Tighten screws to secure the side bracket to the microwave
oven.
6. Repeat steps 4 and 5 on the other side of the microwave
oven.
7. With the microwave oven near the opening, plug the
microwave oven into the grounded 3 prong outlet.
8. Using 2 or more people, slide microwave oven all the way into
the opening, and center the microwave oven within the
opening.
NOTE: The screw holes on the winged ends of both side brackets
(or extension plates for 30" installation) must be fully over the
wood of the wall or cabinet, as shown.
9. Using 5/64" (2 mm) drill, drill pilot holes into the cabinet
through the screw holes on the side brackets (or extension
plates for 30" installation).
10. Install two 1" T-10 screws in the pilot holes to secure the
microwave oven in place.
NOTE: To ensure proper side trim panel fitting, do not overtighten
screws.
11. Open microwave oven door.
A. Side bracket
B. Existing screws (middle and rear)
C. Proper side bracket attachment
WARNING
Excessive Weight Hazard
Use two or more people to move and install
microwave oven.
Failure to do so can result in back or other injury.
A
B
C
A. Door front facing
B. Screw hole for cabinet attachment
C. Cabinet front
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A B
C

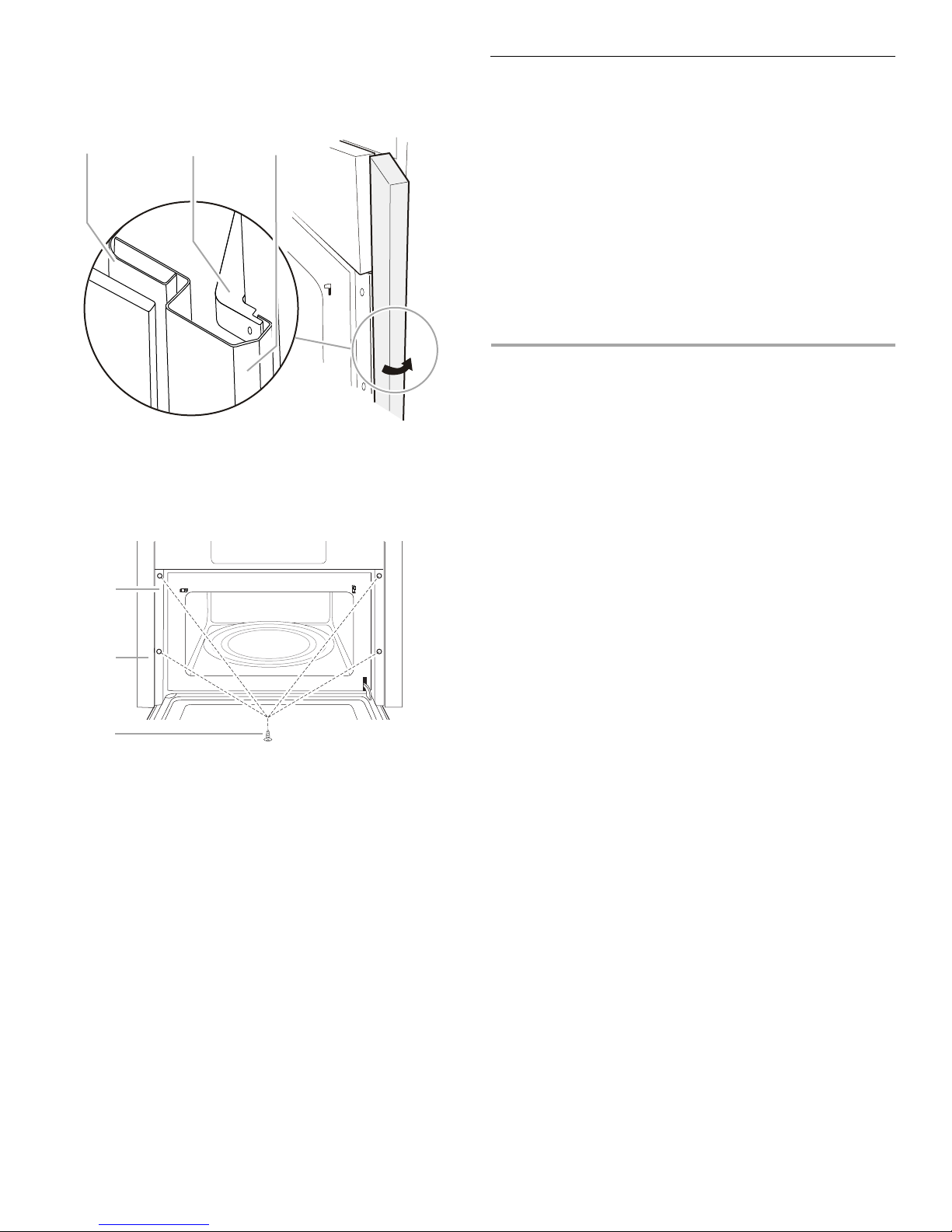

12. Position the tabular portion of the side trim panel behind the
door facing frame, then firmly push the outside edge of the
trim behind the side bracket, as shown.
Exploded View of Panel Placement
13. Attach the side trim panel to the door facing frame using two
1" T-10 screws.
14. Repeat steps 12 and 13 on other side.
Complete Installation
1. Install the turntable in the microwave oven.
2. Check the operation of microwave oven by placing 1 cup
(250 mL) of water on the turntable and programming cook
time of 1 minute at 100% power.
3. If the microwave oven does not operate:
■Check that a household fuse has not blown, or a circuit
breaker tripped. Replace the fuse or reset the circuit
breaker. If the problem continues, call an electrician.
■Check that the power supply cord is plugged into a
grounded 3 prong outlet.
■See the Use and Care Guide for troubleshooting
information.
Installation is now complete.
Save these Installation Instructions for future use.
ASSISTANCE
Call your authorized dealer or service center. When you call, you
will need the microwave oven model number and serial number.
Both numbers can be found on the model and serial number
plate, which is located behind the microwave oven door on the
front frame of the microwave oven.
If you need additional assistance, call us at our toll free number or
visit our website listed in the Use and Care Guide.
A. Door facing frame
B. Side bracket
C. Side trim panel in place
A. Door facing frame
B. Trim panel
C. 1" T-10 screws (4)
A B C
A
B
C
W10111676
© 2006.
All rights reserved.
461969458071
11/06
Printed in Sweden
