Cabinet Side View
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 19
¹⁄₄ " (48.9 cm) bottom of
cutout to floor
D. 25
¹⁄₂ " (64.8 cm) cutout width
E. 1
¹⁄₂
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 4 1
¹⁄₄ " (104.8 cm) cutout height
30" (76.2 cm) models
A.
30 " (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 19
¹⁄₄ " (48.9 cm) bottom of
cutout to floor
D. 28
¹⁄₂ " (72.4 cm) cutout width
E. 1
¹⁄₂
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 4 1
¹⁄₄ " (104.8 cm) cutout height
A. 23
¹⁄₄ " (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
A
B
C
D
E
F
A
B
C
D
E

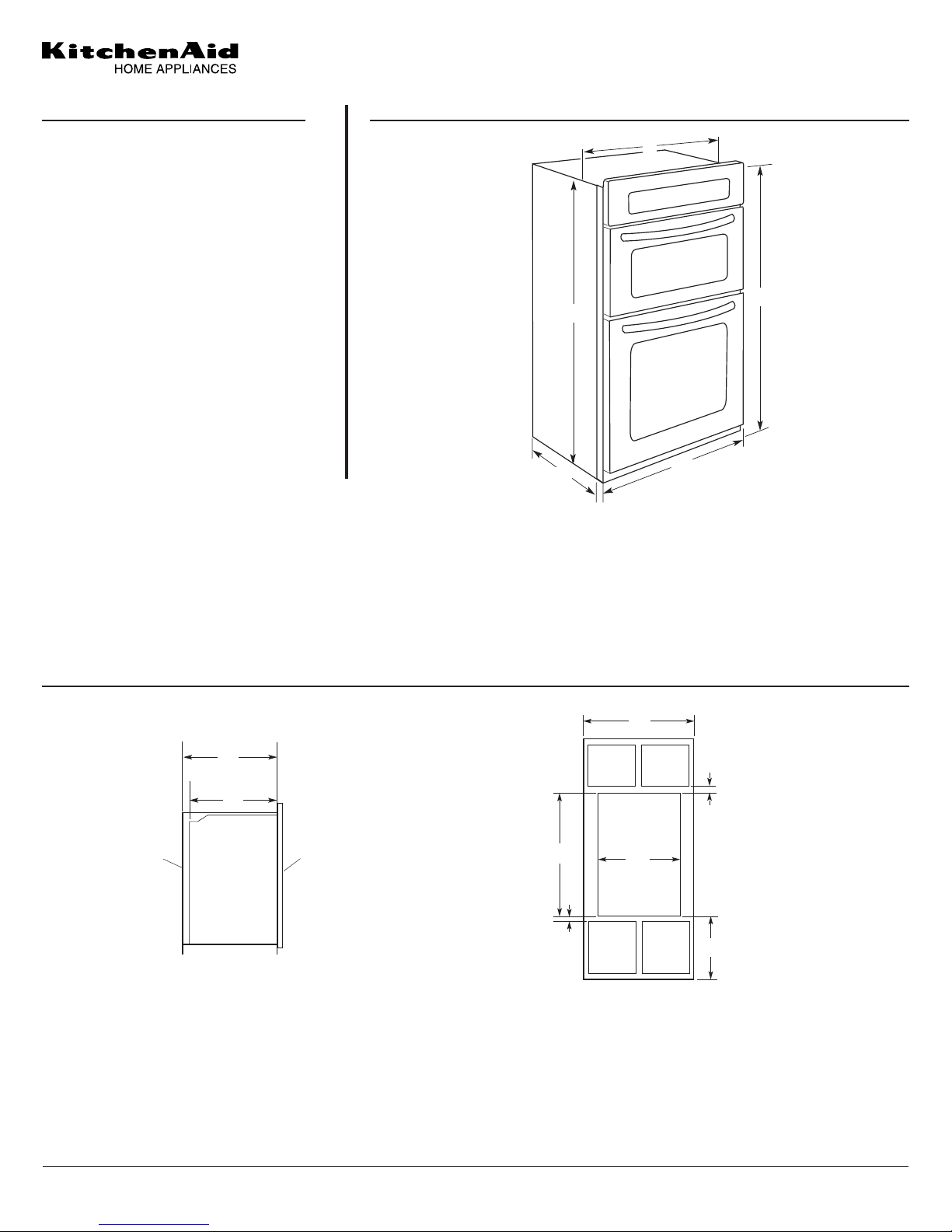

PRODUCT MODEL SERIES OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
KEMS308S
KEMS378S
Electrical: Oven must be connected to the
proper electrical voltage and frequency as
specified on the model/serial number rating plate.
(The model/serial number rating plate is located on
the oven door or on the oven frame.) Models rated
from 7.3 to 9.6 kW at 240 volts (5.5 to 7.2 kW at
208 volts) require a separate 40-amp circuit.
Models rated at 7.2 kW and below at 240 volts
(5.4 kW and below at 208 volts) require a separate
30-amp circuit.
A time-delay fuse or circuit breaker is
recommended. Connect directly to the fused
disconnect (or circuit breaker box) through
flexible, armored or nonmetallic sheathed, copper
cable (with grounding wire).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8304337A
04-27-07
27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN
MICROWAVE/OVEN COMBINATION
®
27" (68.6 cm) models
A. 25
⁵⁄₁₆ " (64.3 cm) recessed width
B.
42⁵⁄₁₆ " (107.5 cm) overall height
C. 26
³⁄₄
" (67.9 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 40
³⁄₄ " (103.5 cm) recessed
height
30" (76.2 cm) models
A. 28
⁵⁄₁₆ " (71.9 cm) recessed width
B.
42⁵⁄₁₆ " (107.5 cm) overall height
C. 29
³⁄₄
" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 40
³⁄₄ " (103.5 cm) recessed
height
A
B
D
E
C
